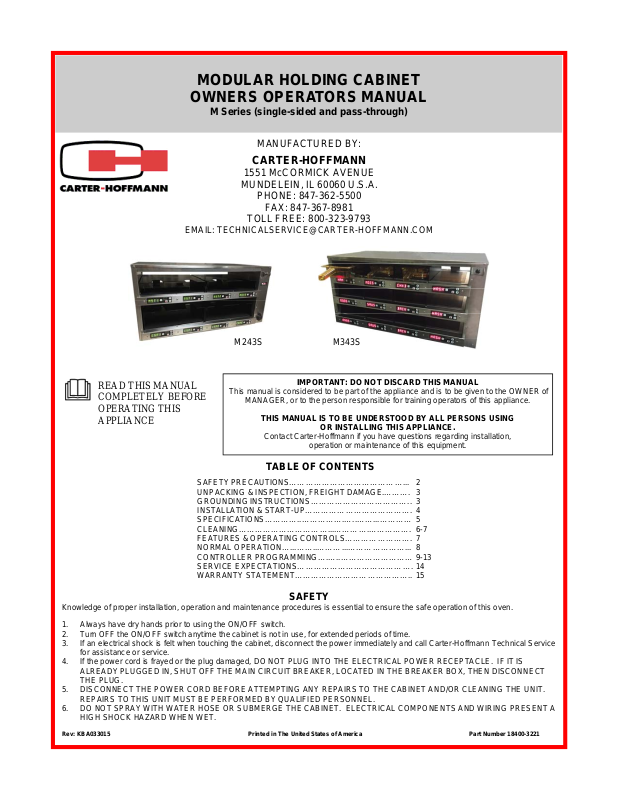

Carter Hoffmann M212S Installation Manual

MODULAR HOLDING CABINET

OWNERS OPERATORS MANUAL

M Series (single-sided and pass-through)

EMAIL: [e-mail]

READ THIS MANUAL
COMPLETELY BEFORE
OPERATING THIS
APPLIANCE

MANUFACTURED BY:

CARTER-HOFFMANN

1551 McCORMICK AVENUE

MUNDELEIN, IL 60060 U.S.A.

PHONE: [phone]

FAX: [phone]

TOLL FREE: 800-323-9793

M243S

IMPORTANT: DO NOT DISCARD THIS MANUAL

This manual is considered to be part of the appliance and is to be given to the OWNER of

MANAGER, or to the person responsible for training operators of this appliance.

THIS MANUAL IS TO BE UNDERSTOOD BY ALL PERSONS USING

Contact Carter-Hoffmann if you have questions regarding installation,

M343S

OR INSTALLING THIS APPLIANCE.

operation or maintenance of this equipment.

SAFETY PRECAUTIONS……………………………………... 2
UNPACKING & INSPECTION, FREIGHT DAMAGE.………. 3
GROUNDING INSTRUCTIONS……………………………….. 3
INSTALLATION & START-UP…………………………………. 4
SPECIFICATIONS…………..…………….…..……...………… 5
CLEANING……………………………...………….……………. 6-7

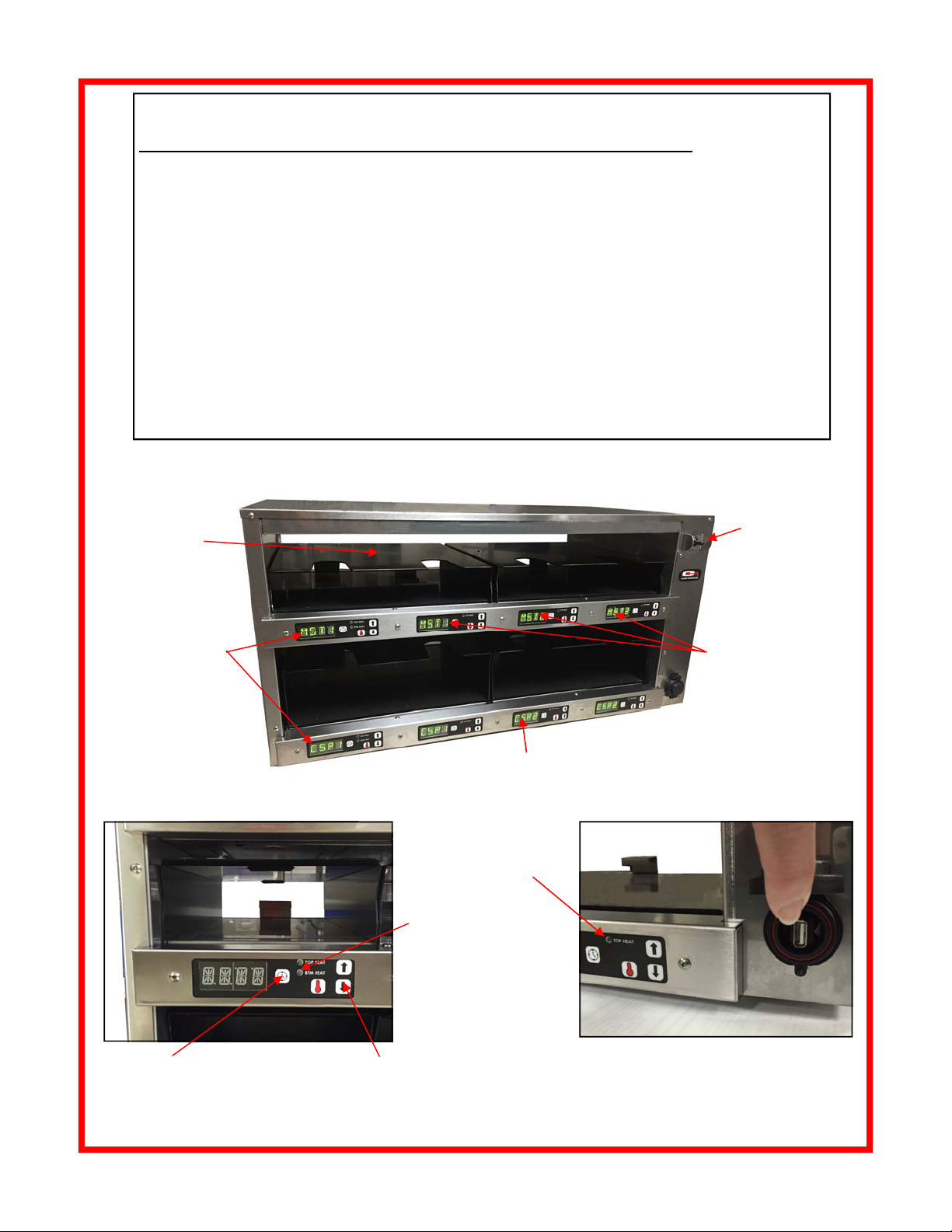

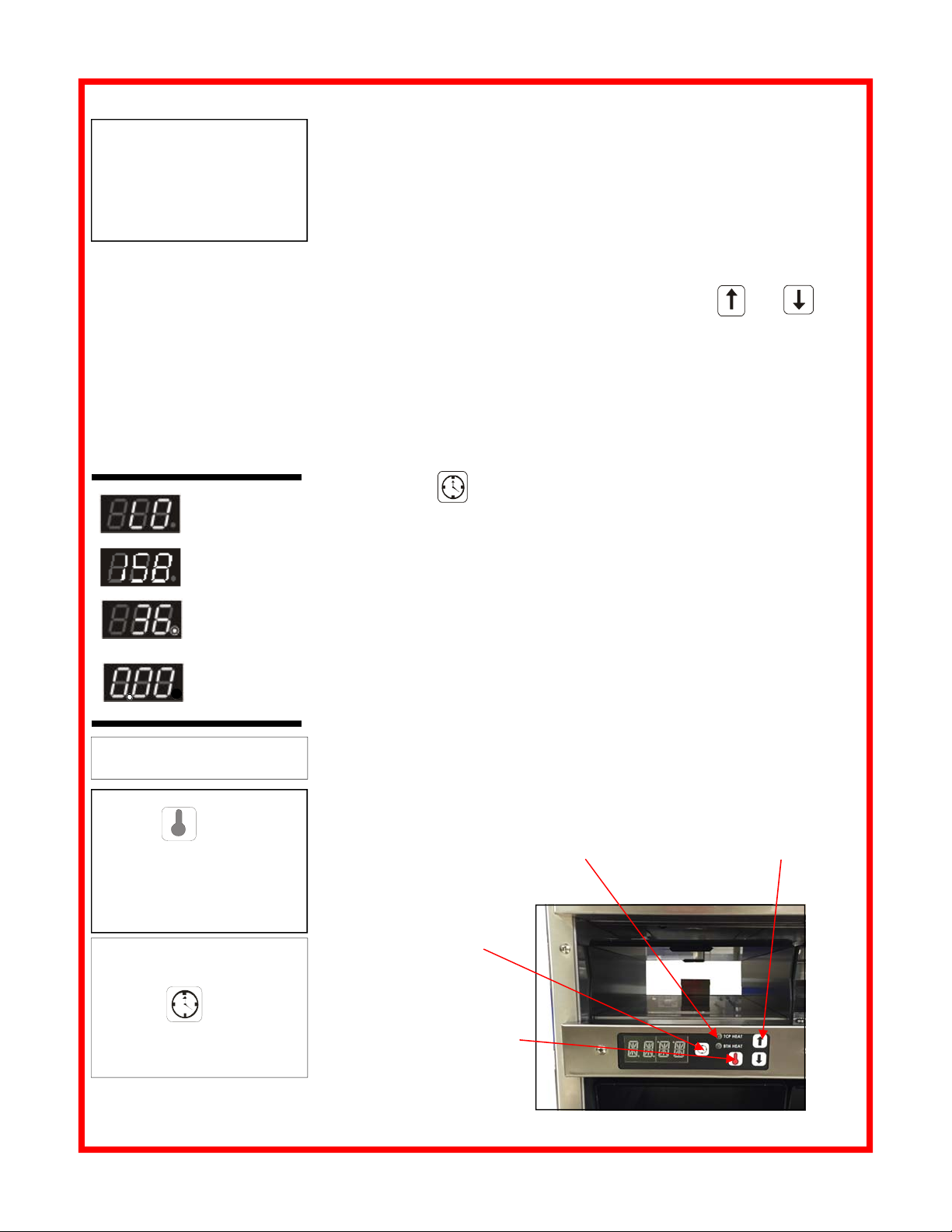

FEATURES & OPERATING CONTROLS……………………. 7
NORMAL OPERATION…...……..………...…………………... 8

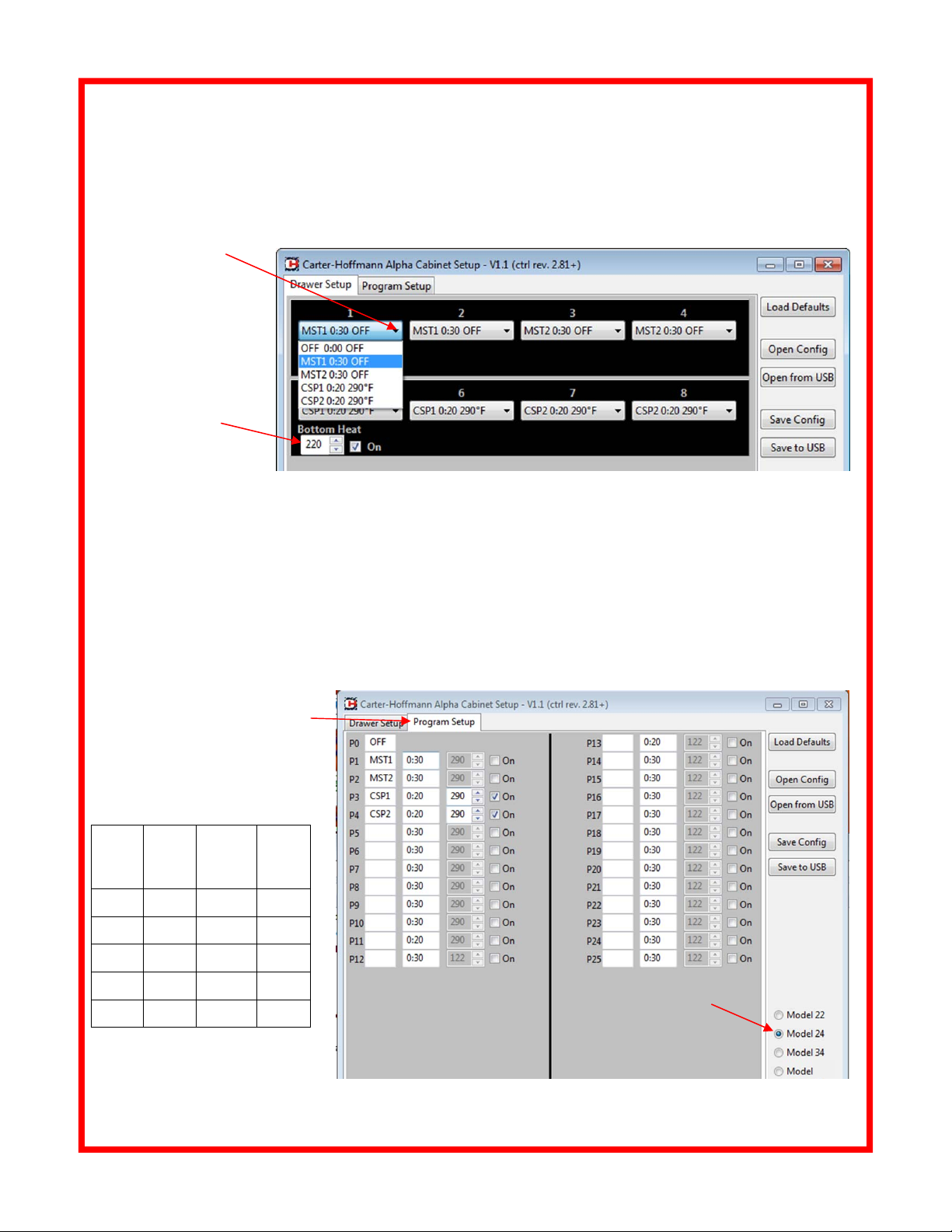

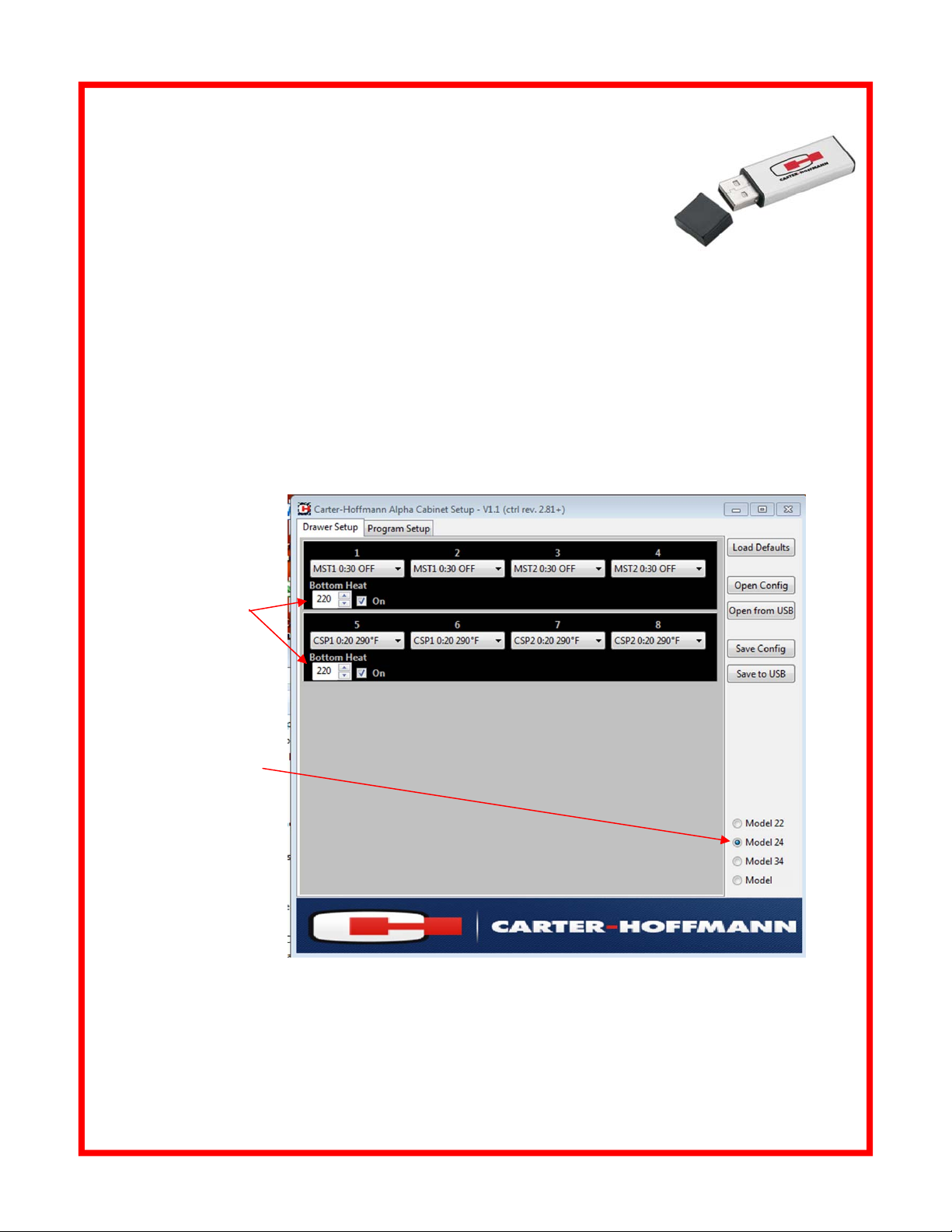

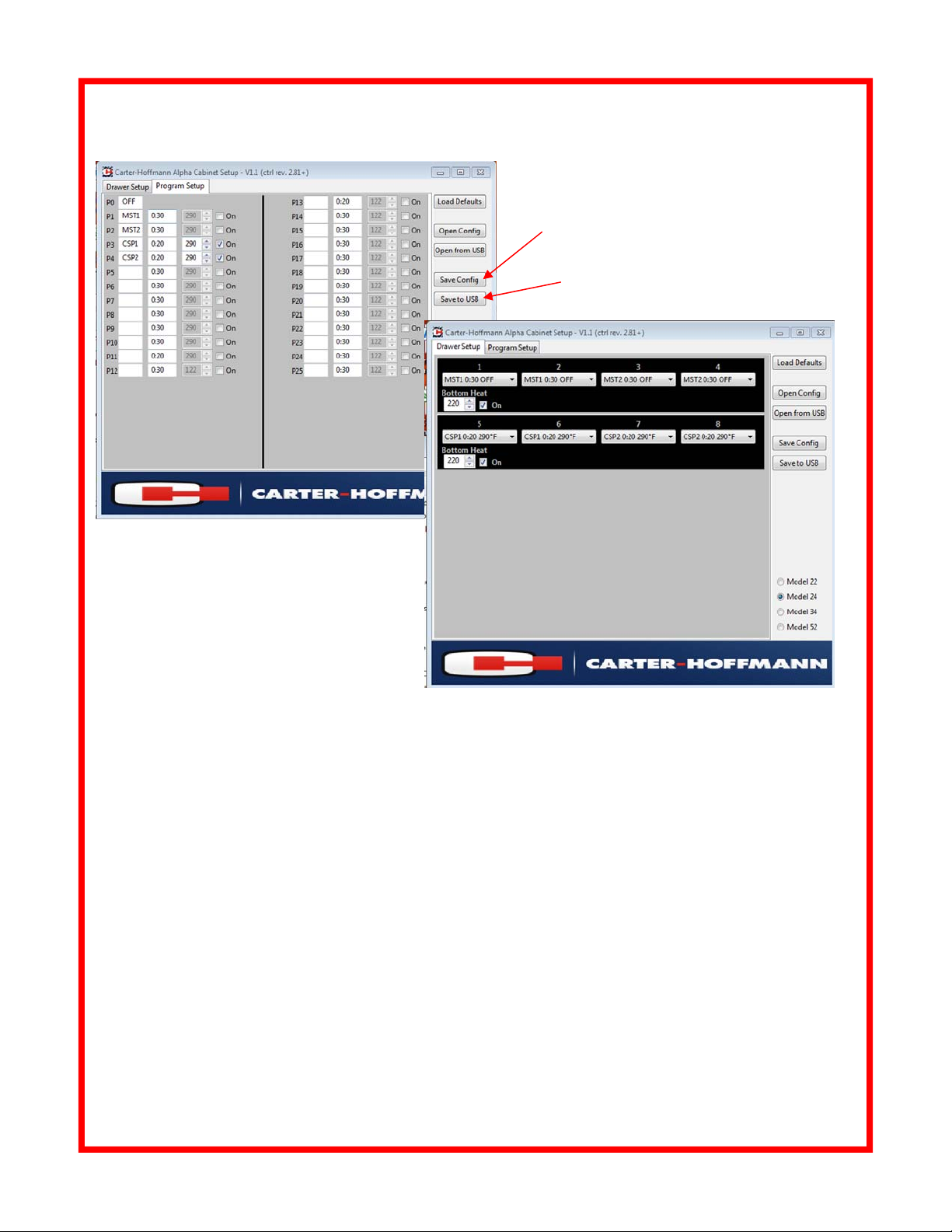

CONTROLLER PROGRAMMING….…..……………………… 9-13
SERVICE EXPECTATIONS……………………………………. 14
WARRANTY STATEMENT…………………………………….. 15

TABLE OF CONTENTS

SAFETY

Knowledge of proper installation, operation and maintenance procedures is essential to ensure the safe operation of this oven.

1. Always have dry hands prior to using the ON/OFF switch.

2. Turn OFF the ON/OFF switch anytime the cabinet is not in use, for extended periods of time.

3. If an electrical shock is felt when touching the cabinet, disconnect the power immediately and call Carter-Hoffmann Technical Service
for assistance or service.

4. If the power cord is frayed or the plug damaged, DO NOT PLUG INTO THE ELECTRICAL POWER RECEPTACLE. IF IT IS
ALREADY PLUGGED IN, SHUT OFF THE MAIN CIRCUIT BREAKER, LOCATED IN THE BREAKER BOX, THEN DISCONNECT
THE PLUG.

5. DISCONNECT THE POWER CORD BEFORE ATTEMPTING ANY REPAIRS TO THE CABINET AND/OR CLEANING THE UNIT.
REPAIRS TO THIS UNIT MUST BE PERFORMED BY QUALIFIED PERSONNEL.

6. DO NOT SPRAY WITH WATER HOSE OR SUBMERGE THE CABINET. ELECTRICAL COMPONENTS AND WIRING PRESENT A
HIGH SHOCK HAZARD WHEN WET.

Rev: KBA033015 Printed in The United States of America Part Number 18400-3221

SAFETY PRECAUTIONS

WARNING: ELECTRIC SHOCK HAZARD

WARNING

When using electrical appliances basic safety precautions should be adhered to, including the following:

1) Operators of this appliance must be familiar with the appliance use, limitations and associated
restrictions. Operating instructions must be read and understood by all persons using or installing
this appliance.

2) This appliance must be grounded. Connect only to properly grounded outlet.
See “Grounding Instructions” found on page 3.

3) Use this appliance only for its intended use as described in the manual.
a. This equipment is specifically designed to hol d pre-cooked food at temperature.
b.
c. This equipment is not designed for industrial or laboratory use.

4) Cleanliness of this appliance and accessories is essential to good sanitation.

5) DO NOT submerge this appliance in water. This appliance is not jet stream approved. DO NOT direct
water jet or steam jet at this appliance, or at any control panel or wiring. DO NOT splash or pour water
on, in or over an y controls, control panel or wiring. DO NOT use corrosive chemicals or vapors in this
appliance.

6) DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has
been damaged or dropped. Do not immerse cord or plug in water, keep cord away from heated
surfaces, and do not let cord hang over edge of table or counter.

7) Only qualified service personnel should service this appliance. Contact nearest author ized service
facility for examination, repair, or adjustment.

8) DO NOT cover or block any openings on the appliance.

9) DO NOT store this appliance outdoors. DO NOT use this product near water – for example,
near a kitchen sink, in a wet basement, or near a swimming pool, and the like.

10) DO NOT use the appliance for storage. DO NOT store flammable or combustible materials in or near

the appliance. Never leave anything in a warming cavity when the appliance is not in use.

All servicing requiring access to non-insulated components must be performed by
qualified service personnel. DO NOT open any access panel that requires the use
of tools. Failure to heed this warning may result in severe electric shock.

CAUTION: ELECTRIC SHOCK HAZARD

Disconnect this appliance from electrical power before performing any
maintenance or servicing.

CAUTION: BURN HAZARD

Exposed metal surfaces can be hot to the touch and may cause burns.

IMPORTANT SAFETY INSTRUCTIONS

This equipment is intended for use in commercial establishments only.

SAVE THESE INSTRUCTIONS

2

This appliance
should be
thoroughly

cleaned prior to use.
See the CLEANING

INSTRUCTIONS on
page 6 in this manual.

NOTE: DO NOT discard
the carton or other
packing materials until
you have inspected the
appliance for hidden
damage and checked it
for proper operation.

Refer to FREIGHT

DAMAGE CLAIM
PROCEDURE on

bottom of this page.

UNPACKING AND INSPECTION

1. Remove the cabinet from shipping carton, ensuring that all packing mate­rials and protective plastic have been removed from the unit.

2. Inspect all components for completeness and condition.

- Metal pan covers. There should be six included.

- Menu programming flash drive (DO NOT DISCARD)

3. If any freight damage is prese nt, a freight claim mu st be filed immediately

with the shipping company. Freight damage is not covered under
warranty.

4. Read operation instructions completely.

5. Appliance should be thoroughly cleaned before use. See CLEANING

INSTRUCTIONS on page 6 in this manual.

NOTE: For your protection, please note that equipment in this shipment was carefully inspected and packaged by
skilled personnel before leaving the factory. Upon accept ance of this shipment, the transportation company assumes
full responsibility for its safe delivery.

IF SHIPMENT ARRIVES DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight bill or express re­ceipt, and that the note of loss or damage is signed by the delivery person.

2. FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of damage. Contact your dealer immedi-
ately.

3. CONCEALED DAMAGE: If damage is unnoticed until the merchandise is unpack ed, notify the transportation com­pany or carrier immediately, and then file a “CONCEALED DAMAGE” claim with them. This should be done within
fifteen (15) days from the date the delivery was made to you. Be sure to retain the container for inspection.

Carter-Hoffmann cannot assume liability for damage or loss incurred in transit, freight damage is not covered under

warranty. We will, however, at your request, supply you with the necessary documents to support your claim.

FREIGHT DAMAGE PROCEDURE

GROUNDING INSTRUCTIONS

This appliance is equipped with a cord having a grounding wire with a grounding plug which must be plugged into an
outlet that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current.

WARNING—Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or
service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the applianc e
is properly grounded.

3

IMPORTANT:

Front and back of cabinet
must remain clear for
access.

Maintain 2” of clearance
on each side of cabinet to
allow for adequate cooling.

NOTE: The technical con­tent of this manual, includ­ing any wiring diagrams,
schematics, parts break­down illustrations and/or
adjustment procedures, is

intended for use ONLY by
qualified technical per­sonnel.

INSTALLATION AND START-UP

1. Check for proper voltage and circuit breaker size. Cabinet requires 120
volt, single phase, 20 Amp circuit. Refer to serial tag on the cabinet for the
electrical requirements for your particular cabinet.

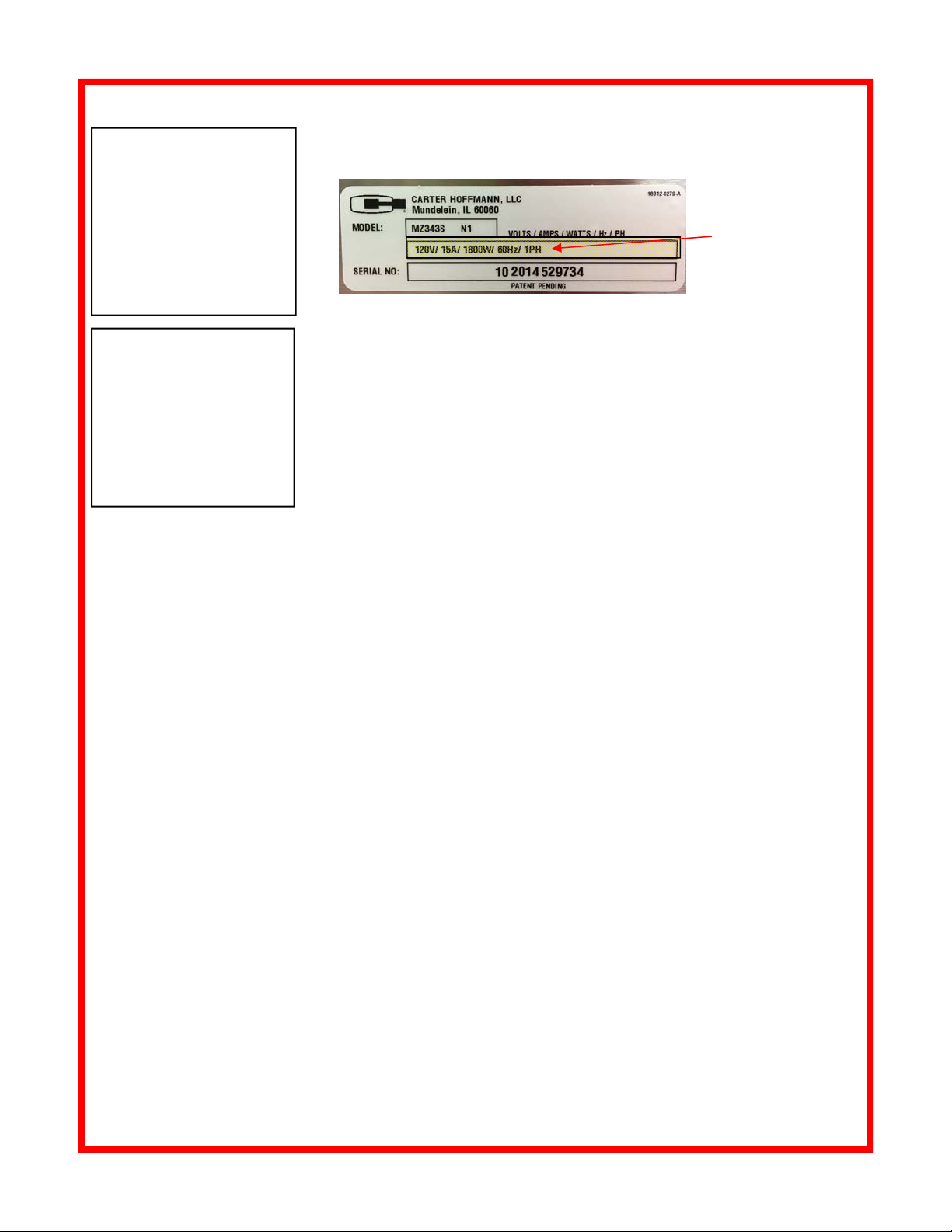

Sample serial tag
location of electrical specs

2. Ensure receptacle is correctly installed and operating safely. Requires

grounded NEMA 5-20R receptacle.

3. Position cabinet on table or counter top. Maintain 2” of clearance on each

side to allow for adequate cooling.

Location

For proper operation and maximum performance, locate the unit in an ambient
air temperature of less than 80°F (21°C).

Avoid areas near exhaust fans where there are active air movements.
For safe operation, locate the unit a reasonable distance from combustible
walls and materials.

To prevent injury and damage, locate the unit at a proper and safe working
height. The location should be level, clean of debris, and strong enough to
support the weight of a fully loaded unit.

Counter-top Mounting

To prevent electrical shock, be sure unit is unplugged from an electrical outlet.
If unit has been operated, allow unit to cool before installing. For safety
reasons, countertop must be made of a non-combustible material, clea n and
free of debris.

ELECTRICAL SPECIFICATIONS

120 volts, 60 Hz, 1200 watts, 10.0 amps, NEMA 5-20P plug. Six foot 3 wire
rubber cord with 3 prong grounding plug.

4

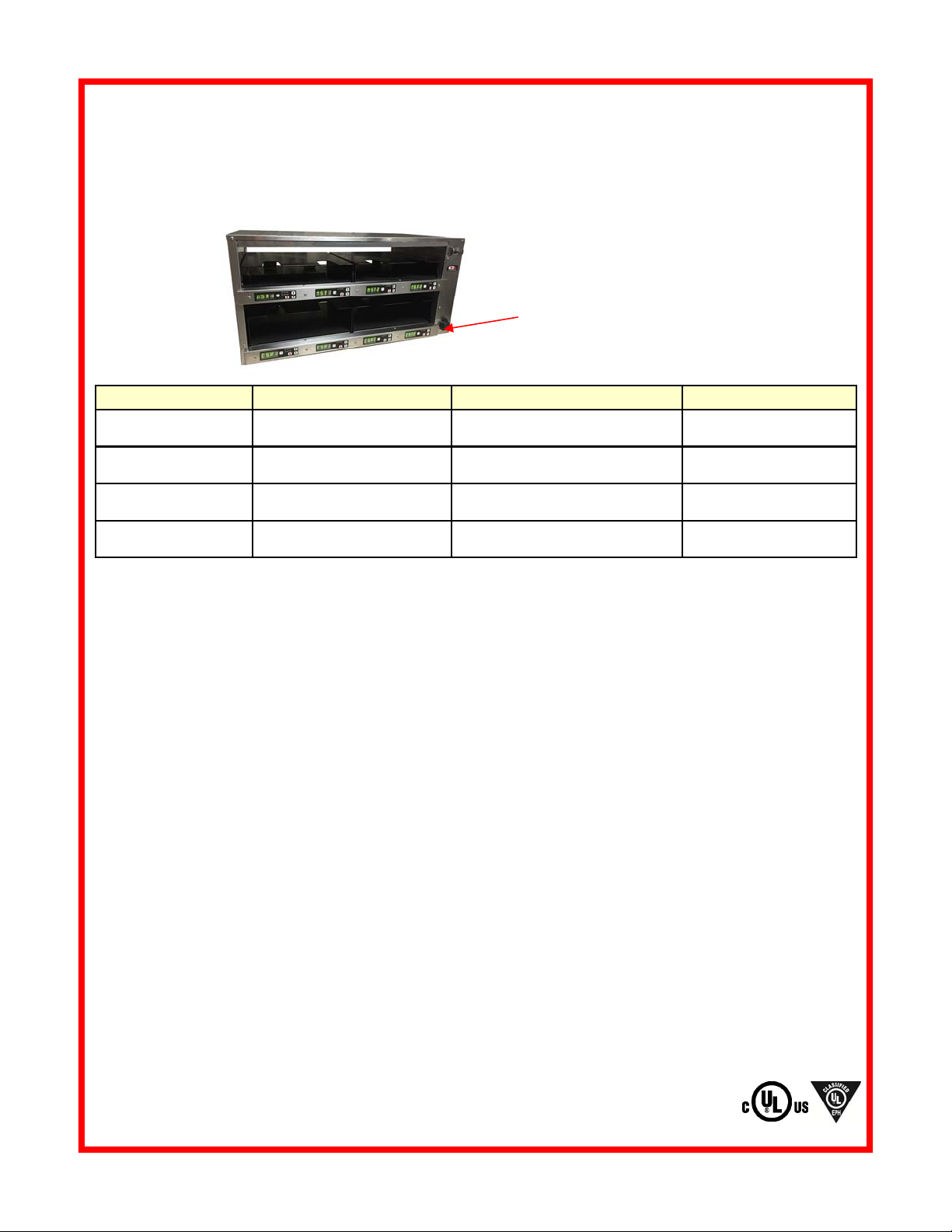

SPECIFICATIONS

INTRODUCTION

Carter-Hoffmann Modular Holding Cabinets are designed to hold pre-cooked crispy or moist food products at temperature. Holding

times and temperatures are controlled by an electronic controller and are individually programmable for each module. Timer can be set
in one minute increments up to 9 hours 59 minutes. Temperature can be set in 1ºF increments up to 225°F (107°C) for bottom heaters
and 300ºF (148°C) for top heaters. Alphanumeric displays with up to 4 characters for programming menu items.

USB Port

MODEL Description DIMENSIONS (H x W x D) PAN CAPACITY

M223S Single-sided for 2.5” deep pans; 4 slots

with removable covers

M212S Single-sided for 2.5” deep pans; 6 slots

with removable covers

M243S Single-sided for 2.5” deep pans; 8 slots

with removable covers

M343S Single-sided for 2.5” deep pans; 12 slots

with removable covers

11.5 x 18.875 x 16.438 4 ea. 1/3 size pans

11.5 x 26.125 x 16.438 6 ea. 1/3 size pans

11.5 x 33.375 x 16.438 8 ea. 1/3 size pans

16.125 x 18.875 x 16.438 8 ea. 1/3 size pans

CONSTRUCTION...All stainless steel double
wall cabinet construction. Black rubber feet.
Modular design with displays for each pan
cavity.

CABINET MATERIAL...All stainless steel;
20 gauge polished exterior. Each cavity has
a scratch-resistant lower surface with re­cessed aluminum plate. Lids are removable
for holding drier foods and cleaning.

INSULATION… Insulated heater assem­blies.

FEET… Rubber feet mounted to base of
cabinet.

INTEGRATED PAN COVERS... Built-in
removable pan covers, for moist food hold­ing. Easily removed, without tools, for clean­ing or holding uncovered food products. Pan
covers in place provide seal for pans con­taining moisture-sensitive food products.
Covers for both 2.5” and 4” deep pans. Cut­out opening for ladles.

CONTROLLER... Alpha-numeric display for
5 menu items, with digital temperature and
time display for each pan; countdown timer
and audio/visual alarm. One controller for
each pan. Controllers with independent set­tings for top and bottom heat. Program tem­perature in one degree increments up to

225°F (107°C) on the bottom heaters and
300°F (148°C) on the top heaters. Timer
can be set for up to 9 hours, 59 minutes, in 1
minute increments. Countdown will convert
to seconds when less than one minute is left.
Individual pan timers. Pass-through cabinets
also have rear displays for temperature and
time.

DATA PORT... USB Port for updating menu
setpoints. Uploading and downloading capa­bility.

HEATING SYSTEM... Silicone pad heaters
vulcanized to bottom of black hard coated
anodized aluminum plate. 75 watt top heat­ers, one for each pan, with programming
capability for temperature. M223S has 250
watt bottom heaters, one for each shelf;
M212S, M243S and M343S have 300 watt
bottom heaters, one for each shelf, with
temperature programming capability for each
shelf.

FACTORY SETPOINTS... Pre-programmed
factory set points for controllers. TOP HEAT­ERS: 290°F (144°C); BOTTOM HEATERS:
220°F (105°C). Preset timers: MST1 and
MST2 are 30 minutes; CSP1 and CSP2 are
20 minutes.

ELECTRICAL CHARACTERISTICS…

M223 operates on 120 volts, 60Hz, single
phase, 800 watts, 6.7 Amps. NEMA 5-15P
plug.
M212S operates on 120 volts, 60Hz, single
phase, 1050 watts, 8.8 Amps. NEMA 5-15P
plug.
M243S operates on 120 volts, 60Hz, single
phase, 1200 watts, 10.0 Amps, NEMA 5-15P
plug.
M343S operates on 120 volts, 60Hz, single
phase, 1800 watts, 15.0 Amps, NEMA 5-20P
plug.
Six 3 wire rubber cord with 3 prong ground­ing plug. NEMA 5-20P.

PERFORMANCE...Capable of heating to
300°F (148°C) on the top heaters and 225°F
(107C) on the bottom heaters. Preheat to
180°F (82°C) in less than 10 minutes. Higher
temperatures will take longer—up to 90
minutes.

ACCESSORY PACKAGES…

-Additional pan covers

-Pass-through; includes rear displays for
temperature and time: replace suffix “S” with
suffix “P”.

-1/3 size amber pans; 2.5 inch deep; specify
one handle (for single sided cabinets) or two
handles (for pass-through cabinets)

-1/3 size amber plastic trivets

-1/3 size wire grates

5

CAUTION:
ELECTRIC SHOCK
HAZARD

Disconnect appliance from
electric power before cleaning.

CAUTION:
HOT SURFACE

Exposed surfaces can be hot
to the touch and may cause
burns. Allow appliance to cool
before cleaning.

IMPORTANT:

DO NOT spill or pour

water into controls,
control panel or wiring. Wa­ter damage is not covered by
warranty.

CLEANING

CAUTION: Unplug cabinet and allow to cool before cleaning.
Daily Cleaning:

1) Turn off cabinet and remove power cord plug from outlet. Allow cabinet
to cool.

2) Remove pans, covers, grates & and other accessories and clean them
in the sink with mild detergent and allow to dry.

3) Wipe cabinet and inside surfaces of warming cavitie s with a cle an
towel moistened with cleaning solution.

4) Rinse by wiping with a clean towel moistened with clean water. Allow
to air dry.

5) Connect power cord.

Weekly Cleaning:

1) Turn cabinet off and remove power cord plug from outlet. Allow cabinet
to cool.

2) Remove accessories (pans, pan covers, etc).

3) Lightly spray cabinet and inside surfaces of warming cavities with
cleaning solution.

4) Wipe cabinet and inside surfaces of warming cavitie s with a cle an
towel until clean. For heavy soils, use a non-scratch or nylon scouring
pad.

5) Rinse by wiping with a clean towel moistened with cle an water. Allow
cabinet to air dry.

6) Accessories may be cleaned in the sink with mild deterge nt. Rinse and
allow to air dry.

7) Clean pan covers by wiping with a clean towel moistened with cleaning
solution. Rinse by wiping with a clean towel moistened with clean wa­ter. Allow to air dry then reinstall in cabinet.

8) Connect power cord.

CAUTION: Cleansers, detergents, degreasers, sanitizers, or bleaching agents that contain

chlorides or phosphates will cause permanent damage to stainless steel produ cts. The damage

Water with high chloride content can also damage stainless steel. If unsure of your water quality, we recom­mend you have it tested. THIS DAMAGE IS PERMANENT, COSTLY TO REPAIR, AND IS NOT COVERED
BY THE WARRANTY.

See next page for tips on cleaning stainless steel.

appears as pits, eruptions, voids, small holes, severe discoloration or dulling of the metal finish.

6

RECOMMENDED TIPS FOR CLEANING STAINLESS STEEL

Purpose Frequency Cleaning Agent Method of Application

Routine Daily Soap, ammonia Sponge with cloth, rinse with clear water
cleaning detergent and wipe dry.
and water

Smears/ As Stainless steel cleaner Rub with soft cloth as directed on package.
Fingerprints needed or similar products Rub in direction of grain of stainless steel.
Do not use on vinyl trim.

Stubborn Daily Any chloride-free Apply with damp sponge or cloth. Rub in
spots and as or direction of grain of stainless steel. Rinse
stains needed phosphate-free thoroughly, especially if cleaner contains
cleaner chlorine bleach; do not use on vinyl trim.

Hard water Daily Vinegar Swab with cloth.
spots as needed Rinse with water and wipe dry.

FEATURES & OPERATING CONTROLS

Pan Covers

Controllers on far left
end of cabinet:

-program settings for
bottom heat for each
shelf

-program settings for top
heat for pan slot

ON/OFF switch

Controllers in center
and far right end of
cabinet:

-program settings for top
heat for pan slot

Alpha-numeric displays

for menu settings

Top Heat Indicator

(center and right

controllers)

Top and Bottom Heat

Indicators (far left

controllers only)

Timer Key

UP & DOWN Arrows for manual setting of

timers, top heat for individual pans, bottom

heat for each shelf & food type

7

USB Port

Download/upload menu settings

MOIST FOOD HOLDING: Use
top and/or bottom heat with pan
cover in place.

CRISPY / FRIED FOOD HOLD­ING: Use bottom and top heat

and remove pan cover.

TEMPERATURE
SETPOINT RANGE:

Top Heat: OFF - 300ºF
(50°C - 148°C)
Bottom Heat: 122°F - 225°F

TIMER RANGE:

1 minute to 9 hours, 59
minutes.
NOTE: Timers cannot be
programmed for less than 1
minute.

NORMAL OPERATION

1. Turn POWER SWITCH, located at the top front panel, to ON. Pre-heat
cabinet for 90 minutes. When first turned on, digital readout will boot up
and display the software codes and then “LO” until the cabinet reaches
122°F (50°C). After the cabinet reaches 122°F (50°C), the digital
readout will display the current temperature, until the temperature
reaches the setpoint. Once the cabinet reaches setpoint, the digital
readout will display the current menu item for each pan (i.e. “MST1”).
This indicates the cabinet is ready to hold product.

You may change the menu item by pressing the UP and
DOWN ARROW KEYS. Each controller has five pre-set programs
(MST1, MST2, CSP1, CSP2, OFF) for each pan position. In the OFF
position, temperature setpoint and time cannot be modified.

2. Load cooked product into pans and place pans on shelves. For moist

food holding MST1 and MST2, use with pan covers in place; bottom
heat will be ON and top heat will be OFF. For crispy food holding CSP1
and CSP2, remove pan covers; top and bottom heat will be ON.

Temperature
is LOW

Typical temper-
ature reading

Typical Time

Remaining

reading

Timed Cycle
Completed

NOTE: Timer cannot be started
until the cabinet is pre-heated.

NOTE: Press and release
the TEMP key to view of

verify a cavity setpoint. Cavity
setpoint will be displayed briefly.
If the cavity setpoint needs to be
changed, refer to Programming
Instructions on page 9-13.

NOTE: Timer can be cancelled
at any time during the cycle by
pressing and holding the

TIME KEY for 2 seconds.
Digital readout will display
currently selected menu item (i.e.
“MST1”).

3. Press TIME key to start the timer. Refer to Programming

Instructions (page 9) to change programmed time.

4. When the timer button is pressed, the display will show the time for 5
seconds and then return to the menu item. LED label top heat will indi­cate the time remaining as it counts down. The digital readout will count
down, displaying the remaining time. The digital readout is displayed in
hours and minutes until less than one minute remains. Once the re­maining time is less than one minute, the digital readout counts down in
seconds. At the end of the timed cycle, the digital readout will flash
“0.00” and an alarm will sound until the TIME KEY is pressed.

5. Remove product from cabinet.

6. At the end of the day, or if the cabinet will not be used for an extended
period of time, press the POWER SWITCH to OFF.

Heat Indicating Lamps: Indicate

whether top or bottom heat is

displayed

Timer Key: display time

remaining; turn timer on and

off; set timer

Temperature Key: view

cavity setpoint, change cavi-

ty setpoint

UP & DOWN Arrows for manual
setting of timers, top and bottom
heat

8

CONTROLLER PROGRAMMING

NOTE: Each module can

be programmed individually.
Rear display cannot be pro-

grammed.

TEMPERATURE
SETPOINT RANGE:

Top Heat: OFF - 300ºF
(50°C - 148°C)
Bottom Heat: 122°F - 225°F

TIMER RANGE:

1 minute to 9 hours, 59
minutes.
NOTE: Timers cannot be
programmed for less than 1
minute.

NOTE: If changes to the temperature and/or time are saved for a single menu
item (i.e. “CSP2”), all shelves for that menu item will be automatically updated.

PROGRAMMING INDIVIDUAL HEATER TEMPERATURE SETPOINTS
(Programs: CSP1, CSP2, MST1, MST2)

1. You can change the temperature setting for the lower heat on each shelf on
each of the two leftmost controllers. For the shelf you wish to program,

press and hold the TEMP KEY for approximately 2 seconds, the
display will flash the current setting for the lower heater; the lower heat
indicator light will be ON.

2. Press either INCREASE KEY or DECREASE KEY to change
the temperature.

3. You can change the setting for the upper heat for each pan with the control­ler below each pan. To select the upper heater setting, press and release

the TEMP KEY on the controller for the pan you wish to change. The
display will flash the current setting for the upper heater and the upper heat
indicator light will be on.

4. Press either INCREASE KEY or DECREASE KEY to change

the temperature.

6. When done, press and hold the TEMP KEY for 2 seconds. Changes

will be saved. If no button is pre s sed, co ntroller will automatically exit and
changes will be saved.

NOTE: If no key is pressed for 5 seconds, display returns will display the
menu item. Changes will be saved.

PROGRAM TIMERS (for each menu item)

1. Press and hold TIME KEY until digital readout flashes.

2. Press INCREASE KEY to add time. Each time key is pressed, timer
is increased by 1 minute. Hold key to scroll faster.

3. Press DECREASE KEY to subtract time. Each time key is pressed,
timer is decreased by 1 minute. Hold key to scroll faster.

4. Press TIME KEY

to save changes and return to the menu item.

NOTE: When a temperature or timer setting is changed for a menu item,
all settings for that menu item will automatically update. For example, if
you change the time for MST1 on one pan, all other pans set for MST1 will
automatically update to the new timer setting.

NOTE:

The technical content of this manual, including any wiring diagrams, schematics, parts breakdown illustrations and/or ad­justment procedures, is intended for use ONLY by qualified technical personnel.

9

Continued on next page

CONTROLLER PROGRAMMING

TO CHANGE PROGRAM SETTINGS USING USB PORT

The cabinet comes with a USB port and a flash drive equipped with the software to
change the menu settings and upload to or download from the cabinet.

1. Insert the USB drive into your computer and locate the CarterHoffman-
nAplha.exe file.

2. Click on the CarterHoffmannAlpha.exe to run the program. If a dialog box
asks you if you are sure you want to run, click “yes”.

3. A Data input screen will open and you may now change the settings for each pan or each menu item.

4. Select Model for your cabinet at the bottom right of the Drawer Setup tab. The drawer set -up display
should then show two levels. These coincide with pan slots.

5. There are two tabs for the data input screen:

Drawer Setup: This screen allows you to select from the programmed menu items for the cabinet. There
are 5 default menu items for each cavity: MST1, MST2, CSP1, CSP2 and OFF. You can program the bot­tom heat for each shelf.

Program Setup: This screen allows you to change the menu item names, top heat temperature and time for
each menu item.

Shown with
Default settings

Program bottom
heat for each
shelf
Default is 220°F.

4) Select Model:
22 for M223
24 for M243
34 for M343
21 for M212

21

Open Config: Browse to find and open a previously saved menu configuration from your computer.
Open from USB: Browse to find and open a previously saved menu configuration from the USB drive.
Load Defaults: Click to override any menu settings that have been save to the original factory defaults.
Save Config: Save file to a location on your computer
Save to USB: Save file to a USB (USB can then be used to upload new settings using the port on the cabinet)
THE FILE WILL BE A TEXT FILE NAMED CONFIG

10

CONTROLLER PROGRAMMING (continued)

TO CHANGE THE MENU ITEM FOR EACH PAN SLOT AND BOTTOM HEAT SETTING FOR EAC H SH ELF

Each of pan slot has 5 default menu items: MST1, MST2, CSP1, CSP2 and OFF. If you wish to change the
menu item, click on the drop-down arrow for the pan slot and select a new menu item. You may do this for
each pan slot.

Drop Down
Arrow to

select menu
item

Program bottom
heat for each
shelf
Default is 220°F.

TO CHANGE MENU ITEM NAME, TOP HEAT TEMPERATURE SETTING AND OR TIME SETTINGS

On the data input screen, select the Program Setup tab then Select Model for your cabinet on the lower
right.

On this screen you can see the temperature and time settings for each menu item. There are five default
menu items that are preprogrammed, but you can designate settings for up to 25 menu items. P0 (OFF) can­not be changed. P1 through P25 can have unique programmed settings for the menu item name
(alphanumeric—up to four characters), time (maximum is 9 hours, 59 minutes), top heat on or off (click box
next to On if you wish to have the top heater activated; maximum temperature for top heat is 300°F)

Program Setup

Default Settings
Item Time Top

Heat

Top

Heat

Temp

OFF - - ­MST1 0:30 - ­MST2 0:30 - ­CSP1 0:20 290 ON
CSP2 0:20 290 ON

11

4) Select Model:
22 for M223
24 for M243
34 for M343
21 for M212

21

SAVING YOUR CHANGES

CONTROLLER PROGRAMMING (continued)

Save to Computer

Save to USB

When you are finished making changes, you may save the new settings to the flash drive and your com­puter. This can be done from the Drawer Setup or Program Setup Screen.

Save the new settings to the flash drive by clicking on the “Save to USB” button. It is recommended that
you save the settings to your computer in a secure spot, for backup just in case the flash drive is lost or
destroyed. Save the settings to your computer by clicking on the “Save Config” button. This .txt file will
be named CONFIG and contains the data settings that you have just programmed, using the CarterHoff-

mannAlpha.exe software.

NOTE: The new settings will overwrite any existing files on your computer and/or the flash drive.

Other options from this screen are:

“Open Config”: Opens a previously saved menu configuration fro m your computer
“Open from USB”: Opens a previously saved menu configuration from the flash drive
“Load Defaults”: Click to override any menu settings that have been save to the original factory de-

faults.

12

CONTROLLER PROGRAMMING (continued)

UPLOADING and DOWNLOADING MENU SETTINGS USING THE USB PORT

UPLOADING FROM FLASH DRIVE VIA USB PORT TO CABINET

1. The unit must be plugged in and the power must be t urned OFF prior to beginning this procedure.

2. Insert the flash drive into the USB port and turn the cabinet ON.

3. When the display shows then press and hold TIMER and UP ARROW buttons.

PUP

KEY

CHK

4. When the display reads the settings have been uploaded.

CHEK

USB

STIK

5. The programming is complete and the settings will read “Lo.”

6. Turn the power off and remove the flash drive.

DOWNLOADING FROM THE CABINET TO THE FLASH DRIVE VIA THE USB PORT

1. The unit must be plugged in and the power must be t urned OFF prior to beginning this procedure.

2. Insert the flash drive into the USB port and turn the cabinet ON.

3. When the display shows then press and hold TIMER and DOWN ARROW buttons.

4. When the display reads the settings have been downloaded.

SAVE

PUP

USB

KEY

STIK

CHK

5. The programming is complete and the settings will read “Lo.”

6. Turn the power off and remove the flash drive.

DEFAULT FACTORY SETTINGS

NOTE:

If the controller reads:

OFF
nOF iLE

And the settings cannot be
downloaded, check your flash
drive and make sure the file
named CONFIG is not placed
in a folder.

Bottom Heat: 220°F
Top Heat: 290°F
Timers: 30 minutes for MST1 and MST2 menu settings

20 minutes for CSP1 and CSP2 menu settings
N/A for OFF setting

TO CHANGE THE TEMPERATURE SCALE

NOTE:

The technical content of this
manual, including any wiring
diagrams, schematics, parts
breakdown illustrations and/or
adjustment procedures, is
intended for use ONLY by

qualified technical person­nel.

Press the TEMP KEY until the temperature starts flashing. Then, press
both the up and down arrow buttons (together) until ‘F’ (Fahrenheit) is dis­played.

Press the up or down arrow keys to toggle between ºC and ºF.
Once selected, press the TEMP KEY to save and exit.

13

SERVICE EXPECTATIONS

Service Philosophy

For over sixty years, Carter-Hoffmann has earned a reputation for manufacturing rugged and
dependable foodservice equipment that permits foodservice professionals serve better food
products to more people, and thus, grow their business.

Our goal is not only to provide the best food service equipment for the price, but also to back it up
with after-sale service that is responsive, fast, efficient and professional. Carter-Hoffmann products
are innovative and efficient. They are easy to use, easy to clean and easy to maintain. Although the
products are quite reliable, they are also designed to be easy to repair when necessary.

We believe that a malfunction to a Carter-Hoffmann product should cause as little inconvenience to
the customer as possible. Our goal is to provide the same day service or within 24 hours and strive
to fix it the first time. We are dedicated to making every aspect of our customer service the standard
by which others are judged.

End-User Responsibilities

While we all strive to serve our mutual customers as well as possible, we remind the end-user
(and their employees) that they also have some responsibilities.

1. All shipping damage must be noted on the freight bill when the shipment is received. Any freight
damages must be collected from the Freight Company, NOT Carter-Hoffmann.

2. The end-user should be advised beforehand to carefully unpack and inspect all products when
they are received BEFORE SIGNING THE SHIPPER'S RECEIPT OF DELIVERY.

3. The end-user must provide a safe, dry, level surface for the equipment to be placed upon.

4. The end-user must provide the proper electrical supply. All in-wall electrical modifications are to
be completed by a licensed electrician. All building modifications are the responsibility of the end

-user. Specification literature changes frequently, please verify proper installation is possible.

5. The end-user must operate, clean and maintain the equipment in accordance with the
procedures described in this Operation Manual.

6. Carter-Hoffmann is NOT responsible for any loss of the customer’s income, loss of food product,
extra labor charges, or any other incidental or consequential costs as a result of the malfunction
of our product.

7. The end-user shall allow for on-premises repair of the equipment to be completed at a mutually
convenient place and time.

Warranty Service

1. Warranty service is to be initiated by authorized Carter-Hoffmann personnel only, please call
Carter-Hoffmann directly and we will take care of everything.

2. The service provider is NOT authorized to change or extend any of the terms or conditions of our
warranty.

3. Initial freight damage is NOT covered by the product warranty.

Confidentially

1. The end user and all his employees and sub-agents shall protect and keep confidential Carter­Hoffmann’s proprietary designs, information, and knowledge.

2. All literature and informational materials provided by Carter-Hoffmann are to be considered
confidential; they remains Carter-Hoffmann’s property; and are not to be reproduced without our
prior approval

NOTE:

The technical content of this manual, including any wiring diagrams, sche matics, parts breakdown illustrations
and/or adjustment procedures, is intended for use ONLY by qualified technical personnel.

14

Carter-Hoffmann Warranty:

Carter-Hoffmann (“CARTER-HOFFMANN”) warrants to the initial purchaser of its standard Carter Line Prod­ucts that CARTER-HOFFMANN will, at its option, repair or replace, during the warranty period set forth below,
any part of such products made necessary due to a defect in material or workmanship which is present when the
product leaves its factory and which manifests itself during the warranty period under normal use and service.

This warranty applies only to original equipment owned and possessed by th e initial purchaser and the warranty
period begins on the date of original shipment from the CARTER-HOFFMANN factory and extends as follows: to

component parts and labor for 12 months.

Repair or replacements under this warranty will be performed, unless otherwise authorized in writing by CARTER

-HOFFMANN, at its factory. All parts or components to be repaired or replaced under this warranty are to be
shipped prepaid to CARTER-HOFFMANN, with reimbursement credit for such part or component to be given if
found by CARTER-HOFFMANN to be defective.

CARTER-HOFFMANN neither makes nor assumes and does not authorize any other person to make or assume
any obligation or liability in connection with its produ cts other than that covered in this warranty. This warranty
applies only within the continental United States and Canada. In Alaska and Hawaii, this warranty applies only to
and is limited to the supply of replacement parts.

Warranty Exclusions and Limitations:

Any implied warranty of merchantability or fitness for a particular purpose is hereby specifically disclaimed by

CARTER-HOFFMANN. There are no warranties, expressed or implied, which extend beyond the description on

the face hereof. This warranty does not cover and CARTER-HOFFMANN shall not under any circumstances be
liable for any incidental, consequential or other damages (such as injury to persons or property, loss of time, in­convenience, loss of business or profits, or other matters not specifically covered) arising in connection with the

use of, inability to use, or failure of these products.

Specifications are subject to change through product improvement and innovation.

Carter-Hoffmann

1551 McCormick Ave.

Mundelein, Illinois, 60060 USA

Phone: [phone] Toll free: 800-323-9793 Fax: [phone]

Sales and Marketing E-mail: [e-mail]

Service E-mail: [e-mail]

Company Website: www.carter-hoffmann.com

15
