50ZPB, C, D, 50ZHB, C,
PA3Z-A, PH3Z-A, PA4Z, PH4Z, PAJ4, PHJ4, WJA4, WJH4
SMALL PACKAGED PRODUCTS (SPP)
Accessory Electric Heaters 5-20 kW
For 14 SEER, R-410A Manufactured Home
Installation Instructions
NOTE: Read the entire instruction manual before starting the
installation.
WARNING
!
NOTE: The Dual Point Kit can only be installed on units equipped with
a 2nd electrical entry (knockout), the knockout was added to the
electrical panel starting with the following unit serial numbers:
2711X_ _ _ _ _ and later
X1127_ _ _ _ _ and later
NOTE: Read the entire instruction manual before starting the
installation.
NOTE: Installation Instructions include Single and Dual point
connection instructions separately.
SAFETY CONSIDERATIONS
Improper installation adjustment, alteration, service, maintenance, or use
can cause explosion, fire, electrical shock, or other conditions which
may cause death, personal injury, or property damage. Consult a
qualified installer, service agency, or your distributor or branch for
information or assistance. The qualified installer or agency must use
factory-authorized kits or accessories when modifying this product Refer
to the individual instructions packaged with the kits or accessories when
installing.
Follow all safety codes. Wear safety glasses, protective clothing, and
work gloves. Use quenching cloth for brazing operations. Have a fire
extinguisher available. Read these instructions thoroughly and follow all
warnings or cautions included in literature and attached to the unit.
Consult local building codes, the current editions of the National
Electrical Code (NEC) NFPA 70.
In Canada refer to the current editions of the Canadian Electrical Code
CSA C22.1.
Recognize safety information. This is the safety-alert symbol . When
you see this symbol on the unit and in instructions or manuals, be alert to
the potential for personal injury. Understand these signal words;
DANGER, WARNING, and CAUTION. These words are used with the
safety-alert symbol. DANGER identifies the most serious hazards which
will result in severe personal injury or death. WARNING signifies
hazards which could result in personal injury or death. CAUTION is
used to identify unsafe practices which may result in minor personal
injury or product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation, reliability, or
operation.
Before proceeding with heater installation, inspect thoroughly for
shipping damage. Notify shipper immediately if any damage is found.
Clean all dirt, dust and moisture from heater package.
Check for proper clearances of live parts, between phases and to ground.
Make sure that all required barriers are in place. Check conductors run in
multiple to insure that they are properly wired. Refer to unit installation
instructions for complete unit installation details. The minimum air
quantity for safe electric heater operation is shown in Table 2.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Before performing installation, service or maintenance operations on
this system, turn off all main power to system. There may be more than
one disconnect switch. Turn off accessory heater power switch if
applicable. Lock out and tag switch with a suitable warning label.
DESCRIPTION AND USAGE
These heaters are comprised of a separate heater module mounted on the
blower inlet and remote mounted controls located in the unit control box.
Heater models are provided with single point electrical connections for
powering both the heater and the unit.
These heaters are intended for use only in SPP units as noted in Table 1.
PACKAGE CONTENTS
Electric Heater Package Contents
1. Heater assembly, comprised of heater module and control panel
2. UPC heater label
3. Installation Instructions
4. Identification label
5. Wiring label
6. Wire connectors (2)
7. Wire tires-6” (5)
8. Screws #10B (4)
9. Ground lug (1) (See Fig. 8)
10. Bolts 3/8-16 (3)
11. Plug attachment plate
12. Dual Point Electric Rating Label
13. Dual Point Warning Label
INSTALLATION
Single Point Heater Installation
1. Open all electrical disconnects and install lock-out tag before beginning any installation or service work.
2. Check for proper heater application in Table 1.
3. Remove unit side panel to access blower compartment (See Fig. 1 and Fig. 2).
4. Disconnect wiring to motor by removing speed selection and power plugs from bottom of motor (See Fig. 2).
5. Remove rear blower support bracket. Remove shipping block and label under blower if unit has one (See Fig. 2).
6. Remove screws securing blower to front blower support bracket; slide blower out of unit.
Table 1 – Electric Heater Usage Chart
CPHEATER
125 UL 5 208/240 1 N
126 UL 5 208/240 1 Y
127 UL 7.5 208/240 1 N
128 UL 7.5 208/240 1 Y
129 UL 10 208/240 1 N
130 UL 10 208/240 1 Y
131 UL 15 208/240 1 Y
132 UL 20 208/240 1 Y
Agency
Approval
kW V PH
Circuit
Breaker
Air Conditioner Models (PAC) Heat Pump Models (PHP)
24 30 36 42 48 60 24 30 36 42 48 60
Table 2 – Minimum Airflow for Heater Operation
Air Conditioner
Unit Size
24 600 750 750 X X
30 600 750 750 X X
36 600 750 750 1050 X
42 600 750 750 1050 X
48 600 750 750 1050 1400
60 600 750 750 1050 1400
X= Not Approved Combination
5 kW 7.5 kW 10 kW 15 kW 20 kW
Minimum Airflow (CFM)
Heat Pump
Unit Size
24 750 800 800 X X
30 750 800 800 X X
36 750 800 800 1200 X
42 750 800 800 1200 X
48 750 800 800 1200 1700
60 750 800 800 1200 1700
X= Not Approved Combination
5 kW 7.5 kW 10 kW 15 kW 20 kW
7. Open heater package and remove heater module; secure heater
module to standoffs on blower inlet with (3) bolts provided (see
Fig. 3). Adjust mounting position so that all hardware and
sheetmetal clears the heating element wire by at least 1/4 in.
Reinstall heater/blower assembly.
8. Reinstall rear motor support bracket and attached motor wiring. Reinsert motor power plug and speed tap plug into motor. The connectors are polarized to prevent mis-wiring.
9. Remove heater wiring cover plate from interior partition between blower and control box (See Fig. 4) and install heater wiring plug attachment plate provided with heater.
10. Remove unit front panel to access unit control box compartment.
11. Open heater package and remove heater control panel; set heater control panel on top of unit (See Fig. 5).
12. Heater control panel will have black and yellow power wires
ending in panel mounted plugs; reach through large rectangular
opening in control panel and snap these plugs into mating openings
in heater wiring plug attachment plate installed in step 9 above (See
Fig. 4).
13. Rotate heater control panel into unit control box area and locate it into top left corner of control box; secure heater control panel to unit control box with (4) screws provided (See Fig. 6).
14. Open flexible “fish paper” insulation cover provided with unit
control box and route heater low voltage wires along the bottom of
the unit control box. Route low voltage leads from heater relay(s)
through hole in unit control box and into low voltage splice box.
Minimum Airflow (CFM)
(See Fig. 6 and Fig. 7.) dress wires and secure them to existing unit
control wires with wire ties provided .
15. Re-close flexible “fish paper” insulation cover; insure unit black and yellow power “pigtails” from contactor are properly routed through insulation cover (See Fig. 8).
16. Attach the adhesive backed wiring label provided with the heater to the back of the access panel near the unit wiring label (See Fig. 1).
17. Return to blower compartment and locate black and yellow power
wires from heater module; these wires will terminate in plug
connectors that mate with the plug from the heater control installed
in Step 13 above. Snap these connectors into place; dress and secure
wires to fan wires with wire ties provided (See Fig. 9).
18. The factory speed tap for electric heat operation is tap 2. Refer to
blower performance table in the unit installation instructions or
pre-sale literature to determine available airflow at duct system
external static pressure. Compare the actual airflow with the
minimum required airflow from Table 2. If tap 2 airflow is lower
than minimum required airflow, recheck blower performance table
to see if minimum airflow can be achieved on tap 3. If tap 3 airflow
meets the minimum CFM requirement, change speed tap for
electric heat from tap 2 to tap 3 in unit control box. See unit
instructions and wiring diagram. If tap 3 airflow does not achieve
minimum CFM requirement, then another electric heater that meets
the minimum CFM requirement must be used.
19. Reattach the blower access panel.
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
2

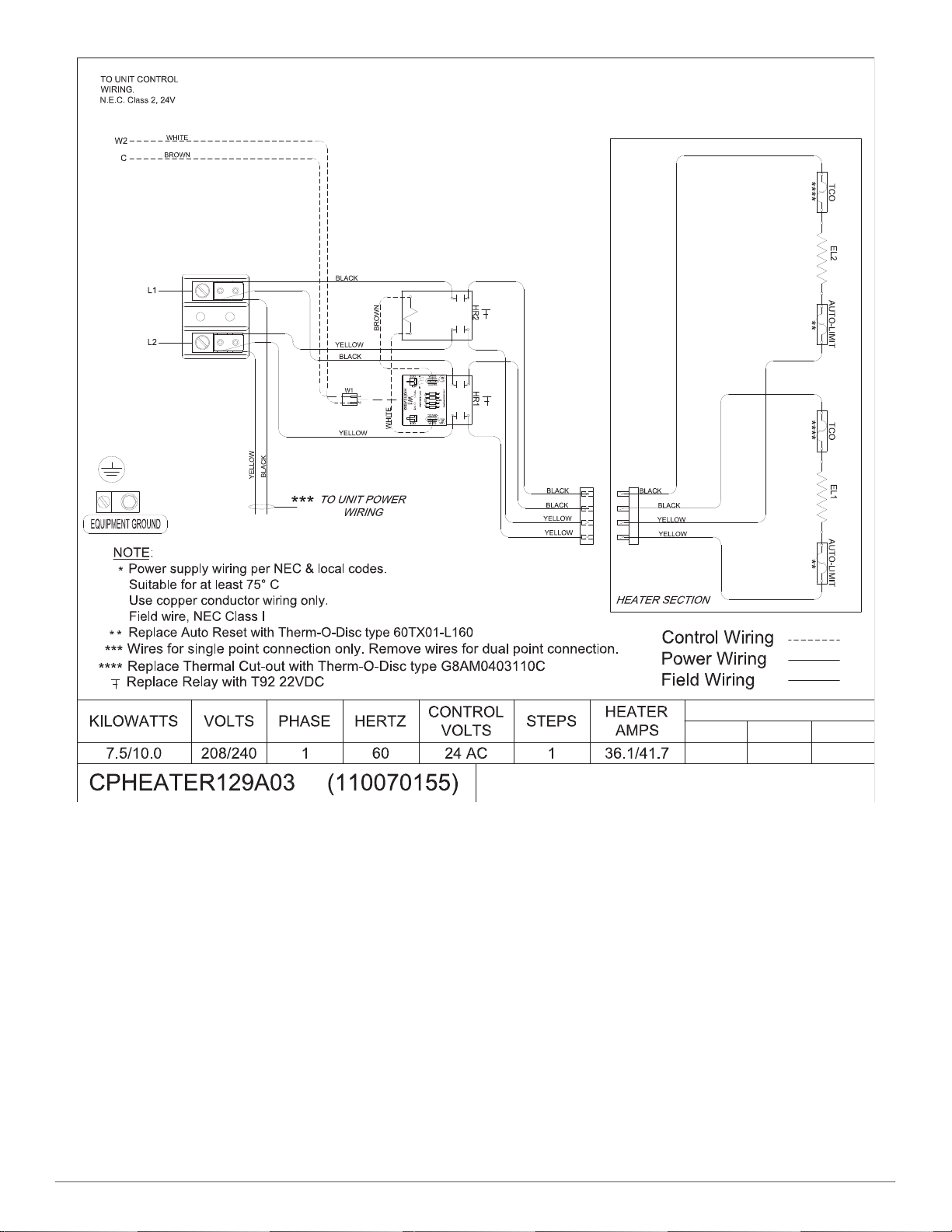

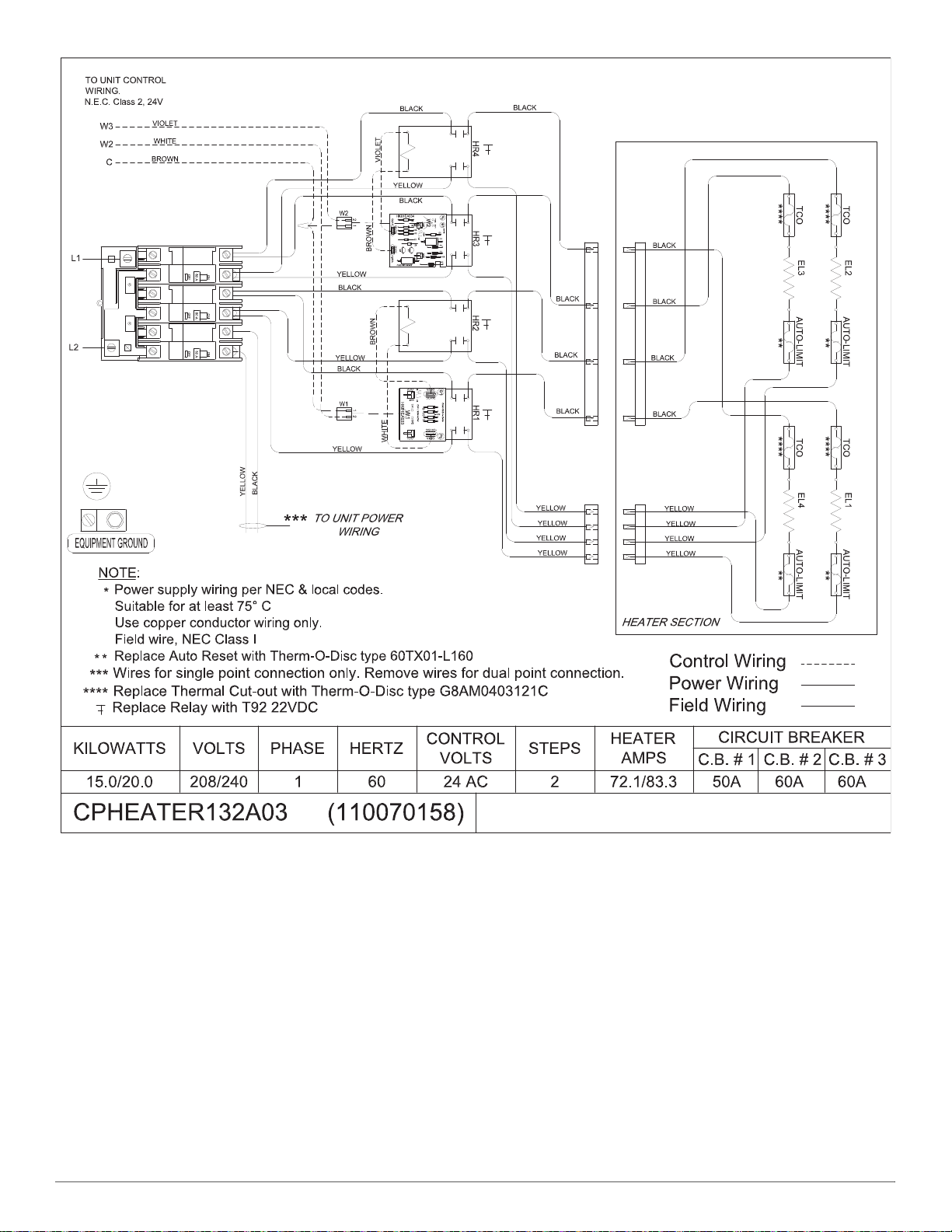

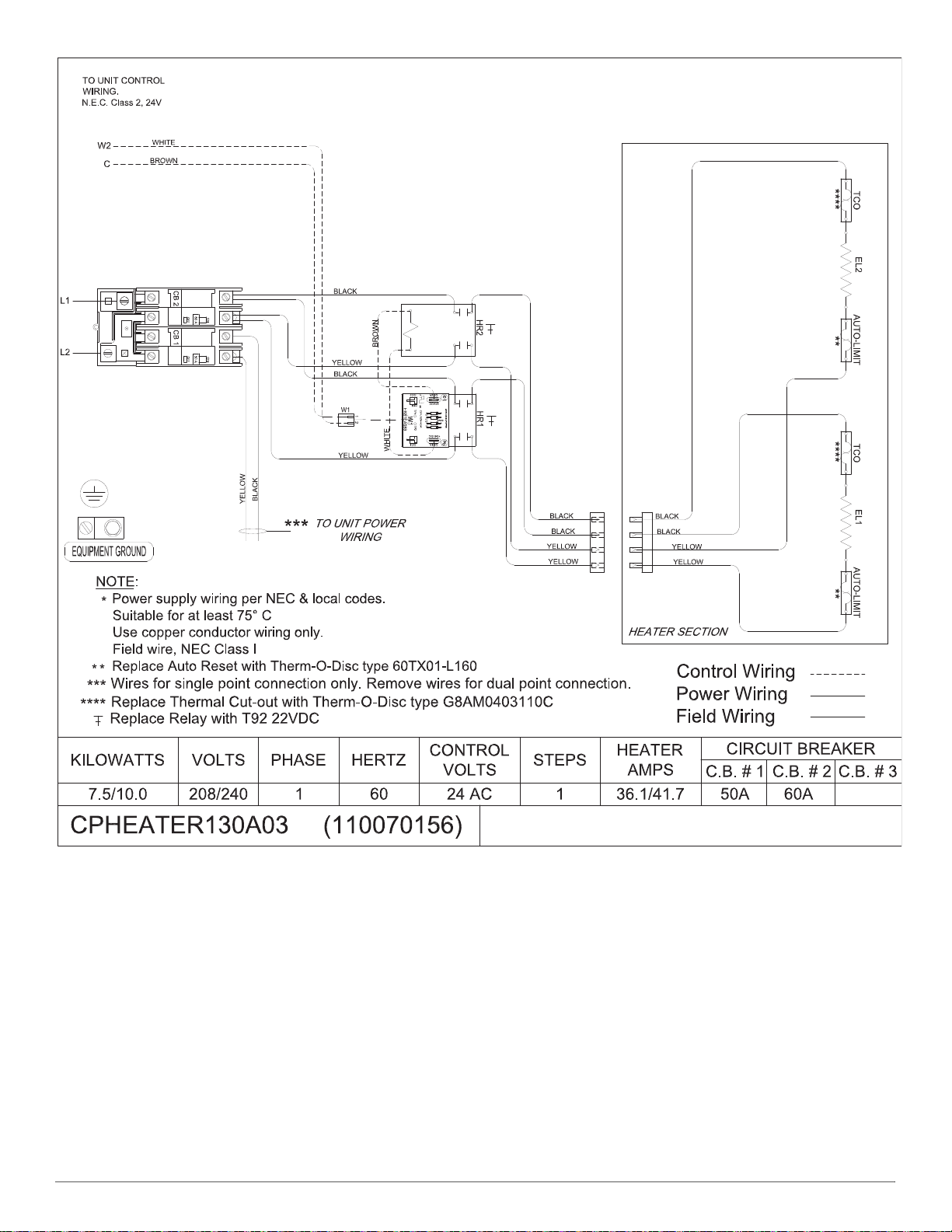

CPHEATER Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
125A03 110070151 3.75 5
126A03 110070152 3.75 5 18 20.8 -- x 1 x x -- 5kw --
127A03 110070153 5.6 7.5 27 31.3 x -- 1 x x -- 7.5kw --
128A03 110070154 5.6 7.5 27 31.3 -- x 1 x x -- 7.5kw --
129A03 110070155 7.5 10 36.1 41.7 x -- 1 x x -- 10kw --
130A03 110070156 7.5 10 36.1 41.7 -- x 1 x x -- 10kw --
131A03 110070157 11.3 15 54.1 62.5 -- x 2 x x x 5kw 10kw
132A03 110070158 15 20 72.1 83.3 -- x 2 x x x 1 0kw 10kw
3
Table 3 – Electric Heater Part Number Information
kW @ V / PH / Hz Amps
208 240 V PH Hz 208 240
18 20.8 x -- 1 x x -- 5kw --
208/230 1 60
Connection
Term
Block
Power
Circuit
Breaker
24v Unit Control Wiring KW Staging
No.
Stages
Comm
(Brown)
W2
(White)
W3
(Violet)
Stage-1 Stage-2
A
ELECTRICAL RATING
S
&
LABEL LOCATION
KNOCKOUT HOLE FOR
DUAL POINT
BLOWER ACCESS
PAN EL
CONTROL BOX
CCESS PANEL
ELECTRIC HEATER
WIRING LABEL
BLOWER MOTOR
BLOWER
SUPPORT
BRACKET
WARNING
LABEL
ELECTRICAL
PAN EL

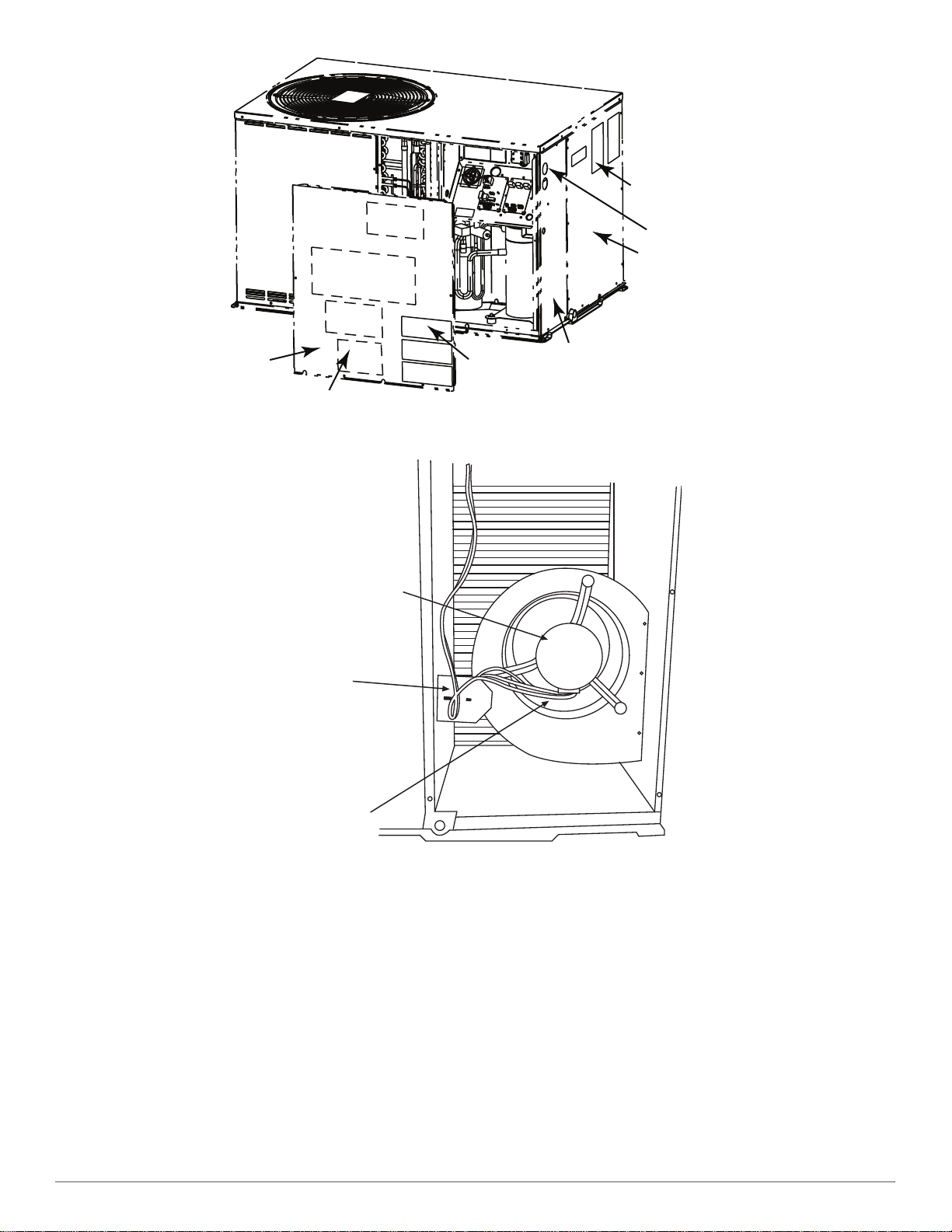

Fig. 1 – Access Panel and Label Location
A11167
PEED SELECTOR
POWER PLUG
A05382
Fig. 2 – Indoor Blower Compartment
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
4
H
EATER MODULE
H
A
W
BOLTS (3)

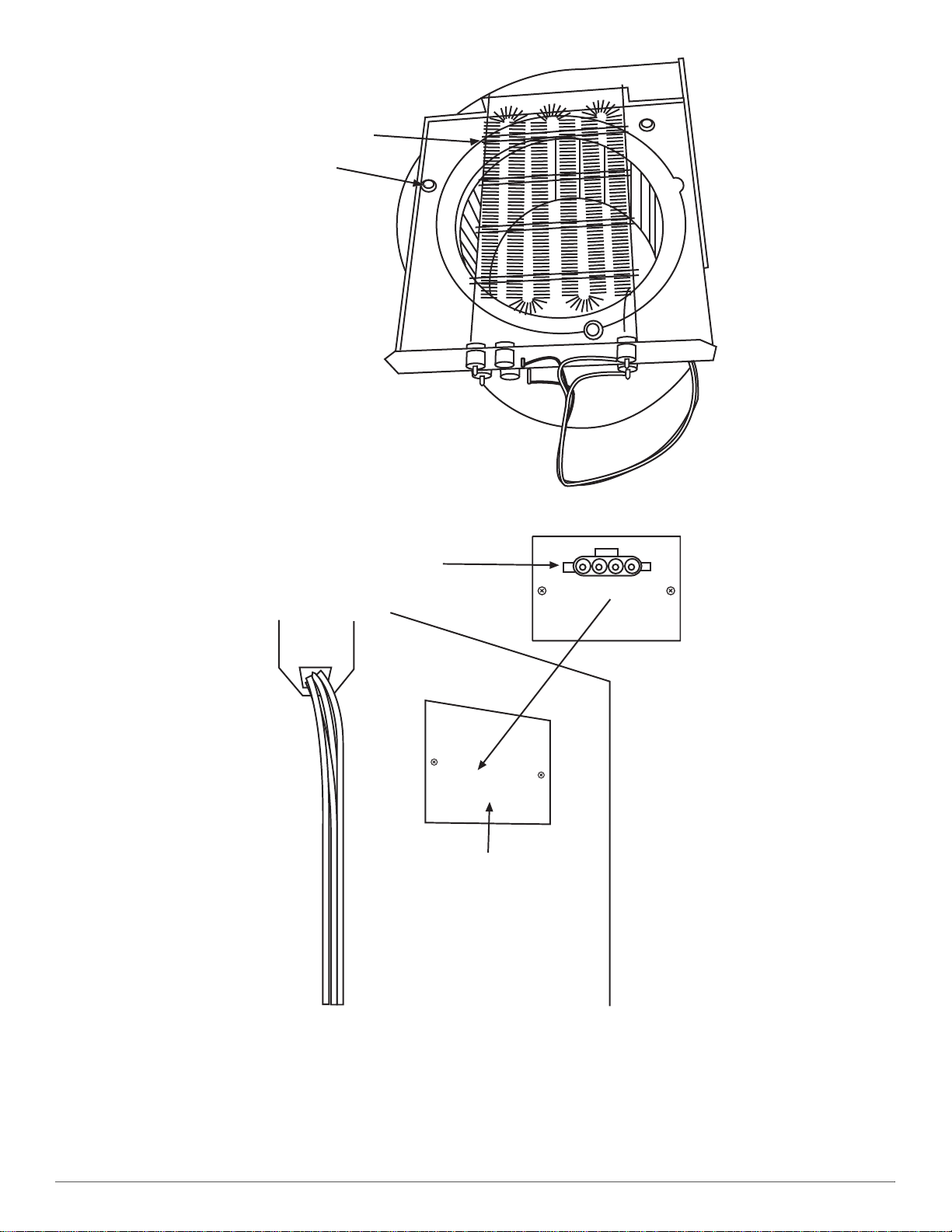

Fig. 3 – Attach Heater Module
A10111
EATER WIRING PLUG
TTACHMENT PLATE
ITH PLUG INSTALLED
COVER PLATE
Fig. 4 – Inside Blower Compartment
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
5
A05384
Electric Heat wiring
interconnection (electric
heater controls removed
for clarity)
Electric Heat Control Box
(shown uninstalled)
HEATER CONTROL PANEL

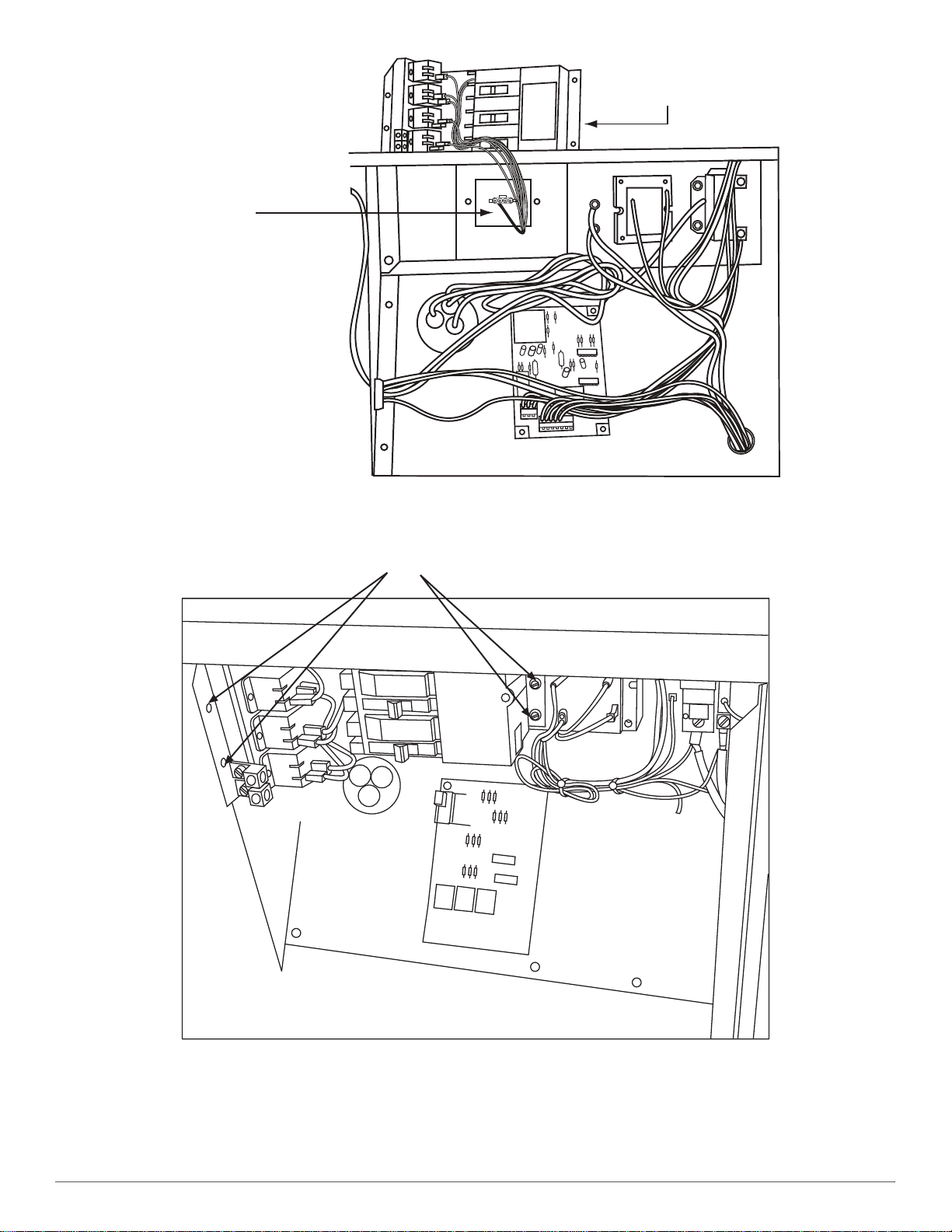

Fig. 5 – Unit Control Box Compartment
A10031
MOUNTING SCREWS (4)
Fig. 6 – Heater Control Panel Installation
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
6
A10119
FISH PAPER
(Shown in down
position for
installation and
service)
HEATER RELAY
LOW VOLTAGE
WIRES

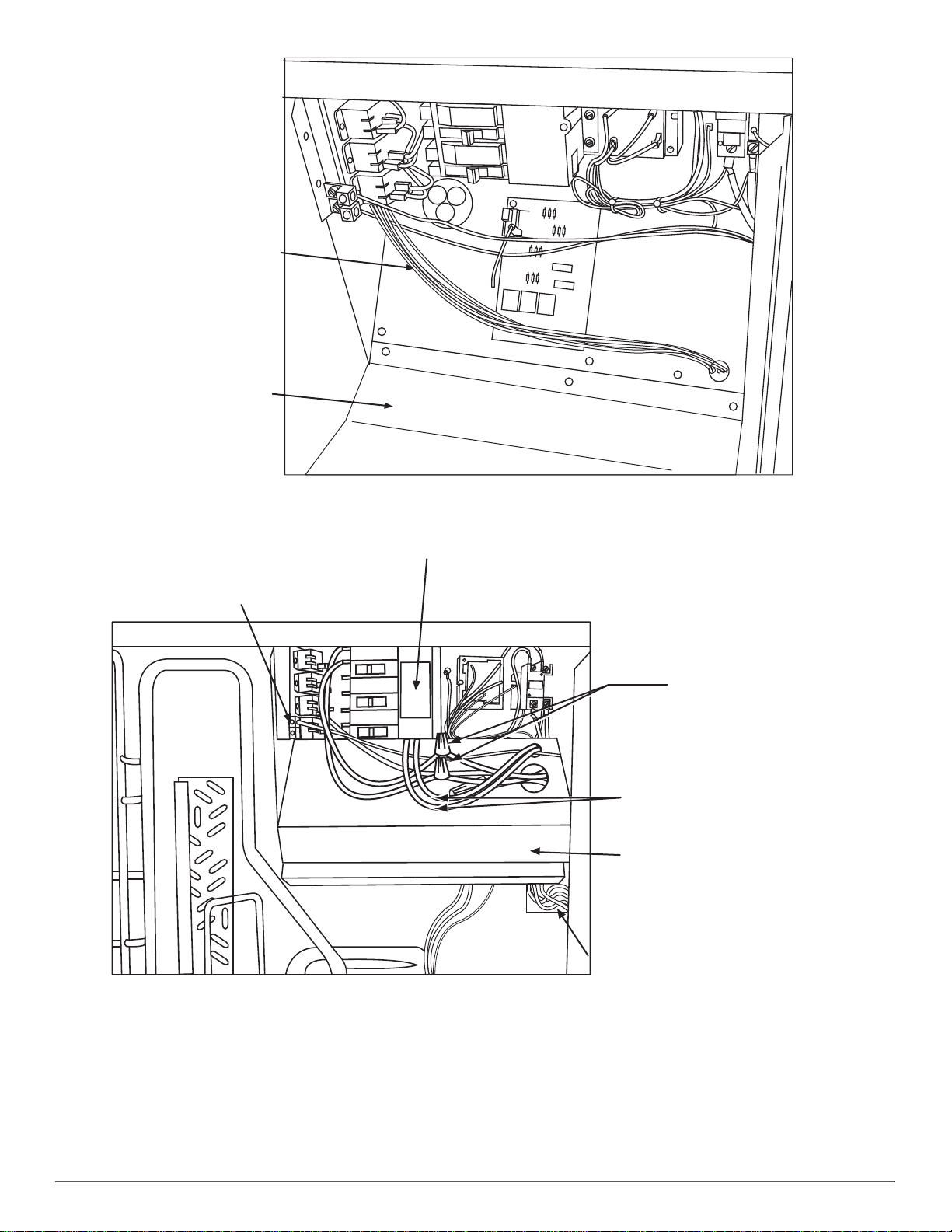

Fig. 7 – Heater Low Voltage Connection
A10120
SINGLE POINT CONNECTION
GROUND LUG
POWER SUPPLY
FOR CONTACTOR
FIELD HIGH
VOLTAGE
SUPPLY
FISH PAPER
LOW VOLTAGE
WIRING
COMPARTMENT
A10121
Fig. 8 – Unit Power Connection
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
7
HEATER
W
T
PLUG
IRE
IES
Fig. 9 – Power Connection to Heater
Single Point Electrical Connection
NOTE: All electrical connections, wire sizes and type of conduit shall
meet the National Electric Code (NEC) and state and local codes (or
International Electric Code) as applicable.
NOTE: Use minimum 75°C copper wire only.
1. Make sure all disconnects are still open and tagged out as required previously.
2. Mark the main unit nameplate with an “X” for the electric heater size being installed. Refer to the electrical data marked with an “X” on the nameplate for wire and maximum over current protection sizing.
3. Connect low voltage wires as shown in unit schematic diagrams
found on the base unit installation instructions. There connections
must be made in the 24v barrier section inside the unit panel (See
Fig. 10 or Fig. 11).
4. Insert field power line through the Electrical Panel hole (see Fig. 10
or Fig. 11) and connect to electric heater as shown in their
respective wiring diagram. Electrical heaters with factory installed
circuit breakers must have their field lines connected to the breaker
block lugs and electric heater without factory installed circuit
breakers must have their field lines connected to the heater leads
using wire nuts. Ground electrical equipment in the appropriate
locations.
IMPORTANT: Heaters with factory installed circuit breakers may be
installed on a branch circuit protected by either a fuse or circuit breaker.
For all other heaters, the branch circuit must be protected by a fuse or
circuit breaker supplied by others.
5. Connect black and yellow stripped wires from heater to the unit compressor contactor leads using supplied wire nuts according to their heater wiring diagram.
NOTE: Dress wires with wire ties provided. Separate all wires from
incoming power leads.
6. Close control box access panel.
Dual Point Heater Installation
NOTE: Complete single point heater installation procedures before
completing the following steps.
A05385
1. Open all electrical disconnects and install lockout tag before beginning any installation or service work.
2. Remove Control Box Access Panel (see Fig. 1), check for clearance on the inside of control box, and remove a 7/8-in knockout hole on the Electrical Panel for second power line.
3. Attach warning and rating labels in the selected location (see
Fig. 1).
4. Mark the main unit nameplate with an “X” next to the accessory
heater “none”. Mark the dual point rating label installed at step 3
with an “X” for the electrical heater size being installed. Refer to
the electrical data marked with an “X” on each nameplate for wire
and maximum over current protection sizing.
5. Remove unit power wiring line connection from heater to unit contactor and compressor leads a s shown in heater wiring diagram. these are the stripped end wires black and yellow, with opened ends.
Dual Point Electrical Connection
NOTE: All electrical connections, wire sizes and type of conduit shall
meet the national Electric Code (NEC) and state and local codes (or
International Electric Code) as applicable.
NOTE: Use a minimum 75°C copper wire only.
1. Make sure all disconnects are still open and tagged out as required previously.
2. Connect low voltage wires as shown in unit schematic diagrams found on base unit installation instructions. These connections must be made in the 24v barrier section inside the unit panel (see Fig. 12 or Fig. 13).
3. Insert first field power line through the Electrical Panel bottom hole
(see Fig. 12 or Fig. 13) and connect to electric heater as shown in
their respective wiring diagram found on the heater accessory kit.
Electrical heaters with factory installed circuit breakers must have
their field lines connected to the breaker block lugs and electric
heater without factory installed circuit breakers must have their
field lines connected to the heater leads using wire nuts. Ground
electrical equipment in the appropriate locations.
IMPORTANT: Heaters with factory installed circuit breakers may be
installed on a branch circuit protected by either a fuse or circuit breaker.
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
8
For all other heaters, the branch circuit must be protected by a fuse or
POWER LINE
TO HEATER
24V FIELD
WIRING BOX
circuit breaker supplied by others.
NOTE: Dress wires with wire ties provided. Separate all wires from
incoming power leads.
4. Insert second field power line through the Electrical Panel top hole (see Fig. 12 or Fig. 13) and connect to unit contactor black and yellow leads using sire nuts. Ground electrical equipment in the appropriate locations.
5. Separate all wires from incoming power leads.
6. Close electrical access panel.
START-UP
CAUTION
!
ELECTRICAL SHOCK HAZARD
Failure to follow this caution may result in personal injury or death.
Before proceeding, verify that all wiring is correct per factory approved
schematic. Notify equipment supplier immediately of any
discrepancies.
NOTE: Relay, Rectifier and Time Delay Boards
Each heater element is controlled by a 24VDC control relay. Each
control relay is energized by a small rectifier board attached directly to
relay coil terminals. When possible - one rectifier board is used to
control a second relay.
The rectifier board converts incoming 24v AC control signal to DC.
Some heaters may have up to four relays. The second and/or third relay
rectifier board may also have a time delay feature and a small jumper
wire built into it. With the jumper uncut, the time delay is approximately
5 sec after the initial first stage. When jumper is cut at factory, this
provides an 8 sec delay.
1. Refer to base unit installation instructions as required.
2. Check for loose terminal connections.
3. Check that all fuse and circuit breaker short circuit interrupting ratings are adequate.
4. Turn on unit and heater power.
5. Set thermostat to call for heat.
6. Check operation of heater.
7. Check that airflow across the heater is at or above the minimum recommended CFM requirement (See Table 2).
8. Use of accessory electric heaters that are not tested and approved by
the original equipment manufacturer of the packaged air
conditioner or heat pump is not recommended and will not be
warranted by the original equipment manufacturer. Additionally,
damage caused by such heaters to the equipment will not be
covered under warranty by the original equipment manufacturer.
TROUBLESHOOTING
1. Circuit Breakers-Malfunction will interrupt power to the unit. Check for cause of failure, reset or replace.
2. Limit Switch-Malfunction prevents heating element(s) from being energized. Replace switch if malfunction occurs.
3. Relay-Malfunction will not allow heater to energize. Replace faulty relay. Do not attempt to repair.
Fig. 10 – Single Point Connections For Heaters With Circuit Breakers
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
9
A10381
POWER LINE
THE SECOND FIELD
POWER LINE TO UNIT
CONTACTOR
FIRST FIELD POWER
LINE TO HEATER
24V FIELD
WIRING BOX
24V FIELD
WIRING BOX
SECOND FIELD
POWER LINE TO
UNIT CONTACTOR
FIRST FIELD
POWER LINE
TO HEATER
TO HEATER
24V FIELD
WIRING BOX
Fig. 11 – Single Point Connections For Heaters Without Circuit Breakers
Fig. 12 – Dual Point Connections For Heater With Circuit Breaker
A10380
A10379
Fig. 13 – Dual Point Connections For Heaters Without Circuit Breakers
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
10
A10382
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 14 – CPHEATER125A03 Wiring Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
A190332
11
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 15 – CPHEATER126A03 Wiring Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
A190333
12
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 16 – CPHEATER127A03 Wiring Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
A190334
13
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 17 – CPHEATER128A03 Wiring Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
A190335
14
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 18 – CPHEATER129A03 Wiring Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
A190336
15
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 19 – CPHEATER130A03 Wiring Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
A190337
16
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 20 – CPHEATER131A03 Wiring Diagram
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
A190338
17
Stick on label included with kit. See Installation Section, Step 17 (Page 2).
Fig. 21 – CPHEATER132A03 Wiring Diagram
A190339
©2019 CAC/BDP
7310 W. Morris Street • Indianapolis, IN 46231 Catalog No: IIK-CPHEATER-25
Edition Date: 09/19
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
18
Replaces: IIK-CPHEATER-22
Loading...
