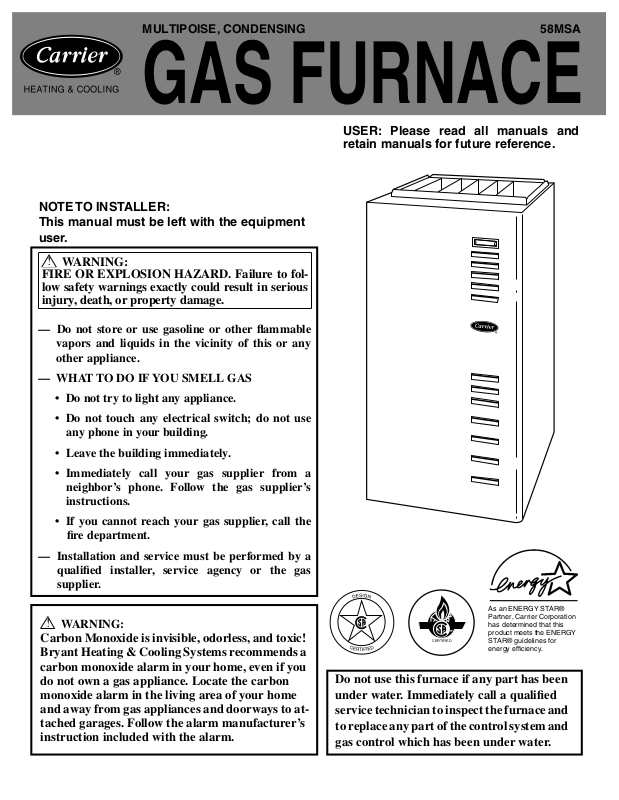

Page 1
MULTIPOISE, CONDENSING 58MSA
GAS FURNACE
NOTE TO INSTALLER:
This manual must be left with the equipment
user.
!
WARNING:
FIRE OR EXPLOSION HAZARD. Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
USER: Please read all manuals and
retain manuals for future reference.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
!
WARNING:
Carbon Monoxide is invisible, odorless, and toxic!
Bryant Heating & Cooling Systems recommends a
carbon monoxide alarm in your home, even if you
do not own a gas appliance. Locate the carbon
monoxide alarm in the living area of your home
and away from gas appliances and doorways to attached garages. Follow the alarm manufacturer’s
instruction included with the alarm.
As an ENERGY STAR®
Partner, Carrier Corporation
has determined that this
CERTIFIED
Do not use this furnace if any part has been
under water. Immediately call a qualified
service technician to inspect the furnace and
to replace any part of the control system and
gas control which has been under water.
product meets the ENERGY
STAR® guidelines for
energy efficiency.
Page 2
WELCOME TO A NEW GENERATION
OF COMFORT
Congratulations! In light of rising energy costs, the 58MSA Multipoise, Condensing Gas Furnace is among the soundest investments today’s homeowner can make.
Your new furnace is truly a triumph of technology in home heating. A revolutionary design employs 2 heat exchangers to
“squeeze” out the maximum amount of heat from the fuel consumed. In fact, your new furnace is so efficient, 90% AFUE* of
the heat generated during combustion is captured and delivered
inside your home. That is more than a 33% AFUE* increase in
heating efficiency over conventional furnaces.
This furnace is among the most energy-efficient furnaces you can
buy today. It is also among the safest and most dependable. We
are proud of the technological advances incorporated into the design of this furnace. With only minimal care, your new furnace
will deliver many years of money-saving home comfort and enjoyment. Spend just a few minutes with this manual to learn the
operation of your new furnace and the small amount of maintenance it takes to help keep it operating at peak efficiency year after
year.
*The output capacity and any representations of efficiency for this
furnace are based on standard U.S. Department of Energy test
precedures.
1
MODEL 58MSA FURNACE
INSTALLATION DATA
Date Installed
Dealer Name
Address
City
State Zip
Telephone
FURNACE
Product No.
Model No.
Serial No.
SPLIT-SYSTEM
OUTDOOR UNIT:
Product No.
Model No.
Serial No.
INDOOR COIL:
Product No.
Model No.
Serial No.
2
Page 3
FURNACE COMPONENTS
1
Burner sight glass for viewing burner flame.
2
Burner assembly (inside). Operates with energy-saving
inshot burners, and hot surface igniter for safe,
dependable heating.
3
Combustion-air intake connection (right or left side).
4
Redundant gas valve. Safe, efficient. Features 1 gas control with 2 internal shutoff valves.
5
Junction box for 115-v electrical power supply.
6
Vent outlet. Uses PVC pipe to carry flue gas from the furnace’s combustion system (right or left side).
7
Secondary condensing heat exchanger (inside). Wrings
out more heat through condensation. Constructed with
polypropylene-laminated steel to ensure durability.
8
Pressure switch. Ensures adequate flow of flue gas
through furnace and out vent system.
9
Inducer motor. Pulls hot flue gases through the heat exchangers, maintaining negative pressure for added safety.
10
Condensate drain connection. Collects moisture condensed from burned gases for disposal into home drain
system. (location in furnace varies)
11
Heavy-duty blower. Circulates air across the heat exchangers to transfer heat into the home.
1
2
3
4
5
6
7
8
9
10
11
12
MODEL 58MSA FURNACE
(SHOWN IN UPFLOW POSITION)
13
14
6
15
16
17
18
19
2
12
Air filter and retainer.
13
Rollout switch (manual reset) to prevent overtemperature.
14
Primary serpentine heat exchanger (inside). Stretches fuel
dollars with the S-shaped heat-flow design. Solid construction of corrosion-resistant aluminized steel means reliability.
15
3-amp fuse provides electrical and component protection.
16
Light emitting diode (LED) on furnace control board.
Code light is for diagnosing furnace operation and service
requirements.
17
Furnace Control board.
18
Blower access panel safety interlock switch.
19
Transformer (24v) behind furance control board provides
low-voltage power to furnace control board and thermostat.
3
Page 4
SAFETY CONSIDERATIONS
Recognize safety information. This is the safety-alert sym-
!
bol . When you see this symbol on the furnace and in
instructions or manuals, be alert to the potential for personal
injury.
Understand the signal words—DANGER, WARNING,
CAUTION, and NOTE. These words are used with the safety-alert symbol. DANGER identifies the most serious hazards which
WARNING signifies hazards which
injury or death. CAUTION is used to identify unsafe practices which
and prop-erty damage. NOTE: Is used to highlight suggestions which
operation.
To minimize the possibility of serious personal injury, fire,
furnace damage, or improper operation;
these safety rules:
Your gas furnace uses air adjacent to the furnace for combustion and vents to the outside. Do not enclose it in an airtight
room or seal it behind solid doors. It must have adequate airflow for efficient combustion and safe ventilation. The vent
pipe must terminate outside the structure and must not be
obstructed in any way.
will result in severe personal injury or death.
could result in personal
would result in minor personal injury or product
will result in enhanced installation, reliability, or
carefully follow
many products around the home, such as: water softener
salts, laundry bleaches, detergents, adhesives, paints, varnishes, paint strippers, waxes, and plastics.
Make sure the combustion air for your furnace does not contain any of these compounds. During remodeling be sure the
combustion air is fresh and uncontaminated. If these compounds are burned in your furnace, the heat exchangers may
deteriorate.
• A furnace installed in an attic or other insulated space
must be kept free and clear of insulating material. Examine
the furnace area when the furnace is installed or when
insulation is added. Some insulation materials may be
combustible.
This furnace contains SAFETY DEVICES which must be
MANUALLY RESET. If the furnace is left unattended for
an extended period of time, have it checked periodically for
proper operation. This precaution will prevent problems
associated with no heat, such as frozen water pipes, etc. See
“Before You Request a Service Call’’ section in this manual.
STARTING AND SHUTTING DOWN
YOUR FURNACE
Should the gas supply fail toshut off or if over heating occurs,
shut off gas valve to the furance before shutting of the electrical supply. Instead of a continuously burning pilot flame
which wastes valuable energy, your furnace uses an automatic, hot surface ignition system to light the burners each time
the thermostat starts your furnace.
safeguards:
Follow these important
• Keep the area around your furnace free of combustible
materials, gasoline, and other flammable liquids and vapors.
• Do not cover the furnace, store trash or debris near it, or
in any way block the flow of fresh air to the unit.
• Combustion air must be clean and uncontaminated with
chlorine or fluorine. These compounds are present in
3
• Never attempt to light the burners manually with a match
or other source of flame.
• Read and follow the operating instructions on the inside
of main furnace door, especially the item that reads as
follows:
Wait 5 minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas,
in the safety information above on this furnace label. If you
don’t smell gas, go to the next step.
• If a suspected malfunction occurs with your gas control
system, such as the burners not lighting when they should,
refer to the shutdown procedures on the inside of main furnace door, or in the “Shutting Down Your Furnace” section
4
and call your dealer as soon as possible.
4
STOP! Follow “B’’
5
Page 5
•
!
WARNING
If overheating occurs or the gas valve fails to shut
off the gas supply, turn off the manual gas valve to
the furnace BEFORE turning off the electrical supply. (See Fig. 7.) Failure to follow this warning
could result in a fire or explosion, and personal injury or death.
Check Air Filter: Before attempting to start your furnace,
be sure the furnace air filter is clean and in place. See “Performing Routine Maintenance” section in this manual. Then
proceed as follows:

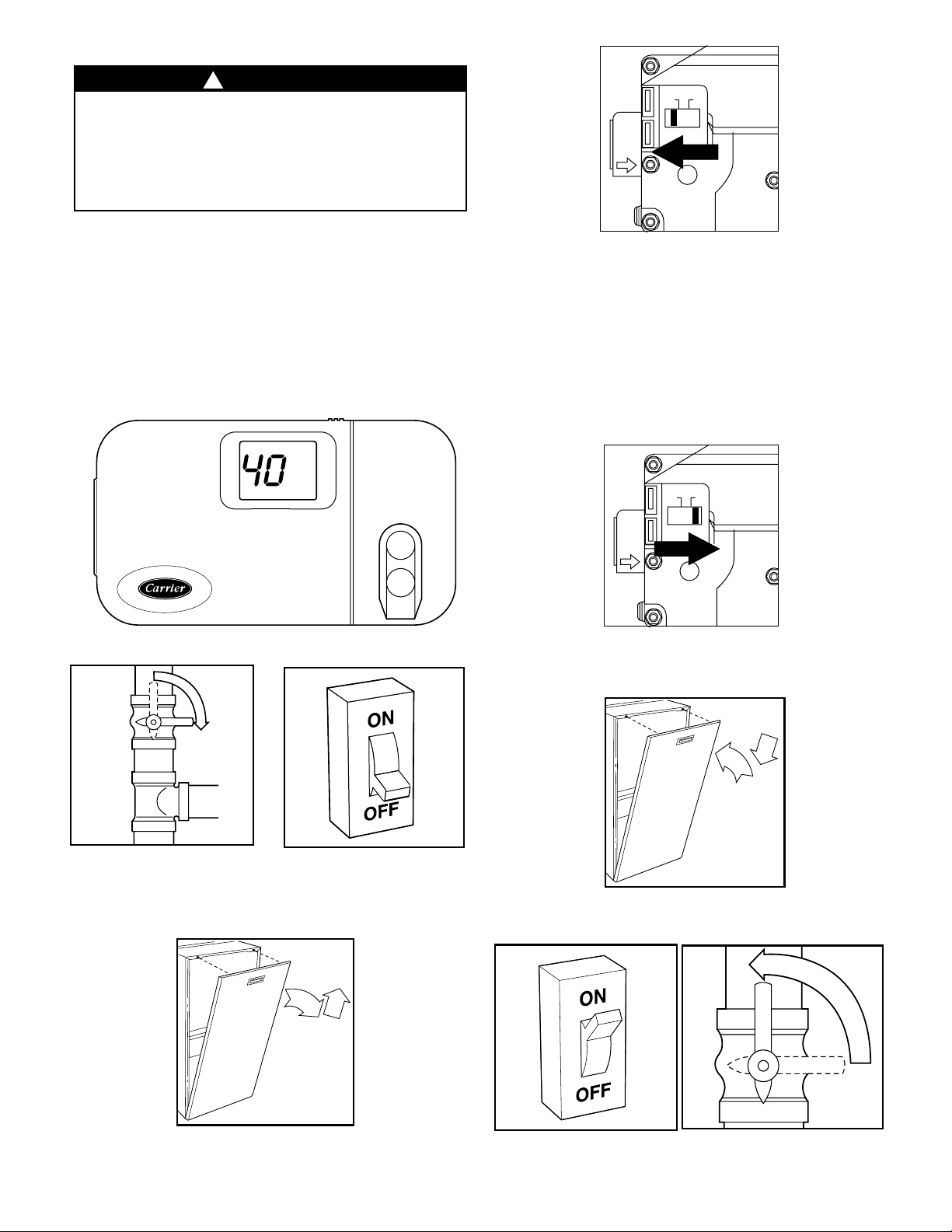

STEPS FOR STARTING YOUR FURNACE
1. Set your room thermostat to the lowest temperature setting. (See Fig. 6.)
2. Close the external manual gas valve. (See Fig. 7.)
OFF
ON
5. The gas valve will have a control switch to turn off and on.
Turn the control switch on the gas valve to the OFF position and wait 5 minutes. (See Fig. 10.) Then smell for gas,
including near the floor. If you smell gas,
STOP! Follow
operating instructions on main furnace door.
6. After waiting 5 minutes, turn the control switch on the gas
valve to the ON position. (See Fig. 11.)
7. Replace main furnace door. (See Fig. 12.)
10
OFF
ON
®
C
L
O
S
E
78
3. Turn OFF electrical supply to the furnace. (See Fig. 8.)
4. Remove main furnace door. (See Fig. 9.)
6
11
need art
12
O
P
E
N
9
13 14
5
Page 6
8. Turn ON the electrical supply to the furnace and wait 1
minute. (See Fig. 13.)
9. Open the external manual gas valve. (See Fig. 14.)
10. Set the room thermostat to a temperature slightly
above the room temperature. This will automatically
signal the furnace to start.
11. When the furnace receives the start signal, the inducer is
started. When the pressure switch verifies that there is sufficient combustion air, the control energizes the hot surface ignitor. After the hot surface ignitor is heated for 17
sec, the gas valve permits gas to flow to the main burners.
After ignition and a time delay of approximately 60 sec,
the furnace blower starts.
NOTE:
nace control system will lock out. If lockout occurs, main
burners fail to light, or blower does not come on, shut down
the furnace and call your dealer for service.
If the burners fail to ignite after 4 attempts, the fur-
12. Set your thermostat to the temperature that satisfies
your comfort requirements. SUGGESTION: Setting
the thermostat back a few degrees—and compensating
for the difference with warmer clothing—can make a big
difference in your fuel consumption. The few degrees at
the top of your thermostat “comfort level’’ are the most
costly degrees to obtain.
When room temperature drops below the temperature
selected on the thermostat, the furnace will be switched
on automatically. When the room temperature reaches
the temperature selected on the thermostat, the furnace
will be switched off automatically.
Some thermostats have a “FAN ’’ mode with 2 selections,
AUTO and ON. When set on AUTO, the furnace blower
cycles on and off. In ON mode, the furnace blower runs
continuously. Continuous-fan keeps the temperature level in your home more evenly balanced. It also permits the
indoor air to be continuously filtered.

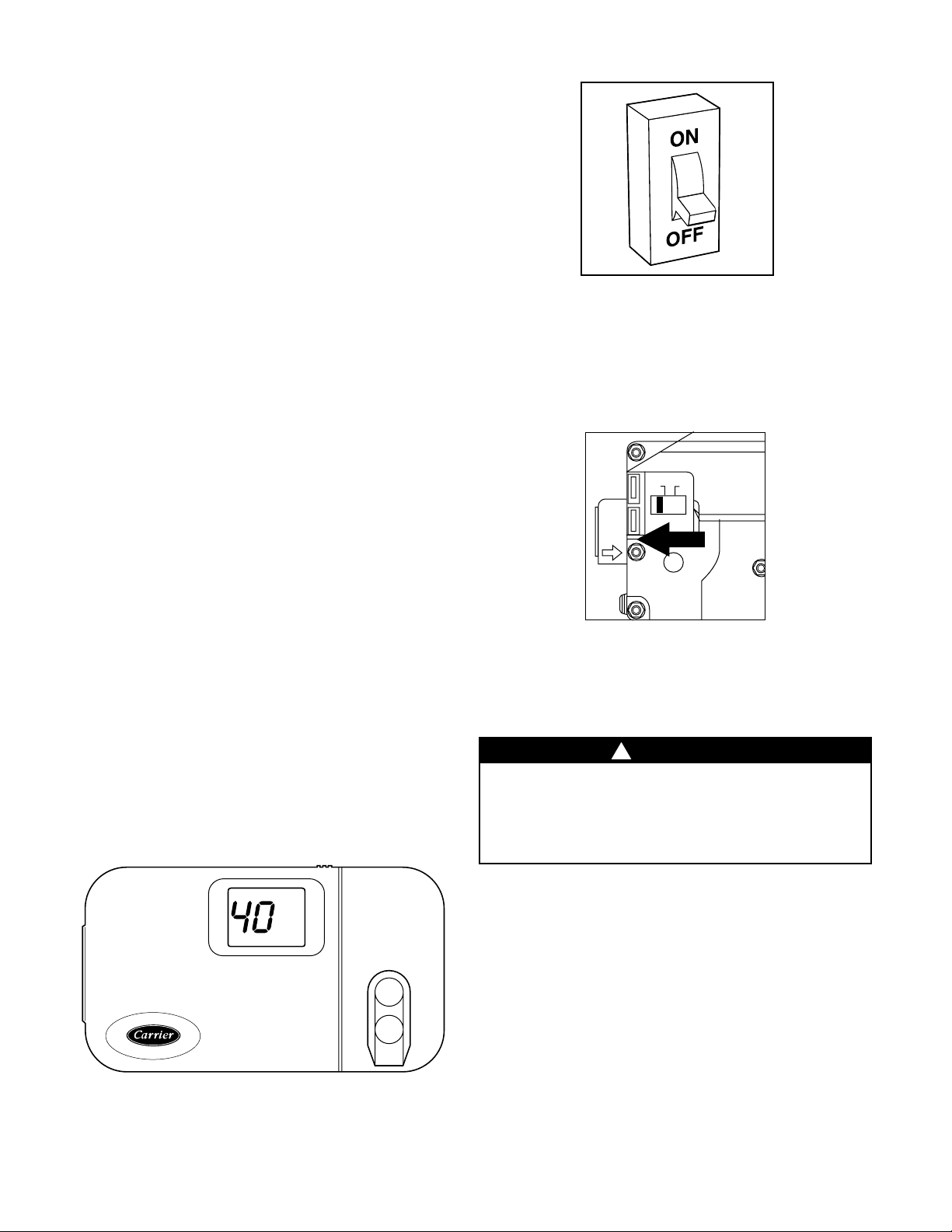

SHUTTING DOWN YOUR FURNACE
Should you need to shut down your furnace for service or
maintenance, you will need to turn the furnace off. The following procedures must be followed:
1. Set your room thermostat to the lowest temperature
setting. (See Fig. 15.)
2. Close the external manual gas valve (See Fig. 7.)
3. Turn off electrical supply to the furnace. (See Fig. 16.)
16
4. Remove main furnace door. (See Fig. 9.)
5. Turn the control switch on the gas valve to the OFF position. (See Fig. 17.)
OFF
ON
17
6. Replace the control access door. (See Fig. 14.)
7. If the furnace is being shut down because of a malfunction, call your dealer as soon as possible.
!
CAUTION
Furnace is not to be installed, operated, and then
turned off and left turned off in an unoccupied
structure during winter. (See Heading South for
the Winter? procedures in maintenance section).
Freeze damage to furnace could occur.
PERFORMING ROUTINE
MAINTENANCE
NOTE:
factory-authorized replacement parts, kits, and accessories
when modifying this product.
Installing and servicing heating equipment can be hazardous due to gas and electrical components. Only trained and
®
15
qualified personnel should install, repair, or service heating
equipment.
Untrained personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other
6
The qualified installer or agency must use only

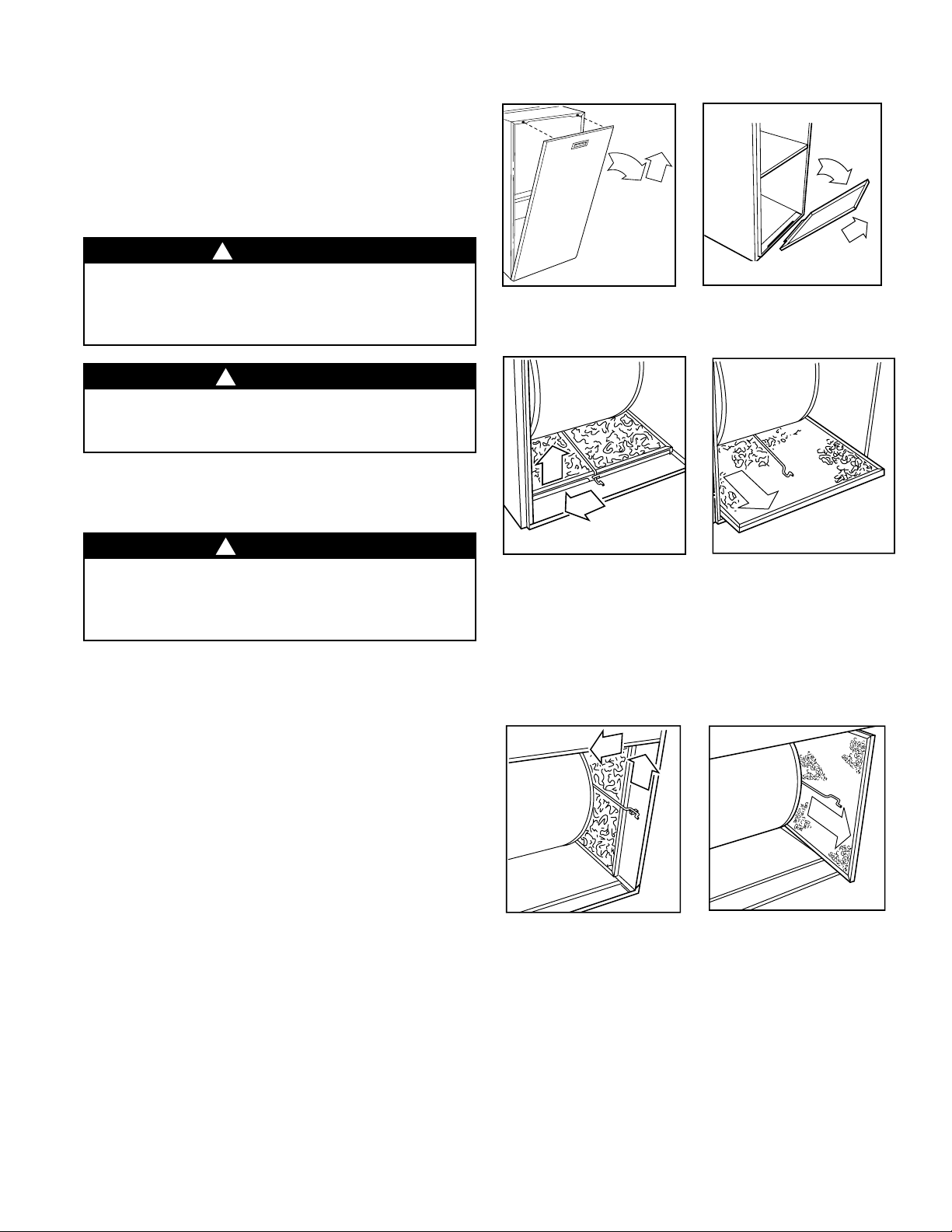

Page 7
operations must be performed by trained service personnel. Observe safety precautions in this manual, on tags, and
on labels attached to the furnace, and other safety precautions
that may apply.
With proper maintenance and care, your furnace will operate
economically and dependably. Installations for basic maintenance are found on this and the following pages. However,
before beginning maintenance, follow these safety precautions:
!
WARNING
Turn off electrical power supply to your furnace
before removing the main furnace door to service
or perform maintenance. Failure to follow this
warning could result in personal injury or death.
!
CAUTION
Although special care has been taken to minimize
sharp edges, be extremely careful when handling
parts or reaching into the furnace.
FILTERING OUT TROUBLE
b. Slide air filter out of furnace. (See Fig. 21.)
18 19
!
CAUTION
Never operate your furnace without a filter in place.
Doing so may damage the furnace blower motor.
An accumulation of dust and lint on internal parts
of your furnace can cause a loss of efficiency.
A dirty air filter will cause a loss of airflow in your duct
system. When excessive loss of airflow occurs, the furnace
may cycle on its safety controls. If this condition is left unattended, the furnace will eventually lock out. It is recommended that the furnace air filter be checked every 3 or 4
weeks and cleaned if necessary
The air filter is normally located in the blower compartment.
(See Fig. 2) If air filter has been installed in another location,
contact your dealer for instructions. To inspect, clean and/or
replace the air filter(s), follow these steps:
1. Turn off the electrical supply to the furnace. (See Fig. 16.)
2. Remove main furnace door. (See Fig. 18.)
3. Remove blower access panel. (See Fig. 19.)
NOTE: It will be necessary to remove 2 screws.
4. Remove air filter from furnace.
•AIR FILTER(S) LOCATED IN END OF FURNACE:
a. Slide filter retainer sideways until it is free of latch. (See
Fig. 20.)
20 21
• AIR FILTER LOCATED IN SIDE:
a. Remove filter retainer from latch. (See Fig. 25.)
b. Gently remove air filter and carefully turn the dirty side up (if
dirty) to avoid spilling dirt from the filter. (See Fig. 26.)
5. Inspect the filter. If torn, replace it.
22 23
7

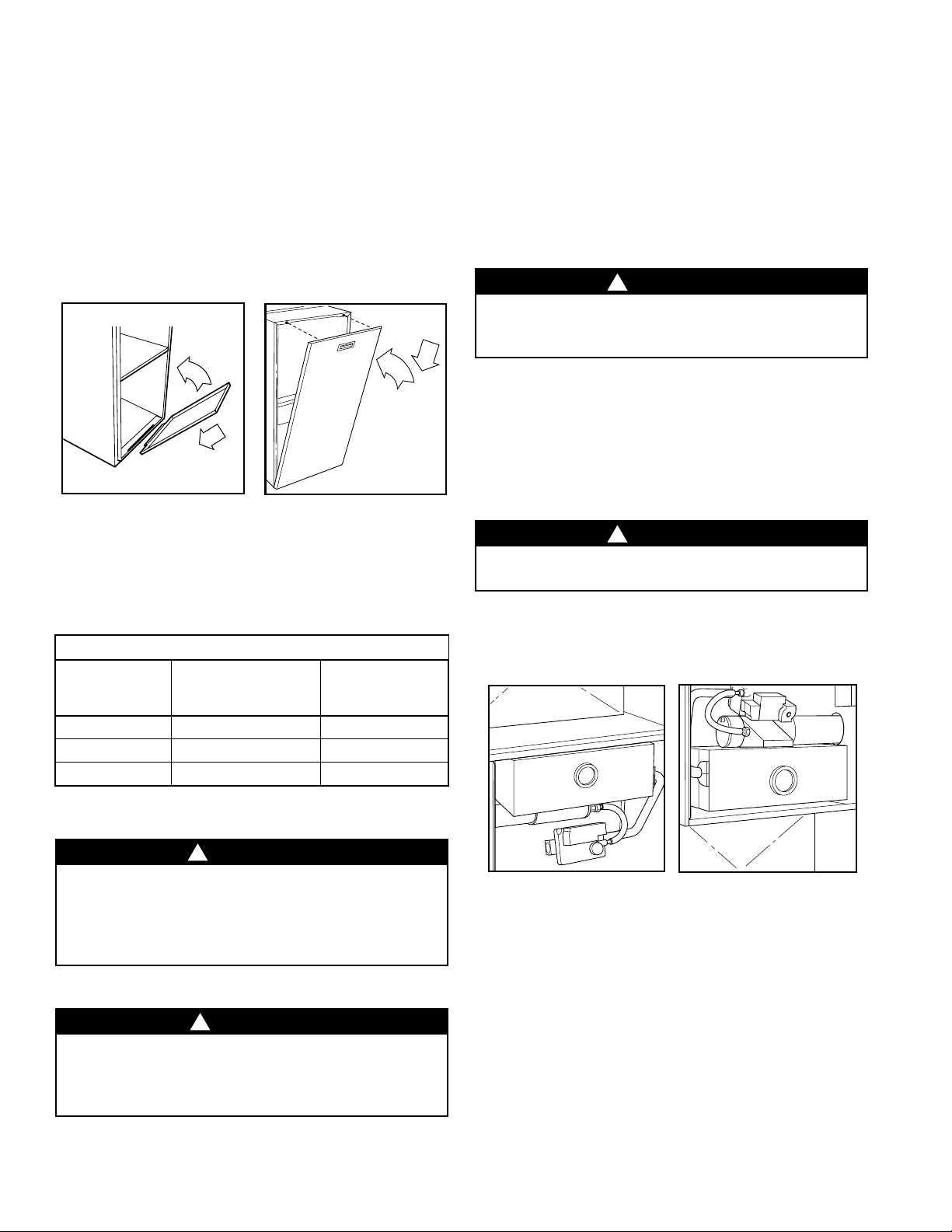

Page 8
NOTE: If washable filter that was shipped with the furnace has
been replaced with an electronic air cleaner (EAC), refer to the
EAC Owner’s Manual for maintenance information.
6. If washable filter, wash filter (if dirty) in a sink, bathtub, or
outside with a garden hose. Always use cold tap water. A
mild liquid detergent may be used if necessary. Spray water
through filter in the opposite direction of airflow. Allow filter
to dry.
7. Reinstall clean air filter.
8. Reinstall filter retainer.
9. Replace blower access panel and main furnace door. Be sure
to replace 2 screws in blower access panel. (See Fig. 24 and
25.) Turn on electrical supply to the furnace.
24 25
If your furnace air filter needs to be replaced, be sure to use
the same size that was originally supplied. Use the furnace
filter table and compare your furnace size with the proper
filter size.
Visually inspect the combustion area and vent system before
each heating season. Make sure that all PVC pipes leading
into the combustion area and vent are free from any cracks
and sags. Check the combustion-air intake adjacent to the
furnace for blockage. Also check vent pipe on the outside of
your home for blockage.
When dirt, soot, scale, or rust is allowed to build up, your
furnace can suffer a loss of efficiency and perform improperly. Accumulations on the main burners can result in firing out
of normal sequence. This delayed ignition creates an alarmingly loud sound.
!
CAUTION
If your furnace makes an especially loud noise
when the main burners light, shut down your furnace and call your dealer.
To inspect the combustion area and vent system, you will
need a flashlight. Refer to Fig. 2, and proceed as follows:
1. Turn off the gas and electrical supplies to the furnace and
remove the main furnace door. (See Fig. 7, 8 and 9.)
2. Remove burner enclosure front. (See Fig. 26 or 27.)
Inspect the gas burners and remainder of furnace and ignitor area
for dirt, rust, soot, or scale.
!
CAUTION
If dirt, rust, soot, or scale accumulations are found,
call your dealer. Do not operate your furnace.
FURNACE AIR FILTER TABLE
AIR FILTER LOCATED IN BLOWER COMPARTMENT
FURNACE
CASING
WIDTH (IN.)
17-1/2 (1) 16 x 25 x 1 Cleanable
21 (1) 20 x 25 x 1 Cleanable
24-1/2 (1) 24 x 25 x 1 Cleanable
* Furnace with a side return-air inlet may have a different filter size. Measure
the filter to obtain the correct size.
Use care when cutting support rods in filters to protect against flying pieces and sharp rod ends. Wear
safety glasses, gloves, and appropriate protective
clothing. Failure to follow this caution could result
in personal injury.
FILTER SIZE*
(IN)
!
CAUTION
FILTER
TYPE
COMBUSTION AREA AND VENT SYSTEM
!
DANGER
If holes are found in the pipes or if any portion has
become disconnected, toxic fumes can escape
into your home. DO NOT OPERATE YOUR FURNACE. Call your dealer for service.
3. Inspect the combustion-air and vent PVC pipes for sags,
holes, cracks, or disconnections. Horizontal portions of
vent pipe must slope downward toward furnace.
need art
UPFLOW
DOWNFLOW
26 27
4. Reinstall burner enclosure front.
5. If your furnace is free of the above conditions, replace
main furnace door and turn on electrical and gas supplies
to the furnace. (See Fig. 12, 13, and 14.)
6. Start the furnace and observe its operation. Watch the
burner flames to see if they are clear blue, almost transpar-
ent. (See Fig. 28.) If you observe a suspected malfunction,
or the burner flames are not clear blue, call your dealer
8

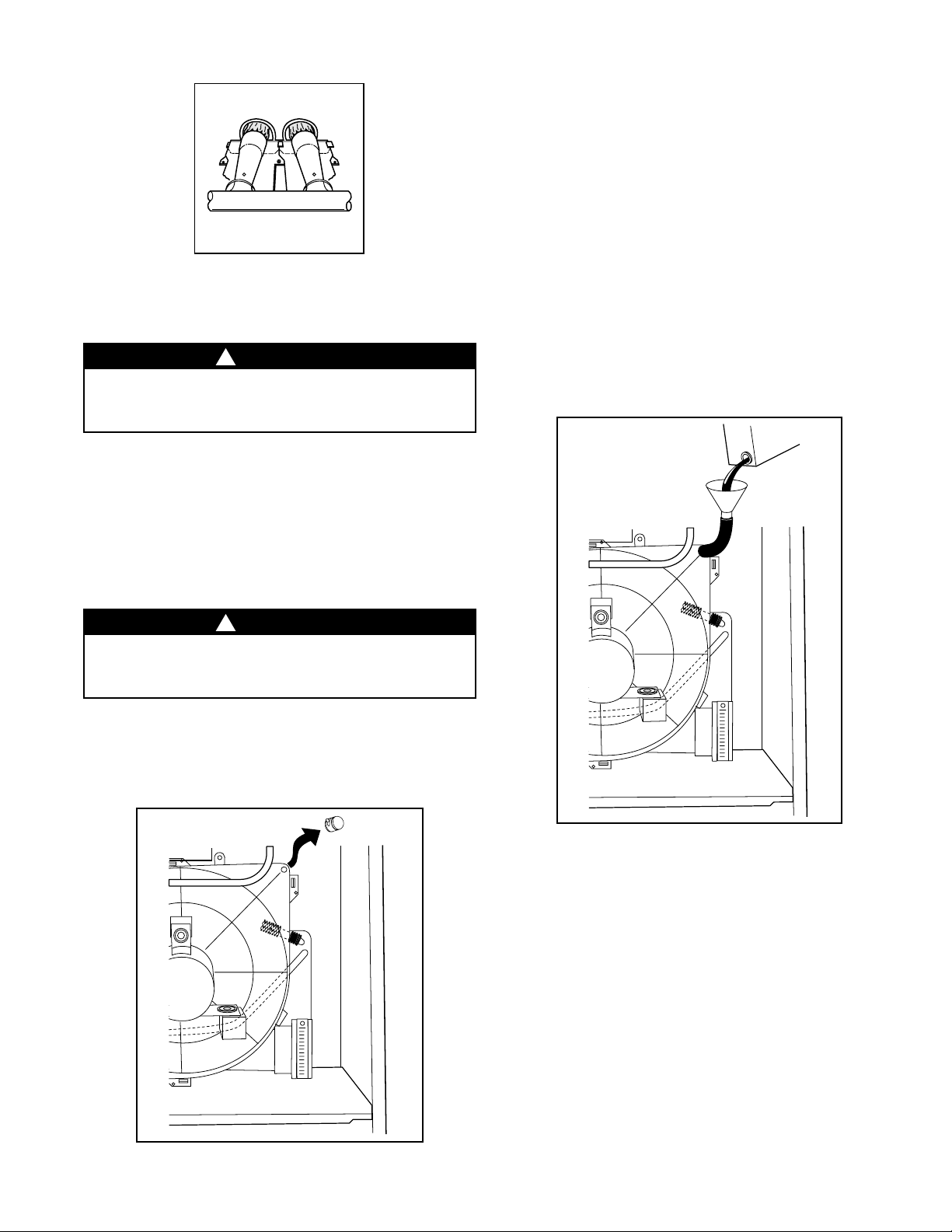

Page 9
28
HEADING SOUTH FOR THE WINTER?
DON’T FORGET YOUR FURNACE!
!
CAUTION
If the furnace is installed in an unconditioned space
where the ambient temperatures may be 32°F or
lower, freeze protection measures must be taken.
Since the furnace uses a condensing heat exchanger, some water
will accumulate in the unit as a result of the heat transfer process.
Therefore, once it has been operated, it cannot be turned off and
left off for an extended period of time when temperatures will
reach 32°F or lower unless winterized. Follow these procedures
to winterize your furnace:
1. Obtain propylene glycol (RV/swimming pool antifreeze
or equivalent).
5. Connect field-supplied 1/2-in. ID tube to upper inducer
housing drain connection.
6. Insert field-supplied funnel into tube.
7. Pour 1 quart of antifreeze into funnel/tube. Antifreeze
should run through inducer housing, overfill condensate
trap, and flow into open field drain. (See Fig. 30.)
8. Remove funnel and tube from inducer housing and
replace drain connection cap and clamp.
9. Replace main furnace door. (See Fig. 25.)
10. Propylene glycol need not be removed before restarting
furnace.
A CHECK-UP CHECKLIST
Your furnace represents an important investment in your family’s comfort and your home’s value. To keep it performing
properly and to prevent future problems, have a trained service
specialist give your furnace a professional check-up annually.
The following checklist can be used as a guideline to proper
service:
!
CAUTION
Do not use ethylene glycol (Prestone II antifreeze
coolant or equivalent). Failure of plastic components will occur.
2. Turn off electrical supply to the furnace. (See Fig. 16.)
3. Remove main furnace door. (See Fig. 18.)
4. Remove upper right inducer housing drain connection
cap. (See Fig. 29.)
29
30
• Inspect all flue gas passages, burners, heat exchangers, coupling box(es), and inducer assembly.
• Inspect all combustion-air and vent piping inside structure
and vent pipe termination outside the structure.
• Check gas pipes leading to and inside of your furnace for leaks.
• Inspect and clean the blower motor and wheel.
NOTE: The inducer and blower motors are pre-lubricated and
require no additional lubrication. These motors can be identified
by the absence of oil ports on each end of the motor.
• Inspect and change or clean air filters(s) if necessary.
• Inspect all supply- and return-air ducts for obstructions, air
leaks, and insulation. Remedy any problem when necessary.
• Inspect the return-air duct connections(s) at the furnace to ensure it is physically sound, sealed to the furnace casing, and
terminates outside the space containing the furnace.
9
Page 10
10
• Inspect electrical wiring, connections, and components for
loose connections.
• Perform an operational checkout to determine whether your
furnace is working properly and if it requires adjustments.
• Inspect all condensate drain tubes and condensate trap assembly for leaks. The condensate removal system should be cleaned
annually by a qualified service agency. Refer to the Service and
Maintenance Instructions for further information.
• Examine the physical support of the furnace. Support should
be sound with no cracks, sagging, gaps, etc. around the base.
• Check furnace for any obvious signs of deterioration.
BEFORE YOU REQUEST A SERVICE CALL
If your furnace is not operating or not performing properly,
you may save the expense of a service call by checking a few
things yourself before calling for service.
NOTE: Record the LED status code BEFORE removing the
blower access door or turning off 115-v power to the furnace.
Removing the blower access door or turning off the 115-v power will end the LED status code display and erase the code from
the control’s memory.
FOR INSUFFICIENT AIRFLOW:
• Check for dirty air filter(s).
• Check for blocked return-air or supply-air grilles throughout
your home. Ensure they are open and unobstructed.
If problem still exists, call your dealer for service.
IF FURNACE FAILS TO OPERATE:
Follow this checklist step by step, advancing to the next step
only if furnace fails to start.
• Check thermostat for proper temperature. Is thermostat set
above room temperature?
• Is thermostat set on HEAT?
• Check fuses and circuit breakers. Is electrical supply on?
• Is manual shutoff valve in gas supply pipe in open position?
(Follow start-up procedures if you open gas valve.)
NOTE: Turn off electrical supply before continuing with
checklist.
• Is control switch on gas valve in ON position? (Follow startup procedures if you must reset switch to ON position.)
• Check manual reset flame rollout switch located on the burner
box. (See Fig. 2.) if furnace has experienced high temperature
conditions, this switch will shut off the furnace. Reset it by
pushing the button on the switch. If it trips again, shut down the
furnace and call for service. See “Shutting Down Your Furnace”
section in this manual.
• Check for obstructions around the vent termination.
If the furnace still fails to operate, call your service representa-
tive.
For your convenience, record the furnace product and serial
numbers on page 2. Should you ever require service, you will
have ready access to the information needed by your service
representative.
This furnace has a light-emitting-diode (LED) status code display to aid the installer, service technician, or homeowner while
installing or servicing the unit. The LED code can be seen by
removing the main furnace door and viewing the LED through
the view port in the blower access panel.
Page 11
11
Page 12
TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or the classified section of your local telephone directory under the
“Heating Equipment’’ or “Air Conditioning Contractors & Systems’’ heading for dealer listing by brand name.
Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part.
Carrier Corporation 7310 West Morris St. Indianapolis, IN 46231
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations .
Copyright 2002 Carrier Corporation Form: OM58-104 Replaces: OM58-90 Printed in the U.S.A. a
7-02 PC 101 Catalog No. 535-80087
Loading...
