Page 1

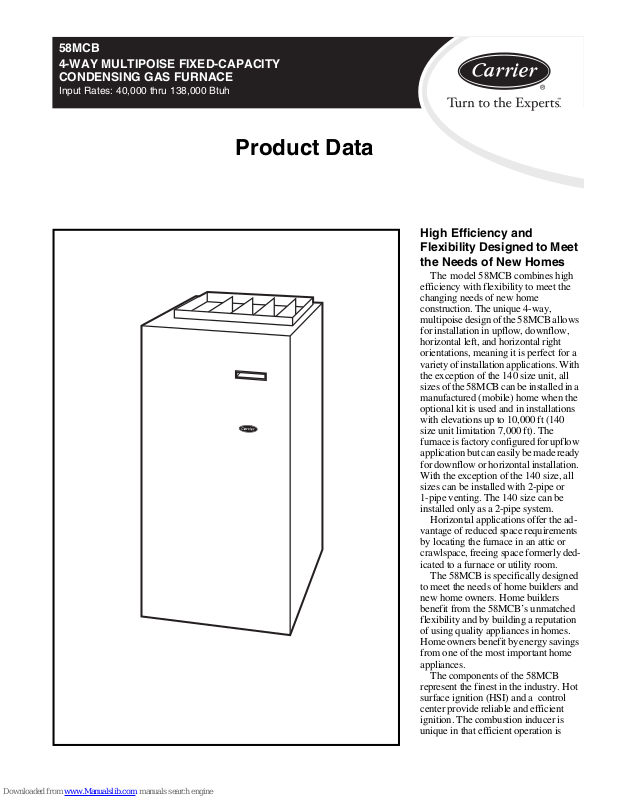

58MCB 4-WAY MULTIPOISE FIXED-CAPACITY

CONDENSING GAS FURNACE

Input Rates: 40,000 thru 138,000 Btuh

Product Data

High Efficiency and Flexibility Designed to Meet the Needs of New Homes

The model 58MCB combines high efficiency with flexibility to meet the changing needs of new home construction. The unique 4-way, multipoise design of the 58MCB allows for installation in upflow, downflow, horizontal left, and horizontal right orientations, meaning it is perfect for a variety of installation applications. With the exception of the 140 size unit, all sizes of the 58MCB can be installed in a manufactured (mobile) home when the optional kit is used and in installations with elevations up to 10,000 ft (140 size unit limitation 7,000 ft). The furnace is factory configured for upflow application but can easily be made ready for downflow or horizontal installation. With the exception of the 140 size, all sizes can be installed with 2-pipe or 1-pipe venting. The 140 size can be installed only as a 2-pipe system.

Horizontal applications offer the advantage of reduced space requirements by locating the furnace in an attic or crawlspace, freeing space formerly dedicated to a furnace or utility room.

The 58MCB is specifically designed to meet the needs of home builders and new home owners. Home builders benefit from the 58MCB’s unmatched flexibility and by building a reputation of using quality appliances in homes. Home owners benefit by energy savings from one of the most important home appliances.

The components of the 58MCB represent the finest in the industry. Hot surface ignition (HSI) and a control center provide reliable and efficient ignition. The combustion inducer is unique in that efficient operation is

Page 2

achieved in any type of installation. Standard 2-in. PVC pipe connects the combustion-air and vent pipes to the furnace. The primary and secondary heat exchangers are backed by a 20-year Limited Warranty.

The 58MCB is a standard part of a quality-built new home. This highefficiency furnace will provide years of quality service to home builders and home owners alike.

As with other Carrier furnaces, this model is designed to work as a part of the total home comfort system which includes elements for cooling, air cleaning, humidification, ventilation,

58MCB

and zoning.

58MCB FEATURES/ BENEFITS

Serpentuff

coating, a patented polypropylene laminate is used on the secondary heat exchanger.

Power Heat™ Igniter —Carrier’s

unique SiN igniter is not only physically robust but it is also electrically robust. It is capable of running at line voltage and does not require complex voltage

—Exclusive Serpentuff

regulators as do other brands. This unique feature further enhances the reliability of the 58MCB gas furnace and continues Carrier’s tradition of technology leadership and innovation in providing a reliable and durable product.

Control Center —Controls sequencing

and furnace operation. Equipped with a component test feature and status indicator light to assist in troubleshooting. Control times blower start after main burners ignite to eliminate cold air blowing into rooms.

Warranties —20-year Warranty

on the heat exchangers. Fiveyear Warranty on entire unit. Contact your dealer for details.

Direct or Non-direct Venting —The

58MCB can be installed as a 1 pipe-NonDirect vent or 2 pipe/Direct vent furnace except the 140 size which can be installed as 2-pipe only. This provides added flexibility to meet diverse installation needs.

Adjustable Blower Speed —For precise

airflow selection of heating or cooling operation.

Casing —One piece, seamless wrap-

around construction of prepainted

galvanized steel resists corrosion.

Combustion Products Venting —The

combustion-air and vent pipes can terminate through a side wall or through the roof when used with a factoryauthorized vent termination kit.

Insulation —Foil-faced insulation in

heat exchanger section of the casing minimizes heat loss.

Certifications —The 58MCB units are

CSA (A.G.A. and C.G.A.) design certified for use with natural and propane gases. The furnace is factory-shipped for use with natural gas. A CSA (A.G.A./ C.G.A.) listed gas conversion kit is required to convert furnace for use with propane gas. The efficiency is GAMA efficiency rating certified. The 58MCB meets California Air Quality Management District emission requirements. Except for the 140 size unit, all sizes of the 58MCB can be installed in a manufactured (mobile) home when the optional kit is used. Refer to Vent Table for elevation limitations.

Quality Registration —The 58MCB is

engineered and manufactured under an ISO 9001 registered quality system.

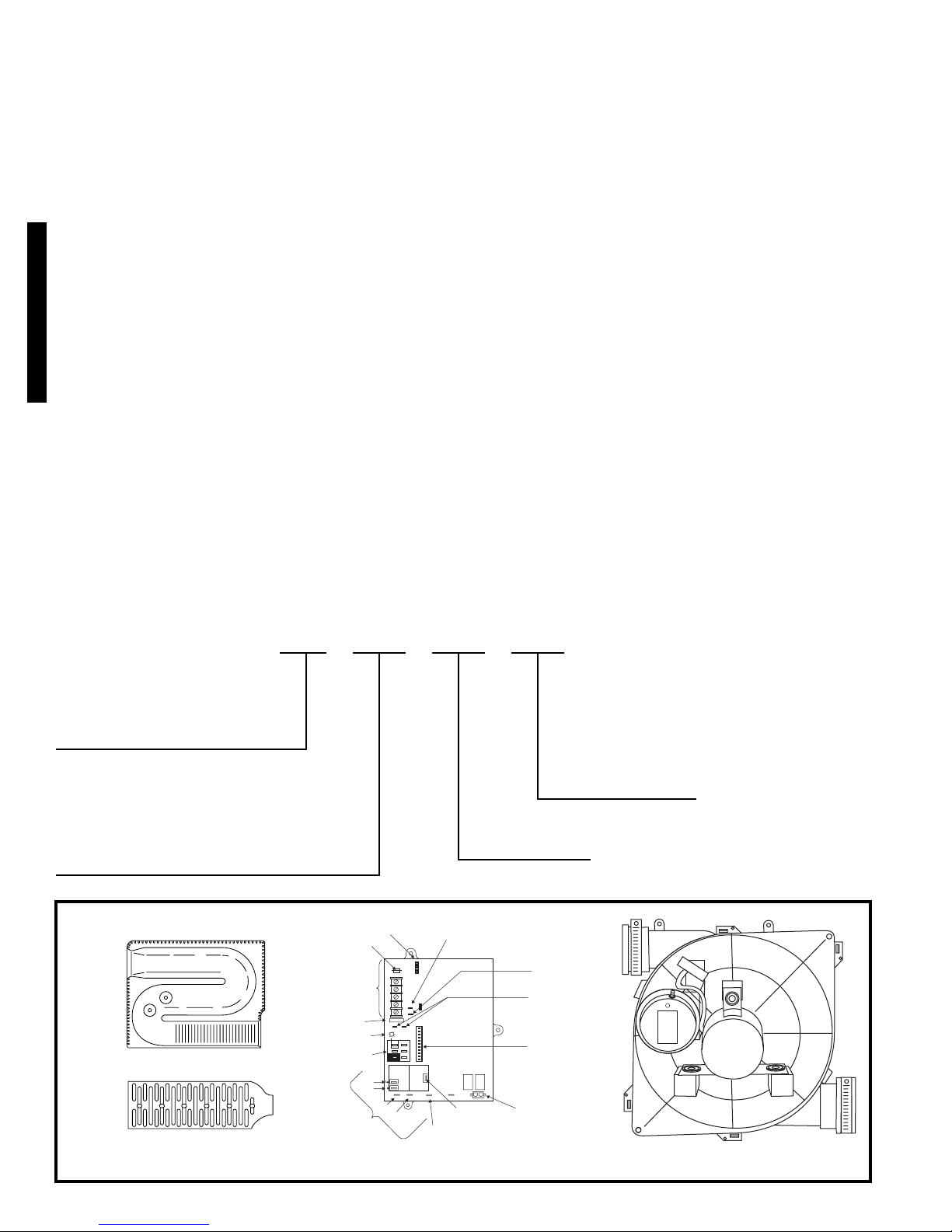

Model number nomenclature

58MCB 040

4-Way Multipoise Fixed-Capacity Direct-Vent (2-Pipe) and Non-Direct Vent (1-Pipe) Condensing Gas Furnace

Input Rate

040 — 40,000 Btuh 060 — 60,000 Btuh 080 — 80,000 Btuh 100 — 100,000 Btuh 120 — 120,000 Btuh 140 — 138,000 Btuh

A92505

HEAT EXCHANGERS CONTROL CENTER

BLOWER OFF-DELAY

J2 JUMPER

24-V THERMOSTAT

TERMINALS

3-AMP FUSE

LED OPERATION &

DIAGNOSTIC LIGHT

115-VAC(L2)NEUTRAL

CONNECTIONS

COOL HEAT

BLOWER SPEED

SELECTION TERMINALS

SPARE-1

G Com W Y R

24V

STATUS CODE LED

FUSE 3-AMP

SEC-2 SEC-1

NUETRAL

BLW

COOL HEAT

SPARE-2

TEST/TWIN

0.5 AMP@24VAC

EAC-2 L2

SPARE-1 SPARE-2

BLOWER OFF-DELAY

90 150

120 180

PLT

HUM

PLT 1

EAC-1

(115-VAC 1.0 AMP MAX.)

TWINNING AND/OR COMPONENT TEST

TERMINAL

1-AMP@

115VAC

VOLTAGE CONNECTION

EAC-1 TERMINAL

100 08

Series

GE MAIN

PR-1

115 VAC (L1) LINE

PL2 1

PL1-LOW VOLTA HARNESS CONNECTOR

PL2-HOT SURFACE

IGNITER & INDUCER

MOTOR CONNECTOR

A02100

Cooling Size Airflow

(Nominal 400 CFM per 12,000 Btuh Cooling) 08 — 800 CFM 12 — 1200 CFM 16 — 1600 CFM 20 — 2000 CFM

HUMIDIFIER TERMINAL (24-VAC 0.5 AMP MAX.)

TRANSFORMER 24-VAC

CONNECTIONS

A02172

INDUCER ASSEMBLY

Page 3

2 3

6 7

58MCB

8 9

17 18

A02173

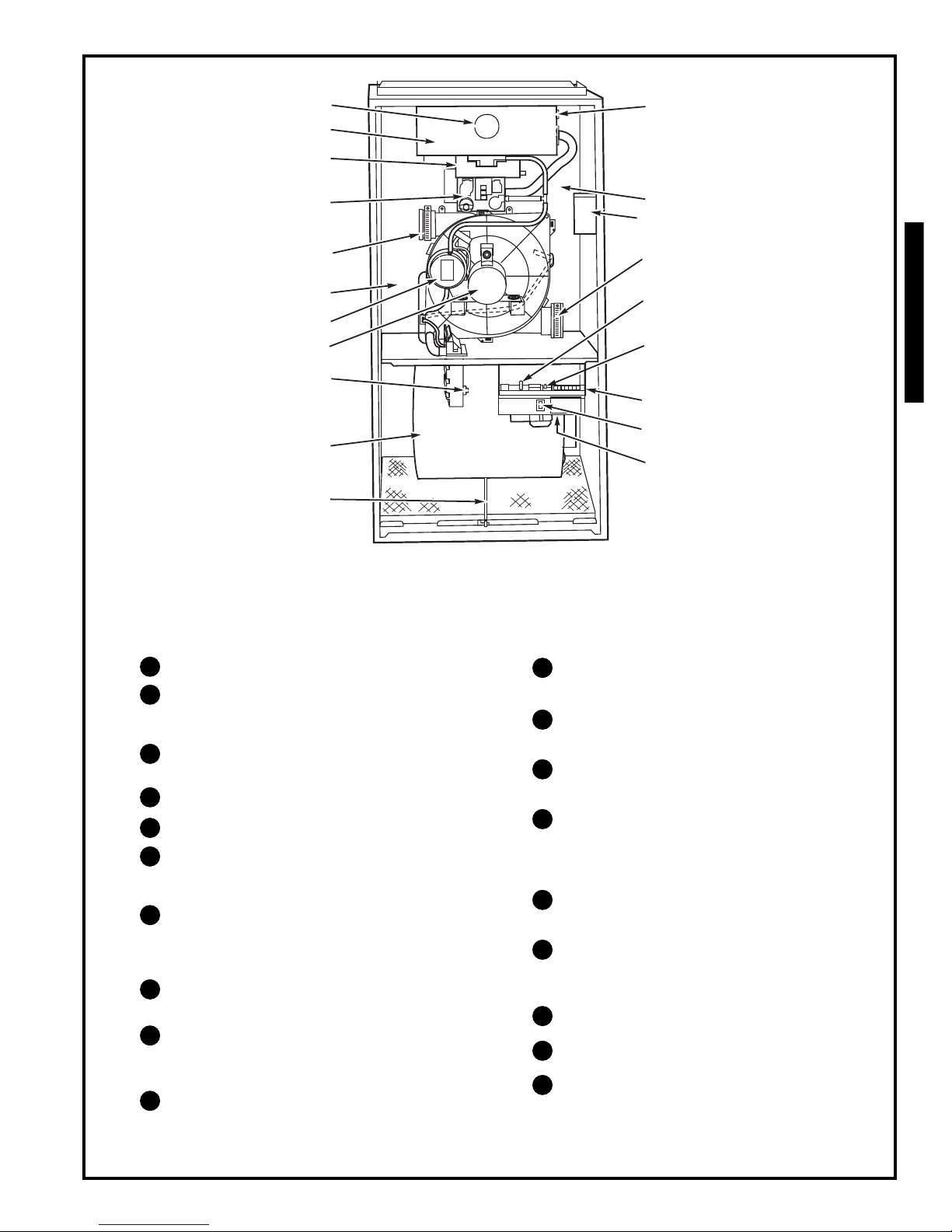

NOTES:

1. The 58MCB Furnaces are for use with natural gas, but can be field-converted for propane gas with a factoryauthorized and listed accessory conversion kit.

2. Component location and configuration may be different than shown above.

Burner sight glass for viewing burner flame.

Burner assembly (inside) operates with energy-

saving, inshot burners and hot surface igniter for safe, dependable heating.

Combustion-air intake connection to ensure contaminant-free air (right or left side).

Redundant gas valve. Safe, efficient, gas control.

unction box for 115-v electrical power supply.

Vent outlet uses sealed PVC pipe to carry vent

gases from the furnace’s combustion system (right or left side).

Secondary condensing heat exchanger (inside), wrings out more heat through condensation of gases. Constructed with Polypropylene-laminated steel to ensure durability.

Pressure switch ensures adequate flow of flue products through furnace and out vent system.

Combustion inducer pulls hot flue gases through the heat exchangers, maintaining negative pressure for added safety.

Condensate drain connection collects moisture condensed during the combustion process.

Heavy-duty blower circulates air across the heat exchangers to transfer heat into the home.

Air filter and retainer may be used for side or

bottom return application.

Rollout switch (manual reset) to prevent overtemperature in burner area.

Primary serpentine heat exchanger (inside) stretches fuel dollars with the S-shaped heat-flow design. Solid construction of corrosion-resistant aluminized steel means reliability.

3-amp fuse provides electrical and component protection.

Light emitting diode (LED) on control center. Code lights are for diagnosing furnace operation and service requirements.

Control center.

Blower access panel safety interlock switch.

Transformer (24v) behind control center provides low-voltage power to furnace control center and thermostat.

Page 4

Physical data

UNIT SIZE 040-08 040-12 060-08 060-12 060-16 080-12 080-16 080-20 100-16 100-20 120-20 140-20

DIRECT-DRIVE MOTOR

h.p. (PSC) MOTOR FULL LOAD AMPS RPM (Nominal) — SPEEDS BLOWER WHEEL DIAMETER X WIDTH (In.) 10 x 6 10 x 7 10 x 6 10 x 7 11 x 8 10 x 7 11 x 8 11 x 10 11 x 8 11 x 10 11 x 10 11 x 10 FILTER SIZE (In.) — (Washable)

SHIPPING WEIGHT (Lb) LIMIT CONTROL HEATING BLOWER CONTROL (Off Delay) BURNERS (Monoport) GAS CONNECTION SIZE GAS VALVE (Redundant) Manufacturer

58MCB

Minimum Inlet Pressure (In. wc)

Maximum Inlet Pressure (In. wc) IGNITION DEVICE

PSC—Permanent Split Capacitor

1/5 1/3 1/5 1/3 1/2 1/3 1/2 3/4 1/2 3/4 3/4 3/4

4.9 5.8 4.9 5.8 7.9 5.8 7.9 11.1 7.9 11.1 11.1 11.1

1075—31075—4 1075—3 1075—4

(1) 16 x 25 x 1 (1) 20 x 25 x 1 (1) 24 x 25 x 1

165 166 172 174 174 188 194 206 219 221 250 250

SPST

Selectable 90, 120, 150, or 180 sec

223334445566

1/2-in. NPT

White-Rodgers

4.5 (Natural Gas)

13.6 (Natural Gas) Hot Surface

Carrier accessories *

UNIT SIZE GAS CONVERSION KIT—NATURAL-TO-PROPANE GAS CONVERSION KIT—PROPANE-TO-NATURAL

TWINNING KIT† MANUFACTURED (Mobile) HOME KIT

DOWNFLOW BASE (For Combustible Floors)‡ VENT TERMINATION KIT (Bracket Only for 2 Pipes) CONCENTRIC VENT TERMINATION KIT (Single Exit) CONDENSTATE FREEZE PROTECTION KIT CONDENSATE NEUTRALIZER KIT (obtained thru RCD) SIDE FILTER RACK (Without Filter) Upflow Only ELECTRONIC AIR CLEANER (EAC) MECHANICAL AIR CLEANER HUMIDIFIER HEAT RECOVERY VENTILATOR ENERGY RECOVERY VENTILATOR UV LIGHTS DOOR GASKET KIT

Factory-authorized and field-installed. Gas conversion kits are A.G.A./C.G.A. recognized. † For 16 and 20 airflow sizes only (except 140-20 size unit). See kit Installation Instructions for details. ‡ Required for installation on combustible floors when no coil box is used, or when any coil box other than a Carrier cased coil is used.

N/A — Not Applicable

040-08 040-12

N/A KGATW0601HSI

060-08 060-12 060-16

2-in.—KGAVT0101BRA 3-in.—KGAVT0201BRA 2-in.—KGAVT0501CVT 3-in.—KGAVT0601CVT

080-12 080-16 080-20

KGANP4001ALL KGAPN3301ALL

KGAMH0102KIT

KGASB0201ALL

KGAHT0101CFP

P908-0001

KGAFR0200ALL

Model EACB

Models FILCAB, EZXCAB

Model HUM Model HRV Model ERV

Model UVL

KGBAC0110DGK

100-16 100-20

120-20 140-20

N/A N/A

Page 5

Thermostat and zoning control options

NON-PROGRAMMABLE THERMOSTAT SELECTION TSTATCCNAC01-C TSTATCCNHP01-C* TSTATCCN2S01-C* TSTATCCBAC01-B TSTATCCPRH01-B**

* Model HP and 2S thermostat must be field converted to air conditioner operation. **Thermidistat Control is versatile and can be configured for multiple use and staging, it must be configured for each specific application.

For use with 1-spd. Air Conditioner - deg. F/C, Auto Changeover For use with 1-spd. Air Conditioner - deg. F/C, Auto Changeover For use with 2-spd. Air Conditioner - deg. F/C, Auto Changeover For use with 1-spd. Air Conditioner - deg. F/C For multi-use / stage configurations - deg. F/C, Auto Changeover/Temperature and Humidity Control

PROGRAMMABLE THERMOSTAT SELECTION TSTATCCPAC01-B TSTATCCPHP01-B* TSTATCCP2S01-B* TSTATCCSAC01 TSTATCCPDF01-B** TSTATCCPRH01-B***

For use with 1-spd. Air Conditioner - deg. F/C, Auto Changeover, 7-Day Programmable For use with 1-spd. Air Conditioner - deg. F/C, Auto Changeover, 7-Day Programmable For use with 2-spd. Air Conditioner - deg. F/C, Auto Changeover, 7-Day Programmable For use with 1-spd. Air Conditioner - deg. F/C, 5-2 Day Programmable For use with multi-stage applications - deg. F/C, Auto Changeover, 7-Day Programmable For multi-use / stage configurations - deg. F/C, Auto Changeover, 7-Day Programmable/Temperature and Humidity Control

* Model HP and 2S thermostat must be field converted to air conditioner operation. **Dual Fuel thermostat is used with furnace and heat pump application ***Thermidistat Control can be configured for multiple use and staging, it must be configured for each specific application.

ZONING CONTROL SELECTION ZONECC3Z(AC/HP)01 ZONECC2KIT01-B ZONECC4KIT01-B ZONECC8KIT01-B

WeatherMaker Two-Zone kit Comfort Zone II-B 2-Zone kit/Temperature and Humidity Control Comfort Zone II-B 4-Zone kit/Temperature and Humidity Control Comfort Zone II-B 8-Zone kit/Temperature and Humidity Control

58MCB

As an ENERGY STAR Partner, Carrier Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

ama

MEETS DOE RESIDENTIAL CONSERVATION SERVICES PROGRAM STANDARDS.

Before purchasing this appliance, read important energy cost and efficiency information available from your retailer.

CERTIFIED

ISO 9001:2000

REGISTERED

REGISTERED QUALITY SYSTEM

These products are engineered and manufactured under an ISO 9001 registered quality system.

Page 6

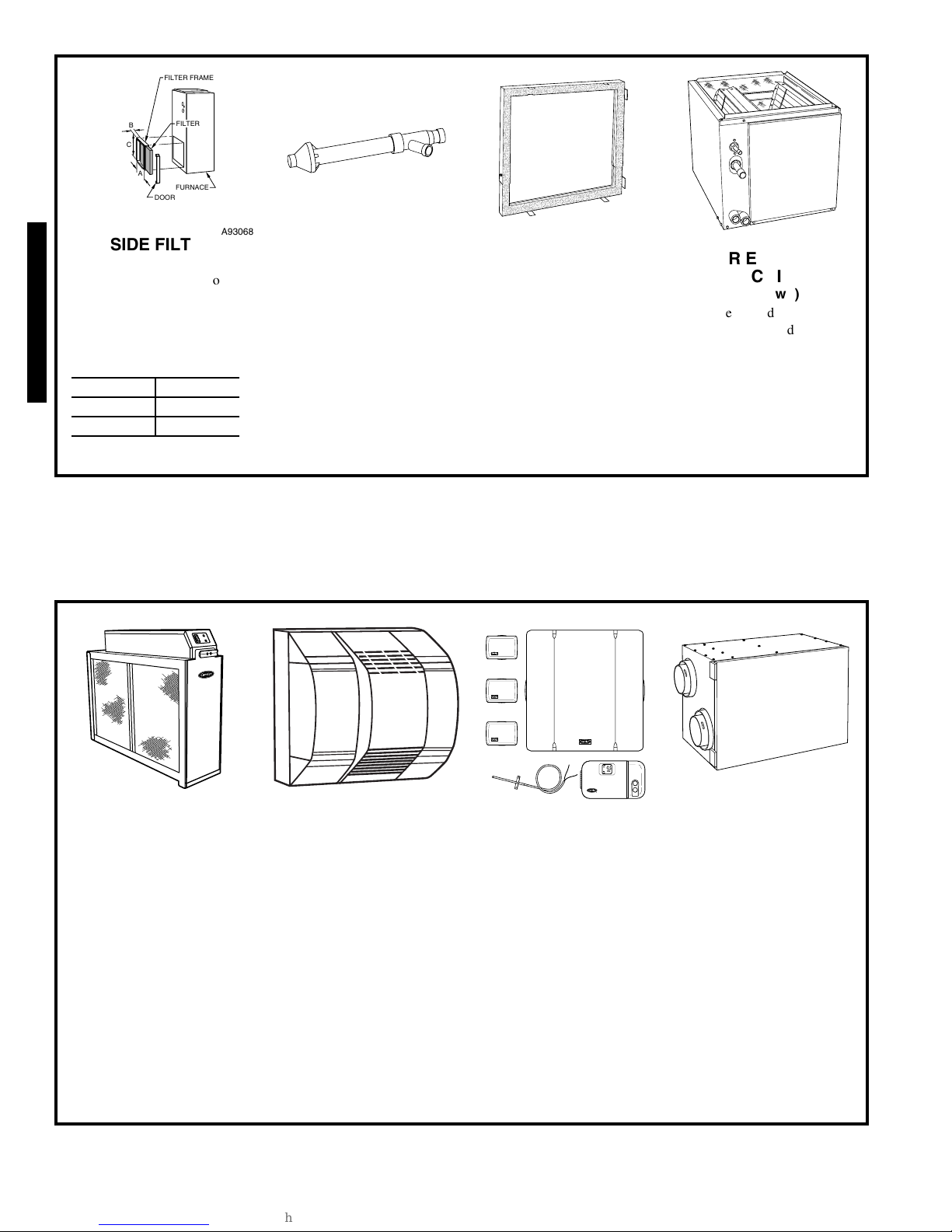

FILTER FRAME

FILTER

FURNACE

DOOR

SIDE FILTER

RACK

Custom-made filter rack for easy connection when a return plenum already exists. Provides easy access for cleaning filter.

58MCB

Accepts one 16 x 25 x 1 in. filter.

(Not included)

23-1/8 in.

2-3/8 in.

14-1/2 in.

A93068

A93086

CONCENTRIC VENT

(Direct Vent/2-Pipe

Application)

A concentric vent kit allows vent and combustion-air pipes to terminate through a single exit in a roof or side wall.

One pipe runs inside the other allowing venting through the inner pipe and combustion air to be drawn in through the outer pipe.

A88202

DOWNFLOW

SUBBASE

One base fits all furnace sizes. The base is designed to be installed between the furnace and a combustible floor when no coil box is used or when a coil box other than a Carrier cased coil is used. It is CSA (A.G.A./C.G.A.) design certified for use with Carrier 58MCB furnaces when installed in downflow

A96214

CARRIER CASED

N-COIL

(as shown)

The Carrier Cased N-Coil or A-Coil is an upflow/downflow furnace coil which can also replace the downflow subbase when installing the 58MCB on combustible flooring in the downflow orientation.

A97380

ELECTRONIC AIR

HUMIDIFIER

CLEANER

Cleans the air of smoke, dirt, and many pollens commonly found. Saves decorating and cleaning expenses by keeping carpets, furniture, and drapes cleaner.

By adding moisture to winterdry air, a Carrier humidifier can often improve comfort and keeps woodwork, wallpaper, and paint in better condition. Moisturizing household air also helps to retain normal body heat and provides comfort at lower temperatures.

A01484

A97432

CONTROLS:

THERMOSTATS

AND ZONING

Available in programmable and non-programmable models, Carrier thermostats maintain a constant, comfortable temperature level in the home.

For the ultimate in home comfort, Carrier’s 2-zone, 4-zone and 8-zone systems allow temperature control of individual “zones” of the home. This is accomplished through a series of electronic dampers and remote room sensors. The 4-zone system is shown.

A94336

ENERGY/HEAT

RECOVERY

VENTILATOR

Carrier’s energy or heat recovery ventilators exhaust stale indoor air and provide fresh outdoor air to the home while minimizing heat loss and humidity level. Especially useful for today’s tighter constructed houses.

Energy recovery ventilator is shown.

Page 7

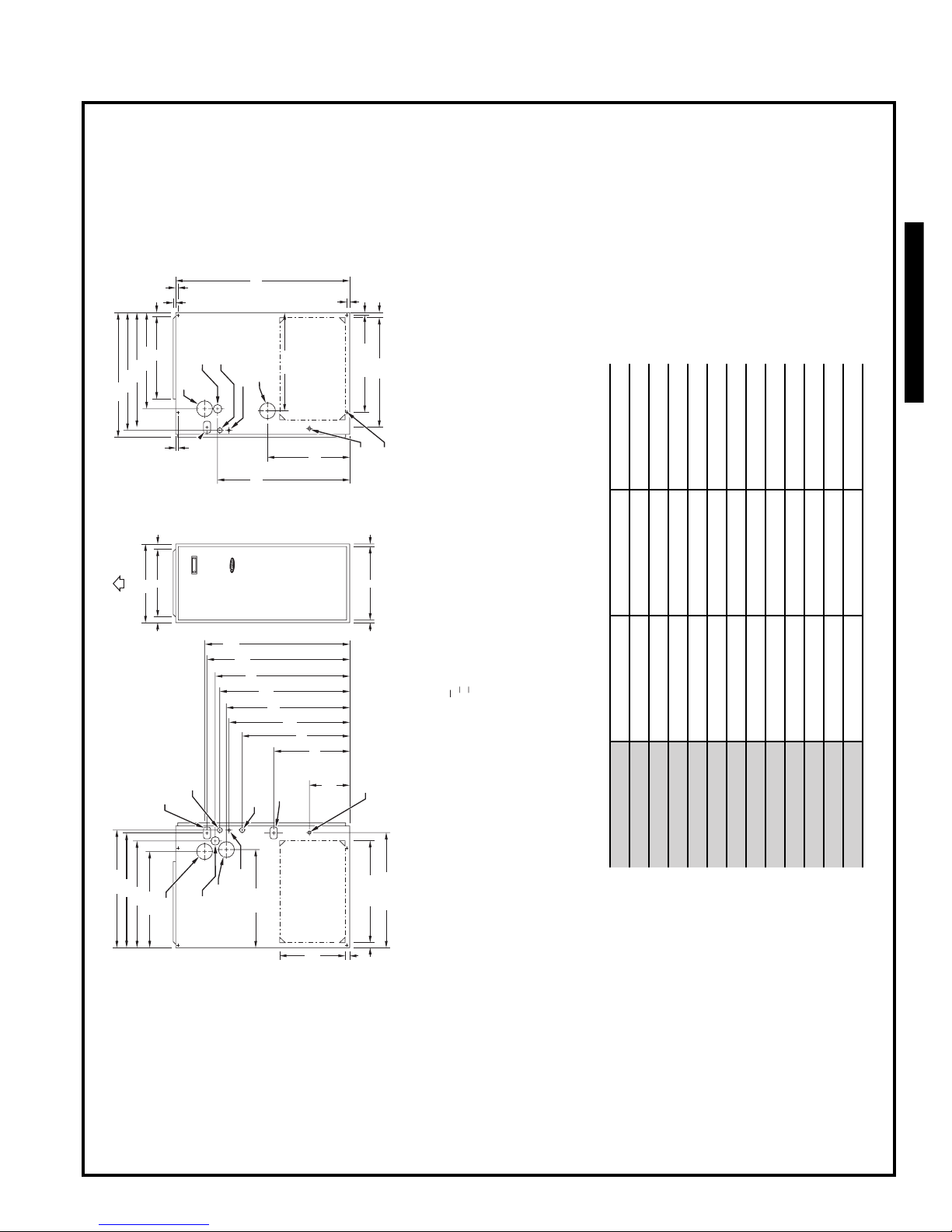

Dimensions

⁄16"

⁄8"

⁄16"

19"

⁄4"

OUTLET

⁄16"

⁄2"

⁄16"

TYP

/16"

2-IN. COMBUSTION-

AIR CONN

TRAP LOCATION

CONDENSATE DRAIN

(DOWNFLOW &

⁄2-IN. DIA

GAS CONN

OR ALTERNATE

HORIZONTAL RIGHT)

-IN. DIA GAS CONN

⁄2

⁄8-IN. DIA

POWER CONN

⁄2-IN. DIA

A05105

⁄8

⁄16"

2-IN. VENT CONN

THERMOSTAT E N TR Y

⁄2"

SIDE INLET

⁄4"

⁄16"

⁄4" TYP

⁄16"

BOTTOM INLET

HANGING

(UPFLOW)

CONDENSATE

DRAIN LOCATION

FOR HORIZONTAL

DIMPLE LOCATORS

/16"

58MCB

OUTLET

AIRFLOW

/16"

CONDENSATE DRAIN

TRAP LOCATION

(DOWNFLOW &

⁄16"

⁄4"

⁄2"

⁄16"

2-IN. COMBUSTION-

AIR CONN

HORIZONTAL LEFT)

⁄8-IN. DIA

POWER CONN

⁄2-IN. DIA

GAS CONN

2-IN. VENT CONN

⁄4"

TYP

⁄8"

TYP

⁄16"

TYP

⁄8"

⁄16"

TYP

⁄2"

⁄16"

CONDENSATE

DRAIN TRAP

LOCATION

(ALTERNATE

⁄8-IN. DIA

ENTRY

⁄16"

⁄2-IN. DIA THERMOSTAT

UPFLOW)

ACCESSORY

POWER ENTRY

SIDE INLET

⁄2"

TYP

INLET

/16"

⁄16"

TYP

CONDENSATE

DRAIN LOCATION

⁄4"

⁄4" TYP

SIDE INLET

(UPFLOW)

⁄16" TYP

/2 in. rectangle.

/4 in. rectangle.

/2 X 19-

/2 X 23-

/2 X 12-in. rectangle.

21 19-3/8 19-1/2

080-20

100-16

21 19-3/8 19-1/2

24-1/2 22-7/8 23

100-20

120-20

140-20 24-1/2 22-7/8 23

DIMENSIONS (In.)

17-1/2 15-7/8 16

2. For 1200 CFM 20-in. round or 14-

3. For 1600 CFM 22-in. round or 14-

duct. If flex duct is used, see flex duct manufacturer's

recommendation for equivalent diameters:

1. For 800 CFM 16-in. round or 14-

4. For airflow requirements above 1800 CFM, see Air Delivery

Table in Product Data literature for specific use of single side

inlets. The use of both side inlets, a combination of 1 side and

the bottom, or the bottom only will ensure adequate return-air

openings for airflow requirements above 1800 CFM at 0.5î W.C. ESP.

040-08

040-12

060-08

060-12

060-16

080-12

UNIT SIZE A D E

080-16

NOTES: Minimum return-air opening at furnace, based on metal

Page 8

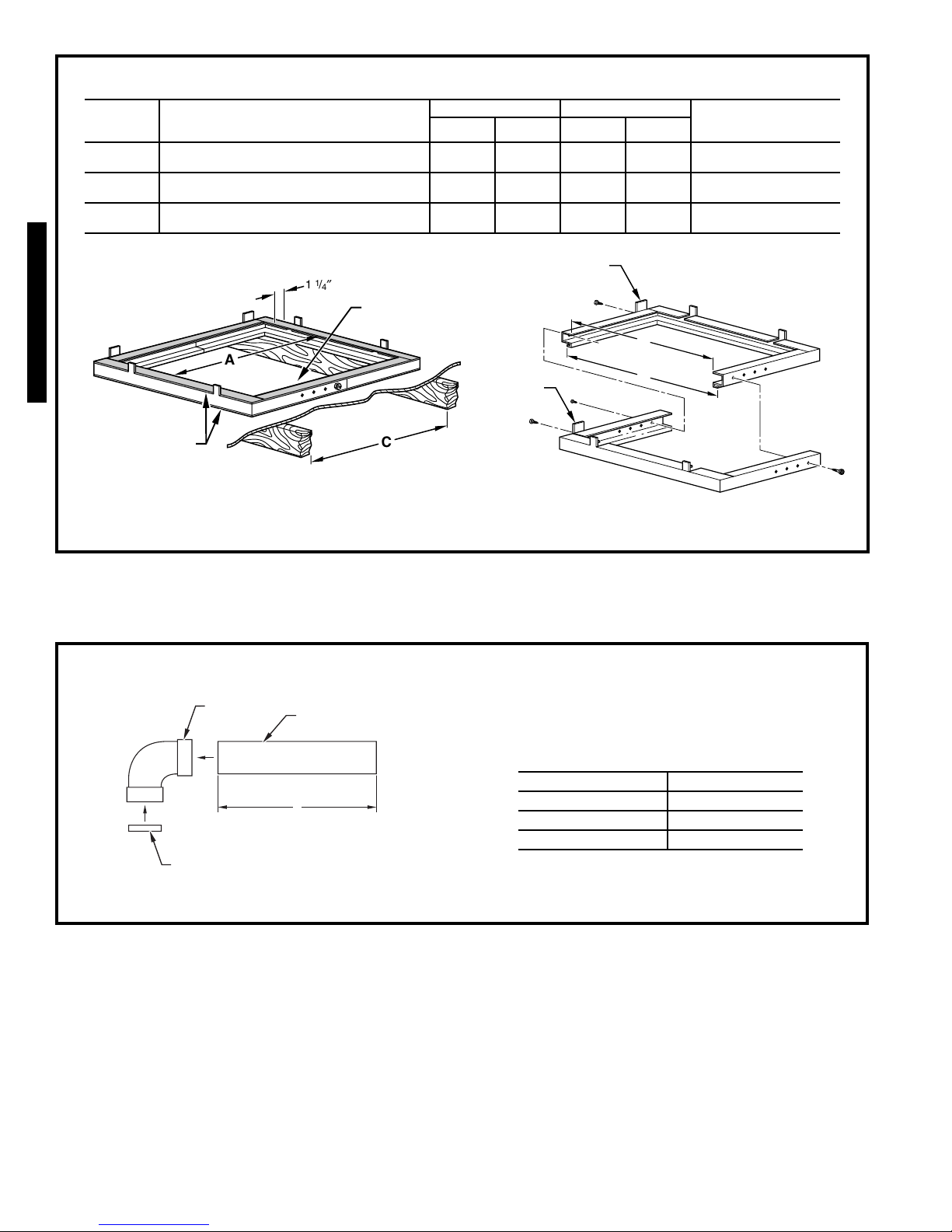

DOWNFLOW SUBBASE — DIMENSIONS (In.)

FURNACE

CASING

WIDTH FURNACE IN DOWNFLOW APPLICATION

Furnace with or without Cased Coil

17-1/2

Assembly or KCAKC Coil Box 15-1/8 19 16-3/4 20-3/8 3

Furnace with or without Cased Coil

Assembly or KCAKC Coil Box 18-5/8 19 20-1/4 20-3/8 2

Furnace with or without Cased Coil

24-1/2

Assembly or KCAKC Coil Box 22-1/8 19 23-3/4 20-3/8 1

* The plenum should be constructed 1/4 in. smaller in width and depth than the plenum dimensions shown above.

1 1/

″ TYP

PLENUM OPENING

58MCB

PLENUM OPENING* FLOOR OPENING HOLE NO.

LOCATING

TAB

LOCATING

TAB

FOR WIDTH

ADJUSTMENTABCD

FACTORY-SUPPLIED

FIELD-INSTALLED

INSULATION

Combustion-Air Pipe for Non-Direct Vent (1-Pipe) Application (Sizes 040 through 120 Only)

COMBUSTION-AIR DISC (FACTORY-SUPPLIED IN LOOSE PARTS BAG)

Assembled Disassembled

FIELD-SUPPLIED 2-IN. DIAMETER PVC 90 ELBOW

FIELD-SUPPLIED 2-IN. DIAMETER PVC PIPE

A97427 A88207

LENGTH OF STRAIGHT

PIPE PORTION OF COMBUSTION

AIR INLET PIPE ASSEMBLY (IN.)

CASING WIDTH A

17-1/2 8-1/2 ± 1/2

21 10-1/2 ± 1/2

24-1/2 12 ± 1/2

A96211

Page 9

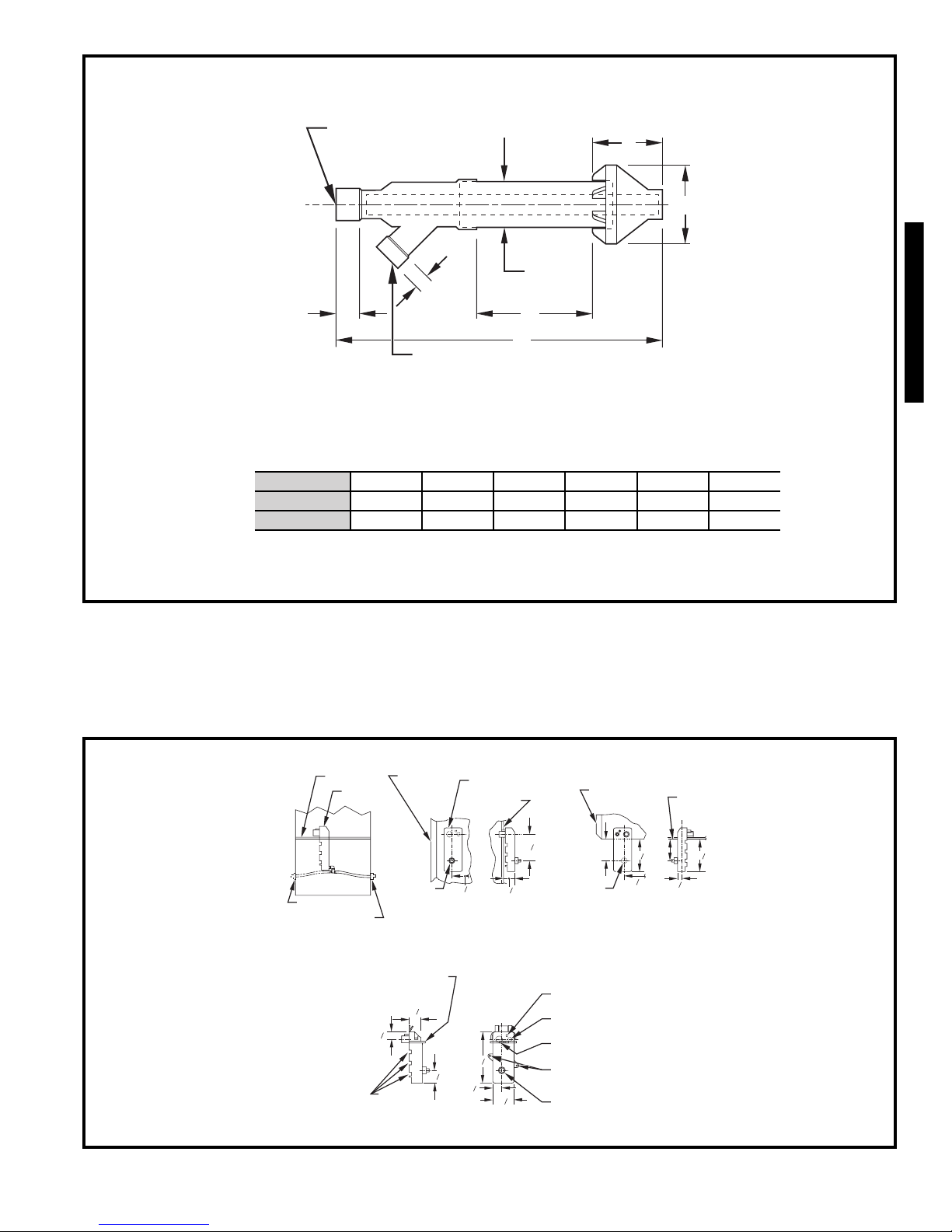

CONCENTRIC VENT for Direct Vent (2-Pipe) Application (All Model Sizes)

B IN. DIA PVC VENT/EXHAU

NOTE: See furnace Installation Instructions when venting multiple furnaces near each other.

KIT PART NO. A* BCD†EF KGAVT0501CVT 33-3/8 2 3-1/2 16-5/8 6-1/4 5-3/4 KGAVT0601CVT 38-7/8 3 4-1/2 21-1/8 7-3/8 6-1/2

* Dimension A will change accordingly as dimension D is lengthened or shortened.

† Dimension D may be lengthened to 60 in. maximum. Dimension D may also be shortened by

cutting the pipes provided in the kit to 12 in. minimum.

C IN. DIA

/16

58MCB

B IN. DIA PVC INTAKE/COMBUSTION AIR

A97110

DIMENSIONS (In.)

ALTERNATE DRAIN TUBE LOCATION

CONDENSATE TRAP

DRAIN TUBE LOCATION

UPFLOW APPLICATIONS

BLOWER SHELF

CONDENSATE TRAP (INSIDE)

CONDENSATE TRAP

FURNACE DOOR

FIELD DRAIN CONN

EXTERNAL UPFLOW APPLICATIONS

SLOT FOR SCREW

HORIZONTAL

APPLICATION

(OPTIONAL)

WIRE TIE GUIDES (WHEN USED)

FRONT VIEW SIDE VIEW

CONDENSATE TRAP

FURNACE

SIDE

SIDE VIEW FRONT VIEW END VIEW FRONT VIEW

DOWNFLOW AND ALTERNATE

⁄4 OD COLLECTOR BOX TO TRAP RELIEF PORT

⁄2 OD INDUCER HOUSING DRAIN CONNECTION

⁄8 OD COLLECTOR BOX DRAIN CONNECTION

SCREW HOLE FOR UPFLOW OR DOWNFLOW APPLICATIONS (OPTIONAL)

⁄2-IN. PVC OR CPVC

FURNACE DOOR

FIELD

DRAIN

CONN

APPLICATIONS

HORIZONTAL

FURNACE

SIDE

A93026

Page 10

Clearance to combustibles

This forced air furnace is equipped for use with natural gas at altitudes 0 - 10,000 ft (0 - 3,050m), except 140 size Furnaces are only approved for altitudes 0 - 7,000 ft. (0 - 2,135m). An accesso ry kit , suppli ed by the manufact urer, sha ll be us ed to conver t to pr opane gas use or may be re quired f or some natur al gas applications. This furnace i s for i ndoor inst allati on in a buil ding constr ucted on site. Thi s furnace may be install ed in a manufact ured (mobi le) home when stated on rating plate and using factory

authorized kit.

This furnace may be instal led on combus tible f looring in alcove or closet at mini mum clearance from combusti ble materi al.

This app liance r equires a special venting s ystem. Refer to the install ation i nstructi ons for par ts li st and method of ins tallat ion. This furnace is for use with schedule-40 PVC, PVC-DWV, CPVC, or ABS-DWV pipe, and must not be vent ed in common with other gas-fi red appliances. Constr uction t hrough which vent/air intake pipes may be instal led is maximum 24 inches (600 mm), minimum 3/4 inches (19 mm) thickness (including roofing materials).

Cette fournaise à air pulsé est équipée pour utilisation avec gaz naturel et altitudes comprises entre 0 - 3,050m

(0-10,000 pi), excepté queles fournaises de 140 taille sont pour altitudes comprises entr e 0 - 2,135m (0 - 7,000 pi).

Util iser une trousse de conversion, fournie par le fabricant , pour pas ser au gaz propane ou pour certai nes inst allati ons au gaz naturel. Cette fournaise à air pulsé est pour installation à l´intérieur dans un bâtiment construit sur place. Cette fournaise à air puls é peut êt re instal lée dans une maison pr éfabriquée

(maison mobile) si prescrit par la plaque signalétique et si l´on utilise une trousse specifi ée par le fabricant.

Cette fournaise peut être installée s ur un plancher combustible dans un enfoncement ou un placard en observant les dégagements minimums avec les matér iaux combust ibles.

Cet appareil nécessite un système d´évacuation spécial. La méthode d´installation et l a liste des pièces nécessaires figurent dans les instructions d´installati on.Cette fournaise doit s´utiliser avec la tuyauterie des nomenclatures 40 PVC, PVC-DWV, CPVC, ou ABS-DWV et ell e ne peut pas être ventilée conjointm ent avec d´autres appareils à gaz. Épaisseur de la constr uction au travers de laquell e il est possibl e de fai re passer les tuyaux d´aérati on (admiss ion/évacuati on): 24 po (600 mm) maximum, 3/4 po (19 mm) minimum (y c ompris la toitur e).

For upflow and downflow applications, furnace must be installed level, or pitched within 1/2" of level. For a horizontal application, the furnace must be pitched minimum 1/4" to

58MCB

maximum of 1/2" forward for proper drainage. See Installation Manual for IMPORTANT unit support details on horizontal applications.

Pour des applications de flux ascendant et descendant, la fournaise doit être installée de niveau ou inclinée à pas plus de 1/2" du niveau. Pour une application horizontale, la fournaise doit être inclinée entre minimum 1/4" et maximum 1/2" du niveau pour le drainage approprié. En cas d'installation en position horizontale, consulter les renseignements IMPORTANTS sur le support dans le manuel d'installation.

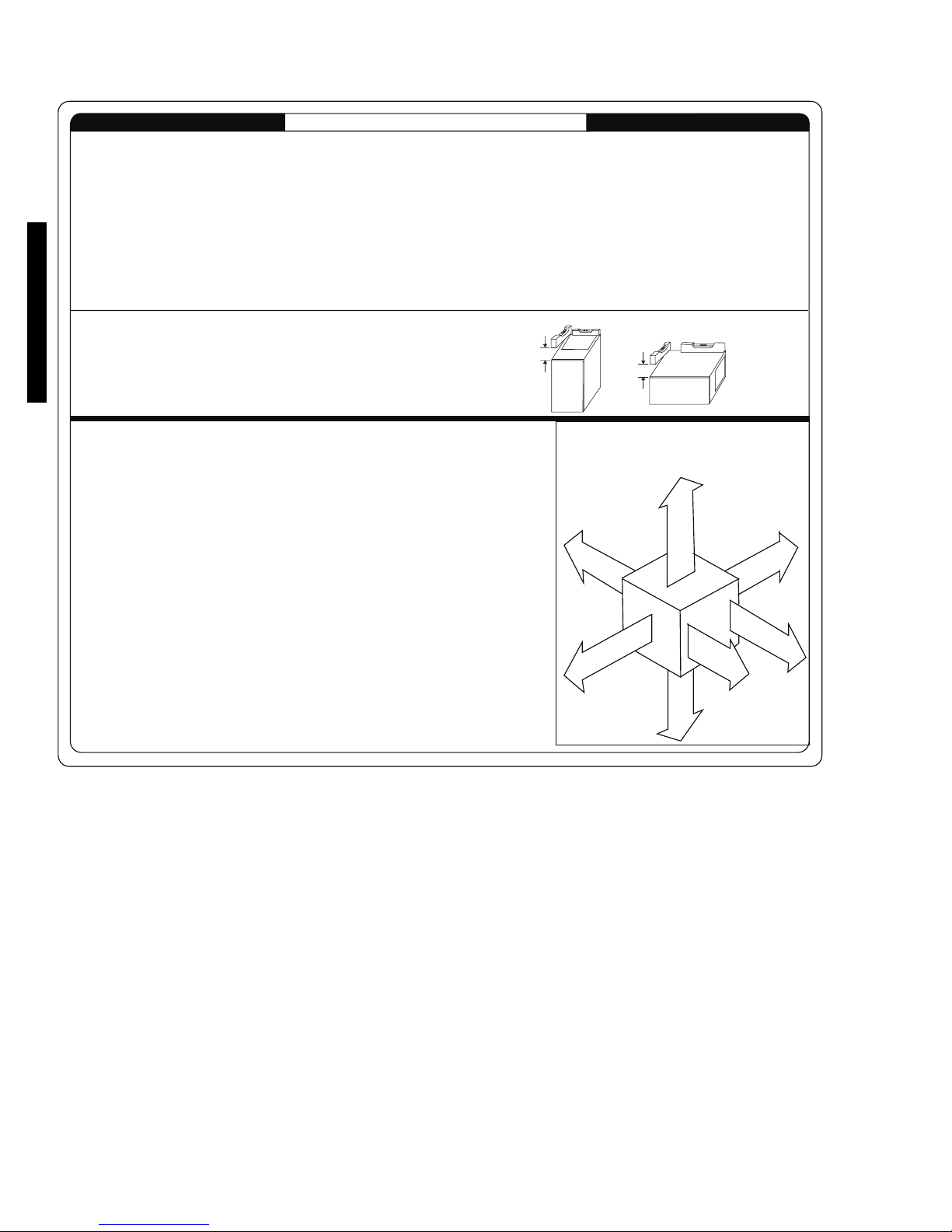

MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION

ALL POSITIONS:

Minimum front clearance for service 30 inches (762mm).

†

140 size fur naces requir e 1 inch back clearance to combustible materials.

DOWNFLOW POSITIONS:

For installation on combustible floors only when installed on special base No. KGASB0201ALL, Coil

†

Assembly, Part No. CD5 or CK5, or Coil Casing, Part No. KCAKC.

HORIZONTAL POSITIONS:

Line contact is permissible only between l ines formed by int ersections of top and two sides of furnace jacket, and building joists, studs, or framing. Clearance shown is for air inlet and air outlet ends.

120 and 140 size furnaces require 1 inch bottom clearance to combustible materials.

DÉGAGEMENT MINIMUM EN POUCES AVEC ÉLÉMENTS DE CONSTRUCTION COMBUSTIBLES

POUR TOUS LES POSITIONS:

Dégagement avant minimum de 762mm (30 po) pour l´entretien.

Pour les fournaises de 140 taille, 1 po (25mm) dégagement des matériaux combustibles est requis

†

au-arriere.

POUR LA POSITION COURANT DESCENDANT:

Pour l´instal lation sur le plancher combustible seulement quand on utilise la base spéciale, pièce

†

n° KGASB0201ALL, l´ensemble serpentin, pièce n° CD5 ou CK5, ou le carter de serpentin, pièce n° KCAKC.

POUR LA POSITION HORIZONTALE:

Le contact n´est permis qúentre les l ignes formées par les intersections du dessus et des deuxcôtés de la chemise de la fournaise, et des soli ves, des montants ou de l a charpente du bátiment. La distance indiquée concerne l´extrémité du tuyau d´arrivée d´air et l´extrémité du tuyau de sortie d´air.

Pour les fournaises de 120 et 140 taille, 1 po (25mm) dégagement des matériaux combustibles est requis

au-dessous.

INSTALLATION

LEVEL (0")

1/2" MAX

UPFLOW OR DOWNFLOW

324999-201 REV. D (LIT TOP)

MIN 1/4"

1/2" MAX

FRONT

This furnace is approved for UPFLOW, DOWNFLOW and HORIZONTAL i nstall ations.

Cette fournaise est approuvée pour l´install ation HORIZONTALE et la circu lation d´air VERS LE HAUT et VERS LE BAS.

Clearance arrows do not change with furnace orientat ion.

†

FRONT

TOP/PLENUM

DESSUS/ CHAMBRE D´AI

BOTTOM

DESSOUS

Clearance in inches Dégagement (po).

†

HORIZONTAL

Les fléches de dégagement

ne change pas avec

l´orientation de la

générateur d´air chaud.

Vent clearance to

combustibles 0".

0 (po) Dégagement

d´évent avec combustibles.

MIN

Page 11

AIR DELIVERY—CFM (With Filter)*

UNIT SIZE

040-08

040-12

060-08

060-12

060-16

080-12

080-16

080-20

100-16

100-20

120-20

140-20

RETURN-AIR

SUPPLY SPEED

1 side

bottom

1 side

bottom

1 side

bottom

1 side

bottom

1 side

bottom

1 side

bottom

1 side

bottom

1 side

bottom

both sides or

1 side and

bottom

1 side

bottom

1 side

bottom

both sides or

1 side and

bottom

bottom only

both sides or

1 side and

bottom

1 side only

bottom only

both sides or

1 side and

bottom

1 side only

Med-Low

Med-High Med-Low

Med-Low

Med-High Med-Low

Med-High

Med-High Med-Low

Med-High

Med-High Med-Low

Med-High

Med-High Med-Low

Med-High

High

Low

High

Low

High

Low

High

Low

High

Low

High

Low

High

Low

High

Low

High

Low

High

Low

High

Low

High

Low

High

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

1075

850 740

1470 1315 1125

930

1100

890 745

1430 1270 1070

915

1700 1500 1325 1205

1535 1395 1200 1040

1750 1495 1310 1135

2200 2100 1815 1560

2360 1965

1740 1500 1340 1195

2250 2020 1725 1490

2360 1960

2350 2100 1770 1545

2435 2040

2255 1985

2285 2020 1675 1460

2310 1975

2140 1930

1040

825 700

1415 1280 1110

925

1065

865 710

1375 1260 1055

895

1695 1465 1295 1170

1470 1350 1175 1020

1685 1455 1260 1105

2175 2025 1760 1555

2280 1925

1705 1470 1315 1175

2175 1950 1690 1480

2315 1940

2250 2015 1720 1520

2360 2000

2190 1930

2210 1970 1650 1445

2255 1945

2080 1850

* A ﬁlter is required for each return-air supply.

• For horizontal and downﬂow applications, use “1 side or bottom” or “bottom only” as airﬂow reference.

EXTERNAL STATIC PRESSURE (In. wc)

995 780 650

1400 1235 1085

910

1005

810 670

1325 1215 1045

885

1640 1435 1265 1145

1405 1300 1125

990

1635 1405 1225 1075

2085 1945 1720 1515

2210 1870

1660 1445 1300 1165

2090 1900 1660 1460

2265 1930

2160 1955 1675 1465

2285 1950

2115 1890

2140 1920 1620 1430

2185 1900

2025 1800

945 740 620

1285 1180 1045

850 945

765 625

1275 1160 1015

865

1580 1385 1230 1110

1330 1225 1065

960

1575 1355 1170 1040

2025 1865 1670 1460

2130 1830

1615 1410 1270 1130

2020 1840 1630 1440

2200 1900

2070 1875 1620 1415

2220 1905

2045 1840

2065 1870 1590 1400

2120 1860

1945 1740

895 685 565

1215 1115

990 830

900 705 565

1200 1105

975 840

1545 1355 1190 1080

1245 1155 1030

910

1525 1305 1125

995

1925 1785 1620 1435

2035 1760

1570 1375 1235 1100

1930 1790 1575 1380

2130 1850

2000 1810 1575 1365

2130 1835

1965 1780

1990 1805 1560 1370

2045 1835

1875 1725

840 635 515

1120 1035

915 770

805 620 505

1135 1035

920 800

1450 1300 1150 1035

1160 1080

970 860

1445 1250 1095

995

1820 1700 1550 1390

1960 1710

1500 1330 1200 1070

1855 1710 1520 1340

2055 1800

1885 1710 1515 1325

2050 1790

1890 1720

1910 1730 1510 1320

1965 1775

1795 1660

760 560 455

995 930 830 705

730 540 425

1040

950 850 720

1380 1250 1105

990

1065

985 890 785

1380 1185 1040

910

1735 1620 1480 1340

1875 1670

1425 1280 1140 1030

1760 1640 1460 1295

1965 1740

1790 1650 1450 1265

1965 1725

1800 1645

1830 1660 1450 1275

1880 1720

1725 1580

670 480 385

890 825 740 635

610 475 360

935 850 750 650

1310 1185 1050

950 935

880 780 680

1310 1120

980 860

1635 1540 1405 1270

1790 1575

1355 1210 1095

975

1670 1545 1370 1230

1890 1660

1635 1540 1365 1185

1875 1650

1710 1560

1745 1590 1390 1230

1800 1640

1625 1495

58MCB

Page 12

Combustion-air and vent piping for Direct Vent/2-Pipe (All Sizes) and Non-Direct Vent/1-Pipe (Sizes 040 through 120 Only) Applications

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 3-in

Concentric

2 Pipe or 3-in.

Concentric

2Pipeor3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 3-in

Concentric

2 Pipe or 3-in.

Concentric

2 Pipe or 3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 3-in

Concentric

2Pipeor3-in.

Concentric

4† no disk 4† no disk 70 70 70 70 70 70

2 Pipe or 3-in.

Concentric

ALTITUDE (FT)

58MCB

0 to 2000

ALTITUDE (FT)

2001 to 3000

ALTITUDE (FT)

3001 to 4000

See notes at end of table

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

NON-DIRECT VENT

PIPE DIA

(IN.)*

1 1 5 NANANANANA

1-1/2 1-1/2 70 70 65 60 60 55

2 2 70 70 70 70 70 70

1-1/2 1-1/2 20 15 10 5 NA NA

2 2 70 70 70 70 70 70

1-1/2 1-1/2 10 NA NA NA NA NA

2 2 55 50 35 30 30 20

2-1/2 2-1/2 70 70 70 70 70 70

2 2 5 NANANANANA

2-1/2 2-1/2 40 30 20 20 10 NA

3 3 70 70 70 70 70 70

2-1/2 one disk 2-1/2 10 NA NA NA NA NA

3† NA 45 40 35 30 25 20

3† no disk 3† 70 70 70 70 70 70

2-1/2 one disk NA 5 NA NA NA NA NA

3†onedisk NA 403530252015

3† no disk NA 60 56 52 48 44 40 4† no disk NA 70 70 70 70 70 70

PIPE DIA

(IN.)*

1-1/2 1-1/2 67 62 57 52 52 47

2 2 70 70 70 70 70 70

1-1/2 1-1/2 17 12 7 NA NA NA

2 2 70 67 66 61 61 61

2 2 49 44 30 25 25 15 2-1/2 2-1/2 70 70 70 70 70 70 2-1/2 2-1/2 35 26 16 16 6 NA

3 3 70 70 70 70 66 61

3 NA 14 9 NANANANA

NA 3† 63 62 62 61 61 61 3† no disk NA 70 70 63 56 50 43 4† no disk 4† no disk 70 70 70 70 70 70

3† one disk NA 20 15 10 5 NA NA

3† no disk NA 39 35 31 27 23 19 4† no disk NA 70 70 70 70 70 70

PIPE DIA

(IN)*

1-1/2 1-1/2 64 59 54 49 48 43

2 2 70 70 70 70 70 70

1-1/2 1-1/2 16 11 6 NA NA NA

2 2 68 63 62 57 57 56

2 2 46 41 28 23 22 13 2-1/2 2-1/2 70 70 70 70 70 70 2-1/2 2-1/2 33 24 15 14 5 NA

3 3 70 70 70 66 61 56

3† no disk NA 65 58 51 44 38 31

NA 3† 59 59 58 57 57 56

3† one disk NA 11 6 NA NA NA NA

3† no disk NA 30 26 22 18 14 10 4† no disk NA 70 70 70 70 70 70

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NUMBER OF 90° ELBOWS

123456

NUMBER OF 90° ELBOWS

123456

NUMBER OF 90° ELBOWS

123456

Page 13

Combustion-air and vent piping for Direct Vent/2-Pipe (All Sizes) and Non-Direct Vent/1-Pipe (Sizes 040 through 120 Only) Applications

ALTITUDE (FT)

4001 to 5000‡

ALTITUDE (FT)

5001 to 6000‡

ALTITUDE (FT)

6001 to 7000‡

See notes at end of table

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2 Pipe or 3-in.

Concentric

2 Pipe or 3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 3-in

Concentric

2 Pipe or 3-in.

Concentric

2 Pipe or 3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor2-in

Concentric

2Pipeor3-in

Concentric

2 Pipe or 3-in.

Concentric

2 Pipe or 3-in.

Concentric

PIPE DIA

(IN.)*

1-1/2 1-1/2 60 55 50 45 44 39

2 2 70 70 70 70 70 70

1-1/2 1-1/2 15 10 5 NA NA NA

2 2 64 59 58 53 52 52

2 2 44 39 26 21 20 11 2-1/2 2-1/2 70 70 70 70 70 70 2-1/2 2-1/2 31 22 13 12 NA NA

3 3 70 70 67 62 57 52

3† no disk NA 53 46 40 33 26 20

NA 3† 56 55 54 53 52 52 4† no disk 4† no disk 70 70 70 70 70 70 3† no disk NA 21 17 13 9 5 NA 4† no disk NA 69 64 59 54 49 44

PIPE DIA

(IN.)*

1-1/2 1-1/2 57 52 47 42 40 35

2 2 70 70 70 70 70 70

1-1/2 1-1/2 14 9 NA NA NA NA

2 2 60 55 54 49 48 47

2 2 41 36 23 18 17 8 2-1/2 2-1/2 70 70 70 70 70 70 2-1/2 2-1/2 29 21 12 11 NA NA

3 3 70 67 62 57 52 47

3† no disk NA 42 35 29 22 15 9

NA 3† 53 52 50 49 48 47 4† no disk 4† no disk 70 70 70 70 70 70 3† no disk NA 12 8 NA NA NA NA 4† no disk NA 42 37 32 27 22 17

PIPE DIA

(IN)*

1-1/2 1-1/2 53 48 43 38 37 32

2 2 70 70 68 67 66 64

1-1/2 1-1/2 13 8 NA NA NA NA

2 2 57 52 50 45 44 43

2 2 38 33 21 16 15 6 2-1/2 2-1/2 70 70 68 67 66 64 2-1/2 2-1/2 27 19 10 9 NA NA

3 3 68 63 58 53 48 43

3† no disk NA 31 24 18 11 NA NA

NA 3† 49 48 47 45 44 43

4† no disk 4† no disk 70 70 70 70 67 62

4† no disk NA 17 12 7 NA NA NA

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN)*

NUMBER OF 90° ELBOWS

12 3 4 5 6

58MCB

NUMBER OF 90° ELBOWS

12 3 4 5 6

NUMBER OF 90° ELBOWS

12 3 4 5 6

Page 14

Combustion-air and vent piping for Direct Vent/2-Pipe (All Sizes) and Non-Direct Vent/1-Pipe (Sizes 040 through 120 Only) Applications

ALTITUDE (FT)

7001 to 8000‡

58MCB

ALTITUDE (FT)

8001 to 9000‡

ALTITUDE (FT)

9001 to 10,000‡

Disk usage. Unless otherwise specified, use perforated disk assembly (factory-supplied in loose parts bag). If one disk is stated, separate 2 halves of perforated disk assembly and use shouldered disk half. When using shouldered disk half, install screen side toward inlet box. †Wide radius elbow. ‡Vent sizing for Canadian installations over 4500 ft (1370 m) above sea level are subject to acceptance by the local authorities having jurisdiction. NA-Not Allowed; pressure switch will not make.

NOTES:

1. Do not use pipe size greater than those specified in table or incomplete combustion, flame disturbance, or flame sense lockout may occur.

2. Size both the combustion-air and vent pipe independently, then use the larger diameter for both pipes.

3. Assume two 45° elbows equal one 90° elbow. Long radius elbows are desirable and may be required in some cases.

4. Elbows and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.

5. The minimum pipe length is 5 ft for all applications.

6. Use 3-in. diameter vent termination kit for installations requiring 4-in diameter pipe.

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000 NA

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000 NA

UNIT SIZE

(BTUH)

40,000

60,000

80,000

100,000

120,000

140,000 NA

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 3-in

Concentric

2Pipeor3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 3-in

Concentric

2Pipeor3-in.

Concentric

DIRECT VENT (2-PIPE) ONLY

TERMINATION

TYPE

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 2-in

Concentric

2 Pipe or 3-in

Concentric

2 Pipe or 3-in.

Concentric

PIPE DIA

(IN.)*

1-1/2 1-1/2 49 44 39 34 33 28

2 2 66 65 63 62 60 59

1-1/2 1-1/2 12 7 NA NA NA NA

2 2 53 48 46 41 40 38

2 2 36 31 19 14 12 NA 2-1/2 2-1/2 66 65 63 62 60 59 2-1/2 2-1/2 25 17 8 7 NA NA

3 3 63 58 53 48 43 38

3† no disk NA 20 13 7 NA NA NA

NA 3† 46 44 43 41 40 38

4† no disk 4† no disk 61 56 51 46 41 36

PIPE DIA

(IN.)*

1-1/2 1-1/2 46 41 36 31 29 24

2 2 62 60 58 56 55 53 1-1/2 1-1/2 11 6 NANANANA

2 2 49 44 42 37 35 34

2 2 33 28 17 12 10 NA 2-1/2 2-1/2 62 60 58 56 55 53 2-1/2 2-1/2 23 15 7 5 NA NA

3 3 59 54 49 44 39 34

3† no disk NA 10 NA NA NA NA NA

NA 3† 43 41 39 37 35 34

4† no disk 4† no disk 35 30 25 20 15 10

PIPE DIA

(IN.)*

1-1/2 1-1/2 42 37 32 27 25 20

2 2 57 55 53 51 49 47

2 2 45 40 38 33 31 29

2 2 30 25 14 9 7 NA 2-1/2 2-1/2 57 55 53 51 49 47 2-1/2 2-1/2 21 13 5 NA NA NA

3 3 54 49 44 39 34 29

NA 3† 39 37 35 33 31 29

4† no disk 4† no disk 10 5 NA NA NA NA

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NON-DIRECT VENT

(1-PIPE) ONLY

PIPE DIA

(IN.)*

NUMBER OF 90° ELBOWS

12 34 5 6

NUMBER OF 90° ELBOWS

12 34 5 6

NUMBER OF 90° ELBOWS

12 34 5 6

Page 15

MAXIMUM ALLOWABLE EXPOSED VENT PIPE LENGTH (FT) WITH AND WITHOUT INSULATION

IN WINTER DESIGN TEMPERATURE AMBIENT*

UNIT SIZE

040-08 040-12

060-08 060-12 060-16

080-12 080-16 080-20

100-16 100-20

120-20

140-20

WINTER DESIGN

TEMPERATURE

(°F)

20 1-1/2 51 70

0 1-1/2 28 70

–20 1-1/2 16 70

20 2 65 70

0 2 35 70

–20 2 20 70

20 2-1/2 70 70

0 2-1/2 47 70

–20 2-1/2 28 70

20 3 70 70

0 3 50 70

–20 3 28 70

20 4 70 70

0 4 48 70

–20 4 23 70

20 4 70 70

0 4 57 70

–20 4 30 70

MAX PIPE

DIAMETER

(IN.)

WITHOUT

INSULATION

WITH 3/8-IN. OR

THICKER INSULATION†

* Pipe length (ft) speciﬁed for maximum vent pipe lengths located in unconditioned spaces. Vent pipes located in unconditioned space cannot

exceed the total allowable pipe length as speciﬁed in Maximum Allowable Pipe Length table.

† Insulation thickness based on R value of 3.5 per in.

58MCB

Performance data

UNIT SIZE 040-08 040-12 060-08 060-12 060-16 080-12 080-16 080-20 100-16 100-20 120-20 140-20

CERTIFIED TEMP RISE RANGE (°F) CERTIFIED EXT STATIC PRESSURE Heating (In. wc) Cooling AIRFLOW CFM‡ Heating Cooling

UNIT SIZE 040-08 040-12 060-08 060-12 060-16 080-12 080-16 080-20 100-16 100-20 120-20 140-20

OUTPUT CAPACITY BTUH* (ICS) (Shaded capacities are specified on rating plate)

INPUT BTUH† 40.000 40,000 60,000 60,000 60,000 80,000 80,000 80,000 100,000 100,000 120,000 120,000 AFUE%

Nonweatherized ICS

* Capacity and AFUE in accordance with U.S. Government DOE test procedures. † Gas input ratings are certified for elevations to 2000 ft. For elevations above 2000 ft, reduce ratings 2% for each 1000 ft above sea level. In Canada, derate

the unit 5% for elevations 2000 to 4500 ft above sea level.

‡ Airflow shown is for bottom only return-air supply. For air delivery above 1800 CFM, see Air Delivery table for other options. A filter is required for each

return-air supply.

ICS—Isolated Combustion System

Direct Vent (2-Pipe)

Non-Direct Vent (1-Pipe)

Direct Vent (2-Pipe)

Non-Direct Vent (1-Pipe)

Upflow 37,000 37,000 56,000 56,000 56,000 74,000 74,000 74,000 93,000 93,000 112,000 127,000 Downflow 37,000 37,000 56,000 56,000 56,000 74,000 74,000 74,000 93,000 93,000 112,000 127,000 Horizontal 37,000 37,000 56,000 56,000 56,000 74,000 74,000 74,000 93,000 93,000 112,000 Upflow 37,000 37,000 56,000 56,000 56,000 74,000 74,000 74,000 93,000 93,000 112,000 NA Downflow 37,000 37,000 56,000 56,000 56,000 74,000 74,000 74,000 93,000 93,000 112,000 NA Horizontal

Upflow 92.3 92.3 92.3 92.3 92.3 92.3 92.3 92.3 92.3 92.3 92.3 92.3 Downflow Horizontal 92.1 92.1 92.1 92.1 92.1 92.1 92.1 92.1 92.1 92.1 92.1 92.0 Upflow 92.1 NA Downflow Horizontal 91 NA

30—60 15—45 45—75 30—60 20—50 40—70 30—60 20—50 45—75 30—60 40—70 50—80

0.10 0.10 0.12 0.12 0.12 0.15 0.15 0.15 0.20 0.20 0.20 0.20

0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 850 1125 885 1065 1320 1190 1285 1785 1315 1690 1720 1970 895 1215 900 1200 1545 1245 1525 1925 1570 1930 2000 1990

EFFICIENCY

127,000

37,000 37,000 56,000 56,000 56,000 74,000 74,000 74,000 93,000 93,000 112,000 NA

91.2 91.2 91.2 91.2 91.2 91.2 91.2 91.2 91.2 91.2 91.2 91.2

91.0 NA

Page 16

Electrical data

UNIT SIZE 040-08 040-12 060-08 060-12 060-16 080-12 080-16 080-20 100-16 100-20 120-20 140-20 UNIT VOLTS—HERTZ—PHASE 115—60—1 OPERATING VOLTAGE RANGE (Min—Max)* 104—127 MAXIMUM UNIT AMPS 6.1 7.3 6.1 7.1 9.5 7.6 10.0 14.1 10.2 14.8 14.6 14.3 UNIT AMPACITY† 8.4 10.0 8.4 9.8 12.8 10.4 13.4 18.4 13.5 19.3 19.1 18.8 MINIMUM WIRE SIZE 14 14 14 14 14 14 14 12 14 12 12 12 MAXIMUM WIRE LENGTH (Ft)‡ 44 37 44 38 29 36 28 31 27 30 30 30 MAXIMUM FUSE SIZE OR CKT BKR (Amps)** 15 15 15 15 15 15 15 20 15 20 20 20 TRANSFORMER (24v) 40va EXTERNAL CONTROL POWER AVAILABLE Heating 12va

Cooling 21va

AIR CONDITIONING BLOWER RELAY Standard

* Permissible limits of the voltage range at which the unit will operate satisfactorily. † Unit ampacity = 125% of largest operating component’s full load amps plus 100% of all other potential operating components’ (EAC, humidiﬁer,

58MCB

etc.) full load amps.

‡ Length is as measured 1 way along wire path between unit and service panel for maximum 2% voltage drop.

** Time-delay type is recommended.

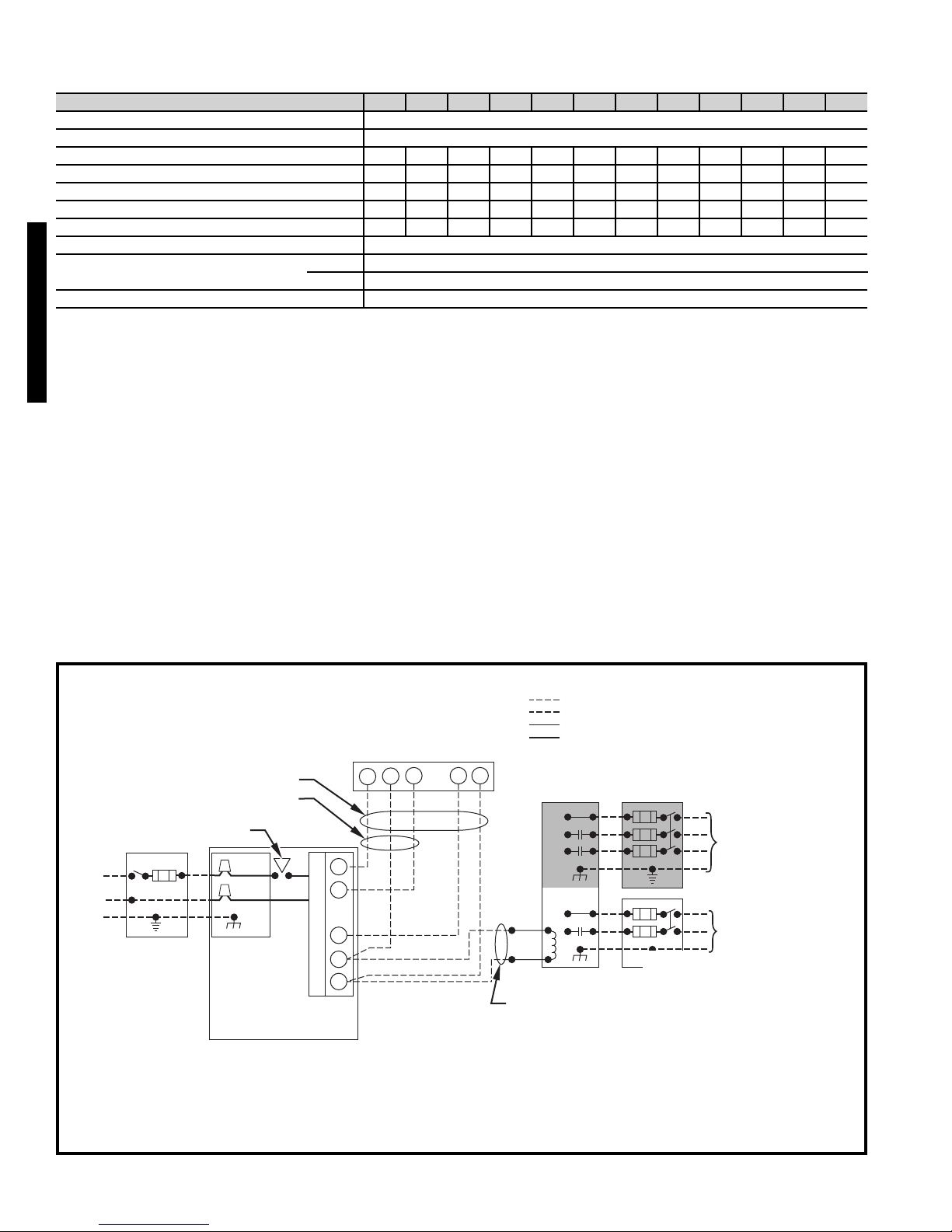

Typical wiring schematic

FIVE WIRE

THREE-WIRE

HEATING-ONLY

BLOWER DOOR SWITCH

BLK

WHT

115-V FIELD-

SUPPLIED

BLK

WHT

GND

AUXILIARY J-BOX

DISCONNECT

GND

FURNACE

NOTE 2

C O N T R O

24-V

TERMINAL

BLOCK

WCR GY

COM

NOTE 1

NOTES: Connect Y-terminal in furnace as shown for proper blower operation.

FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING

THERMOSTAT TERMINALS

FIELD-SUPPLIED DISCONNECT

208/230- OR 460-V THREE PHASE

208/230-V SINGLE PHASE

GND

CONDENSING UNIT

TWO WIRE

1. Some thermostats require a "C" terminal connection as shown.

2. If any of the original wire, as supplied, must be replaced, use

3. same type or equivalent wire.

A02174

Page 17

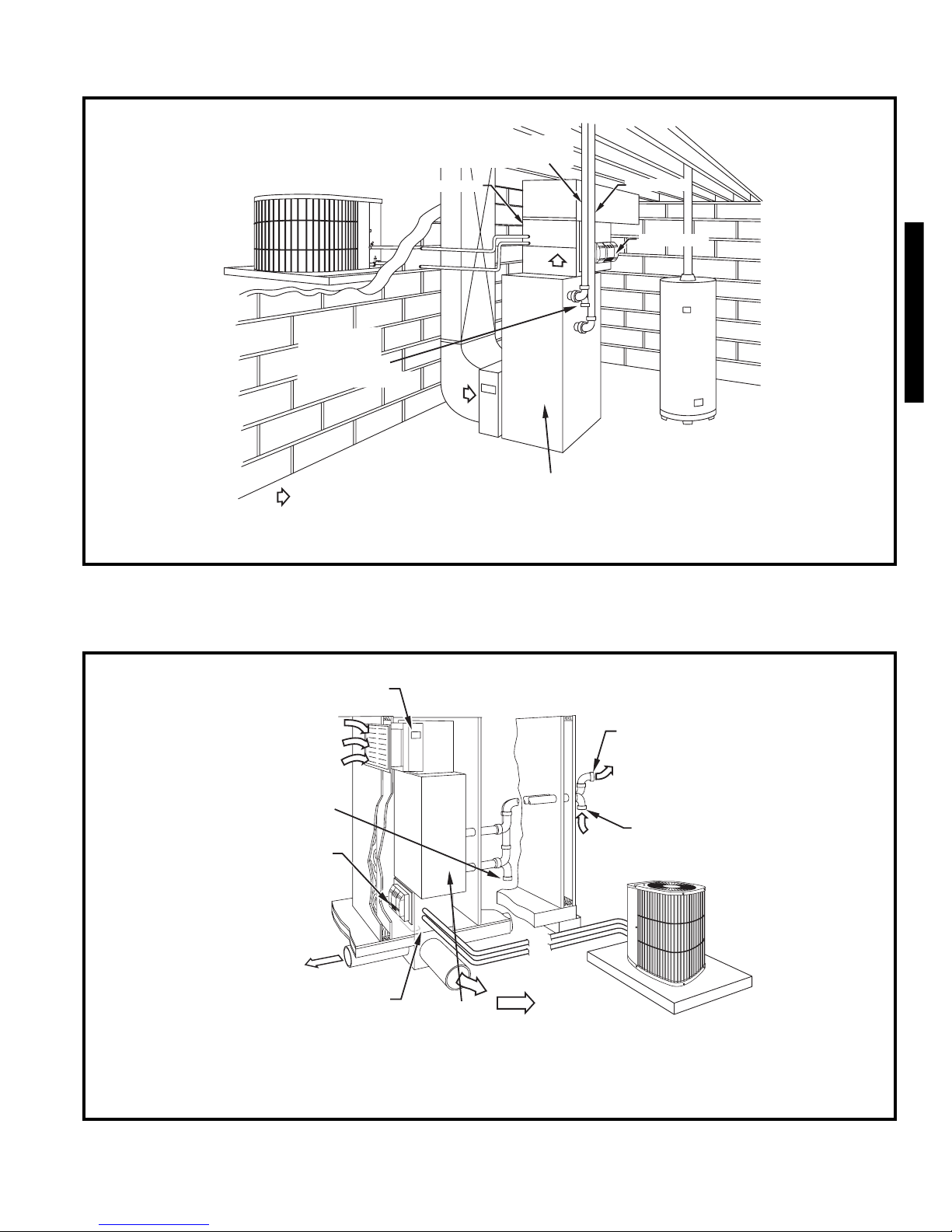

Typical installations

OUTDOOR UNIT

COMBUSTION AIR INLET (NON-DIRECT 1-PIPE APPLICATION)

COMBUSTION AIR PIPE (DIRECT VENT/2-PIPE APPLICATION)

A/C COIL

ELECTRONIC AIR CLEANER

VENT PIPE

HUMIDIFIER

GAS-FIRED WATER HEATER

58MCB

AIRFLOW

ELECTRONIC

AIR CLEANER

COMBUSTION AIR INLET (NON-DIRECT VENT/ 1-PIPE APPLICATION

HUMIDIFIER

FRONT OF FURNACE

Basement — Upflow Application

A05064

VENT

COMBUSTION AIR (DIRECT VENT/ 2 PIPE APPLICATION

A05064

OUTDOOR UNIT

A/C COIL

FRONT OF FURNACE

AIRFLOW

A05065

Closet — Downflow Application A05065

Page 18

COMBUSTION-AIR INLET (NON-DIRECT VENT/1-PIPE APPLICATION)

58MCB

ELECTRONIC

AIR CLEANER

FRONT OF FURNACE

AIRFLOW

VENT PIPE

FURNACE

CONDENSATE

DRAIN

REFRIGERATION

AIR CONDITIONING

PIPING

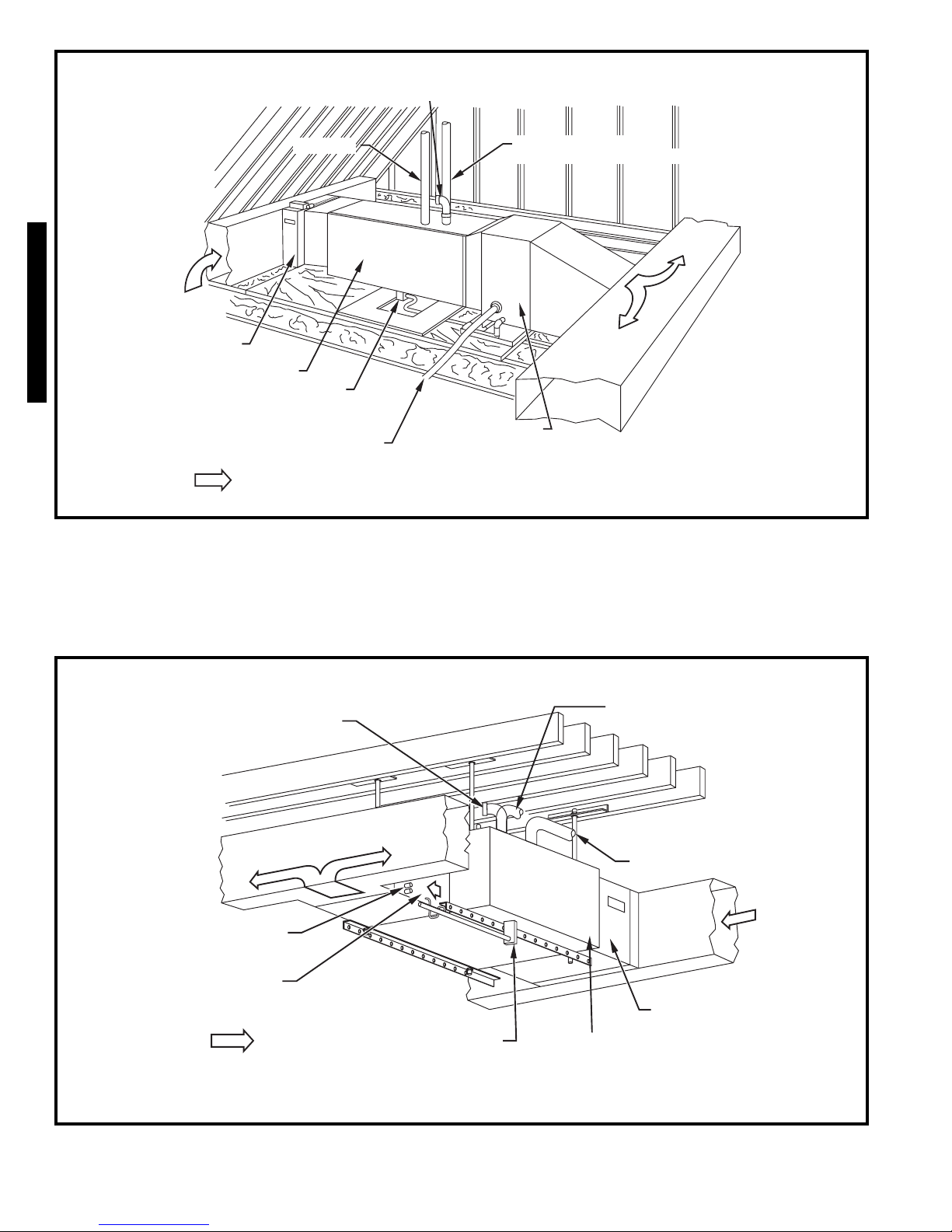

Attic — Horizontal Application

COMBUSTION–AIR PIPE DIRECT VENT/2-PIPE APPLICATION)

COIL

A05066

COMBUSTION - AIR INLET (NON-DIRECT VENT/ 1-PIPE APPLICATION)

REFRIGERATION

AIR CONDITIONING

PIPING

COIL

AIRFLOW

FURNACE CONDENSATE

DRAIN

Crawlspace — Horizontal Application

FRONT OF

FURNACE

COMBUSTION– AIR PIPE (DIRECT VENT/2-PIPE APPLICATION)

VENT PIPE

ELECTRONIC AIR CLEANER

A05067

Page 19

58MCB

Page 20

Guide Specifications

GENERAL System Description

Furnish a _________________ (4-way multi-poise) fixed capacity gas-fired condensing furnace for use with natural gas or propane (factory authorized conversion kit required for propane); furnish cold air return plenum; furnish side (external) filter rack.

Quality Assurance

Unit will be designed, tested and constructed to the current ANSI Z 21.47/CSA 2.3 design standard for gas-fired central furnaces. Unit will be 3rd party certified by CSA to the current ANSI Z

21.47/CSA 2.3 design standard for gas-fired central furnaces. Unit will carry the CSA Blue Star® and Blue Flame® labels. Unit efficiency testing will be performed per the current DOE test procedure as listed in the Federal Register. Unit will be certified for capacity and efficiency and listed in the latest GAMA Consumer’s Directory of Certified Efficiency Ratings. Unit will carry the current Federal Trade Commission Energy Guide efficiency label.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations. Warranty (for inclusion by specifying engineer) U.S. and Canada only. Warranty certificate available upon request.

PRODUCTS Equipment

Components shall include: slow-opening gas valve to reduce ignition noise, regulate gas flow, with electric switch gas shut-off; flame proving sensor, hot surface igniter, pressure switch assembly verifies inducer operation; flame rollout switch, drain tubing and installed condensate drain trap, blower and inducer assembly, 40va transformer; low-voltage (heating) (heating/ cooling) thermostat. Blower Wheel and Blower Motor Galvanized blower wheel shall be centrifugal type, statically and dynamically balanced. Blower motor of PSC type shall be permanently lubricated with sealed bearings, of _____ hp, and shall be multiple-speed direct drive. Blower motor shall be soft mounted to the blower scroll to reduce vibration transmission. Filters Furnace shall have reusable-type filters. Filter shall be ______ in (x) ______in.

Base 90

Single-Stage Gas Furnace

58MCB

Casing Casing shall be of .030 in. thickness minimum, pre-painted galvanized steel. Inducer Motor Inducer motor shall be soft mounted to reduce vibration transmission. Primary Heat Exchangers Primary Heat exchangers shall be 3-Pass 20 gauge corrosion resistant aluminized steel of fold-and-crimp sectional design, which operates under negative pressure. Secondary Heat Exchangers Secondary Heat exchangers shall be of a flow-through design having a patented interior laminate coating of polypropylene for greater corrosion resistance with fold-and-crimp design, which operates under negative pressure. Controls Controls shall include a micro-processor based integrated electronic control board with at least 11 service troubleshooting codes displayed via diagnostic flashing LED light on the control, has ability to store fault codes, when activated a self-test feature checks all major functions of the furnace within one minute, and a replaceable automotive-type circuit protection fuse. Multiple operational settings available including separate blower speeds. Cooling airflow will be selectable between 350 or 400 CFM per ton of air conditioning.

Operating Characteristics

Heating Capacity shall be _________ Btuh input; ____________ Btuh output capacity. Fuel Gas Efficiency shall be 92% AFUE. Air delivery shall be __________ cfm minimum at 0.50 in. wg. external static pressure. Dimensions shall be: depth __________ in.; width __________ in.; height _________ in. (casing only). Height shall be __________ in. with A/C coil and ____________ in. overall with plenum.

Electrical Requirements

Electrical supply shall be 115 volts, 60 Hz, single-phase (nominal). Minimum wire size shall be _________ AWG; maximum fuse size or HACR-type, designated circuit breaker shall be _______ Amps.

Special Features

Refer to section of the product data sheet identifying accessories and descriptions for specific features and available enhancements.

Manufacturer reserves the right to change, at any time, specifications or designs without notice and obligations

Replaces: 58MCB-1PDRev. A
