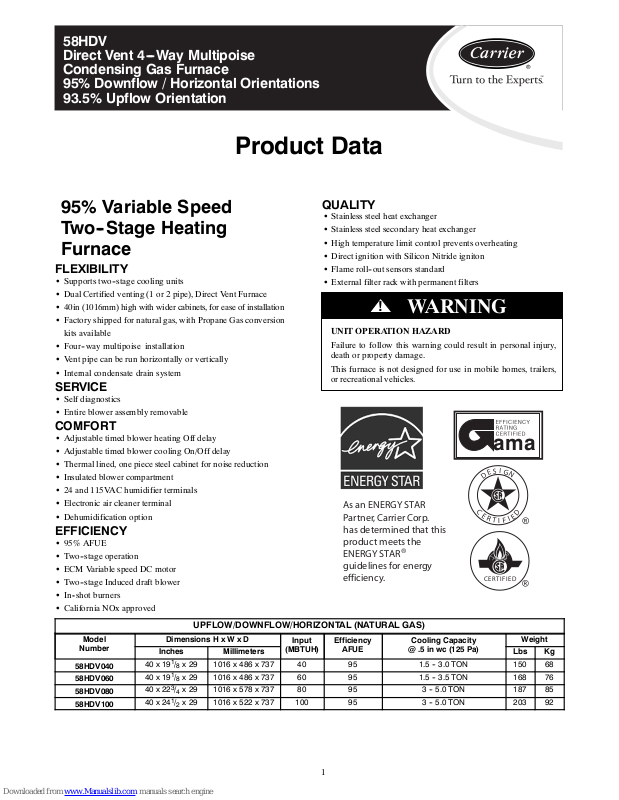

Carrier 58HDV040, 58HDV060, 58HDV080, 58HDV100 Product Data

58HDV Direct Vent 4---Way Multipoise Condensing Gas Furnace 95% Downflow / Horizontal Orientations

93.5% Upflow Orientation

Product Data

95% Variable Speed Two--Stage Heating Furnace

FLEXIBILITY

S Supports two-- stage cooling units S Dual Certified venting (1 or 2 pipe), Direct Vent Furnace S 40in (1016mm) high with wider c abinets , for ease of insta llati on S Factory shipped for natural gas, with Propane Gas conversion

kits available

S Four--way multipoise installation S Vent pipe can be run horizontally or vertically S Internal condensate drain system

SERVICE

S Self diagnostics S Entire blower assembly removable

COMFORT

S Adjustable timed blower heating Off delay S Adjustable timed blower cooling On/Off delay S Thermal lined, one piece steel cabinet for noise reduction S Insulated blower compartment S 24 and 115VAC humidifier terminals S Electronic air cleaner terminal S Dehumidification option

EFFICIENCY

S 95% AFUE S Two--stage operation S ECM V ariable speed DC motor S Two--stage Induced draft blower S In-- shot burners S California NOx approved

QUALITY

S Stainless steel heat exchanger S Stainless steel secondary heat exchanger S High temperature limit control prevents overheating S Direct ignition with Silicon Nitride igniton S Flame roll--out sensors standard S External filter rack with permanent filters

!

WARNING

UNIT OPERATION HAZARD

Failure to follow this warning could result in personal injury, death or property damage.

This furnace is not designed for use in mobile homes, trailers, or recreational vehicles.

ama

I

G

S

E

N

D

As an ENERGY STAR Partner, Carrier Corp. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

C

E

R

T

CERTIFIED

D

E

I

F

I

UPFLOW/DOWNFLOW/HORIZONTAL (NATURAL GAS)

Model

Number

58HDV040

58HDV060

58HDV080

58HDV100

Dimensions H x W x D

Inches Millimeters Lbs Kg

40 x 191/8x29 1016 x 486 x 737 40 95 1.5 -- 3.0 TON 150 68

40 x 191/8x29 1016 x 486 x 737 60 95 1.5 -- 3.5 TON 168 76

40 x 223/4x29 1016 x 578 x 737 80 95 3--5.0TON 187 85

40 x 241/2x29 1016 x 522 x 737 100 95 3--5.0TON 203 92

Input

(MBTUH)

Efficiency

1

AFUE

Cooling Capacity

@.5inwc(125Pa)

Weight

FURNACE SPECIFICATIONS

Model Number 58HDV040 58HDV060 58HDV080 58HDV100

{ INPUT HIGH HEAT(BTUH)

{ HTG. CAPACITY HIGH HEAT(BTUH)

TEMP. RISE RANGE HIGH HEAT (oF/oC)

LOW HEAT (BTUH)

LOW HEAT(oF/oC)

40,000 28,000

38,000 27,000

25--55/14--31 25--55/14--31

60,000 42,000

58,000 41,000

30--60/17--33 30--60/17--33

VENT SIZE^ in(mm) 2″ (51) OD 2″-- 3 ″ (51 -- 76) OD 3″ (76) OD 3″ (76) OD VOLTS/HZ/PH 115/60/1 115/60/1 115/60/1 115/60/1 RATING PLATE AMPS. 9.5 11. 4 14.6 14.6 MIN./MAX. VOLTAGE 104/127 104/127 104/127 104/127 TRANSFORMER (V.A.) 40 40 40 40 GAS PIPE SIZE -- inches(mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) COOLING CAP. (TONS) 3.0 3.5 5.0 5.0

HIGH ALTITUDE PRESSURE SWITCH 1177766 1177767 1177768 1177769

FILTER SIZE -- inches(mm) (qty)

DIMENSIONS -- WxDxH inches(mm)

58HDV

WEIGHT -- Lbs(kg) 150 (68) 168 (76) 187 (85) 203 (92)

16X25X1

(406x635x25) (1)

191/8x29x40

(486x737x1016)

^ Vent size may vary depending on length, number of elbows, standard vent or direct vent. See Installation Instructions. { Gas input ratings ar e certified f or elevations to 2000 ft. (610 M).

In USA for elevations above 2000 ft. (610 M), ratings must be derated 2% (natural gas) or 4% (propane gas) f or each 1000 ft. (305 M) above sea level. In Canada for altitudes of 2000 ft. (610 M) to 4500 ft. (1372 M) ratings must be derated 5% (natural gas) and 10% (propane gas).

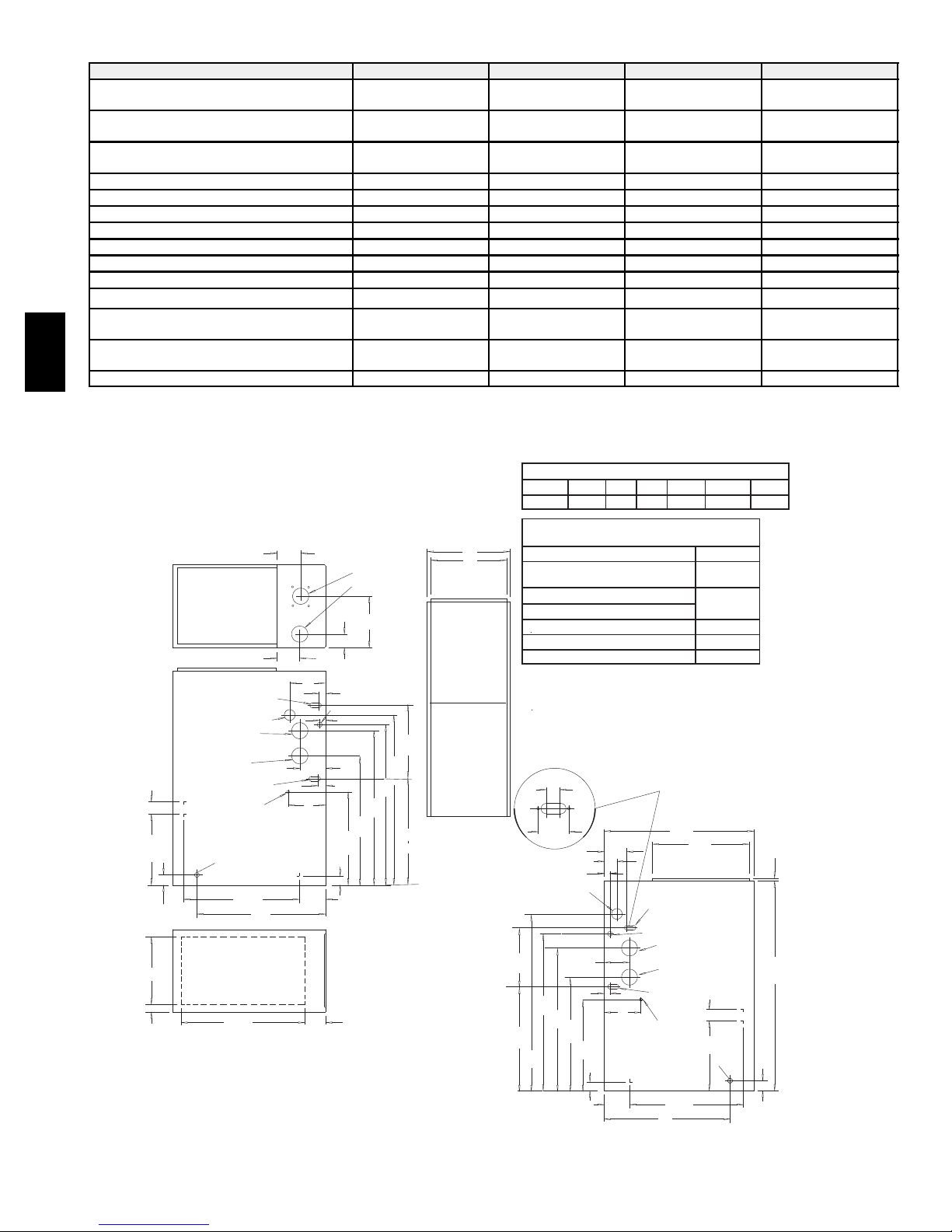

A B

FRONT

2

1

/

4

13

(336.6)

C

TRAP (KO) (COUNTERFLOW)

AIR INTAKE (KO) (ALTERNATE)

TRAP (KO) UPFLOW/HORIZONTAL

(57.2)

1

/

4

7

/

1

8

(47.6 )

D

TOP

LEFT SIDE

GAS

VENT

13

/

4

16

(122.2)

THERMOSTAT

(KO)

215/

8

(549.3)

24

(609.6)

BOTTOM

1

/

23

8

(587.4) (98.4)

F

AIR INTAKE

VENT

H

G

E

ELECTRICAL

611/

16

(177.5)

(177.8)

7

47/

(123.8)

37/

11/

4

(318)

(27)

11/

16

1311/

16

(347.7)

3111/

16

(34.9)

13/

175/

(439.7)

111/

(42.9)

8

(804.9)

(758.8)

8

297/

8

283/

4

(730.3)

241/

16

(611.2)

16

1913/

16

(503.2)

KO = KnockOut

ALL DIMENSIONS: in (mm)

16X25X1

(406x635x25) (1)

191/8x29x40

(486x737x1016)

Cabinet to Combustible Clearances -- in(mm)

TOP BOT RH LH BACK FRNT FLUE

1 (25.4) 0 0 0 0 3(76.2) 0

MINIMUM CLEARANCES TO COMBUSTIBLE

MATERIALS FOR ALL UNITS -- in (mm)

REAR 0

FRONT (combustion air openings in furnace and in structure)

Required For Service

ALL SIDES Of SUPPLY PLENUM 1” (25.4)

SIDES

VENT 0

TOP OF FURNACE 1” (25.4)

*30 “ (762mm) clearance recommended for furnace removal.

Horizontal position: Line contact is permissible only between lines formed by intersections of top and two sides of furnace jacket, and building joists, studs or framing.

NOTE: Evaporator “A” coil drain pan dimensions may vary from furnace duct opening size. Always consult evaporator specifications for duct size requirements.

Furnace is designed for bottom return or side return.

1

/

Return air through back of furnace is NOT allowed.

4

(31.7)

7

2

/

3

1

(30.2)

913/

(249.2)

/

16

3311/

(855.7)

297/

(758.8)

(690.6)

16

8

(73)

3

2

11/

16

GAS (KO)

8

273/

16

215/

(549.3)

(60.3 )

/

8

(27)

413/

(122.2)

11/

(27)

8

175/

(439.7)

16

111/

(42.9)

(109.5)

45/

16

7

(177.8)

16

80,000 56,000

77,000 54,000

30--60/17--33 30--60/17--33

16X25X1

(406x635x25) (2)

223/4x29x40

(486x737x1016)

3“ (76.2)

*

24” (609.6)

0

281/

2

(723.9)

1

18

/

2

(469.9)

RIGHT SIDE

TRAP (KO) (COUNTERFLOW)

ELECTRICAL (KO)

AIR INTAKE (KO) (ALTERNATE)

VENT (KO) TRAP (KO) UPFLOW/HORIZONTAL

21/

4

THERMOSTAT

(57.2)

131/

(336.6)

4

(KO)

30--60/17--33 30--60/17--33

16X25X1

(406x635x25) (2)

241/2x29x40

(622x737x1016)

(19.1)

3

/

4

TYPE

40

(1016)

100,000

70,000

96,000 67,000

24

(609.6)

215/

(549.3)

8

17/

(47.6)

8

7

4

(123.8)

/

8

A09241

2

ACCESSORIES

Model Number Description Used With Models

KGANP47012HW

KGAPN40012HW

KGAFR0901P16 Filter Kits -- External filter frame. 16″ x25″ (406 x 635 mm) 58HDV

KGAFR1001P20 Filter Kits -- External filter frame. 20″ x 25 (508 x 635 mm) 58HDV

P908--0001

KGAVT0801CVT

KGAVT0701CVT

KGAHA6101PSW High Altitude Pressure Switch Kit 58HDV040

KGAHA6201PSW High Altitude Pressure Switch Kit 58HDV060,

KGAHA6301PSW High Altitude Pressure Switch Kit 58HDV080

KGAHA6401PSW High Altitude Pressure Switch Kit 58HDV100

KGASB0301P01 KGASB0401P02 KGASB0801P06

KGASB0501P03 KGASB0601P04 KGASB0701P05

KGADA0101PYN Downflow Coil Adapter 58HDV

333730--701

333730--702 Size 42

333730--703 Size 43

333730--704 Size 44

333730--705 Size 45

333730--709 Size 46

333730--710 Size 47

333730--711 Size 48

333730--712 Size 49

333730--706 Size 54

333730--707 Size 55

333730--708 Size 56

+

Must be ordered from Service Parts

+

Gas Conversion Kits -- Natural gas to propane conversion Kit. Allows field conversion to propane gas.

Gas Conversion Kits -- Propane to natural gas conversion kit. Allows field conversion to natural gas.

Condensate neutralizer kit -- for condensing gas furnaces All if required

3″ (76 mm) Concentric vent kit -- allows single wall penetration for 2 pipe direct vent applications (90+).

2″ (51 mm) Concentric vent kit -- allows single wall penetration for 2 pipe direct vent applications (90+).

Combustible Floor Base without cased coil used 58HDV

Combustible Floor Base used with cased coil used 58HDV

Orifice Kit (Qty. 5)

58HDV

58HDV060 58HDV080 58HDV100

Size 41

58HDV

3

Circulation Air Blower Data -- 58HDV040

Cooling Adjustment Heating Rise Adjustment

DIP Switch

(OFF = 0

ON = 1)

High Cool @ .50

in wc(125 Pa)

Low Cool (80%

of High Cool)

** Adjust

Jumper

DIP Switch

Setting

5&6 CFM L/s CFM L/s 3&4

(OFF = 0

ON = 1)

High Heat

Rise

Change @

0.20 in wc (50 Pa)

00 1244 587 995 470 + 00 -- 3 -- 3

*00 1206 569 965 455 *NOM *00 0 0

00 1126 531 901 425 -- 00 4 4 01 1109 523 887 419 + 01 2 2 01 1032 487 826 390 NOM 01 6 6 01 941 444 753 355 -- 01 13 10 10 901 425 721 340 + 10 0 -- 1 10 828 391 662 313 NOM 10 3 3

58HDV

10 757 357 606 286 -- 10 8 7 11 705 333 564 266 + 11 -- 1 2 -- 1 3 11 633 299 506 239 NOM 11 -- 1 0 -- 1 0 11 556 262 445 210 -- 11 -- 8 -- 8

Airflow performance includes 1” washable filter media. *Factory Setting **Adjust Jumper Setting (+, NOM, --) is applied to both Cooling and Heating Note 1: HP Mode Jumper provides a 10% reduction in airflow when in Comfort position and a call for low or high cooling is present with the ”O” line off. This feature is to provide lower airflow for running in HP Heating Mode if desirable. Note 2: DEHUM mode (24VAC on DEHUM terminal) provides a 20% airflow reduction during cooling calls. Note 3: Low Heat ESP is a result of High Heat ESP (-- is decrease in rise). Note 4: High and low heat rise values are approximate air temperature change from return air temperature when at factory default settings.

Tab le 2 Airflow

DIP Switch

(OFF = 0 / ON = 1)

Continuous Fan @

0.10 in wc (25 Pa) ESP

1&2 CFM L/s

*00 592 279

01 1021 482

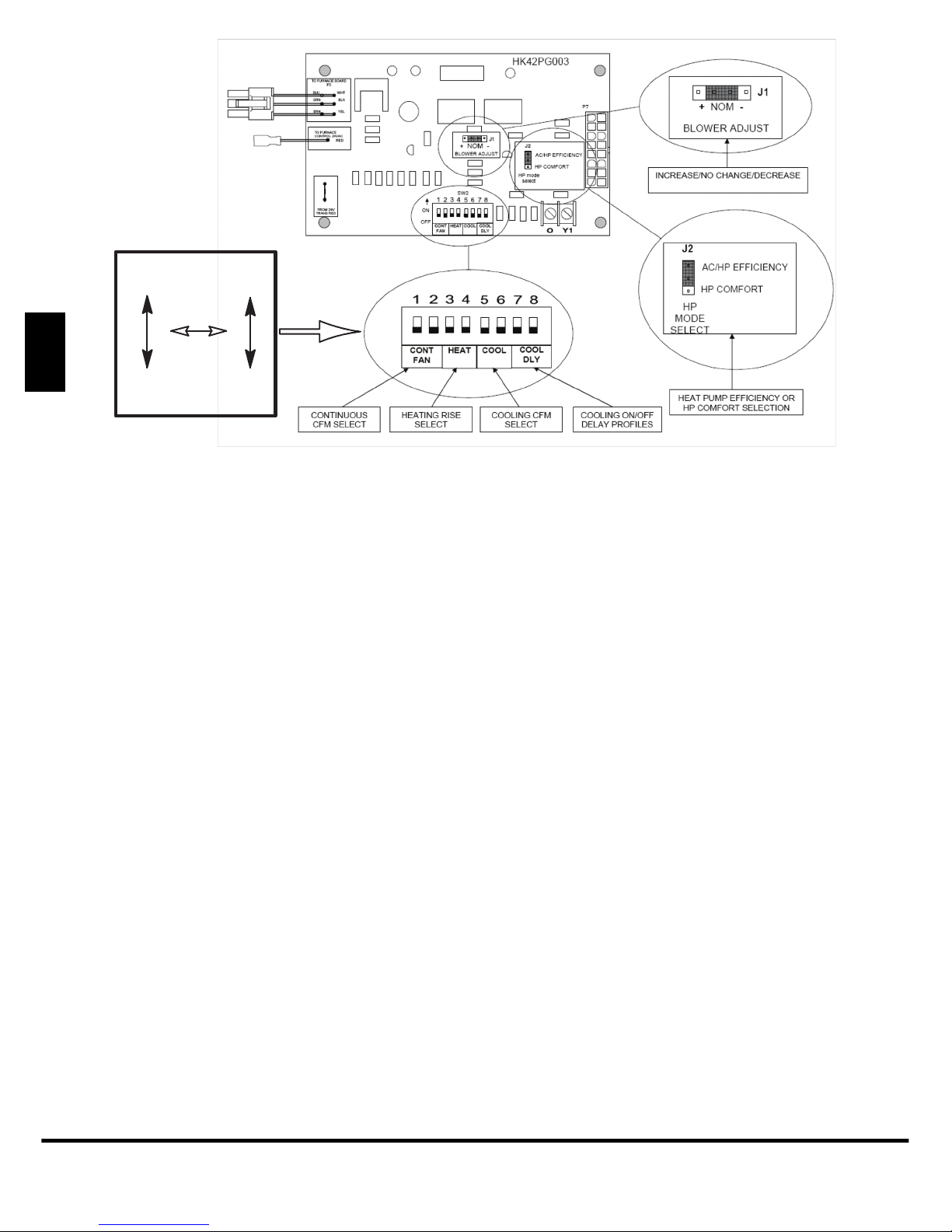

Tab le 3 SW2 DIP Assignments

DIP Switch Blower Parameter

1&2 Cont Fan Adj 3&4 Heat Speed Adj 5&6 Cool Speed Adj

7&8 Cool On/Off Delay 10 1346 635 11 1346 635

* Factory Setting

Tab le 4

DIP SW2 -- 7/8

(OFF = 0 / ON = 1)

ON DELAY OFF DELAY

Timed ON (sec)

Cooling Delay Options (SW2 -- 7, 8)

Airflow during on

delay

Timer OFF (sec)

Airflow during off

*00 5 OFF 90 100%

01 5 OFF 0 OFF 10 30 50% 30 100% 11 30 50% 180 50%

Airflow % is of High Cool airflow demand determined from SW2--5/6 Table 1 Airflow resumes to 100% after on delay time is completed Airflow stops (or switches to continuous fan s peed) after off delay time is completed * Factory Setting

MAX CFM’s for Factory Washable Filters

Filter Size (in/mm) CFM L/s

14″ X25″ / 356 x 635 1400 661

16″ X25″ / 406 x 635 1600 755

20″ X25″ / 508 x 635 2000 944

24″ X25″ / 610 x 635 2500 1180

Max CFM based on 600 FPM (3.0 M/s)

NOTE: Disposable filters are typically rated at 300 FPM (1.5 m/s). These filters only allow half the airflow when compared to 600 FPM (3.0 M/s) filters. EXAMPLE (approx.): 20in X 25in @ 600 FPM = 2000 CFM, @ 300 FPM = 1000 CFM 508mm x 635mm @ 3.0 M/s = 944 L/s, @ 1.5 M/s = 472 L/s

Low Heat

Rise

Change at

Resultant

Static

delay

4

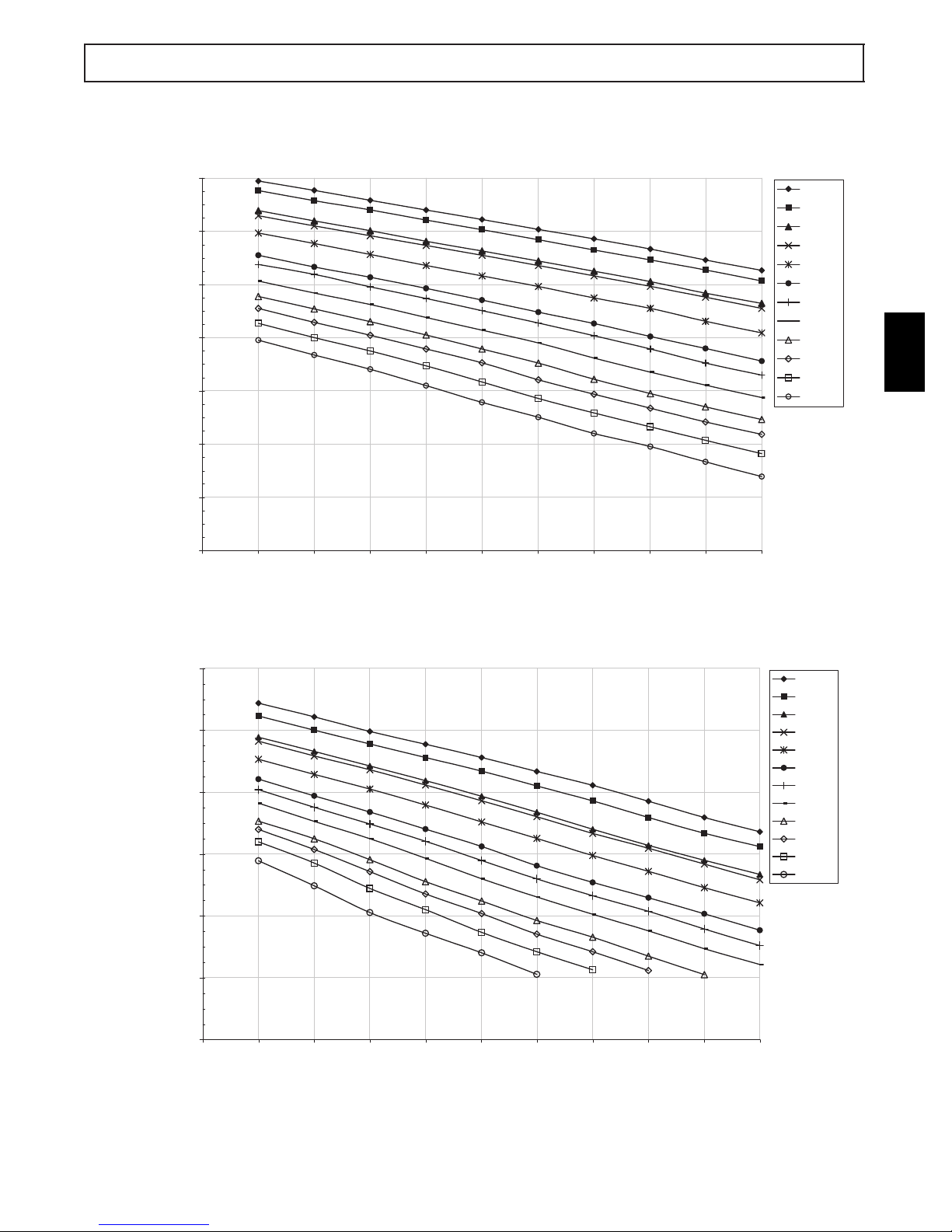

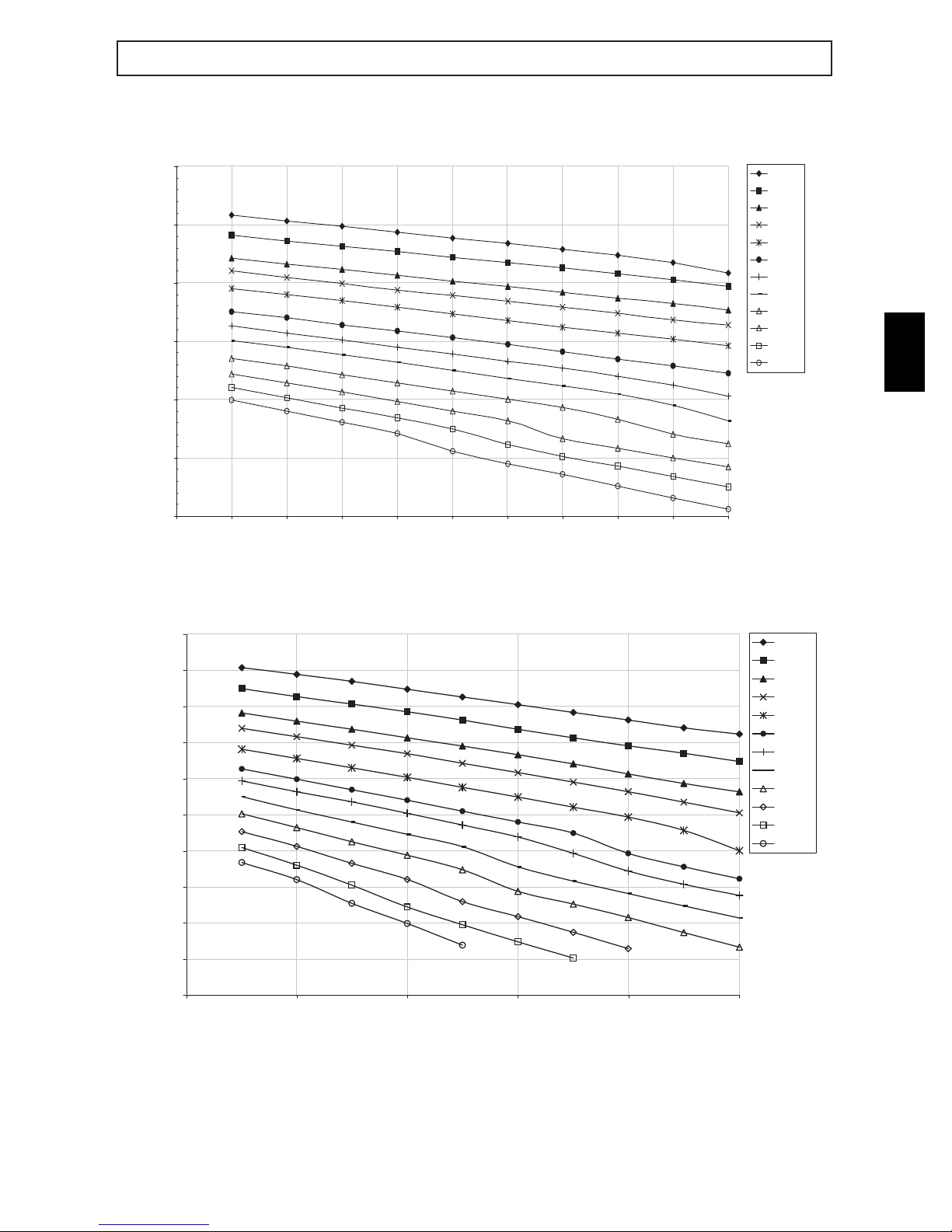

Circulation Air Blower Data - 58HDV040

Cooling Airow Settings

High Cool Airow

1400

1200

1000

800

CFM

600
