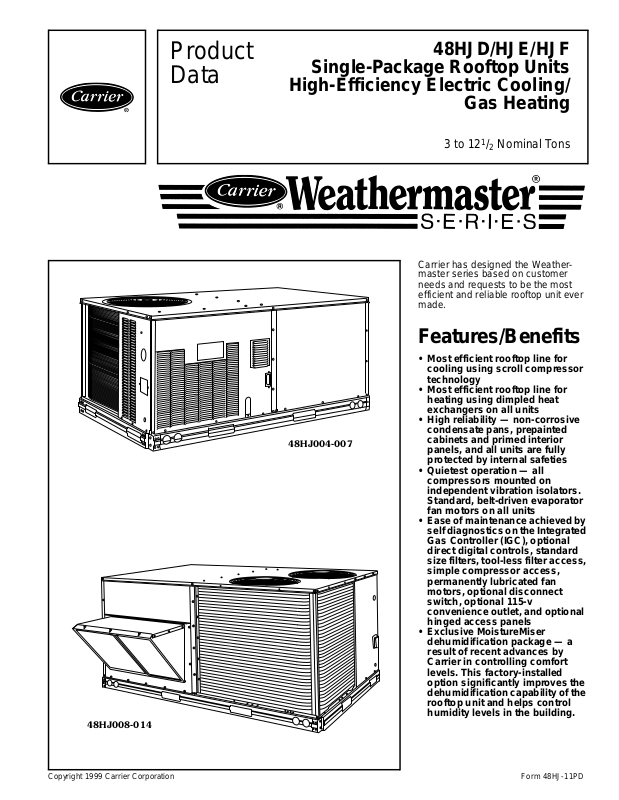

Product Data

48HJD/HJE/HJF

Single-Package Rooftop Units

High-Efficiency Electric Cooling/

Gas Heating

3 to 121/2 Nominal Tons

Carrier has designed the Weathermaster series based on customer needs and requests to be the most efficient and reliable rooftop unit ever made.

Features/Benefits

48HJ008-014

48HJ004-007

• Most efficient rooftop line for cooling using scroll compresso r technology

• Most efficient rooftop line for heating using dim pl ed heat exchangers on all units

• High reliability — non-corrosive condensate pans, prepainted cabinets and primed interior panels, and all units are fully protected by internal safeties

• Quietest operation — all compressors mounted on independent vibration isolators. Standard, belt-driven evaporator fan motors on all units

• Ease of maintenance achieved by self diagnostics on the Integrated Gas Controller (IGC), optional direct digital controls, standard size filters, tool-less filter access, simple compress or acces s, permanently lubricated fan motors, optional disconnect switch, optional 115-v convenience outlet, and optional hinged access pane ls

• Exclusive MoistureMiser dehumidification package — a result of recent advances by Carrier in co nt roll i ng comfort levels. This factory-installed option significantly improves the dehumi dif icat ion capa bili ty of the rooftop unit and helps control humidity levels in the building.

Page 2

Carrier means Top Quality and Reliability

Each component utilized in the Weathermaster and tested for a minimum of 15 years operation under the harshest conditions.

Every unit is thoroughly run tested at the factory in each operating mode and evacuated prior to final charging. Every coil is leak tested with helium particles. Automated run testing allows accurate, undisputed tests and measurements which are second to none in the industry.

Series is designed

Each unit contains a factory printout indicating tested pressures, amperages, dates, and inspectors, providing certification of the unit’s status at the time of manufacture.

Units are equipped with valuable safety controls designed to monitor and protect for the life of the unit. The standard safeties include:

• low-pressure/loss-of-charge switch

• high-pressure switch

• freeze-protection thermostat

• internal compressor overload

Table of contents

Page

Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Model Number Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ARI capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-16

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17,18

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19,20

Selection Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-23

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-50

Electrical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51-54

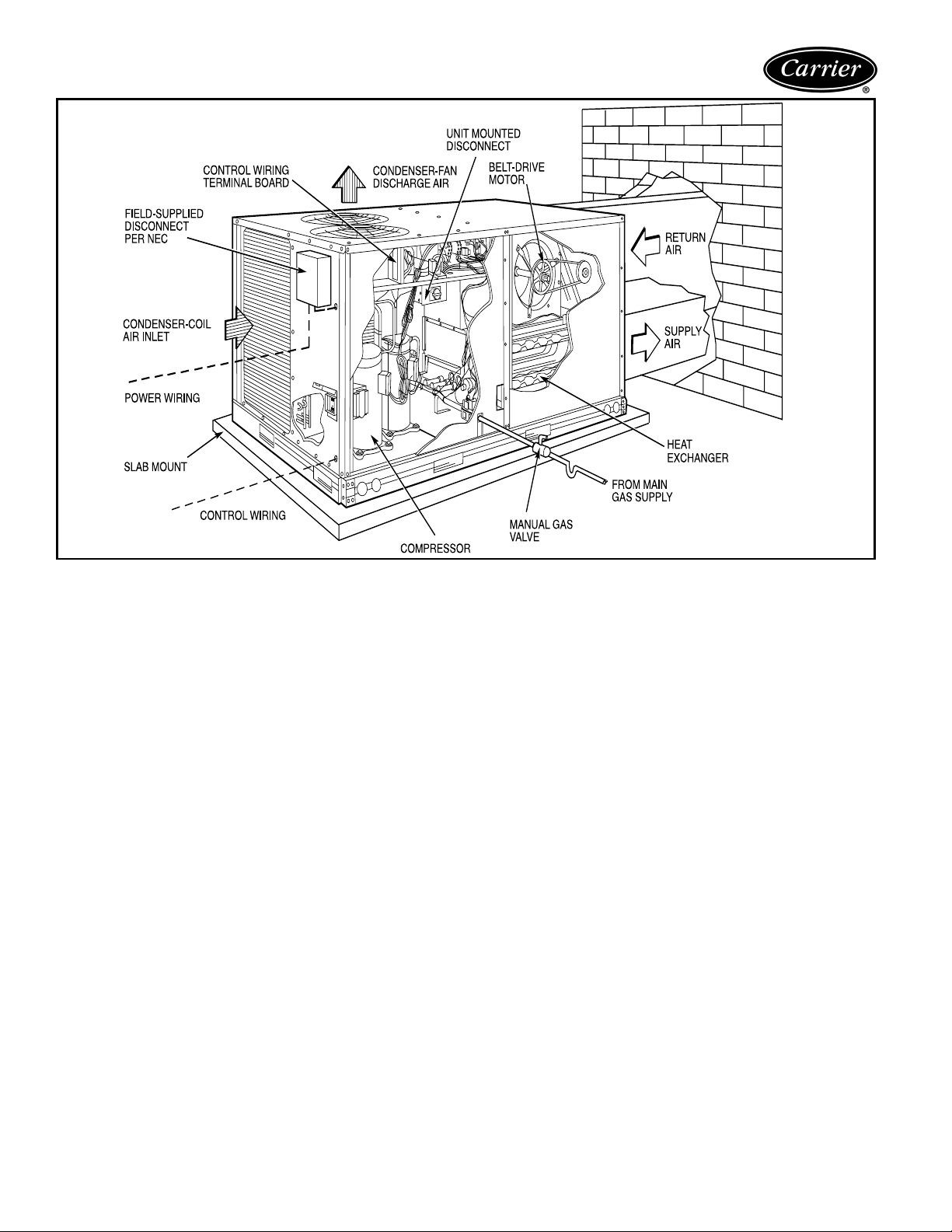

Typical Piping and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55,56

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57-64

Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-69

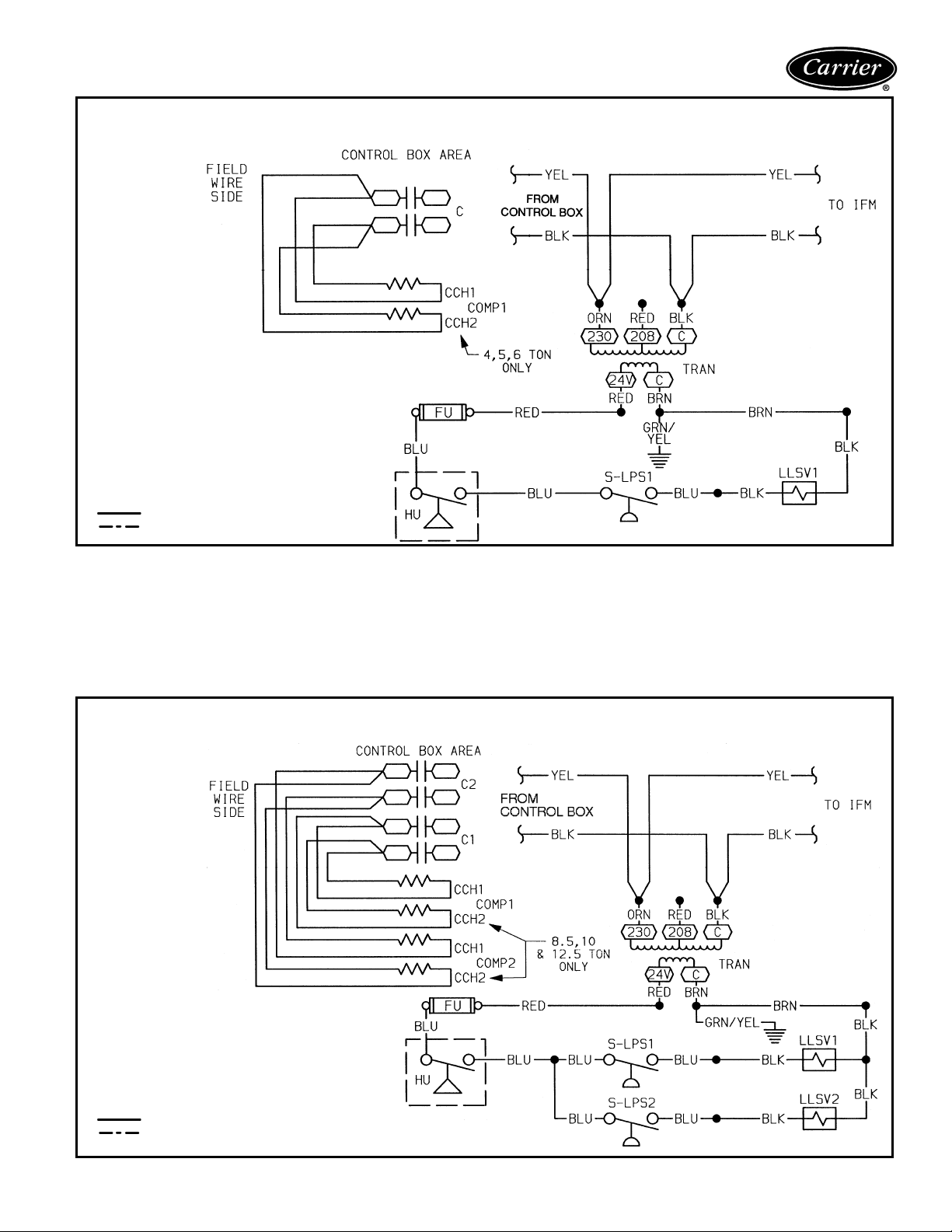

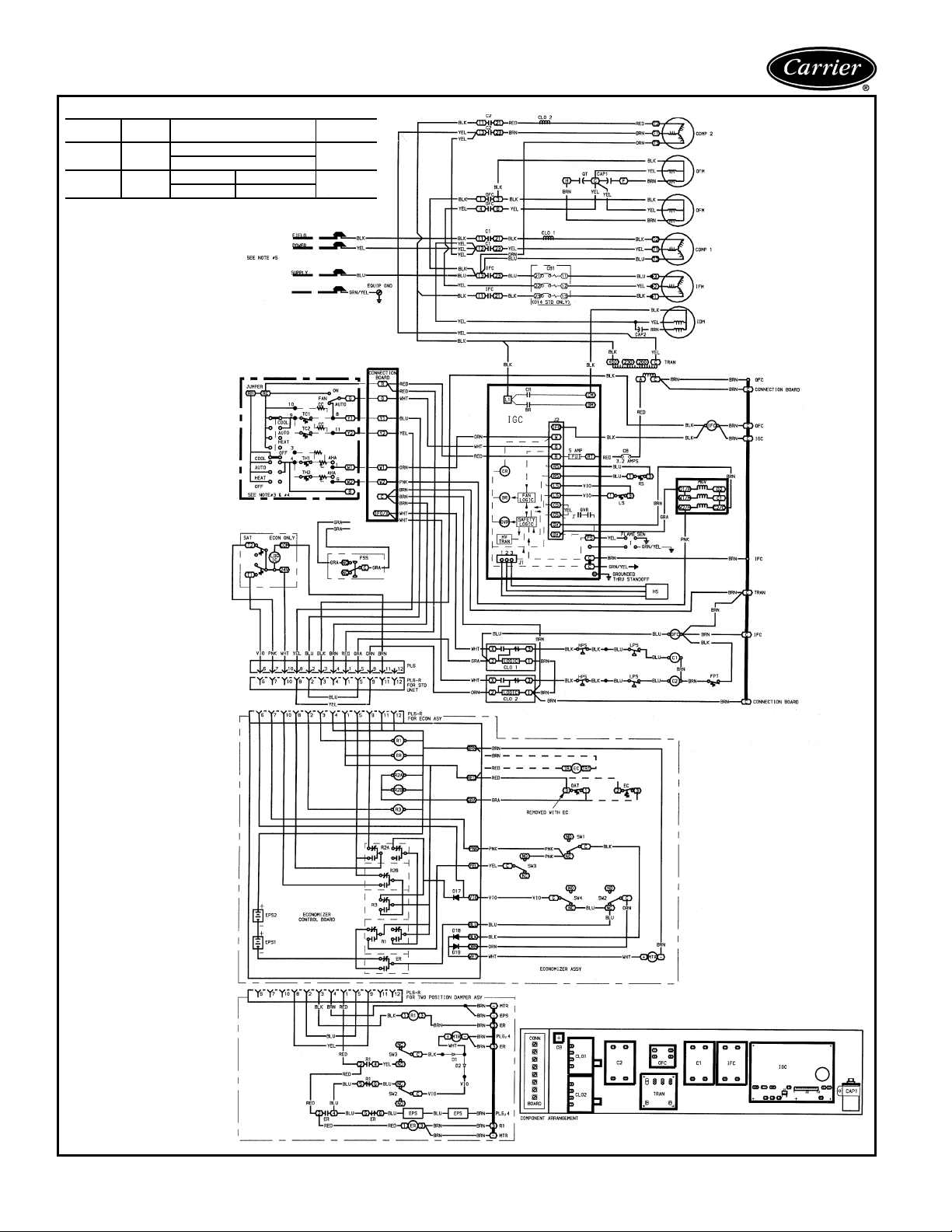

Typical Wiring Schematic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70,71

Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72-75

• exclusive Carrier Cycle-LOC™ circuit board that provides anti- compressor cycling

• refrigerant filter drier

The cabinet is constructed of galvanized steel, bonderized, and coated with a prepainted baked enamel finish. The paint finish is a non-chalking type, and is capable of exceeding Federal Test Method Standard No. 141 (Method 6061) 500-Hour Salt Spray Test. In addition, all cabinet panel interior surfaces are primed, allowing the entire unit to have longer life and a more attractive appearance.

Page 3

Features/Benefits (cont)

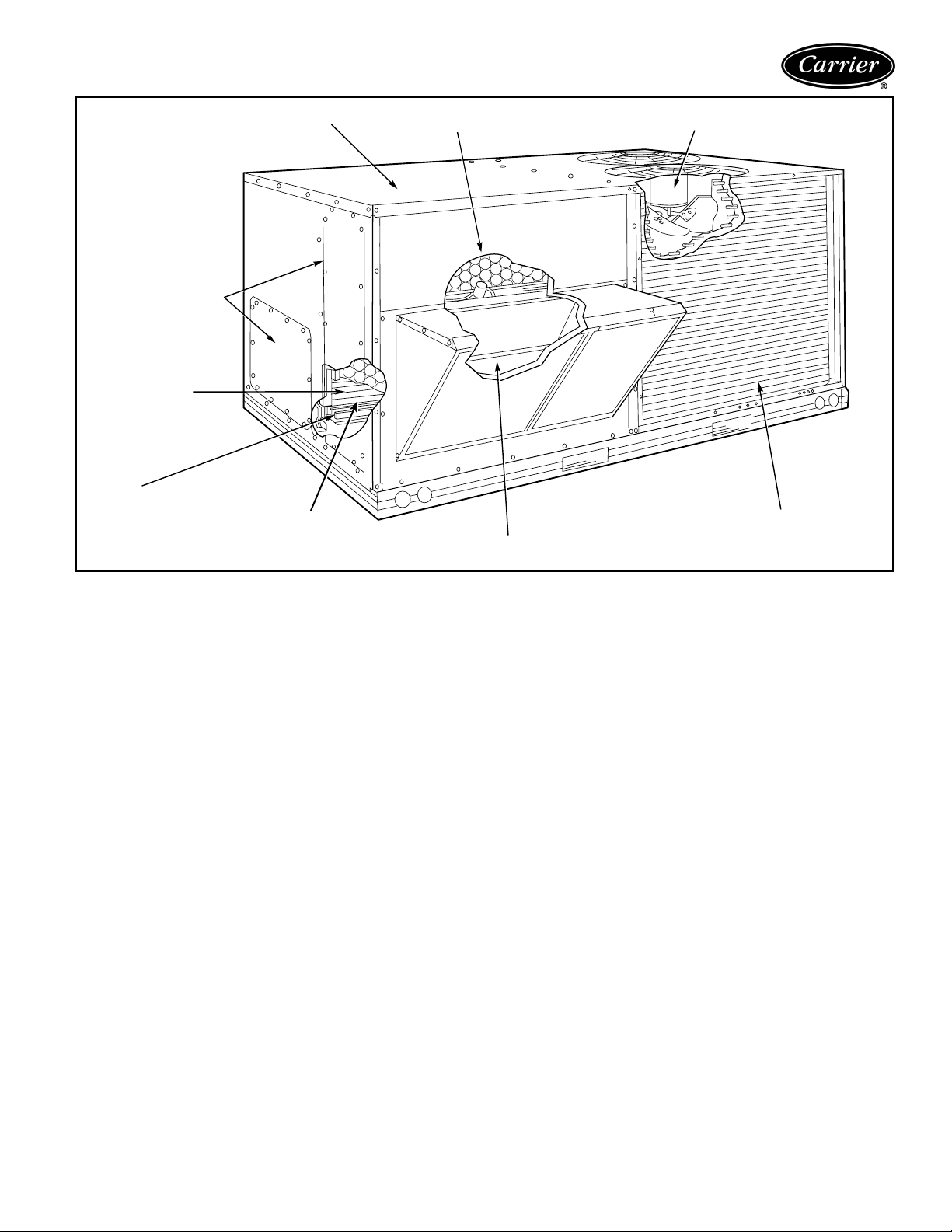

ON-SITE CONVERTIBILITY FROMVERTICALTO HORIZONTAL DISCHARGE

HIGH-EFFICIENCY COILS AND ACUTROL™ REFRIGERANT METERING DEVICE

SLOPED, NON-CORROSIVE CONDENSATE DRAIN PAN

SINGLE PIECE TOP PANEL

MOISTUREMISER DEHUMIDIFICATION PACKAGE (FACTORYINSTALLED OPTION)

TOOL-LESS FILTER ACCESS

FULLY MODULATING DURABLADE ECONOMIZER (OPTION OR ACCESSORY)

SLEEVE BEARING PERMANENTLY LUBRICATED MOTORS

HIGH-EFFICIENCY COILS

Easy maintenance and installation

All units are factory shipped in the vertical discharge configura-

for fit-up to standard roof curbs.

tion

(One accessory curb fits sizes 004007; another accessory curb fits sizes 008-014.) Contractors can order and install the roof curbs early in the construction stage, before decisions on size requirements have been made.

All units feature roll-formed base-

design with forklift slots on 3 sides

rail

of the unit and rigging holes for easier maneuvering and installation. Stretchwrap packaging protects the unit during shipment and storage.

Units are easily converted

vertical to horizontal applications to make retrofit and add-on jobs easier. To convert from vertical to horizontal discharge, simply relocate 2 panels. The same basic unit can be used for a variety of applications and can be quickly modified at the jobsite.

from

Standard high-performance, highstatic, belt-driven evaporator-fan motors enable 48HJ004-014 units to operate in most ductwork configurations.

Ductwork connections are made

by the logical 2 to 1 aspect ratio.

easy

On vertical discharge units, ductwork attaches directly to the roof curb.

Thru-the-bottom service connection capability

comes standard with the rooftop unit to allow power and control wiring and gas connections to be routed through the unit’s basepan, thereby minimizing roof penetrations (to prevent water leaks). Power, gas, and control connections are made on the same side of the unit to simplify installation.

The non-corrosive, sloped, condensate drain pan

is made in conformance with ASHRAE (American Society of Heating, Refrigeration, and Air Conditioning Engineers) Standard 62 to meet many Indoor-Air Quality (IAQ) specifications. The condensate

drain pan offers both bottom and end drain capability to minimize roof penetrations. The bottom drain can be used in conjunction with thru-the-bottom connections. An external trap must be field supplied.

Standard 2-in. throwaway filters

are easily accessed through an easily removable filter access panel located directly above the air intake hood; no tools are required to change the filters.

All units are designed with a single continuous top piece

to elimi-

nate leaking at the seams or gasketing.

Belt-driven evaporator-fan motors

allow maximum on-site flexibility without changing motors or drives.

Low-voltage wiring connections

are easily made due to the large terminal board which is conveniently located for quick, simple access.

Page 4

Features/Benefits (cont)

Quiet, efficient operation and dependable performance

All units are equipped with scroll compressors

with internal vibration isolators for extremely quiet operation. The scroll compressors are quieter and more reliable than reciprocating designs. Compressors are mounted on an independent base plate for additional sound integrity and structural support. Efficient condenser fan and motor design permits operation at low sound levels.

Totally enclosed condenser-fan motors

bearings provide additional dependability.

All coils use state-of-the-art internally enhanced copper tubing.

Coils are thoroughly tested with helium particles as well as pressure tested at the factory. Condenser coils have louvered, aluminum lanced fins to provide maximum heat transfer for optimum efficiency and easy cleaning.

Carrier’s exclusive dimpled heat exchangers

improved efficiency. The tubular design permits hot gases to make multiple passes across the path of the supply air. In addition, dimpled heat exchanger tubes act as baffles, forcing the hot gases to stay in close contact with the cell walls to maximize heat transfer and efficiency.

The California Air Quality Management NO

40 nanograms/joule or less is met when Low NO CRLOWNOX001A00 is installed on 004-006 sizes.

The induced draft combustion system

pearance of flue stacks, and diminishes the effects of winds on heating operation. The inducer fan draws hot combustion gas through the heat exchanger at the optimum rate for the most effective heat transfer. The induced draft also prevents contaminants from entering the supply air if a leak in the heat exchanger occurs.

The direct spark ignition system

saves operating expense when compared to old-style pilot ignition systems. No crossover tube is required, therefore no sooting or pilot fouling problems can occur.

which are fully hermetic

and permanently lubricated

optimize heat transfer for

requirement of

kit

eliminates the unsightly ap-

LP conversion kit —

are designed for natural gas. An LP Conversion Kit is available as an accessory, if required. Installation of the accessory LP kit simply involves changing the gas orifices to accommodate liquid propane gas.

Refrigerant circuit protection

assures dependability. All units have standard:

1) loss-of-charge/low-pressure protection switch which allows operation at lower ambient conditions while protecting against low-charge operation

2) freeze-protection thermostat, which protects against evaporator coil frost build-up

3) high-pressure switch, which protects against above normal operating pressure

4) filter driers, which trap moisture and debris in the refrigeration system.

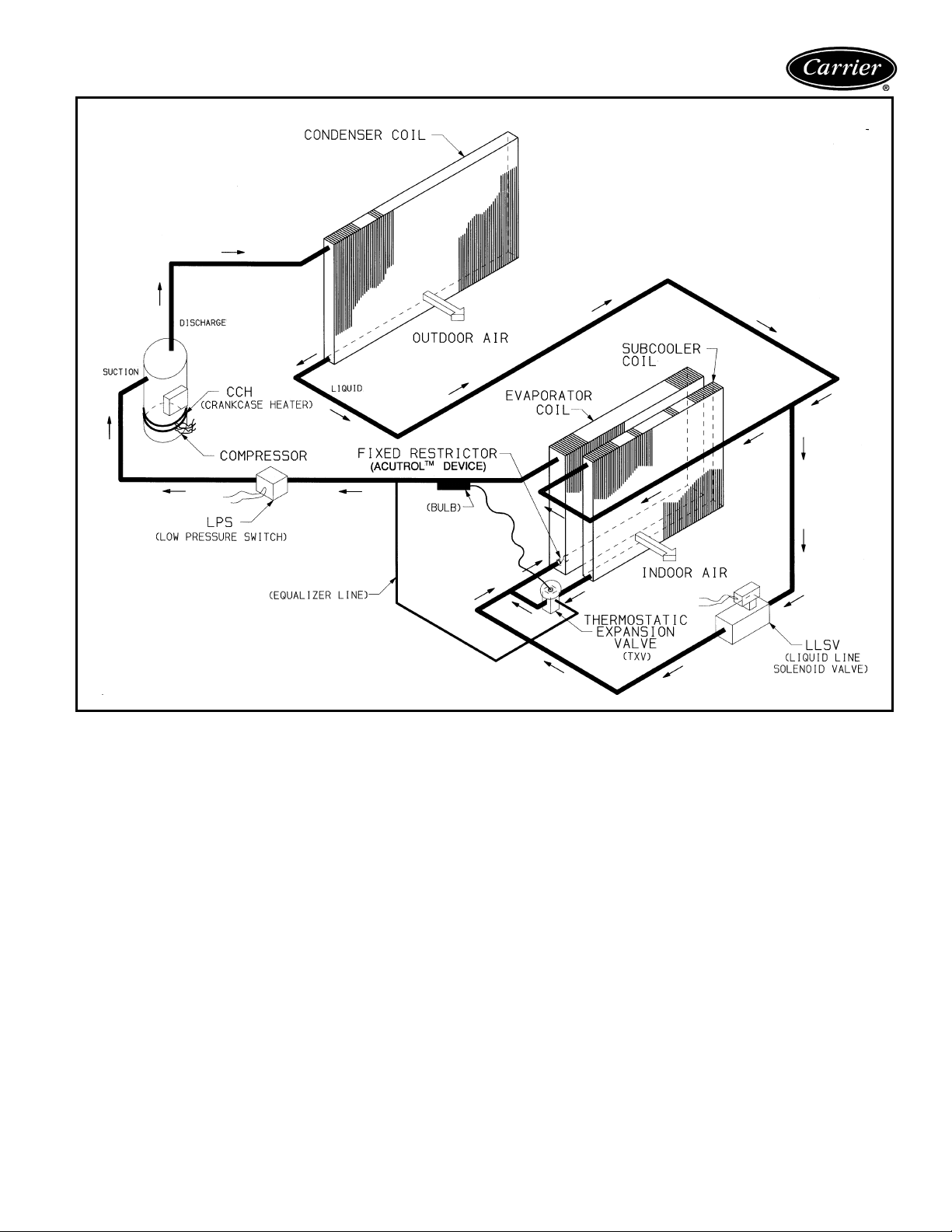

5) Carrier’s exclusive Acutrol™ metering device, which precisely controls refrigerant flow, preventing slugging and floodback, while maintaining optimum unit performance by metering the circuits individually.

Two independent compressor circuits

pinpoint comfort control, improved efficiency, and back-up capability.

/2 to 12 ton units) provide

(all 7

Standard units

Carrier controls add reliability, efficiency, and simplification

Apollo communicating controls

can be ordered as a factory-installed option. Designed exclusively by Carrier, the controls can be used to actively monitor all modes of operation as well as indoor fan status, filter status, indoor-air quality, supply-air temperature, and outdoor-air temperature.

The Apollo control board is factoryinstalled in the rooftop unit control box and comes equipped with built-in diagnostic capabilities. Light-emitting diodes (LEDs) simplify troubleshooting by indicating thermostat commands for both stages of heating and cooling, evaporator-fan operation, and economizer operation. The Apollo communicating control is designed to work specifically with Carrier TEMP and VVT thermostats.

The standard control system

readily adaptable to all conventional and programmable thermostats.

Integrated gas unit controller (IGC) —

contained in the compact Integrated Gas Controller (IGC) that is easily accessible for service. The IGC, designed exclusively by Carrier, provides built in diagnostic capabilities. An LED simplifies troubleshooting by providing visual fault notification and system status information. The IGC board provides exclusive anti-cycle protection for its gas heat operation. The IGC also contains burner control logic for dependable heating operation. The LED is visible without removing the unit control box access panel. 48HJ units maximize heating efficiency through the IGC’s control of evaporator fan ON/OFF delays. The IGC helps make 48HJ units reliable for many years.

Patented Cycle-LOC™ protection system

compressor cycling by monitoring compressor current draw. When lack of compressor current exists, the Cycle-LOC circuit board locks out the compressors. The Cycle-LOC board may be manually reset by simply switching thermostat to OFF, and then back to the Cooling or AUTO modes. No manipulation of the unit disconnect switch is needed.

All ignition components are

provides protection against

Indoor-air quality (IAQ)

The quality of building air is improved

utilizes certain key features that assist in improving indoor air quality. A sloped condensate pan eliminates possible biological growth in the rooftop unit. A face-split evaporator coil design proves effective in removing additional moisture from the supply air. Two-in. filters are standard in all rooftop units and an optional filter status sensor is available.

as the Weathermaster

series

Page 5

Another optional IAQ feature

the Weathermaster

unit is the exclu-

for

sive MoistureMiser dehumidification package. This is a factory-installed option that provides increased dehumidification by cooling the hot liquid refrigerant leaving the condenser coil. The MoistureMiser consists of a subcooling coil located on the leaving-air side of the evaporator coil. The location of this coil in the indoor airstream enhances the latent capacity of the 48HJ units by as much as 40%. Many buildings suffer from humidity damage or poor indoor air quality due to humid conditions. The improved latent capacity provided by the MoistureMiser option reduces the building’s humidity, eliminating potential property damage and making the space more comfortable.

The MoistureMiser option makes the 48HJ units the ideal IAQ rooftop for hot and humid regions. The operation of the MoistureMiser package can be controlled by a field-installed, wallmounted humidistat. The circuit activates only when needed (using the humidistat) as opposed to some dehumidification systems that operate continuously. The humidistat can be set for any humidity level between 20% and 80% relative humidity.

Energy$Recycler — the IAQ solution for today’s “tight” buildings.

Indoor-air quality (IAQ) generally refers to the level of pollutants inside a building. These pollutants include cigarette smoke, carbon dioxide exhaled by occupants, radon gas, car exhaust, paint fumes, and odors.

Concern over increased indoor air pollutants has been spurred by several issues: 1) changes in new building construction methods and retrofit of older buildings have reduced air infiltration rates; 2) Synthetic materials release airborne particles, odors, and chemicals; and 3) HVAC (heating, ventilation, and air conditioning) systems that bring in minimal fresh air.

In 1989, IAQ concerns caused ASHRAE to recommend increased ventilation for all public buildings. Simply introducing fresh air into a building, however, is not always practical or cost effective. Additional ventilation can overload HVAC systems and increase energy costs.

Carrier’s 62AQ Energy$Recycler unit solves this dilemma by providing increased fresh air while keeping increased costs to a minimum. In addition, the Energy$Recycler helps reduce humidity levels, which helps to prevent deterioration of building materials and retards the growth of mold and mildew.

The 62AQ Energy$Recycler unit provides the best solution to retaining the energy-conserving benefits of today’s tighter building construction while improving indoor-air quality.

Serviceability

Servicing a rooftop unit has never been easier

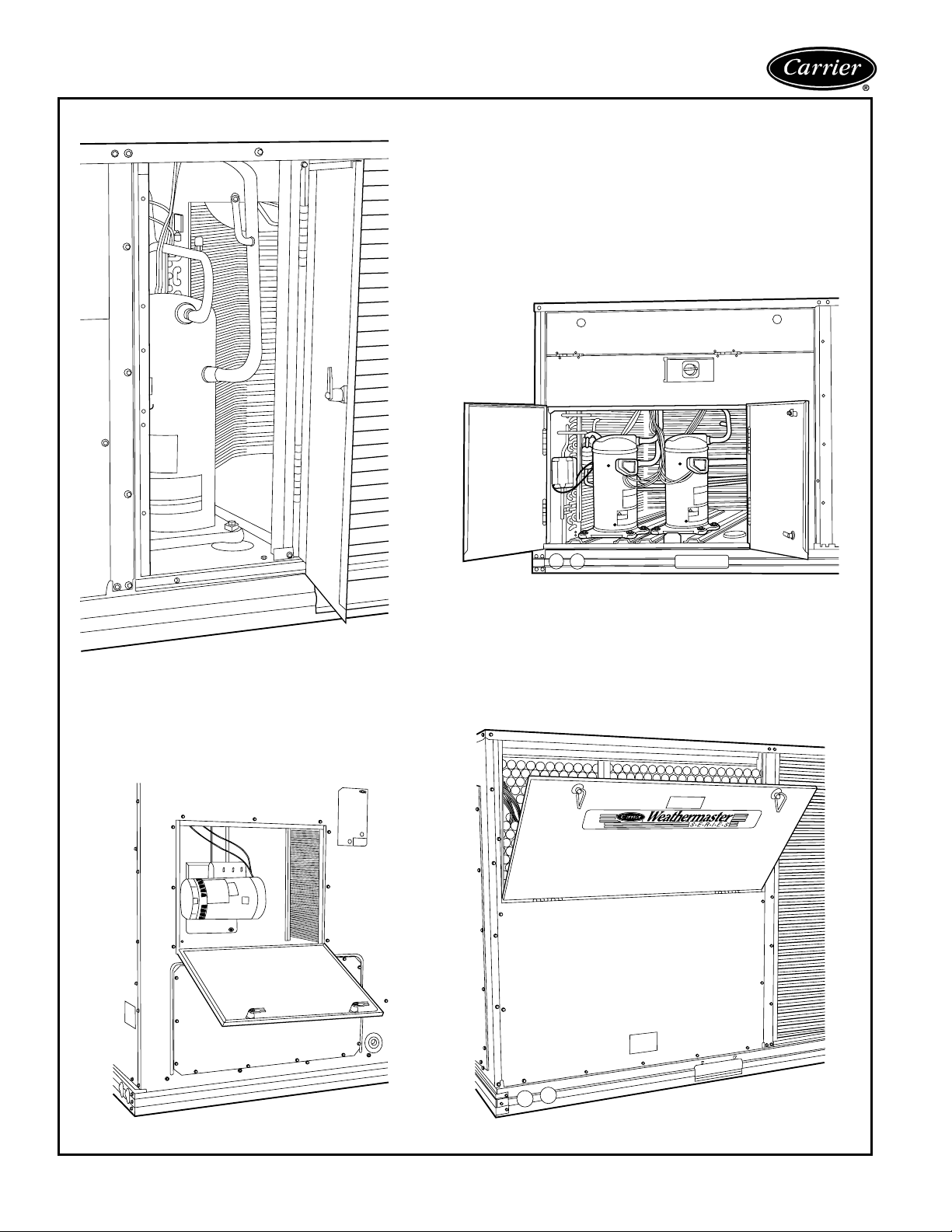

hinged panel option. This option includes hinged access panels for filter, compressor, evaporator-fan motor, and control box areas. These panels provide quick and simple access to the major components by simply unlocking and swinging open the different panels. Each hinged access panel is permanently attached to the rooftop unit, eliminating the problem of access panels being dropped and creating a hole in the roof (potentially causing a water leak). This type of damage could void any warranty offered for a new roof.

Optional packages also include the following features to assist in servicing the rooftop unit:

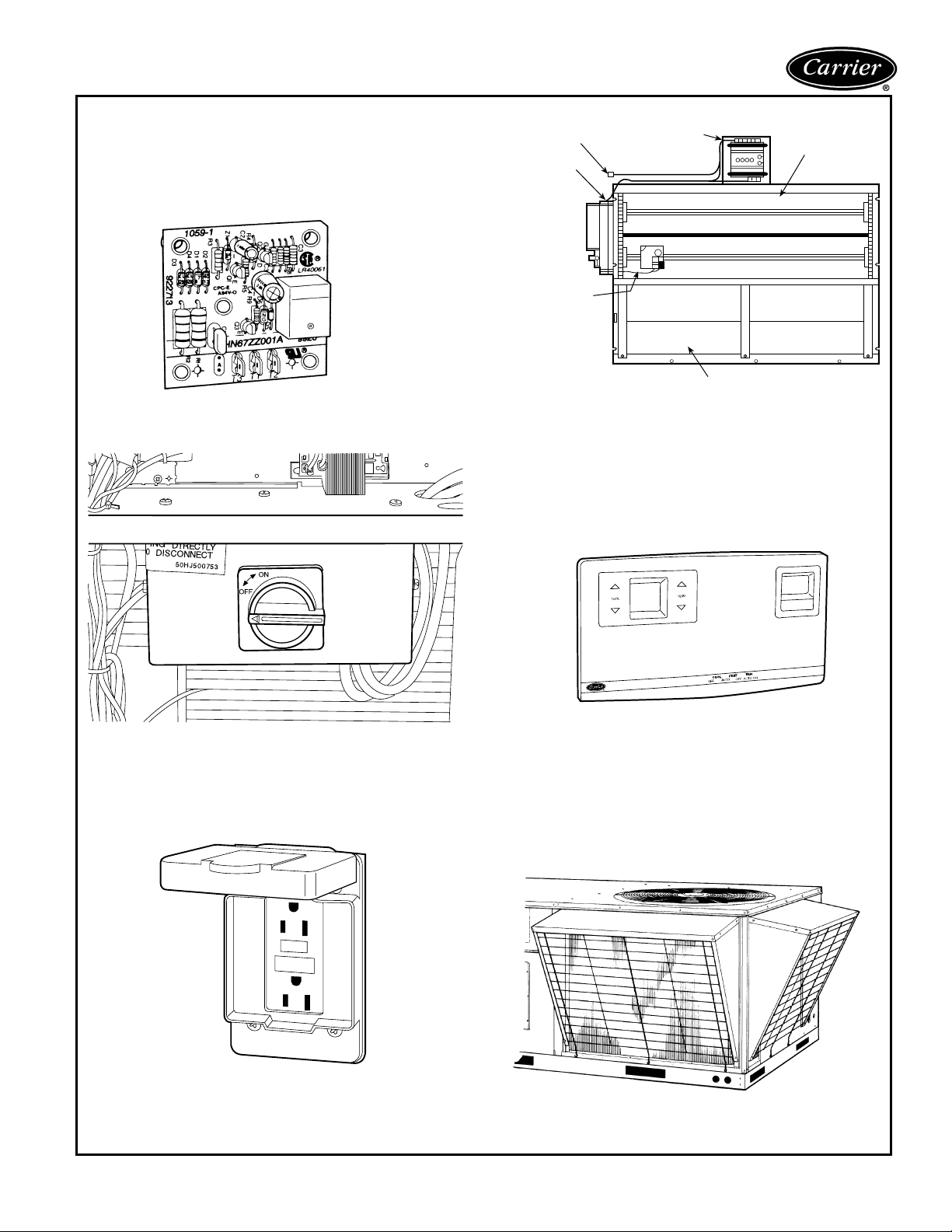

• 115-v convenience outlet to power

up electric drills, lights, and refrigerant recovery machines. This means you are no longer required to run a separate 115-v power supply to your 48HJ rooftops. It can now be factory installed.

with the factory-installed

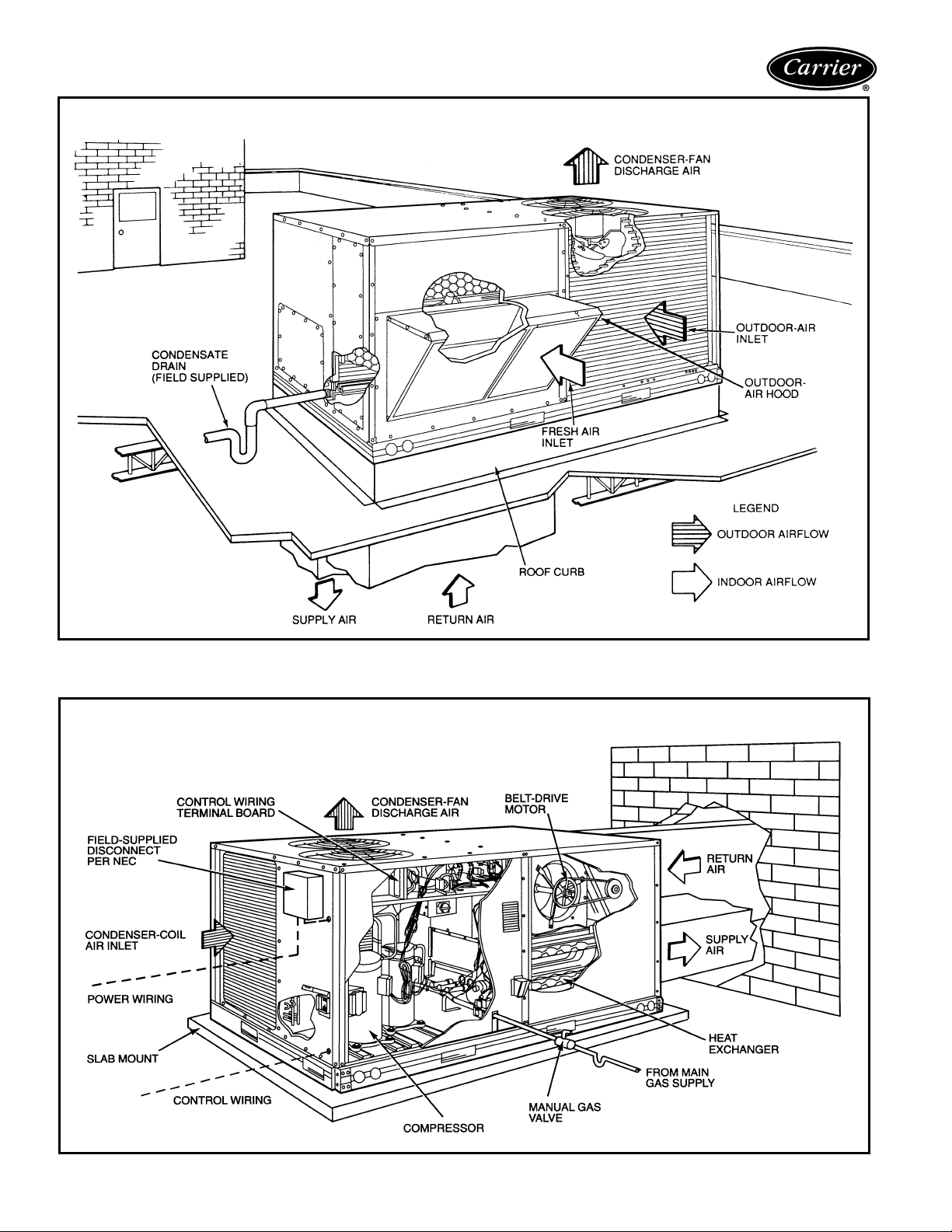

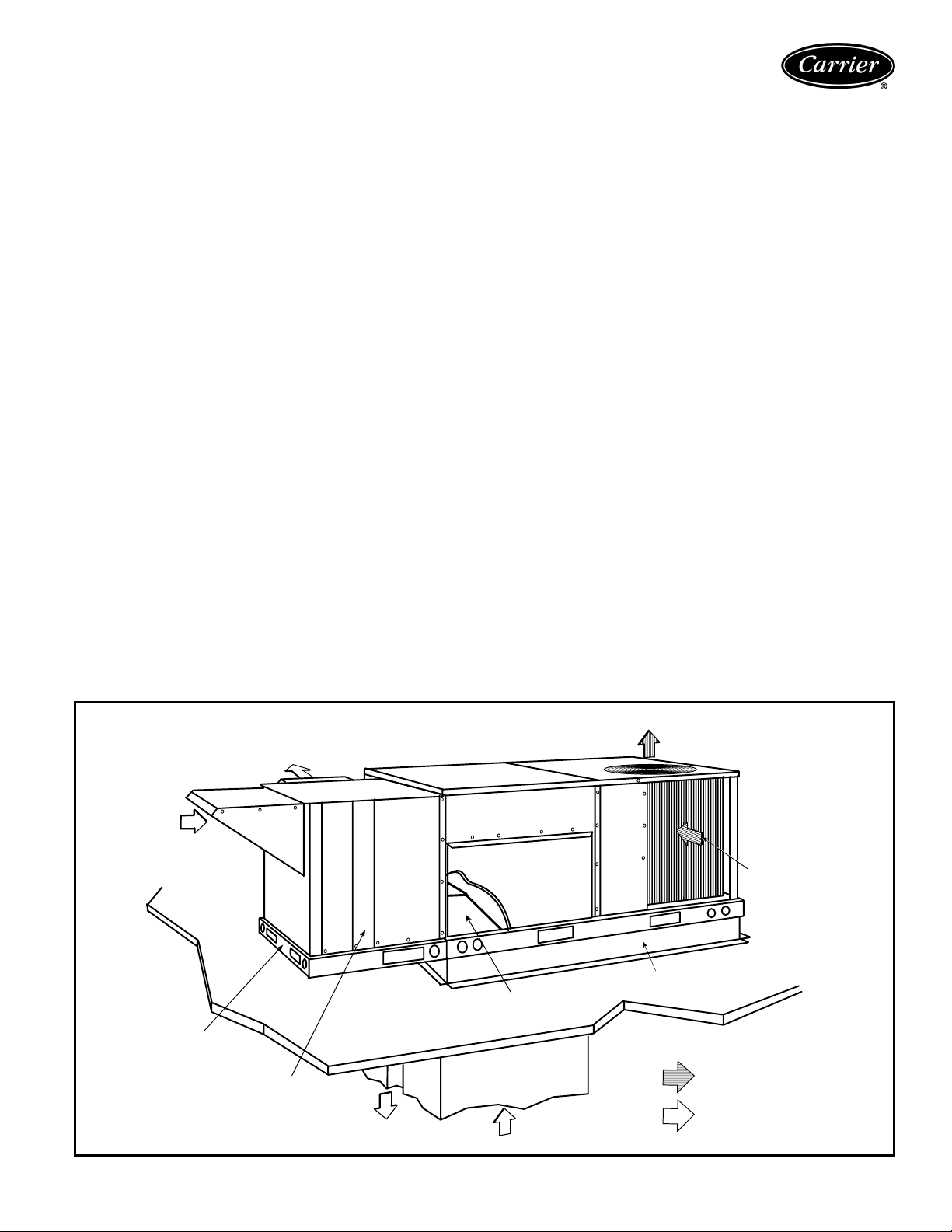

FRESH AIR

INLET

MOUNTING KIT

EXHAUST

AIR

FILTER ACCESS

UNIT WITH ENERGY$RECYCLER

RETURN AIR BAFFLE

SUPPLY AIR

RETURN AIR

CONDENSER-FAN DISCHARGE AIR

ROOF CURB

OUTDOOR AIRFLOW

INDOOR AIRFLOW

OUTDOOR-AIR INLET

Page 6

Features/Benefits (cont)

• Non-fused disconnect switch to remove power locally at the rooftop. This option also includes a power lockout capability to protect the service person. This lockout switch saves the service person time and effort because there is no need to access a distant disconnect switch while servicing the unit.

• Durablade economizer

• EconoMi$er with microprocessor control and optional power exhaust

• Apollo direct digital controls to monitor rooftop operation from a remote site.

Standardized components

complete Weathermaster® line of products are found in all safety devices, condenser-fan motors, evaporator-fan motors, and control boards, while the gas sections use common inducer motors, limit switches, and rollout switches. This allows for greater inventory control, familiarity of parts, and fewer stocked parts.

Easily accessible refrigerant access ports

on all discharge, suction, and liquid lines permit easy and accurate measurements as well as simple accessibility.

Model number nomenclature

48 HJ E 004 Z – B 3 – – AA

for the

Resettable 24-v circuit breaker on 48HJ008-014 units

allows room for error without replacing transformers or fuses.

Single-side utility connections

provide easy access to perform any necessary service.

Color-coded wires

permit easy trac-

ing and diagnostics.

Belt-driven motors

are accessible through a single access door to facilitate servicing and adjusting after installation.

Compressors and safety switches are easily accessible

for trouble-

shooting and system analysis.

48 – Electric Cooling/

Gas Heat

HJ – High-Efficiency

Constant Volume

D – Low Heat E – Medium/High Heat F – High Heat

Nominal Capacity

004 – 3 Tons 008 – 7 1/2 Tons 005 – 4 Tons 009 – 8 1/2 Tons 006 – 5 Tons 012 – 10 Tons 007 – 6 Tons 014 – 12 1/2 Tons

Factory-Installed Options (See Table – Page 12.)

V-Ph-Hz

1 – 575-3-60 3 – 208/230-1-60 5 – 208/230-3-60 6 – 460-3-60

Corrosion

B – Cu/Cu C – Cu Outdoor Coil D – Technicoat Outdoor Coil V – Precoated Al Outdoor Coil

Motor

–– Standard Motor M – Special Order High-Static Indoor-Fan Motor S – MoistureMiser

Apollo Community Controls and Hinged Panel Option Packages

–– None G – Hinged Panel Option Y – Hinged Panel Option with Apollo Controls Z – Apollo Controls

Page 7

ARI* capac ities

UNIT 48HJ

E/F004 D/E/F005 D/E/F006 D/E/F007 D/E/F008 D/E/F009 D/E/F012

D014 E014

NOMINAL

TONS

STANDARD

CFM

COOLING

(Btuh)

TOTAL

SEER† EER

3 1200 36,000 3.21 13.0 11.20 7.6 ** 4 1450 47,000 4.25 13.0 11.05 7.6 ** 5 1750 61,000 5.55 13.0 11.00 8.0 ** 6 2100 74,000 6.70 — 11.00 8.0 **

7.5 3000 90,000 8.18 — 11.00 8.2 11.6

8.5 3000 102,000 9.44 — 10.80 8.2 10.9

10 3200 120,000 10.91 — 11.00 8.4 9.7

12.5 4300 139,000 14.04 — 9.5 8.6 9.8

12.5 4300 139,000 14.04 — 9.5 8.6 9.4

LEGEND

Bels — EER — IPLV — SEER —

*Air-Conditioning & Refrigeration Institute.

†Applies only to units with capacity of 65,000 Btuh or less.

Sound Levels (1 bel = 10 decibels) Energy Eff i ci ency Ratio Integrated Part-Load Value Season al En ergy E ffi c iency Rati o

**The IPLV is not applicable to single-compressor units. NOTES:

1. Rated in accordance with ARI Standard 210/240 (004-012 units) or 360 (014 units) and 270 (004-01 4 units).

2. Ratings are net values, reflecting the effects of circulating fan heat. Ratings are based on:

Cooling Standard: IPLV Standard:

80 F db , 67 wb indoor entering-air temperature and 95 F db outdoor enteri ng-air temperature.

80 F db, 67 F wb indoor entering-air temperature and 80 F db outdoor entering-air temperature.

SOUND RATING

(Bels)

IPLV

Sizes 004-012

Size 014 O nly

Only

HEATING CAPACITIES AND EFFICIENCIES

UNIT

48HJE004 48HJF004 48HJD005 48HJE005 48HJF005 48HJD006 48HJE006 48HJF006 48HJD007 48HJE007 48HJF007

48HJD008 48HJE008 48HJF008 48HJD009 48HJE009 48HJF009 48HJD012 48HJD014, HJE012 48HJE014, HJF012

HEATING INPUT

First Stage/Second Stage

UNIT

(Btuh)

50,000/ 72,000 40,000/ 57,100 41,000/ 59,040 15-45 82 82 78.7 82,000/115,000 63,500/ 89,000 65,600/ 92,000 55-85 80 80 77.3 50,000/ 72,000 40,000/ 57,100 41,000/ 59,040 15-45 82 82 78.7 82,000/115,000 65,600/ 92,000 66,420/ 93,150 35-65 81 81 77.7

120,000/150,000 94,400/118,000 96,000/120,000 50-80 80 80 76.9

50,000/ 72,000 40,000/ 57,100 41,000/ 59,040 15-45 82 82 78.7 82,000/115,000 65,600/ 92,000 66,420/ 93,150 35-65 81 81 77.8

120,000/150,000 94,400/118,000 96,000/120,000 50-80 80 80 76.9

50,000/ 72,000 — 41,000/ 59,040 15-45 82 82 78.7 82,000/115,000 — 66,420/ 93,150 35-65 81 81 77.8

120,000/150,000 — 96,000/120,000 50-80 80 80 76.9

HEATING INPUT

First Stage/Second Stage

90,000/125,000 72,900/102,500 20-50 82 82 77.5 120,000/180,000 98,400/147,600 35-65 82 82 77.5 180,000/224,000 147,600/183,700 45-75 82 82 79.4

90,000/125,000 72,900/102,500 20-50 82 82 78.4 120,000/180,000 98,400/147,600 35-65 82 82 78.4 180,000/224,000 147,600/183,700 45-75 82 82 79.4 120,000/180,000 98,400/147,600 35-65 82 82 78.4 180,000/224,000 147,600/183,700 35-65 82 82 79.3 200,000/250,000 160,000/200,000 40-70 80 80 76.4

Single-Phase Units*

First Stage/Second Stage

(Btuh)

LEGEND

AFUE —

Annual Fuel Utilization Efficiency

*Singl e-phase uni ts are rate d for output c apacity in accorda nce with

U.S. Government St andard Tests.

†Three-phase units are rated for output capacity in accordance with

ANSI Z21.47 Standard f or gas-fir ed, cent ral furnaces.

OUTPUT CAPACITY (Btuh)

First Stage /Second Stage

OUTPUT CAPACITY

First Stage/Second Stage

(Btuh)

3-Phase Units†

NOTE: NOx levels are 40 nanograms/ joule with accessory kit.

TEMPERATURE

RISE (°F)

TEMPERATURE

RISE (°F)

AFUE

(%)

AFUE

(%)

EFFICIENCY (%)

STEADY STATE

EFFICIENCY (%)

STEADY STATE

CALIFORNIA

SEASONAL

EFFICIENCY (%)

CALIFORNIA

SEASONAL

EFFICIENCY (%)

Page 8

Phys ical data

BASE UNIT 48HJ E/F004 D/E/F005 D/E/F006 D/E /F007 NOMINAL CAPACITY OPERATING WEIGHT (lb)

Unit Durablad e Economizer EconoMi$er MoistureMiser Dehumidification Package Roof Curb

COMPRESSOR

Quantity Oil (oz)

REFRIGERANT TYPE

Operating Charge (lb-oz)

Standard Unit Unit With MoistureMiser Dehumidification

Package

CONDENSER FAN

Quantity...Diameter (in.) Nominal Cfm Motor Hp...Rpm Watts Input (Total)

CONDENSER COIL

Standard Unit

Rows...Fins/in. Total Face Area (sq ft)

Unit With MoistureMiser Dehumidification Package

Rows...Fins/in. Total Face Area (sq ft)

EVAPORATOR FAN

Quantity...Size (in.) Nominal Cfm Maximum Continuous Bhp Std

Motor Frame Size Std Fan Rpm Range Std Motor Bearing Type

Maximum Fa n Rpm Motor Pulley Pitch Diameter A/B (in.) Std

Nominal Motor Shaft Diameter (in.) Std Fan Pulley Pitch Diameter (in.) Std Belt — Quantity...Type...Length (in.) Std Pulley Center Line Distance (in.)

Speed Change Per Full Turn of Movable Pulley Flange (rpm) Std

Movable Pulley Maximum Full Turns From Closed Position Std

Factory Setting — Full Turns Open Std Factory Speed Setting (rpm) Std Fan Shaft Diameter at Pulley (in.)

Hi-Static Hi-Static Hi-Static

Hi-Static Hi-Static Hi-Static Hi-Static

Hi-Static

Hi-Static Hi-Static Hi-Static

LEGEND

Bhp —

Brake Horsepower

*Single-Phase/3-Phase. †Indicates automatic reset.

**48HJD005-007 and 48HJE004 (72,000 Btuh heat input) units have 2 burners.

48HJE005-007 and 48HJF004 (115,000 Btuh heat input) units and 48HJF005-007 (150,000 Btuh heat input) units have 3 burners.

††An LP Conversion Kit is available as an accessory.

3456

530 540 560 615

34 34 34 34 47 47 47 47 18 18 18 18

115 115 115 115

1111

42 53 50 60

Scroll

R-22 5- 8 8-6 10- 0 9-10 8-13 11-2 12-13 13- 6

1...22 1...22 1...22 1...22 3500 3500 4100 4100

/4...825

180 180 320 320

/4...825

Propeller

/4...1100

Enhanced Copper Tubes, Aluminum Lanced Fins

1..17 2...17 2...17 2...17

14.6 16.5 16.5 16.5

1...17 1...17 1...17 1...17

3.9 3.9 3.9 3.9

1...10 x 10 1...10 x 10 1...10 x 10 1...10 x 10 1200 1600 2000 2400

1.20 1.20 1.30/2.40* 2.40

2.40 2.40 2.90 2.90 48 48 48/56* 56 56 56 56 56

760-1090 840-1185 1020-1460/1120-1585* 1120-1585

1075-1455 1075-1455 1300-1685 1300-1685

Ball Ball Ball Ball

2100 2100 2100 2100

1.9/2.9 1.9/2.9 2.4/3.4 2.4/3.4

2.8/3.8 2.8/3.8 3.4/4.4 3.4/3.4

4.5 4.0 4.0 4.0

4.5 4.0 4.5 4.5

1...A...33 1...A...33 1...A...40 1...A...38

1...A...39 1...A...39 1...A...40 1...A...40

10.0-12.4 10.0-12.4 14.7-15.5 14.7-15.5 65 70 75 95

65 65 60 60

5565 6655 3333

890 980 1240 1304

1233 1233 1396 1396

Centrifugal Type, Belt Drive

31/

Page 9

BASE UNIT 48HJ E/F004 D/E/F005 D/E/F006 D/E/F007 EVAPORATOR COIL

Rows...Fins/in. Total Face Area (sq ft)

FURNACE SECTION

Rollout Switch Cutout Temp (F)†

Burner Orifice Diameter (in. ...drill size)**

Natural Gas — Std Liquid Propane — Alt††

Thermostat Heat Anticipator

Setting (amps)

208/230/460 v First Stage Gas Input (Btuh) F irst Stage Efficiency (Steady State) (%)

Temperature Rise Range Manifold Pressure (in. wg)

Natural Gas — Std

Liquid Propane — Alt†† Maximum Static Pressure (in. wg) Field Gas Connection Size (in.)

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief Cutout Reset (Auto.)

LOSS-OF-CHARGE/LOW-PRESSURE SWITCH

(Liquid Line) (psig)

Cutout

Reset (Auto.)

FREEZE-PROTECTION THERMOSTAT

Opens (F) Closes (F)

OUTDOOR-AIR INLET SCREENS

Quantity...Size (in.)

RETURN-AIR FILTERS

Quantity...Size (in.)

Second Stage Second Stage

.113...33 .113...33/.113...33/.129...30 .113...33/.113...33/.129...30 .113...33/.113...33/.129...30 .089...43 .089...43/.089...43/.102...38 .089...43/.089...43/.102...38 .089...43/.089...43/.102...38

50,000/ 82,000 50,000/ 82,000/120,000 50,000/ 82,000/120,000 50,000/ 82,000/120,000 72,000/115,000 72,000/115,000/150,000 72,000/115,000/150,000 72,000/115,000/150,000

15-45/55-85 15-45/35-65/50-80 15-45/35-65/50-80 15-45/35-65/50-80

Enhanced Copper Tubes, Aluminum Double Wavy Fins, Acutrol™ Feed Device

2...15 2...15 4...15 4...15

5.5 5.5 5.5 5.5

195 195 195 195

.14 .14 .14 .14 .14 .14 .14 .14

82/80 82/81/80 82/81/80 82/81/80

3.5 3.5 3.5 3.5

1.0 1.0 1.0 1.0

450 ± 50

428 320

7 ± 3

22 ± 5 30 ± 5

45 ± 5

Cleanable

1...20 x 24 x 1 Throwaway

2...16 x 25 x 2

LEGEND

Bhp —

Brake Horsepower

*Single-Phase/3-Phase. †Indicates automatic reset.

**48HJD005-007 and 48HJE004 (72,000 Btuh heat input) units have 2 burners.

48HJE005-007 and 48HJF004 (115,000 Btuh heat input) units and 48HJF005-007

(150,000 Btuh heat input) units have 3 burners.

††An LP Conversion Kit is available as an accessory.

Page 10

Physical data (cont)

BASE UNIT 48HJ D/E/F008 D/E/F009 D/E/F012 D/E014 NOMINAL CAPAC ITY (tons) OPERATING WEIGHT (lb)

Unit Durablade Economizer EconoMi$er Moistur eM iser Deh u mi d ificatio n Package Roof Curb

COMPRESSOR

Quantity Oil (oz) (each compr)

REFRIG ERANT TYPE

Operating Charge (lb-oz) Standard Unit

Circuit 1 Circuit 2

Unit with MoistureMiser Subcooling Option

Circuit 1 Circuit 2

CONDENSER F A N

Quantity...Diameter (in.) Nominal Cfm Motor Hp...Rpm Watts Input (Total)

CONDEN SE R CO IL

Standard Unit

Rows...Fins/in. Total Face Area (sq ft)

Unit with M o istureMi ser Dehumid if ication Package

Rows...Fins/in. Total Face Area (sq ft)

EVAPORATOR FAN

Size (in.) Type Drive Nominal Cfm Maximum Continuous Bhp Std

Motor Frame Fan Rpm Range Std

Motor Bearing Type Maximum Fan Rpm Motor P ull ey Pitch Diameter Std

A/B (in.) Hi-Static Nomin al M o to r S h af t Di a m e ter (in. ) Fan Pulley Pitch Diamet er (in.) Std

Belt — Type...Length (in.) Std Pulley Center Line Di stance (in .)

Speed Change per Full Turn of Std

Movable Pulley Flan g e (rpm) Hi-Stati c Movable Pulley M aximum Full Std

Turns from Closed Position Hi-Static Factory Setting — Fu l l Turns Open Std

Factory Speed Setting (rpm) Std Fan Shaft Diameter at Pulley (in.)

EVAPORATOR COIL

Rows...Fins/in. Total Face Area (sq ft)

Hi-Static

Hi-Static Hi-Static

870 880 1035 1050

44 44 44 44 62 62 62 62 29 29 33 33

143 143 143 143

2222

53 53 50 60

81/

10 121/

Scroll

R-22

7-10 7-14 9- 3 9-8 8- 2 8- 5 10- 3 9-5

10-10 10-11 12- 8 12-6 12- 8 10-10 12-14 12-2

2...22 2...22 2...22 2...22 6500 6500 7000 7000

/4...1100

650 650 650 650

/4...1100

Propeller

/4...1100

Enhanced C opper Tubes, Al um i num Lanced Fin s

2...17 2...17 2...17 2...17

20.5 20.5 25.0 25.0

1...17 1...17 1...17 1...17

6.36.38.48.4

Centrifugal

15 x 15 15 x 15 15 x 15 15 x 15

Belt Belt Belt Belt

3000 3400 4000 5000

2.90 2.90 3.70 5.25

4.20 4.20 5.25 — 56 56 56 56

840-1085 840-1085 860-1080 900-1260 860-1080 860-1080 830-1130 —

Ball Ball Ball Ball

2100 2100 2100 2100

3.4/4.4 3.4/4.4 4.0/5.0 2.8/3.8

4.0/5.0 4.0/5.0 2.8/3.8 —

7.07.08.05.8

8.0 8.0 5.8 — A...51 A...51 A...51 BX...46 A...55 A...55 BX...46 —

16.75-19.25 16.75-19.25 15.85-17.50 15.85-17.50 50 50 45 60 60 60 60 —

5556 555— 5555

555— 840 840 860 960 860 860 890 —

1111

3...15 3...15 4...15 4...15

8.9 8.9 11.1 11.1

Enhanced Copper Tubes, Aluminum Doubl e-Wavy Fins

LEGEND

Bhp —

Brake Horsepower

*Indicates automatic reset.

†48HJD008,009 units have 3 burners.

48HJD012 and 48HJE008,009 units have 4 burners. 48HJF008 ,009; 48HJE/HJF012 ; an d the 48HJD/HJ E014 have 5 burner s.

**An LP Convers i on K i t is available as an accessory.

Page 11

BASE UNIT 48HJ D/E/F008 D/E/F009 D/E/F012 D/E014 FURNACE SECTION

Rollout Switch Cutout (Temp (F)*

Burner Orifice Diameter (in. ...drill size)†

Natur al G as — Std Liquid Propane — Alt**

Thermostat Heat Anticipator Setting (amps)

Stage 1 Stage 2

Gas Input

Stage 1

Stage 2 Efficiency (Steady St ate) (%) Temperature Ri se Range Manifold Pressure (in. wg)

Natur al G as — Std

Liquid Propane — Alt** Field Gas Connection Size (in.)

HIGH-PRESSU RE SWITCH (psig )

Standard Compressor Internal Relief Cutout Reset (Auto.)

LOSS-OF-CHA RGE/LOW- PR ESSU RE SWITCH

(Liquid Line) (psig)

Cutout

Reset (Auto.)

FREEZE-PROTECTION THERMOSTAT

Opens (F) Closes (F )

OUTDOOR-AIR INLET SCREENS

Quantity...Size (in.)

RETURN-AIR FILTERS

Quantity...Size (in.)

LEGEND

Bhp —

Brake Horsepower

*Indicates automatic reset.

†48HJD008,009 units have 3 burners.

48HJD012 and 48HJE008,009 units have 4 burners. 48HJF008 ,009; 48HJE/HJF012 ; an d the 48HJD/HJ E014 have 5 burner s.

**An LP Convers i on K i t is available as an accessory.

90,000/120,000/180,000 90,000/120,000/180,000 120,000/180,000/200,000 180,000/200,000

125,000/180,000/224,000 125,000/180,000/224,000 180,000/224,000/250,000 224,000/250,000

195 195 195 195

.120...31 .120...31 .120...31/.120...31/.129...30 .120...31/.129...30 .096...41 .096...41 .096...41/.096...41/.102...38 .096...41/.102...38

.14/.14/.14 .14/.14/.14 .14 .14 .14/.20/.20 .14/.20/.20 .20 .20

82/82/82 82/82/82 82/82/80 82/80

20-50/35-65/45-75 20-50/35-65/45-75 35-65/35-65/40-70 35-65/40-70

3.5 3.5 3.5 3.5

.50/.75/.75 .50/.75/.75 .75/.75/.75 .75/.75

450 ± 50

428 320

7 ± 3

22 ± 5 30 ± 5

45 ± 5

Cleanable

1...20 x 25 x 1

1...16 x 25 x 1

4...16 x 20 x 2 4...16 x 20 x 2 4...20 x 20 x 2 4...20 x 20 x 2

Throwaway

Page 12

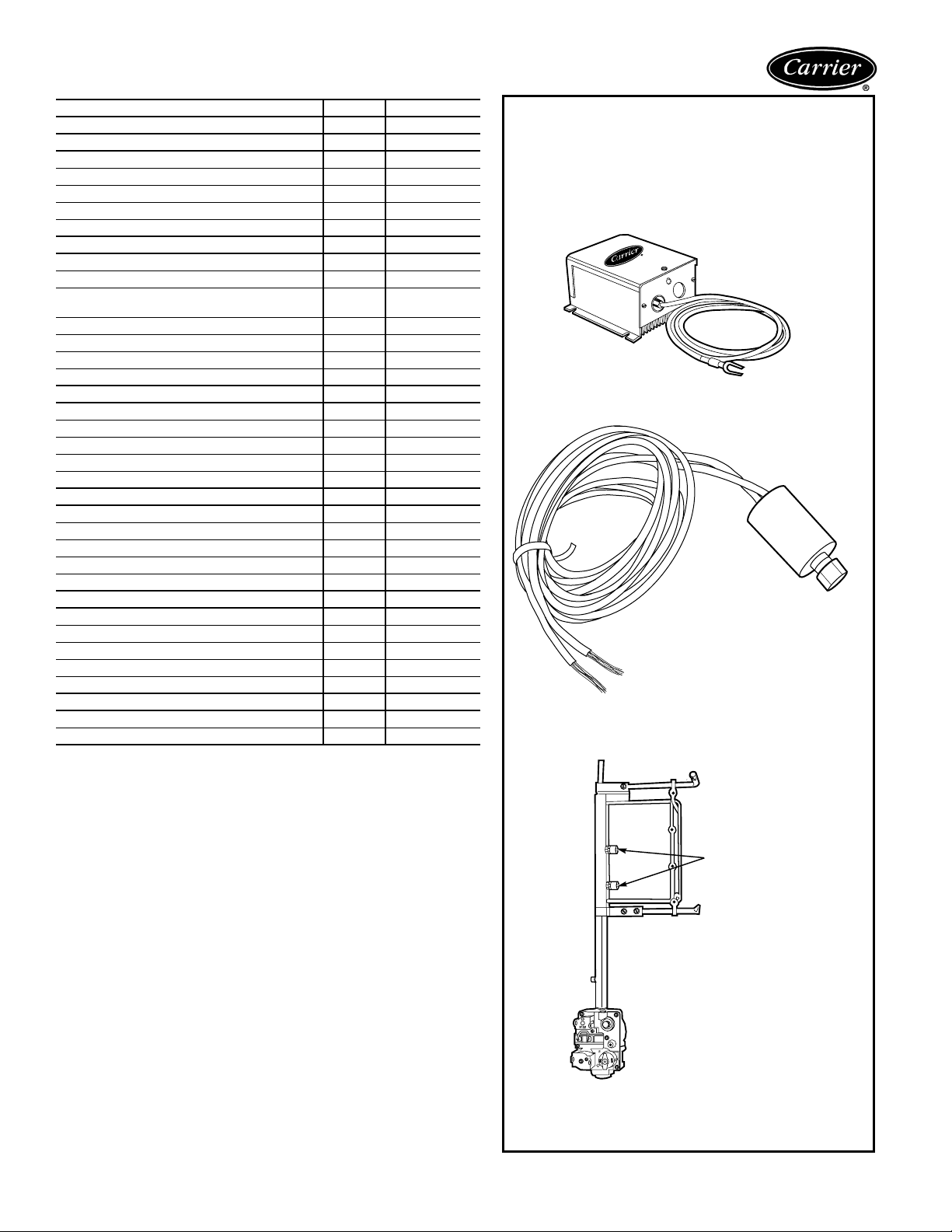

Options an d accesso ries

LOW AMBIENT CONTROLS

The 48HJ004-014 standard units are designed to operate in cooling at outdoor temperatures down to 25 F. With accessory Motormaster

I co ntrol (con denser-fan spe ed modula tion), or Motormaster IV control (condenser-fan cycling), units can operate at outdoor temperatures down to –20 F. The head pressure controls, which mount in the condenser section, control the condenser-fan motor to maintain correct condensing temperature.

LP CONVERSION KIT

MOTORMASTER

MOT ORMASTER IV

LP convers ion kit a llows the un it to utili ze a liquid p ropane fuel supply in areas where natural gas is not available. (Kit shown is for si zes 004-007.)

ITEM OPTION* ACCESSORY† Energy$Recycler Apollo Direct Digital Controls Integrated Economizer (Durablade) Integrated Economizer (EconoMi$er)

*Indicates a factory-in stalled option (FI OP). †Indica tes a field-installed accessory.

EconoMi$er with Power Exhaust Power Exhaust for EconoMi$er Manual Outdoor-Air Damper MoistureMiser Dehumidification Package Convenience Outlet Unit Mounted Disconnect High-Static Evaporator Fan Motor and Drive

(004-012 3-Phase Only) Hinged Panel Two-Position Damper (25% Open) Two-PosItion Dam p e r (1 00 % Op en) Roof Curb (14 in.) Roof Curb (24 in.) Thru-the-Bottom Service Connections Flue-Hood Protector Assembly Electronic Programmable Thermostat Thermostat and Subbase Time G uard Motormaster Motormaster IV Head Pressure Control Accusensor™ II Enthalpy Control Accusensor III Differential Enthalpy Sensor Liquid Propane Conversion Kit Condenser Coil Hail Guard NO Flue Discharge Deflector Coil Guard Grille Fan/Filter Status Switch Humidistat Outdoor-Air Enthalpy Sensor Return-Air Enthalpy Sensor Return-Air Temperature Sensor CO

II Control Circuit

Head Pressure Control

Reduction Kit

Sensor

X X XX XX

X X X X

X X

BURNER SPUDS (ORIFICES)

Page 13

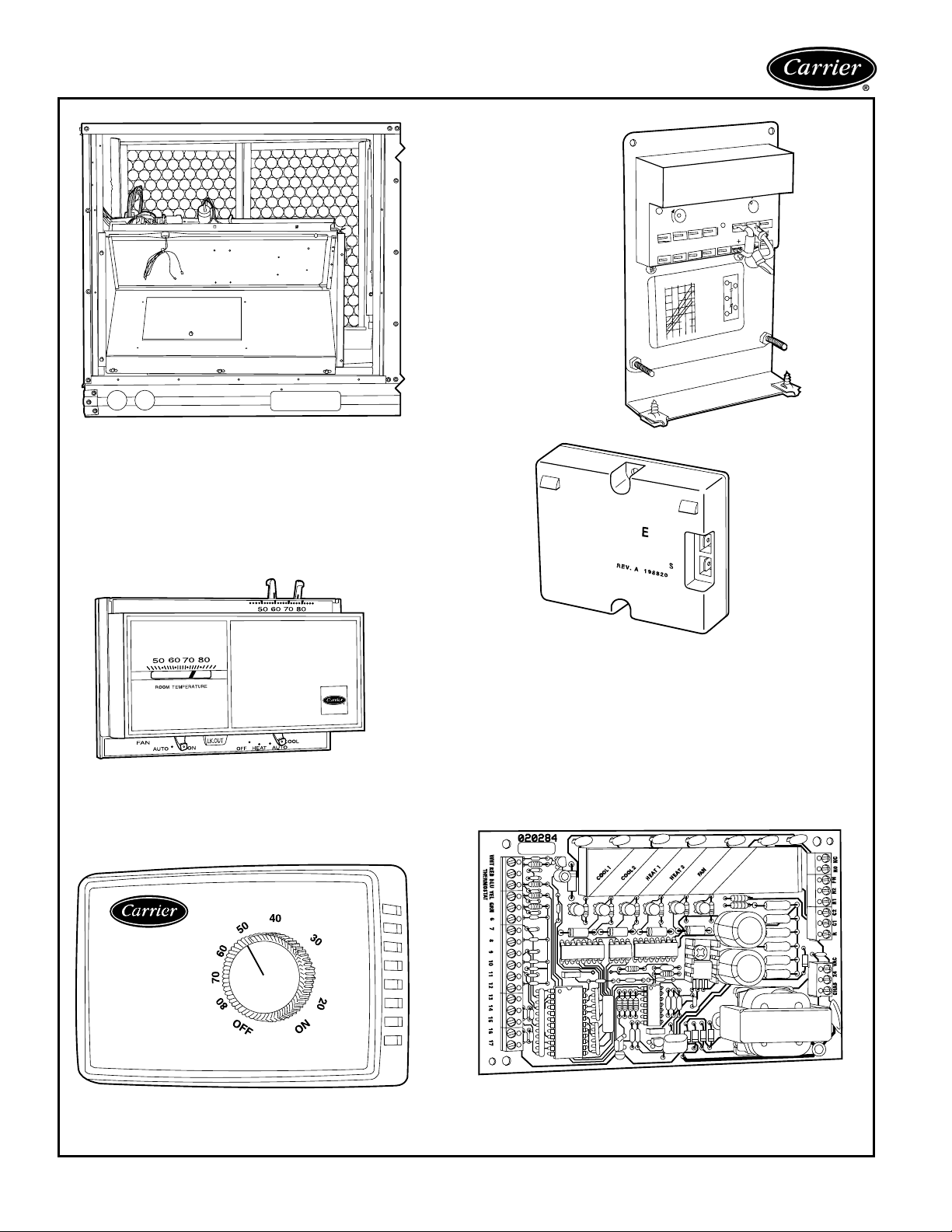

Time Guard II Control automatically prevents compressor

CONTROLLER

BAROMETRIC RELIEF DAMPERS

OUTDOOR AIR TEMPERATURE SENSOR

GEAR-DRIVEN DAMPER

ACTUATOR

ECONOMI$ER PLUG

from r e st artin g for a t l e a st 5 m i nutes af ter a shut d own . Fie l d installed accessory pre-vents short cycling of compressor if thermostat is rapidly changed. Time Guard II device mounts in the control compartment of unit. The Time Guard II device is not requ ired when a Car rier program mable therm ostat is applied.

TIME GUARD

II CONTROL

UNIT MOUNTED DISCONNECT

ECONOMI$ER

Factor y -in stalle d Ec onoMi$er utilize s a microp roc es sor-ba sed control, gear drive damper system, low pressure drop characteristics, built-in spring retu rn (for close up on power loss), and an integral barometric dampe r. NOTE: EconoMi$er is only available for vertical ductwork applications and can be field or factory installed.

ELECTRONIC PROGRAMMABLE THERMOSTAT

Factory-installed, internally-mounted, NEC (National Electrical Code) and UL (Underwriters’ Laboratories) approved non-fused switch prov ides unit p ower shutoff with disco nnect lo ckout prote ction capability. The switch is accessible from outside the unit.

CONVENIENCE OUTLET

Factory-installed, inter nally mounted and externally accessible 115-v female receptacle. Includes 15-amp GFI (Ground Fault Interr up ter) re ce pta c le w ith independen t f us e p r ot ec t io n . Voltag e required to operate convenience outlet is provided by a factoryinstalled transformer.

Electronic programmable thermostat provides efficient temperature control by allowing you to program heating and cooling setbacks and setups with provisions for weekends and holi da ys . T he t hermos t at uti l iz es a time de lay betwe en oper at ing mod es. O ptional facto ry-in stalle d Ap ollo di rec t digita l c on trols or a relay pack is also required for thermostat operation.

HAIL GUARD

Conden ser co il ha il gu ard acc ess or y ( field ins tal led) pro tects co ils against damage fr om hail and other flying debris.

Page 14

Options an d a cce ssori es ( con t)

M IN IM U M

P O S IT IO N

O P E N

P 1

T 1

T R

RE V

198 818A

9 0

6 0

3 0

D C

6 0

6 5

7 0

5 5

5 0

8 5

D A M P E R

C L O S E D

O P E N

OUTDOOR TEMP

C W

–

S E

T P O I

N T S

–

C C W

C O N T A C T S S H O W N IN

H IG H E N T H A

L P Y

R U S H A T 2 4 V A C

3 m A M I

N . A T 1 1 V D C

C O N T A C T R A T IN G S : 1 .

5 A R U N , 3 .

5 A I N

O R U N P O W E R E D S T A T E

T R 1

2 4 V A C

E N T H A L P Y C O N T R O L

DURABLADE ECONOMIZER

Exclusive Durablade economizer damper design saves energy while providing economical and reliable cooling. A sliding plate on the face of the economizer controls the amount of outdoor air entering the system. When the sliding plate is closed, it pr ovides a lea kproof seal w hich prevents ambient air from seeping in or conditioned air from seeping out. It can be easily adjusted for 100% outdoor air or any proport ions of mixed air. Equipped with stand ard contro ls and 30% barometric relief capabilities.

ACCUSENSOR™ II ENTHALPY CONTROL

ACCUSENSOR III

DIFFERENTIAL

ENTHALPY

THERMOSTAT

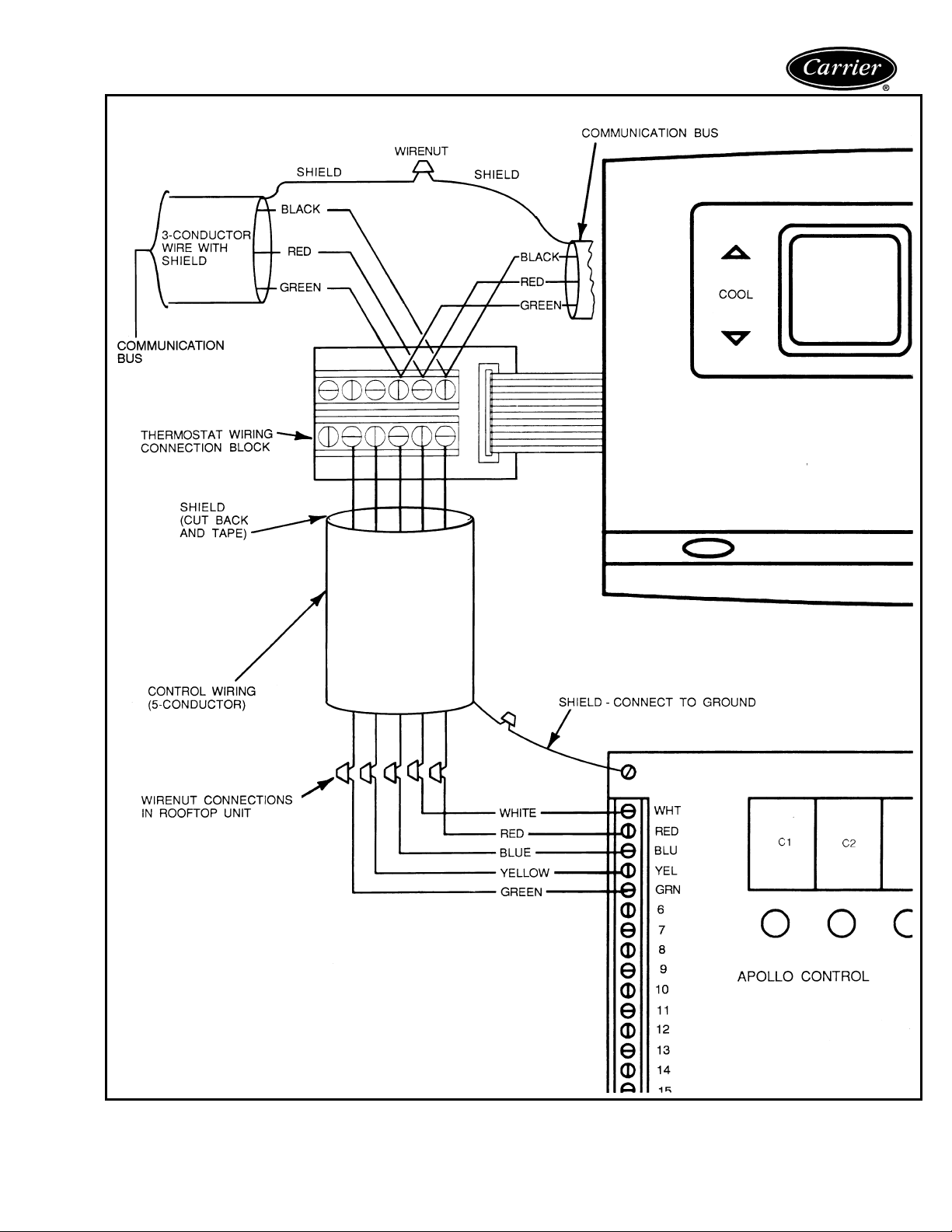

Zone th ermosta t (24 v) p rovides one- or 2- stage cooling for control of unit. Matching subbases are available with or without tamperproof switches and automatic changeover.

HUMIDISTAT

MOISTUREMISER

Field-installed, wall-mounted humidistat is used to control operation of the MoistureMiser dehumidification package. The humid-istat controls the occupied space humidity at a userselect ed setting between 20% and 80% relative humidity.

% RELATIVE HUMIDITY

Accusensor economizer controls help provide efficient, economical economizer operation. The Accusensor I dry-bulb sensor measures outdoor temperature and is standard with the Durabl ade economizer.

The ac cess or y Ac cus en sor II s ol id-st at e enth al py cont rol sens es bo th dry an d we t bulb of t he ou tdoor air to pr ov id e an ac curate enthalpy rea ding. Accusensor II is available as a field-installed accessory for the Durablade econom izer.

The accessory Accusensor III differential enthalpy sensor control compares o utdoor tem perature a nd humidity to retur n-air temp erature and humidity and determines the most economic al mixture of air. Accusensor III is available for the Durablade economizer only .

APOLLO DIRECT DIGITAL CONTROLS

Apollo direct digital controls are designed exclusively by Carrier, and are used to actively monitor all modes of operation as well as evaporator -fan status, filter sta t u s, in do or-air qu ali ty, supp ly -a ir te mperature, and outdoor-air temperature. They are designed to work with Carr i er T EM P and VVT® system thermostat s.

Page 15

MOISTUREMISER DEHUMIDIFICATION PACKAGE

The MoistureMiser dehumidification package is a factory-installed option th at provides in creased dehum idification by cooling the h ot liquid refrigerant leaving the condenser coil. The MoistureMiser package consists of a subcooling coil located on the leaving-air side of the evaporator coil. The location of this coil in the indoor-air stream enhanc es th e late nt c apac ity o f the 48HJ u nit s by as mu ch as 40 %. The MoistureMiser package includes crankcase heater(s) and lowpressure switch(es) and operation can be controlled by a fieldinstalled, wall-mounted humi distat.

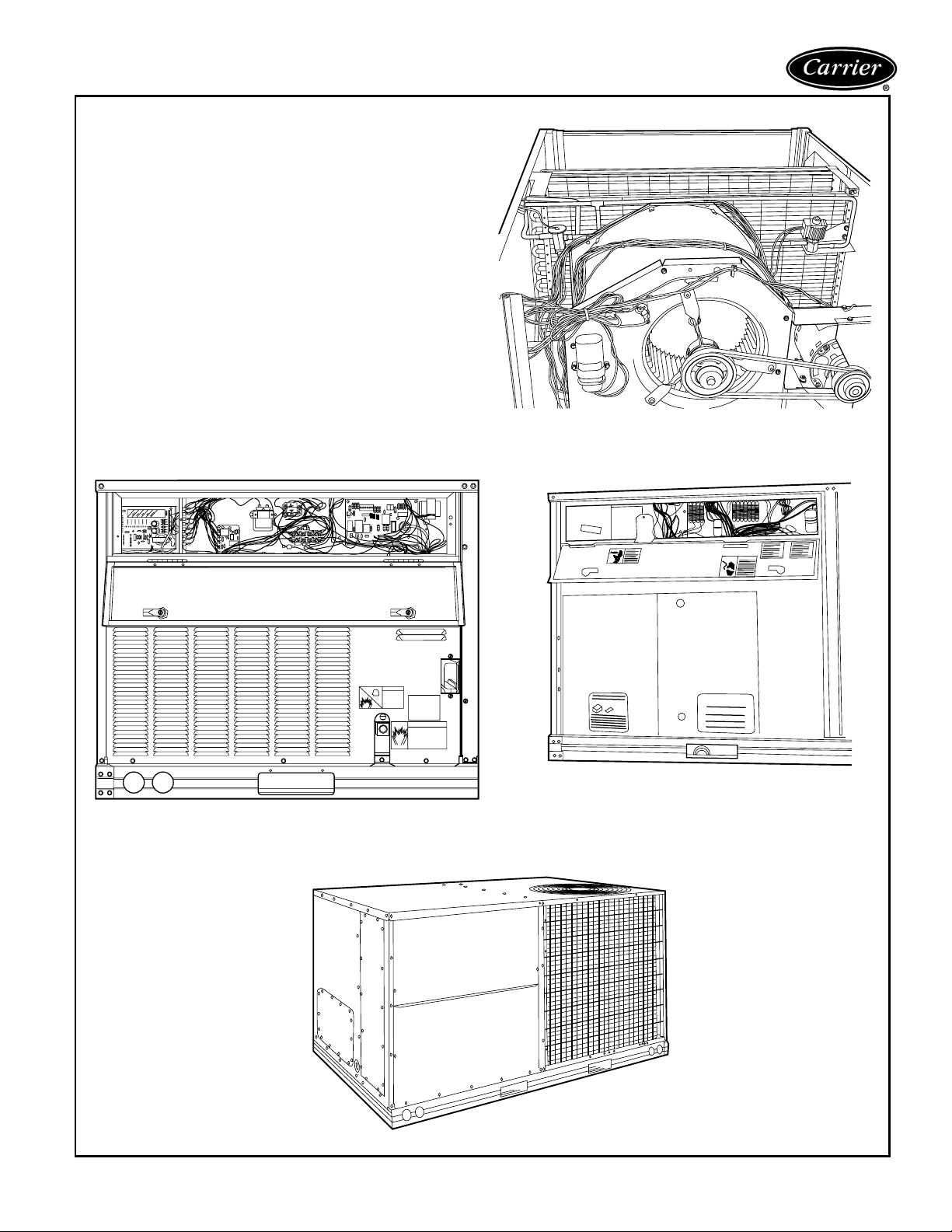

CONTROL BOX HINGED PANEL OPTION, 48HJ004-007

UNITS WITH APOLLO CONTROL SHOWN

This is included as a factory-installed option. It permits quick and simple control box access.

COIL GUARD GRILLE

CONTROL BOX HINGED PANEL OPTION,

48HJ008-014 UNITS SHOWN

Coil guard grille protects coils against large objects and vandalism.

Page 16

Options an d a cce ssori es ( con t)

COMPRESSOR HINGED PANEL OPTION,

48HJ004-006 UNITS SHOWN

COMPRESSOR HINGED PANEL OPTION,

48HJ008-014 UNITS SHOWN

This is included as a factory-installed option. I t permits quick and simpl e compressor access.

EVAPORATOR-FAN HINGED PANEL OPTION

FILTER HINGED PANEL OPTION

This is included as a factory-installed option. It permits quick and simple evaporator-f an access.

This is included as a factory-installed option. It permits tool-less filter access.

Page 17

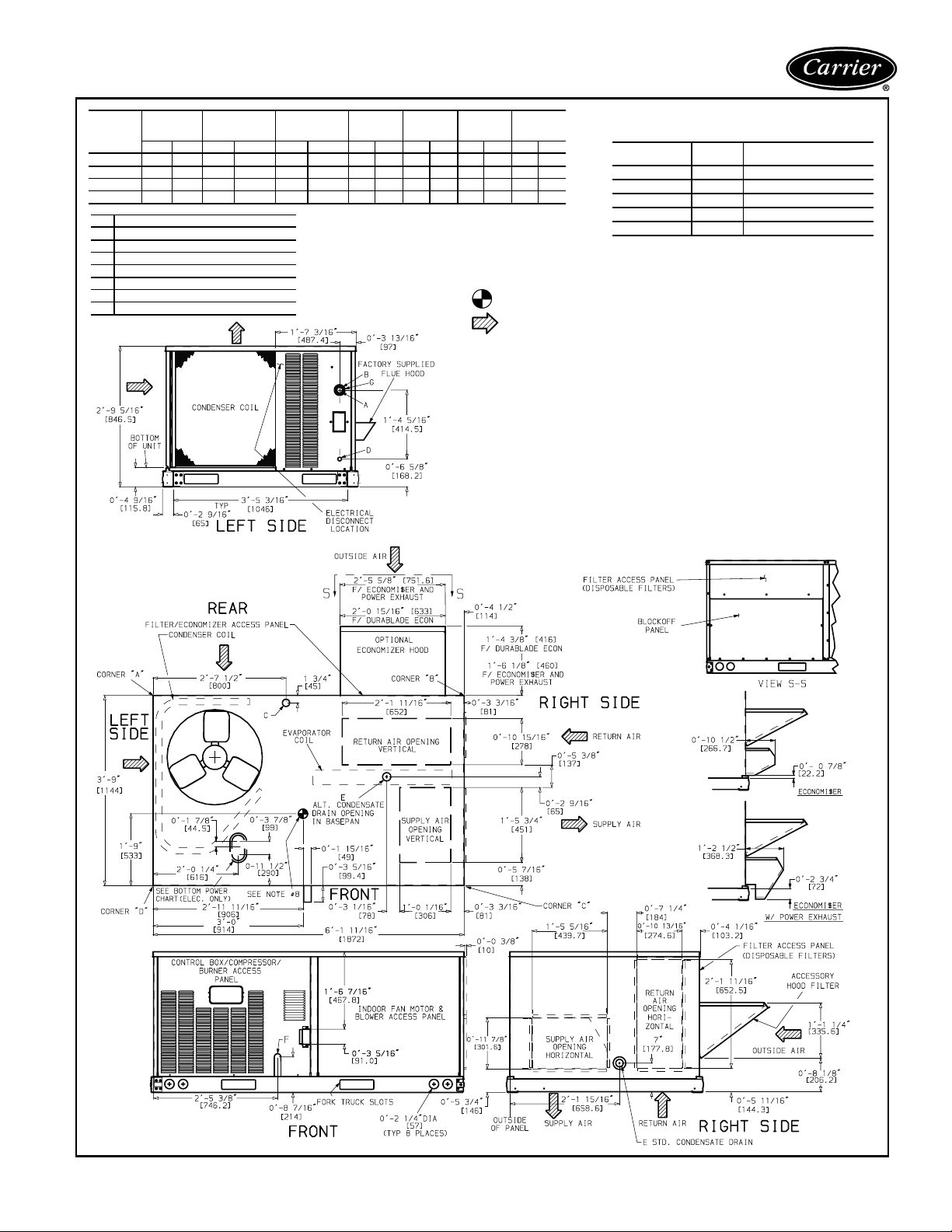

Base unit dimensions — 48 HJ 004 -007

STANDARD UNIT 48HJ

E/F004 D/E/F005 D/E/F006 D/E/F007

A B C D E F G

UNIT

WEIGHT

Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg

530 240 34 15.4 47 21.3 127 57.6 122 55.3 138 62.6 143 64.9 540 245 34 15.4 47 21.3 129 58.5 124 56.2 141 64.0 146 66.2 560 254 34 15.4 47 21.3 134 60.8 129 58.5 146 66.2 151 68.5 615 279 34 15.4 47 21.3 147 66.7 142 64.4 160 72.6 166 75.3

CONNECTION SIZES

″

13/

Dia [35] Field Power Supply Hole

2″ Dia [51] Power Supply Knockout

″

13/

Dia [44] Charging Port Hole

″

Dia [22] Field Control Wiring Hole

″

-14 NPT Condensate Drain

″

-14 NPT Gas Connection

″

21/

Dia [64] Power Supply Knockout

DURABLADE

ECONOMIZER

WEIGHT

ECONOMI$ER

WEIGHT

CORNER

WEIGHT

(A)

CORNER

WEIGHT

(B)

CORNER

WEIGHT

NOTES:

1. Dimensions in [ ] are in millimeters.

(C)

CORNER

WEIGHT

(D)

BOTTOM POWER CHART, THESE HOLES REQUIRED FOR

USE WITH ACCESSORY PACKAGES — CRBTMPWR001A00

THREADED

CONDUIT SIZE

*Select either 3/

†Select either 1/

THROUGH CRBTMPWR004A00

WIRE

″

11/

″

NPT

″

NPT

USE

24 V Power* 11/ Power* 13/

Gas† 11/ Gas† 15/

″

or 11/

″

or 3/

for gas depending on gas connection.

REQURED

HOLE SIZES (MAX.)

″

[22.2]

″

[28.4]

″

[44.4]

″

[31.8]

″

[41.3]

for power, depending on wire size.

2. Center of gravity.

3. Direction of airflow.

4. On vertical discharge units, ductwork to be attached to accessory roof curb only. For horizontal discharge units, field-supplied flanges should be attached to horizontal discharge openings, and all ductwork should be attached to the flanges.

5. Minimum clearance (local codes or jurisdiction may prevail): a. Between unit, flue side and combustible surfaces, 48 inches. (18 in. when using accessory flue

discharge deflector.)

b. Bottom of unit to combustible surfaces (when not using curb), 1 inch.

Bottom of base rail to combustible surfaces (when not using curb) 0 inches.

c. Condenser coil, for proper airflow, 36 in. one side, 12 in. the other. The side getting the greater

clearance is optional. d. Overhead, 60 in. to assure proper condenser fan operation. e. Between units, control box side, 42 in. per NEC (National Electrical Code). f. B etween unit and ungrounded surfaces, control box side, 36 in. per NEC. g. Between unit and block or concrete walls and other grounded surfaces, control box side, 42 in.

per NEC. h. Horizontal supply and return end, 0 inches.

6. With the exception of the clearance for the condenser coil and combustion side as stated in notes 5a, b and c, a removable fence or barricade requires no clearance.

7. Units may be installed on combustible floors made from wood or Class A, B, or C roof covering material if set on base rail.

8. The vertical center of gravity is 1′-6″ [457] up from the bottom of the base rail.

Page 18

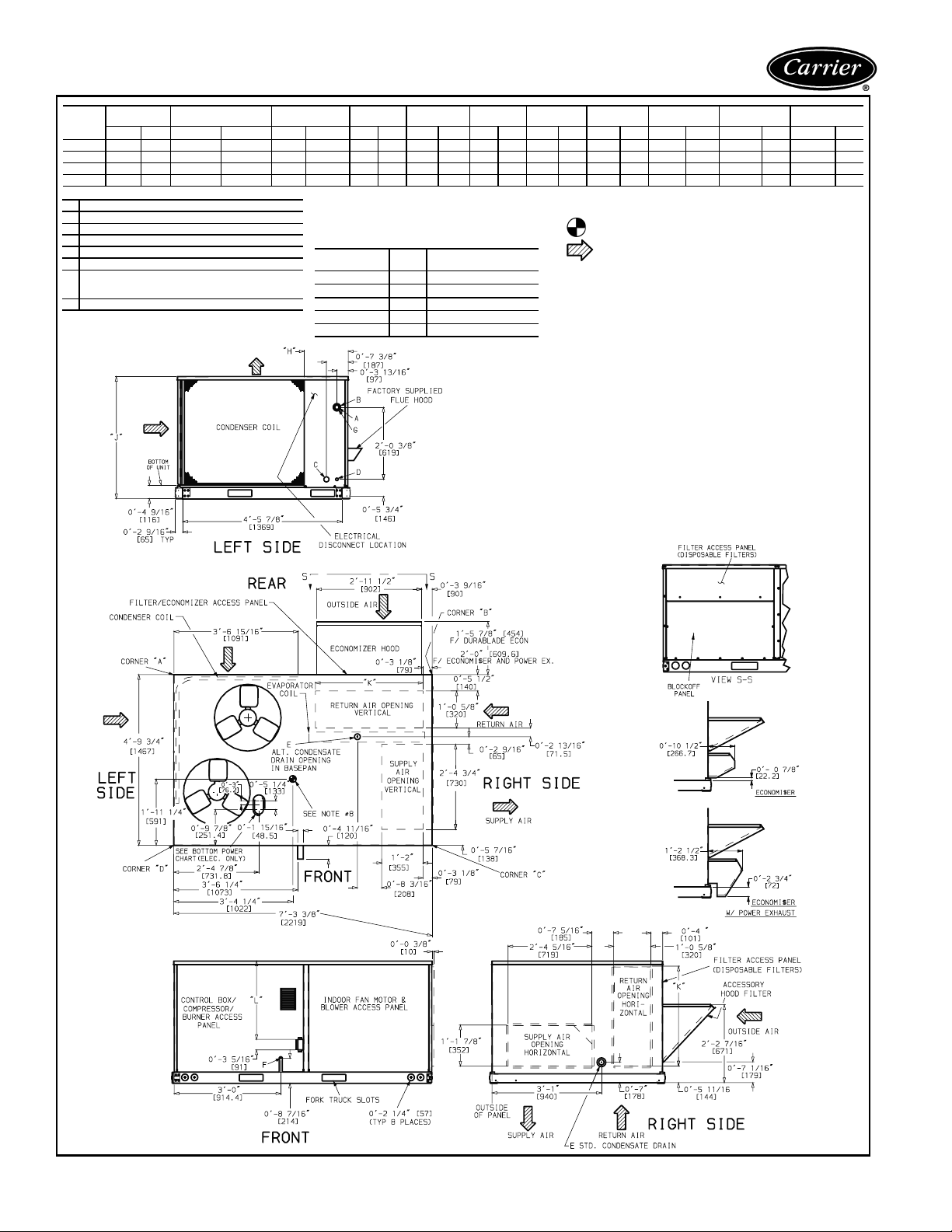

Base unit dimensions — 48 HJ 008 -014

STANDARD

UNIT

UNIT WEIGHT

48HJ

D/E/F008 D/E/F009 D/E/F012 D/E014

A B C D E

Lb K g Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg ft-in. mm ft-in. mm ft-in. mm ft-in. mm ft-in. mm

870 395 44 20 62 28.1 189 86 161 73 239 109 280 127 2-0

880 399 44 20 62 28.1 191 87 163 74 242 110 284 129 1-2 1035 469 44 20 62 28.1 225 102 192 87 285 129 333 151 1-2 1050 476 44 20 62 28.1 228 103 195 88 289 131 338 153 1-2

″

Dia [35] Field Power Sup ply Hole

″

Dia [64] Power Supply Knockout

″

Dia [44] Charging-Port Hole

″

Dia [22] Fi eld Control Wiring Hole

″

-14 NPT Condensate Drain

″

-14 NPT Gas Connection 48HJD008 & 009

″

-14 NPT Gas Connection 48HJE,HJF008,009,012,

48HJD012 & 014, 48HJE014 2″ Dia [51] Power Supply Knockout

DURABLADE

ECONOMIZER WEIGHT

CONNECT ION SIZES

ECONOMI$ER

WEIGHT

CONDUIT SIZE

CORNER

WEIGHT (A)

BOTTOM POWER CHART, THESE HOLES REQUIRED FOR USE WITH ACCESSORY

PACKAGES — CRBTMPWR001A00 (1/

OR CRBTMPWR002A00 (1/

AND CRBTMPWR004A00 (3/

THREADED

″

NPT

″

NPT

CORNER

WEIGHT (B)

WIRE

USE

HOLE SIZES (MAX.)

24 V Power* 1 Power* 1

Gas 1

CORNER

WEIGHT (C)

″

, 11/

″

)

REQUIRED

″

[22.2]

″

[28.4]

″

[44.4]

″

[31.8]

″

[41.3]

CORNER

WEIGHT (D)

NOTES:

″

, 3/

″

)

1. Dimensions in [ ] are in millimeters.

″

)

2. Center of gravity.

“H”“J”“K”“L”

/8632 3-55/161050 2-911/16856 2- 27/16672

/8378 3-55/161050 2-911/16856 2- 27/16672

/8378 4-15/161253 3-03/8924 2-107/16875

3. Direction of airflow.

5. Minimum clearance (local codes or jurisdiction may prevail): a. Between unit, flue side and combustible surfaces, 48 inches. (18 in.

when using accessory flue discharge deflector.)

b. Bottom of unit to combustible surfaces (when not using curb),

1 inch. Bottom of base rail to combustible surfaces (when not using curb) 0 inches.

c. Condenser coil, for proper airflow, 36 in. one side, 12 in. the other.

The side getting the greater clearance is optional. d. Overhead, 60 in. to assure proper condenser fan operation. e. Between units, control box side, 42 in. per NEC (National Electrical

Code). f. Between unit and ungrounded surfaces, control box side, 36 in. per

NEC. g. Between unit and block or concrete walls and other grounded sur-

faces, control box side, 42 in. per NEC. h. Horizontal supply and return end, 0 inches.

6. With the exception of the clearance for the condenser coil and combustion side as stated in notes 5a, b and c, a removable fence or barricade requires no clearance.

7. Units may be installed on combustible floors made from wood or Class A, B, or C roof covering material if set on base rail.

8. The vertical center of gravity is 1′-7″ [483] for 008 and 009 up from the bottom of the base rail and 2′-0″ [610] for 012 and 014.

Page 19

Accessory di mensi ons — 48 HJ004-0 07

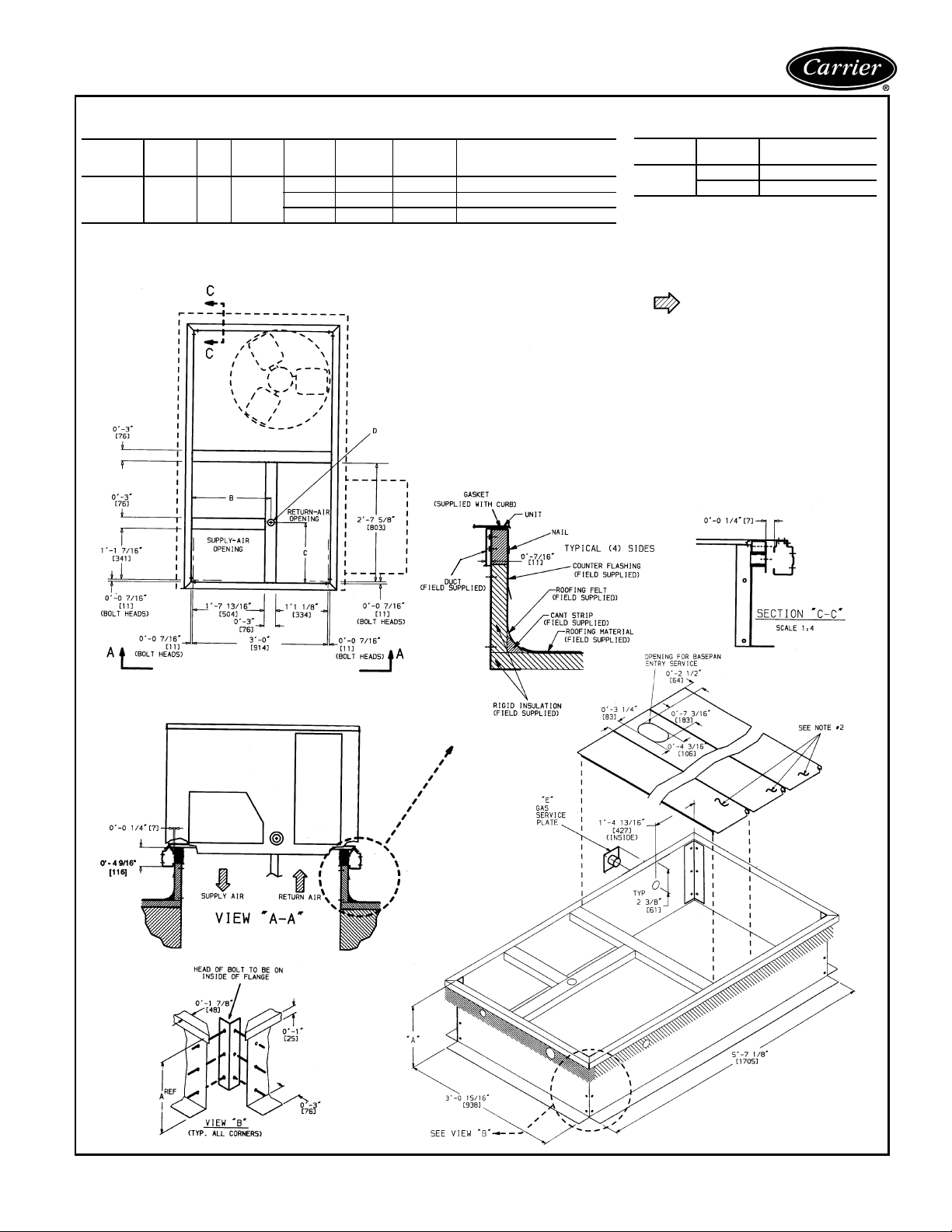

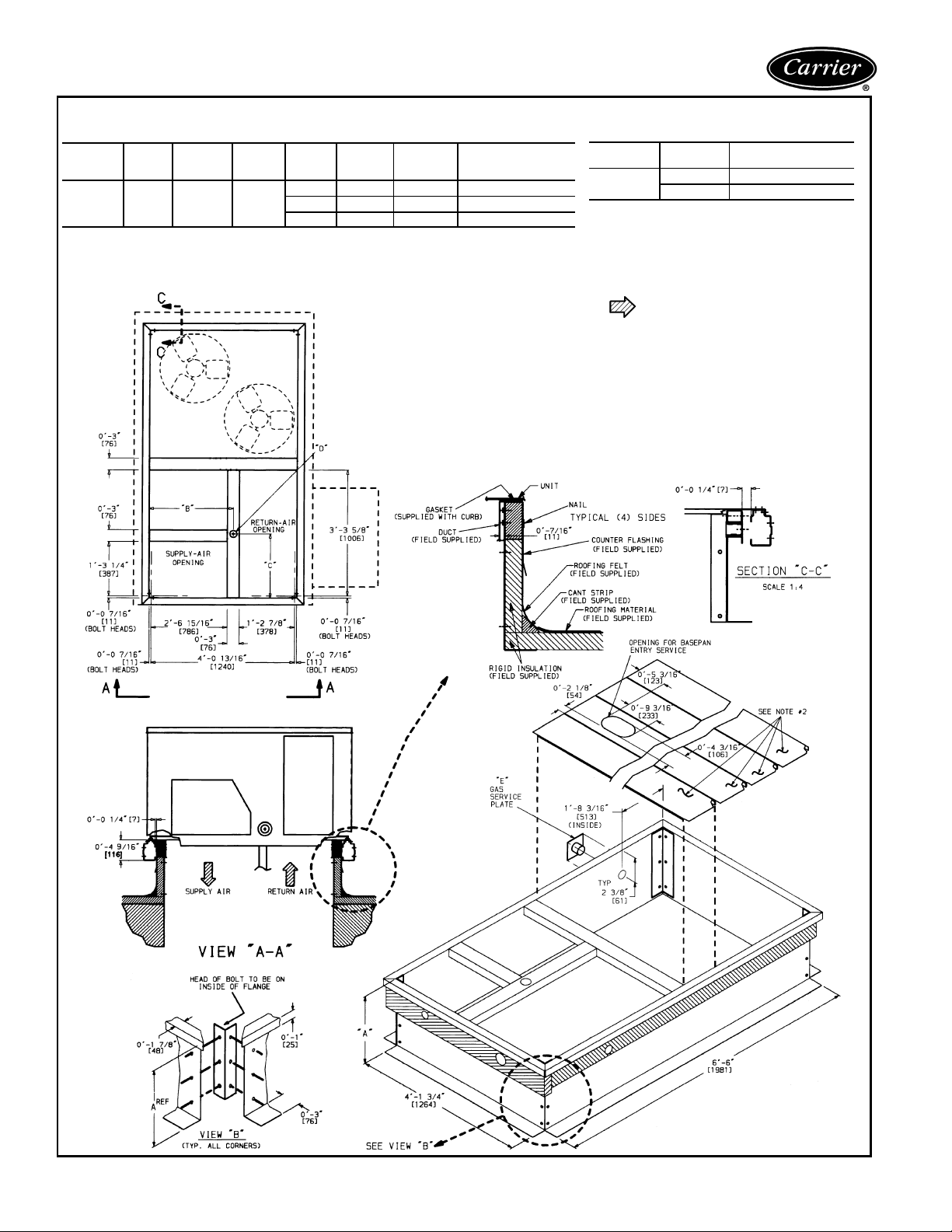

ROOF CURBS

CONNECTION SIZES

CONNECTOR ACCESSORY

PACKAGE

1′-4

[406]

″

“D” ALT

DRAIN

HOLE

UNIT SIZE

48HJ

004-007

*Thru-the-bottom power and control connections and thru-the-curb gas connection. †Thru-the-bottom gas connection.

“B”“C”

1′-9

[551]

″

[45]

“E”

POWER CONTROL

GAS

″

NPT

″

NPT 1

″

NPT —— CRBTMPWR003A00†

″

NPT

″

NPT

″

NPT CRBTMPWR001A00*

″

NPT CRBTMPWR002A00*

UNIT SIZE

48HJ

004-007

NOTES:

1. Roof curb accessory is shipped unassembled.

2. Insulated panels.

3. Dimensions in [ ] are in millimeters.

4. Roof curb: galvanized steel.

5. Attach ductwork to curb (flanges of duct rest on curb).

6. Service clearance 4 ft on each side.

“A”

1′-2″ [356] CRRFCURB001A00 2′-0″ [610] CRRFCURB002A00

ROOF CURB ACCESSORY

7. Dir ection of airflow.

8. Control and pow er serv ice plates ar e part of a separately shipped accessory package.

9. Any accessory connector package can be used with either acces sory roof curb.

Page 20

Accessory di mensi ons — 48HJ008-014

ROOF CURBS

CONNECTION SIZES

UNIT SIZE

48HJ

008-014

*Thru-the-bottom power and control connections and thru-the-curb gas connection. †Thru-the-bottom gas connection.

“B”“C”

″

[827]

1′-10

2′-8

[583]

“D” ALT

DRAIN

HOLE

″

[45]

“E”

POWER CONTROL

GAS

″

NPT

″

NPT 1

″

NPT ——CRBTMPWR004A00†

″

NPT

″

NPT

″

NPT CRBTMPWR001A00*

″

NPT CRBTMPWR002A00*

CONNECTOR ACCESSORY

PACKAGE

NOTES:

1. Roof curb accessory is shipped unassembled.

2. Insulated panels.

3. Dimensions in [ ] are in millimeters.

4. Roof curb: galvanized steel.

5. Attach ductwork to curb (flanges of duct rest on

6. Service clearance 4 ft on each side.

7. Direction of airflow.

8. Any accessory connector package can be used

UNIT SIZE

48HJ

008-014

“A”

1′-2″ [356] CRRFCURB003A00 2′-0″ [610] CRRFCURB004A00

curb).

with either accessory roof curb.

ROOF CURB

ACCESSORY

Page 21

Selection procedure (with 48HJ006 example)

I Determine cooling and heating loads at design

conditions.

Given:

Required Cooling Capacity (TC) . . . . . .67,000 Btuh

Sensible Heat Capacity (SHC). . . . . . . .46,000 Btuh

Required Heating Capacity. . . . . . . . . .85,000 Btuh

Outdoor Entering-Air Temperature db . . . . . . . .95 F

Outdoor Entering-Air Temperature wb. . . . . . . .75 F

Outdoor-Air Entering Airflow Cfm . . . . . . 450 Cfm

Outdoor-Air Winter Design Temperature . . . . . . 0° F

Indoor-Air Winter Design Temperature . . . . . . .70 F

Air to room including outdoor air . . . . . . 2000 Cfm

External Static Pressure . . . . . Supply — 0.60 in. wg

Return — 0.2 in. wg

Indoor-Air Temperature db (room air) . . . . . . . .78 F

Indoor-Air Temperature wb (room air) . . . . . . . .65 F

Indoor-Air Exhaust Cfm . . . . . . . . . . . . . . 450 Cfm

Electrical Characteristics (V-Ph-Hz) . . . . . . 230-1-60

Vertical discharge unit with Energy$Recycler required.

II Determine fan speed and power requirements

at design conditions.

Before entering the Fan Performance tables, calculate the total static pressure required based on unit component. From the given and the Economizer Static Pressure tables on page 48 find:

External static pressure supply 0.6 in. wg External static pressure return 0.2 in. wg Accessory static — None 0.0 in. wg

Total Static 0.8 in. wg Enter the Fan Performance table for vertical

discharge, standard motor, 48HJ006 at 0.80 in. wg and 2000 cfm. The rpm is 1303 and bhp is 1.41.

NOTE: Convert bhp to Fan Heat and Watts using the formula found in the note following the EvaporatorFan Motor Efficiency table on page 49.

For this example: Watts = (746 x Bhp)/(motor efficiency) Watts = (746 x 1.41)/(0.74) = 1421 watts Indoor Fan Heat = watts x 3.413 Btuh/watt

= 1421 x 3.413 = 4851 Btuh

III Select Energy$Recycler based on outdoor

entering cfm.

Using Energy$Recycler cooling rating tables found in the Energy$Recycler Product Data choose 62AQ060 unit.

Using 450 cfm outdoor supply airflow, 95 F OD db, and 75 F OD wb find performance of the 62AQ060 at these conditions: Energy$Recycler Gross Cooling

Capacity is 13,000 Btuh

Energy$Recycler Gross Sensible

Capacity is 10,100 Btuh Compressor power is 1.06 kW Energy$Recycler Leaving db is 73 F Energy$Recycler Leaving wb is 66.9 F

IV Using the simplified* method below, calculate

the approximate mixed air temperature for the SRT evaporator coil.

Using the outdoor air entering cfm, the room cfm and the room exhaust airflow with their respective db and wb temperatures determine the db and wb entering the rooftop evaporator coil.

a) Estimate the mixed air db to the evaporator coil.

t mix db = ((cfm oa x t oa db) + ((cfm ra – cfm exh) x t rm db)) / ((cfm ao + (cfm ra – cfm exh)))

= ((450 cfm x 73.0 F) + ((2000 cfm – 450 cfm)

x 78 F)) / ((450 cfm + (2000 cfm – 450 cfm)))

= 76.9 F mixed air into the rooftop evaporator

coil

b) Estimate the mixed air wb to the evaporator coil.

t mix wb* = ((cfm oa x t oa wb) + ((cfm ra – cfm exh) x t rm wb)) / ((cfm oa + (cfm ra – cfm exh)))

= ((450 cfm x 66.9 F) + ((2000 cfm – 450 cfm)

x 65 F)) / ((450 cfm + (2000 cfm – 450 cfm)))

= 65.4 F wb mixed air temperature into the

rooftop evaporator

*Simplified method of determining wet bulb (wb)

temperature of mixture. This approximation is used because the wb lines in the area of the psychrometric chart in the area used in the calculation is relatively linear, providing a close approximation. A more accurate solution can be found using the E-Cat program.

LEGEND

cfm — db — exh — mix — oa — ra — sa — t — TC — SHC — wb —

cubic feet per minute of air dry bulb Energy$Recycler discharge mixture of outdoor + return air outside air leaving Energy$Recycler return air supply air at coil (sa = oa + ra – exh) temperature total capa ci ty gross sensible capaci ty wet bulb

V Determine the cooling load requirement for the

rooftop unit.

Required Cooling Capacity is 67,000 Btuh Less Cooling Capacity supplied by the Energy$Recycler –13,000 Btuh

Rooftop cooling load required is 54,000 Btuh

VI Select the rooftop unit based on mixed air

entering conditions and cooling load.

Enter cooling capacity table at outdoor entering temperature 95 F, mixed air entering evaporator at 2000 cfm, 76.9 F db, and 65.4 F wb.

The 48HJ006 will provide a total gross cooling capacity of 59,420 Btuh and sensible cooling of 43,420 Btuh.

Because these values were not at 80 F entering db, they were calculated based on the notes following the Cooling Capacity tables.

NOTE: Unit ratings are gross capacities and do not include the effect of evaporator-fan motor heat. To calculate net capacities see Steps VII and VIII.

Page 22

Selection pr ocedure (with 48H J006 e xample) (cont)

VII Select net heating capacity of unit to meet

design condition requirements.

Enter the 62AQ060 Heating Rating table found in the Energy$Recycler Product Data. At 450 cfm, 70 F and 0° F find the heating value for the Energy$Recycler to be 15.2 Btuh. Since the Energy$Recycler uses room air, the instantaneous heat is also the Integrated Heat Rating.

The customer heat requirement is 85,000 Btuh. Fan heat from Step II 4,851 Btuh

Energy$Recycler Heat Capacity 15,200 Btuh add Energy$Recycler optional supply fan heat if supplied + 0 Btuh

Total Unit heat with Energy$Recycler 20,051 Btuh Determine additional electric heat capacity in kW. The required heating capacity is 85,000 Btuh. There-

fore, 64,949 Btuh (85,000-20,051) additional heat is required.

The output capacity for the 48HJE006 is 92,000 Btuh, which is sufficient.

Total unit net heating capacity is 112,571 Btuh (92,000 + 20,571).

VIII Determine net cooling capacity.

Cooling capacities are gross capacities and do not include indoor (evaporator) or optional Energy$Recycler supply fan heat.

Determine net cooling capacity using the following formula:

Net Capacity = (Gross Capacity Rooftop Unit + Gross Capacity Energy$Recycler) – (IFM Heat + Optional Energy$Recycler Supply Fan motor heat)

Gross Total Cooling Rooftop unit 59,420 Btuh Energy$Recycler 13,000 Btuh

Total 72,420 Btuh Less

IFM heat (from Step II) –4,851 Btuh Optional Energy$Recycler Supply Fan Motor Heat none

Net Total Capacity 67,569 Btuh

Gross Sensible Cooling Rooftop unit 43,420 Btuh Energy$Recycler 10,090 Btuh

Total 53,510 Btuh Less

IFM heat (from Step II) –4,851 Btuh Optional Energy$Recycler Supply Fan Motor Heat none

Net Sensible Capacity 48,659 Btuh

IX Determine the operating watts of the unit.

a) Cooling with Energy$Recycler in operation:

Rooftop unit: Compressor watts from cooling

capacity tables . . . . . . . . . . . . . . . . 4,440 watts

Indoor fan motor from Step II** . . . . 1,421 watts

Outdoor fan motor from Physical Data table

find

/4 hp**. Assume OD motor efficiency is 0.75. Watts = (746 x hp)/(motor Eff)

= (746 x

/4)/(0.75)

= 249 watts

**Dual circuit units will have two indoor and two

outdoor fans, double values.

b) Energy$Recycler:

Compressor watts from Energy$Recycler Product Data 1,060 watts Optional supply fan from Energy$Recycler Product Data fan curves none

Exhaust fan, from Energy$Recycler Product Data fan curve at 450 cfm, 0.2 in. wg Static 110 watts

Total watts for the unit in operation at design conditions 7,200 watts

X Electrical data RLA, FLA, LRA, MCA and

MOCP. Separate Power Supply:

If the 62AQ is wired for separate power see the Electrical Data table.

Single Power Supply with Unit:

The unit is 230-1-60 Hz. Look up the 48JH006 without convenience outlet in the Electrical Data Table. Find unit electrical data. For the rooftop unit the data is MCA = 46.3 amps, MOCP = 60 amps, Min Unit Disconnect Size FLA = 45, and LRA = 216.

From the Table of “X” and “Y” values in the Energy$Recycler Product Data literature, find 230 v, for 62AQ060300, “X” = 8.1 amps and “Y” = 9.3 amps.

Add “X” amps to the MCA and MOCP and add “Y” amps to the minimum disconnect size.

MCA MOCP FLA LRA SRT 46.3 60 45 216 62AQ 8.1 Total 54.4 amps 68.1** amps 54.3 amps 247.7 amps

8.1 9.3 31.7

**The calculated MOCP is 68.1 amps; it is rounded down to 60 amps. Compare it to MCA; it must be larger than the MCA of 54.4 amps, so it is acceptable as is.

Page 23

The wiring of the unit must be suitable for the MCA calculated above, and the Maximum Overcurrent Protection (MOCP) device must be selected to meet the calculated MOCP.

If the overcurrent protective device for the combination load is equal to or less than 60 amps, a single disconnect may be used for BOTH the main unit and the 62AQ provided that the wire ampacity supplying the 62AQ is sized for a minimum of 33% larger than the overcurrent protection device value (i.e., 60 amps x 0.33 = 20 amps), no further subfusing would be required.

If the overcurrent protection device is greater than 60 amps and the old overcurrent protection device was less than 60 amps, a FUSED disconnect no greater than 60 amps must be provided for the main unit and a SEPARATE FUSED disconnect must be provided for the 62AQ unit.

If the old overcurrent protection device is greater than 60 amps, a disconnect is required for the MAIN UNIT as well as a FUSED DISCONNECT for the 62AQ unit.

Page 24

Perf ormance data

48HJ00 4 ( 3 TONS )

Temp ( F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

48HJ00 5 ( 4 TONS )

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

Standard Ratings

BF — Edb — Ewb — kW — SHC — TC —

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacit y (1000 Btuh) Gross

Temp (F) Air Entering Evaporator — Cfm/BF

900/0.14 1200/0.17 1500/0.20

Temp (F) Air Entering Evaporator — Ewb

72 67 62 72 67 62 72 67 62

41.9 38.7 35.7 43.5 40.8 37.7 44.8 41.8 39.0

20.4 25.2 29.7 21.8 28.2 33.8 23.3 30.7 37.0

2.19 2.16 2.12 2.21 2.18 2.15 2.23 2.19 2.16

40.7 37.5 34.5 42.1 39.3 36.4 43.5 40.4 37.6

19.9 24.7 29.2 21.5 27.7 33.2 23.2 30.3 36.4

2.46 2.42 2.39 2.47 2.44 2.41 2.50 2.45 2.42

39.3 36.1 33.1 40.8

19.5 24.1 28.4 21.1 27.2 32.5 22.8 29.9 35.6

2.75 2.71 2.66 2.77

37.7 34.6 31.7 39.3 36.2 33.4 40.1 37.2 34.7

18.8 23.5 27.8 20.7 26.6 31.8 22.1 29.3 34.7

3.06 3.02 2.98 3.09 3.04 3.01 3.10 3.06 3.03

36.0 33.0 29.7 37.4 34.5 31.5 38.1 35.5 33.2

18.3 22.9 26.7 19.9 26.1 30.9 21.3 28.7 33.2

3.41 3.36 3.31 3.43 3.39 3.34 3.44 3.41 3.37

34.2 31.3 27.8 35.6 32.7 29.4 36.3 33.6 31.9

17.6 22.2 25.8 19.4 25.4 29.4 20.8 28.0 31.8

3.78 3.73 3.66 3.80 3.76 3.71 3.81 3.78 3.75

Temp (F) Air Entering Evaporator — Cfm/BF

1200/0.17 1450/0.19 1600/0.21 2000/0.24

Temp (F) Air Entering Evaporator — Ewb (F)

72 67 62 72 67 62 72 67 62 72 67 62

54.0 50.7 44.2 55.9 52.2 47.7 56.4 52.8 49.1 58.1 54.5 50.6

26.1 32.7 37.5 27.6 35.1 41.8 28.2 36.2 43.8 30.2 39.5 47.5

2.81 2.80 2.76 2.83 2.81 2.78 2.83 2.80 2.79 2.84 2.82 2.79

52.2 48.9 41.9 54.1 50.4 45.9 54.5 51.0 47.2 55.3 52.3 48.7

25.4 32.0 36.4 26.9 34.5 40.8 27.5 35.7 42.8 28.6 38.5 46.6

3.20 3.19 3.15 3.22 3.20 3.17 3.22 3.20 3.18 3.22 3.20 3.18

50.7 46.9 39.5 51.9

24.9 31.1 35.0 26.1

3.64 3.61 3.57 3.65 3.62 3.60 3.65 3.62 3.60 3.67 3.63 3.61

48.8 44.5 36.7 49.8 46.2 40.7 50.2 46.7 42.1 51.5 48.2 44.7

24.3 30.2 33.6 25.3 32.8 38.2 26.0 33.9 40.3 27.9 37.4 44.4

4.12 4.09 4.03 4.12 4.09 4.06 4.12 4.09 4.07 4.14 4.11 4.08

46.5 41.1 34.3 47.7 43.3 37.0 48.0 44.4 38.5 48.9 45.7 42.0

23.4 28.9 32.4 24.9 31.8 36.3 25.4 33.4 38.3 27.1 36.9 42.0

4.64 4.59 4.53 4.65 4.62 4.55 4.64 4.63 4.56 4.65 4.63 4.60

43.8 37.5 32.4 45.1 39.0 33.8 45.3 40.1 35.4 46.3 42.6 38.8

22.5 27.4 31.5 24.1 30.2 33.7 24.7 31.9 35.4 26.5 35.9 38.8

5.19 5.13 5.05 5.20 5.15 5.09 5.19 5.17 5.11 5.20 5.19 5.15

LEGEND

COOLING CAPACITIES, STANDARD UNITS

37.8 34.9 42.0 38.9 36.1

2.73 2.69 2.79 2.74 2.71

48.4 43.5 52.5 48.9 45.2 53.9 50.1 46.7

33.6 39.6 26.8 34.7 41.8 28.8 37.5 45.6

NOTES:

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: t

ldb=tedb

= Wet-bulb temperature corresponding to enthalpy of air

lwb

leaving evaporator coil (h

lwb=hewb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

= Enthalpy of air entering evaporator coil.

ewb

sensible capacity (Btuh)

–

1.10 x cfm

total capacity (Btuh)

4.5 x cfm

lwb

)

Page 25

48HJ00 6 ( 5 TONS )

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

48HJ00 7 ( 6 TONS )

Temp ( F)

Air Ent

Condenser

(Edb)

105

115

125

BF — Edb — Ewb — kW — SHC — TC —

86.7 80.7 74.4 88.8 82.7 76.6 90.5 84.4 78.2 92.6 86.3 81.0

SHC

43.0 53.7 63.8 45.0 57.4 68.9 47.2 61.2 73.6 51.2 67.4 80.7

4.58 4.46 4.33 4.63 4.50 4.38 4.67 4.55 4.41 4.72 4.58 4.47

84.1 78.2 72.0 86.4 80.3 74.1 88.2 81.7 75.7 90.2 84.0 78.8

SHC

42.0 52.6 62.7 44.5 56.6 68.0 46.8 60.2 72.5 50.6 67.4 78.7

5.10 4.97 4.85 5.16 5.03 4.90 5.21 5.06 4.93 5.26 5.12 4.99

81.3 75.3 69.2 83.4

SHC

41.0 51.4 61.4 43.4

5.65 5.52 5.39 5.71 5.57 5.44 5.77 5.62 5.48 5.83 5.66 5.55

77.9 72.0 66.1 80.0 73.8 68.0 81.6 75.3 69.6 83.4 77.1 73.2

SHC

39.7 50.2 60.0 42.2 54.0 65.2 44.6 57.8 69.3 49.0 64.5 73.2

6.22 6.08 5.94 6.29 6.13 6.00 6.34 6.17 6.04 6.40 6.22 6.12

74.7 68.4 61.8 75.9 70.0 64.1 77.6 71.3 66.5 78.7 73.0 70.1

SHC

38.7 48.8 58.1 40.8 52.6 63.2 43.3 56.4 66.4 46.9 63.2 70.0

6.84 6.68 6.49 6.87 6.71 6.56 6.93 6.75 6.63 6.96 6.80 6.72

70.3 63.6 57.2 71.8 65.5 59.1 72.9 66.8 61.9 74.0 68.6 66.4

SHC

37.2 47.0 55.8 39.5 51.0 59.1 41.7 55.0 61.9 45.4 61.8 66.3

7.43 7.25 7.03 7.48 7.30 7.13 7.51 7.35 7.22 7.54 7.41 7.33

Standard Ratings

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacity (1000 Btuh) Gross

COOLING CAPACITIES, STANDARD UNITS (cont)

Temp (F) Air Entering Evaporator — Cfm/BF

1500/0.08 1750/0.09 2000/0.11 2500/0.13

Temp (F) Air Entering Evaporator — Ewb (F)

72 67 62 72 67 62 72 67 62 72 67 62

70.8 65.4 58.5 72.5 67.3 61.1 73.0 68.4 62.8 74.8 70.3 64.8

34.1 42.7 49.9 35.7 45.5 54.2 36.8 48.0 57.8 39.6 53.0 63.4

3.53 3.49 3.44 3.55 3.50 3.46 3.55 3.51 3.47 3.57 3.54 3.48

68.9 63.2 55.3 70.5 65.1 57.9 72.2 66.4 60.2 73.2 68.1 62.9

33.5 41.8 48.4 35.0 44.8 52.8 37.0 47.6 56.8 39.3 52.5 62.4

3.98 3.94 3.87 4.00 3.96 3.90 4.03 3.97 3.92 4.04 3.99 3.94

66.8 60.6 52.4 68.3

32.8 40.7 47.0 34.5 43.8 51.1 36.0 46.7 55.0 39.1 51.8 60.5

4.48 4.43 4.35 4.50

64.3 57.7 49.9 65.9 59.8 51.7 66.9 61.1 54.1 68.4 62.8 58.4

32.0 39.6 45.8 33.7 42.8 49.7 35.3 45.7 53.5 38.4 51.0 58.4

5.03 4.96 4.87 5.05 4.99 4.90 5.06 5.00 4.93 5.08 5.02 4.98

61.5 54.8 47.3 62.8 56.7 49.1 64.0 58.2 51.6 65.4 59.9 56.1

31.0 38.4 44.5 32.5 41.6 48.2 34.4 44.6 51.6 37.4 50.0 56.1

5.61 5.55 5.46 5.62 5.58 5.49 5.65 5.60 5.52 5.67 5.61 5.57

58.7 51.6 44.5 59.9 53.4 46.2 60.8 54.9 49.0 62.2 56.8 53.5

30.0 37.2 43.1 31.7 40.4 46.2 33.3 43.4 48.9 36.4 48.9 53.4

6.27 6.19 6.09 6.28 6.21 6.13 6.29 6.24 6.17 6.31 6.27 6.22

Temp (F) Air Entering Evaporator — Cfm/BF

1800/0.05 2100/0.06 2400/0.06 3000/0.08

Temp (F) Air Entering Evaporator — Ewb (F)

72 67 62 72 67 62 72 67 62 72 67 62

LEGEND

62.5 54.3 69.3 63.8 56.6 71.2 65.6 60.6

4.45 4.37 4.51 4.46 4.40 4.55 4.48 4.44

77.3 71.3 85.1 78.9 72.9 87.2 80.6 76.2

55.3 66.6 45.8 59.2 71.2 50.2 65.8 76.2

NOTES:

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: t

ldb

lwb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

edb

= Wet-bulb temperature corresponding to enthalpy of air

leaving evaporator coil (h

lwb=hewb

= Enthalpy of air entering evaporator coil.

ewb

sensible capacity (Btuh)

–

1.10 x cfm

total capacity (Btuh)

4.5 x cfm

lwb

)

Page 26

Perf ormance data (cont)

COOLING CAPACITIES, STANDARD UNITS (cont)

48HJ00 8 ( 7

Temp ( F)

Condenser

105

115

125

48HJ00 9 ( 81/2 TONS)

Temp (F)

Condenser

105

115

125

BF — Edb — Ewb — kW — SHC — TC —

/2 TONS)

Temp (F) Air Entering Evaporator — Cfm/BF

Air Ent

(Edb)

TC SHC kW

Air Ent

(Edb)

TC SHC kW

Standard Ratings

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacit y (1000 Btuh) Gross

2250/0.10 3000/0.11 3750/0.14

Temp (F) Air Entering Evaporator — Ewb

72 67 62 72 67 62 72 67 62

105.5 96.9 87.6 107.3 99.6 90.7 110.3 101.9 93.8

50.6 63.6 75.7 53.3 69.2 83.7 58.0 76.6 92.2

5.15 5.07 5.04 5.16 5.11 5.06 5.20 5.13 5.07

102.5 93.6 83.6 105.1 96.5 87.5 107.7 99.0 90.6

49.7 62.4 73.9 52.8 68.4 82.2 57.3 75.9 90.0

5.86 5.79 5.73 5.89 5.82 5.77 5.93 5.86 5.78

98.9 90.1 79.3 101.6

48.5 61.2 71.9 51.9 67.2 80.2 56.2 74.9 87.3

6.65 6.58 6.49 6.69

95.3 86.2 75.7 97.6 88.8 79.6 100.0 91.0 84.1

47.3 59.6 70.2 50.7 65.9 78.0 55.3 73.6 84.1

7.51 7.44 7.31 7.55 7.48 7.36 7.59 7.50 7.41

91.0 82.0 71.6 93.2 84.5 75.4 95.6 86.6 80.7

45.9 58.0 68.1 49.3 64.2 75.3 54.2 72.1 80.7

8.43 8.33 8.20 8.46 8.37 8.27 8.52 8.42 8.34

86.2 77.8 68.1 88.3 80.0 71.9 90.0 81.9 77.2

44.1 56.4 66.3 47.5 62.6 71.8 52.1 70.1 77.2

9.38 9.29 9.14 9.43 9.34 9.24 9.47 9.38 9.32

2550/0.08 3000/0.09 3400/0.11 4250/0.13

72 67 62 72 67 62 72 67 62 72 67 62

119.5 105.7 94.8 123.1 109.1 98.7 124.8 110.7 100.2 126.3 112.8 103.4

56.5 65.7 77.8 60.2 71.7 86.3 62.2 75.8 92.8 67.8 83.3 101.2

5.92 5.84 5.77 5.95 5.88 5.81 5.96 5.89 5.83 5.99 5.91 5.85

115.5 101.9 90.6 119.7 105.4 94.8 121.4 106.9 96.1 124.0 109.1 98.7

55.1 64.3 76.1 58.9 70.5 85.1 61.3 74.5 90.5 66.2 82.9 98.5

6.77 6.69 6.61 6.83 6.74 6.67 6.85 6.76 6.67 6.88 6.79 6.71

111.3 97.7 86.6 115.0

53.7 62.8 74.2 57.4

7.71 7.62 7.52 7.76 7.68 7.59 7.80 7.69 7.58 7.84 7.74 7.66

107.2 93.5 82.5 110.5 96.7 85.9 112.1 97.9 87.6 114.9 99.9 90.5

52.2 61.3 72.7 56.0 67.4 81.2 58.4 71.4 86.6 6 3.5 79.5 90.5

8.75 8.64 8.54 8.80 8.70 8.61 8.82 8.71 8.62 8.86 8.75 8.67

101.9 89.2 78.0 104.7 91.8 81.5 106.7 93.1 83.3 109.2 94.9 86.3

50.2 59.5 70.7 53.7 65.7 79.5 56.6 69.5 83.1 6 1.5 77.8 86.3

9.80 9.73 9.64 9.86 9.79 9.72 9.90 9.79 9.71 9.95 9.84 9.75

97.3 84.3 73.1 100.0 86.8 76.0 101.3 87.9 78.7 102.9 89.5 81.9

48.7 57.7 68.5 52.4 63.9 76.0 54.8 67.9 78.7 59.1 75.7 81.9

11.03 10.90 10.70 11.08 10.96 10.81 11.11 10.99 10.88 11.14 11.03 10.93

LEGEND

92.9 83.5 103.8 95.3 87.4

6.61 6.53 6.72 6.64 6.57

Temp (F) Air Entering Evaporator — Cfm/BF

Temp (F) Air Entering Evaporator — Ewb

101.2 90.6 117.2 102.6 91.7 120.1 104.8 94.5

68.9 82.9 60.0 73.0 88.6 65.0 81.5 94.5

NOTES:

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: t

ldb=tedb

= Wet-bulb temperature corresponding to enthalpy of air

lwb

leaving evaporator coil (h

lwb=hewb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

ewb

sensible capacity (Btuh)

–

= Enthalpy of air entering evaporator coil.

1.10 x cfm

lwb

total capacity (Btuh)

4.5 x cfm

)

Page 27

48HJ01 2 ( 10 TONS)

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

48HJ01 4 ( 121/2 TONS)

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

Standard Ratings

BF — Edb — Ewb — kW — SHC — TC —

72 67 62 72 67 62 72 67 62 72 67 62

140.3 129.4 115.0 141.2 130.4 118.1 145.2 134.0 122.1 147.5 136.6 125.3

65.6 82.2 97.4 66.7 84.4 101.5 71.3 93.1 113.5 77.9 103.7 124.7

7.35 7.21 7.12 7.37 7.23 7.13 7.46 7.31 7.17 7.51 7.37 7.22

137.7 125.3 110.0 138.9 126.6 113.6 142.6 130.6 117.7 144.6 133.3 122.3

65.0 81.2 95.2 66.3 83.6 99.7 71.0 92.8 112.0 76.9 103.1 122.2

8.29 8.13 8.02 8.32 8.16 8.03 8.40 8.24 8.09 8.45 8.31 8.16

133.8 120.7 103.0 135.1

63.9 79.6 92.2 65.2 82.0 97.0 70.6 91.5 109.7 76.9 102.5 118.4

9.33 9.16 8.98 9.35

128.7 115.4 96.5 129.8 116.6 99.7 133.7 120.3 107.1 136.7 122.8 114.5

62.3 77.6 89.4 63.6 80.2 93.5 69.4 89.6 106.8 76.0 100.6 114.3

10.46 10.28 10.00 10.47 10.30 10.07 10.57 10.38 10.21 10.66 10.43 10.31

123.2 109.1 90.8 124.3 110.3 92.2 127.9 114.4 100.8 130.9 116.8 110.1

60.4 75.1 86.6 61.9 77.8 90.0 67.6 87.6 100.7 74.6 98.7 109.9

11.66 11.47 11.20 11.68 11.51 11.25 11.77 11.60 11.41 11.89 11.66 11.58

117.5 101.8 86.2 118.5 103.0 87.4 121.6 107.1 96.0 124.1 110.3 104.8

58.5 72.5 84.5 60.0 75.0 87.3 65.8 85.1 96.0 72.5 96.9 104.8

12.99 12.77 12.50 13.02 12.81 12.55 13.10 12.92 12.74 13.19 13.01 12.91

72 67 62 72 67 62 72 67 62 72 67 62

167.1 154.3 142.0 169.8 157.7 144.8 173.5 160.6 148.4 176.5 164.5 153.3

82.5 103.5 123.6 85.8 109.7 132.0 90.3 117.7 141.9 98.2 130.7 153.1

9.44 9.18 8.95 9.50 9.26 9.01 9.60 9.33 9.07 9.68 9.43 9.17

162.3 149.3 135.6 165.1 152.5 139.5 168.8 155.3 143.5 172.1 159.2 149.3

80.9 101.4 120.9 84.4 107.9 129.9 89.6 115.8 139.8 97.6 129.3 149.1

10.49 10.18 9.97 10.55 10.27 10.02 10.67 10.32 10.11 10.75 10.43 10.21

156.5 143.7 126.3 159.6

79.1 99.5 116.5 83.0

11.60 11.30 11.01 11.69 11.39 11.10 11.75 11.47 11.20 11.87 11.56 11.35

150.0 136.2 115.7 153.0 139.3 120.9 155.6 142.5 138.5 158.8 145.9 138.8

76.5 96.7 111.2 80.8 103.5 120.0 85.7 112.3 128.4 93.6 125.9 138.7

12.76 12.42 12.09 12.83 12.52 12.20 12.91 12.62 12.32 12.96 12.72 12.52

141.8 122.2 104.4 144.3 126.1 110.8 147.7 129.4 118.9 150.7 135.2 130.1

73.6 91.2 104.2 77.9 98.5 110.8 83.4 107.3 118.4 91.8 121.9 129.9

13.85 13.55 13.22 13.94 13.64 13.35 14.05 13.73 13.50 14.15 13.86 13.70

132.5 108.6 93.9 134.8 111.4 100.7 137.6 114.4 106.6 140.3 122.9 120.1

70.9 85.7 93.8 74.8 92.9 100.7 80.2 101.4 106.5 89.0 116.3 120.1

15.04 14.66 14.44 15.14 14.75 14.55 15.23 14.85 14.72 15.29 14.94 14.84

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacity (1000 Btuh) Gross

COOLING CAPACITIES, STANDARD UNITS (cont)

Temp (F) Air Entering Evaporator — Cfm/BF

3000/0.03 3200/0.03 4000/0.04 5000/0.04

Temp (F) Air Entering Evaporator — Ewb

121.9 107.2 138.8 125.8 112.8 141.7 128.5 118.5

9.18 9.00 9.44 9.27 9.07 9.51 9.33 9.19

Temp (F) Air Entering Evaporator — Cfm/BF

3750/0.08 4300/0.09 5000/0.11 6250/0.13

Temp (F) Air Entering Evaporator — Ewb

146.8 131.3 162.3 149.8 136.5 166.5 153.2 144.5

106.1 126.0 87.6 114.2 135.8 95.8 127.7 144.4

NOTES:

LEGEND

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: t

ldb

lwb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

edb

= Wet-bulb temperature corresponding to enthalpy of air

leaving evaporator coil (h

lwb=hewb

= Enthalpy of air entering evaporator coil.

ewb

sensible capacity (Btuh)

–

1.10 x cfm

total capacity (Btuh)

4.5 x cfm

lwb

)

Page 28

Perf ormance data (cont)

COOLING CAPACITIES, UNITS WITH MOISTUREMISER OPTION

48HJ00 4 ( 3 TONS )

Temp ( F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

48HJ00 5 ( 4 TONS )

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

BF — Edb — Ewb — kW — SHC — TC —

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacit y (1000 Btuh) Gross

72 67 62 72 67 62 72 67 62

41.3 37.3 34.3 43.5 39.2 35.9 45.5 41.6 38.2

17.5 22.4 26.7 19.6 25.5 31.2 21.5 28.5 35.2

2.19 2.14 2.10 2.21 2.16 2.14 2.24 2.19 2.16

38.6 34.4 31.6 41.3 37.5 33.3 43.5 38.6 35.5

15.2 20.1 25.1 17.1 23.2 29.0 18.9 26.3 32.9

2.46 2.40 2.37 2.47 2.43 2.40 2.51 2.45 2.42

35.9 31.4 28.8 39.2 35.9 30.6 41.3 35.7 32.9

13.0 17.9 23.3 14.5 21.1 26.9 16.1 24.2 30.6

2.74 2.68 2.63 2.76 2.74 2.67 2.80 2.75 2.71

33.8 29.7 27.4 36.3 32.2 28.7 38.1 32.8 30.4

10.9 15.8 21.0 12.5 18.9 24.6 14.0 21.7 28.1

3.05 3.00 2.97 3.09 3.04 2.99 3.12 3.07 3.03

31.8 28.0 25.5 33.2 28.7 26.5 34.9 30.0 27.9

9.013.718.410.316.822.311.919.325.2

3.40 3.36 3.31 3.45 3.38 3.32 3.48 3.41 3.37

28.7 26.3 23.4 29.7 25.5 22.9 31.3 27.1 25.5

6.9 12.2 17.3 7.9 14.5 20.6 9.2 17.3 22.3

3.78 3.73 3.66 3.84 3.77 3.71 3.87 3.79 3.75

72 67 62 72 67 62 72 67 62 72 67 62

52.9 47.5 41.5 55.7 50.9 47.5 57.0 51.7 48.1 60.5 55.6 52.1

22.7 28.4 33.4 26.1 34.1 38.9 25.9 33.7 41.6 29.4 39.1 47.5

2.87 2.86 2.82 2.89 2.87 2.84 2.89 2.86 2.85 2.90 2.88 2.85

49.2 43.8 37.1 52.1 47.2 43.6 52.9 47.9 43.7 55.4 51.4 47.0

19.8 25.5 30.4 22.2 29.5 35.8 22.4 31.1 38.7 24.2 36.0 44.3

3.26 3.25 3.21 3.28 3.26 3.23 3.28 3.26 3.24 3.28 3.26 3.24

45.8 40.1 32.8 48.2 43.6 39.4 48.8 44.0 39.3 51.7 47.4 43.0

17.2 22.5 27.3 18.4 24.8 32.6 19.0 28.1 35.9 20.7 33.0 41.0

3.71 3.68 3.64 3.72 3.69 3.67 3.72 3.69 3.67 3.74 3.70 3.68

41.6 37.0 29.7 43.2 38.9 35.4 43.9 39.7 34.7 46.5 41.4 37.5

13.5 19.5 23.9 14.7 21.7 29.2 15.0 23.7 30.6 16.4 27.8 35.1

4.20 4.17 4.11 4.20 4.17 4.14 4.20 4.17 4.15 4.22 4.19 4.16

37.2 33.2 27.1 38.4 34.0 30.8 39.4 35.5 30.0 41.3 35.2 31.9

9.916.420.711.318.525.611.219.725.412.422.428.6

4.73 4.68 4.62 4.74 4.71 4.64 4.73 4.72 4.65 4.74 4.72 4.69

32.4 28.1 24.9 33.8 28.1 27.4 35.3 30.5 26.6 36.1 32.0 28.7

7.2 12.9 18.3 8.4 14.5 21.9 16.8 21.1 21.2 9.5 18.3 24.1

5.29 5.23 5.15 5.30 5.25 5.19 5.29 5.27 5.21 5.30 5.29 5.25

Temp (F) Air Entering Evaporator — Cfm/BF

900/0.14 1200/0.17 1500/0.20

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — Cfm/BF

1200/0.17 1450/0.19 1600/0.21 2000/0.24

Temp (F) Air Entering Evaporator — Ewb

LEGEND NOTES:

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: sensible capacity (Btuh)

ldb=tedb

= Wet-bulb temperature corresponding to enthalpy of air

lwb

lwb=hewb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

–

leaving evaporator coil (h

–

= Enthalpy of air entering evaporator coil.

ewb

1.10 x cfm

lwb

total capacity (Btuh)

4.5 x cfm

)

Page 29

48HJ00 6 ( 5 TONS )

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

48HJ00 7 ( 6 TONS )

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

BF — Edb — Ewb — kW — SHC — TC —

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacity (1000 Btuh) Gross

COOLING CAPACITIES, UNITS WITH MOISTUREMISER OPTION (cont)

Temp (F) Air Entering Evaporator — Cfm/BF

1500/0.08 1750/0.09 2000/0.11 2500/0.13

Temp (F) Air Entering Evaporator — Ewb

72 67 62 72 67 62 72 67 62 72 67 62

69.9 62.7 56.2 74.7 67.3 61.0 78.5 71.2 64.8 81.7 75.5 69.3

29.0 36.9 43.9 31.7 40.5 51.2 34.5 44.2 55.4 37.8 52.0 62.8

3.61 3.55 3.51 3.64 3.58 3.49 3.65 3.60 3.51 3.62 3.58 3.51

65.9 59.1 51.7 70.6 63.2 56.3 75.5 66.8 60.7 78.1 70.8 65.1

25.3 34.0 41.9 27.5 37.6 48.0 30.7 41.6 52.0 33.8 47.4 58.0

4.05 3.97 3.91 4.07 4.01 3.92 4.11 4.00 3.95 4.08 4.02 3.96

61.9 55.2 47.7 66.5 58.8 51.3 70.4 61.9 55.7 74.2 65.9 60.6

21.6 31.1 40.0 23.5 34.5 44.6 26.0 38.6 47.9 30.0 42.8 52.6

4.53 4.43 4.35 4.55 4.47 4.37 4.56 4.42 4.41 4.58 4.49 4.44

57.7 51.1 44.9 61.8 54.5 47.7 65.1 57.2 50.8 68.4 60.3 56.1

18.1 27.8 35.7 20.0 31.2 40.1 22.1 34.3 43.5 26.1 38.9 48.5

5.05 4.93 4.84 5.09 4.97 4.88 5.11 4.96 4.92 5.11 5.03 4.98

53.4 47.2 42.0 56.6 50.0 44.2 59.6 52.5 46.2 62.6 54.9 51.6

14.7 24.6 31.5 16.5 27.8 35.7 18.2 30.0 39.0 22.1 34.9 44.3

5.60 5.49 5.40 5.64 5.52 5.45 5.69 5.55 5.48 5.69 5.61 5.57

48.7 42.0 36.9 51.3 45.0 39.0 54.1 46.8 40.9 56.9 49.2 45.9

10.9 19.6 28.0 12.5 22.2 31.5 13.5 24.0 34.0 16.5 28.0 38.8

6.26 6.12 6.02 6.28 6.18 6.09 6.33 6.18 6.13 6.33 6.27 6.22

Temp (F) Air Entering Evaporator — Cfm/BF

1800/0.05 2100/0.06 2400/0.06 3000/0.08

Temp (F) Air Entering Evaporator — Ewb

72 67 62 72 67 62 72 67 62 72 67 62

82.6 75.6 68.5 84.9 78.0 70.9 85.9 79.5 73.5 89.1 82.7 77.0

36.0 44.8 55.4 37.5 49.1 59.7 38.8 51.1 64.0 41.8 58.1 70.2

4.60 4.52 4.36 4.67 4.57 4.46 4.70 4.57 4.45 4.77 4.61 4.51

78.2 71.6 64.5 80.9 73.4 65.8 82.0 74.4 67.9 85.8 78.2 72.3

31.4 41.2 51.7 33.0 44.7 55.8 34.7 47.4 60.1 37.6 54.3 66.7

5.16 5.03 4.89 5.22 5.11 4.96 5.26 5.09 4.97 5.32 5.17 5.04

73.8 67.4 60.2 76.3 68.3 60.5 77.5 69.3 62.3 82.0 72.8 67.5

27.0 37.6 47.9 28.2 40.0 51.6 30.2 43.7 56.2 33.6 49.2 62.9

5.75 5.60 5.44 5.80 5.66 5.48 5.84 5.68 5.53 5.90 5.73 5.60

68.4 62.6 55.9 71.4 64.3 56.2 72.1 64.6 58.3 75.7 67.0 62.4

22.3 33.5 43.5 23.4 36.5 48.0 25.4 38.4 50.2 29.1 45.2 56.2

6.37 6.22 6.06 6.45 6.27 6.10 6.46 6.29 6.16 6.53 6.36 6.24

63.4 57.8 50.7 66.0 60.1 51.5 66.4 59.6 54.5 68.8 60.8 57.5

18.1 29.5 38.9 18.8 32.9 44.1 20.7 33.3 43.8 24.3 41.4 49.7

7.04 6.89 6.68 7.10 6.91 6.74 7.12 6.95 6.83 7.16 7.01 6.92

55.5 49.6 45.8 58.4 52.4 46.1 57.6 52.1 49.5 59.2 52.8 53.1

15.3 24.0 35.2 15.7 27.5 39.0 17.5 27.5 38.4 20.9 34.6 44.4

7.80 7.61 7.38 7.83 7.67 7.49 7.89 7.72 7.58 7.92 7.78 7.70 LEGEND NOTES:

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: =t

ldb

lwb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

edb

= Wet-bulb temperature corresponding to enthalpy of air

leaving evaporator coil (h

lwb=hewb

ewb

sensible capacity (Btuh)

–

total capacity (Btuh)

–

= Enthalpy of air entering evaporator coil.

1.10 x cfm

4.5 x cfm

lwb

)

Page 30

Perf ormance data (cont)

COOLING CAPACITIES, UNITS WITH MOISTUREMISER OPTION (cont)

48HJ00 8 ( 7

Temp ( F)

Condenser

105

115

125

48HJ00 9 ( 81/2 TONS)

Temp (F)

Condenser

105

115

125

BF — Edb — Ewb — kW — SHC — TC —

/2 TONS)

Temp (F) Air Entering Evaporator — Cfm/BF

Air Ent

(Edb)

TC SHC kW

Air Ent

(Edb)

TC SHC kW

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacit y (1000 Btuh) Gross

2250/0.10 3000/0.11 3750/0.14

Temp (F) Air Entering Evaporator — Ewb

72 67 62 72 67 62 72 67 62

98.4 91.1 81.1 103.7 97.9 91.8 105.8 101.3 94.1

44.5 55.4 67.0 50.4 65.4 80.5 54.5 72.4 89.5

5.05 4.96 4.87 5.09 5.04 4.97 5.16 5.04 4.99

94.2 85.8 76.9 100.3 92.4 85.2 103.5 96.8 89.0

39.7 51.3 62.7 46.2 58.3 75.7 50.6 68.2 84.3

5.74 5.65 5.55 5.81 5.75 5.64 5.89 5.74 5.70

89.9 80.5 72.6 96.9 86.8 78.6 101.1 92.2 83.8

34.8 47.2 58.3 41.9 51.2 71.0 46.6 63.9 79.1

6.42 6.33 6.22 6.52 6.45 6.31 6.62 6.43 6.40

84.6 75.3 68.0 91.6 81.3 73.4 94.5 86.3 78.4

30.0 42.5 53.9 36.9 49.3 66.4 41.4 59.2 73.8

7.26 7.16 7.05 7.36 7.25 7.15 7.46 7.29 7.23

79.2 70.1 63.3 86.2 75.8 68.1 87.9 80.3 72.9

25.2 37.8 49.4 31.9 47.4 61.9 36.1 54.4 68.5

8.10 7.99 7.87 8.20 8.05 7.98 8.30 8.14 8.05

72.8 64.5 57.2 78.0 69.8 62.3 81.6 73.2 69.2

20.1 33.4 44.1 25.4 42.5 56.5 31.1 48.9 64.7

9.10 8.94 8.83 9.23 9.05 8.95 9.26 9.10 8.99

2550/0.08 3000/0.09 3400/0.11 4250/0.13

72 67 62 72 67 62 72 67 62 72 67 62

112.4 102.2 92.6 115.2 106.4 96.4 119.6 110.3 101.3 127.6 117.6 108.0

49.1 62.4 75.0 52.9 68.5 82.3 56.2 73.3 89.5 62.8 83.3 101.7

6.10 5.96 5.86 6.18 6.05 5.95 6.18 6.05 5.95 6.18 6.10 6.00

105.7 95.7 86.5 110.0 100.6 91.0 114.0 103.7 94.6 118.2 110.9 101.2

43.6 57.1 69.9 47.8 62.8 76.9 50.7 67.9 82.8 74.7 77.7 94.8

6.92 6.78 6.63 6.97 6.90 6.75 7.01 6.85 6.75 7.01 6.91 6.80

98.9 89.1 80.4 104.7 94.8 85.5 108.4 97.0 87.9 108.8 104.1 94.3

38.0 51.7 64.8 42.7 57.0 71.4 45.2 62.4 76.2 86.5 72.0 87.9

7.73 7.59 7.40 7.75 7.75 7.56 7.84 7.65 7.54 7.84 7.71 7.60

91.8 82.3 73.8 97.3 87.6 78.6 100.4 89.8 80.8 102.3 95.3 85.8

32.6 46.3 59.5 37.0 51.9 66.8 39.3 56.7 70.0 68.6 65.5 80.9

8.80 8.64 8.47 8.80 8.76 8.58 8.89 8.69 8.59 8.93 8.77 8.67

84.7 75.5 67.3 89.8 80.5 71.7 92.5 82.5 73.8 95.8 86.6 77.4

27.2 40.9 54.2 31.4 46.9 62.2 33.4 51.0 63.8 50.6 59.1 73.9

9.86 9.69 9.53 9.86 9.77 9.61 9.95 9.74 9.65 10.01 9.84 9.75

77.6 68.7 60.7 82.4 73.3 64.8 84.5 75.3 66.7 89.3 77.8 68.9

21.8 35.5 48.9 25.7 41.8 57.6 27.5 45.3 57.6 32.7 52.6 66.9

10.93 10.74 10.60 10.91 10.78 10.64 11.00 10.78 10.70 11.10 10.90 10.82 LEGEND NOTES:

Temp (F) Air Entering Evaporator — Cfm/BF

Temp (F) Air Entering Evaporator — Ewb

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: sensible capacity (Btuh)

ldb=tedb

= Wet-bulb temperature corresponding to enthalpy of air

lwb

lwb=hewb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

–

leaving evaporator coil (h

–

= Enthalpy of air entering evaporator coil.

ewb

1.10 x cfm

lwb

total capacity (Btuh)

4.5 x cfm

)

Page 31

48HJ01 2 ( 10 TONS)

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

48HJ01 4 ( 121/2 TONS)

Temp (F)

Air Ent

Condenser

(Edb)

SHC kW

105

SHC kW

115

SHC kW

125

SHC kW

BF — Edb — Ewb — kW — SHC — TC —

72 67 62 72 67 62 72 67 62 72 67 62

134.3 122.5 111.4 135.8 124.3 113.0 138.4 129.5 123.5 143.3 136.5 130.2

60.0 76.1 93.7 61.3 79.1 97.4 68.0 89.5 109.4 75.2 100.9 123.3

7.03 6.84 6.72 7.01 6.89 6.77 7.10 6.92 6.77 7.15 7.03 6.88

127.6 115.4 104.6 128.9 118.1 107.0 132.5 121.5 116.6 137.2 128.0 122.9

51.5 68.8 87.2 53.9 72.0 91.2 61.0 82.7 102.4 68.6 93.6 115.9

7.96 7.86 7.59 7.94 7.78 7.51 8.02 7.84 7.69 8.02 7.94 7.79

120.9 108.3 97.8 121.9 111.8 101.0 126.5 113.4 109.7 131.1 119.4 115.5

43.0 61.5 80.6 46.5 64.8 84.9 53.9 75.9 95.4 62.0 86.2 108.4

8.88 8.87 8.46 8.86 8.66 8.26 8.94 8.76 8.60 8.89 8.85 8.69

112.0 99.9 90.4 113.1 103.2 93.4 117.2 105.0 100.7 122.1 110.5 105.9

36.1 54.1 73.8 38.8 57.8 78.9 45.6 68.2 86.8 53.0 78.3 99.7

10.0 10.0 9.6 10.0 9.8 9.5 10.1 9.9 9.8 10.1 10.0 9.9

103.0 91.5 83.1 104.3 94.6 85.9 107.8 96.7 91.7 113.0 101.6 96.4

29.2 46.7 66.9 31.2 50.7 72.9 37.3 60.6 78.3 44.0 70.3 90.9

11.2 11.1 10.8 11.2 11.0 10.7 11.3 11.1 11.0 11.3 11.2 11.1

94.1 83.1 75.7 95.5 86.0 78.3 98.5 88.3 82.7 104.0 92.7 86.8

22.3 39.3 60.1 23.5 43.7 66.8 29.0 52.9 69.7 35.0 62.4 82.2

12.35 12.15 11.94 12.38 12.13 11.92 12.48 12.27 12.25 12.53 12.30 12.28

72 67 62 72 67 62 72 67 62 72 67 62

156.3 144.2 132.3 160.0 148.4 136.2 162.8 150.6 138.2 169.0 157.5 145.6

66.6 87.6 112.1 72.5 94.8 121.3 76.9 99.6 127.5 87.0 115.5 142.7

9.28 8.98 8.59 9.35 9.08 8.80 9.40 9.18 8.9 9.43 9.18 8.93

147.6 136.2 123.7 150.7 140.1 127.2 154.1 140.8 127.9 161.1 148.0 135.4

58.7 80.0 103.8 63.5 86.5 112.2 68.7 91.0 118.1 77.7 107.8 133.2

10.29 9.93 9.58 10.36 10.08 9.77 10.40 10.34 10.03 10.45 10.18 9.88

138.9 128.2 115.1 141.4 131.8 118.3 145.3 131.0 117.6 153.1 138.4 125.1

50.8 72.3 95.5 54.4 78.1 103.2 60.5 82.3 108.7 68.5 100.0 123.7

11.29 10.87 10.57 11.37 11.08 10.74 11.40 11.50 11.1 11.46 11.17 10.83

129.1 117.8 105.8 131.7 121.0 108.7 134.8 119.9 107.7 140.9 126.9 115.9

42.1 63.5 86.5 45.4 69.0 93.9 51.2 74.2 101.3 57.7 90.2 113.6

12.59 12.14 11.82 12.67 12.34 11.96 12.70 12.67 12.28 12.79 12.46 12.08

119.2 107.3 96.4 122.1 110.2 99.0 124.2 108.8 97.8 128.7 115.3 106.7

33.5 54.8 77.5 36.4 59.8 84.7 41.9 66.1 93.8 46.8 80.5 103.5

13.90 13.40 13.08 13.98 13.59 13.18 14.00 13.83 13.41 14.11 13.75 13.33

109.4 96.9 87.1 112.4 99.4 89.3 113.7 97.7 87.8 116.5 103.8 97.5

24.8 46.0 68.5 27.4 50.7 75.5 32.6 58.0 86.4 36.0 70.7 93.5

15.20 14.67 14.33 15.28 14.85 14.40 15.30 15.00 14.54 15.44 15.04 14.58

Bypass Factor Entering Dry Bulb Entering Wet Bulb Compressor Motor Power Input Sensible Heat Capacity (1000 Btuh) Gross Total Capacity (1000 Btuh) Gross

COOLING CAPACITIES, UNITS WITH MOISTUREMISER OPTION (cont)

Temp (F) Air Entering Evaporator — Cfm/BF

3000/0.03 3200/0.03 4000/0.04 5000/0.04

Temp (F) Air Entering Evaporator — Ewb

Temp (F) Air Entering Evaporator — Cfm/BF

3750/0.08 4300/0.09 5000/0.11 6250/0.13

Temp (F) Air Entering Evaporator — Ewb

LEGEND NOTES:

1. Direct i nterpolation is permissible. Do not extrapolate.

2. The following formulas may be used: =t

ldb

lwb

Where: h

3. The SHC is based on 80 F edb temperature of air entering evapo-

rator coil. Below 80 F edb , subtract (corr factor x cfm) from SHC.

Above 80 F edb, add (corr factor x cfm) to SH C.

Correction Factor = 1.10 x (1 – BF) x (edb – 80) .

edb

= Wet-bulb temperature corresponding to enthalpy of air

leaving evaporator coil (h

lwb=hewb

= Enthalpy of air entering evaporator coil.

ewb

sensible capacity (Btuh)

–

1.10 x cfm

total capacity (Btuh)

4.5 x cfm

lwb

)

Page 32

Perf ormance data (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS

48HJ004 (3 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

900 581 0.12 673 0.18 736 0.22 1000 644 0.19 709 0.22 1100 687 0.22 746 0.26 1200 733 0.26 1300 754 0.29 1400 1500

48HJ004 (3 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

900 1000 1100 1200 1300 1400 1110 0.73 1160 0.78 1181 0.83 1237 0.88 1293 0.94 1349 0.99 1500 1150 0.78 1190 0.84 1225 0.89 1271 0.95 1371 1.00 1383 1.05

48HJ004 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

900 673 0.18 805 0.25 911 0.34 988 0.43 1061 0.47 1000 709 0.22 835 0.30 937 0.38 1039 0.49 1100 746 0.28 867 0.35 964 0.40 1068 0.55 1200 785 0.32 903 0.41 994 0.50 1300 826 0.38 942 0.48 1047 0.60 1400 868 0.45 984 0.57 1087 0.67 1500 911 0.53 1029 0.66

0.1 0.2 0.3 0.4 0.5 0.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

785 0.32 843 0.35 903 0.41 960 0.47 994 0.50

810 0.35 868 0.45 937 0.51 984 0.57 1032 0.62 1067 0.67 841 0.42 911 0.53 985 0.61 1029 0.66 1073 0.72

0.7 0.8 0.9 1.0 1.1 1.2

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

957 0.39 988 0.43 1039 0.47 1061 0.51 1083 0.54

992 0.44 1039 0.49 1061 0.55 1088 0.60 1013 0.49 1068 0.55 1045 0.56 1090 0.64 1075 0.64

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

826 0.38 891 0.43 942 0.48 991 0.53 1047 0.60

1122 0.70 1152 0.76 1190 0.82 1228 0.87 1266 0.94

0.2 0.4 0.6 0.8 1.0

External Static Pressure (in. wg)

782 0.28 835 0.30 900 0.35 937 0.38 806 0.30 867 0.35 929 0.40 964 0.40

External Static Pressure (in. wg)

1091 0.61 1109 0.66 1127 0.73 1145 0.80 1109 0.68 1156 0.73 1203 0.81 1250 0.86

External Static Pressure (in. wg)

1109 0.77 1190 1.00 1271 0.95

805 0.25 865 0.29 911 0.34

1109 0.77

1111 0.66 1136 0.72

1090 0.64 1156 0.68 1122 0.70 1190 0.76 1160 0.84 1237 0.85

1105 0.58

1086 0.55 1109 0.61

48HJ004 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

900 1000 1100 1200 1300 1400 1500

LEGEND

Bhp — FIOP —

NOTES:

2. Motor drive range is 760 to 1090 rpm for standard motor; 1075 to 1455 rpm

3. Values include losses for filters, unit casing, and wet coils. See page 49 for

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

indicates field-supplied drive required. (See Note 2.) for high-static motor. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1105 0.57 1140 0.63 1170 0.68 1198 0.73 1224 0.77 1136 0.63 1172 0.69 1203 0.75 1232 0.80 1258 0.86 1145 0.67 1181 0.73 1213 0.80 1242 0.85 1268 0.91 1210 0.74 1248 0.81 1282 0.88 1312 0.94 1340 1.01 1266 0.84 1306 0.92 1341 1.00 1373 1.07 1402 1.14 1349 0.93 1391 1.02 1429 1.11 1363 1.05 1406 1.15

External Static Pressure (in. wg)

1465 1.25 1500 1.34 1532 1.43

4. Maximum continuous bhp is 1.2 for standard motor, 2.4 for high-static motor. Extensive motor and electr ical testing on these units ensu res that the full range of the motor can be utilized with confidence. Using your fan motors up to the ratings shown will not r esult in nuisanc e trippi ng or prematu re motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

5. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

6. Interpolation is permissible. Do not extrapolate.

1463 1.19 1494 1.26

Page 33

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

48HJ005 (4 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 596 0.20 665 0.25 722 0.31 779 0.36 1300 633 0.24 699 0.30 754 0.36 809 0.42 1400 672 0.30 735 0.36 788 0.42 1500 711 0.35 770 0.42 822 0.49 1600 751 0.42 835 0.49 1700 791 0.49 1800 831 0.58 1900 2000

48HJ005 (4 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1200 1300 1400 1500 1600 1700 1800 1900 2000

0.1 0.2 0.3 0.4 0.6 0.7 0.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

873 0.57 907 0.65 941 0.72 1024 0.87 1064 0.96 1103 1.04

872 0.67 919 0.75 965 0.84 1011 0.92 1091 1.08 1127 1.17 913 0.77 958 0.86 1002 0.95 1046 1.03

0.9 1.0 1.1 1.2 1.4 1.6 1.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

993 0.65 1028 0.69 1056 0.72 1083 0.74 1134 0.80 1185 0.88 1021 0.74 1058 0.80 1090 0.85 1121 0.89 1171 0.94 1049 0.82 1086 0.89 1120 0.96 1153 1.00 1077 0.92 1113 0.99 1147 1.06 1180 1.13 1107 1.00 1141 1.09 1174 1.17 1137 1.12 1171 1.20 1167 1.23 1202 1.32 1233 1.41 1263 1.49 1323 1.67 1381 1.85 1436 2.02 1197 1.35 1232 1.45 1263 1.54 1294 1.63 1351 1.81 1408 2.00 1463 2.19 1229 1.48 1262 1.58 1294 1.68 1325 1.78 1362 1.97 1436 2.16 1489 2.36

881 0.66 929 0.74 976 0.81 1057 0.97 1095 1.06 1132 1.14

871 0.56 907 0.63 993 0.77 1033 0.85 1072 0.93

1203 1.29 1235 1.37 1296 1.53 1354 1.70 1407 1.84

External Static Pressure (in. wg)

840 0.48 933 0.62 972 0.69 1011 0.75 873 0.55 963 0.69 1002 0.77 1041 0.84

External Static Pressure (in. wg)

1207 1.25 1269 1.40 1326 1.54 1376 1.65

872 0.48 915 0.54 957 0.60 902 0.55 943 0.61 984 0.67

1125 1.21 1160 1.30 1195 1.38

1210 1.12 1257 1.17

1241 1.27 1295 1.37 1339 1.43

1219 1.00 1268 1.10

1162 1.25

1331 0.99

1307 1.25

48HJ005 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 665 0.25 779 0.36 872 0.48 957 0.60 1028 0.69 1300 699 0.30 809 0.42 902 0.55 984 0.67 1058 0.80 1400 735 0.36 840 0.48 933 0.62 1011 0.75 1500 770 0.42 873 0.55 963 0.69 1041 0.84 1600 835 0.49 907 0.63 993 0.77 1072 0.93 1700 873 0.57 941 0.72 1024 0.87 1800 881 0.66 976 0.81 1057 0.97 1900 919 0.75 1011 0.92 2000 958 0.86 1046 1.03

48HJ005 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (c ont)

Airflow

(Cfm)

1200 1300 1400 1500 1600 1700 1800 1900 2000

LEGEND

Bhp — FIOP —

NOTES:

2. indicates field-supplied motor and drive required.

3. Motor drive range is 840 to 1185 rpm for standard motor; 1075 to 1455 rpm

4. Values include losses for filters, unit casing, and wet coils. See page 49 for

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

for high-static motor. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

indicates field-supplied drive required. (See Note 3.)

0.2 0.4 0.6 0.8 1.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

1.2 1.4 1.6 1.8 2.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

1083 0.74 1134 0.80 1185 0.88 1331 0.99 1374 1.09 1121 0.89 1171 0.94 1219 1.00 1268 1.10 1309 1.21 1153 1.00 1210 1.12 1257 1.17 1307 1.25 1349 1.37 1180 1.13 1241 1.27 1295 1.37 1339 1.43 1382 1.57 1207 1.25 1269 1.40 1326 1.54 1376 1.65 1420 1.81 1235 1.37 1296 1.53 1354 1.70 1407 1.84 1452 2.02 1263 1.49 1323 1.67 1381 1.85 1436 2.02 1294 1.63 1351 1.81 1408 2.00 1325 1.78 1362 1.97 1436 2.16

External Static Pressure (in. wg)

1086 0.89 1113 0.99

1103 1.04 1171 1.20

1091 1.08 1162 1.25 1232 1.45 1125 1.21 1195 1.38 1262 1.58

External Static Pressure (in. wg)

5. Maximum continuous bhp is 1.2 for standard motor, 2.4 for high-static motor. Extensive motor and electr ical testing on these units ensu res that the full range of the motor can be utilized with confidence. Using your fan motors up to the ratings shown will not r esult in nuisanc e trippi ng or prematu re motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

1132 1.14 1202 1.32

1463 2.19 1489 2.36

1141 1.09

1482 2.22

—— ——

Page 34

Perf ormance data (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

48HJ006 (5 TONS) — STANDARD MOTOR (BELT DRIVE) — SINGLE-PHASE UNITS

Airflow

(Cfm)

1500 771 0.37 828 0.44 935 0.58 1600 816 0.45 869 0.51 968 0.66 1700 902 0.61 940 0.60 1007 0.75 1800 942 0.70 978 0.66 1900 982 0.80 2000 2100 2200 2300 2400 2500

48HJ006 (5 TONS) — STANDARD MOTOR (BELT DRIVE) — THREE-PHASE UNITS

Airflow

(Cfm)

1500 771 0.37 828 0.44 935 0.58 1027 0.73 1107 0.88 1600 816 0.45 869 0.51 968 0.66 1056 0.81 1700 902 0.61 940 0.60 1007 0.75 1094 0.91 1800 942 0.70 978 0.66 1063 0.82 1900 982 0.80 1023 0.78 1097 0.91 2000 1022 0.91 1068 0.90 2100 1063 0.99 2200 1104 1.13 2300 2400 2500

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1022 0.91 1068 0.90 1132 1.01 1218 1.23 1063 0.99 1115 1.00 1180 1.17 1104 1.13 1159 1.15 1214 1.28 1130 1.26 1202 1.29 1174 1.37 1237 1.41 1292 1.55 1392 1.81 1460 1.90 1532 2.14 1584 2.28 1671 2.55 1756 2.70 1201 1.48 1272 1.53 1335 1.71 1427 1.94 1518 2.16 1575 2.35 1633 2.53 1698 2.72 ——

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1130 1.26 1202 1.29 1248 1.38 1358 1.69 1410 1.72 1488 1.93 1561 2.13 1174 1.37 1237 1.41 1292 1.55 1392 1.81 1460 1.90 1532 2.14 1584 2.28 1201 1.48 1272 1.53 1335 1.71 1427 1.94 1518 2.16 1575 2.35

1023 0.78 1097 0.91 1175 1.11 1266 1.29

1115 1.00 1180 1.17 1261 1.35 1340 1.53 1428 1.66 1489 1.80 1567 1.99 1159 1.15 1214 1.28 1310 1.52 1375 1.63 1459 1.80 1528 1.95

1063 0.82 1147 0.97 1248 1.20

1248 1.38 1358 1.69 1410 1.72 1488 1.93 1561 2.13 1637 2.35 1710 2.54

1132 1.01 1218 1.23 1303 1.41 1397 1.52 1459 1.67 1532 1.82

External Static Pressure (in. wg)

1027 0.73 1107 0.88 1185 1.04 1257 1.20 1056 0.81 1127 0.97 1215 1.14 1094 0.91 1175 1.09 1245 1.26

1261 1.35 1340 1.53 1428 1.66 1489 1.80 1567 1.99 1626 2.16 1310 1.52 1375 1.63 1459 1.80 1528 1.95 1603 2.17 1666 2.37

External Static Pressure (in. wg)

1147 0.97 1248 1.20 1322 1.33 1395 1.46 1475 1.56 1542 1.71 1175 1.11 1266 1.29 1356 1.47 1430 1.58 1504 1.69 1556 1.82

1303 1.41 1397 1.52 1459 1.67 1532 1.82 1588 1.97

1127 0.97 1215 1.14 1286 1.31 1353 1.49 1421 1.68 1175 1.09 1245 1.26 1315 1.44 1381 1.52 1443 1.69

1286 1.31 1353 1.49 1421 1.68

1322 1.33 1395 1.46 1475 1.56 1542 1.71 1356 1.47 1430 1.58 1504 1.69 1556 1.82

1185 1.04 1257 1.20 1330 1.38 1411 1.59

1315 1.44 1381 1.52 1443 1.69

1633 2.53 1698 2.72 ——

1330 1.38 1411 1.59

1588 1.97

1603 2.17 1666 2.37 1637 2.35

1671 2.55 1756 2.70

1626 2.16

1710 2.54

48HJ006 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1500 808 0.42 914 0.56 1001 0.69 1084 0.85 1168 1.01 1600 846 0.49 950 0.64 1034 0.78 1111 0.94 1194 1.11 1700 884 0.57 983 0.72 1068 0.88 1145 1.03 1218 1.21 1800 924 0.66 1018 0.82 1105 0.98 1179 1.13 1246 1.32 1900 965 0.76 1057 0.92 1143 1.10 1212 1.26 1280 1.43 2000 1008 0.87 1096 1.04 1177 1.22 1247 1.40 2100 1051 0.99 1136 1.17 1210 1.35 1284 1.54 2200 1095 1.12 1173 1.30 1245 1.49 2300 1140 1.26 1210 1.47 1284 1.65 2400 1185 1.41 1249 1.61 2500 1231 1.57 1289 1.78

48HJ006 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1500 1199 1.19 1600 1263 1.28 1700 1295 1.39 1800 1900 2000 2100 2200 2300 2400 2500

EGEND

Bhp — FIOP —

NOTES:

2. indicates field-supplied motor and drive required.

3. Motor dri ve range is 1020 to 1460 rpm for single-pha se standard motors,

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

indicates field-supplied drive required. (See Note 3.)

1120 to 1585 for 3-phase standard motor s, and 1300 to 1685 for high-static motors. All other rpms require a field-supplied drive.

0.2 0.4 0.6 0.8 1.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

1.2 1.4 1.6 1.8 2.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

1126 1.46 1250 1.69 1301 1.91 1349 2.12 1275 1.49 1299 1.78 1352 2.01 1401 2.23

1319 1.52 1389 1.71 1435 1.91 1494 2.15 1548 2.40 1343 1.64 1415 1.80 1478 2.05 1538 2.31 1594 2.57 1374 1.77 1438 1.99 1505 2.21 1566 2.49 1624 2.77 1409 1.91 1465 2.14 1533 2.45 1596 2.77 1442 2.08 1498 2.30 1568 2.64 1475 2.26 1554 2.64 1565 2.47 1649 2.89 1596 2.95 1682 3.45 1760 3.96 ————

1351 1.58 1352 1.80 1407 2.03 1459 2.26

External Static Pressure (in. wg)

1300 1.57

1322 1.70 1380 1.89

1323 1.80 1389 2.03 1456 2.26 1363 2.00 1424 2.22 1500 2.45

External Static Pressure (in. wg)

1627 3.03 1693 3.42 1755 3.81 1726 3.31 ————

4. Values include losses for filters, unit casing, and wet coils. See page 49 for accessory/FIOP static pressure information.

5. Maximum continuous bhp is 1.30 for single-phase standar d motors, 2.40 for 3-phase standard motors, and 2.90 for high- static motors. Extensive motor and electrical tes ting o n these uni ts ensure s that the full range of the motor can be utilized with confidence. Using your fan motors up to the ratings shown will not result i n nuisance tripping o r premature motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

1356 1.80 1418 2.07

1632 2.97 1691 3.31

1347 1.72

1654 3.08

Page 35

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

48HJ007 (6 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 942 0.70 978 0.66 1063 0.82 1900 982 0.80 1023 0.78 1097 0.91 2000 1022 0.91 1068 0.90 2100 1063 0.99 1115 1.00 2200 1104 1.13 2300 2400 2500 2600 2700 2800 2900 3000

48HJ007 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 978 0.66 1063 0.82 1147 0.97 1248 1.20 1900 1023 0.78 1097 0.91 1175 1.11 1266 1.29 2000 1068 0.90 1132 1.01 1218 1.23 2100 1115 1.00 1180 1.17 1261 1.35 2200 1159 1.15 1214 1.28 2300 1202 1.29 1248 1.38 2400 1237 1.41 1292 1.55 2500 1272 1.53 2600 2700 2800 2900 3000

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1132 1.01 1218 1.23 1303 1.41 1397 1.52 1459 1.67 1532 1.82

1130 1.26 1202 1.29 1248 1.38 1358 1.69 1410 1.72 1488 1.93 1561 2.13 1174 1.37 1237 1.41 1292 1.55 1392 1.81 1460 1.90 1532 2.14 1584 2.28 1201 1.48 1272 1.53 1335 1.71 1427 1.94 1518 2.16 1575 2.35 1246 1.62 1320 1.68 1368 1.81 1458 2.06 1285 1.75 1361 1.82 1400 1.91 1490 2.19 1304 1.87 1402 1.95 1439 2.08 1345 2.07 1446 2.16 1477 2.16 1378 2.26 1489 2.36

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

1320 1.68 1368 1.81 1458 2.06 1562 2.42 1620 2.59 1361 1.82 1400 1.91 1490 2.19 1602 2.64 1666 2.85 1402 1.95 1439 2.08 1543 2.43 1642 2.86 1446 2.16 1477 2.16 1585 2.65 1489 2.36 1529 2.52 1598 2.73

1159 1.15 1214 1.28 1310 1.52 1375 1.63 1459 1.80 1528 1.95

0.2 0.4 0.6 0.8 1.0

1180 1.17 1261 1.35 1340 1.53 1428 1.66 1489 1.80 1567 1.99

1529 2.52 1598 2.73 ——————————

1335 1.71 1427 1.94 1518 2.16 1575 2.35

External Static Pressure (in. wg)

1147 0.97 1248 1.20 1322 1.33 1395 1.46 1475 1.56 1542 1.71 1175 1.11 1266 1.29 1356 1.47 1430 1.58 1504 1.69 1556 1.82

1562 2.42 1620 2.59 1675 2.77 ————

1543 2.43 1642 2.86 ———————— 1585 2.65 ——————————

1602 2.64 1666 2.85 ——————

External Static Pressure (in. wg)

1310 1.52 1375 1.63 1459 1.80 1358 1.69 1410 1.72 1488 1.93 1392 1.81 1460 1.90 1532 2.14

1633 2.53 1698 2.72 ——

1303 1.41 1397 1.52 1340 1.53 1428 1.66

1753 3.58 —— 1767 3.69 ——

1588 1.97

1603 2.17 1666 2.37 1637 2.35

1671 2.55 1756 2.70

1322 1.33 1356 1.47

1775 3.62

1626 2.16

1710 2.54

48HJ007 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000

LEGEND

Bhp — FIOP —

NOTES:

2. indicates field-supplied motor and drive required.

3. Motor dri ve range is 1120 to 1585 rp m for standard motors, 1130 to 168 5

4. Values include losses for filters, unit casing, and wet coils. See page 49 for

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

indicates field-supplied drive required. (See Note 3.)

rpm for high-static motors. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

1.2 1.4 1.6 1.8 2.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

1395 1.46 1475 1.56 1542 1.71 1607 1.94 1667 2.16 1430 1.58 1504 1.69 1556 1.82 1621 2.06 1682 2.30 1459 1.67 1532 1.82 1588 1.97 1655 2.23 1489 1.80 1567 1.99 1626 2.16 1528 1.95 1603 2.17 1666 2.37 1561 2.13 1637 2.35 1584 2.28 1671 2.55 1633 2.53 1675 2.77 1776 3.45 ————————

—————————— —————————— ——————————

1698 2.72

1768 3.26 ——————

External Static Pressure (in. wg)

1694 2.44 1758 2.73

1710 2.54 1782 2.87 1756 2.70

1779 3.13 ————

5. Maximum continuous bhp is 2.40 for standard motors, 2.90 for high-static motors. Extensive motor and electrical tes ting on these uni ts ensures that the full range of the moto r can be utili zed with confidence. Using your fan motors up to the ratings shown will not result in nuisanc e trippi ng or pr emature motor failure. Unit warranty will no t be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

1736 2.68

————

1717 2.49

—— ——

Page 36

Perf ormance data (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

48HJ008 (7

Airflow

(Cfm)

2200 506 0.52 586 0.72 656 0.95 718 1.18 776 1.43 838 1.78 2250 514 0.55 593 0.76 662 0.99 724 1.22 781 1.78 2300 521 0.57 600 0.79 668 1.02 730 1.26 786 1.50 2400 536 0.63 613 0.85 680 1.09 741 1.34 796 1.59 2500 551 0.69 626 0.93 693 1.17 753 1.43 808 1.69 2550 559 0.72 634 0.97 700 1.21 759 1.48 814 1.74 2600 567 0.75 641 1.00 706 1.25 764 1.52 819 1.79 2700 582 0.83 655 1.08 719 1.34 776 1.61 831 1.89 2800 598 0.90 670 1.17 732 1.43 789 1.71 2900 614 0.98 684 1.25 745 1.53 802 1.81 3000 630 1.07 699 1.35 759 1.63 815 1.92 3100 646 1.16 714 1.45 773 1.74 828 2.04 3200 662 1.26 729 1.55 787 1.86 3300 679 1.36 744 1.66 801 1.98 3400 695 1.47 759 1.78 816 2.10 3500 712 1.59 774 1.90 830 2.23 3600 729 1.71 790 2.03 3700 745 1.84 805 2.17 3750 754 1.91 813 2.24

/2 TONS) — STANDARD MOTOR (BELT DRIVE)

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rp m Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

845 2.37 895 2.71 860 2.52 909 2.87 868 2.59

External Static Pressure (in. wg)

841 1.81 902 2.25 939 2.60 843 1.83 905 2.28 943 2.62 849 1.88 910 2.31 952 2.74 859 1.96 912 2.31 963 2.81 864 2.01 915 2.34 968 2.81 869 2.06 918 2.37 973 2.81

842 2.00 892 2.29 938 2.58 854 2.11 903 2.42 949 2.71 866 2.23 915 2.54 961 2.85

841 2.16 891 2.48 938 2.81 854 2.29 904 2.61 867 2.42 917 2.75 881 2.56 930 2.90

917 2.95 963 3.30 ——————

878 2.35 926 2.67

943 3.05 988 3.41 ———— 956 3.22 ——————

880 2.17 927 2.47 976 2.84

950 2.95 995 3.30 —— 963 3.10 1007 3.45 —— 976 3.25 ————

898 2.21 935 2.58

983 2.92 993 3.03

972 3.00 1015 3.32 983 3.14 1026 3.47

1003 3.17

48HJ008 (7

Bhp — FIOP —

NOTES:

2. indicates field-supplied motor and drive required.

3. Motor drive range is 840 to 1085 rpm for standard motors; 860 to 1080 rpm

/2 TONS) — HIGH-STATIC MOT OR (BELT DRIVE)

Airflow

(Cfm)

2200 506 0.52 586 0.72 656 0.95 718 1.18 776 1.43 2250 514 0.55 593 0.76 662 0.99 724 1.22 781 1.48 2300 521 0.57 600 0.79 668 1.02 730 1.26 786 1.50 2400 536 0.63 613 0.85 680 1.09 741 1.34 796 1.59 2500 551 0.69 626 0.93 693 1.17 753 1.43 808 1.69 2550 559 0.72 634 0.97 700 1.21 759 1.48 814 1.74 2600 567 0.75 641 1.00 706 1.25 764 1.52 819 1.79 2700 582 0.83 655 1.08 719 1.34 776 1.61 831 1.89 2800 598 0.90 670 1.17 732 1.43 789 1.71 842 2.00 2900 614 0.98 684 1.25 745 1.53 802 1.81 854 2.11 3000 630 1.07 699 1.35 759 1.63 815 1.92 3100 646 1.16 714 1.45 773 1.74 828 2.04 3200 662 1.26 729 1.55 787 1.86 841 2.16 3300 679 1.36 744 1.66 801 1.98 854 2.29 3400 695 1.47 759 1.78 816 2.10 3500 712 1.59 774 1.90 830 2.23 3600 729 1.71 790 2.03 845 2.37 3700 745 1.84 805 2.17 860 2.52 3750 754 1.91 813 2.24

/2 TONS) — HIGH-STATIC MOT OR (BELT DRIVE) (cont)

Airflow

(Cfm)

2200 838 1.78 2250 841 1.81 2300 843 1.83 2400 849 1.88 2500 859 1.96 2550 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3750

LEGEND

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

indicates field-supplied drive required. (See Note 3.)

for high-static motors. All other rpms require a field-supplied drive.

0.2 0.4 0.6 0.8 1.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

1.2 1.4 1.6 1.8 2.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

864 2.01 915 2.34 968 2.81 1009 3.18 1047 3.55 869 2.06 918 2.37 973 2.81 1014 3.18 1052 3.55 880 2.17 927 2.47 976 2.84 1017 3.21 1055 3.59 892 2.29 938 2.58 983 2.92 1024 3.30 1063 3.69 903 2.42 949 2.71 993 3.03 1035 3.43 1074 3.83 915 2.54 961 2.85 1003 3.17 1045 3.59 926 2.67 972 3.00 1015 3.32 1058 3.76 938 2.81 983 3.14 1026 3.47 1069 3.93 950 2.95 995 3.30 1043 3.80 963 3.10 1007 3.45 1055 3.97 976 3.25 1030 3.82

988 3.41 1043 4.01 1019 3.90 1026 4.00

898 2.21 935 2.58 974 2.92 1011 3.26 902 2.25 939 2.60 979 2.94 1015 3.29 905 2.28 943 2.62 983 2.96 1020 3.31 910 2.31 952 2.74 992 3.10 1029 3.46 912 2.31 963 2.81 1004 3.18 1041 3.55

1075 4.58 1127 5.27 1174 5.97 1218 6.67 1083 4.70 1135 5.41 1183 6.12 1227 6.83

External Static Pressure (in. wg)

866 2.23 878 2.35 891 2.48

867 2.42 917 2.75 881 2.56 930 2.90 895 2.71 943 3.05

868 2.59 917 2.95 963 3.30

External Static Pressure (in. wg)

1079 4.40 1125 4.97 1167 5.56 1093 4.61 1139 5.22 1181 5.83

4. Values include losses for filters, unit casing, and wet coils. See page 49 for accessory/FIOP static pressure information.

5. Maximum continuous bhp is 2.90 for standard motors, 4.20 for high-static motors. Extensive motor and electrical tes ting on these uni ts ensures that the full range of the moto r can be utili zed with confidence. Using your fan motors up to the ratings shown will not result in nuisanc e trippi ng or pr emature motor failure. Unit warranty will no t be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

909 2.87 956 3.22

1086 4.30 1127 4.80 1100 4.49 1141 5.02

904 2.61

1084 4.01

1097 4.20 1109 4.39

Page 37

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

48HJ009 (8

Airflow

Bhp — FIOP —

NOTES:

2. indicates field-supplied motor and drive required.

3. Motor drive range is 840 to 1085 rpm for standard motors; 860 to 1080 rpm

4. Values include losses for filters, unit casing, and wet coils. See page 49 for

/2 TONS) — STANDARD MOTOR (BELT DRIVE)

(Cfm)

2550 559 0.72 634 0.97 700 1.21 759 1.48 814 1.74 2600 567 0.75 641 1.00 706 1.25 764 1.52 819 1.79 2700 582 0.83 655 1.08 719 1.34 776 1.61 831 1.89 2800 598 0.90 670 1.17 732 1.43 789 1.71 2900 614 0.98 684 1.25 745 1.53 802 1.81 3000 630 1.07 690 1.35 759 1.63 815 1.92 3100 646 1.16 714 1.45 773 1.74 828 2.04 3200 662 1.26 729 1.55 787 1.86 3300 679 1.36 744 1.66 801 1.98 3400 695 1.47 759 1.78 816 2.10 3500 712 1.59 774 1.90 830 2.23 3600 729 1.71 790 2.03 3700 745 1.84 805 2.17 3750 754 1.91 813 2.24 3800 762 1.98 821 2.31 3900 779 2.12 836 2.46 4000 796 2.27 4100 813 2.42 4200 830 2.59 4250 839 2.68 4300

Boldface

for high-static motors. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

845 2.37 895 2.71 860 2.52 909 2.87 868 2.59 875 2.66

852 2.61 868 2.78 884 2.95 935 3.33 ——————————

847 2.76

LEGEND

Brake Horsepower Input to Fan Factory-Installed Option

indicates field-supplied drive required. (See Note 3.)

890 3.04 ———————————— 900 3.13 ————————————

890 2.82 905 2.98 953 3.37 ———————— 920 3.15 ——————————

External Static Pressure (in. wg)

842 2.00 892 2.29 938 2.58 854 2.11 903 2.42 949 2.71 866 2.23 915 2.54 961 2.85

841 2.16 891 2.48 938 2.81 854 2.29 904 2.61 867 2.42 917 2.75 881 2.56 930 2.90

917 2.95 963 3.30 —————— 924 3.03 970 3.38 —————— 938 3.19 ————————

878 2.35 926 2.67

943 3.05 988 3.41 ———— 956 3.22 ——————

6. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

864 2.01 915 2.34 968 2.81 869 2.06 918 2.37 973 2.81 880 2.17 927 2.47 976 2.84

972 3.00 1016 3.32

950 2.95 995 3.30 —— 963 3.10 1007 3.45 —— 976 3.25 ————

983 3.14 1026 3.47

983 2.92 993 3.03

1003 3.17

Page 38

Perf ormance data (cont)

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

48HJ009 (8

/2 TONS) — HIGH-STATIC MOT OR (BELT DRIVE)

Airflow

(Cfm)

2550 559 0.72 634 0.97 700 1.21 759 1.48 814 1.74 2600 567 0.75 641 1.00 706 1.25 764 1.52 819 1.79 2700 582 0.83 655 1.08 719 1.34 776 1.61 831 1.89 2800 598 0.90 670 1.17 732 1.43 789 1.71 842 2.00 2900 614 0.98 684 1.25 745 1.53 802 1.81 854 2.11 3000 630 1.07 690 1.35 759 1.63 815 1.92 3100 646 1.16 714 1.45 773 1.74 828 2.04 3200 682 1.26 729 1.55 787 1.86 841 2.16 3300 679 1.36 744 1.66 801 1.98 854 2.29 3400 695 1.47 759 1.78 816 2.10 3500 712 1.59 774 1.90 830 2.23 3600 729 1.71 790 2.03 845 2.37 3700 745 1.84 805 2.17 3750 754 1.91 813 2.24 3800 762 1.98 821 2.31 3900 779 2.12 836 2.46 4000 796 2.27 852 2.61 4100 813 2.42 4200 830 2.59 4250 839 2.68 4300 847 2.76

0.2 0.4 0.6 0.8 1.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

868 2.78 920 3.15 974 3.74 884 2.95 935 3.33 990 3.96 890 3.04 965 3.88 900 3.13 976 3.99

External Static Pressure (in. wg)

867 2.42 917 2.75 881 2.56 930 2.90

860 2.52 909 2.87 956 3.22 868 2.59 917 2.95 963 3.30 875 2.66 924 3.03 970 3.38 890 2.82 938 3.19 981 3.65 905 2.98 953 3.37 996 3.85

895 2.71 943 3.05

1022 4.61 1069 5.27 1034 4.74 1081 5.42

866 2.23 878 2.35 891 2.48 904 2.61

1019 4.28 1036 4.52

48HJ009 (81/2 TONS) — HIGH-STATIC MOT OR (BELT DRIVE) (cont)

Airflow

(Cfm)

2550 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3750 3800 3900 4000 4100 4200 4250 4300

LEGEND

Bhp — FIOP —

NOTES:

2. indicates field-supplied motor and drive required.

3. Motor drive range is 840 to 1085 rpm for standard motors; 860 to 1080 rpm

4. Values include losses for filters, unit casing, and wet coils. See page 49 for

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

indicates field-supplied drive required. (See Note 3.)

for high-static motors. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

1.2 1.4 1.6 1.8 2.0

RpmBhpRpmBhpRpmBhpRpmBhpRpmBhp

864 2.01 915 2.34 968 2.81 991 3.02 1012 3.21 869 2.06 918 2.37 973 2.81 996 3.02 1017 3.21 880 2.17 927 2.47 976 2.84 999 3.05 1021 3.25 892 2.29 938 2.58 983 2.92 1006 3.13 1028 3.34 903 2.42 949 2.71 993 3.03 1017 3.25 1038 3.46 915 2.54 961 2.85 1003 3.17 1027 3.40 1049 3.62 926 2.67 972 3.00 1016 3.32 1040 3.56 1062 3.80 938 2.81 983 3.14 1026 3.47 1050 3.72 1073 3.97 950 2.95 995 3.30 1022 3.58 1046 3.84 1069 4.09 963 3.10 1007 3.45 1034 3.74 1059 4.01 976 3.25 1007 3.56 1034 3.86 1058 4.15 988 3.41 1019 3.74 1047 4.05 992 3.59 1023 3.94

999 3.68 1030 4.04 1006 3.77 1038 4.14 1017 4.07 1034 4.30 1066 4.71 1095 5.11 1121 5.48 1145 5.84 1057 4.77 1090 5.24 1119 5.67 1146 6.09 1170 6.49 1074 5.05 1108 5.54 1138 6.00 1165 6.44 1190 6.86 1109 5.88 1143 6.45 1174 6.98 1202 7.50 1228 7.98 1121 6.05 1156 6.64 1188 7.19 1216 7.72 1242 8.22

1049 4.46 1077 4.84 1103 5.19 1127 5.53

External Static Pressure (in. wg)

1081 4.27

1050 4.27 1075 4.58 1098 4.88 1058 4.38 1083 4.70 1106 5.00 1066 4.48 1091 4.81 1114 5.12

6. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

1071 4.35 1094 4.63

1081 4.42

Page 39

FAN PERFORMANCE — VERTICAL DISCHARGE UNITS (cont)

48HJ012 (10 TONS) — STANDARD AND HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

3000 556 0.65 624 0.81 682 0.95 737 0.99 745 1.04 750 1.12 809 1.24 3100 569 0.70 636 0.87 693 1.01 748 1.08 755 1.12 757 1.20 3200 583 0.76 649 0.94 705 1.08 758 1.17 787 1.30 769 1.36 3300 597 0.83 662 1.00 717 1.16 770 1.29 815 1.37 780 1.43 3400 611 0.90 675 1.08 730 1.23 781 1.41 3500 625 0.97 688 1.15 742 1.32 792 1.49 3600 639 1.04 701 1.23 755 1.41 803 1.57 3700 729 1.36 790 1.58 3800 745 1.46 805 1.69 3900 761 1.56 820 1.80 4000 777 1.67 4100 793 1.79 4200 810 1.91 4300 826 2.04 4400 4500 4600 4700 4800 4900 5000

Bhp — FIOP —

NOTES:

Boldface

2. indicates high static motor and drive required.

3. Motor drive range is 860 to 1080 rpm for standard motors; 830 to 1130 rpm for high-static motors. All other rpms require a field-supplied drive.

4. Values include losses for filters, unit casing, and wet coils. See page 49 for accessory/FIOP static pressure information.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bh p Rpm Bhp Rpm Bhp

847 1.79 902 2.06 955 2.29 1008 2.55 1060 2.80 1108 3.05 861 1.89 915 2.17 967 2.41 1019 2.67 1070 2.94 1118 3.19

836 1.92 889 2.14 941 2.40 991 2.68 1040 2.94 1089 3.22 851 2.05 904 2.27 955 2.52 1004 2.82 1052 3.08 1100 3.36 867 2.18 918 2.41 968 2.65 1017 2.96 1064 3.23 1110 3.51

842 2.17 898 2.46 948 2.70 996 2.93 1043 3.25 1088 3.56 859 2.31 914 2.60 962 2.85 1010 3.09 1056 3.40 876 2.45 930 2.76 977 3.01 1024 3.26 1070 3.55 892 2.60 945 2.91 992 3.18 1039 3.43 909 2.77 961 3.07 1008 3.36 1053 3.61 926 2.93 977 3.24 1024 3.54 942 3.11 993 3.41

LEGEND

Brake Horsepower Input to Fan Factory-Installed Option

indicates field-supplied drive required. (See Note 3.)

883 2.32 933 2.55 982 2.79 1030 3.11 1076 3.40 1121 3.67

875 2.01 928 2.29 979 2.55 1029 2.80 1079 3.07 1128 3.34

1039 3.73 1080 3.99 1125 4.25

1068 3.80 1111 4.06

External Static Pressure (in. wg)

862 1.38 903 1.53 943 1.88 971 2.21 905 1.52 971 1.86 982 2.19 992 2.41

830 1.50 838 1.63 992 2.11 1015 2.43 1030 2.62 1050 2.72 840 1.64 860 1.85 1011 2.45 1028 2.62 1072 2.74 1099 2.90 850 1.87 890 2.21 1026 2.55 1063 2.75 1095 2.89 1119 3.08

1101 3.73

1083 3.71 1126 4.07 1097 3.88

1114 3.90

1140 4.25 1181 4.58 1222 4.87 1263 5.20 1153 4.41 1194 4.77 1234 5.09 1166 4.59 1207 4.97

5. Maximum continuous bhp is 3.70 for standard motors, 5.25 for high-static motors. Extensive motor and electrical tes ting on these uni ts ensures that the full range of the moto r can be utili zed with confidence. Using your fan motors up to the ratings shown will not result in nuisanc e trippi ng or pr emature motor failure. Unit warranty will no t be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

965 1.82 991 2.10 1000 2.40 1025 2.59

1133 3.84 1178 4.14 1222 4.44 1265 4.74 1144 4.00 1188 4.31 1232 4.62 1274 4.93 1157 4.19 1199 4.49 1242 4.81 1284 5.13 1169 4.38 1210 4.68 1252 5.00

875 1.40 899 1.56 950 1.92

1152 3.27 1190 3.46 1163 3.44 1203 3.65

1137 3.49 1183 3.76 1225 4.00 1147 3.65 1193 3.93 1236 4.19 1157 3.81 1202 4.09 1245 4.38 1167 3.97 1212 4.27 1255 4.56

——————

1173 3.60 1214 3.83

——

————

——

48HJ014 (121/2 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 876 2.45 4700 892 2.60 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000 6100 6200

Bhp — FIOP —

NOTES:

Boldface

2. Standard drive range is 900 to 1260 rpm.

3. Values include losses for filters, unit casing, and wet coils. See page 49 for accessory/FIOP static pressure information.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

——————902 2.06 955 2.29 1008 2.55 1060 2.80 1108 3.05 1152 3.27 1190 3.46 ———— ———— ———— ————904 2.27 955 2.52 1004 2.82 1052 3.08 1100 3.36 1147 3.65 1193 3.93 1236 4.19 —— —— —— ——914 2.60 962 2.85 1010 3.09 1056 3.40 1101 3.73 1144 4.00 1188 4.31 1232 4.62

909 2.77 961 3.07 1008 3.36 1053 3.61 1097 3.88 1140 4.25 1181 4.58 1222 4.87 926 2.93 977 3.24 1024 3.54 1068 3.80 1111 4.06 1153 4.41 1194 4.77 1234 5.09 ———— 942 3.11 993 3.41 1039 3.73 1080 3.99 1125 4.25 1166 4.59 1207 4.97 —————— 959 3.29 1009 3.60 1055 3.92 1097 4.19 1139 4.46 1180 4.78 1220 5.18 —————— 976 3.47 1025 3.78 1071 4.12 1112 4.40 1153 4.67 1194 4.98 ————————

993 3.67 1041 3.98 1086 4.33 1127 4.61 1168 4.90 1208 5.19 ———————— 1010 3.87 1057 4.18 1102 4.54 1142 4.84 1182 5.13 —————————— 1027 4.07 1073 4.39 1118 4.76 1157 5.07 ———————————— 1043 4.29 1090 4.61 1133 4.99 —————————————— 1060 4.51 1106 4.83 1149 5.22 —————————————— 1077 4.74 1122 5.07 ———————————————— 1094 4.98 —————————————————— 1111 5.22 ——————————————————

————————————————————

LEGEND

Brake Horsepower Input to Fan Factory-Installed Option

indicates field-supplied drive required. (See Note 2.)

867 2.18 883 2.32 898 2.46

930 2.76 977 3.01 1024 3.26 1070 3.55 1114 3.90 1157 4.19 1199 4.49 1242 4.81 945 2.91 992 3.18 1039 3.43 1083 3.71 1126 4.07 1169 4.38 1210 4.68 1252 5.00 ——

861 1.89 875 2.01 889 2.14

918 2.41 968 2.65 1017 2.96 1064 3.23 1110 3.51 1157 3.81 1202 4.09 1245 4.38 933 2.55 982 2.79 1030 3.11 1076 3.40 1121 3.67 1167 3.97 1212 4.27 1255 4.56 948 2.70 996 2.93 1043 3.25 1088 3.56 1133 3.84 1178 4.14 1222 4.44

915 2.17 967 2.41 1019 2.67 1070 2.94 1118 3.19 1163 3.44 1203 3.65 928 2.29 979 2.55 1029 2.80 1079 3.07 1128 3.34 1173 3.60 1214 3.83 941 2.40 991 2.68 1040 2.94 1089 3.22 1137 3.49 1183 3.76 1225 4.00

External Static Pressure (in. wg)

1265 4.74 1274 4.93 1284 5.13

1263 5.20

4. Maximum continuous bhp is 5.25 for standar d motor. Exten sive motor an d electrical testi ng on these uni ts ensure s that the full range o f the m otor can be utilized with c onfidence. Us ing your fan motors up to the ratings shown will not result in nuisance trippi ng or premature motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data table on page 47 for additional information.

5. Use of a fiel d-supplied motor may affect wire sizing. Co ntact your Carrier representative to verify.

6. Interpolation is permissible. Do not extrapolate.

——

Page 40

Perf ormance data (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS

48HJ004 (3 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

900 526 0.06 584 0.08 656 0.12 734 0.22 1000 570 0.09 627 0.13 738 0.19 1100 614 0.13 670 0.16 758 0.23 1200 658 0.16 710 0.23 1300 703 0.20 752 0.27 1400 725 0.29 1500 755 0.33

48HJ004 (3 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

900 1000 1100 1200 1300 1400 1500

48HJ004 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

900 584 0.08 734 0.22 875 0.27 953 0.36 1028 0.42 1000 627 0.13 800 0.26 895 0.31 977 0.39 1064 0.48 1100 670 0.16 812 0.29 914 0.35 1005 0.43 1200 710 0.23 840 0.32 938 0.40 1038 0.50 1300 752 0.27 868 0.37 963 0.45 1061 0.56 1400 776 0.31 891 0.42 983 0.51 1071 0.60 1500 816 0.38 924 0.48 1014 0.58

0.1 0.2 0.3 0.4 0.5 0.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bh p

776 0.31 845 0.38 891 0.42 937 0.47 983 0.51 816 0.38 870 0.43 924 0.48 969 0.53 1014 0.58

0.7 0.8 0.9 1.0 1.1 1.2

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bh p

924 0.32 953 0.35 989 0.38 1028 0.42 1074 0.45 936 0.35 977 0.39 1020 0.44 1064 0.48 960 0.39 1005 0.43 1052 0.49

988 0.45 1038 0.50 1076 0.53 1012 0.51 1061 0.56 1027 0.56 1071 0.60 1056 0.63

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1097 0.68 1117 0.70 1245 0.74 1315 0.80 1385 0.85

External Static Pressure (in. wg)

800 0.26 848 0.29 895 0.31

780 0.28 840 0.32 889 0.36 938 0.40 808 0.32 868 0.37 916 0.41 963 0.45

External Static Pressure (in. wg)

1094 0.61 1172 0.65 1239 0.69 1306 0.72 1108 0.67 1208 0.70 1278 0.75 1347 0.79

External Static Pressure (in. wg)

812 0.29 863 0.32 914 0.35

1100 0.52 1163 0.56 1225 0.60 1136 0.59 1201 0.61 1266 0.64

818 0.25 875 0.27

1124 0.52 1185 0.55

1100 0.52 1136 0.59 1172 0.65

1097 0.68 1245 0.74

1208 0.70

1120 0.50

48HJ004 (3 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

900 1000 1100 1200 1300 1400 1500

LEGEND

Bhp — FIOP —

NOTES:

2. Motor dri ve range i s 760 to 1090 r pm for standard motors; 1075 to 145 5 rp m

3. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

indicates field-supplied drive required. (See Note 3.) for high-static motors. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1120 0.54 1155 0.59 1186 0.64 1215 0.69 1240 0.73 1185 0.60 1222 0.66 1255 0.71 1285 0.77 1312 0.82 1225 0.65 1263 0.71 1298 0.77 1328 0.83 1357 0.88 1266 0.72 1306 0.79 1341 0.86 1373 0.92 1402 0.98 1306 0.79 1347 0.87 1383 0.94 1416 1.01 1446 1.07 1347 0.87 1389 0.95 1427 1.03 1385 0.96 1428 1.05

External Static Pressure (in. wg)

1467 1.14 1502 1.22 1534 1.30

4. Maximum c ontinuous bhp is 1 .20 for standard motors; 2.4 0 for high-static motors. Extensive motor and electrical testing on these units ensures that the full range of the motor ca n be utili zed with con fidence. Us ing your fan motors up to the ratings shown will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

5. Use of a field-supplied motor may affect wire sizing. Contact your Carrier representative to verify.

6. Interpolation is permissible. Do not extrapolate.

1461 1.11 1492 1.18

Page 41

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

48HJ005 (4 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 569 0.18 641 0.23 701 0.29 761 0.34 1300 604 0.22 673 0.28 731 0.34 788 0.39 1400 640 0.27 705 0.33 761 0.39 817 0.45 1500 676 0.32 738 0.38 793 0.45 1600 713 0.38 772 0.44 825 0.51 1700 750 0.45 806 0.51 1800 788 0.52 1900 826 0.60 2000

48HJ005 (4 TONS) — STANDARD MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1200 1300 1400 1500 1600 1700 1800 1900 2000

48HJ005 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1200 641 0.23 761 0.34 859 0.46 943 0.58 1030 0.70 1300 673 0.28 788 0.39 887 0.52 968 0.65 1044 0.77 1400 705 0.33 817 0.45 914 0.59 996 0.72 1069 0.86 1500 738 0.38 847 0.51 940 0.65 1024 0.81 1600 772 0.44 877 0.58 967 0.73 1051 0.89 1700 806 0.51 908 0.66 997 0.81 1800 841 0.59 939 0.75 1026 0.91 1900 876 0.68 971 0.84 1056 1.01 2000 912 0.77 1004 0.94

0.1 0.2 0.3 0.4 0.6 0.7 0.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

841 0.59 890 0.67 939 0.75 1026 0.91 1065 1.01 1104 1.07

864 0.70 912 0.77 958 0.86 1004 0.94 1087 1.12

0.9 1.0 1.1 1.2 1.4 1.6 1.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

987 0.64 1030 0.70 1068 0.79 1106 0.87 1134 0.98 1006 0.71 1044 0.77 1086 0.84 1128 0.91 1183 1.10 1033 0.79 1069 0.86 1104 0.93 1139 1.01 1060 0.88 1095 0.95 1129 1.02 1162 1.09 1087 1.01 1123 1.05 1156 1.13 1185 1.20 1114 1.07 1151 1.15 1141 1.17 1168 1.28 1204 1.37 1238 1.47 1271 1.56 1330 1.74 1386 1.93 1439 2.11 1197 1.39 1231 1.48 1265 1.59 1298 1.69 1358 1.89 1413 2.08 1466 2.27

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

876 0.68 924 0.76 971 0.84 1056 1.01 1094 1.10 1132 1.18

1178 1.26 1211 1.35 1243 1.43 1303 1.61 1359 1.78 1418 1.95

0.2 0.4 0.6 0.8 1.0

857 0.59 908 0.66 997 0.81 1037 0.90 1077 1.01

1183 1.23 1215 1.31 1276 1.48 1334 1.64 1398 1.80

External Static Pressure (in. wg)

847 0.51 940 0.65 982 0.73 1024 0.81 877 0.58 967 0.73 1009 0.81 1051 0.89

External Static Pressure (in. wg)

1218 1.14

1228 1.24 1303 1.40 1343 1.60 1250 1.35 1319 1.51 1382 1.68

External Static Pressure (in. wg)

1087 1.12 1162 1.30 1231 1.48

859 0.46 901 0.52 943 0.58 887 0.52 928 0.59 968 0.65 914 0.59 955 0.66 996 0.72

1125 1.21 1162 1.30

1189 1.12

1226 1.23 1297 1.35 1286 1.34 1320 1.48

1095 0.95

1077 1.01 1151 1.15 1104 1.07 1178 1.26 1132 1.18 1204 1.37

1123 1.05

1245 1.21

48HJ005 (4 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1200 1300 1400 1500 1600 1700 1800 1900 2000

LEGEND

Bhp — FIOP —

NOTES:

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

2. indicates field-supplied motor and drive required.

3. Motor drive range is 840 to 1185 rpm for standard units; 1075 to 1455 rpm for

4. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for

indicates field-supplied drive required. (See Note 3.)

high-static motors. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1106 0.87 1134 0.98 1189 1.12 1245 1.21 1292 1.35 1128 0.91 1183 1.10 1226 1.23 1297 1.35 1346 1.51 1139 1.01 1218 1.14 1286 1.34 1320 1.48 1370 1.65 1162 1.09 1228 1.24 1303 1.40 1343 1.60 1393 1.79 1185 1.20 1250 1.35 1319 1.51 1382 1.68 1434 1.88 1215 1.31 1276 1.48 1334 1.64 1398 1.80 1451 2.01 1243 1.43 1303 1.61 1359 1.78 1418 1.95 1271 1.56 1330 1.74 1386 1.93 1439 2.11 1298 1.69 1358 1.89 1413 2.08

External Static Pressure (in. wg)

5. Maximum c ontinuous bhp is 1 .20 for standard motors; 2.4 0 for high-static motors. Extensive motor and electrical testing on these units ensures that the full range of the motor ca n be utili zed with con fidence. Us ing your fan motors up to the ratings shown will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

1466 2.27

1471 2.18 1493 2.36

15.21 2.54

Page 42

Perf ormance data (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

48HJ006 (5 TONS) — STANDARD MOTOR (BELT DRIVE) — SINGLE PHASE UNITS

Airflow

(Cfm)

1500 741 0.38 798 0.43 895 0.54 990 0.67 1600 783 0.45 838 0.51 933 0.63 1016 0.75 1700 825 0.53 878 0.60 969 0.72 1800 885 0.63 942 0.73 1900 928 0.73 982 0.83 2000 971 0.84 2100 1015 0.97 2200 2300 2400 2500

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rp m Bhp Rpm Bhp Rpm Bhp Bhp Rpm Bhp Rpm Bhp Rpm

1047 0.90 1139 1.05 1193 1.14 1276 1.30

1022 0.94 1121 1.12 1188 1.22

1060 1.10 1104 1.20 1159 1.23 1104 1.25 1130 1.27 1138 1.30 1183 1.43 1201 1.50 1284 1.65 1338 1.75 1402 1.99 1469 2.04 1524 2.24 1585 2.42 1638 2.60

1063 1.10 1140 1.18 1196 1.27

1174 1.37 1245 1.57 1305 1.63 1373 1.84 1440 1.95 1502 2.06 1552 2.24 1604 2.42

1084 1.02 1160 1.11 1223 1.24

1196 1.37 1264 1.56 1340 1.66 1397 1.86 1459 1.88 1520 2.07 1576 2.24

External Static Pressure (in. wg)

1073 0.80 1154 0.95 1218 1.12

1049 0.84 1134 1.00 1206 1.14

1229 1.41 1306 1.53 1363 1.70 1434 1.81 1487 1.85 1554 2.07

1102 0.90 1182 1.04 1251 1.20

1254 1.36 1329 1.44 1396 1.66 1460 1.68 1509 1.77 1272 1.45 1354 1.58 1413 1.75 1475 1.73 1529 1.92

1295 1.36 1360 1.40

1281 1.31 1342 1.48 1398 1.53

1301 1.38 1374 1.53 1437 1.62 1490 1.67

1341 1.40 1413 1.55 1474 1.58

1310 1.40 1385 1.49

48HJ006 (5 TONS) — STANDARD MOTOR (BELT DRIVE) — 3 PHASE UNITS

Airflow

(Cfm)

1500 741 0.38 798 0.43 895 0.54 990 0.67 1073 0.80 1600 783 0.45 838 0.51 933 0.63 1016 0.75 1102 0.90 1700 825 0.53 878 0.60 969 0.72 1049 0.84 1800 885 0.63 942 0.73 1047 0.90 1900 928 0.73 982 0.83 1084 1.02 2000 971 0.84 1022 0.94 2100 1015 0.97 1063 1.10 2200 1060 1.10 1104 1.20 2300 1104 1.25 2400 2500

48HJ006 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1500 789 0.40 896 0.53 990 0.67 1072 0.83 1153 1.00 1600 826 0.46 931 0.61 1020 0.75 1101 0.91 1178 1.09 1700 865 0.54 966 0.69 1051 0.84 1133 1.01 1205 1.18 1800 905 0.62 1002 0.78 1084 0.93 1163 1.10 1235 1.29 1900 945 0.72 1037 0.88 1119 1.04 1194 1.21 1266 1.40 2000 984 0.82 1072 0.98 1154 1.16 1226 1.33 1297 1.53 2100 1024 0.93 1108 1.10 1192 1.29 1259 1.47 2200 1064 1.05 1145 1.22 1225 1.43 1294 1.62 2300 1104 1.18 1183 1.36 1260 1.57 2400 1145 1.32 1222 1.45 1296 1.73 2500 1186 1.48 1262 1.68

48HJ006 (5 TONS) — HIGH-STATIC MOTOR (BELT DRIVE) (cont)

Airflow

(Cfm)

1500 1221 1.17 1256 1.30 1600 1252 1.27 1700 1278 1.37 1800 1900 2000 2100 2200 2300 2400 2500

LEGEND

Bhp — FIOP —

NOTES:

Boldface

2. indicates field-supplied motor and drive required.

3. Motor drive range is 1020 to 1460 rpm for single-phase sta ndard units, 1120 to 1585 for 3-phase standard uni ts, and 1 300 to 16 85 for high-stati c units. All other rpms require a field-supplied drive.

4. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for accessory/FIOP static pressure information.

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rp m Bhp Rpm Bhp Rpm Bhp Bhp Rpm Bhp Rpm Bhp Rpm

1121 1.12 1188 1.22 1254 1.36 1329 1.44 1396 1.66 1460 1.68 1509 1.77 1140 1.18 1196 1.27 1272 1.45 1354 1.58 1413 1.75 1475 1.73 1529 1.92

1138 1.30 1174 1.37 1245 1.57 1305 1.63 1373 1.84 1440 1.95 1502 2.06 1552 2.24 1183 1.43 1201 1.50 1284 1.65 1338 1.75 1402 1.99 1469 2.04 1524 2.24

Brake Horsepower Input to Fan Factory-Installed Option

indicates field-supplied drive required. (See Note 3.)

1130 1.27 1196 1.37 1264 1.56 1340 1.66 1397 1.86 1459 1.88 1520 2.07 1576 2.24

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1303 1.48 1371 1.69 1433 1.90 1480 2.09 1528 2.30 1330 1.59 1396 1.80 1460 2.03 1517 2.25 1566 2.47 1362 1.73 1422 1.94 1485 2.16 1544 2.40 1594 2.64 1393 1.87 1452 2.08 1510 2.31 1570 2.55 1620 2.80 1423 2.02 1483 2.24 1538 2.46 1594 2.71 1454 2.18 1515 2.41 1571 2.64 1623 2.88 1485 2.36 1544 2.59 1604 2.84 1518 2.55 1574 2.78

1159 1.23 1229 1.41 1306 1.53 1363 1.70 1434 1.81 1487 1.85 1554 2.07

1311 1.45 1340 1.58 1330 1.61 1373 1.77 1345 1.57 1397 1.76 1424 1.89 1470 2.08

External Static Pressure (in. wg)

1154 0.95 1218 1.12 1295 1.36 1360 1.40

1139 1.05 1193 1.14 1276 1.30 1341 1.40 1413 1.55 1474 1.58 1160 1.11 1223 1.24 1301 1.38 1374 1.53 1437 1.62 1490 1.67

1134 1.00 1206 1.14 1281 1.31 1342 1.48 1398 1.53

External Static Pressure (in. wg)

1331 1.89 1400 2.12 1461 2.34

External Static Pressure (in. wg)

1283 1.32 1303 1.22 1345 1.34

1633 3.03 1692 3.28 1746 3.61

5. Maximum co ntinuous bhp is 1.30 for single-phas e standard units, 2.40 for

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier rep-

7. Interpolation is permissible. Do not extrapolate.

1182 1.04 1251 1.20 1310 1.40 1385 1.49

1585 2.42 1638 2.60

1327 1.66

1330 1.78 1392 1.97 1365 1.94 1426 2.15

1657 3.07 1710 3.38

3-phase standar d motors, and 2.90 for high-static motors. Ext ensive motor and electrical testing on these units ensures that the full range of the motor can be utilized with confidence. Using your fan motors up to the ratings shown will not resul t in nuisance tr ipping or premature mo tor failure. Unit warranty will not be a ffected. See Evaporat or-Fan Motor Data tables on pages 4 7 an d 48 for additional information.

resentative to verify.

1359 1.80

1645 2.98 1676 3.17

1604 2.42

Page 43

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

48HJ007 (6 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 885 0.63 942 0.73 1047 0.90 1900 928 0.73 982 0.83 1084 1.02 2000 971 0.84 1022 0.94 2100 1015 0.97 1063 1.10 2200 1060 1.10 1104 1.20 2300 1104 1.25 2400 2500 2600 2700 2800 2900 3000

48HJ007 (6 TONS) — HIGH-STATIC MOTOR (BELT DRIVE)

Airflow

(Cfm)

1800 942 0.73 1047 0.90 1139 1.05 1193 1.14 1276 1.30 1900 982 0.83 1084 1.02 1160 1.11 1223 1.24 2000 1022 0.94 1121 1.12 1188 1.22 1264 1.36 2100 1063 1.10 1140 1.18 1196 1.27 1272 1.45 2200 1104 1.20 1159 1.23 1229 1.41 2300 1130 1.27 1196 1.37 1264 1.56 2400 1174 1.37 1245 1.57 2500 1201 1.50 1284 1.65 2600 1246 1.67 2700 1285 1.80 2800 2900 3000

LEGEND

Bhp — FIOP —

NOTES:

Boldface

2. indicates field-supplied motor and drive required.

3. Motor drive range is 1120 to 1585 rpm for standard motors; 1300 to 1685 rpm for high-static motors. All other rpms require a field-supplied drive.

4. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for accessory/FIOP static pressure information.

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rp m Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1121 1.12 1188 1.22 1254 1.36 1329 1.44 1396 1.66 1460 1.68 1509 1.77 1140 1.18 1196 1.27 1272 1.45 1354 1.58 1413 1.75 1475 1.73 1529 1.92

1138 1.30 1174 1.37 1245 1.57 1305 1.63 1373 1.84 1440 1.95 1502 2.06 1552 2.24 1183 1.43 1201 1.50 1284 1.65 1338 1.75 1402 1.99 1469 2.04 1524 2.24 1210 1.58 1243 1.67 1312 1.76 1366 1.96 1435 2.10 1494 2.19 1552 2.40 1254 1.76 1285 1.80 1354 1.95 1403 2.14 1474 2.21 1274 1.82 1304 1.85 1374 2.12 1459 2.25 1318 1.95 1345 2.05 1412 2.32 1362 2.20 1378 2.30 1451 2.40

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1304 1.85 1374 2.12 1459 2.25 1514 2.42 1570 2.66 1624 2.85 1345 2.05 1412 2.32 1496 2.54 1529 2.61 1603 2.87 1378 2.30 1451 2.40 1534 2.66 1560 2.81

Brake Horsepower Input to Fan Factory-Installed Option

indicates field-supplied drive required. (See Note 3.)

1130 1.27 1196 1.37 1264 1.56 1340 1.66 1397 1.86 1459 1.88 1520 2.07 1576 2.24

1312 1.76 1366 1.96 1435 2.10 1494 2.19 1552 2.40 1616 2.63 1671 2.80 1354 1.95 1403 2.14 1474 2.21 1536 2.46 1584 2.61 1646 2.83

1159 1.23 1229 1.41 1306 1.53 1363 1.70 1434 1.81 1487 1.85 1554 2.07

1306 1.53 1363 1.70 1434 1.81 1487 1.85 1554 2.07 1604 2.28 1651 2.48

1305 1.63 1373 1.84 1440 1.95 1502 2.06 1552 2.24 1604 2.42 1656 2.66 1338 1.75 1402 1.99 1469 2.04 1524 2.24 1585 2.42 1638 2.60

1340 1.66 1397 1.86 1459 1.88 1520 2.07 1576 2.24 1627 2.46 1674 2.68

External Static Pressure (in. wg)

1139 1.05 1193 1.14 1276 1.30 1341 1.40 1413 1.55 1474 1.58 1160 1.11 1223 1.24 1301 1.38 1374 1.53 1437 1.62 1490 1.67

1496 2.45 1529 2.61 1603 2.87 1671 3.03 ———— 1534 2.66 1560 2.81 1611 3.01 ——————

External Static Pressure (in. wg)

1301 1.38 1374 1.53 1437 1.62 1490 1.67 1538 1.84 1583 2.00 1329 1.44 1396 1.66 1460 1.68 1509 1.77 1558 1.95 1603 2.12 1354 1.58 1413 1.75 1475 1.73 1529 1.92 1578 2.11 1624 2.30

1611 3.01 1692 3.49 1764 3.95 ——————

1585 2.42 1638 2.60

1514 2.42 1570 2.66 1624 2.85 1677 2.99 ——

1341 1.40 1413 1.55 1474 1.58 1522 1.74 1566 1.89

1671 3.03 1742 3.43 ——————

5. Maximum continuous bhp is 2.4 for standard motors; 2.9 for high-static

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier rep-

7. Interpolation is permissible. Do not extrapolate.

1536 2.46 1584 2.61 1646 2.83 1706 2.97

1677 2.99 1739 3.33 1795 3.67 ——

motors. Extensive motor and electrical testing on these units ensures that the full range of the motor ca n be utili zed with con fidence. Us ing your fan motors up to the ratings shown will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

resentative to verify.

1706 2.97 1761 3.27 ——

1616 2.63 1671 2.80

1691 2.86

1726 3.09 1775 3.35

1604 2.42

1704 2.90

1740 3.12

Page 44

Perf ormance data (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

48HJ008 (7

Airflow

(Cfm)

2200 499 0.50 580 0.70 652 0.94 717 1.17 748 1.30 779 1.43 839 1.78 2250 507 0.53 586 0.73 658 0.97 722 1.22 752 1.34 783 1.46 2300 513 0.55 592 0.76 663 1.00 727 1.26 756 1.38 786 1.49 2400 528 0.60 606 0.83 674 1.06 738 1.34 766 1.46 795 1.58 2500 542 0.66 619 0.90 686 1.13 748 1.41 777 1.55 806 1.68 2550 550 0.69 627 0.94 692 1.17 754 1.45 783 1.60 812 1.74 2600 557 0.72 634 0.97 698 1.21 759 1.49 787 1.64 816 1.79 2700 573 0.79 648 1.05 711 1.29 770 1.58 798 1.73 827 1.88 2800 588 0.86 662 1.13 723 1.38 782 1.66 809 1.82 837 1.98 2900 604 0.94 676 1.21 737 1.48 794 1.76 821 1.92 3000 620 1.02 690 1.30 750 1.58 806 1.86 832 2.02 3100 636 1.11 704 1.39 764 1.69 818 1.97 3200 652 1.21 718 1.49 778 1.80 831 2.09 3300 668 1.31 732 1.59 793 1.92 3400 684 1.41 747 1.70 807 2.04 3500 701 1.53 762 1.82 821 2.16 3600 717 1.65 777 1.94 835 2.29 3700 733 1.77 792 2.07 3750 742 1.84 800 2.14

48HJ008 (71/2 TONS) — HIGH-STATIC MOT OR (BELT DRIVE)

Airflow

(Cfm)

2200 499 0.50 580 0.70 652 0.94 717 1.17 779 1.43 839 1.78 2250 507 0.53 586 0.73 658 0.97 722 1.22 783 1.46 843 1.81 2300 513 0.55 592 0.76 663 1.00 727 1.26 786 1.49 846 1.84 2400 528 0.60 606 0.83 674 1.06 738 1.34 795 1.58 853 1.88 2500 542 0.66 619 0.90 686 1.13 748 1.41 806 1.68 859 1.94 2550 550 0.69 627 0.94 692 1.17 754 1.45 812 1.74 2600 557 0.72 634 0.97 698 1.21 759 1.49 816 1.79 2700 573 0.79 648 1.05 711 1.29 770 1.58 827 1.88 2800 588 0.86 662 1.13 723 1.38 782 1.66 837 1.98 2900 604 0.94 676 1.21 737 1.48 794 1.76 848 2.08 3000 620 1.02 690 1.30 750 1.58 806 1.86 849 2.18 3100 636 1.11 704 1.39 764 1.69 818 1.97 3200 652 1.21 718 1.49 778 1.80 831 2.09 3300 668 1.31 732 1.59 793 1.92 844 2.21 3400 684 1.41 747 1.70 807 2.04 857 2.35 3500 701 1.53 762 1.82 821 2.16 3600 717 1.65 777 1.94 835 2.29 3700 733 1.77 792 2.07 849 2.42 3750 742 1.84 800 2.14 856 2.49

LEGEND

Bhp — FIOP —

NOTES :

2. indicates field-supplied motor and drive required.

3. Motor d rive range is 840 t o 1085 r pm for standa rd motors; 860 t o 1080 rpm

4. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for

/2 TONS) — STANDARD MOTOR (BELT DRIVE)

0.2 0.4 0.6 0.8 0.9 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rp m Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

849 2.42 899 2.78 856 2.49 907 2.86

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

871 2.48 919 2.80 966 3.15 1011 3.55 1054 3.94 885 2.63 932 2.95 978 3.30 1022 3.69 1065 4.10 899 2.78 945 3.11 990 3.45 1034 3.84 907 2.86 952 3.20 997 3.54 1040 3.93

Brake Horsepower Input to Fan Factory-Installed Option

Boldface

indicates field-supplied drive required. (See Note 3.)

for high-static motors. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

External Static Pressure (in. wg)

848 2.08 900 2.41 947 2.70

844 2.13 870 2.29 920 2.64

844 2.21 869 2.37 894 2.53 942 2.89 857 2.35 882 2.51 907 2.66 871 2.48 895 2.64 919 2.80 885 2.63 908 2.79

External Static Pressure (in. wg)

856 2.25 882 2.40 931 2.76

922 2.95 945 3.11 990 3.45 1034 3.84 1076 4.26 929 3.03 952 3.20 997 3.54 1040 3.93 1082 5.27

870 2.29 920 2.64 968 2.99 1012 3.30 1050 3.69 882 2.40 931 2.76 979 3.13 1023 3.47 1061 3.87 894 2.53 942 2.89 989 3.26 1034 3.63 1072 4.05 907 2.66 954 3.02 1000 3.40 1044 3.79

5. Maximum continuous bhp is 2.9 for standard motors, 4.2 for high-static

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier rep-

7. Interpolation is permissible. Do not extrapolate.

849 2.18 910 2.52 958 2.85

932 2.95 978 3.30 1022 3.69 1065 4.10

905 2.21 951 2.57 986 2.87 1019 3.16 908 2.25 955 2.59 991 2.89 1023 3.19 910 2.25 959 2.61 995 2.91 1028 3.21 912 2.31 967 2.68 1003 2.99 1036 3.30

864 1.99 920 2.39 974 2.76 1010 3.08 1044 3.40 868 2.04 921 2.41 976 2.78 1012 3.10 1046 3.42 878 2.16 928 2.45 983 2.88 1020 3.21 1053 3.54 889 2.29 937 2.57 986 2.91 1023 3.25 1057 3.58 900 2.41 947 2.70 993 3.01 1030 3.36 1064 3.70 910 2.52 958 2.85 1002 3.15 1039 3.51 1074 3.88

resentative to verify.

919 2.37 971 2.73 1007 3.05 1041 3.36

843 1.81 908 2.25 955 2.59 846 1.84 910 2.25 959 2.61 853 1.88 912 2.31 967 2.68 859 1.94 919 2.37 971 2.73 864 1.99 920 2.39 974 2.76 868 2.04 921 2.41 976 2.78 878 2.16 928 2.45 983 2.88 889 2.29 937 2.57

954 3.02 1000 3.40 1044 3.79 966 3.15 1011 3.55 1054 3.94

905 2.21 951 2.57

986 2.91 993 3.01

968 2.99 1012 3.30 979 3.13 1023 3.47 989 3.26 1034 3.63

1083 4.23 1119 4.66 1093 4.40 1129 4.85

1076 4.26 1116 4.75 1153 5.24 1082 4.27 1122 4.78 1159 5.25

1105 4.57 1141 5.05

1002 3.15

1084 4.06

1096 4.27 1108 4.47

Page 45

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

48HJ009 (8

Airflow

(Cfm)

2550 550 0.69 627 0.94 692 1.17 754 1.45 783 1.60 812 1.74 2600 557 0.72 634 0.97 698 1.21 759 1.49 787 1.64 816 1.79 2700 573 0.79 648 1.05 711 1.29 770 1.58 798 1.73 827 1.88 2800 588 0.86 662 1.13 723 1.38 782 1.66 809 1.82 837 1.98 2900 604 0.94 676 1.21 737 1.48 794 1.76 821 1.92 3000 620 1.02 690 1.30 750 1.58 806 1.86 832 2.02 3100 636 1.11 704 1.39 764 1.69 818 1.97 3200 652 1.21 718 1.49 778 1.80 831 2.09 3300 668 1.31 732 1.59 793 1.92 3400 684 1.41 747 1.70 807 2.04 3500 701 1.53 762 1.82 821 2.16 3600 717 1.65 777 1.94 835 2.29 3700 733 1.77 792 2.07 3750 742 1.84 800 2.14 3800 750 1.90 807 2.21 3900 767 2.04 822 2.35 4000 783 2.18 838 2.50 4100 800 2.34 4200 817 2.49 4250 826 2.58 4300 834 2.66

48HJ009 (81/2 TONS) — HIGH-STATIC MOT OR (BELT DRIVE)

Airflow

(Cfm)

2550 550 0.69 627 0.94 692 1.17 754 1.45 812 1.74 2600 557 0.72 634 0.97 698 1.21 759 1.49 816 1.79 2700 573 0.79 648 1.05 711 1.29 770 1.58 827 1.88 2800 588 0.86 662 1.13 723 1.38 782 1.66 837 1.98 2900 604 0.94 676 1.21 737 1.48 794 1.76 848 2.08 3000 620 1.02 690 1.30 750 1.58 806 1.86 849 2.18 3100 636 1.11 704 1.39 764 1.69 818 1.97 3200 652 1.21 718 1.49 778 1.80 831 2.09 3300 668 1.31 732 1.59 793 1.92 844 2.21 3400 684 1.41 747 1.70 807 2.04 857 2.35 3500 701 1.53 762 1.82 821 2.16 3600 717 1.65 777 1.94 835 2.29 3700 733 1.77 792 2.07 849 2.42 3750 742 1.84 800 2.14 856 2.49 3800 750 1.90 807 2.21 3900 767 2.04 822 2.35 4000 783 2.18 838 2.50 4100 800 2.34 854 2.66 4200 817 2.49 4250 826 2.58 4300 834 2.66

LEGEND

Bhp — FIOP —

NOTES:

1. Boldface indicates field-supplied drive required. (See Note 3.)

2. indicates field-supplied motor and drive required.

3. Motor drive range is 840 to 1085 r pm for standard motors; 860-108 0 rpm for

4. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for

/2 TONS) — STANDARD MOTOR (BELT DRIVE)

0.2 0.4 0.6 0.8 0.9 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rp m Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

849 2.42 899 2.78 856 2.49 907 2.86 863 2.56 877 2.71

891 2.86 854 2.66 869 2.82 877 2.91 928 3.28 977 3.69 999 3.90 1022 4.10 1062 4.49 1102 4.87 —— 885 3.00 935 3.37 984 3.78 1006 3.99 1029 4.20 1069 4.59 1108 4.98 ——

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

869 2.82 920 3.19 970 3.60 1015 4.00 877 2.91 928 3.28 977 3.69 1022 4.10 885 3.00 935 3.37 984 3.78

Brake Horsepower Input to Fan Factory-Installed Option

high-static motors. All other rpms require a field-supplied drive. accessory/FIOP static pressure information.

905 3.02 956 3.43 978 3.62 1000 3.81 1042 4.18 1082 4.56 1122 4.97

920 3.19 970 3.60 992 3.80 1015 4.00 1055 4.38 1095 4.76 1134 5.16

871 2.48 919 2.80 966 3.15 1011 3.55 1054 3.94 885 2.63 932 2.95 978 3.30 1022 3.69 1065 4.10 899 2.78 945 3.11 990 3.45 1034 3.84

863 2.56 914 2.93 958 3.28 1003 3.62 1045 4.01 877 2.71 928 3.09 972 3.45 1015 3.80 1057 4.18 891 2.86 942 3.26 986 3.63 1028 3.99 905 3.02 956 3.43 1000 3.81 1042 4.18

907 2.86 952 3.20 997 3.54 1040 3.93

External Static Pressure (in. wg)

848 2.08 900 2.41 947 2.70

844 2.13 870 2.29 920 2.64

844 2.21 869 2.37 894 2.53 942 2.89 857 2.35 882 2.51 907 2.66 871 2.48 895 2.64 919 2.80 885 2.63 908 2.79

914 2.93 936 3.11 958 3.28 1003 3.62 1045 4.01 1087 4.43 928 3.09 950 3.27 972 3.45 1015 3.80 1057 4.18 1098 4.60 942 3.26 964 3.45 986 3.63 1028 3.99 1070 4.36 1110 4.78

External Static Pressure (in. wg)

856 2.25 882 2.40 931 2.76

922 2.95 945 3.11 990 3.45 1034 3.84 1076 4.26 929 3.03 952 3.20 997 3.54 1040 3.93 1082 4.27

864 1.99 920 2.39 974 2.76 1005 3.04 1034 3.31 868 2.04 921 2.41 976 2.78 1008 3.06 1037 3.33 878 2.16 928 2.45 983 2.88 1015 3.17 1044 3.45 889 2.29 937 2.57 986 2.91 1018 3.20 1047 3.49 900 2.41 947 2.70 993 3.01 1025 3.31 1055 3.61

870 2.29 920 2.64 968 2.99 1012 3.30 1045 3.63 1075 3.95 882 2.40 931 2.76 979 3.13 1023 3.47 1056 3.82 894 2.53 942 2.89 989 3.26 1034 3.63 1067 3.99 907 2.66 954 3.02 1000 3.40 1044 3.79 1078 4.17

1029 4.20 1069 4.59 1108 4.98 1147 5.38 1184 5.92 1218 6.45

910 2.52 958 2.85 1002 3.15 1034 3.47 1064 3.77

1055 4.38 1095 4.76 1134 5.16 1171 5.68 1204 6.18 1062 4.49 1102 4.87 1140 5.27 1177 5.80 1211 6.31

5. Maximum continuous bhp is 2.9 for standard motors; 4.2 for high-static motors. Extensive motor and electrical testing on these units ensures that the full range of the motor ca n be utili zed with con fidence. Us ing your fan motors up to the ratings shown will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

849 2.18 910 2.52 958 2.85

932 2.95 978 3.30 1022 3.69 1065 4.10

864 1.99 920 2.39 974 2.76 868 2.04 921 2.41 976 2.78 878 2.16 928 2.45 983 2.88 889 2.29 937 2.57

968 2.99 1012 3.30 979 3.13 1023 3.47

954 3.02 1000 3.40 1044 3.79 966 3.15 1011 3.55 1054 3.94

1076 4.26 1111 4.69 1143 5.10 1082 4.27 1117 4.70 1149 5.12 1087 4.43 1122 4.87 1155 5.31

1070 4.36 1110 4.78 1146 5.26 1179 5.73 1082 4.56 1122 4.97 1158 5.47 1192 5.95

1098 4.60 1133 5.06 1166 5.51

989 3.26 1034 3.63

1088 4.33 1119 4.72 1099 4.51 1131 4.91

986 2.91 993 3.01

1002 3.15

1087 4.16

1098 4.35 1109 4.54

Page 46

Perf ormance data (cont)

FAN PERFORMANCE — HORIZONTAL DISCHARGE UNITS (cont)

48HJ012 (10

Airflow

(Cfm)

3000 478 0.57 658 0.92 721 1.08 796 1.23 3100 500 0.62 669 0.97 731 1.16 808 1.30 3200 519 0.69 680 1.03 741 1.23 818 1.38 3300 537 0.77 692 1.10 751 1.30 828 1.47 3400 561 0.86 704 1.17 761 1.37 3500 592 0.98 715 1.24 773 1.45 3600 632 1.12 727 1.32 784 1.54 3700 677 1.20 748 1.43 810 1.65 3800 691 1.28 761 1.52 822 1.75 3900 705 1.37 773 1.62 4000 720 1.47 786 1.71 4100 734 1.56 800 1.82 4200 749 1.66 813 1.92 4300 764 1.77 826 2.04 4400 779 1.88 4500 793 1.99 4600 808 2.11 4700 822 2.24 4800 4900 5000

LEGEND

Bhp — FIOP —

NOTES:

Boldface

2. indicates high static motor and drive required.

3. Motor drive range is 860 to 1080 rpm for standard motors and 830 to 1130 for high-static motors. All other rpms require a field-supplied drive.

4. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for accessory/FIOP static pressure information.

/2 TONS) — STANDARD AND HIGH-STATIC MOT OR (BELT DRIVE)

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

837 1.57 896 1.82 934 2.12 978 2.36 1018 2.51 1057 2.75 1094 3.02 847 1.66 907 1.92 945 2.22 987 2.46 1027 2.60 1066 2.85 1102 3.12 857 1.76 917 2.03 957 2.32 996 2.55 1036 2.71 1075 2.96 1111 3.22 869 1.89 928 2.17 984 2.43 1036 2.68 1080 2.90 1114 3.07

834 1.86 891 2.08 947 2.39 1002 2.66 1055 2.94 1102 3.20 847 1.97 902 2.19 957 2.50 1011 2.79 1064 3.07 1112 3.34 860 2.09 914 2.31 967 2.60 1021 2.91 1072 3.20 1121 3.49 873 2.21 926 2.44 978 2.71 1030 3.04 1081 3.34 1130 3.64

840 2.16 899 2.46 951 2.71 1000 2.96 1050 3.31 1100 3.63 854 2.28 912 2.59 963 2.86 1012 3.09 1061 3.43 868 2.42 925 2.73 975 3.00 1024 3.25 1071 3.56

837 2.37 896 2.71 950 3.00 1001 3.32 1048 3.59 852 2.51 910 2.86 963 3.15 1014 3.48 867 2.65 924 3.01 977 3.30 1027 3.65

Brake Horsepower Input to Fan Factory-Installed Option

indicates field-supplied drive required. (See Note 3.)

882 2.56 937 2.86 988 3.16 1036 3.42 1082 3.70

886 2.33 938 2.57 989 2.83 1040 3.18 1090 3.48

880 1.98 937 2.28 993 2.55 1046 2.81 1092 3.05 1129 3.25

External Static Pressure (in. wg)

1060 3.76 1105 4.02 1073 3.94 1117 4.20

851 1.50 898 1.78 942 2.01 983 2.17 1023 2.46 1063 2.61 861 1.57 907 1.86 951 2.09 992 2.24 1031 2.51 1070 2.75 873 1.65 916 1.95 960 2.18 1000 2.32 1039 2.58 1077 2.88 884 1.72 925 2.03 969 2.27 1009 2.41 1048 2.66 1086 2.95

1135 3.17

1143 3.42 1174 3.59 1155 3.59 1190 3.80 1165 3.76 1203 3.99

1139 3.79 1185 4.08 1226 4.36 1148 3.94 1194 4.25 1236 4.54

1109 3.78 1119 3.93 1129 4.09

1093 3.86

5. Maximum conti nuous bhp is 3.70 for standard moto rs and 5.25 for high-static motors. Extensive motor and electrical testing on these units ensures that the full range of the motor ca n be utili zed with con fidence. Us ing your fan motors up to the ratings shown will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected. See Evaporator-Fan Motor Data tables on pages 47 and 48 for additional information.

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier representative to verify.

7. Interpolation is permissible. Do not extrapolate.

1139 4.24 1185 4.60 1230 4.93 1150 4.38 1194 4.77 1239 5.12 1161 4.54 1204 4.95

1157 4.09 1203 4.42 1246 4.72 1166 4.26 1212 4.58 1255 4.91 1175 4.43 1221 4.76 1264 5.09

1175 3.92 1215 4.18

————

1156 3.39

—— ——

48HJ014 (121/2 TONS) — STANDARD MOTOR (BELT DRIVE)

Airflow

(Cfm)

3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000 867 2.65 5100 882 2.79 5200 896 2.95 5300 5400 5500 5600 5700 5800 5900 6000 6100 6200

LEGEND

Bhp — FIOP —

NOTES:

Boldface

2. Standard drive range is 900 to 1260 rpm.

3. Values include losses for filters, unit c asing, and wet coils. Se e page 49 for accessory/FIOP static pressure information.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

—————— —————— —————— ——————902 2.19 957 2.50 1011 2.79 1064 3.07 1112 3.34 1155 3.59 1190 3.80 ———— ———— ———— ———— ————912 2.59 963 2.86 1012 3.09 1061 3.43 1109 3.78 1157 4.09 1203 4.42 1246 4.72 —— —— —— ——910 2.86 963 3.15 1014 3.48 1060 3.76 1105 4.02 1150 4.38 1194 4.77 1239 5.12 ——

911 3.11 967 3.50 1017 3.80 1066 4.18 1111 4.50 1153 4.80 1194 5.08 —————— 926 3.27 981 3.68 1030 3.98 1079 4.35 1124 4.70 1166 5.01 ———————— 940 3.44 995 3.86 1044 4.17 1092 4.54 1137 4.91 1178 5.22 ———————— 955 3.62 1010 4.04 1058 4.38 1105 4.73 1150 5.12 —————————— 970 3.80 1024 4.23 1072 4.59 1118 4.93 ————————————

985 3.99 1039 4.42 1086 4.80 1131 5.14 ———————————— 1000 4.18 1053 4.62 1100 5.02 —————————————— 1015 4.39 1068 4.83 1114 5.25 —————————————— 1030 4.59 1083 5.04 ———————————————— 1046 4.81 ——————————————————

Brake Horsepower Input to Fan Factory-Installed Option

indicates field-supplied drive required. (See Note 2.)

868 2.42 882 2.56 896 2.71

924 3.01 977 3.30 1027 3.65 1073 3.94 1117 4.20 1161 4.54 1204 4.95 ———— 938 3.17 990 3.46 1040 3.82 1085 4.12 1129 4.40 1172 4.71 1214 5.13 ———— 952 3.33 1003 3.63 1053 4.00 1098 4.30 1141 4.60 1183 4.91 ——————

860 2.09 873 2.21 886 2.33 899 2.46

925 2.73 975 3.00 1024 3.25 1071 3.56 1119 3.93 1166 4.26 1212 4.58 1255 4.91 937 2.86 988 3.16 1036 3.42 1082 3.70 1129 4.09 1175 4.43 1221 4.76 1264 5.09 950 3.00 1001 3.32 1048 3.59 1093 3.86 1139 4.24 1185 4.60 1230 4.93 ——

869 1.89 880 1.98 891 2.08

914 2.31 967 2.60 1021 2.91 1072 3.20 1121 3.49 1165 3.76 1203 3.99 926 2.44 978 2.71 1030 3.04 1081 3.34 1130 3.64 1175 3.92 1215 4.18 938 2.57 989 2.83 1040 3.18 1090 3.48 1139 3.79 1185 4.08 1226 4.36 951 2.71 1000 2.96 1050 3.31 1100 3.63 1148 3.94 1194 4.25 1236 4.54

External Static Pressure (in. wg)

928 2.17 984 2.43 1036 2.68 1080 2.90 1114 3.07 1135 3.17 937 2.28 993 2.55 1046 2.81 1092 3.05 1129 3.25 1156 3.39 947 2.39 1002 2.66 1055 2.94 1102 3.20 1143 3.42 1174 3.59

4. Maximum continuous bhp is 5.25 for the standard motor. Extensive motor and electrical testing on these units ensures that the full range of the motor can be utilized with confidence. Using your fan motors up to the ratings shown will not result in nuisanc e tripping or premature m otor failure. Unit warranty will n ot be affected. See Evap orator-Fan Motor Data table on page 47 for additional information.

5. Use of a field-supplied motor may affect wire sizing. Contact your Carrier representative to verify.

6. Interpolation is permissible. Do not extrapolate.

Page 47

FAN RPM AT MOTOR PULLEY SETTING

STANDARD MOTOR*

UNIT 48HJ

004 005 006

(single-phase)

006 (3-p ha se )

and 007 008,009

012 014

1090 1055 1025 990 960 925 890 860 825 795 760 —— 1185 1150 1115 1080 1045 1015 980 945 910 875 840 ——

1460 1425 1385 1350 1315 1275 1240 1205 1165 1130 1095 1055 1020 1585 1540 1490 1445 1400 1350 1305 1260 1210 1165 1120 ——

1085 1060 1035 1010 985 960 935 910 890 865 840 —— 1080 1060 1035 1015 990 970 950 925 905 880 860 —— 1260 1220 1185 1155 1130 1100 1075 1045 1015 990 960 930 900

*Approximate fan rpm shown (standard motor/drive).

FAN RPM AT MOTOR PULLEY SETTING

HIGH-STATIC MOTOR

UNIT 48HJ

004 005 006 007 008 009 012

1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 —— 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 —— 1080 1025 1007 988 970 952 933 915 897 878 860 —— 1080 1025 1007 988 970 952 933 915 897 878 860 —— 1130 1112 1087 1062 1037 1212 987 962 937 912 887 962 830

MOTOR PULLEY TURNS OPEN

EVAPORATOR-FAN MOTOR DATA — STANDARD MOTOR

UNIT 48HJ

004

005

006

007

008,009

012

014

LEGEND

Bhp —

Brake Horsepower

*Extensive motor and electrical testing on these units ensures that the full horsepower and watts range of the

motors can be utilized with confidence. Using your fan motors up to the ratings shown in this table will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected.

UNIT

PHASE

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS*

UNIT VOLTAGE

Single 1.20 1000 208/230 5.4

Three 1.20 1000

Single 1.20 1000 208/230 5.4

Three 1.20 1000

Single 1.30 1650 208/230 9.7

Three 2.40 2120

Three 2.90 2615

Three 3.70 3775

Three 5.25 4400

MAXIMUM

AMP DRAW

208/230 5.4

460 2.4 575 2.4

208/230 5.4

460 2.4 575 2.4

208/230 6.4

460 2.9 575 2.9

208/230 6.4

460 2.9 575 2.9

208/230 7.9

460 3.6 575 3.6

208/230 12.6

460 5.7 575 5.7

208/230 15.0

460 7.4 575 7.4

Page 48

Perf ormance data (cont)

EVAPORATOR-FAN MOTOR DATA — HIGH-STATIC MOTORS

UNIT 48HJ

004

005

006

007

008,009

012

LEGEND

Bhp —

Brake Horsepower

*Extensive motor and electrical testing on these units ensures that the full horsepower and watts range of the

UNIT

PHASE

Three 2.40 2120

Three 2.90 2615

Three 4.20 3775

Three 5.25 4400

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS*

UNIT VOLTAGE

MAXIMUM

AMP DRAW

208/230 6.4

460 2.9 575 2.9

208/230 6.4

460 2.9 575 2.9

208/230 7.9

460 3.6 575 3.6

208/230 6.4

460 3.6 575 3.6

208/230 12.6

460 5.7 575 5.7

208/230 15.0

460 7.4 575 7.4

UNIT

48HJ

004,005 006,007 008,009

012 014

ARI — Bels —

UNIT

Durablade EconoMi$er

UNIT

Durablade EconoMi$er

OUTDOOR SOUND POWER (TOTAL UNIT)

ARI

RATING

(Bels)

7.6 55.9 66.0 64.0 66.2 68.4 64.5 61.7 57.3

8.0 59.1 68.9 68.7 71.9 74.0 68.9 65.7 59.0

8.2 62.2 69.3 71.5 74.7 76.2 72.9 68.7 61.5

8.4 64.6 71.1 73.3 76.9 77.6 73.7 70.6 63.7

8.6 63.7 69.9 72.5 78.2 81.1 77.3 73.3 66.8

Air Conditioning and Refrigeration Institute Sound Levels (1 bel = 10 decibels)

63 125 250 500 1000 2000 4000 8000

LEGEND

OCTAVE BANDS

ECONOMIZER STATIC PRESSURE DROP (in. wg)

48HJ004-007

CFM

900 1200 1400 1600 1800 2000 2200 2400 2600

0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 — 0.09 0.12 0.15 0.19 0.24 0.29 0.35 —

ECONOMIZER STATIC PRESSURE DROP (in. wg)

48HJ008-014

CFM

2200 2500 3000 3500 4000 4500 5000 5500 6000

.02 .02 0.030 0.040 0.05 0.06 0.07 0.08 0.09

——0.125 0.180 0.27 0.34 0.40 ——

Page 49

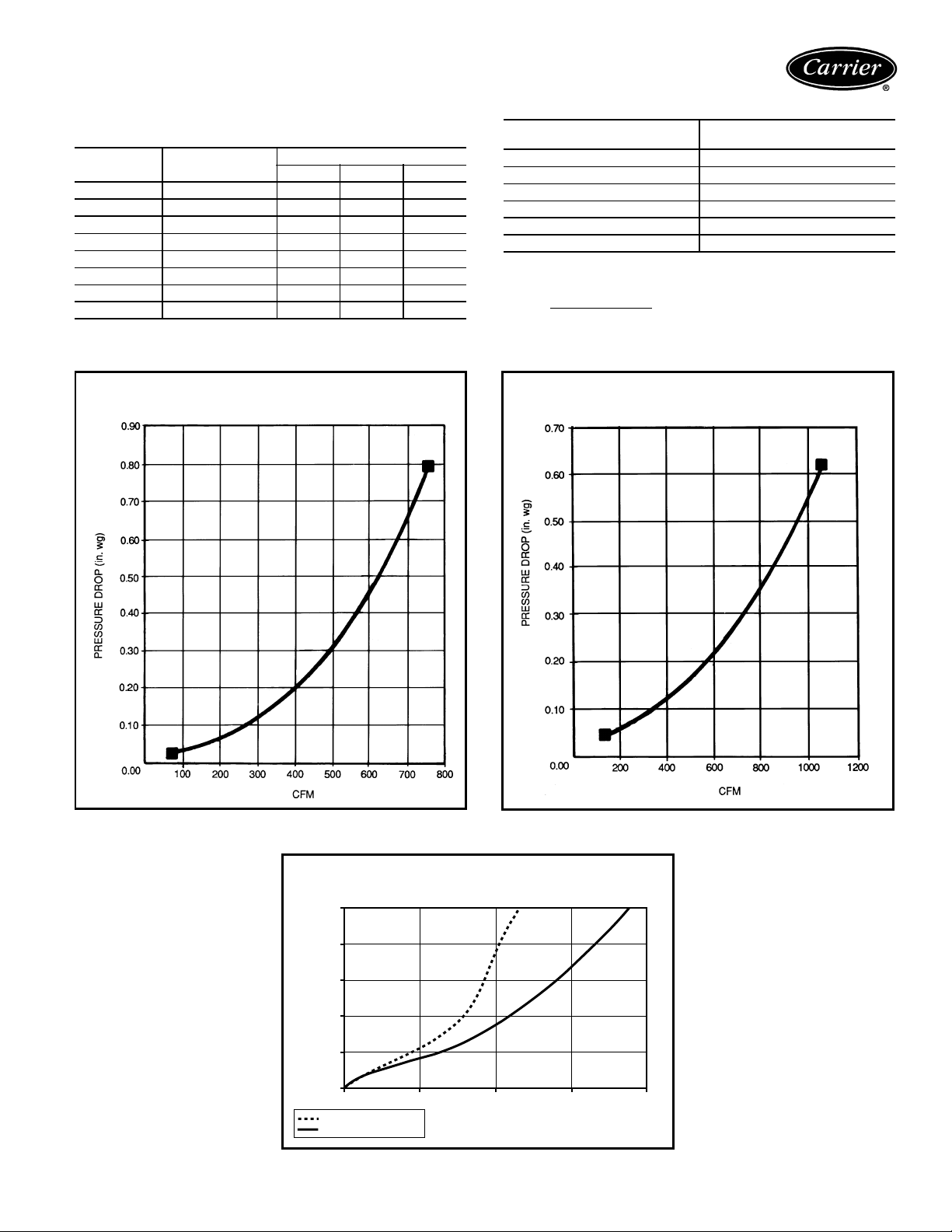

FIOP MOISTUREMISER DEHUMIDIFICATION PACKAGE

STATIC PRESSURE DROP

(in. wg)

UNIT SIZE

48HJ

004 005 006 007 008 009 012 014

FIOP —

UNIT NOMINAL

TONS

3 .04 .07 .09 4 .07 .12 .15 5 .09 .15 .21 6 .12 .20 .28

10 .08 .13 .18

Factory-Installed Option

CFM PER TON

300 400 500

.08 .13 .18 .10 .15 .22

.11 .18 .26

EVAPORATOR-FAN MOTOR EFFICIENCY

UNIT SIZE

48HJ

004,005

006*

007

008,009

012 014

*Singl e ph as e/ 3 pha s e. NOTE: Convert bhp to watts using the following formula:

watts =

bhp (746)

motor efficiency

EFFICIENCY%

74/84

84 80 85 87

DURABLADE ECONOMIZER BAROMETRIC RELIEF

DAMPER CHARACTERISTICS — 48HJ004-007

DURABLADE ECONOMIZER BAROMETRIC RELIEF

DAMPER CHARACTERISTICS — 48HJ008-014

ECONOMI$ER BAROMETRIC RELIEF

DAMPER CHARACTERISTICS

0.25

0.20

0.15

0.10

0.05

STATIC PRESSURE (in. wg)

0.00 0

3 TO 6 TON 7 1/2 TO 12 1/2 TON

500

1000

FLOW (CFM)

1500 2000

Page 50

Perf ormance data (cont)

5000 4000 3000 2000 1000

0.1

0.2

0.3

0.4

0.5

STATIC PRESSURE (in. wg)

FLOW (cfm)

2 FANS OPERATING

1 FAN OPERATING

ECONOMI$ER OUTDOOR-AIR LEAKAGE ECONOMI$ER RETURN-AIR PRESSURE DROP

FLOW (CFM)

3 TO 6 TON

7 1/2 TO 12 1/2 TON

ECONOMI$ER POWER EXHAUST

PERFORMANCE (48HJ004-007)

2500 2000

1500

1000

FLOW (cfm)

500

0.25 STATIC PRESSURE (in. wg)

0.1

0.2

STATIC PRESSURE (in. wg)

0.3

0.4

0.5

0.75 1

2 FANS OPERATING

1 FAN OPERATING

0.35

0.30

0.25

0.20

0.15

0.10

STATIC PRESSURE (in. wg)

0.05

0.00 1200

3 TO 6 TON

7 1/2 TO 12 1/2 TON

2000

ECONOMI$ER POWER EXHAUST

PERFORMANCE (48HJ008-014)

2800

FLOW (CFM)

3600 4400

ALTITUDE COMPENSATION* — 48HJ004-007

72,000 AND 115,000 BTUH

ELEVA TION

(ft)

0-2,000

2,000 3,000 4,000 5,000 6,000 7,000 8,000

9,000 10,000 11,000 12,000 13,000 14,000

*As the height above sea level increases, there is less oxygen per cubic foot of air.

Therefore, the input rate should be reduced at higher altitudes.

†Orifices are available through your local Carrier distributor.

NOMINAL INPUT

Natural Gas

Orifice Size†

33 43 30 38 34 43 30 39 35 44 31 40 36 44 32 41 36 44 33 42 37 45 34 43 37 45 35 43 38 46 36 44 39 47 37 44 41 48 38 45 43 48 39 45 44 49 40 46 44 49 41 47 45 50 42 47

Liquid Propane

Orifice Size†

150,000 BTUH

NOMINAL INPUT

Natural Gas

Orifice Size

ALTITUDE DERATING FACTOR* — 48HJ004-014

MAXIMUM HEATING VALUE

(Btu/ft

1100 1050 1000

950 900

ELEVATION

0-2000 2001-3000 3001-4000 4001-5000 5001-6000

Liquid Propane

Orifice Size†

)

ALTITUDE COMPENSATION* — 48HJ008-014

125,000, 180,000, AND

ELEVA TION

(ft)

0-2,000

2,000 3,000 4,000 5,000 6,000 7,000 8,000

9,000 10,000 11,000 12,000 13,000 14,000

*As the height above sea level increases, there is less oxygen per cubic foot of air.

Therefore, the input rate should be reduced at higher altitudes.

†Orifices are available through your local Carrier distributor.

*Derating of the unit is not required unless the heating value of the gas

exceeds the values listed i n the table above, or if the elevation exceeds 6000 ft. Derating conditions must be 4% per thousand ft above sea level. For example, at 4000 ft, i f t he heati ng value of the gas exceeds 1 000 Btu/ ft3, the unit will require a 16% der ating. For elevations above 6000 ft, the same formula applies. For example, at 7000 ft, th e unit will require a 28 % derating of the maximum heating value per the National Fuel Gas Code.

224,000 BTUH

NOMINAL INPUT

Natural Gas

Orifice Size†

31 41 30 38 32 42 30 39 32 42 31 40 32 42 32 41 33 43 33 42 34 43 34 43 35 44 35 43 36 44 36 44 37 45 37 44 38 46 38 45 39 47 39 45 40 47 40 46 41 48 41 47 42 48 42 47

Liquid Propane

Orifice Size†

250,000 BTUH

NOMINAL INPUT

Natural Gas

Orifice Size†

Liquid Propane

Orifice Size†

Page 51

Electric al dat a

STANDARD MOTOR UNITS WITHOUT ELECTRICAL CONVENIENCE OUTLET

UNIT

48HJE/HJF004

(3 Tons)

48HJD/HJE/HJF005

(4 Tons)

48HJD/HJE/HJF006

(5 Tons)

48HJD/HJE/HJF007

(6 Tons)

48HJD/HJE/HJF008

/2 Tons)**

48HJD/HJE/HJF009

/2 Tons)**

48HJD/HJE/HJF012

(10 Tons)**

48HJD/HJE014

(12

/2 Tons)**

FLA — HACR — IFM — LRA — MCA — MOCP — NEC — OFM — RLA — UL —

*Used to determine minimum disconnect per NEC.

†Fuse or HACR circuit breaker per NEC.

**Units have 2 condenser-fan motors.

Full Load Amp s Heating, Air Conditioning and Refriger ation Indoor ( Evaporator ) Fan Mo to r Locked Rotor Amps Minim um Circuit Amps Maximum O vercurrent Protection National Electrical Code Outdoor (Condenser) Fan Motor Rated Load Amps Underwriters’ Labo ratories

NOMINAL VOLTAGE

(V-Ph-Hz)

208/230-1-60 187 254 16.0 88.0 0.7 4.9 .57 25.6/25.6 35/35† 25/25 101/101 208/230-3-60 187 254 10.3 77.0 0.7 4.9 .57 18.5/18.5 25/25† 18/18 90/90

460-3-60 414 508 5.1 39.0 0.4 2.2 .30 9.0 15† 946

575-3-60 518 632 4.2 31.0 0.4 2.2 .30 7.3 15† 736 208/230-1-60 187 254 23.7 129.0 0.7 4.9 .57 35.2/35.2 45/45† 34/34 142/142 208/230-3-60 187 254 13.5 99.0 0.7 4.9 .57 22.5/22.5 30/30† 22/22 112/112

460-3-60 414 508 7.4 49.5 0.4 2.2 .30 11.9 15† 12 56

575-3-60 518 632 5.8 40.0 0.4 2.2 .30 9.3 15† 945 208/230-1-60 187 254 28.8 169.0 1.5 8.8 .57 46.3/46.3 60/60† 45/45 216/216 208/230-3-60 187 254 17.3 123.0 1.5 5.8 .57 28.9/28.9 35/35† 28/28 168/168

460-3-60 414 508 9.0 62.0 0.8 2.6 .30 14.7 20† 14 84

575-3-60 518 632 7.1 50.0 0.8 2.6 .30 11.6 15† 11 67 208/230-3-60 187 254 20.5 156.0 1.4 5.8 .57 32.8/32.8 40/40† 32/32 200/200

460-3-60 414 508 9.6 70.0 0.6 2.6 .30 15.2 20† 15 92

575-3-60 518 632 7.7 56.0 0.6 2.6 .30 12.2 15† 13 78 208/230-3-60 187 254 12.4 88.0 1.4 7.5 .57 38.2/38.2 45/45† 40/40 242/242

460-3-60 414 508 6.4 44.0 0.7 3.4 .30 19.2 25† 20 121

575-3-60 518 632 4.8 34.0 0.7 3.4 .30 14.6 20† 16 95 208/230-3-60 187 254 15.0 99.0 1.4 7.5 .57 44.1/44.1 50/50† 46/46 264/264

460-3-60 414 508 8.2 49.5 0.7 3.4 .30 23.3 30† 24 132

575-3-60 518 632 5.8 40.0 0.7 3.4 .30 16.9 20† 18 107 208/230-3-60 187 254 17.3 123.0 1.4 10.6 .57 52.3/52.3 60/60† 55/55 337/337

460-3-60 414 508 9.0 62.0 0.7 4.8 .30 26.5 35† 26 171

575-3-60 518 632 7.1 50.0 0.7 4.8 .30 20.9 25† 22 136 208/230-3-60 187 254 19.0 156.0 1.4 15.0 .57 60.6/60.6 70/70† 64/64 426/426

460-3-60 414 508 9.0 70.0 0.7 7.4 .30 29.1 30† 31 197

575-3-60 518 632 7.4 54.0 0.7 7.4 .30 23.7 30† 25 154

LEGEND

VOLT AGE

RANGE

Min Max RLA LRA FLA FLA FLA MCA MOCP FLA LRA

COMPRESSOR

(each)

OFM

(each)

NOTES:

1. In complianc e w ith N EC req ui reme nt s fo r mul timo t or and comb ina-

2. Electrical data based on 95 F ambient outdoor-air temperature

COMBUSTION

IFM

FAN MOTOR

tion lo ad equipment (ref er to NEC Articles 430 and 440), the overcurrent protective device for the unit shall be fuse or HACR breaker. The UL, Canada units may be fuse or circuit breaker.

± 10% voltage.

POWER

SUPPLY

MINIMUM UNIT

DISCONNECT

SIZE*

Page 52

Electrical data (cont)

STANDARD MOTOR UNITS WITH ELECTRICAL CONVENIENCE OUTLET

UNIT

48HJE/HJF004

(3 Tons)

48HJD/HJE/HJF005

(4 Tons)

48HJD/HJE/HJF006

(5 Tons)

48HJD/HJE/HJF007

(6 Tons)

48HJD/HJE/HJF008

/2 Tons)**

48HJD/HJE/HJF009

/2 Tons)**

48HJD/HJE/HJF012

(10 Tons)**

48HJD/HJE014

(12

/2 Tons)**

FLA — HACR — IFM — LRA — MCA — MOCP — NEC — OFM — RLA — UL —

*Used to determine minimum disconnect per NEC.

†Fuse or HACR circuit breaker per NEC.

**Units have 2 condenser-fan motors.

NOMINAL

VOLTAGE (V-Ph-Hz)

208/230-1-60 187 254 16.0 88.0 0.7 4.9 .57 31.6/31.6 40/40† 30/30 106/106 208/230-3-60 187 254 10.3 77.0 0.7 4.9 .57 24.5/24.5 30/30† 24/24 95/95

460-3-60 414 508 5.1 39.0 0.4 2.2 .30 11.7 15† 11 48

575-3-60 518 632 4.2 31.0 0.4 2.2 .30 9.5 15† 938 208/230-1-60 187 254 23.7 129.0 0.7 4.9 .57 41.2/41.2 50/50† 39/39 147/147 208/230-3-60 187 254 13.5 99.0 0.7 4.9 .57 28.5/28.5 35/35† 27/27 117/117

460-3-60 414 508 7.4 49.5 0.4 2.2 .30 14.6 20† 14 58

575-3-60 518 632 5.8 40.0 0.4 2.2 .30 11.5 15† 11 47 208/230-1-60 187 254 28.8 169.0 1.5 8.8 .57 52.3/52.3 60/60† 50/50 221/221 208/230-3-60 187 254 17.3 123.0 1.5 5.8 .57 34.9/34.9 40/40† 34/34 173/173

460-3-60 414 508 9.0 62.0 0.8 2.6 .30 17.4 20† 17 86

575-3-60 518 632 7.1 50.0 0.8 2.6 .30 13.8 20† 13 69 208/230-3-60 187 254 20.5 156.0 1.4 5.8 .57 38.8/38.8 45/45† 35/35 205/205

460-3-60 414 508 9.6 70.0 0.6 2.6 .30 17.9 20† 17 94

575-3-60 518 632 7.7 56.0 0.6 2.6 .30 14.3 20† 15 79 208/230-3-60 187 254 12.4 88.0 1.4 7.5 .57 44.2/44.2 50/50† 46/46 247/247

460-3-60 414 508 6.4 44.0 0.7 3.4 .30 21.9 25† 23 124

575-3-60 518 632 4.8 34.0 0.7 3.4 .30 16.8 20† 17.5 97 208/230-3-60 187 254 15.0 99.0 1.4 7.5 .57 50.1/50.1 60/60† 52/52 269/269

460-3-60 414 508 8.2 49.5 0.7 3.4 .30 26.0 30† 27 135

575-3-60 518 632 5.8 40.0 0.7 3.4 .30 19.1 25† 20 109 208/230-3-60 187 254 17.3 123.0 1.4 10.6 .57 58.3/58.3 70/70 61/61 341/341

460-3-60 414 508 9.0 62.0 0.7 4.8 .30 29.2 35† 30 172

575-3-60 518 632 7.1 50.0 0.7 4.8 .30 23.1 25† 24 139 208/230-3-60 187 254 19.0 156.0 1.4 15.0 .57 66.6/66.6 70/70 70/70 430/430

460-3-60 414 508 9.0 70.0 0.7 7.4 .30 31.8 35† 33 199

575-3-60 518 632 7.4 54.0 0.7 7.4 .30 25.9 30† 27 156

LEGEND

VOLTAGE

RANGE

Min Max RLA LRA FLA FLA FLA MCA MOCP FLA LRA

COMPRESSOR OFM IFM

NOTES:

1. In complianc e w ith N EC req ui reme nt s fo r mul timo t or and comb ination load equipment (refer to NEC Articles 430 and 440), the overcurrent protective device for the unit shall be fuse or HACR breaker. The UL, Canada units may be fuse or circuit breaker.

2. Electrical data based on 95 F ambient outdoor-air temperature ± 10% voltage.

COMBUSTION

FAN MOTOR

POWER

SUPPLY

WITH OUTLET

MINIMUM UNIT

DISCONNECT

SIZE*

Page 53

HIGH-STATIC MOTOR UNITS WITHOUT ELECTRICAL CONVENIENCE OUTLET

UNIT

48HJE,HJF004

48HJD/HJE/HJF005

48HJD/HJE/HJF006

48HJE/HJF/HJD007

48HJD/HJE/HJF008**

48HJD/HJE/HJF009**

48HJD/HJF/HJE012**

FLA — HACR — IFM — LRA — MCA — MOCP — NEC — OFM — RLA — UL —

*Used to determine minimum disconnect per NEC.

†Fuse or HACR circuit breaker per NEC.

**Units have 2 condenser-fan motors.

NOMINAL

VOLTAGE (V-Ph-Hz)

208/230-3-60 187 254 10.3 77.0 0.7 5.8 0.6 19.4 25† 19 120

460-3-60 414 508 5.1 39.0 0.4 2.6 0.3 9.4 15† 960 575-3-60 518 632 4.2 31.0 0.4 2.6 0.3 7.7 15† 848

208/230-3-60 187 254 13.5 99.0 0.7 5.8 0.6 23.4 30† 23 142

460-3-60 414 508 7.4 49.5 0.4 2.6 0.3 12.3 15† 12 71 575-3-60 518 632 5.8 40.0 0.4 2.6 0.3 9.7 15† 957

208/230-3-60 187 254 17.3 123.0 1.5 7.5 0.6 30.6 35† 30 187

460-3-60 414 508 9.0 62.0 0.8 3.4 0.3 15.5 20† 15 94 575-3-60 518 632 7.1 50.0 0.8 3.4 0.3 12.2 15† 12 76

208/230-3-60 187 254 20.5 156.0 1.4 7.5 0.6 30.6 35† 30 187

460-3-60 414 508 9.6 70.0 0.6 3.4 0.3 15.5 20† 15 94 575-3-60 518 632 7.7 56.0 0.6 3.4 0.3 12.2 15† 12 76

208/230-3-60 187 254 12.4 88.0 1.4 10.6 0.6 41.3 45† 44 267

460-3-60 414 508 6.4 44.0 0.7 4.8 0.3 20.6 25† 22 134 575-3-60 632 518 4.8 34.0 0.7 4.8 0.3 15.8 20† 17 95

208/230-3-60 187 254 15.0 99.0 1.4 10.6 0.6 47.2 60† 50 264

460-3-60 414 508 8.2 49.5 0.7 4.8 0.3 24.7 30† 26 132 575-3-60 518 632 5.8 40.0 0.7 4.8 0.3 18.0 20† 19 107

208/230-3-60 187 254 17.3 125.0 1.4 15.0 0.6 56.7 70 61 360

460-3-60 414 508 9.0 62.0 0.7 7.4 0.3 29.1 35† 29 181 575-3-60 518 632 7.1 50.0 0.7 7.4 0.3 23.0 25† 23 136

LEGEND

VOLTAGE

RANGE

Min Ma x RLA LRA FLA FLA RLA M CA MOCP FLA LRA

COMPRESSOR

(each)

OFM IFM

NOTES:

1. In complianc e w ith N EC req ui reme nt s fo r mul timo t or and comb ina-

tion lo ad equipment (ref er to NEC Articles 430 and 440), the overcurrent protective device for the unit shall be fuse or HACR breaker. The UL, Canada units may be fuse or circuit breaker.

2. Electrical data based on 95 F ambient outdoor-air temperature

± 10% voltage.

COMBUSTION

FAN MOTOR

POWER

SUPPLY

MINIMUM UNIT

DISCONNECT

SIZE*

Page 54

Electrical data (cont)

HIGH-STATIC MOTOR UNITS WITH ELECTRICAL CONVENIENCE OUTLET

UNIT

48HJE,HJF004

48HJD/HJE/HJF005

48HJD/HJE/HJF006

48HJE/HJF/HJD007

48HJD/HJE/HJF008**

48HJD/HJE/HJF009**

48HJD/HJF/HJE012**

FLA — HACR — IFM — LRA — MCA — MOCP — NEC — OFM — RLA — UL —

*Used to determine minimum disconnect per NEC.

†Fuse or HACR circuit breaker per NEC.

**Units have 2 condenser-fan motors.

NOMINAL VOLTAGE

(V-Ph-Hz)

208/230-3-60 187 254 10.3 77.0 0.7 5.8 0.6 25.4 30† 25 124

460-3-60 414 508 5.1 39.0 0.4 2.6 0.3 12.1 15† 12 63 575-3-60 518 632 4.2 31.0 0.4 2.6 0.3 9.8 15† 10 50

208/230-3-60 187 254 13.5 99.0 0.7 5.8 0.6 29.4 35† 29 146

460-3-60 414 508 7.4 49.5 0.4 2.6 0.3 15.0 20† 14 73 575-3-60 518 632 5.8 40.0 0.4 2.6 0.3 11.8 15† 11 59

208/230-3-60 187 254 17.3 123.0 1.5 7.5 0.6 36.6 40† 36 192

460-3-60 414 508 9.0 62.0 0.8 3.4 0.3 18.2 20† 18 96 575-3-60 518 632 7.1 50.0 0.8 3.4 0.3 14.4 20† 14 77

208/230-3-60 187 254 20.5 156.0 1.4 7.5 0.6 40.5 45† 39 224

460-3-60 414 508 9.6 70.0 0.6 3.4 0.3 18.7 25† 18 104 575-3-60 518 632 7.7 56.0 0.6 3.4 0.3 15.0 20† 15 89

208/230-3-60 187 254 12.4 88.0 1.4 10.6 0.6 47.3 50† 49 267

460-3-60 414 508 6.4 44.0 0.7 4.8 0.3 23.3 25† 24 134 575-3-60 518 632 4.8 34.0 0.7 4.8 0.3 18.5 20† 19 95

208/230-3-60 187 254 15.0 99.0 1.4 10.6 0.6 53.2 60† 55 264

460-3-60 414 508 8.2 49.5 0.7 4.8 0.3 27.4 30† 28 132 575-3-60 518 632 5.8 40.0 0.7 4.8 0.3 20.7 25† 21 107

208/230-3-60 187 254 17.3 125.0 1.4 15.0 0.6 62.7 70 66 360

460-3-60 414 508 9.0 62.0 0.7 7.4 0.3 31.8 35† 32 181 575-3-60 518 632 7.1 50.0 0.7 7.4 0.3 25.9 30† 25 147

LEGEND

VOLTAGE

RANGE

Min Max RLA LRA FLA FLA RLA MCA MOCP FLA L RA

COMPRESSOR

(each)

OFM IFM

NOTES:

2. Electrical data based on 95 F ambient outdoor-air temperature ± 10% voltage.

COMBUSTION

FAN MOTOR

POWER

SUPPLY

MINIMUM UNIT

DISCONNECT

SIZE*

Page 55

Typical piping and wiring

UNITS WITH MOISTUREMISER OPTION

Page 56

Typical piping and wiring (cont)

VERTICAL DISCHARGE

HORIZONTAL DISCHARGE

Page 57

Controls

Operating sequence for 48HJ004-007 units

Cooling, units without economizer —

stat calls for cooling, terminals G and Y1 and the compressor contactor (C) are energized. The indoor (evaporator) fan motor (IFM), compressor, and outdoor (condenser) fan motor (OFM) start. The OFM runs continuously while the unit is in cooling. When the thermostat is satisfied, C is deenergized and the compressor and OFM shut off. After a 30-second delay, the IFM shuts off. If the thermostat fan selector switch is in the ON position, the evaporator motor will run continuously.

Cooling, units with Durablade economizer —

the outdoor-air temperature is above the outdoor-air temperature (OAT) setting and the room thermostat calls for cooling, the compressor contactor is energized to start the compressor and outdoor (condenser) fan motor (OFM). The indoor (evaporator) fan motor (IFM) is energized and the economizer damper moves to the minimum position. After the thermostat is satisfied, the damper moves to the fully closed position when IFM is deenergized.

When the outdoor-air temperature is below the OAT setting and the thermostat calls for Y1 and G, the economizer damper moves to the minimum position when the evaporator fan starts. The first stage of cooling is provided by the economizer. If the supply-air temperature is above 57 F, a switch on the supply-air thermostat is closed between the T2 terminal and the 24 vac terminal. This causes the damper to continue to modulate open until the supply-air temperature falls below 55 F or the damper reaches the fully-open position.

When the supply-air temperature is between 55 F and 52 F, the supply-air thermostat has open switches between the T2 and 24 vac terminals and between the T1 and 24 vac terminals. This causes the economizer damper to remain in an intermediate open position.

If the supply-air temperature falls below 52 F, a switch on the supply-air thermostat is closed between the T1 terminal and the 24 vac terminal. This causes the damper to modulate closed until the supply-air temperature rises above 55 F or the damper reaches the minimum position.

When the supply-air temperature is between 55 F and 57 F, the supply-air thermostat has open switches between the T2 and 24 vac terminals. This causes the economizer damper to remain in an intermediate open position.

If the outdoor air alone cannot satisfy the cooling requirements of the conditioned space, economizer cooling is integrated with mechanical cooling, providing second stage cooling. The compressor and condenser fan will be energized and the position of the economizer damper will be determined by the supply-air temperature.

When the second stage of cooling is satisfied, the compressor and condenser-fan motor will be deenergized. The damper position will be determined by the supply-air temperature.

When the first stage of cooling is satisfied, the IFM shuts off after a 30-second delay. The damper then moves to fully closed position.

When thermo-

When

Cooling, units with EconoMi$er

When the outdoor-air temperature (OAT) is above the ECON SP set point and the room thermostat calls for Stage 1 cooling (R to G + Y1), the indoor (evaporator) fan motor (IFM) is energized and the EconoMi$er damper modulates to minimum position. The compressor contactor is energized to start the compressor and outdoor (condenser) fan motor (OFM). After the thermostat is satisfied, the damper modulates to the fully closed position when the IFM is deenergized.

When the OAT is below the ECON SP setting and the room thermostat calls for Stage 1 cooling (R to G + Y1), the EconoMi$er modulates to the minimum position when the IFM is energized. The EconoMi$er provides Stage 1 of cooling by modulating the return and outdoor-air dampers to maintain a 55 F supply air set point. If the supply-air temperature (SAT) is greater than 57 F, the EconoMi$er modulates open, allowing a greater amount of outdoor air to enter the unit. If the SAT drops below 53 F, the outdoor air damper modulates closed to reduce the amount of outdoor air. When the SAT is between 53 and 57 F, the EconoMi$er maintains its position.

If outdoor-air alone cannot satisfy the cooling requirements of the conditioned space, and the OAT is above the MECH CLG LOCKOUT set point, the EconoMi$er integrates free cooling with mechanical cooling. This is accomplished by the strategies below.

NOTE: Compressor has a two minute Minimum On, Minimum Off, and Interstage delay timer.

1. If Y1 is energized, and the room thermostat calls for Y2 (2-stage) thermostat), the compressor and OFM are energized. The position of the EconoMi$er damper is maintained at its current value.

2. If Y1 is energized for more than 20 minutes, and Y2 is not energized (whether or not a 2-stage thermostat is used), the compressor and OFM are energized. The position of the EconoMi$er damper is maintained at its current value.

3. If Y1 is energized, and the compressor is already energized (see Step 2) and the room thermostat calls for Y2, the compressor continues to operate.

4. If the compressor is energized and the thermostat is satisfied, the compressor, OFM, and IFM are deenergized and the EconoMi$er modulates closed.

When the OAT is below the MECH CLG LOCKOUT set

point, the compressors remain off.

Heating, units without economizer —

mostat calls for heating, terminal W1 is energized. The induced-draft motor is energized and the burner ignition sequence begins. The indoor (evaporator) fan motor (IFM) is energized 45 seconds after a flame is ignited. On units equipped for two stages of heat, when additional heat is needed, W2 is energized and the high-fire solenoid on the main gas valve (MGV) is energized. When the thermostat is satisfied and W1 is deenergized, the IFM stops after a 45-second time-off delay.

When the ther-

Page 58

Controls ( c on t )

Heating, units with economizer/two-position damper —

nal W1 is energized. The induced-draft motor is energized and the burner ignition sequence begins. The indoor (evaporator) fan motor (IFM) is energized 45 seconds after a flame is ignited and the damper moves to the minimum position. If the accessory two-position damper is used, the outdoor-air damper opens to the minimum position whenever the evaporator fan runs. On units equipped for two stages of heat, when additional heat is needed, W2 is energized and the high-fire solenoid on the main gas valve (MGV) is energized. When the thermostat is satisfied and W1 is deenergized, the IFM stops after a 45-second timeoff delay. The economizer damper then moves to the fully closed position. When using continuous fan, the damper will remain in the minimum position.

When the thermostat calls for heating, termi-

Operating sequence for 48HJ008-014 units

Cooling, units without economizer —

stat calls for cooling, terminals G and Y1 are energized. The indoor (evaporator) fan contactor (IFC) and compressor contactor no. 1 (C1) are energized, and evaporator-fan motor, compressor no. 1, and condenser fans start. The condenser-fan motors run continuously while unit is cooling. For units with 2 stages of cooling, if the thermostat calls for a second stage of cooling by energizing Y2, compressor contactor no. 2 (C2) is energized and compressor no. 2 starts.

When the thermostat is satisfied, C1 and C2 are deenergized and the compressors and outdoor (condenser) fan motors (OFM) shut off. After a 30-second delay, the indoor (evaporator) fan motor (IFM) shuts off. If the thermostat fan selector switch is in the ON position, the evaporator motors will run continuously.

Cooling, units with Durablade economizer —

the outdoor-air temperature is above the OAT setting and the room thermostat calls for cooling, the compressor contactor no. 1 is energized to start compressor no. 1 and outdoor (condenser) fan motors (OFM). The indoor (evaporator) fan motor (IFM) is energized and the economizer damper moves to the minimum position. Upon a further call for cooling, compressor contactor no. 2 will be energized, starting compressor no. 2. After the thermostat is satisfied and the IFM is deenergized, the damper moves to the fully closed position.

When thermo-

When

If the outdoor air alone cannot satisfy the cooling requirements of the conditioned space, economizer cooling is integrated with mechanical cooling, providing second stage cooling. Compressor no. 1 and condenser fan will be energized, and the position of the economizer damper will be determined by the supply-air temperature. Compressor no. 2 is locked out.

When the second stage of cooling is satisfied, the compressor and condenser fan motors will be deenergized. The damper position will be determined by the supply-air temperature.

When the first stage of cooling is satisfied, the IFM shuts off after a 30-second delay. The damper then moves to fully closed position.

Cooling, units with EconoMi$er

NOTE: Compressor has a two minute Minimum On, Minimum Off, and Interstage delay timer.

1. If Y1 is energized, and the room thermostat calls for Y2 (2-stage thermostat), compressor no. 1 and OFM are energized. The position of the EconoMi$er damper is maintained at its current value.

2. If Y1 is energized for more than 20 minutes, and Y2 is not energized (whether or not a 2-stage thermostat is used), compressor no. 1 and OFM are energized.

Page 59

The position of the EconoMi$er damper is maintained at its current value.

3. If Y1 is energized, and compressor no. 1 is already energized (see Step 2) and the room thermostat calls for Y2, compressor no. 1 continues to operate. If Y2 remains energized for more than 20 minutes, compressor no. 2 is energized.

NOTE: Compressor no. 2 cannot be energized unless there is a signal for Y2 from the space thermostat.

4. If compressor no. 2 is energized, and the Y2 signal from the thermostat is satisfied, compressor no. 1 and 2 are deenergized. Reasserting Y2 will start compressor no. 1 and (after a 20-minute interstage delay) compressor 2.

5. If compressor no. 1 is energized and the thermostat is satisfied, compressor no. 1, the OFM, and IFM are deenergized and the EconoMi$er modulates closed.

When the OAT is below the MECH CLG LOCKOUT set

point, the compressors remain off.

Heating, units without economizer —

mostat calls for heating, terminal W1 is energized. In order to prevent thermostat short-cycling, the unit is locked into the Heating mode for at least 1 minute when W1 is energized. The induced-draft motor (IDM) is then energized and the burner ignition sequence begins. The indoor (evaporator) fan motor (IFM) is energized 45 seconds after a flame is ignited. When additional heat is needed, W2 is energized and the high-fire solenoid on the main gas valve (MGV) is energized. When the thermostat is satisfied and W1 and W2 are deenergized, the IFM stops after a 45-second timeoff delay.

Heating, units with economizer/two-position damper —

nal W1 is energized. In order to prevent thermostat shortcycling, the unit is locked into the Heating mode for at least 1 minute when W1 is energized. The induced-draft motor is then energized and the burner ignition sequence begins. The indoor (evaporator) fan motor (IFM) is energized 45 seconds after a flame is ignited and the damper moves to the minimum position. If the accessory twoposition damper is used, the outdoor-air damper opens to the minimum position whenever the evaporator fan runs. When additional heat is needed, W2 is energized and the high-fire solenoid on the main gas valve (MGV) is energized. When the thermostat is satisfied and W1 and W2 are deenergized, the IFM stops after a 45-second time-off delay. The economizer damper then moves to the fully closed position. When using continuous fan, the damper will remain in the minimum position.

When the thermostat calls for heating, termi-

When the ther-

Operating sequence — Units with MoistureMiser dehumidification package

When thermostat calls for cooling, terminals G and Y1 and/or Y2 and the compressor contactor(s) C1 (and C2) are energized. The indoor (evaporator) fan motor (IFM), compressor(s), and outdoor (condenser) fan motor(s) (OFM) start. The OFM(s) runs continuously while the unit is in cooling. As shipped from the factory, MoistureMiser dehumidification circuit is always energized. If MoistureMiser

circuit modulation is desired, a field-installed, wall-mounted humidistat is required.

If the MoistureMiser humidistat is installed and calls for the MoistureMiser subcooler coil to operate, the humidistat internal switch closes. This energizes and closes the liquid line solenoid valve coil(s) (LLSV) of the MoistureMiser circuit, forcing the hot liquid refrigerant of the liquid line to enter the subcooler coil (see Typical Piping and Wiring section on page 55). As the hot liquid passes through the subcooler coil, it is exposed to the cold supply airflow coming off from the evaporator coil and the liquid is further cooled to a temperature approaching the evaporator coil leavingair temperature. The state of the refrigerant leaving the subcooler coil is a highly subcooled liquid refrigerant. The liquid then enters a thermostatic expansion valve (TXV) where the liquid is dropped to a lower pressure. The TXV does not have a pressure drop great enough to change the liquid to a 2-phase fluid. The TXV can throttle the pressure drop of the liquid refrigerant and maintain proper conditions at the compressor suction valve over a wide range of operating conditions. The liquid then enters a second fixed restrictor expansion device for a second pressure drop to a 2-phase fluid. The liquid proceeds to the evaporator coil at a temperature lower than normal cooling operation. This lower temperature is what increases the latent capacity of the rooftop. The 2-phase refrigerant passes through the evaporator and is changed into a vapor. The air passing over the evaporator coil will become colder than during normal operation as a result of the colder refrigerant temperatures. However, as it passes over the subcooler coil, the air will be warmed slightly.

As the refrigerant leaves the evaporator, the refrigerant passes a low-pressure switch in the suction line. This lowpressure switch will de-activate the MoistureMiser package when the suction pressure reaches 60 psig. The low-pressure switch is an added safety device to protect against evaporator coil freeze-up. The low-pressure switch will only de-activate and open the liquid line solenoid valve in the MoistureMiser circuit. The compressors will continue to run as long as there is a call for cooling, regardless of the position of the low-pressure switch. The solenoid valve and the MoistureMiser package will be re-activated only when the call for cooling has been satisfied, the low-pressure switch has closed, and a new call for cooling exists. The crankcase heaters on the scroll compressors provide additional protection for the compressors due to the additional refrigerant charge in the subcooler.

When the humidistat is satisfied, the humidistat internal switch opens, cutting power to and opening the LLSV. The refrigerant is routed back through the evaporator and the subcooler coil is removed from the refrigerant loop.

When the thermostat is satisfied, C1 (and C2) is deenergized and the compressor(s) and OFM(s) shut off. After a 30-second delay, the IFM shuts off. If the thermostat fan selector switch is in the ON position, the IFM will run continuously.

Page 60

Controls ( c on t )

TEMP systems

A TEMP System is a network of communicating Carrier TEMP System Thermostats and rooftop, factory-mounted Apollo direct digital controls, each serving its own zone and heating/cooling unit. Networking allows your building manager to easily access each of your systems from a single location...whether they are in the same building or located throughout town.

The TEMP System’s inherently flexible, modular base design supports the exact number of independent, single zone systems you require...no more, no less, no compromises.

Ideal for department stores, small office buildings, fast food chains, schools and hotels, a TEMP System is a cost-effective way to maintain comfortable building environments. See Typical TEMP System on page 62.

Variable Volume/Variable Temperature VVT® systems

VVT Systems are dedicated to total building comfort. Carrier thermostats, zone dampers, and HVAC equipment with factory-mounted direct digital controls continually monitor and adjust their operation to ensure uninterrupted and personalized comfort for all occupants.

Through the use of communicating electronic controls, VVT Systems are able to provide the comfort of a multiple zone system while using the installation, operation, and maintenance economics of single zone equipment...virtually putting an end to the cost vs. comfort compromise. See Typical VVT System on page 62.

Page 61

TYPICAL MOISTUREMISER DEHUMIDIFICATION PACKAGE HUMIDISTAT WIRING

LEGEND

C — CCH — COMP — FU — HU — IFM — LLSV — S-LPS — TRAN —

Contactor (Compressor) Crankcase Heater Compressor Fuse Humidistat Indoor ( Evaporator) Fan Motor Liquid Line Solenoid Valve Low-Pressure Switch (Subcooler Onl y ) Transformer Factory Wiring Accessory or O ptional Wiring

(48HJ004-007, 208/230-V UNIT SHOWN)

TYPICAL MOISTUREMISER DEHUMIDIFICATION PACKAGE HUMIDISTAT WIRING

LEGEND

C — CCH — COMP — FU — HU — IFM — LLSV — S-LPS — TRAN —

Contactor (Compressor) Crankcase Heater Compressor Fuse Humidistat Indoor (Evaporator) Fan Motor Liquid Line Solenoid Valve Low-Pressure Switch (Subcooler Only) Transformer Factory Wiring Acces s ory or Optional Wiring

(48HJ008-014), 208/230-V UNIT SHOWN)

Page 62

Controls ( c on t )

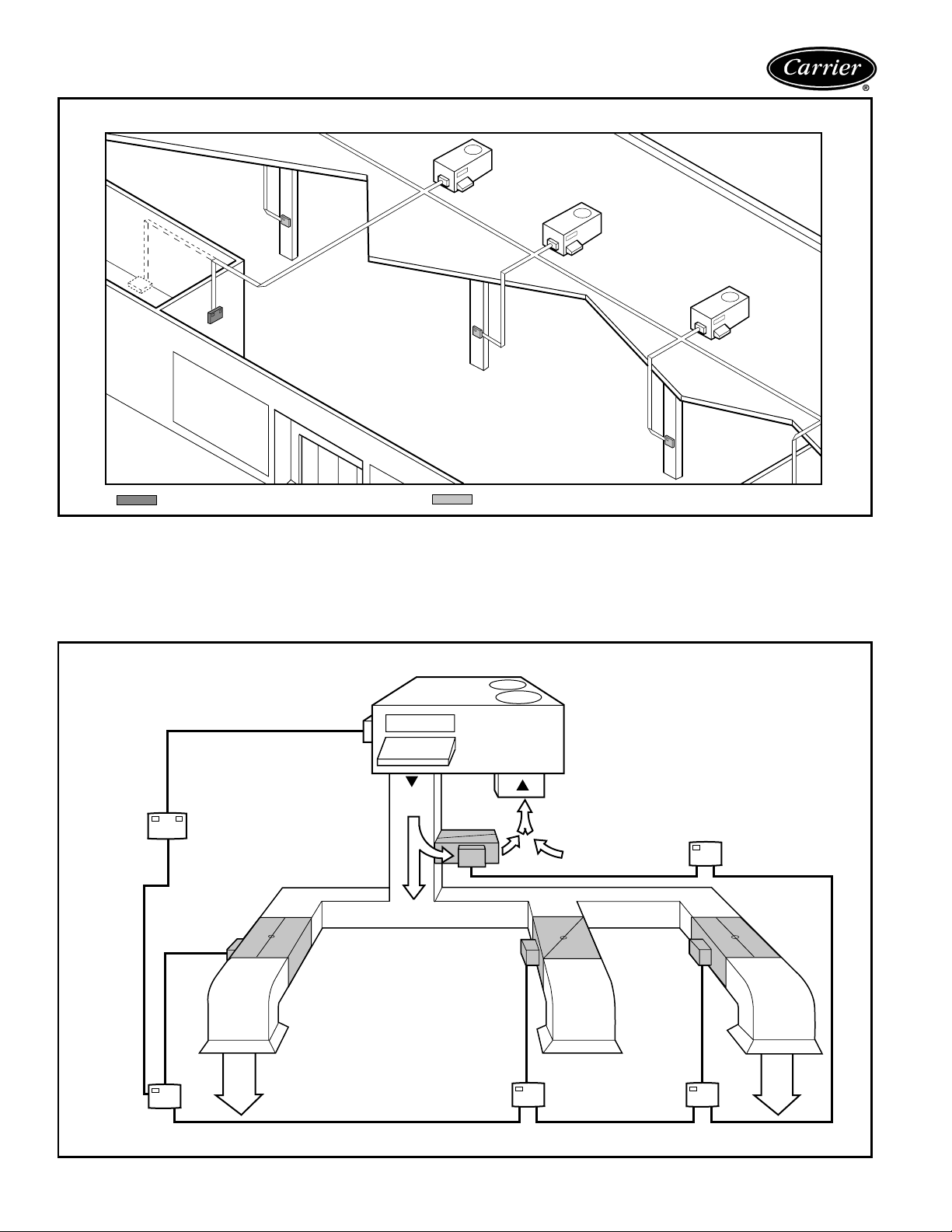

TEMP SYSTEM THERMOSTAT (WITH TIMECLOCK) TEMP SYSTEM THERMOSTAT (WITHOUT TIMECLOCK)

TYPICAL TEMP SYSTEM

MONITOR THERMOSTAT WITH TIMECLOCK

ZONE CONTROLLER

VVT —

Variable Volume/Variable Temperature

ZONE DAMPER

TYPICAL VTT® SYSTEM

ROOFTOP UNIT WITH APOLLO COMMUNICATING CONTROL

SUPPLY

BYPASS DAMPER

BYPASS AIRFLOW

ZONE CONTROLLER

RETURN

MIXED AIRFLOW

RETURN AIRFLOW

ZONE DAMPER

ZONE CONTROLLER

BYPASS CONTROLLER

ZONE DAMPER

Page 63

APOLLO THERMOSTAT WIRING — 48HJ004-007

LEGEND

C —

Contactor

NOTE: Refer to Product Support Bulletin No. 93-005 or conta ct your lo cal Carrier re presentative for shield ed wire applications when wiring the thermostat to the Apollo control and for all communication bus wiring connections.

Page 64

Controls ( c on t )

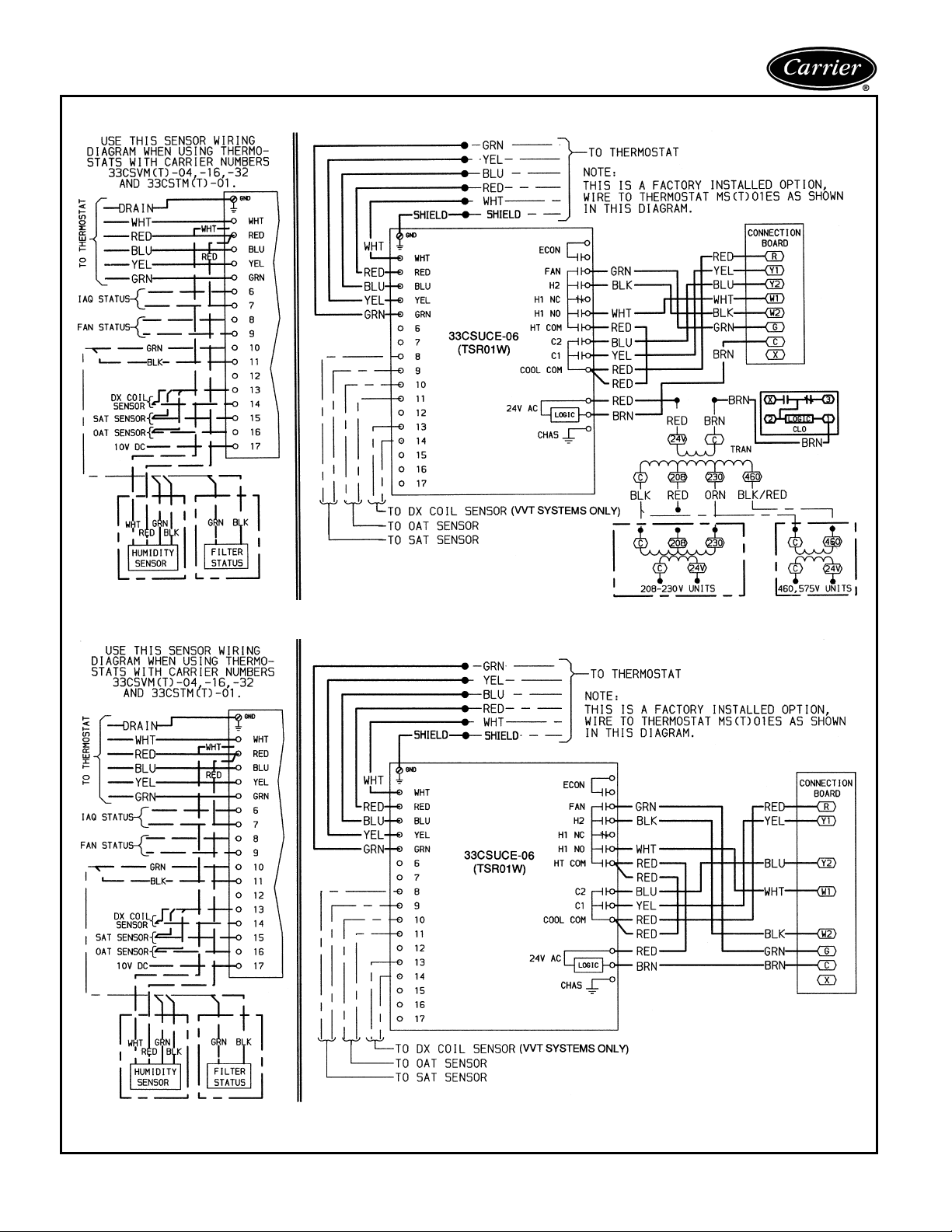

APOLLO THERMOSTAT WIRING — 48HJ004-007

APOLLO THERMOSTAT WIRING — 48HJ008-014

LEGEND

C — CHAS — CLO — COM — DX — ECON — GND — HT — IAQ — NC — NO — OAT — SAT — VVT

Contactor Ground Compressor Lockout Common Direct Expansion Economizer Ground Heat Indoor-Air Quality Normally Closed Normally Open Outdoor-Air Thermostat Saturated-Air Temperature

—

Variable Volume/Variable Temperature

Page 65

Appl icat ion dat a

Condensate drain pan —

pan is supplied on all units. The condensate pan must be externally trapped. Condensate drains are located on both the bottom and end of the unit.

Ductwork —

no flanges are present, they must be field supplied. Secure vertical discharge ductwork to roof curb. For horizontal discharge applications, attach ductwork to flanges. Fieldsupplied flanges can be attached to horizontal discharge openings and all ductwork attached to flanges.

To convert from vertical discharge to horizontal discharge (Durablade economizer only):

1. Remove economizer/two-position damper to gain access to return duct opening.

2. Move the horizontal-discharge duct opening covers to the vertical discharge openings.

3. Rotate economizer 90 degrees (until the economizer/ two-position damper motor faces the condenser section).

4. Rotate the barometric relief damper 90 degrees.

5. Install block-off plate over the opening on the access panel.

Thermostat —

recommended for all size 004-007 units equipped with economizer.

Heating-to-cooling changeover —

matic changeover from heating to cooling when automatic changeover thermostat and subbase are used.

Airflow —

on heating.

Maximum airflow —

sate blow-off from evaporator, airflow through units should not exceed 500 cfm/ton.

Minimum airflow —

300 cfm/ton.

Minimum ambient operating temperature —

mum ambient operating temperature for size 004-014 standard units is 25 F. With accessory Motormaster Motormaster IV control, units can operate at outdoor temperatures down to –20 F.

Maximum operating outdoor-air temperature —

Maximum outdoor-air operating temperature for cooling is 125 F.

High altitudes —

orifice. Refer to Altitude Compensation tables on page 50.

Minimum temperature —

entering the dimpled heat exchanger is 50 F continuous and 45 F intermittent.

Motor data —

thru over the motor), air path, and specially designed motors, the full horsepower (maximum continuous bhp) listed in the Physical Data table and the notes following each Fan Performance table can be utilized with extreme confidence.

All ductwork must be attached to flanges. If

Use of 2-stage cooling thermostat is

Units are draw-thru on cooling and blow-thru

These may require a change to the gas

Due to Carrier’s internal unit design (draw-

A sloped condensate drain

All units are auto-

To minimize possibility of conden-

Minimum airflow for cooling is

Mini-

Minimum temperature of air

Using Carrier motors to the values listed in the Physical Data, Fan Performance, and Evaporator-Fan Motor Data tables will not result in nuisance tripping or premature motor failure. In addition, the unit warranty will not be affected.

Apollo communicating controls —

cating controls must be used with a Carrier master thermostat.

Thru-the-bottom connections —

the-bottom connections are needed to ensure proper connections when routing wiring and piping through the basepan and roof curb. This accessory is used for electric and control power only or electric, control power, and gas piping depending on which accessory is selected.

Apollo communi-

The accessory thru-

MoistureMiser dehumidifation package

This option provides greater dehumidification by further subcooling the hot liquid refrigerant leaving the condenser coil. The MoistureMiser package consists of a subcooling coil located on the leaving-air side of the evaporator coil. The location of the coil in the indoor airstream enhances the latent capacity of the 48HJ rooftop units by up to 40%.

Many buildings suffer damage or have poor indoor-air quality due to overly-humid conditions. Building humidity must be controlled for the following reasons:

1. Indoor-Air Quality: Humidity is a major factor in the growth and propa-

gation of mold and mildew in a building. The mold and mildew can spread quickly and grow in carpets and ductwork and on walls, and often causes cases of sick building syndrome. This syndrome can lead to employee absenteeism due to illness, lower worker productivity, and increased health care costs. The American Society of Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE) recommends that relative humidity levels in buildings be maintained below 70%.

2. Comfort Levels: High humidity levels cause the occupied space to

become uncomfortable, because humidity interferes with the body’s natural cooling process (evaporation at the skin surface).

3. Humidity Damage: Humidity causes property damage, such as stained

wallpaper and ceiling tiles. Humidity can also damage books and artwork, and create strong odors in carpets. In addition, humidity can contribute to unacceptable product quality in industrial processes.

4. Improper Ventilation: Buildings in hot and humid geographical areas cannot

be properly ventilated due to high humidity levels outdoors, resulting in poor indoor-air quality.

Page 66

Application data (cont)

5. Equipment Inefficiency: Humidity can cause inefficient operation of refrigera-

tors and freezers.

6. Increased Energy Costs: Because of high humidity levels and less comfortable

conditions, thermostat set points are lowered to force the HVAC (heating, ventilation, and air conditioning) equipment to run longer and work harder to lower the humidity levels. Also, in an attempt to control humidity, system designers typically oversize HVAC equipment and add reheat capability to get the desired latent capacity. This results in higher initial equipment costs, as well as increased energy expenses throughout the life of the unit.

Applications —

applications that are susceptible to problems caused by high humidity levels. Some common applications include:

1. Restaurants: The kitchen areas of restaurants have many humidity-

producing activities, such as dish washing and cooking.

2. Supermarkets: High humidity levels cause inefficiency in operation of

refrigeration and freezer systems.

3. Museums and Libraries: Humidity can damage books and artwork.

4. Gymnasiums, Locker Rooms, and Health Clubs: Shower areas and human perspiration cause uncom-

fortable occupied space conditions.

5. Hot and Humid Climates: The southeastern United States is a good example of

this application. The MoistureMiser dehumidification package becomes particularly useful when increased amounts of the hot and humid outdoor air need to be brought into the building for proper ventilation.

MoistureMiser dehumidification package design effects —

tureMiser dehumidification package, refer to the pressure enthalpy curve, and analyze the MoistureMiser package effects on the refrigerant in the rooftop unit. The pressure enthalpy curve shows the refrigerant cycle for an 48HJ rooftop unit.

Standard Unit Refrigerant Cycle pressure enthalpy curve, vapor leaving the compressor at a high pressure and a high temperature enters the condenser. The condenser removes heat from the refrigerant, lowers its temperature, and changes it to a liquid. At point no. 2, the liquid leaves the condenser and enters a fixed expansion device that lowers the pressure of the refrigerant. At point no. 3, the liquid enters the evaporator coil, where the refrigerant increases in temperature and changes back to a vapor. At point no. 4, the vapor leaves the evaporator and reenters the compressor.

There are many different rooftop unit

To fully understand the operation of the Mois-

— At point no. 1 in the

Refrigerant Cycle Using MoistureMiser Dehumidification Package — When a subcooler coil is added to the rooftop unit, the refrigerant is affected in such a way that the unit latent capacity is increased. The refrigerant cycle follows the same path from point no. 1 to point no. 2 as the standard refrigerant cycle without a subcooler (see the pressure enthalpy curve). However, at point no. 2, the liquid refrigerant enters the subcooler coil where the temperature is lowered further. At point no. 2A, this subcooled liquid enters the TXV, which drops the pressure of the liquid. At point no. 2B, the liquid enters the Acutrol™ device. The refrigerant leaves this device as a saturated vapor and enters the evaporator at point no. 2C. The improved refrigeration effect can now be seen between point no. 2C and point no. 3. The increase in the total refrigeration effect is the additional enthalpy gained from point no. 2C to point no. 3. However, the subcooler coil rejects this added refrigeration effect to the air downstream of the evaporator coil, thus maximizing the overall latent effect. This improved latent effect is a direct result of the addition of the MoistureMiser subcooler coil to the refrigerant cycle.

Latent Capacity Effects chart in Fig. 7 to see how the sensible heat factor decreases when the optional MoistureMiser dehumidification package is installed. This chart contains data for the 5-ton 48HJ unit operation, both with and without the MoistureMiser package, at 1750 cfm. Point no. 1 on the chart represents the return-air dry bulb (80 F) and wet bulb (67 F) conditions. Point no. 2 represents the supply-air conditions for a standard 48HJ rooftop unit without the MoistureMiser dehumidification package. Point no. 3 represents the supply-air conditions for a 48HJ rooftop unit with the MoistureMiser package. By connecting point no. 1 and point no. 2 on the chart and finding the intersection on the sensible heat factor scale, the sensible heat factor is 0.73. Connect point no. 1 and point no. 3, and see that the sensible heat factor is 0.58. This is a 17.5% increase in latent capacity for the given conditions. This increase in latent capacity allows the 48HJ rooftop units to remove more moisture from the conditioned space; thus lowering the humidity levels.

Dehumidification Effects fication can be seen by analyzing the pounds of water per pound of dry air found in the supply air. At point no. 2 in the psychrometric chart, there are 65 grains (0.0092 lb) of moisture per pound of dry air. At point no. 3, there are 58 grains (0.0083 lb) of moisture per pound of dry air. This is a 12.1% decrease in the amount of water in the supply air.

MoistureMiser dehumidification package operating performance —

age operation does not affect the electrical data. The electrical data remains the same either with or without the MoistureMiser package.

— Refer to the psychrometric

— Further evidence of dehumidi-

MoistureMiser dehumidification pack-

Page 67

The operating and shipping weights will be slightly increased with the addition of the MoistureMiser subcooler. See the Physical Data table for added base unit weight with this option.

Refer to cooling performance data, both with and without the MoistureMiser dehumidification package. Note the greatly improved latent capacity with the MoistureMiser dehumidification package.

Static pressure is also slightly affected by the addition of the MoistureMiser dehumidification package. See Static Pressure Drop table on page 49 when using this option.

MoistureMiser dehumidification package features and benefits

• The MoistureMiser dehumidification package can

improve the humidity control of your rooftop equipment by up to 40%. This greatly reduces the risk of sick building syndrome by reducing biological growth in both ductwork and the rest of the building.

• The MoistureMiser dehumidification package improves

comfort levels in the building by better controlling the humidity. This improved comfort level allows building tenants to raise the cooling set point on the thermostats for accumulated energy savings.

• Better humidity control lowers the risk of humidity-

induced property damage.

• The MoistureMiser dehumidification package permits

building refrigerators and freezers to operate more efficiently due to lower relative humidity levels. This is the perfect solution for supermarket applications.

• The MoistureMiser subcooling circuit can be operated

by a humidity sensor. If the sensor is used, the MoistureMiser circuit will then only operate when needed. If the humidity levels in the occupied space are acceptable (such as in the spring and fall seasons), the MoistureMiser circuit will not operate. The rooftop unit is then able to operate to its full sensible potential, which provides more efficient performance and energy savings.

• At lower outdoor temperatures, rooftop units with de-

humidification devices are subject to low suction pressure conditions. The MoistureMiser dehumidification package contains a low-pressure switch that deactivates the MoistureMiser under low suction pressure conditions without deactivating the compressors.

• Improved humidity control allows increased outdoor-air ventilation in hot and humid geographical areas. Humidity control also helps to improve the indoor-air quality of the building.

• The MoistureMiser dehumidification package is factory installed. There are no additional field installation costs. There is also no need to purchase a roof curb from another manufacturer, as standard Carrier roof curbs will accommodate the 48HJ rooftop units which have the MoistureMiser dehumidification package option installed.

• The MoistureMiser dehumidification package is engineered and manufactured by Carrier Corporation for Carrier rooftop units. All application support, service, and warranty issues can therefore be handled through one company.

• The slightly lower sensible capacities obtained when using the MoistureMiser dehumidification package allow the unit to operate for an extended period of time. The more the unit operates, the more air is exposed to the subcooling coil. This rooftop unit increased latent capacity results in lower relative humidity levels in the occupied space.

• It is no longer necessary to oversize equipment and add reheat devices to properly dehumidify your building. In a typical scenario, a building owner may need 39,000 Btuh of sensible capacity and 23,000 Btuh of latent capacity (62,000 total Btuh). To accomplish this without the MoistureMiser dehumidification package, a

/2-ton unit with a reheat device would be necessary

7 to attain the higher latent capacity required. This results in a large up-front expense to oversize the equipment

from a standard 5-ton to a 7

/2-ton unit.

The building owner can now purchase a 5-ton unit with the MoistureMiser dehumidification package for a small additional up-front charge, and no reheat device will be necessary to satisfy the cooling requirements. This reduces both installation costs and operating costs throughout the life of the product.

Page 68

Application data (cont)

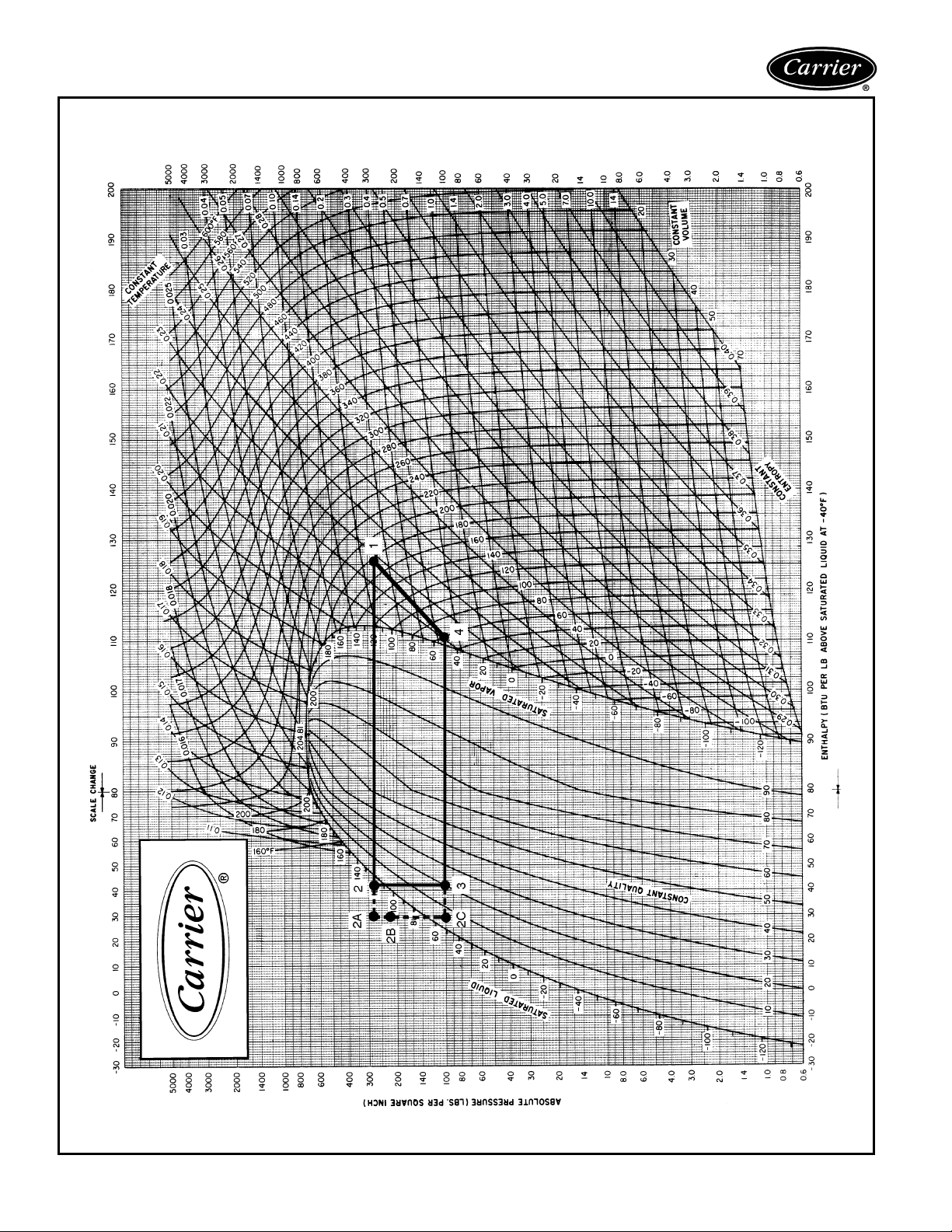

PRESSURE ENTHALPY CURVE

NOTE: Numbers 1 through 4 indicate point numbers referred to in MoistureMiser Dehumidification Package Design Effects section.

Page 69

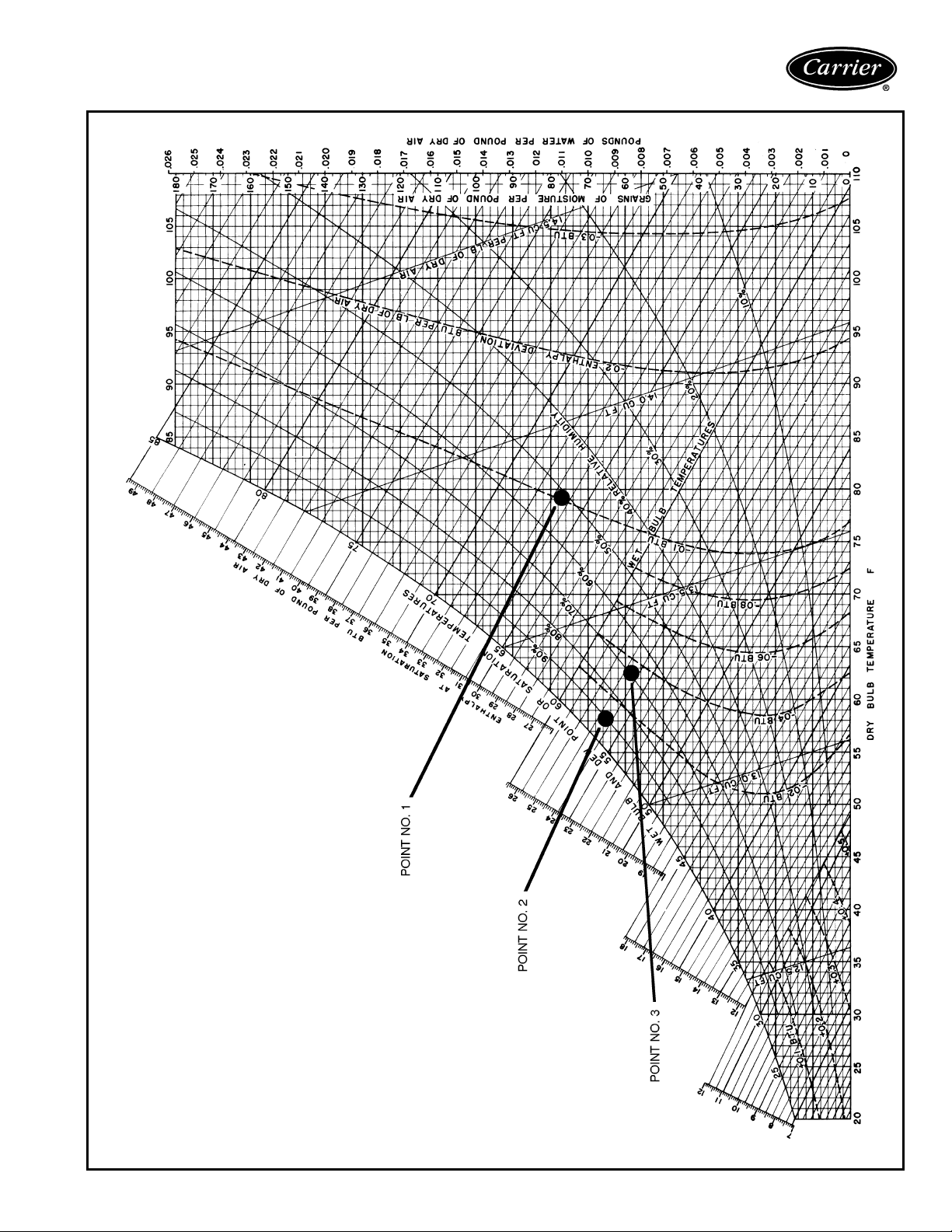

PSYCHROMETRIC CHART (48HJ006 SHOWN)

Entering Air (F) 80 db/67 wb

Leaving Air (F) 58.9 db/56.4 wb

(Without Subcooler)

Leaving Air (F) 63.0 db/56.8 wb

(With Subcooler)

Wet B u lb

Dry Bulb

Po int 1 —

Po int 2 —

Po int 3 —

wb—

LEGEND

db —

Page 70

T ypical wiring schematic (008-014, 460-3-60 shown)

CIRCUIT

BREAKER

CB1

(014 Std)

VOLTS MFG. PT. NO.

24 V

460-3-60

POTTER & BRUMFIELD

W2BX-1024-3.2

Heinemann Airpax

CF3-Z228-41 219-3-2600-486

MUST TRIP

AMPS

3.2

8.5

Page 71

LEGEND FOR TYPICAL WIRING SCHEMATIC

IMPORTANT: Refer to unit wiring label for actual unit wiring.

AHA — C — CAP — CB — CC — CLO — COMP — CONN — D — EC — ECON — EPS — EQUIP GND — ER — FPT — FS — FSS — FU — GV — GVR — HPS — HS — HV — I — IDM — IFC — IFM — IGC — LPS — LS — MGV — MTR — NC — NO —

Adjustable He at Anticipator Contactor, Compressor Capacitor Circuit Breaker Cooling Compensator Compre ssor Loc kout Compressor Motor Connection Diode Enthalpy Control Economizer Emergency Power Supply (9-Volt Battery) Equipment Grou nd Economizer Relay Freeze-Protection Thermostat Flame Sen s or Filter-Sta tu s Swit ch Fuse Gas V alve Gas Val ve Relay High-Pressure Switch Hall-Effect Sensor High Voltage Ignitor Induced-Dra ft Mo to r Indoor ( Evap or at or ) Fan Con t a ct or Indoor ( Evaporator ) Fan Mo to r Integrated Gas Unit Controll er Low-Pressure/Loss-of-Charge Switch Limit Switch Main Gas Valve Motor Normally Closed Normally Open

OAT — OFC — OFM — P — PL — QT — R — RS — SAT — SEN — SW1 — SW2 — SW3 — SW4 — TC — TH — TRAN —

Outdoor-Air Thermostat Outdoor (Condenser) Fan Contactor Outdoor (Condenser) Fan Motor Plug Plug Assembly Quadr u pl e Termina l Relay Rollout Switch Supply-Air Thermostat Sensor Switch Fully Open Switch Fully Closed Switc h Mi nimum Vent Position Switch Maximum Vent Position Thermostat-Cooling Thermostat-Heating Transformer

Field Splice T erminal (Marked) Terminal (Unmarked) T erminal Block Splice Splice (Marked)

Factory Wiring Field Control Wiring Field Power Wiring Accessory or Optional Wiring To indicate comm on potent ial only,

not to represent wiring.

NOTES FOR TYPICAL WIRING SCHEMATIC

1. If any of t he or igin al w ire furn ishe d mus t b e repl ace d, i t mus t be rep la ced with Type 90 C wire or its equivalent.

2. Three-phase motors are protected under primary single-phasing conditions.

3. Thermostat:

HH07AT170, 172, 174, and P27 2-2783.

Subbase:

HH93AZ176, 178 , and P272-1882, 18 83.

4. Set heat anticipator for first stage at .14 amp, second stage at 0.20 amp, except for 008 and 009 low heat. Set both first and second stage at 0.14 amp.

5. Use copper conductors only.

Page 72

Guide specifications

Packaged Rooftop Cooling Unit with Gas Heat — Constant Volume Application

HVAC Guide Specifications

Size Range:

Carrier Model Number:

Part 1 — General

1.01 SYSTEM DESCRIPTION

1.02 QUALITY ASSURANCE A. Unit shall be rated in accordance with ARI

B. Unit shall be designed to conform to ASHRAE 15,

C. Unit shall be UL tested and certified in accordance

D. Roof curb shall be designed to conform to NRCA

E. Insulation and adhesive shall meet NFPA 90A

F. Unit casing shall be capable of exceeding Federal

G. Each 48HJ unit is subjected to completely auto-

1.03 DELIVERY, STORAGE, AND HANDLING

Part 2 — Products

2.01 EQUIPMENT (STANDARD) A. General:

B. Unit Cabinet:

3 to 12 50,000 to 250,000 Btuh, Nominal Input Heating

Outdoor rooftop- or slab-mounted, electrically controlled heating and cooling utilizing a scroll compressor for cooling duty and gas combustion for heating duty. Unit shall discharge supply air vertically or horizontally as shown on contract drawings.

Standards 210/240 or 360 and 270.

latest revision, and in accordance with UL 1995.

with ANSI Z21.47 Standard and UL listed and certified under Canadian Standards as a total package for safety requirements.

Standards.

requirements for flame spread and smoke generation.

Test Method Standard No. 141 (Method 6061) 500-Hour Salt Spray Test.

mated run testing on the assembly line. Each unit contains a factory-supplied printout indicating tested pressures, amperages, data, and inspectors; providing certification of the unit status at the time of manufacture.

Unit(s) shall be stored and handled per manufacturer’s recommendations.

Factory-assembled, single-piece heating and cooling unit. Contained within the unit enclosure shall be all factory wiring, piping, controls, refrigerant charge (R-22), and special features required prior to field start-up.

1. Unit cabinet shall be constructed of galvanized steel, bonderized and coated with a baked enamel finish on all externally exposed surfaces, and have primer-coated interior surfaces on all panels.

/2 Tons, Nominal Cooling

48HJD,

48HJE, 48HJF

2. Evaporator-fan cabinet interior shall be insulated with a minimum glass insulation coated on the air side. Aluminum foil-faced fiberglass insulation shall be used in the heating compartment.

3. Cabinet panels shall be easily removable for servicing.

4. Holes shall be provided in the base rails for rigging shackles to facilitate overhead rigging, and forklift slots shall be provided to facilitate maneuvering.

5. Unit shall have a factory-installed, sloped condensate drain pan made of a non-corrosive material, providing a minimum tion with both vertical and horizontal drains and shall comply with ASHRAE 62.

6. Unit shall have factory-installed filter access panel to provide filter access with tool-less removal.

7. Unit shall have standard thru-the-bottom power connection capability.

C. Fans:

1. Indoor blower (evaporator fan) shall be of the belt-driven, double inlet, forward-curved centrifugal type. Belt drive shall include an adjustablepitch motor pulley.

2. Indoor blower (evaporator fan) shall be made from steel with a corrosion-resistant finish and shall be dynamically balanced.

3. Bearings shall be of the sealed, permanently lubricated, ball-bearing type for longer life and lower maintenance.

4. Condenser fan shall be of the direct-driven propeller type and shall discharge air vertically upward.

5. Condenser fan shall have blades riveted to corrosion-resistant steel spiders and shall be dynamically balanced.

6. Condenser-fan motor shall be totally enclosed.

7. Induced draft blower shall be of the directdriven, single inlet, forward curved, centrifugal type, shall be made from steel with a corrosionresistant finish, and shall be dynamically balanced.

D. Compressor(s):

1. Fully hermetic scroll type, internally protected.

2. Factory rubber-shock mounted and internally spring mounted for vibration isolation.

3. On independent circuits (008-014).

E. Coils:

1. Evaporator and condenser coils shall have aluminum plate fins mechanically bonded to enhanced copper tubes with all joints brazed.

2. Tube sheet openings shall be belled to prevent tube wear.

3. Evaporator coil shall be of the face-split design.

/2-in. thick flexible fiber-

/4-in. connec-

Page 73

F. Heating Section:

1. Induced draft combustion type with energy saving direct spark ignition system, redundant main gas valve, and 2-stage heat.

2. The heat exchanger shall be of the tubular section type constructed of a minimum of 20 gage steel coated with a nominal 1.2 mil aluminumsilicone alloy for corrosion resistance, and shall have a 10-year warranty.

3. Burners shall be of the in-shot type constructed of aluminum coated steel.

4. The Integrated Gas Control (IGC) board shall provide timed control of evaporator fan functioning and burner ignition. An LED (lightemitting diode) shall provide diagnostic information. The LED shall be visible without removing the control box access panel.

5. IGC board contains anti-cycle protection for gas heat operation (after 4 continuous cycles on high temperature limit switch and one cycle on the flame rollout switch).

G. Refrigerant Components:

Refrigerant circuit components shall include:

1. Acutrol™ feed system.

2. Refrigerant strainer, or filter drier.

3. Service gage connections on suction, discharge, and liquid lines.

4. Ability to route gage hoses through unit top cover, or outdoor panel.

H. Filter Section:

1. Standard filter section shall consist of factoryinstalled low-velocity, throwaway 2-in. thick fiberglass filters of commercially available sizes.

2. Filter face velocity shall not exceed 300 fpm at nominal airflows.

3. Filter section shall use only one size filter.

4. Filters shall be accessible through an access panel with “tool-less” removal.

I. Controls and Safeties:

1. Unit Controls: Unit shall be complete with self-contained low-

voltage control circuit protected by a fuse on the 24-v transformer side.

2. Safeties: a. Unit shall incorporate a solid-state compres-

sor protector which provides anti-cycle reset capability at the space thermostat, should any of the following standard safety devices trip and shut off compressor.

1) Compressor overtemperature, overcurrent.

2) Loss-of-charge/low-pressure switch.

3) Freeze-protection thermostat, evaporator coil.

4) High-pressure switch.

The lockout protection shall be easily disconnected at the control board, if necessary.

b. Heating section shall be provided with the

following minimum protections:

1) High-temperature limit switches.

2) Induced draft motor speed sensor.

3) Flame rollout switch.

4) Flame proving controls.

J. Operating Characteristics:

1. Unit shall be capable of starting and running at 125 F ambient outdoor temperature, meeting maximum load criteria of ARI Standard 210/ 240 or 360 at ±10% voltage.

2. Compressor with standard controls shall be capable of operation down to 25 F ambient outdoor temperature.

K. Electrical Requirements:

All unit power wiring shall enter unit cabinet at a single factory-predrilled location.

L. Motors:

1. Compressor motors shall be cooled by refrigerant passing through motor windings and shall have line break thermal and current overload protection.

2. Indoor blower (evaporator-fan) motor shall have permanently lubricated bearings and inherent automatic-reset thermal overload protection.

3. Totally enclosed condenser-fan motor shall have permanently lubricated bearings and inherent automatic-reset thermal overload protection.

4. Induced draft motor shall have permanently lubricated, sealed bearings and inherent automatic reset thermal overload protection.

M. Special Features:

Certain features are not applicable when the features designated by * are specified. For assistance in amending the specifications, contact your local Carrier Sales Office.

* 1. Direct Digital Controls:

a. Shall be available as a factory-installed

option.

b. Shall actively monitor all modes of opera-

tion, as well as evaporator-fan status, filter status, indoor-air quality, supply-air temperature, and outdoor-air temperature.

c. Shall work with Carrier TEMP and VVT

systems.

d. Shall have built-in diagnostics for thermostat

commands for both staged heating and cooling, evaporator-fan operation, and economizer operation.

e. Shall be equipped with a 5-minute time

delay between modes of operation.

2. Roof Curbs: a. Formed galvanized steel with wood nailer

strip and capable of supporting entire unit weight.

Page 74

Guide specifications (cont)

b. Allows for installing and securing ductwork

to curb prior to mounting unit on the curb.

* 3. Integrated Economizers:

a. Integrated integral-modulating type capable

of simultaneous economizer and compressor operation.

b. Includes all hardware and controls to provide

cooling with outdoor air.

c. Equipped with low-leakage dampers not to

exceed 3% leakage, at 1 in. wg pressure differential (Durablade economizer).

d. Capable of introducing up to 100% outdoor

air in both minimum and fully open positions.

e. Equipped with a gravity relief sliding plate

damper (Durablade economizer). Damper shall close upon unit shutoff.

f. EconoMi$er shall be equipped with a baro-

metric relief damper with up to 100% of return air (004-007) or 90% of return air (008-014) relief. The Durablade economizer is equipped with 30% of return-air relief (004-014).

g. Designed to close damper during loss-of-

power situations with emergency power supply (Durablade economizer) or spring return built into motor (EconoMi$er).

h. Dry bulb outdoor-air thermostat protection

shall be provided as standard.

i. Durablade economizer is a guillotine-style

damper, and the EconoMi$er is a parallel blade design.

* 4. Manual Outdoor-Air Damper:

Manual damper package shall consist of damper, birdscreen, and rainhood which can be preset to admit up to 50% outdoor air for yearround ventilation.

* 5. 100% Two-Position Damper:

a. Two-position damper package shall include

single blade damper and motor. Admits up to 100% outdoor air.

b. Damper shall close upon indoor (evaporator)

fan shutoff.

c. Designed to close damper during loss of

power situations.

d. Equipped with barometric relief damper.

* 6. 25% Two-Position Damper:

a. Two-position damper package shall include

single blade damper and motor. Admits up to 25% outdoor air.

b. Damper shall close upon indoor (evaporator)

fan shutoff.

c. Designed to close damper during loss of

power situations.

d. Equipped with barometric relief damper.

* 7. Solid-State Enthalpy Control:

Capable of sensing outdoor-air enthalpy content (temperature and humidity) and control-ling economizer cut-in point to have minimum heat content air passing over the evaporator coil for most efficient system operation.

* 8. Differential Enthalpy Sensor:

a. For use with Durablade economizer only. b. Capable of comparing enthalpy content

(temperature and humidity) of outdoor and indoor air and controlling economizer cut-in point at the most economical level.

* 9. Low Ambient Control Packages:

Each package consists of condenser-coil temperature sensor to maintain condensing temperature between 90 F and 110 F at outdoor ambient temperatures down to –20 F by condenser-fan speed modulation or condenser-fan cycling.

* 10. Thermostat and Subbase:

Provides staged cooling and heating automatic (or manual) changeover, fan control, and indicator light.

11. Thru-The-Bottom Service Connectors: Kit shall provide connectors to permit electrical

and gas connections to be brought to the unit through the basepan.

* 12. Electronic Programmable Thermostat:

Capable of using deluxe full-featured electronic thermostat. Shall use built-in compressor cycle delay control for both heating and cooling duty. Capable of working with Carrier direct digital controls.

13. Condenser Coil Hail Guard Assembly: Hail guard shall protect against damage from

hail and flying debris.

14. High Static Motor and Drive (004-012 only): High Static motor and drive shall be factory-

installed to provide additional performance range.

15. Condenser Coil Guard Grille: The grille protects the condenser coil from

damage by large objects without increasing unit clearances.

16. Compressor Cycle Delay: Unit shall be prevented from restarting for a

minimum of 5 min. after shutdown.

17. Fan/Filter Status Switch: Provides status of evaporator fan (ON/OFF) or

indoor-air filter (CLEAN/DIRTY). Status shall be displayed over communication bus when used with direct digital controls or with an indicator light at the thermostat.

Page 75

18. Unit-Mounted, Non-Fused Disconnect Switch: Shall be factory-installed, internally-mounted,

NEC and UL approved non-fused switch shall provide unit power shutoff. Shall be accessible from outside the unit and shall provide power off lockout capability.

19. Convenience Outlet: Shall be factory-installed and internally-

mounted with easily accessible 115-v female receptacle. Shall include 15 amp GFI receptable with independent fuse protection. Voltage required to operate convenience outlet shall be provided by a factory-installed step-down transformer. Shall be accessible from outside the unit.

20. MoistureMiser Dehumidification Package: The dehumidification package is a factory-

installed option that provides increased dehumidification by further subcooling the hot liquid refrigerant leaving the condenser coil. The package consists of a subcooling coil located on the leaving-air side of the evaporator coil. The location of this coil in the indoor airsteam greatly enhances the latent capacity of the 48HJ units.

The package shall be equipped with crankcase heater(s), low pressure switch(es), and thermostatic expansion valve(s) (TXV). Low pressure switch(es) prevents evaporator coil freeze up and TXV(s) assure a positive superheat condition. If the operation of the subcooling coil is controlled by a field-installed, wall-mounted humidistat, the dehumidification circuit will then operate only when needed. Optional field connections for the humidistat are made in the low voltage compartment of the unit control box.

21. Humidistat: Field-installed, wall-mounted humidistat is used

to control activation of the dehumidification package. The humidistat can be set for humidity levels between 20% and 80% relative humidity.

22. Hinged Panel Option: Hinged panel option provide hinged access

panels for the filter, compressor, evaporator fan, and control box areas. Filter hinged panels permit tool-less entry for changing filters. Each hinged panel is permanently attached to the rooftop unit.

23. Flue Hood Protector Assembly: Provides protection from the hot sides of the

gas flue hood.

* 24. LP Gas Kit:

Package shall contain all the necessary hardware and instructions to convert a standard natural gas unit for use with liquid propane.

25. NOx Reduction Kit: Package shall contain all necessary hardware

and instructions to convert a standard natural gas unit to reduce the nitrous oxide (NOx) emissions to meet the California Air Quality Management NOx requirement of 40 nanograms/ joule or less on 004-006 sizes.

26. Flue Discharge Deflector: Package shall contain single-piece deflector and

hardware to exhaust the flue discharge up and away from unit. The flue discharge deflector shall allow minimum flue side clearances to combustibles to be reduced to 18 inches.

27. Energy$Recycler: The package shall be an outdoor rooftop or

slab mounted, electronically controlled, air-toair heat pump unit utilizing a rotary compressor for cooling and heating duty.

The Energy$Recycler shall recover energy from building exhaust air and pre-condition ventilation air to allow higher ventilation requirements and minimizing energy cost.

28. EconoMi$er and Power Exhaust: Package shall provide control of Internal build-

ing pressure. The system shall exhaust up to 100% of return air.

29. Outdoor Air Enthalpy Sensor: The outdoor air enthlapy sensor shall be used

with the EconoMi$er device to provide single enthalpy control. When used in conjunction with a return air enthalpy sensor, the EconoMi$er device will provide different enthalpy control. The sensor allows the EconoMi$er controller to determine if outside air is suitable for free cooling.

30. Return Air Enthalpy Sensor: The return air enthalpy sensor shall be used

with the EconoMi$er device. When used in conjunction with an outdoor air enthalpy sensor, the EconoMi$er device will provide differential enthalpy control.

31. Return Air Temperature Sensor: The return air temperature sensor shall be used

with the EconoMi$er device. When used in conjunction with an outdoor air temperature sensor, the EconoMi$er device will provide differential temperature control.

32. Indoor Air Quality (CO

) Sensor:

a. Shall have the ability to provide demand ven-

tilation indoor air quality (IAQ) control through the economizer with an IAQ sensor.

b. The IAQ sensor shall be available in duct

mount, wall mount, and wall mount with LED display. The set point shall have adjustment capability.

Page 76

Carrier Corporation • Syracuse, New York 13221 12-99

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4 Tab 1 a 6a

New Pg 76 Catalog No. 524-894 Printed in U.S.A. PC 111 Form 48HJ-11PD

Book 1 Tab OP1b

Replaces: 48HJ-10PD
