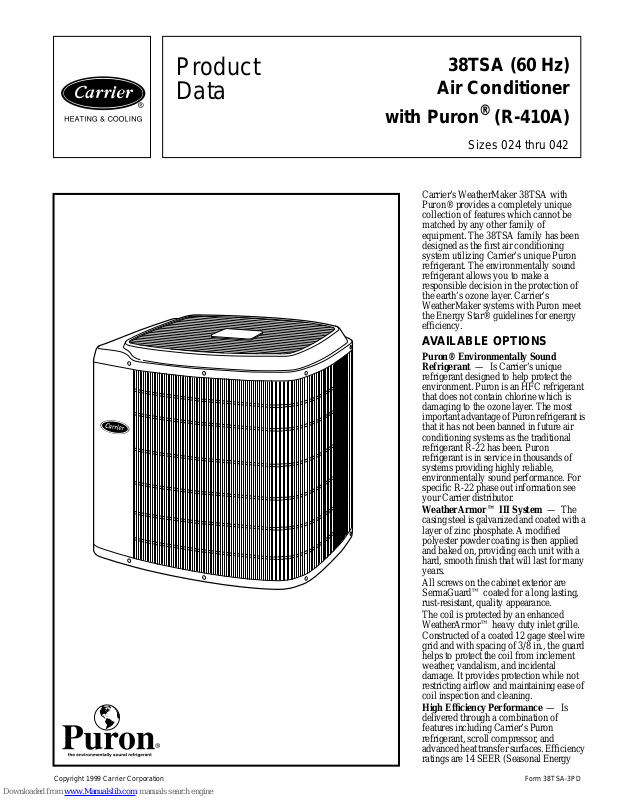

38TSA (60 Hz)
Air Conditioner
with Puron
Sizes 024 thru 042
Carrier’s WeatherMaker 38TSA with
Puron® provides a completely unique
collection of features which cannot be
matched by any other family of
equipment. The 38TSA family has been
designed as the first air conditioning
system utilizing Carrier’s unique Puron
refrigerant. The environmentally sound
refrigerant allows you to make a
responsible decision in the protection of
the earth’s ozone layer. Carrier’s
WeatherMaker systems with Puron meet
the Energy Star® guidelines for energy
efficiency.
AVAILABLE OPTIONS
Puron® Envir onmentally Sound
Refrigerant — Is Carrier’s unique
refrigerant designed to help protect the
environment. Puron is an HFC refrigerant
that does not contain chlorine which is
damaging to the ozone layer. The most
important advantage of Puron refrigerant is
that it has not been banned in future air
conditioning systems as the traditional
refrigerant R-22 has been. Puron
refrigerant is in service in thousands of
systems providing highly reliable,
environmentally sound performance. For
specific R-22 phase out information see
your Carrier distributor .
WeatherArmor™ III System — The
casing steel is galvanized and coated with a
layer of zinc phosphate. A modified
polyester powder coating is then applied
and baked on, providing each unit with a
hard, smooth finish that will last for many
years.
All screws on the cabinet exterior are
SermaGuard™ coated for a long lasting,
rust-resistant, quality appearance.
The coil is protected by an enhanced
W eatherArmor™ hea vy duty inlet grille.
Constructed of a coated 12 gage steel wire
grid and with spacing of 3/8 in., the guard
helps to protect the coil from inclement
weather, v andalism, and incidental
damage. It provides protection while not
restricting airflow and maintaining ease of
coil inspection and cleaning.
High Efficiency Performance — Is
delivered through a combination of
features including Carrier’s Puron
refrigerant, scroll compressor, and
advanced heat transfer surfaces. Efficienc y
ratings are 14 SEER (Seasonal Energy
®
(R-410A)
Copyright 1999 Carrier Corporation Form 38TSA-3PD
Page 2
Efficiency Ratio) with enhanced ratings of
up to 15.75 SEER. Sophisticated heat
transfer surfaces utilized in Carrier’ s
38TSA design allow heat to easily be
transferred to the outdoor air and requires
less energy . The scroll compressor found in
the 38TSA design performs quietly and
adds to the overall efficienc y of the system.
Finally, Carrier’s Puron refrigerant
operates more efficiently than R-22
refrigerant found in other systems. The
efficiency le vels pro vided by the 38TSA
provide end users with lower costs of
operation than traditional air conditioning
systems. 38TSA models are shipped with a
Puron TXV (thermostatic expansion valv e)
for field installation. The installation of this
TXV adds to the efficiency of the 38TSA’s.
Assured Future Service — By utilizing
the environmentally sound refrigerant,
Puron, 38TSA models will remain
serviceable well into the future. The Clean
Air Act of 1990 has placed a cap on
production of most other refrigerants
which has scheduled reductions beginning
in 2004. The resulting cap in production
ultimately results in a complete ban on
many other refrigerants in new equipment
by the year 2010. These changes, required
by federal law , mean the supply of other
refrigerants may be limited in the near
future making Puron the correct choice
when considering long term serviceability.
Highly Reliable Performance — Is
delivered through the superior design of the
system and componentry. The reliability of
the WeatherMaker models have been
proven to provide the lo west incidence of
warranty service of any product in the
Carrier family in its first 2 years of service.
Long term reliability is assured through the
use of both high and low pressure switches
which will not allow the system to operate
in the event of a significant change in
operating pressure. In doing this, the
system is protected from damage if an
unusual condition arises. Finally, Carrier
includes a special liquid line filter drier
designed to trap moisture and
contaminants which could otherwise
shorten the life of the system.
Carrier’s Silencer System — Is one of
the most sought after features of the
38TSA family . Extremely low operating
sound is the result of special attention to the
air moving through the outdoor unit, a
specially designed sound enclosure
surrounding the compressor, and an
exclusive laminated plate beneath the
compressor to eliminate sound
transmission to the rest of the system.
Application V ersatility — Carrier’s
systems utilizing Puron refrigerant have
the same application guidelines as other
systems. Applications which include long
line sets (50 to 175 ft) or applications
which require the system to operate at low
outdoor temperatures (below 55°F,
12.8°C) are approved under Carrier’s
standard guidelines.
Carrier Coils and Fan Coils to Complete
the System — Carrier specially designs
both the outdoor product and indoor coil
products to operate with assured reliability
and performance. A wide range of indoor
coil options are listed in the ratings section
of this publication.
Special Protective Devices — High and
low pressure switches and internal
protection in the compressor including
temperature and current sensing overloads
prevent operation under potentially
damaging circumstances. A special liquid
line filter drier designed to trap nearly 4
times the volume of contaminants of
standard driers provides superior
protection from moisture trapped in the
system.
Electrical Range — 208/230v, single
phase.
Wide Range of Sizes — A v ailable in
four sizes: 2, 2 1/2, 3, and 3 1/2 tons.
Totally Enclosed Fan Motor —
Protected from adverse weather
conditions.
Unit Design — Enhanced copper and
aluminum heat transfer surfaces with
vertical air discharge to direct air up and
away from the area.
External Service V alves — Both service
valves are back seating type v alves which
are externally located. These unique valv es
allow service technicians to ev acuate or
charge the system in less time than
standard service valves.
Easy Serviceability — Easy removal of
panels and wire dome provides access to
both electrical and refrigerant carrying
components, simplifying installation and
service.
Agency Approv als — 38TSA models
are listed with UL, c-UL, ARI, CEC, and
CSA-EEV. Special endorsements have
also been awarded these products by
Energy Star® which recognizes energy
efficient products.
Limited Warranty — A standard one
year warranty on parts with extended
warranty coverage on the compressor for
a total of 10 years. A five year warranty
is offered on the outdoor coil. Optional
warranties are available through your
Carrier distributor.
As an ENERGY ST AR
determined that this product meets the ENERGY
STAR
T
O
D
E
A
I
R
F
I
T
R
E
C
R
A
I
R
E
C
R
Y
U
R
A
T
T
I
C
N
A
U
F
U
N
A
M
E
T
Q
N
U
E
I
P
M
A
R
I
S
T
A
R
N
A
D
®
partner, Carrier Corporation has
®
guidelines for energy efficiency.
I
A
S
C
O
M
P
O
L
N
D
Y
I
T
I
N
I
O
G
N
I
N
W
G
I
T
H
0
1
2
D
CERTIFICATION APPLIES ONLY WHEN THE
COMPLETE SYSTEM IS LISTED WITH ARI.
2
REGISTERED QUALITY SYSTEM
Page 3
8
11
11
Model number nomenclature
38TSA 024 3 0 1
Deluxe 14 SEER Split-System
Air Conditioner Packaging
Nominal Capacity
024 — 24,000 Btuh 036 — 36,000 Btuh
030 — 30,000 Btuh 042 — 42,000 Btuh
Electrical
3 — 208/230-1
Series
Physical data
Unit Size-Series 024-30, 32 030-30, 32 036-30, 32 042-30, 32
Operating Weight (Lb)
COMPRESSOR
Manufacturer
Type
REFRIGERANT
Control
Charge (Lb)
COND FAN
Air Discharge
Air Qty (CFM)
Motor HP
Motor RPM
COND COIL
Face Area (Sq ft)
Fins per In.
Rows
Circuits
VALVE CONNECT. (In. ID)
Vapor
Liquid
REFRIGERANT TUBES* (In. OD)
Vapor (0–50 Ft Tube Length)
Vapor (Max Diameter for Long-
Line Applications)
Liquid (0–50 Ft Tube Length)
Liquid (For Long-Line
Applications)
* For tubing sets greater than 50 ft, consult Residential Split System Long-Line Application Guideline and Service Manual.
NOTE: See unit Installation Instructions for proper installation.
290 290 293 294
Copeland
Scroll
Puron®
AccuRater® (Bypass Type)
8.76 9.11 9.83 9.66
Propeller Type, Direct Drive
Vertical
2400 2400 2800 2800
1/8 1/8 1/5 1/5
825 825 825 825
18.25 18.25 18.25 18.25
20 20 20 20
2222
4444
5/8 3/4
5/8 3/4
3/4
Copper Tube, Aluminum Plate Fin
Sweat
3/4
3/8
3/4
7/8 7/8 1-1/8
3/8
3/8
7/8
7/8
CHARGING SUBCOOLING (TXV-TYPE EXPANSION DEVICE * )
* Must be a Puron® approved hard shutoff TXV.
UNIT SIZE-SERIES REQUIRED SUBCOOLING (°F)
024-30, 32
030-30, 32
036-30, 32
042-30, 32
9
3
Page 4
Accessories
ORDERING NO. DESCRIPTION
KAATD0101TDR
KSALA0301410
P251-0083 (RCD)
32LT660004* (RCD)
KAAFT0101AAA†
KAAWS0101AAA†
KSACY0101AAA
KSAHS1501AAA
KAACS0201PTC
KAACH1201AAA
KSATX0201HSZ‡
KSATX0301HSZ‡
KSAPX0101PIS
HC38GE231 (RCD)
KH45LG140 (RCD)
KH45LG141 (RCD)
KAALS0201LLS‡
KSASF0101AAA
KAACF0801MED
* Fan motor with ball bearings required.
† See low-ambient controller Installation Instructions for application.
‡ Do not use hard shutoff TXV with Liquid-Line Solenoid Valve. Use only these specified components.
Time-Delay Relay — All Sizes
Low-Ambient Pressure Switch — All Sizes
Low-Ambient Controller — All Sizes
MotorMaster® Control — All Sizes
Evaporator Freeze Thermostat — All Sizes
Winter Start Control — All Sizes
Cycle Protector — All Sizes
Start Assist — Capacitor and Relay — All Sizes
Start Assist — PTC — Standard on Size 024 Series 30 and all Series 32
Crankcase Heater — All Sizes
Thermostatic Expansion Valve (Hard Shutoff) — Sizes 024, 030 (Factory Supplied)
Thermostatic Expansion Valve (Hard Shutoff) — Sizes 036, 042 (Factory Supplied)
Piston Body — All Sizes
Ball Bearing Fan Motor — All Sizes
Filter Drier (Suction Line) — Sizes 024–036
Filter Drier (Suction Line) — Size 042
Liquid-Line Solenoid Valve — All Sizes
Support Feet — All Sizes
Coastal Filter — All Sizes
THERMOSTAT/SUBBASE PKG DESCRIPTION
TSTATCCNAC01-B
TSTATCCPAC01-B
TSTATCCPRH01-B
TSTATCCBAC01-B
TSTATCCSAC01
TSTATXXSEN01-B
TSTATXXNBP01
TSTATXXPBP01
TSTATXXBBP01
TSTATXXSBP01
TSTATXXCNV10
Thermostat — Auto Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool
Thermostat — Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool
Thermidistat™ Control — Non-Programmable/Programmable Thermostat with Humidity Control
Builder’s Thermostat — Manual Changeover, Non-Programmable, °F/°C, 1 Stage Heat,
1-Stage Cool
Thermostat — Manual Changeover, 5-2 Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool
Outdoor Air Temperature Sensor
Backplate for Non-Programmable Thermostat
Backplate for Programmable Thermostat
Backplate for Builder’s Thermostat
Backplate for Standard Thermostat
Thermostat Conversion Kit (4 to 5 wire) — 10 Pack
Accessory usage guideline
REQUIRED FOR
LOW-AMBIENT
ACCESSORY
Crankcase Heater
Evaporator Freeze Thermostat
Winter Start Control
Accumulator
Compressor Start Assist —
Capacitor and Relay
Low-Ambient Controller,
MotorMaster® Control,
Low-Ambient Pressure Switch
Liquid-Line Solenoid Valve
Ball Bearing Fan Motor
or
Wind Baffle
Coastal Filter
Support Feet
or
Hard Shutoff TXV
APPLICATIONS
(Below 55°F)
Yes Yes No
Yes No No
Yes†
No No No
Yes Yes No
Yes No No
See Low-Ambient Instructions No No
No No Yes
Recommended No Recommended
No
Yes‡
* For Tubing line sets greater than 50 ft, refer to Residential Split System Long-Line Application Guideline and Service Manual.
† Only when low-pressure switch is used.
‡ Required for Low-Ambient Controller (full modulation feature) and MotorMaster® Control only.
REQUIRED FOR
LONG-LINE
APPLICATIONS*
(Over 50 Ft)
No No
See Long-Line
Application
Guideline No
No No
REQUIRED FOR
APPLICATIONS
(Within 2 Miles)
SEA COAST
4
Page 5
Accessory description and usage (Listed alphabetically)
1. Ball Bearing Fan Motor
A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.
SUGGESTED USE: Required on all units where Low-Ambient Controller (full modulation feature) or MotorMaster® Control has been added.
2. Coastal Filter
A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from corrosive atmosphere without restricting airflow.
SUGGESTED USE: In geographic areas where salt damage could occur.
3. Compressor Start Assist — Capacitor and Relay
Start capacitor and start relay which gives ‘‘hard’’ boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.
4. Compressor Start Assist — PTC
Solid-state electrical device which gives a ‘‘soft’’ boost to compressor at each start-up.
SUGGESTED USE: Installations with marginal power supply.
5. Crankcase Heater
An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and
minimizes chance of refrigerant slugging. May or may not include a thermostat control.
SUGGESTED USE: When interconnecting tube length exceeds 50 ft.
6. Cycle Protector
Solid-state timing device which prevents compressor rapid rec ycling. Control provides an approximate 5-minute delay after power to the compressor has been interrupted
for any reason, including normal room thermostat cycling.
SUGGESTED USE: Installations in areas where power interruptions are frequent.
7. Evaporator Freeze Thermostat
An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units where Winter Start Control has been added.
8. Filter Drier (Suction Line)
A device for removing contaminants from refrigerant circulating in an air conditioner: 1 direction flow.
NOTE:
SUGGESTED USE: All split-system air conditioners.
9. Liquid-Line Solenoid Valve (LSV)
An electrically operated shutoff valve to be installed at the outdoor or indoor unit (depending on tubing configuration) and which stops and starts refrigerant liquid flow
in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.
NOTE:
SUGGESTED USE: For improved system performance in air conditioners for certain combinations of indoor and outdoor units Refer to ARI Unitary Directory.
10. Low-Ambient Controller
Head pressure controller is a cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil. It is designed to cycle the outdoor fan
motor in order to maintain condensing temperature within normal operating limits (approximately 100°F [37.8°C] high and 60°F [15.5°C] low). The control will maintain
working head pressure at low-ambient temperatures down to 0°F (–17.8°C) when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
11. Low-Ambient Pressure Switch
A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor f an motor in order to maintain head pressure within normal
operating limits (approximately 200 psig to 365 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F when properly
installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
12. MotorMaster® Control
A fan speed control device activ ated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing temperature during
operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at 100°F ± 10°F (37.8°C ± 5.6°C).
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
13. Outdoor Air Temperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.
SUGGESTED USE: All corporate programmable thermostats.
14. Piston Body
This piston body is to be used as a replacement for the FK4C Fan Coil R-22 thermostatic expansion valve when used with Puron® (R-410A) air conditioner units.
Use piston and piston ring shipped with outdoor unit for installations under 50 ft.
SUGGESTED USE: All Puron® (R-410A) air conditioner installations matched with FK4C Fan Coils.
15. Support Feet
Four stick-on plastic feet which raise the unit 4 in. above the mounting pad. This allo ws sand, dirt, and other debris to be fl ushed from the unit base minimizing corrosion.
SUGGESTED USE: For improved sound ratings.
16. Thermostatic Expansion Valve (TXV) Kit
A modulating flow control valve which meters refrigerant liquid flo w rate into the e v aporator in response to the superheat of the refrigerant g as lea ving the e v aporator. Kit
includes valve, adapter tubes, and external equalizer tube. Hard shutoff type valves are available.
NOTE: Compressor Start Assist — Capacitor and Relay must also be used for Series 30 only. Do not use with Liquid-Line Solenoid Valve.
SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
17. Time-Delay Relay
An SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
18. Winter Start Control
An SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load conditions.
SUGGESTED USE: All air conditioners where Low-Ambient Controller has been added.
In areas with high pollution levels.
Installations where outdoor design temperature exceeds 105°F (40.6°C).
Installations where low voltage or brown-out conditions may occur.
When unit will be operated below 55°F (12.8°C) outdoor air temperature. Use with Low-Ambient Controller.
All commercial installations.
Where user is likely to “play” with the room thermostat.
All commercial installations.
Installations where interconnecting tube length exceeds 50 ft.
High-rise applications.
Must be removed in 72 hrs.
Compressor Start Assist — Capacitor and Relay must also be used for Series 30 only. Do not use with hard shutoff TXV.
In certain long-line applications. Refer to Residential Split System Application Guideline and Service Manual.
All commercial installations.
Coastal installations.
Windy areas or where debris is normally circulating.
Rooftop installations.
Required for use on all zoning systems.
Required for use on all zoning systems.
5
Page 6
Electrical data
60°C
UNIT SIZE-
SERIES V/PH
024-30, 32
030-30, 32 72.5 14.7 0.8 19.2 14 14 41 39 30
036-30, 32 83.0 15.4 0.8 20.1 12 12 62 59 30
042-30, 32 105.0 18.6 1.1 24.4 10 10 81 77 40
* Permissible limits of the voltage range at which unit will operate satisfactorily.
† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic-sheathed
cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated
(non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used,
consult applicable tables of the NEC (ANSI/NFPA 70).
‡ Length shown is as measured 1 way along wire path between unit and service panel for voltage drop not to exceed 2%.
** Time-delay fuse.
FLA — Full Load Amps
LRA — Locked Rotor Arms
MCA — Minimum Circuit Amps
RLA — Rated Load Amps
NOTE: Control circuit is 24-v on all units and requires external power source. Copper wire must be used from service disconnect to unit. All motors/
compressors contain internal overload protection.
208/230/1 253 187
OPER VOL TS* COMPR
61.0 13.5 0.5 17.4 14 14 45 43 25
FAN
FLA MCA
MIN
WIRE
SIZE†
75°C
MIN
WIRE
SIZE†
60°C
MAX
LENGTH
(Ft)‡
75°C
MAX
LENGTH
(Ft)‡
MAX
FUSE**
CKT BKR
AMPSMax Min LRA RLA
Sound power (dBA)
SOUND
UNIT
SIZE
024 69 58.5 60 63.5 63.5 61 58 50.5
030 70 56 61 63 64.5 62.5 57.5 50
036 72 56.5 64 65 67 63 58.5 50
042 73 58.5 66.5 66 66.5 64.5 59 50.5
LEVEL
(dBA)
125 250 500 1000 2000 4000 8000
OCTAVE BAND CENTER FREQUENCY (Hz)
6
Page 7

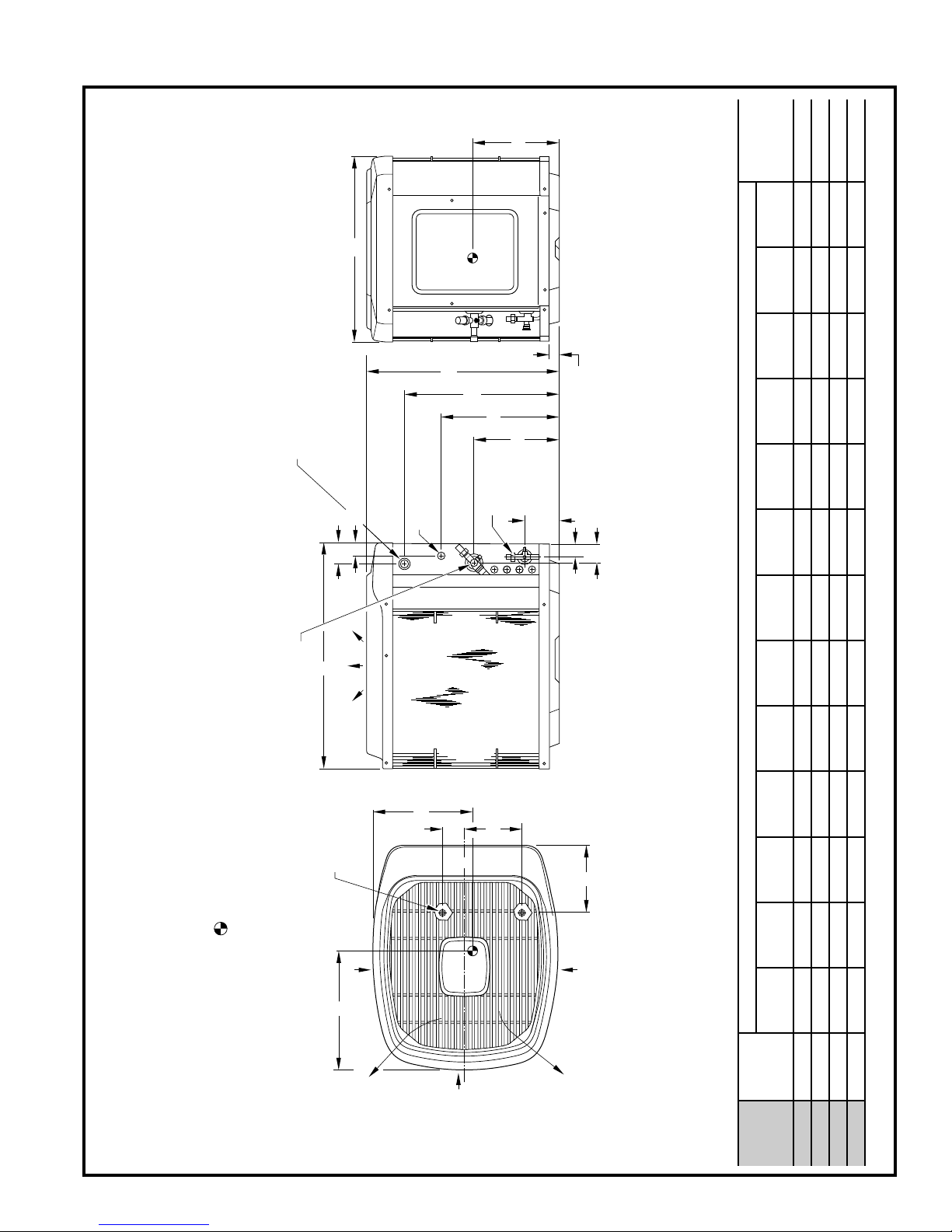

Dimensions
B
DIA HOLE WITH
/8 IN. DIA KNOCKOUT
/8 IN. DIA KNOCKOUT
3
1
/8 IN.
1
AND
1
FIELD POWER SUPPLY CONN
7
"
/16
9
1
"
/2
1
2
FIELD CONTROL SUPPLY
PANEL
ACCESS
A
DIA HOLE
/8 IN.
7
CONN
G
M
F
"
/2
1
10
DIA.
/8 IN.
3
LIQUID LINE
CONN
PAD
A97084
"
/4
1
1
"
/16
3
4
N
"
/4
3
1
MOUNTING
DIMENSIONSABCDEFGHJKLMN
C
AIR DISCHARGE
H DIA VAPOR LINE CONN
K
E
D
/8 IN. DIA TIEDOWN
3
KNOCKOUTS (2)
PLACES IN BASEPAN
clearance to service side of unit, 48 in. above unit, 6 in.
AIR IN
L
C
L
on one side, 12 in. on remaining side, and 24 in. between units for proper airflow.
Minimum outdoor operating ambient in cooling mode is 55°F (unless low ambient control is used) max 125°F.2.
Series designation is the 13th position of the unit model number.3.
1. Allow 30 in.
NOTES:
Center of gravity .4.
UNIT DIMENSIONS MINIMUM
DIMENSIONS (IN.)
J
AIR IN
AIR DISCHARGE
AIR IN
AIR DISCHARGE
SIZE SERIES
UNIT
024 30, 32 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 5/8 8-3/16 16-3/4 19-1/2 17-1/4 2-15/16 26 x 32
030 30, 32 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 3/4 8-3/16 16-3/4 19-1/2 17-1/4 2-15/16 26 x 32
036 30, 32 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 3/4 8-3/16 16-3/4 19-1/2 17-1/4 2-15/16 26 x 32
042 30, 32 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 7/8 8-3/16 16-3/4 19-1/2 17-1/4 2-15/16 26 x 32
7
Page 8
Combination ratings
UNIT
SIZE-SERIES
024-30, 32
030-30, 32
See notes on pg. 13.
FACTORY-
SUPPLIED
INDOOR
UNIT
CK5A/CK5BA036* 25,000 TXV 14.00 14.00 12.10
CC5AA024 24,000 TXV 13.30 13.30 11.55
CC5AA030 24,600 TXV 13.50 13.50 11.65
CC5A/CD5AA036 25,000 TXV 14.00 14.00 12.05
CC5AW024 24,000 TXV 13.30 13.30 11.55
CC5AW030 24,600 TXV 13.50 13.50 11.65
CD5AW036 25,000 TXV 14.00 14.00 12.05
CE3AA024 24,000 TXV 13.50 13.50 11.70
CE3AA030 24,600 TXV 13.50 13.50 11.85
CE3AA036 25,000 TXV 13.70 13.70 11.90
CF5AA024 24,000 TXV 13.50 13.50 11.65
CF5AA036 25,000 TXV 13.70 13.70 12.00
CK3BA024 24,000 TXV 13.50 13.50 11.75
CK3BA030 24,600 TXV 13.50 13.50 11.75
CK3BA036 25,000 TXV 14.00 14.00 12.10
CK5A/CK5BA024 24,000 TXV 13.50 13.50 11.75
CK5A/CK5BA030 24,600 TXV 13.50 13.50 11.75
CK5A/CK5BN036 25,000 TXV 14.00 14.00 12.10
CK5A/CK5BT036 25,000 TXV 14.00 14.00 12.10
CK5A/CK5BW024 24,000 TXV 13.50 13.50 11.75
CK5A/CK5BW030 24,600 TXV 13.50 13.50 11.75
CK5A/CK5BW036 25,000 TXV 14.00 14.00 12.10
F(A,B)4AN(F,C)024 24,000 TDR&TXV 13.50 13.50 11.85
F(A,B)4AN(F,C)030 24,600 TDR&TXV 13.70 13.70 12.00
F(A,B)4AN(F,C)036 25,000 TDR&TXV 13.50 13.50 11.70
FC4BNF024‡ 24,000 TDR&TXV 13.50 13.50 11.85
FC4BNF030‡ 24,600 TDR&TXV 13.70 13.70 12.00
FC4BNF036‡ 25,000 TDR&TXV 13.50 13.50 11.70
FG3AAA036 25,000 TXV 13.60 13.60 11.85
FG3AAA024 24,000 TXV 13.00 13.00 11.40
FK4CNF001‡ 24,000 TDR&TXV 15.00 15.00 13.10
40FKA/FK4CNF002‡ 24,600 TDR&TXV 15.20 15.20 13.25
40FKA/FK4CNF003‡ 25,000 TDR&TXV 15.50 15.50 13.50
FV4ANF002 24,600 TDR&TXV 15.40 15.40 13.25
FV4ANF003 25,000 TDR&TXV 15.60 15.60 13.50
FX4ANF030 24,600 TDR&TXV 14.00 14.00 12.15
FX4ANF036 25,000 TDR&TXV 13.60 13.60 11.85
CC5A/CD5AW030 24,600 TDR&TXV 14.50 14.50 12.60
CC5A/CD5AW036 25,000 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BW030 24,600 TDR&TXV 14.50 14.50 12.75
CK5A/CK5BW036 25,000 TDR&TXV 15.00 15.00 13.20
CC5A/CD5AA036 25,000 TDR&TXV 15.00 15.00 13.10
CC5A/CD5AW024 24,000 TDR&TXV 14.30 14.30 12.40
CC5A/CD5AW030 24,600 TDR&TXV 14.50 14.50 12.60
CK3BA024 24,000 TDR&TXV 14.50 14.50 12.65
CK3BA030 24,600 TDR&TXV 14.50 14.50 12.75
CK3BA036 25,000 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BA036 25,000 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BW024 24,000 TDR&TXV 14.50 14.50 12.65
CK5A/CK5BW030 24,600 TDR&TXV 14.50 14.50 12.75
CC5A/CD5AW024 24,000 TDR&TXV 14.50 14.50 12.70
CC5A/CD5AW030 24,600 TDR&TXV 15.00 15.00 12.85
CC5A/CD5AW036 25,000 TDR&TXV 15.00 15.00 13.30
CK5A/CK5BW024 24,000 TDR&TXV 15.00 15.00 12.90
CK5A/CK5BW030 24,600 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BW036 25,000 TDR&TXV 15.00 15.00 13.40
CC5A/CD5AA024 24,000 TDR&TXV 14.30 14.30 12.50
CC5A/CD5AA030 24,600 TDR&TXV 14.50 14.50 12.70
CC5A/CD5AA036 25,000 TDR&TXV 15.00 15.00 13.15
CC5A/CD5AW030 24,600 TDR&TXV 14.50 14.50 12.70
CK3BA024 24,000 TDR&TXV 14.50 14.50 12.80
CK3BA030 24,600 TDR&TXV 14.50 14.50 12.85
CK3BA036 25,000 TDR&TXV 15.00 15.00 13.25
CK5A/CK5BA024 24,000 TDR&TXV 14.50 14.50 12.80
CK5A/CK5BA030 24,600 TDR&TXV 14.50 14.50 12.85
CK5A/CK5BA036 25,000 TDR&TXV 15.00 15.00 13.25
CK5A/CK5BN036 25,000 TDR&TXV 15.00 15.00 13.10
CK5A/CK5BW030 24,600 TDR&TXV 14.50 14.50 12.85
CK5A/CK5BT042* 30,000 TXV 14.00 14.00 12.10
CC5A/CD5AA030 29,000 TXV 13.50 13.50 11.70
CC5A/CD5AA036 29,600 TXV 13.80 13.80 12.05
CC5A/CD5AA042 30,000 TXV 13.70 13.70 12.05
TOT. CAP.
BTUH
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58U(H,X)060-12 VARIABLE SPEED FURNACE
ENHANCE-
MENT
Standard
Rating
SEER
Carrier Gas Furnace or
Accessory
TDR†
EER
8
Page 9
Combination ratings continued
UNIT
SIZE-SERIES
030-30, 32
See notes on pg. 13.
FACTORY-
SUPPLIED
INDOOR
UNIT
CC5A/CD5AW030 29,000 TXV 13.50 13.50 11.70
CC5A/CD5AW042 30,000 TXV 13.70 13.70 12.00
CD5A/CD5AW036 29,600 TXV 13.80 13.80 12.05
CE3AA030 29,000 TXV 13.50 13.50 11.85
CE3AA036 29,600 TXV 13.50 13.50 11.95
CE3AA042 30,000 TXV 14.00 14.00 12.10
CF5AA036 29,600 TXV 13.50 13.50 12.00
CK3BA030 29,000 TXV 13.50 13.50 11.75
CK3BA036 29,600 TXV 13.80 13.80 12.10
CK3BA042 30,000 TXV 14.00 14.00 12.10
CK5A/CK5BA030 29,000 TXV 13.50 13.50 11.75
CK5A/CK5BA036 29,600 TXV 13.80 13.80 12.10
CK5A/CK5BA042 30,000 TXV 14.00 14.00 12.10
CK5A/CK5BA042 30,000 TXV 14.00 14.00 12.10
CK5A/CK5BN036 29,600 TXV 13.60 13.60 12.10
CK5A/CK5BN042 30,000 TXV 14.00 14.00 12.10
CK5A/CK5BT036 29,600 TXV 13.80 13.80 12.10
CK5A/CK5BW030 29,000 TXV 13.50 13.50 11.75
CK5A/CK5BW036 29,600 TXV 13.80 13.80 12.10
F(A,B)4AN(F,B,C)042 30,000 TDR&TXV 13.50 13.50 11.70
F(A,B)4AN(F,C)030 29,000 TDR&TXV 14.00 14.00 12.00
F(A,B)4AN(F,C)036 29,600 TDR&TXV 13.50 13.50 11.75
FC4BN(F,B)042‡ 30,000 TDR&TXV 13.50 13.50 11.70
FC4BNF030‡ 29,000 TDR&TXV 14.00 14.00 12.00
FC4BNF036‡ 29,600 TDR&TXV 13.50 13.50 11.75
FG3AAA036 29,600 TXV 13.50 13.50 11.85
FK4CNF001‡ 29,000 TDR&TXV 15.00 15.00 13.05
40FKA/FK4CNF002‡ 29,600 TDR&TXV 15.00 15.00 13.15
40FKA/FK4CNF003‡ 29,800 TDR&TXV 15.50 15.50 13.60
40FKA/FK4CNF005‡ 30,000 TDR&TXV 15.75 15.75 14.00
FV4ANF002 29,600 TDR&TXV 15.20 15.20 13.15
FV4ANF003 29,800 TDR&TXV 15.60 15.60 13.60
FV4ANF005 30,000 TDR&TXV 15.75 15.75 14.00
FX4ANF030 29,000 TDR&TXV 14.00 14.00 12.15
FX4ANF036 29,600 TDR&TXV 13.85 13.85 11.90
FX4ANF042 30,000 TDR&TXV 13.60 13.60 11.90
CC5A/CD5AA042 30,000 TDR&TXV 15.00 15.00 13.00
CC5A/CD5AW030 29,000 TDR&TXV 14.00 14.00 12.30
CD5AW036 29,600 TDR&TXV 15.00 15.00 12.90
CK5A/CK5BA042 30,000 TDR&TXV 15.00 15.00 13.05
CK5A/CK5BW030 29,000 TDR&TXV 14.00 14.00 12.35
CK5A/CK5BW036 29,600 TDR&TXV 15.00 15.00 12.90
CC5A/CD5AA036 29,600 TDR&TXV 14.70 14.70 12.85
CC5A/CD5AW030 29,000 TDR&TXV 14.00 14.00 12.30
CK3BA030 29,000 TDR&TXV 14.50 14.50 12.40
CK3BA036 29,600 TDR&TXV 15.00 15.00 12.90
CK3BA042 30,000 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BA036 29,600 TDR&TXV 14.70 14.70 12.90
CK5A/CK5BN042 30,000 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BW030 29,000 TDR&TXV 14.00 14.00 12.40
CC5A/CD5AA042 30,000 TDR&TXV 15.00 15.00 13.10
CC5A/CD5AW030 29,000 TDR&TXV 14.50 14.50 12.40
CD5AW036 29,600 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BA042 30,000 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BW030 29,000 TDR&TXV 14.50 14.50 12.50
CK5A/CK5BW036 29,600 TDR&TXV 15.00 15.00 13.05
CC5A/CD5AA042 30,000 TDR&TXV 15.00 15.00 12.95
CC5A/CD5AW030 29,000 TDR&TXV 14.30 14.30 12.25
CD5AW036 29,600 TDR&TXV 14.70 14.70 12.85
CK3BA042 30,000 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BA042 30,000 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BW030 29,000 TDR&TXV 14.30 14.30 12.30
CK5A/CK5BW036 29,600 TDR&TXV 14.70 14.70 12.85
CC5A/CD5AA042 30,000 TDR&TXV 15.00 15.00 13.35
CC5A/CD5AW030 29,000 TDR&TXV 14.70 14.70 12.75
CD5AW036 29,600 TDR&TXV 15.00 15.00 13.30
CK3BA042 30,000 TDR&TXV 15.00 15.00 13.40
CK5A/CK5BA042 30,000 TDR&TXV 15.00 15.00 13.40
CK5A/CK5BW030 29,000 TDR&TXV 14.70 14.70 12.80
CK5A/CK5BW036 29,600 TDR&TXV 15.00 15.00 13.30
TOT. CAP.
BTUH
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
ENHANCE-
MENT
Standard
Rating
SEER
Carrier Gas Furnace or
Accessory
TDR†
EER
9
Page 10
Combination ratings continued
UNIT
SIZE-SERIES
030-30, 32
036-30, 32
See notes on pg. 13.
FACTORY-
SUPPLIED
INDOOR
UNIT
CC5A/CD5AA042 30,000 TDR&TXV 15.00 15.00 13.30
CD5AW036 29,600 TDR&TXV 15.00 15.00 13.20
CK5A/CK5BA042 30,000 TDR&TXV 15.00 15.00 13.35
CK5A/CK5BW036 29,600 TDR&TXV 15.00 15.00 13.25
CC5A/CD5AA030 29,000 TDR&TXV 14.50 14.50 12.55
CC5A/CD5AA036 29,600 TDR&TXV 15.00 15.00 13.10
CC5A/CD5AW030 29,000 TDR&TXV 14.50 14.50 12.55
CK3BA030 29,000 TDR&TXV 14.50 14.50 12.65
CK3BA036 29,600 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BA030 29,000 TDR&TXV 14.50 14.50 12.65
CK5A/CK5BA036 29,600 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BN036 29,600 TDR&TXV 14.70 14.70 13.00
CK5A/CK5BW030 29,000 TDR&TXV 14.50 14.50 12.65
CC5A/CD5AA042 30,000 TDR&TXV 15.00 15.00 13.35
CC5A/CD5AW030 29,000 TDR&TXV 14.50 14.50 12.75
CD5AW036 29,600 TDR&TXV 15.00 15.00 13.35
CK3BA042 30,000 TDR&TXV 15.00 15.00 13.40
CK5A/CK5BA042 30,000 TDR&TXV 15.00 15.00 13.40
CK5A/CK5BW030 29,000 TDR&TXV 14.50 14.50 12.85
CK5A/CK5BW036 29,600 TDR&TXV 15.00 15.00 13.40
CK5A/CK5BT048* 36,000 TXV 14.00 14.00 12.05
CC5A/CD5AA036 35,000 TXV 13.70 13.70 11.95
CC5A/CD5AA042 35,600 TXV 13.70 13.70 11.95
CC5A/CD5AC048 35,600 TXV 13.70 13.70 11.80
CC5A/CD5AW042 35,600 TXV 13.70 13.70 11.85
CC5A/CD5AW048 36,000 TXV 13.70 13.70 12.00
CD5AA048 36,000 TXV 13.70 13.70 12.00
CD5AW036 35,000 TXV 13.70 13.70 11.95
CE3AA036 35,000 TXV 13.50 13.50 11.80
CE3AA042 35,600 TXV 14.00 14.00 12.05
CE3AA048 36,000 TXV 14.00 14.00 12.10
CF5AA036 35,000 TXV 13.50 13.50 11.90
CF5AA048 36,000 TXV 13.80 13.80 12.00
CK3BA036 35,000 TXV 13.70 13.70 11.95
CK3BA042 35,600 TXV 13.70 13.70 11.95
CK3BA048 36,000 TXV 14.00 14.00 12.05
CK5A/CK5BA036 35,000 TXV 13.70 13.70 11.95
CK5A/CK5BA042 35,600 TXV 13.70 13.70 11.95
CK5A/CK5BA048 36,000 TXV 14.00 14.00 12.05
CK5A/CK5BN036 35,000 TXV 13.70 13.70 12.05
CK5A/CK5BN042 35,600 TXV 13.70 13.70 11.95
CK5A/CK5BN048 36,000 TXV 14.00 14.00 12.05
CK5A/CK5BT036 35,000 TXV 13.70 13.70 11.95
CK5A/CK5BT042 35,600 TXV 13.70 13.70 11.95
CK5A/CK5BW036 35,000 TXV 13.70 13.70 11.95
CK5A/CK5BW048 36,000 TXV 14.00 14.00 12.05
F(A,B)4AN(F,B,C)042 35,600 TDR&TXV 13.70 13.70 11.90
F(A,B)4AN(F,B,C)048 36,000 TDR&TXV 13.80 13.80 11.95
F(A,B)4AN(F,C)036 35,000 TDR&TXV 13.20 13.20 11.60
FC4BN(F,B)042‡ 35,600 TDR&TXV 13.70 13.70 11.90
FC4BN(F,B)048‡ 36,000 TDR&TXV 13.80 13.80 11.95
FC4BNB054‡ 36,000 TDR&TXV 14.50 14.50 12.75
FC4BNF036‡ 35,000 TDR&TXV 13.20 13.20 11.60
FG3AAA036 35,000 TXV 13.50 13.50 11.70
FG3AAA048 36,000 TXV 13.80 13.80 12.00
FK4CNF001‡ 35,000 TDR&TXV 14.50 14.50 12.50
40FKA/FK4CNB006‡ 36,200 TDR&TXV 15.75 15.75 14.10
40FKA/FK4CNF002‡ 35,600 TDR&TXV 14.50 14.50 12.60
40FKA/FK4CNF003‡ 35,800 TDR&TXV 15.00 15.00 13.20
40FKA/FK4CNF005‡ 36,000 TDR&TXV 15.50 15.50 13.70
FV4ANB006 36,200 TDR&TXV 15.75 15.75 14.05
FV4ANF002 35,600 TDR&TXV 14.50 14.50 12.60
FV4ANF003 35,800 TDR&TXV 15.20 15.20 13.20
FV4ANF005 36,000 TDR&TXV 15.50 15.50 13.70
FX4ANF036 35,000 TDR&TXV 13.50 13.50 11.70
FX4ANF042 35,600 TDR&TXV 14.00 14.00 12.10
FX4ANF048 36,000 TDR&TXV 14.00 14.00 12.15
CC5A/CD5AA042 35,600 TDR&TXV 14.50 14.50 12.75
CC5A/CD5AW048 36,000 TDR&TXV 14.50 14.50 12.75
CD5AW036 35,000 TDR&TXV 14.50 14.50 12.65
CK5A/CK5BA042 35,600 TDR&TXV 14.50 14.50 12.80
CK5A/CK5BW036 35,000 TDR&TXV 14.50 14.50 12.70
CK5A/CK5BW048 36,000 TDR&TXV 15.00 15.00 12.90
TOT. CAP.
BTUH
COILS + 58MVP120-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
ENHANCE-
MENT
Standard
Rating
SEER
Carrier Gas Furnace or
Accessory
TDR†
EER
10
Page 11
Combination ratings continued
UNIT
SIZE-SERIES
036-30, 32
042-30, 32
See notes on pg. 13.
FACTORY-
SUPPLIED
INDOOR
UNIT
CC5A/CD5AA036 35,000 TDR&TXV 14.50 14.50 12.60
CK3BA036 35,000 TDR&TXV 14.50 14.50 12.65
CK3BA042 35,600 TDR&TXV 14.50 14.50 12.75
CK5A/CK5BA036 35,000 TDR&TXV 14.50 14.50 12.65
CK5A/CK5BN042 35,600 TDR&TXV 14.50 14.50 12.75
CK5A/CK5BN048 36,000 TDR&TXV 14.50 14.50 12.75
CC5A/CD5AA042 35,600 TDR&TXV 14.50 14.50 12.85
CC5A/CD5AC048 35,600 TDR&TXV 14.50 14.50 12.65
CD5AA048 36,000 TDR&TXV 15.00 15.00 12.90
CD5AW036 35,000 TDR&TXV 14.50 14.50 12.75
CK3BA042 35,600 TDR&TXV 14.50 14.50 12.90
CK3BA048 36,000 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BA042 35,600 TDR&TXV 14.50 14.50 12.90
CK5A/CK5BA048 36,000 TDR&TXV 15.00 15.00 13.00
CK5A/CK5BW036 35,000 TDR&TXV 14.50 14.50 12.80
CC5A/CD5AA042 35,600 TDR&TXV 14.50 14.50 12.70
CC5A/CD5AC048 35,600 TDR&TXV 14.50 14.50 12.50
CD5AA048 36,000 TDR&TXV 14.50 14.50 12.75
CD5AW036 35,000 TDR&TXV 14.50 14.50 12.60
CK3BA042 35,600 TDR&TXV 14.50 14.50 12.75
CK3BA048 36,000 TDR&TXV 14.50 14.50 12.85
CK5A/CK5BA042 35,600 TDR&TXV 14.50 14.50 12.75
CK5A/CK5BA048 36,000 TDR&TXV 14.50 14.50 12.85
CK5A/CK5BW036 35,000 TDR&TXV 14.50 14.50 12.65
CC5A/CD5AA042 35,600 TDR&TXV 15.00 15.00 13.00
CC5A/CD5AC048 35,600 TDR&TXV 14.50 14.50 12.85
CD5AA048 36,000 TDR&TXV 15.00 15.00 13.05
CD5AW036 35,000 TDR&TXV 15.00 15.00 12.95
CK3BA042 35,600 TDR&TXV 15.00 15.00 13.10
CK3BA048 36,000 TDR&TXV 15.00 15.00 13.20
CK5A/CK5BA042 35,600 TDR&TXV 15.00 15.00 13.10
CK5A/CK5BA048 36,000 TDR&TXV 15.00 15.00 13.20
CK5A/CK5BW036 35,000 TDR&TXV 15.00 15.00 13.05
CC5A/CD5AA042 35,600 TDR&TXV 15.00 15.00 13.00
CC5A/CD5AW048 36,000 TDR&TXV 15.00 15.00 13.00
CD5AW036 35,000 TDR&TXV 15.00 15.00 12.90
CK5A/CK5BW036 35,000 TDR&TXV 15.00 15.00 12.95
CK5A/CK5BW048 36,000 TDR&TXV 15.00 15.00 13.15
CC5A/CD5AA036 35,000 TDR&TXV 14.50 14.50 12.60
CK3BA036 35,000 TDR&TXV 14.50 14.50 12.65
CK5A/CK5BA036 35,000 TDR&TXV 14.50 14.50 12.65
CK5A/CK5BN036 35,000 TDR&TXV 14.50 14.50 12.50
CC5A/CD5AA042 35,600 TDR&TXV 14.50 14.50 12.90
CC5A/CD5AC048 35,600 TDR&TXV 14.50 14.50 12.80
CD5AA048 36,000 TDR&TXV 15.00 15.00 13.05
CD5AW036 35,000 TDR&TXV 14.50 14.50 12.80
CK3BA042 35,600 TDR&TXV 14.50 14.50 12.95
CK3BA048 36,000 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BA042 35,600 TDR&TXV 14.50 14.50 12.95
CK5A/CK5BA048 36,000 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BW036 35,000 TDR&TXV 14.50 14.50 12.85
CC5A/CD5AA042 35,600 TDR&TXV 15.00 15.00 13.20
CC5A/CD5AW048 36,000 TDR&TXV 15.00 15.00 13.35
CD5AW036 35,000 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BA042 35,600 TDR&TXV 15.00 15.00 13.25
CK5A/CK5BW036 35,000 TDR&TXV 15.00 15.00 13.20
CK5A/CK5BW048 36,000 TDR&TXV 15.00 15.00 13.45
CC5A/CD5AA042 35,600 TDR&TXV 15.00 15.00 13.10
CC5A/CD5AW048 36,000 TDR&TXV 15.00 15.00 13.25
CD5AW036 35,000 TDR&TXV 15.00 15.00 13.05
CK5A/CK5BA042 35,600 TDR&TXV 15.00 15.00 13.15
CK5A/CK5BW036 35,000 TDR&TXV 15.00 15.00 13.10
CK5A/CK5BW048 36,000 TDR&TXV 15.00 15.00 13.35
CK5A/CK5BT060* 42,000 TXV 14.00 14.00 12.00
CC5A/CD5AA042 40,000 TXV 13.30 13.30 11.70
CC5A/CD5AA060 41,500 TXV 13.30 13.30 11.70
CC5A/CD5AC048 40,500 TXV 13.30 13.30 11.55
TOT. CAP.
BTUH
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
COILS + 58MVP120-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
ENHANCE-
MENT
Standard
Rating
SEER
Carrier Gas Furnace or
Accessory
TDR†
EER
11
Page 12
Combination ratings continued
UNIT
SIZE-SERIES
042-30, 32
See notes on pg. 13.
FACTORY-
SUPPLIED
INDOOR
UNIT
CC5A/CD5AW042 40,000 TXV 13.30 13.30 11.60
CC5A/CD5AW048 41,000 TXV 13.50 13.50 11.70
CC5A/CD5AW060 42,000 TXV 13.50 13.50 11.95
CD5AA048 41,000 TXV 13.40 13.40 11.70
CE3AA042 40,000 TXV 13.30 13.30 11.75
CE3AA048 41,000 TXV 13.50 13.50 11.80
CE3AA060 41,000 TXV 14.00 14.00 12.00
CF5AA048 41,000 TXV 13.40 13.40 11.70
CK3BA042 40,000 TXV 13.30 13.30 11.70
CK3BA048 41,000 TXV 13.50 13.50 11.75
CK3BA060 41,500 TXV 14.00 14.00 12.00
CK5A/CK5BA042 40,000 TXV 13.30 13.30 11.70
CK5A/CK5BA048 41,000 TXV 13.50 13.50 11.75
CK5A/CK5BA060 42,000 TXV 14.00 14.00 12.00
CK5A/CK5BN042 40,000 TXV 13.30 13.30 11.70
CK5A/CK5BN048 40,500 TXV 13.50 13.50 11.75
CK5A/CK5BN060 41,500 TXV 14.00 14.00 12.10
CK5A/CK5BT042 40,000 TXV 13.30 13.30 11.70
CK5A/CK5BT048 41,000 TXV 13.50 13.50 11.75
CK5A/CK5BW048 41,000 TXV 13.50 13.50 11.75
CK5A/CK5BX060 42,000 TXV 13.70 13.70 12.10
F(A,B)4AN(F,B,C)042 40,000 TDR&TXV 13.20 13.20 11.50
F(A,B)4AN(F,B,C)048 41,000 TDR&TXV 13.50 13.50 11.70
F(A,B)4AN(F,B,C)060 42,000 TDR&TXV 13.20 13.20 11.60
FB4ANB070 42,500 TDR&TXV 13.50 13.50 11.95
FC4BN(F,B)042‡ 40,000 TDR&TXV 13.20 13.20 11.50
FC4BN(F,B)048‡ 41,000 TDR&TXV 13.50 13.50 11.70
FC4BN(F,B)060‡ 42,000 TDR&TXV 13.20 13.20 11.60
FC4BNB070‡ 42,500 TDR&TXV 13.50 13.50 11.95
FG3AAA048 41,000 TXV 13.50 13.50 11.70
FG3AAA060 41,000 TXV 13.50 13.50 11.85
40FKA/FK4CNB006‡ 42,000 TDR&TXV 15.00 15.00 13.60
40FKA/FK4CNF003‡ 40,000 TDR&TXV 14.20 14.20 12.65
40FKA/FK4CNF005‡ 41,500 TDR&TXV 15.00 15.00 13.20
FV4ANB006 42,000 TDR&TXV 15.10 15.10 13.60
FV4ANF003 40,000 TDR&TXV 14.30 14.30 12.65
FV4ANF005 41,500 TDR&TXV 15.00 15.00 13.20
FX4ANB060 42,000 TDR&TXV 13.50 13.50 11.95
FX4ANF042 40,000 TDR&TXV 13.50 13.50 11.70
FX4ANF048 41,000 TDR&TXV 13.60 13.60 11.90
CC5A/CD5AA042 40,000 TDR&TXV 14.00 14.00 12.15
CC5A/CD5AW048 41,000 TDR&TXV 14.00 14.00 12.30
CK5A/CK5BA042 40,000 TDR&TXV 14.00 14.00 12.20
CK5A/CK5BW048 41,000 TDR&TXV 14.10 14.10 12.35
CK3BA042 40,000 TDR&TXV 14.00 14.00 12.20
CK5A/CK5BN042 40,000 TDR&TXV 14.00 14.00 12.20
CK5A/CK5BN048 40,000 TDR&TXV 14.00 14.00 12.20
CC5A/CD5AA042 40,000 TDR&TXV 14.00 14.00 12.30
CC5A/CD5AC048 40,500 TDR&TXV 14.00 14.00 12.25
CD5AA048 41,000 TDR&TXV 14.00 14.00 12.45
CK3BA042 40,000 TDR&TXV 14.00 14.00 12.35
CK3BA048 41,000 TDR&TXV 14.00 14.00 12.50
CK5A/CK5BA042 40,000 TDR&TXV 14.00 14.00 12.35
CK5A/CK5BA048 41,000 TDR&TXV 14.00 14.00 11.65
CC5A/CD5AA042 40,000 TDR&TXV 14.00 14.00 12.15
CC5A/CD5AA060 41,000 TDR&TXV 14.00 14.00 12.25
CC5A/CD5AC048 40,500 TDR&TXV 14.00 14.00 12.05
CC5A/CD5AW060 42,000 TDR&TXV 14.50 14.50 12.60
CD5AA048 41,000 TDR&TXV 14.00 14.00 12.25
CK3BA042 40,000 TDR&TXV 14.00 14.00 12.20
CK3BA048 41,000 TDR&TXV 14.00 14.00 12.35
CK3BA060 41,500 TDR&TXV 14.00 14.00 12.60
CK5A/CK5BA042 40,000 TDR&TXV 14.00 14.00 12.20
CK5A/CK5BA048 41,000 TDR&TXV 14.00 14.00 12.35
CK5A/CK5BA060 41,500 TDR&TXV 14.00 14.00 12.60
CK5A/CK5BN060 42,000 TDR&TXV 14.00 14.00 12.70
CK5A/CK5BX060 42,000 TDR&TXV 14.50 14.50 12.80
CC5A/CD5AA042 40,000 TDR&TXV 14.50 14.50 12.55
CC5A/CD5AA060 41,000 TDR&TXV 14.50 14.50 12.65
CC5A/CD5AC048 40,500 TDR&TXV 14.50 14.50 12.45
CC5A/CD5AW060 42,000 TDR&TXV 15.00 15.00 12.95
TOT. CAP.
BTUH
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
ENHANCE-
MENT
Standard
Rating
SEER
Carrier Gas Furnace or
Accessory
TDR†
EER
12
Page 13
Combination ratings continued
SEER
Carrier Gas Furnace or
Accessory
TDR†
EER
UNIT
SIZE-SERIES
042-30, 32
FACTORY-
SUPPLIED
INDOOR
UNIT
CD5AA048 41,000 TDR&TXV 14.50 14.50 12.65
CK3BA042 40,000 TDR&TXV 14.50 14.50 12.55
CK3BA048 41,000 TDR&TXV 14.50 14.50 12.70
CK3BA060 41,500 TDR&TXV 14.50 14.50 12.95
CK5A/CK5BA042 40,000 TDR&TXV 14.50 14.50 12.55
CK5A/CK5BA048 41,000 TDR&TXV 14.50 14.50 12.70
CK5A/CK5BA060 41,500 TDR&TXV 14.50 14.50 12.95
CK5A/CK5BN060 42,000 TDR&TXV 14.50 14.50 13.10
CK5A/CK5BX060 42,000 TDR&TXV 15.00 15.00 13.15
CC5A/CD5AA042 40,000 TDR&TXV 14.50 14.50 12.55
CC5A/CD5AA060 41,000 TDR&TXV 14.50 14.50 12.60
CC5A/CD5AW048 41,000 TDR&TXV 14.50 14.50 12.60
CC5A/CD5AW060 42,000 TDR&TXV 15.00 15.00 12.95
CK3BA060 41,500 TDR&TXV 14.50 14.50 12.95
CK5A/CK5BA042 40,000 TDR&TXV 14.50 14.50 12.55
CK5A/CK5BA060 41,500 TDR&TXV 14.50 14.50 12.95
CK5A/CK5BW048 41,000 TDR&TXV 14.50 14.50 12.70
CK5A/CK5BX060 42,000 TDR&TXV 15.00 15.00 13.15
CC5A/CD5AA042 40,000 TDR&TXV 14.00 14.00 12.35
CC5A/CD5AC048 40,500 TDR&TXV 14.00 14.00 12.30
CD5AA048 41,000 TDR&TXV 14.00 14.00 12.45
CK3BA042 40,000 TDR&TXV 14.00 14.00 12.40
CK3BA048 41,000 TDR&TXV 14.50 14.50 12.55
CK5A/CK5BA042 40,000 TDR&TXV 14.00 14.00 12.40
CK5A/CK5BA048 41,000 TDR&TXV 14.50 14.50 12.55
CC5A/CD5AA042 40,000 TDR&TXV 14.50 14.50 12.70
CC5A/CD5AA060 41,000 TDR&TXV 14.50 14.50 12.85
CC5A/CD5AW048 41,000 TDR&TXV 14.50 14.50 12.80
CC5A/CD5AW060 42,000 TDR&TXV 15.00 15.00 13.15
CK3BA060 41,500 TDR&TXV 14.50 14.50 13.20
CK5A/CK5BA042 40,000 TDR&TXV 14.50 14.50 12.70
CK5A/CK5BA060 41,500 TDR&TXV 14.50 14.50 13.20
CK5A/CK5BW048 41,000 TDR&TXV 14.50 14.50 12.85
CK5A/CK5BX060 42,000 TDR&TXV 15.00 15.00 13.35
CC5A/CD5AA042 40,000 TDR&TXV 14.50 14.50 12.65
CC5A/CD5AA060 41,000 TDR&TXV 14.50 14.50 12.85
CC5A/CD5AW048 41,000 TDR&TXV 14.50 14.50 12.75
CC5A/CD5AW060 42,000 TDR&TXV 15.00 15.00 13.20
CK3BA060 41,500 TDR&TXV 14.50 14.50 13.20
CK5A/CK5BA042 40,000 TDR&TXV 14.50 14.50 12.70
CK5A/CK5BA060 41,500 TDR&TXV 14.50 14.50 13.20
CK5A/CK5BW048 41,000 TDR&TXV 14.50 14.50 12.85
CK5A/CK5BX060 42,000 TDR&TXV 15.00 15.00 13.40
TOT. CAP.
BTUH
COILS + 58MVP120-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
ENHANCE-
MENT
Standard
Rating
* Tested combination
† In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in perfor-
mance. Use either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Carrier furnaces are equipped with
TDR.
‡ Ratings shown are with Puron® (R-410A) TXV replacing R-22 TXV.
EER — Energy Efficiency Ratio
SEER — Seasonal Energy Efficiency Ratio
TDR — Time-Delay Relay
TXV — Thermostatic Expansion Valve
NOTES: 1. Ratings are net values reflecting the effects of circulating fan motor heat. Supplemental electric heat is not included.
2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for
other combinations are determined under DOE computer simulation procedures.
3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.
4. Do not apply with capillary tube coils as performance and reliability are significantly affected.
13
Page 14
Detailed cooling capacities*
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total
KW**
38TSA024-30, 32 Outdoor Section With CK5A/CK5BA036 Indoor Section
72 29.7 14.4 1.63 28.4 13.8 1.83 26.8 13.2 2.04 25.0 12.6 2.26 23.1 11.9 2.50 21.1 11.2 2.76
67 27.2 17.9 1.64 26.0 17.4 1.83 24.7 16.8 2.04 23.2 16.2 2.26 21.5 15.5 2.50 19.8 14.8 2.76
700
63†† 25.4 17.5 1.64 24.2 16.9 1.83 23.1 16.4 2.03 21.8 15.8 2.26 20.5 15.2 2.50 19.0 14.6 2.76
62 25.0 21.4 1.64 23.9 20.9 1.83 22.7 20.3 2.03 21.5 19.8 2.26 20.3 19.1 2.50 18.9 18.5 2.76
57 23.8 23.8 1.64 22.9 22.9 1.83 21.9 21.9 2.03 21.0 21.0 2.25 19.9 19.9 2.50 18.8 18.8 2.76
72 30.3 15.0 1.67 28.7 14.4 1.86 27.0 13.7 2.07 25.1 13.1 2.29 23.1 12.3 2.53 21.4 11.8 2.79
67 27.8 19.0 1.67 26.5 18.4 1.86 25.0 17.8 2.07 23.3 17.1 2.29 21.5 16.4 2.53 20.1 15.9 2.79
800
63†† 25.9 18.5 1.67 24.7 17.9 1.86 23.5 17.4 2.07 22.2 16.8 2.29 20.8 16.2 2.53 19.3 15.6 2.80
62 25.6 23.0 1.67 24.5 22.4 1.86 23.2 21.8 2.07 22.0 21.2 2.29 20.8 20.6 2.53 19.4 19.4 2.80
57 24.8 24.8 1.67 23.9 23.9 1.86 22.9 22.9 2.07 21.8 21.8 2.29 20.7 20.7 2.53 19.5 19.5 2.80
72 30.8 15.6 1.70 28.9 14.9 1.89 27.1 14.2 2.10 25.1 13.6 2.32 23.3 12.9 2.56 21.5 12.3 2.83
67 28.3 20.0 1.70 27.0 19.5 1.90 25.2 18.8 2.10 23.4 18.1 2.32 21.8 17.5 2.56 20.2 16.9 2.83
900
63†† 26.4 19.5 1.71 25.1 18.9 1.90 23.8 18.4 2.10 22.5 17.8 2.33 21.1 17.2 2.57 19.5 16.5 2.83
62 26.1 24.4 1.71 24.9 23.8 1.90 23.7 23.2 2.10 22.3 22.3 2.32 21.3 21.3 2.57 20.0 20.0 2.83
57 25.7 25.7 1.71 24.7 24.7 1.90 23.7 23.7 2.10 22.4 22.4 2.32 21.2 21.2 2.57 20.0 20.0 2.84
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5AA 024 0.96 1.00
030 0.98 1.00 CC5A/CD5AW 030 0.98 0.94
CC5AW 024 0.96 1.00 036 1.00 0.93
030 0.98 1.00 CK5A/CK5BW 030 0.98 0.94
CC5A/CD5AA 036 1.00 1.00 036 1.00 0.93
CD5AW 036 1.00 1.00
CE3AA 024 0.96 1.00 CC5A/CD5AA 036 1.00 0.94
030 0.98 1.00 CC5A/CD5AW 024 0.96 0.94
036 1.00 1.00 030 0.98 0.94
CF5AA 024 0.96 1.00 CK3BA 024 0.96 0.94
036 1.00 1.00 030 0.98 0.94
CK3BA 024 0.96 1.00 036 1.00 0.94
030 0.98 1.00 CK5A/CK5BA 036 1.00 0.94
036 1.00 1.00 CK5A/CK5BW 024 0.96 0.94
CK5A/CK5BA 024 0.96 1.00 030 0.98 0.94
030 0.98 1.00
036 1.00 1.00 CC5A/CD5AW 024 0.96 0.93
CK5A/CK5BN 036 1.00 1.00 030 0.98 0.92
CK5A/CK5BT 036 1.00 1.00 036 1.00 0.92
CK5A/CK5BW 024 0.96 1.00 CK5A/CK5BW 024 0.96 0.93
030 0.98 1.00 030 0.98 0.92
036 1.00 1.00 036 1.00 0.92
F(A,B)4AN(F,C) 024 0.96 0.99
030 0.98 0.99 CC5A/CD5AA 024 0.96 0.92
036 1.00 1.02 030 0.98 0.92
FC4BNF 024 0.96 0.99 036 1.00 0.91
030 0.98 0.99 CC5A/CD5AW 030 0.98 0.92
036 1.00 1.02 CK3BA 024 0.96 0.92
FG3AAA 024 0.96 1.00 030 0.98 0.92
036 1.00 1.00 036 1.00 0.91
FK4CNF 001 0.96 0.92 CK5A/CK5BA 024 0.96 0.92
40FKA/FK4CNF 002 0.98 0.92 030 0.98 0.92
003 1.00 0.90 036 1.00 0.91
FV4ANF 002 0.98 0.92 CK5A/CK5BN 036 1.00 0.92
003 1.00 0.90 CK5A/CK5BW 030 0.98 0.92
FX4ANF 030 0.98 0.99 — — —
036 1.00 1.02
See notes on pg. 20.
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
KW**
Cooling
Capacity
MBtuh†
Total
KW**
Capacity
Sys
MBtuh†
Indoor
Section Size
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
Total
Sys
KW**
Capacity
MBtuh†
Total
Sys
KW**
Capacity
MBtuh†
Cooling
Total
Sys
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
14
Page 15
Detailed cooling capacities* continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total
KW**
38TSA030-30, 32 Outdoor Section With CK5A/CK5BA042 Indoor Section
72 35.9 17.8 2.00 34.1 17.2 2.21 32.0 16.4 2.44 29.7 15.6 2.70 27.4 14.8 2.98 25.2 14.0 3.29
67 33.1 22.7 1.99 31.5 22.1 2.20 29.8 21.4 2.44 28.0 20.7 2.70 26.1 19.9 2.98 23.9 19.1 3.29
875
63†† 30.8 22.1 1.98 29.3 21.4 2.19 27.7 20.7 2.43 26.1 20.0 2.69 24.2 19.2 2.97 22.5 18.5 3.29
62 30.4 27.5 1.98 29.1 26.9 2.19 27.6 26.2 2.43 26.1 25.4 2.69 24.4 24.4 2.98 22.8 22.8 3.29
57 29.6 29.6 1.98 28.4 28.4 2.19 27.1 27.1 2.42 25.8 25.8 2.68 24.3 24.3 2.97 22.9 22.9 3.29
72 36.5 18.6 2.05 34.4 17.9 2.26 32.1 17.1 2.49 29.6 16.2 2.74 27.7 15.5 3.02 25.4 14.8 3.34
1000
1125
See notes on pg. 20.
67 33.7 24.1 2.04 32.0 23.5 2.25 30.0 22.7 2.48 28.1 21.9 2.74 26.1 21.1 3.02 23.8 20.3 3.33
63†† 31.3 23.4 2.03 29.8 22.7 2.24 28.1 22.0 2.47 26.4 21.3 2.73 24.5 20.5 3.02 22.8 19.8 3.34
62 31.0 29.5 2.03 29.8 28.8 2.24 28.3 28.0 2.48 26.8 26.8 2.74 25.2 25.2 3.03 23.5 23.5 3.34
57 30.7 30.7 2.03 29.4 29.4 2.24 28.1 28.1 2.47 26.6 26.6 2.74 25.0 25.0 3.02 23.5 23.5 3.34
72 36.7 19.3 2.10 34.5 18.5 2.30 32.1 17.7 2.53 29.9 16.9 2.79 27.8 16.2 3.07 25.6 15.5 3.38
67 33.9 25.4 2.09 32.1 24.7 2.30 30.1 23.9 2.53 28.1 23.1 2.78 26.0 22.3 3.07 23.6 21.4 3.37
63†† 31.7 24.7 2.08 30.1 24.0 2.29 28.4 23.3 2.52 26.7 22.5 2.78 24.8 21.7 3.07 23.0 20.9 3.39
62 31.7 31.2 2.08 30.2 30.2 2.29 28.8 28.8 2.52 27.5 27.5 2.79 25.9 25.9 3.08 24.0 24.0 3.39
57 31.6 31.6 2.08 30.3 30.3 2.29 28.9 28.9 2.53 27.4 27.4 2.79 25.7 25.7 3.07 24.1 24.1 3.39
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 030 0.97 1.00 FX4ANF 030 0.97 0.99
036 0.99 1.00 036 0.99 1.02
042 1.00 1.00 042 1.00 1.03
CC5A/CD5AW 030 0.97 1.00
042 1.00 1.00 CC5A/CD5AA 042 1.00 0.94
036 0.99 1.00 CC5A/CD5AW 030 0.97 0.96
CE3AA 030 0.97 1.00 CD5AW 036 0.99 0.95
036 0.99 1.00 CK5A/CK5BA 042 1.00 0.94
042 1.00 1.00 CK5A/CK5BW 030 0.97 0.96
CF5AA 036 0.99 1.00 036 0.99 0.94
CK3BA 030 0.97 1.00
036 0.99 1.00 CC5A/CD5AA 036 0.99 0.95
042 1.00 1.00 CC5A/CD5AW 030 0.97 0.96
CK5A/CK5BA 030 0.97 1.00 CK3BA 030 0.97 0.96
036 0.99 1.00 036 0.99 0.95
042 1.00 1.00 042 1.00 0.95
CK5A/CK5BN 036 0.99 1.00 CK5A/CK5BA 036 0.99 0.95
042 1.00 1.00 CK5A/CK5BN 042 1.00 0.95
CK5A/CK5BT 036 0.99 1.00 CK5A/CK5BW 030 0.97 0.96
042 1.00 1.00
CK5A/CK5BW 030 0.97 1.00 CC5A/CD5AA 042 1.00 0.94
036 0.99 1.00 CC5A/CD5AW 030 0.97 0.95
F(A,B)4AN(F,B,C) 042 1.00 1.03 CD5AW 036 0.99 0.94
F(A,B)4AN(F,C) 030 0.97 0.98 CK5A/CK5BA 042 1.00 0.94
036 0.99 1.02 CK5A/CK5BW 030 0.97 0.95
FC4BN(F,B) 042 1.00 1.03 036 0.99 0.94
FC4BNF 030 0.97 0.98
036 0.99 1.02 CC5A/CD5AA 042 1.00 0.95
FG3AAA 036 0.99 1.00 CC5A/CD5AW 030 0.97 0.96
FK4CNF 001 0.97 0.92 CD5AW 036 0.99 0.95
40FKA/FK4CNF 002 0.99 0.92 CK3BA 042 1.00 0.95
003 0.99 0.90 CK5A/CK5BA 042 1.00 0.95
005 1.00 0.90 CK5A/CK5BW 030 0.97 0.96
FV4ANF 002 0.99 0.92 036 0.99 0.95
003 0.99 0.90 — — —
005 1.00 0.90
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
KW**
Cooling
Capacity
MBtuh†
Total
KW**
Capacity
Sys
MBtuh†
Indoor
Section Size
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
Total
Sys
KW**
Capacity
MBtuh†
Total
Sys
KW**
Capacity
MBtuh†
Cooling
Total
Sys
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
15
Page 16
Detailed cooling capacities* continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total
KW**
38TSA030-30, 32 Outdoor Section With CK5A/CK5BA042 Indoor Section continued
72 35.9 17.8 2.00 34.1 17.2 2.21 32.0 16.4 2.44 29.7 15.6 2.70 27.4 14.8 2.98 25.2 14.0 3.29
67 33.1 22.7 1.99 31.5 22.1 2.20 29.8 21.4 2.44 28.0 20.7 2.70 26.1 19.9 2.98 23.9 19.1 3.29
875
63†† 30.8 22.1 1.98 29.3 21.4 2.19 27.7 20.7 2.43 26.1 20.0 2.69 24.2 19.2 2.97 22.5 18.5 3.29
62 30.4 27.5 1.98 29.1 26.9 2.19 27.6 26.2 2.43 26.1 25.4 2.69 24.4 24.4 2.98 22.8 22.8 3.29
57 29.6 29.6 1.98 28.4 28.4 2.19 27.1 27.1 2.42 25.8 25.8 2.68 24.3 24.3 2.97 22.9 22.9 3.29
72 36.5 18.6 2.05 34.4 17.9 2.26 32.1 17.1 2.49 29.6 16.2 2.74 27.7 15.5 3.02 25.4 14.8 3.34
67 33.7 24.1 2.04 32.0 23.5 2.25 30.0 22.7 2.48 28.1 21.9 2.74 26.1 21.1 3.02 23.8 20.3 3.33
1000
63†† 31.3 23.4 2.03 29.8 22.7 2.24 28.1 22.0 2.47 26.4 21.3 2.73 24.5 20.5 3.02 22.8 19.8 3.34
62 31.0 29.5 2.03 29.8 28.8 2.24 28.3 28.0 2.48 26.8 26.8 2.74 25.2 25.2 3.03 23.5 23.5 3.34
57 30.7 30.7 2.03 29.4 29.4 2.24 28.1 28.1 2.47 26.6 26.6 2.74 25.0 25.0 3.02 23.5 23.5 3.34
72 36.7 19.3 2.10 34.5 18.5 2.30 32.1 17.7 2.53 29.9 16.9 2.79 27.8 16.2 3.07 25.6 15.5 3.38
67 33.9 25.4 2.09 32.1 24.7 2.30 30.1 23.9 2.53 28.1 23.1 2.78 26.0 22.3 3.07 23.6 21.4 3.37
1125
63†† 31.7 24.7 2.08 30.1 24.0 2.29 28.4 23.3 2.52 26.7 22.5 2.78 24.8 21.7 3.07 23.0 20.9 3.39
62 31.7 31.2 2.08 30.2 30.2 2.29 28.8 28.8 2.52 27.5 27.5 2.79 25.9 25.9 3.08 24.0 24.0 3.39
57 31.6 31.6 2.08 30.3 30.3 2.29 28.9 28.9 2.53 27.4 27.4 2.79 25.7 25.7 3.07 24.1 24.1 3.39
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
COILS + 58MVP100-20 VARIABLE SPEED FURNACE CC5A/CD5AW 030 0.97 0.93
CC5A/CD5AA 042 1.00 0.92 CK3BA 030 0.97 0.93
CC5A/CD5AW 030 0.97 0.93 036 0.99 0.92
CD5AW 036 0.99 0.93 CK5A/CK5BA 030 0.97 0.93
CK3BA 042 1.00 0.92 036 0.99 0.92
CK5A/CK5BA 042 1.00 0.92 CK5A/CK5BN 036 0.99 0.93
CK5A/CK5BW 030 0.97 0.93 CK5A/CK5BW 030 0.97 0.93
036 0.99 0.93
COILS + 58MVP120-20 VARIABLE SPEED FURNACE CC5A/CD5AA 042 1.00 0.91
CC5A/CD5AA 042 1.00 0.93 CC5A/CD5AW 030 0.97 0.92
CD5AW 036 0.99 0.93 CD5AW 036 0.99 0.91
CK5A/CK5BA 042 1.00 0.93 CK3BA 042 1.00 0.91
CK5A/CK5BW 036 0.99 0.93 CK5A/CK5BA 042 1.00 0.91
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE CK5A/CK5BW 030 0.97 0.92
CC5A/CD5AA 030 0.97 0.93 036 0.99 0.91
036 0.99 0.92 — — —
See notes on pg. 20.
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
KW**
Cooling
Capacity
MBtuh†
Total
KW**
Capacity
Sys
MBtuh†
Indoor
Section Size
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
Total
Sys
KW**
Capacity
MBtuh†
Total
Sys
KW**
Capacity
MBtuh†
Cooling
Total
Sys
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
16
Page 17
Detailed cooling capacities* continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total
KW**
38TSA036-30, 32 Outdoor Section With CK5A/CK5BT048 Indoor Section
72 43.0 21.2 2.37 40.7 20.3 2.64 38.0 19.4 2.93 35.2 18.4 3.24 32.5 17.4 3.59 29.5 16.4 3.96
1050
1200
1350
See notes on pg. 20.
67 39.5 26.9 2.37 37.6 26.1 2.64 35.6 25.3 2.93 33.4 24.4 3.26 31.0 23.4 3.60 28.3 22.4 3.97
63†† 36.9 26.2 2.37 35.1 25.4 2.64 33.2 24.6 2.93 31.2 23.7 3.25 28.9 22.7 3.59 26.4 21.6 3.96
62 36.5 32.6 2.37 34.7 31.7 2.64 32.9 30.9 2.93 30.9 29.9 3.25 28.9 28.8 3.59 26.7 26.7 3.96
57 35.4 35.4 2.37 33.9 33.9 2.64 32.4 32.4 2.93 30.8 30.8 3.25 28.9 28.9 3.59 26.8 26.8 3.96
72 43.6 22.1 2.42 41.1 21.2 2.69 38.4 20.2 2.98 35.4 19.2 3.29 32.7 18.2 3.64 30.1 17.3 4.02
67 40.1 28.5 2.42 38.1 27.7 2.69 36.0 26.8 2.99 33.7 25.9 3.31 31.2 25.0 3.65 28.4 23.9 4.02
63†† 37.5 27.7 2.42 35.6 26.9 2.69 33.6 26.0 2.98 31.5 25.1 3.30 29.1 24.1 3.65 26.5 23.0 4.01
62 37.1 34.8 2.42 35.4 33.9 2.69 33.6 33.0 2.98 31.7 31.7 3.30 29.7 29.7 3.65 27.4 27.4 4.02
57 36.6 36.6 2.42 35.1 35.1 2.69 33.5 33.5 2.99 31.7 31.7 3.31 29.8 29.8 3.65 27.5 27.5 4.02
72 44.0 22.9 2.48 41.4 22.0 2.74 38.6 21.0 3.03 35.6 19.9 3.35 33.2 19.1 3.70 30.5 18.2 4.08
67 40.5 29.9 2.48 38.5 29.1 2.74 36.3 28.3 3.04 33.9 27.4 3.36 31.4 26.4 3.71 28.5 25.3 4.08
63†† 37.9 29.1 2.48 36.0 28.3 2.74 33.9 27.4 3.04 31.7 26.4 3.36 29.3 25.4 3.70 26.6 24.3 4.06
62 37.8 36.8 2.48 36.1 35.8 2.74 34.3 34.3 3.04 32.4 32.4 3.36 30.3 30.3 3.70 27.9 27.9 4.07
57 37.7 37.7 2.48 36.1 36.1 2.74 34.4 34.4 3.04 32.5 32.5 3.36 30.4 30.4 3.71 28.0 28.0 4.08
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5A/CK5BT* 048 1.00 1.00 FV4ANF 002 0.99 0.95
CC5A/CD5AA 036 0.97 1.00 003 0.99 0.91
042 0.99 1.00 005 1.00 0.91
CC5A/CD5AC 048 0.99 1.00 FX4ANF 036 0.97 1.02
CC5A/CD5AW 036 0.97 1.00 042 0.99 1.01
042 0.99 1.00 048 1.00 1.02
CD5A/CD5AW 048 0.99 1.00
CD5AA 048 1.00 1.00 CC5A/CD5AA 042 0.99 0.93
CE3AA 036 0.97 1.00 CD5AW 036 0.97 0.93
042 0.99 1.00 CK5A/CK5BA 042 0.99 0.93
048 1.00 1.00 CK5A/CK5BW 036 0.97 0.93
CF5AA 036 0.97 1.00 048 1.00 0.93
048 1.00 1.00
CK3BA 036 0.97 1.00 CC5A/CD5AA 036 0.97 0.94
042 0.99 1.00 CK3BA 036 0.97 0.94
048 1.00 1.00 042 0.99 0.93
CK5A/CK5BA 036 0.97 1.00 CK5A/CK5BA 036 0.97 0.94
042 0.99 1.00 CK5A/CK5BN 042 0.99 0.93
048 1.00 1.00 048 1.00 0.94
CK5A/CK5BN 036 0.97 0.98
042 0.97 1.00 CC5A/CD5AA 042 0.99 0.92
CK5A/CK5BT 042 0.99 1.00 CC5A/CD5AC 048 0.99 0.92
CK5A/CK5BW 036 0.97 1.00 CD5AA 042 1.00 0.92
048 1.00 1.00 CD5AW 036 0.97 0.93
F(A,B)4AN(F,B,C) 048 1.00 1.02 CK3BA 042 0.99 0.92
F(A,B)4AN(F,C) 036 0.97 1.02 048 1.00 0.92
FC4BN(F,B) 048 1.00 1.02 CK5A/CK5BA 042 0.99 0.92
FC4BNF 036 0.97 1.02 048 1.00 0.92
FG3AAA 036 0.97 1.00
048 1.00 1.00 CC5A/CD5AA 042 0.99 0.93
F(A,B)4AN(F,B,C) 042 0.99 1.01 CC5A/CD5AC 048 0.99 0.93
FC4BN(F,B) 042 0.99 1.01 CD5AA 048 1.00 0.93
FC4BNB 054 1.00 0.99 CD5AW 036 0.97 0.94
FK4CNF 001 0.97 0.94 CK3BA 042 0.99 0.93
40FKA/FK4CNB 006 1.01 0.90 048 1.00 0.93
40FKA/FK4CNF 002 0.99 0.95 CK5A/CK5BA 042 0.99 0.93
003 0.99 0.91 048 1.00 0.93
005 1.00 0.91 CK5A/CK5BW 036 0.97 0.94
FV4ANB 006 1.01 0.90 — — —
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
KW**
Cooling
Capacity
MBtuh†
Total
KW**
Capacity
Sys
MBtuh†
Indoor
Section Size
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
Total
Sys
KW**
Capacity
MBtuh†
Total
Sys
KW**
Capacity
MBtuh†
Cooling
Total
Sys
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
17
Page 18
Detailed cooling capacities* continued
EVAP
AIR
CFM EWB
72 43.0 21.2 2.37 40.7 20.3 2.64 38.0 19.4 2.93 35.2 18.4 3.24 32.5 17.4 3.59 29.5 16.4 3.96
1050
1200
1350
67 39.5 26.9 2.37 37.6 26.1 2.64 35.6 25.3 2.93 33.4 24.4 3.26 31.0 23.4 3.60 28.3 22.4 3.97
63†† 36.9 26.2 2.37 35.1 25.4 2.64 33.2 24.6 2.93 31.2 23.7 3.25 28.9 22.7 3.59 26.4 21.6 3.96
62 36.5 32.6 2.37 34.7 31.7 2.64 32.9 30.9 2.93 30.9 29.9 3.25 28.9 28.8 3.59 26.7 26.7 3.96
57 35.4 35.4 2.37 33.9 33.9 2.64 32.4 32.4 2.93 30.8 30.8 3.25 28.9 28.9 3.59 26.8 26.8 3.96
72 43.6 22.1 2.42 41.1 21.2 2.69 38.4 20.2 2.98 35.4 19.2 3.29 32.7 18.2 3.64 30.1 17.3 4.02
67 40.1 28.5 2.42 38.1 27.7 2.69 36.0 26.8 2.99 33.7 25.9 3.31 31.2 25.0 3.65 28.4 23.9 4.02
63†† 37.5 27.7 2.42 35.6 26.9 2.69 33.6 26.0 2.98 31.5 25.1 3.30 29.1 24.1 3.65 26.5 23.0 4.01
62 37.1 34.8 2.42 35.4 33.9 2.69 33.6 33.0 2.98 31.7 31.7 3.30 29.7 29.7 3.65 27.4 27.4 4.02
57 36.6 36.6 2.42 35.1 35.1 2.69 33.5 33.5 2.99 31.7 31.7 3.31 29.8 29.8 3.65 27.5 27.5 4.02
72 44.0 22.9 2.48 41.4 22.0 2.74 38.6 21.0 3.03 35.6 19.9 3.35 33.2 19.1 3.70 30.5 18.2 4.08
67 40.5 29.9 2.48 38.5 29.1 2.74 36.3 28.3 3.04 33.9 27.4 3.36 31.4 26.4 3.71 28.5 25.3 4.08
63†† 37.9 29.1 2.48 36.0 28.3 2.74 33.9 27.4 3.04 31.7 26.4 3.36 29.3 25.4 3.70 26.6 24.3 4.06
62 37.8 36.8 2.48 36.1 35.8 2.74 34.3 34.3 3.04 32.4 32.4 3.36 30.3 30.3 3.70 27.9 27.9 4.07
57 37.7 37.7 2.48 36.1 36.1 2.74 34.4 34.4 3.04 32.5 32.5 3.36 30.4 30.4 3.71 28.0 28.0 4.08
Indoor
Section Size
COILS + 58MVP100-20 VARIABLE SPEED FURNACE COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
CC5A/CD5AA 042 0.99 0.91 CC5A/CD5AA 042 0.99 0.93
CC5A/CD5AC 048 0.99 0.91 CC5A/CD5AC 048 0.99 0.92
CD3AA 048 1.00 0.91 CC5A/CD5AW 048 1.00 0.91
CD5AW 036 0.97 0.92 CD5AA 048 1.00 0.92
CK3BA 042 0.99 0.91 CD5AW 036 0.97 0.93
CK5A/CK5BA 042 0.99 0.91 048 1.00 0.92
CK5A/CK5BW 036 0.97 0.92 CK5A/CK5BW 036 0.97 0.93
COILS + 58MVP120-20 VARIABLE SPEED FURNACE COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
CC5A/CD5AA 042 0.99 0.92 CC5A/CD5AA 042 0.99 0.91
CC5A/CD5AW 048 1.00 0.92 CC5A/CD5AW 048 1.00 0.90
CD5AW 036 0.97 0.92 CD5AW 036 0.97 0.91
CK3BA 036 0.97 0.94 CK5A/CK5BA 042 0.99 0.91
CK5A/CK5BW 036 0.97 0.92 CK5A/CK5BW 036 0.97 0.91
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CC5A/CK5AA 036 0.97 0.94 CC5A/CD5AA 042 0.99 0.91
CK5A/CK5BA 036 0.97 0.94 CD5AW 036 0.97 0.92
CK5A/CK5BN 036 0.97 0.95 CK5A/CK5BA 042 0.99 0.91
75 85 95 105 115 125
Sys
Capacity
MBtuh†
,
Multipliers for Determining the Performance With Other Indoor Sections
Capacity Power Capacity Power
Capacity
MBtuh†
Total
KW**
38TSA036-30, 32 Outdoor Section With CK5A/CK5BA048 Indoor Section continued
048 1.00 0.91 CK3BA 042 0.99 0.93
048 1.00 0.91 CK5A/CK5BA 042 0.99 0.93
048 1.00 0.92 048 1.00 0.90
See notes on pg. 20.
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
KW**
Cooling
Capacity
MBtuh†
Total
Sys
KW**
Capacity
MBtuh†
Indoor
Section Size
CK5A/CK5BW 036 0.97 0.92
Total
KW**
Capacity
Sys
MBtuh†
048 1.00 0.91
Total
Sys
KW**
Capacity
MBtuh†
Cooling
Total
Sys
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
18
Page 19
Detailed cooling capacities* continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total
KW**
38TSA042-30, 32 Outdoor Section With CK5A/CK5B060 Indoor Section
72 50.0 24.9 2.81 47.4 23.9 3.12 44.7 23.0 3.45 41.8 21.9 3.82 38.6 20.8 4.22 35.5 19.7 4.67
1225
1400
1575
Notes on pg. 20.
67 46.6 32.0 2.79 44.3 31.0 3.09 41.9 30.1 3.43 39.3 29.0 3.80 36.6 28.0 4.21 33.5 26.7 4.66
63†† 43.5 31.2 2.76 41.3 30.2 3.07 39.1 29.2 3.40 36.8 28.2 3.78 34.2 27.1 4.19 31.8 26.1 4.65
62 42.9 38.8 2.76 40.9 37.8 3.06 38.7 36.8 3.40 36.5 35.7 3.78 34.2 34.2 4.19 32.2 32.2 4.65
57 41.8 41.8 2.75 40.1 40.1 3.06 38.3 38.3 3.40 36.4 36.4 3.78 34.3 34.3 4.19 32.3 32.3 4.66
72 50.6 26.0 2.89 47.9 25.0 3.19 44.7 23.9 3.52 41.5 22.8 3.88 38.1 21.6 4.28 35.5 20.7 4.74
67 47.3 33.9 2.86 44.9 32.9 3.16 42.0 31.8 3.49 39.3 30.8 3.86 36.3 29.6 4.27 33.6 28.6 4.72
63†† 44.2 33.0 2.83 41.9 32.0 3.14 39.6 31.0 3.47 37.1 30.0 3.85 34.5 28.8 4.25 32.0 27.8 4.71
62 43.8 41.5 2.83 41.7 40.5 3.13 39.5 39.3 3.47 37.4 37.4 3.85 35.2 35.2 4.26 33.0 33.0 4.72
57 43.3 43.3 2.82 41.5 41.5 3.13 39.5 39.5 3.47 37.5 37.5 3.85 35.2 35.2 4.27 33.1 33.1 4.73
72 51.1 27.0 2.95 48.3 26.0 3.26 44.5 24.7 3.58 41.8 23.8 3.95 38.5 22.7 4.35 35.5 21.7 4.80
67 47.8 35.8 2.93 45.3 34.8 3.23 42.0 33.5 3.56 39.2 32.4 3.93 36.6 31.5 4.34 33.7 30.3 4.79
63†† 44.7 34.7 2.90 42.4 33.7 3.20 39.9 32.7 3.54 37.4 31.6 3.91 34.6 30.5 4.32 32.1 29.4 4.78
62 44.6 44.0 2.90 42.5 42.5 3.21 40.5 40.5 3.55 38.3 38.3 3.92 35.9 35.9 4.34 33.6 33.6 4.80
57 44.6 44.6 2.90 42.6 42.6 3.21 40.6 40.6 3.55 38.4 38.4 3.93 36.0 36.0 4.34 33.7 33.7 4.80
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 042 0.95 1.00 FV4ANB 006 1.00 0.91
060 0.99 1.00 FV4ANF 003 0.95 0.92
CC5A/CD5AC 048 0.96 1.00 005 0.99 0.92
CC5A/CD5AW 042 0.95 1.00 FX4ANB 060 1.00 1.02
048 0.98 1.00 FX4ANF 042 0.95 1.01
060 1.00 1.00 048 0.98 1.02
CD5AA 048 0.98 1.00
CE3AA 042 0.95 1.00 CC5A/CD5AA 042 0.95 0.95
048 0.98 1.00 CC5A/CD5AW 048 0.98 0.94
060 0.98 1.00 CK5A/CK5BA 042 0.95 0.95
CF5AA 048 0.98 1.00 CK5A/CK5BW 048 0.98 0.94
CG5AA 048 0.98 1.00
CK3BA 042 0.95 1.00 CK3BA 042 0.95 0.95
048 0.98 1.00 CK5A/CK5BN 042 0.95 0.95
060 0.99 1.00 048 0.95 0.95
CK5A/CK5BA 042 0.95 1.00
048 0.98 1.00 CC5A/CD5AA 042 0.95 0.94
060 1.00 1.00 CC5A/CD5AC 048 0.96 0.93
CK5A/CK5BN 042 0.95 1.00 CD5AA 048 0.98 0.93
048 0.96 1.00 CK3BA 042 0.95 0.94
060 0.99 1.00 048 0.98 0.93
CK5A/CK5BT 042 0.95 1.00 CK5A/CK5BA 042 0.95 0.94
048 0.98 1.00 048 0.98 1.00
060 1.00 1.00
CK5A/CK5BW 048 0.98 1.00 CC5A/CD5AA 042 0.95 0.95
CK5A/CK5BX 060 1.00 1.00 060 0.98 0.94
F(A,B)4AN(F,B,C) 042 0.95 1.01 CC5A/CD5AC 048 0.96 0.94
048 0.98 1.01 CC5A/CD5AW 060 1.00 0.94
060 1.00 1.04 CD5AA 048 0.98 0.94
FB4ANB 070 1.01 1.02 CK3BA 042 0.95 0.95
FC4BN(F,B) 042 0.95 1.01 048 0.98 0.94
048 0.98 1.01 060 0.99 0.95
060 1.00 1.04 CK5A/CK5BA 042 0.95 0.95
FC4BNB 054 0.99 0.99 048 0.98 0.94
070 1.01 1.02 060 0.99 0.95
40FKA/FK4CNB 006 1.00 0.91 CK5A/CK5BN 060 1.00 0.95
40FKA/FK4CNF 003 0.95 0.92 CK5A/CK5BX 060 1.00 0.94
005 0.99 0.92 — — —
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
KW**
Cooling
Capacity
MBtuh†
Total
KW**
Capacity
Sys
MBtuh†
Indoor
Section Size
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
Total
Sys
KW**
Capacity
MBtuh†
Total
Sys
KW**
Capacity
MBtuh†
Cooling
Total
Sys
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
19
Page 20
Detailed cooling capacities* continued
EVAP
AIR
CFM EWB
75 85 95 105 115 125
Sys
Capacity
MBtuh†
Capacity
MBtuh†
Total
KW**
38TSA042-30, 32 Outdoor Section With CK5A/CK5B060 Indoor Section continued
72 50.0 24.9 2.81 47.4 23.9 3.12 44.7 23.0 3.45 41.8 21.9 3.82 38.6 20.8 4.22 35.5 19.7 4.67
67 46.6 32.0 2.79 44.3 31.0 3.09 41.9 30.1 3.43 39.3 29.0 3.80 36.6 28.0 4.21 33.5 26.7 4.66
1225
63†† 43.5 31.2 2.76 41.3 30.2 3.07 39.1 29.2 3.40 36.8 28.2 3.78 34.2 27.1 4.19 31.8 26.1 4.65
62 42.9 38.8 2.76 40.9 37.8 3.06 38.7 36.8 3.40 36.5 35.7 3.78 34.2 34.2 4.19 32.2 32.2 4.65
57 41.8 41.8 2.75 40.1 40.1 3.06 38.3 38.3 3.40 36.4 36.4 3.78 34.3 34.3 4.19 32.3 32.3 4.66
72 50.6 26.0 2.89 47.9 25.0 3.19 44.7 23.9 3.52 41.5 22.8 3.88 38.1 21.6 4.28 35.5 20.7 4.74
67 47.3 33.9 2.86 44.9 32.9 3.16 42.0 31.8 3.49 39.3 30.8 3.86 36.3 29.6 4.27 33.6 28.6 4.72
1400
63†† 44.2 33.0 2.83 41.9 32.0 3.14 39.6 31.0 3.47 37.1 30.0 3.85 34.5 28.8 4.25 32.0 27.8 4.71
62 43.8 41.5 2.83 41.7 40.5 3.13 39.5 39.3 3.47 37.4 37.4 3.85 35.2 35.2 4.26 33.0 33.0 4.72
57 43.3 43.3 2.82 41.5 41.5 3.13 39.5 39.5 3.47 37.5 37.5 3.85 35.2 35.2 4.27 33.1 33.1 4.73
72 51.1 27.0 2.95 48.3 26.0 3.26 44.5 24.7 3.58 41.8 23.8 3.95 38.5 22.7 4.35 35.5 21.7 4.80
67 47.8 35.8 2.93 45.3 34.8 3.23 42.0 33.5 3.56 39.2 32.4 3.93 36.6 31.5 4.34 33.7 30.3 4.79
1575
63†† 44.7 34.7 2.90 42.4 33.7 3.20 39.9 32.7 3.54 37.4 31.6 3.91 34.6 30.5 4.32 32.1 29.4 4.78
62 44.6 44.0 2.90 42.5 42.5 3.21 40.5 40.5 3.55 38.3 38.3 3.92 35.9 35.9 4.34 33.6 33.6 4.80
57 44.6 44.6 2.90 42.6 42.6 3.21 40.6 40.6 3.55 38.4 38.4 3.93 36.0 36.0 4.34 33.7 33.7 4.80
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
COILS + 58MVP100-20 VARIABLE SPEED FURNACE CC5A/CD5AC 048 0.96 0.93
CC5A/CD5AA 042 0.95 0.92 CD5AA 048 0.98 0.93
060 0.98 0.92 CK3BA 042 0.95 0.94
CC5A/CD5AC 048 0.96 0.92 048 0.98 0.93
CC5A/CD5AW 060 1.00 0.92 CK5A/CK5BA 042 0.95 0.94
CD5AA 048 0.98 0.92 048 0.98 0.93
CK3BA 042 0.95 0.92
048 0.98 0.92 CC5A/CD5AA 042 0.95 0.92
060 0.99 0.92 060 0.98 0.91
CK5A/CK5BA 042 0.95 0.92 CC5A/CD5AW 048 0.98 0.91
048 0.98 0.92 060 1.00 0.91
060 0.99 0.92 CK3BA 060 0.99 0.91
CK5A/CK5BN 060 1.00 0.92 CK5A/CK5BA 042 0.95 0.92
CK5A/CK5BX 060 1.00 0.92 060 0.99 0.91
COILS + 58MVP120-20 VARIABLE SPEED FURNACE CK5A/CK5BW 048 0.98 0.92
CC5A/CD5AA 042 0.95 0.93 CK5A/CK5BX 060 1.00 0.91
060 0.98 0.92
CC5A/CD5AW 048 0.98 0.92 CC5A/CD5AA 042 0.95 0.92
060 1.00 0.92 060 0.98 0.91
CK3BA 060 0.99 0.92 CC5A/CD5AW 048 0.98 0.92
CK5A/CK5BA 042 0.95 0.93 060 1.00 0.91
060 0.99 0.92 CK3BA 060 0.99 0.91
CK5A/CK5BW 048 0.98 0.92 CK5A/CK5BA 042 0.95 0.92
CK5A/CK5BX 060 1.00 0.92 060 0.99 0.91
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE CK5A/CK5BW 048 0.98 0.92
CC5A/CD5AA 042 0.95 0.94 CK5A/CK5BX 060 1.00 0.91
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length
and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
† Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct
835 Btuh (245 kw) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kw) per 1000 CFM
(480 L/S) of indoor coil air per degree above 80°F (27°C).
When the required data falls between the published data, interpolation may be performed.
** Unit kw is outdoor unit kilowatts only.
†† At TVA rating indoor condition (75°F edb/63°F ewb). All other indoor air temperatures are at 80°F edb.
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Sys
KW**
Cooling
Capacity
MBtuh†
Total
KW**
Capacity
Sys
MBtuh†
Indoor
Section Size
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
Total
Sys
KW**
Capacity
MBtuh†
Total
Sys
KW**
Capacity
MBtuh†
Cooling
Total
Sys
KW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
20
Page 21
Condenser only ratings*
SST
°F
30
35
40
45
50
55
30
35
40
45
50
55
30
35
40
45
50
55
See notes on pg. 22.
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
38TSA024-30, 32
22.7
66.8
1.07
25.0
67.9
1.06
27.4
69.0
1.06
29.9
70.2
1.05
32.7
71.5
1.04
35.6
72.9
1.04
21.5
76.5
1.22
23.6
77.6
1.22
25.9
78.6
1.21
28.4
79.8
1.21
31.0
81.1
1.20
33.7
82.4
1.20
20.3
86.3
1.38
22.3
87.2
1.38
24.5
88.3
1.38
26.8
89.4
1.38
29.3
90.6
1.38
31.9
91.9
1.38
19.1
96.0
1.56
21.0
96.9
1.56
23.1
97.9
1.57
25.3
99.0
1.57
27.6
100.0
1.57
30.1
101.0
1.57
17.9
106.0
1.75
19.7
107.0
1.76
21.6
108.0
1.77
23.7
109.0
1.77
25.9
110.0
1.78
28.3
111.0
1.78
16.7
115.0
1.97
18.4
116.0
1.97
20.2
117.0
1.98
22.1
118.0
1.99
24.2
119.0
2.00
26.4
120.0
2.00
15.4
125.0
2.19
17.0
126.0
2.20
18.7
127.0
2.22
20.5
128.0
2.23
22.4
129.0
2.24
24.5
130.0
2.25
135.0
135.0
136.0
137.0
20.6
138.0
2.49
22.4
139.0
2.51
38TSA030-30, 32
27.3
67.5
1.28
30.0
68.6
1.28
32.9
69.8
1.29
36.0
71.1
1.30
39.2
72.4
1.32
42.7
73.9
1.33
25.9
77.2
1.44
28.4
78.3
1.45
31.2
79.4
1.46
34.1
80.7
1.47
37.2
82.0
1.48
40.5
83.3
1.50
24.4
86.9
1.63
26.9
87.9
1.64
29.5
89.1
1.65
32.2
90.2
1.66
35.2
91.5
1.67
38.3
92.8
1.68
23.0
96.6
1.84
25.3
97.6
1.85
27.8
98.7
1.86
30.4
99.8
1.87
33.2
101.0
1.88
36.1
102.0
1.90
21.6
106.0
2.08
23.7
107.0
2.09
26.0
108.0
2.09
28.5
109.0
2.10
31.1
111.0
2.12
33.9
112.0
2.13
20.1
116.0
2.34
22.1
117.0
2.35
24.3
118.0
2.36
26.6
119.0
2.37
29.1
120.0
2.38
31.7
121.0
2.39
18.6
126.0
2.64
20.5
127.0
2.64
22.5
127.0
2.65
24.7
128.0
2.66
26.9
129.0
2.67
29.4
130.0
2.68
135.0
136.0
137.0
138.0
24.7
139.0
2.99
26.9
140.0
3.00
38TSA036-30, 32
32.9
68.7
1.52
36.1
69.9
1.52
39.4
71.2
1.52
43.0
72.5
1.52
46.8
73.9
1.52
50.8
75.5
1.52
31.2
78.4
1.74
34.2
79.5
1.74
37.5
80.8
1.74
40.9
82.1
1.73
44.5
83.5
1.74
48.4
84.9
1.74
29.4
88.0
1.98
32.3
89.2
1.98
35.4
90.4
1.98
38.7
91.6
1.98
42.2
93.0
1.98
45.9
94.4
1.98
27.6
97.7
2.24
30.4
98.8
2.24
33.4
99.9
2.24
36.5
101.0
2.25
39.9
102.0
2.25
43.4
104.0
2.26
25.7
107.0
2.52
28.4
108.0
2.53
31.2
109.0
2.54
34.2
111.0
2.54
37.4
112.0
2.55
40.7
113.0
2.56
23.7
117.0
2.82
26.3
118.0
2.84
28.9
119.0
2.85
31.8
120.0
2.86
34.8
121.0
2.87
38.0
123.0
2.88
21.6
126.0
3.13
24.0
127.0
3.16
26.6
128.0
3.18
29.2
129.0
3.20
32.1
131.0
3.22
35.0
132.0
3.23
136.0
137.0
138.0
139.0
29.2
140.0
3.59
31.9
141.0
3.61
14.1
2.44
15.6
2.45
17.1
2.47
18.8
2.48
17.0
2.96
18.8
2.96
20.6
2.97
22.6
2.98
19.4
3.46
21.7
3.50
24.0
3.53
26.5
3.56
21
Page 22
Condenser only ratings* continued
SST
°F
55 65 75 85 95 105 115 125
CONDENSER ENTERING AIR TEMPERATURES °F
38TSA042-30, 32
30
35
40
45
50
55
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
TCG
SDT
KW
38.6
70.3
1.72
42.3
71.7
1.74
46.2
73.2
1.77
50.5
74.7
1.80
55.0
76.3
1.83
59.7
78.1
1.87
* ARI listing applies only to systems shown in Ratings and Performance table.
KW — Total Power (Kw)
SDT — Saturated Temperature Leaving Compressor (°F)
SST — Saturated Temperature Entering Compressor (°F)
TCG — Gross Cooling Capacity (1000 Btuh)
36.5
80.0
1.96
40.0
81.3
1.98
43.8
82.7
2.01
47.9
84.2
2.04
52.1
85.7
2.07
56.7
87.4
2.11
34.5
89.6
2.22
37.8
90.8
2.25
41.4
92.2
2.28
45.3
93.6
2.31
49.3
95.1
2.34
53.6
96.7
2.38
32.4
99.2
2.53
35.6
100.0
2.55
39.0
102.0
2.58
42.6
103.0
2.61
46.5
105.0
2.65
50.5
106.0
2.69
30.4
109.0
2.86
33.4
110.0
2.89
36.6
111.0
2.92
40.0
113.0
2.95
43.6
114.0
2.98
47.4
115.0
3.02
28.3
118.0
3.24
31.1
120.0
3.26
34.1
121.0
3.29
37.3
122.0
3.32
40.7
123.0
3.36
44.2
125.0
3.39
26.2
128.0
3.66
28.8
129.0
3.68
31.6
130.0
3.70
34.5
131.0
3.73
37.6
132.0
3.77
40.9
134.0
3.80
23.9
137.0
4.11
26.3
138.0
4.13
28.9
139.0
4.16
31.5
140.0
4.18
34.4
142.0
4.21
37.4
143.0
4.25
System design summary
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature is 125°F (51.7°C).
4. For reliable operation, unit should be level in all horizontal planes.
5. Maximum elevation of indoor coil above or below base of outdoor unit is: Indoor coil above = 30 ft, indoor coil below = 30 ft.
6. For interconnecting refrigerant tube lengths greater than 50 ft, consult Residential Split System Application Guideline and Service Manual available
from equipment distributor.
7. If any refrigerant tubing is buried, provide a minimum 6 in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in.
may be buried without further consideration. For buried lines longer than 3 ft, consult your local distributor.
8. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.
9. Do not apply capillary tube indoor coils to these units.
10. Factory-supplied filter drier must be installed.
11. Do not deviate from factory supplied TXV’s and Liquid-Line Solenoids.
22
Page 23

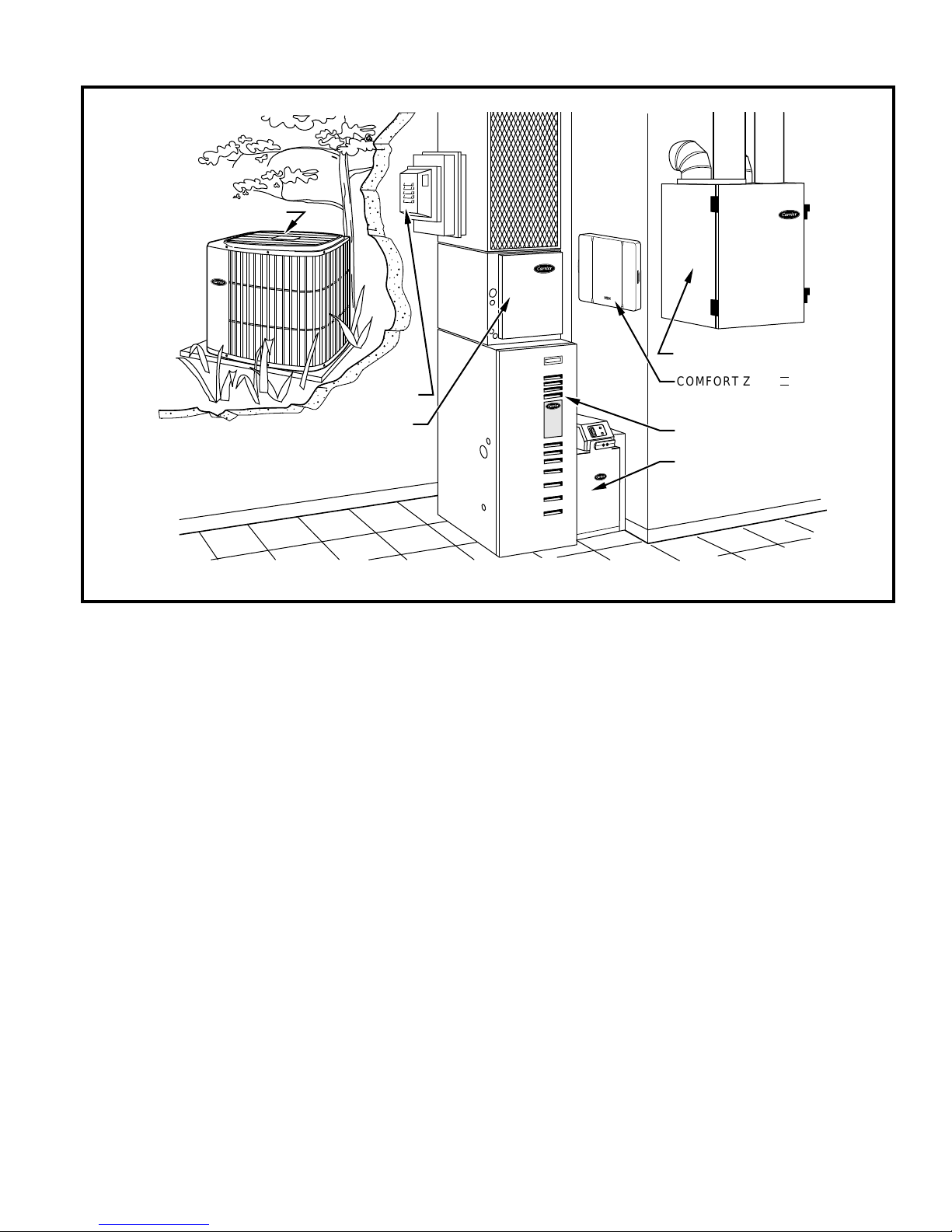

Typical installation
AIR CONDITIONER
HUMIDIFIER
COMFORT VENTILATOR
COMFORT ZONE II
CONTROL CENTER
FURNACE COIL
FURNACE
AIR CLEANER
A98600
23
Page 24
Guide specifications
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system air conditioner
unit suitable for ground or rooftop installation. Unit consists
of a hermetic compressor, an air-cooled coil, propeller-type
condenser fan, and a control box. Unit will discharge supply
air upward as shown on contract drawings. Unit will be used
in a refrigeration circuit to match up to a packaged fan coil
or coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition of
ARI Standard 210.
Unit will be certified for capacity and efficiency, and listed
in the latest ARI directory.
Unit construction will comply with latest edition of ANSI/
ASHRAE and with NEC.
Unit will be constructed in accordance with UL standards
and will carry the UL label of approval. Unit will ha ve c-UL
approval.
Unit cabinet will be capable of withstanding Federal Test
Method Standard No. 141 (Method 6061) 500-hr salt spray
test.
Air-cooled condenser coils will be leak tested at 250 psig
and pressure tested at 450 psig.
Unit constructed in ISO9001 approved facility.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored
and handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory assembled, single piece, air-cooled air conditioner
unit. Contained within the unit enclosure is all factory
wiring, piping, controls, compressor, refrigerant charge
Puron®, and special features required prior to field start-up.
Refrigerant
Refrigerant will be Puron HFC refrigerant with zero ozone
depletion potential. Puron is approved under the EPA’s
Significant New Alternatives Policy (SNAP) Program.
Unit Cabinet
Unit cabinet will be constructed of galvanized steel,
bonderized, and coated with a powder coat paint.
F
ans
Condenser fan will be direct-drive propeller type,
discharging air upward.
Air-Cooled, Split-System
Air Conditioner
38TSA
2 to 3-1/2 Tons Nominal
Condenser fan motors will be totally enclosed, 1-phase
type with class B insulation and permanently lubricated
bearings.
Shafts will be corrosion resistant.
Fan blades will be statically and dynamically balanced.
Condenser fan openings will be equipped with PVC-coated
steel wire safety guards.
Compressor
Compressor will be hermetically sealed.
Compressor will be mounted on rubber vibration isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically
bonded to copper tubes which are then cleaned, dehydrated,
and sealed.
Refrigeration Components
Refrigeration circuit components will include liquid-line
shutoff valve with sweat connections, vapor-line shutoff
valve with sweat connections, system charge of refrigerant
Puron® (R-410A), and compressor oil.
Unit will be equipped with factory supplied TXV
(Thermostatic Expansion Valve), high pressure switch, low
pressure switch, and filter drier for Puron refrigerant.
Operating Characteristics
The capacity of the unit will meet or exceed _____ Btuh at
a suction temperature of _____ °F. The power consumption
at full load will not exceed _____ kw.
Combination of the unit and the evaporator or f an coil unit
will have a total net cooling capacity of _____ Btuh or
greater at conditions of _____ CFM entering air temperature
at the evaporator at _____ °F wet bulb and _____ °F dry
bulb, and air entering the unit at _____ °F.
The system will have an SEER of _____ Btuh/watt or
greater at DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be _____ v,
single phase, 60 hertz. The unit will be capable of
satisfactory operation within voltage limits of _____ v
to _____ v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories
and descriptions for specific features and available
enhancements.
Carrier Corporation • Indianapolis, IN 46231 11-99
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 4 Page 24 Catalog No. 523-788 Printed in U.S.A. PC 101 Form 38TS
Tab 3a 2a
Replaces 38TSA-2PD
A-3PD
Loading...
