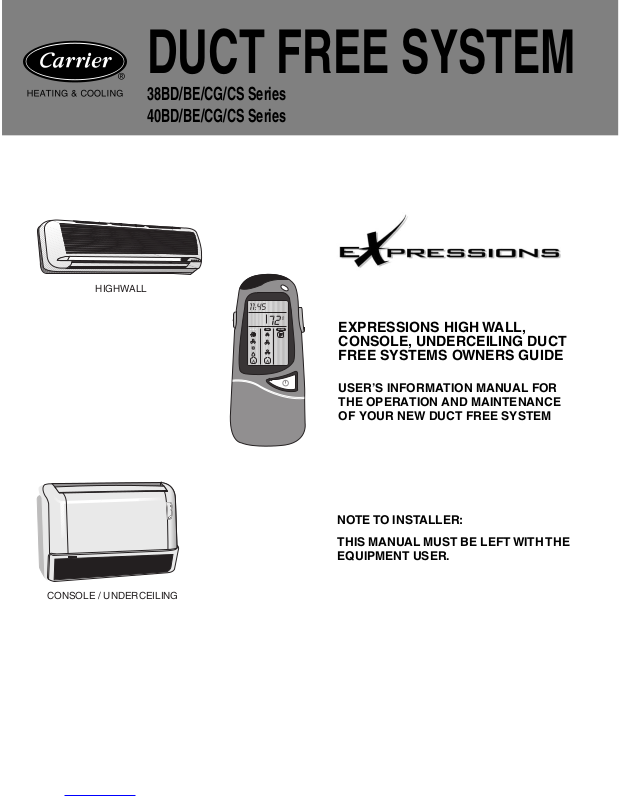

EXPRESSIONS HIGH WALL,
CONSOLE, UNDERCEILING DUCT
FREE SYSTEMS OWNERS GUIDE
USER’S INFORMATION MANUAL FOR
THE OPERATION AND MAINTENANCE
OF YOUR NEW DUCT FREE SYSTEM
NOTE TO INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE
EQUIPMENT USER.
DUCT FREE SYSTEM
38BD/BE/CG/CS Series
40BD/BE/CG/CS Series
I
I
I
I
I
I
I
I
I
MODE FAN SWEEP
AA
HIGHWALL
CONSOLE / UNDERCEILING
Thank you for choosing a Carrier Duct Free System. You can feel confident in your selection because the same pride in craftsmanship
and engineering knowledge that goes into Carrier equipment cooling the Astrodome in Texas, the Sistine Chapel in Rome, the United
States Capitol’s halls of Congress, and thousands of other installations worldwide has gone into the construction of your unit.
In addition to cooling and/or heating, this Carrier unit will also filter and dehumidify the room’s air. Carrier Duct Free Systems
quietly give you maximum comfort.
This Owners Manual will supply you with all the information you need to operate and maintain your new unit. Take a few moments
to discover how to get the most in comfort and economic operation from your new Carrier Duct Free System!
Your air conditioner should be installed by authorized personnel only, using approved tubing and accessories. If you need technical
assistance, service or repair: First: Contact the installer. Second: Contact the nearest distributor (See telephone yellow pages). Third:
Call 1-800-CARRIER.
Carrier Corporation
Syracuse, NY.
OWNERS MANUAL
Dealers Name ___________________________________________________________________________
Address ________________________________________________________________________________
Telephone _________________________________ Purchase____________________________________
Indoor Model # _____________________________ Outdoor Model # _____________________________
Indoor Serial #______________________________ Outdoor Serial # ______________________________
2
3
AIR CONDITIONER OPERATION MODE
Your Carrier Duct Free air conditioner operates in four modes:
The air conditioner cools, dries, and filters the room air
The air conditioner filters and circulates the room air, without
changing the room air temperature
The air conditioner heats and filters the room air (if so
equipped).
The air conditioner dries and filters the room air, while slightly
cooling the room air temperature. (NOTE: Dehumidification
does not take the place of a dehumidifier).
In addition, the air conditioner can operate automatically:
The air conditioner heats or cools the room according to the
temperature you select:
If the room air is cooler than the desired temperature, the air
conditioner operates in HEATING mode—(if so equipped).
If the room air is warmer than the desired temperature, the air
conditioner operates in COOLING mode.
The remote controller transmits operation commands to the air
conditioner. You can use the remote controller to perform the
following functions:
• Turns the air conditioner ON and OFF.
• Selects the operation mode (Cooling, Fan, Heating, Dehumidification, or Auto).
• Adjusts the room air temperature and the fan speed.
• Sets air conditioner operation timer periods.
• Sets additional air conditioner adjustments and operating features.
The remote controller mounting rack can be used to secure the
remote controller to a surface. When the remote controller is in
its mounting rack, make sure that there is a clear line of sight
between the remote controller and the air conditioner.
THE REMOTE CONTROLLER
The remote controller contains various buttons to operate the
air conditioner, and a window display in which the current operation status is shown.
Each time you press a button on the remote controller you can
observe the result on the display (Don’t worry about making a
mistake, anything you do can easily be changed.)
REMOTE CONTROLLER OPERATION
NOTE: To operate the air conditioner with the remote control-
ler; set the operation switch to REMOTE (See Page 9).
• The remote controller may be used at a distance of up to 23
ft from the air conditioner display panel (without obstructions).
Cooling
Fan Only
Heating
Dehumidification
A
Auto
I
I
I
I
I
I
I
MODE FAN SWEEP
AA
START
STOP
1 2 3 SLEEP
DAILY
WRELESS REMOTE CONTROLLER
4
• When transmitting a command from the remote controller,
point the transmitter toward the receiver on the right side of the
air conditioner.
• The air conditioner confirms the receipt of a command by
sounding two beeps.
• Make sure that no objects block the clear line of sight between
the remote controller and the air conditioner.
• Changes entered on the remote controller must be promptly
transmitted to the air conditioner.
If no transmission is made
within 10 seconds, the remote controller reverts to its previous state.
The remote controller and the air conditioner constantly "exchange" information regarding adjustments and the room air
temperature.
To ensure proper system operation, avoid block-
ing of the direct line of sight between them.
beep
AA
11 45
72
o
1
72
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
MODE FAN SWEEP
AA
START
STOP
1 2 3 SLEEP
DAILY
TIMER
SET
CLEAR
SENSE
ROOM
CLOCK
DELAY
Timer Start/Stop
One-time/Daily
Menu Select Button
Operation Mode - Cooling,
Fan, Heating, Dry, Auto
Fan - Low,
Medium, High, Auto
Timer Set Buttons
Clock
I.R. Transmitter Window
Temperature Sensor
Transmission Indicator
Low Battery Indicator
Up/Down Button
Desired Temperature
Sensor Active Indicator
Sweep Indicator
On/Off Button
On/Off Quick Delay Button
Local Sensing Button
Clock Set Button
Room Temperature Button
*
*
*
*
*
*Buttons located behind slide down panel.
