Page 1

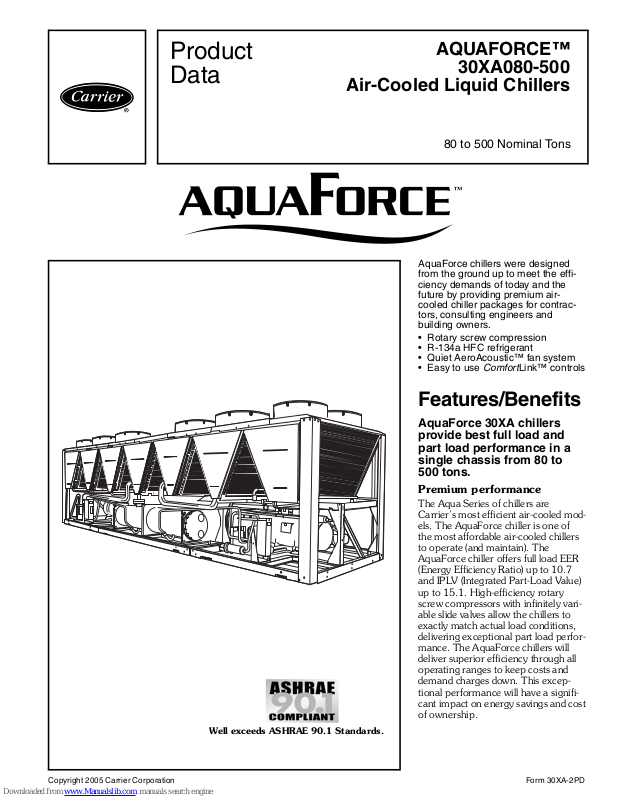

Product Data

AQUAFORCE™

30XA080-500

Air-Cooled Liquid Chillers

80to500Nominal Tons

AquaForce chillers were designed from the ground up to meet the efficiency demands of today and the future by providing premium aircooled chiller packages for contractors, consulting engineers and building owners.

• Rotary screw compression

• R-134a HFC refrigerant

• Quiet AeroAcoustic™ fan system

•Easytouse

Comfort

Link™ controls

Well exceeds ASHRAE 90.1 Standards.

Features/Benefits

AquaForce 30XA chillers provide best full load and part load performance in a single chassis from 80 to 500 tons.

Premium performance

The Aqua Series of chillers are Carrier’s most efficient air-cooled models. The AquaForce chiller is one of the most affordable air-cooled chillers to operate (and maintain). The AquaForce chiller offers full load EER (Energy Efficiency Ratio) up to 10.7 and IPLV (Integrated Part-Load Value) up to 15.1. High-efficiency rotary screw compressors with infinitely variable slide valves allow the chillers to exactly match actual load conditions, delivering exceptional part load performance. The AquaForce chillers will deliver superior efficiency through all operating ranges to keep costs and demand charges down. This exceptional performance will have a significant impact on energy savings and cost of ownership.

Page 2

AquaForce™ chillers’ quiet operation make them ideal for sound sensitive applications

Great performance is delivered in a low sound unit that will be quiet enough for any application including hospitals, schools and other sites located in residential neighborhoods. The AquaForce chiller’s AeroAcoustic™ fan is almost twice as quiet as the competition’s per cfm. During part load operation, when units operate with fewer fans, means even quieter operation in cooler weather and during nighttime operation.

Built in reliability

AquaForce chillers were developed under one of the most exacting qualification programs ever used for commercial chiller products. The compressors are virtually maintenance-free and protected by an auto-adaptive control that minimizes compressor wear. Operate AquaForce chillers year-round from –20 F (–29 C) to 125 F (52 C), with a combination of options and control methods. The following features are also provided to help ensure reliable performance:

Multiple independent circuits

provide redundancy and greater reliability.

Electronic expansion valve (EXV)

allows for precise control through all operating ranges.

Highly efficient, reliable chilled water circuit

AquaForce chillers provide a comprehensive chilled water circuit utilizing a high efficiency shell-in-tube flooded cooler. Units are equipped with a 100% drainable cooler.

Electronic thermal-dispersion flow switch is included with the cool-

er. The switch is factory installed and tested and contains no moving parts for high reliability.

Environmentally sound

R-134a refrigerant enables you to make a responsible choice in helping to preserve the environment. R-134a refrigerant is an HFC refrigerant that does not contain ozone-layer damaging chlorine. R-134a refrigerant is unaffected by the Montreal Protocol. R-134a refrigerant is a safe, nontoxic, efficient and environmentally sound refrigerant.

Easy installation

A single chassis design provides a one-piece unit from 80 to 500 tons. The base rail is industrial-quality

/4-in. cold-rolled steel for maximum structural integrity. The zinc-dipped and painted galvanized frame provides protection for corrosion

resistance. With such a structurally sound base, no perimeter mounting rail is needed.

ComfortLinkTM controls for ease of use

The ComfortLink controls communicate in plain English, making it as easy as possible to monitor and control each AquaForce chiller while accurately maintaining fluid temperatures. Carrier 30 Series chillers’ ComfortLink controls provide features such as chilled water temperature reset, demand limiting, compressor wear minimization and protection, temperature and pressure displays and diagnostic functions. These controls result in higher chiller reliability, simplified training and more productive service calls with correspondingly lower operational and maintenance costs.

Carrier's exclusive handheld Navigator™ display provides convenience and powerful information in the palm of your hand. The Navigator display helps technicians to quickly diagnose problems and even prevent them from occurring.

All AquaForce units are ready to be used with the Carrier Comfort Network (CCN).

Table of contents

Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ARI Capacity Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10,11

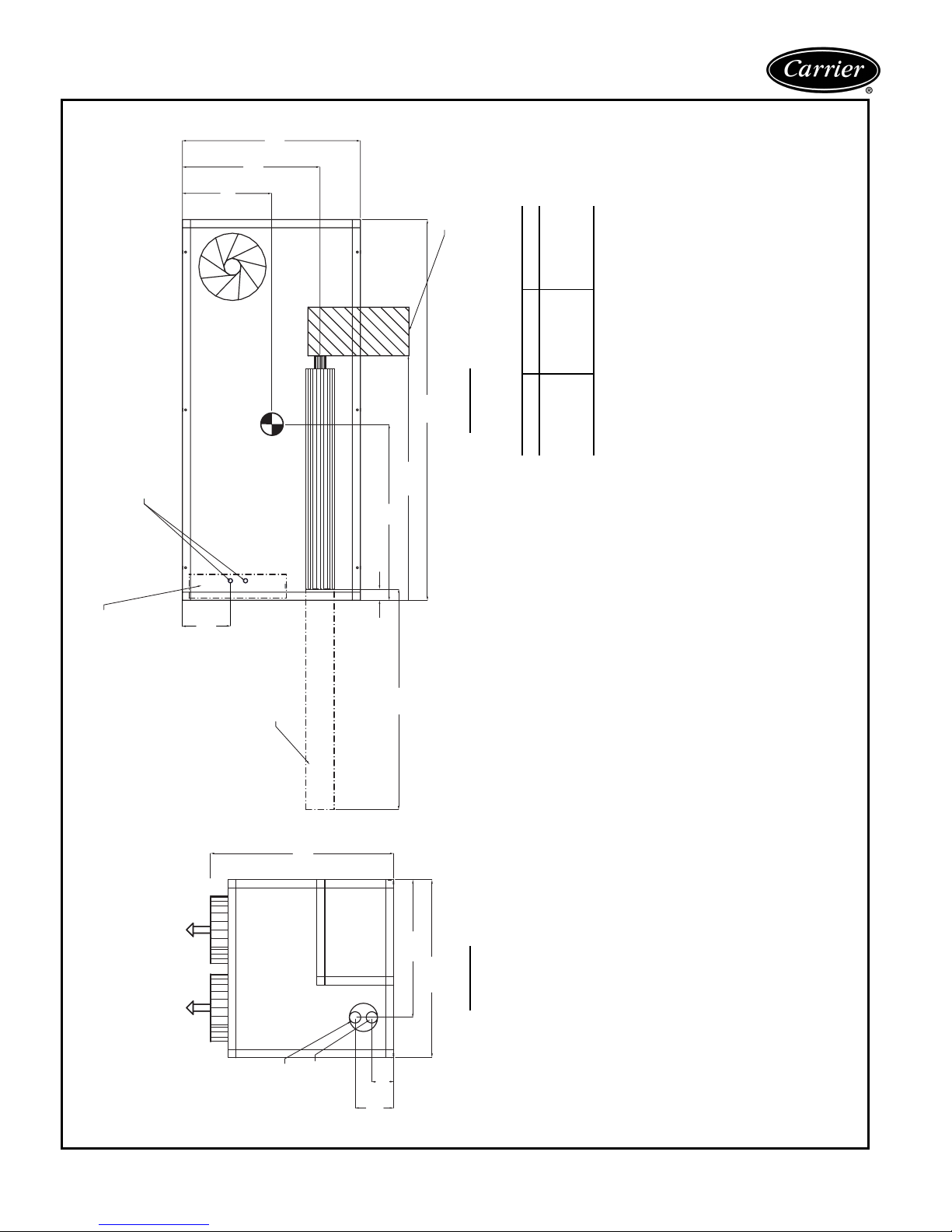

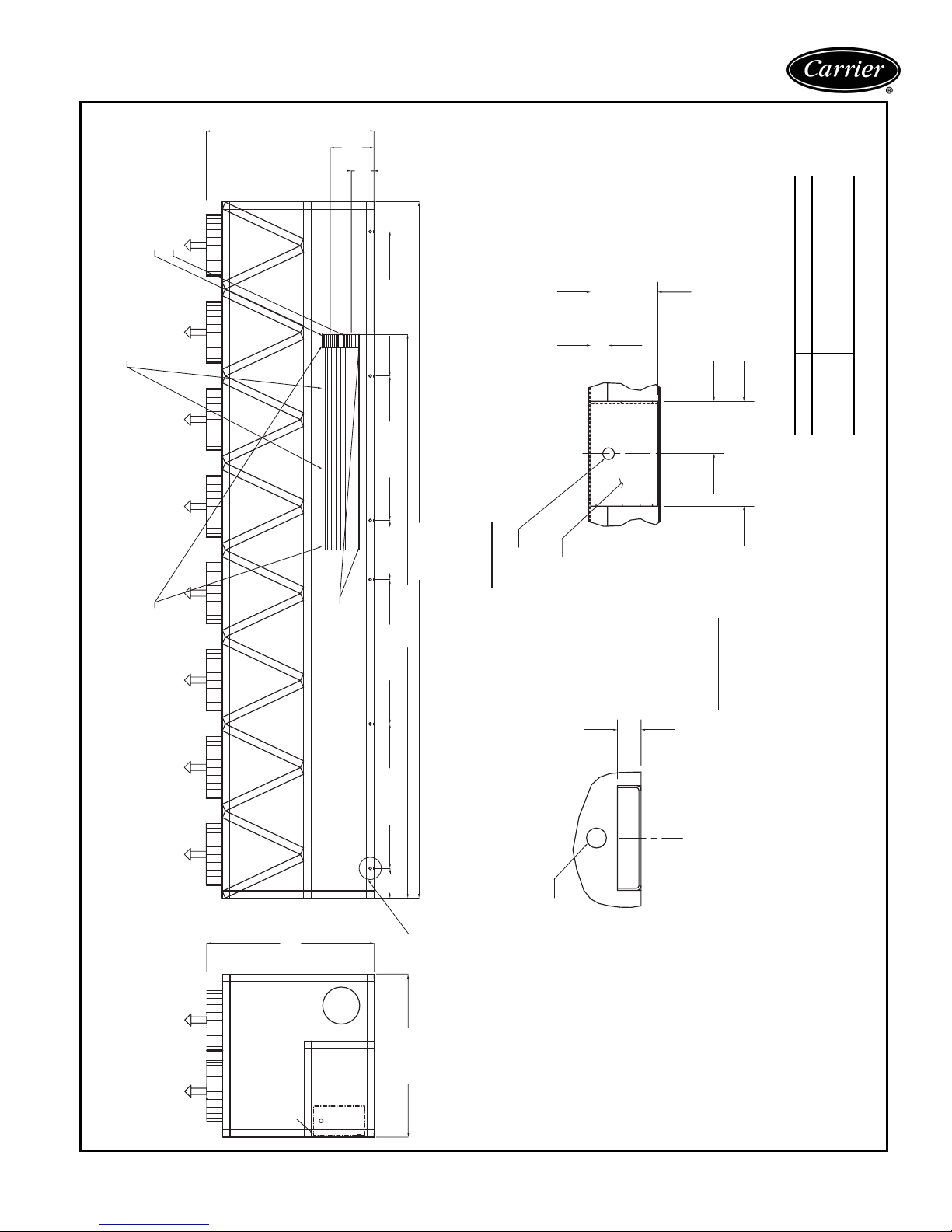

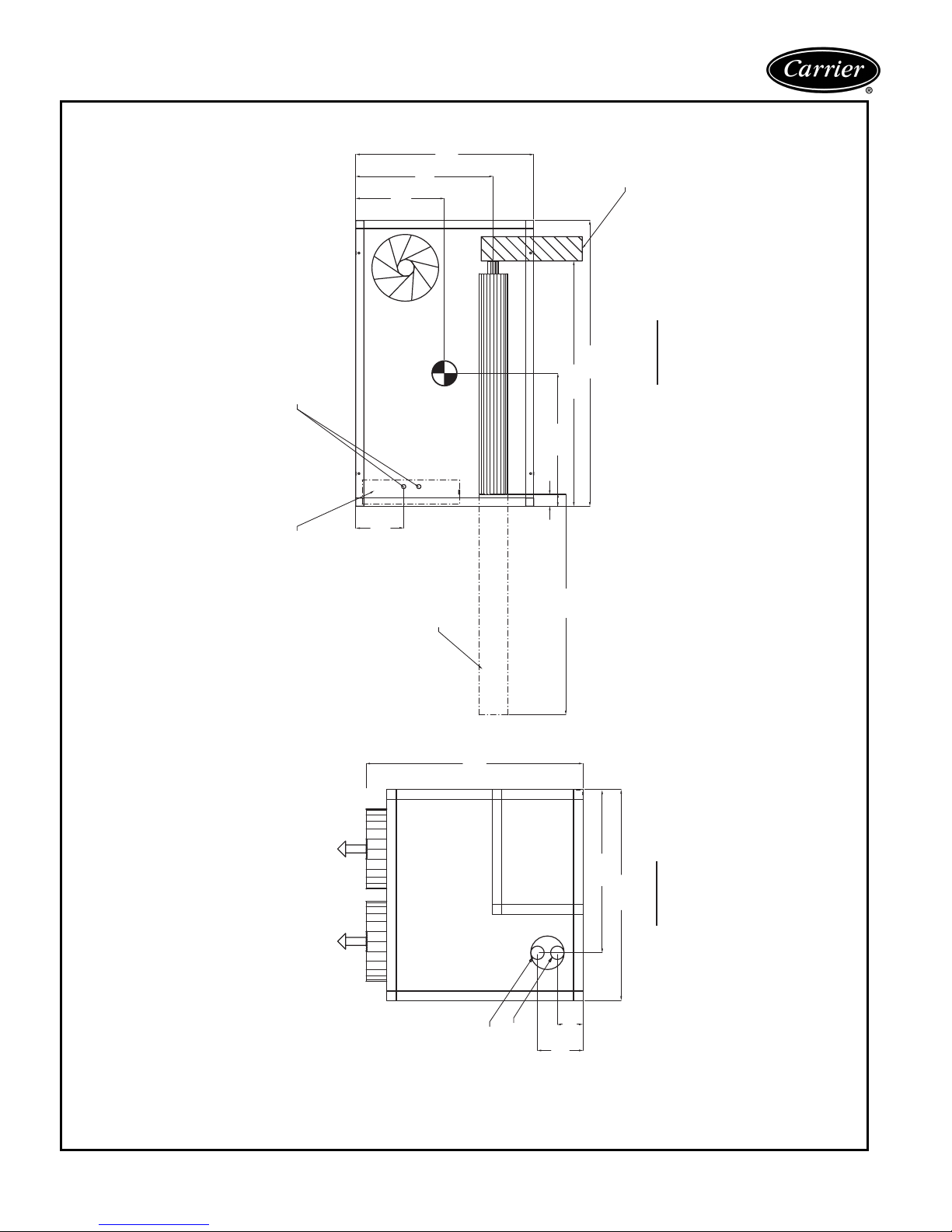

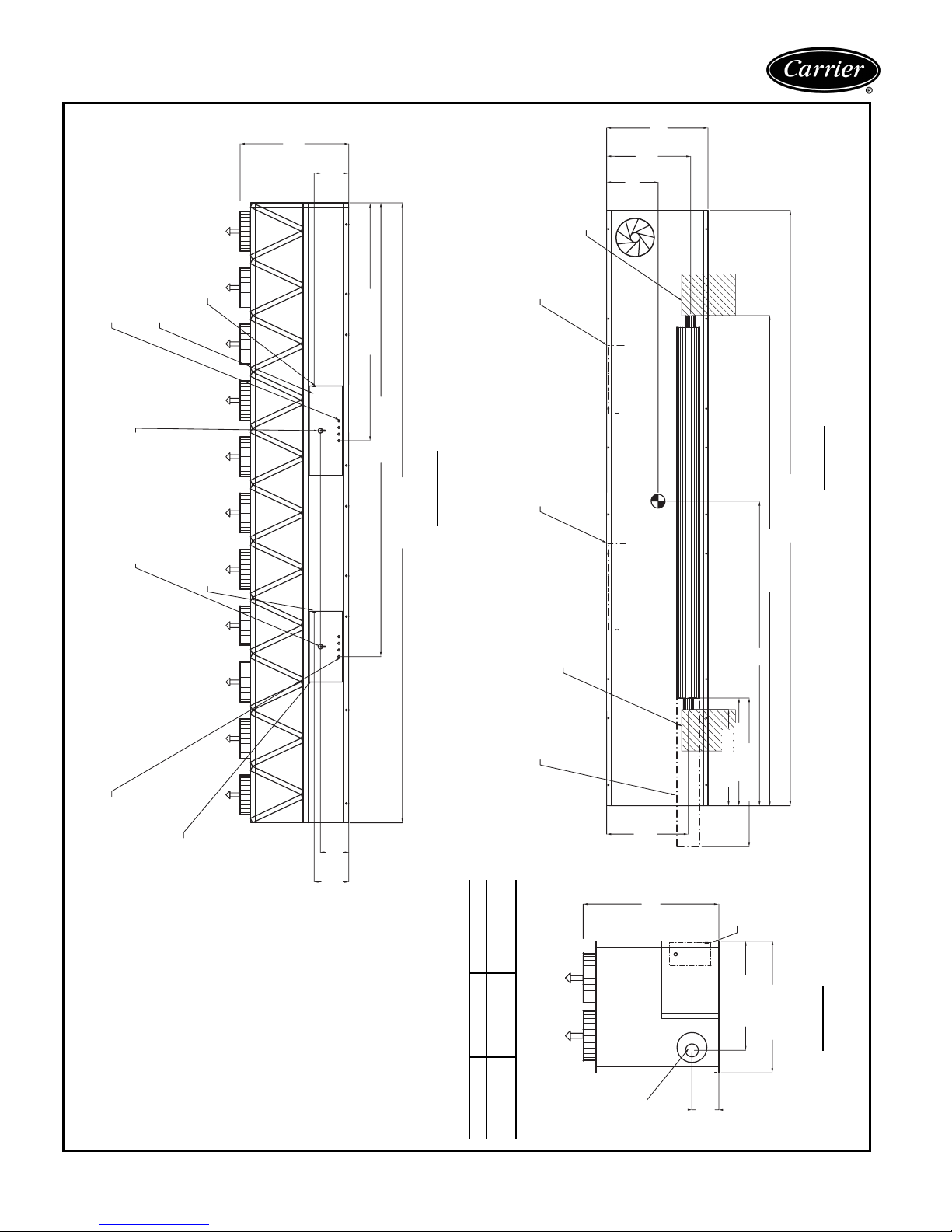

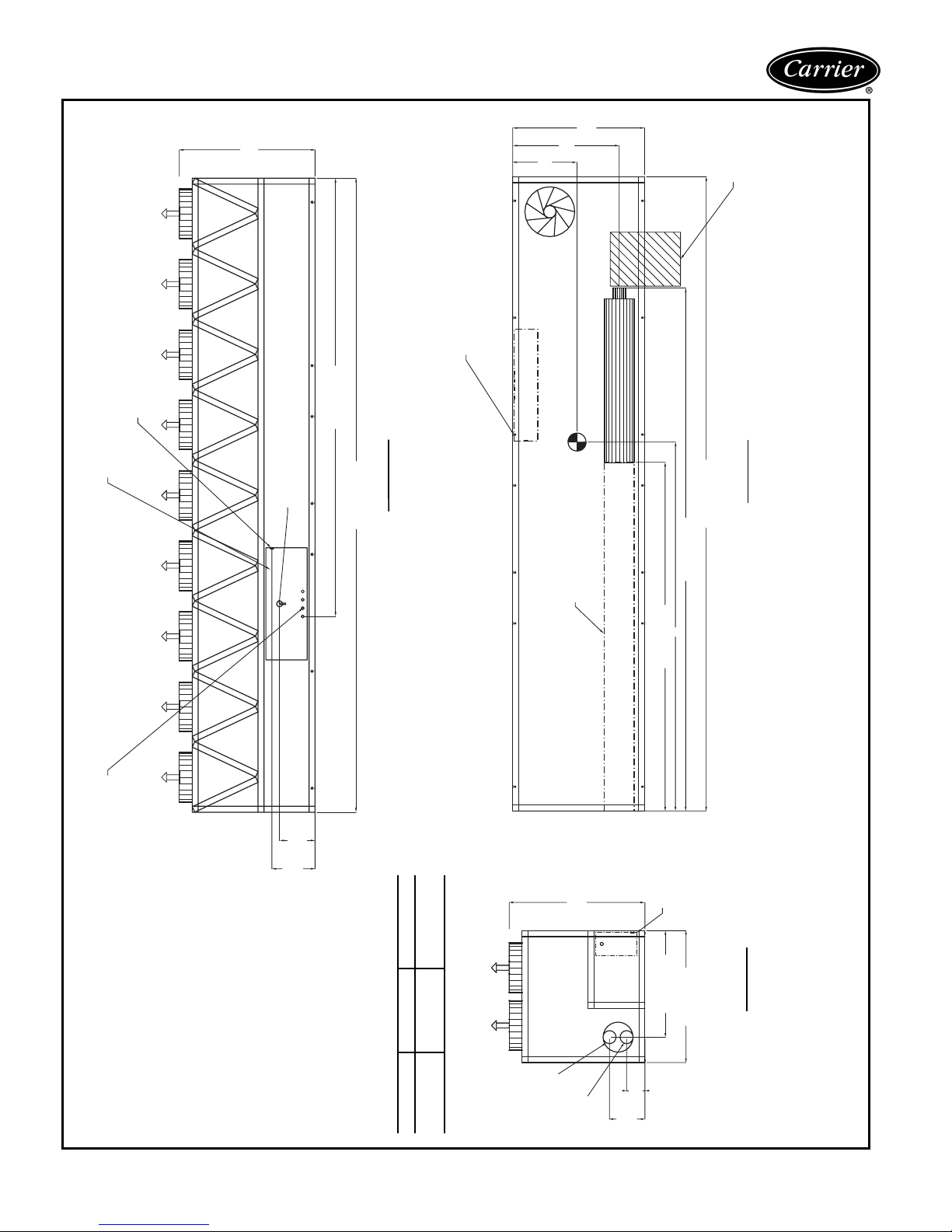

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-29

Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-32

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-37

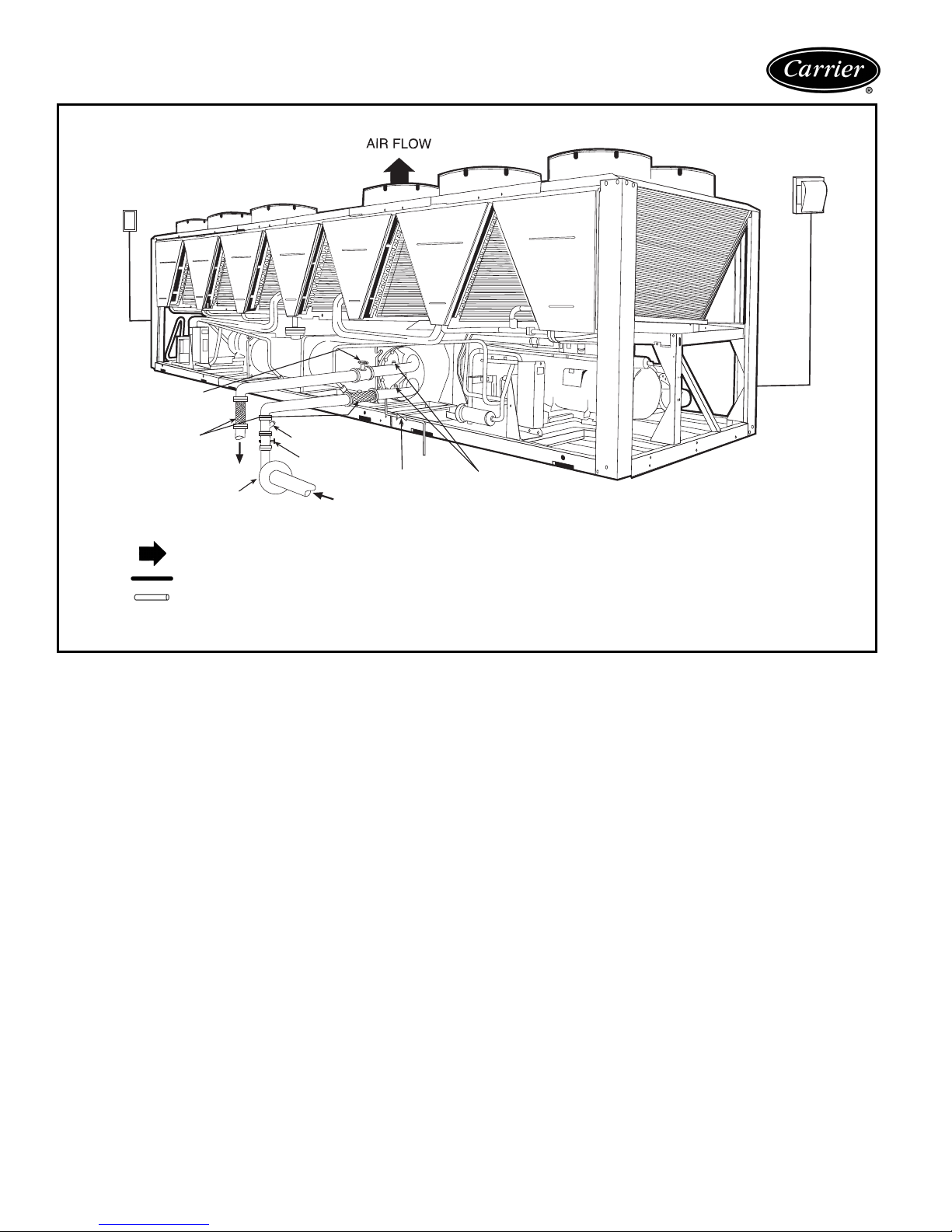

Typical Piping and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39, 40

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41-43

Control and Power Wiring Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

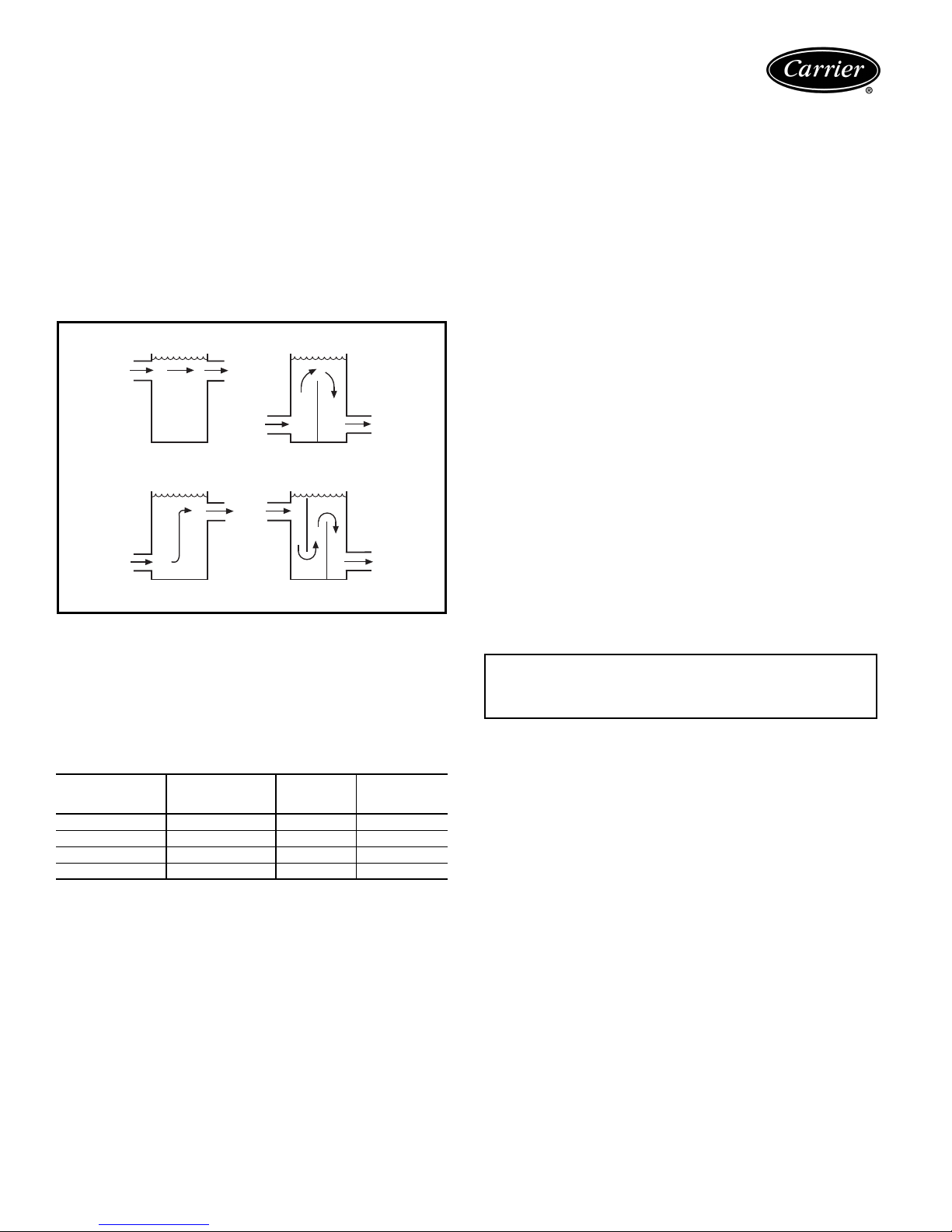

Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-49

Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-53

Page

Page 3

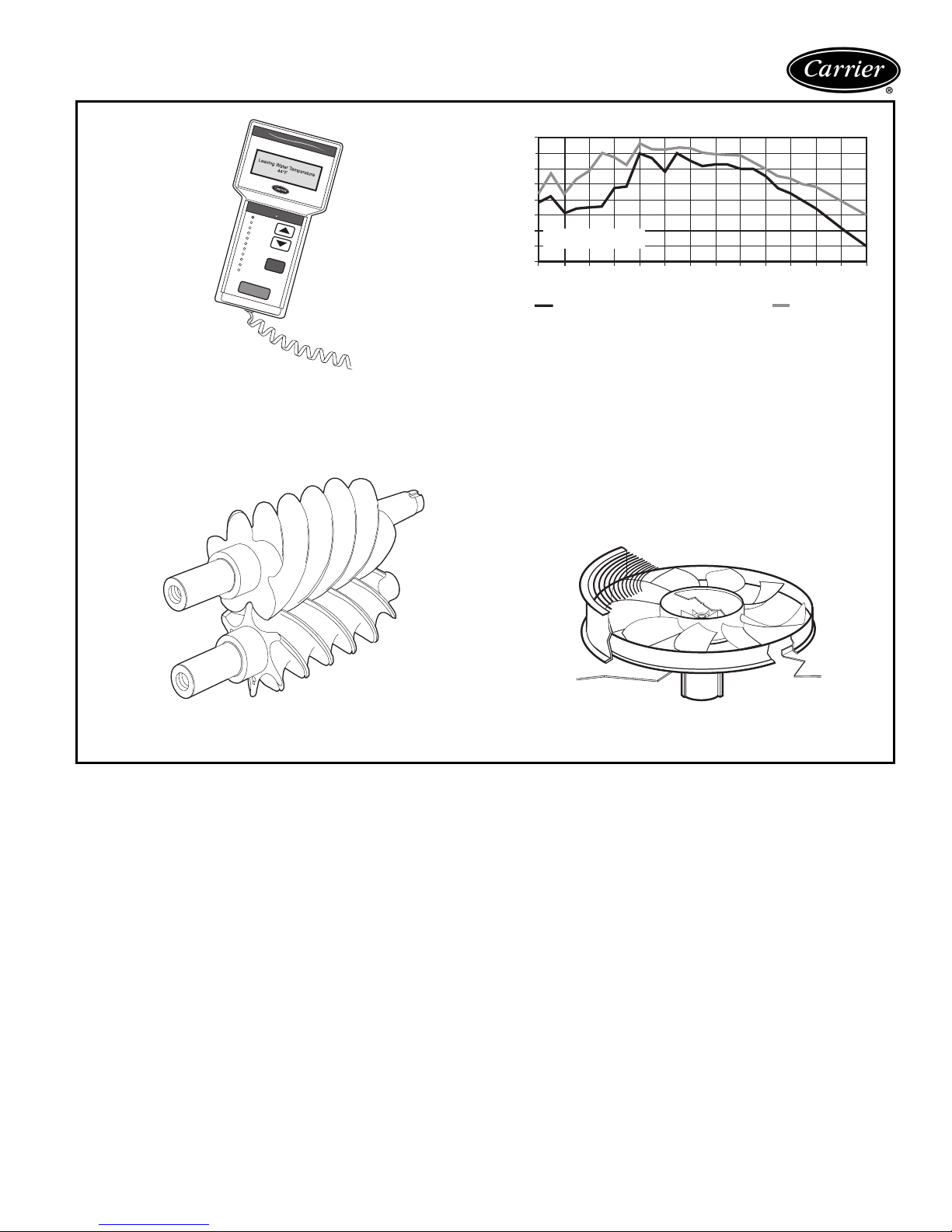

Features/Benefits (cont)

ComfortLink

MODE

r m

Run

Status

Service

Test

Tem

peratures

ressures

Setpoints

Inputs

Outputs

Configuration

Tim

lock

ESC

perating

odes

Alarm

ENTER

NAVIGATOR™ DISPLAY

AEROACOUSTIC™ FAN vs. PROPELLER FAN

PENETRATES BUILDING

STRUCTURE

SOUND POWER [dB(A)]

130 168

400

250

630 1080

1600

1/3 OCTAVE BAND CENTER FREQUENCY (Hz)

AEROACOUSTIC FAN

AEROACOUSTIC FAN VS PROPELLER FAN

4000

2400

6300

PROPELLER FAN

8000

SMOOTH ROTARY COMPRESSOR

TWIN-SCREW DESIGN

LOW-NOISE AEROACOUSTIC FAN

Page 4

Model number nomenclature

AQUAFORCE™ CHILLER MODEL NUMBER DESIGNATION

30XA - 200 6 F - 0 - - - L

30XA – Air-Cooled AquaForce™ Chiller

Design Series

Unit Sizes

080 140 240 350 090 160 260 400 100 180 280 450 110 200 300 500 120 220 325

Voltage 1 – 575-3-60 2 – 380-3-60 4 – 230-3-60 6 – 460-3-60 7 – 200-3-60

Condenser Coil/High Ambient Options 6 – Aluminum Fin/Copper Tube, High Ambient Temperature,

Compressor Enclosures 8 – Aluminum Pre-Coat Fin/Copper Tube, High Ambient Temperature, Compressor Enclosures 9 – Aluminum E-Coat Fin/Copper Tube, High Ambient Temperature, Compressor Enclosures F – Aluminum Fin/Copper Tube, Standard Ambient Temperature, Compressor Enclosures H – Aluminum Pre-Coat Fin/Copper Tube, Standard Ambient Temperature, Compressor Enclosures J – Aluminum E-Coated Fin/Copper Tube, Standard Ambient Temperature, Compressor Enclosures

Not Used

Cooler/Brine Options 0 – Integral Cooler 3 – Integral Cooler, Minus One Pass 5 – Integral Cooler, Plus One Pass B – Integral Cooler, Brine F – Integral Cooler, Minus One Pass, Brine H – Integral Cooler, Plus One Pass, Brine

LEGEND

EMM — Energy Management Module

GFI-CO — Ground Fault Interrupting Convenience Outlet LON — Local Operating Network XL — Across-the-Line Starter

Packaging/Security Options L – Coil Face Shipping Protection (CFSP) 0 – CFSP, Skid 1 – Skid, Top Crate, Bag 3 – CFSP, Coil Trim Panels 4 – CFSP, Skid, Coil Trim Panels, Shipping 5 – Skid, Top Crate, Bag, Coil Trim Panels

Controls/Communication Options

- – None 0 – EMM 1 – Remote Service Ports, GFI-CO 2 – EMM, Remote Service Port, GFI-CO 7 – BACnet™ Translator 8 – BACnet Translator, EMM 9 – BACnet Translator, Remote Service Port, GFI-CO B – BACnet Translator, EMM, Remote Service Port, GFI-CO H – LON Translator J – LON Translator, EMM K – LON Translator, Remote Service Port, GFI-CO L – LON Translator, EMM, Remote Service Port, GFI-CO

Electrical Options

- – Single Point Power, XL, Terminal Block, No Control Transformer 0 – Single Point Power, Wye-Delta, Terminal Block, No Control Transformer 3 – Dual Point Power, XL, Terminal Block, No Control Transformer 4 – Dual Point Power, Wye-Delta, Terminal Block, No Control Transformer 7 – Single Point Power, XL, Disconnect, No Control Transformer 8 – Single Point Power, Wye-Delta, Disconnect, No Control Transformer C – Dual Point Power, XL, Disconnect, No Control Transformer D – Dual Point Power, Wye-Delta, Disconnect, No Control Transformer H – Single Point Power, XL, Terminal Block, Control Transformer J – Single Point Power, Wye-Delta, Terminal Block, Control Transformer M – Dual Point Power, XL, Terminal Block, Control Transformer N – Dual Point Power, Wye-Delta, Terminal Block, Control Transformer R – Single Point Power, XL, Disconnect, Control Transformer S – Single Point Power, Wye-Delta, Disconnect, Control Transformer W – Dual Point Power, XL, Disconnect, Control Transformer X – Dual Point Power, Wye-Delta, Disconnect, Control Transformer

Refrigeration Circuit Options

- – None 1 – Suction Service Valves 2 – Low Ambient Temperature Head Pressure Control 5 – Suction Service Valves, Low Ambient Temperature Head Pressure Control

Quality Assurance

Certified to ISO 9001:2000

Page 5

ARI* capacity ratings (English and SI)

30XA UNIT

SIZE

080 75.4 265.3 83.79.9 2.8 14.2 4.0 180.4 11.4 11.4 34.1 090 84.4 297.0 84.6 10.7 3.0 14.5 4.1 201.9 12.7 10.6 31.7

100 94.3 331.797.7 10.5 3.0 14.8 4.2 225.5 14.2 13.2 39.5 110 102.4 360.3 108.3 10.4 2.9 15.1 4.3 244.9 15.5 12.5 37.4 120 110.7 389.5 119.1 10.3 2.9 15.1 4.3 264.8 16.7 12.6 37.7 140 132.9 467.4 135.6 10.7 3.1 14.3 4.1 317.8 20.0 13.9 41.6 160 152.6 536.9 160.0 10.6 3.0 14.4 4.1 365.1 23.0 14.6 43.7 180 171.3 602.5 176.3 10.7 3.0 14.3 4.1 409.6 25.8 13.1 39.2 200 194.0 682.4 201.4 10.7 3.1 14.8 4.2 463.9 29.3 13.9 41.6 220 211.6744.1 222.3 10.6 3.0 14.3 4.1 505.9 31.9 14.1 42.2 240 228.2 802.7 247.0 10.4 3.0 14.8 4.2 545.8 34.4 14.5 43.4 260 251.0 882.8 261.9 10.7 3.0 14.3 4.1 600.3 37.9 14.4 43.1 280 268.6944.6 280.1 10.7 3.0 14.4 4.1 642.2 40.5 14.3 42.8

300 287.5 1011.2 305.2 10.6 3.0 14.6 4.2 687.5 43.4 13.5 40.4 325 306.7 1078.6 323.3 10.6 3.0 14.3 4.1 733.4 46.3 13.7 41.0 350 324.3 1140.4 351.1 10.4 3.0 14.3 4.1 775.4 48.9 13.8 41.3

400 383.7 1349.5 423.0 10.2 2.9 14.7 4.2 917.6 57.9 10.7 32.0 450 426.2 1499.1 482.1 10.0 2.8 14.1 4.0 1019.3 64.3 10.7 32.0

500 457.0 1607.2 523.5 9.9 2.8 14.2 4.1 1092.868.9 11.5 34.4

COP — Coefficient of Performance EER — Energy Efficiency Ratio

IPLV — Integrated Part Load Value

*Air Conditioning and Refrigeration Institute (U.S.A.). NOTES:

1. Rated in accordance with ARIStandard 550/590-98 at standard rating conditions.

2. Standard rating conditions are as follows: Cooler Conditions:

Leaving water temperature: 44 F (6.7 C) Entering water temperature: 54 F (12.2 C)

Fouling Factor:

0.00010 hr x sq ft °F/Btu (0.000018 m

Condenser Conditions:

Entering Air Temperature:95F(35 C)

3. All data in this table is rated in accordance with ARIStandard 550/590.

CAPACITY

(TONS)(kW)(EER)(COP)(EER)(COP) (gpm) (L/s) (ft wg) (kPa)

LEGEND

TOTAL POWER

(kW)

x °C/W)

FULL LOADIPLV

COOLER

FLOW RATE

COOLER

PRESSURE DROP

Page 6

Physical data

30XA080-500 — ENGLISH

UNIT 30XA 080 090 100 110 120 140 160 180 200 220

OPERATING WEIGHT(lb)

Al-Cu Condenser Coils 7,674 8,704 8,931 9,071 9,216 11,505 11,748 13,59013,712 14,727

REFRIGERANTTYPE R-134a, EXV Controlled System

Refrigerant Charge (lb) CktA/CktB/CktC 86/86/— 97/97/—108/108/—135/108/—135/135/—202/115/—225/135/—205/205/—225/225/—270/225/—

COMPRESSORS Semi-Hermetic Twin Rotary Screws

Quantity 2222222 2 2 2 Speed (rpm) 3500 (Qty) Compressor Nominal Capacity (tons) CktA (1) 45*(1) 45 (1) 50 (1)60 (1)60 (1)90 (1) 100 (1)90 (1) 100 (1) 120 (Qty) Compressor Nominal Capacity (tons) CktB (1) 45*(1) 45 (1) 50 (1) 50 (1)60 (1) 50 (1)60 (1)90 (1) 100 (1) 100 (Qty) Compressor Nominal Capacity (tons) CktC N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Oil Charge (gal), CktA/CktB/CktC 5.5/5.5/—5.5/5.5/—5.5/5.5/—5.5/5.5/—5.5/5.5/— 6.25/5.5/— 6.25/5.5/— 6.25/6.25/— 6.25/6.25/— 6.75/6.25/— Minimum CapacityStep (%)

Standard 15 15 15 14 15 11 11 15 15 14 Optional 99 9 810 7810 10 10

COOLER Flooded, Shell and Tube Type

Net Fluid Volume (gal.) 16.5 18.5 18.5 20.0 23.0 25.5 27.5 31.5 34.0 37.0 Maximum Refrigerant Pressure (psig) 220 220 220 220 220 220 220 220 220 220 Maximum Fluid Side Pressure (psig) 300 300 300 300 300 300 300 300 300 300

WATER C ONNECTIONS

Drain (NPT, in.) Standard,Inlet and Outlet,Victaulic (in.)

Number of passes

Minus 1Pass,Inlet and Outlet,Victaulic (in.)

Number of passes 1111111 1 1 1

Plus 1Pass,Inlet and Outlet,Victaulic (in.) 4444455 666

Number of Passes 3333333 3 3 3

CONDENSER FANS Shrouded Axial Type, Vertical Discharge

Fan Speed (rpm) Standard/High Ambient† 850/— 850/— 850/— 850/— 850/— 850/1140 850/1140 850/1140 850/1140 850/1140

No. Blades...Diameter (in.) 9...30 9...30 9...30 9...30 9...30 9...30 9...30 9...30 9...30 9...30 No. Fans (CktA/CktB/CktC) 3/3/—4/4/—4/4/—4/4/—4/4/— 6/4/— 6/4/— 6/6/— 6/6/— 7/6/—

Total Airflow (cfm) 850 rpm 55,800 74,400 74,400 74,400 74,400 93,000 93,000 111,600 11 1,600 120,900 Total Airflow (cfm) 1140rpm — — — — — 124,000 124,000 148,800 148,800 161,200

CONDENSER COILS

No. Coils (CktA/CktB/CktC) 3/3/—4/4/—4/4/—4/4/—4/4/— 6/4/— 6/4/— 6/6/— 6/6/— 7/6/— Total Face Area (sq ft) 141 188 188 188 188 234 234 281281 305

CHASSIS DIMENSIONS (ft-in.)

Length 11-10 15-9 19-8 23-7 27-6

Width 7-4 Height 7-67/

5555555 666 2222222 2 2 2 5555555 888

UNIT30XA 240 260 280 300 325 350 400 450 500

OPERATING WEIGHT(lb)

Al/Cu Condenser Coils 14,887 16,853 17,022 17,36218,834 19,040 23,953 25,97526,269

REFRIGERANTTYPE R-134a, EXV Controlled System

Refrigerant Charge (lb) CktA/CktB/CktC 270/270/—375/220/—375/270/— 415/270/—375/375/—415/375/—270/270/375 415/205/415 415/270/41 5

COMPRESSORS Semi-Hermetic Twin Rotary Screws

Quantity 2222223 33 Speed (rpm) 3500 (Qty) Compressor Nominal Capacity (tons) CktA (1) 120 (1) 165 (1) 165 (1) 185 (1) 165 (1) 185 (1) 120 (1)90 (1) 120 (Qty) Compressor Nominal Capacity (tons) CktB (1) 120 (1) 100 (1) 120 (1) 120 (1) 165 (1) 165 (1) 120 (1) 185 (1) 185 (Qty) Compressor Nominal Capacity (tons) CktC N/A N/A N/A N/A N/A N/A (1) 165 (1) 185 (1) 185 Oil Charge (gal), CktA/CktB/CktC 6.75/6.75/— 7.5/6.75/— 7.5/6.75/— 7.5/6.75/— 7.5/7.5/— 7.5/7.5/— 6.75/6.75/7.5 7.5/6.25/7.5 7.5/6.75/7.5 Minimum CapacityStep (%)

Standard 15 10 13 12 15 14 967 Optional 10 89710 10 6 45

COOLER Flooded, Shell and Tube Type

Net Fluid Volume (gal.) 39.0 42.0 44.0 48.5 50.5 53.4 68.0 75.0 83.0 Maximum Refrigerant Pressure (psig) 220 220 220 220 220 220 220 220 220 Maximum Fluid Side Pressure (psig) 300 300 300 300 300 300 150 150 150

WATER C ONNECTIONS

Drain (NPT, in.) Standard,Inlet and Outlet,Victaulic (in.)

Number of passes

Minus 1Pass,Inlet and Outlet,Victaulic (in.)

Number of passes 111111———

Plus 1Pass,Inlet and Outlet,Victaulic (in.) 688888———

Number of Passes 3 33333———

CONDENSER FANS Shrouded Axial Type, Vertical Discharge

Fan Speed (rpm) Standard/High Ambient† 850/1140 850/1140 850/1140 850/1140 850/1140 850/1140 850/1140 850/1140 850/1140

No. Blades...Diameter (in.) 9...30 9...30 9...30 9...30 9...30 9...30 9...30 9...30 9...30 No. Fans (CktA/CktB/CktC) 7/6/— 9/6/—10/6/—10/6/— 9/9/— 9/9/— 6/6/8 8/6/8 8/6/8

Total Airflow (cfm) 850 rpm 120,900 1 39,500 148,800 148,800 167,400 186,000 186,000 204,600 204,600 Total Airflow (cfm) 1140rpm 161,200 186,000 198,400 198,400 223,200 223,200 248,000 272,800 272,800

CONDENSER COILS

No. Coils (CktA/CktB/CktC) 7/6/— 9/6/—10/6/—10/6/— 9/9/— 9/9/— 6/6/8 8/6/8 8/6/8 Total Face Area (sq ft) 305 352 375375 422 422 469 516 516

CHASSIS DIMENSIONS (ft-in.)

Length 27-6 31-5 35-4 39-3 43-2

Width 7-4 Height 7-67/

6888888 88

2222221 11 888888———

LEGEND

Cu — Copper Al — Aluminum

N/A — Not A pplicable

*30XA080 unit does not have an economizer.

†The high ambient temperature option is not available on 30XA080-120 units.

Page 7

30XA080-500 — SI

UNIT 30XA 080 090 100 110 120 140 160 180 200 220

OPERATING WEIGHT(kg)

Al-Cu Condenser Coils 3,445 3,906 4,009 4,068 4,129 5,159 5,263 6,087 6,135 6,587

REFRIGERANTTYPE R-134a, EXV Controlled System

Refrigerant Charge (kg) CktA/CktB/CktC 39/39/—44/44/—49/49/—49/44/—102/102/— 91.6/52.2/—102/61.2/— 93/93/—102/102— 122.5/102/—

COMPRESSORS Semi-Hermetic Twin Rotary Screws

Quantity 2222222 2 2 2 Speed (r/s) 58.3 (Qty) Compressor Nominal Capacity (tons) CktA (1) 45*(1) 45 (1) 50 (1)60 (1)60 (1)90 (1) 100 (1)90 (1) 100 (1) 120 (Qty) Compressor Nominal Capacity (tons) CktB (1) 45*(1) 45 (1) 50 (1) 50 (1)60 (1) 50 (1)60 (1)90 (1) 100 (1) 100 (Qty) Compressor Nominal Capacity (tons) CktC N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Oil Charge (liters), CktA/CktB/CktC 20.8/20.8/—20.8/20.8/—20.8/20.8/—20.8/20.8/—20.8/20.8/—23.7/20.8/—23.7/23.7/—23.7/23.7/—23.7/23.7/—25.6/23.7/— Minimum CapacityStep (%)

Standard 15 15 15 14 15 11 11 15 15 14 Optional 999810 7810 10 10

COOLER Flooded, Shell and Tube Type

Net Fluid Volume (liters) 62.5 70.0 70.0 75.787.1 96.5 104.1 119.2 128.7 140.1 Maximum Refrigerant Pressure (kPa) 1516.8 1516.8 1516.8 1516.8 1516.8 1516.8 1516.8 1516.8 1516.8 1516.8 Maximum Fluid Side Pressure (kPa) 2068 2068 2068 2068 2068 2068 2068 2068 2068 2068

WATER C ONNECTIONS

Drain (NPT, in.) Standard,Inlet and Outlet,Victaulic (in.)

Number of passes

Minus 1Pass,Inlet and Outlet,Victaulic (in.)

Number of passes 1111111 1 1 1

Plus 1Pass,Inlet and Outlet,Victaulic (in.) 4444455 666

Number of Passes 3333333 3 3 3

CONDENSER FANS Shrouded Axial Type, Vertical Discharge

Fan Speed (r/s) Standard/High Ambient† 14.2/— 14.2/— 14.2/— 14.2/— 14.2/—14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0

No. Blades...Diameter (mm.) 9...762 9...762 9...762 9...762 9...762 9...762 9...762 9...762 9...762 9...762 No. Fans (CktA/CktB/CktC) 3/3/—4/4/—4/4/—4/4/—4/4/— 6/4/— 6/4/— 6/6/— 6/6/— 7/6/—

Tot al A irf low (L/s) 14.2 r/s 26,335 35,113 35,113 35,113 35,113 43,891 43,89152,669 52,669 57,059 Tot al A irf low (L/s) 19.0 r/s —————58,522 58,522 70,22670,22676,078

CONDENSER COILS

No. Coils (CktA/CktB/CktC) 3/3/—4/4/—4/4/—4/4/—4/4/— 6/4/— 6/4/— 6/6/— 6/6/— 7/6/— TotalFaceArea(sqm) 13 17 17 17 17 22 22 26 26 28

CHASSIS DIMENSIONS (mm.)

Length 3606 4800 5994 7188 8382

Width 2255 Height 2296.9

5555555 666 2222222 2 2 2 5555555 888

UNIT 30XA 240 260 280 300 325 350 400 450 500

OPERATING WEIGHT(kg)

Al/Cu Condenser Coils 6,653 7,5367,6067,7488,4098,495 10,98311,87311,991

REFRIGERANTTYPE R-134a, EXV Controlled System

Refrigerant Charge (kg) CktA/CktB/CktC 122.5/122.5/—170.1/99.8/—170.1/122.5/—188.3/122.5/—170.1/170.1/—188.3/170.1/—122.5/122.5/

COMPRESSORS Semi-Hermetic Twin Rotary Screws

Quantity 222222 3 3 3 Speed (r/s) 3500 (Qty) Compressor Nominal Capacity (tons) CktA (1) 12 0 (1) 165 (1) 165 (1) 185 (1) 165 (1) 185 (1) 12 0 (1)90 (1) 120 (Qty) Compressor Nominal Capacity (tons) CktB (1) 12 0 (1) 100 (1) 120 (1) 120 (1) 165 (1) 165 (1) 12 0 (1) 185 (1) 185 (Qty) Compressor Nominal Capacity (tons) CktC N/A N/A N/A N/A N/A N/A (1) 165 (1) 185 (1) 185 Oil Charge (liter), CktA/CktB/CktC 25.6/25.6/—28.4/25.6/—28.4/25.6/—28.4/25.6/—28.4/28.4/—28.4/28.4/— 25.6/25.6/28.4 28.4/23.7/28.4 28.4/25.6/28.4 Minimum CapacityStep (%)

Standard 15 10 13 12 15 14 967 Optional 10 89710 10 6 45

COOLER Flooded, Shell and Tube Type

Net Fluid Volume (liters) 147.6 159.0 166.6 183.6 191.2 202.1 257.4 283.9 314.2 Maximum Refrigerant Pressure (kPa) 1516.8 1516.8 1516.8 1516.8 1516.8 1516.8 1516.8 151 6.8 1516.8 Maximum Fluid Side Pressure (kPa) 2068 2068 2068 2068 2068 2068 1034 1034 1034

WATER C ONNECTIONS

Drain (NPT, in.) Standard,Inlet and Outlet,Victaulic (in.)

Number of passes

Minus 1Pass,Inlet and Outlet,Victaulic (in.)

Number of passes 111111 — — —

Plus 1Pass,Inlet and Outlet,Victaulic (in.) 688888 ———

Number of Passes 333333 — — —

CONDENSER FANS Shrouded Axial Type, Vertical Discharge

Fan Speed (r/s) Standard/High Ambient† 14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0 14.2/19.0

No. Blades...Diameter (in.) 9...762 9...762 9...762 9...762 9...762 9...762 9...762 9...762 9...762 No. Fans (CktA/CktB/CktC) 7/6/— 9/6/—10/6/—10/6/— 9/9/— 9/9/— 6/6/8 8/6/8 8/6/8

Tot al A ir fl ow (L/s) 14.2 r/s 57,05965,83770,22670,22679,004 79,004 87,782 96,561 96,561 Tot al A ir fl ow (L/s) 19.0 r/s 76,078 87,782 93,634 93,634 93,634 105,339 117,043 128,747 128,747

CONDENSER COILS

No. Coils (CktA/CktB/CktC) 7/6/— 9/6/—10/6/—10/6/— 9/9/— 9/9/— 6/6/8 8/6/8 8/6/8 TotalFaceArea(sqm) 28 33 35 35 39 39 44 48 48

CHASSIS DIMENSIONS (mm.)

Length 8382 9576 1077011964 13158

Width 2255 Height 2300

688888 8 8 8

222222 1 1 1 888888 ———

170.1

188.3/102/

188.3

188.3/188.3/

122.5

LEGEND

Cu — Copper Al — Aluminum

N/A — Not A pplicable

*30XA080 unit does not have an economizer.

†The high ambient temperature option is not available on 30XA080-120 units.

Page 8

Physical data (cont)

UNIT WEIGHTS — STANDARD UNITS

UNIT WEIGHTS — ENGLISH

30XA

UNIT SIZE

080 2023 1759 177320397594

30XA

UNIT SIZE

090 1243 2145 822 1023 2115 1262 8611

100 1269 2202 853 1054 21711288 8837 110 1279 22378721079 2208 1293 8968 120 1309 2270 8751082224013279102

30XA

UNIT SIZE

140 1944 1513 938 1254 1291 957 1684179211,373 160 19921536953 12811321 9741703 1843 11,603

30XA

UNIT SIZE

180 97415301179 1955 12611298 2006900 135696113,420 200 979 1543 1198 19731267 1308 2017907 1367 967 13,525

30XA

UNIT SIZE

220 8831266 1609 15288981286 1329918 1449 1147 1307902 14,522 240 900 1288 1629 1546901 1289 1332 921 1457 1155 1331 920 14,668 260 566 15631655 808 2496 10841599 2495 86513931526 566 16,615 280 569 15841685 816 2522 1087 1601 2505 868 1418 1547 569 16,769

300 579 1607 1707832 259011041633 2575 88014301567 579 17,082

30XA

UNIT SIZE

325 856856 1043 1549828 256011431639 2453 8731708 1320 856856 18,539 350 860 8601047 1561 836 2606 1153 1666 2504 877 1713 1323 860 86018,727

30XA

UNIT SIZE

400 924 1311 1521 3014 1329837 22811148 1643 2418817 1341 2280 1052 1354 945 24,214 450 933 1256 2168 2281 98211342097 2178 2858 2067 1629 1343 1528 14751293 953 26,175

500 921 1314 2205 2321 987 1139 2107 2188 2868 2077 1633 1348 1543 1489 1357941 26,436

NOTE: Condenser Coil: Aluminum Fins/Copper Tubing.

MOUNTING WEIGHT(lb)

ABCD To tal

MOUNTING WEIGHT(lb)

ABCD EFTotal

MOUNTING WEIGHT(lb)

ABCD EFGHTota l

MOUNTING WEIGHT(lb)

ABCD EFGH I JTot al

MOUNTING WEIGHT(lb)

ABCD EFGH I J KLTotal

MOUNTING WEIGHT(lb)

ABCD EFGH I J KLMN Tot al

MOUNTING WEIGHT(lb)

ABCD EFGH I J KLMN O P Tot al

UNIT WEIGHTS — SI

30XA

UNIT SIZE

080 918798804 925 3445

30XA

UNIT SIZE

090 564 973373464 959 5723906

100 576 999 387 478 9855844009 110 5801015395489 1001 587 4068 120 5941030397 4911016602 4129

30XA

UNIT SIZE

140 882 686 425 569 585434764 813 5159 160 904 697 432 581599 442 772 836 5263

30XA

UNIT SIZE

180 442 694535887 572589 910 408615 4366087 200 444 700 543 895575593 915 411 620 4386135

30XA

UNIT SIZE

220 401 574 730 693407 583 603 416657 520 5934096587 240 408 584 739701 409 585 604 418661524604 4176653 260 257709751 367 1132 492 725 1132 392 632 6922577536 280 2587197643701144493 726 1136 394 643 702 2587607

300 262 729774377 1175501 741 1168 399 649711 262 7748

30XA

UNIT SIZE

325 388 388 473 703 3751161518744 1113 396 775599 388 388 8409 350 390390475 708 379 1182523 756 1136 398 777 600 390390 8495

30XA

UNIT SIZE

400 419 595 6901367 603 3801035521 745 1097 370 608 1034 477 614 428 10983 450 423 570 9831035 446 514 951 988 1297 938739609693 669 586 432 11873

500 418 596 1000 1053 448 5169569921301 942 741 611 700 675 616 427 11991

NOTE: Condenser Coil: Aluminum Fins/Copper Tubing.

MOUNTING WEIGHTS (kg)

ABCD To tal

MOUNTING WEIGHT(kg)

ABCD EFTotal

MOUNTING WEIGHT(kg)

ABCD EFGHTota l

MOUNTING WEIGHT(kg)

ABCD EFGH I JTot al

MOUNTING WEIGHT(kg)

ABCD EFGH I J KLTotal

MOUNTING WEIGHT(kg)

ABCD EFGH I J KLMN Tot al

MOUNTING WEIGHT(kg)

ABCD EFGH I J KLMN O P Tot al

Page 9

30XA080

30XA220-300

ABCDE

srosserpmo

30XA090-120

ABC

srosserpmoC

30XA140-160

ABCD

30XA325-350

30XA400-450

srosserpmo

IHG

sross

erpm

LKJ

BCDEFG

NMLKJIH

ABCDEFGH

srosserpmoC

30XA180-200

srosserpmoC

HGFE

ABCDE

PONMLKJI

Page 10

Options and accessories

Condenser Coil and Fan Op tions

Aluminum Fins /Pre-coated X Aluminum Fins E-Coat X High Ambient Temperature Option X

Controls/Communication Options

BACnet™ Translator Control XX Chillervisor System Manager III Multi-Unit Control X

DataLINK™ Control X DataPort™ Control X

Energy Management Module XX Convenience Outlet XX LON Translator Control XX Remote Enhanced Display X Remote Service Port XX

Cooler Options

Medium Temperature Brine X Minus One Pass Cooler X Plus One Pass Cooler X

Electrical Options

Unit-Mounted Main Disconnect,Non-F used X Control Transformer XX

Refrigeration Circuit Options

Wye-Delta Compressor Start X Low Ambient Temperature Head Pressure Control XX

Suction Service Valve X

Security/Packaging Option

Condenser Coil Trim Panels XX

LEGEND

LON — Local Operating Network

Factory-installed options

Condenser coil options are available to match coil con-

struction to the site conditions for the best durability. Refer to the Condenser Coil Corrosion Protection Options table on page 11 or the Environmental Corrosion Protection white paper for more information.

High ambient temperature option provides highspeed condenser fan motors to increase the condenser airflow. This option may allow for an increase in machine capacity, and may also result the selection of a smaller chassis to meet given capacity requirements. The high ambient temperature option is not available on 30XA080120 units.

Minus-one-pass cooler provides a lower pressure drop through the cooler for applications with low delta T or high flow or where the coolers are piped in a series.

Plus-one-pass cooler provides a greater efficiency for brine applications and in applications with a high delta T and low flow.

Wye-delta start is an alternate starting method which reduces the in-rush current when starting the compressor.

Compressor suction service valve provides additional protection. Standard refrigerant discharge isolation and liquid valves enable service personnel to store the refrigerant charge in the cooler or condenser during servicing. This factory-installed option allows for isolation of the compressor from the cooler vessel.

Energy management module provides energy management capabilities to minimize chiller energy consumption. Several features are provided with this module including leaving fluid temperature reset, cooling set point reset or demand limit control from a 4 to 20 mA signal, 2-step demand limit control (from 0 to 100%) activated by a remote contact closure, and discrete input for “Ice Done” indication for ice storage system interface.

Service option provides a remote service port for

ITEM FACTORY-INSTALLED OPTION FIELD-INSTA LLE D ACCE SSORY

convenience outlet that includes 4-amp GFI (Ground Fault Interrupt) receptacle. Convenience outlet is 115-v female receptacle. Service option not available with 380-v units, and is also available as a field-installed accessory.

Low ambient temperature

head pressure control

permits operation of the 30XA units to –20 F (–29 C) outdoor ambient temperature. The control is also available as a field-installed accessory and may require field-installed wind baffles.

Medium temperature brine option allows for leaving fluid temperatures to be set between 15 and 39 F (–9.4 to

3.9 C). The expansion device is modified to correct for the lower refrigeration flow rates. Low ambient temperature head pressure control and suction line insulation are required.

Unit-mounted non-fused disconnect option provides non-fused disconnect for unit power located at the unit.

BACnet™ translator control provides an interface between the chiller and a BACnet Local Area Network (LAN, i.e., MS/TP EIA-485). The BACnet translator control is also available as a field-installed accessory.

LON translator control provides an interface between the chiller and a Local Operating Network (LON, i.e., LonWorks FT-10A ANSI/EIA-709.1). The LON translator control is also available as a field-installed accessory.

Condenser coil trim panels provide an aesthetic, finished appearance for the condenser coil ends of the compressor side of the unit. Condenser coil trim panels are also available as a field-installed accessory.

Control transformer is sized to supply the needs of the control circuit from the main power supply. The control transformer is also available as a field-installed accessory.

Remote service port consists of a receptacle for Navigator™ device connection. The port is housed in a waterproof enclosure conveniently located for easy access to information during operation and maintenance routines.

Navigator™ display connection and a factory-installed

Page 11

Field-installed accessories

Control transformer is sized to supply the needs of the

control circuit from the main power supply. The control transformer is also available as a factory-installed option.

Remote enhanced display is a remotely mounted indoor 40-character per line, 16-line display panel for unit monitoring and diagnostics.

Chillervisor System Manager III multi-unit control

allows sequencing of between two and eight chillers in parallel.

Low ambient temperature head pressure control

permits operation of the 30XA units to –20 F outdoor ambient temperature. The control is also available as a factory-installed option and may require field-installed wind baffles.

Energy Management Module provides energy management capabilities to minimize chiller energy consumption. Several features are provided with this module including leaving fluid temperature reset, cooling set point reset or demand limit control from a 4 to 20 mA signal, 2-step demand limit control (from 0 to 100%) activated by a remote contact closure (one-step demand limit does not require the Energy Management Module), and discrete input for “Ice Done” indication for ice storage system interface.

Remote service port consists of a receptacle for Navigator™ device connection. The port is housed in a

waterproof enclosure conveniently located for easy access to information during operation and maintenance routines.

Convenience outlet includes 4-amp GFI (Ground Fault Interrupt) receptacle. Convenience outlet is 115-v female receptacle. Not available with 380-v units.

DataPort

™

control is an interface device that allows a

non-Carrier control device to read values in the system elements connected to the Carrier Comfort Network (CCN) Communication Bus using ASCII over a RS-232 connection. This accessory is externally remote mounted with its own power supply.

DataLINK

™

control is an interface device that allows a non-

Carrier controller to read and write values in the system elements connected to the CCN Communication Bus using ASCII over a RS-232 connection.

CONDENSER COIL CORROSION PROTECTION OPTIONS

ENVIRO-SHIELD

OPTION*

AL Fins (Standard Coils) X AL Fins, E-coat XX X AL Fins,Precoated X

LEGEND

AL — Aluminum

*See selection guide “Environmental Corrosion Protection” for more information (Publication 811-20062).

™

Standard

Mild

Coastal

ENVIRONMENT

Severe

Coastal

Industrial

Combined

Industrial/Coastal

Page 12

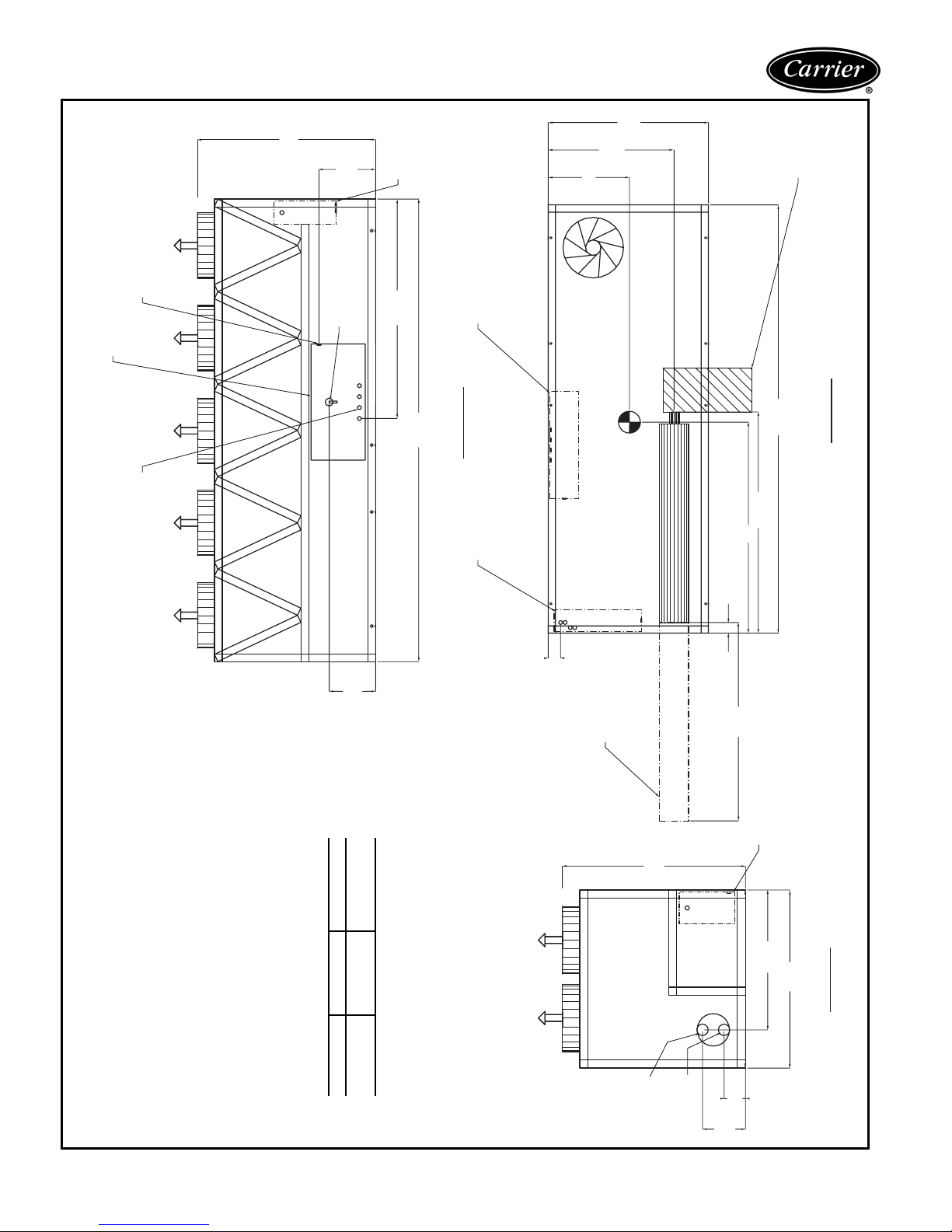

Dimensions

68.06

[1729]

43.85

[111 4]

7/8" knockouts for main power entry

(7.48" [190mm] hole spacing)

88.04

[2236]

65.73

[1670]

[3078]

121.17

[3587]

141.22

Piping Entrance

30XA080

-in. flare connection.

Control Box All Voltages

[602]

23.72

Cooler Tube

Service Area

90.55

[2300]

5.83 [148]

109.0

[2769]

68.06

[1729]

[2236]

88.04

END VIEW TOP VIEW

-in. NPT vents and drains located in each cooler head at each

Top — Do not restrict

NOTES:

1. Unit must have clearances as follows:

Sides and Ends — 6 ft from solid surface.

mizer assemblies and have

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

2. Temperature relief devices are located on liquid line and econo-

4. Drawing depicts unit with single-point power and standard two-

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

10.8

[274]

[484]

19.06

5" Victaulic Entering Water

5" Victaulic Leaving Water

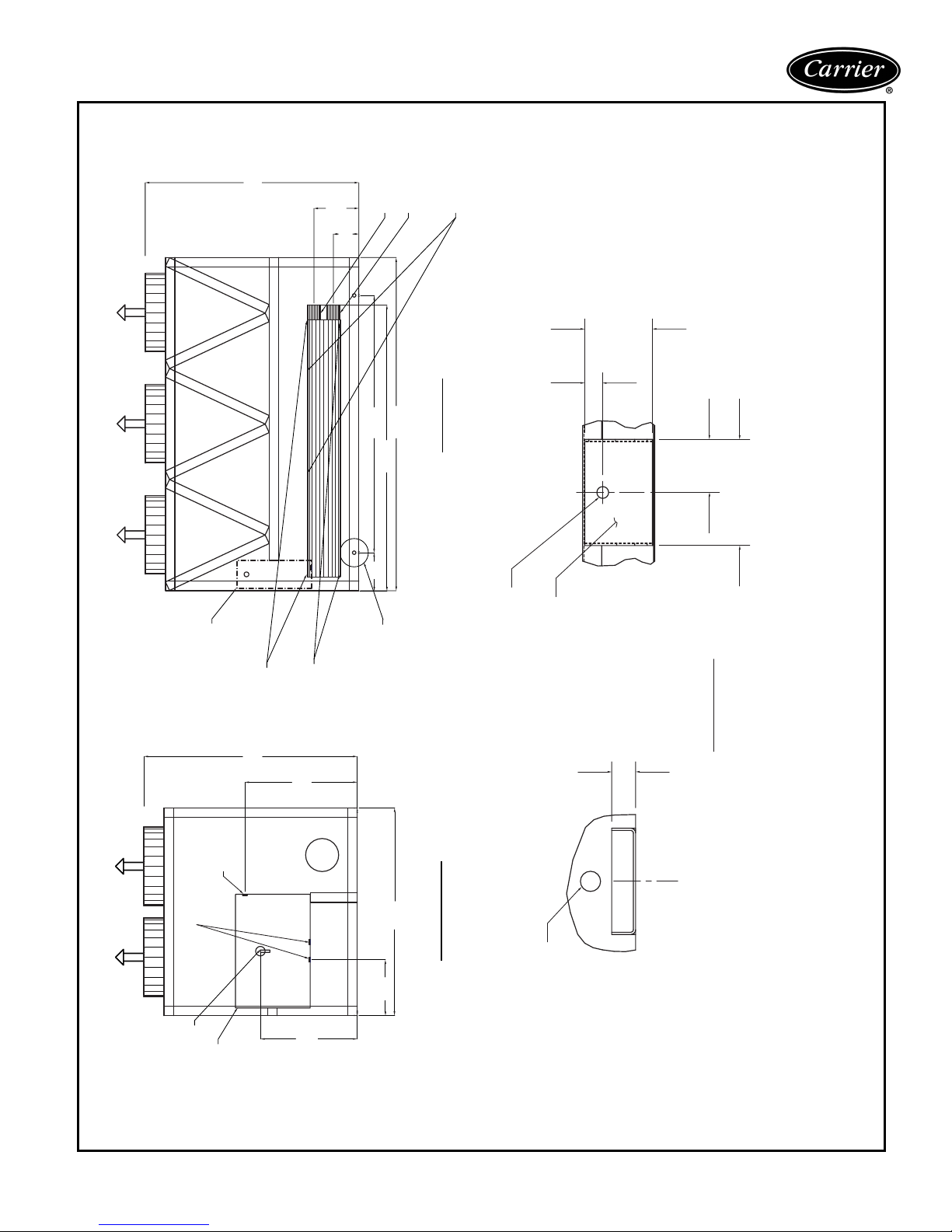

Page 13

90.55

[2300]

[484]

19.06

10.8

[274]

5" Victaulic

[2769]

109.03

121.17

16.1

[409]

Leaving Water

[3587]

141.22

[3078]

5" Victaulic

Entering Water

3/4 NPT Relief

Conn. Female

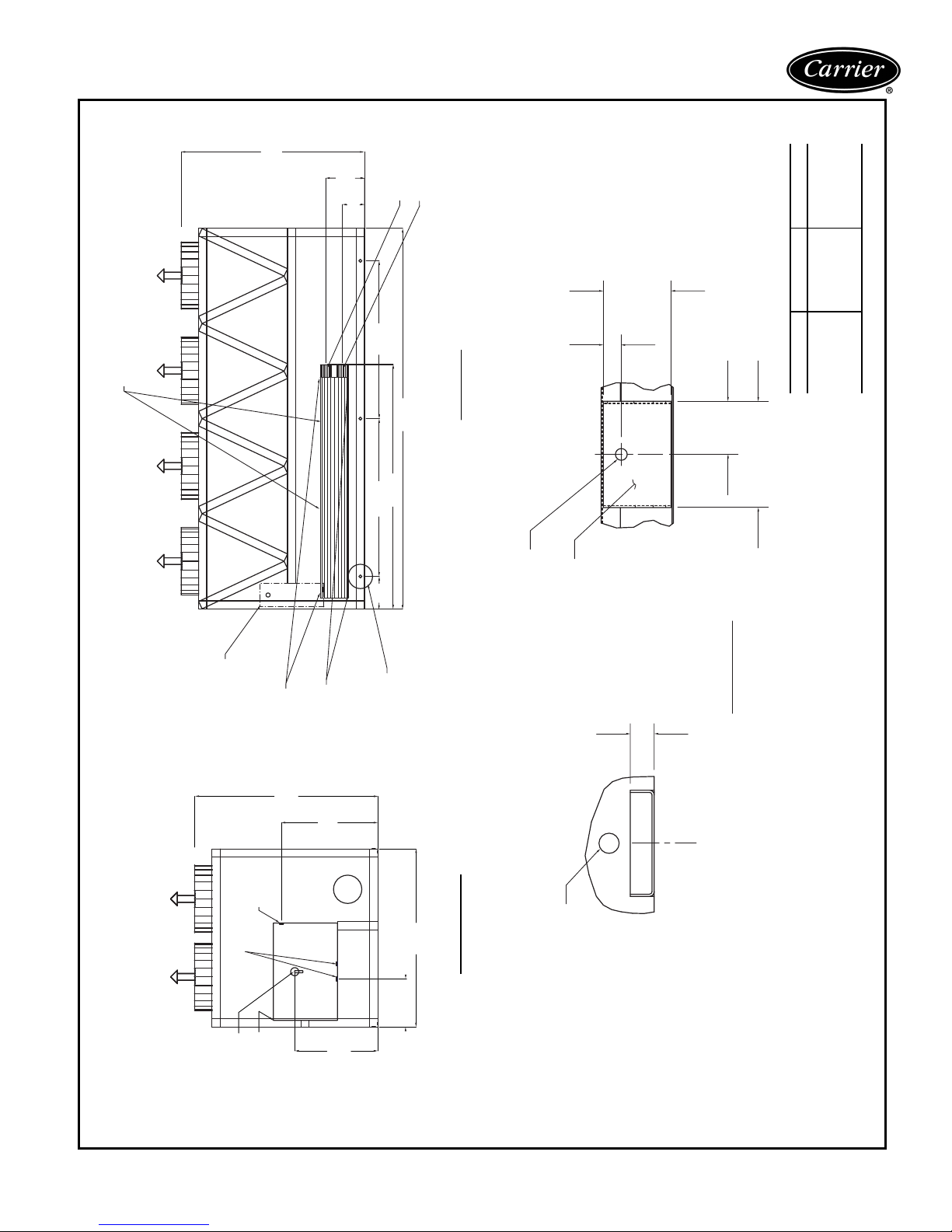

SIDE VIEW

[33]

0-1 5/16

0-5

[127]

[100]

0-3 15/16

[200]

0-7 7/8

.875 DIA.[022]

MOUNTING HOLE

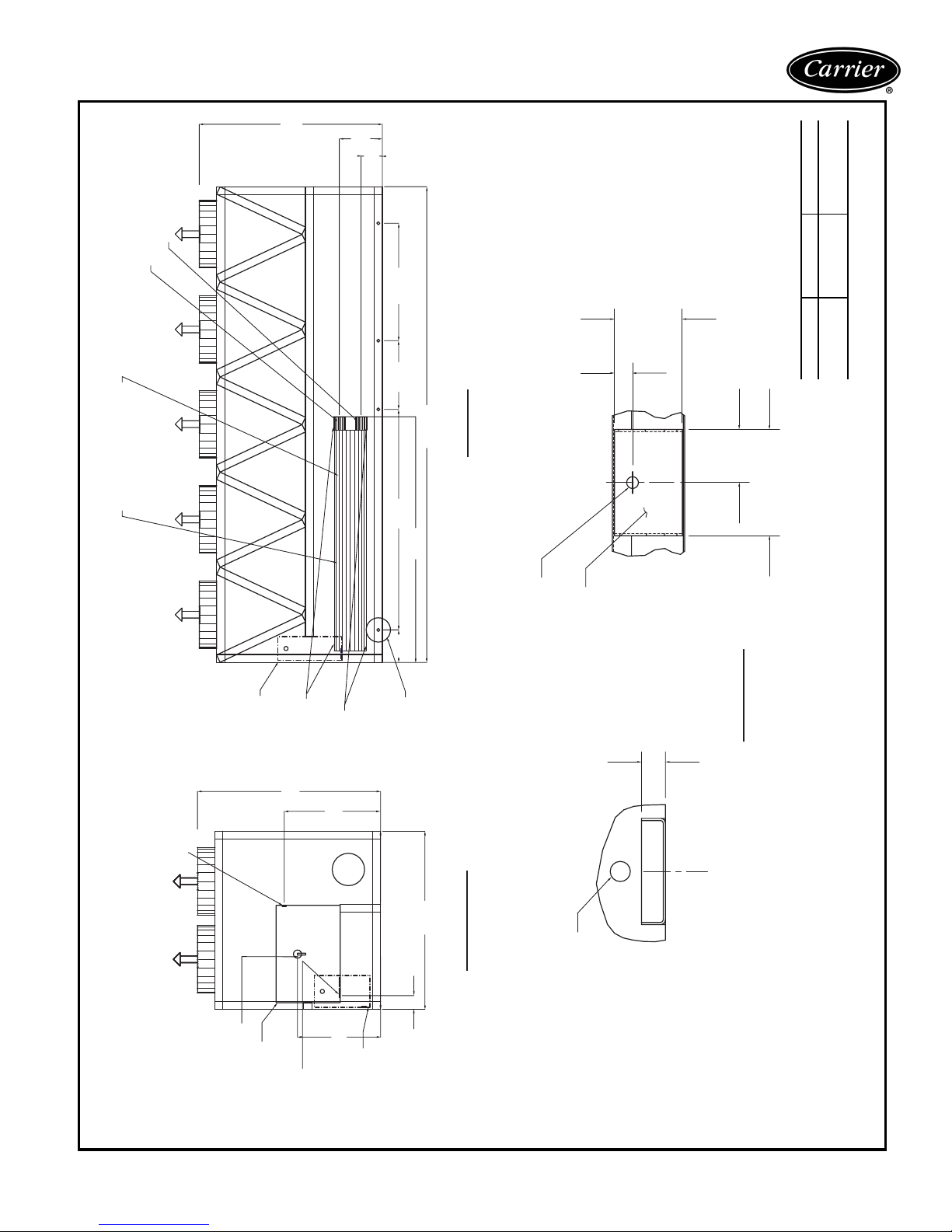

30XA080 (cont)

Cooler Vent

3/8 NPT

Cooler Drain

47.65

[1210]

3/8 NPT

Control Box All Voltages

Control

90.55

[2300]

power entry

Mounting Holes

Rigging Holes

(See Detail A)

88.04

[2236]

MOUNTING PLATE

0-1 3/4

[44]

DETAIL "A"

MOUNTING PLATE

CONTACT SURFACE

SCALE 4” = 1”

TYPICAL 4 PLACES

-in. flare connection.

LEFT END VIEW

7/8" knockouts for main power entry

(7.48" [190mm] hole spacing)

Control Box

All Voltages

Optional Non-fused

Disconnect Handle

41.1 [1044]

[602]

23.72

1.50 DIA. [038]

RIGGING HOLE

-in. NPT vents and drains located in each cooler head at

2. Temperature relief devices are located on liquid line and

each end of cooler.

economizer assemblies and have

4. Drawing depicts unit with single-point power and standard

Top — Do not restrict

Sides and Ends — 6 ft from solid surface.

NOTES:

1. Unit must have clearances as follows:

two-pass cooler. Refer to the Packaged Chiller Builder pro-

in millimeters.

gram for other configurations.

5. Dimensions are shown in inches; dimensions in brackets are

Page 14

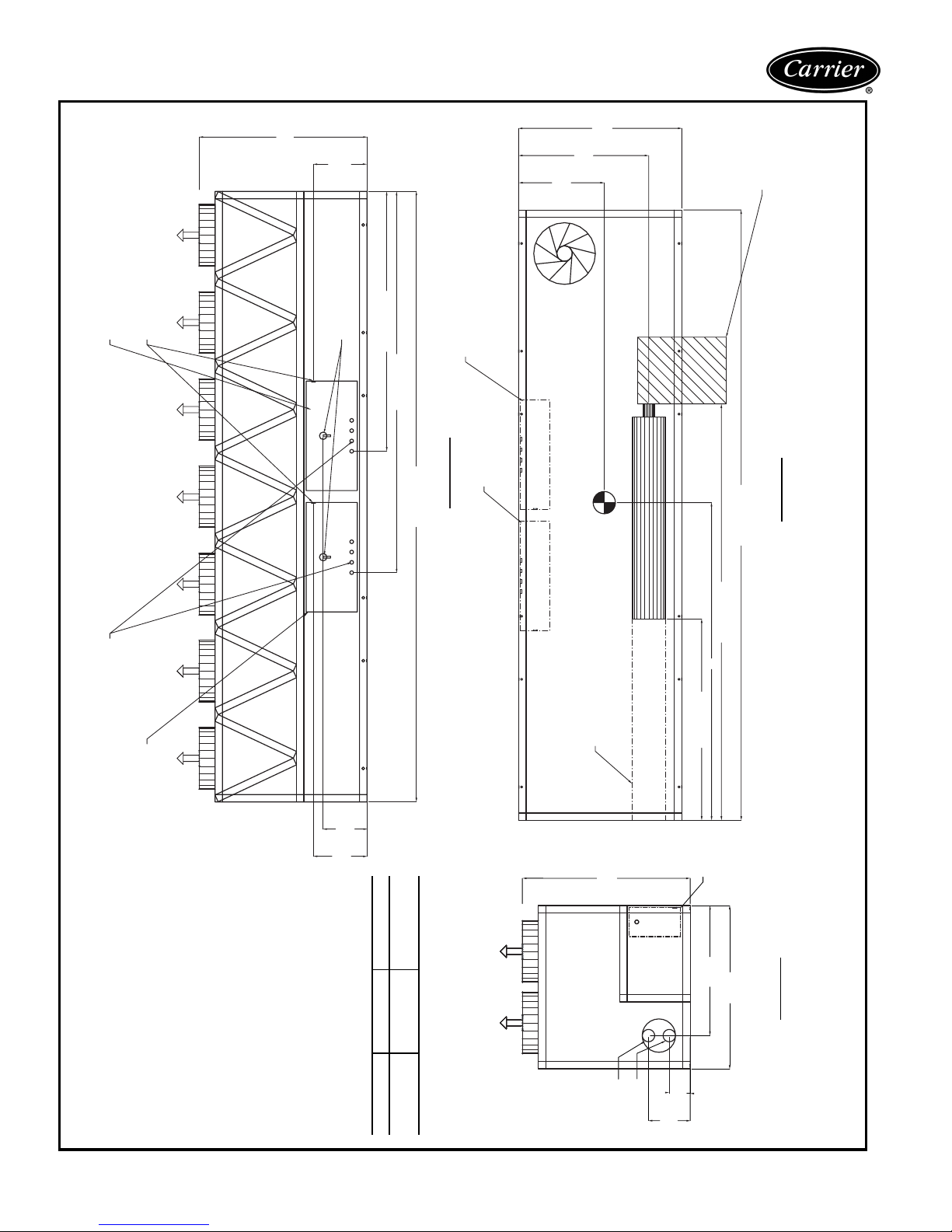

Dimensions (cont)

88.04

[2236]

68.06

[1729]

188.2

[4780]

Piping

Entrance

TOP VIEW

090 44.11 (1120)86.93 (2208)

100 44.11 (1120)87.22 (2215)

110 44.11 (1120)87.62 (2226)

30XA UNITA B

120 44.11 (1120)87.12 (2213)

30XA090-120

7/8" knockouts for main power entry

(7.48" [190mm] hole spacing)

23.72

Control Box All Voltages

[602]

Cooler Tube

Service Area

90.55

[2300]

120.85

5.51 [140]

109.0

[2769]

[3070]

68.06

[1729]

88.04

[2236]

-in. flare connection.

5" Victaulic

Leaving Water

5" Victaulic

Entering Water

10.8

[484]

19.06

[274]

END VIEW

-in. NPT vents and drains located in each cooler head at each

Sides and Ends — 6 ft from solid surface.

2. Temperature relief devices are located on liquid line and econo-

mizer assemblies and have

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

4. Drawing depicts unit with single-point power and standard two-

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

Top — Do not restrict

NOTES:

1. Unit must have clearances as follows:

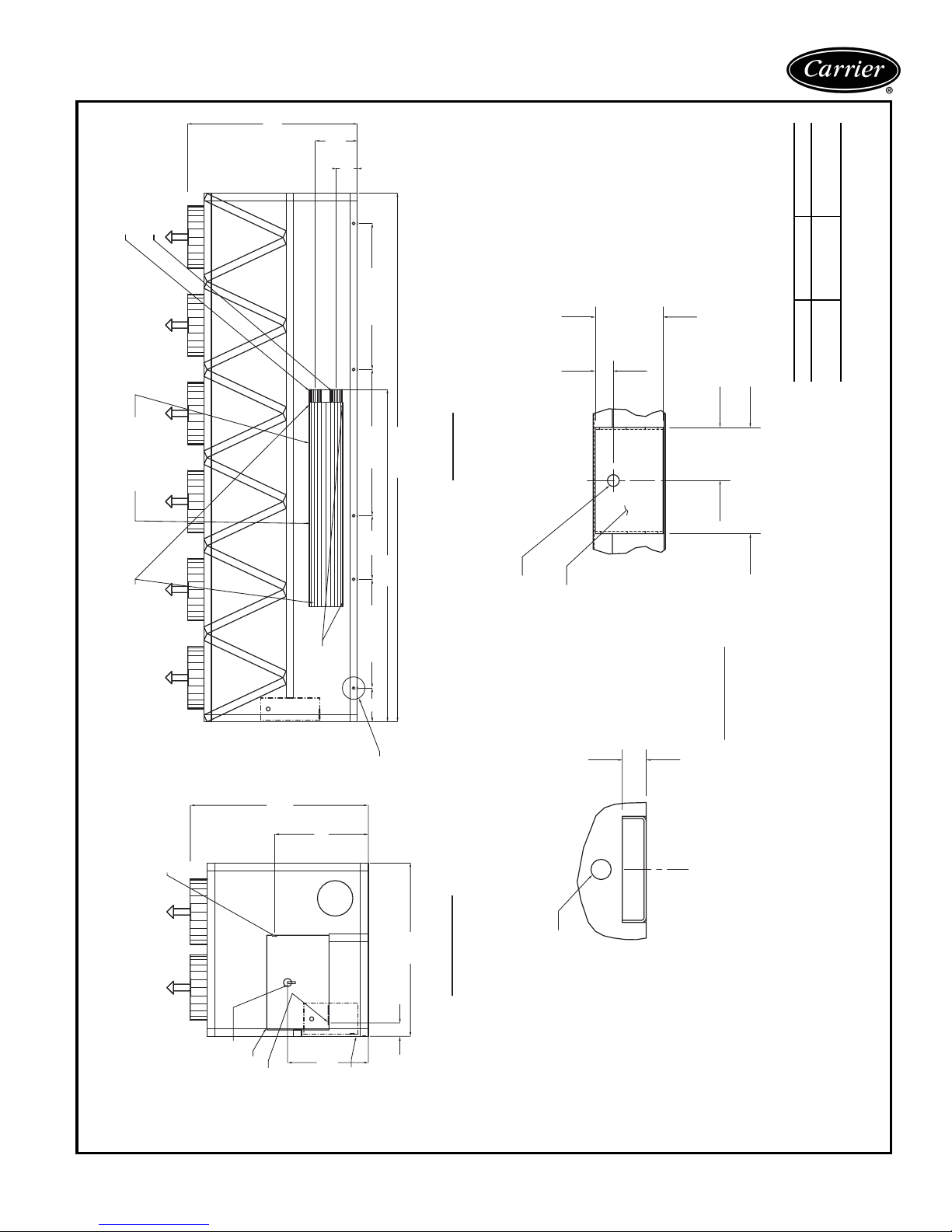

Page 15

90.55

[2300]

[484]

19.06

10.8

[274]

5" Victaulic

Leaving Water

5" Victaulic

Entering Water

0-5

[127]

3/4 NPT Relief Conn. Female

30XA090-120 (cont)

Control Box All Voltages

Cooler Vent

3/8 NPT

Cooler Drain

3/8 NPT

78.02

[1982]

188.2

[4780]

[3070]

120.85

78.02

[1982]

16.1

[409]

Mounting Holes

Rigging Holes

(See Detail A)

SIDE VIEW

[33]

0-1 5/16

.875 DIA.[022]

MOUNTING HOLE

MOUNTING PLATE

0-1 3/4

[44]

[100]

0-3 15/16

DETAIL "A"

MOUNTING PLATE

0-7 7/8

CONTACT SURFACE

[200]

SCALE 4” = 1”

TYPICAL 4 PLACES

090 44.11 (1120)86.93 (2208)

100 44.11 (1120)87.22 (2215)

110 44.11 (1120)87.62 (2226)

30XA UNITA B

120 44.11 (1120)87.12 (2213)

90.55

[2300]

Control

power entry

(7.48" [190mm] hole spacing)

7/8" knockouts for main power entry

Control Box

All Voltages

Optional Non-fused

Disconnect Handle

47.65

[1210]

41.1 [1044]

[602]

23.72

88.04

[2236]

LEFT END VIEW

1.50 DIA. [038]

RIGGING HOLE

-in. flare connection.

-in. NPT vents and drains located in each cooler head at each

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

Top — Do not restrict

Sides and Ends — 6 ft from solid surface.

mizer assemblies and have

NOTES:

1. Unit must have clearances as follows:

2. Temperature relief devices are located on liquid line and econo-

4. Drawing depicts unit with single-point power and standard two-

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

Page 16

Dimensions (cont)

90.55

[2300]

Control power entry

Control Box

(all voltages

except 200/230V)

Control Box

[732]

28.81

Non-fused

111. 58

Disconnect Handle

(200/230V only)

[2834]

[5975]

235.24

(380,460,575V only)

Control Box

BACK VIEW

88.04

[2236]

69.14

[1756]

Piping Entrance

[5975]

235.24

TOP VIEW

30XA140,160

7/8" knockouts for main power entry

(5.55" [141 mm] hole spacing)

-in. flare connection.

[600]

23.62

Control Box

(200/230V only)

6.79

[172]

Service Area

Cooler Tube

90.55

[2300]

5.84 [148]

109.0

[2769]

121.49

Control Box

[3086]

(380, 460, 575V only)

69.14

[1756]

88.04

[2236]

END VIEW

-in. NPT vents and drains located in each cooler head at each

Top — Do not restrict

NOTES:

1. Unit must have clearances as follows:

Sides and Ends — 6 ft from solid surface.

mizer assemblies and have

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

2. Temperature relief devices are located on liquid line and econo-

4. Drawing depicts unit with single-point power and standard two-

140 44.63 (1134) 115.88 (2943)

160 44.61 (1133) 115.64 (2937)

30XA UNITA B

5" Victaulic

Leaving Water

5" Victaulic

Entering Water

10.58

[269]

21.28

[541]

Page 17

5" Victaulic Entering Water

5" Victaulic Leaving Water

3/4 NPT Relief Conn. Female

90.55

[2300]

21.28

[269]

10.58

[541]

58.08

[1475]

[863]

33.96

[2769]

109.03

235.24

[3086]

121.49

[5975]

SIDE VIEW

[33]

0-1 5/16

0-5

[127]

[100]

0-3 15/16

[200]

0-7 7/8

140 44.63 (1134) 115.88 (2943)

160 44.61 (1133) 115.64 (2937)

30XA UNITA B

.875 DIA.[022]

16.1

[409]

MOUNTING HOLE

MOUNTING PLATE

30XA140,160 (cont)

DETAIL "A"

MOUNTING PLATE

CONTACT SURFACE

SCALE 4” = 1”

Sides and Ends — 6 ft from solid surface.

2. Temperature relief devices are located on liquid line and econo-

-in. flare connection.

mizer assemblies and have

-in. NPT vents and drains located in each cooler head at each

TYPICAL 4 PLACES

end of cooler.

4. Drawing depicts unit with single-point power and standard two-

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

Control

Power Entry

Control Box

(200/230V only)

Cooler Vent

90.55

[2300]

Control Box

(200/230V only)

Optional Non-fused

Disconnect Handle

7/8" knockouts for

main power entry

3/8 NPT

Cooler Drain

3/8 NPT

47.65

[1210]

41.1 [1044]

Control Box

(5.55" [141 mm]

(380,460,575v only)

hole spacing)

Mounting Holes

Rigging Holes

(See Detail A)

88.04

[2236]

6.79 [172]

LEFT END VIEW

[44]

0-1 3/4

1.50 DIA. [038]

RIGGING HOLE

Top — Do not restrict

NOTES:

1. Unit must have clearances as follows:

Page 18

Dimensions (cont)

90.55

[2300]

Control power entry

(380,460,575v only)

Control Box

[732]

28.81

Optional Non-fused

Disconnect Handle

Control Box

(200/230V only)

158.6

[4028]

282.2

[7168]

Control Box

BACK VIEW

(380,460,575V only)

88.04

[2236]

70.16

[1782]

Piping Entrance

[7168]

282.22

TOP VIEW

30XA180, 200

7/8" knockouts for main power entry

(5.55" [141 mm] hole spacing)

[600]

23.62

Control Box

(200/230V only)

6.79

[172]

Service Area

Cooler Tube

90.55

[2300]

61.6 [1565]

[2779]

109.39

177.65

Control Box

70.16

[1782]

[4512]

(380,460,575V only)

88.04

[2236]

END VIEW

-in. flare connection.

-in. NPT vents and drains located in each

2. Temperature relief devices are located on liq-

uid line and economizer assemblies and have

cooler head at each end of cooler.

and standard two-pass cooler. Refer to the

4. Drawing depicts unit with single-point power

Top — Do not restrict

Sides and Ends — 6 ft from solid surface.

NOTES:

1. Unit must have clearances as follows:

in brackets are in millimeters.

configurations.

Packaged Chiller Builder program for other

5. Dimensions are shown in inches; dimensions

180 46.12 (1171) 143.04 (3633)

200 46.15 (1172) 142.97 (3631)

30XA UNITA B

6" Victaulic

Leaving Water

6" Victaulic

Entering Water

11. 3

[287]

[571]

22.48

Page 19

6" Victaulic Entering Water

6" Victaulic Leaving Water

3/4 NPT Relief

Conn. Female

90.55

[2300]

11. 3

22.48

[287]

[571]

78.02

[1982]

78.02

[1982]

[863]

33.97

282.22

[4512]

177.65

[7168]

SIDE VIEW

[33]

0-1 5/16

0-5

[127]

[100]

0-3 15/16

[200]

0-7 7/8

180 46.12 (1171) 143.04 (3633)

200 46.15 (1172) 142.97 (3631)

30XA UNITA B

Cooler Vent

3/8 NPT

Cooler Drain

30XA180, 200 (cont)

90.55

[2300]

47.65

Control

Power Entry

3/8 NPT

[1210]

58.08

[1475]

18.7

[489]

Mounting Holes

Rigging Holes

(See Detail A)

88.04

[2236]

LEFT END VIEW

41.1 [1044]

6.79 [172]

(380,460,

575v only)

Control Box

Optional Non-fused

Disconnect Handle

(200/230V only)

(5.55" [141 mm]

7/8" knockouts for

main power entry

hole spacing)

Control Box

.875 DIA.[022]

MOUNTING HOLE

MOUNTING PLATE

0-1 3/4

1.50 DIA. [038]

RIGGING HOLE

[44]

NOTES:

DETAIL "A"

MOUNTING PLATE

CONTACT SURFACE

SCALE 4” = 1”

TYPICAL 4 PLACES

-in. flare connection.

-in. NPT vents and drains located in each cooler head at each

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

Top — Do not restrict

Sides and Ends — 6 ft from solid surface.

mizer assemblies and have

1. Unit must have clearances as follows:

2. Temperature relief devices are located on liquid line and econo-

4. Drawing depicts unit with single-point power and standard two-

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

Page 20

Dimensions (cont)

90.55

[2300]

Control Power Entry

Control Box

(200/230V only)

[732]

28.81

Optional Non-fused

Disconnect Handle

140.14 [3560]

205.6 [5222]

329.26 [8363]

Control Box

(380,460,575V only)

Control Box

(200/230V only)

BACK VIEW

88.04

[2236]

70.16

[1782]

Piping Entrance

TOP VIEW

329.26 [8363]

30XA220, 240

7/8" knockouts for main power entry

(5.55" [141 mm] hole spacing)

Control Box

(380,460,575V only)

-in. flare connection.

Top — Do not restrict

NOTES:

1. Unit must have clearances as follows:

Sides and Ends — 6 ft from solid surface.

uid line and economizer assemblies and have

2. Temperature relief devices are located on liq-

224.65 [5706]

Cooler Tube

23.62

28.81

[732]

[600]

Service Area

90.55

[2300]

108.6 [2758]

Control

Boxes

70.16

[1782]

88.04

[2236]

END VIEW

11. 3

Leaving Water

6" Victaulic

Entering Water

[287]

22.48

[571]

220 46.17(1173) 171.42 (4354)

-in. NPT vents and drains located in each

cooler head at each end of cooler.

and standard two-pass cooler. Refer to the

4. Drawing depicts unit with single-point power

in brackets are in millimeters.

configurations.

Packaged Chiller Builder program for other

5. Dimensions are shown in inches; dimensions

240 46.23 (1174) 170.83 (4339)

30XA UNITA B

6" Victaulic

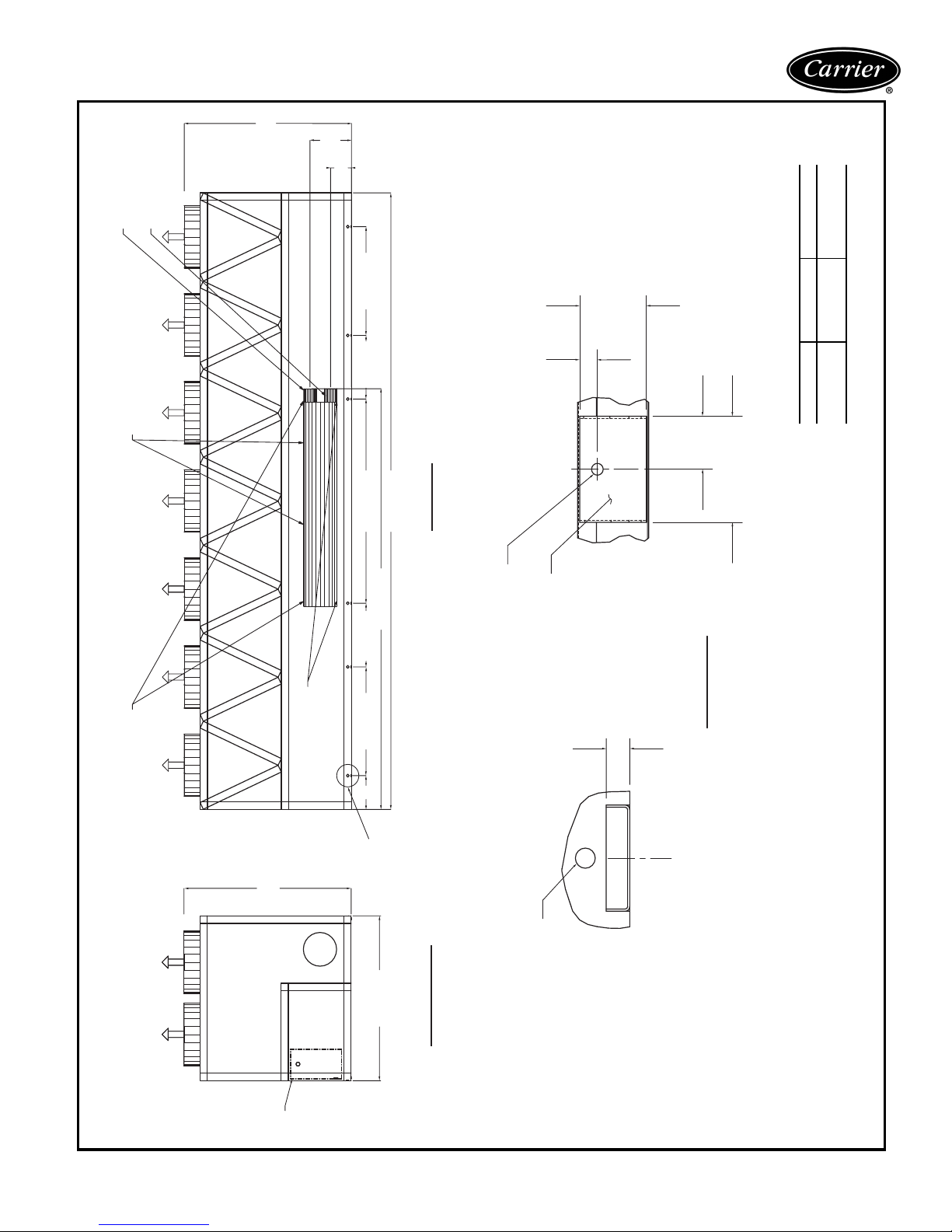

Page 21

90.55

[2300]

6" Victaulic Entering Water

6" Victaulic Leaving Water

[571]

22.48

11. 3

[287]

30XA220, 240 (cont)

3/4 NPT Relief Conn. Female

Cooler Vent

3/8 NPT

Cooler Drain

3/8 NPT

58.08 [1475]

33.96 [863]

109.03 [2769]58.08 [1475]

329.26 [8363]

224.65 [5706]

33.97 [863]

SIDE VIEW

[33]

0-1 5/16

.875 DIA.[022]

MOUNTING HOLE

MOUNTING PLATE

0-1 3/4

[44]

0-5

[127]

[100]

0-3 15/16

DETAIL "A"

MOUNTING PLATE

CONTACT SURFACE

[200]

0-7 7/8

SCALE 4” = 1”

TYPICAL 4 PLACES

220 46.17(1173) 171.42 (4354)

240 46.23 (1174) 170.83 (4339)

30XA UNITA B

90.55

[2300]

Control

Boxes

[459]

18.07

Rigging Holes

Mounting Holes

(See Detail A)

88.04 [2236]

LEFT END VIEW

1.50 DIA. [038]

RIGGING HOLE

-in. flare connection.

-in. NPT vents and drains located in each cooler head at each

Sides and Ends — 6 ft from solid surface.

2. Temperature relief devices are located on liquid line and econo-

mizer assemblies and have

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

4. Drawing depicts unit with single-point power and standard two-

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

Top — Do not restrict

NOTES:

1. Unit must have clearances as follows:

Page 22

Dimensions (cont)

90.55

[2300]

Control Power Entry

Control Box All Voltages

245.52 [6236]

Optional Non-fused

Disconnect Handle

Control Box All Voltages

88.04

[2236]

71.06

[1805]

Piping Entrance

TOP VIEW

30XA260-300

7/8" knockouts for main power entry

(5.55" [141 mm] hole spacing)

-in.

23.62

[732]

28.81

[600]

376.2 [9555]

BACK VIEW

Cooler Tube

Service Area

90.55

[2300]

376.2 [9555]

304.71 [7740]

188.35 [4784]

Control Box

All Voltages

71.06 [1805]

88.04 [2236]

END VIEW

-in. NPT vents and drains

located on liquid line and econo-

follows:

Top — Do not restrict

Sides and Ends — 6 ft from solid

NOTES:

1. Unit must have clearances as

mizer assemblies and have

surface.

2. Temperature relief devices are

flare connection.

located in each cooler head at

each end of cooler.

point power and standard two-

pass cooler. Refer to the Pack-

aged Chiller Builder program for

4. Drawing depicts unit with single-

other configurations.

[310]

12.21

260 44.22 (1123) 216.16(5490)

280 44.30 (1125) 215.86 (5483)

dimensions in brackets are in

millimeters.

5. Dimensions are shown in inches;

300 44.32 (1126) 216.18(5491)

30XA UNITA B

6" Victaulic

Leaving Water

6" Victaulic

Entering Water

[600]

23.63

Page 23

6" Victaulic Leaving WaterCooler Vent

90.55

[2300]

6" Victaulic Entering Water

23.63

[310]

12.21

[600]

0-5

[127]

3/4 NPT Relief Conn. Female

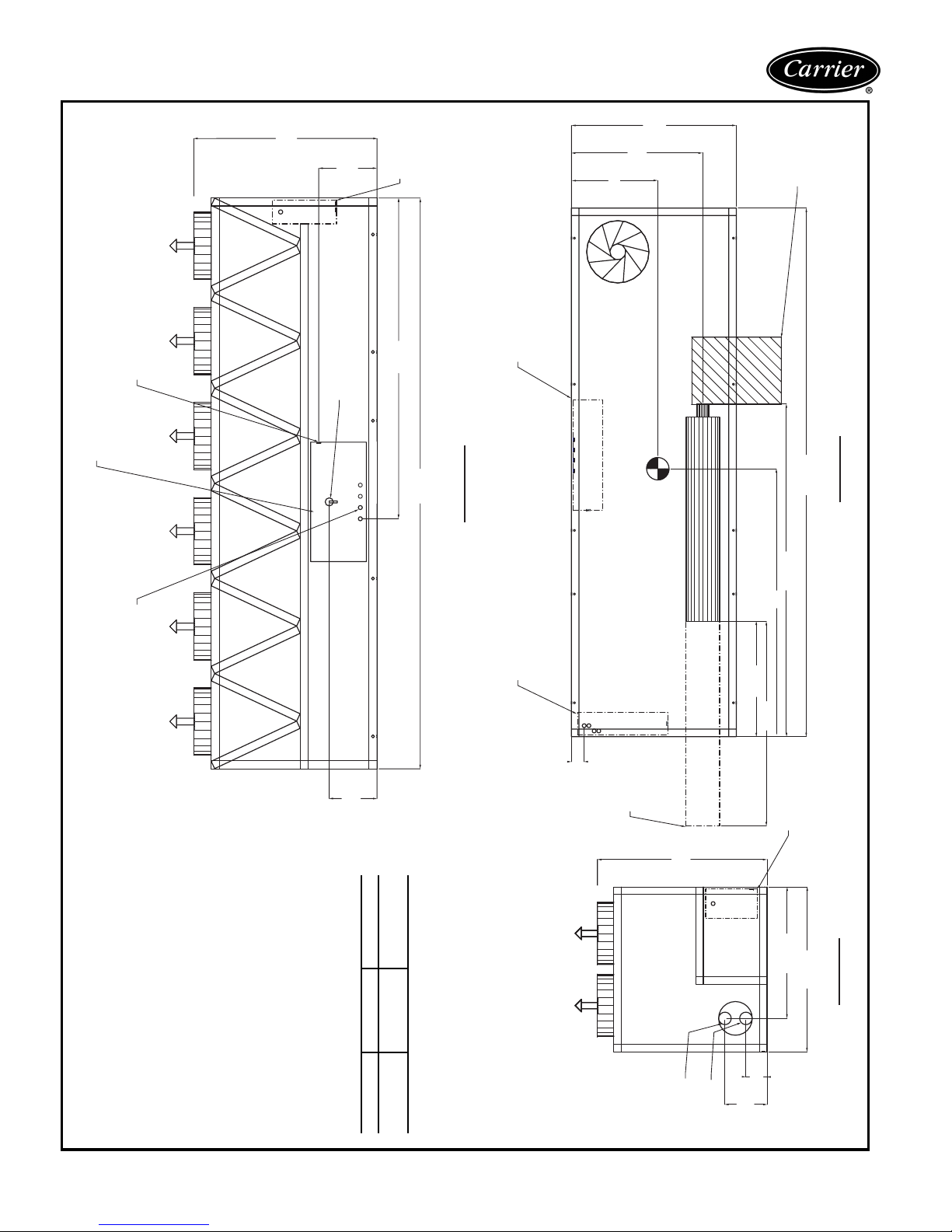

30XA260-300 (cont)

3/8 NPT

Cooler Drain

3/8 NPT

78.02 [1982]78.02 [1982]

78.02 [1982]

31.96 [812]

376.2 [9555]

304.71 [7740]

0-1 5/16

SIDE VIEW

.875 DIA.[022]

MOUNTING HOLE

[33]

MOUNTING PLATE

0-1 3/4

[44]

[100]

0-3 15/16

L "A"

DETA

MOUNTING PLATE

0-7 7/8

CONTACT SURFACE

[200]

SCALE 4” = 1”

TYPICAL 4 PLACES

260 44.22 (1123) 216.16(5490)

280 44.30 (1125) 215.86 (5483)

300 44.32 (1126) 216.18(5491)

30XA UNITA B

90.55

[2300]

Control Box

All Voltages

78.02 [1982]

16.1

[409]

Mounting Holes

88.04 [2236]

Rigging Holes

(See Detail A)

LEFT END VIEW

1.50 DIA. [038]

RIGGING HOLE

-in. flare connection.

-in. NPT vents and drains located in each cooler head at each

Top — Do not restrict

NOTES:

1. Unit must have clearances as follows:

Sides and Ends — 6 ft from solid surface.

mizer assemblies and have

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

2. Temperature relief devices are located on liquid line and econo-

4. Drawing depicts unit with single-point power and standard two-

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

Page 24

Dimensions (cont)

90.55

[2300]

Control Box All Voltages

88.04

[2236]

71.06

[1805]

Piping Entrance

Control power entry

Control Box All Voltages7/8" knockouts for main power entry

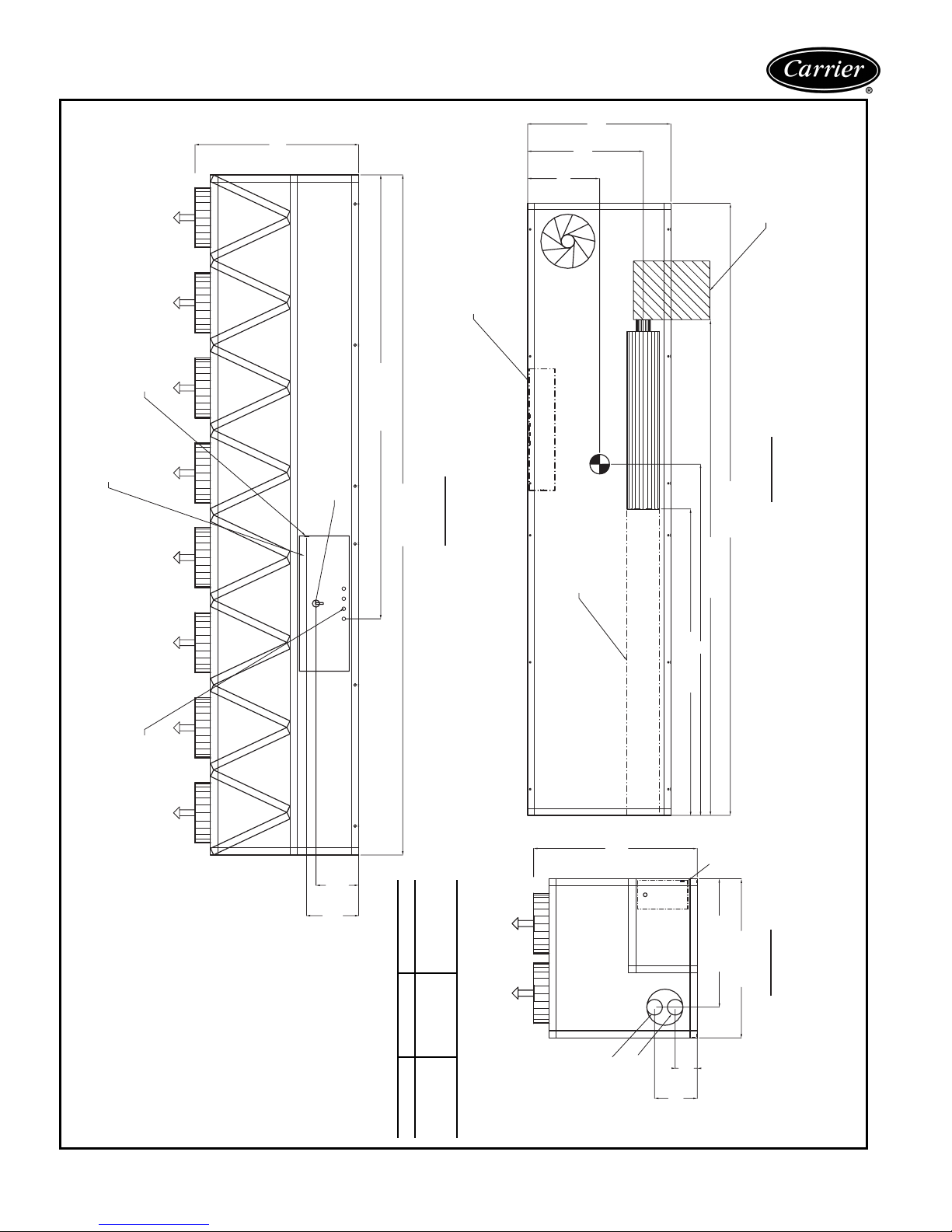

30XA325,350

292.56 [7431]

Optional Non-fused

Disconnect Handle

423.24 [10750]

[600]

23.62

BACK VIEW

Cooler Tube

Service Area

TOP VIEW

423.24 [10750]

349.02 [8865]

232.66 [5910]

[732]

28.81

(5.55" [141 mm] hole spacing)

-in. flare connection.

-in. NPT vents and drains located in

on liquid line and economizer assem-

blies and have

each cooler head at each end of

cooler.

power and standard two-pass cooler.

surface.

Top — Do not restrict

Sides and Ends — 6 ft from solid

NOTES:

1. Unit must have clearances as follows:

2. Temperature relief devices are located

Refer to the Packaged Chiller Builder

4. Drawing depicts unit with single-point

Control Box

[600]

All Voltages

71.06 [1805]

88.04 [2236]

END VIEW

90.55

[2300]

[310]

12.21

325 42.92 (1090) 246.16(6252)

program for other configurations.

dimensions in brackets are in

millimeters.

5. Dimensions are shown in inches;

350 42.92 (1090) 246.72 (6267)

30XA UNITA B

6" Victaulic

Leaving Water

6" Victaulic

Entering Water

23.63

Page 25

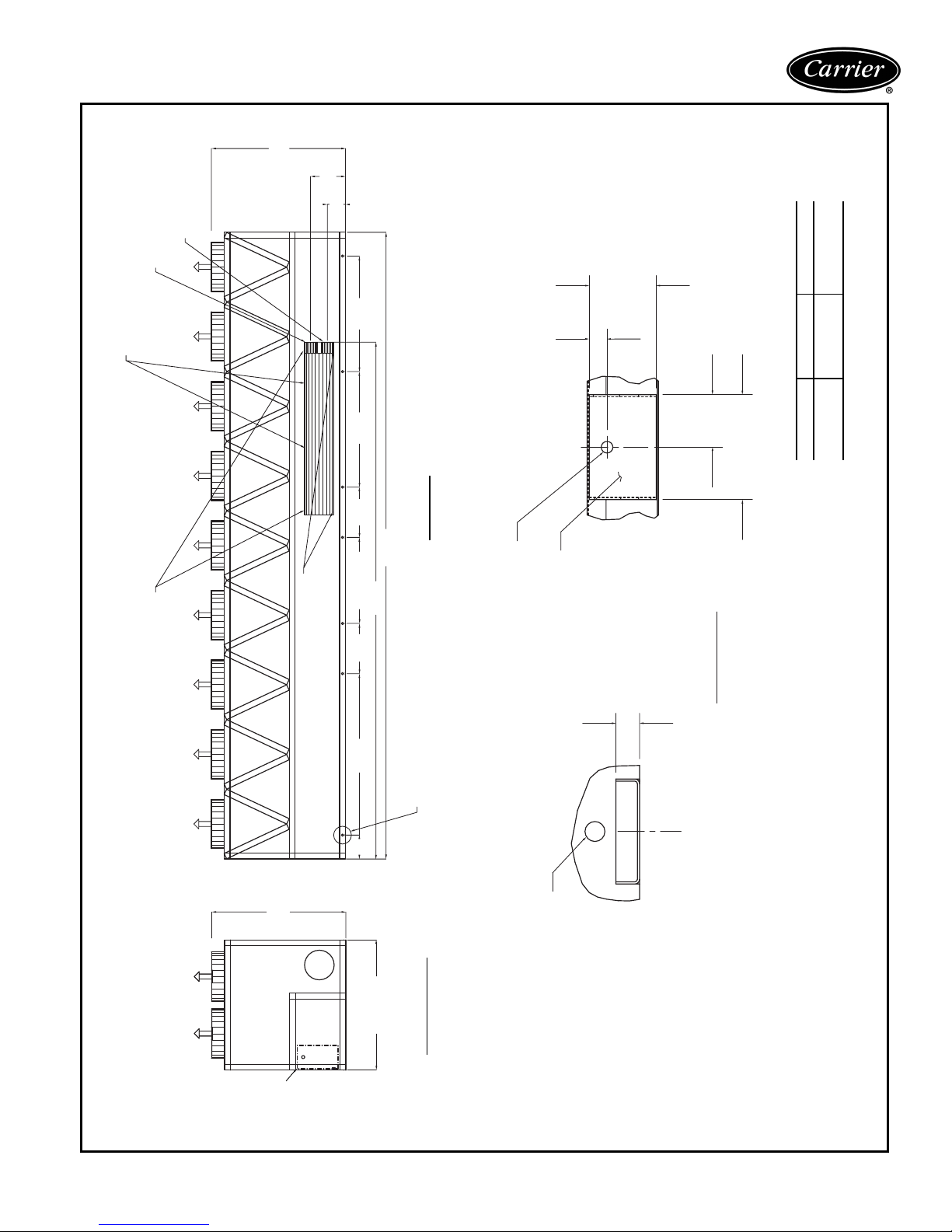

6" Victaulic Entering Water

6" Victaulic Leaving Water

3/4 NPT Relief Conn. Female

90.55

[2300]

23.63

[310]

12.21

[600]

78.02

[1982]

78.02

[1982]

[863]

33.97

423.24

[10750]

SIDE VIEW

[33]

0-1 5/16

0-5

[127]

[100]

0-3 15/16

[200]

0-7 7/8

325 42.92 (1090) 246.16(6252)

350 42.92 (1090) 246.72 (6267)

30XA UNITA B

58.08 [1475] [8865]

Cooler Vent

3/8 NPT

Cooler Drain

3/8 NPT

[863]

33.96

349.02

30XA325,350 (cont)

[2769]

109.03

Rigging Holes

Mounting Holes

(See Detail A)

16.1

[409]

90.55

[2300]

88.04 [2236]

.875 DIA.[022]

MOUNTING HOLE

MOUNTING PLATE

0-1 3/4

1.50 DIA. [038]

RIGGING HOLE

[44]

DETAIL "A"

MOUNTING PLATE

CONTACT SURFACE

SCALE 4” = 1”

TYPICAL 4 PLACES

-in. flare connection.

LEFT END VIEW

Control Box

All Voltages

-in. NPT vents and drains located in each cooler head at each

mizer assemblies and have

Top — Do not restrict

Sides and Ends — 6 ft from solid surface.

NOTES:

1. Unit must have clearances as follows:

2. Temperature relief devices are located on liquid line and econo-

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

4. Drawing depicts unit with single-point power and standard two-

millimeters.

5. Dimensions are shown in inches; dimensions in brackets are in

Page 26

Dimensions (cont)

Control power entryControl power entry

Control Box #2

7/8" Knockouts for Ckt 2 power

(5.55" between holes)

Optional Non-fused

Disconnect Handles

90.55

[2300]

[732]

28.81

151.5 [3848]

331.58 [8422]

470.22 [11944]

BACK VIEW

45.79

Piping Entrance

[1163]

72.1

88.04

[2236]

[1831]

TOP VIEW

470.22 [11944]

378.95 [9625]

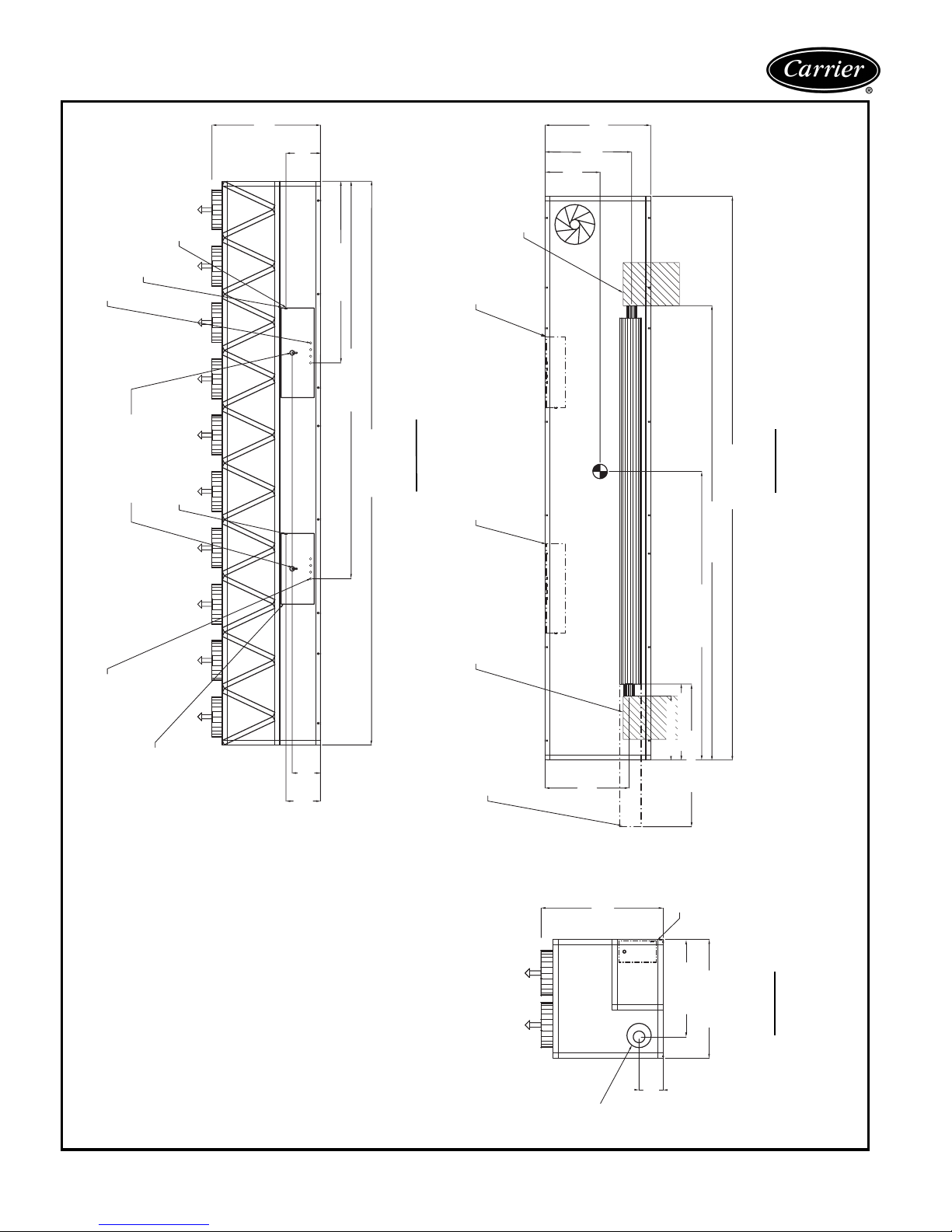

30XA400

(5.55" between holes)

7/8" Knockouts for Ckt 1 power

NOTES:

Top — Do not restrict

1. Unit must have clearances as follows:

Control Box #1

Sides and Ends — 6 ft from solid surface.

2. Temperature relief devices are located on liq-

240.69 [6114]

Piping Entrance Control Box #1Control Box #2

63.35 [1609]

53.29 [1354]

[600]

23.62

[732]

28.81

-in. flare connection.

-in. NPT vents and drains located in each

uid line and economizer assemblies and have

cooler head at each end of cooler.

4. Drawing depicts unit with dual-point power

and standard one-pass cooler. Refer to the

Packaged Chiller Builder program for other

configurations.

5. Actual cooler consists of two separate coolers

piped in series at the factory. Piping may be

split for rigging.

6. Dimensions are shown in inches; dimensions

in brackets are in millimeters.

Cooler Tube

Service Area

70.02

[1779]

8" Victaulic

Entering Water

90.55

[2300]

17.92

[455]

119.07 [3024]

Control

Boxes

72.1 [1831]

88.04 [2236]

END VIEW

Page 27

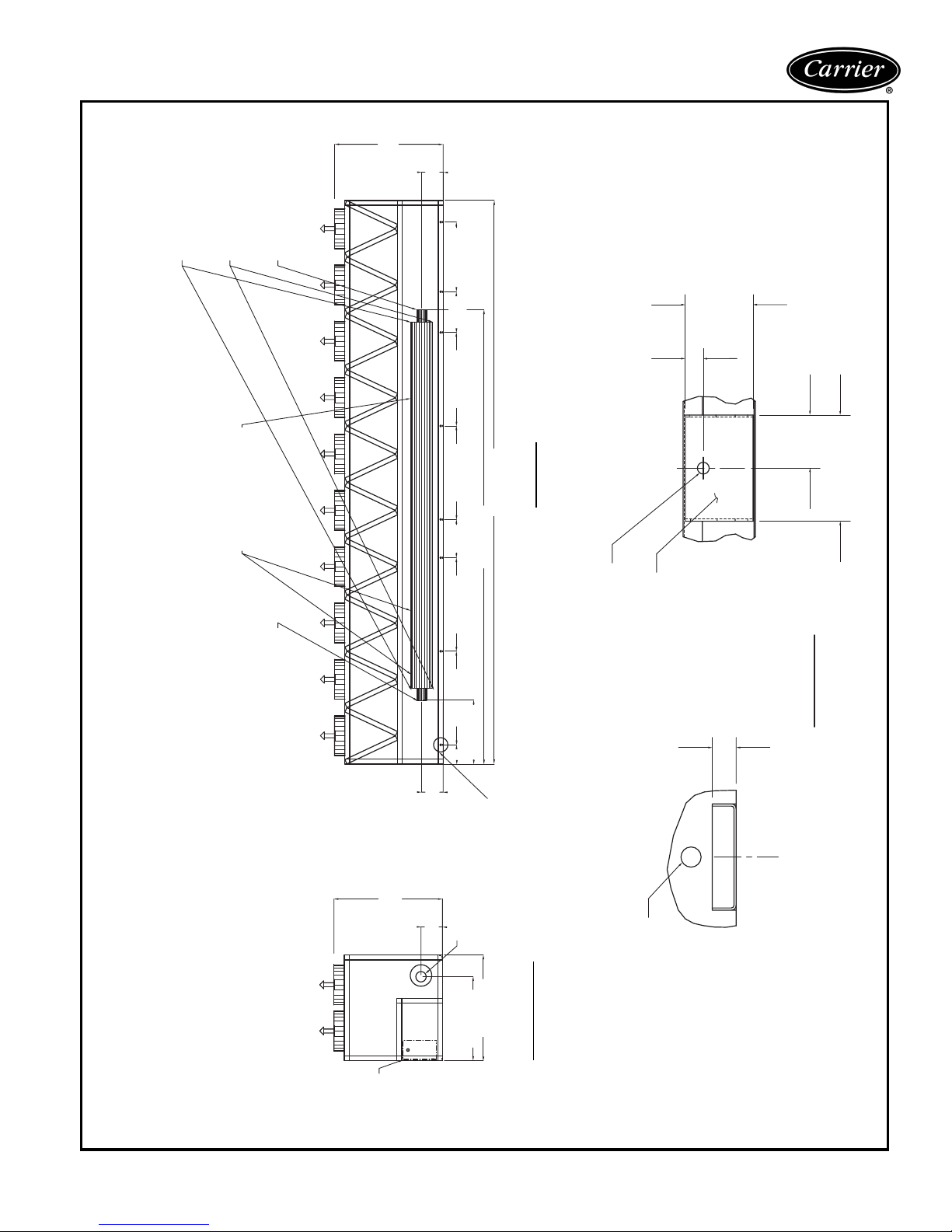

90.55

[2300]

[455]

17.92

Cooler Vent 3/8 NPT

located in cooler heads

Cooler Drain 3/8 NPT

8" Victaulic Entering Water8" Victaulic Leaving Water

located in cooler heads

3/4 NPT Relief Conn. Female

33.93

[862]

78.02 [1982]78.02 [1982] 78.02 [1982]78.02 [1982] 58.08 [1475]

[812]

31.96

470.22 [11944]

378.95 [9625]

SIDE VIEW

[33]

0-1 5/16

.875 DIA.[022]

MOUNTING HOLE

MOUNTING PLATE

0-5

[127]

[100]

0-3 15/16

[200]

0-7 7/8

30XA400 (cont)

DETAIL "A"

MOUNTING PLATE

CONTACT SURFACE

SCALE 4” = 1”

TYPICAL 4 PLACES

[44]

0-1 3/4

1.50 DIA. [038]

RIGGING HOLE

-in. flare connection.

90.55

[2300]

[455]

17.92

[455]

17.92

16.1

8" Victaulic Leaving Water

[409]

53.29 [1354]

(See Detail A)

Rigging Holes

Mounting Holes

88.04 [2236]

70.02 [1779]

LEFT END VIEW

Control

-in. NPT vents and drains located in each cooler head at each

mizer assemblies and have

Top — Do not restrict

Sides and Ends — 6 ft from solid surface.

NOTES:

1. Unit must have clearances as follows:

2. Temperature relief devices are located on liquid line and econo-

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

the factory. Piping may be split for rigging.

4. Drawing depicts unit with dual-point power and standard one-

millimeters.

5. Actual cooler consists of two separate coolers piped in series at

6. Dimensions are shown in inches; dimensions in brackets are in

Boxes

Page 28

Dimensions (cont)

90.55

[2300]

28.81

[732]

Piping Entrance

73.0

88.04

[2236]

[1854]

7/8" Knockouts for Ckt 2 power

Control Box #2

(5.55" between holes)

Non-fused Disconnect Handles

30XA450, 500

Control power entry Control power entry

198.54 [5043]

378.62 [9617]

517.26 [13138]

BACK VIEW

Control Box #2 Control Box #1

Piping Entrance

Cooler Tube

Service Area

93.68 [2379]

83.62 [2124]

129.1 [3279]

TOP VIEW

517.26 [13138]

426.0 [10820]

Control Box #1

7/8" Knockouts for Ckt 1 power

(5.55" between holes)

-in. flare connection.

-in. NPT vents and drains located in

each cooler head at each end of

cooler.

power and standard one-pass cooler.

Top — Do not restrict

Sides and Ends — 6 ft from solid

surface.

on liquid line and economizer assem-

blies and have

NOTES:

1. Unit must have clearances as follows:

2. Temperature relief devices are located

Refer to the Packaged Chiller Builder

4. Drawing depicts unit with dual-point

23.62

28.81

program for other configurations.

5. Actual cooler consists of two separate

[600]

[732]

coolers piped in series at the factory.

71.06

[1805]

90.55

[2300]

Control

Boxes

73.0 [1854]

88.04 [2236]

END VIEW

[455]

450 44.71 (1136) 264.7(6723)

Piping may be split for rigging.

dimensions in brackets are in

millimeters.

6. Dimensions are shown in inches;

500 44.78 (1137) 263.99 (6705)

30XA UNITA B

8" Victaulic

Entering Water

17.92

Page 29

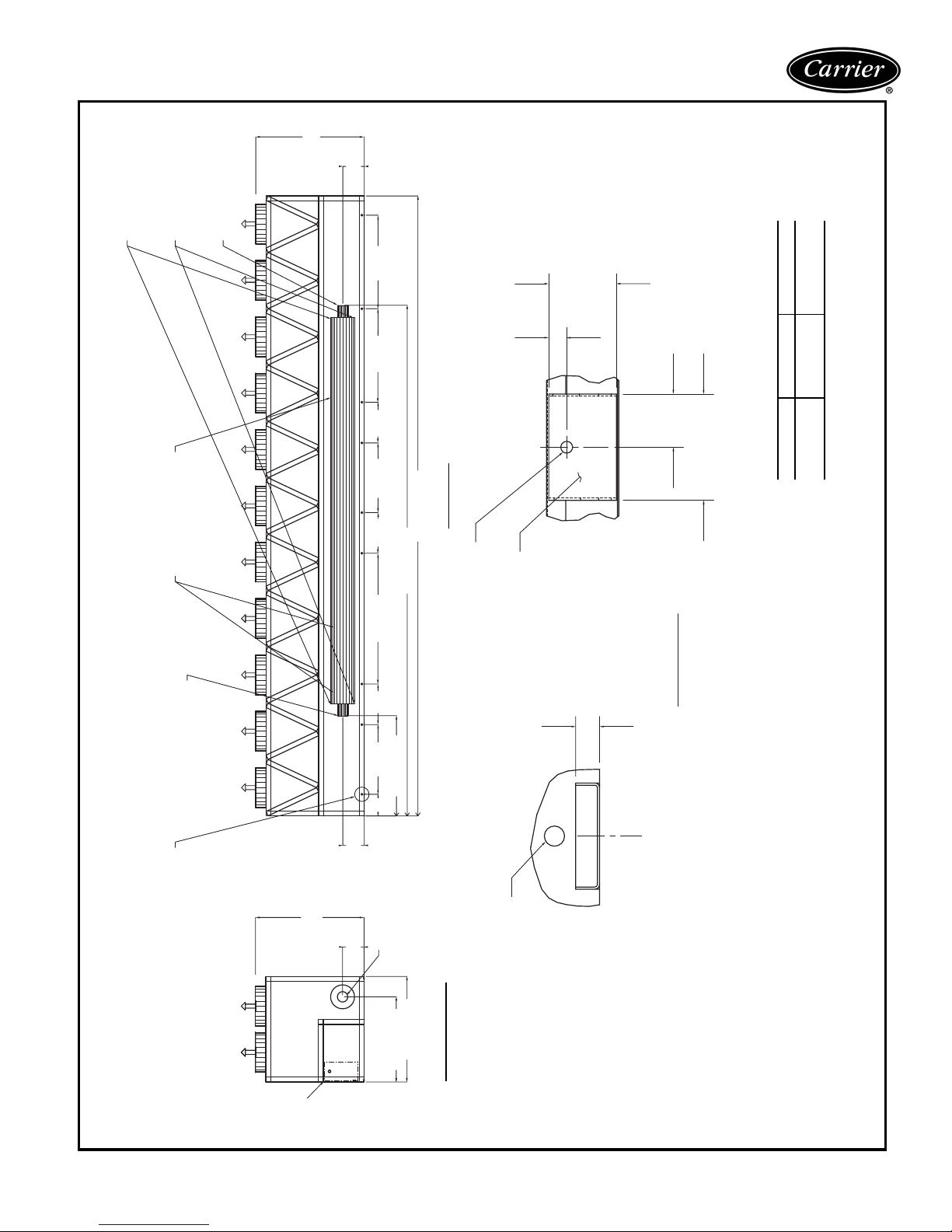

90.55

[2300]

[455]

17.92

Cooler Vent 3/8 NPT

located in cooler heads

30XA450, 500 (cont)

Cooler Drain 3/8 NPT

3/4 NPT Relief Conn. Female

8" Victaulic Entering Water

located in cooler heads

78.02

[1982]

78.02

[1982]

33.97

[863]

58.08

[1475]

33.96

[863]

[2769]

109.03

[863]

33.97

SIDE VIEW

517.26 [13138]

426.0 [10820]

[33]

0-1 5/16

.875 DIA.[022]

MOUNTING HOLE

MOUNTING PLATE

0-1 3/4

[44]

0-5

[127]

[100]

0-3 15/16

DETAIL "A"

MOUNTING PLATE

0-7 7/8

CONTACT SURFACE

[200]

SCALE 4” = 1”

TYPICAL 4 PLACES

450 44.71 (1136) 264.7(6723)

500 44.78 (1137) 263.99 (6705)

30XA UNITA B

8" Victaulic Leaving Water

Rigging Holes

Mounting Holes

(See Detail A)

90.55

Control

Boxes

[2300]

[455]

17.92

[455]

17.92

58.08

[1475]

[459]

18.07

9" Victaulic Leaving Water

83.62 [2124]

88.04 [2236]

71.06 [1805]

LEFT END VIEW

1.50 DIA. [038]

RIGGING HOLE

-in. flare connection.

-in. NPT vents and drains located in each cooler head at each

end of cooler.

pass cooler. Refer to the Packaged Chiller Builder program for

other configurations.

the factory. Piping may be split for rigging.

Top — Do not restrict

Sides and Ends — 6 ft from solid surface.

mizer assemblies and have

NOTES:

1. Unit must have clearances as follows:

2. Temperature relief devices are located on liquid line and econo-

4. Drawing depicts unit with dual-point power and standard one-

millimeters.

5. Actual cooler consists of two separate coolers piped in series at

6. Dimensions are shown in inches; dimensions in brackets are in

Page 30

Selection procedure

Carrier’s Packaged Chiller Builder Selection Program provides quick, easy selection of Carrier’s air-cooled liquid chillers. The program considers specific temperature, fluid and flow requirements among other factors such as fouling and altitude corrections.

Before selecting a chiller, consider the following points:

Leaving water temperature (LWT)

• If the LWT is less than 40 F (4.4 C), loop freeze protection to a minimum of 15° F (8.3° C) below the LWT set point is required. The medium temperature brine option is also required.

• If the LWT requirement is greater than 60 F (15.5 C), a mixing loop is required.

Entering water temperature (EWT)

• If the EWT requirement is greater than 70 F (21.1 C), a mixing loop is required. The EWT should not exceed 70 F (21.1 C) for extended operation. Pulldown can be accomplished from 95 F (35 C).

Cooler flow rate or cooler delta-T:

• The cooler delta-T (EWT – LWT) must fall between 5 and 20° F (2.8 to 11.1° C).

• For larger or smaller delta-T applications, a mixing loop is required.

• If the cooler flow is variable and the rate of change of flow should not exceed 10% per minute, a loop volume of greater than 3 gallons per ton (3.2 l/kW) is recommended.

Cooler pressure drop:

• A high cooler pressure drop can be expected when the cooler delta-T is low. A mixing loop can help to alleviate this situation.

Alternatively, consider a reduced pass option for a lower delta-T.

• A low cooler pressure drop can be expected when

cooler delta-T is high.

• Consider the plus-one-pass cooler option to increase

delta-T and performance.

Water quality, fouling factor:

• Poor water quality can increase the required cooler fouling factor.

• Higher than standard fouling factors lead to lower capacity and higher input kW from a given chiller size compared to running the same application with better quality water (and lower fouling factors).

Operation below 32 F (0° C):

• Low ambient temperature head pressure control is required.

• Consider wind baffles if average wind speed is greater than 5 mph (8 km/h).

• Consider higher loop volumes, 6 to 10 gallons per nominal ton (6.5 to 10.8 l/kW).

• Loop freeze protection with glycol is strongly recommended to a minimum of 15° F (8.3° C) below lowest anticipated ambient temperature.

• Chilled water pump control is strongly recommended; otherwise override capability is required.

Chiller idle below 32 F (0° C):

• Loop freeze protection with glycol is strongly recommended to a minimum of 15° F (8.3° C) below lowest anticipated ambient temperature.

• Chilled water pump control is strongly recommended; otherwise override capability is required.

• Drain the cooler — This will require a small amount of glycol for residual water. Cooler heaters will need to be disconnected.

• Highest allowable ambient air temperature is 125 F (52 C).

NOTE: It may be necessary to select the high ambient option to obtain performance with ambient air temperatures approaching 125 F (52 C).

Cooling capacity requirement:

• Do not oversize the chillers by more than 15% at design conditions.

• If capacity control is required below the standard minimum step of unloading, the minimum load control option should be employed. (See Selection Guide.)

Coil corrosion requirements:

• Coastal application

• Industrial application

• Coastal/industrial application

• Urban application

•Farming

Temperature reset:

• Return water (standard)

• Outside air temperature (standard)

• Space temperature (accessory sensor required)

• 4 to 20 mA (requires an Energy Management Module)

Demand limit:

• 2-step (requires an Energy Management Module)

• 4 to 20 mA (requires an Energy Management Module)

• CCN Loadshed

Page 31

To select a 30XA chiller, use the Packaged Chiller Builder program or follow one of the procedures below.

ENGLISH

I Determine 30XA unit size and operating con-

ditions required to meet given capacity at given conditions.

Given:

Capacity . . . . . . . . . . . . . . . . . . . . . . . . . 106 Tons

Leaving Chilled Water Temp (LCWT) . . . . . . . .42 F

Cooler Water Temp Rise . . . . . . . . . . . . . . . . 10° F

Condenser Entering Air Temp . . . . . . . . . . . . .95 F

Fouling Factor (Cooler). . . . 0.00010 (ft

· hr · F/Btu)

NOTE: For other than 10° F temperature rise, data corrections must be made using the Packaged Chiller Builder Program.

II From Cooling Capacities table on page 34 and

pressure drop curves on page 33, determine operating data for selected unit.

Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . .30XA120

Capacity . . . . . . . . . . . . . . . . . . . . . . . . 107.5 tons

Power Input . . . . . . . . . . . . . . . . . . . . . .126.7 kW

Cooler Water Flow . . . . . . . . . . . . . . . . 257.0 gpm

Cooler Pressure Drop . . . . . . . . . . .12.0 ft of water

I Determine 30XA unit size and operating con-

ditions required to meet given capacity at given conditions.

Given:

Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . 450 kW

Leaving Chilled Water Temp (LCWT) . . . . . . . . 6 C

Cooler Water Temp Rise . . . . . . . . . . . . . . . 5.6° C

Condenser Entering Air Temp . . . . . . . . . . . . 35 C

Fouling Factor (Cooler). . . . . . . . .0176 (m

· °C/W)

NOTE: For other than 5.6 C temperature rise, data corrections must be made using the Packaged Chiller Builder Program.

II From Cooling Capacities table on page 36 and

cooler pressure drop curves on page 33, determine operating data for selected unit.

Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . .30XA140

Capacity . . . . . . . . . . . . . . . . . . . . . . . . .458.1 kW

Power Input . . . . . . . . . . . . . . . . . . . . . .147.5 kW

Cooler Water Flow . . . . . . . . . . . . . . . . . . 19.7 l/s

Cooler Pressure Drop . . . . . . . . . . . . . . . 41.9 kPa

Page 32

Selection procedure (cont)

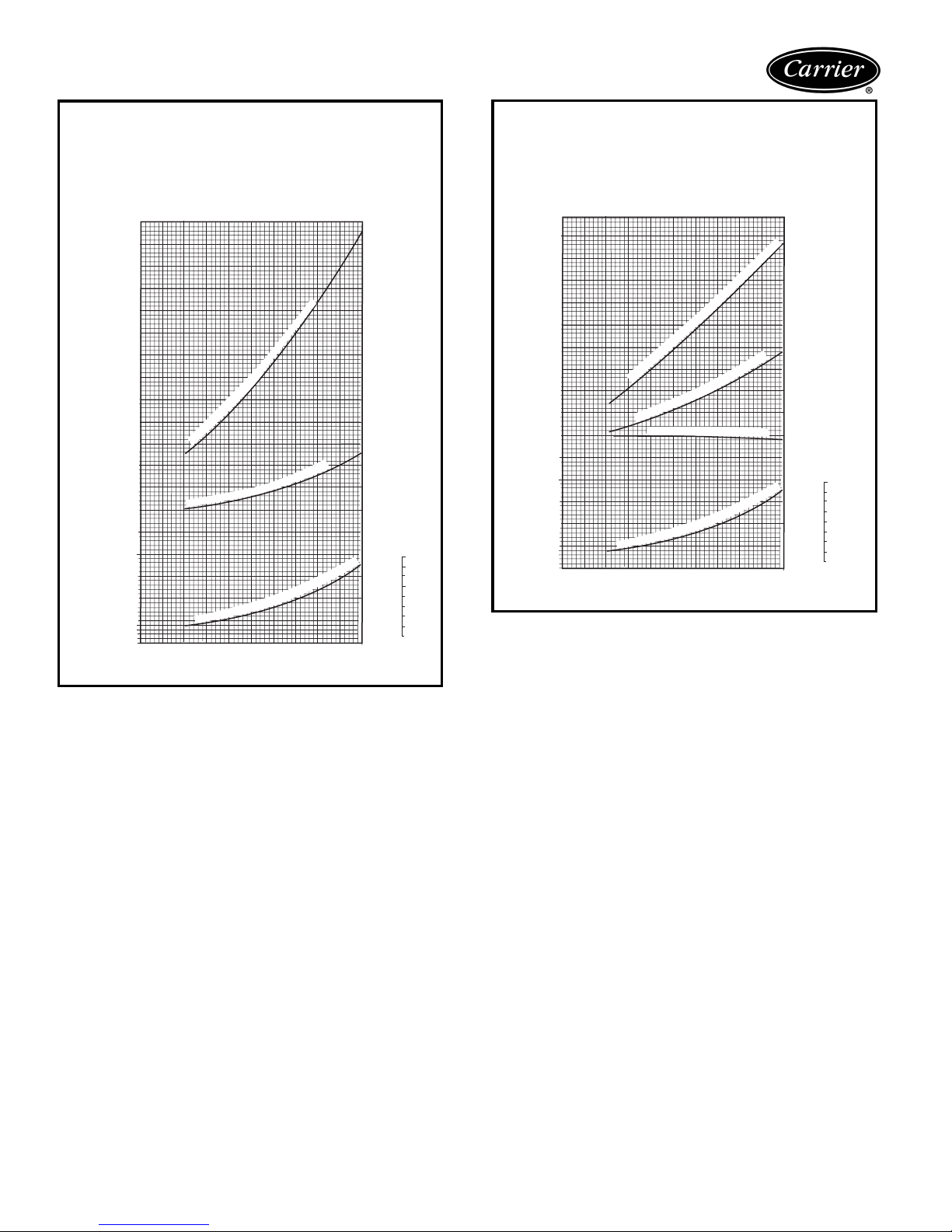

PROPYLENE GLYCOL PERFORMANCE

CORRECTION FACTORS AND SOLUTION

CRYSTALLIZATION POINTS

Correction factors apply to published chilled water

performance ratings from 40 to 60F

(4.4to15.6 C)LCWT.

1.65

1.60

1.55

1.50

1.45

1.40

1.35

1.30

1.25

1.20

1.15

1.10

1.05

CORRECTION FACTOR

1.00

0.95

0.90

% CONCENTRATION (BY WEIGHT) PROPYLENE GLYCOL

ETHYLENE GLYCOL PERFORMANCE

CORRECTION FACTORS AND SOLUTION

CRYSTALLIZATION POINTS

Correction factors apply to published chilled water

performance ratings from 40 to 60F

(4.4 to 15.6 C)LCWT.

1.50

1.45

1.40

1.35

1.30

1.25

1.20

1.15

1.10

1.05

CORRECTION FACTOR

1.00

0.95

0.90

(F)

(C)

-40

-20

+20

+40

-40

-30

-20

-10

AMBIENT TEMPERATURE

% CONCENTRATION (BY WEIGHT) PROPYLENE GLYCOL

CAPACITY

(F)

-20

(C)

-40

-30

-20

-10

AMBIENT TEMPERATURE

-40

+20

+40

Page 33

Performance data

(149.5)

(134.6)

(119.6)

(104.7)

(89.7)

(74.8)

(59.8)

Pressure Drop, ft wg (kPa)

(44.9)

(29.9)

(15)

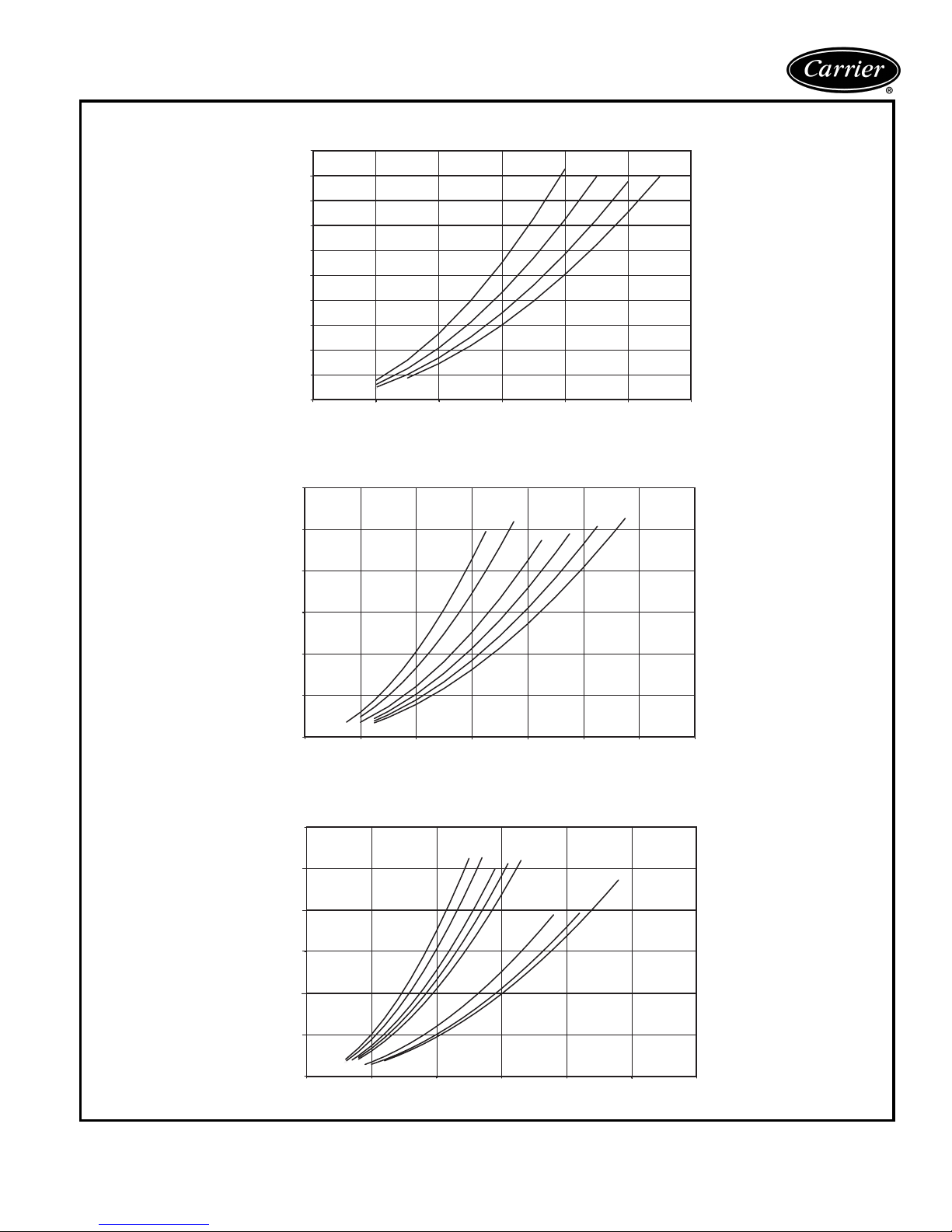

COOLER PRESSURE DROP CURVES

30XA080-120

080

090,100

100

(107.6)

200

(215.2)

Cooler Flow, GPM (l/kW)

300

(322.8)

400

(430.4)

110

500

(538)

120

600

(645.6)

(179.4)

(149.5)

(119.6)

(89.7)

(59.8)

Pressure Drop,ft wg (kPa)

(29.9)

(179.4)

(149.5)

(119.6)

200

(215.2)

30XA140-240

400

(430.4)

30XA260-500

160

600

(645.6)

140

800

(860.8)

180

Cooler Flow, GPM (l/kW)

280

260

300

325

350

400

200

1000

(1076)

450

220

500

240

(1291.2)

1200

1400

(1506.4)

(89.7)

Pressure Drop, ft wg (kPa)

(59.8)

(29.9)

500

(538)

1000

(1076)

Cooler Flow, GPM (l/kW)

1500

(1614)

2000

(2152)

2500

(2690)

3000

(3228)

Page 34

Performance data (cont)

30XA PACKAGED AIR-COOLED CHILLER RATINGS TABLE — ENGLISH

LCWT(F)

Cap. — Cooling Capacity (Tons of Refrigeration) kW — Total Power LCWT— Leaving Chilled Water Temperature

30XA UNIT

SIZE

080 74.782.2 178.5 70.2 88.3 167.665.4 95.2 156.2 60.5 102.7 144.5 090 82.4 84.9 196.779.2 92.7 189.1 75.8 101.6 181.1 72.3 111.3 172.6 100 91.694.2 218.787.7 103.3 209.4 83.5 113.4 199.3 79.2 124.6 189.2 110 100.4 103.5 239.896.2 113.7 229.791.6 124.9 218.786.8 137.6 207.3 120 108.9 112.8 260.1 104.3 123.9 249.0 99.1 136.0 236.793.8 150.1 224.0 140 129.4 131.6 309.1 124.5 144.7 297.3 119.2 159.2 284.7 113.6 175.0 271.3

160149.2 152.7 356.3 143.2 168.2 342.1 136.7 185.1 326.4 129.9 204.1 310.3

180166.5 170.1 397.5 160.3 186.8 382.9 153.8 205.1 367.3 146.9 225.2 350.8 200 189.2 191.9 451.8 181.8 210.8 434.3 174.1 231.6 415.7 165.8 254.4 395.9 220 205.4 211.6 490.5 197.3 232.8 471.1 188.5 256.3 450.2 179.1 282.6 427.8 240 223.9 228.8 534.8 214.7 251.6 512.7 204.7 277.0 488.9 194.0 305.7 463.4 260 244.1 248.0 583.1 234.9 272.7 561.1 225.2 300.2 537.8 214.9 330.8 513.1

280261.6 264.9624.8 251.4 291.4 600.4 240.5 321.0 574.4 228.9 354.2 546.7 300 282.2 284.0 674.0 271.1 311.4 647.6 259.1 342.9618.9 246.3 378.2 588.3 325 298.8 304.6713.7 287.5 334.8686.6 275.6 368.8658.1 263.0 406.5 628.1 350 318.1 325.0 759.7 305.8 357.2 730.4 292.8 393.5 699.4 279.1 434.1 666.6 400 376.3 390.7 898.8 361.5 429.8863.4 345.3 473.1 824.6 319.9 501.4 764.1 450 417.8 444.9 997.7 401.3 490.0 958.4 383.9 540.3 916.8 324.5 539.7774.9 500 450.2 477.4 1075.3 431.9 525.7 1031.6 412.5 579.5 985.2 346.8 578.4 828.2 080 77.5 83.8 185.1 72.989.8 174.1 68.0 96.7 162.4 62.9 104.3 150.3 090 85.1 85.9 203.4 81.893.8 195.5 78.3 102.7 187.2 74.6 112.6 178.4 100 95.1 96.5 227.3 91.0 105.7 217.5 86.6 116.0 207.0 81.8 127.0 195.6 110 103.7 105.8 247.999.3 116.2 237.4 94.5 127.6 225.989.5 140.5 213.9 120 112.4 115.4 268.6 107.5 126.7 257.0 102.2 139.1 244.2 96.7 153.7 231.2 140 133.8 133.5 319.8 128.7 146.7 307.6 123.2 161.3 294.5 117.4 177.3 280.5 160 154.1 155.0 368.4 147.9 170.7 353.6 141.2 187.7 337.5 134.2 207.0 320.8

180172.2 172.7 411.6 165.9 189.5 396.5 159.1 208.0 380.3 152.0 228.2 363.1 200 195.5 194.9 467.2 187.9 214.0 449.1 179.9 234.9 429.9 171.3 258.0 409.3 220 213.0 214.4 509.1 204.5 235.8 488.8 195.5 259.5 467.1 185.7 286.1 443.9 240 231.4 234.1 553.0 222.2 256.3 531.1 212.1 281.5 507.0 201.0 310.7 480.4 260 252.5 252.3 603.6 243.0 277.2 580.7 232.8 305.0 556.4 222.1 335.9 530.8

280270.8 269.0 647.2 260.2 295.9621.8 248.9 325.8 594.8 236.8 359.5 566.0 300 290.9 290.9695.1 279.4 318.8667.7 267.3 350.0 638.9 251.6 379.0 601.4 325 308.9 310.3 738.2 297.1 341.0 710.0 284.7 375.3 680.4 271.6 413.6649.2 350 327.7 333.5 783.2 315.2 365.8753.4 302.1 401.9722.0 285.7 440.3 682.8 400 387.8 399.8926.7 372.7 439.1 890.8 356.7 483.0 852.6 325.4 510.8777.7 450 431.0 454.1 1029.9 414.2 499.3 989.9 396.2 550.6946.9 318.2 513.1 760.5 500 463.6 489.7 1107.9 445.0 537.8 1063.6 425.3 591.8 1016.4 344.1 535.1 822.2 080 80.2 85.5 191.875.4 91.5 180.4 70.5 98.3 168.665.3 105.9 156.2 090 88.0 87.2 210.4 84.4 95.0 201.980.9 103.9 193.3 77.0 113.8 184.2 100 98.4 98.5 235.3 94.3 108.1 225.5 89.7 118.5 214.684.7 129.7 202.6 110 107.0 108.2 255.9 102.4 118.6 244.997.5 130.3 233.1 92.3 143.6 220.8 120 115.8 118.1 277.0 110.7 129.5 264.8 105.3 142.4 251.899.7 157.4 238.4 140 138.2 135.3 330.5 132.9 148.7 317.8 127.2 163.5 304.3 121.2 179.6 289.8

160159.1 157.4 380.4 152.6 173.2 365.1 145.7 190.5 348.5 138.5 210.1 331.3

180177.8 175.1 425.2 171.3 192.1 409.6 164.4 210.9 393.1 157.1 231.3 375.6 200 201.9 197.9 482.7 194.0 217.2 463.9 185.7 238.4 444.1 176.9 261.8 422.9 220 219.9 218.8 525.9 211.6 239.5 505.9 202.4 262.8 484.0 192.4 289.7 460.1 240 237.4 242.1 567.7 228.2 264.2 545.8 218.4 288.9 522.3 205.2 309.9 490.6

260260.9 256.5 623.9 251.0 281.8600.3 240.5 310.0 575.2 229.4 341.2 548.6

280279.1 275.1 667.5 268.6 301.3 642.2 257.3 330.8615.3 244.9 364.9 585.6 300 299.4 297.8715.9 287.5 326.4 687.5 275.0 358.4 657.7 256.8 379.5 614.1 325 319.0 316.1 762.8 306.7 347.2 733.4 293.9 382.1 702.7 280.4 420.9670.5 350 337.3 342.0 806.6 324.3 375.0 775.4 310.6 411.9742.8 289.6 444.7692.5 400 399.3 409.6954.8 383.7 449.4 917.6 367.0 494.3 877.7 330.5 510.7790.3 450 443.5 465.5 1060.5 426.2 511.2 1019.3 408.0 562.4 975.6 331.3 522.0 792.3 500 475.9 504.1 1138.1 457.0 552.7 1092.8 435.0 603.7 1040.1 349.8 552.1 836.5

Cap

Tons

LEGEND NOTES:

85 95 105 115

Power

Cooler

Flow Rate

(gpm)

Cap

Ton s

CONDENSER ENTERING AIRTEMPERATURE (F)

Power

Cooler

Flow Rate

(gpm)

1. All ratings are in accordance with ARI(Air Conditioning and Refrigeration

2. Ratings generated are based on standard ambient temperature (850 rpm)

Cap

Ton s

Institute, U.S.A.)Standard 550/590-98, based on: a. A cooler water temperature rise of 10° F. For other than a 10° F temper-

ature rise, data corrections must be made using the Packaged Chiller

Builder Program. b. A fouling factor of 0.00010 (ft c. Refrigerant 134a.

units.

Power

Cooler

Flow Rate

(gpm)

·hr·F/Btu) in the cooler.

Cap

Ton s

Power

Cooler

Flow Rate

(gpm)

Page 35

30XA PACKAGED AIR-COOLED CHILLER RATINGS TABLE — ENGLISH (cont)

LCWT(F)

Cap. — Cooling Capacity (Tons of Refrigeration) kW — Total Power LCWT— Leaving Chilled Water Temperature

30XA

UNIT SIZE

080 83.1 87.3 198.978.2 93.4 187.2 73.1 100.2 175.0 67.9 107.6 162.4 090 91.4 89.0 218.687.696.8 209.683.6 105.6 200.1 79.5 115.3 190.2 100 101.6 100.7 243.1 97.4 110.3 232.992.8 121.0 222.1 87.8 132.5 210.0 110 110.4 110.6 264.1 105.6 121.2 252.7 100.6 133.2 240.895.2 146.7 227.9 120 119.4 120.9 285.7 114.1 132.4 273.0 108.5 145.7 259.7 102.8 161.2 245.9 140 142.8 137.3 341.6 137.3 150.8 328.5 131.4 165.7 314.5 125.2 182.0 299.6

160164.0 160.4 392.5 157.5 176.1 376.8 150.5 193.4 360.1 143.1 213.3 342.4

180183.6 177.7 439.4 176.9 194.9 423.3 169.7 213.8 406.2 162.2 234.4 388.1 200 208.2 201.8 498.2 200.4 220.7 479.4 191.8 242.1 459.0 182.7 265.7 437.1 220 226.2 224.9 541.2 217.8 245.3 521.2 208.7 268.9 499.4 198.9 295.1 475.8 240 243.4 250.7 582.5 233.9 273.5 559.7 223.8 299.2 535.4 208.3 311.8 498.4

260269.0 261.9643.7 259.0 286.9619.8 248.5 315.0 594.6 237.1 346.7 567.3

280287.4 282.1 687.7 276.5 308.8661.5 264.9 338.7633.9 252.7 372.1 604.8 300 307.4 306.8735.6 295.6 335.0 707.3 282.8 367.1 676.7 262.0 379.9627.0 325 329.6 322.0 788.6 316.8 353.7758.0 303.5 389.1 726.2 289.5 428.4 692.8 350 347.2 351.1 830.8 333.7 384.9798.5 319.6 422.6764.6 293.6 449.1 702.4 400 410.0 421.3 981.1 394.1 461.8942.9 377.2 507.0 902.4 317.1 470.7758.8 450 455.8 477.0 1090.7 438.0 523.8 1047.9 415.2 569.0 993.4 336.1 516.9804.2 500 488.0 519.4 1167.6 468.6 568.7 1121.3 441.9614.1 1057.5 360.7 557.0 863.1 080 86.1 89.1 206.1 81.0 95.3 194.0 75.8 102.2 181.4 70.3 102.0 168.4 090 94.790.7 226.790.798.7 217.2 86.6 107.6 207.3 82.2 107.2 196.8 100 104.8 102.9 250.8 100.4 112.7 240.3 95.6 123.5 229.0 90.5 124.9 216.6 110 113.7 113.1 272.3 108.8 123.9 260.4 103.6 136.2 248.1 98.1 139.8 234.8 120 123.0 123.8 294.5 117.4 135.5 281.1 111.7 149.3 267.5 105.8 154.9 253.3 140 147.4 139.2 352.9 141.7 152.9 339.3 135.7 168.0 324.8 129.2 171.5 309.3

160168.4 164.9 403.3 161.8 180.2 387.4 154.9 197.4 370.8 147.4 204.1 353.0

180189.5 180.3 453.7 182.5 197.6 437.0 175.1 216.7 419.3 167.3 222.1 400.6 200 213.7 208.0 511.4 205.7 226.6 492.5 197.4 247.1 472.6 188.3 254.6 450.9 220 232.0 232.3 555.4 223.3 253.3 534.5 214.0 276.8 512.3 202.2 277.6 484.0 240 249.4 259.4 597.1 239.4 283.1 573.3 228.8 309.7 547.8 208.8 288.8 499.8

260277.0 268.2 663.2 266.6 293.6638.4 255.7 321.8612.4 244.3 333.8 584.9

280295.7 289.3 708.0 284.4 316.5 680.8 272.4 347.1 652.1 257.7 352.3 617.0 300 315.1 317.4 754.3 302.7 346.4 724.7 287.7 370.2 688.9 266.5 360.8638.2 325 339.9 328.9813.8 327.0 360.3 783.0 313.2 396.1 749.9 298.7 412.9715.2 350 356.9 361.1 854.4 343.2 395.0 821.6 328.4 433.7786.2 287.2 398.2 687.5 400 420.9 433.4 1007.7 404.4 474.8968.0 386.8 521.4 925.9 325.8 473.9780.1 450 468.1 490.3 1120.6 450.0 537.3 1077.3 422.6 575.7 1011.6 349.1 525.5 835.8 500 499.5 537.6 1195.8 479.4 588.1 1147.7 448.1 626.1 1072.8 361.9 546.2 866.3 080 89.0 91.1 213.3 83.997.3 200.978.5 104.3 188.0 72.9 104.2 174.6 090 97.892.4 234.4 93.9 100.6 224.989.6 109.7 214.785.1 109.5 203.7 100 108.0 105.0 258.6 103.4 115.0 247.898.5 126.0 236.0 93.2 127.6 223.2 110 117.1 115.6 280.5 112.0 126.6 268.2 106.7 139.3 255.5 101.0 143.2 241.8 120 126.6 126.6 303.3 120.8 138.6 289.4 115.0 153.1 275.6 108.9 159.1 260.9 140 152.1 141.2 364.3 146.2 155.0 350.1 140.0 170.2 335.3 133.3 173.9 319.2

160172.8 169.5 413.8 165.9 185.2 397.4 158.8 202.8 380.4 151.2 209.7 362.3

180195.4 182.9 468.1 188.2 200.4 450.8 180.6 219.6 432.6 172.6 225.2 413.4 200 219.0 214.3 524.7 210.8 233.4 505.0 202.2 254.3 484.4 193.0 262.0 462.4 220 237.7 239.9 569.3 228.7 261.6 547.7 219.1 285.7 524.8 210.4 291.5 504.0 240 255.2 268.5 611.4 244.9 293.2 586.6 232.0 311.9 555.8 218.3 301.7 523.0

260284.2 276.2 680.8 273.8 301.5 655.9 262.9 329.5 629.8 252.9 336.9605.9

280303.1298.5 726.1 291.7 325.8698.6 279.6 356.4 669.8 268.8 364.5 643.9 300 322.7 328.4 772.9 309.8 358.3 742.1 292.3 373.8700.2 278.5 373.5 667.0 325 348.9 338.6835.7 335.9 370.0 804.6 322.4 404.9772.3 310.1 415.2 742.7 350 365.7 372.7 876.1 351.6 407.4 842.2 334.6 442.8801.5 312.8 440.6749.4 400 430.9 447.6 1032.1 414.1 489.6991.8 394.3 527.7944.5 330.8 470.4 792.3 450 479.6 505.2 1148.8 460.7 553.5 1103.6 419.6 548.9 1005.2 353.1 519.1 845.8 500 510.6 556.2 1223.1 489.8608.3 1173.1 445.5 601.1 1067.2 — — —

Cap

Tons

LEGEND NOTES:

85 95 105 115

Power

Cooler

Flow Rate

(gpm)

CONDENSER ENTERING AIRTEMPERATURE (F)

Cap

Ton s

Power

Cooler

Flow Rate

(gpm)

1. All ratings are in accordance with ARI(Air Conditioning and Refrigeration

2. Ratings generated are based on standard ambient temperature (850 rpm)

3. Data for 30XA450, 500, LCWT 50, Condenser Entering Air Temperature

Cap

Ton s

Institute, U.S.A.)Standard 550/590-98, based on:

a. A cooler water temperature rise of 10° F. For other than a 10° F temper-

ature rise, data corrections must be made using the Packaged Chiller

Builder Program. b. A fouling factor of 0.00010 (ft c. Refrigerant 134a.

units.

115 F not available at time of printing.

Power

Cooler

Flow Rate

(gpm)

·hr·F/Btu) in the cooler.

Cap

Ton s

Power

Cooler

Flow Rate

(gpm)

Page 36

Performance data (cont)

30XA PACKAGED AIR-COOLED CHILLER RATINGS TABLE — SI

LCWT

Cap. — Cooling Capacity (kW of Refrigeration) kW — Total Power LCWT— Leaving Chilled Water Temperature

30XA UNIT

(C)

SIZE

Cap kW Power

080265.983.5 11.4 251.3 89.0 10.8 236.0 95.2 10.1 220.3 101.99.6

090293.1 86.1 12.6 282.993.2 12.1 272.1 101.2 11.7 260.8 109.9 11.2 100 326.796.2 14.0 314.0 104.5 13.5 300.4 113.6 12.9 285.9 123.4 12.3 110 357.2 105.7 15.3 343.5 114.9 14.7 328.7 125.0 14.1 313.2 136.3 13.4 120 387.3 115.2 16.6 372.2 125.3 16.0 355.5 136.2 15.3 338.6 148.9 14.5 140 460.7 133.8 19.8 444.8 145.7 19.1 427.9 158.7 18.4 409.9 172.9 17.6 160 530.8 155.3 22.8 511.6 169.4 21.9 490.7 184.6 21.0 469.0 201.6 20.1

180593.0 173.0 25.4 573.1 188.1 24.6 552.2 204.6 23.7 530.1 222.5 22.7 200 673.3 195.2 28.9649.7 212.4 27.9624.6 231.1 26.8 598.2 251.5 25.7

220 732.3 215.0 31.4 705.9 234.3 30.3 677.8 255.4 29.1 647.9 278.8 27.8 240 797.6 233.1 34.2 768.0 253.7 32.9736.1 276.5 31.6701.9 302.1 30.1 260 869.3 252.6 37.3 839.6 275.0 36.0 808.2 299.7 34.7775.2 327.0 33.3 280 931.9 269.5 40.0 898.8 293.6 38.6863.8 320.2 37.1 826.8 349.9 35.5 300 1003.0 290.0 43.0 967.3 315.0 41.5 930.0 342.6 39.9889.2 374.0 38.2 325 1063.6 310.4 45.6 1027.0 337.9 44.1 988.7 368.4 42.4 948.5 402.2 40.7 350 1130.4 332.3 48.5 1091.7 361.2 46.8 1050.7 393.4 45.1 1006.8 429.7 43.2 400 1337.4 398.8 57.4 1290.5 434.0 55.4 1240.2 473.3 53.2 1185.9 516.9 50.9 450 1485.3 453.4 63.7 1432.4 494.661.4 1376.9 540.0 59.1 1197.4 539.1 50.9 500 1599.2 487.968.6 1541.5 531.2 66.1 1479.5 579.763.5 1279.7 578.2 54.4

080274.4 85.0 11.8 259.690.4 11.1 244.1 96.6 10.5 227.9 103.3 9.8 090 301.787.1 13.0 291.2 94.2 12.5 280.0 102.2 12.0 268.3 111.0 11.5 100 337.798.2 14.5 324.5 106.6 13.9 310.4 115.9 13.3 295.3 125.8 12.7 110 367.7 107.7 15.8 353.4 117.1 15.2 338.1 127.4 14.5 322.2 139.0 13.8 120 398.1 117.5 17.1 382.4 127.8 16.4 365.3 139.1 15.7 348.0 152.0 14.9 140 474.7 135.5 20.4 458.1 147.5 19.7 440.6 160.7 18.9 422.1 174.9 18.1

160546.4 157.5 23.5 526.4 171.7 22.6 504.9 187.0 21.7 482.6 204.2 20.7 180 610.9 175.3 26.2 590.5 190.6 25.3 569.0 207.2 24.4 546.3 225.2 23.4 200 693.2 198.0 29.8668.8 215.3 28.7643.1 234.1 27.6615.8 254.7 26.4

220 756.3 217.6 32.5 729.0 237.0 31.3 699.9 258.3 30.0 669.1 281.9 28.7 240 818.6 239.4 35.1 790.1 258.9 33.9758.5 281.2 32.6724.3 306.6 31.1 260 895.9 256.4 38.5 864.9 279.1 37.1 832.6 304.0 35.7798.4 331.5 34.3 280 960.3 273.7 41.2 926.6 297.7 39.8890.4 324.6 38.2 852.2 354.5 36.6 300 1029.9 296.3 44.2 993.1 321.7 42.6954.3 350.0 41.0 913.6 381.0 39.2 325 1095.4 315.5 47.0 1057.3 343.4 45.4 1017.7 374.3 43.7976.1 408.4 41.9 350 1160.7 339.9 49.8 1120.4 369.5 48.1 1078.3 402.1 46.3 1033.9 438.1 44.4 400 1373.7 407.4 59.0 1325.1 443.2 56.9 1273.8 482.9 54.7 1195.6 517.0 51.3 450 1526.2 462.965.5 1472.7 503.963.2 1416.3 549.3 60.8 1229.1 546.1 52.3 500 1640.0 500.0 70.4 1581.3 543.3 67.9 1518.2 592.1 65.2 1304.7 585.1 55.5

080283.2 86.6 12.2 268.0 92.1 11.5 252.3 98.1 10.8 235.9 104.8 10.1 090 311.4 88.5 13.4 299.995.5 12.9 288.2 103.4 12.4 276.1 112.2 11.9 100 347.7 100.1 14.9 334.7 108.7 14.4 320.5 118.2 13.8 304.7 128.2 13.1 110 377.9 109.9 16.2 363.4 119.4 15.6 347.7 130.0 14.9 331.3 141.8 14.2 120 409.0 120.0 17.6 392.6 130.3 16.9 375.2 142.0 16.1 357.7 155.4 15.4 140 488.4 137.2 21.0 471.5 149.3 20.2 453.6 162.6 19.5 434.6 176.9 18.7

160561.9 159.8 24.1 541.5 173.9 23.3 519.5 189.5 22.3 496.8 206.9 21.3 180 628.5 177.5 27.0 607.7 192.9 26.1 585.7 209.8 25.2 562.6 227.9 24.2 200 713.5 200.7 30.6688.4 218.2 29.6662.1 237.2 28.4 634.0 258.1 27.2

220 776.5 222.3 33.3 750.1 241.2 32.2 721.8 261.8 31.0 690.9 285.1 29.7 240 837.3 246.8 36.0 808.1 266.9 34.7776.7 289.3 33.4 735.9 306.1 31.6 260 922.2 260.1 39.6890.4 283.1 38.2 857.3 308.4 36.8822.2 336.2 35.3 280 985.7 279.7 42.3 951.8 303.5 40.9916.5 329.9 39.4 878.5 359.3 37.7 300 1056.9 302.7 45.4 1018.8 328.8 43.8978.9 357.6 42.0 930.3 380.8 40.0 325 1127.5 320.7 48.4 1088.1 349.1 46.7 1047.1 380.4 45.0 1004.5 414.9 43.1 350 1190.7 347.8 51.1 1149.1 377.9 49.4 1105.8 411.2 47.5 1045.8 441.5 44.9 400 1408.9 416.960.5 1359.7 452.7 58.4 1306.7 493.2 56.1 1209.8 515.5 52.0 450 1565.3 473.4 67.2 1510.1 515.0 64.8 1451.7 561.1 62.3 1250.2 551.0 53.2 500 1678.5 513.0 72.1 1617.7 557.4 69.5 1546.9603.0 66.4 1295.3 560.7 55.1

LEGEND NOTES:

30 35 40 45

Cooler Flow

Rate (l/s)

Cap kW Power

CONDENSER ENTERING AIRTEMPERATURE (C)

Cooler Flow

Rate (l/s)

Cap kW Power

1. All ratings are in accordance with ARI(Air Conditioning and Refrigeration Institute, U.S.A.)Standard 550/590-98, based on:

a. A cooler water temperature r ise of 5.6° C. For other than a 5.6°Ctem-

perature rise, data corrections must be made using the Packaged Chiller

Builder Program. b. A fouling factor of 0.00018(m c. Refrigerant 134a.

2. Ratings generated are based on standard ambient temperature (850 rpm) units.

Cooler Flow

Rate (l/s)

Cap kW Power

·°C/W) in the cooler.

Cooler Flow

Rate (l/s)

Page 37

30XA PACKAGED AIR-COOLED CHILLER RATINGS TABLE — SI (cont)

LCWT

Cap. — Cooling Capacity (kW of Refrigeration) kW — Total Power LCWT— Leaving Chilled Water Temperature

30XA

UNIT

(C)

SIZE

Cap kW Power

080292.4 88.2 12.6 276.893.8 11.9 260.799.9 11.2 244.0 106.5 10.5 090 322.1 90.1 13.8 310.0 97.2 13.3 297.4 105.1 12.8 284.0 113.7 12.2 100 357.7 102.0 15.4 344.2 110.8 14.8 329.8 120.4 14.2 314.2 130.7 13.5 110 388.6 112.1 16.7 373.4 121.7 16.0 357.4 132.6 15.4 340.6 144.6 14.6 120 420.3 122.6 18.1 403.2 133.0 17.3 385.5 145.0 16.6 367.4 158.8 15.8 140 503.0 138.9 21.6 485.5 151.2 20.9 467.0 164.6 20.1 447.3 179.1 19.2

160577.4 162.8 24.8 556.6 176.7 23.9 534.5 192.2 23.0 511.3 209.7 22.0 180 647.1 179.8 27.8625.5 195.4 26.9602.8 212.4 25.9 579.0 230.7 24.9 200 732.9 204.8 31.5 708.1 221.7 30.4 681.5 240.5 29.3 652.6 261.5 28.0

220 795.9 228.3 34.2 769.2 246.9 33.1 740.7 267.7 31.8709.9 291.0 30.5 240 856.4 254.6 36.8825.9 275.4 35.5 793.6 298.5 34.1 743.9 307.7 32.0 260 947.3 265.5 40.7915.4 288.2 39.3 882.2 313.2 37.9846.5 341.1 36.4 280 1012.0 286.1 43.5 977.0 310.3 42.0 940.3 337.3 40.4 901.8 366.9 38.7 300 1081.5 311.6 46.5 1043.7 337.2 44.8 1003.8 365.6 43.1 947.2 380.2 40.7 325 1161.2 326.2 49.9 1120.3 355.0 48.1 1078.0 386.8 46.3 1033.9 421.7 44.4 350 1222.4 356.2 52.5 1179.2 386.9 50.7 1134.3 420.8 48.7 1057.5 444.8 45.4 400 1442.9 427.5 62.0 1392.0 464.3 59.8 1338.2 505.0 57.5 1222.8 514.2 52.5 450 1604.2 483.868.9 1547.4 526.4 66.5 1473.7 566.4 63.3 1238.9 524.6 52.8 500 1716.1 527.673.7 1654.9 572.2 71.1 1568.1 611.867.4 1297.6 550.1 55.3 080 311.1 91.7 13.4 294.697.3 12.7 277.7 103.6 11.9 260.1 110.2 11.2 090 342.4 93.2 14.7 329.9 100.6 14.2 316.5 108.8 13.6 302.2 117.5 13.0 100 377.8 106.0 16.3 363.4 115.0 15.6 348.0 124.9 15.0 331.2 135.3 14.2 110 409.7 116.6 17.6 393.4 126.6 16.9 376.7 138.0 16.2 358.9 150.4 15.4 120 442.8 127.8 19.0 424.4 138.6 18.3 406.3 151.6 17.5 387.1 165.8 16.6 140 532.3 142.6 22.9 513.6 155.0 22.1 494.0 168.7 21.2 473.0 183.4 20.3 160 604.7 171.0 26.0 582.9 185.2 25.1 560.5 200.9 24.1 536.8 218.4 23.1 180 684.2 184.6 29.4 661.3 200.4 28.4 637.3 217.7 27.4 612.1 236.3 26.3 200 766.8 216.1 33.0 740.9 233.4 31.9713.8 252.1 30.7684.9 272.6 29.5

220 832.0 242.0 35.8803.4 261.6 34.6773.3 283.2 33.3 734.2 298.3 31.6 240 893.3 270.8 38.4 860.5 293.2 37.0 819.1 309.1 35.2 761.8 308.1 32.8 260 995.1 278.6 42.8962.0 301.5 41.4 927.7 326.5 39.9890.8 354.6 38.3

2801061.1 301.0 45.6 1024.8 325.8 44.1 986.8 353.2 42.4 939.7 374.9 40.4 300 1129.3 331.3 48.6 1088.5 358.3 46.8 1039.1 379.1 44.7964.1 381.0 41.5 325 1221.4 341.5 52.5 1180.3 370.0 50.8 1137.7 401.2 48.9 1092.1 436.4 47.0 350 1280.2 375.9 55.1 1235.4 407.4 53.1 1188.6 442.1 51.1 1058.6 422.3 45.5 400 1508.2 451.664.9 1454.9 489.662.6 1392.1 522.8 59.9 1192.6 469.1 51.3 450 1678.6 509.872.2 1618.8 553.5 69.6 1520.1 582.865.4 1292.6 526.1 55.1 500 1787.0 561.1 76.9 1720.9608.3 74.0 1581.2 599.4 68.0 1373.4 564.1 58.5

LEGEND NOTES:

30 35 40 45

Cooler Flow

Rate (l/s)

CONDENSER ENTERING AIRTEMPERATURE (C)

Cap kW Power

Cooler Flow

Rate (l/s)

Cap kW Power

1. All ratings are in accordance with ARI(Air Conditioning and Refrigeration

Institute, U.S.A.)Standard 550/590-98, based on:

a. A cooler water temperature r ise of 5.6° C. For other than a 5.6°Ctem-

perature rise, data corrections must be made using the Packaged Chiller

Builder Program. b. A fouling factor of 0.00018(m c. Refrigerant 134a.

2. Ratings generated are based on standard ambient temperature (850 rpm) units.

Cooler Flow

Rate (l/s)

Cap kW Power

·°C/W) in the cooler.

Cooler Flow

Rate (l/s)

Page 38

Typical piping and wiring

FD CONTROL

BALANCING VALVE/ SHUT OFF*

30XA UNITS

POWER FD

VIBRATION ELIMINATORS*

Airflow Through Condenser

Power Wiring

Chilled Water Piping

*Field-installed.

PUMP

LEGEND

STRAINER*

GATE VALVE*

DRAIN SHUTOFF VALV E

PRESSURE/ TEMPERATURE TAPS*

NOTES:

1. Chiller must be installed level to maintain proper compressor oil return.

2. Piping shown are general points-of-connection guides only and are not intended for a specific installation. Wiring and piping shown are for a quick overview of system and are not in accordance with recognized standards.

3. All wiring must comply with applicable local and national codes.

4. All piping must follow standard piping techniques. Refer to Carrier System Design Manual or appropriate ASHRAE (American Society of Heating, Refrigeration, and Air Conditioning Engineers) handbook for details.

Page 39

Electrical data

30XA140-500 (HIGH AMBIENT TEMPERATURE OPTION)

UNIT

VOLTAGE

30XA

(3 Ph,60 Hz)

200 187 220 1 618.8800 — 957.8700 115 30

140

160

180

200

220

240

260

280

300

325

350

400

450

500

ICF — Instantaneous Current Flow MCA — Minimum Circuit Amps MOCP — Maximum Overcurrent Protection WD — Wye-Delta XL — Across-the-Line

NOTES:

1. The high ambient option is not available on 30XA080-120 units.

2. Units are suitable for use on electrical systems where voltage supplied to the unit terminals

3. Cooler heater is wired into the control circuit so it is always operable as long as the contol

4. For MCA that is less than or equal to 380 amps, 3 conductors are required.

230 207 253 1 561.9800 — 842.9700 115 30 380 342 418 1327.9 450 1281.3 506.3 400 115 30 460 414 506 1282.0 400 10 62.5 422.5 350 115 30 575518633 1 216.2 300 846.3 334.3 250 115 30

200 187 220 2 477.9/273.7800/450 —/— 934.4/484.6600/350 115 30 230 207 253 2 434.8/249.1 700/400 —/— 814.8/423.2 600/300 115 30 380 342 418 1374.5 500 15 88.4 614.4 450 115 30 460 414 506 1 321.5 450 1317.0 512.0 400 115 30 575518633 1 247.0 350 1049.9 405.9 300 115 30

200 187 220 2 422.4/422.4 700/700 —/— 761.4/761.4 500/500 115 30 230 207 253 2 383.8/383.8600/600 —/— 664.8/664.8 450/450 115 30 380 342 418 1410.35001363.7 588.7 450 115 30 460 414 506 1 353.1 450 1133.6 493.6 400 115 30 575518633 1 271.0 350 901.1 389.1 300 115 30

200 187 220 2 477.9/477.9800/800 —/— 934.4/934.4 600/600 115 30 230 207 253 2 434.8/434.8700/700 —/— 814.8/814.8600/600 115 30 380 342 418 1463.4 600 1677.3 703.3 600 115 30 460 414 506 1398.1 500 1393.6 588.6 450 115 30 575518633 1 305.6 400 1108.5 464.5 350 115 30

200 187 220 2 567.4/477.9800/800 —/— 946.3/934.4 700/600 115 30 230 207 253 2 516.0/434.8800/700 —/— 825.6/814.8700/600 115 30 380 342 418 1511.0700 1683.8709.8600 115 30 460 414 506 1439.3 600 1399.1 594.1 500 115 30 575518633 1 337.3 450 1112.8 468.8 400 115 30

200 187 220 2 567.4/555.5 800/800 —/— 946.3/934.4 700/700 115 30 230 207 253 2 516.0/505.2 800/800 —/— 825.6/814.8700/600 115 30 380 342 418 1543.9700 1716.7742.7600 115 30 460 414 506 1467.8600 1427.6622.6600 115 30 575518633 1 359.2 450 1134.7 490.7 400 115 30

380 342 418 1 616.2 800 2411.8952.8700 115 30 460 414 506 1530.6700 2000.1 795.1 600 115 30 575518633 1 407.0 500 1593.4 629.4 500 115 30

380 342 418 1 649.1 800 2444.7985.7800 115 30 460 414 506 1559.1 700 2028.6823.6700 115 30 575518633 1 428.9600 1615.3 651.3 500 115 30

380 342 418 1 721.7 1000 2451.2 992.2 1000 115 30 460 414 506 1 621.2 800 2034.1 829.1 700 115 30 575518633 1 476.3 600 1619.6655.6600 115 30

380 342 418 2 405.9/405.9600/600 2201.5/2201.5 742.5/742.5 500/500 115 30 460 414 506 1 639.9800 2109.4 904.4 800 115 30 575518633 1 490.7600 1677.1 713.1 600 115 30

380 342 418 2472.0/405.9800/600 2201.5/2201.5 742.5/742.5 600/500 115 30 460 414 506 1 696.4 800 2109.4 904.4 800 115 30 575518633 1 533.8700 1677.1 713.1 600 115 30

380 342 418 2399.4/537.4 600/700 2195.0/1710. 2 736.0/736.2 500/600 115 50 460 414 506 2 344.5/462.3 500/600 1814.0/1422.2 609.0/617.2 450/600 115 50 575518633 2 264.0/354.9 400/450 1450.4/1130.4 486.4/486.4 350/400 115 50

380 342 418 2465.5/652.2 700/800 2195.0/2381.7736.0/922.7600/800 115 50 460 414 506 2 401.0/561.6600/800 1814.0/1974.6609.0/769.6 500/700 115 50 575518633 2 307.2/430.5 500/600 1450.4/1573.7 486 .4/609.7 400/500 115 50

380 342 418 2465.5/708.7700/1000 2195.0 /2438.2 736.0/979.2 600/800 115 50 460 414 506 2 401.0/610.2 600/800 1814.0/2023.2 609.0/818.2 500/700 115 50 575518633 2 307.2/467.7 500/600 1450.4/1611.0 4 86.4/647.0 400/600 115 50

LEGEND

is not below or above the listed minimum and maximum limits. Maxi mum al lowable phase imbalance is: voltage, 2%; amps 10%.

power supply disconnect is on, even if any safety device is open.

For MCA between 381-760amps,6 conductors are required. For MCA between 761-1140 amps, 9 conductors are required. For MCA between 1141-1520 amps, 12 conductors are required. Calculation of conductors required is based on 75 C copper wire.

VOLTAGERANGE

Min Max XL WD

MAIN POWER

SUPPLY

QTY REQD

MCA MOCP

ICF

5. Wiring for main field supply must be rated 75 C minimum. Use copper for all units. a. Incoming wire size range for the terminal block is no. 4 AWG (American Wire Gage) to

500 kcmil.

b. Incoming wire size range of non-fused disconnect with MCA up to 599.9 amps is 3/0to

500 kcmil.

c. Incoming wire size range of non-fused disconnect with MCA from 600 to 799.9 amps is

1/0 to 500 kcmil.

d. Incoming wire size range of non-fused disconnect with MCA from 800 to 1199.9 amps is

250 kcmil to 500 kcmil.

6. Data provided circuit 1/circuit 2 where there are two circuits.

REC FUSE SIZE

CONTROL CIRCUIT

Voltage

(1Ph,60 Hz)

MCA and MOCP

Page 40

Electrical data (cont)

30XA080-500 (STANDARD CONDENSER FAN MOTORS)

UNIT 30XA

080

090

100

110

120

140

160

180

200

220

240

260

280

300

325

350

400

450

500

ICF — Instantaneous Current Flow MCA — Minimum Circuit Amps MOCP — Maximum Overcurrent Protection WD — Wye-Delta XL — Across-the-Line

NOTES:

1. Units are suitable for use on electrical systems where voltage supplied to the unit terminals

2. Cooler heater is wired into the control circuit so it is always operable as long as the contol

3. For MCA that is less than or equal to 380 amps, 3 conductors are required.

VOLTAGE

(3 Ph,60 Hz)

200 187 220 1 34 7.6 450 1257.6 521.6 400 115 30 230 207 253 1 315.5 400 1100.2 460.2 350 115 30 380 342 418 1183.5 250 662.7 275.7 225 115 30 460 414 506 1157.7 200 550.1 230.1 175 115 30 575518633 1 121.2 150 437.9 181.9 150 115 30

200 187 220 1 368.0 500 1274.0 538.0 450 115 30 230 207 253 1 334.0 450 1115.1 475.1 400 115 30 380 342 418 1194.5 250 671.6 284.6 225 115 30 460 414 506 1167.0 225 557.6 237.6 200 115 30 575518633 1 128.5 175443.8 187.8 150 115 30

200 187 220 1 401.3 500 1564.8644.8 450 115 30 230 207 253 1 364.6 500 1368.7 568.7 400 115 30 380 342 418 1 212.7 250 824.7 340.7 250 115 30 460 414 506 1182.3 250 684.4 284.4 200 115 30 575518633 1 139.5 175544.7 224.7 175 115 30

200 187 220 1 44 6.2 600 — 644.8 500 115 30 230 207 253 1 405.7 500 — 568.7 450 115 30 380 342 418 1236.4 300 824.7 340.7 300 115 30 460 414 506 1 202.4 250 684.4 284.4 225 115 30 575518633 1 155.5 200 544.7 224.7 175 115 30

200 187 220 1 482. 2 600 — 680.8600 115 30 230 207 253 1 438.6600 — 601.6 500 115 30 380 342 418 1 255.3 350 843.6 359.6 300 115 30 460 414 506 1218.4 300 700.4 300.4 250 115 30 575518633 1 168.4 225 557.5 237.5 200 115 30

200 187 220 1 588.5 800 — 911.1 700 115 30 230 207 253 1 534.7800 — 800.7700 115 30 380 342 418 1 311.2 450 1255.9 480.9 350 115 30 460 414 506 1267.3 400 1040.4 400.4 350 115 30 575518633 1 205.0 300 829.5 317.5 250 115 30

200 187 220 2 465.6/264.9800/450 —/— 902.8/463.5 600/350 115 30 230 207 253 2 42 3.5/241.0 700/400 —/— 786.0/404.0 600/300 115 30 380 342 418 1361.1 500 1564.9 590. 9 450 115 30 460 414 506 1309.7 450 1296.4 491.4 350 115 30 575518633 1 238.1 350 1034.3 390.3 300 115 30

200 187 220 2 407.2/407.2 700/700 —/— 729.8/729.8 500/500 115 30 230 207 253 2 370.0/370.0 600/600 —/— 636.0/636.0 450/450 115 30 380 342 418 1391.5 500 1336.2 561.2 450 115 30 460 414 506 1336.6 450 1109.6 469.6 400 115 30 575518633 1 258.3 350 882.8 370.8 300 115 30

200 187 220 2 465.6/465.6800/800 —/— 902.8/902.8600/600 115 30 230 207 253 2 42 3.5/423.5 700/700 —/— 786.0/786.0 600/600 115 30 380 342 418 1447.2 600 1651.0 677.0 500 115 30 460 414 506 1383.9 500 1370.6 565.6 450 115 30 575518633 1 294. 8 400 1091.0 447.0 350 115 30

200 187 220 2 554.7/548.0 800/800 —/— 909.4/902.8700/600 115 30 230 207 253 2 50 4.2/423.5 800/700 —/— 792.0/786.0 600/600 115 30 380 342 418 1494.5 700 1654.6680.6600 115 30 460 414 506 1 424.7600 1373.6 568.6 500 115 30 575518633 1 326.3 450 1093.4 449.4 400 115 30

200 187 220 2 554.7/548.0 800/800 —/— 909.4/902.8700/700 115 30 230 207 253 2 50 4.2/498.2 800/800 —/— 792.0/786.0 600/600 115 30 380 342 418 1529.5 700 1689.5 715.5 600 115 30 460 414 506 1 455.0 600 1403.9 598.9600 115 30 575518633 1 349.6 450 1116.7 472. 7 400 115 30

380 342 418 1 600.2 800 2376.9917.9700 115 30 460 414 506 1516.5 700 1969.6764.6600 115 30 575518633 1 396.4 500 1570.2 606.2 450 115 30

380 342 418 1 638.2 800 2414.9955.9800 115 30 460 414 506 1549.8800 2002.9 797.9700 115 30 575518633 1 422.0 600 1595.9631.9 500 115 30

380 342 418 1 710.3 1000 2415.4 956.4 800 115 30 460 414 506 1 610.9800 2002.9 797.9700 115 30 575518633 1 468.7600 1595.9631.9600 115 30

380 342 418 2426.0/426.0 700/700 2202.7/2202.7743.7/743.7 500/500 115 30 460 414 506 1 624.3 800 2077.5 872.5 700 115 30 575518633 1 479.1 600 1652.9 688.9600 115 30

380 342 418 2497.6/426.0 800/700 2202.7/2202.7743.7/743.7600/500 115 30 460 414 506 1 685.5 800 2077.5 872.5 800 115 30 575518633 1 525.7700 1652.9 688.9600 115 30

380 342 418 2419.4/561.9700/700 2196.1/1722.0 737.1/7 48.0 500/700 115 50 460 414 506 2 340.9/452.0 500/600 1794.0/1400.9 589.0/595.9 450/500 115 50 575518633 2 261.4/347.2 450/450 1435.2/1114.3 471.2/470.3 350/400 115 50

380 342 418 2490.9/685.4 800/1000 2196.1/2390.5 737.1/931.5 600/500 115 50 460 414 506 2 402.0/553.6700/800 1794.0/1945.6 589.0/740.6 500/700 115 50 575518633 2 308.0/424.4 500/600 1435.2/1551.6 471.2/587.6 400/500 115 50

380 342 418 2490.9/745.1 800/1000 2196.1/2450.2 737.1/991.2 600/1000 115 50 460 414 506 2 402.0/604.9700/800 1794.0/1996.9 589.0/791.9 500/700 115 50 575518633 2 308.0/463.9 50 0/600 1435.2/1591.1 471.2/627.1 400/600 115 50

LEGEND

is not below or above the listed minimum and maximum limits. Maximum allowable phase imbalance is: voltage, 2%; amps 10%.

power supply disconnect is on, even if any safety device is open.

VOLTAGERANGE

Min Max XL WD

MAIN POWER

SUPPLY

QTY REQD

MCA MOCP

ICF

4. Wiring for main field supply must be rated 75 C minimum. Use copper for all units. a. Incoming wire size range for the terminal block is no. 4 AWG (American Wire Gage) to

500 kcmil.

b. Incoming wire size range of non-fused disconnect with MCA up to 599.9 amps is 3/0to

500 kcmil.

c. Incoming wire size range of non-fused disconnect with MCA from 600 to 799.9 amps is

1/0 to 500 kcmil.

d. Incoming wire size range of non-fused disconnect with MCA from 800 to 1199.9 amps is

250 kcmil to 500 kcmil.

5. Data provided circuit 1/circuit 2 where there are two circuits.

REC FUSE

SIZE

CONTROL CIRCUIT

Voltage

(1Ph,60 Hz)

MCA and

MOCP

Page 41

Controls

Microprocessor

The ComfortLink™ microprocessor controls overall unit operation and controls a number of processes simultaneously. These processes include internal timers, reading inputs, analog to digital conversions, fan control, display control, diagnostic control, output relay control, demand limit, capacity control, head pressure control, and temperature reset. Some processes are updated almost continuously, others every 2 to 3 seconds, and some every 30 seconds. The microprocessor routine is started by switching the Emergency ON-OFF switch to ON position. Pump control of external pumps (where configured) will energize the cooler pump to the internal (or CCN) time schedule (or input occupied signal from external system).

When the unit receives a call for cooling (based on a deviation from chilled water set point), the unit stages up in capacity to maintain the cooler fluid set point. The first compressor starts 1 to 3 minutes after the call for cooling. The ComfortLink microprocessor controls the capacity of the chiller by varying the number of compressors on and each loading capacity to satisfy actual dynamic load conditions. The control maintains leaving-fluid temperature set point shown on the Navigator™ device through intelligent positioning of the slide valve and compressor cycling. Accuracy depends on loop volume, loop flow rate, load, and outdoor-air temperature. No adjustment for cooling range or cooler flow rate is required, because the control automatically compensates for cooling range by measuring both return-fluid temperature and leaving-fluid temperature. This is referred to as leaving-fluid temperature control with return-fluid temperature compensation.

The basic logic for determining when to add or remove capacity is a time band integration of deviation from set point plus rate of change of leaving-fluid temperature. When leaving-fluid temperature is close to the set point and slowly moving closer, logic prevents additional capacity. If leaving-fluid temperature is less than 34 F (1.1 C) for water, or 6° F (3.3° C) below the brine freeze set point for brine units, the unit is shut off until the water temperature for brine reaches 34 F (1.1 C) or to 6° F (3.3° C) above the set point for brine to protect against freezing.

If pulldown control has been selected (adjustable setting), no additional capacity is added as long as the difference between leaving-fluid temperature and the set point is greater than 4° F (2.2° C) and rate of change in leavingwater temperature is greater than the adjustable setting. If it has been less than 90 seconds since the last capacity change, compressors will continue to run unless a safety device trips. This prevents rapid cycling and also helps return oil during short operating periods.

Control sequence

Off cycle — If ambient temperature is below 36 F (2.2 C),

cooler heaters are also energized. Start-up — After control circuit switches on, the prestart

process takes place, then microprocessor checks itself, starts pump (if configured) and waits for temperature to stabilize. The controlled pulldown feature limits compressor loading on start-up to reduce demand on start-up and unnecessary compressor usage.

Capacity control — On the first call for cooling, the microprocessor starts initial compressor and fan stage on lead circuit.

As additional cooling is required, the capacity of the compressor is increased by changing the position of the slide valve. As the load increases above the compressor’s capacity, another compressor is started and both staged together.

The speed at which capacity is added or reduced is controlled by temperature deviation from set point and rate of temperature change of chilled fluid.

The Main Base Board (MBB) responds to the supply chilled water temperature to cycle the compressors to match cooling load requirements.

The Minimum Load control valve is energized by the MBB. The valve allows hot gas to pass directly into the cooler circuit on the initial step of unloading, permitting the unit to operate at lower loads with less compressor cycling.

Sensors

Thermistors are used to control temperature-sensing inputs to the microprocessor. No additional thermistor sensors are required for optional leaving chilled water temperature, return water, or outdoor air reset.

The following sensors can be used on 30XA units:

• Cooler leaving chilled fluid temperature (T1)

• Cooler entering fluid (return) temperature (T2)

• Outside-air temperature (T9)

• Space Temperature (T10)

Two refrigerant pressure transducers are used in each circuit for sensing suction and discharge pressure. The microprocessor uses these inputs to control capacity and fan cycling.

• Saturated condensing temperature

• Cooler saturation temperature

•Oil

•Economizer

Additional information

Detailed information on controls and operation is available in the Controls, Start-Up, Operation, Service, and Troubleshooting guide included with each unit. Packaged Service Training programs are also available. Contact a local Carrier representative for more information.

Dynamic ComfortLink controls keep the chiller on line during periods of extreme operating conditions. If the entering fluid temperature is 95 F (35 C) and the saturated suction temperature is 50 F (10 C) or higher the maximum operating pressure (MOP) feature limits the suction to keep the chiller online. The control automatically starts the chiller in the unloaded state to eliminate the potential of compressor overload due to high head pressure or low suction pressure. The controller will equalize run time on each circuit through the lead/lag feature. If a circuit becomes disabled, the control will automatically set the active circuit to lead, keeping the chiller online at a reduced capacity.

Page 42

Controls (cont)

Standard ComfortLink™ controls with Navigator™ display — A portable hand-held display for convenient

access to unit status, operation, configuration and troubleshooting diagnostics capability is standard on 30XA units. The four-line, 20-character LCD display provides clear language information in English, French, Spanish, or Portuguese. The weatherproof enclosure and industrial grade extension cord enable the Navigator display to be ideally suited for outdoor applications. Magnets located on the back of the module allow attachment to any sheet metal component for hands-free operation.

Low-temperature override — This feature prevents LCWT (leaving chilled water temperature) from overshooting the set point and possibly causing a nuisance trip-out by the freeze protection.

High-temperature override — This feature allows the chiller to add capacity quickly during rapid load variations.

Temperature reset

The Energy Management Module is required for 4 to 20 mA reset of LCWT in constant fluid systems. Reset by return fluid, outdoor-air temperature, or space temperature does not require this option. Reset reduces compressor power usage at part load when design LCWT is not necessary. Humidity control should be considered since higher coil temperatures resulting from reset will reduce latent heat capacity. Three reset options are offered, based on the following:

Return-Fluid Temperature return (or entering) fluid temperature decreases (indicating load decrease). Option may be used in any application where return fluid provides accurate load indication. A limitation of return fluid reset is that LCWT may only be reset to value of design return fluid temperature.

Outdoor-Air Temperature ambient temperature decreases (indicating load decrease). This reset should be applied only where outdoor ambient temperature is an accurate indication of load.

Space Temperature ature decreases (indicating load decrease). This reset should be applied only where space temperature is an accurate indication of load. An accessory space temperature thermistor is required.

For details on applying a reset option, refer to the Controls, Start-Up, Operation, Service and Troubleshooting literature shipped with the unit. Obtain ordering part numbers for reset option from the Packaged Chiller Builder program or contact a local Carrier representative.

Abnormal conditions — All control safeties in the chiller operate through compressor protection board or control relay and microprocessor.

Loss of feedback signal to the MBB will cause the compressor(s) to shut down. For other safeties, microprocessor makes appropriate decision to shut down a compressor due to a safety trip or bad sensor reading and displays appropriate failure code on the display. Chiller holds in safety mode until reset; it then reverts to normal control when unit is reset.

Low-pressure safety — Safety cuts out if system pressure drops below minimum.

increases LCWT set point as

increases the LCWT as outdoor

increases the LCWT as space temper-

High-pressure cutout — Switch shuts down compressors if compressor discharge pressure increases to 305 psig (2102.7 kPa).

Compressor anti-cycling — This feature limits compressor cycling.

Loss of flow protection — Proof of flow switches are standard and installed on all 30XA chillers.

Sensor failures — Failures are detected by the microprocessor.

Accessory controls — Demand can be limited by controlling the chiller capacity through the demand limit control (the Energy Management Module is required for this function). This FIOP/accessory interfaces with the microprocessor to control the unit so that the chiller’s kW demand does not exceed its setting. It is activated from an external switch or a 4 to 20 mA signal.

The standard ComfortLink control is programmed to accept various accessory temperature reset options (based on outdoor-air temperature [standard], return-fluid temperature [standard], or space temperature [which requires accessory thermistor]), that resets the LCWT. An accessory thermistor (T10) is required if space temperature reset is selected. The Energy Management Module (EMM) is only required for temperature reset that is initiated by a 4 to 20 mA signal.

Demand limit — If the demand limit is applied, it limits the total power draw of unit to a selected point by controlling the number of operational compressors during periods of peak electrical demand.

The Energy Management Module is required for either 2-step or 4 to 20 mA demand limit.

Electronic expansion valve (EXV) — The EXV controls refrigerant flow to the cooler for different operating conditions by varying an orifice size to increase or decrease the flow area through the valve based on microprocessor input. The orifice is positioned by a stepper motor through approximately 3,600 discrete steps and is monitored every three seconds.

Diagnostics — The microprocessor may be put through a service test (see Controls, Start-Up, Operation, Service, and Troubleshooting literature). Service test confirms microprocessor is functional, informs observer through display the condition of each sensor and switch in chiller, and allows observer to check for proper operation of fans and compressors.

Default settings — To facilitate quick start-ups, 30XA chillers with ComfortLink controls are pre-configured with a default setting that assumes stand-alone operation supplying 44 F (6.6 C) chilled water.

Configuration settings will be based on any options or accessories included with the unit at the time of manufacturing.

Date and time are set to U.S.A. Eastern Time zone and will need reconfiguring based on location and local time zone. If operation based on occupancy scheduling is desired, schedule must be set during installation.

Page 43

Ice duty — ComfortLink™ controls have the capability of reduced leaving fluid temperature operation for thermal storage, or ice duty. The optional Energy Management display includes input contacts for the “ice done” signal generated by the thermal storage control system. The ice duty feature may be configured to start on an external input command or by the ComfortLink standard internal scheduling function. The ice duty function requires brine modification for leaving fluid temperatures below 40 F (4.4 C). Ice duty may be used in combination with any other standard features offered by the Energy Management Module and ComfortLink controls.

The production of ice, which is stored for peak cooling demands, can significantly decrease energy costs. The unit produces ice (normally at night) by supplying ice storage tanks with low temperature cooling fluid. The chiller takes advantage of reduced ambient conditions at night for icemaking mode, so the capacity suffers a lower penalty for the low leaving fluid temperatures.

At peak cooling demands, the chiller and the stored ice may share the cooling load to reduce operating costs. The thermal storage system may potentially reduce the size of the chiller plant required to meet demand loads.

Page 44

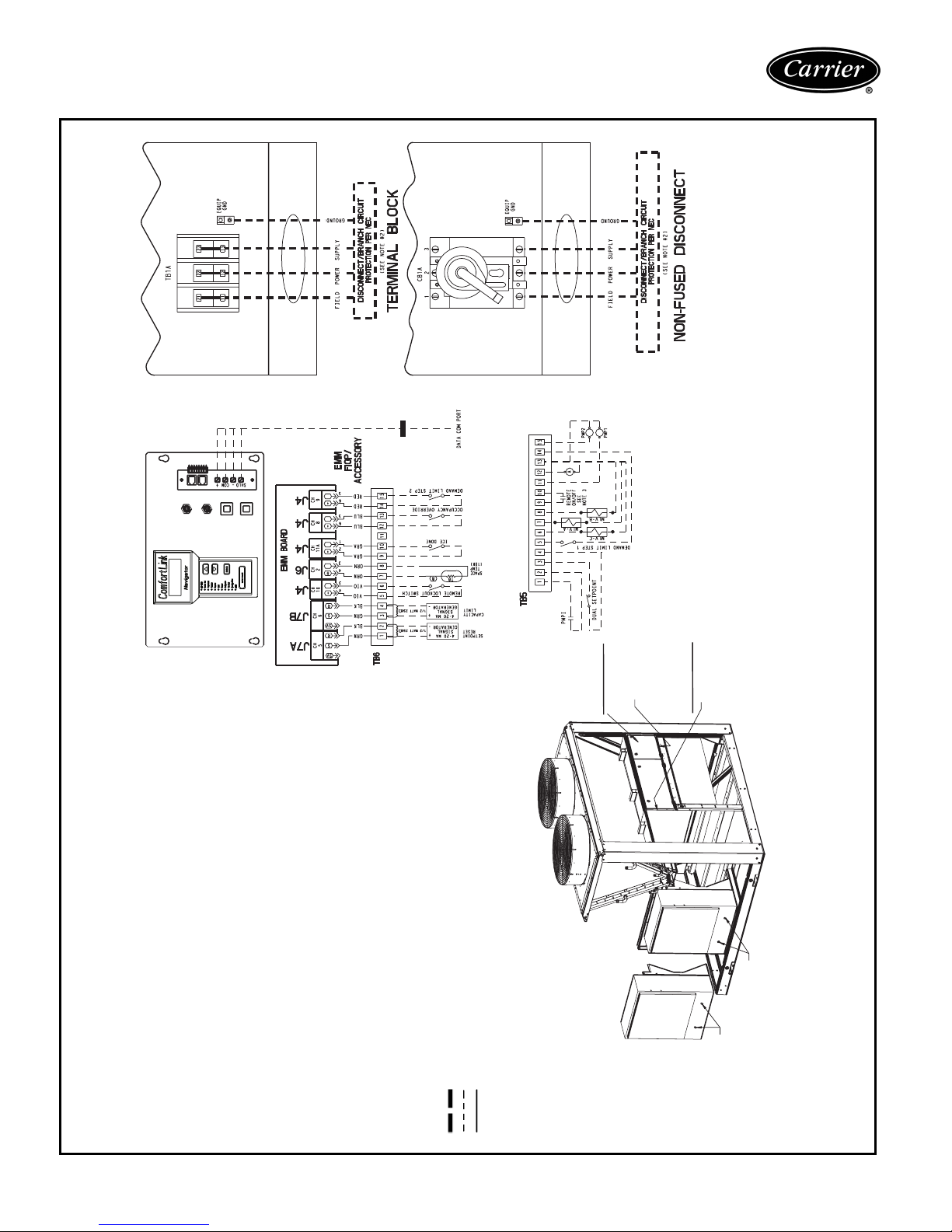

Controls and power wiring schematic, sizes 080-500

IS N

H T A

TO T

O L

X.)

LAY

ROL T N

D CO EL

I F

DISPLAY LOCATION

080-120 MAIN POWER

LEGEND

Field Power Wiring

Field Control Wiring

Factory Installed Wiring

be rated for dry circuit application capable of handling a 24 vac load up to 50 mA.

must be rated for dry circuit application capable of handling a 24 vac load up to 50 mA.

and 15 of TB5 are for control of chilled water pump 2 (PMP2) starter. The maximum load allowed

for the chilled water pump relay is 5 va sealed, 10 va inrush at 24 v. Field power supply is not

required.

must be supplied from field-supplied pump star ter relay. Connect contacts to violet and pink wires

in har ness from main base board channel 18. Wires in harness are marked PMP1-13 and

PMP1-14.

10 va sealed, 25 va inrush at 24 v. Field power supply is not required.

tacts for occupancy override, demand limit and ice done options must be rated for dry circuit

Incoming wire size range for units 260-500, 380, 460, 575vis1/0-500 kcmil.

Incoming wire size range for units 140-240, 380, 460, 575 v is 4-500 kcmil.

compliance with all applicable codes.

Incoming wire size range for units 140-240, 200/230 v is 1/0-500 kcmil.

Incoming wire size range for units 080-120, all voltages is 4-500 kcmil.

1. Factory wiring is in accordance with UL 1995 standards. Field modifications or additions must be in

NOTES:

2. Wiring for main field supply must be rated 75 C minimum. Use copper for all units.

3. Terminals 9 and 10 of TB5 are for field external connections for remote on-off. The contacts must

4. Terminals 1 and 2 of TB5areforexternal connections of chilled water pump interlock. The contacts

5. Terminals 11 and 13 of TB5 are for control of chilled water pump 1 (PMP1) starter. Terminals 13

6. For control of chilled water pumps, a set of normally open contacts rated for dr y circuit application

application capable of handling a 24 vac load up to 50 mA.

7. Terminals 12 and 13 of TB5areforanalarmrelay.The maximum load allowed for the alarm relay is

8. Make appropriate connections to TB6 as shown for energy management board options. The con-

A—Alarm

EMM — Energy Management

FEB — Fan Electrical Box

MLV — Minimum Load Valve

NEC — National Electric Code

PEB — Power Electrical Box

PMP — Chilled Water Pump

PMPI — Chilled Water Pump Interlock

TB — Terminal Block

P IS

ENT G

S D T

0 50

(140

FEB

PEB 2

POWER

S CONTROL

ING

ELD

WIR

TRY

80-

OCATIONS L

BOX

WER ENTRY

O P

N NTRO O

ND MAI

C I

YP T

PEB 1

UIT C

S E

CIR

NCE

LTA

O V L L

ENTR

WE O

140-500

N I

A M

RCUI CI

NCE A

VOLTAGES

0 ALL

400-50

POWER ENTR

MAIN

Page 45

Application data

Chiller location and clearances

Do not locate near sound sensitive areas without proper acoustic consideration. For applications requiring mounting a chiller on a building rooftop, consideration should be given to using rubber-in-shear or spring isolators to minimize structure-borne transmission. Unit must be level when installed to ensure proper oil return to the compressors. Clearances must be provided around chillers for airflow, service and local code requirements. See dimensional drawings for specific unit clearance requirements. Ensure adequate clearance between adjacent chillers is maintained. A minimum of 10 ft is recommended. Chiller fan discharge must be at least as high as adjacent solid walls. Installation in pits is not recommended.

Strainers

A strainer with a minimum screen size of 20 mesh must be installed in the entering cooler fluid line, no more than 10 ft ahead of the cooler.

Oversizing chillers

Oversizing chillers by more than 15% at design conditions must be avoided as the system operating efficiency is adversely affected (resulting in greater or excessive electrical demand). When future expansion of equipment is anticipated, install a single chiller to meet present load requirements and add a second chiller to meet the additional load demand. It is also recommended that 2 smaller chillers be installed where operation at minimum load is critical. The operation of a smaller chiller loaded to a greater percentage over minimum is preferred to operating a single chiller at or near its minimum recommended value. Minimum Load Control should not be used as a means to allow oversizing chillers. Minimum Load Control should be given consideration where substantial operating time is anticipated below the minimum unloading step.

Cooler water temperature

1. Maximum leaving chilled water temperature (LCWT) for the unit is 60 F (15.5 C). Unit can start and pull down with up to 95 F (35 C) entering-water temperature. It is recommended that entering-water temperature not exceed 70 F (21.1).

2. Minimum LCWT for a standard unit is 40 F (4.4 C). For leaving-water temperatures between 15 and

39.9 F (–9.4 to 43 C) an inhibited antifreeze solution is required. Application of chiller to 15 F (–9.4 C) is possible by ordering the factory-installed medium temperature brine option.

NOTE: Water flowing through cooler should not exceed 100 F.

Cooler flow/range

Ratings and performance data in this publication are for a cooling temperature rise of 10° F (5.5° C). The 30XA chillers may be operated at a different temperature rise, providing flow limits are not exceeded and corrections to system guidelines are made. For minimum and maximum cooler flow rates, see the Minimum and Maximum Cooler Flow Rates table. A high flow rate is generally limited by the maximum pressure drop that can be tolerated by the unit. The 30XA chillers are designed for a full load temperature rise of 5° to 20° F (2.8° to 11.1° C). Use the Packaged

Chiller Program to obtain the rating if a temperature rise other than 10° F (5.5° C) is used.

Minimum cooler flow (maximum cooler temperature rise) — The minimum cooler flow for standard units

is shown in the Minimum and Maximum Cooler Flow Rates table. When system design conditions require a lower flow (or higher rise) than the minimum allowable cooler flow, follow the recommendations below.

a. Multiple smaller chillers may be applied in series, each

providing a portion of the design temperature rise.

b. Cooler fluid may be recirculated to raise the flow rate to

the chiller. However, the mixed temperature entering cooler must be maintained a minimum of at least 5 F (2.8 C) above the LCWT.

NOTE: Recirculation flow is shown below.

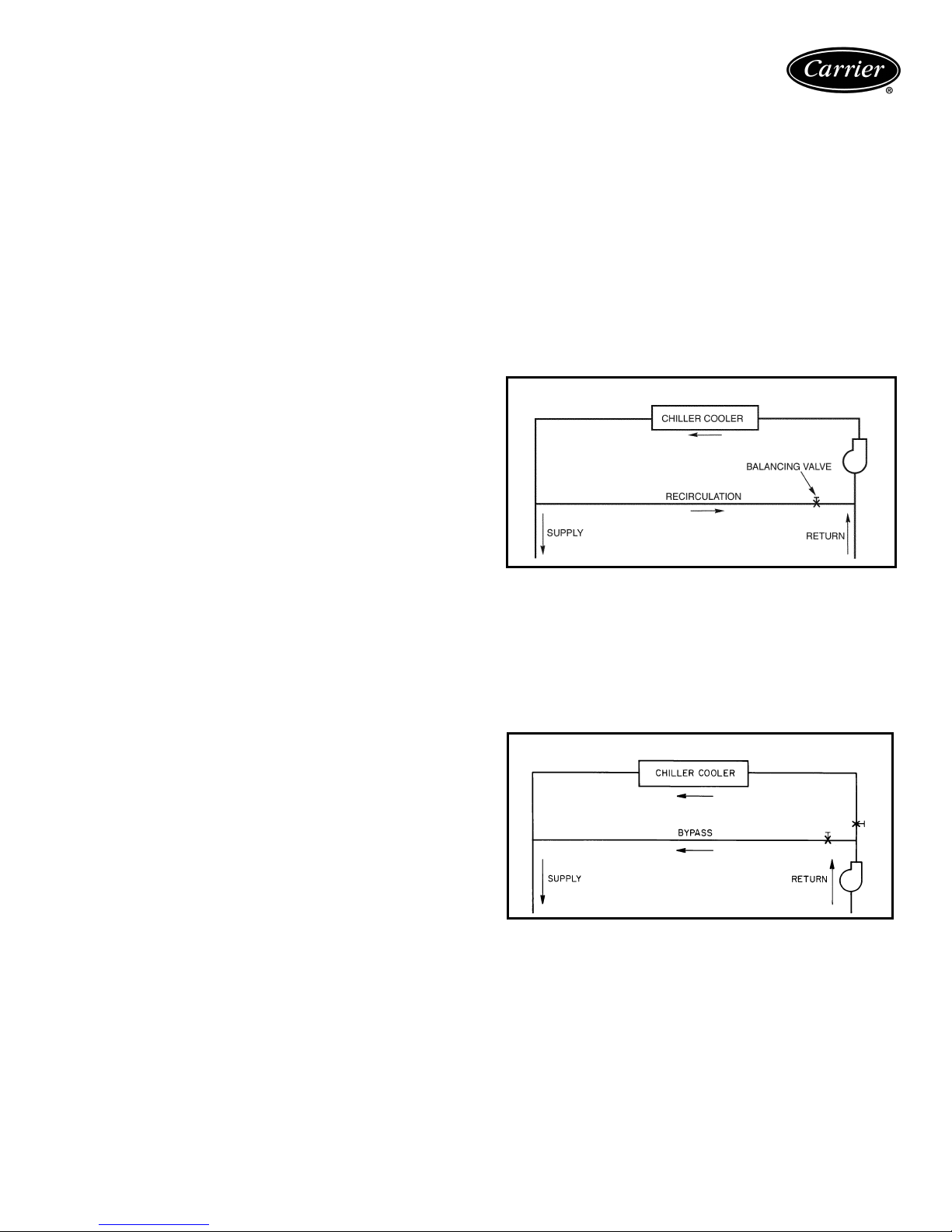

RECIRCULATION FLOW

Maximum cooler flow — The maximum cooler flow

(approximately 5° F rise) results in a practical maximum pressure drop through cooler.

Return fluid may bypass the cooler to keep the pressure drop through the cooler within acceptable limits. This permits a higher delta T with lower fluid flow through cooler and mixing after the cooler.

NOTE: Bypass flow is shown below.

BYPASS FLOW

Variable cooler flow rates

Variable rates may be applied to a standard chiller. The unit will, however, attempt to maintain a constant leaving chilled water temperature. In such cases minimum flow must be in excess of minimum flow given in the Minimum and Maximum Cooler Fluid Flow Rates table, and minimum water volume must be in excess of 3 gallons per ton (3.2 l/kw). Flow rate must change in steps of less than 10% per minute. Apply 6 gal. or more per ton (6.5 l/kw) water loop volume minimum if flow rate changes more rapidly.

Page 46

Application data (cont)

Water loop volume

The volume in circulation must equal or exceed 3 gal. per nominal ton (6.5 l/kW) of cooling for temperature stability and accuracy in normal air conditioning applications. In process cooling applications, or for operation at ambient temperature below 32 F (0° C) with low loading conditions, there should be from 6 to 10 gal. per ton (6.5 to

10.8 l/kW). To achieve this volume, it is often necessary to install a tank in the loop.

Tank should be baffled to ensure there is no stratification and that water (or brine) entering tank is adequately mixed with liquid in the tank.

TANK INSTALLATION

BAD

GOOD

Cooler fouling factor

The fouling factor used to calculate tabulated ratings is

0.001 ft factor is increased, unit capacity decreases and compressor power increases. Corrections to published ratings can be approximated by using the following multipliers:

FOULING FAC TOR

⋅ hr ⋅ °F/Btu (.000018 m2 ⋅ °C/W). As fouling

FOULING FACTORS

(English)

(ft

⋅ hr ⋅ F/Btu)

.00025 .000044 0.9910.995 .00050 .000088 0.977 0.987 .00075 .000132 0.955 0.979 .00175 .000308 0.910 0.952

FOULING FAC TOR

(SI)

(m2⋅ °C/W)

CAPACITY

MULTIPLIER

COMPRESSOR

POWER

MULTIPLIER

Cooler freeze protection

Freeze protection for the cooler is standard on all 30XA air-cooled chillers. All units are equipped with cooler heaters. Units are protected from freezing down to 0° F (–18 C) through the cooler heaters and control algorithms. If a unit controls the chilled water pump/valves, allowing for flow through the cooler, the unit is protected from freezing down to –20 F (–29 C). Since power is sometimes lost for extended periods during winter storms, freeze protection provided by heater tapes will be effective only if a back-up power supply can be assured for the unit’s control circuit, heater and cooler pump. If not protected with an antifreeze solution, draining the cooler and outdoor piping is recommended if the system will not be used during freezing weather conditions.

Two conditions that must be considered when determining antifreeze concentration are both leaving water set point and ambient freeze conditions. Both of these parameters can help determine the recommended concentration level. Higher concentration must be used to adequately protect the machine.

NOTE: Use only antifreeze solutions approved for heat exchanger duty.

For applications in which the leaving water temperature set point is less than 40 F (4.4 C), a suitable inhibited antifreeze solution must be used. The solution concentration must be sufficient to protect the chilled water loop to a freeze protection (first crystals) concentration of at least 15° F (8.3° C) below the leaving water temperature set point.

If the chiller refrigerant or fluid lines are in an area where ambient conditions fall below 34º F (1.1º C), it is required that an antifreeze solution be added to protect the unit and fluid piping to a temperature of 15º F (8.3° C) below the lowest anticipated ambient temperature.

Select concentration based on either burst or freeze protection as dictated by the application. If the chiller does not operate during the winter, nor is a start-up expected, a burst protection concentration is recommended. This concentration may not be high enough to pump the fluid through the unit. Burst protection is typically a lower concentration that will provide better performance from the machine. If the chiller does operate during winter, a freeze protection concentration is recommended. This concentration will be high enough to keep the fluid in a condition that it can be pumped at low ambient conditions.

IMPORTANT: Glycol anti-freeze solutions are highly recommended since heater tapes provide no protection in the event of a power failure.

Consult glycol fluid manufacturers for burst protection recommendations and fluid specifications.

High ambient temperature operation

High outdoor ambient chiller start-up and operation is possible for standard 30XA chillers at ambient temperatures up to 125 F (52 C) at nominal voltage.

Low ambient temperature operation

Units will start and operate down to 32 F (0° C) as standard. Operation to –20 F (–29 C) requires optional low ambient head pressure control as well as wind baffles (field fabricated and installed to all units for operation below 32 F [0° C]) if wind velocity is anticipated to be greater than 5 mph (8 kp/h). Inhibited propylene glycol or other suitable corrosion-resistant anti-freeze solution must be field supplied and installed in all units for unit operation below 34 F (1.1 C). Solution must be added to fluid loop to protect loop down to 15° F (8.3° C) below minimum operating ambient temperature. Concentration should be based on expected minimum temperature and either “Burst” or “Freeze” protection levels. At least 6 gal per ton (6.5 l/kw) of water volume is the recommended minimum for a moderate system load.

Page 47

MINIMUM AND MAXIMUM COOLER FLOW RATES*

Cooler Leaving Water Temperature† 40F(4.4 C) 60F(15C) —

Cooler Entering Water Temperature** 45F(7.2 C) 70F(21.1 C) —

30XA

UNIT SIZE

080

090

100

110

120

140

160

180

200

220

240

260

280

300

325

350

400

450

500

*Maximum ambient temperature and percent of unit capacity will vary based on unit

load and return water temperature. All models are qualified for use at 125 F (46 C). Some models may require the high ambient fan option. Contact a local Carrier representative to obtain performance data using the Carrier electronic catalog.

†For applications requiring cooler leaving water temperature operation at less than

40 F (4.4 C), the units require the use of antifreeze and application may require one of the special order brine option. Contact a local Carrier representative for more information.

**For applications requiring cooler entering water temperature operation at less than

45 F (7.2 C), contact a local Carrier representative for unit selection using the Carrier electronic catalog.

ITEM MINIMUM MAXIMUM NOMINAL

Cooler

Standard 2 95 6.0 379 23.9

Minus one pass 1 196 12.4 78249.3

Standard 2 101 6.4 403 25.4

Minus one pass 1 229 14.4 917 57.9

Standard 2 101 6.4 403 25.4

Minus one pass 1 229 14.4 917 57.9

Standard 2 125 7.9 501 31.6

Minus one pass 1 254 16.0 1014 64.0

Standard 2 125 7.9 501 31.6

Minus one pass 1 28117.7 1124 70.9

Standard 2 134 8.5 538 33.9

Minus one pass 1 324 20.4 1296 81.8

Standard 2 165 10.4 66041.6

Minus one pass 1 354 22.3 141889.5

Standard 2 202 12.7807 50.9

Minus one pass 1 416 26.2 1662 104.9

Standard 2 223 14.1 89256.3

Minus one pass 1 458 28.9 1833 115.6

Standard 2 235 14.8941 59.4

Minus one pass 1 501 31.6 2004 126.4

Standard 2 266 16.8 1063 67.1

Minus one pass 1 538 33.9 2151 135.7

Standard 2 257 16.2 102764.8

Minus one pass 1 58436.8 2334 147.3

Standard 2 29318.5 1173 74.0

Minus one pass 1 620 39.1 2481156.5

Standard 2 327 20.6 130882.5

Minus one pass 1 687 43.3 2750 173.5

Standard 2 361 22.8 1442 91.0

Minus one pass 1 724 45.7 2897 182.8

Standard 2 379 23.9 151695.6

Minus one pass 1 767 48.4 3068 193.6

Standard 1 501 31.6 2004 126.4

Minusonepass — ————

Standard 1 501 2004

Minusonepass — ————

Standard 1 501 2004

Minusonepass — ————

Number of

Passes

Minimum Flow Rate Maximum Flow Rate Nominal Flow Rate

(gpm) (L/s) (gpm) (L/s) (gpm) (L/s)

180.4 11.4Plus one pass 3 43 2.7 19212.1

201.9 12.7Plus one pass 3 43 2.7 200 12.6

225.5 14.2Plus one pass 3 43 2.7 200 12.6

244.9 15.5Plus one pass 3 613.8 244 15.4

264.8 16.7Plus one pass 3 734.6 29318.5

317.8 20.1Plus one pass 3 734.6 29318.5

365.1 23.0Plus one pass 3 98 6.2 39124.7

409.6 25.8Plus one pass 3 734.6 39124.7

463.9 29.3Plus one pass 3 98 6.2 39124.7

505.9 31.9Plus one pass 3 122 7.7 489 30.9

545.8 34.4Plus one pass 3 1479.3 587 37.0

600.3 37.9Plus one pass 3 141 8.9 56235.5

642.2 40.5Plus one pass 3 141 8.9 56235.5

687.5 43.4Plus one pass 3 174 11.0 697 44.0

733.4 46.3Plus one pass 3 211 13.3 843 53.2

775.4 48.9Plus one pass 3 244 15.4 978 61.7

917.6 57.9Plusonepass — ————

1019.3 64.3Plusonepass — ————

1092.868.9Plusonepass — ————

NOTES:

1. The 30XA units will start with loop temperatures up to 95F(35 C).

2. Nominal flow rates required at ARI conditions 44 F (7 C) leaving fluid temperature, 54 F (12 C) entering water temperature, 95F(35 C) ambient. Fouling factor

0.00010 ft

3. To obtain proper temperature control, cooler loop fluid volume must be at least 3 gal/ ton (3.23 L/kW) of chiller nominal capacity for air conditioning and at least 6 gal/ton (6.5 L/kW) for process applications or systems that must operate in low ambient temperatures (below 32 F [0° C]).

4. Where winds of 5 mph (2.2 m/s) or greater are anticipated at outdoor ambient temperatures below 32 F (0° C), wind baffles are required.

5. Requires optional or accessory low ambient kit for operation below 32 F (0° C).

-hr-F/Btu (0.000018 m2-K/kW).

Page 48

Application data (cont)

Altitude correction factors

Correction factors must be applied to standard ratings at altitudes above 2000 ft (609.6 m) using the following multipliers:

ALTITUDE CORRECTION FACTORS

ALTITUDE

(ft) (m)

2,000 609.6 0.99 1.01 4,000 1219.2 0.98 1.02 6,000 1828.8 0.97 1.03 8,000 2438.4 0.96 1.04

10,000 3048 0.951.05

CAPACITY

MULTIPLIER

COMPRESSOR POWER

MULTIPLIER

Condenser airflow — Airflow restrictions on units with standard fans will affect the unit capacity, condenser head pressure, and compressor power input. Correction factors to be applied for external static restrictions up to 0.2 in. wg (50 Pa) are as follows:

EXTERNAL STAT IC in. wg Pa

0.0 0.0 1.000 1.00

0.125 0.986 1.01

0.2 50 0.968 1.03

CAPACITY

MULTIPLIER

COMPRESSOR

POWER MULTIPLIER

Multiple chillers

Where multiple chillers are required, or where standby capability is desired, chillers may be installed in parallel. Units may be of the same size or different sizes. However, cooler flow rates must be balanced according to the recommendations for each chiller to ensure proper flow.

Unit software is capable of controlling two units as a single plant. Refer to the Controls, Start-Up, Operation, Service, and Troubleshooting guide for further details.

Dual chiller control

The ComfortLink™ controller allows 2 chillers (piped in parallel or series) to operate as a single chilled water plant with standard control functions coordinated through the master chiller controller. This standard ComfortLink fea- ture requires a communication link between the 2 chillers.

There are several advantages to this type of control:

• Redundancy (multiple circuits)

• Better low load control (lower tonnage capability)

• Lower rigging lift weights (2 machines rather than

1 large machine)

• Chiller Lead-Lag Operation (evens the wear between

the two machines)

Parallel dual chiller operation — Parallel Chiller Operation is the recommended option for Dual Chiller Control. In this case, each chiller must control its own dedicated pump or isolation valve. Balancing valves are recommended to ensure proper flow in each chiller. Two fieldsupplied and installed dual chiller leaving water temperature sensors are required, one for each module, for this function to operate properly.

Consider adding additional isolation valves to isolate each chiller to allow for service on a machine, and still allow for partial capacity from the other chiller.

Series dual chiller operation — Series Chiller Operation is an alternate control method supported by the ComfortLink control system. Certain applications might

require that the two chillers be connected in series. For nominal 10 F (5.6 C) cooler ranges, use the Minus 1 Pass Cooler arrangement to reduce the fluid-side pressure drop. Use the standard cooler pass arrangement for low flow, high cooler temperature rise applications. Two fieldsupplied and installed dual chiller leaving water temperature sensors are required, one for each module, for this function to operate properly.

Consider adding additional piping and isolation valves to isolate each chiller to allow for service on a machine, and still allow for partial capacity from the other chiller.

Condenser coil protection (Enviro-Shield™)

Refer to the Environmental Corrosion Protection white paper for more information.

Pre-coated aluminum-fin coils have a durable epoxyphenolic coating applied to the fin prior to the fin stamping process to provide protection in mildly corrosive coastal environments. Pre-coated coils have an inert barrier between the aluminum fin and copper tube. This barrier electrically disconnects the dissimilar metals to minimize the potential for galvanic corrosion. This economical option provides substantial corrosion protection beyond the standard uncoated coil construction.

Copper-fin coils provide increased corrosion resistance in moderate coastal environments where industrial air pollution is not present. All copper coils eliminate bimetallic construction to eliminate the potential for galvanic corrosion. Application in industrial environments is not recommended due to potential attack from sulfur, sulfur oxide, nitrogen oxides, carbon and several other industrial airborne contaminants. In moderate seacoast environments, copper-fin coils have extended life compared to standard or pre-coated aluminum-fin coils.

E-coated aluminum-fin coils have an extremely flexible and durable epoxy coating uniformly applied to all coil surfaces. Unlike brittle phenolic dip and bake coatings, E-coat provides superior protection with unmatched flexibility, edge coverage, metal adhesion, thermal performance and most importantly, corrosion resistance. E-coated coils provide this protection since all coil surfaces are completely encapsulated from environmental contamination. Specify E-coated aluminum-fin coils for industrial environments with high levels of air pollution. This option also provides better protection compared to standard or pre-coated aluminum-fin coils in industrial environments.

E-coated copper-fin coils have the same flexible and durable epoxy coating as E-coated aluminum-fin coils. However, this option combines the natural salt and environmental resistance of all-copper construction with the highest level of corrosion protection. Specify E-coated copper-fin coils in the harshest combination of coastal and industrial environments.

Electrical/utility interests

Energy management — Use of energy management

practices can significantly reduce operating costs, especially during off-peak modes of operation. Demand limiting and temperature reset are two techniques for accomplishing efficient energy management. See Demand Limiting (also called load shedding) section below for further details.

Page 49

Demand limiting (load shedding)

When a utility’s demand for electricity exceeds a certain level, loads are shed to keep electricity demand below a prescribed maximum level. Typically, this happens on hot days when air conditioning is most needed. The Energy Management Module (EMM) can be added to accomplish this reduction. Demand may be limited on the unit by resetting water temperature, or by unloading the chiller to a given predetermined percentage of the load. Demand limit may also be driven by an external 4 to 20 mA signal. These features require a signal from an intelligent central control. Do not cycle demand limiter for less than

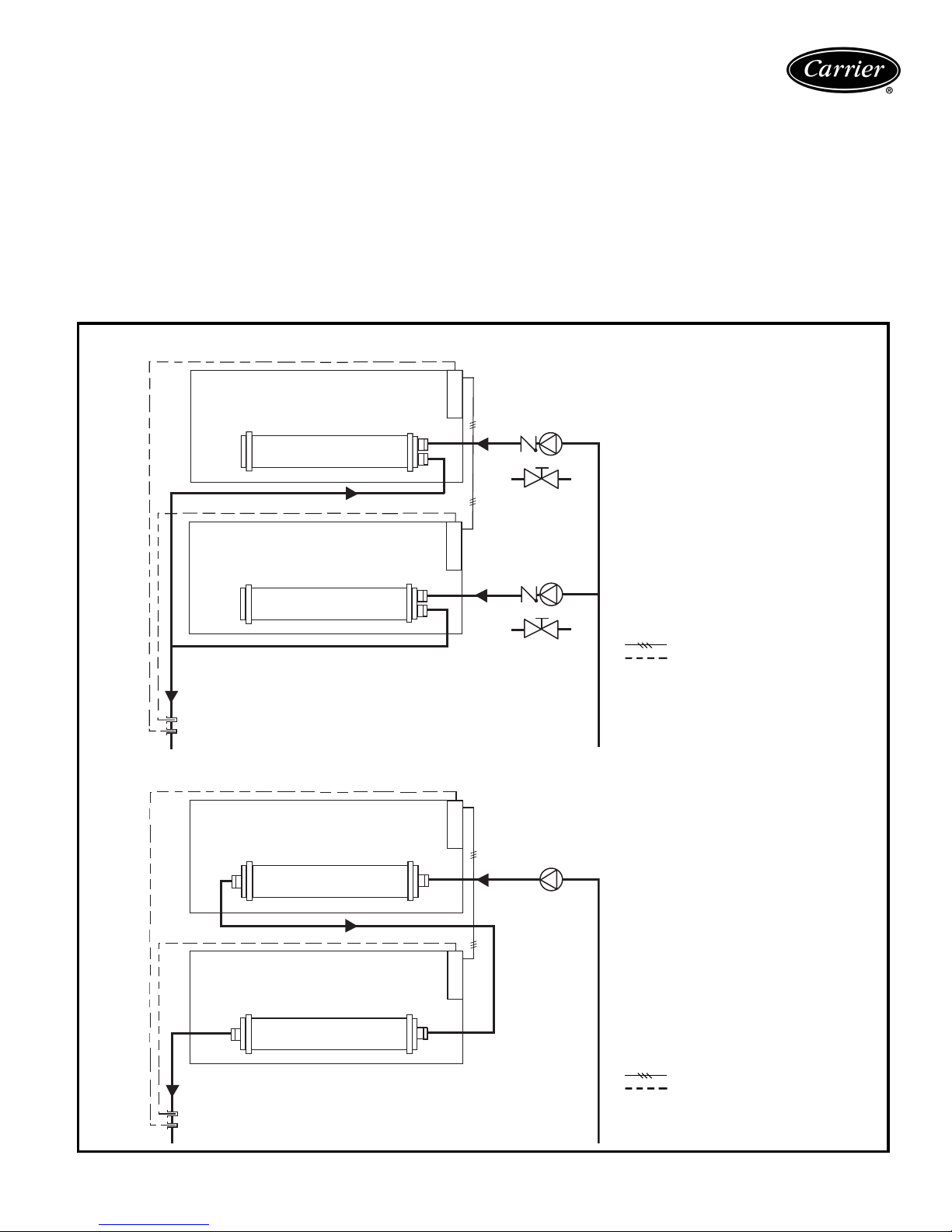

PARALLEL DUAL CHILLER OPERATION

CONTROL

BOX

MASTER CHILLER

CONTROL

BOX

SLAVE CHILLER

10 minutes on and 5 minutes off. Duty cycling cycles electrical loads at regular intervals regardless of need. This reduces the electrical operating costs of building by “fooling” demand indicating devices. Duty cycling of compressors or fans is not recommended since motor winding and bearing life will suffer from constant cycling.

Remote on-off control

Remote on-off control may be applied by hard-wired connection (see Controls and Troubleshooting literature) or by connection to a Carrier Comfort Network (CCN).

PUMP & CHECK VALVE

OR ISOLATION VALVE

PUMP & CHECK VALVE

DUAL CHILLER LWT SENSORS

& WELLS

DUAL CHILLER

LWT SENSORS

& WELLS

SLAVE CHILLER

MASTER CHILLER

OR ISOLATION VALVE

SERIES DUAL CHILLER OPERATION

CONTROL

BOX

PUMP

CONTROL

BOX

LWT—Leaving Water Temperature

LEGEND

Field-Installed Communication Bus Field-Installed Wiring

LEGEND

Field-Installed Communication Bus Field-Installed Wiring

Page 50

Guide specifications

Air-Cooled Liquid Chiller

HVAC Guide Specifications

Size Range: 80 to 500 Tons, Nominal Carrier Model Number: 30XA

Part 1 — General

1.01 SYSTEM DESCRIPTION Microprocessor controlled, air-cooled liquid chiller

utilizing screw compressors and low sound fans.

1.02 QUALITY ASSURANCE

A. Unit shall be rated in accordance with ARI Standard

550/590 (U.S.A.).

B. Unit construction shall comply with ASHRAE 15

Safety Code, UL 1995, and ASME applicable codes (U.S.A. codes).

C. Unit shall be manufactured in a facility registered to

ISO 9001:2000 Manufacturing Quality Standard.

D. Unit shall be full load run tested at the factory.

1.03 DELIVERY, STORAGE AND HANDLING

A. Unit controls shall be capable of with-

standing 150 F (65.5 C) storage temperatures in the control compartment.

B. Unit shall be stored and handled per unit manufac-

turer’s recommendations.

Part 2 — Products

2.01 EQUIPMENT

A. General:

Factory assembled, single-piece chassis, air-cooled liquid chiller. Contained within the unit cabinet shall be all factory wiring, piping, controls, refrigerant charge (R-134a), and special features required prior to field start-up.

B. Unit Cabinet:

1. Frame shall be of heavy-gage, painted galvanized steel.

2. Cabinet shall be galvanized steel casing with a baked enamel powder or pre-painted finish.

3. Cabinet shall be capable of withstanding 500-hour salt spray test in accordance with the ASTM (U.S.A.) B-117 standard.

C. Fans:

1. Condenser fans shall be direct-driven, 9-blade airfoil cross-section, reinforced polymer construction, shrouded-axial type, and shall be statically and dynamically balanced with inherent corrosion resistance.

2. Air shall be discharged vertically upward.

3. Fans shall be protected by coated steel wire safety guards.

D. Compressor/Compressor Assembly:

1. Comprised of semi-hermetic twin screw type compressors.

2. Compressor motor shall be direct drive, 3500 rpm, protected by motor temperature sensors, suction gas cooled motor.

3. Capacity control shall utilize an infinitely modulating slide valve to modulate capacity from 100% to 15% full load.

E. Cooler:

1. Shall be a mechanically cleanable tubes in a shell-and-tube type cooler with removable heads.

2. Tubes shall be internally enhanced seamlesscopper type rolled into tube sheets.

3. Shall be equipped with Victaulic-type water connections.

4. Shell shall be insulated with (closed-cell) with a maximum K factor of 0.28.

5. Design shall incorporate a minimum of 2 or 3 independent refrigerant circuits.

6. Cooler shall be tested and stamped in accordance with ASME Code for a refrigerant working side pressure of 220 psig. Cooler shall have a maximum water-side pressure of 300 psig.

7. Cooler shall have a cooler drain and vent.

8. Low-ambient temperature protection: unit shall have factory-installed cooler heater, and pumpout cycle to protect cooler from ambient temperature freeze down to 0° F (–15 C).

F. Cond e ns e r:

1. Coil shall be air-cooled with integral subcooler, and shall be constructed of aluminum fins mechanically bonded to seamless copper tubes.

2. Tubes shall be cleaned, dehydrated, and sealed.

3. Assembled condenser coils shall be leak tested and pressure tested at 375 psig (2585 kPa).

G. Refrigeration Components:

Refrigerant circuit components shall include replaceable-core filter drier, moisture indicating sight glass, electronic expansion valve, discharge service valves and liquid line service valves, and complete operating charge of both refrigerant R-134a and compressor oil.

H. Controls, Safeties, and Diagnostics:

1. Unit controls shall include the following minimum components:

a. Microprocessor with non-volatile memory.

Battery backup system shall not be accepted.

b. Separate terminal block for power and

controls.

c. Separate 115-v power supply to serve all

controllers, relays, and control components. d. ON/OFF control switch. e. Replaceable solid-state controllers. f. Pressure sensors installed to measure suc-

tion, oil, economizer, and discharge pressure.

Thermistors installed to measure cooler

entering and leaving fluid temperatures and

outside air temperature.

/4-in. PVC foam

Page 51

2. Unit controls shall include the following functions:

a. Automatic circuit lead/lag. b. Capacity control based on leaving chilled

fluid temperature and compensated by rate of change of return-fluid temperature with temperature set point accuracy to 0.1° F (0.05° C).

c. Limiting the chilled fluid temperature pull-

down rate at start-up to an adjustable range of 0.2° F to 2° F (0.1 to 1.1° C) per minute to prevent excessive demand spikes at

start-up. d. Seven-day time schedule. e. Leaving chilled fluid temperature reset from

return fluid and outside air temperature. f. Chilled water pump start/stop control. g. Chiller control for parallel chiller applications

without addition of hardware modules and

control panels (requires thermistors). h. Timed maintenance scheduling to signal

maintenance activities for strainer mainte-

nance and user-defined maintenance

activities. i. Low ambient protection to energize cooler

heaters. j. Single step demand limit control activated by

remote contact closure.

3. Diagnostics: a. The control panel shall include, as standard,

a display:

1) Portable hand-held display module with a minimum of 4 lines and 20 characters per line, in clear English, Spanish, Portuguese or French language.

2) Display menus shall provide clear language descriptions of all menu items, operating modes, configuration points and alarm diagnostics. Reference to factory codes shall not be accepted.

b. Information included for display shall be:

1) Compressor lockout.

2) Loss of charge.

3) Low fluid flow.

4) Cooler freeze protection.

5) Thermistor and transducer malfunction.

6) Entering and leaving-fluid temperature.

7) Evaporator and condenser pressure.

8) System refrigerant temperatures.

9) Chiller run hours.

10) Compressor run hours.

11) Compressor number of starts.

12) Compressor current.

13) Time of day: a) Display module, in conjunction with

the microprocessor, must also be capable of displaying the output

(results) of a service test. Service test shall verify operation of every switch, thermistor, fan, and compressor before chiller is started.

b) Diagnostics shall include the ability

to review a list of the 30 most recent alarms with clear language descriptions of the alarm event. Display of alarm codes without the ability for clear language descriptions shall be prohibited.

c) An alarm history buffer shall allow

the user to store no less than 30 alarm events with clear language descriptions, time and date stamp event entry.

d) The chiller controller shall include

multiple connection ports for communicating with the local equipment network, the Carrier Comfort Network (CCN) and the ability to access all chiller control functions from any point on the chiller.

e) The control system shall allow soft-

ware upgrade without the need for new hardware modules.

4. Safeties: a. Unit shall be equipped with thermistors and

all necessary components in conjunction with the control system to provide the unit with the following protections:

1) Loss of refrigerant charge.

2) Reverse rotation.

3) Low chilled fluid temperature.

4) Motor overtemperature.

5) High pressure.

6) Electrical overload.

7) Loss of phase.

b. Condenser fan motors shall have internal

overcurrent protection.

I. Operating Characteristics:

1. Unit shall be capable of starting and running at outdoor ambient temperatures from 32 F (0° C) to 125 F (52 C) for all sizes.

2. Unit shall be capable of starting up with 95 F (35 C) entering fluid temperature to the cooler.

J. Motors:

Condenser-fan motors shall be totally enclosed single speed, 3-phase type with permanently lubricated bearings and Class F insulation.

K. Electrical Requirements:

1. Unit primary electrical power supply shall enter the unit at a single location (some chiller voltage/size combinations require 2 power supplies).

2. Primary electrical power supply shall be rated to operate up to 125 F (52 C) ambient temperature.

Page 52

Guide specifications (cont)

3. Unit shall operate on 3-phase power at the voltage shown in the equipment schedule.

4. Control points shall be accessed through terminal block.

5. Unit shall be shipped with factory control and power wiring installed.

L. Chilled Water Circuit:

1. Chilled water circuit shall be rated for 300 psig (2068 kPa) (30XA080-350) or 150 psig (1034 kPa) (30XA400-500).

2. Electronic thermal dispersion proof of flow switch shall be factory installed and wired.

M. Special Features:

Certain standard features are not applicable when the features designated by * are specified. For assistance in amending the specifications, contact a Carrier representative.

* 1. Low Ambient Temperature Head Pressure

Control: Unit shall be capable of starting and running at

outdoor ambient temperatures down to –20 F (–29 C) with the addition of antifreeze in the cooler circuit, wind baffles, and field-installed or factory-installed solid-state low ambient temperature head pressure control with condenser coil temperature sensor.

2. Unit-Mounted Non-Fused Disconnect: Unit shall be supplied with factory-installed,

non-fused electrical disconnect for main power supply.

3. Optional Condenser Coil Materials: a. Pre-coated aluminum fin coils:

Shall have a durable epoxy-phenolic coating to provide protection in mildly corrosive coastal environments. Coating shall be applied to the aluminum fin stock prior to the fin stamping process to create an inert barrier between the aluminum fin and copper tube. Epoxy-phenolic barrier shall minimize galvanic action between dissimilar metals.

b. E-Coated aluminum-fin coils:

Shall have a flexible epoxy polymer coating uniformly applied to all coil surface areas without material bridging between fins. Coating process shall ensure complete coil encapsulation. Color shall be black gloss — 60°, 65-90% per ASTM D523-89. Uniform dry film thickness from 0.8 to 1.2 mil on all surface areas including fin edges. Superior hardness characteristics of 2H per ASTM D3363-92A and cross hatch adhesion of 4B-5B per ASTM D3359-93. Impact resistance shall be up to 160 in./lb (ASTM D2794-93). Humidity and water immersion resistance shall be up to minimum 1000 and 250 hours respectively (ASTM D2247-92 and ASTM D870-92). Corrosion durability

shall be confirmed through testing to no less than 3000 hours salt spray per ASTM B117-90. Coil construction shall be aluminum fins mechanically bonded to copper tubes.

4. Remote Enhanced Display: Unit shall be supplied with indoor-mounted,

remote, 40-character per line, 16-line display panel for field installation.

5. Medium Temperature Brine: Unit shall be factory modified to start and oper-

ate at leaving chilled fluid temperatures between 15 F and 39 F (–9.4 to 3.9 C).

6. Chillervisor System Manager III Multi-Unit Control:

Field-installed control shall sequence between 2 and 8 chillers in parallel in a single system. System shall control chilled water pumps.

7. Energy Management Control Module: A factory or field-installed module shall provide

the following energy management capabilities: 4 to 20 mA signals for leaving fluid temperature reset, cooling set point reset or demand limit control; 2-step demand limit control (from 0% to 100%) activated by a remote contact closure; and discrete input for “Ice Done” indication for ice storage system interface.

8. Condenser Coil Trim Panels: Unit shall be supplied with field-installed coil

covers and PVC-coated grilles to protect the condenser coil and internal chiller components from physical damage.

9. DataPort™ Control: Unit shall be supplied with field-installed inter-

face device that allows a non-Carrier controller to read values in system elements connected to the CCN Communication Bus using ASCII over its RS-232 connection.

10. DataLINK™ Control: Unit shall be supplied with field installed inter-

face device that allows a non-Carrier controller to read and write values in system elements connected to the CCN Communication Bus using ASCII over its RS-232 connection.

11. BACnet™ Translator Control: Unit shall be supplied with field-installed inter-

face between the chiller and a BACnet Local Area Network (LAN, i.e., MS/TP EIA-485).

12. LON Translator Control: Unit shall be supplied with field-installed inter-

face between the chiller and a Local Operating Network (LON, i.e., LonWorks FT-10A ANSI/ EIA-709.1).

Page 53

13. Temperature Reset: Shall include leaving chilled fluid temperature

reset from space temperature (requires additional sensor) or 4 to 20 mA input (requires Energy Management Control Module).

14. Compressor Suction Service Valve: Standard refrigerant discharge isolation and liq-

uid valves enable service personnel to store the refrigerant charge in the cooler or condenser during servicing. This factory-installed option allows for further isolation of the compressor from the cooler vessel.

15. Service Option: The service option provides a remote service

port for Navigator™ connection and a factoryinstalled convenience outlet that includes 4-amp GFI (Ground Fault Interrupt) receptacle with independent fuse protection. Convenience outlet is 115-v female receptacle. Service option not available with 380 v.

16. Remote Service Port: Shall be factory or field-installed receptacle for

Navigator device connection.

17. Wye-Delta Starter: Unit shall have a factory-installed, wye-delta

start to minimize electrical inrush current.

18. Control Transformer: Unit shall be supplied with a field (or factory)

installed transformer that will allow supply control circuit power from the main unit power supply.

19. GFI Convenience Outlet: Shall be factory or field-installed and mounted

with easily accessible 115-v female receptacle. Shall include 4 amp GFI receptacle.

20. Plus-One-Pass Cooler: Unit shall be equipped with plus-one-pass

cooler heads to be used with low temperature brine options or high delta T application.

21. Minus-One-Pass Cooler: Unit shall be equipped with minus-one-pass

cooler heads with reduced water-side pressure drop for series flow dual chiller control or high chilled water flow applications.

22. High Ambient Temperature: Unit shall be equipped with high speed con-

denser fan motors to improve performance at high ambient temperatures.

Page 54

Page 55

Page 56

Carrier Corporation • Syracuse, New York 13221 6-05B 5-05

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 2 Tab 5c

Book 3

New Pg 5 6 Catalog No. 04-52300001-01 Printed in U.S.A. Form 30XA-2PD

Tab 3RC2

Replaces: 30XA-1PD
