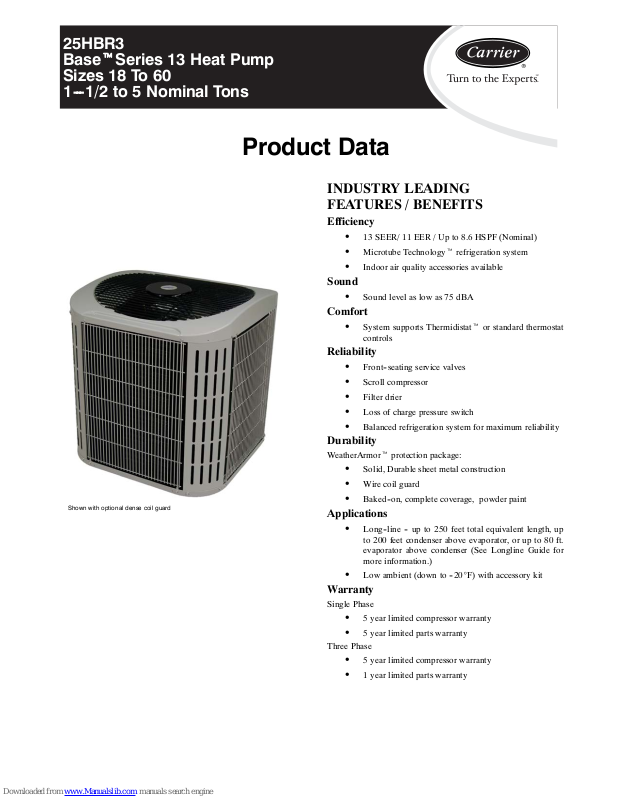

Carrier 25HBR3, 25HBR336A, 25HBR342A, 25HBR348A, 25HBR360A Product Data

25HBR3
BasetSeries 13 Heat Pump
Sizes 18 To 60
1 --- 1 / 2 t o 5 N o m i n a l To n s

Product Data

Shown with optional dense coil guard

INDUSTRY LEADI NG
FEATURES / BENEFITS

Efficiency

13 SEER/ 11 EER / Up to 8.6 HSPF (Nominal)

S
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available

Sound

Sound level as low as 75 dBA

S

Comfort

System supports Thermidistatt or standard thermostat

S

controls

Reliability

S

Front--seating service valves

S Scroll compressor
S Filter drier
S Loss of charge pressure switch
S Balanced refrigeration system for maximum reliability

Durability

WeatherArmort protection package:

S Solid, Durable sheet metal construction
S Wire coil guard
S Baked--on, complete coverage, powder paint

Applications

Long--line -- up to 250 feet total equivalent length, up

S

to 200 feet condenser above evaporator, or up to 80 ft.
evaporator above condenser (See Longline Guide for
more information.)

S Low ambient (down to --20_F) with accessory kit

Warranty

Single Phase

S 5 year limited compressor warranty
S 5 year limited parts warranty

Three Phase

S 5 year limited compressor warranty
S 1 year limited parts warranty

MODEL NUMBER NOMENCLATURE

12 3 4 5 6 78 9 10 11 12 13

N N A A A/N N N N A/N A/N A/N N N

25 H B R 3 36 A 0 0 3 0

Product

Series

25 = HP H = RES HP B=Base R = R --- 22 3=13 SEER A = Standard

25HBR3

Product

Famil y

Tier Major

Series

SEER Cooling

Capacity

ISO 9001:2000

REGISTERED

Grille

Variations

G=Dense
Coil Guard

As an Energy Star® Partner, Carrier
Corporation has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.

Refer to th e combination ratings in
Product Data for system combinations that
meet Energy Starguidelines.

Open Open Voltage Series

0=Not

Defined

0=Not

Defined

3=208/230--- 1
5=208/230--- 3

6=460/3

STANDARD FEATURES

Feature 18 24 30 36 42 48 60

13 SEER X X X X X X X

Scroll Compressor X X X X X X X

Wire Coil Guard X X X X X X X

FieldInstalledFilterDrier X X X X X X X

Front Seating Service Valves X X X X X X X

Internal Pressure Relief Valve X X X X X X X

Internal Thermal Overload X X X X X X X

Long Line capability X X X X X X X

Low Ambient capability with Kit X X X X X X X

Loss of Charge Pressure Switch X X X X X X X

0=

Original

Series

2

PHYSICAL DATA

UNIT SIZE SERIES 18 --- 30 24---30 30 --- 30, 50 36---30, 50,6042 --- 30, 50,6048 --- 30, 50,6060 --- 30,

Operating Weight (lb) 159 160 208 211 233 269 295
Shipping Weight (lb) 184 185 240 242 262 300 327
Compressor Type Scroll
REFRIGERANT Freon® ( R --- 22 )

Control T X V ( R --- 2 2 H ar d S h u tof f )
Charge (lb) 5.5 6 7.5 8 10 14 15.5

COND FAN Propeller Type, Direct Drive

Air Discharge Vertical
Air Qty (CFM) 2233 2614 2614 3334 3334 4046 4046
Motor HP 1/12 1/10 1/10 1/8 1/8 1/5 1/5
Motor RPM 800 1100 1100 800 800 800 800

COND COIL

Face Area (Sq ft) 15.09 15.09 25.87 22.63 17.6 22.63 25.15
Fins per In. 20 20 20 20 20 20 20
Rows 1 1 1 1 2 2 2
Circuits 5 6 6 6 7 8 9

VALVECONNECT.(In.ID)

Vapor 5/8” 5/8” 3/4” 3/4” 7/8” 7/8” 7/8”
Liquid 3/8”

REFRIGERANT TUBES* (In. OD)

Vapor (0 ---80 Ft Tube Length) 5/8” 5/8” 3/4” 3/4” 7/8” 7/8” 1---1/8”
Liquid (0---80 Ft Tube Length) 3/8”

* For tubing sets between 80 and 200 ft. horizontal or 20 ft. vertical differential, consult the Longline Guideline.

Note: See unit Installation Instruction for proper installation.

50, 60

VAPOR LINE SIZING AND COOLING CAPACITY LOSS
1--STAGE HEAT PUMP APPLICATIONS

LONG LINE APPLICATION: An application is considered
”Long line” when the total equivalent tubing length exceeds 80 ft
or when there is more than 20 Ft vertical separation between
indoor and outdoor units. These applications require additional
accessories and system modifications for reliable system
operation. The maximum allowable total equivalent length is
250Ft. The maximum vertical separation is 200 Ft when outdoor

Unit Nominal Size (Btuh)

18000

R --- 22 H P

24000

R --- 22 H P

30000

R --- 22 H P

36000

R --- 22 H P

42000

R --- 22 H P

48000

R --- 22 H P

60000

R --- 22 H P

Acceptable
Liquid Line

Diameter

OD (in.)

3/8

3/8

3/8

3/8

3/8 7/8 0 1 1 1 2 2 3 4 4 5 5

3/8 7/8 0 1 2 2 2 3 4 5 5 6 7

3/8

Acceptable

Vapo r Line

Diameter

OD (in.)

5/8 0 1 1 1 2 3 3 4 5 5 6

3/4 0 0 0 0 0 1 1 1 1 2 2

5/8 0 1 3 3 3 5 6 7 8 9 10

3/4 0 0 0 0 1 1 1 2 2 3 3

3/4 0 1 1 1 2 3 3 4 5 5 6

7/8 0 0 0 0 1 1 1 2 2 2 3

3/4 0 1 2 2 3 4 5 6 7 8 9

7/8 0 0 1 1 1 2 2 3 3 4 4

7/8 1 2 3 3 4 5 7 8 9 10 11

11/8 0 0 1 1 1 1 2 2 2 3 3

Standard Application

25 50 80 80+ 100 125 150 175 200 225 250

Standard Length = 80 Ft or less total equivalvent length
Applications in this area are long line. Accessories are required as shown recommended on Long Line Application Guidelines

Applications in this area may have height restrictions that limit allowable total equivalent length, when outdoor unit is below indoor unit See
Long Line Application Guidelines

unit is above indoor unit, and 60 Ft when the outdoor unit is
below the indoor unit. Refer to Accessory Usage Guideline below
for required accessories. See Long--Line Application Guideline
for required piping and system modifications. Also, refer to the
table below for the acceptable vapor tube diameters based on the
total length to minimize the cooling capacity loss.

Cooling Capacity Loss (%)

Total Equivalent Line Length (ft)

Long Line Application
Requires Accessories

25HBR3

3

ACCESSORY THERMOSTATS

THERMOSTAT / SUBBASE PKG. DESCRIPTION

Thermidistatt Control — Non---Programmable/Programmable Thermostat with

TSTATCCPRH01--- B*

TSTATCCPHH01--- B*

TSTATCCPHP01--- B

TSTATCCNHP01--- C

TSTATCCSHP01

TSTATCCBHP01*--- B

TSTATXXSEN01---B** Outdoor Air Temperature Sensor
TSTATXXNBP01 Backplate for Non --- Programmable Thermostat
TSTATXXPBP01 Backplate for Programmable Thermostat and Thermidistatt Control
TSTATXXSBP01 Backplate for Standard Programmable Thermostat
TSTATXXBBP01 Backplate for Builder’s Thermostat
TSTATXXCNV10{ Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack

* Do not use in zoning heat pump applications.
** Outdoor temperature sensor is an accessory for all Carrier electronic thermostats, except the non---programmable air conditioner version and builder;s

25HBR325HBR3

thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used
with the HybridHeatt (dual fuel) thermostat.

{ Thermostat con version kit is a 24 ---vac accessory that can turn a 4---wire thermostat application into a 5 ---wire application. This kit can also be used to

replace a broken thermostat wire, or add an extra wire when needed.
The outdoor air temperature sensor is included with the Thermidistat Control and HybridHeatt (dual fuel) thermostat.

Humidity Control (For use in Dual Fuel, AC, HP, and 2S applications. Includes Out­door Air Temperature Sensor.)

HybridHeatt (Dual Fuel) Thermostat — Auto Changeover, 7 --- Day Programmable,
°F/°C, Includes Outdoor Sensor (TSTATXXSEN01--- B)

Thermostat — Auto Changeover, 7--- Day Programmable, °F/°C , 2 --- Sta g e H ea t,
1 --- S ta ge C o o l

Thermostat — Auto Changeover, Non--- Programmable, °F/°C, 2 --- S ta ge H e a t ,
1 --- S ta ge C o o l

Standard Programmable Thermostat—Manual C hangeover, 5--- 2 Day Program­mable, °F/°C , 1 --- S t a g e H e at/ 1 --- St ag e C o o l

Builder’s Thermostat — Heat Pump, Non --- Programmable, °F/°C , 2 --- Sta g e H ea t,
1--- Stage Cool, Manual Changeover

ACCESSORIES

ORDER NUM-

BER

HC32GE229 BALL BEARING MOTOR X
HC34GE240 BALL BEARING MOTOR X X X
HC36GE232 BALL BEARING MOTOR X X X X
HC40GE228 BALL BEARING MOTOR X X X X
KAACH1201AAA CRANKCASE HTR X X X X X X S S S S
KAACH1301AAA CRANKCASE HTR X X S S
KAACH1401AAA CRANKCASE HTR X X
KSACY0101AAA CYCLE PROTECTOR X X X X X X X X X X X X X X X X
KAAFT0101AAA FREEZE THERMOSTAT X X X X X X X X X X X X X X X X
KSAHS1501AAA HARD ST ART X X X X X X
KSAHS1601AAA HARD ST ART X
KSAHI0301R22 HIGH PRESS SW X X X X X X X X X X X X X X X X
KHAIR0101AAA ISOLATION RELAY X X X X X X X X X X X X X X X X
KSALA0201R22 LOW AMBIEN T X X X X X X X X X X X X X X X X
KSALA0601AAA MOTORMASTER 230V X X X X X X X X X X X X
KSALA0701AAA MOTORMASTER 460V X X X X
KHAOT0201SEC OUTDOOR THERMO-

KHAOT0301FST OUTDOOR THERMO-

KHALS0401LLS SOLENOID VAL V E X X X X X X X X X X X X X X X X
KSASH0601COP SOUND BLKT X X X X X X X X X X X
KSASH1801COP SOUND BLKT X X
KSASH2101COP SOUND BLKT X X X
KAACS0201PTC START ASSIST PTC X X X X X X X
KSASF0101AAA SUPPORT FEET X X X X X X X X X X X X X X X X
KAATD0101TDR TIME DELAY X X X X X X X X X X X X X X X X
KSATX0601HSO TXV X X X X X X X X X X
KSATX0701HSO TXV X X X
KSATX1001HSO TXV X X X

DESCRIPTION 18 ---30 24 --- 30 30---30 30--- 50 36 ---30 36 ---50 36 ---60 42 -- -30 42 ---50 42 -- -60 48 -- -30 48 -- -50 48 -- -60 60 ---30 60 -- -50 60 -- -60

STAT

STAT

X X X X X X X X X X X X X X X X

X X X X X X X X X X X X X X X X

4

ACCESSORY USAGE GUIDELINE

REQUIRED FOR LOW--- AMBI-

Accessory

Crankcase Heater Yes Yes No

Evaporator Freeze Thermostat Yes No No

Accumulator No No No

Compressor Start Assist Capacitor and

Relay

Motor Master®Control

o r L o w --- a mb i e n t P re s s u r e S w i t c h

Support Feet Recommended No Recommended

Liquid Line Solenoid Valve No

Ball Bearing Fan Motor Yes{ No No

* For tubing line sets between 80 and 200 ft. and/or 20 ft. vertical differntial, refer to Residential Split---System Longline Application Guideline.
{ Required for Low ---Ambient Controller (full modulation f eatur e) and MotorMasterr Control only.

ENT APPLICATIONS

(Below 55° F)

Yes Yes No

Yes No No

Accessory Description and Usage (Listed Alphabetically)

1. Ball-- Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction
while maintaining bearing lubrication.

Usage Guideline:

Required on all units when MotorMasterr is used.

2. Compressor Start Assist -- Capacitor and Relay

Start capacitor and relay gives a ”hard” boost to compressor
motor at each start up.

Usage Guideline:

Required for reciprocating compressors in the

following applications:

Long line
Low ambient cooling

Hard shut off expansion valve on indoor coil
Liquid line solenoid on indoor coil

Required for single-- phase scroll compressors in the

following applications:

Long line

Low ambient cooling

Suggested for all compressors in areas with a history of
low voltage problems.

3. Compressor Start Assist — PTC Type

Solid state electrical device which gives a ”soft” boost to the
compressor at each start--up.

Usage Guideline:

Suggested in installations with marginal power supply.

4. Crankcase Heater

An electric resistance heater which mounts to the base of the
compressor to keep the lubricant warm during off cycles.
Improves compressor lubrication on restart and minimizes the
chance of liquid slugging.

Usage Guideline:

Required in low ambient cooling applications.

Required in long line applications.
Suggested in all commercial applications.

5. Cycle Protector

The cycle protector is designed to prevent compressor short
cycling. This control provides an approximate 5 --minute delay
after power to the compressor has been interrupted for any
reason, including power outage, protector control trip, thermostat
jiggling, or normal cycling.

6. Evaporator Freeze Thermostat

An SPST temperature--actuated switch that stops unit operation
when evaporator reaches freeze--up conditions.

7. Isolation Relay

An SPDT relay which switches the low--ambient controller out of
the outdoor fan motor circuit when the heat pump switches to
heating mode.

8. Liquid-- Line Solenoid Valve (LLS)

An electrically operated shutoff valve which stops and starts
refrigerant liquid flow in response to compressor operation. It is
to be installed at the outdoor unit to control refrigerant off cycle
migration in the heating mode.

9. Low--Ambient Pressure Switch Kit

A long life pressure switch which is mounted to outdoor unit
service valve. It is designed to cycle the outdoor fan motor in
order to maintain head pressure within normal operating limits
(approximately 100 psig to 225 psig). The control will maintain
working head pressure at low--ambient temperatures down to 0_F
when properly installed.

Low--Ambient Contro ller must be used when cooling operation is
used at outdoor temperatures below 55_F (12.8_C).

10. MotorMasterr Low--Ambient Controller

A fan-- speed control device activated by a temperature sensor,
designed to control condenser fan motor speed in response to the
saturated, condensing temperature during operation in cooling
mode only. For outdoor temperatures down to --20_F (--28.9_C),
it maintains condensing temperature at 100_F ±10_F (37.8_C ±

-- 1 2 _

REQUIRED FOR LONG

LINE APPLICATIONS*

(Over 80 Ft.)

See Long --- Line Application

Guideline

REQUIRED FOR SEA

COAST APPLICATIONS

(Within 2 miles)

Usage Guideline:

Required when low ambient kit has been added.

Usage Guideline:

Required in all heat pumps where low ambient kit has
been added.

Usage Guideline:

An LLS is required in all long line heat pump
applications to control refrigerant off cycle migration in
the heating mode. See Long Line Guideline.

Usage Guideline:

A Low-- Ambient Pressure Switch or MotorMasterr

C).
Usage Guideline:

A MotorMasterr Low Ambient Controller or
Low--Ambient Pressure Switch must be used when
cooling operation is used at outdoor temperatures
below 55_F (12.8_C).

Suggested for all commercial applications.

No

25HBR3

5

Accessory Description and Usage (Listed Alphabetically) -- CONTINUED

11. Outdoor Air Temperature Sensor

Designed for use with Carrier Thermostats listed in this
publication. This device enables the thermostat to display the
outdoor temperature. This device also is required to enable
special thermostat features such as auxiliary heat lock out.

Usage Guideline:

Suggested for all Carrier thermostats listed in this
publication.

12. Outdoor Thermostat

An SPDT temperature-- actuated switch which turns on
supplemental electric heaters when outdoor air temperature drops
below a user--selected set point.

Usage Guideline:

Electric supplemental heat applications in non--variable
speed indoor units when electric heat staging is desired.

Usage Guideline:

Some local codes may require limiting the heating head
pressure in the vapor line in some applications.

13. Secondary Outdoor Thermostat

25HBR3

An SPDT temperature-- actuated switch which turns on
third-- stage of supplemental electric heaters when outdoor air
temperature drops below the second--stage set point.

Usage Guideline:

Outdoor thermostat applications where electric heater is
capable of 3-- stage operation.

14. Sound Hood

Wraparound sound reducing cover for the compressor. Reduces
the sound level up to 2 dBA.

Usage Guideline:

Suggested when unit is installed closer than 15 ft to
quiet areas, bedrooms, etc.

Suggested when unit is installed between two houses less
than 10 ft apart.

Usage Guideline:

Suggested in the following applications:

Heat pump installations in heavy snowfall areas.
Heat pump installations in snowdrift locations.

Heat pump installations in areas of prolonged
subfreezing temperatures.

All commercial installations.

15. Thermostatic Expansion Valve (TXV) Bi --Flow

A modulating flow-- control valve which meters refrigerant liquid
flow rate into the evaporator in response to the superheat of the
refrigerant gas leaving the evaporator.

Usage Guideline:

Required in all heat pump applications

16. Time--Delay Relay

An SPST delay relay which briefly continues operation of indoor
blower motor to provide additional cooling after the compressor
cycles off.

Note: Most indoor unit controls include this feature. For those
that do not, use the guideline below.

Usage Guideline:

6

ELECTRICAL DATA

U N I T S I Z E ---

VOLTAGE,

SERIES

18 --- 30
24 --- 30 54 11.3 0.8 14.80 14 14 131 125 25
30 --- 30 72.5 14.8 0.8 19.20 12 12 161 154 30
36 --- 30 88 17.0 0.9 22.10 12 12 140 133 35
42 --- 30 104 21.2 0.9 27.40 10 10 181 172 40
48 --- 30 137 21.2 1.2 27.60 10 10 179 170 40
60 --- 30 148 28.9 1.2 37.30 8 8 207 197 60
30 --- 50
36 --- 50 77 11.3 0.9 15.03 12 12 96 92 25
42 --- 50 88 13.4 0.9 17.65 12 12 82 78 25
48 --- 50 91 13.78 1.2 18.43 10 10 125 119 30
60 --- 50 123 18.7 1.2 24.58 8 10 146 89 35
36 --- 60
42 --- 60 44 6.4 0.5 8.50 14 14 214 203 15
48 --- 60 46 7.1 0.6 9.41 14 14 193 184 15
60 --- 60 62 8.6 0.6 11.35 14 14 160 152 15

* Permissible limits of the voltage range at which the unit will operate satisfactorily
{ If wire is applied at ambient greater than 30° C(86° F), consult table 310---16 of the NEC (ANSI/NFPA 70). T he ampacity of non ---metallic---sheathed cable

(NM), trade name ROMEX, shall be that of 60° C (140° F) conditions, per the NEC (ANSI/NFPA 70) Article 336--- 26. If other tha n uncoated (no --- plated), 60
or 75° C (140 or 167° C) insulation, copper wire (solid wire for 10 AWG or smaller , stranded wire for larger than 10 AWG) is used, consult applicable tables
of the NEC (ANSI/NFPA 70).

} Length shown is as measured 1 way along wire path between unit and service panel for voltage drop not to exceed 2%.
* * T i m e --- D e l a y f u se.
F L A --- F u l l L o a d A mps
LRA --- Locked Rotor Amps
MCA --- Minimum Circuit Amps
RLA --- Rated Load Amps
NOTE: Control circuit is 24 --- V on all units and requires external power source. Copper wire must be used from service disconnect to unit. All

motors/compressors contain internal overload protection.

V/PH

208/230/1 253 187

208/230/3 253 197

460/3 506 414

OPER VOLTS* COMPR FAN

MAX MIN LRA RLA FLA 60° C 75° C 60° C 75° C

41 9.0 0.5 11.70 14 14 166 158 20

63 10.4 0.75 13.75 14 14 66 63 20

39 5.5 0.5 7.38 14 14 247 235 15

MCA

MIN

WIRE

SIZE

MIN
WIRE
SIZE

{

{

MAX

LENGTH

(FT)

}

MAX

LENGTH

(FT)

}

MAX

FUSE**

or CKT

BRK

AMPS

25HBR3

A--WEIGHTED SOUND LEVEL (dBA)

UNIT SIZE --- VOLTAGE, SERIES

18 --- 30 75 52 59.5 64.5 71 67 61.5 54.5
24 --- 30 76 52.5 63.5 69.5 72 67.5 64.5 59.5

30 --- 30, 50 76 52 64 70 71 68 66.5 65
36 --- 30, 50, 60 76 53 69 66.5 69.5 66.5 63.5 62
42 --- 30, 50, 60 76 57 65 68 72.5 67.5 64 59
48 --- 30, 50, 60 76 57.5 65 68 70.5 69 64 60.5
60 --- 30, 50, 60 77 61 62.5 70 72.5 70 67 60

STANDARD

RATING

TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)

125 250 500 1000 2000 4000 8000

A--WEIGHTED SOUND LEVEL (dBA) WITH SOUND HOOD

UNIT SIZE --- VOLTAGE, SERIES

18 --- 30 74 52.0 59.5 64.0 68.0 64.0 60.0 52.5
24 --- 30 75 53.5 63.0 69.0 70.5 66.5 64.0 58.5

30 --- 30, 50 75 53.0 64.5 69.5 70.5 67.5 64.5 60.5
36 --- 30, 50, 60 75 54.0 68.5 65.5 68.0 65.0 62.0 57.5
42 --- 30, 50, 60 76 58.0 64.5 67.0 71.0 65.5 61.0 54.5
48 --- 30, 50, 60 75 58.0 64.0 68.0 69.0 65.5 60.5 55.5
60 --- 30, 50, 60 75 59.5 61.5 67.5 70.0 68.0 64.0 57.5

STANDARD

RATING

TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)

125 250 500 1000 2000 4000 8000

CHARGING SUBCOOLING (TXV--TYPE EXPANSION DEVICE)

UNIT SIZE--- VOLTAGE, SERIES REQUIRED SUBCOOLING (_F)

18 --- 30 11
24 --- 30 11

30 --- 30, 50 9

36 --- 30, 50, 60 11

42 --- 30, 50, 60 13

48 --- 30, 50, 60 13
60 --- 30, 50, 60 11

7

25HBR3

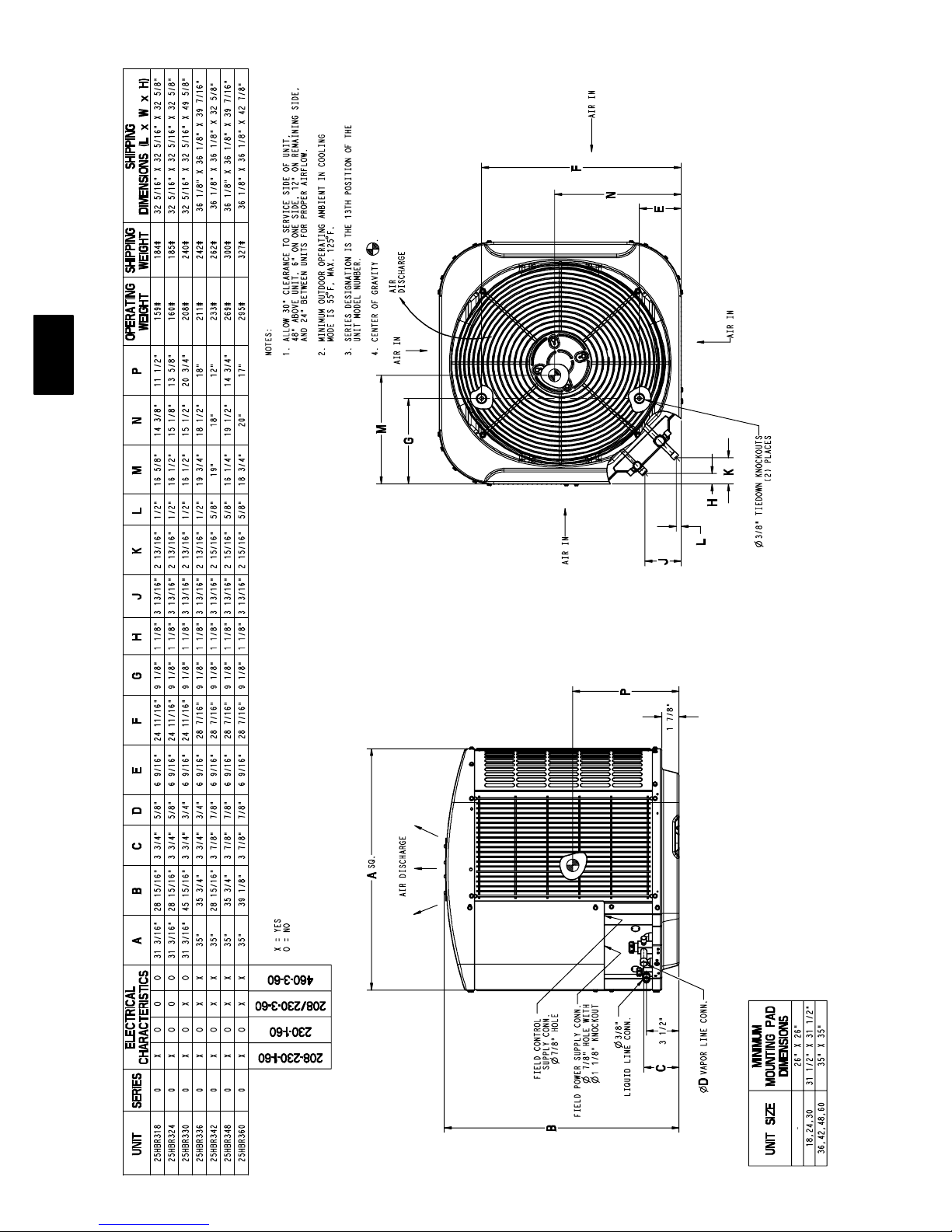

DIMENSIONS

Note: Optional “G” dense wire grille shown

8

kW

A05007

14.6

25HBR342A/G

FC4DNF042

FC4DNB060

17.6

25HBR348A/G

FC4DNF048

23.4

20.5

25HBR360A/G

11.7

25HBR330A/G

25HBR336A/G

FC4DNF036

8.8

FA4CNF030

5.9

25HBR324A/G

FA4CNF024

25HBR318A/G

2.9

FA4CNF018

0.0

BASED ON INDOOR ENT. AIR AT 70 ºF

AND AT RATED CFM

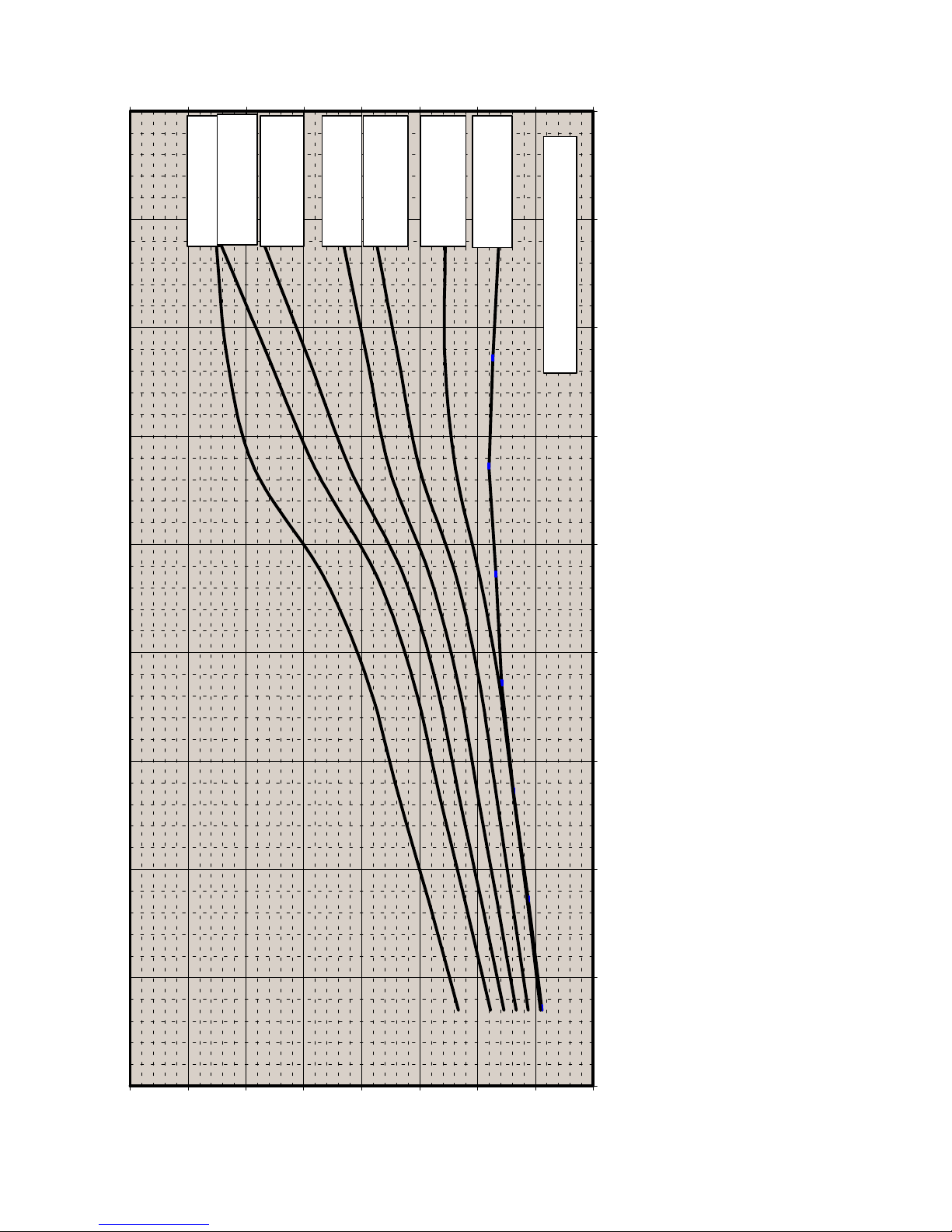

25HBR3A/G BALANCE POINT WORKSHEET

80.00

70.00

60.00

50.00

40.00

30.00

OUTDOOR TEMPERATURE, ºF

--100 1020304050607080

20.00

10.00

0.00

HEATING CAPACITY, MBTUH

BUILDING HEAT LOSS, UNIT INTEGRATED

9

COMBINATION RATINGS

Unit Size

--- v ol t a g e ,
Series

Indoor Model

*FA4CN(F,C)018 17,100 TDR&TXV 13.00 10.80 18,000 3.52 10,500 2.34 8.0

FA4CN(F,C)024 17,200 TDR&TXV 13.00 10.80 16,000 3.30 10,500 2.34 7.9

FC4DNF018 17,500 TDR&TXV 14.00 11.70 17,500 3.80 10,100 2.52 8.5
FC4DNF024 17,600 TDR&TXV 14.00 12.00 15,400 3.60 10,000 2.56 8.5
FF1ENE018 17,100 TDR&TXV 13.00 10.80 18,000 3.54 10,500 2.36 8.0
FF1ENE024 17,300 TDR&TXV 13.00 10.80 15,600 3.32 10,500 2.38 8.0
FK4DNF001 17,500 TDR&TXV 14.00 12.00 14,600 3.48 9,900 2.54 8.4
FK4DNF002 17,700 TDR&TXV 14.00 12.50 14,600 3.58 9,900 2.58 8.6

CAR**1814A** 16,900 TXV 13.00 10.80 18,100 3.46 10,400 2.34 7.9
CAR**1814A** 16,900 TDR&TXV 14.00 11.70 18,000 3.70 9,800 2.46 8.2 58CV(A,X)070---12

CAR**2414A** 17,400 TXV 13.00 10.80 15,700 3.34 10,500 2.40 8.1
CAR**2414A** 17,300 TDR&TXV 14.00 12.00 15,600 3.70 9,900 2.50 8.4 58CV(A,X)070---12

CAR**2417A** 17,400 TXV 13.00 10.80 15,700 3.34 10,500 2.40 8.1
CAR**2417A** 17,300 TDR&TXV 14.00 12.00 15,600 3.70 9,900 2.52 8.4 58MVB060 ---14
CAR**2417A** 17,400 TDR&TXV 14.00 12.00 15,600 3.70 9,900 2.52 8.6 58CV(A,X)090---16

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

25HBR3

18---30

CNRV*1814A** 16,900 TXV 13.00 10.80 17,200 3.52 10,500 2.40 8.1
CNRV*1814A** 16,900 TDR&TXV 14.00 12.00 17,100 3.88 9,900 2.50 8.5 58CV(A,X)070--- 12

CNRV*2414A** 17,400 TXV 13.00 10.80 15,700 3.44 10,500 2.40 8.2
CNRV*2414A** 17,300 TDR&TXV 14.00 12.00 15,600 3.84 9,900 2.52 8.5 58CV(A,X)070--- 12

CNRV*2417A** 17,400 TXV 13.00 10.80 15,700 3.44 10,500 2.40 8.2
CNRV*2417A** 17,300 TDR&TXV 14.00 12.00 15,600 3.84 9,900 2.52 8.5 58MVB060 ---14
CNRV*2417A** 17,400 TDR&TXV 14.00 12.00 15,600 3.84 9,900 2.54 8.5 58CV(A,X)090--- 16

CNRH*2417A** 17,400 TXV 13.00 10.80 15,700 3.44 10,500 2.40 8.2
CNRH*2417A** 17,300 TDR&TXV 14.00 12.00 15,600 3.84 9,900 2.52 8.5 58MVB040 ---14
CNRH*2417A** 17,300 TDR&TXV 14.00 12.00 15,600 3.84 9,900 2.52 8.5 58MVB060 ---14
CNRH*2417A** 17,400 TDR&TXV 14.00 12.00 15,600 3.82 9,900 2.52 8.5 58MVB080 ---14
CNRH*2417A** 17,400 TDR&TXV 14.00 12.00 15,600 3.84 9,900 2.52 8.5 58CV(A,X)070---12
CNRH*2417A** 17,400 TDR&TXV 14.00 12.00 15,600 3.84 9,900 2.54 8.5 58CV(A,X)090---16

CNRF*2418A** 17,400 TXV 13.00 10.80 15,700 3.44 10,500 2.40 8.2

CSRH*2412A** 17,400 TXV 13.00 10.80 14,800 3.26 10,500 2.42 8.0
CSRH*2412A** 17,300 TDR&TXV 14.00 12.00 14,800 3.62 9,900 2.52 8.5 58MVB040---14
CSRH*2412A** 17,300 TDR&TXV 14.00 12.00 14,800 3.62 9,900 2.52 8.5 58MVB060---14
CSRH*2412A** 17,400 TDR&TXV 14.00 12.00 14,800 3.60 9,900 2.52 8.5 58MVB080---14
CSRH*2412A** 17,300 TDR&TXV 14.00 12.00 14,800 3.62 9,900 2.52 8.5 58CV(A,X)070 ---12
CSRH*2412A** 17,400 TDR&TXV 14.00 12.00 14,800 3.62 9,900 2.52 8.5 58CV(A,X)090 ---16

*FA4CN(F,C)024 22,600 TDR&TXV 13.00 10.80 23,800 3.52 14,400 2.36 7.9

FA4CN(F,C)030 22,800 TDR&TXV 13.00 10.80 22,600 3.46 14,400 2.38 7.9

FC4DNF024 23,000 TDR&TXV 14.00 11.50 23,400 3.70 13,900 2.48 8.3
FC4DNF030 23,200 TDR&TXV 14.00 11.50 22,200 3.66 13,900 2.52 8.4

FF1ENE030 22,600 TDR&TXV 13.00 10.80 23,600 3.52 14,400 2.36 8.0

FK4DNF001 23,000 TDR&TXV 14.00 11.70 22,600 3.66 13,700 2.48 8.3
FK4DNF002 23,200 TDR&TXV 14.00 11.70 22,600 3.78 13,700 2.54 8.5
FK4DNF003 23,200 TDR&TXV 14.00 11.70 20,800 3.60 13,600 2.54 8.5

24---30

See notes on pg. 17

CAR**2414A** 22,800 TXV 13.00 10.80 23,800 3.56 14,400 2.38 8.1
CAR**2414A** 22,800 TDR&TXV 14.00 11.50 23,800 3.72 13,700 2.46 8.3 58CV(A,X)070--- 12

CAR**2417A** 22,800 TXV 13.00 10.80 23,800 3.56 14,400 2.38 8.1
CAR**2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.74 13,700 2.48 8.3 58MVB060--- 14
CAR**2417A** 22,800 TDR&TXV 14.00 11.70 23,600 3.76 13,600 2.50 8.4 58CV(A,X)090--- 16

CAR**3014A** 22,800 TXV 13.00 10.80 20,800 3.30 14,500 2.38 7.8
CAR**3014A** 22,800 TDR&TXV 14.00 11.50 22,000 3.58 13,700 2.48 8.2 58CV(A,X)070--- 12

CAR**3017A** 22,800 TXV 13.00 10.80 20,800 3.30 14,500 2.38 7.8
CAR**3017A** 22,800 TDR&TXV 14.00 11.70 20,800 3.60 13,700 2.50 8.3 58MVB060--- 14
CAR**3017A** 23,000 TDR&TXV 14.00 11.70 20,800 3.62 13,600 2.52 8.3 58CV(A,X)090--- 16

10

COMBINATION RATINGS -- CONTINUED

Unit Size

--- v ol t a g e ,
Series

24---30

Indoor Model

CNRV*2414A** 22,800 TXV 13.00 10.80 23,800 3.66 14,500 2.38 8.2
CNRV*2414A** 22,600 TDR&TXV 14.00 11.50 23,800 3.80 13,700 2.48 8.4 58CV(A,X)070--- 12

CNRV*2417A** 22,800 TXV 13.00 10.80 23,800 3.66 14,500 2.38 8.2
CNRV*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.82 13,700 2.48 8.4 58MVB060--- 14
CNRV*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.84 13,700 2.50 8.5 58CV(A,X)090--- 16

CNRV*3014A** 22,800 TXV 13.00 10.80 20,600 3.28 14,500 2.40 7.8
CNRV*3014A** 22,800 TDR&TXV 14.00 11.50 20,600 3.58 13,700 2.48 8.2 58CV(A,X)070--- 12

CNRV*3017A** 22,800 TXV 13.00 10.80 20,600 3.28 14,500 2.40 7.8
CNRV*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.50 8.3 58MVB060--- 14
CNRV*3017A** 23,000 TDR&TXV 14.00 11.70 20,600 3.62 13,600 2.52 8.4 58CV(A,X)090--- 16

CNRH*2417A** 22,800 TXV 13.00 10.80 23,800 3.66 14,500 2.38 8.2
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.82 13,800 2.48 8.4 58MVB040--- 14
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.82 13,700 2.48 8.4 58MVB060--- 14
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.82 13,800 2.48 8.4 58MVB080--- 14
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.82 13,800 2.48 8.4 58MVB080--- 20
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.84 13,800 2.50 8.4 58MVB100--- 20
CNRH*2417A** 22,600 TDR&TXV 14.00 11.50 23,600 3.80 13,700 2.48 8.4 58MVB120--- 20
CNRH*2417A** 22,600 TDR&TXV 14.00 11.50 23,600 3.80 13,700 2.48 8.4 58CV(A,X)070--- 12
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.84 13,700 2.50 8.5 58CV(A,X)090--- 16
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.82 13,800 2.48 8.4 58CV(A,X)110--- 20
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.84 13,800 2.50 8.5 58CV(A,X)135--- 22
CNRH*2417A** 22,800 TDR&TXV 14.00 11.50 23,600 3.84 13,700 2.50 8.5 58CV(A,X)155--- 22

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

25HBR3

24---30

CNRH*3017A** 22,800 TXV 13.00 10.80 20,600 3.28 14,500 2.40 7.8
CNRH*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.50 8.3 58MVB040--- 14
CNRH*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.50 8.3 58MVB060--- 14
CNRH*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.50 8.3 58MVB080--- 14
CNRH*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.50 8.3 58MVB080--- 20
CNRH*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.52 8.4 58MVB100--- 20
CNRH*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.50 8.2 58MVB120--- 20
CNRH*3017A** 22,800 TDR&TXV 14.00 11.70 20,600 3.60 13,700 2.50 8.2 58CV(A,X)070--- 12
CNRH*3017A** 23,000 TDR&TXV 14.00 11.70 20,600 3.62 13,600 2.52 8.4 58CV(A,X)090--- 16
CNRH*3017A** 23,000 TDR&TXV 14.00 11.70 20,600 3.62 13,700 2.50 8.4 58CV(A,X)110--- 20
CNRH*3017A** 23,000 TDR&TXV 14.00 11.70 20,600 3.62 13,700 2.52 8.4 58CV(A,X)135--- 22
CNRH*3017A** 23,000 TDR&TXV 14.00 11.70 20,600 3.62 13,700 2.52 8.4 58CV(A,X)155--- 22

CNRF*2418A** 22,800 TXV 13.00 10.80 23,800 3.66 14,500 2.38 8.2

CSRH*2412A** 22,800 TXV 13.00 10.80 23,000 3.56 14,500 2.40 8.2
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.74 13,800 2.48 8.4 58MVB040 ---14
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.74 13,800 2.48 8.4 58MVB060 ---14
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.74 13,800 2.48 8.4 58MVB080 ---14
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.74 13,800 2.48 8.4 58MVB080 ---20
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.76 13,800 2.50 8.4 58MVB100 ---20
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.74 13,800 2.48 8.3 58MVB120 ---20
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.74 13,800 2.48 8.4 58CV(A,X)070---12
CSRH*2412A** 22,800 TDR&TXV 14.00 11.70 23,000 3.76 13,700 2.50 8.4 58CV(A,X)090---16
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.74 13,800 2.48 8.4 58CV(A,X)110---20
CSRH*2412A** 22,800 TDR&TXV 14.00 11.50 23,000 3.76 13,800 2.50 8.4 58CV(A,X)135---22
CSRH*2412A** 22,800 TDR&TXV 14.00 11.70 23,000 3.76 13,800 2.50 8.4 58CV(A,X)155---22

CSRH*3012A** 22,800 TXV 13.00 10.80 20,200 3.26 14,500 2.40 7.8
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.56 13,700 2.50 8.3 58MVB040 ---14
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.50 8.3 58MVB060 ---14
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.56 13,700 2.50 8.3 58MVB080 ---14
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.50 8.3 58MVB080 ---20
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.50 8.3 58MVB100 ---20
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.48 8.3 58MVB120 ---20
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.48 8.3 58CV(A,X)070---12
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.60 13,700 2.50 8.3 58CV(A,X)090---16
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.50 8.3 58CV(A,X)110---20
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.50 8.3 58CV(A,X)135---22
CSRH*3012A** 22,800 TDR&TXV 14.00 11.70 20,200 3.58 13,700 2.50 8.3 58CV(A,X)155---22

See notes on pg. 17

11

COMBINATION RATINGS -- CONTINUED

U n i t S iz e ---

voltage,

25HBR3

Serie

Indoor Model

*FA4CN(F,C)030 28,400 TDR&TXV 13.00 10.80 30,200 3.46 18,700 2.42 8.1

FC4DNF030 28,800 TDR&TXV 13.50 11.20 29,800 3.60 18,300 2.52 8.3

FC4DN(F,B)036 29,200 TDR&TXV 14.00 11.50 29,000 3.58 18,400 2.54 8.4

FF1ENE030 28,200 TDR&TXV 13.00 10.50 30,000 3.44 18,700 2.42 8.0
FF1ENE036 28,800 TDR&TXV 13.00 10.80 29,400 3.44 18,800 2.44 8.1

FK4DNF001 28,400 TDR&TXV 13.50 11.20 29,600 3.50 18,100 2.48 8.1
FK4DNF002 28,600 TDR&TXV 14.00 11.50 29,800 3.66 18,100 2.54 8.4
FK4DNF003 28,800 TDR&TXV 14.00 11.70 29,000 3.60 17,900 2.56 8.4
FK4DNF005 29,800 TDR&TXV 14.00 12.00 25,000 3.46 18,000 2.64 8.5

CAR**3014A** 28,600 TXV 13.00 10.50 29,600 3.44 18,900 2.44 8.1
CAR**3014A** 28,400 TDR&TXV 13.50 11.20 29,200 3.52 18,100 2.50 8.2 58CV(A,X)070---12

CAR**3017A** 28,600 TXV 13.00 10.50 29,600 3.44 18,900 2.44 8.1
CAR**3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.52 18,000 2.50 8.2 58MVB060---14
CAR**3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 17,900 2.52 8.2 58CV(A,X)090---16

CAR**3614A** 28,400 TXV 13.00 10.50 29,400 3.44 18,900 2.44 8.1
CAR**3614A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,100 2.50 8.2 58CV(A,X)070---12

CAR**3617A** 28,600 TXV 13.00 10.50 29,400 3.44 18,900 2.44 8.1
CAR**3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,000 2.52 8.3 58MVB060---14
CAR**3617A** 28,600 TDR&TXV 14.00 11.50 29,000 3.58 17,900 2.52 8.3 58CV(A,X)090---16

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

30---30, 50

CAR**3621A** 28,600 TXV 13.00 10.50 29,400 3.44 18,900 2.44 8.1
CAR**3621A** 28,600 TDR&TXV 14.00 11.50 29,000 3.58 18,000 2.52 8.3 58MVB080---14
CAR**3621A** 28,600 TDR&TXV 14.00 11.50 29,000 3.56 18,000 2.52 8.3 58MVB080---20
CAR**3621A** 28,600 TDR&TXV 14.00 11.50 29,000 3.58 18,000 2.52 8.3 58MVB100---20
CAR**3621A** 28,600 TDR&TXV 14.00 11.50 29,000 3.60 18,000 2.54 8.3 58CV(A,X)110---20

CNRV*3014A** 28,600 TXV 13.00 10.50 29,600 3.44 18,900 2.44 8.1
CNRV*3014A** 28,400 TDR&TXV 13.50 11.20 29,200 3.52 18,100 2.48 8.2 58CV(A,X)070---12

CNRV*3017A** 28,600 TXV 13.00 10.50 29,600 3.44 18,900 2.44 8.1
CNRV*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.52 18,000 2.50 8.2 58MVB060---14
CNRV*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.56 18,000 2.52 8.3 58CV(A,X)090---16

CNRV*3617A** 28,600 TXV 13.00 10.50 29,400 3.46 18,900 2.44 8.1
CNRV*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.52 18,000 2.50 8.2 58MVB060---14
CNRV*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.56 18,000 2.52 8.3 58CV(A,X)090---16

CNRV*3621A** 28,600 TXV 13.00 10.50 29,400 3.46 18,900 2.44 8.1
CNRV*3621A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,100 2.50 8.2 58MVB080---14
CNRV*3621A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,000 2.50 8.2 58MVB080---20
CNRV*3621A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,000 2.52 8.3 58MVB100---20
CNRV*3621A** 28,600 TDR&TXV 14.00 11.50 29,000 3.56 18,000 2.52 8.3 58CV(A,X)110---20

CNRH*3017A** 28,600 TXV 13.00 10.50 29,600 3.44 18,900 2.44 8.1
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.52 18,100 2.50 8.2 58MVB040 ---14
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,000 2.50 8.2 58MVB060 ---14
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,100 2.50 8.2 58MVB080 ---14
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,000 2.50 8.2 58MVB080 ---20
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,000 2.52 8.3 58MVB100 ---20
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,000 2.50 8.2 58MVB120 ---20
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.52 18,100 2.50 8.2 58CV(A,X)070 ---12
CNRH*3017A** 28,400 TDR&TXV 14.00 11.50 29,200 3.56 18,000 2.52 8.3 58CV(A,X)090 ---16
CNRH*3017A** 28,600 TDR&TXV 14.00 11.50 29,200 3.56 18,000 2.52 8.3 58CV(A,X)110 ---20
CNRH*3017A** 28,600 TDR&TXV 14.00 11.50 29,200 3.56 18,000 2.52 8.3 58CV(A,X)135 ---22
CNRH*3017A** 28,600 TDR&TXV 14.00 11.50 29,200 3.58 18,000 2.54 8.3 58CV(A,X)155 ---22

CNRH*3617A** 28,600 TXV 13.00 10.50 29,400 3.44 18,900 2.44 8.1
CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.52 18,100 2.50 8.2 58MVB040 ---14
CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,000 2.50 8.2 58MVB060 ---14
CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,100 2.50 8.2 58MVB080 ---14
CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,000 2.50 8.2 58MVB080 ---20
CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,000 2.52 8.3 58MVB100 ---20

See notes on pg. 17

12

COMBINATION RATINGS -- CONTINUED

U n i t S iz e ---

voltage,

Serie

30---30, 50

Indoor Model

CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.54 18,000 2.50 8.2 58MVB120 ---20
CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.52 18,100 2.50 8.2 58CV(A,X)070 ---12
CNRH*3617A** 28,400 TDR&TXV 14.00 11.50 29,000 3.56 18,000 2.52 8.3 58CV(A,X)090 ---16
CNRH*3617A** 28,600 TDR&TXV 14.00 11.50 29,000 3.56 18,000 2.52 8.3 58CV(A,X)110 ---20
CNRH*3617A** 28,600 TDR&TXV 14.00 11.50 29,000 3.56 18,000 2.52 8.3 58CV(A,X)135 ---22
CNRH*3617A** 28,600 TDR&TXV 14.00 11.50 29,000 3.58 18,000 2.54 8.3 58CV(A,X)155 ---22

CNRF*3618A** 28,600 TXV 13.00 10.50 29,600 3.46 18,900 2.44 8.1

CSRH*3012A** 28,800 TXV 13.00 10.50 29,600 3.46 18,900 2.44 8.1
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,100 2.50 8.2 58MVB040 ---14
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,100 2.50 8.2 58MVB060 ---14
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,100 2.50 8.2 58MVB080 ---14
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,100 2.50 8.3 58MVB080 ---20
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.56 18,100 2.52 8.3 58MVB100 ---20
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,000 2.50 8.2 58MVB120 ---20
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.54 18,100 2.50 8.2 58CV(A,X)070---12
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.56 18,000 2.52 8.3 58CV(A,X)090---16
CSRH*3012A** 28,400 TDR&TXV 14.00 11.50 29,200 3.56 18,100 2.52 8.3 58CV(A,X)110---20
CSRH*3012A** 28,600 TDR&TXV 14.00 11.50 29,200 3.58 18,000 2.52 8.3 58CV(A,X)135---22
CSRH*3012A** 28,600 TDR&TXV 14.00 11.50 29,200 3.58 18,000 2.52 8.3 58CV(A,X)155---22

CSRH*3612A** 28,400 TXV 13.00 10.80 29,000 3.50 19,000 2.48 8.3
CSRH*3612A** 28,600 TDR&TXV 14.00 11.50 28,800 3.62 18,100 2.54 8.4 58MVB040 ---14
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,800 3.62 18,100 2.54 8.4 58MVB060 ---14
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,800 3.62 18,100 2.56 8.4 58MVB080 ---14
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,800 3.62 18,100 2.56 8.4 58MVB080 ---20
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,800 3.64 18,100 2.56 8.5 58MVB100 ---20
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,800 3.64 18,000 2.56 8.4 58MVB120 ---20
CSRH*3612A** 28,600 TDR&TXV 14.00 11.50 28,800 3.62 18,100 2.54 8.4 58CV(A,X)070---12
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,800 3.64 18,000 2.56 8.5 58CV(A,X)090---16
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,600 3.66 18,100 2.56 8.5 58CV(A,X)110---20
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,600 3.66 18,000 2.58 8.5 58CV(A,X)135---22
CSRH*3612A** 28,600 TDR&TXV 14.00 11.70 28,600 3.66 18,000 2.58 8.5 58CV(A,X)155---22

*FC4DN(F,B)036 34,200 TDR&TXV 13.00 --- 11.00 35,200 3.50 21,000 2.46 8.3

FC4DN(F,B)042 35,000 TDR&TXV 13.50 --- 11.20 34,200 3.56 21,200 2.52 8.4

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

25HBR3

36---30, 50,

60

FK4DNF002 33,400 TDR&TXV 13.00 --- 10.80 36,400 3.50 20,800 2.44 8.0
FK4DNF003 33,800 TDR&TXV 13.50 --- 11.20 35,400 3.50 20,600 2.48 8.1
FK4DNF005 35,200 TDR&TXV 14.00 --- 11.50 30,600 3.40 20,600 2.56 8.3

CAR**3614A** 32,400 TDR&TXV 13.00 --- 10.80 34,400 3.40 20,800 2.40 8.0 58CV(A,X)070--- 12

CAR**3617A** 33,400 TDR&TXV 13.20 --- 11.00 35,400 3.42 20,600 2.44 8.0 58MVB060 ---14
CAR**3617A** 33,400 TDR&TXV 13.20 --- 11.00 35,200 3.44 20,600 2.44 8.1 58CV(A,X)090--- 16

CAR**3621A** 33,200 TDR&TXV 13.00 --- 10.80 35,400 3.40 20,800 2.42 8.0 58MVB080 ---14
CAR**3621A** 33,400 TDR&TXV 13.20 --- 10.80 35,400 3.44 20,600 2.44 8.0 58MVB080 ---20
CAR**3621A** 33,400 TDR&TXV 13.20 --- 11.00 35,200 3.44 20,600 2.44 8.1 58MVB100 ---20
CAR**3621A** 33,600 TDR&TXV 13.20 --- 11.00 35,200 3.48 20,600 2.46 8.1 58CV(A,X)110--- 20

CAR**4221A** 33,600 TDR&TXV 13.00 --- 10.80 35,200 3.44 20,800 2.44 8.1 58MVB080 ---14
CAR**4221A** 33,800 TDR&TXV 13.20 --- 11.00 35,200 3.48 20,800 2.46 8.1 58MVB080 ---20
CAR**4221A** 33,800 TDR&TXV 13.20 --- 11.00 35,000 3.50 20,800 2.46 8.1 58MVB100 ---20
CAR**4221A** 33,800 TDR&TXV 13.50 --- 11.20 35,000 3.52 20,600 2.48 8.2 58CV(A,X)110--- 20

CAR**4224A** 33,600 TDR&TXV 13.20 --- 11.00 35,200 3.46 20,800 2.44 8.1 58MVB040 ---14
CAR**4224A** 33,800 TDR&TXV 13.50 --- 11.20 35,000 3.50 20,600 2.46 8.2 58MVB120 ---20
CAR**4224A** 33,800 TDR&TXV 13.50 --- 11.20 35,000 3.52 20,600 2.48 8.2 58CV(A,X)135--- 22
CAR**4224A** 34,000 TDR&TXV 13.50 --- 11.20 34,800 3.56 20,600 2.50 8.3 58CV(A,X)155--- 22

CNRV*3617A** 33,200 TDR&TXV 13.00 --- 10.80 35,400 3.40 20,800 2.42 8.0 58MVB060 ---14
CNRV*3617A** 33,400 TDR&TXV 13.20 --- 11.00 35,200 3.42 20,600 2.44 8.0 58CV(A,X)090 ---16

CNRV*3621A** 33,200 TDR&TXV 13.00 --- 10.70 35,400 3.36 20,800 2.40 7.9 58MVB080 ---14
CNRV*3621A** 33,200 TDR&TXV 13.00 --- 10.80 35,400 3.40 20,800 2.42 8.0 58MVB080 ---20
CNRV*3621A** 33,400 TDR&TXV 13.00 --- 10.80 35,400 3.40 20,800 2.42 8.0 58MVB100 ---20
CNRV*3621A** 33,400 TDR&TXV 13.20 --- 11.00 35,400 3.44 20,800 2.44 8.0 58CV(A,X)110 ---20

See notes on pg. 17

13

COMBINATION RATINGS -- CONTINUED

U n i t S iz e ---

voltage,

Serie

Indoor Model

CNRV*4221A** 33,600 TDR&TXV 13.20 11.00 35,200 3.50 20,600 2.46 8.1 58MVB080---14
CNRV*4221A** 33,800 TDR&TXV 13.50 11.20 35,000 3.50 20,600 2.48 8.2 58MVB080---20
CNRV*4221A** 33,800 TDR&TXV 13.50 11.20 35,000 3.52 20,600 2.48 8.2 58MVB100---20
CNRV*4221A** 33,800 TDR&TXV 13.50 11.20 34,800 3.56 20,600 2.50 8.3 58CV(A,X)110---20

CNRH*3617A** 33,200 TDR&TXV 13.00 10.80 35,400 3.36 20,800 2.40 7.9 58MVB040 ---14
CNRH*3617A** 33,200 TDR&TXV 13.00 10.80 35,400 3.40 20,800 2.42 8.0 58MVB060 ---14
CNRH*3617A** 33,200 TDR&TXV 13.00 10.80 35,400 3.36 20,800 2.40 7.9 58MVB080 ---14
CNRH*3617A** 33,200 TDR&TXV 13.00 10.80 35,400 3.40 20,800 2.42 8.0 58MVB080 ---20
CNRH*3617A** 33,400 TDR&TXV 13.00 10.80 35,400 3.40 20,800 2.42 8.0 58MVB100 ---20
CNRH*3617A** 33,200 TDR&TXV 13.00 10.80 35,400 3.40 20,600 2.42 8.0 58MVB120 ---20
CNRH*3617A** 33,200 TDR&TXV 13.00 10.80 35,200 3.38 20,800 2.40 7.9 58CV(A,X)070 ---12
CNRH*3617A** 33,400 TDR&TXV 13.20 11.00 35,200 3.42 20,600 2.44 8.0 58CV(A,X)090 ---16
CNRH*3617A** 33,400 TDR&TXV 13.00 10.80 35,200 3.42 20,800 2.44 8.0 58CV(A,X)110 ---20
CNRH*3617A** 33,400 TDR&TXV 13.20 11.00 35,200 3.42 20,600 2.44 8.0 58CV(A,X)135 ---22
CNRH*3617A** 33,400 TDR&TXV 13.20 11.00 35,200 3.44 20,600 2.46 8.0 58CV(A,X)155 ---22

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

25HBR3

36---30, 50,

CNRH*4221A** 33,800 TDR&TXV 13.20 11.00 35,200 3.50 20,600 2.46 8.2 58MVB040 ---14
CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 35,000 3.52 20,600 2.48 8.2 58MVB060 ---14
CNRH*4221A** 33,800 TDR&TXV 13.20 11.00 35,200 3.50 20,600 2.46 8.1 58MVB080 ---14
CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 35,000 3.50 20,600 2.48 8.2 58MVB080 ---20
CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 35,000 3.52 20,600 2.48 8.2 58MVB100 ---20
CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 35,000 3.54 20,600 2.50 8.2 58MVB120 ---20
CNRH*4221A** 33,800 TDR&TXV 13.20 11.00 35,200 3.50 20,800 2.46 8.2 58CV(A,X)070 ---12
CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 35,000 3.54 20,600 2.50 8.2 58CV(A,X)090 ---16

60

CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 34,800 3.56 20,600 2.50 8.3 58CV(A,X)110 ---20
CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 34,800 3.58 20,400 2.52 8.3 58CV(A,X)135 ---22
CNRH*4221A** 33,800 TDR&TXV 13.50 11.20 34,800 3.58 20,400 2.52 8.3 58CV(A,X)155 ---22

CSRH*3612A** 33,400 TDR&TXV 13.20 11.00 35,000 3.50 21,000 2.46 8.2 58MVB040 ---14
CSRH*3612A** 33,400 TDR&TXV 13.50 11.20 34,800 3.52 20,800 2.48 8.2 58MVB060 ---14
CSRH*3612A** 33,400 TDR&TXV 13.20 11.00 35,000 3.48 21,000 2.44 8.1 58MVB080 ---14
CSRH*3612A** 33,400 TDR&TXV 13.20 11.00 34,800 3.52 20,800 2.48 8.2 58MVB080 ---20
CSRH*3612A** 33,400 TDR&TXV 13.50 11.20 34,800 3.52 20,800 2.48 8.2 58MVB100 ---20
CSRH*3612A** 33,400 TDR&TXV 13.50 11.20 34,800 3.52 20,800 2.48 8.2 58MVB120 ---20
CSRH*3612A** 33,400 TDR&TXV 13.20 11.00 34,800 3.50 20,800 2.46 8.2 58CV(A,X)070---12
CSRH*3612A** 33,400 TDR&TXV 13.50 11.20 34,800 3.54 20,800 2.48 8.3 58CV(A,X)090---16
CSRH*3612A** 33,400 TDR&TXV 13.50 11.20 34,600 3.54 20,800 2.50 8.3 58CV(A,X)110---20
CSRH*3612A** 33,400 TDR&TXV 13.50 11.20 34,600 3.56 20,800 2.50 8.3 58CV(A,X)135---22
CSRH*3612A** 33,400 TDR&TXV 13.50 11.20 34,600 3.58 20,600 2.52 8.3 58CV(A,X)155---22

CSRH*4212A** 33,400 TDR&TXV 13.20 11.00 34,600 3.50 21,000 2.46 8.2 58MVB040 ---14
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,400 3.54 20,800 2.50 8.3 58MVB060 ---14
CSRH*4212A** 33,400 TDR&TXV 13.20 11.00 34,600 3.50 21,000 2.46 8.2 58MVB080 ---14
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,400 3.54 20,800 2.48 8.3 58MVB080 ---20
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,400 3.54 20,800 2.50 8.3 58MVB100 ---20
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,400 3.54 20,800 2.50 8.3 58MVB120 ---20
CSRH*4212A** 33,400 TDR&TXV 13.20 11.00 34,400 3.52 21,000 2.48 8.2 58CV(A,X)070---12
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,400 3.56 20,800 2.50 8.3 58CV(A,X)090---16
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,200 3.56 20,800 2.50 8.3 58CV(A,X)110---20
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,200 3.58 20,800 2.52 8.3 58CV(A,X)135---22
CSRH*4212A** 33,400 TDR&TXV 13.50 11.20 34,200 3.60 20,600 2.54 8.4 58CV(A,X)155---22

FA4CN(F,C)048 42,500 TDR&TXV 13.00 10.80 43,000 3.60 26,600 2.48 7.9

*FC4DN(F,B)042 42,000 TDR&TXV 13.00 11.00 42,000 3.64 25,800 2.56 8.0

FC4DN(F,B)042 42,500 TDR&TXV 13.50 11.20 42,000 3.64 25,800 2.56 8.1
FC4DN(F,B)048 43,500 TDR&TXV 14.00 11.70 42,000 3.82 25,800 2.64 8.4

42---30, 50,

60

See notes on pg. 17

FK4DNF003 41,000 TDR&TXV 13.50 11.20 40,500 3.48 25,200 2.52 7.8
FK4DNF005 43,000 TDR&TXV 14.00 11.70 41,000 3.70 25,400 2.62 8.2

FK4DNB006 43,500 TDR&TXV 14.00 11.70 41,500 3.82 25,200 2.66 8.4

CAR**4221A** 40,500 TDR&TXV 13.20 11.00 41,000 3.44 25,400 2.48 7.7 58MVB080---14
CAR**4221A** 41,000 TDR&TXV 13.20 11.00 41,000 3.48 25,400 2.50 7.8 58MVB080---20
CAR**4221A** 41,000 TDR&TXV 13.50 11.20 41,000 3.50 25,400 2.50 7.8 58MVB100---20
CAR**4221A** 41,000 TDR&TXV 13.50 11.20 41,000 3.52 25,200 2.52 7.9 58CV(A,X)110---20

14

COMBINATION RATINGS -- CONTINUED

U n i t S iz e ---

voltage,

Serie

Indoor Model

CAR**4224A** 40,500 TDR&TXV 13.20 11.00 41,000 3.44 25,400 2.48 7.7 58MVB040---14

CAR**4224A** 41,000 TDR&TXV 13.50 11.20 41,000 3.50 25,200 2.52 7.8 58MVB120---20

CAR**4224A** 41,000 TDR&TXV 13.50 11.20 40,500 3.54 25,200 2.54 7.9 58CV(A,X)135---22

CAR**4224A** 41,000 TDR&TXV 13.50 11.20 40,500 3.54 25,000 2.54 7.9 58CV(A,X)155---22

CAR**4817A** 42,500 TXV 13.00 10.80 42,500 3.62 26,600 2.50 8.0

CAR**4817A** 42,000 TDR&TXV 13.50 11.20 41,500 3.62 25,600 2.54 8.0 58MVB060---14

CAR**4817A** 42,000 TDR&TXV 13.50 11.20 41,500 3.64 25,400 2.56 8.1 58CV(A,X)090---16

CAR**4821A** 42,000 TXV 13.00 10.80 42,500 3.58 26,400 2.48 7.9

CAR**4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.54 25,600 2.50 7.9 58MVB080---14

CAR**4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.58 25,600 2.54 8.0 58MVB080---20
CAR**4821A** 41,500 TDR&TXV 13.50 11.20 41,000 3.60 25,400 2.54 8.0 58MVB100---20
CAR**4821A** 42,000 TDR&TXV 13.50 11.20 41,000 3.62 25,400 2.56 8.0 58CV(A,X)110---20

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

42---30, 50,

60

CAR**4824A** 42,000 TXV 13.00 10.80 42,500 3.58 26,400 2.48 7.9
CAR**4824A** 41,500 TDR&TXV 13.50 11.20 41,500 3.54 25,600 2.52 7.9 58MVB040---14
CAR**4824A** 41,500 TDR&TXV 13.50 11.20 41,000 3.60 25,400 2.54 8.0 58MVB120---20
CAR**4824A** 42,000 TDR&TXV 14.00 11.50 41,000 3.66 25,200 2.58 8.1 58CV(A,X)135---22
CAR**4824A** 42,000 TDR&TXV 14.00 11.50 41,000 3.64 25,200 2.58 8.1 58CV(A,X)155---22

CNRV*4221A** 40,500 TDR&TXV 13.50 11.20 41,000 3.48 25,400 2.50 7.8 58MVB080---14
CNRV*4221A** 41,000 TDR&TXV 13.50 11.20 41,000 3.52 25,400 2.52 7.8 58MVB080---20
CNRV*4221A** 41,000 TDR&TXV 13.50 11.20 41,000 3.54 25,200 2.54 7.9 58MVB100---20
CNRV*4221A** 41,000 TDR&TXV 14.00 11.50 40,500 3.58 25,200 2.56 8.0 58CV(A,X)110---20
CNRV*4821A** 42,000 TXV 13.00 10.80 42,500 3.58 26,400 2.48 7.9
CNRV*4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.54 25,600 2.52 7.9 58MVB080---14
CNRV*4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.58 25,600 2.54 8.0 58MVB080---20
CNRV*4821A** 41,500 TDR&TXV 13.50 11.20 41,000 3.62 25,400 2.56 8.0 58MVB100---20
CNRV*4821A** 42,000 TDR&TXV 14.00 11.50 41,000 3.64 25,400 2.58 8.1 58CV(A,X)110---20

CNRV*4824A** 42,000 TXV 13.00 10.80 42,500 3.58 26,400 2.48 7.9
CNRV*4824A** 41,500 TDR&TXV 13.50 11.20 41,500 3.56 25,600 2.52 7.9 58MVB040---14
CNRV*4824A** 41,500 TDR&TXV 13.50 11.20 41,000 3.60 25,400 2.56 8.0 58MVB120---20
CNRV*4824A** 42,000 TDR&TXV 14.00 11.50 41,000 3.66 25,200 2.58 8.1 58CV(A,X)135---22
CNRV*4824A** 42,000 TDR&TXV 14.00 11.50 41,000 3.66 25,200 2.60 8.1 58CV(A,X)155---22

CNRH*4221A** 40,500 TDR&TXV 13.50 11.20 41,000 3.50 25,400 2.50 7.8 58MVB040 ---14
CNRH*4221A** 40,500 TDR&TXV 13.50 11.20 41,000 3.52 25,200 2.52 7.9 58MVB060 ---14
CNRH*4221A** 40,500 TDR&TXV 13.50 11.20 41,000 3.48 25,400 2.50 7.8 58MVB080 ---14
CNRH*4221A** 41,000 TDR&TXV 13.50 11.20 41,000 3.52 25,400 2.52 7.8 58MVB080 ---20
CNRH*4221A** 41,000 TDR&TXV 13.50 11.20 41,000 3.54 25,200 2.54 7.9 58MVB100 ---20
CNRH*4221A** 41,000 TDR&TXV 13.50 11.20 40,500 3.54 25,200 2.54 7.9 58MVB120 ---20
CNRH*4221A** 41,000 TDR&TXV 13.50 11.20 41,000 3.48 25,400 2.50 7.8 58CV(A,X)070 ---12
CNRH*4221A** 41,000 TDR&TXV 13.50 11.20 40,500 3.54 25,200 2.54 7.9 58CV(A,X)090 ---16
CNRH*4221A** 41,000 TDR&TXV 14.00 11.50 40,500 3.58 25,200 2.56 8.0 58CV(A,X)110 ---20
CNRH*4221A** 41,000 TDR&TXV 14.00 11.50 40,500 3.60 25,000 2.58 8.0 58CV(A,X)135 ---22
CNRH*4221A** 41,000 TDR&TXV 14.00 11.50 40,500 3.58 25,000 2.58 8.0 58CV(A,X)155 ---22
CNRH*4821A** 42,000 TXV 13.00 10.80 42,500 3.58 26,400 2.48 7.9
CNRH*4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.56 25,600 2.52 7.9 58MVB040 ---14
CNRH*4821A** 41,500 TDR&TXV 13.50 11.20 41,000 3.58 25,400 2.54 8.0 58MVB060 ---14
CNRH*4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.54 25,600 2.52 7.9 58MVB080 ---14
CNRH*4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.58 25,600 2.54 8.0 58MVB080 ---20
CNRH*4821A** 41,500 TDR&TXV 13.50 11.20 41,000 3.62 25,400 2.56 8.0 58MVB100 ---20
CNRH*4821A** 41,500 TDR&TXV 13.50 11.20 41,000 3.60 25,400 2.56 8.0 58MVB120 ---20
CNRH*4821A** 41,500 TDR&TXV 13.50 11.20 41,500 3.56 25,600 2.52 7.9 58CV(A,X)070 ---12
CNRH*4821A** 42,000 TDR&TXV 13.50 11.20 41,000 3.62 25,400 2.56 8.0 58CV(A,X)090 ---16
CNRH*4821A** 42,000 TDR&TXV 14.00 11.50 41,000 3.64 25,400 2.58 8.1 58CV(A,X)110 ---20
CNRH*4821A** 42,000 TDR&TXV 14.00 11.50 41,000 3.66 25,200 2.58 8.1 58CV(A,X)135 ---22
CNRH*4821A** 42,000 TDR&TXV 14.00 11.50 41,000 3.66 25,200 2.60 8.1 58CV(A,X)155 ---22

25HBR3

CSRH*4212A** 40,500 TDR&TXV 13.50 11.20 41,000 3.54 25,600 2.52 7.9 58MVB040 ---14

See notes on pg. 17

15

COMBINATION RATINGS -- CONTINUED

U n i t S iz e ---

voltage,

42---30, 50,

25HBR3

Serie

60

Indoor Model

CSRH*4212A** 41,000 TDR&TXV 13.50 11.20 41,000 3.58 25,600 2.54 8.0 58MVB060 ---14
CSRH*4212A** 40,500 TDR&TXV 13.50 11.20 41,000 3.54 25,600 2.50 7.9 58MVB080 ---14
CSRH*4212A** 41,000 TDR&TXV 13.50 11.20 41,000 3.58 25,600 2.54 8.0 58MVB080 ---20
CSRH*4212A** 41,000 TDR&TXV 13.50 11.20 41,000 3.60 25,600 2.54 8.0 58MVB100 ---20
CSRH*4212A** 41,000 TDR&TXV 13.50 11.20 41,000 3.60 25,400 2.54 8.0 58MVB120 ---20
CSRH*4212A** 41,000 TDR&TXV 13.50 11.20 41,000 3.56 25,600 2.52 7.9 58CV(A,X)070---12
CSRH*4212A** 41,000 TDR&TXV 13.50 11.20 41,000 3.62 25,400 2.56 8.0 58CV(A,X)090---16
CSRH*4212A** 41,000 TDR&TXV 13.50 11.20 41,000 3.62 25,400 2.56 8.0 58CV(A,X)110---20
CSRH*4212A** 41,000 TDR&TXV 14.00 11.50 41,000 3.66 25,400 2.58 8.1 58CV(A,X)135---22
CSRH*4212A** 41,000 TDR&TXV 14.00 11.50 41,000 3.64 25,200 2.58 8.1 58CV(A,X)155---22

CSRH*4812A** 42,500 TXV 13.00 10.80 42,500 3.62 26,600 2.50 8.0
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.56 25,600 2.52 7.9 58MVB040 ---14
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.60 25,600 2.54 8.0 58MVB060 ---14
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.56 25,600 2.52 7.9 58MVB080 ---14
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.60 25,600 2.54 8.0 58MVB080 ---20
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.62 25,600 2.56 8.0 58MVB100 ---20
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,000 3.62 25,400 2.56 8.0 58MVB120 ---20
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.58 25,800 2.52 7.9 58CV(A,X)070---12
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.64 25,400 2.56 8.1 58CV(A,X)090---16
CSRH*4812A** 42,000 TDR&TXV 13.50 11.20 41,500 3.64 25,400 2.56 8.1 58CV(A,X)110---20
CSRH*4812A** 42,000 TDR&TXV 14.00 11.50 41,000 3.68 25,400 2.58 8.1 58CV(A,X)135---22
CSRH*4812A** 42,000 TDR&TXV 14.00 11.50 41,000 3.68 25,400 2.58 8.1 58CV(A,X)155---22

*FC4DN(F,B)048 46,500 TDR&TXV 13.00 11.00 48,000 3.40 30,000 2.54 8.4

FC4DN(F,B)048 46,500 TDR&TXV 13.20 11.00 48,500 3.40 30,000 2.54 8.4
FC4DN(F,B)060 47,500 TDR&TXV 13.50 11.20 48,500 3.48 29,800 2.60 8.6

FK4DNF005 46,000 TDR&TXV 13.50 11.20 47,500 3.30 29,400 2.52 8.2
FK4DNB006 47,000 TDR&TXV 14.00 11.50 47,500 3.42 29,400 2.58 8.4

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

48---30, 50,

60

CAR**4817A** 43,500 TDR&TXV 13.00 10.80 46,500 3.24 29,800 2.46 8.1 58CV(A,X)090---16

CAR**4821A** 44,500 TDR&TXV 13.00 10.80 47,500 3.18 29,800 2.44 8.0 58MVB080---20
CAR**4821A** 44,500 TDR&TXV 13.00 10.80 47,500 3.20 29,600 2.46 8.0 58MVB100---20
CAR**4821A** 44,500 TDR&TXV 13.00 10.80 47,500 3.22 29,600 2.46 8.0 58CV(A,X)110---20

CAR**4824A** 44,500 TDR&TXV 13.00 10.80 47,500 3.20 29,600 2.46 8.0 58MVB120---20
CAR**4824A** 45,000 TDR&TXV 13.20 11.00 47,500 3.24 29,400 2.50 8.1 58CV(A,X)135---22
CAR**4824A** 45,000 TDR&TXV 13.20 11.00 47,500 3.26 29,400 2.50 8.1 58CV(A,X)155---22

CAR**6021A** 45,500 TDR&TXV 13.20 11.00 48,000 3.22 29,800 2.48 8.1 58MVB080---20
CAR**6021A** 46,000 TDR&TXV 13.20 11.00 48,000 3.34 29,600 2.50 8.2 58MVB100---20
CAR**6021A** 46,000 TDR&TXV 13.50 11.20 47,500 3.26 29,600 2.52 8.2 58CV(A,X)110---20

CAR**6024A** 45,500 TDR&TXV 13.20 11.00 47,500 3.22 29,600 2.48 8.1 58MVB120---20
CAR**6024A** 46,000 TDR&TXV 13.50 11.20 47,500 3.28 29,400 2.52 8.2 58CV(A,X)135---22
CAR**6024A** 46,000 TDR&TXV 13.50 11.20 47,500 3.30 29,400 2.54 8.2 58CV(A,X)155---22

CNRV*4821A** 44,500 TDR&TXV 13.00 10.80 47,500 3.18 29,800 2.44 8.0 58MVB080---20
CNRV*4821A** 44,500 TDR&TXV 13.20 10.80 47,500 3.20 31,000 2.96 8.5 58MVB100---20
CNRV*4821A** 44,500 TDR&TXV 13.20 11.00 47,500 3.22 30,800 2.98 8.6 58CV(A,X)110---20

CNRV*4824A** 44,500 TDR&TXV 13.00 10.80 47,500 3.20 31,000 2.96 8.5 58MVB120---20
CNRV*4824A** 45,000 TDR&TXV 13.20 11.00 47,500 3.24 30,800 3.02 8.6 58CV(A,X)135---22
CNRV*4824A** 45,000 TDR&TXV 13.50 11.20 47,500 3.28 30,600 3.04 8.7 58CV(A,X)155---22

CNRV*6024A** 45,500 TDR&TXV 13.20 11.00 47,500 3.22 29,600 2.48 8.1 58MVB120---20
CNRV*6024A** 46,000 TDR&TXV 13.50 11.20 47,500 3.28 29,400 2.52 8.2 58CV(A,X)135---22
CNRV*6024A** 46,000 TDR&TXV 13.50 11.20 47,500 3.30 29,400 2.54 8.2 58CV(A,X)155---22

CNRH*4821A** 44,500 TDR&TXV 13.00 10.80 47,500 3.18 31,000 2.94 8.5 58MVB080 ---20
CNRH*4821A** 44,500 TDR&TXV 13.00 10.80 47,500 3.20 31,000 2.96 8.5 58MVB100 ---20
CNRH*4821A** 44,500 TDR&TXV 13.00 10.80 47,500 3.20 31,000 2.96 8.5 58MVB120 ---20
CNRH*4821A** 45,000 TDR&TXV 13.00 10.80 47,500 3.20 31,000 2.96 8.5 58CV(A,X)090 ---16
CNRH*4821A** 45,000 TDR&TXV 13.20 11.00 47,500 3.22 30,800 2.98 8.6 58CV(A,X)110 ---20
CNRH*4821A** 45,000 TDR&TXV 13.20 11.00 47,500 3.24 30,800 3.02 8.6 58CV(A,X)135 ---22
CNRH*4821A** 45,000 TDR&TXV 13.50 11.20 47,500 3.28 30,600 3.04 8.7 58CV(A,X)155 ---22

See notes on pg. 17

16

COMBINATION RATINGS -- CONTINUED

U n i t S iz e ---

voltage,

Serie

48---30, 50,

60

60---30, 50,

60

* Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:

Cooling Standard: 80_F(27_C) db 67_F(19_C) wb indoor entering air temperature and 95_F(35_C) db air entering outdoor unit.
High---Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 47_F(8_C) db 43˚F(6_C) wb air entering outdoor unit.
Low---Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 17_F(±9_C) db 15˚F(±10_C) wb air entering outdoor unit.

SEER — Seasonal Energy Efficiency Ratio
COP — Coefficient of Performance
TDR — Time---Delay Relay
HSPF — Heating Seasonal Performance Factor
EER — Energy Efficiency Ratio

Indoor Model

CNRH*6024A** 45,500 TDR&TXV 13.20 11.00 47,500 3.22 29,800 2.48 8.0 58MVB080 ---20
CNRH*6024A** 45,500 TDR&TXV 13.20 11.00 47,500 3.24 29,600 2.48 8.1 58MVB100 ---20
CNRH*6024A** 45,500 TDR&TXV 13.20 11.00 47,500 3.22 29,600 2.48 8.1 58MVB120 ---20
CNRH*6024A** 45,500 TDR&TXV 13.20 11.00 47,500 3.24 29,600 2.50 8.1 58CV(A,X)090 ---16
CNRH*6024A** 46,000 TDR&TXV 13.50 11.20 47,500 3.26 29,600 2.50 8.1 58CV(A,X)110 ---20
CNRH*6024A** 46,000 TDR&TXV 13.50 11.20 47,500 3.28 29,400 2.52 8.2 58CV(A,X)135 ---22
CNRH*6024A** 46,000 TDR&TXV 13.50 11.20 47,500 3.30 29,400 2.54 8.2 58CV(A,X)155 ---22

CSRH*4812A** 44,500 TDR&TXV 13.00 10.80 47,500 3.20 31,200 2.94 8.5 58MVB080 ---20
CSRH*4812A** 44,500 TDR&TXV 13.00 10.80 47,500 3.22 31,200 2.96 8.6 58MVB100 ---20
CSRH*4812A** 44,500 TDR&TXV 13.00 10.80 47,500 3.22 31,000 2.96 8.6 58MVB120 ---20
CSRH*4812A** 45,000 TDR&TXV 13.00 10.80 47,500 3.22 31,000 2.96 8.6 58CV(A,X)090---16
CSRH*4812A** 44,500 TDR&TXV 13.20 11.00 47,500 3.24 31,000 2.98 8.6 58CV(A,X)110---20
CSRH*4812A** 44,500 TDR&TXV 13.20 11.00 47,500 3.26 31,000 3.00 8.7 58CV(A,X)135---22
CSRH*4812A** 45,000 TDR&TXV 13.50 11.20 47,500 3.30 30,800 3.02 8.7 58CV(A,X)155---22

CSRH*6012A** 45,500 TDR&TXV 13.20 11.00 48,000 3.26 29,800 2.48 8.1 58MVB080 ---20
CSRH*6012A** 46,000 TDR&TXV 13.20 11.00 48,000 3.28 29,600 2.50 8.2 58MVB100 ---20
CSRH*6012A** 46,000 TDR&TXV 13.50 11.20 47,500 3.26 29,600 2.50 8.1 58MVB120 ---20
CSRH*6012A** 46,000 TDR&TXV 13.50 11.20 47,500 3.28 29,600 2.50 8.2 58CV(A,X)090---16
CSRH*6012A** 46,000 TDR&TXV 13.50 11.20 47,500 3.30 29,600 2.52 8.2 58CV(A,X)110---20
CSRH*6012A** 46,000 TDR&TXV 13.50 11.20 47,500 3.32 29,400 2.54 8.3 58CV(A,X)135---22
CSRH*6012A** 46,000 TDR&TXV 13.50 11.20 47,500 3.34 29,400 2.54 8.3 58CV(A,X)155---22

*FC4DN(F,B)060 59,500 TDR&TXV 13.00 10.80 58,500 3.46 37,200 2.50 7.9

FK4DNB006 58,500 TDR&TXV 13.20 11.00 59,500 3.34 38,000 2.40 7.7
CAR**6024A** 57,500 TDR&TXV 13.00 10.80 58,500 3.38 36,600 2.46 7.7 58CV(A,X)135---22
CAR**6024A** 58,000 TDR&TXV 13.00 10.80 58,500 3.40 36,400 2.48 7.8 58CV(A,X)155---22

CNRV*6024A** 57,500 TDR&TXV 13.00 10.80 59,000 3.36 36,400 2.46 7.7 58CV(A,X)155---22
CNRH*6024A** 57,500 TDR&TXV 13.00 10.80 59,000 3.36 36,400 2.46 7.7 58CV(A,X)155 ---22
CSRH*6012A** 57,500 TDR&TXV 13.00 10.80 59,000 3.42 36,400 2.48 7.8 58CV(A,X)135---22
CSRH*6012A** 58,000 TDR&TXV 13.00 10.80 59,000 3.46 36,400 2.48 7.8 58CV(A,X)155---22

Cooling

Capacity

Enhance

Cooling Heating

Standard

Rating

SEER

TDR

EER

ARI Standard Ratings

High Temp Low Temp

E

Capacity

ECOP

H

Capacity

HCOP

HSPF

Furnace ModelFactory

25HBR3

17

DETAILED COOLING CAPACITIES

EVAPORATOR

AIR

CFM

525

600

675

EW

B

72 20.06 10.33 1.19 19.34 10.06 1.33 18.59 9.77 1.48 17.79 9.46 1.65 16.96 9.15 1.84 16.08 8.83 2.05

67 18.25 12.89 1.19 17.57 12.59 1.33 16.85 12.28 1.48 16.09 11.97 1.65 15.30 11.64 1.83 14.49 11.30 2.04

63 16.94 12.44 1.19 16.28 12.14 1.32 15.59 11.82 1.47 14.88 11.50 1.64 14.13 11.16 1.83 13.35 10.82 2.03

62 16.64 15.38 1.18 16.00 15.05 1.32 15.35 14.70 1.47 14.67 14.33 1.64 13.95 13.95 1.83 13.32 13.32 2.03

57 16.16 16.16 1.18 15.64 15.64 1.32 15.10 15.10 1.47 14.53 14.53 1.64 13.94 13.94 1.83 13.32 13.32 2.03

72 20.39 10.80 1.22 19.65 10.52 1.36 18.87 10.23 1.51 18.05 9.92 1.68 17.19 9.61 1.87 16.29 9.28 2.08

67 18.55 13.67 1.22 17.84 13.37 1.36 17.10 13.06 1.51 16.32 12.74 1.68 15.51 12.40 1.86 14.67 12.05 2.07

63 17.22 13.17 1.21 16.55 12.87 1.35 15.84 12.55 1.50 15.09 12.21 1.67 14.32 11.87 1.86 13.53 11.51 2.06

62 16.98 16.37 1.21 16.34 16.01 1.35 15.66 15.66 1.50 15.04 15.04 1.67 14.41 14.41 1.86 13.76 13.76 2.06

57 16.75 16.75 1.21 16.21 16.21 1.35 15.64 15.64 1.50 15.04 15.04 1.67 14.42 14.42 1.86 13.76 13.76 2.06

72 20.63 11.24 1.25 19.87 10.95 1.39 19.07 10.66 1.54 18.23 10.35 1.71 17.35 10.04 1.90 16.43 9.70 2.11

67 18.77 14.41 1.25 18.05 14.11 1.38 17.28 13.79 1.54 16.49 13.46 1.71 15.66 13.12 1.89 14.80 12.76 2.10

63 17.44 13.87 1.24 16.74 13.55 1.38 16.01 13.23 1.53 15.25 12.89 1.70 14.47 12.53 1.89 13.65 12.16 2.09

62 17.27 17.27 1.24 16.67 16.67 1.38 16.08 16.08 1.53 15.46 15.46 1.70 14.80 14.80 1.89 14.12 14.12 2.09

57 17.24 17.24 1.24 16.68 16.68 1.38 16.08 16.08 1.53 15.46 15.46 1.70 14.81 14.81 1.89 14.13 14.13 2.09

25HBR3

Cooling Indoor Model Capacity Power Furn ace Model

*FA4CN(F,C)018 1.00 1.00

FA4CN(F,C)024 1.01 1.01

FC4DNF018 1.02 0.94

FC4DNF024 1.03 0.93

FF1ENE018 1.00 1.00

FF1ENE024 1.01 1.01

FK4DNF001 1.02 0.92

FK4DNF002 1.04 0.89

CAR**1814A** 0.99 0.99

CAR**2414A** 1.02 1.02

CAR**2417A** 1.02 1.02

CNRF*2418A** 1.02 1.02

CNRH*2417A** 1.02 1.02

CNRV*1814A** 0.99 0.99

CNRV*2414A** 1.02 1.02

CNRV*2417A** 1.02 1.02

CSRH*2412A** 1.02 1.02

CAR**1814A** 0.99 0.91 58CV(A,X)070---12

CAR**2414A** 1.01 0.91 58CV(A,X)070---12

CNRH*2417A** 1.02 0.92 58CV(A,X)070--- 12

CNRV*1814A** 0.99 0.89 58CV(A,X)070--- 12

CNRV*2414A** 1.01 0.91 58CV(A,X)070--- 12

CSRH*2412A** 1.01 0.91 58CV(A,X)070--- 12

CAR**2417A** 1.02 0.92 58CV(A,X)090---16

CNRH*2417A** 1.02 0.92 58CV(A,X)090--- 16

CNRV*2417A** 1.02 0.92 58CV(A,X)090--- 16

CSRH*2412A** 1.02 0.92 58CV(A,X)090--- 16

CNRH*2417A** 1.01 0.91 58MVB040--- 14

CSRH*2412A** 1.01 0.91 58MVB040---14

CAR**2417A** 1.01 0.91 58MVB060 ---14

CNRH*2417A** 1.01 0.91 58MVB060--- 14

CNRV*2417A** 1.01 0.91 58MVB060--- 14

CSRH*2412A** 1.01 0.91 58MVB060---14

CNRH*2417A** 1.02 0.92 58MVB080--- 14

CSRH*2412A** 1.02 0.92 58MVB080---14

75 85 95 105 115 125

Capacity

MBtuh†

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Total
Sys-

tem

KW**

Capacity

MBtuh†

KW**

25HBR318A Outdoor Section With FA4CNF018 Indoor Section

CONDENSER ENTERING AIR TEMPERATURES deg F

Total
Sys-

tem

Capacity

MBtuh†

Total

Sys-

tem

KW**

Capacity

MBtuh†

Total
Sys-

tem

KW**

Capacity

MBtuh†

Total
Sys-

tem

KW**

Capacity

MBtuh†

Total
Sys-

tem

KW**

See notes on pg. 24

18

DETAILED COOLING CAPACITIES -- CONTINUED

EVAPORATOR

AIR

CFM EWB

72 26.55 13.79 1.69 25.58 13.41 1.88 24.57 13.03 2.08 23.52 12.63 2.31 22.41 12.22 2.57 21.24 11.79 2.84

67 24.11 17.20 1.67 23.20 16.81 1.86 22.26 16.42 2.07 21.27 16.00 2.30 20.24 15.57 2.55 19.15 15.12 2.82

700

63 22.37 16.59 1.66 21.51 16.20 1.85 20.61 15.80 2.06 19.67 15.37 2.28 18.69 14.93 2.53 17.65 14.47 2.80

62 22.00 20.58 1.66 21.18 20.15 1.85 20.32 19.70 2.05 19.44 19.21 2.28 18.57 18.57 2.53 17.73 17.73 2.80

57 21.50 21.50 1.66 20.82 20.82 1.85 20.11 20.11 2.05 19.36 19.36 2.28 18.57 18.57 2.53 17.73 17.73 2.80

72 27.00 14.44 1.73 25.99 14.06 1.91 24.95 13.67 2.12 23.86 13.27 2.35 22.71 12.85 2.61 21.51 12.42 2.88

67 24.52 18.28 1.71 23.58 17.89 1.90 22.60 17.49 2.11 21.58 17.07 2.34 20.51 16.62 2.59 19.40 16.16 2.86

800

63 22.75 17.61 1.70 21.86 17.21 1.89 20.93 16.80 2.10 19.97 16.36 2.32 18.95 15.91 2.57 17.89 15.44 2.84

62 22.48 21.96 1.70 21.64 21.50 1.89 20.83 20.83 2.09 20.04 20.04 2.32 19.21 19.21 2.57 18.34 18.34 2.84

57 22.30 22.30 1.70 21.59 21.59 1.89 20.83 20.83 2.09 20.05 20.05 2.32 19.21 19.21 2.57 18.34 18.34 2.84

72 27.33 15.05 1.77 26.29 14.68 1.95 25.22 14.29 2.16 24.10 13.88 2.39 22.93 13.46 2.65 21.69 13.02 2.92

67 24.82 19.32 1.75 23.85 18.92 1.94 22.85 18.51 2.15 21.81 18.07 2.37 20.72 17.62 2.62 19.58 17.15 2.90

900

63 23.03 18.57 1.74 22.12 18.16 1.93 21.17 17.74 2.13 20.18 17.30 2.36 19.15 16.84 2.61 18.07 16.35 2.88

62 22.97 22.97 1.74 22.22 22.22 1.93 21.43 21.43 2.14 20.61 20.61 2.37 19.74 19.74 2.62 18.83 18.83 2.89

57 22.97 22.97 1.74 22.22 22.22 1.93 21.44 21.44 2.14 20.61 20.61 2.37 19.75 19.75 2.62 18.83 18.83 2.89

75 85 95 105 115 125

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

25HBR324A Outdoor Section With FA4CNC024 Indoor Section

CONDENSER ENTERING AIR TEMPERATURES deg F

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

25HBR3

Cooling Indoor Model Capacity Power Fu rnace Model

*FA4CN(F,C)024 1.00 1.00

FA4CN(F,C)030 1.01 1.01

FC4DNF024 1.02 0.96

FC4DNF030 1.03 0.96

FF1ENE030 1.00 1.00

FK4DNF001 1.02 0.94

FK4DNF002 1.03 0.95

FK4DNF003 1.03 0.95

CAR**2414A** 1.01 1.01

CAR**2417A** 1.01 1.01

CAR**3014A** 1.01 1.01

CAR**3017A** 1.01 1.01

CNRF*2418A** 1.01 1.01

CNRH*2417A** 1.01 1.01

CNRH*3017A** 1.01 1.01

CNRV*2414A** 1.01 1.01

CNRV*2417A** 1.01 1.01

CNRV*3014A** 1.01 1.01

CNRV*3017A** 1.01 1.01

CSRH*2412A** 1.01 1.01

CSRH*3012A** 1.01 1.01

CAR**2414A** 1.01 0.95 58CV(A,X)070--- 12

CAR**3014A** 1.01 0.95 58CV(A,X)070--- 12

CNRH*2417A** 1.00 0.94 58CV(A,X)070--- 12

CNRH*3017A** 1.01 0.93 58CV(A,X)070--- 12

CNRV*2414A** 1.00 0.94 58CV(A,X)070 ---12

CNRV*3014A** 1.01 0.95 58CV(A,X)070 ---12

CSRH*2412A** 1.01 0.95 58CV(A,X)070 ---12

CSRH*3012A** 1.01 0.93 58CV(A,X)070 ---12

CAR**2417A** 1.01 0.93 58CV(A,X)090--- 16

CAR**3017A** 1.02 0.94 58CV(A,X)090--- 16

CNRH*2417A** 1.01 0.95 58CV(A,X)090--- 16

CNRH*3017A** 1.02 0.94 58CV(A,X)090--- 16

CNRV*2417A** 1.01 0.95 58CV(A,X)090 ---16

CNRV*3017A** 1.02 0.94 58CV(A,X)090 ---16

CSRH*2412A** 1.01 0.93 58CV(A,X)090 ---16

CSRH*3012A** 1.01 0.93 58CV(A,X)090 ---16

Cooling Indoor Model Capacity Power Fu rnace Model

CNRH*2417A** 1.01 0.95 58CV(A,X)110--- 20

CNRH*3017A** 1.02 0.94 58CV(A,X)110--- 20

CSRH*2412A** 1.01 0.95 58CV(A,X)110 ---20

CSRH*3012A** 1.01 0.93 58CV(A,X)110 ---20

CNRH*2417A** 1.01 0.95 58CV(A,X)135--- 22

CNRH*3017A** 1.02 0.94 58CV(A,X)135--- 22

CSRH*2412A** 1.01 0.95 58CV(A,X)135 ---22

CSRH*3012A** 1.01 0.93 58CV(A,X)135 ---22

CNRH*2417A** 1.01 0.95 58CV(A,X)155--- 22

CNRH*3017A** 1.02 0.94 58CV(A,X)155--- 22

CSRH*2412A** 1.01 0.93 58CV(A,X)155 ---22

CSRH*3012A** 1.01 0.93 58CV(A,X)155 ---22

CNRH*2417A** 1.01 0.95 58MVB040 ---14

CNRH*3017A** 1.01 0.93 58MVB040 ---14

CSRH*2412A** 1.01 0.95 58MVB040--- 14

CSRH*3012A** 1.01 0.93 58MVB040--- 14

CAR**2417A** 1.01 0.95 58MVB060 ---14

CAR**3017A** 1.01 0.93 58MVB060 ---14

CNRH*2417A** 1.01 0.95 58MVB060 ---14

CNRH*3017A** 1.01 0.93 58MVB060 ---14

CNRV*2417A** 1.01 0.95 58MVB060---14

CNRV*3017A** 1.01 0.93 58MVB060---14

CSRH*2412A** 1.01 0.95 58MVB060--- 14

CSRH*3012A** 1.01 0.93 58MVB060--- 14

CNRH*2417A** 1.01 0.95 58MVB080 ---14

CNRH*3017A** 1.01 0.93 58MVB080 ---14

CSRH*2412A** 1.01 0.95 58MVB080--- 14

CSRH*3012A** 1.01 0.93 58MVB080--- 14

CNRH*2417A** 1.01 0.95 58MVB080 ---20

CNRH*3017A** 1.01 0.93 58MVB080 ---20

CSRH*2412A** 1.01 0.95 58MVB080--- 20

CSRH*3012A** 1.01 0.93 58MVB080--- 20

CNRH*2417A** 1.01 0.95 58MVB100 ---20

CNRH*3017A** 1.01 0.93 58MVB100 ---20

CSRH*2412A** 1.01 0.95 58MVB100--- 20

CSRH*3012A** 1.01 0.93 58MVB100--- 20

CNRH*2417A** 1.00 0.94 58MVB120 ---20

CNRH*3017A** 1.01 0.93 58MVB120 ---20

CSRH*2412A** 1.01 0.95 58MVB120--- 20

CSRH*3012A** 1.01 0.93 58MVB120--- 20

See notes on pg. 24

19

DETAILED COOLING CAPACITIES -- CONTINUED

EVAPORATOR

AIR

CFM EWB

72 33.50 17.16 2.08 32.17 16.64 2.33 30.80 16.11 2.60 29.39 15.58 2.90 27.93 15.03 3.23 26.40 14.46 3.59

67 30.45 21.24 2.09 29.23 20.71 2.33 27.96 20.17 2.60 26.66 19.62 2.90 25.30 19.05 3.23 23.88 18.46 3.58

63 28.25 20.51 2.09 27.10 19.98 2.33 25.91 19.44 2.60 24.68 18.88 2.90 23.40 18.30 3.22 22.06 17.70 3.57

875

62 27.76 25.27 2.09 26.65 24.71 2.33 25.51 24.12 2.60 24.34 23.49 2.90 23.14 22.81 3.22 21.95 21.95 3.57

57 26.84 26.84 2.09 25.94 25.94 2.33 25.01 25.01 2.60 24.04 24.04 2.90 23.02 23.02 3.22 21.95 21.95 3.57

72 34.09 17.92 2.13 32.70 17.40 2.37 31.27 16.86 2.65 29.82 16.32 2.95 28.31 15.76 3.28 26.73 15.18 3.63

67 31.00 22.51 2.13 29.72 21.97 2.38 28.40 21.42 2.65 27.06 20.86 2.95 25.65 20.28 3.27 24.19 19.67 3.62

63 28.77 21.70 2.13 27.57 21.16 2.38 26.33 20.61 2.65 25.06 20.04 2.95 23.74 19.44 3.27 22.36 18.83 3.62

1000

62 28.35 26.94 2.13 27.22 26.32 2.38 26.07 25.65 2.65 24.90 24.90 2.95 23.81 23.81 3.27 22.68 22.68 3.62

57 27.86 27.86 2.13 26.91 26.91 2.38 25.92 25.92 2.65 24.89 24.89 2.95 23.82 23.82 3.27 22.69 22.69 3.62

72 34.54 18.65 2.17 33.11 18.12 2.42 31.63 17.57 2.69 30.14 17.03 2.99 28.58 16.46 3.32 26.96 15.88 3.68

67 31.42 23.74 2.18 30.10 23.19 2.42 28.74 22.63 2.69 27.35 22.05 2.99 25.92 21.45 3.32 24.43 20.83 3.67

63 29.16 22.85 2.18 27.93 22.30 2.42 26.66 21.73 2.69 25.36 21.15 2.99 24.00 20.54 3.31 22.59 19.90 3.66

1125

62 28.88 28.40 2.18 27.73 27.73 2.42 26.66 26.66 2.69 25.59 25.59 2.99 24.47 24.47 3.32 23.28 23.28 3.67

57 28.70 28.70 2.18 27.70 27.70 2.42 26.67 26.67 2.69 25.60 25.60 2.99 24.47 24.47 3.32 23.29 23.29 3.67

75 85 95 105 115 125

Capacity

MBtuh†

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Total
Sys-

tem

KW**

Capacity

MBtuh†

25HBR3

Cooling Indoor Model Capacity Powe r Furnace Model

*FA4CN(F,C)030 1.00 1.00

FC4DN(F,B)036 1.03 0.97

FC4DNF030 1.01 0.98
FF1ENE030 0.99 1.02
FF1ENE036 1.01 1.01
FK4DNF001 1.00 0.96
FK4DNF002 1.01 0.95
FK4DNF003 1.01 0.94

FK4DNF005 1.05 0.94
CAR**3014A** 1.01 1.04
CAR**3017A** 1.01 1.04
CAR**3614A** 1.00 1.03
CAR**3617A** 1.01 1.04
CAR**3621A** 1.01 1.04
CNRF*3618A** 1.01 1.04

CNRH*3017A** 1.01 1.04
CNRH*3617A** 1.01 1.04

CNRV*3014A** 1.01 1.04
CNRV*3017A** 1.01 1.04
CNRV*3617A** 1.01 1.04
CNRV*3621A** 1.01 1.04
CSRH*3012A** 1.01 1.04
CSRH*3612A** 1.00 1.00
CAR**3014A** 1.00 0.96 58CV(A ,X)070---12
CAR**3614A** 1.00 0.94 58CV(A ,X)070---12

CNRH*3017A** 1.00 0.94 58CV(A,X)070--- 12
CNRH*3617A** 1.00 0.94 58CV(A,X)070--- 12

CNRV*3014A** 1.00 0.96 58CV(A,X)070--- 12
CSRH*3012A** 1.00 0.94 58CV(A,X)070--- 12
CSRH*3612A** 1.01 0.95 58CV(A,X)070--- 12
CAR**3017A** 1.00 0.94 58CV(A ,X)090---16
CAR**3617A** 1.01 0.95 58CV(A ,X)090---16

CNRH*3017A** 1.00 0.94 58CV(A,X)090--- 16
CNRH*3617A** 1.00 0.94 58CV(A,X)090--- 16

CNRV*3017A** 1.00 0.94 58CV(A,X)090--- 16
CNRV*3617A** 1.00 0.94 58CV(A,X)090--- 16
CSRH*3012A** 1.00 0.94 58CV(A,X)090--- 16
CSRH*3612A** 1.01 0.93 58CV(A,X)090--- 16
CAR**3621A** 1.01 0.95 58CV(A ,X)110---20

CNRH*3017A** 1.01 0.95 58CV(A,X)110--- 20
CNRH*3617A** 1.01 0.95 58CV(A,X)110--- 20

CNRV*3621A** 1.01 0.95 58CV(A,X)110--- 20

25HBR330A Outdoor Section With FA4CNF030 Indoor Section

CONDENSER ENTERING AIR TEMPERATURES deg F

Total
Sys-

tem

KW**

Capacity

MBtuh†

Total

Sys-

tem

KW**

Cooling Indoor Model Capacity Powe r Furn ace Mo del

Capacity

MBtuh†

CSRH*3012A** 1.00 0.94 58CV(A,X)110--- 20
CSRH*3612A** 1.01 0.93 58CV(A,X)110--- 20
CNRH*3017A** 1.01 0.95 58CV(A,X)135--- 22
CNRH*3617A** 1.01 0.95 58CV(A,X)135--- 22
CSRH*3012A** 1.01 0.95 58CV(A,X)135--- 22
CSRH*3612A** 1.01 0.93 58CV(A,X)135--- 22
CNRH*3017A** 1.01 0.95 58CV(A,X)155--- 22
CNRH*3617A** 1.01 0.95 58CV(A,X)155--- 22
CSRH*3012A** 1.01 0.95 58CV(A,X)155--- 22
CSRH*3612A** 1.01 0.93 58CV(A,X)155--- 22
CNRH*3017A** 1.00 0.94 58MVB040 ---14
CNRH*3617A** 1.00 0.94 58MVB040 ---14
CSRH*3012A** 1.00 0.94 58MVB040---14
CSRH*3612A** 1.01 0.95 58MVB040---14

CAR**3017A** 1.00 0.94 58MVB060---14

CAR**3617A** 1.00 0.94 58MVB060---14
CNRH*3017A** 1.00 0.94 58MVB060 ---14
CNRH*3617A** 1.00 0.94 58MVB060 ---14
CNRV*3017A** 1.00 0.94 58MVB060---14
CNRV*3617A** 1.00 0.94 58MVB060---14
CSRH*3012A** 1.00 0.94 58MVB060---14
CSRH*3612A** 1.01 0.93 58MVB060---14

CAR**3621A** 1.01 0.95 58MVB080---14
CNRH*3017A** 1.00 0.94 58MVB080 ---14
CNRH*3617A** 1.00 0.94 58MVB080 ---14
CNRV*3621A** 1.00 0.94 58MVB080---14
CSRH*3012A** 1.00 0.94 58MVB080---14
CSRH*3612A** 1.01 0.93 58MVB080---14

CAR**3621A** 1.01 0.95 58MVB080---20
CNRH*3017A** 1.00 0.94 58MVB080 ---20
CNRH*3617A** 1.00 0.94 58MVB080 ---20
CNRV*3621A** 1.00 0.94 58MVB080---20
CSRH*3012A** 1.00 0.94 58MVB080---20
CSRH*3612A** 1.01 0.93 58MVB080---20

CAR**3621A** 1.01 0.95 58MVB100---20
CNRH*3017A** 1.00 0.94 58MVB100 ---20
CNRH*3617A** 1.00 0.94 58MVB100 ---20
CNRV*3621A** 1.00 0.94 58MVB100---20
CSRH*3012A** 1.00 0.94 58MVB100---20
CSRH*3612A** 1.01 0.93 58MVB100---20
CNRH*3017A** 1.00 0.94 58MVB120 ---20
CNRH*3617A** 1.00 0.94 58MVB120 ---20
CSRH*3012A** 1.00 0.94 58MVB120---20
CSRH*3612A** 1.01 0.93 58MVB120---20

Total
Sys-

tem

KW**

Capacity

MBtuh†

Total
Sys-

tem

KW**

Capacity

MBtuh†

KW**

Total
Sys-

tem

See notes on pg. 24

20

DETAILED COOLING CAPACITIES -- CONTINUED

EVAPORATOR

AIR

CFM EWB

72 40.13 20.97 2.51 38.65 20.40 2.78 37.11 19.82 3.08 35.51 19.21 3.41 33.85 18.59 3.77 32.12 17.95 4.17

67 36.44 25.98 2.49 35.06 25.39 2.76 33.64 24.79 3.06 32.15 24.16 3.39 30.61 23.52 3.75 29.00 22.85 4.14

63 33.79 25.06 2.47 32.49 24.47 2.74 31.14 23.86 3.04 29.74 23.22 3.37 28.28 22.57 3.73 26.75 21.88 4.11

1050

62 33.26 30.90 2.47 32.01 30.25 2.74 30.73 29.57 3.04 29.41 28.83 3.37 28.05 28.05 3.72 26.80 26.80 4.11

57 32.40 32.40 2.47 31.38 31.38 2.74 30.32 30.32 3.03 29.20 29.20 3.36 28.03 28.03 3.72 26.80 26.80 4.12

72 40.86 21.96 2.55 39.32 21.38 2.82 37.73 20.79 3.12 36.08 20.18 3.45 34.36 19.55 3.81 32.56 18.90 4.21

67 37.11 27.60 2.53 35.68 27.00 2.80 34.20 26.38 3.10 32.67 25.74 3.42 31.08 25.08 3.79 29.42 24.39 4.18

63 34.42 26.57 2.51 33.07 25.97 2.78 31.68 25.34 3.08 30.23 24.69 3.41 28.73 24.02 3.76 27.16 23.32 4.15

1200

62 34.02 32.93 2.51 32.76 32.21 2.78 31.46 31.46 3.08 30.26 30.26 3.41 29.03 29.03 3.77 27.74 27.74 4.16

57 33.64 33.64 2.51 32.56 32.56 2.78 31.44 31.44 3.08 30.27 30.27 3.41 29.04 29.04 3.77 27.74 27.74 4.16

72 41.44 22.92 2.59 39.85 22.34 2.86 38.22 21.74 3.16 36.51 21.12 3.49 34.75 20.48 3.85 32.91 19.82 4.25

67 37.65 29.17 2.57 36.17 28.55 2.83 34.65 27.92 3.13 33.08 27.26 3.46 31.45 26.58 3.82 29.76 25.87 4.22

63 34.94 28.04 2.55 33.55 27.42 2.82 32.12 26.78 3.12 30.63 26.11 3.44 29.10 25.42 3.80 27.49 24.68 4.19

1350

62 34.71 34.71 2.55 33.55 33.55 2.82 32.37 32.37 3.12 31.15 31.15 3.45 29.86 29.86 3.81 28.51 28.51 4.21

57 34.68 34.68 2.55 33.55 33.55 2.82 32.38 32.38 3.12 31.15 31.15 3.45 29.87 29.87 3.81 28.52 28.52 4.21

Cooling Indoor Model Capacity Pow er Furnace Model

*FC4DN(F,B)036 1.00 1.00

FC4DN(F,B)042 1.02 0.99

FK4DNF002 0.98 0.98

FK4DNF003 0.99 0.95

FK4DNF005 1.03 0.97

CAR**3614A** 0.95 0.96 58CV(A,X)070 ---12

CNRH*3617A** 0.97 0.99 58CV(A,X)070 ---12

CNRH*4221A** 0.99 0.99 58CV(A,X)070 ---12

CSRH*3612A** 0.98 0.98 58CV(A,X)070--- 12

CSRH*4212A** 0.98 0.98 58CV(A,X)070--- 12

CAR**3617A** 0.98 0.98 58CV(A,X)090 ---16

CNRH*3617A** 0.98 0.98 58CV(A,X)090 ---16

CNRH*4221A** 0.99 0.97 58CV(A,X)090 ---16

CNRV*3617A** 0.98 0.98 58CV(A,X)090--- 16

CSRH*3612A** 0.98 0.96 58CV(A,X)090--- 16

CSRH*4212A** 0.98 0.96 58CV(A,X)090--- 16

CAR**3621A** 0.98 0.98 58CV(A,X)110 ---20

CAR**4221A** 0.99 0.97 58CV(A,X)110 ---20

CNRH*3617A** 0.98 0.99 58CV(A,X)110 ---20

CNRH*4221A** 0.99 0.97 58CV(A,X)110 ---20

CNRV*3621A** 0.98 0.98 58CV(A,X)110--- 20

CNRV*4221A** 0.99 0.97 58CV(A,X)110--- 20

CSRH*3612A** 0.98 0.96 58CV(A,X)110--- 20

CSRH*4212A** 0.98 0.96 58CV(A,X)110--- 20

CAR**4224A** 0.99 0.97 58CV(A,X)135 ---22

CNRH*3617A** 0.98 0.98 58CV(A,X)135 ---22

CNRH*4221A** 0.99 0.97 58CV(A,X)135 ---22

CSRH*3612A** 0.98 0.96 58CV(A,X)135--- 22

CSRH*4212A** 0.98 0.96 58CV(A,X)135--- 22

CAR**4224A** 0.99 0.98 58CV(A,X)155 ---22

CNRH*3617A** 0.98 0.98 58CV(A,X)155 ---22

CNRH*4221A** 0.99 0.97 58CV(A,X)155 ---22

CSRH*3612A** 0.98 0.96 58CV(A,X)155--- 22

CSRH*4212A** 0.98 0.96 58CV(A,X)155--- 22

CAR**4224A** 0.98 0.98 58MVB040 ---14

CNRH*3617A** 0.97 0.99 58MVB040 ---14

CNRH*4221A** 0.99 0.99 58MVB040 ---14

CSRH*3612A** 0.98 0.98 58MVB040---14

CSRH*4212A** 0.98 0.98 58MVB040---14

75 85 95 105 115 125

Capacity

MBtuh†

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Total
Sys-

tem

KW**

Capacity

MBtuh†

25HBR336A Outdoor Section With FC4DNF036 Indoor Section

CONDENSER ENTERING AIR TEMPERATURES deg F

Total
Sys-

tem

KW**

Capacity

MBtuh†

Total

Sys-

tem

KW**

Capacity

MBtuh†

Cooling Indoor Model Capacity Pow er Furnace Model

CAR**3617A** 0.98 0.98 58MVB060 ---14

CNRH*3617A** 0.97 0.99 58MVB060 ---14

CNRH*4221A** 0.99 0.97 58MVB060 ---14

CNRV*3617A** 0.97 0.99 58MVB060---14

CSRH*3612A** 0.98 0.96 58MVB060---14

CSRH*4212A** 0.98 0.96 58MVB060---14

CAR**3621A** 0.97 0.99 58MVB080 ---14

CAR**4221A** 0.98 1.00 58MVB080 ---14

CNRH*3617A** 0.97 0.99 58MVB080 ---14

CNRH*4221A** 0.99 0.99 58MVB080 ---14

CNRV*3621A** 0.97 1.00 58MVB080---14

CNRV*4221A** 0.98 0.98 58MVB080---14

CSRH*3612A** 0.98 0.98 58MVB080---14

CSRH*4212A** 0.98 0.98 58MVB080---14

CAR**3621A** 0.98 0.99 58MVB080 ---20

CAR**4221A** 0.99 0.99 58MVB080 ---20

CNRH*3617A** 0.97 0.99 58MVB080 ---20

CNRH*4221A** 0.99 0.97 58MVB080 ---20

CNRV*3621A** 0.97 0.99 58MVB080---20

CNRV*4221A** 0.99 0.97 58MVB080---20

CSRH*3612A** 0.98 0.98 58MVB080---20

CSRH*4212A** 0.98 0.96 58MVB080---20

CAR**3621A** 0.98 0.98 58MVB100 ---20

CAR**4221A** 0.99 0.99 58MVB100 ---20

CNRH*3617A** 0.98 0.99 58MVB100 ---20

CNRH*4221A** 0.99 0.97 58MVB100 ---20

CNRV*3621A** 0.98 0.99 58MVB100---20

CNRV*4221A** 0.99 0.97 58MVB100---20

CSRH*3612A** 0.98 0.96 58MVB100---20

CSRH*4212A** 0.98 0.96 58MVB100---20

CAR**4224A** 0.99 0.97 58MVB120 ---20

CNRH*3617A** 0.97 0.99 58MVB120 ---20

CNRH*4221A** 0.99 0.97 58MVB120 ---20

CSRH*3612A** 0.98 0.96 58MVB120---20

CSRH*4212A** 0.98 0.96 58MVB120---20

Total
Sys-

tem

KW**

Capacity

MBtuh†

Total
Sys-

tem

KW**

Capacity

MBtuh†

Total
Sys-

tem

KW**

25HBR3

See notes on pg. 24

21

DETAILED COOLING CAPACITIES -- CONTINUED

EVAPORATOR

AIR

CFM EWB

72 49.23 25.32 3.00 47.42 24.61 3.30 45.55 23.89 3.63 43.63 23.15 4.01 41.65 22.40 4.42 39.62 21.64 4.88
67 44.67 31.16 2.96 42.99 30.43 3.26 41.24 29.68 3.59 39.45 28.92 3.96 37.62 28.15 4.37 35.75 27.36 4.82

1225

1400

1575

63 41.32 30.04 2.93 39.73 29.30 3.23 38.09 28.55 3.56 36.40 27.78 3.93 34.69 27.01 4.33 32.95 26.23 4.78
62 40.55 36.90 2.93 39.01 36.12 3.22 37.43 35.32 3.55 35.83 34.48 3.92 34.22 33.60 4.33 32.62 32.62 4.78
57 39.14 39.14 2.92 37.92 37.92 3.21 36.64 36.64 3.54 35.33 35.33 3.91 33.99 33.99 4.32 32.61 32.61 4.78
72 50.21 26.50 3.05 48.33 25.79 3.35 46.39 25.05 3.69 44.39 24.31 4.06 42.33 23.55 4.48 40.23 22.78 4.93
67 45.57 33.08 3.02 43.81 32.34 3.31 42.00 31.58 3.65 40.14 30.80 4.02 38.24 30.01 4.43 36.31 29.21 4.88
63 42.18 31.85 2.99 40.52 31.10 3.28 38.81 30.33 3.61 37.07 29.55 3.98 35.29 28.76 4.39 33.49 27.95 4.84
62 41.51 39.43 2.98 39.94 38.59 3.28 38.34 37.69 3.61 36.72 36.72 3.98 35.27 35.27 4.39 33.81 33.81 4.85
57 40.75 40.75 2.98 39.44 39.44 3.28 38.09 38.09 3.61 36.70 36.70 3.98 35.28 35.28 4.39 33.82 33.82 4.85
72 50.96 27.62 3.11 49.02 26.89 3.41 47.02 26.16 3.74 44.96 25.40 4.12 42.85 24.63 4.53 40.68 23.85 4.99
67 46.25 34.91 3.07 44.44 34.15 3.37 42.58 33.38 3.70 40.66 32.59 4.07 38.71 31.78 4.48 36.73 30.96 4.93
63 42.85 33.58 3.04 41.14 32.81 3.34 39.38 32.02 3.67 37.58 31.22 4.03 35.76 30.40 4.44 33.91 29.58 4.89
62 42.37 41.66 3.04 40.77 40.77 3.34 39.31 39.31 3.67 37.85 37.85 4.04 36.36 36.36 4.45 34.82 34.82 4.91
57 42.11 42.11 3.04 40.74 40.74 3.33 39.32 39.32 3.67 37.86 37.86 4.04 36.36 36.36 4.45 34.83 34.83 4.91

75 85 95 105 115 125

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Sens

Total

‡

25HBR342A Outdoor Section With FC4DNF042 Indoor Section

CONDENSER ENTERING AIR TEMPERATURES deg F

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Cooling Indoor Model Capacity Power Furnace Model

*FC4DN(F,B)042 1.00 1.00

25HBR3

FA4CN(F,C)048 1.01 1.03

FC4DN(F,B)042 1.01 0.99

FC4DN(F,B)048 1.04 0.97

FK4DNB006 1.04 0.97

FK4DNF003 0.98 0.96

FK4DNF005 1.02 0.96

CAR**4817A** 1.01 1.03

CAR**4821A** 1.00 1.02

CAR**4824A** 1.00 1.02

CNRH*4821A** 1.00 1.02

CNRV*4821A** 1.00 1.02

CNRV*4824A** 1.00 1.02

CSRH*4812A** 1.01 1.03

CNRH*4221A** 0.98 0.96 58CV(A,X)070---12

CNRH*4821A** 0.99 0.97 58CV(A,X)070---12

CSRH*4212A** 0.98 0.96 58CV(A,X)070 ---12

CSRH*4812A** 1.00 0.98 58CV(A,X)070 ---12

CAR**4817A** 1.00 0.98 58CV(A,X)090--- 16

CNRH*4221A** 0.98 0.96 58CV(A,X)090---16

CNRH*4821A** 1.00 0.98 58CV(A,X)090---16

CSRH*4212A** 0.98 0.96 58CV(A,X)090 ---16

CSRH*4812A** 1.00 0.98 58CV(A,X)090 ---16

CAR**4221A** 0.98 0.96 58CV(A,X)110--- 20

CAR**4821A** 1.00 0.98 58CV(A,X)110--- 20

CNRH*4221A** 0.98 0.93 58CV(A,X)110---20

CNRH*4821A** 1.00 0.96 58CV(A,X)110---20

CNRV*4221A** 0.98 0.93 58CV(A,X)110 ---20

CNRV*4821A** 1.00 0.96 58CV(A,X)110 ---20

CSRH*4212A** 0.98 0.96 58CV(A,X)110 ---20

CSRH*4812A** 1.00 0.98 58CV(A,X)110 ---20

CAR**4224A** 0.98 0.96 58CV(A,X)135--- 22

CAR**4824A** 1.00 0.96 58CV(A,X)135--- 22

CNRH*4221A** 0.98 0.93 58CV(A,X)135---22

CNRH*4821A** 1.00 0.96 58CV(A,X)135---22

CNRV*4824A** 1.00 0.96 58CV(A,X)135 ---22

CSRH*4212A** 0.98 0.93 58CV(A,X)135 ---22

CSRH*4812A** 1.00 0.96 58CV(A,X)135 ---22

CAR**4224A** 0.98 0.96 58CV(A,X)155--- 22

CAR**4824A** 1.00 0.96 58CV(A,X)155--- 22

CNRH*4221A** 0.98 0.93 58CV(A,X)155---22

CNRH*4821A** 1.00 0.96 58CV(A,X)155---22

CNRV*4824A** 1.00 0.96 58CV(A,X)155 ---22

CSRH*4212A** 0.98 0.93 58CV(A,X)155 ---22

CSRH*4812A** 1.00 0.96 58CV(A,X)155 ---22

Cooling Indoor Model Capacity Power Furnace Model

CAR**4224A** 0.96 0.96 58MVB040 ---14

CAR**4824A** 0.99 0.97 58MVB040 ---14

CNRH*4221A** 0.96 0.95 58MVB040 ---14

CNRH*4821A** 0.99 0.97 58MVB040 ---14

CNRV*4824A** 0.99 0.97 58MVB040---14

CSRH*4212A** 0.96 0.95 58MVB040---14

CSRH*4812A** 1.00 0.98 58MVB040---14

CAR**4817A** 1.00 0.98 58MVB060 ---14

CNRH*4221A** 0.96 0.95 58MVB060 ---14

CNRH*4821A** 0.99 0.97 58MVB060 ---14

CSRH*4212A** 0.98 0.96 58MVB060---14

CSRH*4812A** 1.00 0.98 58MVB060---14

CAR**4221A** 0.96 0.96 58MVB080 ---14

CAR**4821A** 0.99 0.97 58MVB080 ---14

CNRH*4221A** 0.96 0.95 58MVB080 ---14

CNRH*4821A** 0.99 0.97 58MVB080 ---14

CNRV*4221A** 0.96 0.95 58MVB080---14

CNRV*4821A** 0.99 0.97 58MVB080---14

CSRH*4212A** 0.96 0.95 58MVB080---14

CSRH*4812A** 1.00 0.98 58MVB080---14

CAR**4221A** 0.98 0.98 58MVB080 ---20

CAR**4821A** 0.99 0.97 58MVB080 ---20

CNRH*4221A** 0.98 0.96 58MVB080 ---20

CNRH*4821A** 0.99 0.97 58MVB080 ---20

CNRV*4221A** 0.98 0.96 58MVB080---20

CNRV*4821A** 0.99 0.97 58MVB080---20

CSRH*4212A** 0.98 0.96 58MVB080---20

CSRH*4812A** 1.00 0.98 58MVB080---20

CAR**4221A** 0.98 0.96 58MVB100 ---20

CAR**4821A** 0.99 0.97 58MVB100 ---20

CNRH*4221A** 0.98 0.96 58MVB100 ---20

CNRH*4821A** 0.99 0.97 58MVB100 ---20

CNRV*4221A** 0.98 0.96 58MVB100---20

CNRV*4821A** 0.99 0.97 58MVB100---20

CSRH*4212A** 0.98 0.96 58MVB100---20

CSRH*4812A** 1.00 0.98 58MVB100---20

CAR**4224A** 0.98 0.96 58MVB120 ---20

CAR**4824A** 0.99 0.97 58MVB120 ---20

CNRH*4221A** 0.98 0.96 58MVB120 ---20

CNRH*4821A** 0.99 0.97 58MVB120 ---20

CNRV*4824A** 0.99 0.97 58MVB120---20

CSRH*4212A** 0.98 0.96 58MVB120---20

CSRH*4812A** 1.00 0.98 58MVB120---20

See notes on pg. 24

22

DETAILED COOLING CAPACITIES -- CONTINUED

EVAPORATOR AIR

CFM EWB

72 54.52 28.06 3.28 52.55 27.30 3.65 50.50 26.51 4.06 48.34 25.68 4.51 46.08 24.83 5.01 43.71 23.94 5.55
67 49.39 34.55 3.25 47.56 33.76 3.62 45.65 32.94 4.03 43.64 32.09 4.47 41.55 31.21 4.97 39.34 30.29 5.50

1400

1600

1800

63 45.73 33.33 3.23 44.01 32.53 3.59 42.20 31.71 4.00 40.31 30.85 4.45 38.33 29.95 4.93 36.24 29.02 5.46
62 44.91 41.01 3.22 43.25 40.17 3.59 41.51 39.29 4.00 39.70 38.34 4.44 37.84 37.31 4.93 35.99 35.99 5.45
57 43.46 43.46 3.22 42.11 42.11 3.58 40.70 40.70 3.99 39.21 39.21 4.44 37.64 37.64 4.93 35.99 35.99 5.45
72 55.63 29.41 3.34 53.59 28.64 3.71 51.45 27.83 4.12 49.21 27.00 4.58 46.87 26.13 5.07 44.41 25.23 5.61
67 50.39 36.73 3.31 48.49 35.93 3.68 46.50 35.09 4.09 44.42 34.22 4.54 42.25 33.32 5.03 39.98 32.39 5.56
63 46.66 35.37 3.29 44.88 34.56 3.65 43.00 33.71 4.06 41.04 32.84 4.51 38.99 31.92 4.99 36.84 30.97 5.52
62 45.97 43.87 3.28 44.27 42.96 3.65 42.52 41.96 4.06 40.75 40.75 4.51 39.08 39.08 5.00 37.34 37.34 5.53
57 45.23 45.23 3.28 43.81 43.81 3.65 42.32 42.32 4.06 40.74 40.74 4.51 39.09 39.09 5.00 37.34 37.34 5.53
72 56.49 30.69 3.40 54.38 29.90 3.77 52.18 29.09 4.18 49.87 28.24 4.64 47.46 27.37 5.13 44.93 26.46 5.67
67 51.16 38.81 3.37 49.20 37.99 3.74 47.15 37.14 4.15 45.02 36.26 4.60 42.79 35.34 5.09 40.46 34.37 5.62
63 47.39 37.31 3.35 45.54 36.48 3.71 43.61 35.62 4.12 41.60 34.72 4.57 39.50 33.79 5.05 37.30 32.81 5.58
62 46.92 46.37 3.34 45.24 45.24 3.71 43.67 43.67 4.12 42.02 42.02 4.57 40.29 40.29 5.06 38.46 38.46 5.60
57 46.72 46.72 3.34 45.23 45.23 3.71 43.67 43.67 4.12 42.02 42.02 4.57 40.29 40.29 5.06 38.47 38.47 5.60

Cooling Indoor Model Capacity Power Furn ace Model

*FC4DN(F,B)048 1.00 1.00

FC4DN(F,B)048 1.00 1.00
FC4DN(F,B)060 1.02 1.00

FK4DNB006 1.01 0.97
FK4DNF005 0.99 0.97

CAR**4817A** 0.94 0.95 58CV(A,X)090--16
CNRH*4821A** 0.97 0.99 58CV(A,X)090--16
CNRH*6024A** 0.98 0.98 58CV(A,X)090--16
CSRH*4812A** 0.97 0.99 58CV(A,X)090-- 16
CSRH*6012A** 0.99 0.97 58CV(A,X)090-- 16

CAR**4821A** 0.96 0.97 58CV(A,X)110--20

CAR**6021A** 0.99 0.97 58CV(A,X)110--20
CNRH*4821A** 0.97 0.97 58CV(A,X)110--20
CNRH*6024A** 0.99 0.97 58CV(A,X)110--20
CNRV*4821A** 0.96 0.96 58CV(A,X)110--20
CSRH*4812A** 0.96 0.96 58CV(A,X)110--20
CSRH*6012A** 0.99 0.97 58CV(A,X)110--20

CAR**4824A** 0.97 0.97 58CV(A,X)135--22

CAR**6024A** 0.99 0.97 58CV(A,X)135--22
CNRH*4821A** 0.97 0.97 58CV(A,X)135--22
CNRH*6024A** 0.99 0.97 58CV(A,X)135--22
CNRV*4824A** 0.97 0.97 58CV(A,X)135--22
CNRV*6024A** 0.99 0.97 58CV(A,X)135--22
CSRH*4812A** 0.96 0.96 58CV(A,X)135-- 22
CSRH*6012A** 0.99 0.97 58CV(A,X)135-- 22

CAR**4824A** 0.97 0.97 58CV(A,X)155--22

CAR**6024A** 0.99 0.97 58CV(A,X)155--22
CNRH*4821A** 0.97 0.95 58CV(A,X)155--22
CNRH*6024A** 0.99 0.97 58CV(A,X)155--22
CNRV*4824A** 0.97 0.95 58CV(A,X)155--22
CNRV*6024A** 0.99 0.97 58CV(A,X)155--22
CSRH*4812A** 0.97 0.95 58CV(A,X)155-- 22
CSRH*6012A** 0.99 0.97 58CV(A,X)155-- 22

CAR**4821A** 0.96 0.97 58MVB080--20

CAR**6021A** 0.98 0.98 58MVB080--20
CNRH*4821A** 0.96 0.97 58MVB080--20
CNRH*6024A** 0.98 0.98 58MVB080--20
CNRV*4821A** 0.96 0.97 58MVB080--20
CSRH*4812A** 0.96 0.97 58MVB080--20
CSRH*6012A** 0.98 0.98 58MVB080--20

CAR**4821A** 0.96 0.97 58MVB100--20

CAR**6021A** 0.99 0.99 58MVB100--20
CNRH*4821A** 0.96 0.97 58MVB100--20
CNRH*6024A** 0.98 0.98 58MVB100--20
CNRV*4821A** 0.96 0.97 58MVB100--20
CSRH*4812A** 0.96 0.97 58MVB100--20
CSRH*6012A** 0.99 0.99 58MVB100--20

CAR**4824A** 0.96 0.97 58MVB120--20

CAR**6024A** 0.98 0.98 58MVB120--20
CNRH*4821A** 0.96 0.97 58MVB120--20
CNRH*6024A** 0.98 0.98 58MVB120--20
CNRV*4824A** 0.96 0.97 58MVB120--20
CNRV*6024A** 0.98 0.98 58MVB120--20
CSRH*4812A** 0.96 0.97 58MVB120--20
CSRH*6012A** 0.99 0.97 58MVB120--20

75 85 95 105 115 125

Capacity

MBtuh†

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Total

System

KW**

Capacity

MBtuh†

25HBR348A Outdoor Section With FC4DNF048 Indoor Section

CONDENSER ENTERING AIR TEMPERATURES deg F

Total

System

KW**

Capacity

MBtuh†

Total

System

KW**

Capacity

MBtuh†

Total

System

KW**

Capacity

MBtuh†

Total

System

KW**

Capacity

MBtuh†

Total

System

KW**

25HBR3

See notes on pg. 24

23

DETAILED COOLING CAPACITIES -- CONTINUED

EVAPORATOR

AIR

CFM EWB

72 69.61 35.82 4.46 67.00 34.80 4.88 64.31 33.76 5.34 61.53 32.71 5.85 58.62 31.62 6.41 55.59 30.48 7.02
67 63.45 44.44 4.39 61.04 43.40 4.81 58.55 42.34 5.27 55.98 41.25 5.78 53.30 40.13 6.33 50.49 38.96 6.93

1750

2000

2250

25HBR3

63 58.99 42.98 4.34 56.74 41.94 4.76 54.40 40.87 5.21 51.98 39.77 5.72 49.46 38.64 6.27 46.83 37.46 6.87
62 57.89 52.98 4.33 55.72 51.90 4.74 53.47 50.76 5.20 51.16 49.56 5.71 48.78 48.25 6.26 46.47 46.47 6.87
57 56.07 56.07 4.31 54.33 54.33 4.73 52.50 52.50 5.19 50.59 50.59 5.70 48.58 48.58 6.26 46.47 46.47 6.87
72 70.84 37.47 4.56 68.11 36.44 4.98 65.32 35.40 5.44 62.44 34.33 5.95 59.43 33.22 6.51 56.30 32.08 7.12
67 64.59 47.19 4.49 62.08 46.14 4.91 59.50 45.06 5.36 56.84 43.96 5.87 54.05 42.81 6.43 51.16 41.61 7.03
63 60.09 45.56 4.44 57.75 44.51 4.85 55.31 43.42 5.31 52.80 42.30 5.82 50.19 41.14 6.37 47.48 39.94 6.97
62 59.16 56.66 4.43 56.93 55.47 4.84 54.66 54.15 5.30 52.43 52.43 5.81 50.30 50.30 6.37 48.06 48.06 6.98
57 58.28 58.28 4.42 56.43 56.43 4.84 54.48 54.48 5.30 52.44 52.44 5.81 50.31 50.31 6.37 48.06 48.06 6.98
72 71.75 39.04 4.66 68.93 38.00 5.07 66.06 36.95 5.53 63.10 35.87 6.05 60.01 34.75 6.61 56.79 33.60 7.21
67 65.44 49.83 4.58 62.86 48.76 5.00 60.20 47.66 5.46 57.46 46.53 5.97 54.61 45.35 6.52 51.65 44.13 7.13
63 60.91 48.02 4.53 58.49 46.94 4.95 55.99 45.83 5.40 53.41 44.69 5.91 50.74 43.50 6.46 47.96 42.27 7.06
62 60.29 59.79 4.53 58.14 58.14 4.94 56.08 56.08 5.41 53.95 53.95 5.92 51.71 51.71 6.48 49.36 49.36 7.09
57 60.11 60.11 4.53 58.14 58.14 4.94 56.09 56.09 5.41 53.95 53.95 5.92 51.72 51.72 6.48 49.36 49.36 7.09

Cooling Indoor Model Capacity Power Furnac e Mod el

*FC4DN(F,B)060 1.00 1.00

FK4DNB006 0.98 0.97

CAR**6024A** 0.97 0.97 58CV(A,X)135--- 22

CSRH*6012A** 0.97 0.97 58CV(A,X)135 ---22

CAR**6024A** 0.97 0.97 58CV(A,X)155--- 22

CNRH*6024A** 0.97 0.97 58CV(A,X)155 ---22

CNRV*6024A** 0.97 0.97 58CV(A,X)155---22

CSRH*6012A** 0.97 0.97 58CV(A,X)155 ---22

75 85 95 105 115 125

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

25HBR360A Outdoor Section With FC4DNF060 Indoor Section

CONDENSER ENTERING AIR TEMPERATURES deg F

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

Capacity

MBtuh†

Total

Sens

‡

Total

System

KW**

NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240---94. If additional tubing length and/or

indoor unit is located above outdoor unit, a slight variation in capacity may occur.

{ Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
} Sensible capacities shown are based on 80_F(27_C) entering air at the indoor coil. For sensible capacities at other than 80_F(27_C), deduct 835 Btuh

(245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80_F(27_C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air
per degree above 80_F(27_C).

** System kw is total of indoor and outdoor unit kilowatts.
{{ At TVA rating indoor condition (75_F edb/63_F ewb). All other indoor air temperatures are at 80_F edb.
EWB — Entering Wet Bulb

24

HEAT PUMP HEATING PERFORMANCE

INDOOR AIR

EDB CFM

525 9.66 8.89 1.25 12.20 11.21 1.31 15.14 13.80 1.38 17.80 15.81 1.44 18.43 16.77 1.46 17.95 17.95 1.44 17.03 17.03 1.42 15.87 15.87 1.38

600 9.85 9.06 1.27 12.42 11.41 1.32 15.39 14.04 1.38 17.70 15.72 1.43 17.72 16.12 1.43 17.05 17.05 1.41 16.00 16.00 1.39 14.42 14.42 1.35

65

675 10.02 9.22 1.29 12.62 11.60 1.33 15.62 14.24 1.39 17.60 15.63 1.43 17.01 15.48 1.42 16.40 16.40 1.41 15.20 15.20 1.38 13.52 13.52 1.35

525 9.43 8.68 1.31 11.94 10.97 1.37 14.84 13.53 1.44 17.79 15.80 1.52 19.11 17.39 1.56 18.81 18.81 1.54 18.21 18.21 1.52 17.62 17.62 1.50

600 9.62 8.85 1.33 12.15 11.17 1.38 15.10 13.77 1.45 17.82 15.83 1.51 18.44 16.78 1.52 18.00 18.00 1.51 17.34 17.34 1.49 16.32 16.32 1.47

70

675 9.79 9.01 1.35 12.35 11.35 1.40 15.32 13.97 1.46 17.80 15.81 1.51 17.96 16.34 1.51 17.40 17.40 1.50 16.62 16.62 1.48 15.45 15.45 1.45

525 9.19 8.45 1.37 11.68 10.73 1.44 14.53 13.25 1.51 17.67 15.70 1.60 19.47 17.72 1.65 19.53 19.53 1.65 19.14 19.14 1.63 18.57 18.57 1.61

600 9.38 8.63 1.39 11.89 10.93 1.45 14.78 13.48 1.51 17.81 15.81 1.59 19.06 17.34 1.62 18.78 18.78 1.61 18.15 18.15 1.59 17.76 17.76 1.58

75

675 9.55 8.79 1.41 12.08 11.10 1.46 15.00 13.68 1.52 17.87 15.87 1.59 18.61 16.94 1.61 18.22 18.22 1.59 17.74 17.74 1.58 16.92 16.92 1.56

Heating Indoor Model Capacity Pow er Furnace Model

*FA4CN(F,C)018 1.00 1.00

FC4DNF018 0.97 0.90

FC4DNF024 0.86 0.84

FF1ENE018 1.00 1.00

FF1ENE024 0.87 0.92

FK4DNF001 0.81 0.82

FK4DNF002 0.81 0.80

CAR**1814A** 1.01 1.03

CAR**2414A** 0.87 0.92

CAR**2417A** 0.87 0.92

CNRF*2418A** 0.87 0.89

CNRH*2417A** 0.87 0.89

CNRV*1814A** 0.96 0.96

CNRV*2414A** 0.87 0.89

CNRV*2417A** 0.87 0.89

CSRH*2412A** 0.82 0.89

CAR**1814A** 1.00 0.95 58CV(A,X)070---12

CAR**2414A** 0.87 0.83 58CV(A,X)070---12

CNRH*2417A** 0.87 0.80 58CV(A,X)070---12

CNRV*1814A** 0.95 0.86 58CV(A,X)070 --- 12

CNRV*2414A** 0.87 0.80 58CV(A,X)070 --- 12

CSRH*2412A** 0.82 0.80 58CV(A,X)070 --- 12

CAR**2417A** 0.87 0.83 58CV(A,X)090---16

CNRH*2417A** 0.87 0.80 58CV(A,X)090---16

CNRV*2417A** 0.87 0.80 58CV(A,X)090 --- 16

CSRH*2412A** 0.82 0.80 58CV(A,X)090 --- 16

CNRH*2417A** 0.87 0.80 58MVB040 ---14

CSRH*2412A** 0.82 0.80 58MVB040--- 14

CAR**2417A** 0.87 0.83 58MVB060---14

CNRH*2417A** 0.87 0.80 58MVB060 ---14

CNRV*2417A** 0.87 0.80 58MVB060--- 14

CSRH*2412A** 0.82 0.80 58MVB060--- 14

CNRH*2417A** 0.87 0.80 58MVB080 ---14

CSRH*2412A** 0.82 0.80 58MVB080--- 14

--- 3 7 17 27 37 47 57 67

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

OUTDOOR COIL ENTERING AIR TEMPERATURES deg F

Capacity

Tot a l

MBtuh

Sys-

tem

In-

KW†

teg*

25HBR318A Outdoor Section With FA4CNF018 Indoor Section

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l

Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

25HBR3

See notes on pg. 31

25

HEAT PUMP HEATING PERFORMANCE -- CONTINUED

INDOOR AIR

EDB CFM

700 9.96 9.16 1.51 12.42 11.42 1.58 15.20 13.86 1.66 18.29 16.24 1.75 21.61 19.66 1.85 24.08 24.08 1.94 26.42 26.42 2.02 26.97 26.97 2.04

800 10.14 9.33 1.53 12.62 11.60 1.59 15.43 14.07 1.66 18.54 16.47 1.75 21.54 19.60 1.83 23.60 23.60 1.90 24.52 24.52 1.93 23.37 23.37 1.88

65

900 10.31 9.48 1.56 12.80 11.77 1.61 15.63 14.25 1.67 18.77 16.67 1.76 21.32 19.40 1.82 23.08 23.08 1.88 22.88 22.88 1.87 22.24 22.24 1.85

700 9.70 8.92 1.58 12.19 11.20 1.65 14.92 13.61 1.73 18.01 16.00 1.83 21.41 19.49 1.96 24.16 24.16 2.04 26.65 26.65 2.13 28.10 28.10 2.19

800 9.88 9.09 1.60 12.38 11.38 1.67 15.15 13.82 1.74 18.26 16.22 1.83 21.54 19.60 1.92 23.80 23.80 2.00 25.64 25.64 2.06 25.56 25.56 2.05

70

900 10.05 9.25 1.62 12.56 11.54 1.68 15.36 14.00 1.75 18.48 16.42 1.84 21.47 19.53 1.92 23.41 23.41 1.98 24.03 24.03 2.00 23.70 23.70 1.98

700 9.40 8.65 1.64 11.93 10.96 1.73 14.65 13.35 1.81 17.71 15.73 1.92 21.10 19.20 2.04 24.24 24.24 2.15 26.78 26.78 2.25 29.06 29.06 2.34

800 9.59 8.82 1.66 12.13 11.15 1.74 14.88 13.56 1.82 17.96 15.95 1.91 21.36 19.43 2.02 23.92 23.92 2.10 26.17 26.17 2.19 26.68 26.68 2.20

75

900 9.76 8.98 1.69 12.31 11.31 1.76 15.08 13.75 1.83 18.18 16.15 1.92 21.48 19.54 2.01 23.62 23.62 2.08 25.00 25.00 2.13 24.91 24.91 2.12

--- 3 7 17 27 37 47 57 67

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

OUTDOOR COIL ENTERING AIR TEMPERATURES deg F

Capacity

Tot a l

MBtuh

Sys-

tem

In-

KW†

teg*

25HBR324A Outdoor Section With FA4CNC024 Indoor Section

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l

Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Heating Indoor Model Capacity Powe r Furna ce Mod el

*FA4CN(F,C)024 1.00 1.00

FA4CN(F,C)030 0.95 0.97

FC4DNF024 0.98 0.93

FC4DNF030 0.93 0.90

FF1ENE030 0.99 0.99

FK4DNF001 0.95 0.92

FK4DNF002 0.95 0.88

25HBR3

FK4DNF003 0.87 0.86

CAR**2414A** 1.00 0.99

CAR**2417A** 1.00 0.99

CAR**3014A** 0.87 0.93

CAR**3017A** 0.87 0.93

CNRF*2418A** 1.00 0.96

CNRH*2417A** 1.00 0.96

CNRH*3017A** 0.87 0.93

CNRV*2414A** 1.00 0.96

CNRV*2417A** 1.00 0.96

CNRV*3014A** 0.87 0.93

CNRV*3017A** 0.87 0.93

CSRH*2412A** 0.97 0.96

CSRH*3012A** 0.85 0.92

CAR**2414A** 1.00 0.95 58CV(A,X)070--- 12

CAR**3014A** 0.92 0.91 58CV(A,X)070--- 12

CNRH*2417A** 0.99 0.92 58CV(A,X)070--- 12

CNRH*3017A** 0.87 0.85 58CV(A,X)070--- 12

CNRV*2414A** 1.00 0.92 58CV(A,X)070 ---12

CNRV*3014A** 0.87 0.85 58CV(A,X)070 ---12

CSRH*2412A** 0.97 0.91 58CV(A,X)070 ---12

CSRH*3012A** 0.85 0.84 58CV(A,X)070 ---12

CAR**2417A** 0.99 0.93 58CV(A,X)090--- 16

CAR**3017A** 0.87 0.85 58CV(A,X)090--- 16

CNRH*2417A** 0.99 0.91 58CV(A,X)090--- 16

CNRH*3017A** 0.87 0.84 58CV(A,X)090--- 16

CNRV*2417A** 0.99 0.91 58CV(A,X)090 ---16

CNRV*3017A** 0.87 0.84 58CV(A,X)090 ---16

CSRH*2412A** 0.97 0.90 58CV(A,X)090 ---16

CSRH*3012A** 0.85 0.83 58CV(A,X)090 ---16

CNRH*2417A** 0.99 0.91 58CV(A,X)110--- 20

CNRH*3017A** 0.87 0.84 58CV(A,X)110--- 20

CSRH*2412A** 0.97 0.91 58CV(A,X)110 ---20

CSRH*3012A** 0.85 0.84 58CV(A,X)110 ---20

CNRH*2417A** 0.99 0.91 58CV(A,X)135--- 22

CNRH*3017A** 0.87 0.84 58CV(A,X)135--- 22

CSRH*2412A** 0.97 0.91 58CV(A,X)135 ---22

CSRH*3012A** 0.85 0.83 58CV(A,X)135 ---22

CNRH*2417A** 0.99 0.91 58CV(A,X)155--- 22

CNRH*3017A** 0.87 0.84 58CV(A,X)155--- 22

CSRH*2412A** 0.97 0.91 58CV(A,X)155 ---22

CSRH*3012A** 0.85 0.83 58CV(A,X)155 ---22

Heating Indoor Model Capacity Powe r Furna ce Mod el

CNRH*2417A** 0.99 0.91 58MVB040---14

CNRH*3017A** 0.87 0.85 58MVB040---14

CSRH*2412A** 0.97 0.91 58MVB040---14

CSRH*3012A** 0.85 0.84 58MVB040---14

CAR**2417A** 0.99 0.93 58MVB060 ---14

CAR**3017A** 0.87 0.85 58MVB060 ---14

CNRH*2417A** 0.99 0.91 58MVB060---14

CNRH*3017A** 0.87 0.85 58MVB060---14

CNRV*2417A** 0.99 0.91 58MVB060---14

CNRV*3017A** 0.87 0.85 58MVB060---14

CSRH*2412A** 0.97 0.91 58MVB060---14

CSRH*3012A** 0.85 0.83 58MVB060---14

CNRH*2417A** 0.99 0.91 58MVB080---14

CNRH*3017A** 0.87 0.85 58MVB080---14

CSRH*2412A** 0.97 0.91 58MVB080---14

CSRH*3012A** 0.85 0.84 58MVB080---14

CNRH*2417A** 0.99 0.91 58MVB080---20

CNRH*3017A** 0.87 0.85 58MVB080---20

CSRH*2412A** 0.97 0.91 58MVB080---20

CSRH*3012A** 0.85 0.84 58MVB080---20

CNRH*2417A** 0.99 0.91 58MVB100---20

CNRH*3017A** 0.87 0.84 58MVB100---20

CSRH*2412A** 0.97 0.91 58MVB100---20

CSRH*3012A** 0.85 0.84 58MVB100---20

CNRH*2417A** 0.99 0.92 58MVB120---20

CNRH*3017A** 0.87 0.85 58MVB120---20

CSRH*2412A** 0.97 0.91 58MVB120---20

CSRH*3012A** 0.85 0.84 58MVB120---20

See notes on pg. 31

26

HEAT PUMP HEATING PERFORMANCE -- CONTINUED

INDOOR AIR

EDB CFM

875 12.29 11.31 1.99 15.26 14.02 2.07 18.47 16.84 2.15 22.03 19.57 2.25 26.00 23.66 2.38 30.08 30.08 2.50 33.89 33.89 2.61 38.13 38.13 2.78

1000 12.52 11.51 2.02 15.50 14.24 2.09 18.74 17.09 2.15 22.33 19.84 2.25 26.35 23.98 2.37 30.08 30.08 2.44 33.69 33.69 2.56 36.45 36.45 2.65

65

1125 12.72 11.70 2.05 15.69 14.42 2.11 18.98 17.30 2.17 22.60 20.07 2.26 26.64 24.24 2.37 29.95 29.95 2.42 33.52 33.52 2.53 34.52 34.52 2.56

875 11.96 11.00 2.08 14.96 13.75 2.17 18.17 16.57 2.25 21.71 19.28 2.36 25.65 23.34 2.50 29.88 29.88 2.64 33.78 33.78 2.75 37.90 37.90 2.92

1000 12.18 11.21 2.10 15.20 13.97 2.18 18.43 16.80 2.26 22.01 19.55 2.35 25.99 23.65 2.48 30.00 30.00 2.58 33.60 33.60 2.69 37.40 37.40 2.83

70

1125 12.39 11.40 2.13 15.42 14.17 2.20 18.66 17.01 2.27 22.27 19.78 2.36 26.28 23.92 2.47 29.96 29.96 2.55 33.48 33.48 2.66 35.74 35.74 2.73

875 11.60 10.67 2.16 14.65 13.46 2.26 17.88 16.30 2.36 21.38 18.99 2.47 25.30 23.02 2.61 29.59 29.59 2.78 33.66 33.66 2.89 37.69 37.69 3.06

1000 11.82 10.88 2.18 14.89 13.68 2.28 18.14 16.54 2.36 21.69 19.26 2.46 25.64 23.33 2.59 29.79 29.79 2.72 33.58 33.58 2.83 37.52 37.52 2.98

75

1125 12.03 11.07 2.21 15.11 13.88 2.30 18.37 16.75 2.37 21.94 19.49 2.47 25.93 23.59 2.59 29.91 29.91 2.68 33.41 33.41 2.79 36.71 36.71 2.91

--- 3 7 17 27 37 47 57 67

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

OUTDOOR COIL ENTERING AIR TEMPERATURES deg F

Capacity

Tot a l

MBtuh

Sys-

tem

In-

KW†

teg*

25HBR330A Outdoor Section With FA4CNF030 Indoor Section

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l

Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Heating Indoor Model Capacity Po wer Furnace Model

*FA4CN(F,C)030 1.00 1.00

FC4DN(F,B)036 0.96 0.92

FC4DNF030 0.99 0.95

FF1ENE030 0.99 1.00

FF1ENE036 0.97 0.98

FK4DNF001 0.98 0.97

FK4DNF002 0.99 0.93

FK4DNF003 0.96 0.92

FK4DNF005 0.83 0.82

CAR**3014A** 0.98 0.98

CAR**3017A** 0.98 0.99

CAR**3614A** 0.97 0.98

CAR**3617A** 0.97 0.98

CAR**3621A** 0.97 0.98

CNRF*3618A** 0.98 0.98

CNRH*3017A** 0.98 0.98

CNRH*3617A** 0.97 0.98

CNRV*3014A** 0.98 0.98

CNRV*3017A** 0.98 0.98

CNRV*3617A** 0.97 0.97

CNRV*3621A** 0.97 0.97

CSRH*3012A** 0.98 0.98

CSRH*3612A** 0.96 0.95

CAR**3014A** 0.97 0.95 58CV(A,X)070 ---12

CAR**3614A** 0.97 0.94 58CV(A,X)070 ---12

CNRH*3017A** 0.97 0.95 58CV(A,X)070 ---12

CNRH*3617A** 0.96 0.94 58CV(A,X)070 ---12

CNRV*3014A** 0.97 0.95 58CV(A,X)070---12

CSRH*3012A** 0.97 0.94 58CV(A,X)070---12

CSRH*3612A** 0.95 0.91 58CV(A,X)070---12

CAR**3017A** 0.97 0.94 58CV(A,X)090 ---16

CAR**3617A** 0.96 0.93 58CV(A,X)090 ---16

CNRH*3017A** 0.97 0.94 58CV(A,X)090 ---16

CNRH*3617A** 0.96 0.93 58CV(A,X)090 ---16

CNRV*3017A** 0.97 0.94 58CV(A,X)090---16

CNRV*3617A** 0.96 0.93 58CV(A,X)090---16

CSRH*3012A** 0.97 0.94 58CV(A,X)090---16

CSRH*3612A** 0.95 0.90 58CV(A,X)090---16

CAR**3621A** 0.96 0.92 58CV(A,X)110 ---20

CNRH*3017A** 0.97 0.94 58CV(A,X)110 ---20

CNRH*3617A** 0.96 0.93 58CV(A,X)110 ---20

CNRV*3621A** 0.96 0.93 58CV(A,X)110---20

CSRH*3012A** 0.97 0.94 58CV(A,X)110---20

CSRH*3612A** 0.95 0.90 58CV(A,X)110---20

CNRH*3017A** 0.97 0.94 58CV(A,X)135 ---22

CNRH*3617A** 0.96 0.93 58CV(A,X)135 ---22

CSRH*3012A** 0.97 0.93 58CV(A,X)135---22

CSRH*3612A** 0.95 0.89 58CV(A,X)135---22

CNRH*3017A** 0.97 0.93 58CV(A,X)155 ---22

CNRH*3617A** 0.96 0.93 58CV(A,X)155 ---22

CSRH*3012A** 0.97 0.93 58CV(A,X)155---22

CSRH*3612A** 0.95 0.89 58CV(A,X)155---22

Heating Indoor Model Capacity Po wer Furnace Model

CNRH*3017A** 0.97 0.95 58MVB040--- 14

CNRH*3617A** 0.96 0.94 58MVB040--- 14

CSRH*3012A** 0.97 0.95 58MVB040 ---14

CSRH*3612A** 0.95 0.91 58MVB040 ---14

CAR**3017A** 0.97 0.95 58MVB060---14

CAR**3617A** 0.96 0.93 58MVB060---14

CNRH*3017A** 0.97 0.95 58MVB060--- 14

CNRH*3617A** 0.96 0.94 58MVB060--- 14

CNRV*3017A** 0.97 0.95 58MVB060 ---14

CNRV*3617A** 0.96 0.94 58MVB060 ---14

CSRH*3012A** 0.97 0.94 58MVB060 ---14

CSRH*3612A** 0.95 0.91 58MVB060 ---14

CAR**3621A** 0.96 0.93 58MVB080---14

CNRH*3017A** 0.97 0.94 58MVB080--- 14

CNRH*3617A** 0.96 0.94 58MVB080--- 14

CNRV*3621A** 0.96 0.94 58MVB080 ---14

CSRH*3012A** 0.97 0.94 58MVB080 ---14

CSRH*3612A** 0.95 0.91 58MVB080 ---14

CAR**3621A** 0.96 0.93 58MVB080---20

CNRH*3017A** 0.97 0.94 58MVB080--- 20

CNRH*3617A** 0.96 0.94 58MVB080--- 20

CNRV*3621A** 0.96 0.94 58MVB080 ---20

CSRH*3012A** 0.97 0.94 58MVB080 ---20

CSRH*3612A** 0.95 0.91 58MVB080 ---20

CAR**3621A** 0.96 0.93 58MVB100---20

CNRH*3017A** 0.97 0.94 58MVB100--- 20

CNRH*3617A** 0.96 0.93 58MVB100--- 20

CNRV*3621A** 0.96 0.93 58MVB100 ---20

CSRH*3012A** 0.97 0.94 58MVB100 ---20

CSRH*3612A** 0.95 0.90 58MVB100 ---20

CNRH*3017A** 0.97 0.94 58MVB120--- 20

CNRH*3617A** 0.96 0.94 58MVB120--- 20

CSRH*3012A** 0.97 0.94 58MVB120 ---20

CSRH*3612A** 0.95 0.91 58MVB120 ---20

25HBR3

See notes on pg. 31

27

HEAT PUMP HEATING PERFORMANCE -- CONTINUED

INDOOR AIR

EDB CFM

1050 14.65 13.48 2.24 18.17 16.70 2.34 22.00 20.06 2.45 26.27 23.33 2.59 31.04 28.25 2.77 35.48 35.48 2.89 39.50 39.50 3.04 43.82 43.82 3.21

1200 14.85 13.66 2.25 18.38 16.89 2.34 22.25 20.29 2.44 26.56 23.59 2.57 31.27 28.45 2.73 35.09 35.09 2.82 38.97 38.97 2.96 41.96 41.96 3.06

65

1350 15.02 13.82 2.27 18.57 17.06 2.35 22.47 20.48 2.44 26.83 23.83 2.57 31.26 28.45 2.69 34.70 34.70 2.78 38.35 38.35 2.90 39.33 39.33 2.93

1050 14.28 13.13 2.33 17.84 16.39 2.45 21.66 19.75 2.56 25.90 23.00 2.71 30.63 27.87 2.89 35.40 35.40 3.04 39.43 39.43 3.19 43.93 43.93 3.38

1200 14.48 13.32 2.34 18.05 16.59 2.45 21.90 19.97 2.55 26.18 23.25 2.69 30.95 28.16 2.86 35.20 35.20 2.97 39.03 39.03 3.10 43.12 43.12 3.26

70

1350 14.66 13.48 2.36 18.24 16.76 2.46 22.12 20.17 2.55 26.43 23.47 2.68 31.08 28.29 2.83 34.83 34.83 2.92 38.53 38.53 3.05 40.75 40.75 3.12

1050 13.88 12.77 2.43 17.49 16.07 2.55 21.33 19.45 2.68 25.51 22.66 2.83 30.21 27.49 3.02 35.16 35.16 3.20 39.39 39.39 3.35 43.91 43.91 3.55

1200 14.08 12.96 2.44 17.71 16.27 2.55 21.57 19.67 2.67 25.80 22.91 2.81 30.55 27.80 2.98 35.20 35.20 3.12 39.02 39.02 3.26 43.25 43.25 3.43

75

1350 14.27 13.13 2.46 17.90 16.45 2.56 21.78 19.86 2.67 26.05 23.13 2.80 30.82 28.05 2.97 34.87 34.87 3.07 43.01 43.01 3.17 42.03 42.03 3.33

--- 3 7 17 27 37 47 57 67

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

OUTDOOR COIL ENTERING AIR TEMPERATURES deg F

Capacity

Tot a l

MBtuh

Sys-

tem

In-

KW†

teg*

25HBR336A Outdoor Section With FC4DNF036 Indoor Section

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l

Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Heating Indoor Model Capac ity Pow er Furnac e Mode l

25HBR3

*FC4DN(F,B)036 1.00 1.00

FC4DN(F,B)042 0.97 0.95

FK4DNF002 1.03 1.03

FK4DNF003 1.01 1.00

FK4DNF005 0.87 0.89

CAR**3614A** 0.98 1.00 58CV(A,X)070---12

CNRH*3617A** 1.00 1.03 58CV(A,X)070 ---12

CNRH*4221A** 1.00 1.00 58CV(A,X)070 ---12

CSRH*3612A** 0.99 0.99 58CV(A,X)070 ---12

CSRH*4212A** 0.98 0.97 58CV(A,X)070 ---12

CAR**3617A** 1.00 1.01 58CV(A,X)090---16

CNRH*3617A** 1.00 1.02 58CV(A,X)090 ---16

CNRH*4221A** 0.99 0.98 58CV(A,X)090 ---16

CNRV*3617A** 1.00 1.02 58CV(A,X)090 ---16

CSRH*3612A** 0.99 0.97 58CV(A,X)090 ---16

CSRH*4212A** 0.98 0.96 58CV(A,X)090 ---16

CAR**3621A** 1.00 1.01 58CV(A,X)110---20

CAR**4221A** 0.99 0.99 58CV(A,X)110---20

CNRH*3617A** 1.00 1.02 58CV(A,X)110 ---20

CNRH*4221A** 0.99 0.97 58CV(A,X)110 ---20

CNRV*3621A** 1.01 1.02 58CV(A,X)110 ---20

CNRV*4221A** 0.99 0.97 58CV(A,X)110 ---20

CSRH*3612A** 0.98 0.97 58CV(A,X)110 ---20

CSRH*4212A** 0.97 0.95 58CV(A,X)110 ---20

CAR**4224A** 0.99 0.98 58CV(A,X)135---22

CNRH*3617A** 1.00 1.02 58CV(A,X)135 ---22

CNRH*4221A** 0.99 0.97 58CV(A,X)135 ---22

CSRH*3612A** 0.98 0.97 58CV(A,X)135 ---22

CSRH*4212A** 0.97 0.95 58CV(A,X)135 ---22

CAR**4224A** 0.99 0.97 58CV(A,X)155---22

CNRH*3617A** 1.00 1.01 58CV(A,X)155 ---22

CNRH*4221A** 0.99 0.96 58CV(A,X)155 ---22

CSRH*3612A** 0.98 0.96 58CV(A,X)155 ---22

CSRH*4212A** 0.97 0.94 58CV(A,X)155 ---22

CAR**4224A** 1.00 1.01 58MVB040 ---14

CNRH*3617A** 1.01 1.04 58MVB040---14

CNRH*4221A** 1.00 1.00 58MVB040---14

CSRH*3612A** 0.99 0.99 58MVB040 ---14

CSRH*4212A** 0.98 0.98 58MVB040 ---14

CAR**3617A** 1.01 1.02 58MVB060 ---14

CNRH*3617A** 1.01 1.03 58MVB060---14

CNRH*4221A** 0.99 0.99 58MVB060---14

CNRV*3617A** 1.01 1.03 58MVB060 ---14

CSRH*3612A** 0.99 0.98 58MVB060 ---14

CSRH*4212A** 0.98 0.96 58MVB060 ---14

Heating Indoor Model Capac ity Pow er Furnac e Mode l

CAR**3621A** 1.01 1.03 58MVB080 ---14

CAR**4221A** 1.00 1.01 58MVB080 ---14

CNRH*3617A** 1.01 1.05 58MVB080---14

CNRH*4221A** 1.00 1.00 58MVB080---14

CNRV*3621A** 1.01 1.04 58MVB080 ---14

CNRV*4221A** 1.00 1.00 58MVB080 ---14

CSRH*3612A** 0.99 1.00 58MVB080 ---14

CSRH*4212A** 0.98 0.98 58MVB080 ---14

CAR**3621A** 1.01 1.02 58MVB080 ---20

CAR**4221A** 1.00 1.00 58MVB080 ---20

CNRH*3617A** 1.01 1.03 58MVB080---20

CNRH*4221A** 0.99 0.99 58MVB080---20

CNRV*3621A** 1.01 1.03 58MVB080 ---20

CNRV*4221A** 0.99 0.99 58MVB080 ---20

CSRH*3612A** 0.99 0.98 58MVB080 ---20

CSRH*4212A** 0.98 0.97 58MVB080 ---20

CAR**3621A** 1.00 1.01 58MVB100 ---20

CAR**4221A** 0.99 0.99 58MVB100 ---20

CNRH*3617A** 1.01 1.03 58MVB100---20

CNRH*4221A** 0.99 0.98 58MVB100---20

CNRV*3621A** 1.01 1.03 58MVB100 ---20

CNRV*4221A** 0.99 0.98 58MVB100 ---20

CSRH*3612A** 0.99 0.98 58MVB100 ---20

CSRH*4212A** 0.98 0.96 58MVB100 ---20

CAR**4224A** 0.99 0.99 58MVB120 ---20

CNRH*3617A** 1.01 1.03 58MVB120---20

CNRH*4221A** 0.99 0.98 58MVB120---20

CSRH*3612A** 0.99 0.98 58MVB120 ---20

CSRH*4212A** 0.98 0.96 58MVB120 ---20

See notes on pg. 31

28

HEAT PUMP HEATING PERFORMANCE -- CONTINUED

INDOOR AIR OUTDOOR COIL ENTERING AIR TEMPERATURES deg F

EDB CFM

1225 16.93 15.57 2.59 21.12 19.41 2.71 25.62 23.36 2.82 30.49 27.08 2.96 35.96 32.73 3.12 42.05 42.05 3.31 49.11 49.11 3.55 57.15 57.15 3.84

1400 17.18 15.81 2.62 21.39 19.66 2.72 25.91 23.63 2.82 30.84 27.39 2.94 36.39 33.11 3.09 42.57 42.57 3.26 49.79 49.79 3.49 57.36 57.36 3.68

65

1575 17.41 16.02 2.64 21.63 19.88 2.74 26.17 23.86 2.83 31.16 27.67 2.94 36.78 33.47 3.08 43.01 43.01 3.24 50.31 50.31 3.46 57.19 57.19 3.60

1225 16.47 15.15 2.70 20.71 19.04 2.83 25.24 23.01 2.95 30.10 26.73 3.09 35.49 32.29 3.26 41.54 41.54 3.46 48.41 48.41 3.70 56.37 56.37 4.01

1400 16.73 15.39 2.72 21.00 19.29 2.84 25.54 23.29 2.95 30.42 27.02 3.07 35.90 32.67 3.22 42.00 42.00 3.41 49.08 49.08 3.63 56.87 56.87 3.87

70

1575 16.97 15.61 2.75 21.24 19.52 2.85 25.80 23.52 2.95 30.71 27.28 3.07 36.25 32.99 3.21 42.42 42.42 3.38 49.58 49.58 3.60 56.90 56.90 3.77

1225 15.94 14.67 2.80 20.29 18.65 2.95 24.86 22.66 3.09 29.73 26.40 3.23 35.02 31.87 3.40 41.01 41.01 3.61 47.74 47.74 3.86 55.57 55.57 4.19

1400 16.21 14.92 2.83 20.57 18.90 2.96 25.15 22.93 3.08 30.05 26.69 3.21 35.42 32.24 3.37 41.50 41.50 3.56 48.38 48.38 3.79 56.31 56.31 4.07

75

1575 16.46 15.14 2.85 20.82 19.13 2.98 25.42 23.17 3.09 30.33 26.94 3.21 35.77 32.55 3.35 41.90 41.90 3.53 48.90 48.90 3.75 56.49 56.49 3.96

--- 3 7 17 27 37 47 57 67

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

In-

Tot a l

teg*

25HBR342A Outdoor Section With FC4DNF042 Indoor Section

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l

Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Heating Indoor Model Capa city Powe r Fu rnace Model

*FC4DN(F,B)042 1.00 1.00

FA4CN(F,C)048 1.02 1.04

FC4DN(F,B)042 1.00 1.00

FC4DN(F,B)048 1.00 0.95

FK4DNB006 0.99 0.94

FK4DNF003 0.96 1.01

FK4DNF005 0.98 0.96

CAR**4817A** 1.01 1.02

CAR**4821A** 1.01 1.03

CAR**4824A** 1.01 1.03

CNRH*4821A** 1.01 1.03

CNRV*4821A** 1.01 1.03

CNRV*4824A** 1.01 1.03

CSRH*4812A** 1.01 1.02

CNRH*4221A** 0.98 1.02 58CV(A,X)070--- 12

CNRH*4821A** 0.99 1.01 58CV(A,X)070--- 12

CSRH*4212A** 0.98 1.00 58CV(A,X)070 --- 12

CSRH*4812A** 0.99 1.01 58CV(A,X)070 --- 12

CAR**4817A** 0.99 0.99 58CV(A,X)090 ---16

CNRH*4221A** 0.96 0.99 58CV(A,X)090--- 16

CNRH*4821A** 0.98 0.98 58CV(A,X)090--- 16

CSRH*4212A** 0.98 0.98 58CV(A,X)090 --- 16

CSRH*4812A** 0.99 0.99 58CV(A,X)090 --- 16

CAR**4221A** 0.98 1.01 58CV(A,X)110 ---20

CAR**4821A** 0.98 0.98 58CV(A,X)110 ---20

CNRH*4221A** 0.96 0.98 58CV(A,X)110--- 20

CNRH*4821A** 0.98 0.98 58CV(A,X)110--- 20

CNRV*4221A** 0.96 0.98 58CV(A,X)110 ---20

CNRV*4821A** 0.98 0.98 58CV(A,X)110 ---20

CSRH*4212A** 0.98 0.98 58CV(A,X)110 --- 20

CSRH*4812A** 0.99 0.99 58CV(A,X)110 --- 20

CAR**4224A** 0.96 0.99 58CV(A,X)135 ---22

CAR**4824A** 0.98 0.97 58CV(A,X)135 ---22

CNRH*4221A** 0.96 0.98 58CV(A,X)135--- 22

CNRH*4821A** 0.98 0.97 58CV(A,X)135--- 22

CNRV*4824A** 0.98 0.97 58CV(A,X)135 ---22

CSRH*4212A** 0.98 0.97 58CV(A,X)135 --- 22

CSRH*4812A** 0.98 0.97 58CV(A,X)135 --- 22

CAR**4224A** 0.96 0.99 58CV(A,X)155 ---22

CAR**4824A** 0.98 0.97 58CV(A,X)155 ---22

CNRH*4221A** 0.96 0.98 58CV(A,X)155--- 22

CNRH*4821A** 0.98 0.97 58CV(A,X)155--- 22

CNRV*4824A** 0.98 0.97 58CV(A,X)155 ---22

CSRH*4212A** 0.98 0.97 58CV(A,X)155 --- 22

CSRH*4812A** 0.98 0.97 58CV(A,X)155 --- 22

Heating Indoor Model Capa city Powe r Fu rnace Model

CAR**4224A** 0.98 1.03 58MVB040 ---14

CAR**4824A** 0.99 1.01 58MVB040 ---14

CNRH*4221A** 0.98 1.02 58MVB040---14

CNRH*4821A** 0.99 1.01 58MVB040---14

CNRV*4824A** 0.99 1.01 58MVB040---14

CSRH*4212A** 0.98 1.00 58MVB040---14

CSRH*4812A** 0.99 1.01 58MVB040---14

CAR**4817A** 0.99 1.00 58MVB060 ---14

CNRH*4221A** 0.98 1.01 58MVB060---14

CNRH*4821A** 0.98 0.99 58MVB060---14

CSRH*4212A** 0.98 0.99 58MVB060---14

CSRH*4812A** 0.99 1.00 58MVB060---14

CAR**4221A** 0.98 1.03 58MVB080 ---14

CAR**4821A** 0.99 1.02 58MVB080 ---14

CNRH*4221A** 0.98 1.02 58MVB080---14

CNRH*4821A** 0.99 1.01 58MVB080---14

CNRV*4221A** 0.98 1.02 58MVB080---14

CNRV*4821A** 0.99 1.01 58MVB080---14

CSRH*4212A** 0.98 1.00 58MVB080---14

CSRH*4812A** 0.99 1.01 58MVB080---14

CAR**4221A** 0.98 1.02 58MVB080 ---20

CAR**4821A** 0.99 1.01 58MVB080 ---20

CNRH*4221A** 0.98 1.01 58MVB080---20

CNRH*4821A** 0.99 1.00 58MVB080---20

CNRV*4221A** 0.98 1.01 58MVB080---20

CNRV*4821A** 0.99 1.00 58MVB080---20

CSRH*4212A** 0.98 0.99 58MVB080---20

CSRH*4812A** 0.99 1.00 58MVB080---20

CAR**4221A** 0.98 1.02 58MVB100 ---20

CAR**4821A** 0.98 0.99 58MVB100 ---20

CNRH*4221A** 0.98 1.00 58MVB100---20

CNRH*4821A** 0.98 0.98 58MVB100---20

CNRV*4221A** 0.98 1.00 58MVB100---20

CNRV*4821A** 0.98 0.98 58MVB100---20

CSRH*4212A** 0.98 0.99 58MVB100---20

CSRH*4812A** 0.99 0.99 58MVB100---20

CAR**4224A** 0.98 1.02 58MVB120 ---20

CAR**4824A** 0.98 0.99 58MVB120 ---20

CNRH*4221A** 0.96 0.99 58MVB120---20

CNRH*4821A** 0.98 0.99 58MVB120---20

CNRV*4824A** 0.98 0.99 58MVB120---20

CSRH*4212A** 0.98 0.99 58MVB120---20

CSRH*4812A** 0.98 0.98 58MVB120---20

25HBR3

See notes on pg. 31

29

HEAT PUMP HEATING PERFORMANCE -- CONTINUED

INDOOR AIR

EDB CFM

65

70

75

25HBR3

--- 3 7 17 27 37 47 57 67

Capacity

MBtuh

In-

Tot a l

teg*

1400 19.49 17.93 3.03 24.20 22.24 3.17 29.27 26.69 3.31 34.82 30.93 3.47 41.08 37.39 3.66 48.04 48.04 3.88 55.97 55.97 4.16 65.15 65.15 4.52

1600 19.80 18.21 3.05 24.54 22.55 3.18 29.60 26.99 3.30 35.23 31.29 3.45 41.58 37.83 3.62 48.63 48.63 3.83 56.69 56.69 4.10 64.63 64.63 4.28

1800 20.07 18.47 3.08 24.82 22.81 3.20 29.90 27.26 3.31 35.58 31.60 3.45 42.00 38.22 3.61 49.10 49.10 3.81 56.94 56.94 4.02 63.84 63.84 4.19

1400 18.95 17.43 3.15 23.75 21.82 3.31 28.85 26.30 3.46 34.34 30.50 3.63 40.51 36.87 3.83 47.41 47.41 4.07 55.18 55.18 4.36 64.26 64.26 4.73

1600 19.26 17.72 3.18 24.08 22.12 3.32 29.19 26.62 3.46 34.74 30.86 3.61 41.03 37.34 3.79 48.00 48.00 4.01 55.91 55.91 4.28 64.35 64.35 4.52

1800 19.54 17.98 3.21 24.37 22.39 3.34 29.50 26.89 3.47 35.10 31.17 3.61 41.45 37.72 3.78 48.48 48.48 3.98 56.46 56.46 4.25 63.91 63.91 4.41

1400 18.34 16.87 3.27 23.23 21.35 3.45 28.40 25.89 3.62 33.89 30.10 3.80 39.98 36.38 4.01 46.81 46.81 4.26 54.41 54.41 4.56 63.33 63.33 4.94

1600 18.66 17.17 3.30 23.57 21.66 3.46 28.75 26.22 3.61 34.27 30.44 3.78 40.45 36.81 3.97 47.37 47.37 4.20 55.14 55.14 4.47 63.98 63.98 4.79

1800 18.95 17.44 3.33 23.87 21.93 3.48 29.07 26.50 3.62 34.60 30.73 3.77 40.85 37.17 3.95 47.87 47.87 4.17 55.70 55.70 4.43 63.79 63.79 4.64

Heating Indoor Model Capaci ty Power Furna ce Mod el

*FC4DN(F,B)048 1.00 1.00

FC4DN(F,B)048 1.01 1.01

FC4DN(F,B)060 1.01 0.99

FK4DNB006 0.99 0.98

FK4DNF005 0.99 1.02

CAR**4817A** 0.97 1.02 58CV(A, X)090--16

CNRH*4821A** 0.99 1.05 58CV(A,X)090--16

CNRH*6024A** 0.99 1.04 58CV(A,X)090--16

CSRH*4812A** 0.99 1.04 58CV(A,X)090--16

CSRH*6012A** 0.99 1.03 58CV(A,X)090--16

CAR**4821A** 0.99 1.05 58CV(A,X)110-- 20

CAR**6021A** 0.99 1.03 58CV(A,X)110-- 20

CNRH*4821A** 0.99 1.04 58CV(A,X)110-- 20

CNRH*6024A** 0.99 1.03 58CV(A,X)110-- 20

CNRV*4821A** 0.99 1.04 58CV(A,X)110-- 20

CSRH*4812A** 0.99 1.04 58CV(A,X)110-- 20

CSRH*6012A** 0.99 1.02 58CV(A,X)110-- 20

CAR**4824A** 0.99 1.04 58CV(A, X)135--22

CAR**6024A** 0.99 1.02 58CV(A, X)135--22

CNRH*4821A** 0.99 1.04 58CV(A,X)135--22

CNRH*6024A** 0.99 1.02 58CV(A,X)135--22

CNRV*4824A** 0.99 1.04 58CV(A,X)135--22

CNRV*6024A** 0.99 1.02 58CV(A,X)135--22

CSRH*4812A** 0.99 1.03 58CV(A,X)135--22

CSRH*6012A** 0.99 1.01 58CV(A,X)135--22

CAR**4824A** 0.99 1.03 58CV(A, X)155--22

CAR**6024A** 0.99 1.02 58CV(A, X)155--22

CNRH*4821A** 0.99 1.03 58CV(A,X)155--22

CNRH*6024A** 0.99 1.02 58CV(A,X)155--22

CNRV*4824A** 0.99 1.03 58CV(A,X)155--22

CNRV*6024A** 0.99 1.02 58CV(A,X)155--22

CSRH*4812A** 0.99 1.02 58CV(A,X)155--22

CSRH*6012A** 0.99 1.00 58CV(A,X)155--22

CAR**4821A** 0.99 1.06 58MVB080 --20

CAR**6021A** 1.00 1.05 58MVB080 --20

CNRH*4821A** 0.99 1.06 58MVB080--20

CNRH*6024A** 0.99 1.05 58MVB080--20

CNRV*4821A** 0.99 1.06 58MVB080--20

CSRH*4812A** 0.99 1.05 58MVB080--20

CSRH*6012A** 1.00 1.04 58MVB080--20

CAR**4821A** 0.99 1.05 58MVB100 --20

CAR**6021A** 1.00 1.02 58MVB100 --20

CNRH*4821A** 0.99 1.05 58MVB100--20

CNRH*6024A** 0.99 1.04 58MVB100--20

CNRV*4821A** 0.99 1.05 58MVB100--20

CSRH*4812A** 0.99 1.04 58MVB100--20

CSRH*6012A** 1.00 1.04 58MVB100--20

CAR**4824A** 0.99 1.05 58MVB120 --20

CAR**6024A** 0.99 1.04 58MVB120 --20

CNRH*4821A** 0.99 1.05 58MVB120--20

CNRH*6024A** 0.99 1.04 58MVB120--20

CNRV*4824A** 0.99 1.05 58MVB120--20

CNRV*6024A** 0.99 1.04 58MVB120--20

CSRH*4812A** 0.99 1.04 58MVB120--20

CSRH*6012A** 0.99 1.03 58MVB120--20

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

OUTDOOR COIL ENTERING AIR TEMPERATURES deg F

Capacity

Tot a l

MBtuh

Sys-

tem

In-

KW†

teg*

25HBR348A Outdoor Section With FC4DNF048 Indoor Section

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

KW†

tem

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l

Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Seenoteonpg.31

30

HEAT PUMP HEATING PERFORMANCE -- CONTINUED

INDOOR AIR

EDB CFM

1750 25.42 23.39 3.96 30.92 28.42 4.10 36.95 33.69 4.27 43.61 38.73 4.45 51.09 46.49 4.67 59.02 59.02 4.84 66.24 66.24 5.05 65.65 65.65 5.01

2000 25.81 23.75 4.00 31.33 28.79 4.14 37.39 34.09 4.29 44.11 39.18 4.46 51.73 47.08 4.63 58.54 58.54 4.78 61.87 61.87 4.86 59.50 59.50 4.78

65

2250 26.18 24.08 4.06 31.71 29.14 4.18 37.79 34.46 4.33 44.55 39.57 4.48 51.85 47.18 4.61 57.18 57.18 4.74 58.08 58.08 4.75 55.04 55.04 4.67

1750 24.91 22.92 4.11 30.49 28.02 4.28 36.53 33.30 4.46 43.11 38.29 4.65 50.48 45.93 4.87 58.78 58.78 5.06 66.16 66.16 5.29 67.06 67.06 5.30

2000 25.31 23.28 4.16 30.90 28.39 4.31 36.97 33.71 4.47 43.61 38.73 4.65 51.10 46.50 4.86 58.50 58.50 5.00 63.00 63.00 5.12 61.80 61.80 5.07

70

2250 25.67 23.62 4.22 31.26 28.73 4.35 37.37 34.07 4.51 44.05 39.12 4.67 51.64 46.99 4.83 58.08 58.08 4.98 60.16 60.16 5.02 57.77 57.77 4.95

1750 24.36 22.41 4.27 30.00 27.57 4.45 36.07 32.89 4.64 42.61 37.85 4.85 49.92 45.43 5.08 58.19 58.19 5.31 66.02 66.02 5.54 68.87 68.87 5.63

2000 24.76 22.78 4.32 30.42 27.96 4.49 36.52 33.30 4.66 43.09 38.27 4.85 50.48 45.93 5.06 58.37 58.37 5.23 64.89 64.89 5.42 64.86 64.86 5.40

75

2250 25.13 23.12 4.38 30.81 28.31 4.53 36.93 33.67 4.69 43.54 38.67 4.87 51.04 46.44 5.06 58.07 58.07 5.20 61.75 61.75 5.29 60.03 60.03 5.24

Heating Indoor Model Capacity Powe r Furna ce Mod el

*FC4DN(F,B)060 1.00 1.00

FK4DNB006 1.02 1.06

CAR**6024A** 1.00 1.03 58CV(A,X)135 ---22

CSRH*6012A** 1.01 1.02 58CV(A,X)135 ---22

CAR**6024A** 1.00 1.02 58CV(A,X)155 ---22

CNRH*6024A** 1.01 1.04 58CV(A,X)155 ---22

CNRV*6024A** 1.01 1.04 58CV(A,X)155 ---22

CSRH*6012A** 1.01 1.01 58CV(A,X)155 ---22

--- 3 7 17 27 37 47 57 67

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from supplement

heaters should be added to those values to obtain total system capacity.

{ The kW values include the compressor, outdoor fan motor, and indoor blower motor. The kW from supplement heaters should be added to these values to

obtain total system kilowatts.

EDB — Entering Dry Bulb

OUTDOOR COIL ENTERING AIR TEMPERATURES deg F

Capacity

Tot a l

MBtuh

Sys-

tem

In-

KW†

teg*

25HBR360A Outdoor Section With FC4DNF060 Indoor Section

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l

Sys-

tem

KW†

Capacity

MBtuh

Tot a l

In-

teg*

Tot a l
Sys-

tem

KW†

25HBR3

31

GUIDE SPECIFICATIONS
GENERAL

System Description

Outdoor--mounted, air--cooled, split--system heat pump unit
suitable for ground or rooftop installation. Unit consists of a
hermetic compressor, an air --cooled coil, propeller--type
condenser fan, and a control box. Unit will discharge supply
air upward as shown on contract drawings. Unit will be used in
a refrigeration circuit to match up to a packaged fan coil or coil
unit.

Quality Assurance

— Unit will be rated in accordance with the latest edition

of ARI Standard 240.

— Unit will be certified for capacity and efficiency, and

listed in the latest ARI directory.

— Unit construction will comply with latest edition of

ANSI/ ASHRAE and with NEC.

— Unit will be constructed in accordance with UL

standards and will carry the UL label of approval.
Unit will have C--UL approval.

25HBR3

— Unit cabinet will be capable of withstanding Federal

Test Method Standard No. 141 (Method 6061) 500--hr
salt spray test.

— Air--cooled condenser coils will be leak tested and

pressure tested.

— Unit constructed in ISO9001 approved facility.

Delivery, Storage, and Handling

— Unit will be shipped as single package only and is

stored and handled per unit manufacturer’s
recommendations.

Warranty (for inclusion by specifying engineer)

— U.S. and Canada only.

PRODUCTS

Equipment

— Factory assembled, single piece, air--cooled heat

pump unit. Contained within the unit enclosure is all
factory wiring, piping, controls, compressor,
refrigerant charge (R--22), and special features
required prior to field start--up.

Unit Cabine

Fans

t

— Unit cabinet will be constructed of galvanized steel,

bonderized, and coated with a powder coat paint.

— Condenser fan will be direct--drive propeller type,

discharging air upward.

AIR--COOLED, SPLIT--SYSTEM HEAT PUMP

1--1/2 TO 5 NOMINAL TONS

— Condenser fan motors will be totally enclosed,

1--phase type with class B insulation and permanently

lubricated bearings.
— Shafts will be corrosion resistant.
— Fan blades will be statically and dynamically

balanced.
— Condenser fan openings will be equipped with steel

wire safety guards.

Compresso

Condenser Coil

Refrigeration Component

Operating Characteristics

Electrical Requirements

Special Features

r
— Compressor will be hermetically sealed.
— Compressor will be mounted on rubber vibration

isolators.

— Condenser coil will be air cooled.
— Coil will be constructed of aluminum fins

mechanically bonded to copper tubes which are then
cleaned, dehydrated, and sealed.

s

— Refrigeration circuit components will include

liquid--line shutoff valve with sweat connections,
vapor-- line shutoff valve with sweat connections,
system charge of refrigerant, compressor oil,
accumulator, loss of charge switch, and reversing
valve.

— The capacity of the unit will meet or exceed _____

Btuh at a suction temperature of _____ _F. The power
consumption at full load will not exceed _____ kW.

— Combination of the unit and the evaporator or fan coil

unit will have a total net cooling capacity of _____
Btuh or greater at conditions of _____ CFM entering
air temperature at the evaporator at _____ _F wet bulb
and _____ _F dry bulb, and air entering the unit at
_____ _F.

— The system will have a SEER of _____ Btuh/watt or

greater at DOE conditions.

— Nominal unit electrical characteristics will be _____ v,

single phase, 60 hz. The unit will be capable of
satisfactory operation within voltage limits of _____ v
to _____ v.

— Nominal unit electrical characteristics will be _____ v,

three phase, 60 hz. The unit will be capable of
satisfactory operation within voltage limits of _____ v

to _____ v.
— Unit electrical power will be single point connection.
— Control circuit will be 24v.

— Refer to section of this literature identifying

accessories and descriptions for specific features and

available enhancements.

25HBR3

Copyright 2006 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Printed in U.S.A. edition date: 03/06

32

Catalog No: 25HBR3---3PD

Replaces:25HBR3--- 2PD
