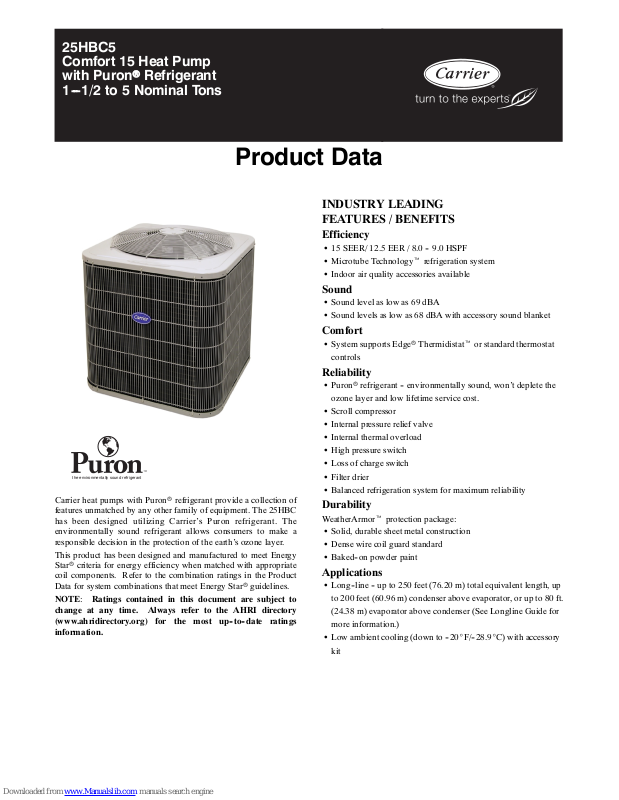

Carrier 25HBC5, 25HBC530, 25HBC518, 25HBC524, 25HBC536 Product Data

...

Page 1

25HBC5 Comfort 15 Heat Pump with Puronr Refrigerant 1 --- 1 / 2 to 5 N o m i n a l To n s

Product Data

the environmentally sound refrigerant

Carrier heat pumps with Puronr refrigerant provide a collection of features unmatched by any other family of equipment. The 25HBC has been designed utilizing Carrier’s Puron refrigerant. The environmentally sound refrigerant allows consumers to make a responsible decision in the protection of the earth’s ozone layer.

This product has been designed and manufactured to meet Energy Starr criteria for energy efficiency when matched with appropriate coil components. Refer to the combination ratings in the Product Data for system combinations that meet Energy Starr guidelines.

NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up--to--date ratings information.

INDUSTRY LEADING FEATURES / BENEFITS

Efficiency

S 15 SEER/ 12.5 EER / 8.0 -- 9.0 HSPF S Microtube Technologyt refrigeration system S Indoor air quality accessories available

Sound

S Sound level as low as 69 dBA S Sound levels as low as 68 dBA with accessory sound blanket

Comfort

S System supports Edger Thermidistatt or standard thermostat

controls

Reliability

S Puronr refrigerant -- environmentally sound, won’t deplete the

ozone layer and low lifetime service cost.

S Scroll compressor S Internal pressure relief valve S Internal thermal overload S High pressure switch S Loss of charge switch S Filter drier S Balanced refrigeration system for maximum reliability

Durability

WeatherArmort protection package:

S Solid, durable sheet metal construction S Dense wire coil guard standard S Baked--on powder paint

Applications

S Long--line -- up to 250 feet (76.20 m) total equivalent length, up

to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)

S Low ambient cooling (down to --20_F/--28.9_C) with accessory

kit

Page 2

MODEL NUMBER NOMENCLATURE

12 3 4 5 6 78 9 10 11 12 13

N N A A A/N N N N A/N A/N A/N N N

25 H B C 5 36 A 0 0 3 0

Product

Series

25=HP H=RESHP B=Comfort C=Puron 5=15SEER A= Dense

the environmentally sound refrigerant

25HBC5

Product

Famil y

Tier

Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program For verification of certification for individual products, go to www.ahridirectory.org.

Major

Series

SEER

Cooling

Capacity

Grille

Variations

Open Open Voltage

0=Not

Defined

0=Not

Defined

This product has been designed and manufactur ed to meet Energy S tar® criteria for energy efficiency when matched wi th appropriate coil component s. However, proper refrigerant charge an d proper air flow ar e cri tical to achieve rated capacity and efficiency. Installation of this product should foll ow all manufacturing refrigerant charging and air flow instructions. Failure to confirm

proper charge and air flow may reduce energy efficiency and shorten equipment lif e.

3=208/230---1

STANDARD FEATURES

Feature 18 24 30 36 42 48 60

Puron Refrigerant X X X X X X X

Maximum SEER Rating* 15.3 15.3 15.3 15.3 15.0 15.0 15.0

Scroll Compressor X X X X X X X

FieldInstalledFilterDrier X X X X X X X

Front Seatin g Service Valves X X X X X X X

Internal Pressure Relief Valve X X X X X X X

Internal Thermal Overload X X X X X X X

Long Line capability X X X X X X X

Low Ambient cooling capability with Kit X X X X X X X

Suction Line Accumulator X X X X X X X

High Pressure Switch X X X X X X X

Loss of Charge Switch X X X X X X X

Dense Grille X X X X X X X

X=Standard *=Basedontestedcombination

Minor

Series

0, 1, 2...

Page 3

PHYSICAL DATA

UNIT SIZE SERIES 18--- 30 24 -- -30 30--- 30 36 --- 30 42 --- 30 48---30 60-- -30

Operating Weight lb (kg) 169 (76.7) 200 (90.8) 196 (88.9) 215 (97.5)

Shipping Weight lb (kg) 207 (93.9)

Compressor Type Scroll REFRIGERANT Puron (R--- 410A)

Control TXV (Puron Hard Shutoff) Charge lb (kg) 5.6 (2.54) 7.60 (3.45) 7.00 (3.18) 7.40 (3.34) 8.90 (4.04) 9.60 (4.35) 12.50 (5.67)

Outdoor Heating Piston # 42 46 52 61 61 67 76

COND FAN Propeller Type, Direct Drive

Air Discharge Vertical Air Qty (CFM) 2233 3223 3223 3810 3810 4046 4046 Motor HP 1/12 1/12 1/12 1/5 1/5 1/4 1/4 Motor RPM 800 800 800 800 800 800 800

COND COIL

Face Area (Sq ft) 15.09 20.12 20.12 22.63 17.60 17.60 25.15 Fins per In. 20 20 20 20 20 20 20 Rows 1 1 1 1 2 2 2 Circuits 4 5 5 6 7 7 9

VALVECONNECT.(In.ID)

Vapor 5/8 5/8 3/4 3/4 7/8 7/8 7/8 Liquid 3/8”

REFRIGERANT TUBES (In. OD)

Rated Vapor* 5/8 5/8 3/4 3/4 7/8 7/8 11/8 Liquid 3/8

*Units are rated with 25 ft (7.6 m) of lineset length. See Vapor Line Sizing and Cooling Capacity Loss table when using other sizes and lengths of lineset.

Note: See unit Installation Instruction for proper installation.

233

(105.7)

242

(109.8)

257

(116.6)

245

(111.1)

290

(131.5)

260

(117.9)

303

(137.4)

294 (113.4)

345 (156.5)

25HBC5

VAPOR LINE SIZING AND COOLING CAPACITY LOSS

Acceptable vapor line diameters provide adequate oil return to the compressor while avoiding excessive capacity loss. The suction line diameters shown in the chart below are acceptable for HP systems with Puron refrigerant:

Vapor Line Sizing and Cooling Capacity Losses -- Puronr Refrigerant 1-- Stage Heat Pump Applications

Cooling Capacity Loss (%)

Unit

Nominal

Size (Btuh)

18,000

1 --- S t a g e

HP with

Puron

24,000

1 --- S t a g e

HP with

Puron

30,000

1 --- S t a g e

HP with

Puron

36,000

1 --- S t a g e

HP with

Puron

42,000

1 --- S t a g e

HP with

Puron

48,000

1 --- S t a g e

HP with

Puron

60,000

1 --- S t a g e

HP with

Puron

Standard Length = 80 ft. (24.4 m) or less total equivalent length

Applications in this area are long line. Accessories are required as shown recommended on Long Line Application Guidelines Applications in this area may have height restrictions that limit allowable total equivalent length, when outdoor unit is below indoor unit See Long Line Application Guidel ines

Maximum

Liquid Line

Diameters

(In. OD)

3/8

Vapo r Line

Diameters

(In.) OD

1/2 1 2 3 4 6 7 8 9 10

5/8 0 0 1 1 1 2 2 3 3

5/8 0 1 1 2 3 3 4 4 5

3/4 0 0 0 0 1 1 1 1 1

5/8 1 2 3 3 4 5 6 7 8

3/4 0 0 1 1 1 2 2 2 3

7/8 0 0 0 0 1 1 1 1 1

5/8 1 2 4 5 6 7 9 10 11

3/4 0 0 1 1 2 2 3 3 4

7/8 0 0 0 0 1 1 1 1 2

3/4 0 1 2 2 3 4 4 5 6

7/8 0 0 1 1 1 2 2 2 3

3/4 0 1 2 3 4 5 5 6 7

7/8 0 0 1 1 2 2 2 3 3

3/4 1 2 4 5 6 7 9 10 11

7/8 0 1 2 2 3 4 4 5 5

1 --- 1 / 8 0 0 0 1 1 1 1 1 1

Standard

Application

26--- 50

(7.9---15.2)

51--- 80

(15.5---24.4)

81--- 100

(24.7---30.5)

Total Equivalent Line Length ft. (m)

Long Line Application Requires Accessories

101--- 125

(30.8---38.1)

126--- 150

(38.4---45.7)

151--- 175

(46.0---50.3)

176--- 200

(53.6---60.0)

201--- 225

(61.3---68.6)

226--- 250

(68.9---76.2)

Page 4

REFRIGERANT PIPING LENGTH LIMITATIONS

Maximum Line Lengths:

The maximum allowable total equivalent length for heat pumps varies depending on the vertical separation. See the tables below for allowable lengths depending on whether the outdoor unit is on the same level, above or below the outdoor unit.

Maximum Line Lengths for Heat Pump Applications

MAXIMUM ACTUAL LENGTH

Units on equal level 200 (61) 250 (76.2) N/A

Outdoor unit ABOVE

indoor unit

Outdoor unit BELOW

indoor unit

{ Total equivalent length accounts for losse s due to elbows or fitting. See the Long Line Guideline for details.

ft (m)

200 (61) 250 (76.2) 200 (61)

See Table ’Maximum Total Equivalent Length: Outdoor Unit BELOW Indoor Unit’

Maximum Total Equivalent Length{-- Outdoor Unit BELOW Indoor Unit

Liquid Line

Size

18000

HP with

25HBC5

Puron 24000

HP with

Puron 30000

HP with

Puron 36000

HP with

Puron 42000

HP with

Puron 48000

HP with

Puron 60000

HP with

Puron

* Maximum actual length not to exceed 200 ft (61 m) { Total equivalent length accounts for losse s due to elbows or fitting. See the Long Line Guideline for details.

--- --- = o u t s i d e a cc e p t a b l e r a n g e

Diameter

w/ TXV

3/8 250* 250* 250* 250* 250* 250* 250*

3/8 250* 250* 250* 250* 250* 250* 150

3/8 250* 250* 250* 250* 230 160 --- ---

3/8 250* 225* 190 150 110 --- --- --- ---

0 --- 2 0

(0 --- 6.1)

21--- 30

(6.4 --- 9.1)

HP with Puronr Refrigerant -- - Maximum Total Equivalent Length{

Vertical Separation ft (m) Outdoor unit BELOW indoor unit;

31--- 40

(9.4 --- 12.2)

MAXIMUM EQUIVALENT LENGTH{

41--- 50

(12.5 --- 15.2)

ft (m)

51--- 60

(15.5 --- 18.3)

MAXIMUM VERTICAL

SEPARATION ft (m)

61--- 70

(18.6 --- 21.3)

(21.6 --- 24.4)

71--- 80

LONG LINE APPLICATIONS

An application is considered Long Line when the refrigerant level in the system requires the use of accessories to maintain acceptable refrigerant management for systems reliability. Defining a system as long line depends on the liquid line diameter, actual length of the tubing, and vertical separation between the indoor and outdoor units.

For Heat Pump systems, the chart below shows when an application is considered Long Line. Beyond these lengths, long line accessories are required:

HP WITH PURONr REFRIGERANT LONG LINE DESCRIPTION ft (m)

Beyond these lengths, long line accessories are required

Liquid Line Size Units On Same Level Outdoor Below Indoor Outdoor Above Indoor

3/8 80 (24.4) 20 (6.1) vertical or 80 (24.4) total 80 (24.4)

Note: SeeLongLineGuidelinefordetails

Page 5

ACCESSORIES

ORDER NUMBER DESCRIPTION 18--- 30 24 --- 30 30---30 36 --- 30 42---30 48 ---30 60--- 30

HC32GE229 BALL BEARING MOTOR X X X HC38GE228 BALL BEARING MOTOR X X HC40GE228 BALL BEARING MOTOR X X KAACH1701AAA CRANKCASE HTR X X X KAACH1401AAA CRANKCASE HTR X KAACH1601AAA CRANKCASE HTR X KAACH1201AAA CRANKCASE HTR X STANDARD CRANKCASE HTR S KSACY0101AAA CYCLE PROTECTOR X X X X X X X KAAFT0101AAA FREEZE THERMOSTAT X X X X X X X KSAHS1701AAA HARD START X X X X X X X KHAIR0101AAA ISOLATION RELAY X X X X X X X KSALA0301410 LOW AMBIENT PSW X X X X X X X KSALA0601AAA{ MOTORMASTER 230V X X X X X X X KHAOT0201SEC OUTDOOR THERMOSTAT X X X X X X X KHAOT0301FST OUTDOOR THERMOSTAT X X X X X X X KHALS0401LLS SOLENOID VALVE X X X X X X X KHASS0606MPK* SNOW STAND RACK X X X X X X KSASH0601COP SOUND BLKT X X X X X X KSASH2101COP SOUND BLKT X KAACS0201PTC STARTASSISTPTC X X X X X X X KSASF0101AAA SUPPORT FEET X X X X X X X KAATD0101TDR TIME DELAY RELAY X X X X X X X KSATX0201PUR TXV PURON HSO X X X KSATX0301PUR TXV PURON HSO X X KSATX0401PUR TXV PURON HSO X KSATX0501PUR TXV PURON HSO X

x = Accessory S = Standard *AvailablethroughRCD. { Required accessories include ball bearing fan motor, compressor start assist (CAP / Relay), crankcase heater, evaporator freeze stat, isolation relay, hard

shut---off TXV or liquid line solenoid valve.

25HBC5

ACCESSORY THERMOSTATS

PAR T N UMB ER PROGRAM GAS ELECTRIC HEAT PUMP HEAT COOL

TC --- PHP01 5 --- 2 D a y

T C --- N H P 0 1 NP

TCSNHP01 NP

TB ---PHP01 5 --- 2 D a y

T B --- N H P 0 1 NP

PAR T N UMB ER BRIEF DESCRIPTION THERMOSTATS USED WITH

TSTATXXCNV10‡ Thermostat Conversion Kit (4 to 5 wire) --- 10 pack All Carrier branded thermostats

T X --- L B P 0 1 LargeDecorativeBackplate TP --- P x x , T P --- N x x , T C --- P x x T X --- M B P 0 1 Medium Decorative Backplate T C --- N x x , T B --- P x x T X --- S B P 0 1 Small Decorative Backplate T B --- N x x

√ √ √ √ √ √

THERMOSTAT ACCESSORIES

√ √ √ √ √ √

3 2

2 1

Page 6

ACCESSORY USAGE GUIDELINE

REQUIRED FOR LOW--- AMBIENT

Accessory

Accumulator Standard Standard Standard

Ball Bearing Fan Motor Yes { No No

Compressor Start Assist Capacitor and

Evaporator Freeze Thermostat Ye s No No

Liquid Line Solenoid Valve No See Long---Line Application Guideline No

Motor Master® Control or

* For tubing line sets between 80 and 200 ft. (24.38 and 60.96 m) and/or 20 ft. (6.09 m) vertical differential, refer to Residential Split ---System Longline

Application Guideline.

{ Additional requirement for Low---Ambient Controller (full modulation feature) MotorMasterr Control.

Relay

Crankcase Heater Ye s

Hard Shutoff TXV Yes Ye s Yes

Isolation Relay Yes No No

Low Ambient Switch

Support Feet Recommended No Recommended

COOLING APPLICATIONS

(Below 55°F / 12.8°C)

Ye s Ye s No

Ye s No No

Accessory Description and Usage (Listed Alphabetically)

1. Ball--Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction

25HBC5

while maintaining bearing lubrication.

Usage Guideline:

Required on all units when using MotorMasterr

2. Compressor Start Assist -- Capacitor and Relay

Start capacitor and relay gives a ”hard” boost to compressor motor at each start up.

Usage Guideline:

Required for reciprocating compressors in the following applications:

Long line Low ambient cooling Hard shut off expansion valve on indoor coil Liquid line solenoid on indoor coil

Required for single--phase scroll compressors in the following applications:

Long line Low ambient cooling

Suggested for all compressors in areas with a history of

low voltage problems.

3. Compressor Start Assist — PTC Type

Solid state electrical device which gives a ”soft” boost to the compressor at each start--up.

Usage Guideline:

Suggested in installations with marginal power supply.

4. Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes the chance of liquid slugging.

Usage Guideline:

Required in low ambient cooling applications. Required in long line applications. Suggested in all commercial applications.

5. Evaporator Freeze Thermostat

An SPST temperature--actuated switch that stops unit operation when evaporator reaches freeze--up conditions.

Usage Guideline:

Required when low ambient kit has been added.

6. Isolation Relay

An SPDT relay which switches the low--ambient controller out of the outdoor fan motor circuit when the heat pump switches to heating mode.

7. Liquid--Line Solenoid Valve (LLS)

An electrically operated shutoff valve which stops and starts refrigerant liquid flow in response to compressor operation. It is to be installed at the outdoor unit to control refrigerant off cycle migration in the heating mode.

8. Low--Ambient Pressure Switch Kit

A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits. The control will maintain working head pressure at low--ambient temperatures down to 0_F (--17.8_C) when properly installed.

9. MotorMasterr Low--Ambient Controller

A fan--speed control device activated by a temperature sensor, designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to --20_F (--28.9_C), it maintains condensing temperature at 100_F ±10_F (37.8_C ±

6.5_C).

REQUIRED FOR

LONG LINE APPLICATIONS*

(Over 80 ft. / 24.38 m)

Ye s

SEA COAST APPLICATIONS

(Within 2 miles / 3.22 km)

Usage Guideline:

Required in all heat pumps where low ambient kit has been added.

Usage Guideline:

An LLS is required in all long line heat pump applications to control refrigerant off cycle migration in the heating mode. See Long Line Guideline.

Usage Guideline:

A Low--Ambient Pressure Switch or MotorMasterr Low--Ambient Controller must be used when cooling operation is used at outdoor temperatures below 55_F (12.8_C).

Usage Guideline:

A MotorMasterr

Low Ambient Controller or Low--Ambient Pressure Switch must be used when cooling operation is used at outdoor temperatures below 55_F (12.8_C).

Suggested for all commercial applications.

REQUIRED FOR

Page 7

Accessory Description and Usage (Listed Alphabetically) -- CONTINUED

10. Outdoor Air Temperature Sensor

Designed for use with Carrier Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

Usage Guideline:

Suggested for all Carrier thermostats listed in this publication.

11. Outdoor Thermostat

An SPDT temperature--actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below a user--selected set point.

Usage Guideline:

Electric supplemental heat applications in non--variable speed indoor units when electric heat staging is desired.

12. Secondary Outdoor Thermostat

An SPDT temperature--actuated switch which turns on third--stage of supplemental electric heaters when outdoor air temperature drops below the second--stage set point.

Usage Guideline:

Outdoor thermostat applications where electric heater is capable of 3--stage operation.

13. Snow Stand

Coated wire rack which supports unit 18 in. (457.2 mm) above mounting pad to allow for drainage from unit base.

Usage Guideline:

Suggested in the following applications:

Heat pump installations in heavy snowfall areas. Heat pump installations in snow drift locations. Heat pump installations in areas of prolonged

subfreezing temperatures. All commercial installations.

Note: Snow stand does not support 26” X 26” (660 X 660 mm) small basepan size.

14. Sound Hood

Wraparound sound reducing cover for the compressor. Reduces the sound level by about 2 dBA.

Usage Guideline:

Suggested when unit is installed closer than 15 ft. (4.577 m) to quiet areas, bedrooms, etc.

Suggested when unit is installed between two houses less than 10 ft. (3.05 m) apart.

15. Thermostatic Expansion Valve (TXV) Bi--Flow

A modulating flow--control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator.

Usage Guideline:

Accessory required to meet AHRI rating and system reliability, where indoor not equipped.

Required in all heat pump applications designed with Puron refrigerant.

16. Time--Delay Relay

An SPST delay relay which briefly continues operation of indoor blower motor to provide additional cooling after the compressor cycles off.

Note: Most indoor unit controls include this feature. For those that do not, use the guideline below.

Usage Guideline:

Accessory required to meet AHRI rating, where indoor

not equipped.

25HBC5

Page 8

ELECTRICAL DATA

UNIT SIZE V/PH

18--- 30 24--- 30 58.3 12.8 0.5 16.5 14 14 48 (14.6) 45 (13.7) 25 30--- 30 73.0 14.1 0.5 18.1 14 14 44 (13.4) 41 (12.5) 30 36--- 30 79.0 16.7 1.2 22.1 12 12 57 (17.4) 54 (16.5) 35 42--- 30 109.0 21.1 1.2 27.6 10 10 72 (21.9) 69 (21.0) 40 48--- 30 117.0 21.8 1.2 28.5 10 10 70 (21.3) 67 (20.4) 40 60--- 30 134.0 26.4 1.2 34.2 8 10 91 (27.7) 56 (17.1) 50

* Permissible limits of the vol tage range at which th e unit will operate satisfactorily { If wire is applied at ambient gr eater than 30_C , co n s u l t ta b l e 3 1 0 --- 1 6 o f t h e N E C ( N F P A 70 ) . T h e a m p a c i t y o f n o n --- m e t a l l i c --- s h e a t h e d c a b l e (N M ) ,

trade name ROMEX, shall be that of 60_C conditions, per the NEC (NFPA 70) Article 336 --- 26. If other than uncoated (no ---plated), 60 or 75_C insulation, copper wire (solid wire for 10 AWG or smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (NFPA

70).

} Length shown is as measured 1 way along wire path between unit and service panel for voltage drop not to exceed 2%. * * T i m e --- D e l a y f u s e .

FLA --- F u l l L o a d A m p s LRA --- L o c k e d R o t o r A m p s M C A --- Minimum Circu it Amps RLA --- RatedLoadAmps NOTE: Control circuit is 24--- V on all units and requires external power source. Copper wire must be used from service disconnect to unit.

All motors/compressors contain internal overload protection. Complies with 2007 requirements of ASHRAE Standards 90.1

25HBC5

208/230/1 253 197

OPER VOLTS* COMPR FAN

MAX MIN LRA RLA FLA 60° C 75° C 60° C 75° C

48.0 9.0 0.5 11.8 14 14 67 (20.4) 63 (19.2) 20

MCA

MIN WIRE

SIZE†

MAX LENGTH

ft (m))‡

A--WEIGHTED SOUND POWER (dBA)

UNIT SIZE

18--- 30 73 49.5 60.0 65.0 69.0 65.5 62.0 55.0 24--- 30 69 48.5 59.5 61.5 62.5 61.0 59.0 53.5 30--- 30 71 51.0 58.5 61.5 65.5 62.5 60.0 53.5 36--- 30 72 55.5 59.5 63.5 66.5 64.5 61.5 55.5 42--- 30 74 56.5 64.0 67.0 68.5 65.0 62.0 57.5 48--- 30 74 55.5 62.0 66.0 69.0 65.0 62.0 56.0 60--- 30 74 59.0 62.0 65.0 68.0 65.0 62.5 62.0

NOTE: Tested in accordance with AHRI Standard 270 ---08 (not listed in AHRI).

STANDARD

RATING

dBA

TYPICAL OCTAVE BAND SPECTRUM (dBA, without tone adjustment)

125 250 500 1000 2000 4000 8000

MAX

FUSE**

or BRK

AMPS

A--WEIGHTED SOUND POWER (dBA) WITH SOUND SHIELD

UNIT SIZE

18--- 30 72 50.5 60.0 65.0 67.5 64.5 61.5 53.5 24--- 30 68 49.5 58.5 61.5 62.0 61.0 58.5 51.5 30--- 30 69 50.5 58.5 61.5 64.0 61.5 58.5 51.5 36--- 30 70 54.5 57.5 63.0 66.0 64.0 61.0 54.0 42--- 30 72 56.5 64.5 66.5 66.5 64.5 61.0 54.5 48--- 30 72 55.5 62.5 66.0 68.0 64.0 60.0 53.0 60--- 30 73 58.5 62.5 65.0 67.0 64.0 61.0 56.5

NOTE: Tested in accordance with AHRI Standard 270 ---08 (not listed in AHRI).

STANDARD

RATING

dBA

TYPICAL OCTAVE BAND SPECTRUM (dBA, without tone adjustment)

125 250 500 1000 2000 4000 8000

CHARGING SUBCOOLING (TXV--TYPE EXPANSION DEVICE)

UNIT SIZE--- SERIES REQUIRED SUBCOOLING ° F (° C)

18--- 30 12 (6.7) 24--- 30 14 (7.8) 30--- 30 10 (5.6) 36--- 30 8 (4.4) 42--- 30 10 (5.6) 48--- 30 11 (6.1) 60--- 30 10 (5.6)

Page 9

AIR IN

SHIPPING

OPERATING

AIR

WEIGHT (lbs)

NOTES:

F, MAX. 125

48" ABOVE UN IT, 6" ON ONE SIDE, 12" ON REMAINING SIDE,

AND 24" BETWEEN UNITS FOR PROPER AIRFLOW.

1. ALLOW 3 0" CLEARANCE TO SERVICE SIDE OF UNIT,

MODE IS 55

2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING

DISCHARGE

AIR IN

25HBC5

(2) PLACES

11/8"

AIR IN

3 13/16"

3/8" TIEDOWN KNOCKOUTS

ABCDEFGKLMNP

ELECTRICAL

CHARACTERISTICS

UNIT SERIES

25HBC518 0 X O O O 31 3/16" 28 15/16" 3 3/4" 5/8" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 16" 15" 14" 169 207

25HBC524 0 X O O O 35" 32 5/16" 3 3/4" 5/8" 6 9/16" 28 7/16" 9 1/8" 2 13/16" 1/2" 15 3/4" 16 3/4" 16 1/2" 200 233

25HBC530 0 X O O O 35" 32 5/16" 3 3/4" 3/4" 6 9/16" 28 7/16" 9 1/8" 2 13/16" 1/2" 16 1/4" 16" 15 1/2" 196 242

25HBC536 0 X O O O 35" 35 3/4" 3 3/4" 3/4" 6 9/16" 28 7/16" 9 1/8" 2 13/16" 1/2" 15 3/4" 16 3/4" 17" 215 257

25HBC542 0 X O O O 35" 28 15/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17" 16 3/4" 14 3/4" 245 290

25HBC548 0 X O O O 35" 28 15/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 16 3/4" 16 1/4" 14" 260 303

25HBC560 0 X O O O 35" 39 1/8" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17 1/4" 16 1/4" 18 1/4" 294 345

X = YES

17/8"

SQ.

AIR DISCHARGE

O=NO

460-3-60

208/230-3-60

230-1-60

208-230-1-60

7/8" HOLE

SUPPLY CONN.

7/8" HOLE WITH

FIELD CONTROL

1 1/8" KNOCKOUT

31/2"

3/8"

MINIMUM

35" X 35"

VAPOR LINE C ONN.

- 26" X 26"

18 31 1/2" X31 1/2"

UNIT SIZE

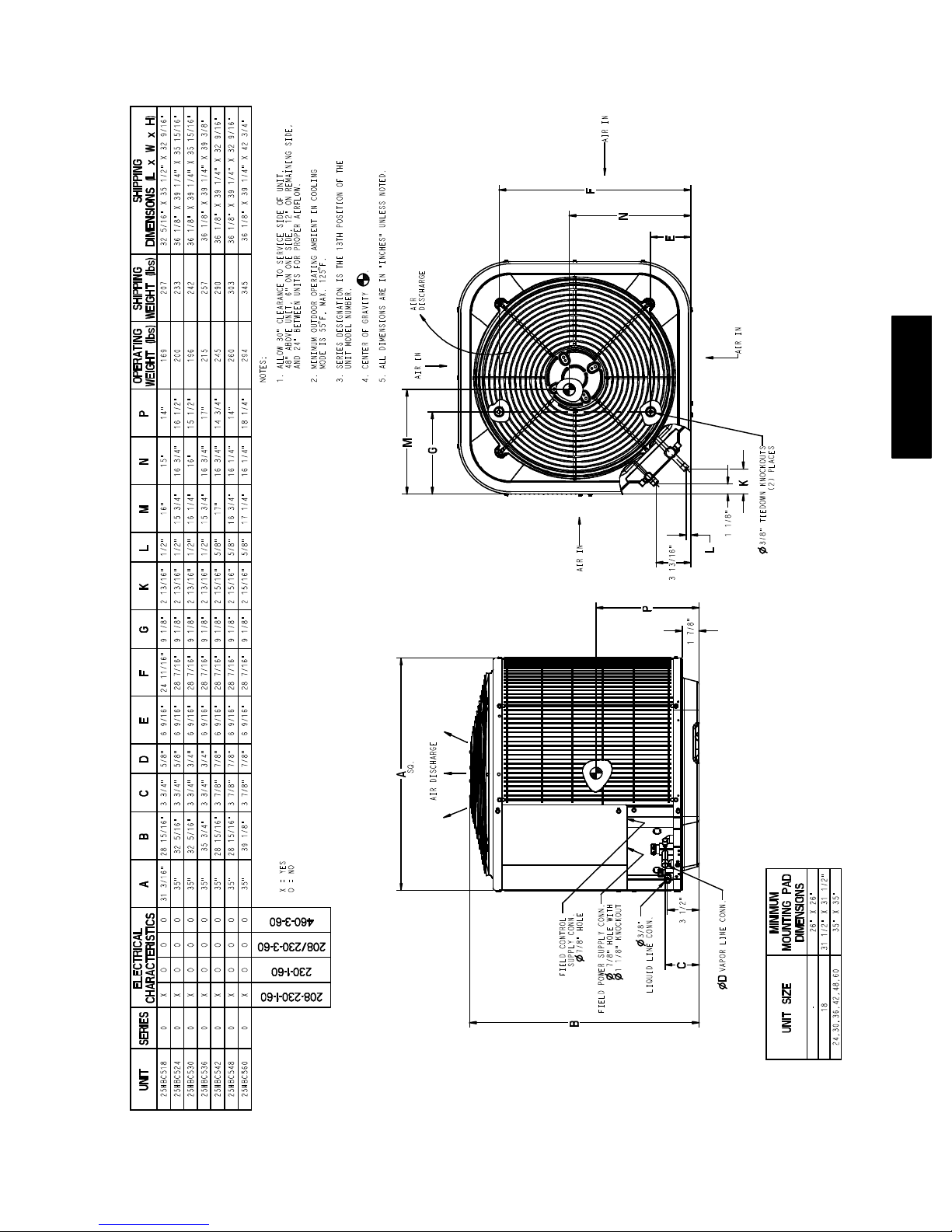

DIMENSIONS -- ENGLISH

Page 10

AIR IN

SHIPPING

DIMENSIONS (L x W x H)

AIR

SHIPPING

WEIGHT (Kgs)

OPERATING

WEIGHT (Kgs)

NOTES:

25HBC5

C, MAX. 52

1219.2 ABOVE UNIT, 152.4 ON ONE SIDE, 304.8 ON REMAINING SIDE,

AND 609.6 BETWEEN UNITSFOR PROPER AIRFLOW.

1. ALLOW 762.0 CLEARANCE TO SERVICE SIDE OF UNIT,

MODE IS 13

2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING UNIT MODEL NUMBER.

3. SERIES DESIGN ATION IS THE 13TH POSITION OF THE

4. CENTER OF GRAVITY .

DISCHARGE

AIR IN

5. ALL DIMEN SIONS ARE IN "MM" UNLESS N OTED.

(2) PLACES

28.6

AIR IN

96.8

9.53 TIEDOWN KNOCKOUTS

ABCDEFGKLMNP

ELECTRICAL

CHARACTERISTICS

X = YES

47.6

SQ.

AIR DISCHARGE

O=NO

460-3-60

208/230-3-60

230-1-60

208-230-1-60

22.23 HOLE

SUPPLY CONN.

FIELD CONTROL

28.58 KNOCKOUT

22.23 HOLE WITH

FIELD POWER SUPPLY CON N.

88.9

MINIMUM

DIMENSIONS

VAPOR LINE C ONN.

- 660.4 X 660.4

18 800.1 X 800.1

UNIT SIZE

24,30,36,42,48,60 889.0 X 889.0

UNIT SERIES

25HBC518 0 X O O O 792.5 734.8 95.6 15.9 166.1 626.3 231.3 70.9 12.8 406.4 381.0 355.6 76.7 93.9 821.2 X 901.2 X 826.8

25HBC524 0 X O O O 889.0 821.2 95.6 15.9 166.1 722.8 231.3 70.9 12.8 400.1 425.5 419.1 90.8 105.7 917.7 X 997.7 X 913.2

25HBC548 0 X O O O 889.0 734.8 97.9 22.2 166.1 722.8 231.3 74.5 16.3 425.5 412.8 355.6 117.9 137.4 917.7 X 997.7 X 826.8

25HBC530 0 X O O O 889.0 821.2 95.6 19.1 166.1 722.8 231.3 70.9 12.8 412.8 406.4 393.7 88.9 109.8 917.7 X 997.7 X 913.2

25HBC560 0 X O O O 889.0 993.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 438.2 412.8 463.6 113.4 156.5 917.7 X 997.7 X 1085.9

25HBC536 0 X O O O 889.0 907.5 95.6 19.1 166.1 722.8 231.3 70.9 12.8 400.1 425.5 431.8 97.5 116.6 917.7 X 997.7 X 999.5

25HBC542 0 X O O O 889.0 734.8 97.9 22.2 166.1 722.8 231.3 74.5 16.3 431.8 425.5 374.7 111.1 131.5 917.7 X 997.7 X 826.8

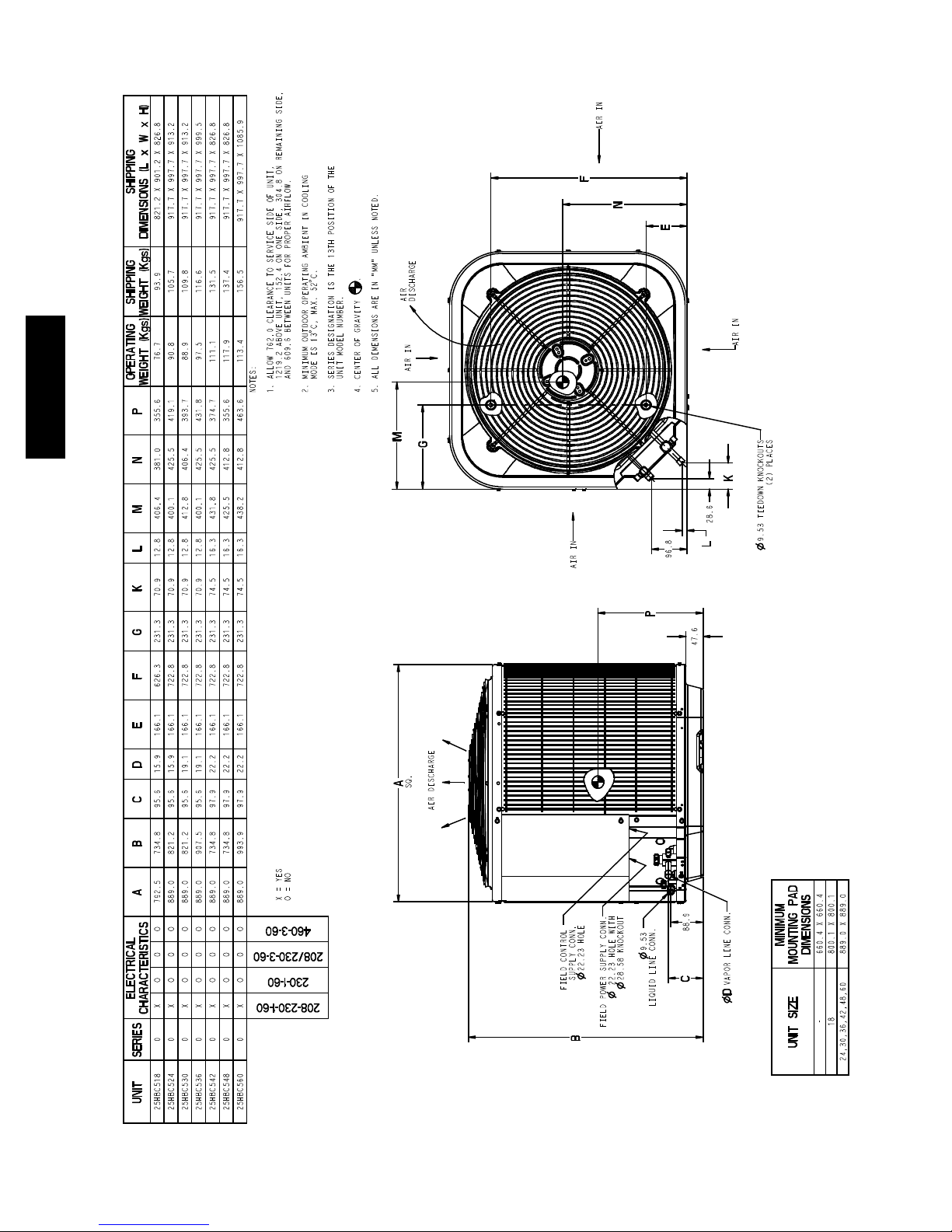

DIMENSIONS -- SI

Page 11

23.4

FX4DNF061

25HBC560A30

AND AT RATED CFM

0.0

25HBC5

20.5

17.6

FX4DNF049

25HBC548A30

FX4DNF043

25HBC542A30

14.6

FX4DNF037

25HBC536A30

11.7

FX4DNF031

25HBC530A30

8.8

FX4DNF025

25HBC524A30

5.9

FX4DNF019

25HBC518A30

2.9

BASED ON INDOOR ENT. AIR AT 70 ºF (21.1_ C)

OUTDOOR TEMPERATURE, ºF (ºC)

- 10 (-23) 0 (-17.78) 10 (-12.22) 20 (-6.67) 30 (-1.11) 40 (4.44) 50 (10) 60 (15.56) 70 (21.11) 80 (26.67)

BUILDING HEAT LOSS, UNIT INTEGRATED HEATING CAPACITY, MBTUH

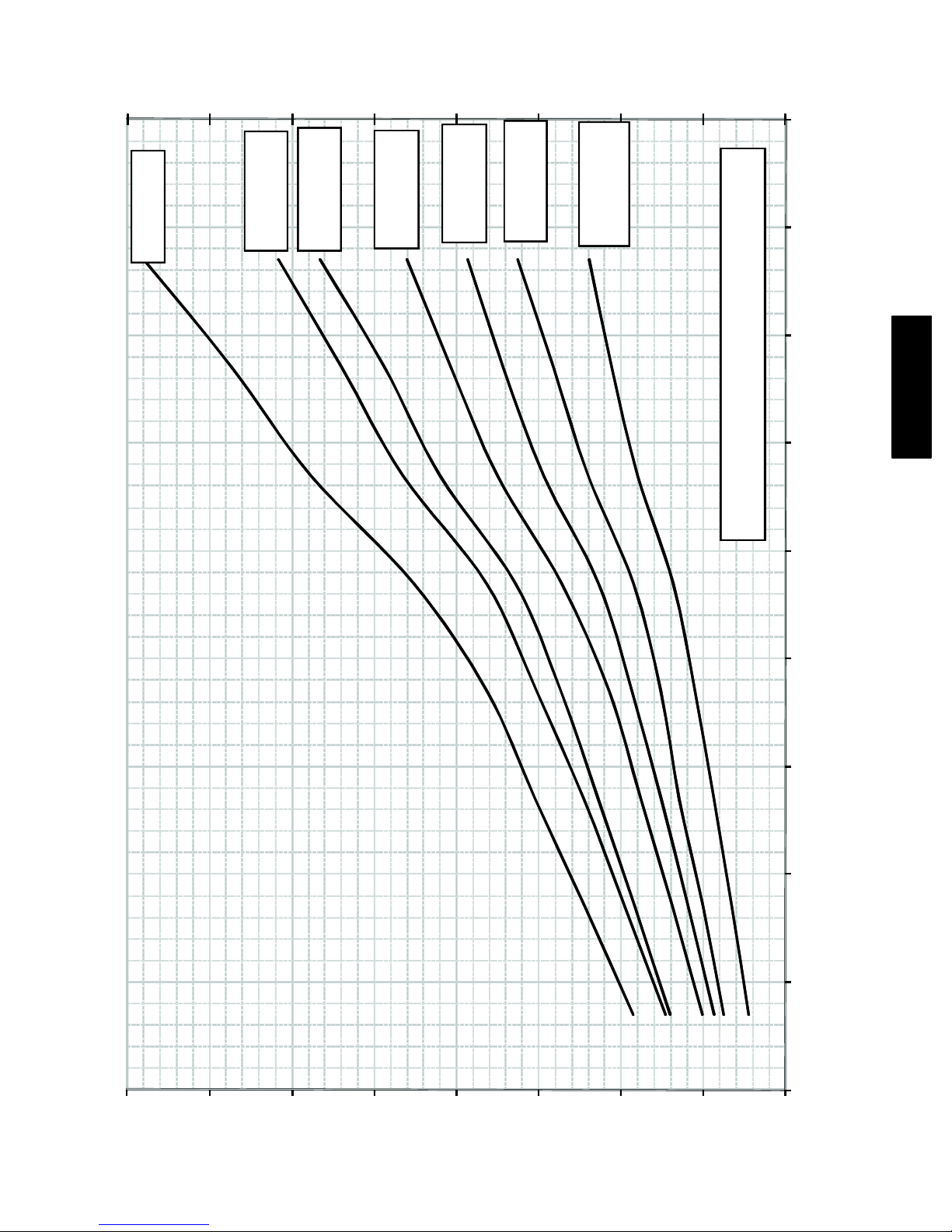

25HBC5 BALANCE POINT WORKSHEET

Page 12

Wall

6”

(152.4)

24”

(609.6)

25HBC5

Wall

Service

12”

(304.8)

12”

(304.8)

24”

(609.6)

Service

18”

(457.2)

24”

(609.6)

Service

18”

(457.2)

Clearances (various examples)

12”

(304.8)

6”

Wall

(152.4)

Wall

12”

(304.8)

24”

CLEARANCES

(609.6)

Service

24”

(609.6)

Service

18”

(457.2)

Note: Numbers in ( ) = mm

IMPORTANT: When installing multiple units in an alcove, roof well, or partially enclosed area, ensure there is adequate ventilation to prevent re--circulation of discharge air.

Page 13

COMBINATION RATINGS

AHRI

Ref. No.

3645439 25HBC518A**30 †FX4DNF019 17,800 12.6 15.3 17,800 3.92 8.6 10,700 2.60 3645382 25HBC518A**30 CAP**1814A** 58CV(A,X)070 ---12 17,200 12.0 14.5 17,500 3.58 7.9 10,400 2.46 3645412 25HBC518A**30 CAP**1814A** 58PH*045 ---08 17,400 12.0 14.5 17,800 3.68 8.2 10,600 2.50 4804510 25HBC518A**30 CAP**1814A** 59*P5A040E14**10 17,200 11.5 14.0 17,600 3.52 7.8 10,500 2.42 3645418 25HBC518A**30 CAP**1814A**+TDR 17,200 11.2 13.0 18,000 3.52 8.0 11,200 2.38 3645383 25HBC518A**30 CAP**2414A** 58CV(A,X)070 ---12 17,400 12.5 15.0 17,700 3.70 8.1 10,500 2.50 3645413 25HBC518A**30 CAP**2414A** 58PH*045 ---08 17,600 12.5 15.0 18,000 3.84 8.5 10,700 2.56 4804511 25HBC518A**30 CAP**2414A** 59*P5A040E14**10 17,600 11.8 14.2 17,800 3.64 8.2 10,600 2.46 3645419 25HBC518A**30 CAP**2414A**+TDR 17,400 11.2 13.5 18,000 3.62 8.2 11,200 2.42 3645388 25HBC518A**30 CAP**2417A** 58CV(A,X)090 ---16 17,400 12.5 15.0 17,700 3.74 8.1 10,500 2.52 3645393 25HBC518A**30 CAP**2417A** 58ME(B,C)040 --- 12 18,000 13.0 15.5 18,000 4.00 8.7 10,700 2.64 3645398 25HBC518A**30 CAP**2417A** 58ME(B,C)060 --- 12 17,800 13.0 15.5 18,000 3.92 8.5 10,600 2.60 3646395 25HBC518A**30 CAP**2417A** 58MEB040---12 18,000 13.0 15.5 18,000 4.00 8.7 10,700 2.64 3645403 25HBC518A**30 CAP**2417A** 58MV(B,C)060 ---14 17,400 12.5 15.0 17,700 3.72 8.1 10,500 2.52 3645443 25HBC518A**30 CAP**2417A** 58UVB060--- 14 17,400 12.5 15.0 17,700 3.72 8.1 10,500 2.52 3810449 25HBC518A**30 CAP**2417A** 58VLR105 ---12 18,000 12.5 15.5 18,000 3.92 8.5 10,700 2.60 3810448 25HBC518A**30 CAP**2417A** 58VMR105---12 17,800 12.5 15.0 17,800 3.76 8.5 10,500 2.54 4804512 25HBC518A**30 CAP**2417A** 59*N*A060V17**14 17,600 12.0 14.5 17,700 3.70 8.2 10,500 2.50 4804513 25HBC518A**30 CAP**2417A** 59*N*A080V17**14 17,600 12.0 14.5 17,600 3.68 8.2 10,400 2.50 4804514 25HBC518A**30 CAP**2417A** 59*P5A040E14**10 17,600 12.0 14.5 17,800 3.66 8.2 10,600 2.48 4194126 25HBC518A**30 CAP**2417A** OVLAAB036098 18,000 12.5 15.0 18,000 3.84 8.5 10,700 2.56 4194125 25HBC518A**30 CAP**2417A** OVMAAB036098 18,000 12.5 15.0 18,000 3.90 8.5 10,800 2.58 3645420 25HBC518A**30 CAP**2417A**+TDR 17,400 11.2 13.5 18,000 3.62 8.2 11,200 2.42 3645384 25HBC518A**30 CNPH*2417A** 58CV(A,X)070 ---12 17,300 12.5 15.0 17,700 3.74 8.1 10,500 2.52 3645389 25HBC518A**30 CNPH*2417A** 58CV(A,X)090 ---16 17,400 12.5 15.0 17,700 3.76 8.1 10,500 2.52 3756321 25HBC518A**30 CNPH*2417A** 58HDV040 --- --- 12 18,000 12.2 14.5 18,000 3.96 8.5 11,000 2.58 3756322 25HBC518A**30 CNPH*2417A** 58HDV060 --- --- 12 18,000 12.2 14.5 18,000 3.96 8.6 11,000 2.58 3645394 25HBC518A**30 CNPH*2417A** 58ME(B,C)040---12 17,800 12.5 15.5 18,000 3.96 8.7 10,700 2.60 3645399 25HBC518A**30 CNPH*2417A** 58ME(B,C)060---12 17,600 12.5 15.5 17,900 3.86 8.5 10,600 2.56 3646396 25HBC518A**30 CNPH*2417A** 58MEB040 --- 12 17,800 12.5 15.5 18,000 3.96 8.7 10,700 2.60 3645404 25HBC518A**30 CNPH*2417A** 58MV(B,C)060---14 17,400 12.5 15.0 17,700 3.76 8.1 10,500 2.52 3645408 25HBC518A**30 CNPH*2417A** 58MV(B,C)080---14 17,300 12.5 15.0 17,700 3.74 8.1 10,500 2.52 3645410 25HBC518A**30 CNPH*2417A** 58MVB040 --- 14 17,400 12.5 15.0 17,700 3.74 8.2 10,500 2.52 3645414 25HBC518A**30 CNPH*2417A** 58PH*045 --- 08 17,600 12.5 15.0 18,000 3.84 8.5 10,700 2.56 3810455 25HBC518A**30 CNPH*2417A** 58VLR105 --- 12 18,000 12.5 15.5 18,000 3.94 8.5 10,700 2.60 3810454 25HBC518A**30 CNPH*2417A** 58VMR105 --- 12 17,800 12.5 15.0 17,800 3.80 8.5 10,600 2.54 4804523 25HBC518A**30 CNPH*2417A** 59*N*A060V17**14 17,700 12.0 14.5 17,800 3.72 8.2 10,500 2.50 4804524 25HBC518A**30 CNPH*2417A** 59*N*A080V17**14 17,600 12.0 14.5 17,700 3.70 8.2 10,500 2.50 4804525 25HBC518A**30 CNPH*2417A** 59*P5A040E14**10 17,500 11.8 14.2 17,800 3.66 8.2 10,600 2.46 4194133 25HBC518A**30 CNPH*2417A** OVLAAB036098 18,000 12.5 15.0 18,000 3.88 8.6 10,700 2.56 4194132 25HBC518A**30 CNPH*2417A** OVMAAB036098 18,000 12.5 15.0 18,000 3.92 8.7 10,800 2.58 3645422 25HBC518A**30 CNPH*2417A**+TDR 17,400 11.2 13.5 18,000 3.66 8.2 11,300 2.42 3645385 25HBC518A**30 CNPV*1814A** 58CV(A,X)070---12 17,200 12.0 14.5 17,500 3.68 7.9 10,500 2.48 3645415 25HBC518A**30 CNPV*1814A** 58PH*045--- 08 17,400 12.0 14.5 17,800 3.74 8.1 10,600 2.52 4804515 25HBC518A**30 CNPV*1814A** 59*P5A040E14**10 17,300 11.8 14.2 17,700 3.56 8.0 10,500 2.42 3645423 25HBC518A**30 CNPV*1814A**+TDR 17,200 11.2 13.0 18,000 3.62 8.0 11,200 2.40 3645390 25HBC518A**30 CNPV*1917A** 58CV(A,X)090---16 17,600 12.5 15.0 17,800 3.80 8.5 10,500 2.54 3645395 25HBC518A**30 CNPV*1917A** 58ME(B,C)040--- 12 18,000 13.0 15.5 18,000 4.08 8.8 10,800 2.66 3645400 25HBC518A**30 CNPV*1917A** 58ME(B,C)060--- 12 18,000 13.0 15.5 18,000 3.98 8.6 10,700 2.62 3646397 25HBC518A**30 CNPV*1917A** 58MEB040 ---12 18,000 13.0 15.5 18,000 4.08 8.8 10,800 2.66 3645405 25HBC518A**30 CNPV*1917A** 58MV(B,C)060---14 17,500 12.5 15.0 17,800 3.78 8.5 10,500 2.54 3645444 25HBC518A**30 CNPV*1917A** 58UVB060---14 17,500 12.5 15.0 17,800 3.78 8.5 10,500 2.54 3810451 25HBC518A**30 CNPV*1917A** 58VLR105--- 12 18,000 12.5 15.5 18,000 4.00 8.5 10,700 2.62 3810450 25HBC518A**30 CNPV*1917A** 58VMR105 ---12 17,900 12.5 15.0 17,900 3.86 8.5 10,600 2.56 4804516 25HBC518A**30 CNPV*1917A** 59*N*A060V17**14 17,800 12.0 14.5 17,800 3.78 8.2 10,600 2.52 4804517 25HBC518A**30 CNPV*1917A** 59*N*A080V17**14 17,700 12.5 15.0 17,700 3.76 8.2 10,500 2.52 4804518 25HBC518A**30 CNPV*1917A** 59*P5A040E14**10 17,700 12.0 14.5 17,900 3.74 8.2 10,700 2.50 4194129 25HBC518A**30 CNPV*1917A** OVLAAB036098 18,000 12.5 15.0 18,000 3.94 8.7 10,700 2.60 4194128 25HBC518A**30 CNPV*1917A** OVMAAB036098 18,000 12.5 15.0 18,000 4.00 8.8 10,800 2.60 3645424 25HBC518A**30 CNPV*1917A**+TDR 17,600 11.5 13.0 18,000 3.68 8.2 11,300 2.44 3645386 25HBC518A**30 CNPV*2414A** 58CV(A,X)070---12 17,400 12.5 15.0 17,700 3.74 8.1 10,500 2.52 3645416 25HBC518A**30 CNPV*2414A** 58PH*045--- 08 17,600 12.5 15.0 18,000 3.84 8.5 10,700 2.56 4804519 25HBC518A**30 CNPV*2414A** 59*P5A040E14**10 17,500 11.8 14.2 17,800 3.66 8.2 10,600 2.46 3645425 25HBC518A**30 CNPV*2414A**+TDR 17,400 11.2 13.5 18,000 3.66 8.2 11,300 2.42 3645391 25HBC518A**30 CNPV*2417A** 58CV(A,X)090---16 17,400 12.5 15.0 17,700 3.76 8.1 10,500 2.52 4194127 25HBC518A**30 CNPV*2417A** 58HDV040--- --- 12 18,000 12.5 14.5 18,000 3.96 8.7 11,000 2.58 3645396 25HBC518A**30 CNPV*2417A** 58ME(B,C)040--- 12 17,800 12.5 15.5 18,000 3.96 8.7 10,700 2.60 3645401 25HBC518A**30 CNPV*2417A** 58ME(B,C)060--- 12 17,600 12.5 15.5 17,900 3.86 8.5 10,600 2.56 3646398 25HBC518A**30 CNPV*2417A** 58MEB040 ---12 17,800 12.5 15.5 18,000 3.96 8.7 10,700 2.60 3645406 25HBC518A**30 CNPV*2417A** 58MV(B,C)060---14 17,400 12.5 15.0 17,700 3.76 8.1 10,500 2.52 3645445 25HBC518A**30 CNPV*2417A** 58UVB060---14 17,400 12.5 15.0 17,700 3.76 8.1 10,500 2.52 3810453 25HBC518A**30 CNPV*2417A** 58VLR105--- 12 18,000 12.5 15.5 18,000 3.94 8.5 10,700 2.60 3810452 25HBC518A**30 CNPV*2417A** 58VMR105 ---12 17,800 12.5 15.0 17,800 3.80 8.5 10,600 2.54 4804520 25HBC518A**30 CNPV*2417A** 59*N*A060V17**14 17,700 12.0 14.5 17,800 3.72 8.2 10,500 2.50 4804521 25HBC518A**30 CNPV*2417A** 59*N*A080V17**14 17,600 12.0 14.5 17,700 3.70 8.2 10,500 2.50 4804522 25HBC518A**30 CNPV*2417A** 59*P5A040E14**10 17,500 11.8 14.2 17,800 3.66 8.2 10,600 2.46 4194131 25HBC518A**30 CNPV*2417A** OVLAAB036098 18,000 12.5 15.0 18,000 3.88 8.6 10,700 2.56 4194130 25HBC518A**30 CNPV*2417A** OVMAAB036098 18,000 12.5 15.0 18,000 3.92 8.7 10,800 2.58 3645426 25HBC518A**30 CNPV*2417A**+TDR 17,400 11.2 13.5 18,000 3.66 8.2 11,300 2.42 3645387 25HBC518A**30 CSPH*2412A** 58CV(A ,X)070---12 17,400 12.5 15.0 17,700 3.72 8.1 10,500 2.52

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 14

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645392 25HBC518A**30 CSPH*2412A** 58CV(A ,X)090---16 17,400 12.5 15.0 17,700 3.76 8.1 10,500 2.52 3756323 25HBC518A**30 CSPH*2412A** 58HDV040--- ---12 18,000 12.2 14.5 18,000 3.94 8.5 11,000 2.58 3756324 25HBC518A**30 CSPH*2412A** 58HDV060--- ---12 18,000 12.2 14.5 18,000 3.94 8.5 11,000 2.58 3645397 25HBC518A**30 CSPH*2412A** 58ME(B,C)040---12 17,800 12.5 15.5 18,000 3.90 8.7 10,700 2.60 3645402 25HBC518A**30 CSPH*2412A** 58ME(B,C)060---12 17,600 12.5 15.5 17,700 3.78 8.2 10,500 2.54 3646399 25HBC518A**30 CSPH*2412A** 58MEB040--- 12 17,800 12.5 15.5 18,000 3.90 8.7 10,700 2.60 3645407 25HBC518A**30 CSPH*2412A** 58MV(B,C)060--- 14 17,400 12.5 15.0 17,700 3.74 8.1 10,500 2.52 3645409 25HBC518A**30 CSPH*2412A** 58MV(B,C)080--- 14 17,500 12.5 15.0 17,700 3.72 8.1 10,500 2.52 3645411 25HBC518A**30 CSPH*2412A** 58MVB040--- 14 17,500 12.5 15.0 17,700 3.74 8.2 10,500 2.52 3645417 25HBC518A**30 CSPH*2412A** 58PH*045---08 17,600 12.5 15.0 18,000 3.82 8.5 10,700 2.54 3810457 25HBC518A**30 CSPH*2412A** 58VLR105---12 18,000 12.5 15.5 18,000 3.94 8.5 10,700 2.60 3810456 25HBC518A**30 CSPH*2412A** 58VMR105--- 12 17,900 12.5 15.0 17,900 3.78 8.5 10,600 2.54 4804526 25HBC518A**30 CSPH*2412A** 59*N*A060V17**14 17,800 12.0 14.5 17,800 3.72 8.2 10,600 2.50 4804527 25HBC518A**30 CSPH*2412A** 59*N*A080V17**14 17,700 12.0 14.5 17,700 3.70 8.2 10,500 2.50 4804528 25HBC518A**30 CSPH*2412A** 59*P5A040E14**10 17,600 11.8 14.2 17,800 3.62 8.0 10,600 2.44 4194135 25HBC518A**30 CSPH*2412A** OVLAAB036098 18,000 12.5 15.0 18,000 3.86 8.5 10,800 2.56 4194134 25HBC518A**30 CSPH*2412A** OVMAAB036098 18,000 12.5 15.0 18,000 3.92 8.7 10,800 2.58 3645427 25HBC518A**30 CSPH*2412A**+TDR 17,400 11.2 13.5 18,000 3.68 8.2 11,300 2.44 3810444 25HBC518A**30 FB4CNF018 17,700 12.0 14.5 18,000 3.78 8.2 10,700 2.52 3645428 25HBC518A**30 FB4CNF018+TXV 17,600 12.5 15.0 18,000 3.78 8.2 10,700 2.52 3810445 25HBC518A**30 FB4CNF024 17,700 12.0 14.5 18,000 3.76 8.2 10,700 2.52 3645429 25HBC518A**30 FB4CNF024+TXV 17,500 12.5 15.0 18,000 3.78 8.2 10,700 2.52 3645430 25HBC518A**30 FE4ANF002+UI 17,700 13.0 15.5 17,800 3.84 8.5 10,500 2.56 3645431 25HBC518A**30 FF1ENP018 17,200 11.2 13.0 18,000 3.54 8.0 11,200 2.38

25HBC5

3645432 25HBC518A**30 FF1ENP019 17,500 12.0 14.5 18,000 3.76 8.2 10,700 2.52 3645433 25HBC518A**30 FF1ENP024 17,400 11.2 13.5 18,000 3.58 8.0 11,200 2.40 3645434 25HBC518A**30 FF1ENP025 17,800 12.5 15.0 18,000 3.86 8.5 10,700 2.58 3645436 25HBC518A**30 FV4CNF002 17,700 13.0 15.5 17,800 3.84 8.5 10,500 2.56 3645440 25HBC518A**30 FX4DNF025 18,000 12.6 15.5 18,000 3.90 8.6 10,700 2.58 3810446 25HBC518A**30 FY5BNF018 17,600 11.5 13.5 18,000 3.64 8.2 11,000 2.44 3692767 25HBC518A**30 FY5BNF018+TXV 17,400 11.5 14.0 18,000 3.64 8.2 11,000 2.44 3810447 25HBC518A**30 FY5BNF024 17,700 11.5 13.5 18,000 3.68 8.2 11,000 2.46 3692768 25HBC518A**30 FY5BNF024+TXV 17,400 11.5 14.0 18,000 3.64 8.2 11,000 2.44

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

3645571 25HBC524A**30 †FX4DNF025 24,000 12.5 15.3 24,000 3.96 8.7 14,700 2.68 3645446 25HBC524A**30 CAP**2414A** 58CV(A,X)070 ---12 23,400 12.5 15.0 24,000 3.78 8.5 14,100 2.58 3645533 25HBC524A**30 CAP**2414A** 58PH*045 ---08 23,400 12.5 15.0 24,000 3.84 8.5 14,500 2.64 4804529 25HBC524A**30 CAP**2414A** 59*P5A040E14**10 23,600 11.5 14.0 24,000 3.74 8.5 15,000 2.54 3645541 25HBC524A**30 CAP**2414A**+TDR 23,400 11.2 13.5 24,000 3.72 8.3 15,200 2.54 3645454 25HBC524A**30 CAP**2417A** 58CV(A,X)090 ---16 23,400 12.5 15.5 24,000 3.84 8.5 14,300 2.64 3645477 25HBC524A**30 CAP**2417A** 58ME(B,C)040 --- 12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.70 3645486 25HBC524A**30 CAP**2417A** 58ME(B,C)060 --- 12 23,400 12.5 15.5 24,000 4.00 8.8 14,600 2.72 3645495 25HBC524A**30 CAP**2417A** 58ME(B,C)080 --- 12 23,400 12.5 15.5 24,000 3.96 8.7 14,500 2.70 3646400 25HBC524A**30 CAP**2417A** 58MEB040---12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.70 3645504 25HBC524A**30 CAP**2417A** 58MV(B,C)060 ---14 23,400 12.5 15.5 24,000 3.92 8.6 14,500 2.68 3645574 25HBC524A**30 CAP**2417A** 58UVB060--- 14 23,400 12.5 15.5 24,000 3.92 8.6 14,500 2.68 3810463 25HBC524A**30 CAP**2417A** 58VLR105 ---12 23,800 12.5 15.0 24,000 3.90 8.5 14,500 2.66 3810462 25HBC524A**30 CAP**2417A** 58VMR105---12 23,400 12.5 15.0 24,000 3.80 8.5 14,100 2.60 4804530 25HBC524A**30 CAP**2417A** 59*N*A060V17**14 23,400 12.5 15.2 24,000 3.78 8.5 14,400 2.60 4804531 25HBC524A**30 CAP**2417A** 59*N*A080V17**14 23,400 12.5 15.2 24,000 3.76 8.5 14,100 2.56 4804532 25HBC524A**30 CAP**2417A** 59*P5A040E14**10 23,600 11.5 14.0 24,000 3.76 8.5 15,000 2.56 4804533 25HBC524A**30 CAP**2417A** 59*P5A060E17**14 23,600 12.5 15.2 24,000 3.82 8.5 14,400 2.62 4194137 25HBC524A**30 CAP**2417A** OVLAAB036098 23,800 12.5 15.0 24,000 3.88 8.5 14,500 2.66 4194136 25HBC524A**30 CAP**2417A** OVMAAB036098 23,800 12.5 15.0 24,000 3.86 8.5 14,600 2.64 3645542 25HBC524A**30 CAP**2417A**+TDR 23,400 11.2 13.5 24,000 3.72 8.3 15,200 2.54 3645447 25HBC524A**30 CAP**3014A** 58CV(A,X)070 ---12 23,400 12.5 15.5 24,000 3.82 8.5 14,400 2.64 3645534 25HBC524A**30 CAP**3014A** 58PH*045 ---08 23,400 12.5 15.3 24,000 3.88 8.7 14,600 2.66 4804534 25HBC524A**30 CAP**3014A** 59*P5A040E14**10 23,800 11.5 14.0 24,000 3.78 8.5 15,100 2.58 3645543 25HBC524A**30 CAP**3014A**+TDR 23,400 11.2 13.5 24,000 3.74 8.3 15,200 2.56 3645455 25HBC524A**30 CAP**3017A** 58CV(A,X)090 ---16 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.68 3645478 25HBC524A**30 CAP**3017A** 58ME(B,C)040 --- 12 23,400 12.5 15.5 24,000 4.04 9.0 14,600 2.74 3645487 25HBC524A**30 CAP**3017A** 58ME(B,C)060 --- 12 23,400 12.5 15.5 24,000 4.06 9.0 14,600 2.76 3645496 25HBC524A**30 CAP**3017A** 58ME(B,C)080 --- 12 23,400 12.5 15.5 24,000 4.00 9.0 14,500 2.72 3646401 25HBC524A**30 CAP**3017A** 58MEB040---12 23,400 12.5 15.5 24,000 4.04 9.0 14,600 2.74 3645505 25HBC524A**30 CAP**3017A** 58MV(B,C)060 ---14 23,400 12.5 15.5 24,000 3.94 8.7 14,500 2.70 3645575 25HBC524A**30 CAP**3017A** 58UVB060--- 14 23,400 12.5 15.5 24,000 3.94 8.7 14,500 2.70 3810465 25HBC524A**30 CAP**3017A** 58VLR105 ---12 24,000 12.5 15.0 24,000 3.92 8.5 14,500 2.70 3810464 25HBC524A**30 CAP**3017A** 58VMR105---12 23,600 12.5 15.0 24,000 3.82 8.5 14,300 2.64 4804535 25HBC524A**30 CAP**3017A** 59*N*A060V17**14 23,600 12.5 15.2 24,000 3.82 8.5 14,500 2.64 4804536 25HBC524A**30 CAP**3017A** 59*N*A080V17**14 23,600 12.6 15.5 24,000 3.78 8.5 14,400 2.62 4804537 25HBC524A**30 CAP**3017A** 59*P5A040E14**10 24,000 11.7 14.2 24,000 3.80 8.5 15,100 2.58 4804538 25HBC524A**30 CAP**3017A** 59*P5A060E17**14 23,800 12.7 15.5 24,000 3.86 8.8 14,500 2.66 4194139 25HBC524A**30 CAP**3017A** OVLAAB036098 24,000 12.5 15.0 24,000 3.92 8.8 14,500 2.68 4194138 25HBC524A**30 CAP**3017A** OVMAAB036098 24,000 12.5 15.0 24,000 3.90 8.8 14,600 2.68 3645544 25HBC524A**30 CAP**3017A**+TDR 23,400 11.2 13.5 24,000 3.74 8.3 15,200 2.56 3645475 25HBC524A**30 CAP**3619A** 58HDV040 --- --- 12 24,000 12.5 15.0 24,000 3.94 8.7 14,700 2.68 3645476 25HBC524A**30 CAP**3619A** 58HDV060 --- --- 12 24,000 12.5 15.0 24,000 4.02 8.8 14,800 2.70 3645448 25HBC524A**30 CNPH*2417A** 58CV(A,X)070 ---12 23,400 12.5 15.0 24,000 3.86 8.5 14,400 2.62 3645456 25HBC524A**30 CNPH*2417A** 58CV(A,X)090 ---16 23,400 12.5 15.0 24,000 3.90 8.5 14,400 2.66 3645463 25HBC524A**30 CNPH*2417A** 58CV(A,X)110 ---20 23,400 12.5 15.0 24,000 3.88 8.5 14,500 2.64

See notes on page 36

Page 15

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645467 25HBC524A**30 CNPH*2417A** 58CV(A,X)135 ---22 23,400 12.5 15.0 24,000 3.88 8.5 14,400 2.64 3645471 25HBC524A**30 CNPH*2417A** 58CV(A,X)155 ---22 23,400 12.5 15.0 24,000 3.90 8.5 14,400 2.64 3756325 25HBC524A**30 CNPH*2417A** 58HDV040 --- --- 12 23,600 12.2 14.5 24,000 3.88 8.5 14,700 2.62 3756326 25HBC524A**30 CNPH*2417A** 58HDV060 --- --- 12 23,800 12.2 14.5 24,000 3.92 8.6 14,800 2.64 3645479 25HBC524A**30 CNPH*2417A** 58ME(B,C)040---12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.68 3645488 25HBC524A**30 CNPH*2417A** 58ME(B,C)060---12 23,400 12.5 15.5 24,000 4.00 8.7 14,600 2.70 3645497 25HBC524A**30 CNPH*2417A** 58ME(B,C)080---12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.68 3646402 25HBC524A**30 CNPH*2417A** 58MEB040 --- 12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.68 3645506 25HBC524A**30 CNPH*2417A** 58MV(B,C)060---14 23,400 12.5 15.0 24,000 3.96 8.6 14,600 2.68 3645513 25HBC524A**30 CNPH*2417A** 58MV(B,C)080---14 23,400 12.5 15.0 24,000 3.86 8.5 14,400 2.64 3645517 25HBC524A**30 CNPH*2417A** 58MV(B,C)080---20 23,200 12.5 15.0 24,000 3.80 8.5 14,100 2.58 3645521 25HBC524A**30 CNPH*2417A** 58MV(B,C)100---20 23,400 12.5 15.0 24,000 3.88 8.5 14,400 2.64 3645525 25HBC524A**30 CNPH*2417A** 58MV(B,C)120---20 23,400 12.5 15.0 24,000 3.92 8.6 14,500 2.66 3645529 25HBC524A**30 CNPH*2417A** 58MVB040 --- 14 23,400 12.5 15.0 24,000 3.88 8.5 14,500 2.64 3645535 25HBC524A**30 CNPH*2417A** 58PH*045 --- 08 23,400 12.0 15.0 24,000 3.90 8.5 14,500 2.64 3810473 25HBC524A**30 CNPH*2417A** 58VLR105 --- 12 23,800 12.5 15.0 24,000 3.96 8.5 14,500 2.68 3810472 25HBC524A**30 CNPH*2417A** 58VMR105 --- 12 23,400 12.5 15.0 24,000 3.84 8.5 14,400 2.62 4804553 25HBC524A**30 CNPH*2417A** 59*N*A060V17**14 23,400 12.3 15.0 24,000 3.84 8.5 14,500 2.62 4804554 25HBC524A**30 CNPH*2417A** 59*N*A080V17**14 23,400 12.5 15.2 24,000 3.82 8.5 14,400 2.60 4804555 25HBC524A**30 CNPH*2417A** 59*N*A100V21**20 23,800 12.5 15.2 24,000 3.92 8.8 14,600 2.64 4804556 25HBC524A**30 CNPH*2417A** 59*N*A120V24**22 23,600 12.5 15.2 24,000 3.92 8.8 14,500 2.64 4804557 25HBC524A**30 CNPH*2417A** 59*P5A040E14**10 23,600 11.5 14.0 24,000 3.80 8.5 15,100 2.56 4804558 25HBC524A**30 CNPH*2417A** 59*P5A060E17**14 23,400 12.4 15.2 24,000 3.82 8.5 14,400 2.62 4194148 25HBC524A**30 CNPH*2417A** OVLAAB036098 23,800 12.0 15.0 24,000 3.92 8.8 14,600 2.66 4194147 25HBC524A**30 CNPH*2417A** OVMAAB036098 23,800 12.0 15.0 24,000 3.92 8.8 14,700 2.64 3645546 25HBC524A**30 CNPH*2417A**+TDR 23,400 11.2 13.5 24,000 3.80 8.3 15,200 2.54 3645449 25HBC524A**30 CNPH*3017A** 58CV(A,X)070 ---12 23,400 12.5 15.5 24,000 3.84 8.5 14,400 2.66 3645457 25HBC524A**30 CNPH*3017A** 58CV(A,X)090 ---16 23,400 12.5 15.5 24,000 3.88 8.5 14,400 2.68 3645464 25HBC524A**30 CNPH*3017A** 58CV(A,X)110 ---20 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.66 3645468 25HBC524A**30 CNPH*3017A** 58CV(A,X)135 ---22 23,400 12.5 15.5 24,000 3.88 8.5 14,400 2.68 3645472 25HBC524A**30 CNPH*3017A** 58CV(A,X)155 ---22 23,400 12.5 15.5 24,000 3.88 8.5 14,400 2.68 3756327 25HBC524A**30 CNPH*3017A** 58HDV040 --- --- 12 24,000 12.2 15.0 24,000 3.90 8.6 14,700 2.66 3756328 25HBC524A**30 CNPH*3017A** 58HDV060 --- --- 12 24,000 12.5 15.0 24,000 3.98 8.7 14,800 2.70 3645480 25HBC524A**30 CNPH*3017A** 58ME(B,C)040---12 23,400 12.5 15.5 24,000 4.04 9.0 14,600 2.74 3645489 25HBC524A**30 CNPH*3017A** 58ME(B,C)060---12 23,400 12.5 15.5 24,000 4.06 9.0 14,600 2.74 3645498 25HBC524A**30 CNPH*3017A** 58ME(B,C)080---12 23,400 12.5 15.5 24,000 4.00 9.0 14,600 2.72 3646403 25HBC524A**30 CNPH*3017A** 58MEB040 --- 12 23,400 12.5 15.5 24,000 4.04 9.0 14,600 2.74 3645507 25HBC524A**30 CNPH*3017A** 58MV(B,C)060---14 23,400 12.5 15.5 24,000 3.96 8.7 14,500 2.70 3645514 25HBC524A**30 CNPH*3017A** 58MV(B,C)080---14 23,400 12.5 15.5 24,000 3.84 8.5 14,400 2.66 3645518 25HBC524A**30 CNPH*3017A** 58MV(B,C)080---20 23,400 12.5 15.5 24,000 3.78 8.5 14,000 2.60 3645522 25HBC524A**30 CNPH*3017A** 58MV(B,C)100---20 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.66 3645526 25HBC524A**30 CNPH*3017A** 58MV(B,C)120---20 23,400 12.5 15.5 24,000 3.90 8.6 14,400 2.68 3645530 25HBC524A**30 CNPH*3017A** 58MVB040 --- 14 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.66 3645536 25HBC524A**30 CNPH*3017A** 58PH*045 --- 08 23,400 12.5 15.3 24,000 3.92 8.7 14,600 2.68 3810475 25HBC524A**30 CNPH*3017A** 58VLR105 --- 12 24,000 12.5 15.0 24,000 3.94 8.5 14,500 2.70 3810474 25HBC524A**30 CNPH*3017A** 58VMR105 --- 12 23,600 12.5 15.0 24,000 3.84 8.5 14,300 2.66 4804559 25HBC524A**30 CNPH*3017A** 59*N*A060V17**14 23,600 12.5 15.2 24,000 3.82 8.5 14,500 2.64 4804560 25HBC524A**30 CNPH*3017A** 59*N*A080V17**14 23,600 12.7 15.5 24,000 3.80 8.5 14,400 2.64 4804561 25HBC524A**30 CNPH*3017A** 59*N*A100V21**20 24,000 12.7 15.5 24,000 3.90 8.8 14,500 2.68 4804562 25HBC524A**30 CNPH*3017A** 59*N*A120V24**22 23,800 12.7 15.5 24,000 3.90 8.8 14,500 2.68 4804563 25HBC524A**30 CNPH*3017A** 59*P5A040E14**10 24,000 11.7 14.2 24,000 3.80 8.5 15,100 2.58 4804564 25HBC524A**30 CNPH*3017A** 59*P5A060E17**14 23,800 12.7 15.5 24,000 3.86 8.8 14,500 2.66 4194150 25HBC524A**30 CNPH*3017A** OVLAAB036098 24,000 12.5 15.0 24,000 3.92 8.8 14,500 2.68 4194149 25HBC524A**30 CNPH*3017A** OVMAAB036098 24,000 12.5 15.0 24,000 3.90 8.8 14,600 2.68 3645547 25HBC524A**30 CNPH*3017A**+TDR 23,400 11.2 13.5 24,000 3.76 8.3 15,200 2.56 3756329 25HBC524A**30 CNPH*3117A** 58HDV040 --- --- 12 24,000 12.5 15.0 24,000 4.08 8.9 14,800 2.72 3756330 25HBC524A**30 CNPH*3117A** 58HDV060 --- --- 12 24,000 12.5 15.0 24,000 4.18 9.0 14,900 2.76 3810477 25HBC524A**30 CNPH*3117A** 58VLR105 --- 12 24,000 12.5 15.0 24,000 4.10 8.5 14,600 2.76 3810476 25HBC524A**30 CNPH*3117A** 58VMR105 --- 12 24,000 12.5 15.0 24,000 4.00 8.5 14,400 2.72 4804565 25HBC524A**30 CNPH*3117A** 59*N*A060V17**14 24,000 12.7 15.5 24,000 3.98 8.8 14,600 2.70 4804566 25HBC524A**30 CNPH*3117A** 59*N*A080V17**14 24,000 12.7 15.5 24,000 3.96 8.8 14,400 2.68 4804567 25HBC524A**30 CNPH*3117A** 59*N*A100V21**20 24,000 12.7 15.5 24,000 4.08 9.0 14,600 2.74 4804568 25HBC524A**30 CNPH*3117A** 59*N*A120V24**22 24,000 12.7 15.5 24,000 4.06 9.0 14,600 2.72 4804569 25HBC524A**30 CNPH*3117A** 59*P5A040E14**10 24,000 12.0 14.5 24,000 3.98 9.0 15,200 2.64 4804570 25HBC524A**30 CNPH*3117A** 59*P5A060E17**14 24,000 12.7 15.5 24,000 4.04 9.0 14,600 2.72 3645450 25HBC524A**30 CNPV*2414A** 58CV(A,X)070---12 23,400 12.5 15.0 24,000 3.86 8.5 14,400 2.62 3645537 25HBC524A**30 CNPV*2414A** 58PH*045--- 08 23,400 12.5 15.0 24,000 3.90 8.5 14,500 2.64 4804539 25HBC524A**30 CNPV*2414A** 59*P5A040E14**10 23,600 11.5 14.0 24,000 3.80 8.5 15,100 2.56 3645548 25HBC524A**30 CNPV*2414A**+TDR 23,400 11.2 13.5 24,000 3.80 8.3 15,200 2.54 3645458 25HBC524A**30 CNPV*2417A** 58CV(A,X)090---16 23,400 12.5 15.0 24,000 3.90 8.5 14,400 2.66 4194140 25HBC524A**30 CNPV*2417A** 58HDV040--- --- 12 23,600 12.0 14.5 24,000 3.88 8.7 14,700 2.62 3645481 25HBC524A**30 CNPV*2417A** 58ME(B,C)040--- 12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.68 3645490 25HBC524A**30 CNPV*2417A** 58ME(B,C)060--- 12 23,400 12.5 15.5 24,000 4.00 8.7 14,600 2.70 3645499 25HBC524A**30 CNPV*2417A** 58ME(B,C)080--- 12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.68 3646404 25HBC524A**30 CNPV*2417A** 58MEB040 ---12 23,400 12.5 15.5 24,000 3.98 8.7 14,500 2.68 3645508 25HBC524A**30 CNPV*2417A** 58MV(B,C)060---14 23,400 12.5 15.0 24,000 3.96 8.6 14,600 2.68 3645576 25HBC524A**30 CNPV*2417A** 58UVB060---14 23,400 12.5 15.0 24,000 3.96 8.6 14,600 2.68 3810467 25HBC524A**30 CNPV*2417A** 58VLR105--- 12 23,800 12.5 15.0 24,000 3.96 8.5 14,500 2.68 3810466 25HBC524A**30 CNPV*2417A** 58VMR105 ---12 23,400 12.5 15.0 24,000 3.84 8.5 14,400 2.62 4804540 25HBC524A**30 CNPV*2417A** 59*N*A060V17**14 23,400 12.3 15.0 24,000 3.84 8.5 14,500 2.62

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 16

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4804541 25HBC524A**30 CNPV*2417A** 59*N*A080V17**14 23,400 12.5 15.2 24,000 3.82 8.5 14,400 2.60 4804542 25HBC524A**30 CNPV*2417A** 59*P5A040E14**10 23,600 11.5 14.0 24,000 3.80 8.5 15,100 2.56 4804543 25HBC524A**30 CNPV*2417A** 59*P5A060E17**14 23,400 12.4 15.2 24,000 3.82 8.5 14,400 2.62 4194144 25HBC524A**30 CNPV*2417A** OVLAAB036098 23,800 12.0 15.0 24,000 3.92 8.8 14,600 2.66 4194143 25HBC524A**30 CNPV*2417A** OVMAAB036098 23,800 12.0 15.0 24,000 3.92 8.8 14,700 2.64 3645549 25HBC524A**30 CNPV*2417A**+TDR 23,400 11.2 13.5 24,000 3.80 8.3 15,200 2.54 3645451 25HBC524A**30 CNPV*3014A** 58CV(A,X)070---12 23,400 12.5 15.5 24,000 3.82 8.5 14,400 2.64 3645538 25HBC524A**30 CNPV*3014A** 58PH*045--- 08 23,400 12.5 15.3 24,000 3.86 8.7 14,600 2.66 4804544 25HBC524A**30 CNPV*3014A** 59*P5A040E14**10 23,800 11.5 14.0 24,000 3.76 8.5 15,100 2.56 3645550 25HBC524A**30 CNPV*3014A**+TDR 23,400 11.2 13.5 24,000 3.76 8.3 15,200 2.56 3645459 25HBC524A**30 CNPV*3017A** 58CV(A,X)090---16 23,400 12.5 15.5 24,000 3.88 8.5 14,400 2.68 4194141 25HBC524A**30 CNPV*3017A** 58HDV040--- --- 12 24,000 12.0 15.0 24,000 3.90 8.8 14,700 2.66 4194142 25HBC524A**30 CNPV*3017A** 58HDV060--- --- 12 24,000 12.5 15.0 24,000 3.98 8.5 14,800 2.70 3645482 25HBC524A**30 CNPV*3017A** 58ME(B,C)040--- 12 23,400 12.5 15.5 24,000 4.04 9.0 14,600 2.74 3645491 25HBC524A**30 CNPV*3017A** 58ME(B,C)060--- 12 23,400 12.5 15.5 24,000 4.06 9.0 14,600 2.74 3645500 25HBC524A**30 CNPV*3017A** 58ME(B,C)080--- 12 23,400 12.5 15.5 24,000 4.00 9.0 14,600 2.72 3646405 25HBC524A**30 CNPV*3017A** 58MEB040 ---12 23,400 12.5 15.5 24,000 4.04 9.0 14,600 2.74 3645509 25HBC524A**30 CNPV*3017A** 58MV(B,C)060---14 23,400 12.5 15.5 24,000 3.96 8.7 14,500 2.70 3645577 25HBC524A**30 CNPV*3017A** 58UVB060---14 23,400 12.5 15.5 24,000 3.96 8.7 14,500 2.70 3810469 25HBC524A**30 CNPV*3017A** 58VLR105--- 12 24,000 12.5 15.0 24,000 3.94 8.5 14,500 2.70 3810468 25HBC524A**30 CNPV*3017A** 58VMR105 ---12 23,600 12.5 15.0 24,000 3.84 8.5 14,300 2.66 4804545 25HBC524A**30 CNPV*3017A** 59*N*A060V17**14 23,600 12.5 15.2 24,000 3.82 8.5 14,500 2.64 4804546 25HBC524A**30 CNPV*3017A** 59*N*A080V17**14 23,600 12.7 15.5 24,000 3.80 8.5 14,400 2.64 4804547 25HBC524A**30 CNPV*3017A** 59*P5A040E14**10 24,000 11.7 14.2 24,000 3.80 8.5 15,100 2.58

25HBC5

4804548 25HBC524A**30 CNPV*3017A** 59*P5A060E17**14 23,800 12.7 15.5 24,000 3.86 8.8 14,500 2.66 4194146 25HBC524A**30 CNPV*3017A** OVLAAB036098 24,000 12.5 15.0 24,000 3.92 8.8 14,500 2.68 4194145 25HBC524A**30 CNPV*3017A** OVMAAB036098 24,000 12.5 15.0 24,000 3.90 8.8 14,600 2.68 3645551 25HBC524A**30 CNPV*3017A**+TDR 23,400 11.2 13.5 24,000 3.76 8.3 15,200 2.56 3645460 25HBC524A**30 CNPV*3117A** 58CV(A,X)090---16 23,400 13.0 16.0 24,000 4.04 9.0 14,400 2.74 3645483 25HBC524A**30 CNPV*3117A** 58ME(B,C)040--- 12 23,400 13.0 16.0 24,000 4.24 9.0 14,700 2.80 3645492 25HBC524A**30 CNPV*3117A** 58ME(B,C)060--- 12 23,400 13.0 16.0 24,000 4.28 9.0 14,700 2.82 3645501 25HBC524A**30 CNPV*3117A** 58ME(B,C)080--- 12 23,400 13.0 16.0 24,000 4.20 9.0 14,700 2.80 3646406 25HBC524A**30 CNPV*3117A** 58MEB040 ---12 23,400 13.0 16.0 24,000 4.24 9.0 14,700 2.80 3645510 25HBC524A**30 CNPV*3117A** 58MV(B,C)060---14 23,400 13.0 16.0 24,000 4.14 9.0 14,600 2.76 3645578 25HBC524A**30 CNPV*3117A** 58UVB060---14 23,400 13.0 16.0 24,000 4.14 9.0 14,600 2.76 3810471 25HBC524A**30 CNPV*3117A** 58VLR105--- 12 24,000 12.5 15.0 24,000 4.10 8.5 14,600 2.76 3810470 25HBC524A**30 CNPV*3117A** 58VMR105 ---12 24,000 12.5 15.0 24,000 4.00 8.5 14,500 2.72 4804549 25HBC524A**30 CNPV*3117A** 59*N*A060V17**14 24,000 12.7 15.5 24,000 3.98 8.8 14,600 2.68 4804550 25HBC524A**30 CNPV*3117A** 59*N*A080V17**14 24,000 12.7 15.5 24,000 3.96 8.8 14,500 2.68 4804551 25HBC524A**30 CNPV*3117A** 59*P5A040E14**10 24,000 11.9 14.5 24,000 3.98 8.8 15,200 2.64 4804552 25HBC524A**30 CNPV*3117A** 59*P5A060E17**14 24,000 12.7 15.5 24,000 4.04 9.0 14,600 2.72 3645552 25HBC524A**30 CNPV*3117A** 23,400 11.5 14.0 24,000 3.92 8.7 15,300 2.60 3645452 25HBC524A**30 CSPH*2412A** 58CV(A ,X)070---12 23,400 12.5 15.0 24,000 3.84 8.5 14,500 2.64 3645461 25HBC524A**30 CSPH*2412A** 58CV(A ,X)090---16 23,400 12.5 15.5 24,000 3.88 8.5 14,400 2.66 3645465 25HBC524A**30 CSPH*2412A** 58CV(A ,X)110---20 23,400 12.5 15.0 24,000 3.86 8.5 14,500 2.64 3645469 25HBC524A**30 CSPH*2412A** 58CV(A ,X)135---22 23,400 12.5 15.0 24,000 3.88 8.5 14,500 2.66 3645473 25HBC524A**30 CSPH*2412A** 58CV(A ,X)155---22 23,400 12.5 15.0 24,000 3.88 8.5 14,500 2.66 3756331 25HBC524A**30 CSPH*2412A** 58HDV040--- ---12 23,600 12.2 14.5 24,000 3.86 8.5 14,700 2.62 3756332 25HBC524A**30 CSPH*2412A** 58HDV060--- ---12 23,800 12.2 14.5 24,000 3.90 8.6 14,800 2.64 3645484 25HBC524A**30 CSPH*2412A** 58ME(B,C)040---12 23,400 12.5 15.5 24,000 3.96 8.7 14,500 2.68 3645493 25HBC524A**30 CSPH*2412A** 58ME(B,C)060---12 23,400 12.5 15.5 24,000 3.98 8.7 14,600 2.70 3645502 25HBC524A**30 CSPH*2412A** 58ME(B,C)080---12 23,400 12.5 15.5 24,000 3.94 8.6 14,500 2.68 3646407 25HBC524A**30 CSPH*2412A** 58MEB040--- 12 23,400 12.5 15.5 24,000 3.96 8.7 14,500 2.68 3645511 25HBC524A**30 CSPH*2412A** 58MV(B,C)060--- 14 23,400 12.5 15.0 24,000 3.96 8.6 14,600 2.68 3645515 25HBC524A**30 CSPH*2412A** 58MV(B,C)080--- 14 23,400 12.5 15.0 24,000 3.84 8.5 14,500 2.64 3645519 25HBC524A**30 CSPH*2412A** 58MV(B,C)080--- 20 23,400 12.5 15.0 24,000 3.80 8.5 14,100 2.58 3645523 25HBC524A**30 CSPH*2412A** 58MV(B,C)100--- 20 23,400 12.5 15.0 24,000 3.86 8.5 14,400 2.66 3645527 25HBC524A**30 CSPH*2412A** 58MV(B,C)120--- 20 23,400 12.5 15.0 24,000 3.92 8.6 14,500 2.68 3645531 25HBC524A**30 CSPH*2412A** 58MVB040--- 14 23,400 12.5 15.0 24,000 3.86 8.5 14,500 2.64 3645539 25HBC524A**30 CSPH*2412A** 58PH*045---08 23,400 12.5 15.0 24,000 3.88 8.5 14,600 2.64 3810479 25HBC524A**30 CSPH*2412A** 58VLR105---12 24,000 12.5 15.0 24,000 3.96 8.5 14,600 2.68 3810478 25HBC524A**30 CSPH*2412A** 58VMR105--- 12 23,600 12.5 15.0 24,000 3.82 8.5 14,500 2.62 4804571 25HBC524A**30 CSPH*2412A** 59*N*A060V17**14 23,800 12.4 15.2 24,000 3.82 8.5 14,600 2.62 4804572 25HBC524A**30 CSPH*2412A** 59*N*A080V17**14 23,600 12.5 15.2 24,000 3.80 8.5 14,400 2.62 4804573 25HBC524A**30 CSPH*2412A** 59*N*A100V21**20 24,000 12.5 15.2 24,000 3.92 8.8 14,600 2.66 4804574 25HBC524A**30 CSPH*2412A** 59*N*A120V24**22 24,000 12.5 15.2 24,000 3.90 8.8 14,600 2.66 4804575 25HBC524A**30 CSPH*2412A** 59*P5A040E14**10 23,800 11.5 14.0 24,000 3.80 8.5 15,100 2.56 4804576 25HBC524A**30 CSPH*2412A** 59*P5A060E17**14 23,600 12.5 15.2 24,000 3.78 8.5 14,400 2.60 4194152 25HBC524A**30 CSPH*2412A** OVLAAB036098 24,000 12.5 15.0 24,000 3.92 8.8 14,700 2.66 4194151 25HBC524A**30 CSPH*2412A** OVMAAB036098 24,000 12.0 15.0 24,000 3.92 8.8 14,700 2.66 3645553 25HBC524A**30 CSPH*2412A**+TDR 23,400 11.2 13.5 24,000 3.82 8.3 15,300 2.56 3645453 25HBC524A**30 CSPH*3012A** 58CV(A ,X)070---12 23,400 12.5 15.5 24,000 3.82 8.5 14,400 2.64 3645462 25HBC524A**30 CSPH*3012A** 58CV(A ,X)090---16 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.66 3645466 25HBC524A**30 CSPH*3012A** 58CV(A ,X)110---20 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.66 3645470 25HBC524A**30 CSPH*3012A** 58CV(A ,X)135---22 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.66 3645474 25HBC524A**30 CSPH*3012A** 58CV(A ,X)155---22 23,400 12.5 15.5 24,000 3.88 8.5 14,400 2.66 3756333 25HBC524A**30 CSPH*3012A** 58HDV040--- ---12 24,000 12.2 15.0 24,000 3.88 8.6 14,700 2.66 3756334 25HBC524A**30 CSPH*3012A** 58HDV060--- ---12 24,000 12.5 15.0 24,000 3.96 8.7 14,800 2.68 3645485 25HBC524A**30 CSPH*3012A** 58ME(B,C)040---12 23,400 12.5 15.5 24,000 4.00 9.0 14,600 2.72 3645494 25HBC524A**30 CSPH*3012A** 58ME(B,C)060---12 23,400 12.5 15.5 24,000 4.02 9.0 14,600 2.74

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 17

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645503 25HBC524A**30 CSPH*3012A** 58ME(B,C)080---12 23,400 12.5 15.5 24,000 3.98 9.0 14,500 2.72 3646408 25HBC524A**30 CSPH*3012A** 58MEB040--- 12 23,400 12.5 15.5 24,000 4.00 9.0 14,600 2.72 3645512 25HBC524A**30 CSPH*3012A** 58MV(B,C)060--- 14 23,400 12.5 15.5 24,000 3.96 8.7 14,500 2.70 3645516 25HBC524A**30 CSPH*3012A** 58MV(B,C)080--- 14 23,400 12.5 15.5 24,000 3.84 8.5 14,400 2.64 3645520 25HBC524A**30 CSPH*3012A** 58MV(B,C)080--- 20 23,400 12.5 15.5 24,000 3.78 8.5 14,000 2.60 3645524 25HBC524A**30 CSPH*3012A** 58MV(B,C)100--- 20 23,400 12.5 15.5 24,000 3.86 8.5 14,400 2.66 3645528 25HBC524A**30 CSPH*3012A** 58MV(B,C)120--- 20 23,400 12.5 15.5 24,000 3.90 8.6 14,400 2.68 3645532 25HBC524A**30 CSPH*3012A** 58MVB040--- 14 23,400 12.5 15.5 24,000 3.84 8.5 14,500 2.66 3645540 25HBC524A**30 CSPH*3012A** 58PH*045---08 23,400 12.5 15.3 24,000 3.90 8.7 14,600 2.66 3810481 25HBC524A**30 CSPH*3012A** 58VLR105---12 24,000 12.5 15.0 24,000 3.94 8.5 14,500 2.70 3810480 25HBC524A**30 CSPH*3012A** 58VMR105--- 12 23,800 12.5 15.0 24,000 3.82 8.5 14,400 2.64 4804577 25HBC524A**30 CSPH*3012A** 59*N*A060V17**14 23,800 12.5 15.2 24,000 3.88 8.5 14,500 2.64 4804578 25HBC524A**30 CSPH*3012A** 59*N*A080V17**14 23,800 12.7 15.5 24,000 3.84 8.5 14,400 2.64 4804579 25HBC524A**30 CSPH*3012A** 59*N*A100V21**20 24,000 12.7 15.5 24,000 3.96 8.8 14,600 2.68 4804580 25HBC524A**30 CSPH*3012A** 59*N*A120V24**22 24,000 12.7 15.5 24,000 3.94 8.8 14,500 2.68 4804581 25HBC524A**30 CSPH*3012A** 59*P5A040E14**10 24,000 11.8 14.2 24,000 3.86 8.5 15,100 2.58 4804582 25HBC524A**30 CSPH*3012A** 59*P5A060E17**14 23,800 12.7 15.5 24,000 3.88 8.8 14,500 2.66 4194154 25HBC524A**30 CSPH*3012A** OVLAAB036098 24,000 12.5 15.0 24,000 3.92 8.8 14,600 2.68 4194153 25HBC524A**30 CSPH*3012A** OVMAAB036098 24,000 12.5 15.0 24,000 3.90 8.8 14,600 2.66 3645554 25HBC524A**30 CSPH*3012A**+TDR 23,400 11.2 13.5 24,000 3.78 8.3 15,200 2.56 3810458 25HBC524A**30 FB4CNF024 23,400 11.5 13.5 24,000 3.80 8.5 14,700 2.58 3645555 25HBC524A**30 FB4CNF024+TXV 23,400 12.0 14.5 24,000 3.80 8.5 14,700 2.58 3810459 25HBC524A**30 FB4CNF030 24,000 12.0 14.5 24,000 3.96 8.5 14,700 2.68 3645556 25HBC524A**30 FB4CNF030+TXV 23,400 12.5 15.0 24,000 3.96 8.8 14,700 2.68 3645557 25HBC524A**30 FE4AN(B,F)003+UI 23,800 13.0 16.0 24,000 3.96 9.0 14,400 2.70 3645558 25HBC524A**30 FE4ANF002+UI 23,800 12.5 15.5 24,000 3.94 9.0 14,400 2.70 3645559 25HBC524A**30 FF1ENP024 23,400 11.0 13.5 24,000 3.66 8.2 15,200 2.50 3645560 25HBC524A**30 FF1ENP025 23,800 12.0 15.0 24,000 3.88 8.5 14,700 2.64 3645561 25HBC524A**30 FF1ENP030 23,400 11.2 13.5 24,000 3.66 8.2 15,200 2.50 3645562 25HBC524A**30 FF1ENP031 23,800 12.0 15.0 24,000 3.86 8.5 14,800 2.64 3645563 25HBC524A**30 FF1ENP037 23,800 12.5 15.0 24,000 3.94 8.7 14,800 2.68 3645566 25HBC524A**30 FV4CN(B,F)003 23,800 12.5 16.0 24,000 3.96 9.0 14,400 2.70 3645567 25HBC524A**30 FV4CNF002 23,800 12.5 15.8 24,000 3.94 9.0 14,400 2.70 3645570 25HBC524A**30 FX4DN(B,F)031 24,000 12.5 15.0 24,000 3.96 9.0 14,800 2.68 3810460 25HBC524A**30 FY5BNF024 23,800 11.5 13.5 24,000 3.82 8.5 14,900 2.62 3692769 25HBC524A**30 FY5BNF024+TXV 23,400 12.0 14.5 24,000 3.82 8.3 14,900 2.62 3810461 25HBC524A**30 FY5BNF030 24,000 11.5 13.5 24,000 3.86 8.5 15,000 2.62 3692770 25HBC524A**30 FY5BNF030+TXV 23,400 12.0 14.5 24,000 3.88 8.5 15,000 2.62

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

3645739 25HBC530A**30 †FX4DN(B,F)031 28,800 12.5 15.3 28,600 3.98 8.7 17,000 2.66 3645579 25HBC530A**30 CAP**3014A** 58CV(A,X)070 ---12 27,800 12.0 14.5 28,200 3.80 8.1 16,800 2.58 3645705 25HBC530A**30 CAP**3014A**+TDR 28,000 11.2 13.0 29,200 3.72 8.0 17,700 2.50 3645586 25HBC530A**30 CAP**3017A** 58CV(A,X)090 ---16 28,000 12.5 15.0 28,000 3.84 8.2 16,600 2.62 4194155 25HBC530A**30 CAP**3017A** 58HDV040 --- --- 12 28,000 12.0 14.0 28,600 3.78 8.2 17,100 2.56 4194156 25HBC530A**30 CAP**3017A** 58HDV060 --- --- 12 28,200 12.0 14.5 28,600 3.84 8.2 17,100 2.58 3645612 25HBC530A**30 CAP**3017A** 58ME(B,C)040 --- 12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645622 25HBC530A**30 CAP**3017A** 58ME(B,C)060 --- 12 28,200 12.5 15.0 28,400 3.94 8.3 16,900 2.66 3645632 25HBC530A**30 CAP**3017A** 58ME(B,C)080 --- 12 28,200 12.5 15.0 28,200 3.90 8.3 16,800 2.64 3645642 25HBC530A**30 CAP**3017A** 58ME(B,C)080 --- 16 28,200 12.5 15.0 28,600 3.94 8.4 17,000 2.66 3646409 25HBC530A**30 CAP**3017A** 58MEB040---12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645652 25HBC530A**30 CAP**3017A** 58MV(B,C)060 ---14 28,000 12.5 15.0 28,200 3.88 8.2 16,700 2.62 3645689 25HBC530A**30 CAP**3017A** 58PH*070 ---16 28,000 12.0 14.5 28,400 3.84 8.2 17,000 2.60 3645743 25HBC530A**30 CAP**3017A** 58UVB060--- 14 28,000 12.5 15.0 28,200 3.88 8.2 16,700 2.62 3810487 25HBC530A**30 CAP**3017A** 58VLR105 ---12 28,000 12.5 15.0 28,200 3.86 8.4 16,800 2.60 3810486 25HBC530A**30 CAP**3017A** 58VMR105---12 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 4804583 25HBC530A**30 CAP**3017A** 59*N*A060V17**14 27,800 12.0 14.5 28,200 3.76 8.2 16,900 2.56 4804584 25HBC530A**30 CAP**3017A** 59*N*A080V17**14 28,000 12.0 14.5 28,200 3.82 8.2 16,800 2.58 4804585 25HBC530A**30 CAP**3017A** 59*P5A060E17**14 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 4804586 25HBC530A**30 CAP**3017A** 59*P5A080E17**16 28,200 12.0 14.5 28,600 3.88 8.5 17,100 2.60 4194158 25HBC530A**30 CAP**3017A** OVLAAB036098 28,000 12.0 14.5 28,200 3.80 8.2 16,900 2.58 4194157 25HBC530A**30 CAP**3017A** OVMAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 17,000 2.58 3645706 25HBC530A**30 CAP**3017A**+TDR 28,000 11.2 13.0 29,200 3.72 8.0 17,700 2.50 3645580 25HBC530A**30 CAP**3614A** 58CV(A,X)070 ---12 28,000 12.0 14.5 28,200 3.82 8.1 16,800 2.60 3645707 25HBC530A**30 CAP**3614A**+TDR 28,000 11.2 13.0 29,200 3.74 8.0 17,700 2.52 3645587 25HBC530A**30 CAP**3617A** 58CV(A,X)090 ---16 28,000 12.5 15.3 28,000 3.86 8.5 16,600 2.62 4194159 25HBC530A**30 CAP**3617A** 58HDV040 --- --- 12 28,000 12.0 14.0 28,600 3.82 8.2 17,100 2.56 4194160 25HBC530A**30 CAP**3617A** 58HDV060 --- --- 12 28,200 12.0 14.5 28,600 3.86 8.4 17,100 2.60 3645613 25HBC530A**30 CAP**3617A** 58ME(B,C)040 --- 12 28,200 12.5 15.3 28,400 3.96 8.5 16,900 2.66 3645623 25HBC530A**30 CAP**3617A** 58ME(B,C)060 --- 12 28,200 12.5 15.3 28,400 3.96 8.5 16,900 2.66 3645633 25HBC530A**30 CAP**3617A** 58ME(B,C)080 --- 12 28,200 12.5 15.3 28,400 3.94 8.5 16,800 2.66 3645643 25HBC530A**30 CAP**3617A** 58ME(B,C)080 --- 16 28,200 12.5 15.0 28,600 3.98 8.6 17,000 2.66 3646410 25HBC530A**30 CAP**3617A** 58MEB040---12 28,200 12.5 15.3 28,400 3.96 8.5 16,900 2.66 3645653 25HBC530A**30 CAP**3617A** 58MV(B,C)060 ---14 28,000 12.5 15.3 28,200 3.90 8.5 16,800 2.64 3645690 25HBC530A**30 CAP**3617A** 58PH*070 ---16 28,200 12.0 14.5 28,400 3.86 8.3 17,000 2.60 3645744 25HBC530A**30 CAP**3617A** 58UVB060--- 14 28,000 12.5 15.3 28,200 3.90 8.5 16,800 2.64 3810489 25HBC530A**30 CAP**3617A** 58VLR105 ---12 28,200 12.5 15.0 28,400 3.88 8.4 16,800 2.62 3810488 25HBC530A**30 CAP**3617A** 58VMR105---12 27,800 12.5 15.0 28,000 3.80 8.2 16,600 2.60 4804587 25HBC530A**30 CAP**3617A** 59*N*A060V17**14 28,000 12.0 14.5 28,200 3.80 8.2 16,900 2.58 4804588 25HBC530A**30 CAP**3617A** 59*N*A080V17**14 28,000 12.0 14.5 28,400 3.84 8.2 16,900 2.60 4804589 25HBC530A**30 CAP**3617A** 59*P5A060E17**14 28,200 12.0 14.5 28,400 3.86 8.2 17,000 2.60

See notes on page 36

Page 18

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4804590 25HBC530A**30 CAP**3617A** 59*P5A080E17**16 28,400 12.0 14.5 28,600 3.90 8.5 17,100 2.62 4194162 25HBC530A**30 CAP**3617A** OVLAAB036098 28,000 12.0 14.5 28,400 3.84 8.2 16,900 2.60 4194161 25HBC530A**30 CAP**3617A** OVMAAB036098 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 3645708 25HBC530A**30 CAP**3617A**+TDR 28,000 11.2 13.5 29,200 3.74 8.2 17,700 2.52 3645610 25HBC530A**30 CAP**3619A** 58HDV040 --- --- 12 28,000 12.0 14.0 28,600 3.82 8.1 17,100 2.58 3645611 25HBC530A**30 CAP**3619A** 58HDV060 --- --- 12 28,000 12.0 14.5 28,600 3.86 8.2 17,200 2.60 4804596 25HBC530A**30 CAP**3619A** 59*N*A060V17**14 28,000 12.0 14.5 28,400 3.80 8.2 16,900 2.58 4804597 25HBC530A**30 CAP**3619A** 59*N*A080V17**14 28,000 12.0 14.5 28,400 3.84 8.2 16,900 2.60 4804598 25HBC530A**30 CAP**3619A** 59*N*A100V21**20 28,200 12.0 14.5 28,400 3.88 8.2 16,900 2.62 4804599 25HBC530A**30 CAP**3619A** 59*P5A060E17**14 28,200 12.0 14.5 28,400 3.86 8.2 17,000 2.60 4804600 25HBC530A**30 CAP**3619A** 59*P5A080E17**16 28,400 12.0 14.5 28,600 3.90 8.5 17,100 2.62 4194168 25HBC530A**30 CAP**3619A** OVLAAB036098 28,000 12.0 14.5 28,400 3.84 8.2 16,900 2.60 4194167 25HBC530A**30 CAP**3619A** OVMAAB036098 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 3645709 25HBC530A**30 CAP**3619A**+TDR 28,000 11.2 13.5 29,200 3.74 8.2 17,700 2.52 3645596 25HBC530A**30 CAP**3621A** 58CV(A,X)110 ---20 28,000 12.5 15.0 28,200 3.90 8.5 16,700 2.64 4194163 25HBC530A**30 CAP**3621A** 58HDV040 --- --- 12 28,200 12.0 14.5 28,600 3.84 8.2 17,100 2.58 4194164 25HBC530A**30 CAP**3621A** 58HDV060 --- --- 12 28,400 12.0 14.5 28,800 3.90 8.4 17,200 2.62 3645662 25HBC530A**30 CAP**3621A** 58MV(B,C)080 ---14 28,000 12.5 15.0 28,000 3.84 8.1 16,600 2.60 3645669 25HBC530A**30 CAP**3621A** 58MV(B,C)080 ---20 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645675 25HBC530A**30 CAP**3621A** 58MV(B,C)100 ---20 27,800 12.5 15.0 28,000 3.80 8.2 16,600 2.60 3645699 25HBC530A**30 CAP**3621A** 58PH*090 ---16 28,200 12.5 15.0 28,400 3.96 8.5 16,900 2.66 3645745 25HBC530A**30 CAP**3621A** 58UVB080--- 14 28,000 12.5 15.0 28,000 3.84 8.1 16,600 2.60 3645746 25HBC530A**30 CAP**3621A** 58UVB080--- 20 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645747 25HBC530A**30 CAP**3621A** 58UVB100--- 20 27,800 12.5 15.0 28,000 3.80 8.2 16,600 2.60

25HBC5

4804591 25HBC530A**30 CAP**3621A** 59*N*A060V17**14 28,000 12.0 14.5 28,200 3.82 8.2 16,800 2.58 4804592 25HBC530A**30 CAP**3621A** 59*N*A080V17**14 28,200 12.0 14.5 28,200 3.86 8.2 16,800 2.62 4804593 25HBC530A**30 CAP**3621A** 59*N*A100V21**20 28,200 12.5 15.0 28,400 3.90 8.5 16,900 2.62 4804594 25HBC530A**30 CAP**3621A** 59*P5A060E17**14 28,200 12.0 14.5 28,600 3.88 8.2 17,000 2.62 4804595 25HBC530A**30 CAP**3621A** 59*P5A080E17**16 28,400 12.0 14.5 28,600 3.94 8.5 17,100 2.64 4194166 25HBC530A**30 CAP**3621A** OVLAAB036098 28,000 12.5 15.0 28,200 3.86 8.4 16,800 2.60 4194165 25HBC530A**30 CAP**3621A** OVMAAB036098 28,000 12.0 14.5 28,400 3.84 8.4 16,900 2.60 3645710 25HBC530A**30 CAP**3621A**+TDR 28,000 11.2 13.5 29,200 3.74 8.2 17,700 2.52 3645581 25HBC530A**30 CNPH*3017A** 58CV(A,X)070 ---12 28,000 12.0 14.5 28,200 3.82 8.1 16,800 2.60 3645588 25HBC530A**30 CNPH*3017A** 58CV(A,X)090 ---16 28,000 12.5 15.0 28,000 3.84 8.2 16,700 2.62 3645597 25HBC530A**30 CNPH*3017A** 58CV(A,X)110 ---20 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645602 25HBC530A**30 CNPH*3017A** 58CV(A,X)135 ---22 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645606 25HBC530A**30 CNPH*3017A** 58CV(A,X)155 ---22 28,000 12.5 15.0 28,000 3.86 8.2 16,700 2.62 3756335 25HBC530A**30 CNPH*3017A** 58HDV040 --- --- 12 28,000 12.0 14.0 28,600 3.78 8.2 17,100 2.56 3756336 25HBC530A**30 CNPH*3017A** 58HDV060 --- --- 12 28,000 12.2 14.5 28,600 3.82 8.2 17,100 2.58 3645614 25HBC530A**30 CNPH*3017A** 58ME(B,C)040---12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645624 25HBC530A**30 CNPH*3017A** 58ME(B,C)060---12 28,200 12.5 15.0 28,400 3.92 8.3 16,900 2.64 3645634 25HBC530A**30 CNPH*3017A** 58ME(B,C)080---12 28,200 12.5 15.0 28,200 3.90 8.3 16,800 2.64 3645644 25HBC530A**30 CNPH*3017A** 58ME(B,C)080---16 28,200 12.5 15.0 28,600 3.94 8.4 17,000 2.64 3646411 25HBC530A**30 CNPH*3017A** 58MEB040 --- 12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645654 25HBC530A**30 CNPH*3017A** 58MV(B,C)060---14 28,000 12.5 15.0 28,200 3.88 8.2 16,800 2.62 3645663 25HBC530A**30 CNPH*3017A** 58MV(B,C)080---14 27,800 12.0 14.5 28,000 3.80 8.1 16,700 2.58 3645670 25HBC530A**30 CNPH*3017A** 58MV(B,C)080---20 28,000 12.0 14.5 28,200 3.82 8.1 16,700 2.60 3645676 25HBC530A**30 CNPH*3017A** 58MV(B,C)100---20 27,800 12.0 14.5 28,000 3.78 8.0 16,600 2.58 3645681 25HBC530A**30 CNPH*3017A** 58MV(B,C)120---20 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645685 25HBC530A**30 CNPH*3017A** 58MVB040 --- 14 27,800 12.0 14.5 28,200 3.80 8.1 16,800 2.58 3645691 25HBC530A**30 CNPH*3017A** 58PH*070 --- 16 28,000 12.0 14.5 28,400 3.84 8.2 17,000 2.60 3645700 25HBC530A**30 CNPH*3017A** 58PH*090 --- 16 28,000 12.0 14.5 28,400 3.86 8.2 16,900 2.62 3810499 25HBC530A**30 CNPH*3017A** 58VLR105 --- 12 28,000 12.5 15.0 28,400 3.86 8.4 16,900 2.60 3810498 25HBC530A**30 CNPH*3017A** 58VMR105 --- 12 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 4804624 25HBC530A**30 CNPH*3017A** 59*N*A060V17**14 27,800 12.0 14.5 28,400 3.78 8.2 16,900 2.56 4804625 25HBC530A**30 CNPH*3017A** 59*N*A080V17**14 28,000 12.0 14.5 28,400 3.82 8.2 16,900 2.58 4804626 25HBC530A**30 CNPH*3017A** 59*N*A100V21**20 28,200 12.0 14.5 28,400 3.86 8.2 16,900 2.60 4804627 25HBC530A**30 CNPH*3017A** 59*N*A120V24**22 28,200 12.5 15.0 28,200 3.86 8.2 16,800 2.62 4804628 25HBC530A**30 CNPH*3017A** 59*P5A060E17**14 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 4804629 25HBC530A**30 CNPH*3017A** 59*P5A080E17**16 28,200 12.0 14.5 28,600 3.88 8.2 17,100 2.60 4194193 25HBC530A**30 CNPH*3017A** OVLAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 16,900 2.58 4194195 25HBC530A**30 CNPH*3017A** OVLAAB048112 28,200 12.0 14.5 28,400 3.88 8.4 17,000 2.60 4194192 25HBC530A**30 CNPH*3017A** OVMAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 17,000 2.58 4194194 25HBC530A**30 CNPH*3017A** OVMAAB042112 28,000 12.5 15.0 28,200 3.86 8.4 16,800 2.62 3645712 25HBC530A**30 CNPH*3017A**+TDR 28,000 11.2 13.0 29,200 3.74 8.0 17,700 2.50 3756337 25HBC530A**30 CNPH*3117A** 58HDV040 --- --- 12 28,600 12.2 14.5 28,800 3.94 8.5 17,200 2.62 3756338 25HBC530A**30 CNPH*3117A** 58HDV060 --- --- 12 28,800 12.2 14.5 29,000 4.02 8.5 17,300 2.64 3810501 25HBC530A**30 CNPH*3117A** 58VLR105 --- 12 28,800 12.5 15.0 28,600 4.02 8.5 17,000 2.68 3810500 25HBC530A**30 CNPH*3117A** 58VMR105 --- 12 28,400 12.5 15.0 28,200 3.94 8.5 16,700 2.64 4804630 25HBC530A**30 CNPH*3117A** 59*N*A060V17**14 28,400 12.0 14.5 28,600 3.94 8.5 17,000 2.62 4804631 25HBC530A**30 CNPH*3117A** 59*N*A080V17**14 28,600 12.5 15.0 28,600 4.00 8.5 17,000 2.66 4804632 25HBC530A**30 CNPH*3117A** 59*N*A100V21**20 28,800 12.5 15.2 28,600 4.04 8.5 17,100 2.68 4804633 25HBC530A**30 CNPH*3117A** 59*N*A120V24**22 28,800 12.5 15.2 28,600 4.04 8.5 16,900 2.68 4804634 25HBC530A**30 CNPH*3117A** 59*P5A040E14**10 28,400 11.0 13.0 29,600 3.76 8.2 18,000 2.48 4804635 25HBC530A**30 CNPH*3117A** 59*P5A060E17**14 28,800 12.0 14.5 28,800 4.00 8.5 17,200 2.66 4804636 25HBC530A**30 CNPH*3117A** 59*P5A080E17**16 29,000 12.5 15.0 29,000 4.08 8.5 17,300 2.68 4194197 25HBC530A**30 CNPH*3117A** OVLAAB036098 28,600 12.5 15.0 28,600 3.98 8.5 17,000 2.64 4194199 25HBC530A**30 CNPH*3117A** OVLAAB048112 28,800 12.5 15.0 28,800 4.06 8.5 17,100 2.68 4194196 25HBC530A**30 CNPH*3117A** OVMAAB036098 28,600 12.5 14.5 28,800 3.98 8.5 17,100 2.64 4194198 25HBC530A**30 CNPH*3117A** OVMAAB042112 28,800 12.5 15.0 28,600 4.04 8.5 16,900 2.68

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 19

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645582 25HBC530A**30 CNPH*3617A** 58CV(A,X)070 ---12 28,000 12.0 14.5 28,200 3.82 8.1 16,800 2.60 3645589 25HBC530A**30 CNPH*3617A** 58CV(A,X)090 ---16 28,000 12.5 15.3 28,000 3.84 8.5 16,700 2.62 3645598 25HBC530A**30 CNPH*3617A** 58CV(A,X)110 ---20 28,000 12.5 15.0 28,200 3.86 8.5 16,700 2.62 3645603 25HBC530A**30 CNPH*3617A** 58CV(A,X)135 ---22 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645607 25HBC530A**30 CNPH*3617A** 58CV(A,X)155 ---22 28,000 12.5 15.0 28,000 3.86 8.2 16,700 2.62 3756339 25HBC530A**30 CNPH*3617A** 58HDV040 --- --- 12 28,000 12.0 14.0 28,600 3.78 8.2 17,100 2.56 3756340 25HBC530A**30 CNPH*3617A** 58HDV060 --- --- 12 28,000 12.2 14.5 28,600 3.82 8.2 17,100 2.58 4194178 25HBC530A**30 CNPH*3617A** 58HDV080 --- --- 20 28,400 12.5 14.5 28,600 3.92 8.5 17,100 2.64 3645615 25HBC530A**30 CNPH*3617A** 58ME(B,C)040---12 28,200 12.5 15.3 28,400 3.92 8.5 16,800 2.64 3645625 25HBC530A**30 CNPH*3617A** 58ME(B,C)060---12 28,200 12.5 15.3 28,400 3.92 8.5 16,900 2.64 3645635 25HBC530A**30 CNPH*3617A** 58ME(B,C)080---12 28,200 12.5 15.3 28,200 3.90 8.5 16,800 2.64 3645645 25HBC530A**30 CNPH*3617A** 58ME(B,C)080---16 28,200 12.5 15.0 28,600 3.94 8.6 17,000 2.64 3646412 25HBC530A**30 CNPH*3617A** 58MEB040 --- 12 28,200 12.5 15.3 28,400 3.92 8.5 16,800 2.64 3645655 25HBC530A**30 CNPH*3617A** 58MV(B,C)060---14 28,000 12.5 15.3 28,200 3.88 8.5 16,800 2.62 3645664 25HBC530A**30 CNPH*3617A** 58MV(B,C)080---14 27,800 12.5 15.0 28,000 3.80 8.1 16,700 2.58 3645671 25HBC530A**30 CNPH*3617A** 58MV(B,C)080---20 28,000 12.5 15.0 28,200 3.82 8.1 16,700 2.60 3645677 25HBC530A**30 CNPH*3617A** 58MV(B,C)100---20 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 3645682 25HBC530A**30 CNPH*3617A** 58MV(B,C)120---20 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645686 25HBC530A**30 CNPH*3617A** 58MVB040 --- 14 27,800 12.0 14.5 28,200 3.80 8.1 16,800 2.58 3645692 25HBC530A**30 CNPH*3617A** 58PH*070 --- 16 28,000 12.0 14.5 28,400 3.84 8.3 17,000 2.60 3645701 25HBC530A**30 CNPH*3617A** 58PH*090 --- 16 28,200 12.5 15.0 28,400 3.86 8.5 16,900 2.62 3810503 25HBC530A**30 CNPH*3617A** 58VLR105 --- 12 28,000 12.5 15.0 28,400 3.86 8.4 16,900 2.60 3810502 25HBC530A**30 CNPH*3617A** 58VMR105 --- 12 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 4804637 25HBC530A**30 CNPH*3617A** 59*N*A060V17**14 27,800 12.0 14.5 28,400 3.78 8.2 16,900 2.56 4804638 25HBC530A**30 CNPH*3617A** 59*N*A080V17**14 28,000 12.0 14.5 28,400 3.82 8.2 16,900 2.58 4804639 25HBC530A**30 CNPH*3617A** 59*N*A100V21**20 28,200 12.0 14.5 28,400 3.86 8.2 16,900 2.60 4804640 25HBC530A**30 CNPH*3617A** 59*N*A120V24**22 28,200 12.5 15.0 28,200 3.86 8.2 16,800 2.62 4804641 25HBC530A**30 CNPH*3617A** 59*P5A060E17**14 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 4804642 25HBC530A**30 CNPH*3617A** 59*P5A080E17**16 28,200 12.0 14.5 28,600 3.88 8.2 17,100 2.60 4194201 25HBC530A**30 CNPH*3617A** OVLAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 16,900 2.58 4194203 25HBC530A**30 CNPH*3617A** OVLAAB048112 28,200 12.0 14.5 28,400 3.88 8.4 17,000 2.60 4194200 25HBC530A**30 CNPH*3617A** OVMAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 17,000 2.58 4194202 25HBC530A**30 CNPH*3617A** OVMAAB042112 28,000 12.5 15.0 28,200 3.86 8.4 16,800 2.62 3645713 25HBC530A**30 CNPH*3617A**+TDR 28,000 11.2 13.5 29,200 3.74 8.2 17,700 2.50 3645583 25HBC530A**30 CNPV*3014A** 58CV(A,X)070---12 27,800 12.0 14.5 28,200 3.78 8.1 16,800 2.58 3645714 25HBC530A**30 CNPV*3014A**+TDR 28,000 11.2 13.0 29,200 3.74 8.0 17,700 2.50 3645590 25HBC530A**30 CNPV*3017A** 58CV(A,X)090---16 28,000 12.5 15.0 28,000 3.84 8.2 16,700 2.62 4194169 25HBC530A**30 CNPV*3017A** 58HDV040--- --- 12 28,000 12.0 14.0 28,600 3.78 8.2 17,100 2.56 4194170 25HBC530A**30 CNPV*3017A** 58HDV060--- --- 12 28,000 12.0 14.5 28,600 3.82 8.2 17,100 2.58 3645616 25HBC530A**30 CNPV*3017A** 58ME(B,C)040--- 12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645626 25HBC530A**30 CNPV*3017A** 58ME(B,C)060--- 12 28,200 12.5 15.0 28,400 3.92 8.3 16,900 2.64 3645636 25HBC530A**30 CNPV*3017A** 58ME(B,C)080--- 12 28,200 12.5 15.0 28,200 3.90 8.3 16,800 2.64 3645646 25HBC530A**30 CNPV*3017A** 58ME(B,C)080--- 16 28,200 12.5 15.0 28,600 3.94 8.4 17,000 2.64 3646413 25HBC530A**30 CNPV*3017A** 58MEB040 ---12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645656 25HBC530A**30 CNPV*3017A** 58MV(B,C)060---14 28,000 12.5 15.0 28,200 3.88 8.2 16,800 2.62 3645693 25HBC530A**30 CNPV*3017A** 58PH*070--- 16 28,000 12.0 14.5 28,400 3.84 8.2 17,000 2.60 3645748 25HBC530A**30 CNPV*3017A** 58UVB060---14 28,000 12.5 15.0 28,200 3.88 8.2 16,800 2.62 3810491 25HBC530A**30 CNPV*3017A** 58VLR105--- 12 28,000 12.5 15.0 28,400 3.86 8.4 16,900 2.60 3810490 25HBC530A**30 CNPV*3017A** 58VMR105 ---12 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 4804601 25HBC530A**30 CNPV*3017A** 59*N*A060V17**14 27,800 12.0 14.5 28,400 3.78 8.2 16,900 2.56 4804602 25HBC530A**30 CNPV*3017A** 59*N*A080V17**14 28,000 12.0 14.5 28,400 3.82 8.2 16,900 2.58 4804603 25HBC530A**30 CNPV*3017A** 59*P5A060E17**14 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 4804604 25HBC530A**30 CNPV*3017A** 59*P5A080E17**16 28,200 12.0 14.5 28,600 3.88 8.2 17,100 2.60 4194180 25HBC530A**30 CNPV*3017A** OVLAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 16,900 2.58 4194179 25HBC530A**30 CNPV*3017A** OVMAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 17,000 2.58 4194181 25HBC530A**30 CNPV*3017A** OVMAAB042112 28,000 12.5 15.0 28,200 3.86 8.4 16,800 2.62 3645715 25HBC530A**30 CNPV*3017A**+TDR 28,000 11.2 13.0 29,200 3.74 8.0 17,700 2.50 3645591 25HBC530A**30 CNPV*3117A** 58CV(A,X)090---16 28,600 12.5 15.5 28,400 4.02 8.6 16,800 2.68 4194171 25HBC530A**30 CNPV*3117A** 58HDV040--- --- 12 28,600 12.0 14.5 28,800 3.96 8.5 17,200 2.62 4194172 25HBC530A**30 CNPV*3117A** 58HDV060--- --- 12 28,800 12.5 14.5 29,000 4.02 8.5 17,300 2.64 3645617 25HBC530A**30 CNPV*3117A** 58ME(B,C)040--- 12 29,000 13.0 15.5 28,600 4.12 8.8 17,000 2.72 3645627 25HBC530A**30 CNPV*3117A** 58ME(B,C)060--- 12 29,000 12.5 15.5 28,800 4.14 8.8 17,100 2.72 3645637 25HBC530A**30 CNPV*3117A** 58ME(B,C)080--- 12 29,000 12.5 15.5 28,600 4.10 8.8 17,000 2.70 3645647 25HBC530A**30 CNPV*3117A** 58ME(B,C)080--- 16 29,200 12.5 15.3 28,800 4.14 8.8 17,200 2.72 3646414 25HBC530A**30 CNPV*3117A** 58MEB040 ---12 29,000 13.0 15.5 28,600 4.12 8.8 17,000 2.72 3645657 25HBC530A**30 CNPV*3117A** 58MV(B,C)060---14 28,800 12.5 15.5 28,600 4.04 8.6 16,900 2.68 3645694 25HBC530A**30 CNPV*3117A** 58PH*070--- 16 28,800 12.5 15.0 28,800 4.02 8.6 17,100 2.66 3645749 25HBC530A**30 CNPV*3117A** 58UVB060---14 28,800 12.5 15.5 28,600 4.04 8.6 16,900 2.68 3810493 25HBC530A**30 CNPV*3117A** 58VLR105--- 12 28,800 12.5 15.0 28,600 4.02 8.5 17,000 2.68 3810492 25HBC530A**30 CNPV*3117A** 58VMR105 ---12 28,400 12.5 15.0 28,200 3.94 8.5 16,700 2.64 4804605 25HBC530A**30 CNPV*3117A** 59*N*A060V17**14 28,400 12.0 14.5 28,600 3.94 8.5 17,000 2.62 4804606 25HBC530A**30 CNPV*3117A** 59*N*A080V17**14 28,600 12.5 15.0 28,600 4.00 8.5 17,000 2.66 4804607 25HBC530A**30 CNPV*3117A** 59*P5A040E14**10 28,400 11.0 13.0 29,600 3.76 8.2 18,100 2.48 4804608 25HBC530A**30 CNPV*3117A** 59*P5A060E17**14 28,800 12.0 14.5 28,800 4.00 8.5 17,200 2.66 4804609 25HBC530A**30 CNPV*3117A** 59*P5A080E17**16 29,000 12.5 15.0 29,000 4.08 8.5 17,300 2.68 4194183 25HBC530A**30 CNPV*3117A** OVLAAB036098 28,600 12.5 15.0 28,600 3.98 8.5 17,000 2.64 4194182 25HBC530A**30 CNPV*3117A** OVMAAB036098 28,600 12.5 14.5 28,800 3.98 8.5 17,100 2.64 4194184 25HBC530A**30 CNPV*3117A** OVMAAB042112 28,800 12.5 15.0 28,600 4.04 8.5 16,900 2.68 3645716 25HBC530A**30 CNPV*3117A**+TDR 28,800 11.5 13.5 29,600 3.90 8.3 17,800 2.56 3645592 25HBC530A**30 CNPV*3617A** 58CV(A,X)090---16 28,000 12.5 15.3 28,000 3.84 8.5 16,700 2.62

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 20

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4194173 25HBC530A**30 CNPV*3617A** 58HDV040--- --- 12 28,000 12.0 14.0 28,600 3.78 8.2 17,100 2.56 4194174 25HBC530A**30 CNPV*3617A** 58HDV060--- --- 12 28,000 12.0 14.5 28,600 3.82 8.2 17,100 2.58 3645618 25HBC530A**30 CNPV*3617A** 58ME(B,C)040--- 12 28,200 12.5 15.3 28,400 3.92 8.5 16,800 2.64 3645628 25HBC530A**30 CNPV*3617A** 58ME(B,C)060--- 12 28,200 12.5 15.3 28,400 3.92 8.5 16,900 2.64 3645638 25HBC530A**30 CNPV*3617A** 58ME(B,C)080--- 12 28,200 12.5 15.3 28,200 3.90 8.5 16,800 2.64 3645648 25HBC530A**30 CNPV*3617A** 58ME(B,C)080--- 16 28,200 12.5 15.0 28,600 3.94 8.6 17,000 2.64 3646415 25HBC530A**30 CNPV*3617A** 58MEB040 ---12 28,200 12.5 15.3 28,400 3.92 8.5 16,800 2.64 3645658 25HBC530A**30 CNPV*3617A** 58MV(B,C)060---14 28,000 12.5 15.3 28,200 3.88 8.5 16,800 2.62 3645695 25HBC530A**30 CNPV*3617A** 58PH*070--- 16 28,000 12.0 14.5 28,400 3.84 8.3 17,000 2.60 3645750 25HBC530A**30 CNPV*3617A** 58UVB060---14 28,000 12.5 15.3 28,200 3.88 8.5 16,800 2.62 3810495 25HBC530A**30 CNPV*3617A** 58VLR105--- 12 28,000 12.5 15.0 28,400 3.86 8.4 16,900 2.60 3810494 25HBC530A**30 CNPV*3617A** 58VMR105 ---12 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 4804610 25HBC530A**30 CNPV*3617A** 59*N*A060V17**14 27,800 12.0 14.5 28,400 3.78 8.2 16,900 2.56 4804611 25HBC530A**30 CNPV*3617A** 59*N*A080V17**14 28,000 12.0 14.5 28,400 3.82 8.2 16,900 2.58 4804612 25HBC530A**30 CNPV*3617A** 59*P5A060E17**14 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 4804613 25HBC530A**30 CNPV*3617A** 59*P5A080E17**16 28,200 12.0 14.5 28,600 3.88 8.2 17,100 2.60 4194186 25HBC530A**30 CNPV*3617A** OVLAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 16,900 2.58 4194185 25HBC530A**30 CNPV*3617A** OVMAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 17,000 2.58 4194187 25HBC530A**30 CNPV*3617A** OVMAAB042112 28,000 12.5 15.0 28,200 3.86 8.4 16,800 2.62 3645717 25HBC530A**30 CNPV*3617A**+TDR 28,000 11.2 13.5 29,200 3.74 8.2 17,700 2.50 3645599 25HBC530A**30 CNPV*3621A** 58CV(A,X)110---20 28,000 12.5 15.0 28,200 3.86 8.5 16,700 2.62 4194175 25HBC530A**30 CNPV*3621A** 58HDV040--- --- 12 28,000 12.0 14.0 28,600 3.78 8.2 17,100 2.56 4194176 25HBC530A**30 CNPV*3621A** 58HDV060--- --- 12 28,200 12.0 14.5 28,600 3.84 8.2 17,100 2.58 4194177 25HBC530A**30 CNPV*3621A** 58HDV080--- --- 20 28,400 12.5 14.5 28,600 3.92 8.5 17,100 2.64

25HBC5

3645665 25HBC530A**30 CNPV*3621A** 58MV(B,C)080---14 27,800 12.5 15.0 28,000 3.80 8.1 16,700 2.58 3645672 25HBC530A**30 CNPV*3621A** 58MV(B,C)080---20 28,000 12.5 15.0 28,200 3.82 8.1 16,700 2.60 3645678 25HBC530A**30 CNPV*3621A** 58MV(B,C)100---20 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 3645702 25HBC530A**30 CNPV*3621A** 58PH*090--- 16 28,200 12.5 15.0 28,400 3.88 8.5 16,900 2.62 3645751 25HBC530A**30 CNPV*3621A** 58UVB080---14 27,800 12.5 15.0 28,000 3.80 8.1 16,700 2.58 3645752 25HBC530A**30 CNPV*3621A** 58UVB080---20 28,000 12.5 15.0 28,200 3.82 8.1 16,700 2.60 3645753 25HBC530A**30 CNPV*3621A** 58UVB100---20 27,800 12.5 15.0 28,000 3.78 8.2 16,600 2.58 4804614 25HBC530A**30 CNPV*3621A** 59*N*A060V17**14 27,800 12.0 14.5 28,400 3.78 8.2 16,900 2.56 4804615 25HBC530A**30 CNPV*3621A** 59*N*A080V17**14 28,000 12.0 14.5 28,400 3.82 8.2 16,900 2.60 4804616 25HBC530A**30 CNPV*3621A** 59*N*A100V21**20 28,200 12.0 14.5 28,400 3.86 8.2 16,900 2.60 4804617 25HBC530A**30 CNPV*3621A** 59*P5A060E17**14 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 4804618 25HBC530A**30 CNPV*3621A** 59*P5A080E17**16 28,400 12.0 14.5 28,600 3.88 8.2 17,100 2.60 4194189 25HBC530A**30 CNPV*3621A** OVLAAB036098 28,000 12.0 14.5 28,400 3.82 8.2 16,900 2.58 4194191 25HBC530A**30 CNPV*3621A** OVLAAB048112 28,200 12.0 14.5 28,400 3.88 8.4 17,000 2.62 4194188 25HBC530A**30 CNPV*3621A** OVMAAB036098 28,000 12.0 14.5 28,400 3.80 8.2 17,000 2.58 4194190 25HBC530A**30 CNPV*3621A** OVMAAB042112 28,200 12.5 15.0 28,200 3.88 8.4 16,800 2.62 3645718 25HBC530A**30 CNPV*3621A**+TDR 28,000 11.2 13.5 29,200 3.74 8.2 17,700 2.50 3645593 25HBC530A**30 CNPV*3717A** 58CV(A,X)090---16 29,000 13.0 15.5 28,400 4.14 8.8 16,800 2.72 3645619 25HBC530A**30 CNPV*3717A** 58ME(B,C)040--- 12 29,000 13.0 15.5 28,600 4.24 9.0 17,100 2.76 3645629 25HBC530A**30 CNPV*3717A** 58ME(B,C)060--- 12 29,000 13.0 15.5 28,600 4.24 9.0 17,100 2.76 3645639 25HBC530A**30 CNPV*3717A** 58ME(B,C)080--- 12 29,400 13.0 15.5 28,600 4.22 9.0 17,000 2.74 3645649 25HBC530A**30 CNPV*3717A** 58ME(B,C)080--- 16 29,600 13.0 15.5 28,800 4.24 9.0 17,200 2.76 3646416 25HBC530A**30 CNPV*3717A** 58MEB040 ---12 29,000 13.0 15.5 28,600 4.24 9.0 17,100 2.76 3645659 25HBC530A**30 CNPV*3717A** 58MV(B,C)060---14 29,000 13.0 15.5 28,600 4.16 8.8 16,900 2.72 3645696 25HBC530A**30 CNPV*3717A** 58PH*070--- 16 29,200 12.5 15.3 28,800 4.14 8.8 17,200 2.70 3645754 25HBC530A**30 CNPV*3717A** 58UVB060---14 29,000 13.0 15.5 28,600 4.16 8.8 16,900 2.72 3810497 25HBC530A**30 CNPV*3717A** 58VLR105--- 12 29,000 12.5 15.0 28,600 4.14 8.5 17,000 2.70 3810496 25HBC530A**30 CNPV*3717A** 58VMR105 ---12 28,600 12.5 15.0 28,400 4.04 8.5 16,800 2.68 4804619 25HBC530A**30 CNPV*3717A** 59*N*A060V17**14 28,800 12.5 15.0 28,800 4.06 8.5 17,100 2.66 4804620 25HBC530A**30 CNPV*3717A** 59*N*A080V17**14 29,000 12.5 15.2 28,600 4.12 8.8 17,100 2.68 4804621 25HBC530A**30 CNPV*3717A** 59*P5A040E14**10 28,800 11.0 13.0 29,600 3.84 8.2 18,200 2.50 4804622 25HBC530A**30 CNPV*3717A** 59*P5A060E17**14 29,200 12.5 15.0 28,800 4.12 8.8 17,200 2.68 4804623 25HBC530A**30 CNPV*3717A** 59*P5A080E17**16 29,400 12.5 15.2 28,800 4.16 8.8 17,300 2.70 3645719 25HBC530A**30 CNPV*3717A**+TDR 29,000 11.5 14.0 29,400 3.96 8.4 17,900 2.58 3645666 25HBC530A**30 CNPV*4221A** 58MV(B,C)080---14 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645755 25HBC530A**30 CNPV*4221A** 58UVB080---14 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645584 25HBC530A**30 CSPH*3012A** 58CV(A ,X)070---12 28,000 12.0 14.5 28,200 3.82 8.1 16,800 2.60 3645594 25HBC530A**30 CSPH*3012A** 58CV(A ,X)090---16 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645600 25HBC530A**30 CSPH*3012A** 58CV(A ,X)110---20 28,000 12.5 15.0 28,200 3.86 8.2 16,800 2.62 3645604 25HBC530A**30 CSPH*3012A** 58CV(A ,X)135---22 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645608 25HBC530A**30 CSPH*3012A** 58CV(A ,X)155---22 28,000 12.5 15.0 28,200 3.88 8.2 16,700 2.62 3756341 25HBC530A**30 CSPH*3012A** 58HDV040--- ---12 28,000 12.0 14.0 28,600 3.76 8.0 17,100 2.54 3756342 25HBC530A**30 CSPH*3012A** 58HDV060--- ---12 28,200 12.0 14.0 28,600 3.82 8.2 17,100 2.56 3645620 25HBC530A**30 CSPH*3012A** 58ME(B,C)040---12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645630 25HBC530A**30 CSPH*3012A** 58ME(B,C)060---12 28,200 12.5 15.0 28,400 3.92 8.3 16,900 2.64 3645640 25HBC530A**30 CSPH*3012A** 58ME(B,C)080---12 28,200 12.5 15.0 28,200 3.90 8.3 16,800 2.64 3645650 25HBC530A**30 CSPH*3012A** 58ME(B,C)080---16 28,200 12.0 14.5 28,600 3.92 8.3 17,000 2.64 3646417 25HBC530A**30 CSPH*3012A** 58MEB040--- 12 28,200 12.5 15.0 28,400 3.92 8.3 16,800 2.64 3645660 25HBC530A**30 CSPH*3012A** 58MV(B,C)060--- 14 28,000 12.5 15.0 28,400 3.88 8.2 16,800 2.62 3645667 25HBC530A**30 CSPH*3012A** 58MV(B,C)080--- 14 27,800 12.0 14.5 28,200 3.80 8.1 16,800 2.58 3645673 25HBC530A**30 CSPH*3012A** 58MV(B,C)080--- 20 28,000 12.0 14.5 28,200 3.84 8.1 16,800 2.60 3645679 25HBC530A**30 CSPH*3012A** 58MV(B,C)100--- 20 27,800 12.0 14.5 28,000 3.78 8.0 16,700 2.58 3645683 25HBC530A**30 CSPH*3012A** 58MV(B,C)120--- 20 28,000 12.5 15.0 28,200 3.86 8.2 16,700 2.62 3645687 25HBC530A**30 CSPH*3012A** 58MVB040--- 14 27,800 12.0 14.5 28,200 3.82 8.1 16,800 2.58 3645697 25HBC530A**30 CSPH*3012A** 58PH*070---16 28,000 12.0 14.5 28,400 3.82 8.1 17,000 2.58 3645703 25HBC530A**30 CSPH*3012A** 58PH*090---16 28,000 12.0 14.5 28,400 3.86 8.2 16,900 2.60

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 21

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3810505 25HBC530A**30 CSPH*3012A** 58VLR105---12 28,200 12.5 14.5 28,400 3.86 8.4 16,900 2.60 3810504 25HBC530A**30 CSPH*3012A** 58VMR105--- 12 27,800 12.5 14.5 28,000 3.78 8.2 16,700 2.58 4804643 25HBC530A**30 CSPH*3012A** 59*N*A060V17**14 28,000 12.0 14.5 28,600 3.84 8.2 17,000 2.56 4804644 25HBC530A**30 CSPH*3012A** 59*N*A080V17**14 28,200 12.0 14.5 28,600 3.88 8.2 17,000 2.60 4804645 25HBC530A**30 CSPH*3012A** 59*N*A100V21**20 28,200 12.0 14.5 28,600 3.92 8.5 17,000 2.62 4804646 25HBC530A**30 CSPH*3012A** 59*N*A120V24**22 28,200 12.0 14.5 28,400 3.92 8.5 16,900 2.62 4804647 25HBC530A**30 CSPH*3012A** 59*P5A060E17**14 28,200 12.0 14.5 28,600 3.88 8.2 17,000 2.60 4804648 25HBC530A**30 CSPH*3012A** 59*P5A080E17**16 28,400 12.0 14.5 28,800 3.94 8.5 17,200 2.62 4194205 25HBC530A**30 CSPH*3012A** OVLAAB036098 28,000 12.0 14.5 28,400 3.82 8.2 17,000 2.58 4194207 25HBC530A**30 CSPH*3012A** OVLAAB048112 28,400 12.0 14.5 28,600 3.88 8.4 17,100 2.60 4194204 25HBC530A**30 CSPH*3012A** OVMAAB036098 28,000 12.0 14.5 28,600 3.82 8.2 17,100 2.58 4194206 25HBC530A**30 CSPH*3012A** OVMAAB042112 28,200 12.5 14.5 28,400 3.86 8.4 16,900 2.62 3645720 25HBC530A**30 CSPH*3012A**+TDR 28,000 11.2 13.0 29,200 3.76 8.0 17,700 2.52 3645585 25HBC530A**30 CSPH*3612A** 58CV(A ,X)070---12 28,000 12.0 14.5 28,400 3.94 8.2 16,900 2.64 3645595 25HBC530A**30 CSPH*3612A** 58CV(A ,X)090---16 28,000 12.5 15.3 28,200 3.98 8.5 16,800 2.66 3645601 25HBC530A**30 CSPH*3612A** 58CV(A ,X)110---20 28,000 12.5 15.0 28,400 3.98 8.5 16,800 2.66 3645605 25HBC530A**30 CSPH*3612A** 58CV(A ,X)135---22 28,000 12.5 15.0 28,400 4.00 8.3 16,800 2.68 3645609 25HBC530A**30 CSPH*3612A** 58CV(A ,X)155---22 28,000 12.5 15.0 28,200 4.00 8.3 16,800 2.68 3756343 25HBC530A**30 CSPH*3612A** 58HDV040--- ---12 28,000 12.0 14.0 28,600 3.92 8.2 17,200 2.60 3756344 25HBC530A**30 CSPH*3612A** 58HDV060--- ---12 28,200 12.2 14.5 28,600 3.98 8.2 17,300 2.64 3645621 25HBC530A**30 CSPH*3612A** 58ME(B,C)040---12 28,200 12.5 15.3 28,600 4.08 8.5 17,000 2.70 3645631 25HBC530A**30 CSPH*3612A** 58ME(B,C)060---12 28,200 12.5 15.3 28,600 4.08 8.5 17,000 2.70 3645641 25HBC530A**30 CSPH*3612A** 58ME(B,C)080---12 28,200 12.5 15.3 28,600 4.06 8.5 16,900 2.70 3645651 25HBC530A**30 CSPH*3612A** 58ME(B,C)080---16 28,200 12.5 15.0 28,800 4.10 8.6 17,100 2.70 3646418 25HBC530A**30 CSPH*3612A** 58MEB040--- 12 28,200 12.5 15.3 28,600 4.08 8.5 17,000 2.70 3645661 25HBC530A**30 CSPH*3612A** 58MV(B,C)060--- 14 28,000 12.5 15.3 28,400 4.00 8.5 16,900 2.68 3645668 25HBC530A**30 CSPH*3612A** 58MV(B,C)080--- 14 28,000 12.5 15.0 28,200 3.92 8.2 16,800 2.64 3645674 25HBC530A**30 CSPH*3612A** 58MV(B,C)080--- 20 28,000 12.5 15.0 28,400 3.96 8.3 16,800 2.66 3645680 25HBC530A**30 CSPH*3612A** 58MV(B,C)100--- 20 27,800 12.5 15.0 28,200 3.90 8.2 16,700 2.62 3645684 25HBC530A**30 CSPH*3612A** 58MV(B,C)120--- 20 28,000 12.5 15.0 28,400 3.98 8.3 16,800 2.68 3645688 25HBC530A**30 CSPH*3612A** 58MVB040--- 14 28,000 12.0 14.5 28,400 3.92 8.2 16,900 2.64 3645698 25HBC530A**30 CSPH*3612A** 58PH*070---16 28,200 12.0 14.5 28,600 3.98 8.3 17,100 2.64 3645704 25HBC530A**30 CSPH*3612A** 58PH*090---16 28,200 12.5 15.0 28,600 4.02 8.5 17,000 2.68 3810507 25HBC530A**30 CSPH*3612A** 58VLR105---12 28,600 12.5 15.0 28,600 3.98 8.5 16,900 2.66 3810506 25HBC530A**30 CSPH*3612A** 58VMR105--- 12 28,200 12.5 15.0 28,200 3.90 8.4 16,700 2.62 4804649 25HBC530A**30 CSPH*3612A** 59*N*A060V17**14 28,400 12.0 14.5 28,600 3.90 8.2 17,000 2.62 4804650 25HBC530A**30 CSPH*3612A** 59*N*A080V17**14 28,600 12.5 15.0 28,600 3.96 8.5 17,000 2.64 4804651 25HBC530A**30 CSPH*3612A** 59*N*A100V21**20 28,800 12.5 15.0 28,600 4.00 8.5 17,000 2.66 4804652 25HBC530A**30 CSPH*3612A** 59*N*A120V24**22 28,800 12.5 15.2 28,400 4.00 8.5 16,900 2.66 4804653 25HBC530A**30 CSPH*3612A** 59*P5A040E14**10 28,400 11.0 13.0 29,600 3.72 8.0 18,000 2.48 4804654 25HBC530A**30 CSPH*3612A** 59*P5A060E17**14 28,800 12.0 14.5 28,800 3.96 8.5 17,100 2.64 4804655 25HBC530A**30 CSPH*3612A** 59*P5A080E17**16 29,000 12.5 15.0 28,800 4.02 8.5 17,200 2.66 4194209 25HBC530A**30 CSPH*3612A** OVLAAB036098 28,600 12.5 15.0 28,600 3.94 8.5 17,000 2.64 4194211 25HBC530A**30 CSPH*3612A** OVLAAB048112 28,800 12.5 15.0 28,600 4.02 8.5 17,100 2.66 4194208 25HBC530A**30 CSPH*3612A** OVMAAB036098 28,600 12.5 14.5 28,600 3.94 8.5 17,100 2.62 4194210 25HBC530A**30 CSPH*3612A** OVMAAB042112 28,800 12.5 15.0 28,400 4.00 8.5 16,900 2.68 3645721 25HBC530A**30 CSPH*3612A**+TDR 28,000 11.2 13.5 29,200 3.86 8.2 17,800 2.56 3810482 25HBC530A**30 FB4CNF030 28,200 12.0 14.0 28,600 3.88 8.4 17,100 2.60 3645722 25HBC530A**30 FB4CNF030+TXV 28,200 12.0 14.5 28,600 3.88 8.3 17,100 2.60 3810483 25HBC530A**30 FB4CNF036 28,200 12.0 14.0 28,600 3.88 8.4 17,100 2.60 3645723 25HBC530A**30 FB4CNF036+TXV 28,200 12.0 14.5 28,600 3.88 8.3 17,100 2.60 3645724 25HBC530A**30 FE4AN(B,F)003+UI 28,400 12.5 15.5 28,000 3.94 8.6 16,600 2.66 3645725 25HBC530A**30 FE4AN(B,F)005+UI 29,000 13.0 16.0 28,000 4.16 9.0 16,800 2.74 3645726 25HBC530A**30 FE4ANF002+UI 28,200 12.5 15.0 28,200 3.92 8.5 16,800 2.62 3645727 25HBC530A**30 FF1ENP030 27,600 11.2 13.5 29,000 3.68 8.0 17,500 2.48 3645728 25HBC530A**30 FF1ENP031 28,200 12.0 14.5 28,600 3.86 8.2 17,100 2.60 3645729 25HBC530A**30 FF1ENP036 28,200 11.2 13.5 29,200 3.74 8.0 17,600 2.52 3645730 25HBC530A**30 FF1ENP037 28,400 12.0 14.5 28,800 3.86 8.3 17,300 2.60 3645734 25HBC530A**30 FV4CN(B,F)003 28,400 12.5 15.5 28,000 3.94 8.6 16,600 2.66 3645735 25HBC530A**30 FV4CN(B,F)005 29,000 13.0 16.0 28,000 4.16 9.0 16,800 2.74 3645736 25HBC530A**30 FV4CNF002 28,200 12.5 15.3 28,200 3.92 8.5 16,800 2.62 3645740 25HBC530A**30 FX4DN(B,F)037 29,200 12.5 15.3 28,800 4.12 8.8 17,100 2.70 3810484 25HBC530A**30 FY5BNF030 28,400 12.0 13.5 28,800 3.88 8.4 17,300 2.60 3692771 25HBC530A**30 FY5BNF030+TXV 28,400 12.0 14.5 28,800 3.88 8.2 17,300 2.58 3810485 25HBC530A**30 FY5BNF036 28,200 11.5 13.5 29,000 3.82 8.2 17,400 2.56 3692772 25HBC530A**30 FY5BNF036+TXV 28,200 11.5 14.0 29,000 3.82 8.2 17,500 2.54

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

3645945 25HBC536A**30 †FX4DN(B,F)037 34,800 12.5 15.0 35,400 3.92 8.7 21,400 2.64 3645756 25HBC536A**30 CAP**3614A** 58CV(A,X)070 ---12 33,200 11.5 14.0 34,600 3.60 8.0 21,200 2.50 3645881 25HBC536A**30 CAP**3614A** 58PH*045 ---08 33,200 11.0 13.5 35,000 3.56 7.9 21,600 2.46 3645910 25HBC536A**30 CAP**3614A**+TDR 33,200 11.0 13.0 35,400 3.56 7.9 21,800 2.44 3645761 25HBC536A**30 CAP**3617A** 58CV(A,X)090 ---16 33,400 12.0 14.5 34,400 3.66 8.1 21,000 2.54 4194212 25HBC536A**30 CAP**3617A** 58HDV060 --- --- 12 33,400 11.5 13.5 35,200 3.64 8.2 21,600 2.50 3645793 25HBC536A**30 CAP**3617A** 58ME(B,C)040 --- 12 33,600 12.0 14.5 34,600 3.72 8.2 21,200 2.56 3645801 25HBC536A**30 CAP**3617A** 58ME(B,C)060 --- 12 33,600 12.0 14.0 34,800 3.72 8.2 21,200 2.56 3645809 25HBC536A**30 CAP**3617A** 58ME(B,C)080 --- 12 33,600 12.0 14.5 34,600 3.70 8.1 21,000 2.56 3645817 25HBC536A**30 CAP**3617A** 58ME(B,C)080 --- 16 33,600 12.0 14.0 34,800 3.72 8.2 21,200 2.56 3646419 25HBC536A**30 CAP**3617A** 58MEB040---12 33,600 12.0 14.5 34,600 3.72 8.2 21,200 2.56 3645833 25HBC536A**30 CAP**3617A** 58MV(B,C)060 ---14 33,600 12.0 14.0 34,600 3.68 8.1 21,200 2.54 3645886 25HBC536A**30 CAP**3617A** 58PH*070 ---16 33,400 11.5 14.0 34,800 3.64 8.0 21,400 2.50

See notes on page 36

Page 22

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645949 25HBC536A**30 CAP**3617A** 58UVB060--- 14 33,600 12.0 14.0 34,600 3.68 8.1 21,200 2.54 3810513 25HBC536A**30 CAP**3617A** 58VLR105 ---12 33,600 11.5 14.0 34,800 3.66 8.2 21,200 2.52 3810512 25HBC536A**30 CAP**3617A** 58VMR105---12 33,200 11.5 14.0 34,400 3.60 8.0 21,000 2.50 4804656 25HBC536A**30 CAP**3617A** 59*N*A060V17**14 33,000 11.5 14.0 34,400 3.54 8.0 21,000 2.46 4804657 25HBC536A**30 CAP**3617A** 59*N*A080V17**14 33,000 11.8 14.2 34,400 3.58 8.0 20,800 2.48 4804658 25HBC536A**30 CAP**3617A** 59*P5A060E17**14 33,400 11.5 14.0 34,800 3.62 8.0 21,400 2.50 4804659 25HBC536A**30 CAP**3617A** 59*P5A080E17**16 33,200 11.8 14.2 34,600 3.62 8.0 21,000 2.50 3645911 25HBC536A**30 CAP**3617A**+TDR 33,600 11.0 13.0 35,800 3.62 8.0 22,200 2.46 3645789 25HBC536A**30 CAP**3619A** 58HDV040 --- --- 12 33,200 11.0 13.5 35,200 3.56 7.9 21,600 2.46 3645790 25HBC536A**30 CAP**3619A** 58HDV060 --- --- 12 33,400 11.5 13.5 35,200 3.64 8.0 21,600 2.50 4804672 25HBC536A**30 CAP**3619A** 59*N*A060V17**14 33,000 11.5 14.0 34,400 3.54 8.0 21,000 2.46 4804673 25HBC536A**30 CAP**3619A** 59*N*A080V17**14 33,000 11.8 14.2 34,400 3.58 8.0 20,800 2.48 4804674 25HBC536A**30 CAP**3619A** 59*N*A100V21**20 33,200 11.8 14.2 34,400 3.62 8.0 21,000 2.50 4804675 25HBC536A**30 CAP**3619A** 59*P5A060E17**14 33,400 11.5 14.0 34,800 3.62 8.0 21,400 2.50 4804676 25HBC536A**30 CAP**3619A** 59*P5A080E17**16 33,200 11.8 14.2 34,600 3.62 8.0 21,000 2.50 3645912 25HBC536A**30 CAP**3619A**+TDR 33,600 11.0 13.0 35,800 3.62 8.0 22,200 2.46 3645769 25HBC536A**30 CAP**3621A** 58CV(A,X)110 ---20 33,400 12.0 14.5 34,400 3.70 8.1 21,000 2.56 4194213 25HBC536A**30 CAP**3621A** 58HDV040 --- --- 12 33,200 11.0 13.5 35,200 3.58 8.0 21,600 2.46 4194214 25HBC536A**30 CAP**3621A** 58HDV060 --- --- 12 33,600 11.5 13.5 35,200 3.66 8.2 21,600 2.52 4194215 25HBC536A**30 CAP**3621A** 58HDV080 --- --- 20 34,000 12.0 14.0 35,200 3.78 8.5 21,600 2.58 3645825 25HBC536A**30 CAP**3621A** 58ME(B,C)100 --- 20 33,600 12.0 14.5 34,400 3.74 8.2 20,800 2.58 3645841 25HBC536A**30 CAP**3621A** 58MV(B,C)080 ---14 33,400 12.0 14.0 34,600 3.66 8.1 21,000 2.52 3645852 25HBC536A**30 CAP**3621A** 58MV(B,C)080 ---20 33,400 12.0 14.5 34,400 3.66 8.1 21,000 2.54 3645861 25HBC536A**30 CAP**3621A** 58MV(B,C)100 ---20 33,600 12.0 14.5 34,600 3.70 8.1 21,000 2.54

25HBC5

3645894 25HBC536A**30 CAP**3621A** 58PH*090 ---16 33,800 12.0 14.5 34,600 3.76 8.2 21,000 2.58 3645902 25HBC536A**30 CAP**3621A** 58PH*110 ---20 34,000 12.0 14.5 34,800 3.80 8.3 21,200 2.60 3645950 25HBC536A**30 CAP**3621A** 58UVB080--- 14 33,400 12.0 14.0 34,600 3.66 8.1 21,000 2.52 3645951 25HBC536A**30 CAP**3621A** 58UVB080--- 20 33,400 12.0 14.5 34,400 3.66 8.1 21,000 2.54 3645952 25HBC536A**30 CAP**3621A** 58UVB100--- 20 33,600 12.0 14.5 34,600 3.70 8.1 21,000 2.54 3810515 25HBC536A**30 CAP**3621A** 58VLR120 ---20 33,400 12.0 14.5 34,400 3.70 8.2 20,800 2.56 3810514 25HBC536A**30 CAP**3621A** 58VMR120---20 33,400 12.0 14.5 34,400 3.66 8.2 20,800 2.54 4804660 25HBC536A**30 CAP**3621A** 59*N*A060V17**14 33,000 11.8 14.2 34,400 3.56 8.0 20,800 2.48 4804661 25HBC536A**30 CAP**3621A** 59*N*A080V17**14 33,200 11.8 14.2 34,400 3.60 8.0 20,800 2.50 4804662 25HBC536A**30 CAP**3621A** 59*N*A100V21**20 33,200 11.8 14.2 34,400 3.64 8.2 21,000 2.52 4804663 25HBC536A**30 CAP**3621A** 59*P5A060E17**14 33,400 11.5 14.0 34,800 3.64 8.2 21,400 2.50 4804664 25HBC536A**30 CAP**3621A** 59*P5A080E17**16 33,400 11.8 14.2 34,600 3.64 8.2 21,000 2.52 3645913 25HBC536A**30 CAP**3621A**+TDR 33,600 11.0 13.0 35,800 3.62 8.0 22,200 2.46 3645770 25HBC536A**30 CAP**4221A** 58CV(A,X)110 ---20 33,800 12.0 14.5 34,600 3.74 8.2 21,000 2.58 4194216 25HBC536A**30 CAP**4221A** 58HDV040 --- --- 12 33,600 11.5 13.5 35,200 3.62 8.2 21,800 2.48 4194217 25HBC536A**30 CAP**4221A** 58HDV060 --- --- 12 33,800 11.5 13.5 35,200 3.70 8.2 21,600 2.54 4194218 25HBC536A**30 CAP**4221A** 58HDV080 --- --- 20 34,200 12.0 14.0 35,400 3.82 8.5 21,600 2.60 3645826 25HBC536A**30 CAP**4221A** 58ME(B,C)100 --- 20 34,000 12.0 14.5 34,600 3.78 8.3 21,000 2.60 3645842 25HBC536A**30 CAP**4221A** 58MV(B,C)080 ---14 33,600 12.0 14.0 34,800 3.70 8.1 21,200 2.54 3645853 25HBC536A**30 CAP**4221A** 58MV(B,C)080 ---20 33,600 12.0 14.5 34,600 3.70 8.1 21,000 2.56 3645862 25HBC536A**30 CAP**4221A** 58MV(B,C)100 ---20 33,800 12.0 14.5 34,600 3.74 8.2 21,200 2.56 3645895 25HBC536A**30 CAP**4221A** 58PH*090 ---16 34,000 12.0 14.5 34,800 3.80 8.5 21,200 2.60 3645903 25HBC536A**30 CAP**4221A** 58PH*110 ---20 34,200 12.0 14.5 34,800 3.84 8.5 21,200 2.62 3645953 25HBC536A**30 CAP**4221A** 58UVB080--- 14 33,600 12.0 14.0 34,800 3.70 8.1 21,200 2.54 3645954 25HBC536A**30 CAP**4221A** 58UVB080--- 20 33,600 12.0 14.5 34,600 3.70 8.1 21,000 2.56 3645955 25HBC536A**30 CAP**4221A** 58UVB100--- 20 33,800 12.0 14.5 34,600 3.74 8.2 21,200 2.56 3810517 25HBC536A**30 CAP**4221A** 58VLR120 ---20 33,800 12.0 14.5 34,400 3.74 8.2 20,800 2.58 3810516 25HBC536A**30 CAP**4221A** 58VMR120---20 33,600 12.0 14.5 34,600 3.70 8.2 21,000 2.56 4804665 25HBC536A**30 CAP**4221A** 59*N*A060V17**14 33,200 11.8 14.2 34,600 3.60 8.0 21,000 2.50 4804666 25HBC536A**30 CAP**4221A** 59*N*A080V17**14 33,400 11.8 14.2 34,400 3.64 8.2 21,000 2.52 4804667 25HBC536A**30 CAP**4221A** 59*N*A100V21**20 33,600 12.0 14.5 34,600 3.68 8.2 21,000 2.54 4804668 25HBC536A**30 CAP**4221A** 59*P5A060E17**14 33,600 11.5 14.0 35,000 3.68 8.2 21,400 2.52 4804669 25HBC536A**30 CAP**4221A** 59*P5A080E17**16 33,600 11.8 14.2 34,600 3.68 8.2 21,200 2.54 3645914 25HBC536A**30 CAP**4221A**+TDR 33,800 11.2 13.0 35,800 3.66 8.2 22,200 2.48 3645777 25HBC536A**30 CAP**4224A** 58CV(A,X)135 ---22 33,800 12.0 14.5 34,400 3.76 8.2 20,800 2.58 3645783 25HBC536A**30 CAP**4224A** 58CV(A,X)155 ---22 33,800 12.5 15.0 34,400 3.78 8.3 20,800 2.60 3645791 25HBC536A**30 CAP**4224A** 58HDV100 --- --- 20 34,200 12.0 14.5 35,000 3.82 8.4 21,400 2.60 3645869 25HBC536A**30 CAP**4224A** 58MV(B,C)120 ---20 33,800 12.0 14.5 34,400 3.74 8.2 21,000 2.58 3645875 25HBC536A**30 CAP**4224A** 58MVB040---14 33,600 12.0 14.0 34,600 3.68 8.1 21,000 2.54 3645956 25HBC536A**30 CAP**4224A** 58UVB120--- 20 33,800 12.0 14.5 34,400 3.74 8.2 21,000 2.58 4804670 25HBC536A**30 CAP**4224A** 59*N*A100V21**20 33,600 12.0 14.5 34,600 3.68 8.2 21,000 2.54 4804671 25HBC536A**30 CAP**4224A** 59*N*A120V24**22 33,600 12.0 14.5 34,400 3.70 8.2 20,800 2.56 3645915 25HBC536A**30 CAP**4224A**+TDR 33,800 11.2 13.0 35,800 3.66 8.2 22,200 2.48 3645757 25HBC536A**30 CNPH*3617A** 58CV(A,X)070 ---12 33,200 11.5 14.0 34,600 3.60 7.9 21,000 2.50 3645762 25HBC536A**30 CNPH*3617A** 58CV(A,X)090 ---16 33,400 12.0 14.0 34,400 3.64 8.0 21,000 2.52 3645771 25HBC536A**30 CNPH*3617A** 58CV(A,X)110 ---20 33,400 12.0 14.0 34,400 3.66 8.0 21,000 2.52 3645778 25HBC536A**30 CNPH*3617A** 58CV(A,X)135 ---22 33,400 12.0 14.5 34,400 3.66 8.0 21,000 2.54 3645784 25HBC536A**30 CNPH*3617A** 58CV(A,X)155 ---22 33,400 12.0 14.5 34,400 3.68 8.1 20,800 2.54 3756345 25HBC536A**30 CNPH*3617A** 58HDV040 --- --- 12 33,000 11.2 13.0 34,800 3.54 8.0 21,600 2.44 3756346 25HBC536A**30 CNPH*3617A** 58HDV060 --- --- 12 33,400 11.5 13.5 34,800 3.60 8.0 21,600 2.48 3756347 25HBC536A**30 CNPH*3617A** 58HDV080 --- --- 20 33,800 11.5 14.0 34,800 3.70 8.2 21,600 2.54 3756348 25HBC536A**30 CNPH*3617A** 58HDV100 --- --- 20 33,600 12.0 14.0 34,800 3.68 8.2 21,200 2.54 3645794 25HBC536A**30 CNPH*3617A** 58ME(B,C)040---12 33,400 12.0 14.0 34,600 3.68 8.1 21,000 2.54 3645802 25HBC536A**30 CNPH*3617A** 58ME(B,C)060---12 33,600 12.0 14.0 34,600 3.68 8.1 21,200 2.54 3645810 25HBC536A**30 CNPH*3617A** 58ME(B,C)080---12 33,400 12.0 14.0 34,600 3.66 8.1 21,000 2.54 3645818 25HBC536A**30 CNPH*3617A** 58ME(B,C)080---16 33,400 12.0 14.0 34,600 3.68 8.1 21,200 2.54

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 23

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645827 25HBC536A**30 CNPH*3617A** 58ME(B,C)100---20 33,400 12.0 14.5 34,400 3.66 8.1 20,800 2.54 3646420 25HBC536A**30 CNPH*3617A** 58MEB040 --- 12 33,400 12.0 14.0 34,600 3.68 8.1 21,000 2.54 3645834 25HBC536A**30 CNPH*3617A** 58MV(B,C)060---14 33,400 12.0 14.0 34,600 3.66 8.1 21,200 2.52 3645843 25HBC536A**30 CNPH*3617A** 58MV(B,C)080---14 33,200 11.5 14.0 34,600 3.62 8.0 21,200 2.50 3645854 25HBC536A**30 CNPH*3617A** 58MV(B,C)080---20 33,200 11.5 14.0 34,400 3.62 8.0 21,000 2.50 3645863 25HBC536A**30 CNPH*3617A** 58MV(B,C)100---20 33,400 12.0 14.0 34,600 3.66 8.0 21,200 2.52 3645870 25HBC536A**30 CNPH*3617A** 58MV(B,C)120---20 33,400 12.0 14.0 34,400 3.64 8.0 21,000 2.52 3645876 25HBC536A**30 CNPH*3617A** 58MVB040 --- 14 33,200 11.5 14.0 34,600 3.58 7.9 21,200 2.48 3645882 25HBC536A**30 CNPH*3617A** 58PH*045 --- 08 33,200 11.2 13.5 35,000 3.56 7.8 21,600 2.46 3645887 25HBC536A**30 CNPH*3617A** 58PH*070 --- 16 33,200 11.5 13.5 34,800 3.60 7.9 21,200 2.48 3645896 25HBC536A**30 CNPH*3617A** 58PH*090 --- 16 33,400 12.0 14.5 34,600 3.68 8.1 21,000 2.54 3645904 25HBC536A**30 CNPH*3617A** 58PH*110 --- 20 33,600 12.0 14.5 34,600 3.70 8.1 21,000 2.56 3810529 25HBC536A**30 CNPH*3617A** 58VLR105 --- 12 33,400 11.5 14.0 34,800 3.64 8.2 21,400 2.52 3810531 25HBC536A**30 CNPH*3617A** 58VLR120 --- 20 33,400 12.0 14.5 34,400 3.66 8.2 20,800 2.54 3810528 25HBC536A**30 CNPH*3617A** 58VMR105 --- 12 33,000 11.5 14.0 34,400 3.58 8.0 21,000 2.48 3810530 25HBC536A**30 CNPH*3617A** 58VMR120 --- 20 33,200 11.5 14.0 34,600 3.62 8.0 21,000 2.50 4804701 25HBC536A**30 CNPH*3617A** 59*N*A060V17**14 32,800 11.4 13.7 34,400 3.52 8.0 21,000 2.46 4804702 25HBC536A**30 CNPH*3617A** 59*N*A080V17**14 33,000 11.5 14.0 34,400 3.56 8.0 21,000 2.48 4804703 25HBC536A**30 CNPH*3617A** 59*N*A100V21**20 33,200 11.8 14.2 34,600 3.58 8.0 21,000 2.50 4804704 25HBC536A**30 CNPH*3617A** 59*N*A120V24**22 33,200 11.8 14.2 34,400 3.60 8.0 20,800 2.50 4804705 25HBC536A**30 CNPH*3617A** 59*P5A060E17**14 33,200 11.4 13.7 34,800 3.58 8.0 21,200 2.48 4804706 25HBC536A**30 CNPH*3617A** 59*P5A080E17**16 33,200 11.8 14.2 34,400 3.58 8.0 21,000 2.48 4194252 25HBC536A**30 CNPH*3617A** OVLAAB036098 33,000 11.5 13.5 34,800 3.56 8.0 21,400 2.46 4194254 25HBC536A**30 CNPH*3617A** OVLAAB048112 33,400 11.5 13.5 35,000 3.64 8.2 21,400 2.50 4194255 25HBC536A**30 CNPH*3617A** OVLAAB060154 34,200 12.0 14.0 35,400 3.78 8.5 21,600 2.58 4194251 25HBC536A**30 CNPH*3617A** OVMAAB036098 33,200 11.5 13.5 35,000 3.56 8.0 21,400 2.46 4194253 25HBC536A**30 CNPH*3617A** OVMAAB042112 33,200 11.5 14.0 34,800 3.62 8.2 21,200 2.50 3645917 25HBC536A**30 CNPH*3617A**+TDR 33,600 11.0 13.0 35,800 3.60 8.0 22,200 2.46 3645758 25HBC536A**30 CNPH*4221A** 58CV(A,X)070 ---12 33,600 12.0 14.0 34,800 3.68 8.1 21,200 2.54 3645763 25HBC536A**30 CNPH*4221A** 58CV(A,X)090 ---16 33,600 12.0 14.5 34,600 3.72 8.2 21,000 2.56 3645772 25HBC536A**30 CNPH*4221A** 58CV(A,X)110 ---20 33,800 12.0 14.5 34,600 3.74 8.2 21,000 2.56 3645779 25HBC536A**30 CNPH*4221A** 58CV(A,X)135 ---22 33,800 12.0 14.5 34,400 3.74 8.2 21,000 2.58 3645785 25HBC536A**30 CNPH*4221A** 58CV(A,X)155 ---22 33,800 12.0 14.5 34,400 3.76 8.3 21,000 2.58 3756349 25HBC536A**30 CNPH*4221A** 58HDV040 --- --- 12 33,400 11.5 13.5 35,000 3.62 8.0 21,800 2.48 3756350 25HBC536A**30 CNPH*4221A** 58HDV060 --- --- 12 33,800 11.5 13.5 35,000 3.68 8.2 21,600 2.52 3756351 25HBC536A**30 CNPH*4221A** 58HDV080 --- --- 20 34,200 12.0 14.0 35,000 3.80 8.4 21,600 2.58 3756352 25HBC536A**30 CNPH*4221A** 58HDV100 --- --- 20 34,000 12.0 14.0 35,000 3.78 8.3 21,400 2.58 3645795 25HBC536A**30 CNPH*4221A** 58ME(B,C)040---12 34,000 12.0 14.5 34,800 3.78 8.3 21,200 2.58 3645803 25HBC536A**30 CNPH*4221A** 58ME(B,C)060---12 34,000 12.0 14.5 34,800 3.78 8.3 21,200 2.58 3645811 25HBC536A**30 CNPH*4221A** 58ME(B,C)080---12 34,000 12.0 14.5 34,800 3.76 8.3 21,200 2.58 3645819 25HBC536A**30 CNPH*4221A** 58ME(B,C)080---16 34,000 12.0 14.5 34,800 3.76 8.3 21,200 2.58 3645828 25HBC536A**30 CNPH*4221A** 58ME(B,C)100---20 33,800 12.0 14.5 34,600 3.76 8.3 21,000 2.58 3646421 25HBC536A**30 CNPH*4221A** 58MEB040 --- 12 34,000 12.0 14.5 34,800 3.78 8.3 21,200 2.58 3645835 25HBC536A**30 CNPH*4221A** 58MV(B,C)060---14 33,800 12.0 14.5 34,800 3.74 8.2 21,200 2.56 3645844 25HBC536A**30 CNPH*4221A** 58MV(B,C)080---14 33,600 12.0 14.0 34,800 3.70 8.1 21,200 2.54 3645855 25HBC536A**30 CNPH*4221A** 58MV(B,C)080---20 33,600 12.0 14.0 34,600 3.70 8.1 21,200 2.54 3645864 25HBC536A**30 CNPH*4221A** 58MV(B,C)100---20 33,800 12.0 14.5 34,600 3.74 8.2 21,200 2.56 3645871 25HBC536A**30 CNPH*4221A** 58MV(B,C)120---20 33,800 12.0 14.5 34,400 3.72 8.2 21,000 2.56 3645877 25HBC536A**30 CNPH*4221A** 58MVB040 --- 14 33,600 11.5 14.0 34,600 3.66 8.1 21,200 2.52 3645883 25HBC536A**30 CNPH*4221A** 58PH*045 --- 08 33,600 11.2 13.5 35,200 3.64 8.0 21,600 2.50 3645888 25HBC536A**30 CNPH*4221A** 58PH*070 --- 16 33,600 11.5 14.0 35,000 3.68 8.1 21,400 2.52 3645897 25HBC536A**30 CNPH*4221A** 58PH*090 --- 16 34,000 12.0 14.5 34,800 3.78 8.5 21,200 2.58 3645905 25HBC536A**30 CNPH*4221A** 58PH*110 --- 20 34,000 12.0 14.5 34,800 3.80 8.5 21,200 2.60 3810533 25HBC536A**30 CNPH*4221A** 58VLR105 --- 12 33,800 11.5 14.0 35,000 3.72 8.4 21,400 2.56 3810535 25HBC536A**30 CNPH*4221A** 58VLR120 --- 20 33,800 12.0 14.5 34,600 3.74 8.2 21,000 2.58 3810532 25HBC536A**30 CNPH*4221A** 58VMR105 --- 12 33,400 12.0 14.0 34,600 3.66 8.2 21,000 2.52 3810534 25HBC536A**30 CNPH*4221A** 58VMR120 --- 20 33,600 12.0 14.5 34,600 3.70 8.2 21,000 2.54 4804707 25HBC536A**30 CNPH*4221A** 59*N*A060V17**14 33,200 11.5 14.0 34,600 3.60 8.0 21,000 2.48 4804708 25HBC536A**30 CNPH*4221A** 59*N*A080V17**14 33,400 11.8 14.2 34,600 3.64 8.2 21,000 2.52 4804709 25HBC536A**30 CNPH*4221A** 59*N*A100V21**20 33,600 11.8 14.2 34,600 3.66 8.2 21,000 2.52 4804710 25HBC536A**30 CNPH*4221A** 59*N*A120V24**22 33,600 12.0 14.5 34,600 3.68 8.2 21,000 2.54 4804711 25HBC536A**30 CNPH*4221A** 59*P5A060E17**14 33,600 11.5 14.0 35,000 3.66 8.2 21,400 2.52 4804712 25HBC536A**30 CNPH*4221A** 59*P5A080E17**16 33,600 11.8 14.2 34,600 3.66 8.2 21,200 2.52 4194257 25HBC536A**30 CNPH*4221A** OVLAAB036098 33,400 11.5 13.5 35,000 3.64 8.2 21,400 2.50 4194259 25HBC536A**30 CNPH*4221A** OVLAAB048112 33,800 11.5 14.0 35,000 3.72 8.4 21,400 2.54 4194260 25HBC536A**30 CNPH*4221A** OVLAAB060154 34,600 12.0 14.5 35,400 3.88 8.7 21,800 2.62 4194256 25HBC536A**30 CNPH*4221A** OVMAAB036098 33,600 11.5 13.5 35,000 3.64 8.2 21,400 2.50 4194258 25HBC536A**30 CNPH*4221A** OVMAAB042112 33,800 12.0 14.0 34,800 3.70 8.2 21,200 2.54 3645918 25HBC536A**30 CNPH*4221A**+TDR 33,800 11.2 13.0 35,800 3.66 8.2 22,200 2.50 3756353 25HBC536A**30 CNPH*4321A** 58HDV040 --- --- 12 34,600 11.5 14.0 35,800 3.80 8.3 22,000 2.56 3756354 25HBC536A**30 CNPH*4321A** 58HDV060 --- --- 12 35,000 12.0 14.0 35,800 3.90 8.5 22,000 2.62 3756355 25HBC536A**30 CNPH*4321A** 58HDV080 --- --- 20 35,400 12.2 14.5 35,800 4.02 8.8 22,000 2.68 3756356 25HBC536A**30 CNPH*4321A** 58HDV100 --- --- 20 35,200 12.5 15.0 35,600 4.00 8.7 21,600 2.68 3810537 25HBC536A**30 CNPH*4321A** 58VLR105 --- 12 34,800 12.0 14.5 35,400 3.92 8.5 21,600 2.64 3810539 25HBC536A**30 CNPH*4321A** 58VLR120 --- 20 34,800 12.5 15.0 35,000 3.94 8.5 21,200 2.66 3810536 25HBC536A**30 CNPH*4321A** 58VMR105 --- 12 34,400 12.0 14.5 35,000 3.86 8.5 21,200 2.62 3810538 25HBC536A**30 CNPH*4321A** 58VMR120 --- 20 34,600 12.5 15.0 35,000 3.90 8.5 21,200 2.64 4804713 25HBC536A**30 CNPH*4321A** 59*N*A060V17**14 34,200 12.0 14.5 35,000 3.78 8.5 21,200 2.58 4804714 25HBC536A**30 CNPH*4321A** 59*N*A080V17**14 34,400 12.0 14.5 34,800 3.82 8.5 21,200 2.60 4804715 25HBC536A**30 CNPH*4321A** 59*N*A100V21**20 34,600 12.0 14.5 35,000 3.86 8.5 21,200 2.62

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 24

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4804716 25HBC536A**30 CNPH*4321A** 59*N*A120V24**22 34,600 12.5 15.0 34,800 3.88 8.5 21,200 2.64 4804717 25HBC536A**30 CNPH*4321A** 59*P5A060E17**14 34,800 12.0 14.5 35,400 3.88 8.5 21,800 2.60 4804718 25HBC536A**30 CNPH*4321A** 59*P5A080E17**16 34,600 12.0 14.5 35,200 3.88 8.5 21,400 2.62 4194262 25HBC536A**30 CNPH*4321A** OVLAAB036098 34,400 12.0 14.0 35,400 3.82 8.5 21,600 2.58 4194264 25HBC536A**30 CNPH*4321A** OVLAAB048112 34,800 12.0 14.5 35,400 3.92 8.5 21,600 2.64 4194265 25HBC536A**30 CNPH*4321A** OVLAAB060154 35,600 12.5 15.0 35,800 4.10 9.0 22,000 2.72 4194261 25HBC536A**30 CNPH*4321A** OVMAAB036098 34,600 12.0 14.0 35,400 3.84 8.5 21,600 2.60 4194263 25HBC536A**30 CNPH*4321A** OVMAAB042112 34,600 12.0 14.5 35,200 3.90 8.5 21,400 2.62 3645764 25HBC536A**30 CNPV*3617A** 58CV(A,X)090---16 33,400 12.0 14.0 34,400 3.64 8.0 21,000 2.52 4194219 25HBC536A**30 CNPV*3617A** 58HDV040--- --- 12 33,000 11.0 13.0 35,000 3.54 8.0 21,600 2.44 4194220 25HBC536A**30 CNPV*3617A** 58HDV060--- --- 12 33,400 11.0 13.5 35,000 3.60 8.0 21,600 2.48 3645796 25HBC536A**30 CNPV*3617A** 58ME(B,C)040--- 12 33,400 12.0 14.0 34,600 3.68 8.1 21,000 2.54 3645804 25HBC536A**30 CNPV*3617A** 58ME(B,C)060--- 12 33,600 12.0 14.0 34,600 3.68 8.1 21,200 2.54 3645812 25HBC536A**30 CNPV*3617A** 58ME(B,C)080--- 12 33,400 12.0 14.0 34,600 3.66 8.1 21,000 2.54 3645820 25HBC536A**30 CNPV*3617A** 58ME(B,C)080--- 16 33,400 12.0 14.0 34,600 3.68 8.1 21,200 2.54 3646422 25HBC536A**30 CNPV*3617A** 58MEB040 ---12 33,400 12.0 14.0 34,600 3.68 8.1 21,000 2.54 3645836 25HBC536A**30 CNPV*3617A** 58MV(B,C)060---14 33,400 12.0 14.0 34,600 3.66 8.1 21,200 2.52 3645889 25HBC536A**30 CNPV*3617A** 58PH*070--- 16 33,200 11.5 13.5 34,800 3.60 7.9 21,200 2.48 3645957 25HBC536A**30 CNPV*3617A** 58UVB060---14 33,400 12.0 14.0 34,600 3.66 8.1 21,200 2.52 3810519 25HBC536A**30 CNPV*3617A** 58VLR105--- 12 33,400 11.5 14.0 34,800 3.64 8.2 21,400 2.52 3810518 25HBC536A**30 CNPV*3617A** 58VMR105 ---12 33,000 11.5 14.0 34,400 3.58 8.0 21,000 2.48 4804677 25HBC536A**30 CNPV*3617A** 59*N*A060V17**14 32,800 11.4 13.7 34,400 3.52 8.0 21,000 2.46 4804678 25HBC536A**30 CNPV*3617A** 59*N*A080V17**14 33,000 11.5 14.0 34,400 3.56 8.0 21,000 2.48 4804679 25HBC536A**30 CNPV*3617A** 59*P5A060E17**14 33,200 11.4 13.7 34,800 3.58 8.0 21,200 2.48

25HBC5

4804680 25HBC536A**30 CNPV*3617A** 59*P5A080E17**16 33,200 11.8 14.2 34,400 3.58 8.0 21,000 2.48 4194233 25HBC536A**30 CNPV*3617A** OVLAAB036098 33,000 11.5 13.5 34,800 3.56 8.0 21,400 2.46 4194232 25HBC536A**30 CNPV*3617A** OVMAAB036098 33,200 11.5 13.5 35,000 3.56 8.0 21,400 2.46 4194234 25HBC536A**30 CNPV*3617A** OVMAAB042112 33,200 11.5 14.0 34,800 3.62 8.2 21,200 2.50 3645919 25HBC536A**30 CNPV*3617A**+TDR 33,600 11.0 13.0 35,800 3.60 8.0 22,200 2.46 3645773 25HBC536A**30 CNPV*3621A** 58CV(A,X)110---20 33,400 12.0 14.0 34,400 3.66 8.0 21,000 2.52 4194221 25HBC536A**30 CNPV*3621A** 58HDV040--- --- 12 33,000 11.0 13.0 35,000 3.54 8.0 21,600 2.44 4194222 25HBC536A**30 CNPV*3621A** 58HDV060--- --- 12 33,400 11.5 13.5 35,000 3.62 8.2 21,600 2.48 4194223 25HBC536A**30 CNPV*3621A** 58HDV080--- --- 20 33,800 11.5 14.0 35,200 3.72 8.4 21,600 2.54 3645829 25HBC536A**30 CNPV*3621A** 58ME(B,C)100--- 20 33,400 12.0 14.5 34,400 3.68 8.1 20,800 2.54 3645845 25HBC536A**30 CNPV*3621A** 58MV(B,C)080---14 33,200 11.5 14.0 34,600 3.62 8.0 21,200 2.50 3645856 25HBC536A**30 CNPV*3621A** 58MV(B,C)080---20 33,200 12.0 14.0 34,400 3.62 8.0 21,000 2.50 3645865 25HBC536A**30 CNPV*3621A** 58MV(B,C)100---20 33,400 12.0 14.0 34,600 3.66 8.1 21,200 2.52 3645898 25HBC536A**30 CNPV*3621A** 58PH*090--- 16 33,600 12.0 14.5 34,600 3.70 8.1 21,000 2.54 3645906 25HBC536A**30 CNPV*3621A** 58PH*110--- 20 33,600 12.0 14.5 34,600 3.72 8.2 21,000 2.56 3645958 25HBC536A**30 CNPV*3621A** 58UVB080---14 33,200 11.5 14.0 34,600 3.62 8.0 21,200 2.50 3645959 25HBC536A**30 CNPV*3621A** 58UVB080---20 33,200 12.0 14.0 34,400 3.62 8.0 21,000 2.50 3645960 25HBC536A**30 CNPV*3621A** 58UVB100---20 33,400 12.0 14.0 34,600 3.66 8.1 21,200 2.52 3810521 25HBC536A**30 CNPV*3621A** 58VLR120--- 20 33,400 12.0 14.5 34,400 3.66 8.2 20,800 2.54 3810520 25HBC536A**30 CNPV*3621A** 58VMR120 ---20 33,200 12.0 14.0 34,400 3.62 8.0 21,000 2.52 4804681 25HBC536A**30 CNPV*3621A** 59*N*A060V17**14 32,800 11.4 13.7 34,400 3.52 8.0 21,000 2.46 4804682 25HBC536A**30 CNPV*3621A** 59*N*A080V17**14 33,000 11.8 14.2 34,400 3.56 8.0 21,000 2.48 4804683 25HBC536A**30 CNPV*3621A** 59*N*A100V21**20 33,200 11.8 14.2 34,400 3.60 8.0 21,000 2.50 4804684 25HBC536A**30 CNPV*3621A** 59*P5A060E17**14 33,200 11.4 13.7 34,800 3.60 8.0 21,200 2.48 4804685 25HBC536A**30 CNPV*3621A** 59*P5A080E17**16 33,200 11.8 14.2 34,400 3.60 8.0 21,000 2.50 4194236 25HBC536A**30 CNPV*3621A** OVLAAB036098 33,000 11.5 13.5 34,800 3.56 8.0 21,400 2.46 4194238 25HBC536A**30 CNPV*3621A** OVLAAB048112 33,400 11.5 13.5 35,000 3.64 8.2 21,400 2.50 4194235 25HBC536A**30 CNPV*3621A** OVMAAB036098 33,200 11.5 13.5 35,000 3.58 8.0 21,400 2.48 4194237 25HBC536A**30 CNPV*3621A** OVMAAB042112 33,400 11.5 14.0 34,800 3.62 8.2 21,200 2.50 3645920 25HBC536A**30 CNPV*3621A**+TDR 33,600 11.0 13.0 35,800 3.60 8.0 22,200 2.46 3645765 25HBC536A**30 CNPV*3717A** 58CV(A,X)090---16 34,600 12.5 15.0 35,000 3.90 8.5 21,200 2.64 4194224 25HBC536A**30 CNPV*3717A** 58HDV040--- --- 12 34,400 11.5 13.5 35,800 3.78 8.5 22,000 2.56 4194225 25HBC536A**30 CNPV*3717A** 58HDV060--- --- 12 34,800 12.0 14.0 35,800 3.88 8.5 22,000 2.60 3645797 25HBC536A**30 CNPV*3717A** 58ME(B,C)040--- 12 35,000 12.5 15.0 35,200 3.96 8.7 21,400 2.66 3645805 25HBC536A**30 CNPV*3717A** 58ME(B,C)060--- 12 35,000 12.0 14.5 35,400 3.96 8.8 21,600 2.66 3645813 25HBC536A**30 CNPV*3717A** 58ME(B,C)080--- 12 34,800 12.0 14.5 35,200 3.94 8.7 21,400 2.66 3645821 25HBC536A**30 CNPV*3717A** 58ME(B,C)080--- 16 35,000 12.0 14.5 35,400 3.96 8.7 21,600 2.66 3646423 25HBC536A**30 CNPV*3717A** 58MEB040 ---12 35,000 12.5 15.0 35,200 3.96 8.7 21,400 2.66 3645837 25HBC536A**30 CNPV*3717A** 58MV(B,C)060---14 34,800 12.5 15.0 35,200 3.94 8.7 21,400 2.64 3645890 25HBC536A**30 CNPV*3717A** 58PH*070--- 16 34,600 12.0 14.5 35,400 3.88 8.5 21,600 2.60 3645961 25HBC536A**30 CNPV*3717A** 58UVB060---14 34,800 12.5 15.0 35,200 3.94 8.7 21,400 2.64 3810523 25HBC536A**30 CNPV*3717A** 58VLR105--- 12 34,800 12.0 14.5 35,400 3.90 8.5 21,600 2.62 3810522 25HBC536A**30 CNPV*3717A** 58VMR105 ---12 34,400 12.0 14.5 35,000 3.84 8.5 21,200 2.60 4804686 25HBC536A**30 CNPV*3717A** 59*N*A060V17**14 34,200 12.0 14.5 35,000 3.78 8.2 21,400 2.56 4804687 25HBC536A**30 CNPV*3717A** 59*N*A080V17**14 34,200 12.0 14.5 35,000 3.82 8.5 21,200 2.60 4804688 25HBC536A**30 CNPV*3717A** 59*P5A060E17**14 34,600 12.0 14.5 35,400 3.86 8.5 21,600 2.60 4804689 25HBC536A**30 CNPV*3717A** 59*P5A080E17**16 34,600 12.0 14.5 35,200 3.86 8.5 21,400 2.60 4194240 25HBC536A**30 CNPV*3717A** OVLAAB036098 34,400 12.0 14.0 35,400 3.82 8.5 21,600 2.58 4194239 25HBC536A**30 CNPV*3717A** OVMAAB036098 34,600 12.0 14.0 35,400 3.82 8.5 21,800 2.58 4194241 25HBC536A**30 CNPV*3717A** OVMAAB042112 34,600 12.0 14.5 35,200 3.88 8.5 21,400 2.62 3645921 25HBC536A**30 CNPV*3717A**+TDR 35,000 11.5 13.5 36,000 3.84 8.5 22,600 2.56 3645766 25HBC536A**30 CNPV*4217A** 58CV(A,X)090---16 34,000 12.0 14.5 34,800 3.78 8.5 21,000 2.58 4194226 25HBC536A**30 CNPV*4217A** 58HDV040--- --- 12 33,800 11.5 13.5 35,400 3.66 8.2 21,800 2.50 4194227 25HBC536A**30 CNPV*4217A** 58HDV060--- --- 12 34,000 11.5 14.0 35,400 3.74 8.2 21,800 2.54 3645798 25HBC536A**30 CNPV*4217A** 58ME(B,C)040--- 12 34,200 12.0 14.5 35,000 3.82 8.5 21,200 2.60 3645806 25HBC536A**30 CNPV*4217A** 58ME(B,C)060--- 12 34,200 12.0 14.5 35,000 3.82 8.5 21,400 2.60

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 25

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645814 25HBC536A**30 CNPV*4217A** 58ME(B,C)080--- 12 34,200 12.0 14.5 35,000 3.80 8.5 21,200 2.60 3645822 25HBC536A**30 CNPV*4217A** 58ME(B,C)080--- 16 34,200 12.0 14.5 35,000 3.82 8.5 21,400 2.60 3646424 25HBC536A**30 CNPV*4217A** 58MEB040 ---12 34,200 12.0 14.5 35,000 3.82 8.5 21,200 2.60 3645838 25HBC536A**30 CNPV*4217A** 58MV(B,C)060---14 34,200 12.0 14.5 35,000 3.80 8.5 21,400 2.58 3645891 25HBC536A**30 CNPV*4217A** 58PH*070--- 16 34,000 12.0 14.0 35,200 3.74 8.2 21,400 2.56 3645962 25HBC536A**30 CNPV*4217A** 58UVB060---14 34,200 12.0 14.5 35,000 3.80 8.5 21,400 2.58 3810525 25HBC536A**30 CNPV*4217A** 58VLR105--- 12 34,200 12.0 14.0 35,200 3.78 8.4 21,400 2.58 3810524 25HBC536A**30 CNPV*4217A** 58VMR105 ---12 33,800 12.0 14.5 34,800 3.70 8.2 21,200 2.54 4804690 25HBC536A**30 CNPV*4217A** 59*N*A060V17**14 33,400 11.8 14.2 34,800 3.64 8.2 21,200 2.50 4804691 25HBC536A**30 CNPV*4217A** 59*N*A080V17**14 33,600 12.0 14.5 34,600 3.68 8.2 21,000 2.54 4804692 25HBC536A**30 CNPV*4217A** 59*P5A060E17**14 34,000 11.8 14.2 35,200 3.72 8.2 21,400 2.54 4804693 25HBC536A**30 CNPV*4217A** 59*P5A080E17**16 33,800 12.0 14.5 34,800 3.72 8.2 21,200 2.54 4194243 25HBC536A**30 CNPV*4217A** OVLAAB036098 33,800 11.5 14.0 35,000 3.68 8.2 21,400 2.52 4194242 25HBC536A**30 CNPV*4217A** OVMAAB036098 33,800 11.5 14.0 35,200 3.70 8.2 21,600 2.52 4194244 25HBC536A**30 CNPV*4217A** OVMAAB042112 34,000 12.0 14.0 35,000 3.76 8.2 21,400 2.56 3645922 25HBC536A**30 CNPV*4217A**+TDR 34,000 11.2 13.5 36,000 3.72 8.2 22,400 2.52 3645774 25HBC536A**30 CNPV*4221A** 58CV(A,X)110---20 33,800 12.0 14.5 34,600 3.74 8.2 21,000 2.56 4194228 25HBC536A**30 CNPV*4221A** 58HDV040--- --- 12 33,400 11.0 13.5 35,200 3.62 8.2 21,800 2.48 4194229 25HBC536A**30 CNPV*4221A** 58HDV060--- --- 12 33,800 11.5 13.5 35,200 3.68 8.2 21,600 2.52 4194230 25HBC536A**30 CNPV*4221A** 58HDV080--- --- 20 34,200 12.0 14.0 35,400 3.80 8.5 21,600 2.58 3645830 25HBC536A**30 CNPV*4221A** 58ME(B,C)100--- 20 33,800 12.0 14.5 34,600 3.76 8.2 21,000 2.58 3645846 25HBC536A**30 CNPV*4221A** 58MV(B,C)080---14 33,600 12.0 14.0 34,800 3.70 8.1 21,200 2.54 3645857 25HBC536A**30 CNPV*4221A** 58MV(B,C)080---20 33,600 12.0 14.0 34,600 3.70 8.1 21,200 2.54 3645866 25HBC536A**30 CNPV*4221A** 58MV(B,C)100---20 33,800 12.0 14.5 34,600 3.74 8.2 21,200 2.56 3645899 25HBC536A**30 CNPV*4221A** 58PH*090--- 16 34,000 12.0 14.5 34,800 3.78 8.5 21,200 2.58 3645907 25HBC536A**30 CNPV*4221A** 58PH*110--- 20 34,000 12.0 14.5 34,800 3.80 8.5 21,200 2.60 3645963 25HBC536A**30 CNPV*4221A** 58UVB080---14 33,600 12.0 14.0 34,800 3.70 8.1 21,200 2.54 3645964 25HBC536A**30 CNPV*4221A** 58UVB080---20 33,600 12.0 14.0 34,600 3.70 8.1 21,200 2.54 3645965 25HBC536A**30 CNPV*4221A** 58UVB100---20 33,800 12.0 14.5 34,600 3.74 8.2 21,200 2.56 3810527 25HBC536A**30 CNPV*4221A** 58VLR120--- 20 33,800 12.0 14.5 34,600 3.74 8.4 21,000 2.58 3810526 25HBC536A**30 CNPV*4221A** 58VMR120 ---20 33,600 12.0 14.5 34,600 3.70 8.2 21,000 2.54 4804694 25HBC536A**30 CNPV*4221A** 59*N*A060V17**14 33,200 11.5 14.0 34,600 3.60 8.0 21,000 2.48 4804695 25HBC536A**30 CNPV*4221A** 59*N*A080V17**14 33,400 11.8 14.2 34,600 3.64 8.2 21,000 2.52 4804696 25HBC536A**30 CNPV*4221A** 59*N*A100V21**20 33,600 11.8 14.2 34,600 3.66 8.2 21,000 2.52 4804697 25HBC536A**30 CNPV*4221A** 59*P5A060E17**14 33,600 11.5 14.0 35,000 3.66 8.2 21,400 2.52 4804698 25HBC536A**30 CNPV*4221A** 59*P5A080E17**16 33,600 11.8 14.2 34,600 3.66 8.2 21,200 2.52 4194246 25HBC536A**30 CNPV*4221A** OVLAAB036098 33,400 11.5 13.5 35,000 3.64 8.2 21,400 2.50 4194248 25HBC536A**30 CNPV*4221A** OVLAAB048112 33,800 11.5 14.0 35,000 3.72 8.4 21,400 2.54 4194245 25HBC536A**30 CNPV*4221A** OVMAAB036098 33,600 11.5 13.5 35,000 3.64 8.2 21,400 2.50 4194247 25HBC536A**30 CNPV*4221A** OVMAAB042112 33,800 12.0 14.0 34,800 3.70 8.2 21,200 2.54 3645923 25HBC536A**30 CNPV*4221A**+TDR 33,800 11.2 13.0 35,800 3.66 8.2 22,200 2.50 3645780 25HBC536A**30 CNPV*4324A** 58CV(A,X)135---22 34,800 12.5 15.0 34,800 3.96 8.6 21,200 2.68 3645786 25HBC536A**30 CNPV*4324A** 58CV(A,X)155---22 34,800 12.5 15.5 34,800 4.00 8.7 21,000 2.70 4194231 25HBC536A**30 CNPV*4324A** 58HDV080--- --- 20 35,600 12.5 14.5 36,000 4.04 9.0 22,000 2.68 4149578 25HBC536A**30 CNPV*4324A** 58HDV100--- --- 20 35,400 12.5 15.0 35,600 4.04 8.8 21,600 2.70

3645792 25HBC536A**30 CNPV*4324A**

3645847 25HBC536A**30 CNPV*4324A** 58MV(B,C)080---14 34,800 12.2 14.5 35,200 3.92 8.5 21,400 2.64 3645858 25HBC536A**30 CNPV*4324A** 58MV(B,C)080---20 34,600 12.5 15.0 35,000 3.92 8.5 21,200 2.64 3645872 25HBC536A**30 CNPV*4324A** 58MV(B,C)120---20 34,800 12.5 15.0 35,000 3.94 8.6 21,200 2.66 3645878 25HBC536A**30 CNPV*4324A** 58MVB040 ---14 34,600 12.2 14.5 35,000 3.88 8.5 21,400 2.62 3645966 25HBC536A**30 CNPV*4324A** 58UVB080---14 34,800 12.2 14.5 35,200 3.92 8.5 21,400 2.64 3645967 25HBC536A**30 CNPV*4324A** 58UVB080---20 34,600 12.5 15.0 35,000 3.92 8.5 21,200 2.64 3645968 25HBC536A**30 CNPV*4324A** 58UVB120---20 34,800 12.5 15.0 35,000 3.94 8.6 21,200 2.66 4804699 25HBC536A**30 CNPV*4324A** 59*N*A100V21**20 34,600 12.5 15.0 35,000 3.88 8.5 21,200 2.62 4804700 25HBC536A**30 CNPV*4324A** 59*N*A120V24**22 34,600 12.5 15.2 34,800 3.90 8.5 21,000 2.64 4194249 25HBC536A**30 CNPV*4324A** OVLAAB048112 35,000 12.5 14.5 35,400 3.94 8.5 21,600 2.64 4194250 25HBC536A**30 CNPV*4324A** OVLAAB060154 35,800 12.5 15.0 35,800 4.12 9.0 21,800 2.72 3645924 25HBC536A**30 CNPV*4324A** 35,000 11.5 13.5 36,000 3.84 8.4 22,600 2.56 3645848 25HBC536A**30 CNPV*4821A** 58MV(B,C)080---14 34,200 12.0 14.5 35,000 3.82 8.4 21,400 2.60 3645969 25HBC536A**30 CNPV*4821A** 58UVB080---14 34,200 12.0 14.5 35,000 3.82 8.4 21,400 2.60 3645849 25HBC536A**30 CNPV*6024A** 58MV(B,C)080---14 34,600 12.0 14.5 35,000 3.88 8.5 21,400 2.62 3645970 25HBC536A**30 CNPV*6024A** 58UVB080---14 34,600 12.0 14.5 35,000 3.88 8.5 21,400 2.62 3645759 25HBC536A**30 CSPH*3612A** 58CV(A ,X)070---12 33,400 12.0 14.0 34,800 3.74 8.0 21,200 2.56 3645767 25HBC536A**30 CSPH*3612A** 58CV(A ,X)090---16 33,600 12.0 14.5 34,800 3.80 8.1 21,200 2.60 3645775 25HBC536A**30 CSPH*3612A** 58CV(A ,X)110---20 33,600 12.0 14.5 34,800 3.80 8.1 21,200 2.60 3645781 25HBC536A**30 CSPH*3612A** 58CV(A ,X)135---22 33,600 12.0 14.5 34,800 3.80 8.1 21,000 2.60 3645787 25HBC536A**30 CSPH*3612A** 58CV(A ,X)155---22 33,600 12.0 14.5 34,600 3.84 8.2 21,000 2.62 3756357 25HBC536A**30 CSPH*3612A** 58HDV040--- ---12 33,200 11.2 13.5 34,800 3.68 8.0 21,800 2.50 3756358 25HBC536A**30 CSPH*3612A** 58HDV060--- ---12 33,400 11.5 13.5 34,800 3.76 8.0 21,800 2.56 3756359 25HBC536A**30 CSPH*3612A** 58HDV080--- ---20 33,800 11.5 14.0 34,800 3.88 8.2 21,800 2.62 3756360 25HBC536A**30 CSPH*3612A** 58HDV100--- ---20 33,600 12.0 14.0 34,800 3.84 8.2 21,400 2.60 3645799 25HBC536A**30 CSPH*3612A** 58ME(B,C)040---12 33,600 12.0 14.5 35,000 3.84 8.2 21,200 2.62 3645807 25HBC536A**30 CSPH*3612A** 58ME(B,C)060---12 33,800 12.0 14.0 35,000 3.84 8.2 21,400 2.60 3645815 25HBC536A**30 CSPH*3612A** 58ME(B,C)080---12 33,600 12.0 14.5 35,000 3.84 8.2 21,200 2.60 3645823 25HBC536A**30 CSPH*3612A** 58ME(B,C)080---16 33,600 12.0 14.0 34,800 3.84 8.2 21,400 2.60 3645831 25HBC536A**30 CSPH*3612A** 58ME(B,C)100---20 33,600 12.0 14.5 34,800 3.84 8.2 21,000 2.62 3646425 25HBC536A**30 CSPH*3612A** 58MEB040--- 12 33,600 12.0 14.5 35,000 3.84 8.2 21,200 2.62 3645839 25HBC536A**30 CSPH*3612A** 58MV(B,C)060--- 14 33,600 12.0 14.0 35,000 3.82 8.2 21,400 2.60 3645850 25HBC536A**30 CSPH*3612A** 58MV(B,C)080--- 14 33,400 12.0 14.0 35,000 3.76 8.1 21,400 2.58

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

58HDV100--- ---20

(DWNFLW ONLY)

Cooling

Capacity

35,400 12.5 15.0 35,600 4.04 8.8 21,600 2.70

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 26

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3645859 25HBC536A**30 CSPH*3612A** 58MV(B,C)080--- 20 33,400 12.0 14.0 34,800 3.76 8.1 21,200 2.58 3645867 25HBC536A**30 CSPH*3612A** 58MV(B,C)100--- 20 33,600 12.0 14.0 35,000 3.80 8.1 21,200 2.60 3645873 25HBC536A**30 CSPH*3612A** 58MV(B,C)120--- 20 33,600 12.0 14.5 34,800 3.80 8.1 21,200 2.60 3645879 25HBC536A**30 CSPH*3612A** 58MVB040--- 14 33,400 11.5 14.0 35,000 3.74 8.0 21,200 2.56 3645884 25HBC536A**30 CSPH*3612A** 58PH*045---08 33,400 11.5 13.5 35,400 3.72 8.0 21,800 2.52 3645892 25HBC536A**30 CSPH*3612A** 58PH*070---16 33,400 12.0 14.0 35,200 3.76 8.0 21,400 2.56 3645900 25HBC536A**30 CSPH*3612A** 58PH*090---16 33,600 12.0 14.5 35,000 3.86 8.2 21,200 2.62 3645908 25HBC536A**30 CSPH*3612A** 58PH*110---20 33,800 12.0 14.5 35,000 3.88 8.3 21,200 2.64 3810541 25HBC536A**30 CSPH*3612A** 58VLR105---12 34,200 12.0 14.5 35,200 3.80 8.5 21,400 2.58 3810543 25HBC536A**30 CSPH*3612A** 58VLR120---20 34,200 12.5 15.0 34,800 3.82 8.5 21,000 2.60 3810540 25HBC536A**30 CSPH*3612A** 58VMR105--- 12 33,800 12.0 14.5 34,800 3.72 8.2 21,200 2.56 3810542 25HBC536A**30 CSPH*3612A** 58VMR120--- 20 34,000 12.0 14.5 34,800 3.76 8.4 21,200 2.58 4804719 25HBC536A**30 CSPH*3612A** 59*N*A060V17**14 33,600 11.8 14.2 34,800 3.66 8.2 21,200 2.52 4804720 25HBC536A**30 CSPH*3612A** 59*N*A080V17**14 33,800 12.0 14.5 34,600 3.70 8.2 21,000 2.54 4804721 25HBC536A**30 CSPH*3612A** 59*N*A100V21**20 34,000 12.0 14.5 34,800 3.74 8.2 21,200 2.56 4804722 25HBC536A**30 CSPH*3612A** 59*N*A120V24**22 34,000 12.0 14.5 34,600 3.76 8.2 21,000 2.58 4804723 25HBC536A**30 CSPH*3612A** 59*P5A060E17**14 34,200 11.8 14.2 35,200 3.74 8.2 21,600 2.54 4804724 25HBC536A**30 CSPH*3612A** 59*P5A080E17**16 34,000 12.0 14.5 34,800 3.74 8.2 21,200 2.56 4194267 25HBC536A**30 CSPH*3612A** OVLAAB036098 33,800 11.5 14.0 35,200 3.70 8.2 21,400 2.52 4194269 25HBC536A**30 CSPH*3612A** OVLAAB048112 34,200 12.0 14.0 35,200 3.78 8.5 21,600 2.58 4194270 25HBC536A**30 CSPH*3612A** OVLAAB060154 35,000 12.0 14.5 35,600 3.96 8.8 21,800 2.66 4194266 25HBC536A**30 CSPH*3612A** OVMAAB036098 34,000 11.5 14.0 35,200 3.72 8.4 21,600 2.54 4194268 25HBC536A**30 CSPH*3612A** OVMAAB042112 34,200 12.0 14.5 35,000 3.76 8.4 21,400 2.58 3645925 25HBC536A**30 CSPH*3612A**+TDR 33,600 11.0 13.0 35,800 3.72 8.1 22,400 2.52

25HBC5

3645760 25HBC536A**30 CSPH*4212A** 58CV(A ,X)070---12 33,800 12.0 14.0 35,000 3.78 8.2 21,400 2.58 3645768 25HBC536A**30 CSPH*4212A** 58CV(A ,X)090---16 33,800 12.0 14.5 34,800 3.84 8.3 21,200 2.62 3645776 25HBC536A**30 CSPH*4212A** 58CV(A ,X)110---20 34,000 12.0 14.5 34,800 3.84 8.3 21,200 2.62 3645782 25HBC536A**30 CSPH*4212A** 58CV(A ,X)135---22 34,000 12.0 14.5 34,800 3.84 8.3 21,200 2.62 3645788 25HBC536A**30 CSPH*4212A** 58CV(A ,X)155---22 34,000 12.5 15.0 34,800 3.88 8.4 21,000 2.64 3756361 25HBC536A**30 CSPH*4212A** 58HDV040--- ---12 33,400 11.5 13.5 35,000 3.72 8.0 21,800 2.52 3756362 25HBC536A**30 CSPH*4212A** 58HDV060--- ---12 33,800 11.5 13.5 35,000 3.82 8.2 21,800 2.58 3756363 25HBC536A**30 CSPH*4212A** 58HDV080--- ---20 34,200 12.0 14.0 35,000 3.92 8.4 21,800 2.64 3756364 25HBC536A**30 CSPH*4212A** 58HDV100--- ---20 34,000 12.0 14.0 35,000 3.90 8.3 21,600 2.64 3645800 25HBC536A**30 CSPH*4212A** 58ME(B,C)040---12 34,200 12.0 14.5 35,000 3.90 8.4 21,400 2.64 3645808 25HBC536A**30 CSPH*4212A** 58ME(B,C)060---12 34,200 12.0 14.5 35,200 3.90 8.4 21,400 2.64 3645816 25HBC536A**30 CSPH*4212A** 58ME(B,C)080---12 34,200 12.0 14.5 35,000 3.88 8.4 21,400 2.62 3645824 25HBC536A**30 CSPH*4212A** 58ME(B,C)080---16 34,200 12.0 14.5 35,200 3.90 8.4 21,400 2.64 3645832 25HBC536A**30 CSPH*4212A** 58ME(B,C)100---20 34,000 12.5 15.0 34,800 3.88 8.4 21,200 2.64 3646426 25HBC536A**30 CSPH*4212A** 58MEB040--- 12 34,200 12.0 14.5 35,000 3.90 8.4 21,400 2.64 3645840 25HBC536A**30 CSPH*4212A** 58MV(B,C)060--- 14 34,000 12.0 14.5 35,000 3.86 8.3 21,400 2.62 3645851 25HBC536A**30 CSPH*4212A** 58MV(B,C)080--- 14 33,800 12.0 14.0 35,000 3.80 8.2 21,400 2.58 3645860 25HBC536A**30 CSPH*4212A** 58MV(B,C)080--- 20 33,800 12.0 14.5 35,000 3.80 8.2 21,200 2.60 3645868 25HBC536A**30 CSPH*4212A** 58MV(B,C)100--- 20 34,000 12.0 14.5 35,000 3.84 8.3 21,400 2.62 3645874 25HBC536A**30 CSPH*4212A** 58MV(B,C)120--- 20 34,000 12.0 14.5 34,800 3.84 8.3 21,200 2.62 3645880 25HBC536A**30 CSPH*4212A** 58MVB040--- 14 33,800 12.0 14.0 35,000 3.76 8.2 21,400 2.58 3645885 25HBC536A**30 CSPH*4212A** 58PH*045---08 33,800 11.2 13.5 35,600 3.76 8.1 21,800 2.54 3645893 25HBC536A**30 CSPH*4212A** 58PH*070---16 33,800 12.0 14.0 35,200 3.80 8.2 21,600 2.58 3645901 25HBC536A**30 CSPH*4212A** 58PH*090---16 34,200 12.0 14.5 35,000 3.90 8.5 21,400 2.64 3645909 25HBC536A**30 CSPH*4212A** 58PH*110---20 34,200 12.0 14.5 35,000 3.94 8.5 21,400 2.66 3810545 25HBC536A**30 CSPH*4212A** 58VLR105---12 34,400 12.0 14.5 35,200 3.84 8.5 21,400 2.60 3810547 25HBC536A**30 CSPH*4212A** 58VLR120---20 34,400 12.5 15.0 34,800 3.84 8.5 21,000 2.62 3810544 25HBC536A**30 CSPH*4212A** 58VMR105--- 12 34,000 12.0 14.5 34,800 3.76 8.4 21,200 2.58 3810546 25HBC536A**30 CSPH*4212A** 58VMR120--- 20 34,200 12.0 14.5 34,800 3.80 8.5 21,200 2.60 4804725 25HBC536A**30 CSPH*4212A** 59*N*A060V17**14 33,800 11.8 14.2 34,800 3.70 8.2 21,200 2.54 4804726 25HBC536A**30 CSPH*4212A** 59*N*A080V17**14 34,000 12.0 14.5 34,800 3.74 8.2 21,200 2.56 4804727 25HBC536A**30 CSPH*4212A** 59*N*A100V21**20 34,200 12.0 14.5 34,800 3.78 8.2 21,200 2.58 4804728 25HBC536A**30 CSPH*4212A** 59*N*A120V24**22 34,200 12.0 14.5 34,800 3.80 8.5 21,000 2.60 4804729 25HBC536A**30 CSPH*4212A** 59*P5A060E17**14 34,400 11.8 14.2 35,200 3.78 8.5 21,600 2.56 4804730 25HBC536A**30 CSPH*4212A** 59*P5A080E17**16 34,200 12.0 14.5 35,000 3.78 8.5 21,200 2.58 4194272 25HBC536A**30 CSPH*4212A** OVLAAB036098 34,200 12.0 14.0 35,200 3.74 8.2 21,600 2.54 4194274 25HBC536A**30 CSPH*4212A** OVLAAB048112 34,600 12.0 14.5 35,400 3.84 8.5 21,600 2.60 4194275 25HBC536A**30 CSPH*4212A** OVLAAB060154 35,400 12.5 14.5 35,600 4.00 8.5 21,800 2.68 4194271 25HBC536A**30 CSPH*4212A** OVMAAB036098 34,200 12.0 14.0 35,200 3.76 8.2 21,600 2.56 4194273 25HBC536A**30 CSPH*4212A** OVMAAB042112 34,400 12.0 14.5 35,000 3.82 8.5 21,400 2.60 3645926 25HBC536A**30 CSPH*4212A**+TDR 33,800 11.2 13.0 35,800 3.76 8.2 22,400 2.54 3810508 25HBC536A**30 FB4CNF036 33,600 11.2 13.5 35,200 3.68 8.2 21,600 2.50 3645927 25HBC536A**30 FB4CNF036+TXV 33,600 11.5 13.5 35,200 3.70 8.1 21,600 2.50 3810509 25HBC536A**30 FB4CNF042 35,000 12.0 13.5 35,400 3.90 8.5 21,600 2.64 3645928 25HBC536A**30 FB4CNF042+TXV 34,800 12.0 14.5 35,400 3.90 8.5 21,600 2.64 3645929 25HBC536A**30 FE4AN(B,F)003+UI 33,800 12.5 15.0 34,400 3.74 8.5 20,800 2.56 3645930 25HBC536A**30 FE4AN(B,F)005+UI 35,000 12.5 15.0 34,800 3.98 8.8 21,200 2.68 3645931 25HBC536A**30 FE4ANB006+UI 35,400 13.0 15.5 34,600 4.08 9.0 21,200 2.72 3645932 25HBC536A**30 FE4ANF002+UI 33,600 12.0 14.0 34,800 3.72 8.2 21,200 2.52 3645933 25HBC536A**30 FF1ENP036 33,600 11.0 13.0 35,800 3.56 8.0 22,200 2.44 3645934 25HBC536A**30 FF1ENP037 33,600 11.2 13.5 35,600 3.62 8.0 22,000 2.48 3645939 25HBC536A**30 FV4CN(B,F)003 33,800 12.5 15.0 34,400 3.74 8.5 20,800 2.56 3645940 25HBC536A**30 FV4CN(B,F)005 35,000 12.5 15.0 34,800 3.98 8.8 21,200 2.68 3645941 25HBC536A**30 FV4CNB006 35,400 13.0 15.5 34,600 4.08 9.0 21,200 2.72 3645942 25HBC536A**30 FV4CNF002 33,600 12.0 14.0 34,800 3.72 8.2 21,200 2.52 3645946 25HBC536A**30 FX4DN(B,F)043 34,800 12.5 15.0 34,200 3.92 8.7 21,600 2.64

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 27

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3810510 25HBC536A**30 FY5BNF036 34,000 11.2 13.0 35,400 3.68 8.2 21,800 2.52 3692773 25HBC536A**30 FY5BNF036+TXV 33,800 11.5 13.5 35,400 3.68 8.2 21,800 2.52 3810511 25HBC536A**30 FY5BNF042 34,600 11.5 13.0 35,600 3.78 8.4 22,000 2.56 3692774 25HBC536A**30 FY5BNF042+TXV 34,400 11.5 14.0 35,600 3.78 8.5 22,000 2.56

3646155 25HBC542A**30 †FX4DN(B,F)043 41,500 12.5 15.0 41,500 3.82 8.7 26,400 2.62 3645981 25HBC542A**30 CAP**4221A** 58CV(A,X)110 ---20 41,000 12.0 14.5 42,000 3.68 8.2 25,600 2.56 4194276 25HBC542A**30 CAP**4221A** 58HDV080 --- --- 20 41,500 12.0 14.0 42,000 3.70 8.2 26,200 2.56 3646032 25HBC542A**30 CAP**4221A** 58ME(B,C)100 --- 20 41,000 12.5 14.5 42,000 3.72 8.3 25,800 2.58 3646054 25HBC542A**30 CAP**4221A** 58MV(B,C)080 ---14 40,500 12.0 14.0 42,000 3.62 8.1 26,000 2.52 3646062 25HBC542A**30 CAP**4221A** 58MV(B,C)080 ---20 40,500 12.0 14.0 42,000 3.64 8.1 25,800 2.54 3646070 25HBC542A**30 CAP**4221A** 58MV(B,C)100 ---20 40,500 12.0 14.0 42,000 3.62 8.1 25,600 2.52 3646101 25HBC542A**30 CAP**4221A** 58PH*090 ---16 41,000 12.0 14.5 42,000 3.70 8.2 25,800 2.58 3646109 25HBC542A**30 CAP**4221A** 58PH*110 ---20 41,000 12.5 14.5 42,000 3.72 8.3 25,600 2.58 3646159 25HBC542A**30 CAP**4221A** 58UVB080--- 14 40,500 12.0 14.0 42,000 3.62 8.1 26,000 2.52 3646160 25HBC542A**30 CAP**4221A** 58UVB080--- 20 40,500 12.0 14.0 42,000 3.64 8.1 25,800 2.54 3646161 25HBC542A**30 CAP**4221A** 58UVB100--- 20 40,500 12.0 14.0 42,000 3.62 8.1 25,600 2.52 3810553 25HBC542A**30 CAP**4221A** 58VLR120 ---20 40,500 12.0 14.5 42,000 3.66 8.2 25,600 2.56 3810552 25HBC542A**30 CAP**4221A** 58VMR120---20 40,500 12.0 14.5 42,000 3.64 8.2 25,600 2.54 4804731 25HBC542A**30 CAP**4221A** 59*N*A060V17**14 40,000 11.4 13.7 42,000 3.54 8.0 25,800 2.48 4804732 25HBC542A**30 CAP**4221A** 59*N*A080V17**14 40,500 11.8 14.2 42,000 3.58 8.0 25,800 2.50 4804733 25HBC542A**30 CAP**4221A** 59*N*A100V21**20 40,500 11.8 14.2 42,000 3.60 8.2 25,600 2.52 4804734 25HBC542A**30 CAP**4221A** 59*P5A060E17**14 40,500 11.5 14.0 42,000 3.60 8.2 26,200 2.50 4804735 25HBC542A**30 CAP**4221A** 59*P5A080E17**16 41,000 11.8 14.2 42,000 3.64 8.2 26,200 2.52 4804736 25HBC542A**30 CAP**4221A** 59*P5A100E21**16 40,500 11.8 14.2 42,000 3.62 8.2 25,800 2.52 3646126 25HBC542A**30 CAP**4221A**+TDR 41,000 11.5 13.5 42,000 3.62 8.0 27,000 2.50 3645990 25HBC542A**30 CAP**4224A** 58CV(A,X)135 ---22 41,000 12.5 14.5 41,500 3.70 8.3 25,600 2.58 3645998 25HBC542A**30 CAP**4224A** 58CV(A,X)155 ---22 41,000 12.5 14.5 41,500 3.70 8.3 25,400 2.58 4194277 25HBC542A**30 CAP**4224A** 58HDV080 --- --- 20 41,500 12.0 14.0 42,000 3.72 8.2 26,200 2.58 3646007 25HBC542A**30 CAP**4224A** 58HDV100 --- --- 20 41,000 12.0 14.5 42,000 3.70 8.2 26,000 2.56 3646040 25HBC542A**30 CAP**4224A** 58ME(B,C)120 --- 20 41,500 12.5 15.0 42,000 3.76 8.4 25,800 2.62 3646079 25HBC542A**30 CAP**4224A** 58MV(B,C)120 ---20 41,000 12.0 14.5 42,000 3.66 8.2 25,600 2.56 3646087 25HBC542A**30 CAP**4224A** 58MVB040---14 40,500 12.0 14.0 42,000 3.60 8.1 25,800 2.52 3646118 25HBC542A**30 CAP**4224A** 58PH*135 ---20 41,000 12.0 14.5 42,000 3.72 8.3 25,800 2.58 3646162 25HBC542A**30 CAP**4224A** 58UVB120--- 20 41,000 12.0 14.5 42,000 3.66 8.2 25,600 2.56 4804737 25HBC542A**30 CAP**4224A** 59*N*A100V21**20 40,500 11.8 14.2 42,000 3.62 8.2 25,600 2.52 4804738 25HBC542A**30 CAP**4224A** 59*N*A120V24**22 40,500 12.0 14.5 41,500 3.64 8.2 25,400 2.54 4804739 25HBC542A**30 CAP**4224A** 59*P5A100E21**16 40,500 11.8 14.2 42,000 3.64 8.2 25,800 2.52 4804740 25HBC542A**30 CAP**4224A** 59*P5A120E24**22 41,500 12.0 14.5 42,000 3.72 8.2 26,000 2.58 3646127 25HBC542A**30 CAP**4224A**+TDR 41,000 11.5 13.5 42,000 3.62 8.0 27,000 2.50 3645975 25HBC542A**30 CAP**4817A** 58CV(A,X)090 ---16 41,500 12.5 14.5 42,000 3.82 8.3 26,000 2.62 3646008 25HBC542A**30 CAP**4817A** 58ME(B,C)040 --- 12 42,000 12.5 14.5 42,000 3.86 8.4 26,400 2.62 3646014 25HBC542A**30 CAP**4817A** 58ME(B,C)060 --- 12 42,000 12.5 14.5 42,000 3.84 8.4 26,400 2.62 3646020 25HBC542A**30 CAP**4817A** 58ME(B,C)080 --- 12 42,000 12.5 14.5 42,000 3.86 8.4 26,200 2.64 3646026 25HBC542A**30 CAP**4817A** 58ME(B,C)080 --- 16 42,000 12.5 14.5 42,000 3.82 8.4 26,200 2.62 3646427 25HBC542A**30 CAP**4817A** 58MEB040---12 42,000 12.5 14.5 42,000 3.86 8.4 26,400 2.62 3646048 25HBC542A**30 CAP**4817A** 58MV(B,C)060 ---14 42,000 12.5 14.5 42,000 3.84 8.4 26,400 2.62 3646095 25HBC542A**30 CAP**4817A** 58PH*070 ---16 41,500 12.0 14.0 42,000 3.76 8.2 26,600 2.56 3646163 25HBC542A**30 CAP**4817A** 58UVB060--- 14 42,000 12.5 14.5 42,000 3.84 8.4 26,400 2.62 4804741 25HBC542A**30 CAP**4817A** 59*N*A060V17**14 41,000 11.8 14.2 42,000 3.68 8.2 26,200 2.54 4804742 25HBC542A**30 CAP**4817A** 59*N*A080V17**14 41,500 12.0 14.5 42,000 3.72 8.2 26,000 2.56 4804743 25HBC542A**30 CAP**4817A** 59*P5A060E17**14 41,500 11.8 14.2 42,000 3.74 8.2 26,400 2.56 4804744 25HBC542A**30 CAP**4817A** 59*P5A080E17**16 42,000 12.0 14.5 42,000 3.78 8.2 26,400 2.58 3646128 25HBC542A**30 CAP**4817A**+TDR 42,000 11.5 13.5 42,000 3.80 8.2 27,200 2.58 3645982 25HBC542A**30 CAP**4821A** 58CV(A,X)110 ---20 41,500 12.5 15.0 42,000 3.78 8.5 26,000 2.60 4194278 25HBC542A**30 CAP**4821A** 58HDV080 --- --- 20 42,000 12.0 14.5 42,000 3.82 8.5 26,400 2.60 3646033 25HBC542A**30 CAP**4821A** 58ME(B,C)100 --- 20 41,500 12.5 15.0 42,000 3.82 8.5 26,000 2.64 3646055 25HBC542A**30 CAP**4821A** 58MV(B,C)080 ---14 41,500 12.0 14.0 42,000 3.72 8.2 26,200 2.56 3646063 25HBC542A**30 CAP**4821A** 58MV(B,C)080 ---20 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646071 25HBC542A**30 CAP**4821A** 58MV(B,C)100 ---20 41,000 12.0 14.5 42,000 3.72 8.3 25,800 2.56 3646102 25HBC542A**30 CAP**4821A** 58PH*090 ---16 41,500 12.5 15.0 42,000 3.80 8.5 26,000 2.62 3646110 25HBC542A**30 CAP**4821A** 58PH*110 ---20 41,500 12.5 15.0 42,000 3.82 8.5 25,800 2.64 3646164 25HBC542A**30 CAP**4821A** 58UVB080--- 14 41,500 12.0 14.0 42,000 3.72 8.2 26,200 2.56 3646165 25HBC542A**30 CAP**4821A** 58UVB080--- 20 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646166 25HBC542A**30 CAP**4821A** 58UVB100--- 20 41,000 12.0 14.5 42,000 3.72 8.3 25,800 2.56 3810555 25HBC542A**30 CAP**4821A** 58VLR120 ---20 41,500 12.5 14.5 42,000 3.78 8.5 25,800 2.60 3810554 25HBC542A**30 CAP**4821A** 58VMR120---20 41,500 12.0 14.5 42,000 3.76 8.5 25,800 2.60 4804745 25HBC542A**30 CAP**4821A** 59*N*A060V17**14 41,000 11.8 14.2 42,000 3.64 8.2 26,000 2.52 4804746 25HBC542A**30 CAP**4821A** 59*N*A080V17**14 41,000 11.8 14.2 42,000 3.68 8.2 26,000 2.54 4804747 25HBC542A**30 CAP**4821A** 59*N*A100V21**20 41,000 12.0 14.5 42,000 3.72 8.2 25,800 2.56 4804748 25HBC542A**30 CAP**4821A** 59*P5A060E17**14 41,500 11.8 14.2 42,000 3.70 8.2 26,400 2.54 4804749 25HBC542A**30 CAP**4821A** 59*P5A080E17**16 41,500 11.8 14.2 42,000 3.74 8.2 26,400 2.56 4804750 25HBC542A**30 CAP**4821A** 59*P5A100E21**16 41,000 12.0 14.5 42,000 3.72 8.2 26,000 2.56 3646129 25HBC542A**30 CAP**4821A**+TDR 42,000 11.5 14.0 42,000 3.74 8.2 27,000 2.54 3646006 25HBC542A**30 CAP**4823A** 58HDV080 --- --- 20 42,000 12.0 14.5 42,000 3.82 8.4 26,400 2.60 4194281 25HBC542A**30 CAP**4823A** 58HDV100 --- --- 20 41,500 12.5 14.5 42,000 3.80 8.5 26,000 2.60 4804755 25HBC542A**30 CAP**4823A** 59*N*A100V21**20 41,000 12.0 14.5 42,000 3.72 8.2 25,800 2.56 4804756 25HBC542A**30 CAP**4823A** 59*N*A120V24**22 41,000 12.0 14.5 42,000 3.74 8.5 25,800 2.58 4804757 25HBC542A**30 CAP**4823A** 59*P5A100E21**16 41,000 12.0 14.5 42,000 3.72 8.2 26,000 2.56 4804758 25HBC542A**30 CAP**4823A** 59*P5A120E24**22 42,000 12.0 14.5 42,000 3.82 8.5 26,200 2.62

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 28

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3646130 25HBC542A**30 CAP**4823A**+TDR 42,000 11.5 14.0 42,000 3.74 8.2 27,000 2.54 3645991 25HBC542A**30 CAP**4824A** 58CV(A,X)135 ---22 41,500 12.5 15.0 42,000 3.82 8.5 25,800 2.64 3645999 25HBC542A**30 CAP**4824A** 58CV(A,X)155 ---22 41,500 12.5 15.0 42,000 3.82 8.5 25,600 2.64 4194279 25HBC542A**30 CAP**4824A** 58HDV080 --- --- 20 42,000 12.0 14.5 42,000 3.84 8.5 26,400 2.62 4194280 25HBC542A**30 CAP**4824A** 58HDV100 --- --- 20 42,000 12.5 14.5 42,000 3.82 8.5 26,200 2.62 3646041 25HBC542A**30 CAP**4824A** 58ME(B,C)120 --- 20 42,000 12.5 15.0 42,000 3.88 8.6 26,000 2.66 3646080 25HBC542A**30 CAP**4824A** 58MV(B,C)120 ---20 41,500 12.5 15.0 42,000 3.78 8.5 25,800 2.60 3646088 25HBC542A**30 CAP**4824A** 58MVB040---14 41,000 12.0 14.5 42,000 3.72 8.3 26,000 2.56 3646119 25HBC542A**30 CAP**4824A** 58PH*135 ---20 42,000 12.5 15.0 42,000 3.84 8.5 26,000 2.64 3646167 25HBC542A**30 CAP**4824A** 58UVB120--- 20 41,500 12.5 15.0 42,000 3.78 8.5 25,800 2.60 4804751 25HBC542A**30 CAP**4824A** 59*N*A100V21**20 41,000 12.0 14.5 42,000 3.72 8.2 25,800 2.58 4804752 25HBC542A**30 CAP**4824A** 59*N*A120V24**22 41,000 12.0 14.5 42,000 3.74 8.5 25,600 2.60 4804753 25HBC542A**30 CAP**4824A** 59*P5A100E21**16 41,500 12.0 14.5 42,000 3.74 8.2 26,000 2.58 4804754 25HBC542A**30 CAP**4824A** 59*P5A120E24**22 42,000 12.5 15.0 42,000 3.84 8.5 26,200 2.62 3646131 25HBC542A**30 CAP**4824A**+TDR 42,000 11.5 14.0 42,000 3.74 8.2 27,000 2.54 3645971 25HBC542A**30 CNPH*4221A** 58CV(A,X)070 ---12 40,500 11.8 14.0 42,000 3.60 8.0 26,000 2.50 3645976 25HBC542A**30 CNPH*4221A** 58CV(A,X)090 ---16 41,000 12.0 14.5 42,000 3.66 8.2 25,800 2.54 3645983 25HBC542A**30 CNPH*4221A** 58CV(A,X)110 ---20 41,000 12.0 14.5 42,000 3.66 8.2 25,800 2.56 3645992 25HBC542A**30 CNPH*4221A** 58CV(A,X)135 ---22 41,000 12.0 14.5 42,000 3.70 8.2 25,600 2.58 3646000 25HBC542A**30 CNPH*4221A** 58CV(A,X)155 ---22 41,000 12.0 14.5 42,000 3.70 8.2 25,600 2.58 3756367 25HBC542A**30 CNPH*4221A** 58HDV080 --- --- 20 41,000 12.0 14.0 42,000 3.68 8.2 26,200 2.56 3756368 25HBC542A**30 CNPH*4221A** 58HDV100 --- --- 20 41,000 12.2 14.5 42,000 3.68 8.2 26,000 2.56 3646009 25HBC542A**30 CNPH*4221A** 58ME(B,C)040---12 41,000 12.0 14.0 42,000 3.68 8.2 26,000 2.56 3646015 25HBC542A**30 CNPH*4221A** 58ME(B,C)060---12 41,000 12.0 14.0 42,000 3.68 8.2 26,000 2.56

25HBC5

3646021 25HBC542A**30 CNPH*4221A** 58ME(B,C)080---12 41,000 12.0 14.5 42,000 3.68 8.2 26,000 2.56 3646027 25HBC542A**30 CNPH*4221A** 58ME(B,C)080---16 41,000 12.0 14.0 42,000 3.66 8.2 25,800 2.54 3646034 25HBC542A**30 CNPH*4221A** 58ME(B,C)100---20 41,000 12.0 14.5 42,000 3.70 8.3 25,800 2.58 3646042 25HBC542A**30 CNPH*4221A** 58ME(B,C)120---20 41,000 12.5 14.5 42,000 3.72 8.3 25,800 2.60 3646428 25HBC542A**30 CNPH*4221A** 58MEB040 --- 12 41,000 12.0 14.0 42,000 3.68 8.2 26,000 2.56 3646049 25HBC542A**30 CNPH*4221A** 58MV(B,C)060---14 41,000 12.0 14.0 42,000 3.68 8.2 26,000 2.54 3646056 25HBC542A**30 CNPH*4221A** 58MV(B,C)080---14 40,500 11.8 14.0 42,000 3.60 8.1 26,000 2.50 3646064 25HBC542A**30 CNPH*4221A** 58MV(B,C)080---20 40,500 12.0 14.0 42,000 3.64 8.1 26,000 2.52 3646072 25HBC542A**30 CNPH*4221A** 58MV(B,C)100---20 40,500 12.0 14.0 42,000 3.60 8.1 25,800 2.52 3646081 25HBC542A**30 CNPH*4221A** 58MV(B,C)120---20 41,000 12.0 14.5 42,000 3.66 8.2 25,800 2.54 3646089 25HBC542A**30 CNPH*4221A** 58MVB040 --- 14 40,500 12.0 14.0 42,000 3.60 8.0 26,000 2.50 3646096 25HBC542A**30 CNPH*4221A** 58PH*070 --- 16 40,500 11.5 13.5 42,000 3.60 8.0 26,400 2.50 3646103 25HBC542A**30 CNPH*4221A** 58PH*090 --- 16 41,000 12.0 14.5 42,000 3.68 8.2 25,800 2.56 3646111 25HBC542A**30 CNPH*4221A** 58PH*110 --- 20 41,000 12.0 14.5 42,000 3.70 8.2 25,600 2.58 3646120 25HBC542A**30 CNPH*4221A** 58PH*135 --- 20 41,000 12.0 14.5 42,000 3.68 8.2 25,800 2.56 3810561 25HBC542A**30 CNPH*4221A** 58VLR120 --- 20 41,000 12.0 14.5 42,000 3.66 8.2 25,600 2.56 3810560 25HBC542A**30 CNPH*4221A** 58VMR120 --- 20 40,500 12.0 14.5 42,000 3.64 8.2 25,600 2.54 4804783 25HBC542A**30 CNPH*4221A** 59*N*A060V17**14 40,000 11.4 13.7 42,000 3.54 8.0 26,000 2.46 4804784 25HBC542A**30 CNPH*4221A** 59*N*A080V17**14 40,500 11.5 14.0 42,000 3.56 8.0 25,800 2.50 4804785 25HBC542A**30 CNPH*4221A** 59*N*A100V21**20 40,500 11.8 14.2 42,000 3.60 8.2 25,800 2.52 4804786 25HBC542A**30 CNPH*4221A** 59*N*A120V24**22 40,500 12.0 14.5 42,000 3.62 8.2 25,600 2.54 4804787 25HBC542A**30 CNPH*4221A** 59*P5A060E17**14 40,500 11.4 13.7 42,000 3.58 8.2 26,200 2.50 4804788 25HBC542A**30 CNPH*4221A** 59*P5A080E17**16 41,000 11.5 14.0 42,000 3.62 8.2 26,200 2.52 4804789 25HBC542A**30 CNPH*4221A** 59*P5A100E21**16 40,500 11.8 14.2 42,000 3.60 8.2 25,800 2.52 4804790 25HBC542A**30 CNPH*4221A** 59*P5A120E24**22 41,000 12.0 14.5 42,000 3.68 8.2 26,000 2.56 4194298 25HBC542A**30 CNPH*4221A** OVLAAB048112 41,000 11.5 13.5 42,000 3.64 8.2 26,400 2.52 4194299 25HBC542A**30 CNPH*4221A** OVLAAB060154 42,000 12.0 14.5 42,000 3.76 8.2 26,600 2.58 4194297 25HBC542A**30 CNPH*4221A** OVMAAB042112 40,500 12.0 14.0 42,000 3.62 8.2 26,000 2.52 3646133 25HBC542A**30 CNPH*4221A**+TDR 41,000 11.5 13.5 42,000 3.64 8.0 27,000 2.50 3756369 25HBC542A**30 CNPH*4321A** 58HDV080 --- --- 20 42,000 12.5 15.0 42,000 3.92 8.6 26,600 2.66 3756370 25HBC542A**30 CNPH*4321A** 58HDV100 --- --- 20 42,000 12.5 15.0 42,000 3.90 8.5 26,200 2.66 3810563 25HBC542A**30 CNPH*4321A** 58VLR120 --- 20 42,000 12.5 15.0 42,000 3.88 8.5 26,000 2.66 3810562 25HBC542A**30 CNPH*4321A** 58VMR120 --- 20 42,000 12.5 15.0 42,000 3.86 8.5 26,000 2.64 4804791 25HBC542A**30 CNPH*4321A** 59*N*A060V17**14 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.56 4804792 25HBC542A**30 CNPH*4321A** 59*N*A080V17**14 41,500 12.0 14.5 42,000 3.78 8.2 26,000 2.58 4804793 25HBC542A**30 CNPH*4321A** 59*N*A100V21**20 42,000 12.5 15.0 42,000 3.82 8.5 26,000 2.62 4804794 25HBC542A**30 CNPH*4321A** 59*N*A120V24**22 42,000 12.5 15.2 42,000 3.84 8.5 25,800 2.64 4804795 25HBC542A**30 CNPH*4321A** 59*P5A060E17**14 42,000 12.0 14.5 42,000 3.80 8.5 26,600 2.58 4804796 25HBC542A**30 CNPH*4321A** 59*P5A080E17**16 42,000 12.0 14.5 42,000 3.84 8.5 26,600 2.62 4804797 25HBC542A**30 CNPH*4321A** 59*P5A100E21**16 42,000 12.5 15.0 42,000 3.82 8.5 26,200 2.62 4804798 25HBC542A**30 CNPH*4321A** 59*P5A120E24**22 42,000 12.5 15.2 42,000 3.92 8.5 26,400 2.66 4194301 25HBC542A**30 CNPH*4321A** OVLAAB048112 42,000 12.0 14.5 42,000 3.84 8.5 26,600 2.62 4194302 25HBC542A**30 CNPH*4321A** OVLAAB060154 42,000 12.5 15.0 42,000 4.00 8.5 26,800 2.70 4194300 25HBC542A**30 CNPH*4321A** OVMAAB042112 42,000 12.5 14.5 42,000 3.84 8.5 26,400 2.62 3645972 25HBC542A**30 CNPH*4821A** 58CV(A,X)070 ---12 41,500 12.0 14.5 42,000 3.72 8.3 26,000 2.58 3645977 25HBC542A**30 CNPH*4821A** 58CV(A,X)090 ---16 41,500 12.0 14.5 42,000 3.78 8.4 25,800 2.62 3645984 25HBC542A**30 CNPH*4821A** 58CV(A,X)110 ---20 41,500 12.5 15.0 42,000 3.80 8.5 25,800 2.62 3645993 25HBC542A**30 CNPH*4821A** 58CV(A,X)135 ---22 41,500 12.5 15.0 42,000 3.82 8.5 25,800 2.64 3646001 25HBC542A**30 CNPH*4821A** 58CV(A,X)155 ---22 41,500 12.5 15.0 42,000 3.82 8.5 25,600 2.64 3756371 25HBC542A**30 CNPH*4821A** 58HDV080 --- --- 20 42,000 12.2 14.5 42,000 3.84 8.4 26,400 2.62 3756372 25HBC542A**30 CNPH*4821A** 58HDV100 --- --- 20 42,000 12.5 15.0 42,000 3.82 8.5 26,200 2.62 3646010 25HBC542A**30 CNPH*4821A** 58ME(B,C)040---12 42,000 12.0 14.5 42,000 3.82 8.4 26,200 2.62 3646016 25HBC542A**30 CNPH*4821A** 58ME(B,C)060---12 42,000 12.0 14.5 42,000 3.82 8.3 26,200 2.62 3646022 25HBC542A**30 CNPH*4821A** 58ME(B,C)080---12 42,000 12.0 14.5 42,000 3.82 8.4 26,200 2.62 3646028 25HBC542A**30 CNPH*4821A** 58ME(B,C)080---16 41,500 12.0 14.5 42,000 3.80 8.3 26,000 2.62 3646035 25HBC542A**30 CNPH*4821A** 58ME(B,C)100---20 42,000 12.5 15.0 42,000 3.86 8.5 26,000 2.66

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 29

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3646043 25HBC542A**30 CNPH*4821A** 58ME(B,C)120---20 42,000 12.5 15.0 42,000 3.88 8.6 26,000 2.66 3646429 25HBC542A**30 CNPH*4821A** 58MEB040 --- 12 42,000 12.0 14.5 42,000 3.82 8.4 26,200 2.62 3646050 25HBC542A**30 CNPH*4821A** 58MV(B,C)060---14 42,000 12.5 14.5 42,000 3.80 8.3 26,200 2.62 3646057 25HBC542A**30 CNPH*4821A** 58MV(B,C)080---14 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646065 25HBC542A**30 CNPH*4821A** 58MV(B,C)080---20 41,500 12.0 14.5 42,000 3.76 8.2 26,000 2.60 3646073 25HBC542A**30 CNPH*4821A** 58MV(B,C)100---20 41,500 12.0 14.5 42,000 3.74 8.3 25,800 2.58 3646082 25HBC542A**30 CNPH*4821A** 58MV(B,C)120---20 41,500 12.5 14.5 42,000 3.78 8.5 25,800 2.62 3646090 25HBC542A**30 CNPH*4821A** 58MVB040 --- 14 41,500 12.0 14.5 42,000 3.72 8.3 26,000 2.58 3646097 25HBC542A**30 CNPH*4821A** 58PH*070 --- 16 41,500 12.0 14.0 42,000 3.72 8.1 26,600 2.56 3646104 25HBC542A**30 CNPH*4821A** 58PH*090 --- 16 42,000 12.5 15.0 42,000 3.82 8.5 26,000 2.64 3646112 25HBC542A**30 CNPH*4821A** 58PH*110 --- 20 42,000 12.5 15.0 42,000 3.86 8.5 26,000 2.66 3646121 25HBC542A**30 CNPH*4821A** 58PH*135 --- 20 42,000 12.5 15.0 42,000 3.84 8.5 26,000 2.64 3810565 25HBC542A**30 CNPH*4821A** 58VLR120 --- 20 41,500 12.5 15.0 42,000 3.80 8.5 25,800 2.62 3810564 25HBC542A**30 CNPH*4821A** 58VMR120 --- 20 41,500 12.5 15.0 42,000 3.76 8.5 25,800 2.60 4804799 25HBC542A**30 CNPH*4821A** 59*N*A060V17**14 41,000 11.8 14.2 42,000 3.66 8.2 26,000 2.54 4804800 25HBC542A**30 CNPH*4821A** 59*N*A080V17**14 41,000 12.0 14.5 42,000 3.70 8.2 26,000 2.56 4804801 25HBC542A**30 CNPH*4821A** 59*N*A100V21**20 41,500 12.0 14.5 42,000 3.72 8.2 25,800 2.58 4804802 25HBC542A**30 CNPH*4821A** 59*N*A120V24**22 41,500 12.5 15.0 42,000 3.76 8.5 25,600 2.60 4804803 25HBC542A**30 CNPH*4821A** 59*P5A060E17**14 41,500 11.8 14.2 42,000 3.72 8.2 26,400 2.56 4804804 25HBC542A**30 CNPH*4821A** 59*P5A080E17**16 41,500 12.0 14.5 42,000 3.76 8.5 26,400 2.58 4804805 25HBC542A**30 CNPH*4821A** 59*P5A100E21**16 41,500 12.0 14.5 42,000 3.74 8.2 26,000 2.58 4804806 25HBC542A**30 CNPH*4821A** 59*P5A120E24**22 42,000 12.5 15.0 42,000 3.84 8.5 26,200 2.64 4194304 25HBC542A**30 CNPH*4821A** OVLAAB048112 42,000 12.0 14.5 42,000 3.76 8.2 26,400 2.58 4194305 25HBC542A**30 CNPH*4821A** OVLAAB060154 42,000 12.5 15.0 42,000 3.90 8.5 26,600 2.66 4194303 25HBC542A**30 CNPH*4821A** OVMAAB042112 41,500 12.0 14.5 42,000 3.76 8.2 26,200 2.58 3646134 25HBC542A**30 CNPH*4821A**+TDR 42,000 11.5 14.0 42,000 3.74 8.2 27,000 2.54 3645978 25HBC542A**30 CNPV*4217A** 58CV(A,X)090---16 41,000 12.0 14.5 42,000 3.72 8.3 25,800 2.58 4194282 25HBC542A**30 CNPV*4217A** 58HDV060--- --- 12 41,000 11.5 13.5 42,000 3.64 8.2 26,600 2.52 3646011 25HBC542A**30 CNPV*4217A** 58ME(B,C)040--- 12 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646017 25HBC542A**30 CNPV*4217A** 58ME(B,C)060--- 12 41,500 12.0 14.5 42,000 3.72 8.2 26,200 2.58 3646023 25HBC542A**30 CNPV*4217A** 58ME(B,C)080--- 12 41,500 12.0 14.5 42,000 3.74 8.3 26,000 2.58 3646029 25HBC542A**30 CNPV*4217A** 58ME(B,C)080--- 16 41,000 12.0 14.5 42,000 3.72 8.3 26,000 2.58 3646430 25HBC542A**30 CNPV*4217A** 58MEB040 ---12 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646051 25HBC542A**30 CNPV*4217A** 58MV(B,C)060---14 41,500 12.0 14.5 42,000 3.72 8.2 26,200 2.58 3646098 25HBC542A**30 CNPV*4217A** 58PH*070--- 16 41,000 11.5 13.5 42,000 3.64 8.0 26,400 2.52 3646168 25HBC542A**30 CNPV*4217A** 58UVB060---14 41,500 12.0 14.5 42,000 3.72 8.2 26,200 2.58 4804759 25HBC542A**30 CNPV*4217A** 59*N*A060V17**14 40,500 11.5 14.0 42,000 3.58 8.2 26,000 2.50 4804760 25HBC542A**30 CNPV*4217A** 59*N*A080V17**14 40,500 11.8 14.2 42,000 3.62 8.2 26,000 2.52 4804761 25HBC542A**30 CNPV*4217A** 59*P5A060E17**14 41,000 11.5 14.0 42,000 3.64 8.2 26,200 2.52 4804762 25HBC542A**30 CNPV*4217A** 59*P5A080E17**16 41,000 11.8 14.2 42,000 3.68 8.2 26,200 2.54 4194288 25HBC542A**30 CNPV*4217A** OVMAAB042112 41,000 12.0 14.0 42,000 3.66 8.2 26,200 2.54 3646135 25HBC542A**30 CNPV*4217A**+TDR 41,500 11.5 13.5 42,000 3.70 8.1 27,000 2.54 3645985 25HBC542A**30 CNPV*4221A** 58CV(A,X)110---20 41,000 12.0 14.5 42,000 3.66 8.2 25,800 2.56 4194283 25HBC542A**30 CNPV*4221A** 58HDV060--- --- 12 40,500 11.5 13.5 42,000 3.60 8.0 26,400 2.50 4194284 25HBC542A**30 CNPV*4221A** 58HDV080--- --- 20 41,000 12.0 14.0 42,000 3.68 8.2 26,200 2.56 3646036 25HBC542A**30 CNPV*4221A** 58ME(B,C)100--- 20 41,000 12.0 14.5 42,000 3.70 8.3 25,800 2.58 3646058 25HBC542A**30 CNPV*4221A** 58MV(B,C)080---14 40,500 11.8 14.0 42,000 3.60 8.1 26,000 2.50 3646066 25HBC542A**30 CNPV*4221A** 58MV(B,C)080---20 41,000 12.0 14.0 42,000 3.64 8.1 26,000 2.52 3646074 25HBC542A**30 CNPV*4221A** 58MV(B,C)100---20 40,500 12.0 14.0 42,000 3.60 8.1 25,800 2.52 3646105 25HBC542A**30 CNPV*4221A** 58PH*090--- 16 41,000 12.0 14.5 42,000 3.68 8.2 25,800 2.56 3646113 25HBC542A**30 CNPV*4221A** 58PH*110--- 20 41,000 12.0 14.5 42,000 3.70 8.2 25,600 2.58 3646169 25HBC542A**30 CNPV*4221A** 58UVB080---14 40,500 11.8 14.0 42,000 3.60 8.1 26,000 2.50 3646170 25HBC542A**30 CNPV*4221A** 58UVB080---20 41,000 12.0 14.0 42,000 3.64 8.1 26,000 2.52 3646171 25HBC542A**30 CNPV*4221A** 58UVB100---20 40,500 12.0 14.0 42,000 3.60 8.1 25,800 2.52 3810557 25HBC542A**30 CNPV*4221A** 58VLR120--- 20 41,000 12.0 14.5 42,000 3.66 8.2 25,600 2.56 3810556 25HBC542A**30 CNPV*4221A** 58VMR120 ---20 40,500 12.0 14.5 42,000 3.64 8.2 25,600 2.54 4804763 25HBC542A**30 CNPV*4221A** 59*N*A060V17**14 40,000 11.4 13.7 42,000 3.54 8.0 26,000 2.46 4804764 25HBC542A**30 CNPV*4221A** 59*N*A080V17**14 40,500 11.5 14.0 42,000 3.56 8.0 25,800 2.50 4804765 25HBC542A**30 CNPV*4221A** 59*N*A100V21**20 40,500 11.8 14.2 42,000 3.60 8.2 25,800 2.52 4804766 25HBC542A**30 CNPV*4221A** 59*P5A060E17**14 40,500 11.4 13.7 42,000 3.58 8.2 26,200 2.50 4804767 25HBC542A**30 CNPV*4221A** 59*P5A080E17**16 41,000 11.5 14.0 42,000 3.62 8.2 26,200 2.52 4804768 25HBC542A**30 CNPV*4221A** 59*P5A100E21**16 40,500 11.8 14.2 42,000 3.60 8.2 25,800 2.52 4194290 25HBC542A**30 CNPV*4221A** OVLAAB048112 41,000 11.5 13.5 42,000 3.64 8.2 26,400 2.52 4194289 25HBC542A**30 CNPV*4221A** OVMAAB042112 40,500 12.0 14.0 42,000 3.62 8.2 26,000 2.52 3646136 25HBC542A**30 CNPV*4221A**+TDR 41,000 11.5 13.5 42,000 3.64 8.0 27,000 2.50 3645986 25HBC542A**30 CNPV*4324A** 58CV(A,X)110---20 42,000 12.5 15.0 42,000 3.90 8.5 26,000 2.68 3645994 25HBC542A**30 CNPV*4324A** 58CV(A,X)135---22 42,000 13.0 15.5 42,000 3.94 8.7 25,800 2.70 3646002 25HBC542A**30 CNPV*4324A** 58CV(A,X)155---22 42,000 13.0 15.5 42,000 3.94 8.7 25,800 2.70 4194285 25HBC542A**30 CNPV*4324A** 58HDV080--- --- 20 42,000 12.5 15.0 42,000 3.94 8.5 26,600 2.68 4149635 25HBC542A**30 CNPV*4324A** 58HDV100--- --- 20 42,000 12.5 15.0 42,000 3.92 8.6 26,200 2.68

3756365 25HBC542A**30 CNPV*4324A**

3646044 25HBC542A**30 CNPV*4324A** 58ME(B,C)120--- 20 42,000 13.0 15.5 42,000 4.00 8.7 26,200 2.72 3646075 25HBC542A**30 CNPV*4324A** 58MV(B,C)100---20 42,000 12.5 15.0 42,000 3.84 8.5 26,000 2.62 3646083 25HBC542A**30 CNPV*4324A** 58MV(B,C)120---20 42,000 12.5 15.0 42,000 3.88 8.5 26,000 2.66 3646091 25HBC542A**30 CNPV*4324A** 58MVB040 ---14 42,000 12.5 15.0 42,000 3.82 8.4 26,200 2.62 3646114 25HBC542A**30 CNPV*4324A** 58PH*110--- 20 42,000 13.0 15.5 42,000 3.96 8.6 26,000 2.70 3646122 25HBC542A**30 CNPV*4324A** 58PH*135--- 20 42,000 13.0 15.5 42,000 3.96 8.6 26,200 2.70 3646172 25HBC542A**30 CNPV*4324A** 58UVB100---20 42,000 12.5 15.0 42,000 3.84 8.5 26,000 2.62 3646173 25HBC542A**30 CNPV*4324A** 58UVB120---20 42,000 12.5 15.0 42,000 3.88 8.5 26,000 2.66

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

58HDV100--- ---20

(DWNFLW ONLY)

Cooling

Capacity

42,000 12.5 15.0 42,000 3.92 8.6 26,200 2.68

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 30

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4804769 25HBC542A**30 CNPV*4324A** 59*N*A100V21**20 42,000 12.5 15.0 42,000 3.82 8.5 26,000 2.62 4804770 25HBC542A**30 CNPV*4324A** 59*N*A120V24**22 42,000 12.5 15.2 42,000 3.84 8.5 25,800 2.64 4804771 25HBC542A**30 CNPV*4324A** 59*P5A100E21**16 42,000 12.5 15.0 42,000 3.84 8.5 26,200 2.62 4804772 25HBC542A**30 CNPV*4324A** 59*P5A120E24**22 42,000 12.7 15.5 42,000 3.96 8.8 26,400 2.68 4194291 25HBC542A**30 CNPV*4324A** OVLAAB048112 42,000 12.5 14.5 42,000 3.86 8.5 26,600 2.62 4194292 25HBC542A**30 CNPV*4324A** OVLAAB060154 42,000 12.5 15.0 42,000 4.02 8.5 26,800 2.72 3646137 25HBC542A**30 CNPV*4324A** 42,000 12.0 14.0 42,000 3.82 8.4 27,400 2.60 3645987 25HBC542A**30 CNPV*4821A** 58CV(A,X)110---20 41,500 12.5 15.0 42,000 3.80 8.5 25,800 2.62 4194286 25HBC542A**30 CNPV*4821A** 58HDV080--- --- 20 42,000 12.5 14.5 42,000 3.84 8.5 26,400 2.62 3646037 25HBC542A**30 CNPV*4821A** 58ME(B,C)100--- 20 42,000 12.5 15.0 42,000 3.86 8.5 26,000 2.66 3646059 25HBC542A**30 CNPV*4821A** 58MV(B,C)080---14 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646067 25HBC542A**30 CNPV*4821A** 58MV(B,C)080---20 41,500 12.0 14.5 42,000 3.76 8.2 26,000 2.60 3646076 25HBC542A**30 CNPV*4821A** 58MV(B,C)100---20 41,500 12.0 14.5 42,000 3.74 8.3 25,800 2.58 3646106 25HBC542A**30 CNPV*4821A** 58PH*090--- 16 42,000 12.5 15.0 42,000 3.82 8.5 26,000 2.64 3646115 25HBC542A**30 CNPV*4821A** 58PH*110--- 20 42,000 12.5 15.0 42,000 3.86 8.5 26,000 2.66 3646174 25HBC542A**30 CNPV*4821A** 58UVB080---14 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646175 25HBC542A**30 CNPV*4821A** 58UVB080---20 41,500 12.0 14.5 42,000 3.76 8.2 26,000 2.60 3646176 25HBC542A**30 CNPV*4821A** 58UVB100---20 41,500 12.0 14.5 42,000 3.74 8.3 25,800 2.58 3810559 25HBC542A**30 CNPV*4821A** 58VLR120--- 20 41,500 12.5 15.0 42,000 3.80 8.5 25,800 2.62 3810558 25HBC542A**30 CNPV*4821A** 58VMR120 ---20 41,500 12.5 15.0 42,000 3.76 8.5 25,800 2.60 4804773 25HBC542A**30 CNPV*4821A** 59*N*A060V17**14 41,000 11.8 14.2 42,000 3.66 8.2 26,000 2.54 4804774 25HBC542A**30 CNPV*4821A** 59*N*A080V17**14 41,000 12.0 14.5 42,000 3.70 8.2 26,000 2.56 4804775 25HBC542A**30 CNPV*4821A** 59*N*A100V21**20 41,500 12.0 14.5 42,000 3.72 8.2 25,800 2.58 4804776 25HBC542A**30 CNPV*4821A** 59*P5A060E17**14 41,500 11.8 14.2 42,000 3.72 8.2 26,400 2.56

25HBC5

4804777 25HBC542A**30 CNPV*4821A** 59*P5A080E17**16 41,500 12.0 14.5 42,000 3.76 8.2 26,400 2.58 4804778 25HBC542A**30 CNPV*4821A** 59*P5A100E21**16 41,500 12.0 14.5 42,000 3.74 8.2 26,000 2.58 4194294 25HBC542A**30 CNPV*4821A** OVLAAB048112 42,000 12.0 14.5 42,000 3.76 8.2 26,400 2.58 4194293 25HBC542A**30 CNPV*4821A** OVMAAB042112 41,500 12.0 14.5 42,000 3.76 8.2 26,200 2.58 3646138 25HBC542A**30 CNPV*4821A**+TDR 42,000 11.5 14.0 42,000 3.74 8.2 27,000 2.54 3645995 25HBC542A**30 CNPV*4824A** 58CV(A,X)135---22 41,500 12.5 15.0 42,000 3.82 8.5 25,800 2.64 3646003 25HBC542A**30 CNPV*4824A** 58CV(A,X)155---22 41,500 12.5 15.0 42,000 3.82 8.5 25,600 2.64 4194287 25HBC542A**30 CNPV*4824A** 58HDV080--- --- 20 42,000 12.5 14.5 42,000 3.84 8.5 26,400 2.62 4149636 25HBC542A**30 CNPV*4824A** 58HDV100--- --- 20 42,000 12.5 15.0 42,000 3.82 8.5 26,200 2.62

3756366 25HBC542A**30 CNPV*4824A**

3646045 25HBC542A**30 CNPV*4824A** 58ME(B,C)120--- 20 42,000 12.5 15.0 42,000 3.88 8.6 26,000 2.66 3646084 25HBC542A**30 CNPV*4824A** 58MV(B,C)120---20 41,500 12.5 15.0 42,000 3.78 8.5 25,800 2.62 3646092 25HBC542A**30 CNPV*4824A** 58MVB040 ---14 41,500 12.0 14.5 42,000 3.72 8.3 26,000 2.58 3646123 25HBC542A**30 CNPV*4824A** 58PH*135--- 20 42,000 12.5 15.0 42,000 3.84 8.5 26,000 2.64 3646177 25HBC542A**30 CNPV*4824A** 58UVB120---20 41,500 12.5 15.0 42,000 3.78 8.5 25,800 2.62 4804779 25HBC542A**30 CNPV*4824A** 59*N*A100V21**20 41,500 12.0 14.5 42,000 3.72 8.2 25,800 2.58 4804780 25HBC542A**30 CNPV*4824A** 59*N*A120V24**22 41,500 12.5 15.0 42,000 3.76 8.5 25,600 2.60 4804781 25HBC542A**30 CNPV*4824A** 59*P5A100E21**16 41,500 12.0 14.5 42,000 3.74 8.2 26,000 2.58 4804782 25HBC542A**30 CNPV*4824A** 59*P5A120E24**22 42,000 12.5 15.0 42,000 3.84 8.5 26,200 2.64 4194295 25HBC542A**30 CNPV*4824A** OVLAAB048112 42,000 12.0 14.5 42,000 3.76 8.2 26,400 2.58 4194296 25HBC542A**30 CNPV*4824A** OVLAAB060154 42,000 12.5 15.0 42,000 3.90 8.7 26,600 2.66 3646139 25HBC542A**30 CNPV*4824A**+TDR 42,000 11.5 14.0 42,000 3.74 8.2 27,000 2.54 3645973 25HBC542A**30 CSPH*4212A** 58CV(A ,X)070---12 41,000 12.0 14.0 42,000 3.72 8.1 26,200 2.56 3645979 25HBC542A**30 CSPH*4212A** 58CV(A ,X)090---16 41,500 12.0 14.5 42,000 3.78 8.3 26,000 2.62 3645988 25HBC542A**30 CSPH*4212A** 58CV(A ,X)110---20 41,500 12.0 14.5 42,000 3.80 8.3 26,000 2.62 3645996 25HBC542A**30 CSPH*4212A** 58CV(A ,X)135---22 41,500 12.0 14.5 42,000 3.82 8.3 25,800 2.64 3646004 25HBC542A**30 CSPH*4212A** 58CV(A ,X)155---22 41,500 12.0 14.5 42,000 3.82 8.3 25,800 2.64 3756373 25HBC542A**30 CSPH*4212A** 58HDV080--- ---20 41,000 12.0 14.0 42,000 3.82 8.2 26,400 2.62 3756374 25HBC542A**30 CSPH*4212A** 58HDV100--- ---20 41,000 12.2 14.5 42,000 3.80 8.2 26,200 2.62 3646012 25HBC542A**30 CSPH*4212A** 58ME(B,C)040---12 41,500 12.0 14.5 42,000 3.82 8.3 26,200 2.62 3646018 25HBC542A**30 CSPH*4212A** 58ME(B,C)060---12 41,500 12.0 14.5 42,000 3.80 8.2 26,200 2.62 3646024 25HBC542A**30 CSPH*4212A** 58ME(B,C)080---12 41,500 12.0 14.5 42,000 3.82 8.3 26,200 2.62 3646030 25HBC542A**30 CSPH*4212A** 58ME(B,C)080---16 41,500 12.0 14.5 42,000 3.80 8.2 26,000 2.62 3646038 25HBC542A**30 CSPH*4212A** 58ME(B,C)100---20 41,500 12.0 14.5 42,000 3.84 8.4 26,000 2.64 3646046 25HBC542A**30 CSPH*4212A** 58ME(B,C)120---20 41,500 12.5 15.0 42,000 3.86 8.4 26,000 2.66 3646431 25HBC542A**30 CSPH*4212A** 58MEB040--- 12 41,500 12.0 14.5 42,000 3.82 8.3 26,200 2.62 3646052 25HBC542A**30 CSPH*4212A** 58MV(B,C)060--- 14 41,500 12.0 14.5 42,000 3.80 8.2 26,200 2.60 3646060 25HBC542A**30 CSPH*4212A** 58MV(B,C)080--- 14 41,000 12.0 14.0 42,000 3.74 8.1 26,200 2.58 3646068 25HBC542A**30 CSPH*4212A** 58MV(B,C)080--- 20 41,500 12.0 14.0 42,000 3.76 8.1 26,200 2.58 3646077 25HBC542A**30 CSPH*4212A** 58MV(B,C)100--- 20 41,000 12.0 14.0 42,000 3.72 8.2 26,000 2.58 3646085 25HBC542A**30 CSPH*4212A** 58MV(B,C)120--- 20 41,500 12.0 14.5 42,000 3.78 8.3 26,000 2.60 3646093 25HBC542A**30 CSPH*4212A** 58MVB040--- 14 41,000 12.0 14.0 42,000 3.72 8.1 26,000 2.56 3646099 25HBC542A**30 CSPH*4212A** 58PH*070---16 41,000 11.5 13.5 42,000 3.72 8.1 26,600 2.56 3646107 25HBC542A**30 CSPH*4212A** 58PH*090---16 41,500 12.0 14.5 42,000 3.82 8.3 26,000 2.62 3646116 25HBC542A**30 CSPH*4212A** 58PH*110---20 41,500 12.0 14.5 42,000 3.84 8.3 26,000 2.64 3646124 25HBC542A**30 CSPH*4212A** 58PH*135---20 41,500 12.0 14.5 42,000 3.82 8.3 26,000 2.62 3810567 25HBC542A**30 CSPH*4212A** 58VLR120---20 41,500 12.5 15.0 42,000 3.78 8.5 25,800 2.62 3810566 25HBC542A**30 CSPH*4212A** 58VMR120--- 20 41,500 12.5 14.5 42,000 3.76 8.5 25,800 2.60 4804807 25HBC542A**30 CSPH*4212A** 59*N*A060V17**14 41,000 11.8 14.2 42,000 3.66 8.2 26,200 2.52 4804808 25HBC542A**30 CSPH*4212A** 59*N*A080V17**14 41,000 12.0 14.5 42,000 3.68 8.2 26,000 2.54 4804809 25HBC542A**30 CSPH*4212A** 59*N*A100V21**20 41,500 12.0 14.5 42,000 3.72 8.2 26,000 2.58 4804810 25HBC542A**30 CSPH*4212A** 59*N*A120V24**22 41,500 12.5 15.0 42,000 3.74 8.5 25,800 2.60 4804811 25HBC542A**30 CSPH*4212A** 59*P5A060E17**14 41,500 11.8 14.2 42,000 3.70 8.2 26,400 2.54 4804812 25HBC542A**30 CSPH*4212A** 59*P5A080E17**16 42,000 12.0 14.5 42,000 3.74 8.2 26,400 2.58 4804813 25HBC542A**30 CSPH*4212A** 59*P5A100E21**16 41,500 12.0 14.5 42,000 3.74 8.2 26,000 2.58

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

58HDV100--- ---20

(DWNFLW ONLY)

Cooling

Capacity

42,000 12.5 15.0 42,000 3.82 8.5 26,200 2.62

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 31

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4804814 25HBC542A**30 CSPH*4212A** 59*P5A120E24**22 42,000 12.5 15.0 42,000 3.82 8.5 26,200 2.62 4194307 25HBC542A**30 CSPH*4212A** OVLAAB048112 42,000 12.0 14.0 42,000 3.76 8.2 26,600 2.56 4194308 25HBC542A**30 CSPH*4212A** OVLAAB060154 42,000 12.5 15.0 42,000 3.90 8.7 26,800 2.64 4194306 25HBC542A**30 CSPH*4212A** OVMAAB042112 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646140 25HBC542A**30 CSPH*4212A**+TDR 41,000 11.5 13.5 42,000 3.76 8.0 27,200 2.56 3645974 25HBC542A**30 CSPH*4812A** 58CV(A ,X)070---12 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3645980 25HBC542A**30 CSPH*4812A** 58CV(A ,X)090---16 41,500 12.5 15.0 42,000 3.82 8.4 26,000 2.62 3645989 25HBC542A**30 CSPH*4812A** 58CV(A ,X)110---20 41,500 12.5 15.0 42,000 3.82 8.5 26,000 2.62 3645997 25HBC542A**30 CSPH*4812A** 58CV(A ,X)135---22 42,000 12.5 15.0 42,000 3.86 8.5 25,800 2.64 3646005 25HBC542A**30 CSPH*4812A** 58CV(A ,X)155---22 42,000 12.5 15.0 42,000 3.84 8.5 25,800 2.64 3756375 25HBC542A**30 CSPH*4812A** 58HDV080--- ---20 42,000 12.2 14.5 42,000 3.86 8.4 26,600 2.62 3756376 25HBC542A**30 CSPH*4812A** 58HDV100--- ---20 42,000 12.5 15.0 42,000 3.84 8.5 26,200 2.62 3646013 25HBC542A**30 CSPH*4812A** 58ME(B,C)040---12 42,000 12.5 14.5 42,000 3.84 8.4 26,400 2.64 3646019 25HBC542A**30 CSPH*4812A** 58ME(B,C)060---12 42,000 12.5 14.5 42,000 3.84 8.3 26,400 2.62 3646025 25HBC542A**30 CSPH*4812A** 58ME(B,C)080---12 42,000 12.5 15.0 42,000 3.84 8.4 26,200 2.64 3646031 25HBC542A**30 CSPH*4812A** 58ME(B,C)080---16 42,000 12.5 14.5 42,000 3.82 8.3 26,200 2.62 3646039 25HBC542A**30 CSPH*4812A** 58ME(B,C)100---20 42,000 12.5 15.0 42,000 3.86 8.4 26,000 2.66 3646047 25HBC542A**30 CSPH*4812A** 58ME(B,C)120---20 42,000 12.5 15.0 42,000 3.90 8.5 26,000 2.66 3646432 25HBC542A**30 CSPH*4812A** 58MEB040--- 12 42,000 12.5 14.5 42,000 3.84 8.4 26,400 2.64 3646053 25HBC542A**30 CSPH*4812A** 58MV(B,C)060--- 14 42,000 12.5 14.5 42,000 3.82 8.3 26,200 2.62 3646061 25HBC542A**30 CSPH*4812A** 58MV(B,C)080--- 14 41,500 12.0 14.5 42,000 3.76 8.2 26,200 2.58 3646069 25HBC542A**30 CSPH*4812A** 58MV(B,C)080--- 20 41,500 12.5 14.5 42,000 3.78 8.2 26,200 2.60 3646078 25HBC542A**30 CSPH*4812A** 58MV(B,C)100--- 20 41,500 12.0 14.5 42,000 3.76 8.3 26,000 2.58 3646086 25HBC542A**30 CSPH*4812A** 58MV(B,C)120--- 20 41,500 12.5 15.0 42,000 3.82 8.5 26,000 2.62 3646094 25HBC542A**30 CSPH*4812A** 58MVB040--- 14 41,500 12.0 14.5 42,000 3.74 8.2 26,200 2.58 3646100 25HBC542A**30 CSPH*4812A** 58PH*070---16 41,500 12.0 14.0 42,000 3.74 8.1 26,600 2.56 3646108 25HBC542A**30 CSPH*4812A** 58PH*090---16 42,000 12.5 15.0 42,000 3.84 8.5 26,000 2.64 3646117 25HBC542A**30 CSPH*4812A** 58PH*110---20 42,000 12.5 15.0 42,000 3.86 8.5 26,000 2.66 3646125 25HBC542A**30 CSPH*4812A** 58PH*135---20 42,000 12.5 15.0 42,000 3.84 8.4 26,000 2.64 3810569 25HBC542A**30 CSPH*4812A** 58VLR120---20 42,000 12.5 15.0 42,000 3.82 8.5 26,000 2.62 3810568 25HBC542A**30 CSPH*4812A** 58VMR120--- 20 41,500 12.5 15.0 42,000 3.80 8.5 26,000 2.62 4804815 25HBC542A**30 CSPH*4812A** 59*N*A060V17**14 41,000 11.8 14.2 42,000 3.68 8.2 26,200 2.54 4804816 25HBC542A**30 CSPH*4812A** 59*N*A080V17**14 41,500 12.0 14.5 42,000 3.72 8.2 26,000 2.56 4804817 25HBC542A**30 CSPH*4812A** 59*N*A100V21**20 41,500 12.0 14.5 42,000 3.74 8.5 26,000 2.58 4804818 25HBC542A**30 CSPH*4812A** 59*N*A120V24**22 41,500 12.5 15.0 42,000 3.78 8.5 25,800 2.60 4804819 25HBC542A**30 CSPH*4812A** 59*P5A060E17**14 41,500 12.0 14.5 42,000 3.74 8.2 26,400 2.56 4804820 25HBC542A**30 CSPH*4812A** 59*P5A080E17**16 42,000 12.0 14.5 42,000 3.78 8.2 26,400 2.58 4804821 25HBC542A**30 CSPH*4812A** 59*P5A100E21**16 41,500 12.0 14.5 42,000 3.76 8.2 26,200 2.58 4804822 25HBC542A**30 CSPH*4812A** 59*P5A120E24**22 42,000 12.5 15.0 42,000 3.86 8.5 26,200 2.64 4194310 25HBC542A**30 CSPH*4812A** OVLAAB048112 42,000 12.0 14.5 42,000 3.78 8.5 26,600 2.58 4194311 25HBC542A**30 CSPH*4812A** OVLAAB060154 42,000 12.5 15.0 42,000 3.92 8.7 26,800 2.66 4194309 25HBC542A**30 CSPH*4812A** OVMAAB042112 42,000 12.0 14.5 42,000 3.76 8.2 26,200 2.58 3646141 25HBC542A**30 CSPH*4812A**+TDR 42,000 11.5 14.0 42,000 3.78 8.2 27,200 2.56 3810548 25HBC542A**30 FB4CNF042 42,000 12.0 13.5 42,000 3.80 8.5 26,400 2.62 3646142 25HBC542A**30 FB4CNF042+TXV 42,000 12.5 14.5 42,000 3.80 8.5 26,400 2.62 3810549 25HBC542A**30 FB4CNF048 42,000 12.5 13.5 42,000 3.82 8.5 26,400 2.62 3646143 25HBC542A**30 FB4CNF048+TXV 42,000 12.5 15.0 42,000 3.82 8.5 26,400 2.62 3646144 25HBC542A**30 FE4AN(B,F)003+UI 41,000 12.0 14.5 42,000 3.68 8.2 25,600 2.56 3646145 25HBC542A**30 FE4AN(B,F)005+UI 42,000 13.0 15.5 42,000 3.88 8.7 25,800 2.68 3646146 25HBC542A**30 FE4ANB006+UI 42,000 13.0 16.0 42,000 4.02 9.0 25,800 2.74 3646150 25HBC542A**30 FV4CN(B,F)003 41,000 12.0 14.5 42,000 3.68 8.2 25,600 2.56 3646151 25HBC542A**30 FV4CN(B,F)005 42,000 13.0 15.5 42,000 3.88 8.7 25,800 2.68 3646152 25HBC542A**30 FV4CNB006 42,000 13.0 16.0 42,000 4.02 9.0 25,800 2.74 3646156 25HBC542A**30 FX4DN(B,F)049 42,000 13.0 15.5 42,000 3.96 8.6 26,400 2.70 3810550 25HBC542A**30 FY5BNF042 42,000 12.0 13.0 42,000 3.76 8.5 26,600 2.58 3692775 25HBC542A**30 FY5BNF042+TXV 42,000 12.0 14.5 42,000 3.76 8.2 26,600 2.58 3810551 25HBC542A**30 FY5BNF048 42,000 12.0 13.5 42,000 3.82 8.5 26,800 2.62 3692776 25HBC542A**30 FY5BNF048+TXV 42,000 12.0 14.5 42,000 3.80 8.4 27,000 2.60

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

3646319 25HBC548A**30 †FX4DN(B,F)049 47,500 12.5 15.0 46,500 3.84 8.5 29,000 2.66 3646178 25HBC548A**30 CAP**4817A** 58CV(A,X)090 ---16 45,500 11.5 14.0 45,500 3.68 7.9 28,800 2.56 3646215 25HBC548A**30 CAP**4817A** 58ME(B,C)080 --- 16 45,500 11.5 14.0 46,000 3.70 8.0 29,200 2.56 4804823 25HBC548A**30 CAP**4817A** 59*P5A080E17**16 45,000 11.4 13.7 46,000 3.60 8.0 29,200 2.52 3646292 25HBC548A**30 CAP**4817A**+TDR 45,000 11.5 13.5 46,000 3.66 7.9 29,200 2.54 3646184 25HBC548A**30 CAP**4821A** 58CV(A,X)110 ---20 45,000 11.5 14.0 45,000 3.66 7.9 28,600 2.56 4194312 25HBC548A**30 CAP**4821A** 58HDV080 --- --- 20 45,500 11.5 13.5 46,000 3.66 8.0 29,200 2.54 3646221 25HBC548A**30 CAP**4821A** 58ME(B,C)100 --- 20 45,500 12.0 14.0 45,000 3.70 8.0 28,600 2.58 3646239 25HBC548A**30 CAP**4821A** 58MV(B,C)080 ---20 44,500 11.5 14.0 45,000 3.60 7.8 28,600 2.52 3646247 25HBC548A**30 CAP**4821A** 58MV(B,C)100 ---20 45,000 11.5 13.5 45,500 3.64 7.8 29,000 2.54 3646266 25HBC548A**30 CAP**4821A** 58PH*090 ---16 45,500 12.0 14.0 45,500 3.68 7.9 28,800 2.56 3646274 25HBC548A**30 CAP**4821A** 58PH*110 ---20 45,000 12.0 14.5 45,000 3.70 8.0 28,400 2.58 3646324 25HBC548A**30 CAP**4821A** 58UVB080--- 20 44,500 11.5 14.0 45,000 3.60 7.8 28,600 2.52 3646325 25HBC548A**30 CAP**4821A** 58UVB100--- 20 45,000 11.5 13.5 45,500 3.64 7.8 29,000 2.54 3810574 25HBC548A**30 CAP**4821A** 58VLR120 ---20 45,000 12.0 14.0 45,000 3.66 8.0 28,600 2.56 3810573 25HBC548A**30 CAP**4821A** 58VMR120---20 45,000 11.5 14.0 45,500 3.64 8.0 28,800 2.54 4804824 25HBC548A**30 CAP**4821A** 59*N*A100V21**20 44,500 11.5 14.0 45,000 3.60 7.8 28,600 2.52 4804825 25HBC548A**30 CAP**4821A** 59*P5A080E17**16 45,000 11.2 13.5 45,500 3.56 7.8 29,000 2.50 4804826 25HBC548A**30 CAP**4821A** 59*P5A100E21**16 45,000 11.4 13.7 45,500 3.60 8.0 28,800 2.52 3646293 25HBC548A**30 CAP**4821A**+TDR 45,500 11.5 13.5 46,500 3.68 7.9 29,600 2.54 3646213 25HBC548A**30 CAP**4823A** 58HDV080 --- --- 20 45,500 11.5 13.5 46,000 3.66 7.9 29,200 2.54

See notes on page 36

Page 32

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4194318 25HBC548A**30 CAP**4823A** 58HDV100 --- --- 20 45,000 11.5 14.0 45,500 3.66 8.0 29,000 2.56 4804838 25HBC548A**30 CAP**4823A** 59*N*A100V21**20 44,500 11.5 14.0 45,000 3.60 7.8 28,600 2.52 4804839 25HBC548A**30 CAP**4823A** 59*N*A120V24**22 45,000 11.8 14.2 45,000 3.62 8.0 28,400 2.54 4804840 25HBC548A**30 CAP**4823A** 59*P5A100E21**16 45,000 11.4 13.7 45,500 3.60 8.0 28,800 2.52 4804841 25HBC548A**30 CAP**4823A** 59*P5A120E24**22 45,000 11.8 14.2 45,500 3.66 8.0 28,600 2.56 3646294 25HBC548A**30 CAP**4823A**+TDR 45,500 11.5 13.5 46,500 3.68 7.9 29,600 2.54 3646193 25HBC548A**30 CAP**4824A** 58CV(A,X)135 ---22 45,500 12.0 14.5 45,000 3.70 8.0 28,400 2.60 3646203 25HBC548A**30 CAP**4824A** 58CV(A,X)155 ---22 45,500 12.0 14.5 45,000 3.74 8.0 28,400 2.60 4194313 25HBC548A**30 CAP**4824A** 58HDV080 --- --- 20 45,500 11.5 14.0 46,000 3.68 8.0 29,200 2.56 4194314 25HBC548A**30 CAP**4824A** 58HDV100 --- --- 20 45,500 11.5 14.0 45,500 3.68 8.0 29,000 2.56 3646229 25HBC548A**30 CAP**4824A** 58ME(B,C)120 --- 20 45,500 12.0 14.5 45,000 3.74 8.1 28,600 2.62 3646256 25HBC548A**30 CAP**4824A** 58MV(B,C)120 ---20 45,000 12.0 14.0 45,000 3.66 7.9 28,600 2.56 3646282 25HBC548A**30 CAP**4824A** 58PH*135 ---20 45,500 12.0 14.0 45,500 3.70 8.0 28,600 2.58 3646326 25HBC548A**30 CAP**4824A** 58UVB120--- 20 45,000 12.0 14.0 45,000 3.66 7.9 28,600 2.56 4804827 25HBC548A**30 CAP**4824A** 59*N*A100V21**20 45,000 11.5 14.0 45,000 3.60 8.0 28,600 2.52 4804828 25HBC548A**30 CAP**4824A** 59*N*A120V24**22 45,000 11.8 14.2 45,000 3.64 8.0 28,200 2.56 4804829 25HBC548A**30 CAP**4824A** 59*P5A100E21**16 45,000 11.4 13.7 45,500 3.62 8.0 28,800 2.52 4804830 25HBC548A**30 CAP**4824A** 59*P5A120E24**22 45,500 11.8 14.2 45,500 3.68 8.0 28,600 2.56 3646295 25HBC548A**30 CAP**4824A**+TDR 45,500 11.5 13.5 46,500 3.68 7.9 29,600 2.54 3646185 25HBC548A**30 CAP**6021A** 58CV(A,X)110 ---20 46,000 12.0 14.5 45,500 3.72 8.0 28,800 2.60 4194315 25HBC548A**30 CAP**6021A** 58HDV080 --- --- 20 46,500 11.5 14.0 46,000 3.72 8.0 29,400 2.58 3646222 25HBC548A**30 CAP**6021A** 58ME(B,C)100 --- 20 46,500 12.0 14.5 45,500 3.78 8.1 28,800 2.62 3646240 25HBC548A**30 CAP**6021A** 58MV(B,C)080 ---20 45,500 12.0 14.0 45,500 3.66 7.9 28,800 2.56 3646248 25HBC548A**30 CAP**6021A** 58MV(B,C)100 ---20 46,000 12.0 14.0 45,500 3.70 8.0 29,000 2.58

25HBC5

3646267 25HBC548A**30 CAP**6021A** 58PH*090 ---16 46,500 12.0 14.5 45,500 3.74 8.1 28,800 2.62 3646275 25HBC548A**30 CAP**6021A** 58PH*110 ---20 46,500 12.5 14.5 45,000 3.78 8.1 28,600 2.64 3646327 25HBC548A**30 CAP**6021A** 58UVB080--- 20 45,500 12.0 14.0 45,500 3.66 7.9 28,800 2.56 3646328 25HBC548A**30 CAP**6021A** 58UVB100--- 20 46,000 12.0 14.0 45,500 3.70 8.0 29,000 2.58 3810576 25HBC548A**30 CAP**6021A** 58VLR120 ---20 46,000 12.0 14.5 45,500 3.72 8.0 28,600 2.60 3810575 25HBC548A**30 CAP**6021A** 58VMR120---20 46,000 12.0 14.0 45,500 3.70 8.0 28,800 2.58 4804831 25HBC548A**30 CAP**6021A** 59*N*A100V21**20 45,500 11.8 14.2 45,500 3.66 8.0 28,800 2.56 4804832 25HBC548A**30 CAP**6021A** 59*P5A080E17**16 46,000 11.4 13.7 46,000 3.62 8.0 29,200 2.54 4804833 25HBC548A**30 CAP**6021A** 59*P5A100E21**16 46,000 11.8 14.2 45,500 3.66 8.0 29,000 2.56 3646296 25HBC548A**30 CAP**6021A**+TDR 46,500 11.5 13.5 46,500 3.74 8.1 29,800 2.58 3646194 25HBC548A**30 CAP**6024A** 58CV(A,X)135 ---22 46,000 12.0 14.5 45,000 3.76 8.1 28,600 2.62 3646204 25HBC548A**30 CAP**6024A** 58CV(A,X)155 ---22 46,500 12.5 15.0 45,000 3.78 8.1 28,400 2.64 4194316 25HBC548A**30 CAP**6024A** 58HDV080 --- --- 20 46,500 12.0 14.0 46,000 3.74 8.2 29,400 2.58 4194317 25HBC548A**30 CAP**6024A** 58HDV100 --- --- 20 46,500 12.0 14.0 45,500 3.74 8.2 29,000 2.60 3646230 25HBC548A**30 CAP**6024A** 58ME(B,C)120 --- 20 46,500 12.0 14.5 45,500 3.80 8.2 28,800 2.64 3646257 25HBC548A**30 CAP**6024A** 58MV(B,C)120 ---20 46,000 12.0 14.5 45,500 3.72 8.0 28,800 2.60 3646283 25HBC548A**30 CAP**6024A** 58PH*135 ---20 46,500 12.0 14.5 45,500 3.76 8.1 28,800 2.62 3646329 25HBC548A**30 CAP**6024A** 58UVB120--- 20 46,000 12.0 14.5 45,500 3.72 8.0 28,800 2.60 4804834 25HBC548A**30 CAP**6024A** 59*N*A100V21**20 45,500 11.8 14.2 45,500 3.66 8.0 28,600 2.56 4804835 25HBC548A**30 CAP**6024A** 59*N*A120V24**22 46,000 12.0 14.5 45,000 3.68 8.0 28,400 2.58 4804836 25HBC548A**30 CAP**6024A** 59*P5A100E21**16 46,000 11.8 14.2 45,500 3.68 8.0 29,000 2.56 4804837 25HBC548A**30 CAP**6024A** 59*P5A120E24**22 46,500 12.0 14.5 45,500 3.74 8.2 28,800 2.60 3646297 25HBC548A**30 CAP**6024A**+TDR 46,500 11.5 13.5 46,500 3.74 8.1 29,800 2.56 4194319 25HBC548A**30 CAP**6025A** 58HDV080 --- --- 20 46,500 11.5 14.0 46,000 3.74 8.2 29,400 2.58 3646214 25HBC548A**30 CAP**6025A** 58HDV100 --- --- 20 46,500 12.0 14.0 45,500 3.74 8.1 29,000 2.60 4804842 25HBC548A**30 CAP**6025A** 59*N*A100V21**20 45,500 11.8 14.2 45,500 3.66 8.0 28,800 2.56 4804843 25HBC548A**30 CAP**6025A** 59*N*A120V24**22 46,000 12.0 14.5 45,000 3.68 8.0 28,400 2.58 4804844 25HBC548A**30 CAP**6025A** 59*P5A100E21**16 46,000 11.8 14.2 45,500 3.68 8.0 29,000 2.56 4804845 25HBC548A**30 CAP**6025A** 59*P5A120E24**22 46,500 12.0 14.5 45,500 3.74 8.2 28,800 2.60 3646298 25HBC548A**30 CAP**6025A**+TDR 46,500 11.5 13.5 46,500 3.74 8.1 29,800 2.56 3646179 25HBC548A**30 CNPH*4821A** 58CV(A,X)090 ---16 45,000 12.0 14.0 45,000 3.66 7.9 28,600 2.56 3646186 25HBC548A**30 CNPH*4821A** 58CV(A,X)110 ---20 45,500 12.0 14.0 45,000 3.68 7.9 28,600 2.58 3646195 25HBC548A**30 CNPH*4821A** 58CV(A,X)135 ---22 45,500 12.0 14.5 45,000 3.72 8.0 28,400 2.60 3646205 25HBC548A**30 CNPH*4821A** 58CV(A,X)155 ---22 45,500 12.0 14.5 45,000 3.74 8.0 28,400 2.62 3756380 25HBC548A**30 CNPH*4821A** 58HDV080 --- --- 20 45,500 11.5 13.5 46,000 3.68 8.0 29,200 2.56 3756381 25HBC548A**30 CNPH*4821A** 58HDV100 --- --- 20 45,500 12.0 14.0 45,500 3.68 8.0 29,000 2.56 3646216 25HBC548A**30 CNPH*4821A** 58ME(B,C)080---16 45,500 11.5 14.0 45,500 3.68 7.9 29,000 2.56 3646223 25HBC548A**30 CNPH*4821A** 58ME(B,C)100---20 45,500 12.0 14.5 45,000 3.72 8.0 28,600 2.60 3646231 25HBC548A**30 CNPH*4821A** 58ME(B,C)120---20 46,000 12.0 14.5 45,000 3.76 8.1 28,600 2.62 3646241 25HBC548A**30 CNPH*4821A** 58MV(B,C)080---20 45,000 11.5 14.0 45,000 3.62 7.8 28,600 2.54 3646249 25HBC548A**30 CNPH*4821A** 58MV(B,C)100---20 45,500 11.5 13.5 45,500 3.66 7.8 28,800 2.54 3646258 25HBC548A**30 CNPH*4821A** 58MV(B,C)120---20 45,500 12.0 14.0 45,000 3.68 7.9 28,600 2.56 3646268 25HBC548A**30 CNPH*4821A** 58PH*090 --- 16 45,500 12.0 14.0 45,500 3.70 7.9 28,800 2.58 3646276 25HBC548A**30 CNPH*4821A** 58PH*110 --- 20 45,500 12.0 14.5 45,000 3.74 8.0 28,400 2.60 3646284 25HBC548A**30 CNPH*4821A** 58PH*135 --- 20 45,500 12.0 14.0 45,000 3.72 8.0 28,600 2.60 3810580 25HBC548A**30 CNPH*4821A** 58VLR120 --- 20 45,500 12.0 14.5 45,000 3.68 8.0 28,400 2.58 3810579 25HBC548A**30 CNPH*4821A** 58VMR120 --- 20 45,000 12.0 14.0 45,000 3.66 8.0 28,600 2.56 4804861 25HBC548A**30 CNPH*4821A** 59*N*A100V21**20 45,000 11.5 14.0 45,000 3.62 8.0 28,600 2.54 4804862 25HBC548A**30 CNPH*4821A** 59*N*A120V24**22 45,000 11.8 14.2 45,000 3.64 8.0 28,400 2.56 4804863 25HBC548A**30 CNPH*4821A** 59*P5A080E17**16 45,000 11.4 13.7 45,500 3.58 8.0 29,000 2.50 4804864 25HBC548A**30 CNPH*4821A** 59*P5A100E21**16 45,000 11.5 14.0 45,500 3.62 8.0 28,800 2.54 4804865 25HBC548A**30 CNPH*4821A** 59*P5A120E24**22 45,500 11.8 14.2 45,500 3.70 8.0 28,800 2.58 4194328 25HBC548A**30 CNPH*4821A** OVLAAB060154 46,000 11.5 14.0 46,500 3.76 8.2 29,600 2.58 3646300 25HBC548A**30 CNPH*4821A**+TDR 45,500 11.5 13.5 46,500 3.68 7.9 29,600 2.54 3646180 25HBC548A**30 CNPH*6024A** 58CV(A,X)090 ---16 46,000 12.0 14.5 45,000 3.70 8.0 28,600 2.60 3646187 25HBC548A**30 CNPH*6024A** 58CV(A,X)110 ---20 46,000 12.0 14.5 45,000 3.72 8.0 28,600 2.62

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 33

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3646196 25HBC548A**30 CNPH*6024A** 58CV(A,X)135 ---22 46,000 12.5 14.5 45,000 3.76 8.1 28,600 2.64 3646206 25HBC548A**30 CNPH*6024A** 58CV(A,X)155 ---22 46,500 12.5 15.0 45,000 3.78 8.1 28,400 2.66 3756382 25HBC548A**30 CNPH*6024A** 58HDV080 --- --- 20 46,500 12.0 14.0 45,500 3.74 8.1 29,400 2.60 3756383 25HBC548A**30 CNPH*6024A** 58HDV100 --- --- 20 46,500 12.0 14.0 45,500 3.74 8.1 29,000 2.60 3646217 25HBC548A**30 CNPH*6024A** 58ME(B,C)080---16 46,500 12.0 14.0 46,000 3.72 8.0 29,200 2.60 3646224 25HBC548A**30 CNPH*6024A** 58ME(B,C)100---20 46,500 12.0 14.5 45,500 3.78 8.1 28,800 2.64 3646232 25HBC548A**30 CNPH*6024A** 58ME(B,C)120---20 46,500 12.0 14.5 45,500 3.80 8.2 28,800 2.66 3646242 25HBC548A**30 CNPH*6024A** 58MV(B,C)080---20 45,500 12.0 14.0 45,000 3.66 7.9 28,600 2.58 3646250 25HBC548A**30 CNPH*6024A** 58MV(B,C)100---20 46,000 12.0 14.0 45,500 3.70 8.0 29,000 2.58 3646259 25HBC548A**30 CNPH*6024A** 58MV(B,C)120---20 46,000 12.0 14.5 45,500 3.72 8.0 28,800 2.60 3646269 25HBC548A**30 CNPH*6024A** 58PH*090 --- 16 46,500 12.0 14.5 45,500 3.76 8.1 29,000 2.62 3646277 25HBC548A**30 CNPH*6024A** 58PH*110 --- 20 46,500 12.5 15.0 45,000 3.78 8.1 28,600 2.64 3646285 25HBC548A**30 CNPH*6024A** 58PH*135 --- 20 46,500 12.0 14.5 45,500 3.78 8.1 28,800 2.64 3810582 25HBC548A**30 CNPH*6024A** 58VLR120 --- 20 46,000 12.0 14.5 45,000 3.74 8.0 28,600 2.62 3810581 25HBC548A**30 CNPH*6024A** 58VMR120 --- 20 46,000 12.0 14.5 45,500 3.70 8.0 28,800 2.60 4804866 25HBC548A**30 CNPH*6024A** 59*N*A100V21**20 45,500 11.8 14.2 45,000 3.66 8.0 28,600 2.56 4804867 25HBC548A**30 CNPH*6024A** 59*N*A120V24**22 46,000 12.0 14.5 45,000 3.68 8.2 28,400 2.60 4804868 25HBC548A**30 CNPH*6024A** 59*P5A080E17**16 46,000 11.5 14.0 46,000 3.64 8.0 29,200 2.54 4804869 25HBC548A**30 CNPH*6024A** 59*P5A100E21**16 46,000 11.8 14.2 45,500 3.68 8.0 29,000 2.56 4804870 25HBC548A**30 CNPH*6024A** 59*P5A120E24**22 46,500 12.0 14.5 45,500 3.74 8.2 28,800 2.60 4194329 25HBC548A**30 CNPH*6024A** OVLAAB060154 47,000 12.0 14.0 46,500 3.80 8.2 29,600 2.62 3646301 25HBC548A**30 CNPH*6024A**+TDR 46,500 11.5 13.5 46,500 3.72 8.1 29,800 2.56 3646181 25HBC548A**30 CNPH*6124A** 58CV(A,X)090 ---16 46,000 12.0 14.5 45,500 3.74 8.1 28,800 2.60 3646188 25HBC548A**30 CNPH*6124A** 58CV(A,X)110 ---20 46,500 12.0 14.5 45,500 3.76 8.1 28,800 2.62 3646197 25HBC548A**30 CNPH*6124A** 58CV(A,X)135 ---22 46,500 12.5 14.5 45,500 3.80 8.2 28,600 2.64 3646207 25HBC548A**30 CNPH*6124A** 58CV(A,X)155 ---22 46,500 12.5 15.0 45,500 3.84 8.2 28,600 2.66 3756384 25HBC548A**30 CNPH*6124A** 58HDV080 --- --- 20 46,500 12.0 14.0 46,500 3.80 8.2 29,400 2.60 3756385 25HBC548A**30 CNPH*6124A** 58HDV100 --- --- 20 46,500 12.2 14.5 46,000 3.78 8.2 29,200 2.60 3646218 25HBC548A**30 CNPH*6124A** 58ME(B,C)080---16 46,500 12.0 14.0 46,000 3.80 8.1 29,200 2.60 3646225 25HBC548A**30 CNPH*6124A** 58ME(B,C)100---20 46,500 12.0 14.5 45,500 3.82 8.2 28,800 2.64 3646233 25HBC548A**30 CNPH*6124A** 58ME(B,C)120---20 47,000 12.5 15.0 45,500 3.86 8.3 28,800 2.66 3646243 25HBC548A**30 CNPH*6124A** 58MV(B,C)080---20 46,000 12.0 14.0 45,500 3.70 8.0 28,800 2.58 3646251 25HBC548A**30 CNPH*6124A** 58MV(B,C)100---20 46,500 12.0 14.0 46,000 3.76 8.1 29,200 2.58 3646260 25HBC548A**30 CNPH*6124A** 58MV(B,C)120---20 46,500 12.0 14.5 45,500 3.76 8.1 28,800 2.60 3646270 25HBC548A**30 CNPH*6124A** 58PH*090 --- 16 46,500 12.0 14.5 46,000 3.80 8.2 29,000 2.62 3646278 25HBC548A**30 CNPH*6124A** 58PH*110 --- 20 46,500 12.5 14.5 45,500 3.82 8.2 28,600 2.64 3646286 25HBC548A**30 CNPH*6124A** 58PH*135 --- 20 46,500 12.0 14.5 45,500 3.82 8.2 28,800 2.64 3810584 25HBC548A**30 CNPH*6124A** 58VLR120 --- 20 46,500 12.0 14.5 45,500 3.78 8.2 28,800 2.62 3810583 25HBC548A**30 CNPH*6124A** 58VMR120 --- 20 46,000 12.0 14.5 45,500 3.74 8.2 28,800 2.60 4804871 25HBC548A**30 CNPH*6124A** 59*N*A100V21**20 46,000 11.8 14.2 45,500 3.68 8.0 28,800 2.58 4804872 25HBC548A**30 CNPH*6124A** 59*N*A120V24**22 46,000 12.0 14.5 45,000 3.72 8.2 28,600 2.60 4804873 25HBC548A**30 CNPH*6124A** 59*P5A080E17**16 46,000 11.5 14.0 46,000 3.68 8.0 29,200 2.54 4804874 25HBC548A**30 CNPH*6124A** 59*P5A100E21**16 46,000 11.8 14.2 46,000 3.72 8.2 29,000 2.58 4804875 25HBC548A**30 CNPH*6124A** 59*P5A120E24**22 46,500 12.0 14.5 46,000 3.80 8.2 29,000 2.62 4194330 25HBC548A**30 CNPH*6124A** OVLAAB060154 47,500 12.0 14.0 47,000 3.90 8.5 29,800 2.62 3646302 25HBC548A**30 CNPH*6124A**+TDR 47,000 11.5 14.0 47,000 3.82 8.2 29,800 2.58 3646189 25HBC548A**30 CNPV*4821A** 58CV(A,X)110---20 45,500 12.0 14.0 45,000 3.68 7.9 28,600 2.58 4194320 25HBC548A**30 CNPV*4821A** 58HDV080--- --- 20 45,500 11.5 14.0 46,000 3.68 8.0 29,200 2.56 3646226 25HBC548A**30 CNPV*4821A** 58ME(B,C)100--- 20 45,500 12.0 14.5 45,000 3.72 8.0 28,600 2.60 3646244 25HBC548A**30 CNPV*4821A** 58MV(B,C)080---20 45,000 11.5 14.0 45,000 3.62 7.8 28,600 2.54 3646252 25HBC548A**30 CNPV*4821A** 58MV(B,C)100---20 45,500 11.5 13.5 45,500 3.66 7.8 28,800 2.54 3646271 25HBC548A**30 CNPV*4821A** 58PH*090--- 16 45,500 12.0 14.0 45,500 3.70 7.9 28,800 2.58 3646279 25HBC548A**30 CNPV*4821A** 58PH*110--- 20 45,500 12.0 14.5 45,000 3.74 8.0 28,400 2.60 3646330 25HBC548A**30 CNPV*4821A** 58UVB080---20 45,000 11.5 14.0 45,000 3.62 7.8 28,600 2.54 3646331 25HBC548A**30 CNPV*4821A** 58UVB100---20 45,500 11.5 13.5 45,500 3.66 7.8 28,800 2.54 3810578 25HBC548A**30 CNPV*4821A** 58VLR120--- 20 45,500 12.0 14.5 45,000 3.68 8.0 28,400 2.58 3810577 25HBC548A**30 CNPV*4821A** 58VMR120 ---20 45,000 12.0 14.0 45,000 3.66 8.0 28,600 2.56 4804846 25HBC548A**30 CNPV*4821A** 59*N*A100V21**20 45,000 11.5 14.0 45,000 3.62 8.0 28,600 2.54 4804847 25HBC548A**30 CNPV*4821A** 59*P5A080E17**16 45,000 11.4 13.7 45,500 3.58 7.8 29,000 2.50 4804848 25HBC548A**30 CNPV*4821A** 59*P5A100E21**16 45,000 11.5 14.0 45,500 3.62 8.0 28,800 2.54 3646303 25HBC548A**30 CNPV*4821A**+TDR 45,500 11.5 13.5 46,500 3.68 7.9 29,600 2.54 3646198 25HBC548A**30 CNPV*4824A** 58CV(A,X)135---22 45,500 12.0 14.5 45,000 3.72 8.0 28,400 2.60 3646208 25HBC548A**30 CNPV*4824A** 58CV(A,X)155---22 45,500 12.0 14.5 45,000 3.74 8.0 28,400 2.62 4194321 25HBC548A**30 CNPV*4824A** 58HDV080--- --- 20 45,500 11.5 14.0 46,000 3.68 8.0 29,200 2.56 4149637 25HBC548A**30 CNPV*4824A** 58HDV100--- --- 20 45,500 12.0 14.0 45,500 3.68 8.0 29,000 2.56

3756377 25HBC548A**30 CNPV*4824A**

3646234 25HBC548A**30 CNPV*4824A** 58ME(B,C)120--- 20 46,000 12.0 14.5 45,000 3.76 8.1 28,600 2.62 3646261 25HBC548A**30 CNPV*4824A** 58MV(B,C)120---20 45,500 12.0 14.0 45,000 3.68 7.9 28,600 2.56 3646287 25HBC548A**30 CNPV*4824A** 58PH*135--- 20 45,500 12.0 14.0 45,000 3.72 8.0 28,600 2.60 3646332 25HBC548A**30 CNPV*4824A** 58UVB120---20 45,500 12.0 14.0 45,000 3.68 7.9 28,600 2.56 4804849 25HBC548A**30 CNPV*4824A** 59*N*A100V21**20 45,000 11.5 14.0 45,000 3.62 8.0 28,600 2.54 4804850 25HBC548A**30 CNPV*4824A** 59*N*A120V24**22 45,000 11.8 14.2 45,000 3.64 8.0 28,400 2.56 4804851 25HBC548A**30 CNPV*4824A** 59*P5A100E21**16 45,000 11.5 14.0 45,500 3.62 8.0 28,800 2.54 4804852 25HBC548A**30 CNPV*4824A** 59*P5A120E24**22 45,500 11.8 14.2 45,500 3.70 8.0 28,800 2.58 4194324 25HBC548A**30 CNPV*4824A** OVLAAB060154 46,000 11.5 14.0 46,500 3.76 8.2 29,600 2.58 3646304 25HBC548A**30 CNPV*4824A**+TDR 45,500 11.5 13.5 46,500 3.68 7.9 29,600 2.54 3646199 25HBC548A**30 CNPV*6024A** 58CV(A,X)135---22 46,000 12.5 14.5 45,000 3.76 8.1 28,600 2.64 3646209 25HBC548A**30 CNPV*6024A** 58CV(A,X)155---22 46,500 12.5 15.0 45,000 3.78 8.1 28,400 2.66 4194322 25HBC548A**30 CNPV*6024A** 58HDV080--- --- 20 46,500 12.0 14.0 46,000 3.74 8.2 29,400 2.60

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

58HDV100--- ---20

(DWNFLW ONLY)

Cooling

Capacity

45,500 12.0 14.0 45,500 3.68 8.0 29,000 2.56

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 34

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4149631 25HBC548A**30 CNPV*6024A** 58HDV100--- --- 20 46,500 12.0 14.0 45,500 3.74 8.1 29,000 2.60

3756378 25HBC548A**30 CNPV*6024A**

3646235 25HBC548A**30 CNPV*6024A** 58ME(B,C)120--- 20 46,500 12.0 14.5 45,500 3.80 8.2 28,800 2.66 3646262 25HBC548A**30 CNPV*6024A** 58MV(B,C)120---20 46,000 12.0 14.5 45,500 3.72 8.0 28,800 2.60 3646288 25HBC548A**30 CNPV*6024A** 58PH*135--- 20 46,500 12.0 14.5 45,500 3.78 8.1 28,800 2.64 3646333 25HBC548A**30 CNPV*6024A** 58UVB120---20 46,000 12.0 14.5 45,500 3.72 8.0 28,800 2.60 4804853 25HBC548A**30 CNPV*6024A** 59*N*A100V21**20 45,500 11.8 14.2 45,000 3.66 8.0 28,600 2.56 4804854 25HBC548A**30 CNPV*6024A** 59*N*A120V24**22 46,000 12.0 14.5 45,000 3.68 8.2 28,400 2.60 4804855 25HBC548A**30 CNPV*6024A** 59*P5A100E21**16 46,000 11.8 14.2 45,500 3.68 8.2 29,000 2.56 4804856 25HBC548A**30 CNPV*6024A** 59*P5A120E24**22 46,500 12.0 14.5 45,500 3.74 8.2 28,800 2.60 4194325 25HBC548A**30 CNPV*6024A** OVLAAB060154 47,000 12.0 14.0 46,500 3.80 8.2 29,600 2.62 3646305 25HBC548A**30 CNPV*6024A**+TDR 46,500 11.5 13.5 46,500 3.72 8.0 29,800 2.56 3646190 25HBC548A**30 CNPV*6124A** 58CV(A,X)110---20 46,500 12.2 14.5 45,500 3.82 8.2 28,800 2.64 3646200 25HBC548A**30 CNPV*6124A** 58CV(A,X)135---22 47,000 12.5 15.0 45,500 3.84 8.3 28,600 2.66 3646210 25HBC548A**30 CNPV*6124A** 58CV(A,X)155---22 47,000 12.5 15.0 45,500 3.88 8.5 28,600 2.68 4194323 25HBC548A**30 CNPV*6124A** 58HDV080--- --- 20 47,000 12.0 14.5 46,500 3.82 8.2 29,400 2.62 4149632 25HBC548A**30 CNPV*6124A** 58HDV100--- --- 20 47,000 12.2 14.5 46,000 3.82 8.2 29,200 2.64

3756379 25HBC548A**30 CNPV*6124A**

3646236 25HBC548A**30 CNPV*6124A** 58ME(B,C)120--- 20 47,000 12.5 15.0 45,500 3.90 8.5 28,800 2.68 3646253 25HBC548A**30 CNPV*6124A** 58MV(B,C)100---20 46,500 12.0 14.5 46,000 3.78 8.3 29,200 2.62 3646263 25HBC548A**30 CNPV*6124A** 58MV(B,C)120---20 46,500 12.0 14.5 45,500 3.80 8.3 28,800 2.64 3646289 25HBC548A**30 CNPV*6124A** 58PH*135--- 20 47,000 12.5 15.0 45,500 3.86 8.5 29,000 2.66

25HBC5

3646334 25HBC548A**30 CNPV*6124A** 58UVB100---20 46,500 12.0 14.5 46,000 3.78 8.3 29,200 2.62 3646335 25HBC548A**30 CNPV*6124A** 58UVB120---20 46,500 12.0 14.5 45,500 3.80 8.3 28,800 2.64 4804857 25HBC548A**30 CNPV*6124A** 59*N*A100V21**20 46,500 12.0 14.5 45,500 3.74 8.2 28,800 2.60 4804858 25HBC548A**30 CNPV*6124A** 59*N*A120V24**22 46,500 12.5 15.0 45,000 3.78 8.5 28,400 2.62 4804859 25HBC548A**30 CNPV*6124A** 59*P5A100E21**16 46,500 12.0 14.5 46,000 3.76 8.2 29,200 2.60 4804860 25HBC548A**30 CNPV*6124A** 59*P5A120E24**22 47,000 12.0 14.5 46,000 3.84 8.2 29,000 2.64 4194326 25HBC548A**30 CNPV*6124A** OVLAAB048112 46,500 11.5 14.0 46,500 3.74 8.2 29,600 2.58 4194327 25HBC548A**30 CNPV*6124A** OVLAAB060154 48,000 12.0 14.5 47,000 3.92 8.5 29,800 2.66 3646306 25HBC548A**30 CNPV*6124A**+TDR 47,000 11.5 14.0 47,000 3.80 8.2 30,000 2.60 3646182 25HBC548A**30 CSPH*4812A** 58CV(A ,X)090---16 45,500 12.0 14.0 45,500 3.68 7.9 28,800 2.56 3646191 25HBC548A**30 CSPH*4812A** 58CV(A ,X)110---20 45,500 12.0 14.0 45,500 3.70 7.9 28,800 2.58 3646201 25HBC548A**30 CSPH*4812A** 58CV(A ,X)135---22 46,000 12.0 14.5 45,000 3.72 8.0 28,600 2.60 3646211 25HBC548A**30 CSPH*4812A** 58CV(A ,X)155---22 46,000 12.0 14.5 45,000 3.76 8.0 28,600 2.62 3756386 25HBC548A**30 CSPH*4812A** 58HDV080--- ---20 45,500 11.5 13.5 46,000 3.70 8.0 29,200 2.56 3756387 25HBC548A**30 CSPH*4812A** 58HDV100--- ---20 45,500 12.0 14.0 45,500 3.70 8.0 29,000 2.56 3646219 25HBC548A**30 CSPH*4812A** 58ME(B,C)080---16 46,000 11.5 14.0 46,000 3.70 7.9 29,200 2.56 3646227 25HBC548A**30 CSPH*4812A** 58ME(B,C)100---20 46,000 12.0 14.5 45,500 3.74 8.0 28,600 2.60 3646237 25HBC548A**30 CSPH*4812A** 58ME(B,C)120---20 46,000 12.0 14.5 45,500 3.76 8.1 28,600 2.62 3646245 25HBC548A**30 CSPH*4812A** 58MV(B,C)080--- 20 45,500 11.5 14.0 45,500 3.64 7.8 28,800 2.54 3646254 25HBC548A**30 CSPH*4812A** 58MV(B,C)100--- 20 45,500 11.5 13.5 45,500 3.68 7.9 29,000 2.56 3646264 25HBC548A**30 CSPH*4812A** 58MV(B,C)120--- 20 45,500 12.0 14.0 45,500 3.70 7.9 28,800 2.58 3646272 25HBC548A**30 CSPH*4812A** 58PH*090---16 46,000 12.0 14.0 45,500 3.72 8.0 28,800 2.58 3646280 25HBC548A**30 CSPH*4812A** 58PH*110---20 46,000 12.0 14.5 45,000 3.74 8.0 28,600 2.60 3646290 25HBC548A**30 CSPH*4812A** 58PH*135---20 45,500 12.0 14.0 45,500 3.72 8.0 28,600 2.60 3810586 25HBC548A**30 CSPH*4812A** 58VLR120---20 45,500 12.0 14.5 45,500 3.70 8.0 28,600 2.58 3810585 25HBC548A**30 CSPH*4812A** 58VMR120--- 20 45,500 12.0 14.0 45,500 3.68 8.0 28,800 2.56 4804876 25HBC548A**30 CSPH*4812A** 59*N*A100V21**20 45,500 11.5 14.0 45,500 3.64 8.0 28,800 2.54 4804877 25HBC548A**30 CSPH*4812A** 59*N*A120V24**22 45,500 11.8 14.2 45,000 3.66 8.0 28,400 2.56 4804878 25HBC548A**30 CSPH*4812A** 59*P5A080E17**16 45,500 11.4 13.7 46,000 3.60 8.0 29,200 2.52 4804879 25HBC548A**30 CSPH*4812A** 59*P5A100E21**16 45,500 11.5 14.0 45,500 3.64 8.0 29,000 2.54 4804880 25HBC548A**30 CSPH*4812A** 59*P5A120E24**22 46,000 11.8 14.2 45,500 3.70 8.0 28,800 2.58 4194331 25HBC548A**30 CSPH*4812A** OVLAAB060154 46,500 11.5 14.0 46,500 3.78 8.2 29,800 2.58 3646307 25HBC548A**30 CSPH*4812A**+TDR 45,500 11.5 13.5 46,500 3.72 7.9 29,800 2.56 3646183 25HBC548A**30 CSPH*6012A** 58CV(A ,X)090---16 46,500 12.0 14.5 45,500 3.74 8.0 28,800 2.60 3646192 25HBC548A**30 CSPH*6012A** 58CV(A ,X)110---20 46,500 12.0 14.5 45,500 3.76 8.0 28,800 2.62 3646202 25HBC548A**30 CSPH*6012A** 58CV(A ,X)135---22 46,500 12.5 14.5 45,000 3.80 8.1 28,600 2.64 3646212 25HBC548A**30 CSPH*6012A** 58CV(A ,X)155---22 46,500 12.5 15.0 45,000 3.82 8.2 28,600 2.66 3756388 25HBC548A**30 CSPH*6012A** 58HDV080--- ---20 46,500 12.0 14.0 45,500 3.78 8.1 29,400 2.60 3756389 25HBC548A**30 CSPH*6012A** 58HDV100--- ---20 46,500 12.0 14.0 45,500 3.78 8.1 29,200 2.62 3646220 25HBC548A**30 CSPH*6012A** 58ME(B,C)080---16 46,500 12.0 14.0 46,000 3.76 8.1 29,200 2.60 3646228 25HBC548A**30 CSPH*6012A** 58ME(B,C)100---20 47,000 12.0 14.5 45,500 3.82 8.2 28,800 2.64 3646238 25HBC548A**30 CSPH*6012A** 58ME(B,C)120---20 47,000 12.5 15.0 45,500 3.84 8.2 28,800 2.66 3646246 25HBC548A**30 CSPH*6012A** 58MV(B,C)080--- 20 46,000 12.0 14.5 45,500 3.70 7.9 28,800 2.58 3646255 25HBC548A**30 CSPH*6012A** 58MV(B,C)100--- 20 46,500 12.0 14.0 45,500 3.74 8.0 29,000 2.60 3646265 25HBC548A**30 CSPH*6012A** 58MV(B,C)120--- 20 46,500 12.0 14.5 45,500 3.76 8.0 28,800 2.62 3646273 25HBC548A**30 CSPH*6012A** 58PH*090---16 46,500 12.0 14.5 45,500 3.80 8.1 29,000 2.62 3646281 25HBC548A**30 CSPH*6012A** 58PH*110---20 46,500 12.5 15.0 45,500 3.82 8.1 28,600 2.66 3646291 25HBC548A**30 CSPH*6012A** 58PH*135---20 46,500 12.0 14.5 45,500 3.82 8.1 28,800 2.64 3810588 25HBC548A**30 CSPH*6012A** 58VLR120---20 46,500 12.0 14.5 45,500 3.76 8.2 28,600 2.62 3810587 25HBC548A**30 CSPH*6012A** 58VMR120--- 20 46,500 12.0 14.5 45,500 3.74 8.2 28,800 2.60 4804881 25HBC548A**30 CSPH*6012A** 59*N*A100V21**20 46,000 12.0 14.5 45,500 3.68 8.0 28,800 2.58 4804882 25HBC548A**30 CSPH*6012A** 59*N*A120V24**22 46,000 12.0 14.5 45,000 3.72 8.2 28,400 2.60 4804883 25HBC548A**30 CSPH*6012A** 59*P5A080E17**16 46,000 11.5 14.0 46,000 3.66 8.0 29,200 2.54 4804884 25HBC548A**30 CSPH*6012A** 59*P5A100E21**16 46,500 11.8 14.2 46,000 3.72 8.2 29,000 2.58 4804885 25HBC548A**30 CSPH*6012A** 59*P5A120E24**22 46,500 12.0 14.5 45,500 3.80 8.2 29,000 2.62 4194332 25HBC548A**30 CSPH*6012A** OVLAAB048112 46,500 11.5 14.0 46,000 3.70 8.0 29,400 2.56

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

58HDV100--- ---20

(DWNFLW ONLY)

58HDV100--- ---20

(DWNFLW ONLY)

Cooling

Capacity

46,500 12.0 14.0 45,500 3.74 8.1 29,000 2.60

47,000 12.2 14.5 46,000 3.82 8.2 29,200 2.64

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 35

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

4194333 25HBC548A**30 CSPH*6012A** OVLAAB060154 47,500 12.0 14.5 46,500 3.86 8.5 29,600 2.64 3646308 25HBC548A**30 CSPH*6012A**+TDR 46,500 11.5 13.5 46,500 3.76 8.1 29,800 2.58 3810570 25HBC548A**30 FB4CNF048 46,000 11.5 13.0 45,500 3.68 8.0 29,200 2.56 3646309 25HBC548A**30 FB4CNF048+TXV 46,000 11.5 14.0 46,000 3.68 8.0 29,200 2.56 3810571 25HBC548A**30 FB4CNF060 47,000 12.0 14.5 46,000 3.80 8.4 29,200 2.62 3646311 25HBC548A**30 FE4AN(B,F)005+UI 46,500 12.5 15.0 45,000 3.76 8.1 28,400 2.64 3646312 25HBC548A**30 FE4ANB006+UI 47,000 12.5 15.5 45,500 3.90 8.3 28,400 2.70 3646315 25HBC548A**30 FV4CN(B,F)005 46,500 12.5 15.0 45,000 3.76 8.1 28,400 2.64 3646316 25HBC548A**30 FV4CNB006 47,000 12.5 15.5 45,500 3.90 8.5 28,400 2.70 3646320 25HBC548A**30 FX4DN(B,F)061 48,000 12.5 15.0 46,000 3.96 8.5 29,200 2.70 3646323 25HBC548A**30 FY5BNB060 47,000 11.5 13.5 47,000 3.74 8.2 30,000 2.56 3810572 25HBC548A**30 FY5BNF048 47,000 11.5 13.0 46,000 3.76 8.2 29,400 2.60 3692777 25HBC548A**30 FY5BNF048+TXV 46,500 12.0 14.0 46,000 3.74 8.2 29,400 2.60

3646391 25HBC560A**30 †FX4DN(B,F)061 57,000 12.5 15.0 57,000 3.86 8.7 35,400 2.72 3646336 25HBC560A**30 CAP**6021A** 58CV(A,X)110 ---20 55,500 11.5 13.5 56,500 3.66 8.1 35,800 2.60 3646355 25HBC560A**30 CAP**6021A** 58ME(B,C)100 --- 20 55,500 12.0 14.0 56,500 3.68 8.1 35,400 2.62 3646367 25HBC560A**30 CAP**6021A** 58PH*110 ---20 55,500 12.0 14.0 56,500 3.72 8.2 35,600 2.64 4804886 25HBC560A**30 CAP**6021A** 59*N*A100V21**20 55,000 11.4 13.7 57,500 3.58 8.0 36,000 2.56 3646377 25HBC560A**30 CAP**6021A**+TDR 55,500 11.5 13.5 56,500 3.68 8.1 36,000 2.60 3646340 25HBC560A**30 CAP**6024A** 58CV(A,X)135 ---22 55,500 12.0 14.0 56,500 3.72 8.4 35,600 2.64 3646346 25HBC560A**30 CAP**6024A** 58CV(A,X)155 ---22 56,000 12.0 14.5 56,500 3.76 8.3 35,400 2.66 3646359 25HBC560A**30 CAP**6024A** 58ME(B,C)120 --- 20 55,500 12.0 14.0 56,500 3.72 8.3 35,200 2.64 3646371 25HBC560A**30 CAP**6024A** 58PH*135 ---20 55,500 12.0 14.0 56,500 3.68 8.2 35,600 2.62 4804887 25HBC560A**30 CAP**6024A** 59*N*A100V21**20 55,000 11.4 13.7 57,500 3.60 8.0 36,000 2.56 4804888 25HBC560A**30 CAP**6024A** 59*N*A120V24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,600 2.60 4804889 25HBC560A**30 CAP**6024A** 59*P5A120E24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,600 2.60 3646378 25HBC560A**30 CAP**6024A**+TDR 55,500 11.5 13.5 56,500 3.68 8.2 36,000 2.60 3646352 25HBC560A**30 CAP**6025A** 58HDV100 --- --- 20 55,500 11.5 13.5 58,000 3.64 8.1 36,400 2.58 4804890 25HBC560A**30 CAP**6025A** 59*N*A100V21**20 55,000 11.4 13.7 57,500 3.60 8.0 36,000 2.56 4804891 25HBC560A**30 CAP**6025A** 59*N*A120V24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,600 2.60 4804892 25HBC560A**30 CAP**6025A** 59*P5A120E24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,600 2.60 3646379 25HBC560A**30 CAP**6025A**+TDR 55,500 11.5 13.5 56,500 3.68 8.2 36,000 2.60 3646337 25HBC560A**30 CNPH*6024A** 58CV(A,X)110 ---20 55,500 11.5 14.0 56,500 3.68 8.1 35,800 2.62 3646341 25HBC560A**30 CNPH*6024A** 58CV(A,X)135 ---22 55,500 12.0 14.0 56,500 3.72 8.4 35,400 2.64 3646347 25HBC560A**30 CNPH*6024A** 58CV(A,X)155 ---22 56,000 12.0 14.5 56,500 3.74 8.3 35,400 2.66 3756392 25HBC560A**30 CNPH*6024A** 58HDV080 --- --- 20 55,500 11.2 13.0 58,000 3.62 8.0 36,800 2.56 3756393 25HBC560A**30 CNPH*6024A** 58HDV100 --- --- 20 55,500 11.5 13.5 57,500 3.64 8.0 36,400 2.58 3646353 25HBC560A**30 CNPH*6024A** 58ME(B,C)080---16 55,000 11.5 13.5 56,500 3.60 8.0 35,600 2.58 3646356 25HBC560A**30 CNPH*6024A** 58ME(B,C)100---20 55,500 12.0 14.0 56,500 3.68 8.1 35,400 2.62 3646360 25HBC560A**30 CNPH*6024A** 58ME(B,C)120---20 55,500 12.0 14.5 56,500 3.72 8.3 35,200 2.64 3646368 25HBC560A**30 CNPH*6024A** 58PH*110 --- 20 55,500 12.0 14.0 56,500 3.72 8.2 35,400 2.64 3646372 25HBC560A**30 CNPH*6024A** 58PH*135 --- 20 55,500 12.0 14.0 56,500 3.68 8.2 35,400 2.62 3810590 25HBC560A**30 CNPH*6024A** 58VLR120 --- 20 55,500 11.5 14.0 57,500 3.68 8.2 35,800 2.60 4804899 25HBC560A**30 CNPH*6024A** 59*N*A100V21**20 55,000 11.4 13.7 57,000 3.58 8.0 35,800 2.56 4804900 25HBC560A**30 CNPH*6024A** 59*N*A120V24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,400 2.60 4804901 25HBC560A**30 CNPH*6024A** 59*P5A120E24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,600 2.60 3646380 25HBC560A**30 CNPH*6024A**+TDR 55,500 11.5 13.5 56,500 3.66 8.2 36,000 2.60 3646338 25HBC560A**30 CNPH*6124A** 58CV(A,X)110 ---20 56,000 11.5 14.0 56,500 3.72 8.2 36,000 2.62 3646342 25HBC560A**30 CNPH*6124A** 58CV(A,X)135 ---22 56,000 12.0 14.0 56,500 3.76 8.5 35,600 2.66 3646348 25HBC560A**30 CNPH*6124A** 58CV(A,X)155 ---22 56,000 12.0 14.5 56,500 3.80 8.5 35,600 2.68 3756394 25HBC560A**30 CNPH*6124A** 58HDV080 --- --- 20 56,000 11.2 13.0 58,500 3.68 8.1 36,800 2.58 3756395 25HBC560A**30 CNPH*6124A** 58HDV100 --- --- 20 55,500 11.5 13.5 58,000 3.68 8.1 36,400 2.60 3646357 25HBC560A**30 CNPH*6124A** 58ME(B,C)100---20 55,500 12.0 14.0 56,500 3.72 8.2 35,600 2.64 3646361 25HBC560A**30 CNPH*6124A** 58ME(B,C)120---20 56,000 12.0 14.5 56,500 3.76 8.3 35,400 2.66 3646369 25HBC560A**30 CNPH*6124A** 58PH*110 --- 20 56,000 12.0 14.0 56,500 3.76 8.2 35,600 2.66 3646373 25HBC560A**30 CNPH*6124A** 58PH*135 --- 20 55,500 12.0 14.0 56,500 3.72 8.2 35,600 2.64 4804902 25HBC560A**30 CNPH*6124A** 59*N*A100V21**20 55,000 11.4 13.7 57,500 3.62 8.0 36,000 2.56 4804903 25HBC560A**30 CNPH*6124A** 59*N*A120V24**22 55,500 11.8 14.2 57,000 3.70 8.2 35,800 2.62 4804904 25HBC560A**30 CNPH*6124A** 59*P5A120E24**22 55,500 11.8 14.2 57,000 3.70 8.2 35,600 2.62 3646381 25HBC560A**30 CNPH*6124A** 56,000 11.5 14.0 56,500 3.72 8.4 36,200 2.62 3646382 25HBC560A**30 CNPH*6124A**+TDR 56,000 11.5 13.5 56,500 3.72 8.4 36,200 2.62 3646343 25HBC560A**30 CNPV*6024A** 58CV(A,X)135---22 55,500 12.0 14.0 56,500 3.72 8.4 35,400 2.64 3646349 25HBC560A**30 CNPV*6024A** 58CV(A,X)155---22 56,000 12.0 14.5 56,500 3.74 8.3 35,400 2.66 4149633 25HBC560A**30 CNPV*6024A** 58HDV100--- --- 20 55,500 11.5 13.5 57,500 3.64 8.0 36,400 2.58

3756390 25HBC560A**30 CNPV*6024A**

3646362 25HBC560A**30 CNPV*6024A** 58ME(B,C)120--- 20 55,500 12.0 14.5 56,500 3.72 8.3 35,200 2.64 3646374 25HBC560A**30 CNPV*6024A** 58PH*135--- 20 55,500 12.0 14.0 56,500 3.68 8.2 35,400 2.62 4804893 25HBC560A**30 CNPV*6024A** 59*N*A100V21**20 55,000 11.4 13.7 57,000 3.58 8.0 35,800 2.56 4804894 25HBC560A**30 CNPV*6024A** 59*N*A120V24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,400 2.60 4804895 25HBC560A**30 CNPV*6024A** 59*P5A120E24**22 55,500 11.8 14.2 57,000 3.66 8.2 35,600 2.60 3646383 25HBC560A**30 CNPV*6024A**+TDR 55,500 11.5 13.5 56,500 3.66 8.2 36,000 2.60 3646344 25HBC560A**30 CNPV*6124A** 58CV(A,X)135---22 56,500 12.0 14.5 56,500 3.82 8.5 35,600 2.68 3646350 25HBC560A**30 CNPV*6124A** 58CV(A,X)155---22 56,500 12.0 14.5 56,500 3.84 8.5 35,600 2.70 4149634 25HBC560A**30 CNPV*6124A** 58HDV100--- --- 20 56,500 11.5 13.5 58,000 3.74 8.2 36,600 2.62

3756391 25HBC560A**30 CNPV*6124A**

3646363 25HBC560A**30 CNPV*6124A** 58ME(B,C)120--- 20 56,500 12.0 14.5 56,500 3.82 8.5 35,400 2.68 3646365 25HBC560A**30 CNPV*6124A** 58MV(B,C)120---20 56,000 11.8 14.0 56,500 3.74 8.3 36,000 2.64

See notes on page 36

Model

Number

Coil Model Number

Furnace

Model Number

58HDV100--- ---20

(DWNFLW ONLY)

58HDV100--- ---20

(DWNFLW ONLY)

Cooling

Capacity

55,500 11.5 13.5 57,500 3.64 8.0 36,400 2.58

56,500 11.5 13.5 58,000 3.74 8.2 36,600 2.62

EER SEER

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

25HBC5

Page 36

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3646375 25HBC560A**30 CNPV*6124A** 58PH*135--- 20 56,500 12.0 14.5 56,500 3.78 8.5 35,600 2.66 3646394 25HBC560A**30 CNPV*6124A** 58UVB120---20 56,000 11.8 14.0 56,500 3.74 8.3 36,000 2.64 4804896 25HBC560A**30 CNPV*6124A** 59*N*A100V21**20 55,500 11.5 14.0 57,500 3.68 8.2 36,000 2.60 4804897 25HBC560A**30 CNPV*6124A** 59*N*A120V24**22 56,000 11.8 14.2 57,000 3.76 8.2 35,600 2.64 4804898 25HBC560A**30 CNPV*6124A** 59*P5A120E24**22 56,000 11.8 14.2 57,500 3.76 8.2 35,800 2.64 3646384 25HBC560A**30 CNPV*6124A**+TDR 56,500 11.5 14.0 56,500 3.76 8.4 36,200 2.64 3646339 25HBC560A**30 CSPH*6012A** 58CV(A ,X)110---20 56,000 11.5 14.0 56,500 3.74 8.1 35,800 2.64 3646345 25HBC560A**30 CSPH*6012A** 58CV(A ,X)135---22 56,000 12.0 14.5 56,500 3.76 8.4 35,600 2.66 3646351 25HBC560A**30 CSPH*6012A** 58CV(A ,X)155---22 56,000 12.0 14.5 56,500 3.80 8.3 35,400 2.68 3756396 25HBC560A**30 CSPH*6012A** 58HDV080--- ---20 55,500 11.2 13.0 58,000 3.68 8.0 36,800 2.58 3756397 25HBC560A**30 CSPH*6012A** 58HDV100--- ---20 55,500 11.5 13.5 57,500 3.70 8.0 36,400 2.60 3646354 25HBC560A**30 CSPH*6012A** 58ME(B,C)080---16 55,500 11.5 14.0 56,500 3.66 8.0 35,600 2.60 3646358 25HBC560A**30 CSPH*6012A** 58ME(B,C)100---20 56,000 12.0 14.0 56,500 3.74 8.2 35,400 2.64 3646364 25HBC560A**30 CSPH*6012A** 58ME(B,C)120---20 56,000 12.0 14.5 56,500 3.78 8.3 35,400 2.66 3646366 25HBC560A**30 CSPH*6012A** 58MV(B,C)120--- 20 55,500 11.5 14.0 56,500 3.70 8.1 35,800 2.62 3646370 25HBC560A**30 CSPH*6012A** 58PH*110---20 56,000 12.0 14.5 56,500 3.78 8.2 35,600 2.66 3646376 25HBC560A**30 CSPH*6012A** 58PH*135---20 56,000 12.0 14.0 56,500 3.74 8.2 35,600 2.64 3810591 25HBC560A**30 CSPH*6012A** 58VLR120---20 56,000 11.5 14.0 57,500 3.72 8.2 36,000 2.62 4804905 25HBC560A**30 CSPH*6012A** 59*N*A100V21**20 55,500 11.4 13.7 57,500 3.64 8.0 36,000 2.58 4804906 25HBC560A**30 CSPH*6012A** 59*N*A120V24**22 55,500 11.8 14.2 57,000 3.72 8.2 35,600 2.62 4804907 25HBC560A**30 CSPH*6012A** 59*P5A120E24**22 55,500 11.8 14.2 57,000 3.72 8.2 35,600 2.62 3646385 25HBC560A**30 CSPH*6012A**+TDR 55,500 11.5 13.5 56,500 3.72 8.2 36,200 2.62 3810589 25HBC560A**30 FB4CNF060 55,500 11.5 14.0 56,000 3.68 8.2 35,600 2.60 3646387 25HBC560A**30 FE4ANB006+UI 56,500 12.5 14.5 56,000 3.86 8.5 35,400 2.72

25HBC5

3646389 25HBC560A**30 FV4CNB006 56,500 12.5 14.5 56,000 3.86 8.5 35,400 2.72 3646393 25HBC560A**30 FY5BNB060 56,000 11.5 13.5 58,000 3.68 8.2 36,400 2.58

* Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:

Cooling Standard: 80_F(27_C) db 67_F(19_C) wb indoor entering air temperature and 95_F(35_C) db air entering outdoor unit. High---Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 47_F(8_C) db 43° F (6_C) wb air entering outdoor unit. Low---Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 17_F ( --- 8 _C) db 15° F ( ---9_C) wb air entering outdoor unit.

Model

Number

Coil Model Number

Furnace

Model Number

Cooling

Capacity

EER SEER

COP — Coefficient of Performance EER — Energy Efficiency Ratio HSPF — Heating Seasonal Performance Factor SEER — Seasonal Energy Efficiency Ratio TDR — Time---Delay Relay UI —UserInterface NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most

up---to---date ratings information.

High Temp E

CapacityECOP

HSPF

Low Temp

CapacityHCOP

Page 37

Tot a l

Capacity MBtuh

KW**

System

KW**

System

CAPACITY POWER FURNACE M O DEL

COOLING

CNPV*1814A** 0.95 1.01 59*P5A040E14**10

CNPV*1917A** 0.97 1.01 59*P5A040E14**10

CNPV*2414A** 0.96 1.02 59*P5A040E14**10

CNPV*2417A** 0.96 1.02 59*P5A040E14**10

CNPH*2417A** 0.96 1.02 59*P5A040E14**10

INDOOR MODEL

KW**

System

CSPH*2412A** 0.97 1.02 59*P5A040E14**10

Seenoteonpg.48

25HBC5

Tot a l

KW**

System

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C )

Capacity MBtuh

25HBC518A** 30 Outdoor Section With FX4DN F019 Indoor Section

Tot a l

KW**

System

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Tot a l

Capacity MBtuh

KW**

System

Tot a l Sens‡ Tot al Sens‡ To ta l Sens‡ Tot a l Sens‡ Tot a l Sens‡ Tot al Sens‡

CAPACITY POWER FURNACE M O DEL

COOLING

CAP**2417A** 1.01 0.98 58ME(B,C)040--- 12

CNPH*2417A** 1.00 1.01 58ME(B,C)040---12

INDOOR MODEL

CAPACITY POWER FURNACE M O DEL

CAP**2417A** 1.00 0.97 58ME(B,C)060--- 12

CNPV*1917A** 1.01 0.98 58ME(B,C)040---12

CNPV*2417A** 1.00 1.01 58ME(B,C)040---12

CSPH*2412A** 1.00 1.01 58ME(B,C)040---12

CNPH*2417A** 0.99 1.00 58ME(B,C)060---12

CAP**2417A** 0.98 0.99 58MV(B,C)060--- 14

CNPV*1917A** 1.01 0.98 58ME(B,C)060---12

CNPV*2417A** 0.99 1.00 58ME(B,C)060---12

CNPV*1917A** 0.98 0.99 58MV(B,C)060--- 14

CSPH*2412A** 0.99 1.00 58ME(B,C)060---12

CNPV*2417A** 0.98 0.99 58MV(B,C)060--- 14

CSPH*2412A** 0.98 0.99 58MV(B,C)060---14

CNPH*2417A** 0.98 0.99 58MV(B,C)060---14

CNPH*2417A** 0.97 0.98 58MV(B,C)080---14

CAP**1814A** 0.98 1.03 58PH*045 ---08

CSPH*2412A** 0.98 0.99 58MV(B,C)080---14

CAP**2414A** 0.99 1.00 58PH*045 ---08

CSPH*2412A** 0.98 0.99 58MVB040---14

CNPH*2417A** 0.98 0.99 58MVB040--- 14

CNPH*2417A** 0.99 1.00 58PH*045 ---08

CAP**2417A** 0.97 1.01 59*N*A060V17**14

CNPV*1814A** 0.98 1.03 58PH*045---08

CNPV*2414A** 0.99 1.00 58PH*045---08

CSPH*2412A** 0.99 1.00 58PH*045--- 08

CNPH*2417A** 0.97 1.01 59*N*A060V17**14

CAP**2417A** 0.97 1.01 59*N*A080V17**14

CNPV*1917A** 0.98 1.02 59*N*A060V17**14

CNPV*2417A** 0.97 1.01 59*N*A060V17**14

CSPH*2412A** 0.98 1.02 59*N*A060V17**14

CNPH*2417A** 0.97 1.01 59*N*A080V17**14

CAP**1814A** 0.95 1.03 59*P5A040E14**10

CAP**2414A** 0.97 1.02 59*P5A040E14**10

CNPV*1917A** 0.97 0.97 59*N*A080V17**14

CNPV*2417A** 0.97 1.01 59*N*A080V17**14

CAP**2417A** 0.97 1.01 59*P5A040E14**10

CSPH*2412A** 0.97 1.01 59*N*A080V17**14

EWB

°F(°C)

72 (22.2) 21.38 11.10 1.10 20.34 10.70 1.25 19.25 10.28 1.42 18.10 9.85 1.60 16.88 9.40 1.80 15.59 8.93 2.03

67 (19.4) 19.37 13.52 1.10 18.43 13.12 1.25 17.43 12.70 1.41 16.38 12.26 1.59 15.26 11.81 1.79 14.08 11.33 2.02

62 (16.7) 17.54 15.88 1.10 16.69 15.47 1.25 15.79 15.04 1.41 14.85 14.58 1.59 13.91 13.91 1.78 13.03 13.03 2.01

57 (13.9) 16.80 16.80 1.10 16.15 16.15 1.25 15.45 15.45 1.41 14.70 14.70 1.59 13.89 13.89 1.78 13.01 13.01 2.01

72 (22.2) 21.87 11.69 1.11 20.79 11.28 1.26 19.64 10.85 1.43 18.44 10.41 1.61 17.17 9.95 1.81 15.83 9.47 2.04

67 (19.4) 19.84 14.44 1.11 18.85 14.03 1.26 17.80 13.60 1.42 16.70 13.15 1.60 15.54 12.69 1.80 14.31 12.20 2.03

62 (16.7) 18.01 17.11 1.11 17.13 16.68 1.26 16.21 16.12 1.42 15.36 15.36 1.60 14.49 14.49 1.80 13.56 13.56 2.02

63 (17.2)†† 18.37 13.86 1.11 17.45 13.45 1.26 16.48 13.02 1.42 15.45 12.57 1.60 14.37 12.10 1.80 13.22 11.61 2.02

600

57 (13.9) 17.61 17.61 1.11 16.90 16.90 1.26 16.15 16.15 1.42 15.34 15.34 1.60 14.47 14.47 1.80 13.54 13.54 2.02

DETAILED COOLING CAPACITIES

63 (17.2)†† 17.92 13.00 1.10 17.05 12.60 1.25 16.12 12.18 1.41 15.14 11.74 1.59 14.10 11.28 1.79 12.99 10.80 2.01

EVAPORATOR AIR

CFM

525

72 (22.2) 22.26 12.24 1.12 21.13 11.82 1.27 19.94 11.39 1.44 18.70 10.94 1.62 17.39 10.48 1.82 16.02 10.00 2.05

67 (19.4) 20.21 15.33 1.12 19.17 14.90 1.27 18.08 14.47 1.43 16.95 14.01 1.61 15.75 13.53 1.81 14.49 13.03 2.04

62 (16.7) 18.42 18.24 1.12 17.56 17.56 1.27 16.76 16.76 1.43 15.90 15.90 1.61 14.98 14.98 1.81 14.00 14.00 2.04

57 (13.9) 18.29 18.29 1.12 17.54 17.54 1.27 16.74 16.74 1.43 15.88 15.88 1.61 14.96 14.96 1.81 13.98 13.98 2.04

63 (17.2)†† 18.73 14.69 1.12 17.76 14.27 1.27 16.76 13.83 1.43 15.70 13.37 1.61 14.58 12.89 1.81 13.40 12.38 2.03

675

COOLING

INDOOR MODEL

FE4ANF002 0.99 0.96

FF1ENP018 0.97 1.09

FF1ENP019 0.98 1.03

FF1ENP024 0.98 1.10

FF1ENP025 1.00 1.01

FV4BNF002 0.99 0.96

FB4CNF018 0.99 1.00

FB4CNF024 0.98 0.99

*FX4DNF019 1.00 1.00

FV4CNF002 0.99 0.96

FY4ANF018 0.97 1.09

FY4ANF024 0.97 1.09

FY5BNF018 0.98 1.07

FX4CNF018 0.98 0.99

FX4CNF024 0.99 1.00

FX4DNF025 1.01 1.01

FY5BNF024 0.98 1.07

CAP**1814A** 0.97 1.09

CAP**2414A** 0.98 1.10

CAP**2417A** 0.98 1.10

CNPF*2418A** 0.98 1.10

CNPV*1814A** 0.97 1.09

CNPV*1917A** 0.99 1.08

CNPH*2417A** 0.98 1.10

CAP**1814A** 0.97 1.01 58CV(A,X)070---12

CNPV*2414A** 0.98 1.10

CAP**2414A** 0.98 0.99 58CV(A,X)070---12

CNPV*2417A** 0.98 1.10

CSPH*2412A** 0.98 1.10

CNPH*2417A** 0.97 0.98 58CV(A,X)070---12

CAP**2417A** 0.98 0.99 58CV(A,X)090---16

CNPV*1814A** 0.97 1.01 58CV(A,X)070--- 12

CNPV*2414A** 0.98 0.99 58CV(A,X)070--- 12

CNPV*1917A** 0.99 1.00 58CV(A,X)090--- 16

CSPH*2412A** 0.98 0.99 58CV(A,X)070--- 12

CNPV*2417A** 0.98 0.99 58CV(A,X)090--- 16

CSPH*2412A** 0.98 0.99 58CV(A,X)090--- 16

CNPH*2417A** 0.98 0.99 58CV(A,X)090---16

Page 38

Tot a l

Capacity MBtuh

KW**

System

KW**

System

CAPACITY POWER FURN AC E MODEL

Capacity MBtuh

25HBC5

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C )

Capacity MBtuh

25HBC524A** 30 Outdoor Section With FX4DN F025 Indoor Section

Tot a l

KW**

System

COOLING INDOOR

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CAP**2417A** 0.98 0.98 58ME(B,C)060--- 12

CAP**3017A** 0.98 0.98 58ME(B,C)060--- 12

CNPV*2417A** 0.98 0.98 58ME(B,C)060--- 12

CSPH*3012A** 0.98 0.98 58ME(B,C)040--- 12

MODEL

CNPV*2414A** 0.98 0.98 58CV(A,X)070---12

CNPH*2417A** 0.98 0.98 58CV(A,X)070--- 12

CNPH*3017A** 0.98 0.98 58CV(A,X)070--- 12

CNPV*3017A** 0.98 0.98 58ME(B,C)060--- 12

CNPH*2417A** 0.98 0.98 58ME(B,C)060---12

CNPH*3017A** 0.98 0.98 58ME(B,C)060---12

CAP**2417A** 0.98 0.98 58CV(A,X)090---16

CNPV*3014A** 0.98 0.98 58CV(A,X)070---12

CSPH*2412A** 0.98 0.98 58CV(A,X)070---12

CSPH*3012A** 0.98 0.98 58CV(A,X)070---12

CAP**2417A** 0.98 0.98 58ME(B,C)080--- 12

CNPV*3117A** 0.98 0.94 58ME(B,C)060--- 12

CAP**3017A** 0.98 0.98 58CV(A,X)090---16

CAP**3017A** 0.98 0.98 58ME(B,C)080--- 12

CNPV*2417A** 0.98 0.98 58ME(B,C)080--- 12

CSPH*2412A** 0.98 0.98 58ME(B,C)060--- 12

CSPH*3012A** 0.98 0.98 58ME(B,C)060--- 12

CNPV*2417A** 0.98 0.98 58CV(A,X)090---16

CNPV*3017A** 0.98 0.98 58CV(A,X)090---16

CNPH*2417A** 0.98 0.98 58CV(A,X)090--- 16

CNPH*3017A** 0.98 0.98 58CV(A,X)090--- 16

CNPV*3017A** 0.98 0.98 58ME(B,C)080--- 12

CNPH*2417A** 0.98 0.98 58ME(B,C)080---12

CNPH*3017A** 0.98 0.98 58ME(B,C)080---12

CNPV*3117A** 0.98 0.94 58CV(A,X)090---16

CSPH*2412A** 0.98 0.98 58CV(A,X)090---16

CSPH*3012A** 0.98 0.98 58CV(A,X)090---16

CNPH*2417A** 0.98 0.98 58CV(A,X)110--- 20

CAP**2417A** 0.98 0.98 58MV(B,C)060--- 14

CNPV*3117A** 0.98 0.94 58ME(B,C)080--- 12

CNPH*3017A** 0.98 0.98 58CV(A,X)110--- 20

CAP**3017A** 0.98 0.98 58MV(B,C)060--- 14

CNPV*2417A** 0.98 0.98 58MV(B,C)060--- 14

CNPV*3017A** 0.98 0.98 58MV(B,C)060--- 14

CSPH*2412A** 0.98 0.98 58ME(B,C)080--- 12

CSPH*3012A** 0.98 0.98 58ME(B,C)080--- 12

CNPH*2417A** 0.98 0.98 58MV(B,C)060---14

CSPH*2412A** 0.98 0.98 58CV(A,X)110---20

CSPH*3012A** 0.98 0.98 58CV(A,X)110---20

CSPH*2412A** 0.98 0.98 58CV(A,X)135---22

CNPH*2417A** 0.98 0.98 58CV(A,X)135--- 22

CNPH*3017A** 0.98 0.98 58CV(A,X)135--- 22

CNPV*3117A** 0.98 0.94 58MV(B,C)060--- 14

CSPH*2412A** 0.98 0.98 58MV(B,C)060--- 14

CSPH*3012A** 0.98 0.98 58MV(B,C)060--- 14

CSPH*2412A** 0.98 0.98 58MV(B,C)080--- 14

CSPH*3012A** 0.98 0.98 58MV(B,C)080--- 14

CSPH*2412A** 0.98 0.98 58MV(B,C)080--- 20

CNPH*3017A** 0.98 0.98 58MV(B,C)060---14

CSPH*3012A** 0.98 0.98 58CV(A,X)135---22

CNPH*2417A** 0.98 0.98 58CV(A,X)155--- 22

CNPH*3017A** 0.98 0.98 58CV(A,X)155--- 22

CNPH*2417A** 0.98 0.98 58MV(B,C)080---14

CNPH*3017A** 0.98 0.98 58MV(B,C)080---14

CAP**3619A** 1.00 1.00 58HDV040--- ---12

CAP**3619A** 1.00 1.00 58HDV060--- ---12

CAP**2417A** 0.98 0.98 58ME(B,C)040--- 12

CSPH*2412A** 0.98 0.98 58CV(A,X)155---22

CSPH*3012A** 0.98 0.98 58CV(A,X)155---22

CAP**3017A** 0.98 0.98 58ME(B,C)040--- 12

CNPH*2417A** 0.98 0.98 58ME(B,C)040---12

CSPH*3012A** 0.98 0.98 58MV(B,C)080--- 20

CNPH*2417A** 0.97 0.97 58MV(B,C)080---20

CNPH*3017A** 0.98 0.98 58MV(B,C)080---20

CNPH*2417A** 0.98 0.98 58MV(B,C)100---20

CNPV*2417A** 0.98 0.98 58ME(B,C)040--- 12

CNPV*3017A** 0.98 0.98 58ME(B,C)040--- 12

CNPV*3117A** 0.98 0.94 58ME(B,C)040--- 12

CNPH*3017A** 0.98 0.98 58ME(B,C)040---12

CSPH*2412A** 0.98 0.98 58ME(B,C)040--- 12

CONTINUED

EVAPORATOR AIR

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l

Capacity MBtuh

System

EWB

CFM

KW**

Tot a l Sens‡ Tot a l Sens‡ Tot a l Sens‡ Tot al Sens‡ To t al Sens‡ Tota l Sens‡

°F(°C)

72 (22.2) 28.25 14.67 1.50 27.04 14.21 1.70 25.76 13.71 1.91 24.38 13.19 2.15 22.88 12.63 2.41 21.23 12.03 2.71

67 (19.4) 25.63 17.92 1.48 24.52 17.44 1.67 23.33 16.94 1.88 22.05 16.40 2.12 20.66 15.83 2.38 19.12 15.20 2.68

62 (16.7) 23.28 21.08 1.46 22.25 20.58 1.65 21.17 20.06 1.87 20.00 19.48 2.10 18.77 18.68 2.37 17.59 17.59 2.68

57 (13.9) 22.30 22.30 1.46 21.50 21.50 1.65 20.65 20.65 1.86 19.72 19.72 2.10 18.70 18.70 2.37 17.56 17.56 2.68

72 (22.2) 28.87 15.41 1.53 27.60 14.93 1.73 26.26 14.44 1.94 24.83 13.91 2.17 23.27 13.34 2.44 21.57 12.73 2.73

67 (19.4) 26.21 19.09 1.50 25.04 18.60 1.69 23.80 18.09 1.90 22.47 17.55 2.14 21.02 16.96 2.40 19.44 16.32 2.71

62 (16.7) 23.85 22.64 1.48 22.80 22.10 1.68 21.69 21.51 1.89 20.58 20.58 2.12 19.49 19.49 2.39 18.28 18.28 2.70

63 (17.2)†† 23.76 17.24 1.46 22.71 16.76 1.66 21.59 16.25 1.87 20.38 15.71 2.10 19.07 15.13 2.37 17.61 14.49 2.68

700

63 (17.2)†† 24.31 18.34 1.48 23.21 17.84 1.68 22.04 17.33 1.89 20.78 16.77 2.12 19.42 16.18 2.39 17.92 15.53 2.70

800

57 (13.9) 23.30 23.30 1.48 22.45 22.45 1.67 21.53 21.53 1.89 20.55 20.55 2.12 19.46 19.46 2.39 18.26 18.26 2.70

DETAILED COOLING CAPACITIES

CAPACITY POWER FURN AC E MODEL

72 (22.2) 29.34 16.11 1.56 28.03 15.63 1.75 26.65 15.12 1.96 25.17 14.59 2.20 23.56 14.01 2.46 21.82 13.39 2.76

67 (19.4) 26.65 20.21 1.52 25.44 19.71 1.72 24.16 19.19 1.93 22.79 18.63 2.16 21.30 18.03 2.43 19.68 17.38 2.73

62 (16.7) 24.35 24.04 1.50 23.29 23.29 1.70 22.31 22.31 1.91 21.27 21.27 2.15 20.12 20.12 2.41 18.86 18.86 2.72

57 (13.9) 24.14 24.14 1.50 23.24 23.24 1.70 22.28 22.28 1.91 21.24 21.24 2.15 20.10 20.10 2.41 18.84 18.84 2.72

63 (17.2)†† 24.73 19.38 1.50 23.59 18.88 1.70 22.39 18.35 1.91 21.09 17.78 2.14 19.69 17.17 2.41 18.16 16.50 2.71

MODEL

FE4ANF002 0.99 0.99

FF1ENP024 0.98 1.11

FF1ENP025 0.99 1.03

FF1ENP030 0.98 1.09

FF1ENP031 0.99 1.03

FF1ENP037 0.99 0.99

900

COOLING INDOOR

FV4BNF002 0.99 0.99

*FX4DNF025 1.00 1.00

FE4AN(B,F)003 0.99 0.95

FV4CNF002 0.99 0.99

FV4BN(B,F)003 0.99 0.99

FV4CN(B,F)003 0.99 0.99

FY4ANF024 0.98 1.11

FY4ANF030 0.99 1.08

FY5BNF024 0.98 1.02

FX4CNF024 0.99 1.03

FX4CNF030 0.99 0.99

FX4DN(B,F)031 1.00 1.00

FY5BNF030 0.98 1.02

CAP**2414A** 0.98 1.09

CAP**2417A** 0.98 1.09

CAP**3014A** 0.98 1.09

CAP**3017A** 0.98 1.09

CNPF*2418A** 0.98 1.09

CNPV*2414A** 0.98 1.09

CNPV*2417A** 0.98 1.09

CNPV*3014A** 0.98 1.09

CNPH*2417A** 0.98 1.09

CNPH*3017A** 0.98 1.09

CNPV*3017A** 0.98 1.09

FB4CNF024 0.98 1.02

FB4CNF030 0.98 0.98

CAP**2414A** 0.98 0.98 58CV(A,X)070---12

CNPV*3117A** 0.98 1.06

CSPH*2412A** 0.98 1.09

CSPH*3012A** 0.98 1.09

CAP**3014A** 0.98 0.98 58CV(A,X)070---12

Page 39

25HBC524A** 30 Outdoor Section With FX4DN F025 Indoor Section

CONTINUED

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

25HBC5

MODEL

CNPV*3017A** 0.99 1.03 59*P5A040E14**10

CAP**2417A** 0.98 0.95 59*P5A060E17**14

CNPV*3117A** 0.99 1.02 59*P5A040E14**10

CAP**3017A** 0.98 0.95 59*P5A060E17**14

CSPH*2412A** 0.98 1.04 59*P5A040E14**10

CSPH*3012A** 0.99 1.03 59*P5A040E14**10

CNPV*2417A** 0.97 0.95 59*P5A060E17**14

CNPV*3017A** 0.98 0.95 59*P5A060E17**14

CNPV*3117A** 0.99 0.95 59*P5A060E17**14

CSPH*2412A** 0.98 0.95 59*P5A060E17**14

CNPH*2417A** 0.97 0.95 59*P5A060E17**14

CNPH*3017A** 0.98 0.95 59*P5A060E17**14

CNPH*3117A** 0.99 0.95 59*P5A060E17**14

CSPH*3012A** 0.98 0.95 59*P5A060E17**14

Seenoteonpg.48

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CSPH*2412A** 0.98 0.98 58MV(B,C)100--- 20

CSPH*3012A** 0.98 0.98 58MV(B,C)100--- 20

CSPH*2412A** 0.98 0.98 58MV(B,C)120--- 20

CNPH*3017A** 0.98 0.98 58MV(B,C)100---20

CSPH*3012A** 0.98 0.98 58MV(B,C)120--- 20

CNPH*2417A** 0.98 0.98 58MV(B,C)120---20

CNPH*3017A** 0.98 0.98 58MV(B,C)120---20

CNPH*2417A** 0.98 0.98 58MVB040 ---14

CAP**2414A** 0.98 0.98 58PH*045--- 08

CAP**3014A** 0.98 0.98 58PH*045--- 08

CSPH*2412A** 0.98 0.98 58MVB040---14

CSPH*3012A** 0.98 0.98 58MVB040---14

CNPH*3017A** 0.98 0.98 58MVB040 ---14

CNPH*2417A** 0.98 1.02 58PH*045 ---08

DETAILED COOLING CAPACITIES

CAP**2417A** 0.97 0.95 59*N*A060V17**14

CNPV*2414A** 0.98 0.98 58PH*045--- 08

CNPV*3014A** 0.98 0.98 58PH*045--- 08

CNPH*3017A** 0.98 0.98 58PH*045 ---08

CAP**3017A** 0.98 0.95 59*N*A060V17**14

CSPH*2412A** 0.98 0.98 58PH*045--- 08

CSPH*3012A** 0.98 0.98 58PH*045--- 08

CNPV*2417A** 0.97 0.96 59*N*A060V17**14

CNPH*2417A** 0.97 0.96 59*N*A060V17**14

CNPV*3017A** 0.98 0.95 59*N*A060V17**14

CNPH*3017A** 0.98 0.95 59*N*A060V17**14

CNPH*3117A** 0.99 0.95 59*N*A060V17**14

CAP**2417A** 0.97 0.94 59*N*A080V17**14

CNPV*3117A** 0.99 0.95 59*N*A060V17**14

CAP**3017A** 0.98 0.94 59*N*A080V17**14

CSPH*2412A** 0.98 0.97 59*N*A060V17**14

CSPH*3012A** 0.98 0.96 59*N*A060V17**14

CNPV*2417A** 0.97 0.95 59*N*A080V17**14

CNPV*3017A** 0.98 0.94 59*N*A080V17**14

CNPV*3117A** 0.99 0.95 59*N*A080V17**14

CSPH*2412A** 0.98 0.95 59*N*A080V17**14

CNPH*2417A** 0.97 0.95 59*N*A080V17**14

CNPH*3017A** 0.98 0.94 59*N*A080V17**14

CNPH*3117A** 0.99 0.95 59*N*A080V17**14

CSPH*3012A** 0.98 0.95 59*N*A080V17**14

CSPH*2412A** 0.99 0.97 59*N*A100V21**20

CNPH*2417A** 0.98 0.96 59*N*A100V21**20

CSPH*3012A** 0.99 0.96 59*N*A100V21**20

CNPH*3017A** 0.99 0.96 59*N*A100V21**20

CNPH*3117A** 0.99 0.95 59*N*A100V21**20

CNPH*2417A** 0.98 0.95 59*N*A120V24**22

CNPH*3017A** 0.98 0.94 59*N*A120V24**22

CAP**2414A** 0.98 1.03 59*P5A040E14**10

CAP**2417A** 0.98 1.03 59*P5A040E14**10

CAP**3014A** 0.98 1.04 59*P5A040E14**10

CSPH*2412A** 0.99 0.97 59*N*A120V24**22

CSPH*3012A** 0.99 0.95 59*N*A120V24**22

CNPH*3117A** 0.99 0.95 59*N*A120V24**22

CAP**3017A** 0.99 1.03 59*P5A040E14**10

CNPV*2414A** 0.98 1.03 59*P5A040E14**10

CNPV*2417A** 0.98 1.03 59*P5A040E14**10

CNPH*2417A** 0.98 1.03 59*P5A040E14**10

CNPH*3017A** 0.99 1.03 59*P5A040E14**10

CNPV*3014A** 0.98 1.04 59*P5A040E14**10

CNPH*3117A** 0.99 1.01 59*P5A040E14**10

Page 40

Tot a l

Capacity MBtuh

KW**

System

KW**

System

CAPACITY POWER FURN AC E MODEL

Capacity MBtuh

25HBC5

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C )

Capacity MBtuh

25HBC530A** 30 Outdoor Section With FX4DN F031 Indoor Section

Tot a l

KW**

System

COOLING INDOOR

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CAP**3619A** 0.98 1.02 58HDV060--- ---12

CAP**3017A** 0.98 0.98 58ME(B,C)040--- 12

CAP**3617A** 0.98 0.98 58ME(B,C)040--- 12

CNPV*3017A** 0.98 0.98 58ME(B,C)040--- 12

CNPV*3117A** 1.01 0.97 58ME(B,C)040--- 12

CNPH*3017A** 0.98 0.98 58ME(B,C)040---12

MODEL

CAP**3014A** 0.97 1.01 58CV(A,X)070---12

CNPV*3717A** 1.01 1.09

CSPH*3012A** 0.97 1.09

CSPH*3612A** 0.97 1.09

CNPV*3617A** 0.98 0.98 58ME(B,C)040--- 12

CNPH*3617A** 0.98 0.98 58ME(B,C)040---12

CAP**3614A** 0.97 1.01 58CV(A,X)070---12

CNPV*3014A** 0.97 1.01 58CV(A,X)070---12

CNPH*3017A** 0.97 1.01 58CV(A,X)070--- 12

CNPH*3617A** 0.97 1.01 58CV(A,X)070--- 12

CAP**3017A** 0.98 0.98 58ME(B,C)060--- 12

CNPV*3717A** 1.01 0.97 58ME(B,C)040--- 12

CSPH*3012A** 0.97 1.01 58CV(A,X)070---12

CAP**3617A** 0.98 0.98 58ME(B,C)060--- 12

CNPV*3017A** 0.98 0.98 58ME(B,C)060--- 12

CNPV*3117A** 1.01 1.01 58ME(B,C)060--- 12

CSPH*3012A** 0.98 0.98 58ME(B,C)040--- 12

CSPH*3612A** 0.98 0.98 58ME(B,C)040--- 12

CNPH*3017A** 0.98 0.98 58ME(B,C)060---12

CAP**3017A** 0.97 0.97 58CV(A,X)090---16

CAP**3617A** 0.97 0.97 58CV(A,X)090---16

CSPH*3612A** 0.97 1.01 58CV(A,X)070---12

CNPH*3017A** 0.97 0.97 58CV(A,X)090--- 16

CNPH*3617A** 0.97 0.97 58CV(A,X)090--- 16

CNPV*3617A** 0.98 0.98 58ME(B,C)060--- 12

CNPH*3617A** 0.98 0.98 58ME(B,C)060---12

CNPV*3017A** 0.97 0.97 58CV(A,X)090---16

CNPV*3117A** 0.99 0.99 58CV(A,X)090---16

CNPV*3617A** 0.97 0.97 58CV(A,X)090---16

CNPV*3717A** 1.01 0.97 58CV(A,X)090---16

CAP**3017A** 0.98 0.98 58ME(B,C)080--- 12

CNPV*3717A** 1.01 0.97 58ME(B,C)060--- 12

CSPH*3012A** 0.97 0.97 58CV(A,X)090---16

CAP**3617A** 0.98 0.98 58ME(B,C)080--- 12

CNPV*3017A** 0.98 0.98 58ME(B,C)080--- 12

CNPV*3117A** 1.01 1.01 58ME(B,C)080--- 12

CSPH*3012A** 0.98 0.98 58ME(B,C)060--- 12

CSPH*3612A** 0.98 0.98 58ME(B,C)060--- 12

CNPH*3017A** 0.98 0.98 58ME(B,C)080---12

CAP**3621A** 0.97 0.97 58CV(A,X)110---20

CSPH*3612A** 0.97 0.97 58CV(A,X)090---16

CNPV*3621A** 0.97 0.97 58CV(A,X)110---20

CNPH*3017A** 0.97 0.97 58CV(A,X)110--- 20

CNPH*3617A** 0.97 0.97 58CV(A,X)110--- 20

CNPV*3617A** 0.98 0.98 58ME(B,C)080--- 12

CNPH*3617A** 0.98 0.98 58ME(B,C)080---12

CSPH*3012A** 0.97 0.97 58CV(A,X)110---20

CSPH*3612A** 0.97 0.97 58CV(A,X)110---20

CNPH*3017A** 0.97 0.97 58CV(A,X)135--- 22

CNPH*3617A** 0.97 0.97 58CV(A,X)135--- 22

CAP**3017A** 0.98 0.98 58ME(B,C)080--- 16

CNPV*3717A** 1.02 0.98 58ME(B,C)080--- 12

CSPH*3012A** 0.97 0.97 58CV(A,X)135---22

CAP**3617A** 0.98 0.98 58ME(B,C)080--- 16

CNPV*3017A** 0.98 0.98 58ME(B,C)080--- 16

CSPH*3012A** 0.98 0.98 58ME(B,C)080--- 12

CSPH*3612A** 0.98 0.98 58ME(B,C)080--- 12

CSPH*3612A** 0.97 0.97 58CV(A,X)135---22

CSPH*3012A** 0.97 0.97 58CV(A,X)155---22

CNPH*3017A** 0.97 0.97 58CV(A,X)155--- 22

CNPH*3617A** 0.97 0.97 58CV(A,X)155--- 22

CNPV*3117A** 1.01 1.01 58ME(B,C)080--- 16

CNPH*3017A** 0.98 0.98 58ME(B,C)080---16

CNPH*3617A** 0.98 0.98 58ME(B,C)080---16

CAP**3619A** 0.97 1.01 58HDV040--- ---12

CAP**3619A** 0.97 1.01 58HDV060--- ---12

CSPH*3612A** 0.97 0.97 58CV(A,X)155---22

CONTINUED

EVAPORATOR AIR

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l

Capacity MBtuh

System

EWB

CFM

KW**

Tot a l Sens‡ Tot a l Sens‡ Tot al Sens‡ Tot a l Sens‡ Tot al Sens‡ Tota l Sens‡

°F(°C)

72 (22.2) 34.40 17.74 1.83 32.81 17.14 2.05 31.16 16.52 2.29 29.42 15.88 2.56 27.55 15.20 2.87 25.53 14.48 3.23

67 (19.4) 31.23 21.80 1.82 29.80 21.20 2.04 28.29 20.57 2.28 26.69 19.93 2.55 24.96 19.24 2.86 23.10 18.49 3.22

62 (16.7) 28.38 25.74 1.81 27.09 25.12 2.03 25.75 24.46 2.26 24.33 23.73 2.54 22.91 22.91 2.86 21.51 21.51 3.22

57 (13.9) 27.40 27.40 1.81 26.39 26.39 2.02 25.32 25.32 2.26 24.15 24.15 2.54 22.88 22.88 2.86 21.48 21.48 3.22

72 (22.2) 35.08 18.63 1.86 33.43 18.02 2.08 31.71 17.39 2.32 29.89 16.74 2.59 27.95 16.05 2.90 25.86 15.32 3.25

67 (19.4) 31.88 23.23 1.85 30.37 22.61 2.06 28.80 21.98 2.30 27.13 21.31 2.58 25.35 20.60 2.89 23.43 19.84 3.24

62 (16.7) 29.06 27.61 1.84 27.73 26.92 2.05 26.39 26.39 2.29 25.13 25.13 2.57 23.77 23.77 2.88 22.28 22.28 3.24

63 (17.2)†† 28.95 20.97 1.81 27.62 20.37 2.03 26.22 19.74 2.27 24.73 19.09 2.54 23.11 18.39 2.86 21.35 17.64 3.22

875

63 (17.2)†† 29.57 22.30 1.84 28.18 21.68 2.05 26.71 21.05 2.29 25.16 20.38 2.57 23.49 19.66 2.88 21.67 18.88 3.24

1000

57 (13.9) 28.58 28.58 1.84 27.49 27.49 2.05 26.34 26.34 2.29 25.10 25.10 2.57 23.74 23.74 2.88 22.26 22.26 3.24

DETAILED COOLING CAPACITIES

CAPACITY POWER FURN AC E MODEL

72 (22.2) 35.61 19.48 1.89 33.89 18.86 2.11 32.11 18.22 2.35 30.24 17.56 2.62 28.25 16.86 2.93 26.10 16.12 3.28

67 (19.4) 32.37 24.59 1.87 30.81 23.96 2.09 29.18 23.31 2.33 27.47 22.63 2.60 25.64 21.90 2.91 23.68 21.10 3.27

62 (16.7) 29.68 29.51 1.86 28.45 28.45 2.08 27.22 27.22 2.32 25.91 25.91 2.60 24.49 24.49 2.91 22.92 22.92 3.27

57 (13.9) 29.56 29.56 1.86 28.41 28.41 2.08 27.19 27.19 2.32 25.88 25.88 2.59 24.46 24.46 2.91 22.89 22.89 3.27

63 (17.2)†† 30.05 23.56 1.86 28.60 22.94 2.08 27.09 22.29 2.32 25.49 21.60 2.59 23.78 20.86 2.91 21.93 20.05 3.27

1125

COOLING INDOOR

MODEL

FB4CNF030 0.98 1.02

*FX4D N(B,F)0 31 1.00 1.00

FE4ANF002 0.98 0.98

FF1ENP030 0.96 1.07

FF1ENP031 0.98 1.02

FF1ENP036 0.98 1.09

FF1ENP037 0.99 1.03

FV4BNF002 0.98 0.98

FB4CNF036 0.98 1.02

FE4AN(B,F)003 0.99 0.99

FE4AN(B,F)005 1.01 0.97

FV4BN(B,F)003 0.99 0.99

FV4BN(B,F)005 1.01 0.97

FV4CNF002 0.98 0.98

FV4CN(B,F)003 0.99 0.99

FV4CN(B,F)005 1.01 0.97

FY4ANF030 0.97 1.08

FY4ANF036 0.97 1.09

FY5BNF030 0.99 1.03

FX4CNF030 0.98 1.02

FX4CN(B,F)036 0.99 1.03

FX4DN(B,F)037 1.01 1.01

FY5BNF036 0.98 1.06

CAP**3014A** 0.97 1.09

CAP**3017A** 0.97 1.09

CAP**3614A** 0.97 1.09

CAP**3617A** 0.97 1.09

CAP**3619A** 0.97 1.09

CAP**3621A** 0.97 1.09

CNPF*3618A** 0.97 1.09

CNPV*3014A** 0.97 1.09

CNPV*3017A** 0.97 1.09

CNPV*3117A** 1.00 1.09

CNPV*3617A** 0.97 1.09

CNPH*3017A** 0.97 1.09

CNPH*3617A** 0.97 1.09

CNPV*3621A** 0.97 1.09

Page 41

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**3619A** 0.99 1.01 59*P5A080E17**16

CAP**3621A** 0.99 1.01 59*P5A080E17**16

CNPV*3017A** 0.99 1.00 59*P5A080E17**16

CNPV*3117A** 1.01 0.99 59*P5A080E17**16

CNPV*3617A** 0.99 1.00 59*P5A080E17**16

CNPV*3621A** 0.99 1.01 59*P5A080E17**16

CNPV*3717A** 1.03 1.00 59*P5A080E17**16

CSPH*3012A** 0.99 1.01 59*P5A080E17**16

CNPH*3017A** 0.99 1.00 59*P5A080E17**16

CNPH*3117A** 1.01 0.99 59*P5A080E17**16

CNPH*3617A** 0.99 1.00 59*P5A080E17**16

CSPH*3612A** 1.01 0.99 59*P5A080E17**16

Seenoteonpg.48

25HBC5

25HBC530A** 30 Outdoor Section With FX4DN F031 Indoor Section

CONTINUED

DETAILED COOLING CAPACITIES

COOLING INDOOR

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CAP**3619A** 0.98 1.00 59*N*A060V17**14

CAP**3621A** 0.98 1.00 59*N*A060V17**14

MODEL

CNPV*3617A** 0.98 0.98 58ME(B,C)080--- 16

CNPV*3717A** 1.03 0.99 58ME(B,C)080--- 16

CNPV*3017A** 0.97 0.99 59*N*A060V17**14

CNPV*3117A** 0.99 1.01 59*N*A060V17**14

CNPV*3617A** 0.97 0.99 59*N*A060V17**14

CNPH*3017A** 0.97 0.99 59*N*A060V17**14

CNPH*3117A** 0.99 1.01 59*N*A060V17**14

CNPH*3617A** 0.97 0.99 59*N*A060V17**14

CAP**3017A** 0.97 0.97 58MV(B,C)060--- 14

CSPH*3012A** 0.98 1.02 58ME(B,C)080--- 16

CSPH*3612A** 0.98 0.98 58ME(B,C)080--- 16

CNPV*3621A** 0.97 0.99 59*N*A060V17**14

CAP**3617A** 0.97 0.97 58MV(B,C)060--- 14

CNPV*3017A** 0.97 0.97 58MV(B,C)060--- 14

CNPH*3017A** 0.97 0.97 58MV(B,C)060---14

CNPH*3617A** 0.97 0.97 58MV(B,C)060---14

CAP**3017A** 0.98 1.00 59*N*A080V17**14

CAP**3617A** 0.98 1.00 59*N*A080V17**14

CAP**3619A** 0.98 1.00 59*N*A080V17**14

CNPV*3717A** 1.01 0.98 59*N*A060V17**14

CSPH*3012A** 0.98 1.00 59*N*A060V17**14

CSPH*3612A** 0.99 1.01 59*N*A060V17**14

CNPV*3117A** 1.00 1.00 58MV(B,C)060--- 14

CNPV*3617A** 0.97 0.97 58MV(B,C)060--- 14

CNPV*3717A** 1.01 0.97 58MV(B,C)060--- 14

CAP**3621A** 0.99 1.00 59*N*A080V17**14

CAP**3621A** 0.97 0.97 58MV(B,C)080--- 14

CSPH*3012A** 0.97 0.97 58MV(B,C)060--- 14

CSPH*3612A** 0.97 0.97 58MV(B,C)060--- 14

CNPH*3017A** 0.97 1.01 58MV(B,C)080---14

CNPV*3017A** 0.98 1.00 59*N*A080V17**14

CNPV*3117A** 1.00 0.98 59*N*A080V17**14

CNPV*3617A** 0.98 1.00 59*N*A080V17**14

CNPH*3017A** 0.98 1.00 59*N*A080V17**14

CNPH*3117A** 1.00 0.98 59*N*A080V17**14

CNPH*3617A** 0.98 1.00 59*N*A080V17**14

CNPV*3621A** 0.97 0.97 58MV(B,C)080--- 14

CNPV*4221A** 0.97 0.97 58MV(B,C)080--- 14

CNPH*3617A** 0.97 0.97 58MV(B,C)080---14

CNPV*3621A** 0.98 1.00 59*N*A080V17**14

CAP**3621A** 0.97 0.97 58MV(B,C)080--- 20

CSPH*3012A** 0.97 1.01 58MV(B,C)080--- 14

CSPH*3612A** 0.97 0.97 58MV(B,C)080--- 14

CNPH*3017A** 0.97 1.01 58MV(B,C)080---20

CAP**3619A** 0.99 1.00 59*N*A100V21**20

CNPV*3717A** 1.01 0.99 59*N*A080V17**14

CNPH*3617A** 0.97 0.97 58MV(B,C)080---20

CAP**3621A** 0.99 0.96 59*N*A100V21**20

CSPH*3012A** 0.99 1.00 59*N*A080V17**14

CSPH*3612A** 1.00 0.98 59*N*A080V17**14

CAP**3621A** 0.97 0.97 58MV(B,C)100--- 20

CNPV*3621A** 0.97 0.97 58MV(B,C)080--- 20

CSPH*3012A** 0.97 1.01 58MV(B,C)080--- 20

CSPH*3612A** 0.97 0.97 58MV(B,C)080--- 20

CNPV*3621A** 0.99 1.00 59*N*A100V21**20

CSPH*3012A** 0.99 1.00 59*N*A100V21**20

CNPH*3017A** 0.99 1.00 59*N*A100V21**20

CNPH*3117A** 1.01 0.98 59*N*A100V21**20

CNPH*3017A** 0.97 1.01 58MV(B,C)100---20

CNPH*3617A** 0.97 0.97 58MV(B,C)100---20

CSPH*3612A** 1.01 0.98 59*N*A100V21**20

CNPH*3617A** 0.99 1.00 59*N*A100V21**20

CNPV*3621A** 0.97 0.97 58MV(B,C)100--- 20

CSPH*3012A** 0.97 1.01 58MV(B,C)100--- 20

CSPH*3612A** 0.97 0.97 58MV(B,C)100--- 20

CNPH*3017A** 0.97 0.97 58MV(B,C)120---20

CSPH*3012A** 0.99 1.00 59*N*A120V24**22

CNPH*3017A** 0.99 0.96 59*N*A120V24**22

CNPH*3617A** 0.97 0.97 58MV(B,C)120---20

CSPH*3612A** 1.01 0.98 59*N*A120V24**22

CNPH*3117A** 1.01 0.98 59*N*A120V24**22

CNPH*3617A** 0.99 0.96 59*N*A120V24**22

CNPH*3117A** 0.99 1.10 59*P5A040E14**10

CSPH*3012A** 0.97 0.97 58MV(B,C)120--- 20

CSPH*3612A** 0.97 0.97 58MV(B,C)120--- 20

CSPH*3012A** 0.97 1.01 58MVB040---14

CNPH*3017A** 0.97 1.01 58MVB040 ---14

CNPH*3617A** 0.97 1.01 58MVB040 ---14

CAP**3017A** 0.98 1.00 59*P5A060E17**14

CAP**3617A** 0.99 1.00 59*P5A060E17**14

CAP**3619A** 0.99 1.00 59*P5A060E17**14

CNPV*3117A** 0.99 1.10 59*P5A040E14**10

CNPV*3717A** 1.01 1.12 59*P5A040E14**10

CSPH*3612A** 0.99 1.10 59*P5A040E14**10

CAP**3017A** 0.97 1.01 58PH*070--- 16

CAP**3617A** 0.98 1.02 58PH*070--- 16

CSPH*3612A** 0.97 1.01 58MVB040---14

CAP**3621A** 0.99 1.00 59*P5A060E17**14

CNPV*3017A** 0.97 1.01 58PH*070--- 16

CNPV*3117A** 1.00 1.00 58PH*070--- 16

CNPH*3017A** 0.97 1.01 58PH*070 ---16

CNPH*3617A** 0.97 1.01 58PH*070 ---16

CNPV*3017A** 0.98 1.00 59*P5A060E17**14

CNPV*3117A** 1.01 1.02 59*P5A060E17**14

CNPV*3617A** 0.98 1.00 59*P5A060E17**14

CNPH*3017A** 0.98 1.00 59*P5A060E17**14

CNPH*3117A** 1.01 1.02 59*P5A060E17**14

CNPH*3617A** 0.98 1.00 59*P5A060E17**14

CNPV*3617A** 0.97 1.01 58PH*070--- 16

CNPV*3717A** 1.01 1.01 58PH*070--- 16

CSPH*3012A** 0.97 1.01 58PH*070--- 16

CNPV*3621A** 0.98 1.00 59*P5A060E17**14

CAP**3621A** 0.98 0.98 58PH*090--- 16

CSPH*3612A** 0.98 1.02 58PH*070--- 16

CNPH*3017A** 0.97 1.01 58PH*090 ---16

CNPH*3617A** 0.98 0.98 58PH*090 ---16

CAP**3017A** 0.99 1.00 59*P5A080E17**16

CNPV*3717A** 1.02 1.00 59*P5A060E17**14

CNPV*3621A** 0.98 0.98 58PH*090--- 16

CAP**3617A** 0.99 1.01 59*P5A080E17**16

CSPH*3012A** 0.99 1.00 59*P5A060E17**14

CSPH*3612A** 1.01 1.02 59*P5A060E17**14

CAP**3017A** 0.97 0.99 59*N*A060V17**14

CAP**3617A** 0.98 1.00 59*N*A060V17**14

CSPH*3012A** 0.97 1.01 58PH*090--- 16

CSPH*3612A** 0.98 0.98 58PH*090--- 16

Page 42

Tot a l

Capacity MBtuh

KW**

System

KW**

System

CAPACITY POWER FURN AC E MODEL

Capacity MBtuh

25HBC5

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C )

Capacity MBtuh

25HBC536A** 30 Outdoor Section With FX4DN F037 Indoor Section

Tot a l

KW**

System

COOLING INDOOR

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CAP**3619A** 0.95 1.08 58HDV040--- ---12

CAP**3619A** 0.96 1.04 58HDV060--- ---12

CAP**4224A** 0.98 1.02 58HDV100--- ---20

CAP**3617A** 0.97 1.01 58ME(B,C)040--- 12

CNPV*4324A** 1.02 1.02 58HDV100--- ---20

MODEL

CNPV*4221A** 0.97 1.08

CAP**3614A** 0.95 1.04 58CV(A,X)070---12

CNPV*4324A** 1.01 1.09

CSPH*3612A** 0.97 1.10

CSPH*4212A** 0.97 1.08

CNPH*3617A** 0.95 1.04 58CV(A,X)070--- 12

CNPV*3617A** 0.96 1.00 58ME(B,C)040--- 12

CNPV*3717A** 1.01 1.01 58ME(B,C)040--- 12

CNPH*3617A** 0.96 1.00 58ME(B,C)040---12

CNPH*4221A** 0.98 1.02 58ME(B,C)040---12

CAP**3617A** 0.96 1.00 58CV(A,X)090---16

CSPH*3612A** 0.96 1.00 58CV(A,X)070---12

CSPH*4212A** 0.97 1.01 58CV(A,X)070---12

CNPH*4221A** 0.97 1.01 58CV(A,X)070--- 12

CNPH*3617A** 0.96 1.00 58CV(A,X)090--- 16

CAP**3617A** 0.97 1.01 58ME(B,C)060--- 12

CNPV*4217A** 0.98 1.02 58ME(B,C)040--- 12

CSPH*3612A** 0.97 1.01 58ME(B,C)040--- 12

CSPH*4212A** 0.98 1.02 58ME(B,C)040--- 12

CNPV*3617A** 0.96 1.00 58CV(A,X)090---16

CNPV*3717A** 0.99 0.99 58CV(A,X)090---16

CNPH*4221A** 0.97 1.01 58CV(A,X)090--- 16

CNPV*3617A** 0.97 1.01 58ME(B,C)060--- 12

CNPV*3717A** 1.01 1.05 58ME(B,C)060--- 12

CNPH*3617A** 0.97 1.01 58ME(B,C)060---12

CNPH*4221A** 0.98 1.02 58ME(B,C)060---12

CAP**3621A** 0.96 1.00 58CV(A,X)110---20

CNPV*4217A** 0.98 1.02 58CV(A,X)090---16

CAP**4221A** 0.97 1.01 58CV(A,X)110---20

CSPH*3612A** 0.97 1.01 58CV(A,X)090---16

CSPH*4212A** 0.97 1.01 58CV(A,X)090---16

CAP**3617A** 0.97 1.01 58ME(B,C)080--- 12

CNPV*4217A** 0.98 1.02 58ME(B,C)060--- 12

CSPH*3612A** 0.97 1.01 58ME(B,C)060--- 12

CSPH*4212A** 0.98 1.02 58ME(B,C)060--- 12

CNPV*3621A** 0.96 1.00 58CV(A,X)110---20

CNPH*3617A** 0.96 1.00 58CV(A,X)110--- 20

CNPH*4221A** 0.97 1.01 58CV(A,X)110--- 20

CNPV*3617A** 0.96 1.00 58ME(B,C)080--- 12

CNPV*3717A** 1.00 1.04 58ME(B,C)080--- 12

CNPH*3617A** 0.96 1.00 58ME(B,C)080---12

CNPH*4221A** 0.98 1.02 58ME(B,C)080---12

CAP**4224A** 0.97 1.01 58CV(A,X)135---22

CNPV*4221A** 0.97 1.01 58CV(A,X)110---20

CSPH*3612A** 0.97 1.01 58CV(A,X)110---20

CSPH*4212A** 0.98 1.02 58CV(A,X)110---20

CNPH*3617A** 0.96 1.00 58CV(A,X)135--- 22

CAP**3617A** 0.97 1.01 58ME(B,C)080--- 16

CNPV*4217A** 0.98 1.02 58ME(B,C)080--- 12

CSPH*3612A** 0.97 1.01 58ME(B,C)080--- 12

CSPH*4212A** 0.98 1.02 58ME(B,C)080--- 12

CNPV*4324A** 1.00 1.00 58CV(A,X)135---22

CSPH*3612A** 0.97 1.01 58CV(A,X)135---22

CNPH*4221A** 0.97 1.01 58CV(A,X)135--- 22

CNPV*3617A** 0.96 1.00 58ME(B,C)080--- 16

CNPV*3717A** 1.01 1.05 58ME(B,C)080--- 16

CNPV*4217A** 0.98 1.02 58ME(B,C)080--- 16

CNPH*3617A** 0.96 1.00 58ME(B,C)080---16

CNPH*4221A** 0.98 1.02 58ME(B,C)080---16

CAP**4224A** 0.97 0.97 58CV(A,X)155---22

CSPH*4212A** 0.98 1.02 58CV(A,X)135---22

CNPH*3617A** 0.96 1.00 58CV(A,X)155--- 22

CSPH*3612A** 0.97 1.01 58ME(B,C)080--- 16

CNPV*4324A** 1.00 1.00 58CV(A,X)155---22

CSPH*3612A** 0.97 1.01 58CV(A,X)155---22

CSPH*4212A** 0.98 0.98 58CV(A,X)155---22

CNPH*4221A** 0.97 1.01 58CV(A,X)155--- 22

CONTINUED

EVAPORATOR AIR

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l

Capacity MBtuh

System

EWB

CFM

KW**

Tot a l Sens‡ Tot a l Sens‡ Tot al Sens‡ Tot a l Sens‡ Tot al Sens‡ Tota l Sens‡

°F(°C)

72 (22.2) 41.59 22.07 2.25 39.75 21.35 2.51 37.77 20.58 2.79 35.67 19.78 3.11 33.40 18.93 3.48 30.96 18.02 3.90

67 (19.4) 37.90 27.12 2.23 36.20 26.38 2.48 34.37 25.60 2.77 32.42 24.78 3.09 30.32 23.91 3.45 28.05 22.97 3.88

62 (16.7) 34.53 32.04 2.21 32.97 31.27 2.47 31.31 30.44 2.75 29.55 29.53 3.07 27.74 27.74 3.44 26.04 26.04 3.87

57 (13.9) 33.22 33.22 2.21 32.01 32.01 2.46 30.68 30.68 2.74 29.25 29.25 3.06 27.70 27.70 3.44 26.00 26.00 3.86

72 (22.2) 42.40 23.16 2.28 40.49 22.43 2.54 38.44 21.66 2.83 36.24 20.84 3.15 33.91 19.98 3.51 31.38 19.05 3.93

67 (19.4) 38.68 28.89 2.26 36.90 28.13 2.52 35.00 27.34 2.80 32.97 26.50 3.12 30.79 25.60 3.49 28.46 24.65 3.91

62 (16.7) 35.34 34.38 2.24 33.74 33.54 2.50 32.07 31.86 2.78 30.45 30.45 3.10 28.80 28.80 3.47 26.99 26.99 3.90

63 (17.2)†† 35.22 26.13 2.22 33.62 25.39 2.47 31.90 24.60 2.75 30.07 23.77 3.07 28.09 22.88 3.44 25.96 21.93 3.87

1050

63 (17.2)†† 35.97 27.78 2.25 34.30 27.02 2.50 32.52 26.22 2.78 30.61 25.37 3.10 28.56 24.46 3.47 26.36 23.49 3.90

1200

57 (13.9) 34.65 34.65 2.24 33.35 33.35 2.50 31.93 31.93 2.78 30.41 30.41 3.10 28.76 28.76 3.47 26.96 26.96 3.90

DETAILED COOLING CAPACITIES

CAPACITY POWER FURN AC E MODEL

72 (22.2) 43.03 24.20 2.31 41.06 23.46 2.58 38.93 22.68 2.86 36.68 21.85 3.18 34.27 20.98 3.55 31.68 20.04 3.96

67 (19.4) 39.27 30.57 2.29 37.43 29.81 2.55 35.47 29.00 2.83 33.38 28.14 3.15 31.16 27.22 3.52 28.76 26.23 3.94

62 (16.7) 36.05 36.44 2.28 34.51 34.51 2.53 33.01 33.01 2.81 31.41 31.41 3.14 29.67 29.67 3.51 27.77 27.77 3.93

57 (13.9) 35.84 35.84 2.28 34.46 34.46 2.53 32.97 32.97 2.81 31.37 31.37 3.14 29.63 29.63 3.51 27.74 27.74 3.93

63 (17.2)†† 36.55 29.35 2.28 34.82 28.58 2.53 32.98 27.76 2.81 31.02 26.89 3.13 28.92 25.95 3.50 26.67 24.94 3.93

1350

COOLING INDOOR

MODEL

FB4CNF036 0.97 1.05

FB4CNF042 1.00 1.04

*FX4D N(B,F)0 37 1.00 1.00

FE4ANF002 0.97 1.01

FF1ENP036 0.97 1.10

FF1ENP037 0.97 1.08

FE4ANB006 1.02 0.98

FE4AN(B,F)003 0.97 1.01

FE4AN(B,F)005 1.01 1.01

FV4BNF002 0.97 1.01

FV4BNB006 1.02 0.98

FV4BN(B,F)003 0.97 1.01

FV4BN(B,F)005 1.01 1.01

FV4CNF002 0.97 1.01

FV4CNB006 1.02 0.98

FV4CN(B,F)003 0.97 1.01

FV4CN(B,F)005 1.01 1.01

FY4ANF036 0.97 1.10

FY4ANF042 0.98 1.12

FY5BNF036 0.97 1.06

FY5BNF042 0.99 1.07

CAP**3614A** 0.95 1.08

CAP**3617A** 0.97 1.10

CAP**3619A** 0.97 1.10

CAP**3621A** 0.97 1.10

CAP**4221A** 0.97 1.08

FX4CN(B,F)036 0.98 1.02

FX4CN(B,F)042 0.99 1.04

FX4DN(B,F)043 1.00 1.00

CAP**4224A** 0.97 1.08

CNPF*3618A** 0.97 1.10

CNPV*3617A** 0.97 1.10

CNPV*3621A** 0.97 1.10

CNPV*3717A** 1.01 1.09

CNPH*3617A** 0.97 1.10

CNPH*4221A** 0.97 1.08

CNPV*4217A** 0.98 1.09

Page 43

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CNPV*3617A** 0.94 1.01 59*N*A060V17**14

CNPV*3621A** 0.94 1.01 59*N*A060V17**14

CNPV*3717A** 0.98 1.00 59*N*A060V17**14

CNPH*3617A** 0.94 1.01 59*N*A060V17**14

CNPH*4221A** 0.95 1.01 59*N*A060V17**14

CNPH*4321A** 0.98 1.00 59*N*A060V17**14

CNPV*4217A** 0.96 0.99 59*N*A060V17**14

CAP**3617A** 0.95 0.98 59*N*A080V17**14

CAP**3619A** 0.95 0.98 59*N*A080V17**14

CAP**3621A** 0.95 0.99 59*N*A080V17**14

CNPV*4221A** 0.95 1.01 59*N*A060V17**14

CSPH*3612A** 0.97 1.00 59*N*A060V17**14

CSPH*4212A** 0.97 1.00 59*N*A060V17**14

CAP**4221A** 0.96 0.99 59*N*A080V17**14

CNPV*3617A** 0.95 1.01 59*N*A080V17**14

CNPV*3621A** 0.95 0.98 59*N*A080V17**14

CNPV*3717A** 0.98 1.00 59*N*A080V17**14

CNPH*3617A** 0.95 1.01 59*N*A080V17**14

CNPH*4221A** 0.96 0.99 59*N*A080V17**14

CNPH*4321A** 0.99 1.00 59*N*A080V17**14

CNPV*4217A** 0.97 0.98 59*N*A080V17**14

CAP**3619A** 0.95 0.99 59*N*A100V21**20

CAP**3621A** 0.95 0.99 59*N*A100V21**20

CAP**4221A** 0.97 0.98 59*N*A100V21**20

CNPV*4221A** 0.96 0.99 59*N*A080V17**14

CSPH*3612A** 0.97 0.99 59*N*A080V17**14

CSPH*4212A** 0.98 0.99 59*N*A080V17**14

CAP**4224A** 0.97 0.98 59*N*A100V21**20

CNPV*3621A** 0.95 0.99 59*N*A100V21**20

CNPH*3617A** 0.95 0.99 59*N*A100V21**20

CNPV*4221A** 0.97 1.00 59*N*A100V21**20

CNPH*4221A** 0.97 1.00 59*N*A100V21**20

CNPH*4321A** 0.99 1.01 59*N*A100V21**20

CAP**4224A** 0.97 0.98 59*N*A120V24**22

CNPV*4324A** 0.99 0.97 59*N*A100V21**20

CSPH*3612A** 0.98 0.99 59*N*A100V21**20

CSPH*4212A** 0.98 1.00 59*N*A100V21**20

CNPV*4324A** 0.99 0.97 59*N*A120V24**22

CSPH*3612A** 0.98 0.99 59*N*A120V24**22

CNPH*3617A** 0.95 0.99 59*N*A120V24**22

CNPH*4221A** 0.97 0.98 59*N*A120V24**22

CSPH*4212A** 0.98 1.00 59*N*A120V24**22

CNPH*4321A** 0.99 0.97 59*N*A120V24**22

Seenoteonpg.48

25HBC5

CAPACITY POWER FURN AC E MODEL

MODEL

25HBC536A** 30 Outdoor Section With FX4DN F037 Indoor Section

COOLING INDOOR

CAP**3617A** 0.96 1.04 58PH*070--- 16

CNPV*3617A** 0.95 1.04 58PH*070--- 16

CSPH*3612A** 0.96 1.04 58PH*045--- 08

CSPH*4212A** 0.97 1.08 58PH*045--- 08

CNPH*4221A** 0.97 1.08 58PH*045 ---08

CNPV*3717A** 0.99 1.04 58PH*070--- 16

CNPH*3617A** 0.95 1.04 58PH*070 ---16

CNPH*4221A** 0.97 1.05 58PH*070 ---16

CAP**3621A** 0.97 1.01 58PH*090--- 16

CNPV*4217A** 0.98 1.02 58PH*070--- 16

CAP**4221A** 0.98 1.02 58PH*090--- 16

CSPH*3612A** 0.96 1.00 58PH*070--- 16

CSPH*4212A** 0.97 1.01 58PH*070--- 16

CNPV*3621A** 0.97 1.01 58PH*090--- 16

CNPH*3617A** 0.96 1.00 58PH*090 ---16

CNPH*4221A** 0.98 1.02 58PH*090 ---16

CAP**3621A** 0.98 1.02 58PH*110--- 20

CNPV*4221A** 0.98 1.02 58PH*090--- 16

CAP**4221A** 0.98 1.02 58PH*110--- 20

CSPH*3612A** 0.97 1.01 58PH*090--- 16

CSPH*4212A** 0.98 1.02 58PH*090--- 16

CNPV*3621A** 0.97 1.01 58PH*110--- 20

CNPH*3617A** 0.97 1.01 58PH*110 ---20

CNPH*4221A** 0.98 1.02 58PH*110 ---20

CAP**3617A** 0.96 1.02 59*P5A060E17**14

CAP**3619A** 0.96 1.02 59*P5A060E17**14

CAP**3621A** 0.96 1.02 59*P5A060E17**14

CNPV*4221A** 0.98 1.02 58PH*110--- 20

CSPH*3612A** 0.97 1.01 58PH*110--- 20

CSPH*4212A** 0.98 1.02 58PH*110--- 20

CAP**4221A** 0.97 1.02 59*P5A060E17**14

CNPV*3617A** 0.95 1.02 59*P5A060E17**14

CNPV*3621A** 0.95 1.02 59*P5A060E17**14

CNPV*3717A** 0.99 1.01 59*P5A060E17**14

CNPH*3617A** 0.95 1.02 59*P5A060E17**14

CNPH*4221A** 0.97 1.02 59*P5A060E17**14

CNPH*4321A** 1.00 1.02 59*P5A060E17**14

CNPV*4217A** 0.98 1.01 59*P5A060E17**14

CAP**3617A** 0.95 0.99 59*P5A080E17**16

CAP**3619A** 0.95 0.99 59*P5A080E17**16

CAP**3621A** 0.96 0.99 59*P5A080E17**16

CNPV*4221A** 0.97 1.02 59*P5A060E17**14

CSPH*3612A** 0.98 1.02 59*P5A060E17**14

CSPH*4212A** 0.99 1.02 59*P5A060E17**14

CAP**4221A** 0.97 1.00 59*P5A080E17**16

CNPV*3617A** 0.95 0.99 59*P5A080E17**16

CNPV*3621A** 0.95 0.99 59*P5A080E17**16

CNPV*3717A** 0.99 1.01 59*P5A080E17**16

CNPH*3617A** 0.95 0.99 59*P5A080E17**16

CNPH*4221A** 0.97 1.00 59*P5A080E17**16

CNPH*4321A** 0.99 1.01 59*P5A080E17**16

CNPV*4217A** 0.97 0.99 59*P5A080E17**16

CAP**3617A** 0.95 1.01 59*N*A060V17**14

CAP**3619A** 0.95 1.01 59*N*A060V17**14

CAP**3621A** 0.95 0.98 59*N*A060V17**14

CNPV*4221A** 0.97 1.00 59*P5A080E17**16

CSPH*3612A** 0.98 0.99 59*P5A080E17**16

CSPH*4212A** 0.98 1.00 59*P5A080E17**16

CAP**4221A** 0.95 0.99 59*N*A060V17**14

CONTINUED

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**3621A** 0.97 1.01 58ME(B,C)100--- 20

COOLING INDOOR

CAP**4221A** 0.98 1.02 58ME(B,C)100--- 20

CSPH*4212A** 0.98 1.02 58ME(B,C)080--- 16

CNPV*3621A** 0.96 1.00 58ME(B,C)100--- 20

CNPH*3617A** 0.96 1.00 58ME(B,C)100---20

CNPH*4221A** 0.97 1.01 58ME(B,C)100---20

CAP**3617A** 0.97 1.01 58MV(B,C)060--- 14

CNPV*4221A** 0.97 1.01 58ME(B,C)100--- 20

CSPH*3612A** 0.97 1.01 58ME(B,C)100--- 20

CSPH*4212A** 0.98 0.98 58ME(B,C)100--- 20

CNPV*3617A** 0.96 1.00 58MV(B,C)060--- 14

CNPV*3717A** 1.00 1.00 58MV(B,C)060--- 14

CNPH*3617A** 0.96 1.00 58MV(B,C)060---14

CNPH*4221A** 0.97 1.01 58MV(B,C)060---14

DETAILED COOLING CAPACITIES

CAP**3621A** 0.96 1.00 58MV(B,C)080--- 14

CNPV*4217A** 0.98 1.02 58MV(B,C)060--- 14

CAP**4221A** 0.97 1.01 58MV(B,C)080--- 14

CNPV*3621A** 0.95 1.04 58MV(B,C)080--- 14

CNPV*4221A** 0.97 1.01 58MV(B,C)080--- 14

CNPV*4324A** 1.00 1.02 58MV(B,C)080--- 14

CSPH*3612A** 0.97 1.01 58MV(B,C)060--- 14

CSPH*4212A** 0.98 1.02 58MV(B,C)060--- 14

CNPH*3617A** 0.95 1.04 58MV(B,C)080---14

CNPH*4221A** 0.97 1.01 58MV(B,C)080---14

CNPV*4821A** 0.98 1.02 58MV(B,C)080--- 14

CAP**3621A** 0.96 1.00 58MV(B,C)080--- 20

CNPV*6024A** 0.99 1.04 58MV(B,C)080--- 14

CAP**4221A** 0.97 1.01 58MV(B,C)080--- 20

CNPV*3621A** 0.95 0.99 58MV(B,C)080--- 20

CSPH*3612A** 0.96 1.00 58MV(B,C)080--- 14

CSPH*4212A** 0.97 1.01 58MV(B,C)080--- 14

CNPV*4221A** 0.97 1.01 58MV(B,C)080--- 20

CNPH*3617A** 0.95 1.04 58MV(B,C)080---20

CNPH*4221A** 0.97 1.01 58MV(B,C)080---20

CAP**3621A** 0.97 1.01 58MV(B,C)100--- 20

CNPV*4324A** 0.99 0.99 58MV(B,C)080--- 20

CAP**4221A** 0.97 1.01 58MV(B,C)100--- 20

CSPH*3612A** 0.96 1.00 58MV(B,C)080--- 20

CSPH*4212A** 0.97 1.01 58MV(B,C)080--- 20

CNPV*3621A** 0.96 1.00 58MV(B,C)100--- 20

CNPH*3617A** 0.96 1.00 58MV(B,C)100---20

CNPH*4221A** 0.97 1.01 58MV(B,C)100---20

CAP**4224A** 0.97 1.01 58MV(B,C)120--- 20

CNPV*4221A** 0.97 1.01 58MV(B,C)100--- 20

CSPH*3612A** 0.97 1.01 58MV(B,C)100--- 20

CSPH*4212A** 0.98 1.02 58MV(B,C)100--- 20

CNPH*3617A** 0.96 1.00 58MV(B,C)120---20

CNPH*4221A** 0.97 1.01 58MV(B,C)120---20

CAP**4224A** 0.97 1.01 58MVB040---14

CNPV*4324A** 1.00 1.00 58MV(B,C)120--- 20

CSPH*3612A** 0.97 1.01 58MV(B,C)120--- 20

CSPH*4212A** 0.98 1.02 58MV(B,C)120--- 20

CNPH*3617A** 0.95 1.04 58MVB040 ---14

CNPH*4221A** 0.97 1.05 58MVB040 ---14

CAP**3614A** 0.95 1.08 58PH*045--- 08

CNPV*4324A** 0.99 1.02 58MVB040---14

CSPH*3612A** 0.96 1.04 58MVB040---14

CSPH*4212A** 0.97 1.01 58MVB040---14

CNPH*3617A** 0.95 1.06 58PH*045 ---08

Page 44

Tot a l

Capacity MBtuh

KW**

System

KW**

System

CAPACITY POWER FURN AC E MODEL

Capacity MBtuh

25HBC5

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C )

Capacity MBtuh

25HBC542A** 30 Outdoor Section With FX4DN F043 Indoor Section

Tot a l

KW**

System

COOLING INDOOR

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CNPH*4821A** 1.01 1.05 58ME(B,C)040---12

MODEL

CSPH*4212A** 0.99 1.03 58CV(A,X)070---12

CAP**4817A** 1.01 1.01 58ME(B,C)060--- 12

CNPV*4217A** 1.00 1.04 58ME(B,C)040--- 12

CSPH*4212A** 1.00 1.04 58ME(B,C)040--- 12

CSPH*4812A** 1.01 1.01 58ME(B,C)040--- 12

CNPH*4221A** 0.99 1.03 58ME(B,C)060---12

CNPH*4821A** 1.01 1.05 58ME(B,C)060---12

CAP**4817A** 1.00 1.00 58CV(A,X)090---16

CSPH*4812A** 1.00 1.04 58CV(A,X)070---12

CNPV*4217A** 0.99 1.03 58CV(A,X)090---16

CSPH*4212A** 1.00 1.04 58CV(A,X)090---16

CNPH*4221A** 0.99 1.03 58CV(A,X)090--- 16

CNPH*4821A** 1.00 1.04 58CV(A,X)090--- 16

CAP**4817A** 1.01 1.01 58ME(B,C)080--- 12

CNPV*4217A** 1.00 1.04 58ME(B,C)060--- 12

CSPH*4212A** 1.00 1.04 58ME(B,C)060--- 12

CSPH*4812A** 1.01 1.01 58ME(B,C)060--- 12

CNPH*4221A** 0.99 1.03 58ME(B,C)080---12

CNPH*4821A** 1.01 1.05 58ME(B,C)080---12

CAP**4221A** 0.99 1.03 58CV(A,X)110---20

CAP**4821A** 1.00 1.00 58CV(A,X)110---20

CSPH*4812A** 1.00 1.00 58CV(A,X)090---16

CNPV*4221A** 0.99 1.03 58CV(A,X)110---20

CNPH*4221A** 0.99 1.03 58CV(A,X)110--- 20

CNPH*4821A** 1.00 1.00 58CV(A,X)110--- 20

CAP**4817A** 1.01 1.01 58ME(B,C)080--- 16

CNPV*4217A** 1.00 1.04 58ME(B,C)080--- 12

CSPH*4212A** 1.00 1.04 58ME(B,C)080--- 12

CSPH*4812A** 1.01 1.01 58ME(B,C)080--- 12

CNPH*4221A** 0.99 1.03 58ME(B,C)080---16

CNPH*4821A** 1.00 1.04 58ME(B,C)080---16

CAP**4224A** 0.99 0.99 58CV(A,X)135---22

CNPV*4324A** 1.01 1.01 58CV(A,X)110---20

CNPV*4821A** 1.00 1.00 58CV(A,X)110---20

CAP**4824A** 1.00 1.00 58CV(A,X)135---22

CSPH*4212A** 1.00 1.04 58CV(A,X)110---20

CSPH*4812A** 1.00 1.00 58CV(A,X)110---20

CAP**4221A** 0.99 0.99 58ME(B,C)100--- 20

CNPV*4217A** 0.99 1.03 58ME(B,C)080--- 16

CNPH*4221A** 0.99 1.03 58CV(A,X)135--- 22

CAP**4821A** 1.00 1.00 58ME(B,C)100--- 20

CSPH*4212A** 1.00 1.04 58ME(B,C)080--- 16

CSPH*4812A** 1.01 1.01 58ME(B,C)080--- 16

CNPV*4324A** 1.01 0.97 58CV(A,X)135---22

CNPV*4824A** 1.00 1.00 58CV(A,X)135---22

CNPH*4821A** 1.00 1.00 58CV(A,X)135--- 22

CNPV*4221A** 0.99 1.03 58ME(B,C)100--- 20

CNPH*4221A** 0.99 1.03 58ME(B,C)100---20

CNPH*4821A** 1.01 1.01 58ME(B,C)100---20

CAP**4224A** 0.99 0.99 58CV(A,X)155---22

CAP**4824A** 1.00 1.00 58CV(A,X)155---22

CSPH*4212A** 1.00 1.04 58CV(A,X)135---22

CSPH*4812A** 1.01 1.01 58CV(A,X)135---22

CAP**4224A** 1.00 1.00 58ME(B,C)120--- 20

CNPV*4821A** 1.01 1.01 58ME(B,C)100--- 20

CNPH*4221A** 0.99 1.03 58CV(A,X)155--- 22

CAP**4824A** 1.01 1.01 58ME(B,C)120--- 20

CNPV*4324A** 1.01 0.97 58ME(B,C)120--- 20

CSPH*4212A** 1.00 1.04 58ME(B,C)100--- 20

CSPH*4812A** 1.01 1.01 58ME(B,C)100--- 20

CNPV*4324A** 1.01 0.97 58CV(A,X)155---22

CNPV*4824A** 1.00 1.00 58CV(A,X)155---22

CSPH*4212A** 1.00 1.04 58CV(A,X)155---22

CNPH*4821A** 1.00 1.00 58CV(A,X)155--- 22

CNPV*4824A** 1.01 1.01 58ME(B,C)120--- 20

CNPH*4221A** 0.99 0.99 58ME(B,C)120---20

CSPH*4812A** 1.01 1.01 58CV(A,X)155---22

CSPH*4212A** 1.00 1.00 58ME(B,C)120--- 20

CNPH*4821A** 1.01 1.01 58ME(B,C)120---20

CAP**4823A** 1.01 1.05 58HDV080--- ---20

CAP**4224A** 0.99 1.03 58HDV100--- ---20

CAP**4817A** 1.01 1.01 58ME(B,C)040--- 12

CNPH*4221A** 0.99 1.03 58ME(B,C)040---12

CONTINUED

EVAPORATOR AIR

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l

Capacity MBtuh

System

EWB

CFM

KW**

Tot a l Sens‡ Tot a l Sens‡ Tot al Sens‡ Tot a l Sens‡ Tot al Sens‡ Tota l Sens‡

°F(°C)

72 (22.2) 50.43 25.70 2.47 48.01 24.76 2.86 45.51 23.81 3.26 42.89 22.83 3.69 40.16 21.82 4.13 37.25 20.76 4.61

67 (19.4) 45.65 31.32 2.59 43.47 30.39 2.96 41.22 29.44 3.33 38.86 28.47 3.73 36.38 27.46 4.15 33.74 26.40 4.62

62 (16.7) 41.36 36.82 2.68 39.42 35.88 3.02 37.42 34.91 3.37 35.33 33.87 3.75 33.17 32.70 4.16 31.09 31.09 4.61

57 (13.9) 39.50 39.50 2.72 38.01 38.01 3.04 36.44 36.44 3.38 34.77 34.77 3.75 32.98 32.98 4.16 31.05 31.05 4.61

72 (22.2) 51.53 26.95 2.47 48.98 25.98 2.88 46.35 25.01 3.29 43.62 24.01 3.72 40.76 22.98 4.17 37.75 21.90 4.65

67 (19.4) 46.66 33.31 2.60 44.38 32.35 2.98 42.00 31.37 3.36 39.54 30.39 3.76 36.95 29.35 4.19 34.21 28.25 4.66

62 (16.7) 42.36 39.45 2.70 40.35 38.44 3.05 38.28 37.36 3.40 36.20 36.20 3.78 34.27 34.27 4.20 32.20 32.20 4.66

63 (17.2)†† 42.23 30.12 2.67 40.23 29.20 3.01 38.16 28.26 3.36 35.97 27.30 3.74 33.68 26.29 4.16 31.23 25.22 4.61

1225

63 (17.2)†† 43.19 31.97 2.69 41.08 31.02 3.04 38.90 30.06 3.40 36.62 29.07 3.78 34.22 28.03 4.20 31.69 26.94 4.66

1400

57 (13.9) 41.23 41.23 2.72 39.62 39.62 3.06 37.93 37.93 3.41 36.14 36.14 3.78 34.22 34.22 4.20 32.16 32.16 4.66

DETAILED COOLING CAPACITIES

CAPACITY POWER FURN AC E MODEL

72 (22.2) 52.37 28.11 2.48 49.72 27.13 2.90 47.00 26.14 3.31 44.15 25.12 3.75 41.21 24.07 4.20 38.11 22.98 4.69

67 (19.4) 47.45 35.19 2.62 45.05 34.20 3.00 42.59 33.23 3.39 40.05 32.20 3.80 37.37 31.13 4.23 34.58 30.00 4.70

62 (16.7) 43.23 41.84 2.72 41.18 40.82 3.07 39.23 39.23 3.43 37.32 37.32 3.82 35.29 35.29 4.24 33.12 33.12 4.70

57 (13.9) 42.69 42.69 2.73 40.98 40.98 3.08 39.18 39.18 3.44 37.28 37.28 3.82 35.25 35.25 4.24 33.08 33.08 4.70

63 (17.2)†† 43.93 33.72 2.71 41.73 32.75 3.07 39.46 31.77 3.43 37.10 30.75 3.82 34.64 29.68 4.24 32.04 28.54 4.70

1575

COOLING INDOOR

MODEL

FB4CNF042 1.01 1.01

*FX4D N(B,F)0 43 1.00 1.00

FE4ANB006 1.01 0.97

FB4CNF048 1.01 1.01

FE4AN(B,F)003 0.99 1.03

FE4AN(B,F)005 1.01 0.97

FV4BNB006 1.01 0.97

FV4BN(B,F)003 0.99 1.03

FV4BN(B,F)005 1.01 0.97

FV4CNB006 1.01 0.97

FV4CN(B,F)003 0.99 1.03

FV4CN(B,F)005 1.01 0.97

FY4ANF042 1.00 1.09

FY4ANF048 1.01 1.10

FY5BNF042 1.01 1.05

FY5BNF048 1.01 1.05

CAP**4221A** 0.99 1.07

CAP**4224A** 0.99 1.07

CAP**4817A** 1.01 1.10

CAP**4821A** 1.01 1.10

CAP**4823A** 1.01 1.10

FX4CN(B,F)042 1.01 1.05

FX4CN(B,F)048 1.01 1.01

FX4DN(B,F)049 1.01 0.97

CAP**4824A** 1.01 1.10

CNPF*4818A** 1.00 1.09

CNPV*4217A** 1.00 1.09

CNPV*4221A** 0.99 1.07

CNPV*4324A** 1.01 1.05

CNPV*4821A** 1.01 1.10

CNPV*4824A** 1.01 1.10

CSPH*4212A** 0.99 1.07

CNPH*4221A** 0.99 1.07

CNPH*4821A** 1.01 1.10

CSPH*4812A** 1.01 1.10

CNPH*4221A** 0.98 1.03 58CV(A,X)070--- 12

CNPH*4821A** 1.00 1.04 58CV(A,X)070--- 12

Page 45

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CNPV*4324A** 1.00 0.98 59*N*A120V24**22

CNPH*4221A** 0.96 0.98 59*N*A120V24**22

CNPH*4321A** 1.00 0.98 59*N*A120V24**22

CNPH*4821A** 0.99 0.96 59*N*A120V24**22

CAP**4221A** 0.96 1.02 59*P5A060E17**14

CAP**4817A** 0.99 1.02 59*P5A060E17**14

CNPV*4824A** 0.99 0.96 59*N*A120V24**22

CSPH*4212A** 0.99 0.96 59*N*A120V24**22

CAP**4821A** 0.99 1.02 59*P5A060E17**14

CSPH*4812A** 0.99 0.96 59*N*A120V24**22

CNPV*4217A** 0.98 1.04 59*P5A060E17**14

CNPH*4221A** 0.96 1.03 59*P5A060E17**14

CNPV*4221A** 0.96 1.03 59*P5A060E17**14

CNPH*4321A** 1.00 1.02 59*P5A060E17**14

CNPH*4821A** 0.99 1.02 59*P5A060E17**14

CAP**4221A** 0.98 1.01 59*P5A080E17**16

CAP**4817A** 1.00 1.02 59*P5A080E17**16

CNPV*4821A** 0.99 1.02 59*P5A060E17**14

CSPH*4212A** 0.99 1.02 59*P5A060E17**14

CAP**4821A** 0.99 1.02 59*P5A080E17**16

CSPH*4812A** 0.99 1.00 59*P5A060E17**14

CNPV*4217A** 0.98 1.01 59*P5A080E17**16

CNPH*4221A** 0.98 1.04 59*P5A080E17**16

CNPV*4221A** 0.98 1.04 59*P5A080E17**16

CNPH*4321A** 1.00 1.02 59*P5A080E17**16

CNPH*4821A** 0.99 1.00 59*P5A080E17**16

CAP**4221A** 0.96 1.00 59*P5A100E21**16

CAP**4224A** 0.96 1.00 59*P5A100E21**16

CAP**4821A** 0.98 0.99 59*P5A100E21**16

CAP**4823A** 0.98 0.99 59*P5A100E21**16

CNPV*4821A** 0.99 1.00 59*P5A080E17**16

CSPH*4212A** 1.00 1.02 59*P5A080E17**16

CSPH*4812A** 1.00 1.02 59*P5A080E17**16

CAP**4824A** 0.99 1.00 59*P5A100E21**16

CNPV*4221A** 0.96 1.00 59*P5A100E21**16

CNPV*4324A** 1.00 0.98 59*P5A100E21**16

CNPH*4221A** 0.96 1.00 59*P5A100E21**16

CNPH*4321A** 1.00 0.98 59*P5A100E21**16

CNPV*4821A** 0.99 1.00 59*P5A100E21**16

CNPH*4821A** 0.99 1.00 59*P5A100E21**16

CAP**4224A** 0.99 1.00 59*P5A120E24**22

CAP**4823A** 1.00 1.02 59*P5A120E24**22

CNPV*4824A** 0.99 1.00 59*P5A100E21**16

CSPH*4212A** 0.99 1.00 59*P5A100E21**16

CAP**4824A** 1.00 0.98 59*P5A120E24**22

CSPH*4812A** 0.99 1.00 59*P5A100E21**16

CNPV*4324A** 1.00 0.96 59*P5A120E24**22

CNPV*4824A** 1.00 0.98 59*P5A120E24**22

CSPH*4212A** 1.00 0.98 59*P5A120E24**22

CNPH*4221A** 0.98 0.99 59*P5A120E24**22

CNPH*4321A** 1.00 0.98 59*P5A120E24**22

CNPH*4821A** 1.00 0.98 59*P5A120E24**22

CSPH*4812A** 1.00 0.98 59*P5A120E24**22

Seenoteonpg.48

25HBC5

CAPACITY POWER FURN AC E MODEL

MODEL

25HBC542A** 30 Outdoor Section With FX4DN F043 Indoor Section

COOLING INDOOR

CAP**4221A** 0.99 0.99 58PH*110--- 20

CNPV*4821A** 1.01 1.01 58PH*090--- 16

CAP**4821A** 1.00 1.00 58PH*110--- 20

CNPV*4221A** 0.99 1.03 58PH*110--- 20

CSPH*4212A** 1.00 1.04 58PH*090--- 16

CSPH*4812A** 1.01 1.01 58PH*090--- 16

CNPV*4324A** 1.01 0.97 58PH*110--- 20

CNPH*4221A** 0.99 1.03 58PH*110 ---20

CNPH*4821A** 1.01 1.01 58PH*110 ---20

CAP**4224A** 0.99 1.03 58PH*135--- 20

CNPV*4821A** 1.01 1.01 58PH*110--- 20

CAP**4824A** 1.01 1.01 58PH*135--- 20

CSPH*4212A** 1.00 1.04 58PH*110--- 20

CSPH*4812A** 1.01 1.01 58PH*110--- 20

CNPV*4324A** 1.01 0.97 58PH*135--- 20

CNPH*4221A** 0.99 1.03 58PH*135 ---20

CNPH*4821A** 1.01 1.01 58PH*135 ---20

CAP**4221A** 0.95 1.02 59*N*A060V17**14

CAP**4817A** 0.98 1.01 59*N*A060V17**14

CNPV*4824A** 1.01 1.01 58PH*135--- 20

CSPH*4212A** 1.00 1.04 58PH*135--- 20

CAP**4821A** 0.98 1.01 59*N*A060V17**14

CSPH*4812A** 1.01 1.01 58PH*135--- 20

CNPV*4217A** 0.96 1.02 59*N*A060V17**14

CNPH*4221A** 0.95 1.02 59*N*A060V17**14

CNPV*4221A** 0.95 1.02 59*N*A060V17**14

CNPH*4321A** 0.99 1.00 59*N*A060V17**14

CNPH*4821A** 0.98 1.01 59*N*A060V17**14

CAP**4221A** 0.96 1.00 59*N*A080V17**14

CAP**4817A** 0.99 1.00 59*N*A080V17**14

CNPV*4821A** 0.98 1.01 59*N*A060V17**14

CSPH*4212A** 0.98 1.01 59*N*A060V17**14

CAP**4821A** 0.98 1.01 59*N*A080V17**14

CSPH*4812A** 0.98 1.01 59*N*A060V17**14

CNPV*4217A** 0.96 1.00 59*N*A080V17**14

CNPH*4221A** 0.96 1.02 59*N*A080V17**14

CNPV*4221A** 0.96 1.02 59*N*A080V17**14

CNPH*4321A** 0.99 1.00 59*N*A080V17**14

CNPH*4821A** 0.98 0.99 59*N*A080V17**14

CAP**4221A** 0.96 1.00 59*N*A100V21**20

CAP**4224A** 0.96 1.00 59*N*A100V21**20

CAP**4821A** 0.98 0.99 59*N*A100V21**20

CAP**4823A** 0.98 0.99 59*N*A100V21**20

CNPV*4821A** 0.98 0.99 59*N*A080V17**14

CSPH*4212A** 0.98 0.99 59*N*A080V17**14

CSPH*4812A** 0.99 1.00 59*N*A080V17**14

CAP**4824A** 0.98 0.99 59*N*A100V21**20

CNPV*4221A** 0.96 1.00 59*N*A100V21**20

CNPV*4324A** 1.00 0.98 59*N*A100V21**20

CNPH*4221A** 0.96 1.00 59*N*A100V21**20

CNPH*4321A** 1.00 0.98 59*N*A100V21**20

CNPV*4821A** 0.99 1.00 59*N*A100V21**20

CNPH*4821A** 0.99 1.00 59*N*A100V21**20

CAP**4224A** 0.96 0.98 59*N*A120V24**22

CAP**4823A** 0.98 0.99 59*N*A120V24**22

CNPV*4824A** 0.99 1.00 59*N*A100V21**20

CSPH*4212A** 0.99 1.00 59*N*A100V21**20

CAP**4824A** 0.98 0.99 59*N*A120V24**22

CSPH*4812A** 0.99 1.00 59*N*A100V21**20

CONTINUED

CAPACITY POWER FURN AC E MODEL

MODEL

COOLING INDOOR

CAP**4817A** 1.01 1.01 58MV(B,C)060--- 14

CSPH*4812A** 1.01 1.01 58ME(B,C)120--- 20

CNPH*4221A** 0.99 1.03 58MV(B,C)060---14

CNPH*4821A** 1.01 1.01 58MV(B,C)060---14

CAP**4221A** 0.98 1.02 58MV(B,C)080--- 14

CNPV*4217A** 1.00 1.04 58MV(B,C)060--- 14

CAP**4821A** 1.00 1.04 58MV(B,C)080--- 14

CNPV*4221A** 0.98 1.03 58MV(B,C)080--- 14

CSPH*4212A** 1.00 1.04 58MV(B,C)060--- 14

CSPH*4812A** 1.01 1.01 58MV(B,C)060--- 14

CNPV*4821A** 1.00 1.04 58MV(B,C)080--- 14

CNPH*4221A** 0.98 1.03 58MV(B,C)080---14

CSPH*4212A** 0.99 1.03 58MV(B,C)080--- 14

CNPH*4821A** 1.00 1.04 58MV(B,C)080---14

DETAILED COOLING CAPACITIES

CAP**4221A** 0.98 1.02 58MV(B,C)080--- 20

CAP**4821A** 1.00 1.04 58MV(B,C)080--- 20

CSPH*4812A** 1.00 1.04 58MV(B,C)080--- 14

CNPV*4221A** 0.99 1.03 58MV(B,C)080--- 20

CNPH*4221A** 0.98 1.02 58MV(B,C)080---20

CNPH*4821A** 1.00 1.04 58MV(B,C)080---20

CAP**4221A** 0.98 1.02 58MV(B,C)100--- 20

CNPV*4821A** 1.00 1.04 58MV(B,C)080--- 20

CAP**4821A** 0.99 1.03 58MV(B,C)100--- 20

CNPV*4221A** 0.98 1.02 58MV(B,C)100--- 20

CSPH*4212A** 1.00 1.04 58MV(B,C)080--- 20

CSPH*4812A** 1.00 1.00 58MV(B,C)080--- 20

CNPV*4324A** 1.01 1.01 58MV(B,C)100--- 20

CNPH*4221A** 0.98 1.02 58MV(B,C)100---20

CNPH*4821A** 1.00 1.04 58MV(B,C)100---20

CAP**4224A** 0.99 1.03 58MV(B,C)120--- 20

CNPV*4821A** 1.00 1.04 58MV(B,C)100--- 20

CAP**4824A** 1.00 1.00 58MV(B,C)120--- 20

CSPH*4212A** 0.99 1.03 58MV(B,C)100--- 20

CSPH*4812A** 1.00 1.04 58MV(B,C)100--- 20

CNPV*4324A** 1.01 1.01 58MV(B,C)120--- 20

CNPH*4221A** 0.99 1.03 58MV(B,C)120---20

CNPH*4821A** 1.00 1.00 58MV(B,C)120---20

CAP**4224A** 0.98 1.02 58MVB040---14

CNPV*4824A** 1.00 1.00 58MV(B,C)120--- 20

CAP**4824A** 0.99 1.03 58MVB040---14

CSPH*4212A** 1.00 1.04 58MV(B,C)120--- 20

CSPH*4812A** 1.00 1.00 58MV(B,C)120--- 20

CNPV*4324A** 1.01 1.01 58MVB040---14

CNPH*4221A** 0.98 1.02 58MVB040 ---14

CNPH*4821A** 1.00 1.04 58MVB040 ---14

CAP**4817A** 1.00 1.04 58PH*070--- 16

CNPV*4824A** 1.00 1.04 58MVB040---14

CSPH*4212A** 0.99 1.03 58MVB040---14

CSPH*4812A** 1.00 1.04 58MVB040---14

CNPH*4221A** 0.98 1.06 58PH*070 ---16

CNPH*4821A** 1.00 1.04 58PH*070 ---16

CAP**4221A** 0.99 1.03 58PH*090--- 16

CNPV*4217A** 0.99 1.07 58PH*070--- 16

CAP**4821A** 1.00 1.00 58PH*090--- 16

CSPH*4212A** 0.99 1.07 58PH*070--- 16

CSPH*4812A** 1.00 1.04 58PH*070--- 16

CNPV*4221A** 0.99 1.03 58PH*090--- 16

CNPH*4221A** 0.99 1.03 58PH*090 ---16

CNPH*4821A** 1.01 1.01 58PH*090 ---16

Page 46

Tot a l

Capacity MBtuh

KW**

System

KW**

System

CAPACITY POWER FURN AC E MODEL

Capacity MBtuh

25HBC5

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C )

Capacity MBtuh

Tot a l

25HBC548A** 30 Outdoor Section With FX4DN F049 Indoor Section

KW**

System

COOLING INDOOR

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CAP**4821A** 0.96 1.00 58ME(B,C)100--- 20

CAP**6021A** 0.98 1.02 58ME(B,C)100--- 20

CSPH*4812A** 0.97 1.05 58ME(B,C)080--- 16

CSPH*6012A** 0.98 1.02 58ME(B,C)080--- 16

CNPH*4821A** 0.96 1.00 58ME(B,C)100---20

CNPH*6024A** 0.98 1.02 58ME(B,C)100---20

CNPH*6124A** 0.98 1.02 58ME(B,C)100---20

MODEL

CAP**4821A** 0.95 1.03 58CV(A,X)110---20

CAP**6021A** 0.97 1.01 58CV(A,X)110---20

CSPH*4812A** 0.96 1.00 58CV(A,X)090---16

CSPH*6012A** 0.98 1.02 58CV(A,X)090---16

CNPH*4821A** 0.96 1.00 58CV(A,X)110--- 20

CNPH*6024A** 0.97 1.01 58CV(A,X)110--- 20

CNPH*6124A** 0.98 1.02 58CV(A,X)110--- 20

CAP**4824A** 0.96 1.00 58ME(B,C)120--- 20

CNPV*4821A** 0.96 1.00 58ME(B,C)100--- 20

CNPV*4821A** 0.96 1.00 58CV(A,X)110---20

CAP**6024A** 0.98 1.02 58ME(B,C)120--- 20

CSPH*4812A** 0.97 1.01 58ME(B,C)100--- 20

CSPH*6012A** 0.99 1.03 58ME(B,C)100--- 20

CAP**4824A** 0.96 1.00 58CV(A,X)135---22

CNPV*6124A** 0.98 1.00 58CV(A,X)110---20

CSPH*4812A** 0.96 1.00 58CV(A,X)110---20

CSPH*6012A** 0.98 1.02 58CV(A,X)110---20

CNPV*4824A** 0.97 1.01 58ME(B,C)120--- 20

CNPH*4821A** 0.97 1.01 58ME(B,C)120---20

CAP**6024A** 0.97 1.01 58CV(A,X)135---22

CNPV*6024A** 0.98 1.02 58ME(B,C)120--- 20

CNPH*6024A** 0.98 1.02 58ME(B,C)120---20

CNPH*6124A** 0.99 0.99 58ME(B,C)120---20

CNPV*4824A** 0.96 1.00 58CV(A,X)135---22

CNPH*4821A** 0.96 1.00 58CV(A,X)135--- 22

CNPH*6024A** 0.97 0.97 58CV(A,X)135--- 22

CNPH*6124A** 0.98 0.98 58CV(A,X)135--- 22

CAP**4821A** 0.94 1.02 58MV(B,C)080--- 20

CNPV*6124A** 0.99 0.99 58ME(B,C)120--- 20

CNPV*6024A** 0.97 0.97 58CV(A,X)135---22

CAP**6021A** 0.96 1.00 58MV(B,C)080--- 20

CSPH*4812A** 0.97 1.01 58ME(B,C)120--- 20

CSPH*6012A** 0.99 0.99 58ME(B,C)120--- 20

CNPH*4821A** 0.95 1.03 58MV(B,C)080---20

CNPH*6024A** 0.96 1.00 58MV(B,C)080---20

CNPH*6124A** 0.97 1.01 58MV(B,C)080---20

CAP**4824A** 0.96 1.00 58CV(A,X)155---22

CNPV*6124A** 0.99 0.99 58CV(A,X)135---22

CAP**6024A** 0.98 0.98 58CV(A,X)155---22

CSPH*4812A** 0.97 1.01 58CV(A,X)135---22

CSPH*6012A** 0.98 0.98 58CV(A,X)135---22

CNPH*4821A** 0.96 1.00 58CV(A,X)155--- 22

CNPH*6024A** 0.98 0.98 58CV(A,X)155--- 22

CAP**4821A** 0.95 1.03 58MV(B,C)100--- 20

CNPV*4821A** 0.95 1.03 58MV(B,C)080--- 20

CNPH*6124A** 0.98 0.98 58CV(A,X)155--- 22

CAP**6021A** 0.97 1.01 58MV(B,C)100--- 20

CSPH*4812A** 0.96 1.04 58MV(B,C)080--- 20

CSPH*6012A** 0.97 1.01 58MV(B,C)080--- 20

CNPV*4824A** 0.96 1.00 58CV(A,X)155---22

CNPV*6024A** 0.98 0.98 58CV(A,X)155---22

CNPV*6124A** 0.99 0.99 58CV(A,X)155---22

CSPH*4812A** 0.97 1.01 58CV(A,X)155---22

CNPV*4821A** 0.96 1.04 58MV(B,C)100--- 20

CNPV*6124A** 0.98 1.02 58MV(B,C)100--- 20

CSPH*4812A** 0.96 1.04 58MV(B,C)100--- 20

CNPH*4821A** 0.96 1.04 58MV(B,C)100---20

CNPH*6024A** 0.97 1.01 58MV(B,C)100---20

CNPH*6124A** 0.98 1.02 58MV(B,C)100---20

CAP**4823A** 0.96 1.04 58HDV080--- ---20

CAP**6025A** 0.98 1.02 58HDV100--- ---20

CSPH*6012A** 0.98 0.98 58CV(A,X)155---22

CSPH*6012A** 0.98 1.02 58MV(B,C)100--- 20

CAP**4817A** 0.96 1.04 58ME(B,C)080--- 16

CNPH*4821A** 0.96 1.04 58ME(B,C)080---16

CNPH*6024A** 0.98 1.02 58ME(B,C)080---16

CNPH*6124A** 0.98 1.02 58ME(B,C)080---16

CONTINUED

EVAPORATOR AIR

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l

Capacity MBtuh

System

EWB

CFM

KW**

Tot a l Sens‡ To t a l Sens‡ Tot a l Sens‡ Tot a l Sens‡ To t al Sens‡ Tot al Sens‡

°F(°C)

72 (22.2) 57.01 29.54 2.89 54.18 28.44 3.33 51.32 27.34 3.75 48.40 26.24 4.19 45.36 25.11 4.66 42.16 23.93 5.18

67 (19.4) 51.80 36.19 2.93 49.25 35.09 3.33 46.66 33.99 3.74 44.00 32.89 4.16 41.24 31.75 4.62 38.29 30.55 5.14

62 (16.7) 47.07 42.67 2.95 44.77 41.56 3.33 42.47 40.43 3.72 40.10 39.24 4.13 37.67 37.67 4.59 35.46 35.46 5.12

57 (13.9) 45.11 45.11 2.96 43.35 43.35 3.33 41.52 41.52 3.72 39.62 39.62 4.13 37.60 37.60 4.59 35.41 35.41 5.12

72 (22.2) 58.19 30.99 2.93 55.20 29.86 3.37 52.22 28.73 3.80 49.16 27.61 4.24 46.01 26.47 4.71 42.69 25.27 5.23

67 (19.4) 52.92 38.52 2.97 50.21 37.39 3.38 47.50 36.26 3.79 44.73 35.13 4.22 41.84 33.97 4.68 38.81 32.75 5.20

62 (16.7) 48.18 45.78 2.99 45.81 44.58 3.38 43.44 43.29 3.78 41.21 41.21 4.19 39.05 39.05 4.65 36.72 36.72 5.18

63 (17.2)†† 48.03 34.83 2.94 45.68 33.75 3.33 43.28 32.66 3.73 40.82 31.56 4.14 38.24 30.42 4.60 35.50 29.21 5.12

1400

63 (17.2)†† 49.09 37.01 2.99 46.60 35.89 3.38 44.10 34.77 3.78 41.52 33.65 4.19 38.85 32.48 4.65 36.02 31.24 5.17

1600

57 (13.9) 47.07 47.07 2.99 45.16 45.16 3.38 43.19 43.19 3.77 41.16 41.16 4.19 39.00 39.00 4.65 36.67 36.67 5.18

DETAILED COOLING CAPACITIES

CAPACITY POWER FURN AC E MODEL

72 (22.2) 59.07 32.35 2.97 55.98 31.20 3.42 52.88 30.05 3.85 49.73 28.92 4.30 46.49 27.76 4.77 43.06 26.55 5.29

67 (19.4) 53.74 40.74 3.01 50.94 39.59 3.43 48.12 38.45 3.84 45.26 37.27 4.27 42.30 36.08 4.73 39.19 34.81 5.25

62 (16.7) 49.14 48.58 3.03 46.76 46.76 3.43 44.65 44.65 3.83 42.49 42.49 4.25 40.19 40.19 4.71 37.73 37.73 5.24

57 (13.9) 48.72 48.72 3.03 46.68 46.68 3.43 44.59 44.59 3.83 42.43 42.43 4.25 40.15 40.15 4.71 37.69 37.69 5.24

63 (17.2)†† 49.89 39.08 3.03 47.31 37.94 3.43 44.71 36.78 3.83 42.06 35.63 4.25 39.30 34.43 4.71 36.40 33.14 5.22

1800

COOLING INDOOR

MODEL

*FX4D N(B,F)0 49 1.00 1.00

FE4ANB006 0.99 0.99

FB4CNF048 0.97 1.05

FB4CNF060 0.99 1.03

FV4BNB006 0.99 0.99

FE4AN(B,F)005 0.98 0.98

FV4CNB006 0.99 0.99

FV4BN(B,F)005 0.98 0.98

FV4CN(B,F)005 0.98 0.98

FX4CN(B,F)048 0.99 1.03

FY4ANF048 0.97 1.08

FY5BNF048 0.98 1.02

FY4ANB060 0.99 1.08

FY5BNB060 0.99 1.08

CAP**4817A** 0.95 1.03

CAP**4821A** 0.96 1.04

CAP**4823A** 0.96 1.04

CAP**4824A** 0.96 1.04

CAP**6021A** 0.98 1.06

CAP**6024A** 0.98 1.06

FX4CN(B,F)060 1.00 1.00

FX4DN(B,F)061 1.01 1.01

CAP**6025A** 0.98 1.06

CNPF*4818A** 0.94 1.02

CNPV*4821A** 0.96 1.04

CNPV*4824A** 0.96 1.04

CNPH*4821A** 0.96 1.04

CNPH*6024A** 0.98 1.06

CNPV*6024A** 0.98 1.06

CNPH*6124A** 0.99 1.08

CAP**4817A** 0.96 1.04 58CV(A,X)090---16

CNPV*6124A** 0.99 1.08

CSPH*4812A** 0.96 1.04

CSPH*6012A** 0.98 1.06

CNPH*4821A** 0.95 0.99 58CV(A,X)090--- 16

CNPH*6024A** 0.97 1.01 58CV(A,X)090--- 16

CNPH*6124A** 0.97 1.01 58CV(A,X)090--- 16

Page 47

25HBC548A** 30 Outdoor Section With FX4DN F049 Indoor Section

CONTINUED

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

25HBC5

MODEL

CNPV*6024A** 0.98 1.00 59*N*A120V24**22

CAP**4817A** 0.96 1.02 59*P5A080E17**16

CAP**4821A** 0.96 1.04 59*P5A080E17**16

CNPV*6124A** 0.99 0.97 59*N*A120V24**22

CSPH*4812A** 0.97 1.00 59*N*A120V24**22

CAP**6021A** 0.98 1.05 59*P5A080E17**16

CSPH*6012A** 0.98 1.00 59*N*A120V24**22

CNPH*4821A** 0.96 1.02 59*P5A080E17**16

CNPH*6024A** 0.98 1.04 59*P5A080E17**16

CNPH*6124A** 0.98 1.04 59*P5A080E17**16

CAP**4821A** 0.96 1.02 59*P5A100E21**16

CAP**4823A** 0.96 1.02 59*P5A100E21**16

CAP**4824A** 0.96 1.02 59*P5A100E21**16

CAP**6021A** 0.98 1.01 59*P5A100E21**16

CAP**6024A** 0.98 1.01 59*P5A100E21**16

CNPV*4821A** 0.96 1.02 59*P5A080E17**16

CSPH*4812A** 0.97 1.04 59*P5A080E17**16

CSPH*6012A** 0.98 1.04 59*P5A080E17**16

CAP**6025A** 0.98 1.01 59*P5A100E21**16

CNPV*4821A** 0.96 1.02 59*P5A100E21**16

CNPV*4824A** 0.96 1.02 59*P5A100E21**16

CNPH*4821A** 0.96 1.02 59*P5A100E21**16

CNPH*6024A** 0.98 1.01 59*P5A100E21**16

CNPV*6024A** 0.98 1.01 59*P5A100E21**16

CNPH*6124A** 0.98 1.01 59*P5A100E21**16

CAP**4823A** 0.96 0.99 59*P5A120E24**22

CAP**4824A** 0.97 1.00 59*P5A120E24**22

CAP**6024A** 0.99 1.01 59*P5A120E24**22

CNPV*6124A** 0.99 1.01 59*P5A100E21**16

CSPH*4812A** 0.97 1.03 59*P5A100E21**16

CSPH*6012A** 0.99 1.02 59*P5A100E21**16

CAP**6025A** 0.99 1.01 59*P5A120E24**22

CNPV*4824A** 0.97 1.00 59*P5A120E24**22

CNPV*6024A** 0.99 1.01 59*P5A120E24**22

CNPV*6124A** 1.00 1.02 59*P5A120E24**22

CSPH*4812A** 0.98 1.01 59*P5A120E24**22

CNPH*4821A** 0.97 1.00 59*P5A120E24**22

CNPH*6024A** 0.99 1.01 59*P5A120E24**22

CNPH*6124A** 0.99 1.01 59*P5A120E24**22

CSPH*6012A** 0.99 1.01 59*P5A120E24**22

Seenoteonpg.48

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**4824A** 0.95 0.99 58MV(B,C)120--- 20

COOLING INDOOR

CAP**6024A** 0.97 1.01 58MV(B,C)120--- 20

CNPV*4824A** 0.96 1.00 58MV(B,C)120--- 20

CNPH*4821A** 0.96 1.00 58MV(B,C)120---20

CNPV*6024A** 0.97 1.01 58MV(B,C)120--- 20

CNPH*6024A** 0.97 1.01 58MV(B,C)120---20

CNPH*6124A** 0.98 1.02 58MV(B,C)120---20

CAP**4821A** 0.96 1.00 58PH*090--- 16

CNPV*6124A** 0.98 1.02 58MV(B,C)120--- 20

CAP**6021A** 0.98 1.02 58PH*090--- 16

CSPH*4812A** 0.96 1.00 58MV(B,C)120--- 20

CSPH*6012A** 0.98 1.02 58MV(B,C)120--- 20

CNPH*4821A** 0.96 1.00 58PH*090 ---16

CNPH*6024A** 0.98 1.02 58PH*090 ---16

DETAILED COOLING CAPACITIES

CAP**4821A** 0.95 0.99 58PH*110--- 20

CNPV*4821A** 0.96 1.00 58PH*090--- 16

CNPH*6124A** 0.98 1.02 58PH*090 ---16

CAP**6021A** 0.98 0.98 58PH*110--- 20

CSPH*4812A** 0.97 1.01 58PH*090--- 16

CSPH*6012A** 0.98 1.02 58PH*090--- 16

CNPH*4821A** 0.96 1.00 58PH*110 ---20

CNPH*6024A** 0.98 0.98 58PH*110 ---20

CNPH*6124A** 0.98 0.98 58PH*110 ---20

CAP**4824A** 0.96 1.00 58PH*135--- 20

CNPV*4821A** 0.96 1.00 58PH*110--- 20

CAP**6024A** 0.98 1.02 58PH*135--- 20

CSPH*4812A** 0.97 1.01 58PH*110--- 20

CSPH*6012A** 0.98 0.98 58PH*110--- 20

CNPV*4824A** 0.96 1.00 58PH*135--- 20

CNPH*4821A** 0.96 1.00 58PH*135 ---20

CNPV*6024A** 0.98 1.02 58PH*135--- 20

CNPH*6024A** 0.98 1.02 58PH*135 ---20

CNPH*6124A** 0.98 1.02 58PH*135 ---20

CAP**4821A** 0.95 1.00 59*N*A100V21**20

CAP**4823A** 0.95 1.00 59*N*A100V21**20

CAP**4824A** 0.96 1.02 59*N*A100V21**20

CAP**6021A** 0.97 1.00 59*N*A100V21**20

CAP**6024A** 0.97 1.00 59*N*A100V21**20

CNPV*6124A** 0.99 0.99 58PH*135--- 20

CSPH*4812A** 0.96 1.00 58PH*135--- 20

CSPH*6012A** 0.98 1.02 58PH*135--- 20

CAP**6025A** 0.97 1.00 59*N*A100V21**20

CNPV*4821A** 0.96 1.02 59*N*A100V21**20

CNPV*4824A** 0.96 1.02 59*N*A100V21**20

CNPH*4821A** 0.96 1.02 59*N*A100V21**20

CNPH*6024A** 0.97 1.00 59*N*A100V21**20

CNPV*6024A** 0.97 1.00 59*N*A100V21**20

CNPH*6124A** 0.98 1.01 59*N*A100V21**20

CAP**4823A** 0.96 0.99 59*N*A120V24**22

CAP**4824A** 0.96 0.99 59*N*A120V24**22

CAP**6024A** 0.98 1.00 59*N*A120V24**22

CNPV*6124A** 0.99 1.01 59*N*A100V21**20

CSPH*4812A** 0.97 1.03 59*N*A100V21**20

CSPH*6012A** 0.98 1.00 59*N*A100V21**20

CAP**6025A** 0.98 1.00 59*N*A120V24**22

CNPV*4824A** 0.96 0.99 59*N*A120V24**22

CNPH*4821A** 0.96 0.99 59*N*A120V24**22

CNPH*6024A** 0.98 1.00 59*N*A120V24**22

CNPH*6124A** 0.98 1.00 59*N*A120V24**22

Page 48

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURN AC E MODEL

Capacity MBtuh

MODEL

CNPH*6124A** 0.97 1.01 58PH*135 ---20

COOLING INDOOR

Tot a l

KW**

25HBC5

System

CAP**6021A** 0.97 1.04 59*N*A100V21**20

CAP**6024A** 0.97 1.04 59*N*A100V21**20

CNPV*6024A** 0.97 1.01 58PH*135--- 20

CNPV*6124A** 0.99 1.03 58PH*135--- 20

CAP**6025A** 0.97 1.04 59*N*A100V21**20

CSPH*6012A** 0.98 1.02 58PH*135--- 20

CNPH*6024A** 0.97 1.04 59*N*A100V21**20

CNPH*6124A** 0.97 1.04 59*N*A100V21**20

CAP**6024A** 0.98 1.02 59*N*A120V24**22

CNPV*6024A** 0.97 1.04 59*N*A100V21**20

CAP**6025A** 0.98 1.02 59*N*A120V24**22

CNPV*6124A** 0.98 1.04 59*N*A100V21**20

CSPH*6012A** 0.98 1.05 59*N*A100V21**20

CNPH*6024A** 0.98 1.02 59*N*A120V24**22

CNPH*6124A** 0.98 1.02 59*N*A120V24**22

CAP**6024A** 0.98 1.02 59*P5A120E24**22

CNPV*6024A** 0.98 1.02 59*N*A120V24**22

CAP**6025A** 0.98 1.02 59*P5A120E24**22

CNPV*6124A** 0.99 1.02 59*N*A120V24**22

CSPH*6012A** 0.98 1.02 59*N*A120V24**22

CNPV*6024A** 0.98 1.02 59*P5A120E24**22

CNPV*6124A** 0.99 1.02 59*P5A120E24**22

CNPH*6024A** 0.98 1.02 59*P5A120E24**22

CSPH*6012A** 0.98 1.02 59*P5A120E24**22

CNPH*6124A** 0.98 1.02 59*P5A120E24**22

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C )

CONTINUED

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURN AC E MODEL

Capacity MBtuh

Tot a l

25HBC560A** 30 Outdoor Section With FX4DN F061 Indoor Section

KW**

System

Capacity MBtuh

Tot a l

KW**

System

COOLING INDOOR

MODEL

CNPH*6024A** 0.98 1.02 58CV(A,X)155--- 22

CNPH*6124A** 0.98 1.02 58CV(A,X)155--- 22

CAP**6025A** 0.97 1.06 58HDV100--- ---20

CNPV*6024A** 0.98 1.02 58CV(A,X)155---22

CNPV*6124A** 0.99 1.03 58CV(A,X)155---22

CSPH*6012A** 0.98 1.02 58CV(A,X)155---22

CAP**6021A** 0.97 1.01 58ME(B,C)100--- 20

CSPH*6012A** 0.97 1.06 58ME(B,C)080--- 16

CNPH*6024A** 0.96 1.05 58ME(B,C)080---16

CAP**6024A** 0.97 1.01 58ME(B,C)120--- 20

CNPV*6024A** 0.97 1.01 58ME(B,C)120--- 20

CSPH*6012A** 0.98 1.02 58ME(B,C)100--- 20

CNPH*6024A** 0.97 1.01 58ME(B,C)100---20

CNPH*6124A** 0.97 1.01 58ME(B,C)100---20

CNPV*6124A** 0.99 1.03 58ME(B,C)120--- 20

CNPH*6024A** 0.97 1.01 58ME(B,C)120---20

CNPH*6124A** 0.98 1.02 58ME(B,C)120---20

CAP**6021A** 0.97 1.01 58PH*110--- 20

CNPV*6124A** 0.98 1.04 58MV(B,C)120--- 20

CSPH*6012A** 0.98 1.02 58ME(B,C)120--- 20

CSPH*6012A** 0.97 1.06 58MV(B,C)120--- 20

CAP**6024A** 0.97 1.01 58PH*135--- 20

CSPH*6012A** 0.98 1.02 58PH*110--- 20

CNPH*6024A** 0.97 1.01 58PH*110 ---20

CNPH*6124A** 0.98 1.02 58PH*110 ---20

CNPH*6024A** 0.97 1.01 58PH*135 ---20

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To ta l Sens‡ To ta l Sens‡ To t al Sens‡ To ta l Sens‡ To tal Sens‡

EWB

°F(°C)

72 (22.2) 69.17 35.96 3.81 65.83 34.68 4.20 62.32 33.37 4.63 58.60 31.99 5.12 54.63 30.54 5.68 50.41 29.02 6.30

67 (19.4) 63.19 44.51 3.74 60.19 43.24 4.13 57.00 41.92 4.56 53.63 40.55 5.05 50.02 39.09 5.61 46.18 37.54 6.25

62 (16.7) 57.71 52.83 3.68 55.03 51.53 4.07 52.20 50.14 4.50 49.23 48.59 4.99 46.32 46.32 5.56 43.40 43.40 6.21

57 (13.9) 55.78 55.78 3.66 53.67 53.67 4.05 51.40 51.40 4.49 48.93 48.93 4.99 46.26 46.26 5.56 43.34 43.34 6.21

72 (22.2) 70.36 37.71 3.89 66.90 36.42 4.28 63.21 35.07 4.71 59.35 33.67 5.20 55.24 32.20 5.75 50.87 30.66 6.38

67 (19.4) 64.35 47.38 3.82 61.20 46.09 4.21 57.88 44.75 4.64 54.36 43.33 5.13 50.63 41.84 5.69 46.66 40.25 6.32

62 (16.7) 58.97 56.64 3.76 56.19 55.19 4.15 53.39 53.39 4.58 50.73 50.73 5.08 47.86 47.86 5.65 44.74 44.74 6.30

57 (13.9) 58.06 58.06 3.75 55.76 55.76 4.14 53.31 53.31 4.58 50.67 50.67 5.08 47.80 47.80 5.65 44.69 44.69 6.29

63 (17.2)†† 58.86 42.93 3.69 56.08 41.67 4.08 53.14 40.35 4.51 50.02 38.98 5.00 46.68 37.53 5.56 43.12 35.99 6.21

EVAPORATOR AIR

CFM

1750

63 (17.2)†† 59.99 45.61 3.77 57.09 44.32 4.15 54.01 42.98 4.59 50.76 41.57 5.08 47.31 40.08 5.64 43.61 38.48 6.28

2000

72 (22.2) 71.26 39.37 3.97 67.65 38.06 4.36 63.86 36.70 4.79 59.89 35.28 5.27 55.65 33.79 5.82 51.19 32.24 6.45

DETAILED COOLING CAPACITIES

CAPACITY POWER FURN AC E MODEL

67 (19.4) 65.22 50.14 3.89 61.95 48.81 4.28 58.50 47.43 4.71 54.89 45.99 5.20 51.06 44.45 5.76 47.00 42.79 6.39

62 (16.7) 60.05 60.05 3.84 57.56 57.56 4.23 54.95 54.95 4.67 52.14 52.14 5.16 49.11 49.11 5.73 45.81 45.81 6.38

57 (13.9) 59.92 59.92 3.84 57.48 57.48 4.23 54.88 54.88 4.67 52.08 52.08 5.16 49.05 49.05 5.73 45.76 45.76 6.38

63 (17.2)†† 60.84 48.17 3.84 57.83 46.84 4.23 54.65 45.48 4.66 51.31 44.03 5.15 47.75 42.48 5.71 43.99 40.82 6.35

MODEL

FE4ANB006 0.99 0.99

FV4BNB006 0.99 0.99

FY4ANB060 0.98 1.07

2250

COOLING INDOOR

FB4CNF060 0.97 1.06

*FX4D N(B,F)0 61 1.00 1.00

FY5BNB060 0.98 1.07

FV4CNB006 0.99 0.99

CAP**6021A** 0.97 1.06

CAP**6024A** 0.97 1.06

FX4CN(B,F)060 0.99 1.03

CAP**6025A** 0.97 1.06

CNPH*6024A** 0.97 1.06

CNPH*6124A** 0.98 1.07

CAP**6021A** 0.97 1.06 58CV(A,X)110---20

CNPV*6024A** 0.97 1.06

CNPV*6124A** 0.99 1.08

CSPH*6012A** 0.97 1.06

CAP**6024A** 0.97 1.01 58CV(A,X)135---22

CSPH*6012A** 0.98 1.07 58CV(A,X)110---20

CNPH*6024A** 0.97 1.06 58CV(A,X)110--- 20

CNPH*6124A** 0.98 1.07 58CV(A,X)110--- 20

CNPH*6024A** 0.97 1.01 58CV(A,X)135--- 22

CNPH*6124A** 0.98 1.02 58CV(A,X)135--- 22

CAP**6024A** 0.98 1.02 58CV(A,X)155---22

CNPV*6024A** 0.97 1.01 58CV(A,X)135---22

CNPV*6124A** 0.99 1.03 58CV(A,X)135---22

CSPH*6012A** 0.98 1.02 58CV(A,X)135---22

(245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80_F(27_C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air per degree above 80_F(27_C).

may occur.

* Tested combination.

{ The kW values include the compressor, outdoor fan motor, and indoor blower motor. The kW from supplement heaters should be added to these values to obtain total system kilowatts.

} Sensible capacities shown are based on 80_F(27_C) entering air at the indoor coil. For sensible capacities at other than 80_F(27_C), deduct 835 Btuh

# Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per AHRI standard 210/240---2008. If additional tubing length and/or indoor unit is located above outdoor unit, a slight variation in capacity

** System kw is total of indoor and outdoor unit kilowatts.

{{ At TVA rating indoor condition (75_F edb/63_F ewb). All other indoor air temperatures are at 80_F edb.

EWB — Entering Wet Bulb

NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

Page 49

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC5

CAPACITY POWER FURN AC E MODEL

OUTDOOR COIL ENTERING AIR T EMPERATURES ° F (° C)

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC518A**30 Outdoor Section With F X4DNF019 Indoor Section

HEATING

CAP**2417A** 0.99 1.05 58MV(B,C)060--- 14

CNPV*1917A** 1.01 0.99 58ME(B,C)060--- 12

CNPV*2417A** 1.01 1.02 58ME(B,C)060--- 12

CNPH*2417A** 1.01 1.02 58ME(B,C)060---12

INDOOR MODEL

CNPV*1917A** 1.00 1.03 58MV(B,C)060--- 14

CSPH*2412A** 0.99 1.03 58ME(B,C)060--- 12

CNPV*2417A** 0.99 1.04 58MV(B,C)060--- 14

CSPH*2412A** 0.99 1.04 58MV(B,C)060--- 14

CNPH*2417A** 0.99 1.04 58MV(B,C)060---14

CNPH*2417A** 0.99 1.04 58MV(B,C)080---14

CAP**1814A** 1.00 1.06 58PH*045--- 08

CSPH*2412A** 0.99 1.04 58MV(B,C)080--- 14

CAP**2414A** 1.01 1.03 58PH*045--- 08

CSPH*2412A** 0.99 1.04 58MVB040---14

CNPH*2417A** 0.99 1.04 58MVB040 ---14

CNPH*2417A** 1.01 1.03 58PH*045 ---08

CAP**2417A** 0.98 1.04 59*N*A060V17**14

CNPV*1814A** 1.00 1.04 58PH*045--- 08

CNPV*2414A** 1.01 1.03 58PH*045--- 08

CSPH*2412A** 1.01 1.03 58PH*045--- 08

CNPH*2417A** 0.99 1.04 59*N*A060V17**14

CAP**2417A** 0.98 1.04 59*N*A080V17**14

CNPV*1917A** 0.99 1.02 59*N*A060V17**14

CNPV*2417A** 0.99 1.04 59*N*A060V17**14

CSPH*2412A** 0.99 1.04 59*N*A060V17**14

CNPH*2417A** 0.98 1.04 59*N*A080V17**14

CAP**1814A** 0.98 1.08 59*P5A040E14**10

CAP**2414A** 0.99 1.06 59*P5A040E14**10

CNPV*1917A** 0.98 1.02 59*N*A080V17**14

CNPV*2417A** 0.98 1.04 59*N*A080V17**14

CAP**2417A** 0.99 1.05 59*P5A040E14**10

CNPV*1814A** 0.98 1.08 59*P5A040E14**10

CNPV*1917A** 0.99 1.04 59*P5A040E14**10

CNPV*2414A** 0.99 1.05 59*P5A040E14**10

CSPH*2412A** 0.98 1.04 59*N*A080V17**14

CNPH*2417A** 0.99 1.05 59*P5A040E14**10

CNPV*2417A** 0.99 1.05 59*P5A040E14**10

CSPH*2412A** 0.99 1.07 59*P5A040E14**10

Seenoteonpg.60

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

--- 3 ( --- 1 9 . 4 ) 7 ( - --13.9) 17 ( ---8.3) 27 ( --- 2.8) 37 (2.8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot a l Integ* To t al Integ* Tot a l Integ* To ta l Integ* To t a l In teg* To t a l Integ* To ta l Integ* To t al Integ*

Capacity MB tuh

525 5.13 4.72 1.02 7.34 6.75 1.07 9.76 8.90 1.12 12.54 11.13 1.18 15.15 13.78 1.24 18.08 18.08 1.32 21.28 21.28 1.41 24.15 24.15 1.48

600 5.22 4.80 1.02 7.46 6.85 1.07 9.91 9.03 1.11 12.68 11.27 1.17 15.35 13.97 1.22 18.35 18.35 1.29 21.43 21.43 1.35 24.11 24.11 1.42

675 5.30 4.87 1.02 7.55 6.94 1.07 10.04 9.15 1.11 12.80 11.37 1.16 15.51 14.12 1.20 18.56 18.56 1.27 21.37 21.37 1.31 23.93 23.93 1.37

525 4.84 4.45 1.07 7.04 6.47 1.12 9.43 8.60 1.18 12.28 10.90 1.24 14.86 13.52 1.31 17.74 17.74 1.38 20.89 20.89 1.48 23.84 23.84 1.55

600 4.92 4.53 1.07 7.15 6.57 1.12 9.58 8.74 1.17 12.44 11.04 1.23 15.05 13.70 1.28 18.00 18.00 1.35 21.15 21.15 1.42 23.87 23.87 1.49

675 4.99 4.59 1.07 7.25 6.66 1.12 9.71 8.85 1.16 12.56 11.16 1.21 15.21 13.84 1.26 18.21 18.21 1.33 21.20 21.20 1.39 23.75 23.75 1.45

525 4.50 4.14 1.11 6.70 6.16 1.17 9.09 8.29 1.23 11.98 10.64 1.30 14.56 13.25 1.37 17.39 17.39 1.45 20.50 20.50 1.55 23.52 23.52 1.63

600 4.59 4.22 1.12 6.82 6.27 1.17 9.24 8.42 1.22 12.15 10.79 1.29 14.75 13.43 1.34 17.65 17.65 1.42 20.82 20.82 1.50 23.58 23.58 1.57

CFM

675 4.66 4.29 1.12 6.92 6.36 1.17 9.36 8.54 1.22 12.29 10.91 1.27 14.91 13.57 1.33 17.86 17.86 1.39 20.95 20.95 1.46 23.53 23.53 1.52

HEATING

INDOOR AIR

EDB

HEAT PUMP HEATING PERFORMANCE

°F (°C)

(18.3)

(21.1)

(23.9)

CAPACITY POWER FURN AC E MODEL

FE4ANF002 1.00 1.02

FF1ENP018 1.01 1.12

FF1ENP019 1.01 1.05

FF1ENP024 1.01 1.10

FF1ENP025 1.01 1.02

FV4BNF002 1.00 1.02

FB4CNF018 1.01 1.05

FB4CNF024 1.01 1.05

*FX4DNF019 1.00 1.00

INDOOR MODEL

FV4CNF002 1.00 1.02

FY4ANF018 1.01 1.12

FY4ANF024 1.01 1.12

FY5BNF018 1.01 1.09

FX4CNF018 1.01 1.05

FX4CNF024 1.01 1.03

FX4DNF025 1.01 1.01

FY5BNF024 1.01 1.09

CAP**1814A** 1.01 1.12

CAP**2414A** 1.01 1.09

CAP**2417A** 1.01 1.09

CNPF*2418A** 1.01 1.08

CNPV*1814A** 1.01 1.09

CNPV*1917A** 1.01 1.07

CNPH*2417A** 1.01 1.08

CAP**1814A** 0.98 1.07 58CV(A,X)070---12

CNPV*2414A** 1.01 1.08

CAP**2414A** 0.99 1.05 58CV(A,X)070---12

CNPV*2417A** 1.01 1.08

CSPH*2412A** 1.01 1.08

CNPH*2417A** 0.99 1.04 58CV(A,X)070--- 12

CAP**2417A** 0.99 1.04 58CV(A,X)090---16

CNPV*1814A** 0.98 1.04 58CV(A,X)070---12

CNPV*2414A** 0.99 1.04 58CV(A,X)070---12

CSPH*2412A** 0.99 1.04 58CV(A,X)070---12

CNPH*2417A** 0.99 1.03 58CV(A,X)090--- 16

CAP**2417A** 1.01 0.99 58ME(B,C)040--- 12

CNPV*1917A** 1.00 1.03 58CV(A,X)090---16

CNPV*2417A** 0.99 1.03 58CV(A,X)090---16

CSPH*2412A** 0.99 1.04 58CV(A,X)090---16

CNPH*2417A** 1.01 1.00 58ME(B,C)040---12

CAP**2417A** 1.01 1.01 58ME(B,C)060--- 12

CNPV*1917A** 1.01 0.97 58ME(B,C)040--- 12

CNPV*2417A** 1.01 1.00 58ME(B,C)040--- 12

CSPH*2412A** 1.01 1.01 58ME(B,C)040--- 12

Page 50

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**2417A** 1.00 1.01 58MV(B,C)060--- 14

CNPV*2417A** 1.00 1.00 58ME(B,C)080--- 12

CNPV*3017A** 1.00 0.99 58ME(B,C)080--- 12

HEATING INDOOR

25HBC5

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CNPV*3117A** 1.00 0.94 58ME(B,C)080--- 12

CAP**3017A** 1.00 1.00 58MV(B,C)060--- 14

CNPV*2417A** 1.00 1.00 58MV(B,C)060--- 14

CNPV*3017A** 1.00 1.00 58MV(B,C)060--- 14

CSPH*2412A** 1.00 1.01 58ME(B,C)080--- 12

CSPH*3012A** 1.00 1.00 58ME(B,C)080--- 12

CNPH*2417A** 1.00 1.00 58MV(B,C)060---14

CNPV*3117A** 1.00 0.96 58MV(B,C)060--- 14

CSPH*2412A** 1.00 1.00 58MV(B,C)060--- 14

CSPH*3012A** 1.00 1.00 58MV(B,C)060--- 14

CSPH*2412A** 1.00 1.03 58MV(B,C)080--- 14

CSPH*3012A** 1.00 1.03 58MV(B,C)080--- 14

CSPH*2412A** 1.00 1.05 58MV(B,C)080--- 20

CSPH*3012A** 1.00 1.05 58MV(B,C)080--- 20

CSPH*2412A** 1.00 1.03 58MV(B,C)100--- 20

CSPH*3012A** 1.00 1.03 58MV(B,C)100--- 20

CSPH*2412A** 1.00 1.01 58MV(B,C)120--- 20

CNPH*3017A** 1.00 1.00 58MV(B,C)060---14

CNPH*2417A** 1.00 1.03 58MV(B,C)080---14

CNPH*3017A** 1.00 1.03 58MV(B,C)080---14

CNPH*2417A** 1.00 1.04 58MV(B,C)080---20

CNPH*3017A** 1.00 1.05 58MV(B,C)080---20

CNPH*2417A** 1.00 1.02 58MV(B,C)100---20

CNPH*3017A** 1.00 1.03 58MV(B,C)100---20

CSPH*3012A** 1.00 1.02 58MV(B,C)120--- 20

CNPH*2417A** 1.00 1.01 58MV(B,C)120---20

CNPH*3017A** 1.00 1.02 58MV(B,C)120---20

CNPH*2417A** 1.00 1.02 58MVB040 ---14

CAP**2414A** 1.00 1.03 58PH*045--- 08

CAP**3014A** 1.00 1.02 58PH*045--- 08

CSPH*2412A** 1.00 1.03 58MVB040---14

CSPH*3012A** 1.00 1.03 58MVB040---14

CNPH*3017A** 1.00 1.03 58MVB040 ---14

CNPV*2414A** 1.00 1.02 58PH*045--- 08

CNPH*2417A** 1.00 1.02 58PH*045 ---08

CNPH*3017A** 1.00 1.01 58PH*045 ---08

CAP**2417A** 0.95 1.00 59*N*A060V17**14

CNPV*3014A** 1.00 1.03 58PH*045--- 08

CAP**3017A** 0.95 0.99 59*N*A060V17**14

CSPH*2412A** 1.00 1.02 58PH*045--- 08

CSPH*3012A** 1.00 1.02 58PH*045--- 08

CAPACITY POWER FURN AC E MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC524A**30 Outdoor Section With F X4DNF025 Indoor Section

HEATING INDOOR

MODEL

CAP**3017A** 1.00 1.03 58CV(A,X)090---16

CNPV*2417A** 1.00 1.02 58CV(A,X)090---16

CNPV*3017A** 1.00 1.02 58CV(A,X)090---16

CNPV*3117A** 1.00 0.98 58CV(A,X)090---16

CSPH*2412A** 1.00 1.02 58CV(A,X)090---16

CSPH*3012A** 1.00 1.03 58CV(A,X)090---16

CSPH*2412A** 1.00 1.03 58CV(A,X)110---20

CSPH*3012A** 1.00 1.03 58CV(A,X)110---20

CSPH*2412A** 1.00 1.02 58CV(A,X)135---22

CNPH*2417A** 1.00 1.02 58CV(A,X)090--- 16

CNPH*3017A** 1.00 1.02 58CV(A,X)090--- 16

CNPH*2417A** 1.00 1.02 58CV(A,X)110--- 20

CNPH*3017A** 1.00 1.03 58CV(A,X)110--- 20

CSPH*3012A** 1.00 1.03 58CV(A,X)135---22

CNPH*2417A** 1.00 1.02 58CV(A,X)135--- 22

CNPH*3017A** 1.00 1.02 58CV(A,X)135--- 22

CNPH*2417A** 1.00 1.02 58CV(A,X)155--- 22

CAP**3619A** 1.00 1.01 58HDV040--- ---12

CAP**3619A** 1.00 0.99 58HDV060--- ---12

CAP**2417A** 1.00 1.00 58ME(B,C)040--- 12

CAP**3017A** 1.00 0.98 58ME(B,C)040--- 12

CNPV*2417A** 1.00 0.99 58ME(B,C)040--- 12

CSPH*2412A** 1.00 1.02 58CV(A,X)155---22

CSPH*3012A** 1.00 1.02 58CV(A,X)155---22

CNPH*3017A** 1.00 1.02 58CV(A,X)155--- 22

CNPV*3017A** 1.00 0.98 58ME(B,C)040--- 12

CNPH*2417A** 1.00 0.99 58ME(B,C)040---12

CNPH*3017A** 1.00 0.98 58ME(B,C)040---12

CAP**2417A** 1.00 0.99 58ME(B,C)060--- 12

CNPV*3117A** 1.00 0.93 58ME(B,C)040--- 12

CAP**3017A** 1.00 0.98 58ME(B,C)060--- 12

CNPV*2417A** 1.00 0.99 58ME(B,C)060--- 12

CSPH*2412A** 1.00 1.00 58ME(B,C)040--- 12

CSPH*3012A** 1.00 0.99 58ME(B,C)040--- 12

CNPV*3017A** 1.00 0.98 58ME(B,C)060--- 12

CNPH*2417A** 1.00 0.99 58ME(B,C)060---12

CNPH*3017A** 1.00 0.98 58ME(B,C)060---12

CAP**2417A** 1.00 1.00 58ME(B,C)080--- 12

CNPV*3117A** 1.00 0.93 58ME(B,C)060--- 12

CAP**3017A** 1.00 0.99 58ME(B,C)080--- 12

CSPH*2412A** 1.00 1.00 58ME(B,C)060--- 12

CSPH*3012A** 1.00 0.98 58ME(B,C)060--- 12

CNPH*2417A** 1.00 1.00 58ME(B,C)080---12

CNPH*3017A** 1.00 0.99 58ME(B,C)080---12

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

--- 3 ( --- 1 9 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 ( ---2.8) 37 ( 2.8) 47 ( 8.3) 57 (13.9) 67 (19.4)

Capacity MB tuh

Tot a l Integ* To t al Integ* To t al Integ* To ta l Integ* Tot a l Integ* To t a l Integ* To ta l Integ* To ta l Integ*

700 8.38 7.71 1.36 11.07 10.18 1.44 14.28 13.02 1.52 17.14 15.23 1.57 20.39 18.56 1.63 24.08 24.08 1.72 28.29 28.29 1.86 32.83 32.83 2.02

800 8.52 7.83 1.36 11.24 10.33 1.44 14.45 13.17 1.50 17.34 15.40 1.54 20.64 18.79 1.60 24.41 24.41 1.68 28.68 28.68 1.81 32.90 32.90 1.94

900 8.64 7.95 1.37 11.39 10.47 1.44 14.59 13.30 1.49 17.50 15.54 1.53 20.85 18.98 1.58 24.67 24.67 1.66 28.96 28.96 1.77 32.79 32.79 1.88

700 7.98 7.35 1.42 10.69 9.83 1.51 13.97 12.74 1.59 16.84 14.96 1.65 20.05 18.24 1.71 23.68 23.68 1.81 27.81 27.81 1.95 32.46 32.46 2.13

800 8.12 7.47 1.43 10.86 9.98 1.51 14.15 12.90 1.58 17.04 15.13 1.63 20.30 18.47 1.68 24.00 24.00 1.77 28.21 28.21 1.90 32.56 32.56 2.04

900 8.24 7.58 1.43 11.00 10.11 1.51 14.30 13.04 1.57 17.21 15.28 1.61 20.50 18.66 1.66 24.26 24.26 1.74 28.53 28.53 1.87 32.53 32.53 1.98

700 7.57 6.97 1.49 10.29 9.46 1.59 13.23 12.06 1.66 16.55 14.70 1.73 19.70 17.93 1.80 23.28 23.28 1.90 27.36 27.36 2.04 31.99 31.99 2.24

800 7.71 7.09 1.50 10.46 9.61 1.58 13.44 12.26 1.65 16.74 14.87 1.71 19.94 18.15 1.77 23.59 23.59 1.86 27.76 27.76 1.99 32.27 32.27 2.15

900 7.82 7.19 1.50 10.60 9.74 1.58 13.66 12.45 1.64 16.91 15.02 1.70 20.15 18.33 1.75 23.85 23.85 1.83 28.05 28.05 1.96 32.25 32.25 2.08

HEATING INDOOR

(23.9)

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

CFM

EDB

°F (°C)

(18.3)

(21.1)

CAPACITY POWER FURN AC E MODEL

MODEL

*FX4DNF025 1.00 1.00

FE4ANF002 1.00 1.00

FF1ENP024 1.00 1.08

FF1ENP025 1.00 1.02

FF1ENP030 1.00 1.08

FF1ENP031 1.00 1.03

FF1ENP037 1.00 1.01

FV4BNF002 1.00 1.00

FB4CNF024 1.00 1.04

FB4CNF030 1.00 1.00

FE4AN(B,F)003 1.00 1.00

FV4CNF002 1.00 1.00

FV4BN(B,F)003 1.00 1.00

FV4CN(B,F)003 1.00 1.00

FY4ANF024 1.00 1.09

FY4ANF030 1.00 1.06

FY5BNF024 1.00 1.04

FX4CNF024 1.00 1.03

FX4CNF030 1.00 1.00

FX4DN(B,F)031 1.00 1.00

FY5BNF030 1.00 1.02

CAP**2414A** 1.00 1.06

CAP**2417A** 1.00 1.06

CAP**3014A** 1.00 1.06

CAP**3017A** 1.00 1.06

CNPF*2418A** 1.00 1.04

CNPV*2414A** 1.00 1.04

CNPV*2417A** 1.00 1.04

CNPV*3014A** 1.00 1.05

CNPH*2417A** 1.00 1.04

CNPH*3017A** 1.00 1.05

CNPV*3017A** 1.00 1.05

CAP**2414A** 1.00 1.05 58CV(A,X)070---12

CNPV*3117A** 1.00 1.01

CAP**3014A** 1.00 1.04 58CV(A,X)070---12

CSPH*2412A** 1.00 1.04

CSPH*3012A** 1.00 1.05

CNPV*2414A** 1.00 1.03 58CV(A,X)070---12

CNPH*2417A** 1.00 1.03 58CV(A,X)070--- 12

CNPH*3017A** 1.00 1.03 58CV(A,X)070--- 12

CAP**2417A** 1.00 1.04 58CV(A,X)090---16

CNPV*3014A** 1.00 1.04 58CV(A,X)070---12

CSPH*2412A** 1.00 1.03 58CV(A,X)070---12

CSPH*3012A** 1.00 1.04 58CV(A,X)070---12

Page 51

25HBC5

25HBC524A**30 Outdoor Section With F X4DNF025 Indoor Section

CAPACITY POWER FURN AC E MODEL

HEATING INDOOR

MODEL

CNPV*2417A** 0.95 0.98 59*N*A060V17**14

CNPH*2417A** 0.95 0.98 59*N*A060V17**14

CNPV*3017A** 0.95 0.99 59*N*A060V17**14

CNPH*3017A** 0.95 0.99 59*N*A060V17**14

CNPH*3117A** 0.95 0.95 59*N*A060V17**14

CAP**2417A** 0.95 1.00 59*N*A080V17**14

CNPV*3117A** 0.95 0.95 59*N*A060V17**14

CAP**3017A** 0.95 1.00 59*N*A080V17**14

CSPH*2412A** 0.95 0.99 59*N*A060V17**14

CSPH*3012A** 0.95 0.97 59*N*A060V17**14

CNPV*2417A** 0.95 0.99 59*N*A080V17**14

CNPH*2417A** 0.95 0.99 59*N*A080V17**14

CNPH*3017A** 0.95 0.99 59*N*A080V17**14

CNPH*3117A** 0.95 0.95 59*N*A080V17**14

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**2414A** 0.95 1.01 59*P5A040E14**10

CAP**2417A** 0.95 1.00 59*P5A040E14**10

CAP**3014A** 0.95 1.00 59*P5A040E14**10

CNPV*3017A** 0.95 0.99 59*N*A080V17**14

CNPV*3117A** 0.95 0.95 59*N*A080V17**14

CSPH*2412A** 0.95 0.99 59*N*A080V17**14

CSPH*3012A** 0.95 0.98 59*N*A080V17**14

CSPH*2412A** 0.95 0.96 59*N*A100V21**20

CNPH*2417A** 0.95 0.96 59*N*A100V21**20

CSPH*3012A** 0.95 0.95 59*N*A100V21**20

CNPH*3017A** 0.95 0.97 59*N*A100V21**20

CNPH*3117A** 0.95 0.92 59*N*A100V21**20

CSPH*2412A** 0.95 0.97 59*N*A120V24**22

CNPH*2417A** 0.95 0.96 59*N*A120V24**22

CSPH*3012A** 0.95 0.96 59*N*A120V24**22

CNPH*3017A** 0.95 0.97 59*N*A120V24**22

CNPH*3117A** 0.95 0.93 59*N*A120V24**22

CAP**3017A** 0.95 0.99 59*P5A040E14**10

CNPV*2414A** 0.95 0.99 59*P5A040E14**10

CNPV*2417A** 0.95 0.99 59*P5A040E14**10

CNPV*3014A** 0.95 1.00 59*P5A040E14**10

CNPH*2417A** 0.95 0.99 59*P5A040E14**10

CNPH*3017A** 0.95 0.99 59*P5A040E14**10

CNPH*3117A** 0.95 0.95 59*P5A040E14**10

CNPV*3017A** 0.95 0.99 59*P5A040E14**10

CAP**2417A** 0.95 0.99 59*P5A060E17**14

CNPV*3117A** 0.95 0.95 59*P5A040E14**10

CAP**3017A** 0.95 0.98 59*P5A060E17**14

CSPH*2412A** 0.95 0.99 59*P5A040E14**10

CSPH*3012A** 0.95 0.98 59*P5A040E14**10

CNPV*2417A** 0.95 0.99 59*P5A060E17**14

CNPV*3017A** 0.95 0.98 59*P5A060E17**14

CNPV*3117A** 0.95 0.93 59*P5A060E17**14

CSPH*2412A** 0.95 1.00 59*P5A060E17**14

CNPH*2417A** 0.95 0.99 59*P5A060E17**14

CNPH*3017A** 0.95 0.98 59*P5A060E17**14

CNPH*3117A** 0.95 0.93 59*P5A060E17**14

CSPH*3012A** 0.95 0.97 59*P5A060E17**14

Seenoteonpg.60

Page 52

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**3017A** 0.99 1.01 58ME(B,C)080--- 12

CNPV*3017A** 0.99 1.01 58ME(B,C)060--- 12

CNPV*3117A** 1.01 0.97 58ME(B,C)060--- 12

CNPV*3617A** 0.99 1.01 58ME(B,C)060--- 12

CNPH*3617A** 0.99 1.01 58ME(B,C)060---12

HEATING INDOOR

25HBC5

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CNPV*3717A** 1.00 0.94 58ME(B,C)060--- 12

CAP**3617A** 0.99 1.00 58ME(B,C)080--- 12

CNPV*3017A** 0.99 1.01 58ME(B,C)080--- 12

CNPV*3117A** 1.00 0.97 58ME(B,C)080--- 12

CSPH*3012A** 0.99 1.01 58ME(B,C)060--- 12

CSPH*3612A** 1.00 0.98 58ME(B,C)060--- 12

CNPH*3017A** 0.99 1.01 58ME(B,C)080---12

CNPV*3617A** 0.99 1.01 58ME(B,C)080--- 12

CNPH*3617A** 0.99 1.01 58ME(B,C)080---12

CAP**3017A** 1.00 1.01 58ME(B,C)080--- 16

CNPV*3717A** 1.00 0.94 58ME(B,C)080--- 12

CAP**3617A** 1.00 1.00 58ME(B,C)080--- 16

CNPV*3017A** 1.00 1.01 58ME(B,C)080--- 16

CNPV*3117A** 1.01 0.97 58ME(B,C)080--- 16

CSPH*3012A** 0.99 1.01 58ME(B,C)080--- 12

CSPH*3612A** 1.00 0.98 58ME(B,C)080--- 12

CNPH*3017A** 1.00 1.01 58ME(B,C)080---16

CNPV*3617A** 1.00 1.01 58ME(B,C)080--- 16

CNPH*3617A** 1.00 1.01 58ME(B,C)080---16

CAP**3017A** 0.99 1.02 58MV(B,C)060--- 14

CNPV*3717A** 1.01 0.94 58ME(B,C)080--- 16

CAP**3617A** 0.99 1.01 58MV(B,C)060--- 14

CNPV*3017A** 0.99 1.01 58MV(B,C)060--- 14

CNPV*3117A** 1.00 0.99 58MV(B,C)060--- 14

CSPH*3012A** 1.00 1.02 58ME(B,C)080--- 16

CSPH*3612A** 1.01 0.98 58ME(B,C)080--- 16

CNPH*3017A** 0.99 1.01 58MV(B,C)060---14

CNPV*3617A** 0.99 1.01 58MV(B,C)060--- 14

CNPH*3617A** 0.99 1.01 58MV(B,C)060---14

CAP**3621A** 0.98 1.02 58MV(B,C)080--- 14

CNPV*3717A** 1.00 0.96 58MV(B,C)060--- 14

CSPH*3012A** 0.99 1.02 58MV(B,C)060--- 14

CSPH*3612A** 0.99 0.99 58MV(B,C)060--- 14

CNPV*3621A** 0.98 1.03 58MV(B,C)080--- 14

CNPV*4221A** 0.99 1.02 58MV(B,C)080--- 14

CSPH*3012A** 0.99 1.04 58MV(B,C)080--- 14

CNPH*3017A** 0.98 1.03 58MV(B,C)080---14

CNPH*3617A** 0.98 1.03 58MV(B,C)080---14

CSPH*3612A** 0.99 1.00 58MV(B,C)080--- 14

CAPACITY POWER FURN AC E MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC530A**30 Outdoor Section With F X4DNF031 Indoor Section

HEATING INDOOR

MODEL

CAP**3017A** 0.98 1.02 58CV(A,X)090---16

CNPV*3014A** 0.99 1.04 58CV(A,X)070---12

CAP**3617A** 0.98 1.01 58CV(A,X)090---16

CNPV*3017A** 0.98 1.02 58CV(A,X)090---16

CNPV*3117A** 0.99 0.99 58CV(A,X)090---16

CSPH*3012A** 0.99 1.03 58CV(A,X)070---12

CSPH*3612A** 0.99 1.01 58CV(A,X)070---12

CNPH*3017A** 0.98 1.02 58CV(A,X)090--- 16

CNPV*3617A** 0.98 1.02 58CV(A,X)090---16

CNPH*3617A** 0.98 1.02 58CV(A,X)090--- 16

CAP**3621A** 0.99 1.01 58CV(A,X)110---20

CNPV*3717A** 0.99 0.96 58CV(A,X)090---16

CSPH*3012A** 0.99 1.02 58CV(A,X)090---16

CSPH*3612A** 0.99 0.99 58CV(A,X)090---16

CNPV*3621A** 0.99 1.02 58CV(A,X)110---20

CSPH*3012A** 0.99 1.02 58CV(A,X)110---20

CSPH*3612A** 0.99 0.99 58CV(A,X)110---20

CSPH*3012A** 0.99 1.02 58CV(A,X)135---22

CNPH*3017A** 0.99 1.02 58CV(A,X)110--- 20

CNPH*3617A** 0.99 1.02 58CV(A,X)110--- 20

CSPH*3612A** 0.99 0.99 58CV(A,X)135---22

CNPH*3017A** 0.99 1.02 58CV(A,X)135--- 22

CNPH*3617A** 0.99 1.02 58CV(A,X)135--- 22

CNPH*3017A** 0.98 1.01 58CV(A,X)155--- 22

CAP**3619A** 1.00 1.05 58HDV040--- ---12

CAP**3619A** 1.00 1.03 58HDV060--- ---12

CAP**3017A** 0.99 1.01 58ME(B,C)040--- 12

CAP**3617A** 0.99 1.00 58ME(B,C)040--- 12

CNPV*3017A** 0.99 1.01 58ME(B,C)040--- 12

CNPV*3117A** 1.00 0.97 58ME(B,C)040--- 12

CSPH*3012A** 0.99 1.01 58CV(A,X)155---22

CSPH*3612A** 0.99 0.98 58CV(A,X)155---22

CNPH*3617A** 0.98 1.01 58CV(A,X)155--- 22

CNPH*3017A** 0.99 1.01 58ME(B,C)040---12

CNPV*3617A** 0.99 1.01 58ME(B,C)040--- 12

CNPH*3617A** 0.99 1.01 58ME(B,C)040---12

CAP**3017A** 0.99 1.01 58ME(B,C)060--- 12

CNPV*3717A** 1.00 0.94 58ME(B,C)040--- 12

CAP**3617A** 0.99 1.00 58ME(B,C)060--- 12

CSPH*3012A** 0.99 1.01 58ME(B,C)040--- 12

CSPH*3612A** 1.00 0.98 58ME(B,C)040--- 12

CNPH*3017A** 0.99 1.01 58ME(B,C)060---12

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

--- 3 ( --- 1 9 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2.8) 47 (8.3) 57 (13. 9) 67 (19. 4)

Capacity MB tuh

Tot a l Integ* To t al Integ* To ta l Integ* To t al Integ* To ta l Integ* To t a l In teg* To ta l Integ* To t al Integ*

875 9.76 8.98 1.59 13.14 12.08 1.66 16.80 15.32 1.73 21.11 18.75 1.83 25.07 22.82 1.91 29.50 29.50 2.02 34.45 34.45 2.14 39.00 39.00 2.24

875 9.22 8.49 1.66 12.63 11.61 1.74 16.30 14.86 1.82 20.75 18.43 1.92 24.68 22.46 2.01 29.04 29.04 2.12 33.93 33.93 2.25 38.55 38.55 2.35

875 8.65 7.96 1.74 12.09 11.11 1.82 15.76 14.37 1.90 20.33 18.05 2.01 24.28 22.09 2.11 28.57 28.57 2.22 33.39 33.39 2.36 38.09 38.09 2.46

1000 9.40 8.65 1.67 12.84 11.80 1.74 16.55 15.09 1.81 20.99 18.64 1.90 24.96 22.71 1.98 29.40 29.40 2.08 34.27 34.27 2.18 38.59 38.59 2.28

1125 9.56 8.80 1.69 13.03 11.97 1.75 16.77 15.29 1.81 21.18 18.81 1.89 25.20 22.93 1.97 29.70 29.70 2.06 34.31 34.31 2.14 38.50 38.50 2.23

1000 8.83 8.12 1.75 12.30 11.30 1.82 16.02 14.60 1.90 20.59 18.29 2.00 24.56 22.35 2.08 28.93 28.93 2.18 33.82 33.82 2.29 38.19 38.19 2.39

1125 8.98 8.26 1.76 12.48 11.47 1.83 16.23 14.80 1.90 20.81 18.48 1.99 24.80 22.56 2.06 29.22 29.22 2.16 33.98 33.98 2.25 38.16 38.16 2.34

(21.1)

HEATING INDOOR

(23.9)

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

CFM

EDB

1000 9.94 9.15 1.60 13.35 12.27 1.66 17.06 15.56 1.73 21.33 18.94 1.81 25.37 23.08 1.89 29.87 29.87 1.98 34.61 34.61 2.07 38.97 38.97 2.17

1125 10.10 9.29 1.61 13.53 12.44 1.67 17.28 15.75 1.73 21.54 19.13 1.80 25.61 23.31 1.87 30.18 30.18 1.96 34.65 34.65 2.03 38.83 38.83 2.13

°F (°C)

(18.3)

CAPACITY POWER FURN AC E MODEL

MODEL

FB4CNF030 1.00 1.03

*FX4D N(B,F)0 31 1.00 1.00

FE4ANF002 0.99 1.00

FF1ENP030 1.01 1.10

FF1ENP031 1.00 1.03

FF1ENP036 1.02 1.09

FF1ENP037 1.01 1.04

FV4BNF002 0.99 1.00

FB4CNF036 1.00 1.03

FE4AN(B,F)003 0.98 0.99

FE4AN(B,F)005 0.98 0.94

FV4BN(B,F)003 0.98 0.99

FV4BN(B,F)005 0.98 0.94

FV4CNF002 0.99 1.00

FV4CN(B,F)003 0.98 0.99

FV4CN(B,F)005 0.98 0.94

FY4ANF030 1.01 1.09

FY4ANF036 1.02 1.10

FY5BNF030 1.01 1.04

FX4CNF030 1.00 1.02

FX4CN(B,F)036 1.01 1.03

FX4DN(B,F)037 1.01 0.97

FY5BNF036 1.01 1.06

CAP**3014A** 1.02 1.09

CAP**3017A** 1.02 1.09

CAP**3614A** 1.02 1.09

CAP**3617A** 1.02 1.09

CAP**3619A** 1.02 1.09

CAP**3621A** 1.02 1.09

CNPF*3618A** 1.02 1.09

CNPV*3014A** 1.02 1.09

CNPV*3017A** 1.02 1.09

CNPV*3117A** 1.03 1.06

CNPV*3617A** 1.02 1.09

CNPH*3017A** 1.02 1.09

CNPH*3617A** 1.02 1.09

CNPV*3621A** 1.02 1.09

CAP**3014A** 0.99 1.04 58CV(A,X)070---12

CNPV*3717A** 1.03 1.03

CAP**3614A** 0.99 1.03 58CV(A,X)070---12

CSPH*3012A** 1.02 1.08

CSPH*3612A** 1.02 1.05

CNPH*3017A** 0.99 1.03 58CV(A,X)070--- 12

CNPH*3617A** 0.99 1.03 58CV(A,X)070--- 12

Page 53

25HBC5

CAPACITY POWER FURN AC E MODEL

25HBC530A**30 Outdoor Section With F X4DNF031 Indoor Section

HEATING INDOOR

MODEL

CSPH*2412A** 0.95 0.96 59*N*A100V21**20

CSPH*3012A** 0.95 0.95 59*N*A100V21**20

CNPH*2417A** 0.95 0.96 59*N*A120V24**22

CNPH*3017A** 0.95 0.97 59*N*A120V24**22

CAP**2414A** 0.95 1.01 59*P5A040E14**10

CAP**2417A** 0.95 1.00 59*P5A040E14**10

CAP**3014A** 0.95 1.00 59*P5A040E14**10

CSPH*2412A** 0.95 0.97 59*N*A120V24**22

CSPH*3012A** 0.95 0.96 59*N*A120V24**22

CNPH*3117A** 0.95 0.93 59*N*A120V24**22

CAP**3017A** 0.95 0.99 59*P5A040E14**10

CNPV*2414A** 0.95 0.99 59*P5A040E14**10

CNPV*2417A** 0.95 0.99 59*P5A040E14**10

CNPV*3014A** 0.95 1.00 59*P5A040E14**10

CNPH*2417A** 0.95 0.99 59*P5A040E14**10

CNPH*3017A** 0.95 0.99 59*P5A040E14**10

CNPH*3117A** 0.95 0.95 59*P5A040E14**10

CNPV*3017A** 0.95 0.99 59*P5A040E14**10

CAP**2417A** 0.95 0.99 59*P5A060E17**14

CNPV*3117A** 0.95 0.95 59*P5A040E14**10

CAP**3017A** 0.95 0.98 59*P5A060E17**14

CSPH*2412A** 0.95 0.99 59*P5A040E14**10

CSPH*3012A** 0.95 0.98 59*P5A040E14**10

CNPV*2417A** 0.95 0.99 59*P5A060E17**14

CNPV*3017A** 0.95 0.98 59*P5A060E17**14

CNPV*3117A** 0.95 0.93 59*P5A060E17**14

CSPH*2412A** 0.95 1.00 59*P5A060E17**14

CNPH*2417A** 0.95 0.99 59*P5A060E17**14

CNPH*3017A** 0.95 0.98 59*P5A060E17**14

CNPH*3117A** 0.95 0.93 59*P5A060E17**14

CSPH*3012A** 0.95 0.97 59*P5A060E17**14

Seenoteonpg.60

CAPACITY POWER FURN AC E MODEL

MODEL

HEATING INDOOR

CAP**3621A** 0.99 1.02 58MV(B,C)080--- 20

CNPH*3017A** 0.99 1.03 58MV(B,C)080---20

CNPH*3617A** 0.99 1.03 58MV(B,C)080---20

CAP**3621A** 0.98 1.03 58MV(B,C)100--- 20

CNPV*3621A** 0.99 1.03 58MV(B,C)080--- 20

CSPH*3012A** 0.99 1.02 58MV(B,C)080--- 20

CSPH*3612A** 0.99 1.00 58MV(B,C)080--- 20

CNPV*3621A** 0.98 1.03 58MV(B,C)100--- 20

CSPH*3012A** 0.98 1.03 58MV(B,C)100--- 20

CNPH*3017A** 0.98 1.03 58MV(B,C)100---20

CSPH*3612A** 0.99 1.01 58MV(B,C)100--- 20

CNPH*3617A** 0.98 1.03 58MV(B,C)100---20

CNPH*3017A** 0.99 1.02 58MV(B,C)120---20

CNPH*3617A** 0.99 1.02 58MV(B,C)120---20

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**3017A** 0.99 1.03 58PH*070--- 16

CAP**3617A** 0.99 1.02 58PH*070--- 16

CNPV*3017A** 0.99 1.03 58PH*070--- 16

CNPV*3117A** 1.01 1.00 58PH*070--- 16

CSPH*3012A** 0.99 1.02 58MV(B,C)120--- 20

CSPH*3612A** 0.99 0.99 58MV(B,C)120--- 20

CSPH*3012A** 0.99 1.03 58MVB040---14

CSPH*3612A** 0.99 1.01 58MVB040---14

CNPH*3017A** 0.99 1.03 58MVB040 ---14

CNPH*3617A** 0.99 1.03 58MVB040 ---14

CNPH*3017A** 0.99 1.03 58PH*070 ---16

CNPV*3617A** 0.99 1.03 58PH*070--- 16

CNPH*3617A** 0.99 1.03 58PH*070 ---16

CAP**3621A** 0.99 1.00 58PH*090--- 16

CNPV*3717A** 1.01 0.97 58PH*070--- 16

CSPH*3012A** 0.99 1.03 58PH*070--- 16

CSPH*3612A** 1.00 1.00 58PH*070--- 16

CNPH*3017A** 0.99 1.02 58PH*090 ---16

CNPH*3617A** 0.99 1.02 58PH*090 ---16

CAP**2417A** 0.95 1.00 59*N*A060V17**14

CNPV*3621A** 0.99 1.02 58PH*090--- 16

CAP**3017A** 0.95 0.99 59*N*A060V17**14

CSPH*3012A** 0.99 1.03 58PH*090--- 16

CSPH*3612A** 1.00 0.99 58PH*090--- 16

CNPV*2417A** 0.95 0.98 59*N*A060V17**14

CNPH*2417A** 0.95 0.98 59*N*A060V17**14

CNPV*3017A** 0.95 0.99 59*N*A060V17**14

CNPH*3017A** 0.95 0.99 59*N*A060V17**14

CNPH*3117A** 0.95 0.95 59*N*A060V17**14

CAP**2417A** 0.95 1.00 59*N*A080V17**14

CNPV*3117A** 0.95 0.95 59*N*A060V17**14

CAP**3017A** 0.95 1.00 59*N*A080V17**14

CSPH*2412A** 0.95 0.99 59*N*A060V17**14

CSPH*3012A** 0.95 0.97 59*N*A060V17**14

CNPV*2417A** 0.95 0.99 59*N*A080V17**14

CNPV*3017A** 0.95 0.99 59*N*A080V17**14

CNPV*3117A** 0.95 0.95 59*N*A080V17**14

CSPH*2412A** 0.95 0.99 59*N*A080V17**14

CNPH*2417A** 0.95 0.99 59*N*A080V17**14

CNPH*3017A** 0.95 0.99 59*N*A080V17**14

CNPH*3117A** 0.95 0.95 59*N*A080V17**14

CSPH*3012A** 0.95 0.98 59*N*A080V17**14

CNPH*2417A** 0.95 0.96 59*N*A100V21**20

CNPH*3017A** 0.95 0.97 59*N*A100V21**20

CNPH*3117A** 0.95 0.92 59*N*A100V21**20

Page 54

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**3617A** 0.98 1.04 58ME(B,C)060--- 12

CNPV*3617A** 0.98 1.04 58ME(B,C)060--- 12

CNPV*3717A** 1.00 0.99 58ME(B,C)060--- 12

CNPH*3617A** 0.98 1.04 58ME(B,C)060---12

HEATING INDOOR

25HBC5

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CNPH*4221A** 0.98 1.02 58ME(B,C)060---12

CAP**3617A** 0.98 1.04 58ME(B,C)080--- 12

CNPV*4217A** 0.99 1.01 58ME(B,C)060--- 12

CSPH*3612A** 0.99 1.01 58ME(B,C)060--- 12

CSPH*4212A** 0.99 1.00 58ME(B,C)060--- 12

CNPV*3617A** 0.98 1.05 58ME(B,C)080--- 12

CNPV*3717A** 0.99 0.99 58ME(B,C)080--- 12

CNPH*3617A** 0.98 1.05 58ME(B,C)080---12

CNPH*4221A** 0.98 1.03 58ME(B,C)080---12

CAP**3617A** 0.98 1.04 58ME(B,C)080--- 16

CNPV*4217A** 0.99 1.02 58ME(B,C)080--- 12

CSPH*3612A** 0.99 1.01 58ME(B,C)080--- 12

CSPH*4212A** 0.99 1.00 58ME(B,C)080--- 12

CNPV*3617A** 0.98 1.04 58ME(B,C)080--- 16

CNPV*3717A** 1.00 0.99 58ME(B,C)080--- 16

CNPH*3617A** 0.98 1.04 58ME(B,C)080---16

CNPH*4221A** 0.98 1.02 58ME(B,C)080---16

CAP**3621A** 0.97 1.02 58ME(B,C)100--- 20

CNPV*4217A** 0.99 1.02 58ME(B,C)080--- 16

CAP**4221A** 0.98 1.01 58ME(B,C)100--- 20

CSPH*3612A** 0.98 1.00 58ME(B,C)080--- 16

CSPH*4212A** 0.99 1.00 58ME(B,C)080--- 16

CNPV*3621A** 0.97 1.04 58ME(B,C)100--- 20

CNPH*3617A** 0.97 1.04 58ME(B,C)100---20

CNPH*4221A** 0.98 1.02 58ME(B,C)100---20

CAP**3617A** 0.98 1.04 58MV(B,C)060--- 14

CNPV*4221A** 0.98 1.02 58ME(B,C)100--- 20

CSPH*3612A** 0.98 1.01 58ME(B,C)100--- 20

CSPH*4212A** 0.98 0.99 58ME(B,C)100--- 20

CNPV*3617A** 0.98 1.05 58MV(B,C)060--- 14

CNPV*3717A** 0.99 0.99 58MV(B,C)060--- 14

CNPH*3617A** 0.98 1.05 58MV(B,C)060---14

CNPH*4221A** 0.98 1.03 58MV(B,C)060---14

CAP**3621A** 0.98 1.05 58MV(B,C)080--- 14

CNPV*4217A** 0.99 1.02 58MV(B,C)060--- 14

CAP**4221A** 0.98 1.04 58MV(B,C)080--- 14

CSPH*3612A** 0.99 1.02 58MV(B,C)060--- 14

CSPH*4212A** 0.99 1.00 58MV(B,C)060--- 14

CNPH*3617A** 0.98 1.06 58MV(B,C)080---14

CNPH*4221A** 0.98 1.04 58MV(B,C)080---14

CAPACITY POWER FURN AC E MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC536A**30 Outdoor Section With F X4DNF037 Indoor Section

HEATING INDOOR

MODEL

CAP**3617A** 0.97 1.04 58CV(A,X)090---16

CNPV*3617A** 0.97 1.05 58CV(A,X)090---16

CSPH*3612A** 0.98 1.03 58CV(A,X)070---12

CSPH*4212A** 0.99 1.03 58CV(A,X)070---12

CNPV*3717A** 0.99 0.99 58CV(A,X)090---16

CNPH*3617A** 0.97 1.05 58CV(A,X)090--- 16

CNPH*4221A** 0.98 1.03 58CV(A,X)090--- 16

CAP**3621A** 0.97 1.03 58CV(A,X)110---20

CNPV*4217A** 0.98 1.02 58CV(A,X)090---16

CAP**4221A** 0.98 1.03 58CV(A,X)110---20

CSPH*3612A** 0.98 1.02 58CV(A,X)090---16

CSPH*4212A** 0.98 1.01 58CV(A,X)090---16

CNPV*3621A** 0.97 1.04 58CV(A,X)110---20

CNPH*3617A** 0.97 1.04 58CV(A,X)110--- 20

CNPH*4221A** 0.98 1.03 58CV(A,X)110--- 20

CAP**4224A** 0.97 1.02 58CV(A,X)135---22

CNPV*4221A** 0.98 1.03 58CV(A,X)110---20

CSPH*3612A** 0.98 1.01 58CV(A,X)110---20

CSPH*4212A** 0.98 1.00 58CV(A,X)110---20

CNPH*3617A** 0.97 1.04 58CV(A,X)135--- 22

CNPH*4221A** 0.97 1.02 58CV(A,X)135--- 22

CAP**4224A** 0.97 1.01 58CV(A,X)155---22

CNPV*4324A** 0.98 0.97 58CV(A,X)135---22

CSPH*3612A** 0.98 1.01 58CV(A,X)135---22

CSPH*4212A** 0.98 1.00 58CV(A,X)135---22

CNPH*3617A** 0.97 1.04 58CV(A,X)155--- 22

CNPH*4221A** 0.97 1.01 58CV(A,X)155--- 22

CAP**3619A** 0.99 1.10 58HDV040--- ---12

CAP**3619A** 0.99 1.07 58HDV060--- ---12

CAP**4224A** 0.99 1.02 58HDV100--- ---20

CNPV*4324A** 0.98 0.97 58CV(A,X)155---22

CSPH*3612A** 0.98 1.00 58CV(A,X)155---22

CSPH*4212A** 0.98 0.99 58CV(A,X)155---22

CAP**3617A** 0.98 1.03 58ME(B,C)040--- 12

CNPV*4324A** 1.01 0.98 58HDV100--- ---20

CNPV*3617A** 0.98 1.04 58ME(B,C)040--- 12

CNPV*3717A** 0.99 0.98 58ME(B,C)040--- 12

CNPV*4217A** 0.99 1.01 58ME(B,C)040--- 12

CSPH*3612A** 0.99 1.01 58ME(B,C)040--- 12

CNPH*3617A** 0.98 1.04 58ME(B,C)040---12

CNPH*4221A** 0.98 1.02 58ME(B,C)040---12

CSPH*4212A** 0.99 1.00 58ME(B,C)040--- 12

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

--- 3 ( --- 1 9 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2.8) 47 (8.3) 57 (13. 9) 67 (19. 4)

Capacity MB tuh

Tot a l Integ* To t al Integ* To ta l Integ* To t al Integ* To ta l Integ* To t a l In teg* To ta l Integ* To t al Integ*

CFM

1050 11.44 10.52 1.97 15.33 14.09 2.06 19.61 17.88 2.15 24.41 21.68 2.26 29.99 27.29 2.39 35.11 35.11 2.52 40.74 40.74 2.65 46.35 46.35 2.78

1200 11.66 10.73 1.98 15.60 14.34 2.06 19.93 18.17 2.15 24.85 22.07 2.24 30.35 27.62 2.36 35.57 35.57 2.47 41.14 41.14 2.57 46.50 46.50 2.69

1350 11.86 10.91 2.00 15.83 14.55 2.07 20.21 18.42 2.15 25.78 22.90 2.25 30.66 27.90 2.34 35.94 35.94 2.44 41.32 41.32 2.53 46.51 46.51 2.63

1050 10.73 9.87 2.07 14.64 13.45 2.16 18.94 17.26 2.25 23.71 21.05 2.36 29.52 26.86 2.51 34.56 34.56 2.63 40.20 40.20 2.78 45.76 45.76 2.91

1200 10.95 10.08 2.08 14.91 13.70 2.16 19.26 17.56 2.25 24.10 21.41 2.35 29.87 27.19 2.47 35.00 35.00 2.59 40.60 40.60 2.70 45.95 45.95 2.82

1350 11.15 10.26 2.09 15.15 13.92 2.17 19.53 17.81 2.25 24.44 21.70 2.34 30.17 27.46 2.45 35.37 35.37 2.56 40.83 40.83 2.65 46.01 46.01 2.76

1050 9.98 9.19 2.17 13.92 12.79 2.26 18.23 16.62 2.36 22.97 20.40 2.47 28.97 26.36 2.63 34.00 34.00 2.76 39.58 39.58 2.92 45.14 45.14 3.04

1200 10.20 9.38 2.18 14.18 13.03 2.26 18.55 16.92 2.35 23.37 20.76 2.45 29.35 26.71 2.59 34.43 34.43 2.71 40.10 40.10 2.84 45.39 45.39 2.95

1350 10.39 9.55 2.19 14.41 13.25 2.27 18.82 17.16 2.35 23.70 21.05 2.45 29.66 26.99 2.57 34.80 34.80 2.68 40.32 40.32 2.78 45.49 45.49 2.89

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

°F (°C)

(18.3)

(21.1)

HEATING INDOOR

(23.9)

CAPACITY POWER FURN AC E MODEL

MODEL

FB4CNF036 0.99 1.06

FB4CNF042 1.00 1.01

*FX4D N(B,F)0 37 1.00 1.00

FE4ANF002 0.98 1.04

FF1ENP036 1.01 1.11

FF1ENP037 1.01 1.09

FE4ANB006 0.98 0.94

FE4AN(B,F)003 0.97 1.02

FE4AN(B,F)005 0.98 0.97

FV4BNF002 0.98 1.04

FV4BNB006 0.98 0.94

FV4BN(B,F)003 0.97 1.02

FV4BN(B,F)005 0.98 0.97

FV4CNF002 0.98 1.04

FV4CNB006 0.98 0.94

FV4CN(B,F)003 0.97 1.02

FV4CN(B,F)005 0.98 0.97

FY4ANF036 1.01 1.11

FY4ANF042 1.02 1.09

FY5BNF036 1.00 1.06

FY5BNF042 1.01 1.04

CAP**3614A** 1.00 1.10

CAP**3617A** 1.01 1.10

CAP**3619A** 1.01 1.10

CAP**3621A** 1.01 1.10

CAP**4221A** 1.01 1.09

FX4CN(B,F)036 0.99 1.04

FX4CN(B,F)042 1.01 1.03

FX4DN(B,F)043 0.97 0.97

CAP**4224A** 1.01 1.09

CNPF*3618A** 1.01 1.10

CNPV*3617A** 1.01 1.10

CNPV*3621A** 1.01 1.10

CNPV*3717A** 1.02 1.04

CNPV*4217A** 1.02 1.07

CNPH*3617A** 1.01 1.10

CNPH*4221A** 1.01 1.08

CNPV*4221A** 1.01 1.08

CAP**3614A** 0.98 1.06 58CV(A,X)070---12

CNPV*4324A** 1.02 1.04

CSPH*3612A** 1.01 1.06

CSPH*4212A** 1.01 1.05

CNPH*3617A** 0.98 1.06 58CV(A,X)070--- 12

CNPH*4221A** 0.98 1.05 58CV(A,X)070--- 12

Page 55

CAPACITY POWER FURN AC E MODEL

HEATING INDOOR

MODEL

CNPV*3617A** 0.99 1.08 59*P5A060E17**14

CNPV*3621A** 0.99 1.08 59*P5A060E17**14

CNPV*3717A** 1.01 1.02 59*P5A060E17**14

CNPH*4321A** 1.01 1.02 59*P5A060E17**14

CNPV*4217A** 1.00 1.05 59*P5A060E17**14

CAP**3617A** 0.98 1.06 59*P5A080E17**16

CAP**3619A** 0.98 1.06 59*P5A080E17**16

CAP**3621A** 0.98 1.06 59*P5A080E17**16

CNPV*4221A** 0.99 1.06 59*P5A060E17**14

CSPH*3612A** 1.00 1.05 59*P5A060E17**14

CSPH*4212A** 1.00 1.04 59*P5A060E17**14

CAP**4221A** 0.98 1.05 59*P5A080E17**16

CNPV*3617A** 0.98 1.07 59*P5A080E17**16

CNPV*3621A** 0.98 1.06 59*P5A080E17**16

CNPV*3717A** 1.00 1.02 59*P5A080E17**16

CNPV*4217A** 0.99 1.04 59*P5A080E17**16

CNPV*4221A** 0.98 1.05 59*P5A080E17**16

CSPH*3612A** 0.99 1.04 59*P5A080E17**16

CNPH*3617A** 0.98 1.07 59*P5A080E17**16

CNPH*4221A** 0.98 1.05 59*P5A080E17**16

CNPH*4321A** 1.00 1.01 59*P5A080E17**16

CSPH*4212A** 0.99 1.03 59*P5A080E17**16

Seenoteonpg.60

25HBC5

CAPACITY POWER FURN AC E MODEL

25HBC536A**30 Outdoor Section With F X4DNF037 Indoor Section

HEATING INDOOR

MODEL

CNPV*3621A** 0.98 1.03 58PH*110--- 20

CNPH*3617A** 0.98 1.03 58PH*110 ---20

CNPH*4221A** 0.98 1.01 58PH*110 ---20

CAP**3617A** 0.98 1.08 59*N*A060V17**14

CAP**3619A** 0.98 1.08 59*N*A060V17**14

CAP**3621A** 0.98 1.08 59*N*A060V17**14

CNPV*4221A** 0.98 1.01 58PH*110--- 20

CSPH*3612A** 0.99 1.00 58PH*110--- 20

CSPH*4212A** 0.99 0.98 58PH*110--- 20

CAP**4221A** 0.98 1.07 59*N*A060V17**14

CNPV*3617A** 0.98 1.09 59*N*A060V17**14

CNPV*3621A** 0.98 1.09 59*N*A060V17**14

CNPV*3717A** 0.99 1.03 59*N*A060V17**14

CNPH*3617A** 0.98 1.09 59*N*A060V17**14

CNPH*4221A** 0.98 1.07 59*N*A060V17**14

CNPH*4321A** 0.99 1.03 59*N*A060V17**14

CNPV*4217A** 0.99 1.06 59*N*A060V17**14

CAP**3617A** 0.98 1.07 59*N*A080V17**14

CAP**3619A** 0.98 1.07 59*N*A080V17**14

CAP**3621A** 0.98 1.06 59*N*A080V17**14

CNPV*4221A** 0.98 1.07 59*N*A060V17**14

CSPH*3612A** 0.99 1.06 59*N*A060V17**14

CSPH*4212A** 0.99 1.05 59*N*A060V17**14

CAP**4221A** 0.98 1.05 59*N*A080V17**14

CNPV*3617A** 0.98 1.08 59*N*A080V17**14

CNPV*3621A** 0.98 1.08 59*N*A080V17**14

CNPV*3717A** 0.99 1.02 59*N*A080V17**14

CNPH*3617A** 0.98 1.08 59*N*A080V17**14

CNPH*4221A** 0.98 1.06 59*N*A080V17**14

CNPH*4321A** 0.99 1.01 59*N*A080V17**14

CNPV*4217A** 0.98 1.05 59*N*A080V17**14

CAP**3619A** 0.98 1.06 59*N*A100V21**20

CAP**3621A** 0.98 1.05 59*N*A100V21**20

CAP**4221A** 0.98 1.05 59*N*A100V21**20

CNPV*4221A** 0.98 1.06 59*N*A080V17**14

CSPH*3612A** 0.98 1.04 59*N*A080V17**14

CSPH*4212A** 0.99 1.04 59*N*A080V17**14

CAP**4224A** 0.98 1.05 59*N*A100V21**20

CNPV*3621A** 0.98 1.06 59*N*A100V21**20

CNPH*3617A** 0.98 1.08 59*N*A100V21**20

CNPV*4221A** 0.98 1.05 59*N*A100V21**20

CNPH*4221A** 0.98 1.05 59*N*A100V21**20

CNPH*4321A** 0.99 1.01 59*N*A100V21**20

CAP**4224A** 0.98 1.04 59*N*A120V24**22

CNPV*4324A** 0.99 1.00 59*N*A100V21**20

CSPH*3612A** 0.99 1.04 59*N*A100V21**20

CSPH*4212A** 0.99 1.03 59*N*A100V21**20

CNPH*3617A** 0.98 1.06 59*N*A120V24**22

CNPH*4221A** 0.98 1.05 59*N*A120V24**22

CNPH*4321A** 0.99 1.00 59*N*A120V24**22

CAP**3617A** 0.99 1.07 59*P5A060E17**14

CAP**3619A** 0.99 1.07 59*P5A060E17**14

CAP**3621A** 0.99 1.06 59*P5A060E17**14

CNPV*4324A** 0.99 0.99 59*N*A120V24**22

CSPH*3612A** 0.98 1.02 59*N*A120V24**22

CSPH*4212A** 0.99 1.02 59*N*A120V24**22

CAP**4221A** 0.99 1.06 59*P5A060E17**14

CNPH*3617A** 0.99 1.08 59*P5A060E17**14

CNPH*4221A** 0.99 1.06 59*P5A060E17**14

CAPACITY POWER FURN AC E MODEL

HEATING INDOOR

MODEL

CNPV*3621A** 0.98 1.06 58MV(B,C)080--- 14

CNPV*4221A** 0.98 1.04 58MV(B,C)080--- 14

CNPV*4324A** 0.99 1.00 58MV(B,C)080--- 14

CNPV*4821A** 0.99 1.02 58MV(B,C)080--- 14

CAP**3621A** 0.97 1.04 58MV(B,C)080--- 20

CNPV*6024A** 0.99 1.00 58MV(B,C)080--- 14

CAP**4221A** 0.98 1.04 58MV(B,C)080--- 20

CNPV*3621A** 0.97 1.05 58MV(B,C)080--- 20

CNPV*4221A** 0.98 1.04 58MV(B,C)080--- 20

CSPH*3612A** 0.99 1.03 58MV(B,C)080--- 14

CSPH*4212A** 0.99 1.02 58MV(B,C)080--- 14

CNPH*3617A** 0.97 1.05 58MV(B,C)080---20

CNPV*4324A** 0.99 0.99 58MV(B,C)080--- 20

CNPH*4221A** 0.98 1.04 58MV(B,C)080---20

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**3621A** 0.98 1.04 58MV(B,C)100--- 20

CAP**4221A** 0.98 1.03 58MV(B,C)100--- 20

CSPH*3612A** 0.98 1.02 58MV(B,C)080--- 20

CSPH*4212A** 0.99 1.02 58MV(B,C)080--- 20

CNPV*3621A** 0.98 1.05 58MV(B,C)100--- 20

CNPH*3617A** 0.98 1.05 58MV(B,C)100---20

CNPH*4221A** 0.98 1.03 58MV(B,C)100---20

CAP**4224A** 0.97 1.02 58MV(B,C)120--- 20

CNPV*4221A** 0.98 1.03 58MV(B,C)100--- 20

CSPH*3612A** 0.99 1.02 58MV(B,C)100--- 20

CSPH*4212A** 0.99 1.01 58MV(B,C)100--- 20

CNPH*3617A** 0.97 1.05 58MV(B,C)120---20

CNPH*4221A** 0.97 1.02 58MV(B,C)120---20

CAP**4224A** 0.98 1.04 58MVB040---14

CNPV*4324A** 0.99 0.98 58MV(B,C)120--- 20

CSPH*3612A** 0.98 1.02 58MV(B,C)120--- 20

CSPH*4212A** 0.98 1.00 58MV(B,C)120--- 20

CNPH*3617A** 0.98 1.07 58MVB040 ---14

CNPH*4221A** 0.98 1.05 58MVB040 ---14

CAP**3614A** 0.99 1.09 58PH*045--- 08

CNPV*4324A** 0.99 1.00 58MVB040---14

CSPH*3612A** 0.99 1.04 58MVB040---14

CSPH*4212A** 0.99 1.03 58MVB040---14

CNPH*3617A** 0.99 1.09 58PH*045 ---08

CAP**3617A** 0.98 1.06 58PH*070--- 16

CNPV*3617A** 0.98 1.07 58PH*070--- 16

CSPH*3612A** 1.00 1.06 58PH*045--- 08

CSPH*4212A** 1.01 1.05 58PH*045--- 08

CNPH*4221A** 0.99 1.07 58PH*045 ---08

CNPV*3717A** 1.00 1.01 58PH*070--- 16

CNPH*3617A** 0.98 1.07 58PH*070 ---16

CNPH*4221A** 0.99 1.05 58PH*070 ---16

CAP**3621A** 0.98 1.02 58PH*090--- 16

CNPV*4217A** 0.99 1.04 58PH*070--- 16

CAP**4221A** 0.98 1.01 58PH*090--- 16

CSPH*3612A** 0.99 1.04 58PH*070--- 16

CSPH*4212A** 0.99 1.03 58PH*070--- 16

CNPV*3621A** 0.98 1.04 58PH*090--- 16

CNPH*3617A** 0.98 1.04 58PH*090 ---16

CNPH*4221A** 0.98 1.02 58PH*090 ---16

CAP**3621A** 0.98 1.02 58PH*110--- 20

CNPV*4221A** 0.98 1.02 58PH*090--- 16

CAP**4221A** 0.98 1.01 58PH*110--- 20

CSPH*3612A** 0.99 1.01 58PH*090--- 16

CSPH*4212A** 0.99 0.99 58PH*090--- 16

Page 56

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**4817A** 1.01 1.01 58ME(B,C)080--- 16

CSPH*4212A** 1.01 1.01 58ME(B,C)080--- 12

CSPH*4812A** 1.01 1.00 58ME(B,C)080--- 12

CNPH*4221A** 1.01 1.06 58ME(B,C)080---16

HEATING INDOOR

25HBC5

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CNPH*4821A** 1.01 1.02 58ME(B,C)080---16

CAP**4221A** 1.01 1.04 58ME(B,C)100--- 20

CNPV*4217A** 1.01 1.04 58ME(B,C)080--- 16

CAP**4821A** 1.01 1.01 58ME(B,C)100--- 20

CSPH*4212A** 1.01 1.02 58ME(B,C)080--- 16

CSPH*4812A** 1.01 1.01 58ME(B,C)080--- 16

CNPV*4221A** 1.01 1.04 58ME(B,C)100--- 20

CNPH*4221A** 1.01 1.04 58ME(B,C)100---20

CNPH*4821A** 1.01 1.00 58ME(B,C)100---20

CAP**4224A** 1.01 1.03 58ME(B,C)120--- 20

CNPV*4821A** 1.01 1.00 58ME(B,C)100--- 20

CAP**4824A** 1.01 1.00 58ME(B,C)120--- 20

CSPH*4212A** 1.01 1.01 58ME(B,C)100--- 20

CSPH*4812A** 1.01 1.00 58ME(B,C)100--- 20

CNPV*4324A** 1.01 0.97 58ME(B,C)120--- 20

CNPH*4221A** 1.01 1.04 58ME(B,C)120---20

CNPH*4821A** 1.01 0.99 58ME(B,C)120---20

CAP**4817A** 1.01 1.01 58MV(B,C)060--- 14

CNPV*4824A** 1.01 0.99 58ME(B,C)120--- 20

CSPH*4212A** 1.01 1.00 58ME(B,C)120--- 20

CSPH*4812A** 1.01 0.99 58ME(B,C)120--- 20

CNPH*4221A** 1.01 1.05 58MV(B,C)060---14

CNPH*4821A** 1.01 1.02 58MV(B,C)060---14

CAP**4221A** 1.01 1.07 58MV(B,C)080--- 14

CNPV*4217A** 1.01 1.04 58MV(B,C)060--- 14

CAP**4821A** 1.01 1.04 58MV(B,C)080--- 14

CSPH*4212A** 1.01 1.02 58MV(B,C)060--- 14

CSPH*4812A** 1.01 1.01 58MV(B,C)060--- 14

CNPV*4221A** 1.01 1.07 58MV(B,C)080--- 14

CNPH*4221A** 1.01 1.07 58MV(B,C)080---14

CNPH*4821A** 1.01 1.03 58MV(B,C)080---14

CAP**4221A** 1.01 1.06 58MV(B,C)080--- 20

CNPV*4821A** 1.01 1.03 58MV(B,C)080--- 14

CAP**4821A** 1.01 1.03 58MV(B,C)080--- 20

CNPV*4221A** 1.01 1.06 58MV(B,C)080--- 20

CSPH*4212A** 1.01 1.04 58MV(B,C)080--- 14

CSPH*4812A** 1.01 1.03 58MV(B,C)080--- 14

CNPV*4821A** 1.01 1.03 58MV(B,C)080--- 20

CNPH*4221A** 1.01 1.06 58MV(B,C)080---20

CNPH*4821A** 1.01 1.03 58MV(B,C)080---20

CAPACITY POWER FURN AC E MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC542A**30 Outdoor Section With F X4DNF043 Indoor Section

HEATING INDOOR

MODEL

CAP**4221A** 1.01 1.05 58CV(A,X)110---20

CAP**4821A** 1.01 1.02 58CV(A,X)110---20

CNPV*4221A** 1.01 1.05 58CV(A,X)110---20

CSPH*4812A** 1.01 1.01 58CV(A,X)090---16

CNPV*4324A** 1.01 0.99 58CV(A,X)110---20

CNPH*4221A** 1.01 1.05 58CV(A,X)110--- 20

CNPH*4821A** 1.01 1.02 58CV(A,X)110--- 20

CAP**4224A** 1.00 1.03 58CV(A,X)135---22

CNPV*4821A** 1.01 1.02 58CV(A,X)110---20

CAP**4824A** 1.01 1.01 58CV(A,X)135---22

CSPH*4212A** 1.01 1.02 58CV(A,X)110---20

CSPH*4812A** 1.01 1.01 58CV(A,X)110---20

CNPV*4324A** 1.01 0.98 58CV(A,X)135---22

CNPH*4221A** 1.01 1.05 58CV(A,X)135--- 22

CNPH*4821A** 1.01 1.01 58CV(A,X)135--- 22

CAP**4224A** 1.00 1.03 58CV(A,X)155---22

CNPV*4824A** 1.01 1.01 58CV(A,X)135---22

CAP**4824A** 1.01 1.01 58CV(A,X)155---22

CSPH*4212A** 1.01 1.01 58CV(A,X)135---22

CSPH*4812A** 1.01 1.00 58CV(A,X)135---22

CNPV*4324A** 1.01 0.98 58CV(A,X)155---22

CNPH*4221A** 1.01 1.05 58CV(A,X)155--- 22

CNPH*4821A** 1.01 1.01 58CV(A,X)155--- 22

CAP**4823A** 1.01 1.01 58HDV080--- ---20

CAP**4224A** 1.01 1.04 58HDV100--- ---20

CNPV*4824A** 1.01 1.01 58CV(A,X)155---22

CSPH*4212A** 1.01 1.01 58CV(A,X)155---22

CAP**4817A** 1.01 1.00 58ME(B,C)040--- 12

CSPH*4812A** 1.01 1.00 58CV(A,X)155---22

CNPH*4221A** 1.01 1.05 58ME(B,C)040---12

CNPH*4821A** 1.01 1.01 58ME(B,C)040---12

CAP**4817A** 1.01 1.01 58ME(B,C)060--- 12

CNPV*4217A** 1.01 1.03 58ME(B,C)040--- 12

CSPH*4212A** 1.01 1.01 58ME(B,C)040--- 12

CSPH*4812A** 1.01 1.00 58ME(B,C)040--- 12

CNPH*4221A** 1.01 1.05 58ME(B,C)060---12

CNPH*4821A** 1.01 1.01 58ME(B,C)060---12

CAP**4817A** 1.01 1.00 58ME(B,C)080--- 12

CNPV*4217A** 1.01 1.04 58ME(B,C)060--- 12

CSPH*4212A** 1.01 1.01 58ME(B,C)060--- 12

CSPH*4812A** 1.01 1.01 58ME(B,C)060--- 12

CNPV*4217A** 1.01 1.03 58ME(B,C)080--- 12

CNPH*4221A** 1.01 1.05 58ME(B,C)080---12

CNPH*4821A** 1.01 1.01 58ME(B,C)080---12

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

--- 3 ( --- 1 9 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2.8) 47 (8.3) 57 (13. 9) 67 (19. 4)

Capacity MB tuh

Tot a l Integ* To t al Integ* To ta l Integ* To t al Integ* To ta l Integ* To t a l In teg* To ta l Integ* To t al Integ*

CFM

1225 15.59 14.35 2.29 20.20 18.56 2.45 25.92 23.63 2.65 30.84 27.39 2.83 36.17 32.92 3.00 42.10 42.10 3.16 48.79 48.79 3.32 56.67 56.67 3.45

1400 15.85 14.58 2.30 20.53 18.87 2.46 26.26 23.95 2.65 31.19 27.70 2.82 36.63 33.33 2.97 42.66 42.66 3.12 49.49 49.49 3.26 57.34 57.34 3.36

1575 16.10 14.81 2.31 20.82 19.13 2.47 26.55 24.21 2.66 31.50 27.98 2.82 37.01 33.68 2.96 43.12 43.12 3.10 50.13 50.13 3.21 57.72 57.72 3.30

1225 14.91 13.71 2.42 19.56 17.97 2.58 24.56 22.39 2.75 30.36 26.97 2.95 35.61 32.40 3.12 41.46 41.46 3.29 48.00 48.00 3.46 55.78 55.78 3.61

1400 15.19 13.98 2.43 19.88 18.27 2.58 24.93 22.73 2.74 30.71 27.27 2.94 36.05 32.81 3.09 42.00 42.00 3.25 48.69 48.69 3.40 56.54 56.54 3.51

1575 15.44 14.20 2.45 20.17 18.54 2.59 25.36 23.13 2.75 31.04 27.56 2.93 36.43 33.15 3.08 42.45 42.45 3.22 49.27 49.27 3.37 56.99 56.99 3.45

1225 14.21 13.08 2.57 18.88 17.35 2.71 23.85 21.74 2.87 29.87 26.53 3.08 35.07 31.91 3.25 40.82 40.82 3.43 47.26 47.26 3.61 54.86 54.86 3.79

1400 14.48 13.32 2.58 19.21 17.65 2.71 24.24 22.10 2.87 30.24 26.86 3.06 35.49 32.30 3.22 41.35 41.35 3.38 47.91 47.91 3.55 55.73 55.73 3.68

1575 14.73 13.55 2.59 19.49 17.91 2.72 24.58 22.41 2.87 30.53 27.11 3.06 35.86 32.63 3.21 41.79 41.79 3.36 48.46 48.46 3.51 56.22 56.22 3.62

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

°F (°C)

(18.3)

(21.1)

HEATING INDOOR

(23.9)

CAPACITY POWER FURN AC E MODEL

MODEL

FB4CNF042 1.01 1.02

*FX4D N(B,F)0 43 1.00 1.00

FE4ANB006 1.01 0.96

FB4CNF048 1.01 1.01

FE4AN(B,F)003 1.01 1.05

FE4AN(B,F)005 1.01 0.99

FV4BNB006 1.01 0.96

FV4BN(B,F)003 1.01 1.05

FV4BN(B,F)005 1.01 0.99

FV4CNB006 1.01 0.96

FV4CN(B,F)003 1.01 1.05

FV4CN(B,F)005 1.01 0.99

FY4ANF042 1.01 1.06

FY4ANF048 1.01 1.04

FY5BNF042 1.01 1.03

FY5BNF048 1.01 1.01

CAP**4221A** 1.01 1.07

CAP**4224A** 1.01 1.07

CAP**4817A** 1.01 1.02

CAP**4821A** 1.01 1.03

CAP**4823A** 1.01 1.03

FX4CN(B,F)042 1.01 1.02

FX4CN(B,F)048 1.01 0.99

FX4DN(B,F)049 1.01 0.98

CAP**4824A** 1.01 1.03

CNPF*4818A** 1.01 1.05

CNPV*4217A** 1.01 1.05

CNPV*4221A** 1.01 1.06

CNPV*4324A** 1.01 1.01

CNPV*4821A** 1.01 1.03

CNPV*4824A** 1.01 1.03

CSPH*4212A** 1.01 1.03

CNPH*4221A** 1.01 1.06

CNPH*4821A** 1.01 1.03

CSPH*4812A** 1.01 1.02

CNPH*4221A** 1.01 1.07 58CV(A,X)070--- 12

CAP**4817A** 1.01 1.01 58CV(A,X)090---16

CSPH*4212A** 1.01 1.04 58CV(A,X)070---12

CSPH*4812A** 1.01 1.03 58CV(A,X)070---12

CNPH*4821A** 1.01 1.04 58CV(A,X)070--- 12

CNPV*4217A** 1.01 1.04 58CV(A,X)090---16

CSPH*4212A** 1.01 1.02 58CV(A,X)090---16

CNPH*4221A** 1.01 1.06 58CV(A,X)090--- 16

CNPH*4821A** 1.01 1.02 58CV(A,X)090--- 16

Page 57

CAPACITY POWER FURN AC E MODEL

HEATING INDOOR

MODEL

CNPV*4217A** 0.98 1.01 59*P5A080E17**16

CNPH*4221A** 0.98 1.03 59*P5A080E17**16

CNPV*4221A** 0.98 1.03 59*P5A080E17**16

CNPH*4321A** 0.98 0.97 59*P5A080E17**16

CNPH*4821A** 0.98 0.99 59*P5A080E17**16

CAP**4221A** 0.98 1.03 59*P5A100E21**16

CAP**4224A** 0.98 1.03 59*P5A100E21**16

CAP**4821A** 0.98 1.00 59*P5A100E21**16

CAP**4823A** 0.98 1.00 59*P5A100E21**16

CNPV*4821A** 0.98 0.99 59*P5A080E17**16

CSPH*4212A** 0.98 1.00 59*P5A080E17**16

CSPH*4812A** 0.98 0.99 59*P5A080E17**16

CAP**4824A** 0.98 1.00 59*P5A100E21**16

CNPV*4221A** 0.98 1.04 59*P5A100E21**16

CNPV*4324A** 0.98 0.97 59*P5A100E21**16

CNPH*4221A** 0.98 1.04 59*P5A100E21**16

CNPH*4321A** 0.98 0.98 59*P5A100E21**16

CNPV*4821A** 0.98 1.00 59*P5A100E21**16

CNPH*4821A** 0.98 1.00 59*P5A100E21**16

CAP**4224A** 0.98 1.00 59*P5A120E24**22

CAP**4823A** 0.98 0.98 59*P5A120E24**22

CNPV*4824A** 0.98 1.00 59*P5A100E21**16

CSPH*4212A** 0.98 1.00 59*P5A100E21**16

CAP**4824A** 0.98 0.97 59*P5A120E24**22

CSPH*4812A** 0.98 0.99 59*P5A100E21**16

CNPV*4324A** 0.98 0.94 59*P5A120E24**22

CNPV*4824A** 0.98 0.97 59*P5A120E24**22

CSPH*4212A** 0.98 0.98 59*P5A120E24**22

CNPH*4221A** 0.98 1.01 59*P5A120E24**22

CNPH*4321A** 0.98 0.95 59*P5A120E24**22

CNPH*4821A** 0.98 0.97 59*P5A120E24**22

CSPH*4812A** 0.98 0.97 59*P5A120E24**22

Seenoteonpg.60

25HBC5

CAPACITY POWER FURN AC E MODEL

25HBC542A**30 Outdoor Section With F X4DNF043 Indoor Section

MODEL

CAP**4817A** 0.98 1.01 59*N*A060V17**14

HEATING INDOOR

CAP**4821A** 0.98 1.03 59*N*A060V17**14

CNPV*4217A** 0.98 1.04 59*N*A060V17**14

CNPH*4221A** 0.98 1.05 59*N*A060V17**14

CNPV*4221A** 0.98 1.05 59*N*A060V17**14

CNPH*4321A** 0.98 1.00 59*N*A060V17**14

CNPH*4821A** 0.98 1.02 59*N*A060V17**14

CAP**4221A** 0.98 1.04 59*N*A080V17**14

CAP**4817A** 0.98 1.00 59*N*A080V17**14

CNPV*4821A** 0.98 1.02 59*N*A060V17**14

CSPH*4212A** 0.98 1.02 59*N*A060V17**14

CAP**4821A** 0.98 1.01 59*N*A080V17**14

CSPH*4812A** 0.98 1.01 59*N*A060V17**14

CNPV*4217A** 0.98 1.03 59*N*A080V17**14

CNPH*4221A** 0.98 1.05 59*N*A080V17**14

CNPV*4221A** 0.98 1.05 59*N*A080V17**14

CNPH*4321A** 0.98 0.99 59*N*A080V17**14

CNPH*4821A** 0.98 1.01 59*N*A080V17**14

CAP**4221A** 0.98 1.04 59*N*A100V21**20

CAP**4224A** 0.98 1.03 59*N*A100V21**20

CAP**4821A** 0.98 1.00 59*N*A100V21**20

CAP**4823A** 0.98 1.00 59*N*A100V21**20

CNPV*4821A** 0.98 1.01 59*N*A080V17**14

CSPH*4212A** 0.98 1.01 59*N*A080V17**14

CSPH*4812A** 0.98 1.00 59*N*A080V17**14

CAP**4824A** 0.98 1.00 59*N*A100V21**20

CNPV*4221A** 0.98 1.04 59*N*A100V21**20

CNPV*4324A** 0.98 0.98 59*N*A100V21**20

CNPH*4221A** 0.98 1.04 59*N*A100V21**20

CNPH*4321A** 0.98 0.98 59*N*A100V21**20

CNPV*4821A** 0.98 1.00 59*N*A100V21**20

CNPH*4821A** 0.98 1.00 59*N*A100V21**20

CAP**4224A** 0.97 1.01 59*N*A120V24**22

CAP**4823A** 0.98 1.00 59*N*A120V24**22

CNPV*4824A** 0.98 1.00 59*N*A100V21**20

CSPH*4212A** 0.98 1.00 59*N*A100V21**20

CAP**4824A** 0.98 1.00 59*N*A120V24**22

CSPH*4812A** 0.98 1.00 59*N*A100V21**20

CNPV*4324A** 0.98 0.97 59*N*A120V24**22

CNPH*4221A** 0.98 1.03 59*N*A120V24**22

CNPH*4321A** 0.98 0.97 59*N*A120V24**22

CNPH*4821A** 0.98 0.99 59*N*A120V24**22

CAP**4221A** 0.98 1.04 59*P5A060E17**14

CAP**4817A** 0.98 1.00 59*P5A060E17**14

CNPV*4824A** 0.98 0.99 59*N*A120V24**22

CSPH*4212A** 0.98 1.00 59*N*A120V24**22

CAP**4821A** 0.98 1.01 59*P5A060E17**14

CSPH*4812A** 0.98 0.99 59*N*A120V24**22

CNPV*4217A** 0.98 1.03 59*P5A060E17**14

CNPH*4221A** 0.98 1.04 59*P5A060E17**14

CNPV*4221A** 0.98 1.04 59*P5A060E17**14

CNPH*4321A** 0.98 0.98 59*P5A060E17**14

CNPH*4821A** 0.98 1.00 59*P5A060E17**14

CAP**4221A** 0.98 1.03 59*P5A080E17**16

CAP**4817A** 0.98 0.99 59*P5A080E17**16

CNPV*4821A** 0.98 1.00 59*P5A060E17**14

CSPH*4212A** 0.98 1.01 59*P5A060E17**14

CAP**4821A** 0.98 1.00 59*P5A080E17**16

CSPH*4812A** 0.98 1.00 59*P5A060E17**14

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**4221A** 1.01 1.07 58MV(B,C)100--- 20

HEATING INDOOR

CAP**4821A** 1.01 1.04 58MV(B,C)100--- 20

CNPV*4221A** 1.01 1.07 58MV(B,C)100--- 20

CSPH*4212A** 1.01 1.03 58MV(B,C)080--- 20

CSPH*4812A** 1.01 1.02 58MV(B,C)080--- 20

CNPV*4324A** 1.01 1.01 58MV(B,C)100--- 20

CNPH*4221A** 1.01 1.07 58MV(B,C)100---20

CNPH*4821A** 1.01 1.03 58MV(B,C)100---20

CAP**4224A** 1.01 1.05 58MV(B,C)120--- 20

CNPV*4821A** 1.01 1.03 58MV(B,C)100--- 20

CAP**4824A** 1.01 1.02 58MV(B,C)120--- 20

CSPH*4212A** 1.01 1.04 58MV(B,C)100--- 20

CSPH*4812A** 1.01 1.03 58MV(B,C)100--- 20

CNPH*4221A** 1.01 1.06 58MV(B,C)120---20

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**4224A** 1.01 1.07 58MVB040---14

CNPV*4324A** 1.01 0.99 58MV(B,C)120--- 20

CNPV*4824A** 1.01 1.02 58MV(B,C)120--- 20

CNPH*4821A** 1.01 1.02 58MV(B,C)120---20

CAP**4824A** 1.01 1.04 58MVB040---14

CSPH*4212A** 1.01 1.02 58MV(B,C)120--- 20

CSPH*4812A** 1.01 1.01 58MV(B,C)120--- 20

CNPV*4324A** 1.01 1.01 58MVB040---14

CNPH*4221A** 1.01 1.07 58MVB040 ---14

CNPH*4821A** 1.01 1.04 58MVB040 ---14

CAP**4817A** 1.01 1.03 58PH*070--- 16

CNPV*4824A** 1.01 1.04 58MVB040---14

CSPH*4212A** 1.01 1.04 58MVB040---14

CSPH*4812A** 1.01 1.03 58MVB040---14

CNPH*4221A** 1.01 1.07 58PH*070 ---16

CNPH*4821A** 1.01 1.04 58PH*070 ---16

CAP**4221A** 1.01 1.05 58PH*090--- 16

CNPV*4217A** 1.01 1.06 58PH*070--- 16

CAP**4821A** 1.01 1.02 58PH*090--- 16

CSPH*4212A** 1.01 1.04 58PH*070--- 16

CSPH*4812A** 1.01 1.03 58PH*070--- 16

CNPV*4221A** 1.01 1.05 58PH*090--- 16

CNPH*4221A** 1.01 1.05 58PH*090 ---16

CNPH*4821A** 1.01 1.01 58PH*090 ---16

CAP**4221A** 1.01 1.04 58PH*110--- 20

CNPV*4821A** 1.01 1.01 58PH*090--- 16

CAP**4821A** 1.01 1.01 58PH*110--- 20

CNPV*4221A** 1.01 1.05 58PH*110--- 20

CSPH*4212A** 1.01 1.01 58PH*090--- 16

CSPH*4812A** 1.01 1.01 58PH*090--- 16

CNPV*4324A** 1.01 0.97 58PH*110--- 20

CNPH*4221A** 1.01 1.05 58PH*110 ---20

CNPH*4821A** 1.01 1.00 58PH*110 ---20

CAP**4224A** 1.01 1.04 58PH*135--- 20

CNPV*4821A** 1.01 1.00 58PH*110--- 20

CAP**4824A** 1.01 1.01 58PH*135--- 20

CSPH*4212A** 1.01 1.01 58PH*110--- 20

CSPH*4812A** 1.01 1.00 58PH*110--- 20

CNPV*4324A** 1.01 0.98 58PH*135--- 20

CNPH*4221A** 1.01 1.05 58PH*135 ---20

CNPH*4821A** 1.01 1.01 58PH*135 ---20

CAP**4221A** 0.98 1.05 59*N*A060V17**14

CNPV*4824A** 1.01 1.01 58PH*135--- 20

CSPH*4212A** 1.01 1.01 58PH*135--- 20

CSPH*4812A** 1.01 1.01 58PH*135--- 20

Page 58

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**4821A** 0.97 1.03 58MV(B,C)080--- 20

CNPV*4824A** 0.97 0.99 58ME(B,C)120--- 20

CNPV*6024A** 0.98 0.99 58ME(B,C)120--- 20

CNPV*6124A** 0.98 0.96 58ME(B,C)120--- 20

CNPH*6124A** 0.98 0.97 58ME(B,C)120---20

HEATING INDOOR

25HBC5

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC548A**30 Outdoor Section With F X4DNF049 Indoor Section

CAPACITY POWER FURN AC E MODEL

HEATING INDOOR

MODEL

CNPV*4821A** 0.97 1.01 58CV(A,X)110---20

CNPV*6124A** 0.98 0.99 58CV(A,X)110---20

CSPH*4812A** 0.98 1.02 58CV(A,X)110---20

CSPH*6012A** 0.98 1.00 58CV(A,X)110---20

CAP**6021A** 0.98 1.03 58MV(B,C)080--- 20

CSPH*4812A** 0.98 1.00 58ME(B,C)120--- 20

CSPH*6012A** 0.98 0.98 58ME(B,C)120--- 20

CNPH*4821A** 0.97 1.03 58MV(B,C)080---20

CNPH*6024A** 0.97 1.02 58MV(B,C)080---20

CNPH*6124A** 0.98 1.02 58MV(B,C)080---20

CAP**4824A** 0.97 1.00 58CV(A,X)135---22

CAP**6024A** 0.97 0.99 58CV(A,X)135---22

CNPV*4824A** 0.97 1.00 58CV(A,X)135---22

CNPH*4821A** 0.97 1.00 58CV(A,X)135--- 22

CNPV*6024A** 0.97 0.99 58CV(A,X)135---22

CNPH*6024A** 0.97 0.99 58CV(A,X)135--- 22

CNPH*6124A** 0.98 0.99 58CV(A,X)135--- 22

CAP**4821A** 0.98 1.04 58MV(B,C)100--- 20

CNPV*4821A** 0.97 1.03 58MV(B,C)080--- 20

CNPV*6124A** 0.98 0.98 58CV(A,X)135---22

CAP**6021A** 0.98 1.02 58MV(B,C)100--- 20

CSPH*4812A** 0.98 1.03 58MV(B,C)080--- 20

CSPH*6012A** 0.98 1.02 58MV(B,C)080--- 20

CAP**4824A** 0.97 1.00 58CV(A,X)155---22

CAP**6024A** 0.97 0.98 58CV(A,X)155---22

CSPH*4812A** 0.97 1.00 58CV(A,X)135---22

CSPH*6012A** 0.97 0.98 58CV(A,X)135---22

CNPV*4821A** 0.98 1.03 58MV(B,C)100--- 20

CNPH*4821A** 0.98 1.03 58MV(B,C)100---20

CNPH*6024A** 0.98 1.02 58MV(B,C)100---20

CNPH*6124A** 0.99 1.01 58MV(B,C)100---20

CNPV*4824A** 0.97 0.99 58CV(A,X)155---22

CNPH*4821A** 0.97 0.99 58CV(A,X)155--- 22

CNPH*6024A** 0.97 0.98 58CV(A,X)155--- 22

CNPH*6124A** 0.98 0.98 58CV(A,X)155--- 22

CAP**4824A** 0.97 1.01 58MV(B,C)120--- 20

CNPV*6124A** 0.99 1.00 58MV(B,C)100--- 20

CNPV*6024A** 0.97 0.98 58CV(A,X)155---22

CAP**6024A** 0.98 1.01 58MV(B,C)120--- 20

CSPH*4812A** 0.98 1.02 58MV(B,C)100--- 20

CSPH*6012A** 0.98 1.01 58MV(B,C)100--- 20

CAP**4823A** 0.99 1.04 58HDV080--- ---20

CNPV*6124A** 0.98 0.97 58CV(A,X)155---22

CSPH*4812A** 0.97 0.99 58CV(A,X)155---22

CSPH*6012A** 0.97 0.97 58CV(A,X)155---22

CNPV*4824A** 0.97 1.01 58MV(B,C)120--- 20

CNPH*4821A** 0.97 1.01 58MV(B,C)120---20

CAP**6025A** 0.98 1.01 58HDV100--- ---20

CNPV*6024A** 0.98 1.01 58MV(B,C)120--- 20

CNPH*6024A** 0.98 1.01 58MV(B,C)120---20

CNPH*6124A** 0.98 1.00 58MV(B,C)120---20

CAP**4817A** 0.99 1.03 58ME(B,C)080--- 16

CNPH*4821A** 0.98 1.02 58ME(B,C)080---16

CNPH*6024A** 0.99 1.02 58ME(B,C)080---16

CNPH*6124A** 0.99 1.00 58ME(B,C)080---16

CAP**4821A** 0.98 1.02 58PH*090--- 16

CNPV*6124A** 0.98 0.99 58MV(B,C)120--- 20

CSPH*4812A** 0.99 1.03 58ME(B,C)080--- 16

CAP**6021A** 0.98 1.00 58PH*090--- 16

CSPH*4812A** 0.98 1.02 58MV(B,C)120--- 20

CSPH*6012A** 0.98 1.00 58MV(B,C)120--- 20

CNPH*4821A** 0.98 1.01 58PH*090 ---16

CNPH*6024A** 0.98 1.00 58PH*090 ---16

CNPH*6124A** 0.99 1.00 58PH*090 ---16

CAP**4821A** 0.97 1.01 58ME(B,C)100--- 20

CAP**6021A** 0.98 1.00 58ME(B,C)100--- 20

CSPH*6012A** 0.99 1.01 58ME(B,C)080--- 16

CNPV*4821A** 0.97 1.00 58ME(B,C)100--- 20

CNPH*4821A** 0.97 1.00 58ME(B,C)100---20

CNPH*6024A** 0.98 0.99 58ME(B,C)100---20

CNPH*6124A** 0.98 0.98 58ME(B,C)100---20

CAP**4821A** 0.97 1.01 58PH*110--- 20

CNPV*4821A** 0.98 1.01 58PH*090--- 16

CSPH*4812A** 0.98 1.00 58ME(B,C)100--- 20

CAP**6021A** 0.97 0.99 58PH*110--- 20

CSPH*4812A** 0.98 1.01 58PH*090--- 16

CSPH*6012A** 0.98 0.99 58PH*090--- 16

CNPH*4821A** 0.97 1.00 58PH*110 ---20

CAP**4824A** 0.97 0.99 58ME(B,C)120--- 20

CAP**6024A** 0.98 0.99 58ME(B,C)120--- 20

CSPH*6012A** 0.98 0.98 58ME(B,C)100--- 20

CNPH*4821A** 0.97 0.99 58ME(B,C)120---20

CNPH*6024A** 0.98 0.99 58ME(B,C)120---20

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

--- 3 ( --- 1 9 . 4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2.8) 47 ( 8.3) 57 ( 13.9) 67 (19.4)

Capacity MB tuh

Tot a l Integ* To ta l Integ* To t al Integ* To t al Integ* Tot a l Integ* To ta l Integ* To t al Integ* To t al Integ*

CFM

1400 16.57 15.24 2.69 21.81 20.04 2.81 27.40 24.99 2.93 34.27 30.44 3.11 40.13 36.52 3.25 46.61 46.61 3.41 54.13 54.13 3.58 62.36 62.36 3.76

1600 16.86 15.51 2.71 22.16 20.36 2.82 27.81 25.36 2.94 34.67 30.79 3.10 40.59 36.94 3.22 47.18 47.18 3.37 54.95 54.95 3.50 62.79 62.79 3.67

1800 17.12 15.75 2.74 22.46 20.64 2.85 28.17 25.69 2.95 34.99 31.07 3.10 40.98 37.29 3.21 47.66 47.66 3.34 55.35 55.35 3.45 63.02 63.02 3.60

1400 15.87 14.60 2.80 21.11 19.40 2.92 26.66 24.31 3.05 33.71 29.94 3.24 39.54 35.98 3.39 45.93 45.93 3.56 53.20 53.20 3.76 61.54 61.54 3.94

1600 16.17 14.88 2.82 21.47 19.73 2.93 27.09 24.70 3.06 34.13 30.31 3.23 40.02 36.42 3.37 46.50 46.50 3.52 54.09 54.09 3.66 62.01 62.01 3.84

1800 16.43 15.12 2.85 21.77 20.01 2.96 27.45 25.03 3.07 34.48 30.63 3.23 40.41 36.77 3.36 46.98 46.98 3.49 54.63 54.63 3.61 62.29 62.29 3.78

1400 15.12 13.91 2.92 20.36 18.71 3.04 25.89 23.61 3.18 32.01 28.43 3.34 38.98 35.48 3.54 45.26 45.26 3.72 52.30 52.30 3.93 60.68 60.68 4.11

1600 15.41 14.18 2.94 20.72 19.04 3.06 26.32 24.00 3.18 32.64 28.99 3.33 39.43 35.88 3.51 45.81 45.81 3.67 53.21 53.21 3.84 61.21 61.21 4.02

1800 15.68 14.43 2.97 21.03 19.32 3.08 26.68 24.32 3.20 33.89 30.10 3.36 39.81 36.23 3.50 46.28 46.28 3.65 53.84 53.84 3.78 61.52 61.52 3.95

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

°F (°C)

(18.3)

(21.1)

HEATING INDOOR

(23.9)

CAPACITY POWER FURN AC E MODEL

MODEL

*FX4D N(B,F)0 49 1.00 1.00

FE4ANB006 0.98 0.97

FB4CNF048 0.99 1.03

FB4CNF060 0.99 1.00

FV4BNB006 0.98 0.97

FE4AN(B,F)005 0.97 0.99

FV4CNB006 0.98 0.97

FV4BN(B,F)005 0.97 0.99

FV4CN(B,F)005 0.97 0.99

FX4CN(B,F)048 0.99 1.00

FY4ANF048 1.00 1.06

FY5BNF048 0.99 1.01

FY4ANB060 1.01 1.04

FY5BNB060 1.01 1.04

CAP**4817A** 0.99 1.04

CAP**4821A** 1.00 1.05

CAP**4823A** 1.00 1.05

CAP**4824A** 1.00 1.05

CAP**6021A** 1.00 1.03

CAP**6024A** 1.00 1.03

FX4CN(B,F)060 1.00 0.98

FX4DN(B,F)061 0.99 0.96

CAP**6025A** 1.00 1.03

CNPF*4818A** 0.98 1.06

CNPV*4821A** 1.00 1.05

CNPV*4824A** 1.00 1.05

CNPH*4821A** 1.00 1.05

CNPH*6024A** 1.00 1.04

CNPV*6024A** 1.00 1.04

CNPH*6124A** 1.01 1.02

CAP**4817A** 0.98 1.02 58CV(A,X)090---16

CNPV*6124A** 1.01 1.02

CSPH*4812A** 1.00 1.03

CSPH*6012A** 1.00 1.02

CNPH*4821A** 0.97 1.02 58CV(A,X)090--- 16

CNPH*6024A** 0.97 1.00 58CV(A,X)090--- 16

CAP**4821A** 0.97 1.02 58CV(A,X)110---20

CAP**6021A** 0.98 1.01 58CV(A,X)110---20

CSPH*4812A** 0.98 1.02 58CV(A,X)090---16

CSPH*6012A** 0.98 1.01 58CV(A,X)090---16

CNPH*6124A** 0.98 1.00 58CV(A,X)090--- 16

CNPH*4821A** 0.97 1.01 58CV(A,X)110--- 20

CNPH*6024A** 0.97 1.00 58CV(A,X)110--- 20

CNPH*6124A** 0.98 1.00 58CV(A,X)110--- 20

Page 59

25HBC5

CAPACITY POWER FURN AC E MODEL

25HBC548A**30 Outdoor Section With F X4DNF049 Indoor Section

HEATING INDOOR

MODEL

CNPV*4821A** 0.99 1.05 59*P5A100E21**16

CNPV*4824A** 0.99 1.05 59*P5A100E21**16

CNPV*6024A** 0.99 1.03 59*P5A100E21**16

CNPH*6124A** 1.00 1.03 59*P5A100E21**16

CAP**4823A** 0.99 1.04 59*P5A120E24**22

CAP**4824A** 0.99 1.03 59*P5A120E24**22

CAP**6024A** 0.99 1.02 59*P5A120E24**22

CNPV*6124A** 1.00 1.02 59*P5A100E21**16

CSPH*4812A** 0.99 1.04 59*P5A100E21**16

CSPH*6012A** 1.00 1.03 59*P5A100E21**16

CAP**6025A** 0.99 1.02 59*P5A120E24**22

CNPV*4824A** 0.99 1.03 59*P5A120E24**22

CNPV*6024A** 0.99 1.02 59*P5A120E24**22

CNPV*6124A** 1.00 1.00 59*P5A120E24**22

CSPH*4812A** 0.99 1.03 59*P5A120E24**22

CNPH*4821A** 0.99 1.03 59*P5A120E24**22

CNPH*6024A** 0.99 1.02 59*P5A120E24**22

CNPH*6124A** 1.00 1.01 59*P5A120E24**22

CSPH*6012A** 0.99 1.00 59*P5A120E24**22

Seenoteonpg.60

CAPACITY POWER FURN AC E MODEL

HEATING INDOOR

MODEL

CNPH*6024A** 0.97 0.98 58PH*110 ---20

CNPH*6124A** 0.98 0.98 58PH*110 ---20

CAP**4824A** 0.98 1.01 58PH*135--- 20

CNPV*4821A** 0.97 1.00 58PH*110--- 20

CAP**6024A** 0.98 1.00 58PH*135--- 20

CSPH*4812A** 0.97 1.00 58PH*110--- 20

CSPH*6012A** 0.98 0.98 58PH*110--- 20

CNPV*4824A** 0.97 1.00 58PH*135--- 20

CNPV*6024A** 0.98 1.00 58PH*135--- 20

CNPV*6124A** 0.98 0.97 58PH*135--- 20

CNPH*4821A** 0.97 1.00 58PH*135 ---20

CNPH*6024A** 0.98 1.00 58PH*135 ---20

CNPH*6124A** 0.98 0.99 58PH*135 ---20

CSPH*4812A** 0.98 1.01 58PH*135--- 20

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**4821A** 0.98 1.04 59*N*A100V21**20

CAP**4823A** 0.98 1.04 59*N*A100V21**20

CAP**4824A** 0.98 1.04 59*N*A100V21**20

CAP**6021A** 0.99 1.04 59*N*A100V21**20

CAP**6024A** 0.99 1.04 59*N*A100V21**20

CSPH*6012A** 0.98 0.99 58PH*135--- 20

CAP**6025A** 0.99 1.04 59*N*A100V21**20

CNPV*4821A** 0.98 1.04 59*N*A100V21**20

CNPV*4824A** 0.98 1.04 59*N*A100V21**20

CNPH*4821A** 0.98 1.04 59*N*A100V21**20

CNPH*6024A** 0.98 1.03 59*N*A100V21**20

CNPV*6024A** 0.98 1.03 59*N*A100V21**20

CNPH*6124A** 0.99 1.03 59*N*A100V21**20

CAP**4823A** 0.98 1.04 59*N*A120V24**22

CAP**4824A** 0.98 1.03 59*N*A120V24**22

CAP**6024A** 0.98 1.02 59*N*A120V24**22

CNPV*6124A** 0.99 1.02 59*N*A100V21**20

CSPH*4812A** 0.99 1.04 59*N*A100V21**20

CSPH*6012A** 0.99 1.03 59*N*A100V21**20

CAP**6025A** 0.98 1.02 59*N*A120V24**22

CNPV*4824A** 0.98 1.03 59*N*A120V24**22

CNPH*4821A** 0.98 1.03 59*N*A120V24**22

CNPV*6024A** 0.98 1.02 59*N*A120V24**22

CNPH*6024A** 0.98 1.02 59*N*A120V24**22

CNPH*6124A** 0.98 1.01 59*N*A120V24**22

CAP**4817A** 1.00 1.07 59*P5A080E17**16

CAP**4821A** 0.99 1.07 59*P5A080E17**16

CNPV*6124A** 0.98 0.99 59*N*A120V24**22

CSPH*4812A** 0.98 1.03 59*N*A120V24**22

CAP**6021A** 1.00 1.06 59*P5A080E17**16

CSPH*6012A** 0.98 1.01 59*N*A120V24**22

CNPH*4821A** 0.99 1.06 59*P5A080E17**16

CNPH*6024A** 1.00 1.05 59*P5A080E17**16

CNPH*6124A** 1.00 1.04 59*P5A080E17**16

CAP**4821A** 0.99 1.06 59*P5A100E21**16

CAP**4823A** 0.99 1.06 59*P5A100E21**16

CAP**4824A** 0.99 1.05 59*P5A100E21**16

CAP**6021A** 0.99 1.04 59*P5A100E21**16

CAP**6024A** 0.99 1.03 59*P5A100E21**16

CNPV*4821A** 0.99 1.06 59*P5A080E17**16

CSPH*4812A** 1.00 1.07 59*P5A080E17**16

CSPH*6012A** 1.00 1.05 59*P5A080E17**16

CAP**6025A** 0.99 1.03 59*P5A100E21**16

CNPH*4821A** 0.99 1.05 59*P5A100E21**16

CNPH*6024A** 0.99 1.03 59*P5A100E21**16

Page 60

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

CAPACITY POWER FURN AC E MODEL

MODEL

CAP**6021A** 1.01 1.09 59*N*A100V21**20

CAP**6024A** 1.01 1.08 59*N*A100V21**20

CNPV*6024A** 0.99 1.04 58PH*135--- 20

CNPV*6124A** 0.99 1.01 58PH*135--- 20

CNPH*6124A** 0.99 1.03 58PH*135 ---20

HEATING INDOOR

25HBC5

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MB tuh

KW†

Tot a l

Syst.

25HBC560A**30 Outdoor Section With F X4DNF061 Indoor Section

CAPACITY POWER FURN AC E MODEL

HEATING INDOOR

MODEL

CNPV*6024A** 0.99 1.02 58CV(A,X)155---22

CNPH*6024A** 0.99 1.02 58CV(A,X)155--- 22

CNPH*6124A** 0.99 1.01 58CV(A,X)155--- 22

CAP**6025A** 1.01 1.08 59*N*A100V21**20

CSPH*6012A** 0.99 1.02 58PH*135--- 20

CNPV*6124A** 0.99 1.00 58CV(A,X)155---22

CNPH*6024A** 1.00 1.08 59*N*A100V21**20

CNPH*6124A** 1.01 1.08 59*N*A100V21**20

CAP**6025A** 1.02 1.08 58HDV100--- ---20

CSPH*6012A** 0.99 1.01 58CV(A,X)155---22

CAP**6021A** 0.99 1.04 58ME(B,C)100--- 20

CSPH*6012A** 0.99 1.05 58ME(B,C)080--- 16

CNPH*6024A** 0.99 1.06 58ME(B,C)080---16

CAP**6024A** 1.00 1.05 59*N*A120V24**22

CNPV*6024A** 1.00 1.08 59*N*A100V21**20

CNPH*6024A** 0.99 1.04 58ME(B,C)100---20

CAP**6025A** 1.00 1.05 59*N*A120V24**22

CNPV*6124A** 1.01 1.06 59*N*A100V21**20

CSPH*6012A** 1.01 1.07 59*N*A100V21**20

CNPH*6024A** 1.00 1.05 59*N*A120V24**22

CNPH*6124A** 1.00 1.04 59*N*A120V24**22

CAP**6024A** 0.99 1.03 58ME(B,C)120--- 20

CSPH*6012A** 0.99 1.02 58ME(B,C)100--- 20

CNPH*6124A** 0.99 1.03 58ME(B,C)100---20

CNPV*6024A** 0.99 1.03 58ME(B,C)120--- 20

CNPH*6024A** 0.99 1.03 58ME(B,C)120---20

CNPH*6124A** 0.99 1.02 58ME(B,C)120---20

CAP**6024A** 1.00 1.05 59*P5A120E24**22

CNPV*6024A** 1.00 1.05 59*N*A120V24**22

CNPV*6124A** 0.99 1.00 58ME(B,C)120--- 20

CAP**6025A** 1.00 1.05 59*P5A120E24**22

CNPV*6124A** 1.00 1.03 59*N*A120V24**22

CSPH*6012A** 1.00 1.04 59*N*A120V24**22

CNPV*6124A** 0.99 1.02 58MV(B,C)120--- 20

CSPH*6012A** 0.99 1.02 58ME(B,C)120--- 20

CSPH*6012A** 0.99 1.04 58MV(B,C)120--- 20

CNPV*6024A** 1.00 1.05 59*P5A120E24**22

CNPV*6124A** 1.01 1.04 59*P5A120E24**22

CNPH*6024A** 1.00 1.05 59*P5A120E24**22

CAP**6021A** 0.99 1.03 58PH*110--- 20

CNPH*6024A** 0.99 1.03 58PH*110 ---20

CSPH*6012A** 1.00 1.04 59*P5A120E24**22

CNPH*6124A** 1.00 1.04 59*P5A120E24**22

CAP**6024A** 0.99 1.04 58PH*135--- 20

CSPH*6012A** 0.99 1.01 58PH*110--- 20

CNPH*6124A** 0.99 1.02 58PH*110 ---20

CNPH*6024A** 0.99 1.04 58PH*135 ---20

Capacity MB tuh

KW†

Tot a l

Syst.

Capacity MB tuh

KW†

Tot a l

Syst.

--- 3 ( --- 1 9 . 4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2.8) 47 ( 8.3) 57 ( 13.9) 67 (19.4)

Capacity MB tuh

Tot a l Integ* To ta l Integ* To t al Integ* To t al Integ* Tot a l Integ* To ta l Integ* To t al Integ* To t al Integ*

CFM

1750 20.70 19.04 3.28 27.02 24.83 3.42 33.72 30.75 3.56 41.23 36.62 3.72 49.82 45.33 3.93 57.86 57.86 4.12 67.41 67.41 4.34 78.26 78.26 4.58

2000 21.11 19.43 3.32 27.50 25.28 3.45 34.30 31.27 3.58 42.09 37.39 3.72 50.38 45.85 3.90 58.60 58.60 4.07 68.57 68.57 4.25 79.11 79.11 4.49

2250 21.49 19.77 3.37 27.92 25.66 3.49 34.77 31.71 3.60 43.47 38.61 3.77 50.91 46.33 3.90 59.23 59.23 4.06 69.29 69.29 4.21 79.67 79.67 4.43

1750 19.65 18.07 3.42 26.01 23.91 3.57 32.79 29.90 3.72 40.18 35.69 3.88 49.10 44.68 4.11 57.00 57.00 4.30 66.31 66.31 4.55 77.15 77.15 4.78

2000 20.06 18.45 3.46 26.49 24.34 3.59 33.34 30.39 3.73 40.83 36.26 3.88 49.67 45.20 4.08 57.72 57.72 4.26 67.32 67.32 4.46 78.01 78.01 4.68

2250 20.43 18.80 3.50 26.91 24.73 3.63 33.81 30.82 3.76 41.39 36.76 3.89 50.19 45.68 4.08 58.34 58.34 4.24 68.30 68.30 4.40 78.62 78.62 4.63

1750 18.54 17.06 3.56 24.96 22.94 3.72 31.79 28.98 3.88 39.14 34.76 4.06 48.41 44.05 4.30 56.16 56.16 4.50 65.21 65.21 4.76 76.04 76.04 4.99

2000 18.95 17.44 3.60 25.43 23.37 3.75 32.33 29.47 3.90 39.76 35.31 4.05 49.00 44.59 4.27 56.88 56.88 4.45 66.27 66.27 4.66 76.93 76.93 4.89

2250 19.32 17.77 3.65 25.85 23.76 3.79 32.79 29.90 3.92 40.31 35.80 4.06 49.45 45.00 4.26 57.47 57.47 4.43 67.20 67.20 4.61 77.54 77.54 4.83

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

°F (°C)

(18.3)

(21.1)

HEATING INDOOR

(23.9)

CAPACITY POWER FURN AC E MODEL

MODEL

FE4ANB006 0.98 0.98

FV4BNB006 0.98 0.98

FY4ANB060 1.00 1.05

FB4CNF060 0.98 1.03

*FX4D N(B,F)0 61 1.00 1.00

FY5BNB060 1.02 1.07

FV4CNB006 0.98 0.98

CAP**6021A** 0.99 1.04

CAP**6024A** 0.99 1.04

FX4CN(B,F)060 0.98 0.99

CAP**6025A** 0.99 1.04

CNPH*6024A** 0.99 1.04

CNPH*6124A** 0.99 1.03

CAP**6021A** 0.99 1.04 58CV(A,X)110---20

CNPV*6024A** 0.99 1.04

CNPV*6124A** 0.99 1.02

CSPH*6012A** 0.99 1.03

CAP**6024A** 0.99 1.03 58CV(A,X)135---22

CSPH*6012A** 0.99 1.03 58CV(A,X)110---20

CNPH*6024A** 0.99 1.04 58CV(A,X)110--- 20

CNPH*6124A** 0.99 1.03 58CV(A,X)110--- 20

CNPH*6024A** 0.99 1.03 58CV(A,X)135--- 22

CNPH*6124A** 0.99 1.02 58CV(A,X)135--- 22

CAP**6024A** 0.99 1.02 58CV(A,X)155---22

CNPV*6024A** 0.99 1.03 58CV(A,X)135---22

CNPV*6124A** 0.99 1.00 58CV(A,X)135---22

CSPH*6012A** 0.99 1.02 58CV(A,X)135---22

EDB —EnteringDryBulb

NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from supplement heaters should be added to those values to obtain total system capacity.

{ The kW values include the compressor, outdoor fan motor, and indoor blower motor. The kW from supplement heaters should be added to these values to obtain total system kilowatts.

Page 61

GUIDE SPECIFICATIONS GENERAL

AIR--COOLED, SPLIT--SYSTEM HEAT PUMP

25HBC5

1--1/2 TO 5 NOMINAL TONS

System Description

Outdoor--mounted, air--cooled, split--system heat pump unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air--cooled coil, propeller--type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.

Quality Assurance

— Unit will be rated in accordance with the latest edition of

AHRI Standard 240.

— Unit will be certified for capacity and efficiency, and

listed in the latest AHRI directory.

— Unit construction will comply with latest edition of

ANSI/ ASHRAE and with NEC.

— Unit will be constructed in accordance with UL

standards and will carry the UL label of approval. Unit will have C--UL approval.

— Unit cabinet will be capable of withstanding Federal Test

Method Standard No. 141 (Method 6061) 500--hr salt spray test.

— Air--cooled condenser coils are pressure tested and the

outdoor unit is leak tested.

— Unit constructed in ISO9001 approved facility.

Delivery, Storage, and Handling

— Unit will be shipped as single package only and is stored

and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

— U.S. and Canada only.

PRODUCTS

Equipment

— Factory assembled, single piece, air--cooled heat pump

unit. Contained within the unit enclosure is all factory wiring, piping, controls, compressor, refrigerant charge Puronr (R--410A), and special features required prior to field start--up.

Unit Cabinet

— Unit cabinet will be constructed of galvanized steel,

bonderized, and coated with a powder coat paint.

Fans

— Condenser fan will be direct--drive propeller type,

discharging air upward.

— Condenser fan motors will be totally enclosed, 1--phase

type with class B insulation and permanently lubricated

bearings. — Shafts will be corrosion resistant. — Fan blades will be statically and dynamically balanced. — Condenser fan openings will be equipped with steel wire

safety guards.

Compressor

— Compressor will be hermetically sealed. — Compressor will be mounted on rubber vibration

isolators.

Condenser Coil

— Condenser coil will be air cooled. — Coil will be constructed of aluminum fins mechanically

bonded to copper tubes which are then cleaned,

dehydrated, and sealed.

Refrigeration Components

— Refrigeration circuit components will include liquid--line

shutoff valve with sweat connections, vapor--line shutoff

valve with sweat connections, system charge of Puronr

(R--410A) refrigerant, POE compressor oil, accumulator,

and reversing valve.

Operating Characteristics

— The capacity of the unit will meet or exceed _____ Btuh

at a suction temperature of _____ _F/_C. The power

consumption at full load will not exceed _____ kW. — Combination of the unit and the evaporator or fan coil

unit will have a total net cooling capacity of _____ Btuh

or greater at conditions of _____ CFM entering air

temperature at the evaporator at _____ _F wet bulb and

_____ _F/_C dry bulb, and air entering the unit at _____

_F/_C. — The system will have a SEER of _____ Btuh/watt or

greater at DOE conditions.

Electrical Requirements

— Nominal unit electrical characteristics will be _____ v,

single phase, 60 hz. The unit will be capable of

satisfactory operation within voltage limits of _____ v to

_____ v. — Unit electrical power will be single point connection. — Control circuit will be 24v.

Special Features

— Refer to section of this literature identifying accessories

and descriptions for specific features and available

enhancements.

25HBC5

Page 62

25HBC5

Manufacturer reserves the ri ght to change, at any time, specifications and designs without notice and without obligations.

Catalog No: 25HBC5 ---2PD

Replaces: 25HBC5---1PD
