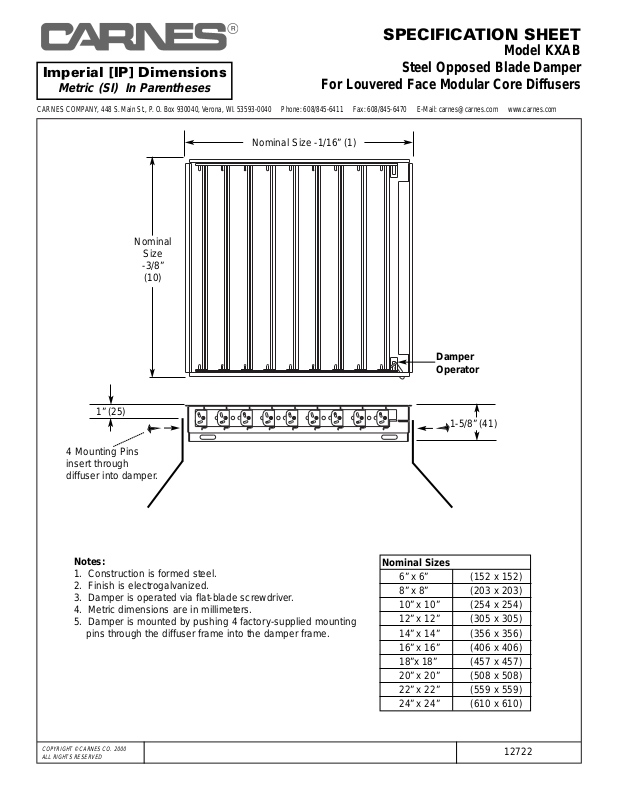

SPECIFICATION SHEET

Model KXAB

Steel Opposed Blade Damper

For Louvered Face Modular Core Diffusers

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Nominal Size -1/16” (1)

Nominal

Size

-3/8”
(10)

Damper
Operator

1-5/8” (41)

Notes:

1. Construction is formed steel.

2. Finish is electrogalvanized.

3. Damper is operated via flat-blade screwdriver.

4. Metric dimensions are in millimeters.

5. Damper is mounted by pushing 4 factory-supplied mounting
pins through the diffuser frame into the damper frame.

Nominal Sizes

6” x 6” (152 x 152)
8” x 8” (203 x 203)
10” x 10” (254 x 254)
12” x 12” (305 x 305)
14” x 14” (356 x 356)
16” x 16” (406 x 406)
18”x 18” (457 x 457)
20” x 20” (508 x 508)
22” x 22” (559 x 559)
24” x 24” (610 x 610)

4 Mounting Pins
insert through
diffuser into damper.

1” (25)
