Carnes JXVA User Manual
COPYRIGHT © 2010 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 11144-E 11144-F

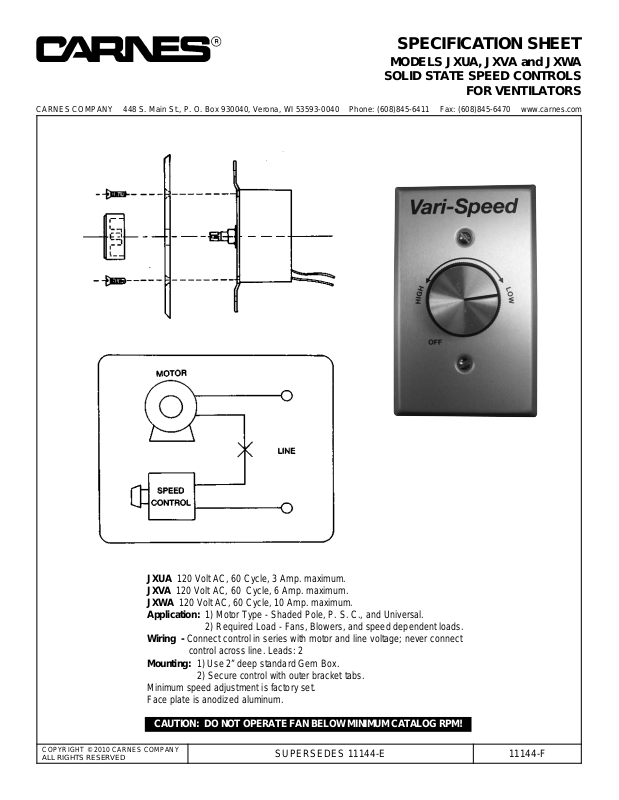

SPECIFICATION SHEET
MODELS JXUA, JXVA and JXWA
SOLID STATE SPEED CONTROLS
FOR VENTILATORS
JXUA 120 Volt AC, 60 Cycle, 3 Amp. maximum.
JXVA 120 Volt AC, 60 Cycle, 6 Amp. maximum.
JXWA 120 Volt AC, 60 Cycle, 10 Amp. maximum.
Application: 1) Motor Type - Shaded Pole, P. S. C., and Universal.
2) Required Load - Fans, Blowers, and speed dependent loads.
Wiring - Connect control in series with motor and line voltage; never connect
control across line. Leads: 2
Mounting: 1) Use 2” deep standard Gem Box.
2) Secure control with outer bracket tabs.
Minimum speed adjustment is factory set.
Face plate is anodized aluminum.
CAUTION: DO NOT OPERATE FAN BELOW MINIMUM CATALOG RPM!
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
