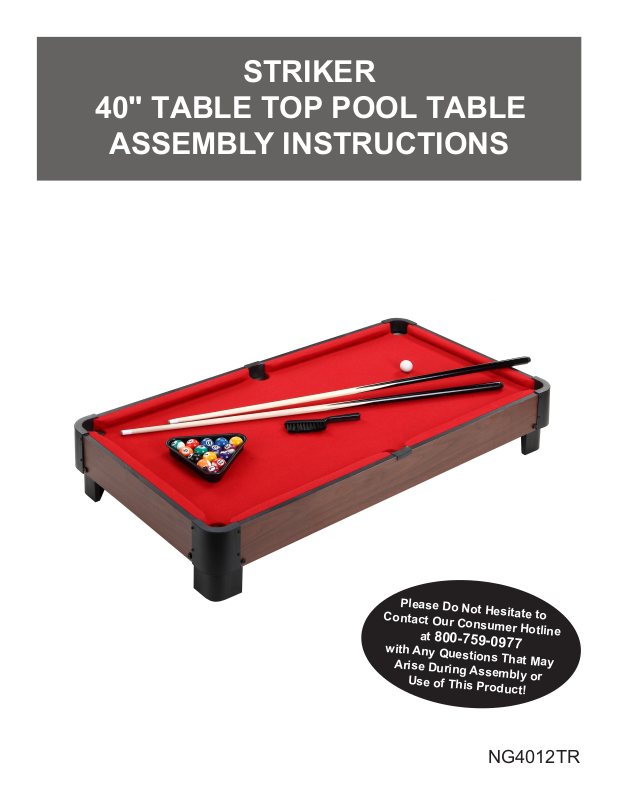

STRIKER
40" TABLE TOP POOL TABLE
ASSEMBLY INSTRUCTIONS
Please Do Not Hesitate to
Contact Our Consumer Hotline
at
800-759-0977
with Any Questions That May
Arise During Assembly or
Use of This Product!
NG4012TR
Page 2
THANK YOU!
Thank you for purchasing this product.
We work around the clock and around the globe to ensure that our products
maintain the highest possible quality. However, in the rare case of issues
during assembly or use of this product, please contact our Consumer Hotline
at 800-759-0977 for immediate assistance before contacting your retailer.
Please read the warranty information at the back of these assembly
instructions for further details.
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.
2
Page 3
TABLE TOP 40'' POOL TABLE - NG4012TR
#4
#3
#2
#3
#11
#9
#4
#4
Parts List
#1
#3
#6
#7
#5
1
2
3
4
6
8
5
9
12
7
10
13
11
14
15
#8
#10
PARTS
Not Sold Separately
#1
40” x 21.5” x 4”
1/2” MDF
TABLE BODY
1 pc
#2
5.25” x 3” x 3”
ABS Plastic
LEG
4 pcs
#5
NGP5073 NGP50741 NGP50761NGP50674 NGP5048 NGP5077
#6
7.5” ABS Plastic 1.5” Dia. 8” Sides 36” Wood
BRUSH
1 pc
BILLIARD BALLS
HARDWARE PACK - NGP50751
#4
FLAT WASHER
8 pcs
#3
BOLT
8 pcs
#9
HEX WRENCH
1 pc
#11
For replacement parts please call 800-759-0977.
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15
1 pc
6mm NUT
8 pc
#7
ABS Plastic
TRIANGLE
1 pc
#8
CUE STICK
2 pcs
#10
CHALK
2 pcs
5/15
Page 4
ASSEMBLY TIPS
1. Find a clean, level surface to begin the assembly of your game table. The table will be
partially assembled upside down and then turned over onto its legs. This is a heavy game
and turning it over will require at least two strong adults.
2. Remove all of the contents from box and verify that you have all of the parts shown on the
Note: Some parts may be pre-installed or
pre-assembled.
understand the text before beginning each assembly step.
4. When installing parts that have more than one screw or bolt, hand tighten all screws or
bolts in place before finishing tightening with screwdriver or hex wrench.
5. Electric screwdrivers may be helpful during assembly; however, please set a low torque
and use extreme caution because screws may be stripped or overtightened if the electric
screwdriver's torque is set too high.
WARNINGS!
READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETY INSTRUCTIONS CAREFULLY.
CHOKE HAZARD - THIS TABLE CONTAINS SMALL BALLS AND PARTS - NOT
SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
4
Page 5
1. Attach one LEG #2 to each corner of the TABLE BODY #1 using BOLT #3, FLAT WASHER #4
and NUT #11, which is inserted into back of LEG hole. NOTE: the table is assembled upside down.
#11
#2
#11
#4
#3
#9
#3
#4
#1
#1
#4 #3
5
Page 6
180-DAY LIMITED WARRANTY
6
This product is warranted to the original purchaser to be free from defects in material or workmanship
for a period of 180 days from the date of the original retail purchase.
This warranty does not cover defects or damage due to improper installation, alteration, accident or
any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,
abuse or negligence will void this warranty. This warranty does not cover scratching or damage that
may result from normal usage.
This product is not intended for institutional or commercial use; the manufacturer does not assume
any liability for such use. Institutional or commercial use will void this warranty.
This warranty is nontransferable and is expressly limited to the repair or replacement of the defective
product. During the warranty period, the manufacturer shall repair or replace defective parts at no
cost to the purchaser. Shipping charges and insurance are not covered and are the responsibility of
the purchaser. Labor charges and related expenses for removal, installation or replacement of the
product or components are not covered under this warranty.
The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable
or obsolete.
The manufacturer shall not be liable for loss of use of the product or other consequential or incidental
costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of
injury resulting from the use of this product.
This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of
merchantability or tness for use to the extent permitted by Federal or state law. Neither the manufacturer nor any of its representatives assumes any other liability in connection with this product.
All warranty claims must be made through the retailer where the product was originally
purchased. A purchase receipt or other proof of date of purchase will be required to process
all warranty claims. The model number and part numbers found within the assembly
instructions will be required when submitting any parts requests or warranty claims.
For further warranty information or inquiries, please call 800-759-0977
