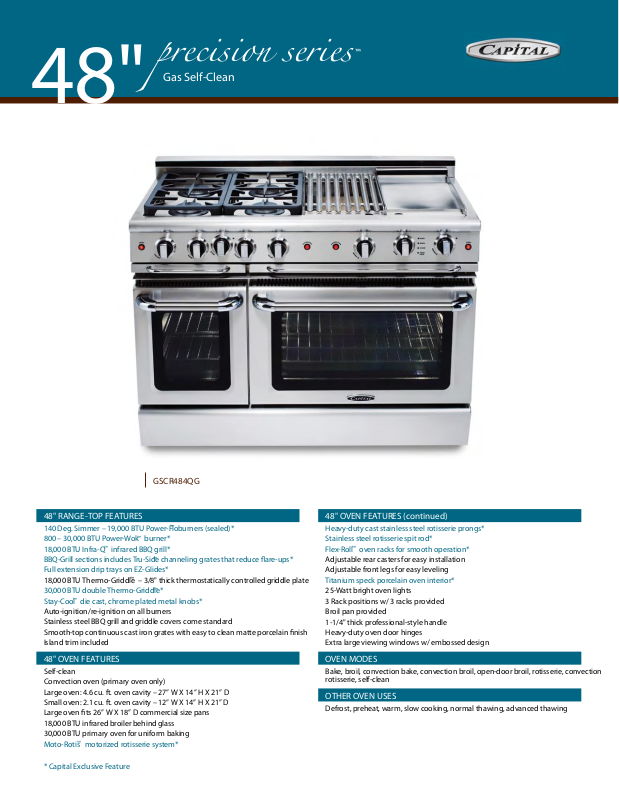

Capital CSB484BGL, CSB484BGN, CSB484GGN Specifications
precision series
Gas Self-Clean
48"
™
GSCR484QG
48" RANGE-TOP FEATURES
140 Deg. Simmer – 19,000 BTU Power-Flo™ burners (sealed)*
800 – 30,000 BTU Power-Wok
18,000 BTU Infra-Q
BBQ-Grill sections includes Tru-Side
Full extension drip trays on EZ-Glides*
18,000 BTU Thermo-Griddle
30,000 BTU double Thermo-Griddle
™
Stay-Cool
Auto-ignition/re-ignition on all burners
Stainless steel BBQ grill and griddle covers come standard
Smooth-top continuous cast iron grates with easy to clean matte porcelain nish
Island trim included
48" OVEN FEATURES
Self-clean
Convection oven (primary oven only)
Large oven: 4.6 cu. ft. oven cavity – 27” W X 14” H X 21” D
Small oven: 2.1 cu. ft. oven cavity – 12” W X 14” H X 21” D
Large oven ts 26” W X 18” D commercial size pans
18,000 BTU infrared broiler behind glass
30,000 BTU primary oven for uniform baking
Moto-Rotis
* Capital Exclusive Feature
™
die cast, chrome plated metal knobs*
™
motorized rotisserie system*
™
burner*
infrared BBQ grill*
™
channeling grates that reduce are-ups*
™
– 3/8" thick thermostatically controlled griddle plate
™
*
48" OVEN FEATURES (continued)
Heavy-duty cast stainless steel rotisserie prongs*
Stainless steel rotisserie spit rod*
™
Flex-Roll
Adjustable rear casters for easy installation
Adjustable front legs for easy leveling
Titanium speck porcelain oven interior*
25-Watt bright oven lights
3 Ra
Broil pan provided
1-1/4" thick professional-style handle
Heavy-duty oven door hinges
Extra large viewing windows w/ embossed design
OVEN MODES
Bake, broil, convection bake, convection broil, open-door broil, rotisserie, convection
rotisserie, self-clean
OTHER OVEN USES
Defrost, preheat, warm, slow cooking, normal thawing, advanced thawing
oven racks for smooth operation*
ck positions w/ 3 racks provided
Capital exclusive feature:
Power-Flo™ burners.
19,000 BTU - 140 deg. simmer
Capital exclusive feature:
Moto-Rotis™ motorized
rotisserie in oven
Capital exclusive feature:
™
Flex-Roll
oven racks
Infrared gas broiler
Optional cabernet
red knobs
Infra-Q
sear pod
™
BBQ grill
30,000 BTU Power-Wok
™
Chopping block
GAS SELF-CLEAN CONVECTION MODELS AVAILABLE*
GSCR488 – 48" eight burner gas
self-clean range + convection**
GSCR484G – 48" four burner gas
self-clean range w/ 24" Thermo-
™
Griddle
+ convection**
GSCR484W – 48" four burner gas
self-clean range w/ Power-Wok
convection**
GSCR484QG – 48" four burner gas
self-clean range w/ 12” Infra-Q™ and
12" Thermo-Griddle
GSCR486Q – 48" six burner gas
self-clean range w/ 12” Infra-Q
™
+ convection
* Available in Natural Gas and Liquid Propane
** Special order (longer lead times may apply)
GSCR486G – 48" six burner gas
self-clean range w/ 12” Thermo-
™
Griddle
+ convection
™
+ convection
AVAILABLE ACCESSORIES
Conversion kits
Birch wood chopping blocks
CRK48 – Chrome and red knobs
P48SHS – 19" stainless steel wall mount high shelf
P48SLB – 9" stainless steel wall mount low back
Wok ring
™
+
COMPLIMENTARY PRODUCTS
PSVH48L – 48" Performance Series vent hood w/ 1200 CFM blower + lights
PSVH48HL – 48" Performance Series vent hood w/ 1200 CFM blower + heat lamps + lights
Duct covers
™
GRT24WK – 24" 30,000 BTU built in Power-Wok
GRT30Q – 30" 40,000 BTU built in Infra-Q
range-top
™
infrared BBQ grill
SHIPPING WEIGHT
450-600 LBS
ELECTRICAL RATINGS
VOLTAGE CURRENT/POWER FREQUENCY
120 VAC 20 AMP 60 HZ
GAS RATINGS
NATURAL GAS PROPANE
Manifold pressure: 5.0" W.C. 10" W.C.
OTHER
“0” clearance base cabinet installation
Field convertible to LP or NG depending on gas type
ETL certified for USA and Canada
2 years full parts and labor covers entire product (conditions apply)
CABINET PREPARATION
Capital Cooking Equipment Inc.
13211 Florence Ave.
Santa Fe Springs, CA 90670
Phone: 562-903-1168
Toll Free: 866-402-4600
email: customerservice@capital-cooking.com
Made in the U.S.A.
Visit our web site: www.capital-cooking.com
© 2006 Capital Cooking Equipment, Inc.
