PROFESSIONAL PRODUCTS

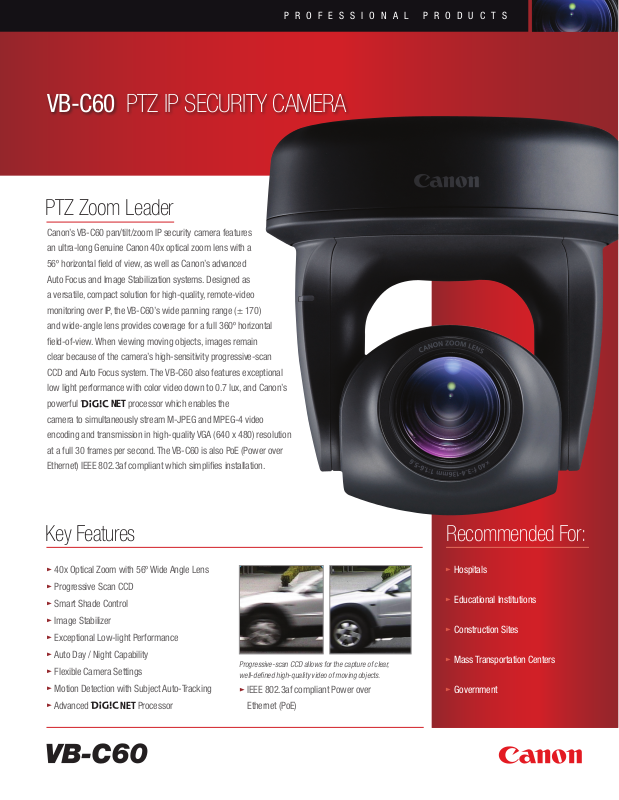

VB-C60 PTZ IP SECURITY CAMERA
PTZ Zoom Leader
Canon’s VB-C60 pan/tilt/zoom IP security camera features
an ultra-long Genuine Canon 40x optical zoom lens with a
56º horizontal field of view, as well as Canon’s advanced
Auto Focus and Image Stabilization systems. Designed as
a versatile, compact solution for high-quality, remote-video
monitoring over IP, the VB-C60’s wide panning range (± 170)
and wide-angle lens provides coverage for a full 360º horizontal
field-of-view. When viewing moving objects, images remain
clear because of the camera’s high-sensitivity progressive-scan
CCD and Auto Focus system. The VB-C60 also features exceptional
low light performance with color video down to 0.7 lux, and Canon’s
powerful NET processor which enables the
camera to simultaneously stream M-JPEG and MPEG-4 video
encoding and transmission in high-quality VGA (640 x 480) resolution
at a full 30 frames per second. The VB-C60 is also PoE (Power over
Ethernet) IEEE 802.3af compliant which simplifies installation.
Key Features Recommended For:
•
40x Optical Zoom with 56º Wide Angle Lens
•
Progressive Scan CCD
•
Smart Shade Control
•
Image Stabilizer
•
Exceptional Low-light Performance
•
Auto Day / Night Capability
•
Flexible Camera Settings
•
Motion Detection with Subject Auto-Tracking
•
Advanced NET Processor
Progressive-scan CCD allows for the capture of clear,
well-defined high-quality video of moving objects.
•
IEEE 802.3af compliant Power over
Ethernet (PoE)
•
Hospitals
•
Educational Institutions
•
Construction Sites
•
Mass Transportation Centers
•
Government
VB-C60
PRODUCT NAME: VB-C60 ITEM CODE: 2812B015 UPC CODE: 013803118063
PROFESSIONAL PRODUCTS
SPECIFICATIONS
CCD IMAGE SENSOR 1/4 in. CCD (Primary Color Filter)
NUMBER OF PIXELS 310,000 Effective Pixels
SCANNING METHOD Progressive
ZOOM RATIO 40x Optical with Auto Focus (4x Digital)
LENS
FOCAL LENGTH / F-STOP f= 3.4 mm (W)~136.0 mm (T) / F1.6 (W)~F5.6 (T)
ANGLE OF VIEW
VERTICAL 43.3° (W)~1.1° (T)
DAY / NIGHT MODE Auto / Manual
IR CUT FILTER Yes
MINIMUM COLOR 0.7 lux @ 1/30 second Shutter Speed
ILLUMINATION BLACK & WHITE 0.2 lux @ 1/30 second Shutter Speed
FOCUS Auto / One-shot AF / Manual Fixed Focus at Infinity (for dome use)
FOCUS RANGE
NIGHT MODE (W) 19.7in.~∞ / (T) 70.9in.~∞
SHUTTER SPEED 1/1~1/8000 second
WHITE BALANCE Auto / One-shot / Preset / Manual
OPTICAL MEASUREMENT SYSTEM Center-weighted / Average / Spot
EXPOSURE COMPENSATION 7 Levels
SMART SHADE CONTROL Yes
IMAGE STABILIZER Electric (ON1 / ON2 / OFF)
PAN ANGLE RANGE 340° (+ / -170°)
TILT ANGLE RANGE UPRIGHT / CEILING-MOUNTED 115° (-25°~90°) / 115° (-90°~25°)
MOVING RATE PAN / TILT: Maximum 150° / second
VIDEO COMPRESSION METHOD M-JPEG / MPEG-4
OUTPUT IMAGE / VIDEO SIZE JPEG: 640x480 / 320x240 / 160x120 MPEG-4: 640x480 / 320x240
FRAME RATE M-JPEG: 0.1~30fps MPEG-4: 30 / 15 / 10 fps
MAXIMUM FRAME RATE M-JPEG: 30 fps (640x480) MPEG-4: 30 fps (640x480)
SIMULTANEOUS CLIENT ACCESS ACCESS M-JPEG: 30 clients MPEG-4: 10 clients
AUDIO COMMUNICATION Full Duplex
IPSEC (Communication Encryption) Available
PRESETS Maximum 20 Positions
MOTION DETECTION Yes, up to 4 detection areas can be set
JPEG IMAGE UPLOAD FTP / HTTP / SMTP
EVENT NOTIFICATION HTTP / SMTP
NETWORK LAN x1 (RJ-45, 100Base-TX), IEEE 802.3af
AUDIO TERMINALS
OUTPUT 1-Mini-Jack Connector (Monaural) LINE OUT
EXTERNAL DEVICE I / O TERMINAL Input x 2, Output x 2
OPERATING ENVIRONMENT TEMPERATURE / HUMIDITY 14° to 122° F (-10°C to 50°C) / 20~85% RH (No Condensing)
PoE Via LAN Connector (IEEE802.af compliant)
POWER SUPPLY OPTIONAL AC ADAPTER AC 100V - 240V (PA-V17)
OPTIONAL EXTERNAL POWER AC 24V / DC 12V (non-polar)
POWER
CONSUMPTION
BUNDLED SOFTWARE
VK-LITE Free 4-camera license included
WEIGHT Approximately 1.85 lbs. (Approximately 215 g)
DIMENSIONS (W x D x H) 5.59 x 5.59 x 5.87 in. (142 mm x 142 mm x 149 mm)
HORIZONTAL 55.8° (W)~1.5° (T)
DAY MODE (W) 11.8in.~∞ / (T) 59in.~∞
INPUT 1-Mini-Jack Connector (Monaural) LINE IN or MIC IN
WITH PoE Maximum approximately 10W
WITH OPTIONAL AC ADAPTER Maximum approximately 13W
WEB VIEWER Built-In (no Ja va applet necessary)
Image Stabilizer
The VB-C60’s Image Stabilizer feature effectively works to compensate
for image blur caused by camera vibrations or movement. This is useful against building vibration or strong winds, like when the camera is
installed on an outdoor pole.
OFF
ON
56º Lens with
40x Optical Zoom
The VB-C60 features the industry’s most powerful 40x optical zoom and
a 4x digital zoom. The camera’s advanced auto focus system achieves
smooth, immediate focus. Thanks to Canon’s optical technology, the
VB-C60 ultra-long zoom is able to maintain edge-to-edge tonal accuracy
and clarity through the entire zoom range. The VB-C60 also features a
genuine Canon wide-angle lens, with a 56º horizontal field of view.
©2011 Canon U.S.A., INC. Specications and availability are subject to change without notice.
Weight and dimensions are approximate. All images and effects are simulated. Canon and
DIGIC are registered trademarks of Canon Inc. in the United States and may also be a registered
trademark in other countries. IMAGEANYWARE is a trademark of Canon. Other names and
products not mentioned above may be registered trademarks or trademarks of their respective
companies. Warning: Unauthorized recording of copyrighted materials may infringe on the rights
of copyright owners and be contrary to copyright laws.
OPTIONAL ACCESSORIES
OPTIONAL
SOFTwARE
Item Code No. Description
4075B001 VK-64 v2.2 Network Video Recording Software
4075B002 VK-16 v2.2 Network Video Recording Software
4075B003 VK-Viewer v2.2 License for VK-64 / 16 Viewer
4075B004 VK-Viewer v2.2 Licenses for VK-64 / 16 Viewer
3331B001 VK-Lite 1 License for VK-Lite
2823B001 VB-RD51S-S Indoor Recessed Dome Housing (Smoked)
2823B002 VB-RD51S-C Indoor Recessed Dome Housing (Clear)
3121B002 SS60-B-VB Ceiling Mount Cover
2245001 PA-V17 AC Adapter
For more info:
Call 1-800-OK-CANON (1-800-652-2666)
www.usa.canon.com/professional
