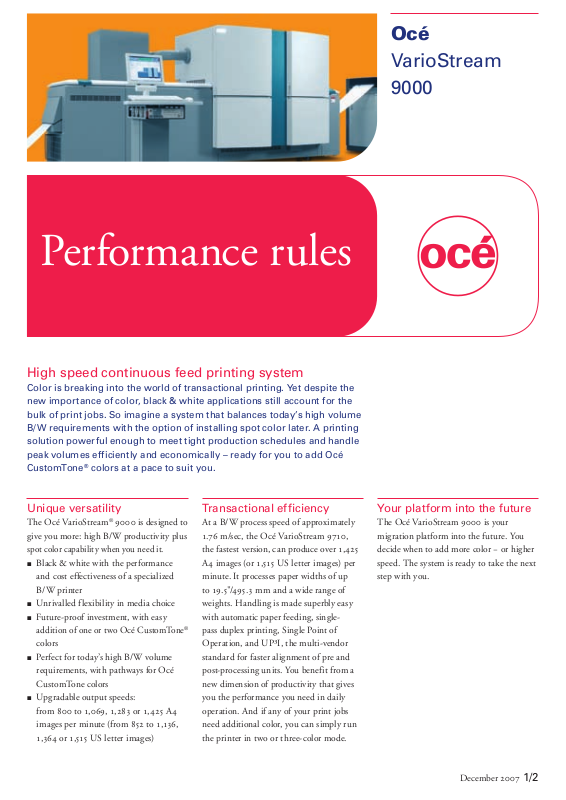

Canon OCE VARIOSTREAM 9700, OCE VARIOSTREAM 9000, OCE VARIOSTREAM 9500, OCE VARIOSTREAM 9600 BROCHURE

Performance rules

Océ

VarioStream 9000

High speed continuous feed printing system

Color is breaking into the world of transactional printing. Yet despite the new importance of color, black & white applications still account for the bulk of print jobs. So imagine a system that balances today’s high volume B/W requirements with the option of installing spot color later. A printing solution powerful enough to meet tight production schedules and handle peak volumes efficiently and economically – ready for you to add Océ CustomTone® colors at a pace to suit you.

Unique versatility

The Océ VarioStream® 9000 is designed to give you more: high B/W productivity plus spot color capability when you need it.

• Black & white with the performance and cost effectiveness of a specialized B/W printer

• Unrivalled flexibility in media choice

• Future-proof investment, with easy addition of one or two Océ CustomTone® colors

• Perfect for today’s high B/W volume requirements, with pathways for Océ CustomTone colors

• Upgradable output speeds: from 800 to 1,069, 1,283 or 1,425 A4 images per minute (from 852 to 1,136, 1,364 or 1,515 US letter images)

Transactional efficiency

At a B/W process speed of approximately

1.76 m/sec, the Océ VarioStream 9710, the fastest version, can produce over 1,425 A4 images (or 1,515 US letter images) per minute. It processes paper widths of up to 19.5"/495.3 mm and a wide range of weights. Handling is made superbly easy with automatic paper feeding, singlepass duplex printing, Single Point of Operation, and UP³I, the multi-vendor standard for faster alignment of pre and post-processing units. You benefit from a new dimension of productivity that gives you the performance you need in daily operation. And if any of your print jobs need additional color, you can simply run the printer in two or three-color mode.

Your platform into the future

The Océ VarioStream 9000 is your migration platform into the future. You decide when to add more color – or higher speed. The system is ready to take the next step with you.

December 2007 1/2

General

Print system

• Printing system for B/W and up to two

Océ CustomTone colors

• Variants:

Océ VarioStream 95x0, 96x0, 97x0

• Print modes:

– 1/1, 2/2, 3/3 and mixed – 1/0, 2/0, 3/0 and mixed – Simplex and single pass duplex

• Electrophotographic non-contact imaging

• LED technology, 600 × 600 dpi resolution

• Pinless technology

Print quality

Standard Configuration, 240/300/600 dpi automatic resolution switching

Fusing method

Non-contact single pass fusing (infra-red)

Paper

• Pinless paper transport for single-layer

continuous forms with or without tractor feed margins, perforated, colored or preprinted.

• Format width:

165–495.3 mm (6.5–19.5 inches), fully variable

• Print width: 165–482.6 (6.5–19 inches)

•

Format length: 76.2–1,371,6 mm (3–54 inches)¹

• Paper weight:

Standard range: 50–160 g/m² Extended range: 36–49 g/m²

• Paper feed: roll, stack, jumbo stack

Standard features

• 1/1 printing

• 2/2 and 3/3 printing capability

• Automatic paper feeding

• Intuitive GUI

• Single-point, remote operating capability

• Quick Change Developer Station concept

• Type I interface for pre- and post-processing

equipment

• UP³I interface for improved productivity and

process control

Native printer codes

• IPDS

• PCL 5e

, 160–240 g/m²

Environmental

• Temperature: 15–28 ˚C

Océ

• Rel. Humidity: 40–60%

• Operating noise: ≤ 70dB(A) according to ISO 7779

Dimensions (LxWxH)

• Overall 4,985 › 1,840 › 2,020 mm

VarioStream 9000

• Print module 2,600 › 1,520 › 2,000 mm

• Fusing module 2,385 › 1,040 › 1,200 mm

• Filter module 800 › 680 › 2,020 mm

• WebBuffer

Excl. paper tunnel 1,644 › 985.5 › 2,171 mm Incl. paper tunnel 1,834 › 985.5 › 2,171 mm

Weight

Overall weight. 3,120 kg

Options

• Expansion by up to two additional interfaces

• Océ CustomTone colors

• Upgrade to GraphicArts (Dot Modulation)

• High Temperatue Option for extended

temperature range (max. 35 ˚C)

• External Toner Supply Unit for 6 kg bottles

Electrical values

EU US Frequency 50 Hz ±1 Hz 60 Hz ±1 Hz Rated voltage 230/400 V ±10 % 208 V ±10 % Int. safety fuses 4 › 125 A 3 › 250 A Ext. safety fuses 4 x 125 A 3 x 250 A

Power consumption (Standby values in brackets)

50 Hz 60 Hz Real PW 61 kW 63 kW Apparent PS 67 kVA 70 kVA Heat output Q 90,000 KJ/h 93,600 KJ/h

(90,000 KJ/h) (93,600 KJ/h)

Software support

Océ systems

• Océ PRISMA®production Server: – AFP/IPDS, PDF, PCL, TIFF, PostScript,

LCDS, OLDS

• Océ PRISMAproduction Host: – AFP/IPDS

• Océ PRISMA®office:

– PCL 5e

• Océ Document Designer Advanced: – AFP/IPDS, PCL 5e

IBM systems

• PSF(z/OS/MVS): – AFP/IPDS

• InfoPrint Manager for AIX – AFP/IPDS

Printsoft PReS

– AFP/IPDS

GMC PrintNet T

– AFP/IPDS

Printing speed Océ VarioStream Océ VarioStream Océ VarioStream

9510 9610 9710 Process speed 79,38 m/min 95,28 m/min 105,84 m/min

Images per minute duplex/simplex duplex/simplex duplex/simplex

A4 portrait 2-up 1069 / 535 1283 / 642 1425 / 712 A5 portrait 3-up 2268 / 1134 2721 / 1360 3024 / 1512 Letter portrait 2-up 1136 / 568 1364 / 682 1515 / 757 6 × 9" 3-up 2083 / 1041 2500 / 1250 2778 / 1389 Max. paper weight at max. speed 120 g/m² 100 g/m² 80 g/m²

1 Length >54" after test. Not al l format sizes >31" are supporte d.

Max. of 60" = 1524 mm

2 Subject to satisfactory test results; grammatures above 80 g/m²

at adapted speed. For details see table printing speeds

3 Subject to satisfacotry test re sults; grammatures details see table

printing speeds 4 With 2 de veloper stations (1/1) only 5 Max. print ing speed 800 ppm. Plea se contact your local sales

representative for details 6 Depending on application

Printing for Professionals

Océ VarioStream 9520/9620/9720 Images per minute

A4 portrait 2-up 344 up to 800 172 up to 400 A5 portrait 3-up (3 › 81/3 › 55/6") 727 up to 1700 364 up to 850 Letter portrait 2-up 353 up to 852 177 up to 426 6 × 9" 3-up 642 up to 1562 321 up to 781

Océ VarioStream 9530/9630/9730 Images per minute

A4 portrait 2-up 228 up to 800 114 up to 400 A5 portrait 3-up (3 › 81/3 › 55/6") 480 up to 1700 240 up to 850 Letter portrait 2-up 232 up to 852 116 up to 426 6 × 9" 3-up 419 up to 1562 209 up to 781

For information and services, visit us at www.oce.com

Technical specifications are subject to change without prior notice. All other trademarks are the property of their respective owners.

duplex simplex

December 2007 2/2
