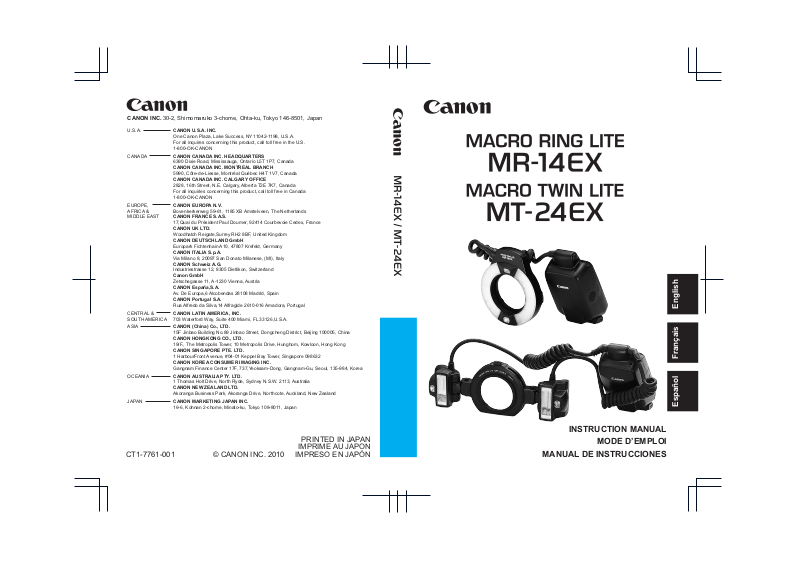

Canon MT 24EX, MR 14EX User Manual

INSTRUCTION MANUAL

MODE D’EMPLOI

MANUAL DE INSTRUCCIONES

EnglishFrançaisEspañol

English

Thank you for purchasing a Canon product.

The Canon Macro Ring Lite MR-14EX and Macro Twin Lite MT-24EX are macro flash units compatible with E-TTL II/E-TTL/TTL autoflash systems.

Read this instruction manual while also referring to your

camera’s instruction manual.

Before using the MR-14EX/MT-24EX, read this instruction manual and your camera’s instruction manual to familiarize yourself with macro flash operations.

The basic operation is as easy as with normal AE shooting.

When the MR-14EX or MT-24EX is attached to an EOS camera, almost all automatic exposure control for flash photography is handled by the camera.

Although the MR-14EX/MT-24EX is an external flash unit, it works automatically and seamlessly like the camera’s built-in flash.

It is automatically compatible with the camera’s flash metering

mode (E-TTL ll, E-TTL, or TTL).

The camera controls the MR-14EX/MT-24EX automatically in the following flash metering modes:

1. E-TTL II autoflash (evaluative flash metering with preflash reading/lens distance information)

2. E-TTL autoflash (evaluative flash metering with preflash reading)

3. TTL autoflash (off-the-film metering for real-time flash metering)

Regarding the camera’s available flash metering modes, refer to the “External Speedlite” specification in the “Specifications” of your camera’s instruction manual.

The camera instruction manual’s chapter on flash photography will refer to cameras having 1 and 2 above as a Type-A camera (compatible with E-TTL II or E-TTL). And cameras having 3 (compatible with only with TTL) are called Type-B cameras.

* This instruction manual assume that you are using the MR-14EX/MT-

24EX with a Type-A camera.

For Type-B cameras, see page 41.

Contents

1 Before You Start .................................................................. 9

2 Flash Photography............................................................ 17

3 Wireless Multiple Flash Photography ............................. 31

4 Reference ........................................................................... 35

Conventions Used in this Manual

This manual covers both the MR-14EX and MT-24EX. The

instructions basically apply to the MR-14EX. If you have the MT-24EX, read the parts.

The operation procedures in this instruction manual assume that both

the camera and MR-14EX/MT-24EX’s power switches are ON.

Icons are used in the text to indicate the respective buttons, dials,

and settings. They match the same icons found on the camera and MR-14EX/MT-24EX.

The (1) / (3) icons indicate that the respective function remains

in effect for 8 sec. or 16 sec.

Reference page numbers are indicated by (p.**).

This instruction manual uses the following alert symbols:

: The Caution symbol indicates a warning to prevent shooting

problems.

: The Note symbol gives supplemental information.

Nomenclature

MR-14EX

Connecting

cord

Flash tube B (p.21)

Flash unit

Focusing lamp (p.8)

Release button (p.12)

Focusing lamp (p.8)

<h> Indicator (p.21)

Release button (p.12)

Flash tube A (p.21)

Flash Unit Rear

Indicator (p.21)

Connecting

cord

Focusing lamp (p.8)

Rotate button (p.13)

Flash Unit

Hood mount (p.16)

Release button (p.12, 13)

Flash head B (p.21)

Flash head mount (p.12, 13)

Standard position index (p.13) (Vertical angle)

Flash Unit Rear

Release levers

<j> Indicator (p.21)

Mount ring (p.12, 13)

Filter mounting thread (p.15) (58mm dia.)

Flash Unit Side & Bottom

<k> Indicator (p.21)

Flash head A (p.21)

Standard position index (Horizontal angle) Angle setting scale (p.13, 14)

Mounting foot (p.12)

Tripod socket

Control Unit

<D> Flash mode button (p.18, 27, 33)

LCD panel

* illumination button (p.8) <C>

Custom Function

setting button (p.28)

button

<d> Focusing lamp button (p.8)

<J> Pilot lamp (p.18) Test firing button (p.18)

Locking ring (p.11)

Battery compartment cover (p.10)

External power source socket

<F> High-speed sync (FP flash) button (p.26) <r> Shutter curtain synchronization button (p.26)

*<h> Plus button

* Minus button

LCD panel (p.8)

*<a> Select/Set button

<c> button <e> Channel button

(p.33)

<f> Flash ratio/ Flash tube/head select button (p.21, 27, 33)

Power switch (p.18)

Flash exposure confirmation lamp (p.18)

Mounting foot (p.11)

Contacts

Locking pin (p.11)

Asterisked buttons have functions which remain active for 8 sec. after you press and let go of the button. The illumination lasts for 12 sec.

LCD Panel

Flash exposure compensation amount FEB compensation amount Manual flash output level

<f> Flash exposure compensation

*<a/b> E-TTL (II)/TTL autoflash

<q> Manual Flash

Flash tube/head ID (A, B)/Slave ID (C)

<y>

To illuminate the LCD panel, press the button. The items actually displayed depend on the current settings.

Flash ratio

<m> Flash tube/head A firing

Flash ratio scale

Manual flash output scale for A, B, and C

Flash ratio

* <a> will be displayed on the LCD panel even if the camera is

compatible with E-TTL II.

<g> FEB

<r> Second-curtain sync

<c> High-speed sync (FP flash)

<n> Flash tube/head B firing

FEB status Slave C flash exposure compensation amount Manual flash output for A, B, and C Custom Function No.

Focusing Lamp

Pressing the < focusing lamp for about 20 sec. to assist focusing in low light. Press the < turn off the focusing lamp. Note that if you take the picture while the focusing lamp is lit, underexposure may result.

> button turns on the

<w> Channel

<l> Custom Function

> button again to

Before You Start

Installing the Batteries .......................................... 10

Attaching the Control Unit...................................... 11

Attaching the Flash Unit ....................................... 12

Setting the Flash Unit............................ 13

To prevent the flash tube/head from deteriorating due to excessive heat, do not fire the flash continuously more than 20 times. After firing the flash continuously for 20 times, let the MR14EX/MT-24EX rest for 10 min. or longer. During continuous manual flash firing, allow the MR-14EX/MT-24EX to rest after the firing times indicated below.

Flash output 1/1 1/2 1/4 1/8 1/16 1/32 1/64

Firing times 15 20 40

Installing the Batteries

Use four size-AA/LR6 batteries.

Open the cover.

Slide the battery compartment cover

as shown by the arrow, then flip up the edge.

Insert the batteries.

Make sure the + and - battery

contacts are properly oriented as shown in the compartment.

Close the cover.

Push down the cover and slide it

back.

Recycling Time and Flash Count

Battery Type Recycling Time Flash Count

Size-AA/LR6 alkaline batteries Approx. 0.1 - 7 sec. Approx. 120 - 800

Based on a new set of batteries and Canon’s testing standards. The figures are the same for both flash tubes/heads firing or single tube/head

firing.

This applies to both the MR-14EX and MT-24EX.

Use a new set of four batteries of the same brand. When replacing the batteries, replace all four at one time.

Using size-AA batteries other than the alkaline type (LR6) may cause

improper battery contact due to the irregular shape of the battery contacts.

Size-AA Ni-MH (HR6) or lithium (FR6) batteries can also be used.

Attaching the Control Unit

Loosen the locking ring.

Turn the locking ring as shown by the

arrow to loosen it.

Attach the control unit.

Slip the control unit’s mounting foot

into the camera’s hot shoe all the way.

Tighten the locking ring.

Turn the locking ring as shown by the

arrow. The locking pin will then protrude from the mounting foot.

To detach the control unit, loosen the

locking ring until the locking pin retracts, then detach the control unit.

Attaching the Flash Unit

MR-14EX

Hold down the release buttons and attach the flash unit to the front of the lens.

Make sure the flash unit is securely

attached.

The flash unit can be rotated. To detach the flash unit, follow the

above procedure in reverse.

Hold down the release button and

attach the mount ring to the front of the lens.

Position the release button toward the top.

Make sure the mount ring is securely

attached.

Attach flash heads A and B to

flash head mounts.

Push it in until it clicks in place. To detach the flash heads, press the

release lever (p.6).

To EF100mm f/2.8L Macro IS USM Users

Macro Lite Adapter 67 (optional) is required. Screw on the adapter onto the lens filter thread, then attach the flash unit.

To EF180mm f/3.5L Macro USM Users

Macro Lite Adapter 72C (optional) is required. Screw on the adapter onto the lens filter thread, then attach the flash unit.

To rotate the mount ring, be sure to first hold down the release button. If the Macro Lite Adapter 72C screwed onto the EF180mm f/3.5L Macro

USM lens filter thread becomes stuck and cannot be unscrewed, without pressing the release button, turn the ring against the lens in the direction you would to detach the Adapter.

Setting the Flash Unit

Adjustable Range of Flash Unit

The MT-24EX’s flash unit can be adjusted within the range shown below to match the lens and subject.

Standard position index (Horizontal angle) Angle setting scale

Standard position index (Vertical angle)

1 This can be rotated. Be sure to hold down the release button when

rotating the mount ring. After rotating it to the desired position, release the release button.

2 Hold down the rotate button and turn the flash head mount.

The flash head can be moved directly at 3 and 4.

Do not adjust the flash head angle beyond the adjustable range. Doing

so may cause the flash head to detach and fall from the flash head mount.

The adjustable range may be further limited depending on the camera

and lens.

Flash Setting Guide

This is a general guide to setting the flash angle for various magnifications with a macro lens. Refer to the angle scale (15° increments) on the side of the flash head and set the same angle for both flash heads A and B. The angle specifications in the table below indicate the inner angle relative to the flash head’s standard position index (horizontal).

Lens Magnification

EF50mm f/2.5 Compact Macro

Life-Size Converter EF

EF100mm f/2.8L Macro IS USM EF100mm f/2.8 Macro USM

EF100mm f/2.8 Macro

EF180mm f/3.5L Macro USM

MP-E65mm f/2.8 1-5x Macro Photo

EF-S60mm f/2.8 Macro USM

1:2 zz

1:2.5 - 1:3 z

1:4 zz

1:5 - 1:6 z

1:8 zz

1:10 z

1:1 z

1:1.2 zz

1:1.5 - 1:2 z

1:4 z

1:1 - 1:1.5 z

1:2 zz 1:3 z 1:5 z 1:1 z

1:1.5 z

1:2 zz

1:2.5 - 1:3 z

1:4 z 1:1 zz

1:1.2 - 1:1.5 z

1:2 - 1:10 z

5x - 2x z

1x z

1:1 - 1:1.5 z

1:2 z 1:3 zz 1:5 z

Flash Head Inner Angle

60° 45° 30° 15° 0°

Filter Compatibility

MR-14EX

EF50mm f/2.5 Compact Macro EF100mm f/2.8 Macro EF-S60mm f/2.8 Macro USM

EF100mm f/2.8 Macro USM MP-E65mm f/2.8 1-5x Macro Photo

EF100mm f/2.8L Macro IS USM EF180mm f/3.5L Macro USM

EF50mm f/2.5 Compact Macro

EF100mm f/2.8L Macro IS USM EF100mm f/2.8 Macro USM EF100mm f/2.8 Macro EF180mm f/3.5L Macro USM EF-S60mm f/2.8 Macro USM MP-E65mm f/2.8 1-5x Macro Photo

A filter can be attached directly to the lens.

A filter cannot be attached.

Cannot be used with a filter.

A filter can be attached directly to the lens. Note: Do not attach a 58mm filter to the mount ring’s filter mounting thread. It would obstruct the front of the lens.

A 58mm filter can be attached to the mount ring’s filter mounting thread.

Hood Compatibility

MR-14EX

• If you want to use the dedicated hood (optional) with the MP-E65mm f/2.8 1-5x Macro Photo, first attach the hood, then attach the flash unit.

• A hood cannot be attached to any other lens.

• If you want to use the dedicated hood (optional) with the MP-E65mm f/2.8 1-5x Macro Photo, first attach the hood, then attach the mount ring. If a hood is attached, a 58mm filter cannot be attached to the filter mounting thread.

• With an EF100mm f/2.8 Macro USM, the ET-67 hood can be attached to the mount ring’s hood mount. Use ambient light for the picture. Using flash will result in darkened edges.

Flash Photography

Turning on the Power Switch................................ 18

Fully Automatic Flash Shooting............................ 18

Automatic Flash in Each Shooting Mode.............. 19

Flash Range ......................................................... 20

mn Setting the Flash Ratio ............................. 21

7 FE Lock ........................................................ 23

f Flash Exposure Compensation ...................... 24

g FEB ................................................................ 25

c High-speed sync ............................................. 26

r Second-curtain sync ..................................... 26

q Manual Exposure ............................................ 27

C Setting Custom Functions .......................... 28

Custom Function Settings .................................... 29

Setting the correct exposure for closeup shots largely depends on the subject. It is best to bracket the exposure for the same subject. (p.24)

If the EOS camera has a initialize function for camera settings, initializing the camera settings will also initialize the flash settings (excluding Custom Function settings).

Turning on the Power Switch

Turn on the power switch.

Set the power switch to <K> or

<g>.

X The flash recycling starts.

Check that the flash is ready.

The pilot lamp will light in red (fully

charged) when the flash is ready.

X Pressing the pilot lamp will fire a test

flash.

To save battery power, the <g> Save Energy feature automatically turns off the MR-14EX/MT-24EX after 90 sec. of non-operation. To turn on the MR14EX/MT-24EX again, press the camera’s shutter button halfway.

A test firing cannot be fired while the camera’s operation timer 4 or 0

is active.

The MR-14EX/MT-24EX’s settings will be retained in memory even after

the power is turned off. To retain the MR-14EX/MT-24EX’s settings when you replace the batteries, replace the batteries within 1 minute after turning off the power.

Fully Automatic Flash Shooting

When the camera’s shooting mode is set to <V> (Program AE) or (Full

uto), E-TTL II/E-TTL fully automatic flash photography will be enabled, making

it as easy as normal AE shooting in the <V> or mode.

Set the MR-14EX/MT-24EX to <

Press the <D> button to

display <a>.

Take the picture.

Focus the picture and check that the

<Q> icon is lit in the viewfinder.

If a standard flash exposure was obtained, the flash exposure confirmation lamp will light for about 3 sec.

ETTL>.

Automatic Flash in Each Shooting Mode

Just set the camera’s shooting mode to <W> (aperture-priority AE) or <O> (manual exposure) to enable macro flash shooting with E-TTL II/ E-TTL autoflash.

<W> Aperture-priority AE

This mode is effective for controlling the depth of field or obtaining the standard exposure for both the subject and background. You set the aperture as desired, and the shutter speed is set automatically (30 sec.

- 1/X* sec.) to obtain the standard background exposure. Based on the set aperture, E-TTL II/E-TTL autoflash is used for the shot.

Since a slow shutter speed will be used for low-light scenes, using a tripod is

recommended.

If the shutter speed display blinks, it means that the background exposure will

be underexposed or overexposed. Adjust the aperture until the shutter speed display stops blinking.

<O> Manual exposure

Select this mode when you want to set both the shutter speed and aperture manually. Standard exposure of the main subject is obtained with the flash. The exposure of the background is obtained with the shutter speed (buLb, 30 sec. - 1/X* sec.) and aperture combination you set.

With <X> (shutter-priority AE), you set the shutter speed (30 sec. - 1/X*

sec.) as desired, and the camera sets the aperture automatically. However, this mode is not recommended since you cannot set the aperture.

In the <Z> or <Y> mode, the result will be the same as shooting in the

<V> mode.

* 1/X sec. is the respective camera’s maximum flash sync speed.

Flash Range

MR-14EX

The MR-14EX’s flash range is shown below.

EF50mm f/2.5 Compact Macro

ISO100

Aperture

22 16 11

5.6 4

2.8

2.5

0.2 0.3 0.5

0.13

+Life-Size Converter EF

MP-E65mm f/2.8 1-5x Macro Photo

Aperture Aperture

5.6 4

2.8

1 1

EF180mm f/3.5L Macro USM

32 22 16 11

5.6

3.5

0.5 0.67 1

Magnification

ISO100

2345

Magnification

ISO100

0.2 0.3 0.5 0.7 1 Magnification

ISO400

0.2 0.3 0.5

0.13

ISO400

2345

ISO400

0.2 0.3 0.5 0.7 1

0.10.1

0.5 0.67 1

EF-S60mm f/2.8 Macro USM

Aperture

22 16

5.6 4

2.8

0.25

EF100mm f/2.8L Macro IS USM/ EF100mm f/2.8 Macro USM/ EF100mm f/2.8 Macro

ISO100

Aperture

22 16 11

5.6 4

2.8

0.5 0.7 10.33 0.5 0.7 10.33

Magnification

ISO100

0.33 0.5 0.67 1

Magnification

ISO400

0.33 0.5 0.67 10.25

: Flash range

The MT-24EX’s flash range largely depends on the flash head’s position.

When shooting at the closest focusing distance, stop down the aperture by 3 stops (ISO 100) from the maximum aperture.

mn Setting the Flash Ratio

You can adjust the flash ratio of flash tubes/heads A and B or fire only one of the flash tubes/heads. This can create shadows on the subject to give a more sculptural look. The flash ratio can be set in half-stop increments as follows: 1:8 - 1:1 - 8:1 (13 settings)

A:B = 1:1 A:B = 4:1

Since the exposure will be controlled automatically, there is no need to

calculate the exposure.

If the flash mode is <q>, see page 27.

Only flash tube/head A Only flash tube/head B

Select <yl>.

Press the <f> button to display

<yl>.

Set the flash ratio.

Press or <c> to select from

1:8 - 1:1 - 8:1. The extreme left or right setting will fire only one of the flash tubes/heads.

X <m>: Only <j> will be fired.

<n>: Only <k> will be fired.

The value of the bar in the flash ratio scale below is indicated in

parentheses.

(5.6:1) (2.8:1)(1.4:1) (1:1.4) (1:2.8) (1:5.6)

In terms of aperture stops, the flash ratio range is equivalent to 3:1 - 1:1 -

1:3.

If the picture is taken while <y> is not displayed, flash tubes/heads

A and B will fire at the same output.

Flash ratio control is not possible with the following cameras. You can fire

both flash tubes/heads at the same output or fire only one of the flash tubes/heads. EOS ELAN ll/ELAN ll E/50/50E, EOS REBEL G/500N, EOS IX, EOS IX Lite/IX7, EOS 3000/88, EOS REBEL 2000/300, EOS REBEL XS N/ REBEL G II/3000N/66

Modeling Flash

If the camera has a depth-of-field preview button, pressing it will fire the flash continuously for 1 sec. This is called the modeling flash. It enables you to see the shadow effects on the subject and the lighting balance. The modeling flash also works with a wireless, multi-Speedlite system.

7 FE Lock

FE (flash exposure) lock locks the correct flash exposure reading for any part of the scene. With <a> displayed on the LCD panel, press the camera’s <7> button. If the camera does not have a <7> button, press the button.

Focus the subject.

Press the <7> button. (3)

Place the subject at the center of the

viewfinder and press the <7> button.

X The MR-14EX/MT-24EX will fire a

preflash and the required flash output for the subject is retained in memory.

X The FEL display will be shown in the

viewfinder for 0.5 sec.

Each time you press the <7>

button, a preflash is fired to update the FE lock reading.

If the subject is too far away and underexposure will result, the <Q> icon

will blink in the viewfinder. Move closer to the subject and try the FE lock again.

If <a> is not displayed on the LCD panel, FE lock cannot be set. If the subject is too small, FE lock might not be very effective.

f Flash Exposure Compensation

In the same way as normal exposure compensation, you can set exposure compensation for flash. The flash exposure compensation amount can be set up to ±3 stops in 1/3-stop increments.

Select <f>.

Press the <a> button to

display <f>.

X <f> and the flash exposure

compensation amount will blink.

Set the flash exposure

compensation amount.

Press the <h> or button to set

the flash exposure compensation amount.

To cancel the flash exposure

compensation amount, set it to “0”.

Press the <a> button.

X The flash exposure compensation

amount will be set.

If the flash exposure compensation amount has been set by both the

MR-14EX/MT-24EX and camera, the MR-14EX/MT-24EX’s flash exposure compensation amount will override the camera’s.

If the camera’s exposure setting increment is 1/2 stop, the flash

exposure compensation will be set in 1/2-stop increments.

g FEB

The camera brackets the flash exposure automatically up to ±3 stops in 1/3-stop increments for three successive shots. This is called FEB (Flash Exposure Bracketing).

Select <g>.

Press the <a> button to

display <g>.

X <g> and the bracketing amount will

blink.

Set the flash exposure bracketing

amount.

Press the <h> or button to set

the bracketing amount.

Press the <a> button.

X FEB will be set.

For FEB, set the camera’s drive mode to single shooting. Be sure the

flash is ready before shooting.

FEB cannot be used together with flash exposure compensation set with

the camera.

After the three shots are taken, FEB will be cancelled automatically. FEB can be used together with FE lock or flash exposure compensation

set with the MR-14EX/MT-24EX.

If the camera’s exposure setting increment is 1/2 stop, the FEB will be

set in 1/2-stop increments.

c High-speed sync

With high-speed sync (FP flash), the flash can synchronize with all shutter speeds.

Select <c>.

Press the <h> and buttons

simultaneously to display <c>.

In the viewfinder, check that the <F>

icon is lit.

If the shutter speed is slower than the maximum flash sync speed, <F>

will not be displayed in the viewfinder.

To return to normal flash, press the <h> and buttons

simultaneously to turn off <c>.

With high-speed sync, the faster the shutter speed, the shorter the flash

range will become.

r Second-curtain sync

With a slow shutter speed, you can create a light trail following the subject. The flash fires right before the shutter closes.

Select <r>.

Press the <h> and buttons

simultaneously to display <r>.

The camera’s “buLb” mode works well with second-curtain sync. To return to normal flash, press the <h> and buttons

simultaneously to turn off <r>.

With E-TTL II/E-TTL, two flashes will be fired even at slow shutter

speeds. The first flash is the preflash.

q Manual Exposure

You can set the flash output manually from full output at 1/1 to 1/64 output in full-stop increments. The flash can be fired in one of three ways: 1. A and B fired at the same output, 2. A and B fired at a different output, 3. Only A or B is fired. You should first take a test shot to check the exposure.

Firing A and B at the Same Flash Output

Select <q>.

Press the <D> button to

display <q>.

Set the flash output.

Press the <a> button.

X The flash output blinks.

Press the <h> or button to set

the flash output.

Each time you press the button, the flash output will increase/decrease by 1 stop.

Press the <a> button.

X The flash output is displayed.

Firing A and B at a Different Flash Output

For step 2 above, follow the procedure below to set a different flash output for A and B.

1 Press the <f> button to display <yl>. 2 Select the flash tube/head.

Press the button to select <1>, and the <c> button to select <2>.

3 Set the flash output.

Press the <h> or button to set the flash output. Pressing the button to set the flash output to “--” will set

only the other flash tube/head to fire.

X The setting after 1/64 is “--”. The flash tube/head whose flash

output has been set to “--” will not fire.

C Setting Custom Functions

Custom Functions enable you to customize MR-14EX/MT-24EX features to suit your picture-taking preferences.

Display the <l> icon.

Hold down the <A> button for 2

sec. or more.

Select the Custom Function No.

Press the <a> button, and

the Custom Function number and setting number will blink. Press the <a> button to select the Custom Function number.

Set the setting number.

Press the <h> or button to

select “0” or “1”, then press the <a> button.

X The blinking will stop and the setting

will take effect.

X Pressing the <A> button or

<D> button will return the camera to shooting ready.

+ 106 hidden pages
