imagePRESS C850/C750/C650

Practical Features

Auto Gradation Adjustment for Various Paper Types

The Auto Adjust Gradation function adjusts the gradation, density, and color tone of images, and only requires you to scan the test page. This function can be used for various weights of paper so that a high quality print result can be obtained in different paper types.

"Adjustment for Image Quality and Finishing (Calibration)" in the

User's Guide

Achieve High Quality Color Reproduction with Auto Color Tone Correction

Compared to the Auto Adjust Gradation function, which adjusts CMYK, the Auto Correct Color Tone function adjusts mixed colors that are expressed with multiple toner. By using these functions together, you can perform the precise color adjustment.

"Adjustment for Image Quality and Finishing (Calibration)" in the

User's Guide

Optimum Print Result for Each Paper Type

Paper information, which includes the basis weight, finish, fixing, and curl correction level, can be registered as the paper characteristics. As the detailed information can be specified for each different paper type, you can obtain the fine print result with considering the paper characteristics. This function is also effective for improving paper conveyance and print quality.

"Paper Type Management" in the User's Guide

Curl Correction for Stable Paper Conveyance

The machine constantly corrects the paper curl which occurs due to the pressure applied when toner is fixed. Moreover, by correcting the paper curl during outputting, the machine reduces the risk of a paper jam, and achieves the stable paper conveyance. The curl correction can be specified for each paper type you want to use.

"Adjustment for Image Quality and Finishing (Calibration)" in the

User's Guide

"Paper Type Management" in the User's Guide

Page 3

Easy Operation for Adjusting Image Position

You can adjust the image positions easily with this machine. All you need is measuring marks on the test page and then entering the measured values on the touch panel display. After that, the machine will automatically adjust the image positions. You can make the complicated adjustment easily by entering values for each edge of front and back sides on a single screen.

"Paper Type Management" in the User's Guide

Quick Access to Frequently Used Settings

Different settings are required, depending on the printing purpose or paper types, but accessing setting items located in various menus every time is a quite complicated operation. In this case, register frequently used settings in "Settings/Registration Shortcut" button. You can directly access to the setting screen with this button and save the effort to search necessary setting items.

"Settings/Registration" in the User's Guide

Alternative Settings for Your Needs, "Productivity" or "Quality"

You can set a priority to either print productivity or image quality. For instance, select "Productivity Priority" when printing a large number of documents to achieve speedy printing. On the other hands, select "Quality Priority" when printing documents which contain many pictures to obtain precisely printed images. This function can be set for each paper type to suit your various needs for printing.

"Settings/Registration" in the User's Guide

Page 4

Contents

Thank you for purchasing this Canon product. Please read this manual thoroughly before operating the machine to familiarize yourself with its capabilities, and to make the most of its many functions. For more information on the detailed settings for the functions, see the User's Guide. After reading this manual, store it in a safe place for future reference.

Parts and Their Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

External View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Internal View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Control Panel (Upright Control Panel-G1) . . . . . . . . . . . . . . . . . . . . .8

Status Monitor/Cancel Screen . . . . . . . . . . . . . . . . . . . . . 10

How to Turn ON the Main Power . . . . . . . . . . . . . . . . . . . 11

Turning ON the Main Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Shutting Down the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Available Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Registering Paper Types in the Paper Database . . . . . . . . . . . . . . .14

Loading Paper into the Paper Drawer . . . . . . . . . . . . . . . . . . . . . . . .15

Selecting Paper Types from the Paper Database . . . . . . . . . . . . . .16

Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . .17

Cleaning the Platen Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Cleaning the Original Scanning Area . . . . . . . . . . . . . . . . . . . . . . . . .17

Cleaning the Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Automatic Feeder Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Cleaning the Inside of the Main Unit . . . . . . . . . . . . . . . . . . . . . . . . .19

Refreshing the Fixing Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

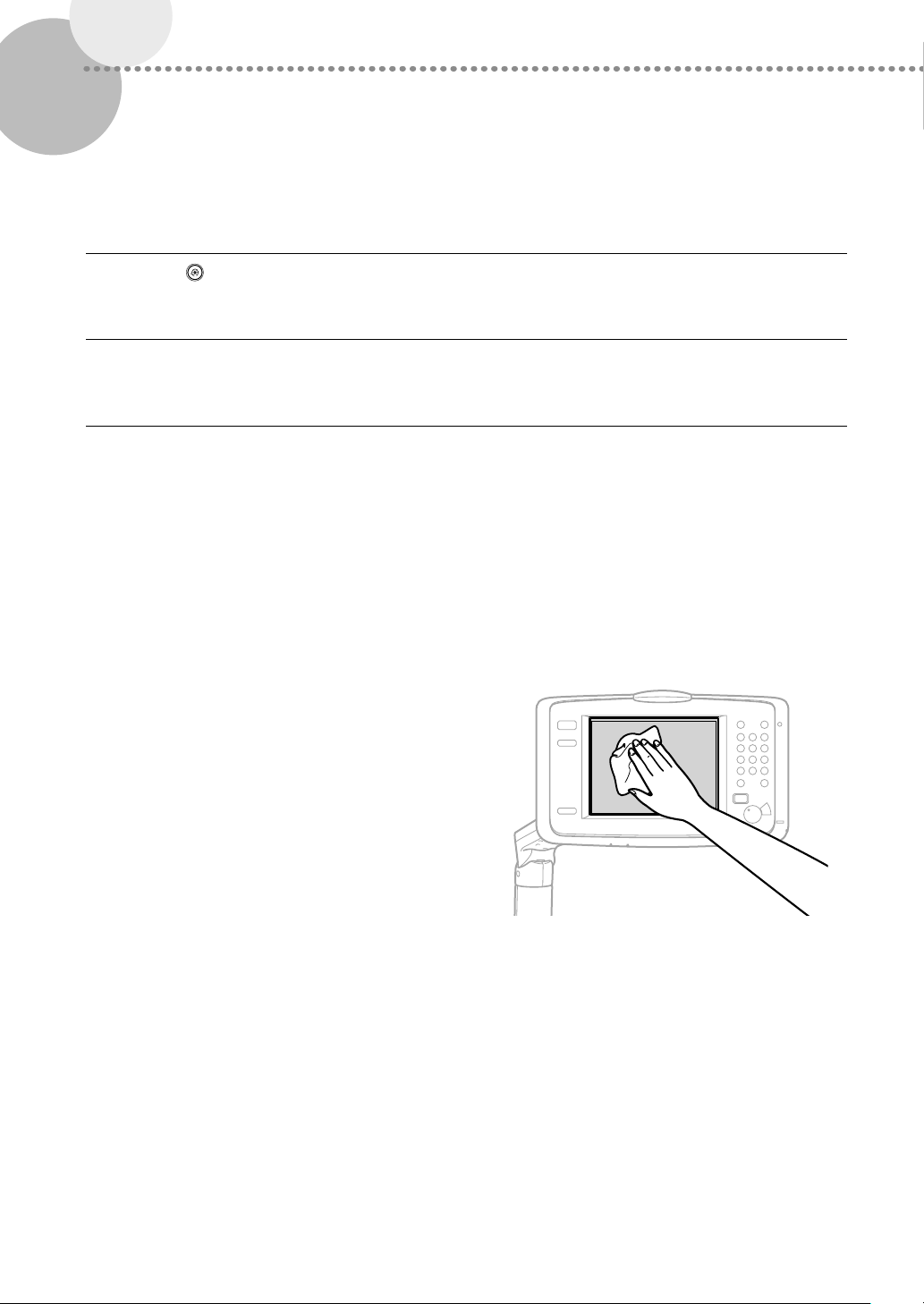

Cleaning the Touch Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Inspection of the Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Clearing Paper Jams and Staple Jams . . . . . . . . . . . . . . . . . . . . . . . .24

Reducing the Frequency of Paper Jams . . . . . . . . . . . . . . . . . . . . . .24

When an Error Message Is Displayed . . . . . . . . . . . . . . . . . . . . . . . . .25

Contacting Your Local Authorized Canon Dealer . . . . . . . . . . . . .26

If Memory Becomes Full . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

If the Main Power Does Not Turn ON . . . . . . . . . . . . . . . . . . . . . . . . .27

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Symbols Used in This Manual

Indicates a warning concerning operations that may lead to death or injury to persons if not

WARNING

CAUTION

IMPORTANT

NOTE

OPTION

performed correctly. To use the machine safely, always pay attention to these warnings.

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly, and avoid damage to the machine or property.

Indicates a clarification of an operation, or contains additional explanations for a procedure. Reading these notes is highly recommended.

Indicates an optional product which can be used with this machine.

Page 5

Keys and Buttons Used in This Manual

Control Panel Keys: Key Icon

The followings are examples of how keys and

•

buttons are expressed in this manual.

Touch Panel Display Keys: [Key Name]

•

Buttons on Computer Operation Screens: [Button

[Copy]



 [Close]

•

Name] [OK], [Add], [Cancel]

Illustrations Used in This Manual

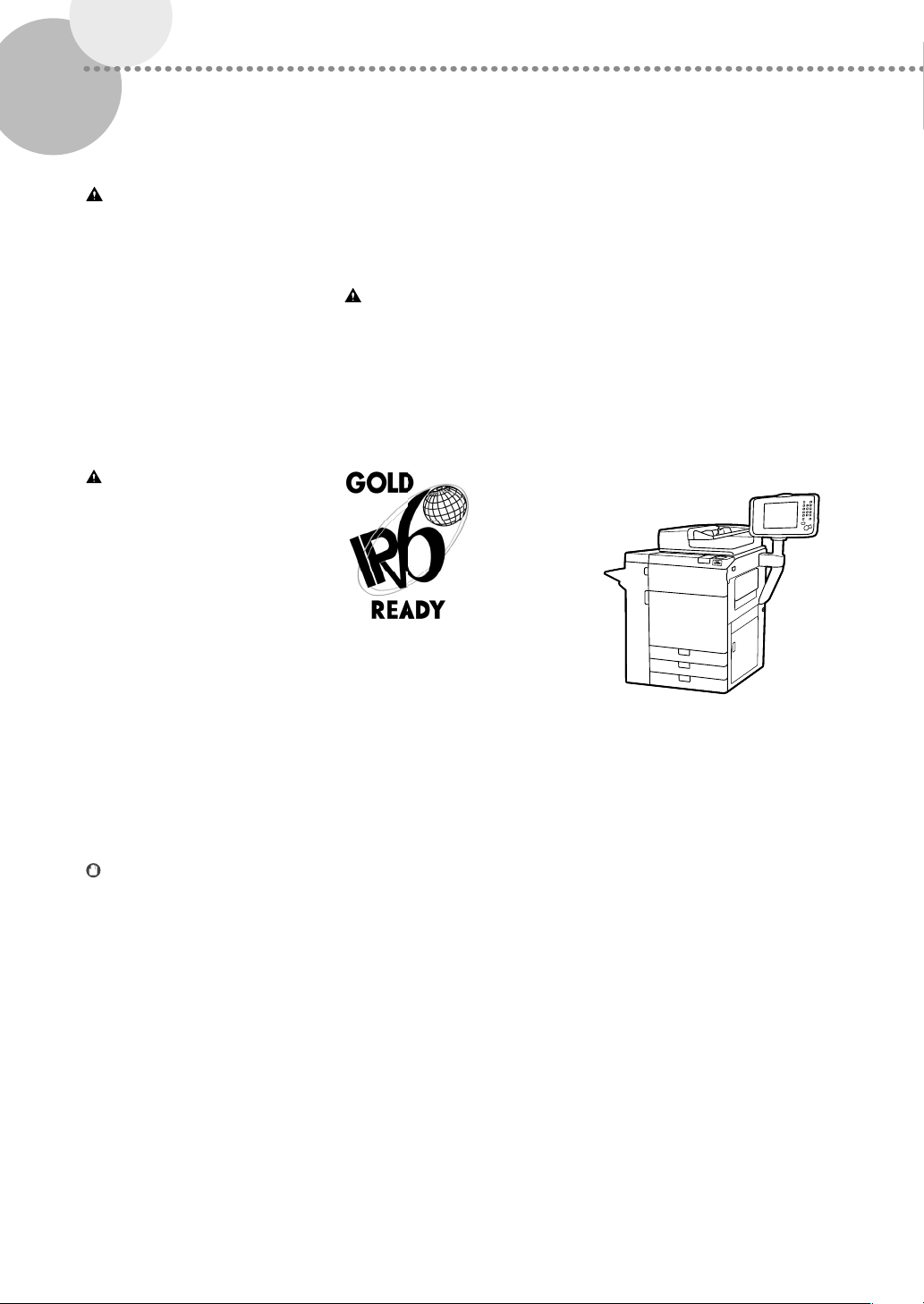

Illustrations used in this manual are those displayed when the imagePRESS C850 has the following optional equipment attached to it: the Duplex Color Image Reader Unit-K1, Upright Control Panel-G1, and Copy Tray-R2.

Page 6

Parts and Their Functions

This section provides you with the names and functions of all the parts of the machine. The keys and display on the control panel are also described. Read this section to use the machine’s various functions smoothly.

"Optional Products" in the User's Guide

External View

▀

123

1 USB Port (1)

Use to connect memory media to the machine via USB.

6 LAN Port

Use a LAN cable to connect the machine to a network.

2 Upright Control Panel-G1

Includes the keys, touch panel display, and indicators required for operating the machine.

3 Main Power Switch

Press to the "|" side to turn ON the power.

4 Main Unit’s Right Cover

Open this cover when clearing a paper jam inside the main unit.

5 Paper Drawer

Holds up to 500 sheets of paper (80 g/m2).

7 USB Port (2)

Use the USB port to connect external hard disks and other devices to the machine.

8 USB Connector

Use a USB cable to connect the machine to a computer.

9 Breaker

Detects excess current or leakage current.

10 Test Button

Press this button to test the circuit breaker.

Page 7

Internal View

▀

Parts and Their Functions

1 Toner Cartridge

This cartridge contains toner. Pull out this cartridge when replacing it with a new one.

2 Front Cover

Open this cover to clear a paper jam in the fixing transport unit.

3 Toner Replacement Cover

Open this cover to replace the toner cartridge.

4 Fixing Transport Unit

Pull the fixing transport unit out to clear a paper jam.

5 Waste Toner Container

Waste toner accumulates in this container. Pull out this container when replacing it with a new one.

6 Left Cover on the Front Side

Open this cover to clear a paper jam or to replace the waste toner container.

Page 8

Control Panel (Upright Control Panel-G1)

▀

12 34

1 Processing/Data Indicator

Blinks green when the machine is performing operations, and maintains a steady green light when received data is stored in memory.

2 Error Indicator

Blinks or lights if there is an error in the machine. When the Error indicator blinks, follow the instructions that appear on the touch panel display. When the Error indicator maintains a steady red light, contact your local authorized Canon dealer.

3 Settings/Registration key

Press to register and specify settings.

4 Energy Saver key

Press to set the Energy Saver mode or Sleep mode. The mode activated after pressing the Energy Saver key can be selected beforehand. This key lights when the machine enters either mode. To reactivate the machine, press this key again.

10111213141516

5 Counter Check key

Press to display the copy and print count totals.

6 Numeric keys

Press to enter numerical values.

7 Clear key

Press to clear entered values or characters.

8 Main Power Indicator

Lights when the main power is turned ON.

9 Edit Pen

Use when operating the touch panel display, such as to enter characters.

Stop key

Press to stop a job in progress.

Start key

Press to start an operation, such as scanning or copying.

Page 9

Reset key

Press to restore the standard settings of the machine.

ID (Log In/Out) key

Press to log in/out when a login service such as Department ID Management or SSO-H has been set.

Touch Panel Display

The settings screen for each function is shown on this display.

Brightness Adjustment Dial

Use to adjust the brightness of the touch panel display.

Volume Settings key

Press to display the screen to specify the audible tones for the fax function.

Parts and Their Functions

Status Monitor/Cancel key

Press to check the status of jobs or to cancel print jobs. Also, press to check status of the machine, such as checking the amount of paper remaining.

Quick Menu key

Press to retrieve favorite functions stored in Quick Menu. Also, if you are using authentication, Quick Menu set for each individual user can be displayed.

Main Menu key

Press to return to the Main Menu screen, such as when you want to switch functions.

Setting the Energy Saver mode/Sleep mode to minimize energy consumption

You can save energy consumption by using the Energy Saver mode/Sleep mode when the machine is not being used for a prolonged period of time, such as a lunch time. To use these modes, simply press the control panel. If the machine is idle for a certain period of time, the machine will enter the Sleep mode (Auto Sleep mode). For more information on the mode which activates after information on the Auto Sleep mode, see the User's Guide.

"Basic Operations" > "Energy Saving Features" in the User's Guide

is pressed, and detailed

Page 10

Status Monitor/Cancel Screen

If you press , the Status Monitor/Cancel screen appears, and you can confirm the status of jobs and consumables on this screen. By obtaining information, such as the completion time of the current job or the amount of paper remaining, you can perform smooth printing operation without interruption.

Useful situations

•

When you want to know the completion time of jobs

•

When you want to check the amount of paper remaining for efficient paper loading

•

When you want to cancel a job which is registered by mistake

[Job] screen

The [Job] screen enables you to check the status of jobs in the job list. On this screen, you can cancel a job in progress and change the order of waiting jobs to print your job prior to others.

[Paper] screen

You can check the paper information and the remaining amount of paper in all paper sources. You can also specify the paper type for each paper source in [Paper Settings].

[Toner/Other] screen

The remaining amount of toner is displayed in illustrations. You can also check the remaining amount of staples, the amount of punch waste, and the percentage of memory usage.

Page 11

How to Turn ON the Main Power

This section explains how to turn ON the main power.

Turning ON the Main Power

▀

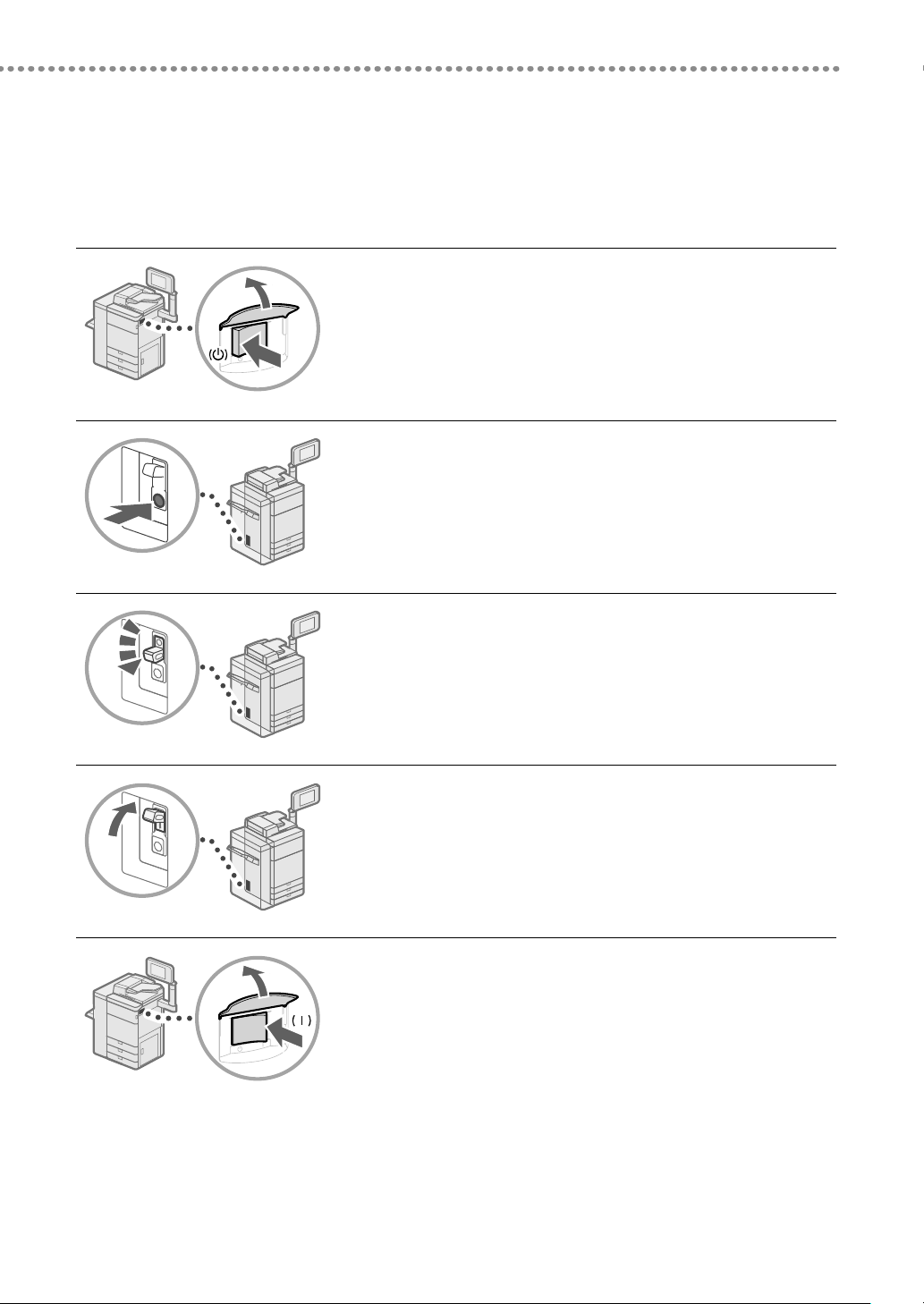

Make sure that the power plug is firmly inserted into the power outlet, and the breaker is turned ON.

Open the main power switch cover.

Press the main power switch to the "|" side.

•

The main power indicator on the control panel lights.

IMPORTANT

If you want to turn ON the main power again, wait for at least 10 seconds after the main power and the main power indicator are turned OFF. However, when [Quick Startup Settings for Main Power] is enabled, if you don’t wait more than 20 seconds after the Main Power indicator is turned OFF, quick startup is not performed.

NOTE

The response of the keys and buttons may not be optimal immediately after turning ON the main power of the machine.

Shutting Down the Machine

▀

Do not turn OFF the main power in the following situations

•

When using the I-Fax function

•

When the message <Backing up stored data from the Remote UI...> is displayed

•

When operating scan or print function

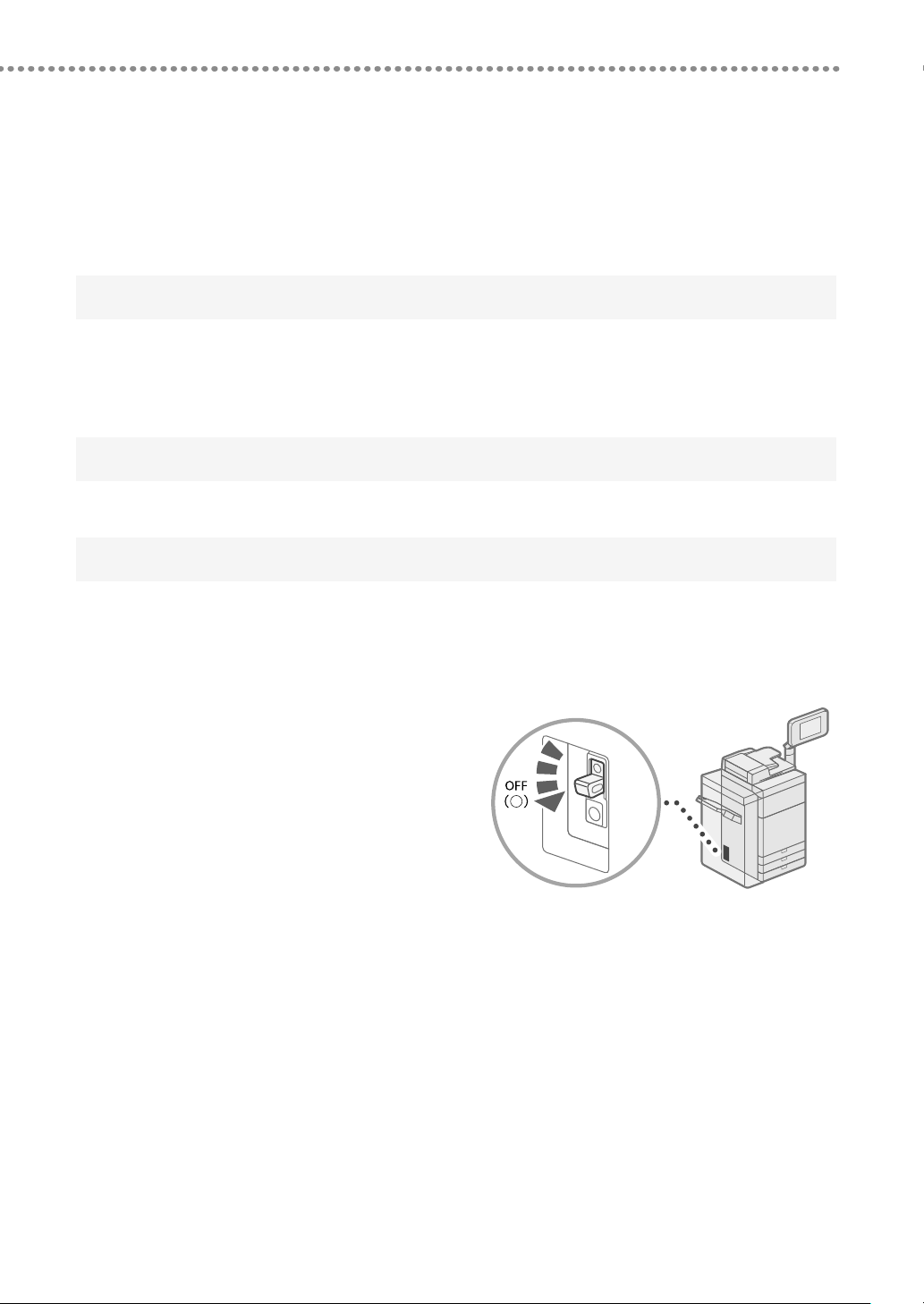

Open the main power switch cover.

Press the main power switch to the " " side.

•

The main power indicator on the control panel turns OFF.

Page 12

Loading Paper

Load paper by following the procedure below. In this section, A4 custom size paper is used as an example.

Confirmation

Preparation

Operation

Registration

Confirm the paper types that can be loaded.

"Available Paper," on p. 12

"Registering Paper Types in the Paper Database," on p. 14

Load paper in the paper drawer.

"Loading Paper into the Paper Drawer," on p. 15

Specify the loaded paper size and type for the paper drawer.

"Selecting Paper Types from the Paper Database," on p. 16

Available Paper

▀

This section describes the available paper for this machine. Paper that can be loaded differs, depending on the paper sources. The following description includes the optional products as well as the standard paper drawers. The optional products are indicated with

OPTION

icon.

OPTION

Stack Bypass-B1 Stack Bypass Alignment Tray-C2 Long Sheet Tray-B1

POD Deck Lite-C1

OPTION

NOTE

Paper Drawer

Document Insertion Unit-N1

Multi-drawer Paper Deck-C1

OPTION

The optional Envelope Feeder Attachment is required to load envelopes, depending on the type of envelope.

"Basic Operations" > "Available Paper Stock" in the User's Guide

OPTION

Page 13

Loading Paper

Paper Drawer

Paper Capacity Upper, middle, and lower decks: 500 sheets (80 g/m2) each

Paper Type Thin 1 to 2, Plain 1 to 2, Heavy 1 to 4, Color, Recycled, Pre-Punched, Transparency, Clear Film, Tab, Bond,

Letterhead, Textured, Vellum, and Envelopes

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Custom Size (100

mm x 148 mm to 330.2 mm x 487.7 mm), and Envelopes

Multi-drawer Paper Deck-C1

Paper Capacity Upper, middle, and lower decks: 2,000 sheets (80 g/m2) each

Paper Type Thin 1 to 2, Plain 1 to 2, Heavy 1 to 6, Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond,

Letterhead, Coated, Textured, Vellum, and Envelopes

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Custom

Size(139.7 mm x 182 mm to 330.2 mm x 487.7 mm), and Envelopes

OPTION

Document Insertion Unit-N1

Load paper you want to use as a cover of a booklet in the document insertion unit, such as coated paper.

Paper Capacity Upper and Lower trays: 200 sheets (80 g/m

Paper Type Thin 1 to 2, Plain 1 to 2, Heavy 1 to 6, Color, Recycled, Pre-Punched, Tab, Bond, Letterhead, Coated, Textured, and

Vellum

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, and Custom Size (182

mm x 182 mm to 330.2 mm x 487.7 mm)

OPTION

) each

Stack Bypass-B1

Paper Capacity 100 sheets (80 g/m2)

Paper Type Thin 1 to 2, Plain 1 to 2, Heavy 1 to 6, Color, Recycled, Pre-punched, Transparency, Clear Film, Labels, Tab, Bond,

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Custom Size (100

OPTION

Letterhead, Coated, Textured, Vellum, and Envelopes

mm x 148 mm to 330.2 mm x 487.7 mm), and Envelopes

Long Sheet Tray-B1

Use the Long Sheet Tray-B1 when using long sheets. The Stack Bypass-B1 and Stack Bypass Alignment Tray-C2 are required separately.

Paper Capacity 1 sheet

Paper Type Thin 1, Plain 1 to 2, Heavy 1 to 6, Color, Recycled, Pre-punched, Clear Film, Labels, Bond, Coated, and Vellum

Paper Size Custom Size (100 mm x 148 mm to 330.2 mm x 487.7 mm, 210 mm x 487.8 mm to 330.2 mm x 762 mm)

OPTION

POD Deck Lite-C1

Paper Capacity 3,500 sheets (80 g/m2)

Paper Type Thin 1 to 2, Plain 1 to 2, Heavy 1 to 6, Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond,

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Custom Size

OPTION

Letterhead, Coated, Textured, Vellum, and Envelopes

(139.7 mm x 148 mm to 330.2 mm x 487.7 mm), and Envelopes

* For more information on paper that can be loaded, see "Specifications," on p. 28.

Page 14

Registering Paper Types in the Paper Database

▀

Register all paper types you are going to use with this machine. You can register paper types by selecting paper types from the Paper Database.

NOTE

If you load paper which is already registered in the machine, such as plain or recycled paper, this step is not necessary. Proceed to the next step "Loading Paper into the Paper Drawer".

Press .

Press [Preferences]  [Paper Settings]  [Paper Type Management Settings].

Press [Paper Database].

Select the paper type from the list  press [OK].

Confirm that the selected paper type is displayed in

the <Paper Type Management Settings> screen  press [OK].

•

If the desired paper type is not listed in the Paper Database, select and duplicate a paper type that closely matches the characteristics of the desired paper type, and then change the necessary settings.

"Paper Type Management" in the User's Guide

Page 15

Loading Paper into the Paper Drawer

▀

Open the paper drawer.

•

Gently pull out the paper drawer until it stops.

Adjust the position of the paper drawer guides.

•

Slide each guide while squeezing it on the top to align for the desired paper size.

Load the paper stack into the paper drawer.

Load the paper stack against the right wall of the paper drawer.

Gently push the paper drawer back into the machine until it clicks into place in the closed position.

Loading Paper

NOTE

•

Make sure to fan the paper stack, and align the edges before loading paper.

•

Curled paper must be straightened out prior to use.

•

Make sure that the height of the paper stack does not exceed the loading limit mark (

•

When loading pre-punched paper, transparencies/clear film, tab paper, and envelopes, make sure to load paper in an appropriate orientation as the paper orientation differs, depending on the paper source.

"Maintenance" > "Loading Paper" in the User's Guide

Page 16

Selecting Paper Types from the Paper Database

▀

Select the loaded paper type from the Paper Database.

Press .

Press [Preferences]  [Paper Settings]  [Paper Settings].

Select the paper source in which you loaded paper 

press [Set].

•

If you load paper other than standard paper, select [Custom Size] or [Envelope].

Select the loaded paper type from the list  press [OK].

Confirm that the selected paper type is displayed in

<Details of Selected Paper>  press [OK].

Page 17

Cleaning and Maintenance

For optimum operation of the machine, we recommend to clean and check the machine regularly.

Cleaning the Platen Glass

▀

If originals cannot be scanned properly, follow the cleaning procedure below. Clean with a cloth which is wrung after being dampened in water, and then clean with a soft and dry cloth. Use the provided glass cleaning cloth for simple cleaning.

Clean the Platen Glass.

•

Clean the platen glass and the underside of the feeder.

Cleaning the Original Scanning Area

▀

If originals which are fed from the feeder cannot be scanned properly, follow the procedure below.

Press .

Press [Adjustment/Maintenance]  [Maintenance]  [Original Scanning Area Cleaning

Method].

Follow the cleaning instructions on the touch panel display.

Page 18

Cleaning the Feeder

▀

If originals which are fed from the feeder become dirty, follow the cleaning procedure below. Clean with a cloth which is wrung after being dampened in water, and then clean with a soft and dry cloth. Use the provided glass cleaning cloth for simple cleaning.

Clean the original scanning area.

•

Open the feeder and clean the original scanning area (thin glass strip).

Open the covers.

Pull the lever above the feeder, and open the cover.

Open the inside cover.

Clean the original scanning area of the feeder.

Close the covers.

Close the inside cover.

Close the cover.

Page 19

Automatic Feeder Cleaning

▀

If originals which are fed from the feeder become dirty, follow the procedure below.

Place 10 sheets of blank paper into the feeder.

•

Use A4 plain paper.

Press .

Press [Adjustment/Maintenance]  [Maintenance]  [Clean Feeder].

Press [Start].

Cleaning and Maintenance

Cleaning the Inside of the Main Unit

▀

If output paper becomes dirty, follow the procedure below.

Press .

Press [Adjustment/Maintenance]  [Maintenance]  [Clean Inside Main Unit].

Press [Start].

NOTE

•

Similarly perform [Adjustment/Maintenance]  [Maintenance]  [Clean Wire] and [Adjustment/Maintenance]  [Maintenance]  [Clean Roller].

•

Paper may be cleaned by performing [Adjustment/Maintenance]  [Maintenance]  [Clean Belt]. After loading three or more sheets of plain paper into the upper paper drawer of the main unit, perform the above procedure.

Page 20

Refreshing the Fixing Belt

▀

If streaks appear on the output paper, or gloss unevenness occurs in the high density area of the printed heavy paper, follow the procedure below.

Press .

Press [Adjustment/Maintenance]  [Maintenance]  [Refresh Fixing Belt].

Press [Start].

NOTE

The fixing belt is refreshed automatically every several sheets of paper is printed. You can adjust the refresh frequency and time in [Fixing Roller Auto Refresh Level].

Cleaning the Touch Panel Display

▀

Wipe the touch panel display with a cloth dampened in water or a mild cleaning agent, and then wipe with a soft, dry cloth.

Page 21

Cleaning and Maintenance

Inspection of the Breaker

▀

This machine has a breaker that detects excess current or leakage current. Make sure to test the breaker once a month by following the procedure below.

Turn OFF the main power.

•

Make sure that the main power is turned OFF, before inspecting the breaker.

Push the test button located on the rear of the machine.

•

Push the test button with the tip of a ball-point pen or a similar object. Briefly push the test button.

Confirm that the breaker lever is switched to the OFF

position.

•

If the breaker lever is not switched to the OFF position, repeat step 2. If the breaker lever is not switched to the OFF position, despite carrying out the above procedure two or three times, contact your local authorized Canon dealer.

Switch the breaker lever to ON.

Turn ON the main power.

Page 22

Consumables

The following consumables are available for this machine. For more information, contact your local authorized Canon dealer. For information on using and storing consumables, see "Consumables," on p. 56.

Paper

In addition to plain paper, other types of paper stock are available, such as recycled paper, color paper, transparencies/ clear film (recommended for this machine), vellums, and labels. For high-quality printouts, use paper recommended by Canon.

Toner

If a message prompting you to replace the toner cartridge appears on the touch panel display, replace the used toner cartridge with a new one. For information on how to replace the toner cartridge, see the User's Guide. For optimum print quality, using Canon genuine toner is recommended.

"Maintenance" > "Replacing the Toner Cartridge" in the User's Guide

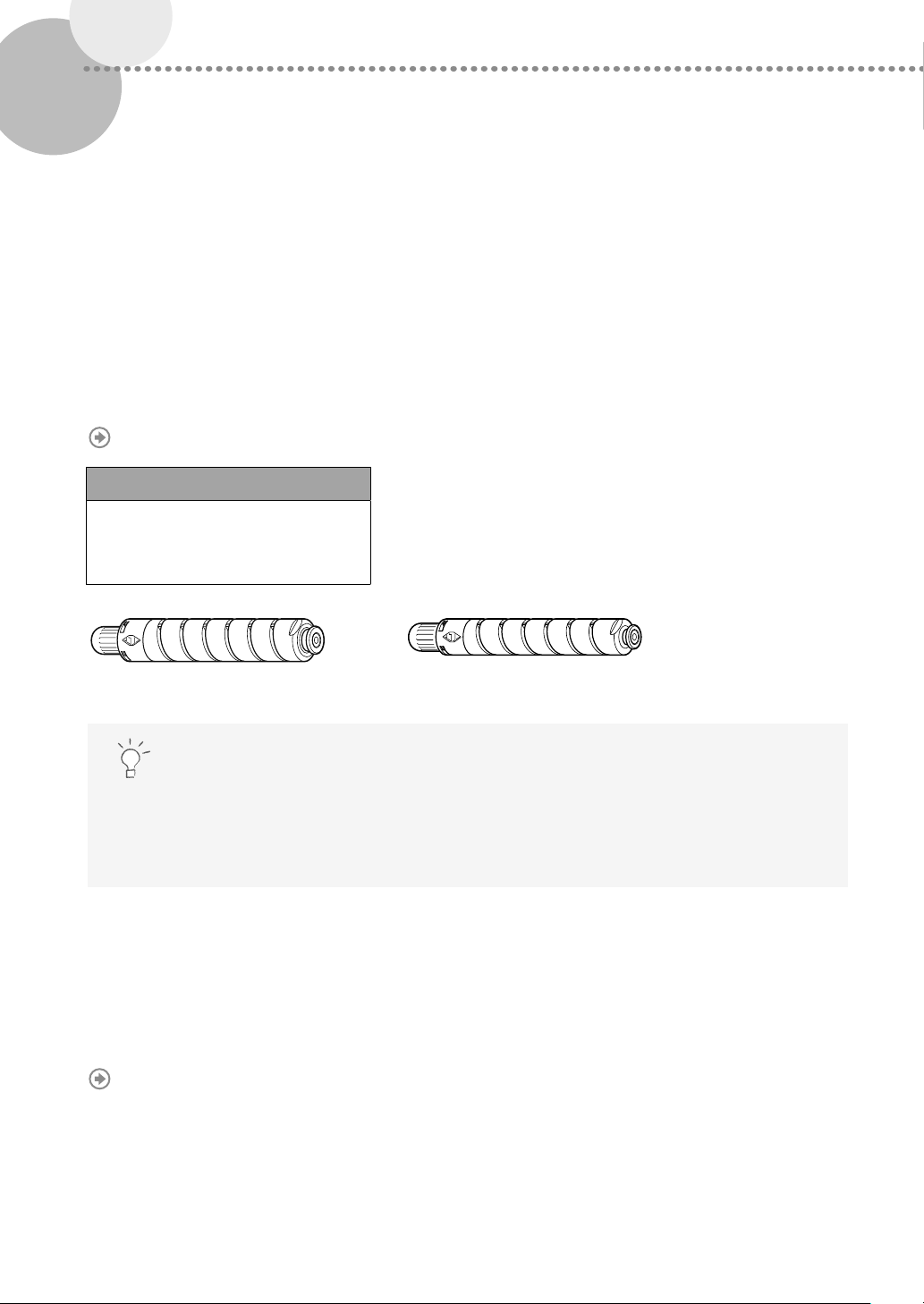

Supported Canon Genuine Toner

Canon imagePRESS Toner T01 Black Canon imagePRESS Toner T01 Cyan

Canon imagePRESS Toner T01 Magenta

Canon imagePRESS Toner T01 Yellow

Black Toner Cartridge Cyan, Magenta, or Yellow Toner Cartridge

Be careful of counterfeit toners

Please be aware that there are counterfeit Canon toners in the marketplace. Use of counterfeit toner may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner. For more information, see canon.com/counterfeit.

Waste Toner Container

The waste toner is accumulated in the waste toner container, and when the container is nearly full, a message prompting you to replace the container appears on the touch panel display. For information on how to replace the waste toner container, see the User's Guide. Your local authorized Canon dealer will dispose of the used waste toner container.

"Maintenance" > "Replacing the Waste Toner Container" in the User's Guide

Page 23

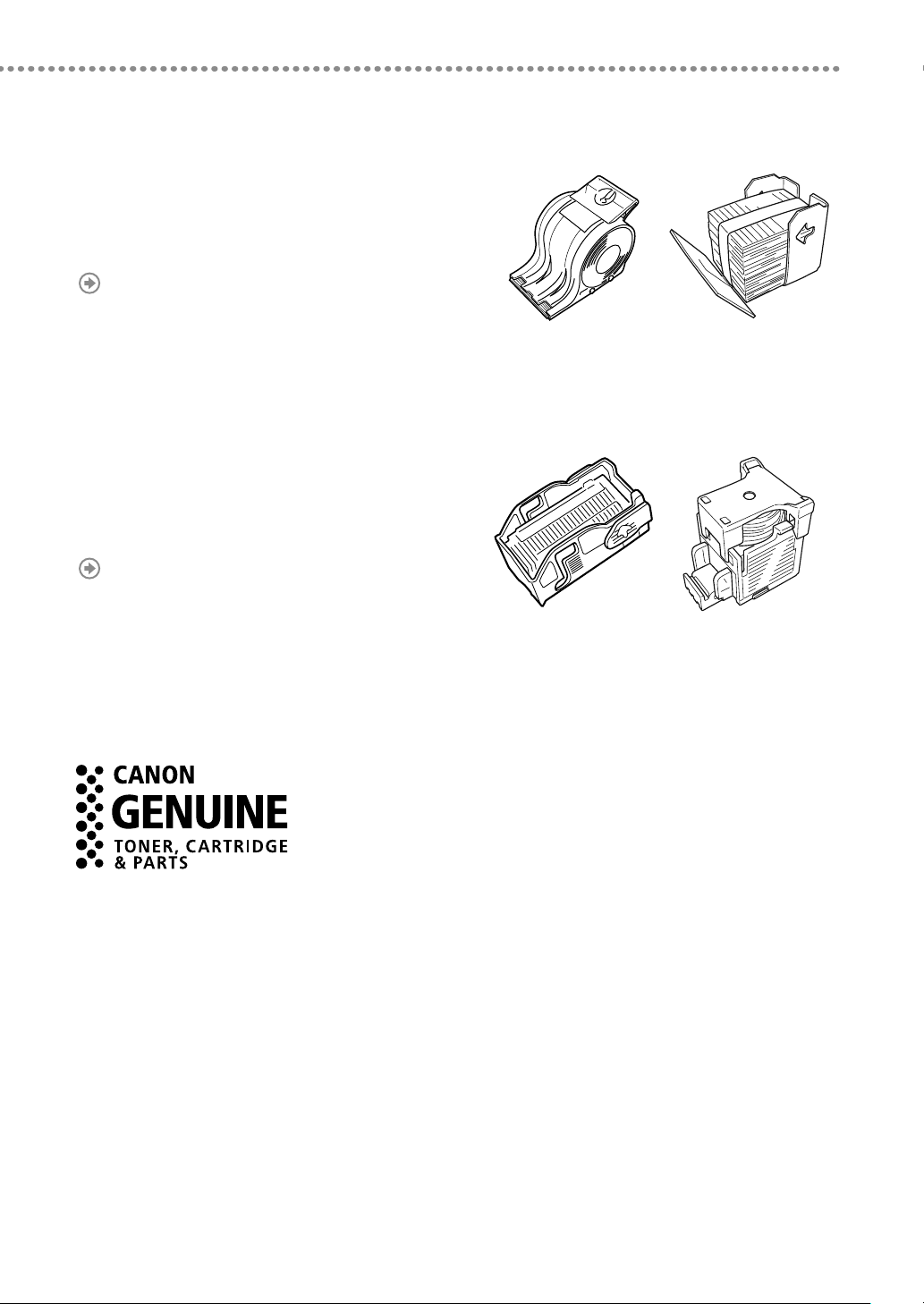

Staple Cartridge for the Stapler Unit

The Staple-N1/Staple-J1 can be attached to the Staple Finisher-W1 PRO/Booklet Finisher-W1 PRO/Staple Finisher-T1/ Booklet Finisher-T1 for stapling. For information on how to replace the staple cartridge, see the User's Guide.

"Maintenance" > "Replacing the Staple Cartridge (For Optional Products)" > "Replacing the Staple Cartridge in the Stapler Unit (Staple Finisher-W1 PRO/Booklet Finisher-W1 PRO)", "Replacing the Staple Cartridge in the Stapler Unit (Staple Finisher-T1/Booklet Finisher-T1)" in the User's Guide.

Staple Cartridge for the Saddle Stitcher Unit

The Staple-P1/Staple Cartridge-D2/Staple Cartridge-D3 can be attached to the Booklet Finisher-W1 PRO/Booklet Finisher-T1 for saddle stitching. For information on how to replace the staple cartridge, see the User's Guide.

"Maintenance" > "Replacing the Staple Cartridge (For Optional Products)" > "Replacing the Staple Cartridge in the Saddle Stitcher Unit (Booklet Finisher-W1 PRO)", "Replacing the Staple Case in the Saddle Stitcher Unit (Booklet Finisher-T1)" in the User's Guide.

Staple-N1

Staple-P1

Consumables

Staple-J1

Staple Cartridge-D2 Staple Cartridge-D3

For optimum print quality, using Canon genuine Toner, Cartridge and Parts is recommended.

Page 24

Troubleshooting

This section explains how to solve problems when paper jam occurs frequently or error messages are displayed. For information on the detailed procedures and precautions, see the User's Guide.

"Problem Solving" in the User's Guide

Clearing Paper Jams and Staple Jams

▀

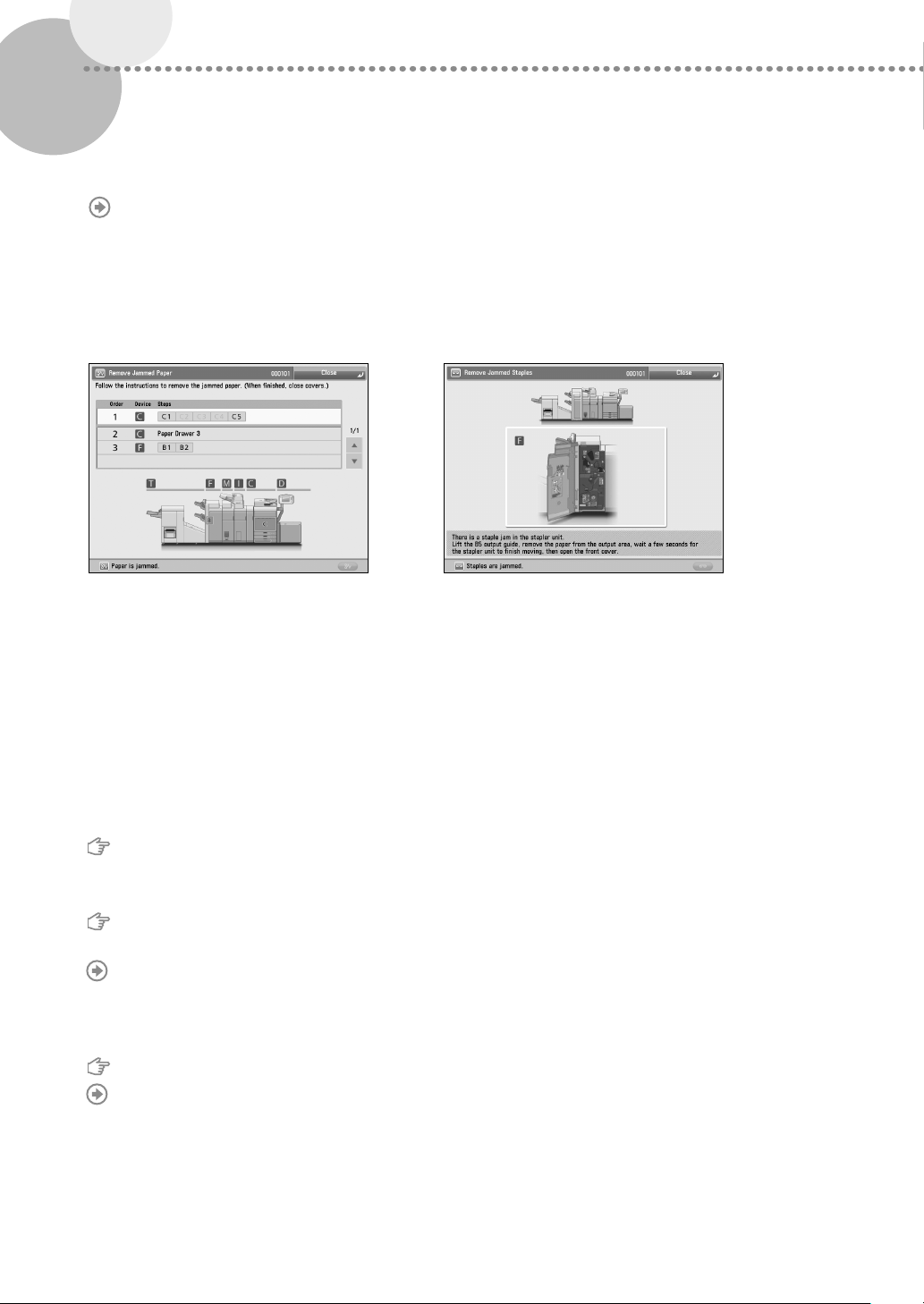

If a paper jam or staple jam occurs, follow the instructions displayed on the touch panel display to clear the jam. If you press [Close], you can continue operations, such as scanning originals, even if the jammed paper is not removed.

Paper Jam screen

The location of a paper jam is displayed with animations.

Reducing the Frequency of Paper Jams

▀

If paper jams occur frequently, the following reasons may be the cause.

Staple Jam screen

The location of a staple jam and procedures for clearing the jam are displayed.

There are torn pieces of paper left inside the machine.

As a result of pulling jammed paper out by force, torn pieces of paper may be left inside the machine.

Remove all of the torn pieces.

Paper which does not match with the setting is loaded.

Make sure that the paper loaded in the paper drawer matches the paper size and type registered in [Paper

Settings] in [Preferences].

"Selecting Paper Types from the Paper Database," on p. 16

Paper jams occur frequently only when using the specific custom paper.

The paper information may be registered incorrectly.

Confirm the paper information settings for the paper you are using.

"Paper Type Management" in the User's Guide

Page 25

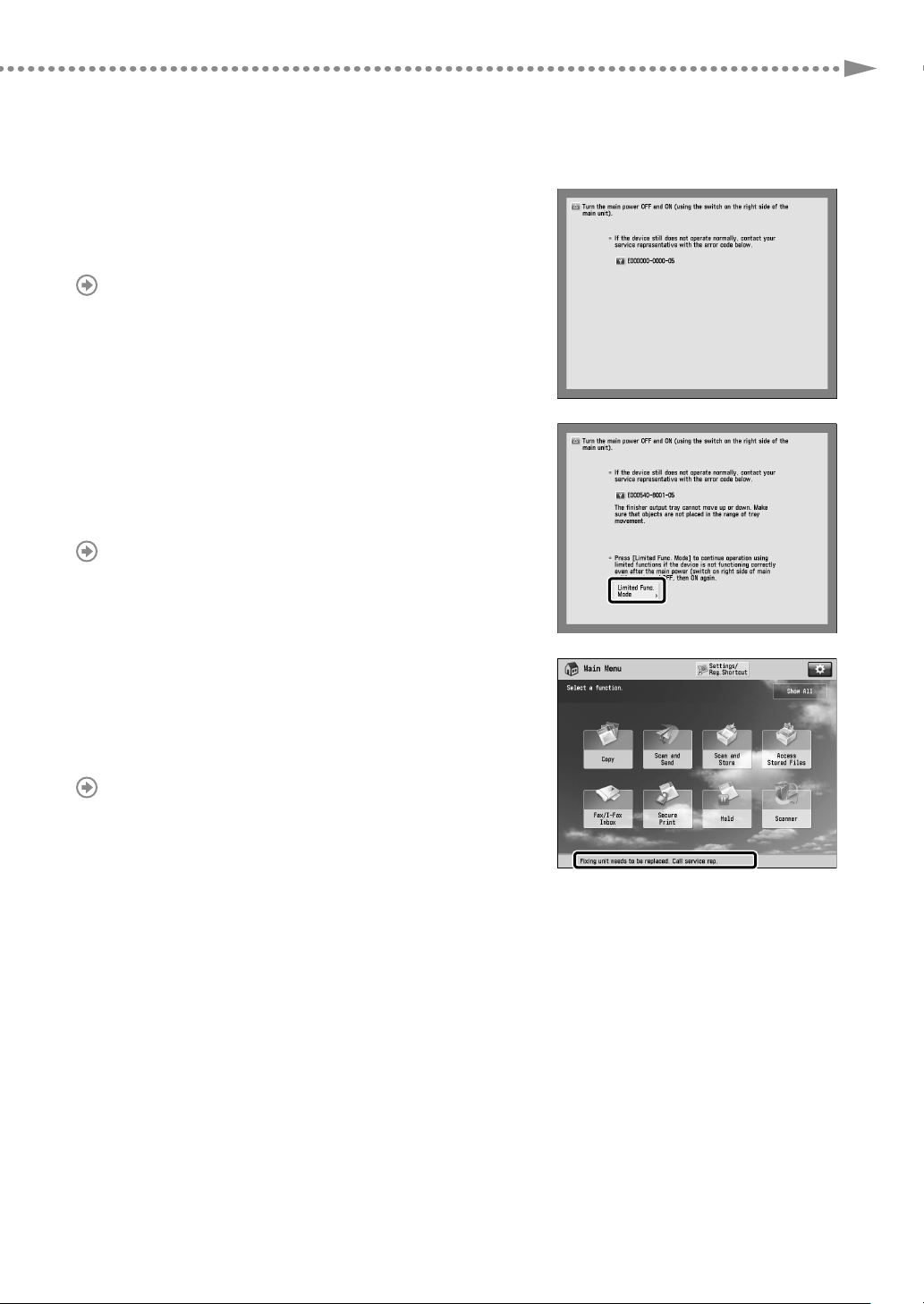

When an Error Message Is Displayed

▀

If a malfunction occurs and the machine cannot operate normally, a screen shown on the right appears. If the machine cannot operate normally after turning the main power OFF and then ON, contact your local authorized Canon dealer.

"Contacting Your Local Authorized Canon Dealer," on p. 26

If a key for the Limited Functions mode is displayed:

If [Limited Functions Mode] is displayed, you can temporally set the Limited Functions mode to continue to use some functions.

"Problem Solving" > "Service Call Message" in the User's

Guide

Troubleshooting

If a message is displayed on the bottom of the screen:

If an error message appears on the bottom of the screen, printing and scanning functions are restricted, but some functions may still be available.

"Problem Solving" > "Service Call Message" in the User's

Guide

Page 26

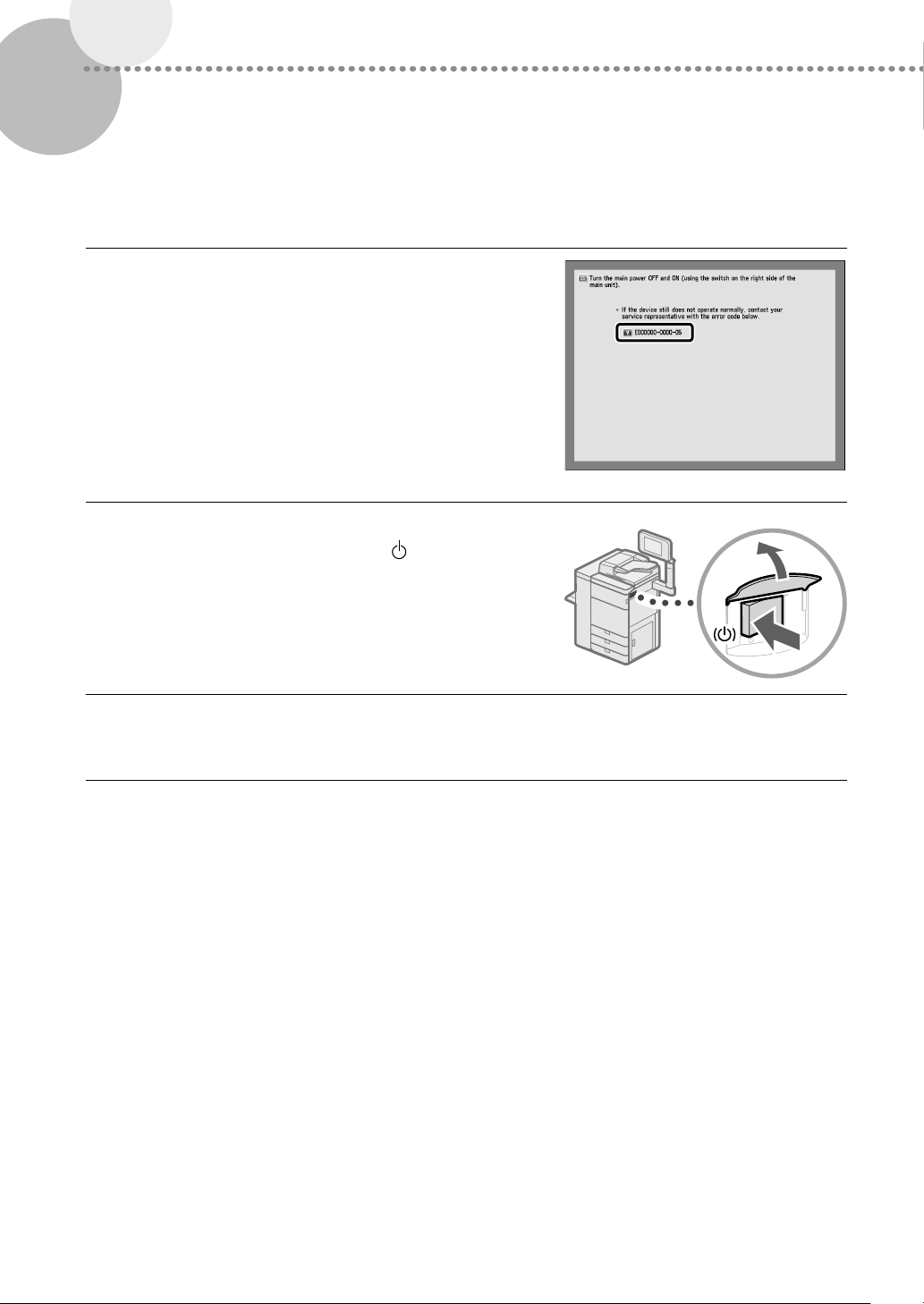

Contacting Your Local Authorized Canon Dealer

▀

If you cannot operate the machine normally after turning the main power OFF and then ON, contact your local authorized Canon dealer by following the procedure below.

Note the error code.

•

Write down the error code "EXXXXX-XXXX".

Turn OFF the main power.

•

Press the main power switch to the "

" side.

Remove the power plug from the power outlet.

Confirm the product name, and contact your local authorized Canon dealer.

Page 27

Troubleshooting

If Memory Becomes Full

▀

If memory becomes full during scanning, the following messages appear on the touch panel display. Follow the procedures on the screen, and then delete unnecessary files stored in the Mail Box and Fax/I-Fax Inbox to make more memory available.

Scanning will be canceled because the memory is full. Do you want to print (send, store)* the scanned pages?

* A part of the message differs, depending on the function used.

[Yes]: A job for the pages scanned into memory is processed. After processing the job, scan the remaining pages.

[No]: A job for the pages scanned into memory is canceled. Scan the whole pages again.

Scanning will be canceled because the memory is full. Wait a moment, then try again.

[OK]: Scan the whole pages again after the current operation is complete.

Could not perform the operation because the memory is full.

[OK]: Delete unnecessary data from memory, and then scan the whole pages again.

If the Main Power Does Not Turn ON

▀

If the machine cannot operate when the main power is turned ON, check the breaker. If the breaker is switched to the OFF position, do not attempt to turn ON the breaker yourself, and be sure to contact your local authorized Canon dealer.

Page 28

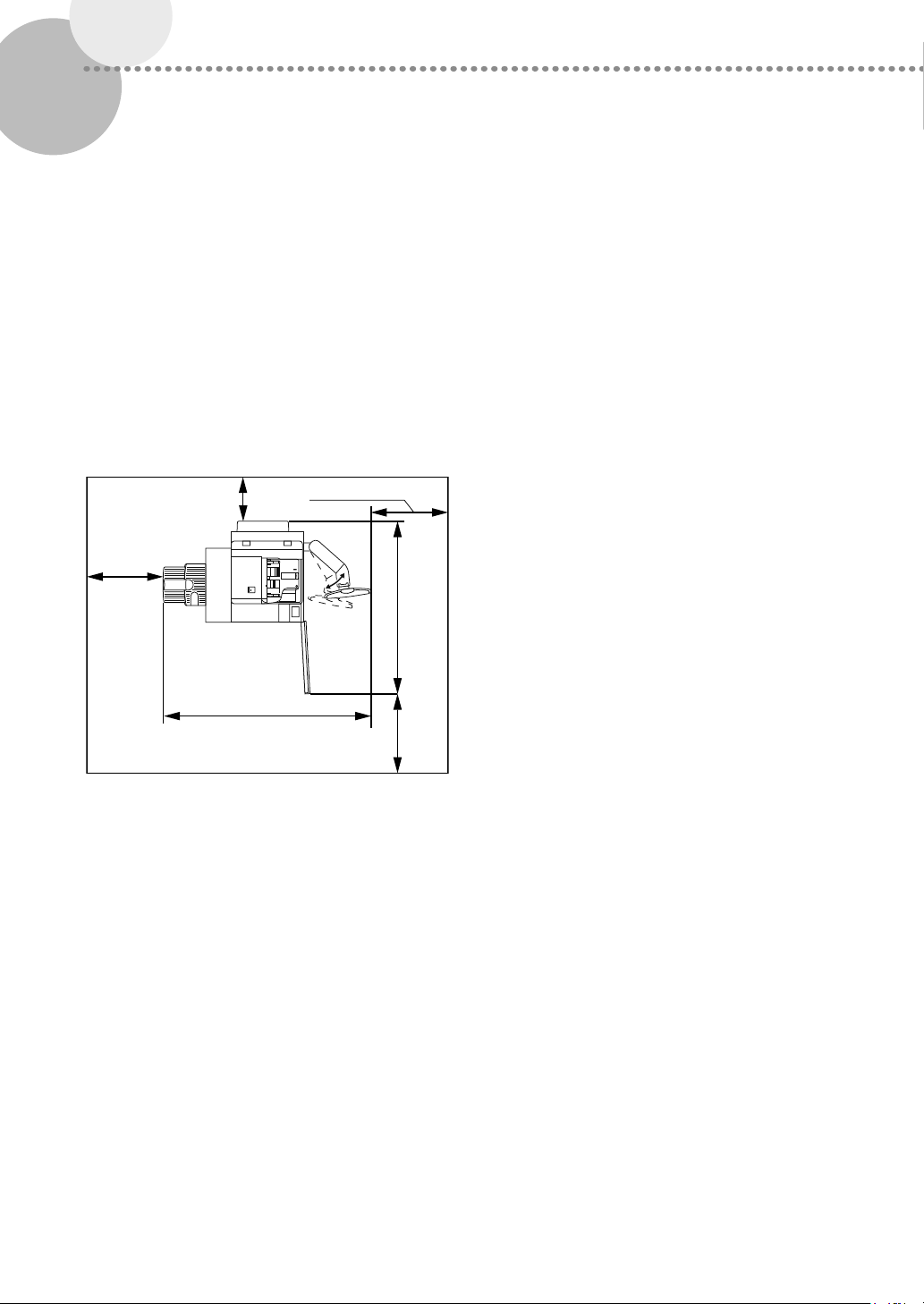

Specifications

Specifications are subject to change without notice for product improvement or future release. For more information on the specifications of the following optional equipment, consult the relevant guide.

•

High Capacity Stacker-H1

•

Booklet Trimmer-F1

•

Two-Knife Booklet Trimmer-A1

•

Perfect Binder-E1

•

Multi Function Professional Puncher-A1

Main Unit

▀

Item Specifications

Name Canon imagePRESS C850/C750/C650

Type Reader

Color Supported Full Color

Resolution for Writing 2,400 dpi x 2,400 dpi

Paper Weight / Type Paper Drawer 1, 2, 3:

Paper Sizes Paper Drawer 1, 2, 3:

Warm-Up Time After powering ON:

-Printer Separated, Console type

Weight:

to 220 g/m

52 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Tab, Bond, Letterhead, Textured*1, Vellum, and Envelopes

* The printing conditions may vary, depending on the paper type. For more information on paper types, see User's Guide > Basic Operations.

*1 Textured paper that is 221 g/m2 or more in weight cannot be used.

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Custom Size (100 mm x 148 mm to 330.2 mm x 487.7 mm), and Envelopes*1*

*1 The following envelope types can be used:

Standard Paper Size: Nagagata 3, Yougatanaga 3, Kakugata 2, No. 10(COM10), ISO-C5, DL, and Monarch

Custom Paper Size: 6" x 9", 9" x 12", and 10" x 13"

The following envelope types can be used without the Envelope Feeder Attachment-F1:

Kakugata 2, ISO-C5, 9" x 12", and 10" x 13"

6 minutes If [Quick Startup Settings for Main Power] is set to 'On', it takes 7 seconds until the key operation on the touch panel display is available after turning ON the main power of the machine. Depending on the situations, the machine does not startup quickly.

Returning from the Sleep mode:

6 minutes

* At a room temperature of 20°C in all above cases.

* Activation time may vary, depending on the environment and conditions under which the machine is being used.

Envelopes whose size is between 100 mm x 148 mm to 330.2 mm x 487.7 mm can also be fed, however, image may not be printed correctly on the envelops.

Page 29

Item Specifications

First Copy Time Full color:

7.7 seconds*

Black-and-White:

6.9 seconds*

*1 When "Color Priority" is selected.

When "Black & White Priority" is selected.

Copy Speed* Direct (sheets/minute)

330 mm x 483 mm 38 33 30

320 mm x 450 mm (SRA3)

305 mm x 457 mm 40 35 32

A3 43 38 34

B4 46 40 36

A4 85 75 65

A4R 62 54 49

B5 85 75 65

B5R 72 63 57

A5R 85 75 65

<Black-and-White>

330 mm x 483 mm 38 33 30

320 mm x 450 mm (SRA3)

305 mm x 457 mm 40 35 32

A3 43 38 34

B4 46 40 36

A4 85 75 65

A4R 62 54 49

B5 85 75 65

B5R 72 63 57

A5R 85 75 65

Specifications

imagePRESS C850 imagePRESS C750 imagePRESS C650

41 36 32

Copy Speed* The copy speed may vary, depending on the settings for paper type, paper size, and the

sending method. When continuously copying, adjustments for machine temperature or image quality may cause machine operations to pause or become slow.

* Except when paper is fed from the Stack Bypass-B1.

Margin Top: 4.0 mm

Left and Right: 2.5 mm Bottom: 4.0 mm

Paper Feeding System / Capacity Paper Drawer 1, 2, 3:

500 sheets x 3 cassettes (80 g/m

)

Multiple Copies 1 to 9,999 sheets

Page 30

Item Specifications

Power Source 220-240 V AC, 50/60 Hz, 16 A+16 A (two power cords)

wer Consumption Maximum Power Consumption:

1,560 W + 2,500 W or less

Power Consumption:

When in the Sleep mode:

1.5 Wh

When the main power switch is turned OFF:

[Quick Startup Settings for Main Power] is set to ‘OFF’ : 0.5 Wh [Quick Startup Settings for Main Power] is set to ‘ON’ : 1.0 Wh

* The power consumption may vary, depending on the environment and conditions under which the machine is being used.

Memory Capacity Standard: 3.5 GB (1.5+2 GB)

Hard Disk Capacity Standard: 1 TB (Used space: 1 TB)

* The hard disk capacity is subject to change in future release.

Dimensions (W x D x H) 1,530 mm *2 x 934 mm x 1,424 mm *

(When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached.)

To the top of the Upright Control Panel-G1 in the standard position.

To the right edge of the Upright Control Panel-G1 in the standard position.

Weight (Including the toner bottle, the

Approximately 316 kg

Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1)

Installation Space (W x D) 1,952 mm x 934 mm

(When the Copy Tray-R2, the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached.)

Duplex Color Image Reader Unit-K1

▀

Item Specifications

Type Printer separated, Stream feed (Feeder), No stream (Reader)

Resolution for Reading 600 dpi x 600 dpi

Number of Tones 256

Acceptable Originals Sheet, book, three dimensional object (up to 2 kg)

Size and Weight of Originals Size:

A3, B4, A4, A4R, B5, B5R, A5, A5R, and B6R

Weight:

1-sided scanning:

38 g/m

to 220 g/m

2-sided scanning:

50 g/m2 to 220 g/m2 (Black and White Original) 64 g/m2 to 220 g/m2 (Color Original)

Page 31

Item Specifications

Magnification Regular paper size:

Same Ratio:

1 : 01

tion:

Reduc

1 : 0.86 (A3  B4/A4  B5) 1 : 0.81 (B4  A4R/B5  A5R) 1 : 0.70 (A3  A4R/B4  B5R) 1 : 0.61 (A3  B5R) 1 : 0.50 (A3  A5R) 1 : 0.25

Enlargement:

1 : 1.15 (B4  A3/B5  A4) 1 : 1.22 (A4R  B4/A5  B5) 1 : 1.41 (A4R  A3/B5R  B4) 1 : 2.00 (A5R  A3) 1 : 4.00

Copy Ratio:

25% to 400% (in 1% increments)

Original Feeding Mechanism Automatic Document Feeder

Original Tray Capacity 300 sheets (80 g/m

Original Scanning Speed Copying:

1-sided scanning:

120 sheets/minute* 70 sheets/minute (A4 in Full Color at 600 dpi)

2-sided scanning:

60 sheets/minute (120 pages)*1 (A4 in Black-and-White at 600 dpi) 35 sheets/minute (70 pages) (A4 in Full Color at 600 dpi)

Scanning:

1-sided scanning:

120 sheets/minute (A4 in Black-and-White/Full Color at 300 dpi)

2-sided scanning:

100 sheets/minute (200 pages)*1 (A4 in Black-and-White at 300 dpi) 70 sheets/minute (140 pages) (A4 in Full Color at 300 dpi)

*1 When "Speed Priority" is selected.

* The scanning speed may vary, depending on the scanning mode and original type.

Power Source From the main unit

Dimensions (W x D x H) 633 mm x 603 mm x 179 mm (feeder and reader)

Weight Approximately 26.9 kg (feeder and reader)

)

(A4 in Black-and-White at 600 dpi)

Specifications

Page 32

POD Deck Lite-C1

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust

*1 The following envelope types can be used:

Standard Paper Size: Nagagata 3, Yougatanaga 3, Kakugata 2, No. 10(COM10), ISO-C5, DL, and Monarch

Custom Paper Size: 6" x 9", 9" x 12", and 10" x 13"

10" x 13" can be used without the Envelope Feeder Attachment-G1

Weight:

52 g/m2 to 300 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

Paper Deck Capacity 3,500 sheets (80 g/m

Power Source / Maximum Power Consumption

Dimensions (W x D x H)

* 76 kg

Weight

Installation Space Including the Main Unit

(W x D)

* I ncluding the POD Deck Lite Attachment Kit-B1 and buffer path.

* 717 mm x 686 mm x 574 mm

220-240 V AC, 50/60 Hz, 1.2 A/480 W or less

2,049 mm x 934 mm

(When the Copy Tray-R2, the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

om Size (139.7 mm x 148 mm to 330.2 mm x 487.7 mm), and Envelopes*1*

)

Multi-drawer Paper Deck-C1

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust (ISO-C5)

Weight:

52 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

Paper Deck Capacity 2,000 sheets x 3 paper decks (80 g/m

Power Source / Maximum Power Consumption

Dimensions (W x D x H) 950 mm x 797 mm x 1,040 mm

Weight Approximately 155 kg

220-240 V AC, 50/60 Hz, 1.7 A/880 W or less

om Size(139.7 mm x 182 mm to 330.2 mm x 487.7 mm), and Envelopes

to 300 g/m

)

Page 33

Item Specifications

Installation Space Including the Main Unit (W x D)

Stack Bypass-B1

▀

Item Specifications

Paper Size / Weight / Type Size:

Paper Capacity 100 sheets (80 g/m

2,282 mm x 934 mm

(When the Copy Tray-R2, the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust

* The following envelope types can be used:

Standard Paper Size: Nagagata 3, Yougatanaga 3, Kakugata 2, No. 10(COM10), ISO-C5, DL, and Monarch

Custom Paper Size: 6" x 9", 9" x 12", and 10" x 13"

Weight:

52 g/m2 to 300 g/m

Type:

(221 g/m Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-punched,

Specifications

om Size (100 mm x 148 mm to 330.2 mm x 487.7 mm), and Envelopes*

)

Stack Bypass Alignment Tray-C2

▀

Item Specifications

Paper Size / Weight / Type See "Specifications" of the "Stack Bypass-B1," on p. 33.

Paper Capacit

Weight 1.1 kg

y See "Specifications" of the "Stack Bypass-B1," on p. 33.

If the basis weight of the paper is below 156 g/m feeding direction is shorter than A4R, the amount of skew correction applied to the paper will not change even if the Stack Bypass Alignment Tray-C2 is attached.

, or the side of the paper parallel to the

Page 34

Long Sheet Tray-B1

▀

Item Specifications

Paper Size / Weight / Type Size:

100 mm x 148 mm to 330.2 mm x 487.7 mm, 210 mm x 487.8 mm t

Weight:

64 g/m2 to 300 g/m

Type:

Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-punched, Clear Film, Labels, Bond, Coated, and Vellum

Paper Capacity 1 sheet (64 g/m

Dimensions (W x D x H) (Dimensions when attached to the main unit)

Weight Approximately 0.6 kg

Tab Feeding Attachment-F1

▀

Item Specifications

Paper Size A4 / LTR

Paper Capacit

Weight 0.1 kg

y 60 mm in height (or 300 to 400 sheets)

2173 mm X 1424 mm x 1424 mm* (When the Long Sheet Tray-B1, the Stack Bypass Alignment Tray-C2, Stack Bypass-B1, and the Copy Tray-R2 are attached)

*1 To the top of the Upright Control Panel-G1 in the standard position.

(Including the Stack Bypass Alignment Tray-C2)

to 300 g/m2)

o 330.2 mm x 762 mm

Envelope Feeder Attachment-F1

▀

Item Specifications

Acceptable Envelopes Standard Paper Size:

Nagagata 3, Y

Custom Paper Size:

6" x 9"

Loading Limit (Height) 50 sheets

Weight 30 g

Envelope Feeder Attachment-G1

▀

Item Specifications

Acceptable Envelopes Standard Paper Size:

Nagagata 3, Y

Custom Paper Size:

6" x 9" and 9" x 12"

ougatanaga 3, No. 10(COM10), DL, and Monarch

ougatanaga 3, Kakugata 2, No. 10(COM10), ISO-C5, DL, and Monarch

Page 35

Item Specifications

Loading Limit (Height) Nagagata 3*

160 mm

Yougatanaga 3, Kakugata 2*2, 6" x 9", 9" x 12", No. 10(COM10), ISO-C5, and DL:

100 mm

Monarch:

70 mm

*1 Up to 100 mm when you are using a side seam envelope.

Up to 45 mm when you are using a side seam envelope.

Weight Approximately 1.5 kg

Document Insertion Unit-N1

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, and Cust

Weight:

52 g/m2 to 300 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Tab, Bond, Letterhead, Coated, Textured, and Vellum

Paper Capacity Upper/Lower Tray: 200 sheets (80 g/m

Power Source / Maximum Power Consumption

Dimensions (W x D x H) 746 mm x 793 mm x 1,407 mm

Weight Approximately 61 kg

Installation Space Including the Main Unit (W x D)

100-240 V AC, 50/60 Hz, 1.0 A/120 W or less

2,676 mm x 934 mm

(When the Duplex Color Image Reader Unit-K1,the Upright Control Panel-G1, and the Staple Finisher-W1 PRO (or the Booklet Finisher-W1 PRO) are attached)

om Size (182 mm x 182 mm to 330.2 mm x 487.7 mm)

Specifications

) x 2

Page 36

Paper Folding Unit-J1

▀

Item Specifications

Paper Size / Weight / Type Size:

old:

Z-F

A3, B4, and A4R

C-Fold:

A4R

Accordion Z-Fold :

A4R

Double Parallel Fold:

A4R

Half Fold:

A4R

Weight:

Z-Fold:

52 g/m

to 105 g/m

C-Fold:

52 g/m2 to 105 g/m

Accordion Z-Fold:

52 g/m2 to 105 g/m

Double Parallel Fold:

52 g/m2 to 90 g/m

Half Fold:

52 g/m2 to 105 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Color, Recycled, Coated, Bond, and Textured

Power Source / Maximum Power Consumption

Dimensions (W x D x H) 336 mm x 793 mm x 1,190 mm

Weight Approximately 71 kg

Installation Space Including the Main Unit (W x D)

From the finisher/150 W or less

2,676 mm x 934 mm

(When the Duplex Color Image Reader Unit-K1, the Upright Control Panel-G1, and the Staple Finisher-W1 PRO (or the Booklet Finisher-W1 PRO) are attached)

Page 37

Copy Tray-R2

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust

Weight:

52 g/m2 to 300 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

* If the Long Sheet Tray-B1 is attached, the size is from 100 mm x 148 mm to 330.2 mm x 762 mm.

Paper Capacity 1-side: 250 sheets (80 g/m2)

2-side: 250 sheets (80 g/m2)

Dimensions (W x D x H) 422 mm x 382 mm x 175 mm

Weight Approximately 1.2 kg

Installation Space Including the Main Unit (W x D)

1,952 mm x 934 mm

(When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

om Size (100 mm x 148 mm to 330.2 mm x 487.7 mm)*, and Envelopes

Specifications

Staple Finisher-W1 PRO

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust

Weight:

52 g/m2 to 300 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

*1 If the Long Sheet Tray-B1 is attached, the size is from 100 mm x 148 mm to 330.2 mm x 762 mm.

Long sheet can only be output to tray A. To use long sheet, press [Function Settings] [Common]  [Paper Output

* Settings]  [Output Tray Settings] (Settings/Registration), and then set the output destination to [Tray A].

om Size (100 mm x 148 mm to 330.2 mm x 487.7 mm)*

1*2

, and Envelopes

Page 38

Item Specifications

Capacity Per Tray *

No Collating/Collate/Group mode

Tray A:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, and A5R:

1,000 sheets (or 147 mm in height)

Tray B:

If the High Volume Stack Mode is set to ‘Off’:

A4 and B5:

2,000 sheets (or 285 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

1,000 sheets (or 147 mm in height)

If the High Volume Stack Mode is set to ‘On’:

(The maximum stack volume may vary, depending on the paper type.)

A4 and B5:

4,000 sheets (or 490 mm) in height) A4R and B5R:

2,000 sheets (or 285 mm in height) A3 and B4:

1,500 sheets (or 216 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), and 305 mm x 457 mm:

1,000 sheets (or 147 mm in height)

Staple mode

Tray B:

A4 and B5:

3,000 sheets/200 sets (or 423 mm in height)

A4R and B5R:

2,000 sheets/200 sets (or 285 mm in height)

A3 and B4:

1,500 sheets/200 sets (or 216 mm in height)

Page 39

Item Specifications

Capacity Per Tray *

No Collating/Collate/Group mode with different paper sizes

Tray A:

1,000 sheets (or 147 mm in height)

Tray B*2:

If the High Volume Stack Mode is set to 'Off':

A4 and B5:

2,000 sheets (or 285 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

1,000 sheets (or 147 mm in height)

If the High Volume Stack Mode is set to 'On':

(The maximum stack volume may vary, depending on the paper type.)

A4 and B5:

4,000 sheets (or 490 mm in height) A4R and B5R:

2,000 sheets (or 285 mm in height) A3 and B4:

1,500 sheets (or 216 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), and 305 mm x 457 mm:

1,000 sheets (or 147 mm in height)

Z-Fold mode (When the Paper Folding Unit-J1 is attached.)

Tray A, Tray B: 30 sheets or 10 sheets/1 set

Half Fold (When the Paper Folding Unit-J1 is attached.)

Tray A, Tray B: 50 sheets

*1 To stack 2,000 sheets or more A4/B5 paper, use Tray B first, and then use Tray A for outputting paper.

If the capacity values of the different paper sizes are different, the smallest value is applied to the Tray B capacity.

Max. Stapling Capacity / Available Staple Size When the standard staple cartridge is attached

(The maximum stapling capacity may vary, depending on the paper type and weight.)

A4 and B5:

100 sheets (80 g/m2) or below 11 mm in height, 98 sheets (80 g/m2) + 2 sheets (256 g/m2)

A3, B4, A4R and B5R:

50 sheets (80 g/m2) or below 5.5 mm in height, 48 sheets (80 g/m2) + 2 sheets (256 g/m2)

Corner Stapling:

A3, B4, A4, A4R, and B5, and Custom Size (210 mm x 182 mm to 297 mm x 432 mm)

Double Stapling:

A3, B4, A4, A4R, B5, and B5R, and Custom Size (182 mm x 182 mm to 297 mm x 432 mm)

Power Source / Maximum Power Consumption

120-240 V AC, 50/60 Hz, 8 A/500 W or less

Dimensions (W x D x H) 800 mm x 792 mm x 1,239 mm

Weight Approximately 130 kg

Installation Space Including the Main Unit (W x D)

2,335 mm x 934 mm

(When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

Specifications

Page 40

Staple Finisher-T1

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust

Weight:

Tray A:

52 g/m2 to 256 g/m

Tray B, Tray C:

52 g/m2 to 300 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

*1 If the Long Sheet Tray-B1 is attached, the size is from 100 mm x 148 mm to 330.2 mm x 762 mm.

Long sheet can only be output to tray B. To use long sheet, press [Function Settings] [Common]  [Paper Output

* Settings]  [Output Tray Settings] (Settings/Registration), and then set the output destination to [Tray B].

Capacity Per Tray No Collating mode

Tray A:

A4, B5, and A5R:

250 sheets (or 43 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

125 sheets (or 21 mm in height)

Tray B:

A4, B5, and A5R:

1,300 sheets (or 188 mm in height)* 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

650 sheets (or 96 mm in height)

Tray C:

A4 and B5:

2,450 sheets (or 347 mm in height)* A5R:

1,700 sheets (or 243 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

650 sheets (or 96 mm in height)

om Size (100 mm x 148 mm to 330.2 mm x 487.7 mm)*1*2, and Envelopes

to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to

Page 41

Item Specifications

Capacity Per Tray Collate, Group mode

y B:

Tra

A4 and B5:

1,300 sheets (or 188 mm in height)*

A3, B4, and A4R:

650 sheets (or 96 mm in height)

Tray C:

A4 and B5:

1,700 sheets (or 243 mm in height)*

A3, B4, and A4R:

650 sheets (or 96 mm in height)

Staple mode

Tray B, Tray C:

A4 and B5:

1,300 sheets/100 sets (or 188 mm in height)*

A3, B4, and A4R:

650 sheets/50 sets (or 96 mm in height)

No Collating/Collate/Group mode with different paper sizes

Tray B, Tray C:

650 sheets (or 96 mm in height)

Staple mode with different paper sizes

Tray B, Tray C:

650 sheets/50 sets (or 96 mm in height)

*1 Up to 650 sheets (or 96 mm in height) when thin paper or custom paper lighter than 59 g/m2 is selected.

Max. Stapling Capacity / Available Staple Size When the standard staple cartridge is attached

(The maximum stapling capacity may vary, depending on the paper type and weight.)

A4 and B5:

50 sheets (80 g/m2)

A3, B4, and A4R:

30 sheets (80 g/m2)

Corner Staple mode/Double Staple mode:

A3, B4, A4, A4R, and B5

Power Source / Maximum Power Consumption

Dimensions (W x D x H) 644 mm x 656 mm x 1,121 mm

Weight Approximately 48 kg

Installation Space Including the Main Unit (W x D)

From the main unit/385 W or less

2,179 mm x 934 mm (When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached) 2,291 mm x 934 mm (When the Puncher, the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

Specifications

Page 42

Booklet Finisher-W1 PRO

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust

Weight:

52 g/m2 to 300 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

*1 If the Long Sheet Tray-B1 is attached, the size is from 100 mm x 148 mm to 330.2 mm x 762 mm.

Long sheet can only be output to tray A. To use long sheet, press [Function Settings] [Common]  [Paper Output

* Settings]  [Output Tray Settings] (Settings/Registration), and then set the output destination to [Tray A].

Capacity Per Tray *

No Collating/Collate/Group mode

Tray A:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, and A5R:

1,000 sheets (or 147 mm in height)

Tray B:

If the High Volume Stack Mode is set to ‘Off’:

A4 and B5:

2,000 sheets (or 285 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

1,000 sheets (or 147 mm in height)

If the High Volume Stack Mode is set to ‘On’:

(The maximum stack volume may vary, depending on the paper type.)

A4 and B5:

4,000 sheets (or 490 mm) in height) A4R and B5R:

2,000 sheets (or 285 mm in height) A3 and B4:

1,500 sheets (or 216 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), and 305 mm x 457 mm:

1,000 sheets (or 147 mm in height)

Staple mode

Tray B:

A4 and B5:

3,000 sheets/200 sets (or 423 mm in height)

A4R and B5R:

2,000 sheets/200 sets (or 285 mm in height)

A3 and B4:

1,500 sheets/200 sets (or 216 mm in height)

om Size (100 mm x 148 mm to 330.2 mm x 487.7 mm)*1*2, and Envelopes

Page 43

Item Specifications

Capacity Per Tray *

No Collating/Collate/Group mode with different paper sizes

Tray A:

1,000 sheets (or 147 mm in height)

Tray B*2:

If the High Volume Stack Mode is set to 'Off':

A4 and B5:

2,000 sheets (or 285 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

1,000 sheets (or 147 mm in height)

If the High Volume Stack Mode is set to 'On':

(The maximum stack volume may vary, depending on the paper type.)

A4 and B5:

4,000 sheets (or 490 mm in height) A4R and B5R:

2,000 sheets (or 285 mm in height) A3 and B4:

1,500 sheets (or 216 mm in height) 330 mm x 483 mm, 320 mm x 450 mm (SRA3), and 305 mm x 457 mm:

1,000 sheets (or 147 mm in height)

Z-Fold mode (When the Paper Folding Unit-J1 is attached.)

Tray A, Tray B: 30 sheets or 10 sheets/1 set

Half Fold (When the Paper Folding Unit-J1 is attached.)

Tray A, Tray B: 50 sheets

*1 To stack 2,000 sheets or more A4/B5 paper, use Tray B first, and then use Tray A for outputting paper.

If the capacity values of the different paper sizes are different, the smallest value is applied to the Tray B capacity.

Max. Stapling Capacity / Available Staple Size When the standard staple cartridge is attached

(The maximum stapling capacity may vary, depending on the paper type and weight.)

A4 and B5:

100 sheets (80 g/m2) or below 11 mm in height, 98 sheets (80 g/m2) + 2 sheets (256 g/m2)

A3, B4, A4R and B5R:

50 sheets (80 g/m2) or below 5.5 mm in height, 48 sheets (80 g/m2) + 2 sheets (256 g/m2)

Corner Stapling:

A3, B4, A4, A4R, and B5, and Custom Size (210 mm x 182 mm to 297 mm x 432 mm)

Double Stapling:

A3, B4, A4, A4R, B5, and B5R, and Custom Size (182 mm x 182 mm to 297 mm x 432 mm)

Available Saddle Stitch Capacity / Size Saddle Stitch:

25 sheets (80 g/m2) (including 1 cover sheet)

Saddle Folding:

5 sheets (80 g/m2)

Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and Custom Size (210 mm x 279.3 mm to 330.2 mm x 487.7 mm)

Cover Weight:

Requires the paper weight of the main document (more than 64 g/m2) or more.

* Available Saddle Stitch capacity may vary, depending on the paper type and weight.

Specifications

Page 44

Item Specifications

Power Source / Maximum Power Consumption

Dimensions (W x D x H) 800 mm x 792 mm x 1,239 mm

Weight Approximately 180 kg

Installation Space Including the Main Unit (W x D)

120-240 V AC, 50/60 Hz, 8 A/500 W or less

2,335 mm x 934 mm

(When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

Booklet Finisher-T1

▀

Item Specifications

Paper Size / Weight / Type Size:

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4, A4R, B5, B5R, A5R, Cust

Weight:

Tray A:

52 g/m2 to 256 g/m

Tray B, Tray C:

52 g/m

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Pre-Punched, Transparency, Clear Film, Labels, Tab, Bond, Letterhead, Coated, Textured, Vellum, and Envelopes

*1 If the Long Sheet Tray-B1 is attached, the size is from 100 mm x 148 mm to 330.2 mm x 762 mm.

Long sheet can only be output to tray B. To use long sheet, press [Function Settings] [Common]  [Paper Output

* Settings]  [Output Tray Settings] (Settings/Registration), and then set the output destination to [Tray B].

om Size (100 mm x 148 mm to 330.2 mm x 487.7 mm)*

to 300 g/m

1*2

, and Envelopes

Page 45

Item Specifications

Capacity Per Tray No Collating mode

y A:

Tra

A4, B5, and A5R:

250 sheets (or 43 mm in height)

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

125 sheets (or 21 mm in height)

Tray B:

A4, B5, and A5R:

1,300 sheets (or 188 mm in height)*

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

650 sheets (or 96 mm in height)

Tray C:

A4 and B5:

2,450 sheets (or 347 mm in height)*

A5R:

1,700 sheets (or 243 mm in height)

330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, B4, A4R, and B5R:

650 sheets (or 96 mm in height)

Collate, Group mode

Tray B:

A4 and B5:

1,300 sheets (or 188 mm in height)*

A3, B4, and A4R:

650 sheets (or 96 mm in height)

Tray C:

A4 and B5:

1,700 sheets (or 243 mm in height)*

A3, B4, and A4R:

650 sheets (or 96 mm in height)

Staple mode

Tray B, Tray C:

A4 and B5:

1,300 sheets/100 sets (or 188 mm in height)*

A3, B4, and A4R:

650 sheets/50 sets (or 96 mm in height)

No Collating/Collate/Group mode with different paper sizes

Tray B, Tray C:

650 sheets (or 96 mm in height)

Staple mode with different paper sizes

Tray B, Tray C:

650 sheets/50 sets (or 96 mm in height)

Saddle Stitch mode

1 to 5 sheets/25 sets, 6 to 10 sheets/15 sets, 11 to 16 sheets/10 sets

*1 Up to 650 sheets (or 96 mm in height) when thin paper or custom paper lighter than 59 g/m2 is selected.

Specifications

Page 46

Item Specifications

Max. Stapling Capacity / Available Staple Size When the standard staple cartridge is attached

he maximum stapling capacity may vary, depending on the paper type and weight.)

A4 and B5:

50 sheets (80 g/m2)

A3, B4, and A4R:

30 sheets (80 g/m2)

Corner Staple mode/Double Staple mode:

A3, B4, A4, A4R, and B5

Available Saddle Stitch Capacity/Size Saddle Stitch:

16 sheets (80 g/m

Saddle Folding:

1 sheet (60 g/m

Size:

305 mm x 457 mm, A3, B4, and A4R

Cover Weight:

Requires the paper weight of the main document (60 g/m2 to 256 g/m2) or more.

* Available Saddle Stitch capacity may vary, depending on the paper type and weight.

Power Source / Maximum Power Consumption

Dimensions (W x D x H) 646 mm x 656 mm x 1,121 mm

Weight Approximately 72 kg

Installation Space Including the Main Unit (W x D)

From the main unit/385 W or less

2,181 mm x 934 mm (When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached) 2,293 mm x 934 mm (When the Puncher, the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

) (including 1 cover sheet up to 256 g/m2)

to 256 g/m2)

Page 47

Puncher Unit-BS1 / Puncher Unit-BT1 / Puncher Unit-BU1

▀

Item Specifications

Paper Size / Weight / Type Size:

Puncher Unit

Two Holes:

Three Holes:

Puncher Unit-BT1:

Two Holes:

Four Holes:

Puncher Unit-BU1:

Four Holes:

Weight:

52 g/m

* The maximum weight for coated paper is 209 g/m2.

Type:

Thin 2 (52 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2), Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Color, Recycled, Tab, Bond, Letterhead, Coated, and Textured

Punch Hole Quantity, Hole Diameter Puncher Unit-BS1:

Two or Three Holes: 8 mm Puncher Unit-BT1 , Puncher Unit-BU1: Two or Four Holes: 6.5 mm

Distance between Punch Holes Puncher Unit-BS1:

Two Holes: 70 mm Three Holes: 108 mm

Puncher Unit-BT1:

Two Holes: 80 mm Four Holes: 80 mm

Puncher Unit-BU1:

Four Holes: 21 mm/70 mm/21 mm

Punch Waste Tray Capacity Approximately 6,000 sheets (80 g/m

* The figure may differ depending on the surrounding environment, paper type, and paper weight.

Power Source From the finisher

Dimensions (W x D x H) Inside the finisher

Weight Approximately 3.0 kg

-BS1:

A3, B4, A4, A4R, B5, B5R, and Custom Size (182 mm x 182 mm to 297 mm x 432 mm)

A3, B4, A4, B5, and Custom Size (257 mm x 182 mm to 297 mm x 432 mm)

A3, B4, A4, A4R, B5, B5R, and Custom Size (182 mm x 182 mm to 297 mm x 432 mm)

A3, B4, A4, B5, and Custom Size (257 mm x 182 mm to 297 mm x 432 mm)

A3, B4, A4, A4R, B5, B5R, and Custom Size (182 mm x 182 mm to 297 mm x 432 mm)

to 300 g/m2*

)

Specifications

Page 48

External 2/3 Hole Puncher-C1 / External 2/4 Hole Puncher-C1

▀

Item Specifications

Paper Size / Weight / Type Size:

ernal 2/3 Hole Puncher-C1:

Ext

Two or Three Holes:

A3 and A4

External 2/4 Hole Puncher-C1:

Two or Four Holes:

A3 and A4

Weight:

52 g/m2 to 256 g/m

Type:

Thin 2 (52 g/m Plain 2 (91 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 220 g/m2), Heavy 5 (221 g/m2 to 256 g/m2), Color, Recycled, Tab, Bond, Letterhead, Coated, and Textured

Punch Hole Quantity, Hole Diameter Two Holes:

8 mm (External 2/3 Hole Puncher-C1)

6.5 mm (External 2/4 Hole Puncher-C1)

Three Holes:

8 mm (External 2/3 Hole Puncher-C1)

Four Holes:

6.5 mm (External 2/4 Hole Puncher-C1)

Distance between Punch Holes Two Holes:

70 mm (External 2/3 Hole Puncher-C1) 80 mm (External 2/4 Hole Puncher-C1)

Three Holes:

108 mm (External 2/3 Hole Puncher-C1)

Four Holes:

80 mm (External 2/4 Hole Puncher-C1)

Punch Waste Tray Capacity Approximately 10,000 sheets (80 g/m

Power Source From the finisher

Dimensions (W x D x H) 107 mm x 615 mm x 825 mm

Weight Approximately 7.7 kg

Installation Space Including the Main Unit (W x D)

2,293 mm x 934 mm (When the Booklet Finisher-T1, the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-G1 are attached)

to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain 1 (80 g/m2 to 90 g/m2),

)

Copy Card Reader-F1

▀

Item Specifications

Available Cards Magnetic

Card Readout M

Magnetic Card Reading Direction Inserting Direction

Store / Replay Replay

ethod Magnetic readout

Page 49

Specifications

Item Specifications

Power Source From the main unit

Dimensions (W x D x H) 88 mm x 96 mm x 40 mm

Weight Approximately 200 g

Send Function

▀

•

Scan Features

Item Specifications

Communication Protocol FTP (TCP/IP), SMB (TCP/IP), WebDAV

mat TIFF, JPEG, PDF, XPS, OOXML (PowerPoint)

Data For

Resolution 100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x

System Environment Windows Server 2003 R2 SP2, Windows Vista SP2, Windows Server 2008 SP2*

Interface 1000BASE-T, 100BASE-TX, 10BASE-T

Color Mode Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-

Original Type Text, Text/Photo, Photo

Other Preview, Browse Windows (SMB) File Server

Optional PDF / XPS / OOXML Functions PDF:

•

E-Mail and I-Fax Features

Item Specifications

Communication Protocol SMTP, POP3

ommunication Mode Simple, Full

I-Fax C

Resolution For Sending E-mail:

(Excluding the attachment kit and cable)

(Including the attachment kit and cable)

400 dpi, 600 x 600 dpi

, Windows Server 2008/R2, Windows 7, Windows 8, Windows 8.1, Windows Server 2012, Windows Server 2012R2, Windows 10, OS X 10.9, OS X 10.10, OS X 10.11, Red Hat Linux 9

*1 Available on SMB

White), Full Color, Grayscale, Black-and-White

Compact, Trace and Smooth, Limited Color, Encryption, OCR, Device Signature, User Signature, Optimization for Web*¹, PDF/A-1b, Reader Extensions

XPS:

Compact, OCR, Device Signature, User Signature

OOXML:

PowerPoint, Word, OCR

*1 PDF files optimized for Web viewing.

100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

For Sending I-Fax (Black-and-White):

200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi*1, 300 x 300 dpi*1, 400 x 400 dpi*1, 600 x 600 dpi*

For Sending I-Fax (Color):

100 x 100 dpi*1, 200 x 200 dpi*1, 300 x 300 dpi*1, 400 x 400 dpi*1, 600 x 600 dpi*

Page 50

Item Specifications

Format E-mail:

TIFF, JPEG, PDF

I-Fax (Black-and-White):

TIFF (MH, MR*1, MMR*1)

I-Fax (Color):

TIFF (Profile-C)*

Original Size E-mail:

A3, B4, A4, A4R, B5, B5R, A5, A5R

I-Fax:

A3, B4, A4, A4R, B5*2, B5R*3, A5*3, A5R*

Server Software

Other Searches a destination via the LDAP Server, Preview

Optional PDF / XPS / OOXML Functions (E-mail only)

*1 Available after setting RX conditions of the destination.

Sent as B4.

Sent as A4.

PDF files optimized for Web viewing.

Microsoft Exchange 2003 SP2, Microsoft Exchange 2007 SP2, Sendmail 8.14.4, Lotus Domino R7.0

PDF:

Compact, Trace and Smooth, Limited Color, Encryption, OCR, Device Signature, User Signature, Optimization for Web*

XPS:

Compact, OCR, Device Signature, User Signature

OOXML:

PowerPoint, Word, OCR

, XPS, OOXML (PowerPoint)

, PDF/A-1b, Reader Extensions

Network Environment

▀

•

Hardware Specifications

Item Specifications

Network Interface 10Base-T/100Base-TX/1000Base-T (RJ-45)

•

Software Specifications

Protocol Supported

TCP / IP Frame type: Ethernet II

int applications: LPD/Raw/IPP/IPPS/FTP/WSD/SMB

IPX / SPX Frame type: Ethernet II/Ethernet 802.2/Ethernet 802.3/Ethernet SNAP/Auto Detect

Print applications: Bindery PServer/NDS PServer/RPrinter/NPrinter

AppleTalk Frame type: Ethernet SNAP

Print applications: PAP (Printer Access Protocol)

Page 51

Printer Settings

▀

•

Software Specifications

Item Specifications

Command Language PCL5e, PCL6, PostScript 3

Resident Fonts PCL: 93 Scalable f

PS: 136 Scalable fonts

Printable Area PCL5e, PCL6:

Reduced to 4.23 mm from the top, bottom, left, and right edges of the paper.

PostScript 3

Reduced to 4 mm from the top, bottom, left, and right edges of the paper.

* With 320 mm x 450 mm (SRA3) size paper, you cannot print in the areas 10 mm from the top, bottom, left, and right edges of the paper.

onts, 2 OCR fonts, and 10 Bitmap fonts

Specifications

Page 52

Appendix

Important Safety Instructions

This chapter describes important safety instruc tions for the prevention of injur y to users of this machine and others, and damage to property. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTAN

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property.

Installation

To use this machine safely and in a trouble-free way, carefully read the following precautions and install the machine in an appropriate location.

WARNING

Do not install in a location that may result in a  re or electrical shock

•

A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)

•

A damp or dusty location

•

A location exposed to direct sunlight or outdoors

•

A location subject to high temperatures

•

A location exposed to open ﬂ ames

•

Near alcohol, paint thinners or other ﬂ ammable substances

Other warnings

•

Do not connect unapproved cables to this machine. Doing so may result in a ﬁ re or electrical shock.

•

Do not place necklaces and other metal objects or containers ﬁ lled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a ﬁ re or electrical shock.

•

If any foreign substance falls into this machine, unplug the power plug f rom the AC power outlet

and contact y our local authorized Canon de aler.

Do not install in the following locations

The machine may drop or fall, resulting in injury.

•

An unstable location

•

A location exposed to vibrations

CAUTION

Do not install in the following locations Doing so may result in damage to the machine.

•

A location subject to temperature and humidity extremes, whether low or high

•

A location subject to dramatic changes in temperature or humidity

•

A location near equipment that generates magnetic or electromagnetic waves

•

A laboratory or location where chemical reactions occur

•

A location exposed to corrosive or toxic gases

•

A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)

Avoid poorly ventilated locations

This machine gen erates a slight amount of oz one and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated ro oms. To maintain a comfo rtable work ing environment, it is recommende d that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

Do not install in a location where condensation occurs

Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dr y location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use.

In altitude s of above sea level 3,000 m o r higher

Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.

Leveling fee t (only for product s with leveling feet)

Do not remove the ma chine's leveling feet afte r the machine has be en installed, as this may cause t he machine to fall or t ip over, resulting in pers onal injury.

Connecting the Telephone Line (Only for Products with a Fax Function)

This machine conforms to a analog telephone line standard. The machine can be connected to the public switched telephone net work (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation o f the machine and could be the cause of damage. Make sure to conﬁ rm a type of telephone line before connec ting the machine. Contac t your optic al ﬁ ber line or IP telephone line service providers if you want to connect the machine to those telephone lines.

When using wireless LAN (only for products with a wireless LAN func tion)

•

Install the machine at a distance of 50 meters or less from the wireless LAN router.

•

As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or ﬂ oors.

•

Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.

•

Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.

Power Supply

WARNING

•

Use only a power supply that meets the speciﬁ ed voltage requirements. Failure to do so may result in a ﬁ re or electrical shock.

•

Do not use power cords other than the one provided, as this may result in a ﬁ re or electrical shock.

•

The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.

•

Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a ﬁ re or electrical shock.

•

Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.

•

Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a ﬁ re or electrical shock.

•

Do not wrap the power cord or tie it in a knot, as this may result in a ﬁ re or electrical shock.

•

Insert the power plug completely into the AC power outlet. Failure to do so may result in a ﬁ re or electrical shock.

•

Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a ﬁ re, electrical shock, or damage to the machine.

•

Make sure that the power supply for the machine is safe, and has a steady voltage.

•

Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a ﬁ re or electrical shock.

•

If excessive stress is applied to the connection part of

the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a ﬁ re. Avoid the following situations:

– Connecting and disconnecting the power

cord frequently. – Tripping over the power cord. – The power cord is bent near the connection

part, and continuous stress is being applied to

the power outlet or the connection part. – Applying excessive force on the power plug.

CAUTION

Install this machine near the power outlet and leave suﬃ cient space around the power plug so that it can be unplugged easily in an emergency.

IMPORTAN

When connecting power

•

Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power f ailure.

•

If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.

•

Do not connect the power cord to the auxiliary AC power outlet on a computer.

Other precautions

Electrical noise may cause this machine to malfunction or lose data.

Handling

WARNING

•

Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a ﬁ re or electr ical shock.

Page 53

Appendix

•

Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modiﬁ cation may result in a ﬁ re or electrical shock.

•

Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.

•

Do not use ﬂ ammable sprays near this machine. If ﬂ ammable substances come into contact with electrical parts inside this machine, it may result in a ﬁ re or electrical shock.

•

When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a ﬁ re or electrical shock.

•

When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.

•

Use a modular cable that is shorter than 3 meters.

•

Use a USB cable that is shorter than 3 meters.

If the operating noise concerns you

Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be Installed in a place other than the oﬃ ce.

If you are using a cardiac pacemaker

This machine generates a low level ma gnetic ﬂ ux. If you use a cardiac pacemaker and feel abnormaliti es, please move away from this machine and consult your physician imme diately.

CAUTION

•

Do not place heavy objects on this machine as they may fall, resulting in injury.

•

For safety, unplug the power plug if the machine will not be used for a long period of time.

•

Use caution when opening and closing covers to avoid injury to your hands.

•

Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.

•

The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.

Feeder (only for products with a feeder)

•

Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.

•

Close the feeder gently to avoid catching your hands, as this may result in personal injury.

•

Close the feeder gently to avoid catching your hands in the back of the feeder, as this may result in personal injury.

Finisher (only for products with a  nisher)

•

Do not place your hands in the part of the tray where stapling is performed (near the rollers), especially pay careful attention to the sharp staples, as this may result in personal injury.

Paper drawer (only for products with a paper drawer)

•

Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.

Energy Saver key (only for products with an Energy Saver key)

•

Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

Laser Safety

This produc t is conﬁ rmed as a Class 1 laser product in IEC60825-1:2007 and EN60825-1:2007.

CLASS 1 LASER PRODUCT LASER KLASSE 1 APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1 LUOKAN 1 L ASER-TUOTE LASERPRODUKT KLASS 1

The laser beam can be harmful to human bodies. Since radiation emit ted inside the product is completely conﬁ ned within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

•

Never open covers other than those instructed in the manuals for this machine.

•

If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.

CAUTION

Use of controls, ad justments, or perf ormance of procedures other t han those speciﬁ ed in this manual may result in ha zardous radiation exp osure

Other precautions

•

Follow the instructions on the caution label attached to this machine.

•

Do not subject the machine to strong shocks or vibration.

•

Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.

•

Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.

Maintenance and Inspections

Clean this machine p eriodically. If dust accumulates, the machine may not op erate properly. When cleaning, be sure to obs erve the following. If a problem occurs durin g operation, see Troubleshootin g. If the problem cannot be resolved or you f eel the machine requires an inspecti on, see When a Problem Cannot B e Solved.

WARNING

•

Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a ﬁ re or electrical shock.

•

Unplug the power plug periodically and clean with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a ﬁ re if it comes into contact with electricity.

•

Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzenes, paint thinners, or other ﬂ ammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electrical parts inside the machine, they may generate static electricity or result in a ﬁ re or electrical shock .

•

Check the power cord and plug periodically for rust, bent prongs, fraying, cracks, or excessive heat generation. Use of poorly-maintained power cord or plug may result in a ﬁ re or electrical shock .

CAUTION

•

The inside of the machine has high-temperature and high-voltage components. Touching these components may result in injury or burns. Do not touch any part of the machine that is not indicated in the manual.

•

When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.

Legal Limitations on the Usage of Your Product and the Use of Images

Using your produc t to scan, print or other wise reproduce certain do cuments, and the us e of such images as scanned, printed or otherwise reproduced by your product , may be prohibited by law an d may result in criminal and/or civi l liability. A non-e xhaustive list of these document s is set forth belo w. This list is intended to be a guide only. If you are uncer tain about the l egality of using your produc t to scan, print or other wise reproduce any particu lar document, and /or of the use of the images scanned, pr inted or otherwise rep roduced, you should consult in advan ce with your legal adv isor for guidance.

•

Paper Money

•

Travelers Checks

•

Money Orders

•

Food Stamps

•

Certiﬁ cates of Deposit

•

Passports

•

Postage Stamps (canceled or uncanceled)

•

Immigration Papers

•

Identifying Badges or Insignias

•

Internal Revenue Stamps (canceled or uncanceled)

•

Selective Service or Draft Papers

•

Bonds or Other Certiﬁ cates of Indebtedness

•

Checks or Drafts Issued by Governmental Agencies

•

Stock Certiﬁ cates

•

Motor Vehicle Licenses and Certiﬁ cates of Title

•

Copyrighted Works/Works of Art without Permission of Copyright Owner

Safety-Related Symbols

Power switch: ON position Power switch: OFF position Power switch: STAND-BY position Push-push switch

ON 

Protective ear thing terminal Dangerous voltage inside. Do not open

covers other than instructed. CAUTION: Hot surface. Do not touch. Class II equipment Moving parts: Keep body parts away from

moving parts CAUTION: An electrical shock may occur.

Remove all the power plugs from the power outlet.

There are sharp edges. Keep body parts away from sharp edges.

[NOTE]

Some of symbols shown above may not be aﬃ xed depending on the product.

OFF



v1602_00_en-GB

Page 54

Installation Precautions

Avoid installing the machine near computers or other precision electronic equipment.

Electrical inter ference and vibrations generated by the machine while printing can adversely aﬀ ect the operation of such equipment.

Avoid installing the machine near televisions, radios, or similar electronic equipment.

The machine might interfere with sound and picture signal reception. Insert the power plug into a dedicated power outlet, and maintain as much space as possible between the machine and other electronic equipment.

Moving the Machine

If you intend to move the machine, even to a location on the same ﬂ oor of your building, contact your local authorized Canon dealer beforehand. Do not attempt to move the machine yourself."

Installation Space Requirements

Provide enough space on each side of the machine for unrestricted operation.

Standard (minimum) con guration When the Copy Tray-R2, Duplex Color Image Reader Unit-K1, and Upright Control Panel-G1 are attached.

1,524 mm

500 mm or more

100 mm

*1*2

or more

500 mm or more

1,952 mm

*1 Regarding the rear side of the machine, be sure to secure at least 100 mm or more space for unrestricted operation.

Make sure to provide at least 200 mm of space if you install Stack Bypass Alignment Tray-C2 and Long Sheet Tray-B1.

*2 Regarding the rear side of the machine, be sure to secure at least 100 mm or more space for unrestricted operation.

Make sure to provide at least 800 mm of space if you install one of the delivery/pickup system options illustrated below as a full set of unit.

*3 Be sure to secure at least 500 mm or more space for service work.

Also, make sure to provide at least 1000 mm of space if you install one of the delivery/pickup system options illustrated below as a full set of unit.

500 mm

or more

Page 55

Appendix

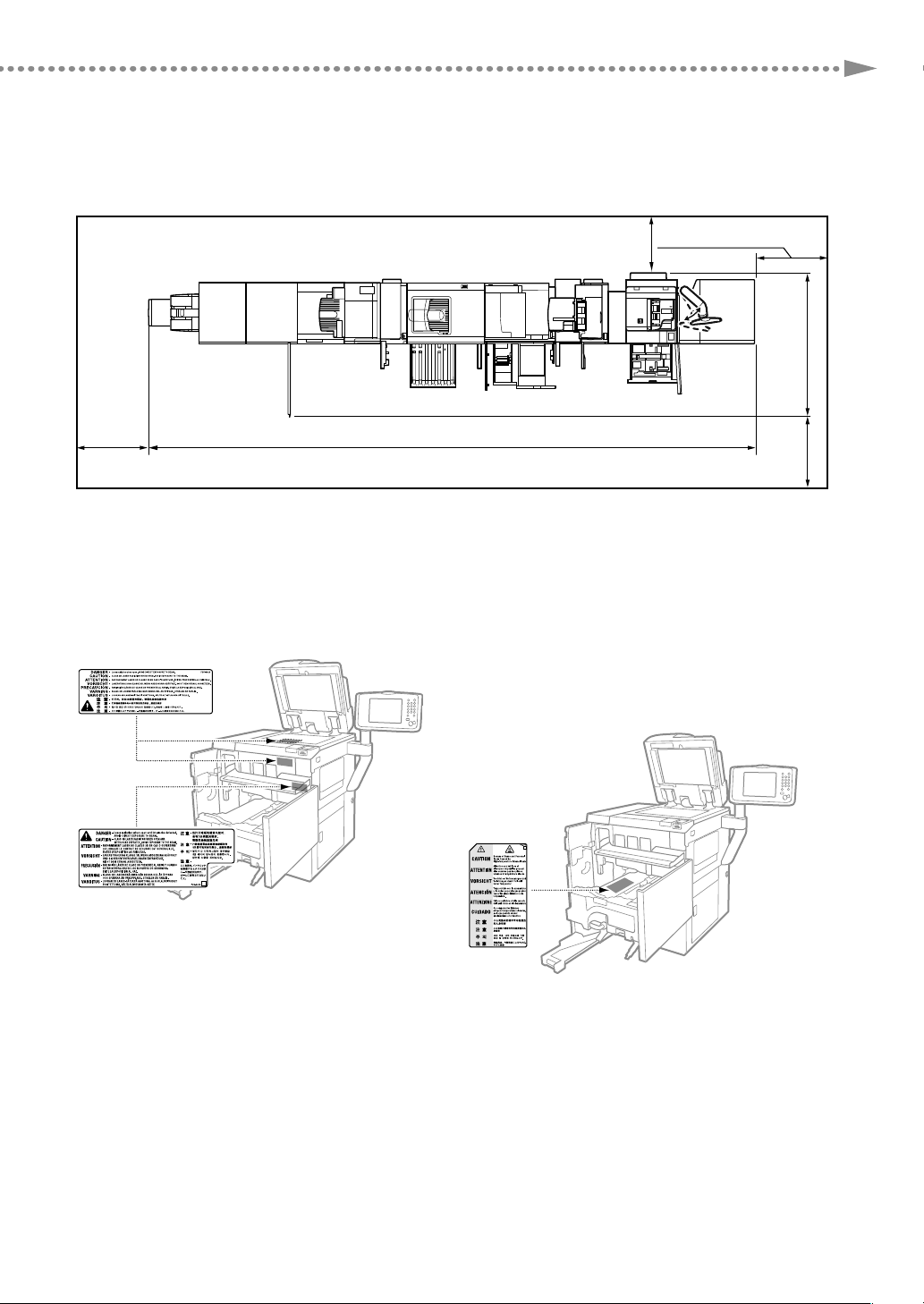

Full option (maximum maximum ) con gurationcon guration When the Two-Knife Book let Trimmer-A1, Booklet Trimmer-F1, Booklet Finisher-W1 PRO, Paper Folding Unit-J1, High Capacit y Stacker-H1, Perfec t Binder-E1, Multi Function Professional Puncher-A1, Document Insertion Unit-N1, Duplex Color Image Reader Unit-K1, Upright Control Panel-G1, and Multi-drawer Paper Deck-C1 are at tached.

800 mm or more

1,000 mm

or more

*4 Regarding the rear side of the machine, be sure to secure at least 800 mm or more space for unrestricted operation.

Make sure to provide at least 100 mm of space if none of the foregoing delivery/pickup system options shown in the illustration above are installed.

*5 Be sure to secure at least 1000 mm or more space for service work.

Also, make sure to provide at least 500 mm of space if none of the foregoing delivery/pickup system options shown in the illustration above are installed.

Laser Safety Label

7,574 mm

Fixing Unit

When removing jammed paper or when inspecting the inside of the machine, do not expose yourself to the heat emitted from the ﬁ xing unit and its surroundings for a prolonged period of time. Doing so may result in low temperature burns, even though you did not touch the ﬁ xing unit and its surroundings directly.

1,000 mm

or more



1,000 mm

1,765 mm

or more

Page 56

Consumables

WARNING

•

Do not throw toner cartridges or waste toner containers into open ﬂ ame, or do not store them or printing/copy paper in a place exposed to open ﬂ ame. This may cause them to ignite, resulting in burns or ﬁ re.

•

Do not store toner cartridges in a place exposed to open ﬂ ame. Also, do not throw toner cartridges into open ﬂ ame. These may cause toner to ignite, resulting in burns or ﬁ re.

•

If you accidentally spill or scatter toner, carefully gather the toner particles together or wipe them up with a soft, damp cloth in a way that prevents inhalation. Never use a vacuum cleaner that does not have safeguards against dust explosions to clean up spilled toner. Doing so may cause a malfunction in the vacuum cleaner, or result in a dust explosion due to static discharge.

CAUTION

•

Keep toner and other consumables out of the reach of small children. If these items are ingested, consult a physician immediately.

•

If toner touches your clothes or skin, wash it away with water immediately. Do not use warm water, as this may cause toner to ﬁ x, resulting in a permanent stain.

•

Do not dismantle the toner cartridge, as doing so may cause toner to ﬂ y out and enter your eyes or mouth. If toner gets into your eyes or mouth, wash them immediately with cold water and immediately consult a physician.

•

If toner escapes from the toner cartridge, make sure not to ingest the toner or allow it to directly touch your skin. If your skin still feels irritated after washing it, or you ingest toner, consult a physician immediately.

•

When pulling out the waste toner container, be careful not to let it fall. This may result in injury.

•

When replacing the stamp ink cartridge, be careful that your clothes or skin does not get stained with ink. If your clothes or skin has been stained, immediately wash out the stain with water.

IMPORTANT

•

Store toner cartridges in a cool location, away from direct sunlight.

•

Do not store toner cartridges in an upright position.

Notice

Product Name

Safety regulations require the product's name to be registered. In some regions where this product is sold, the following name(s) in parentheses ( ) may be registered instead.

imagePRESS C850/C750/C650 (F163000)

EMC requirement s of EC Directive

This equipment conforms with the essential EMC requirements of EC Directive. We declare that this produc t conforms with the EMC requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

WARNING

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

E-Waste Rule

You can see the information about proper handling equipment after use in the latest User's Guide (HTML manual) from the Canon website (http://canon.com/oip-manual).

IPv6 Ready Logo

Information Security Standard (IEEE 2600)

This machine is compliant with IEEE Std 2600™

- 2008 (hereinafter referred to as IEEE 2600), a global information security standard for multifunc tion peripherals and printers, and is able to achieve the security requirements deﬁ ned in IEEE 2600.* For information on how this machine meets the security requirements deﬁ ned in IEEE 2600, see User's Guide > Managing the Machine > IEEE 2600 * IEEE 2600.2 CC Authentication has not been obtained for this machine.

Disclaimers

•

The information in this document is subject to change without notice.

•

CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

The protocol stack included in this machine has obtained the IPv6 Ready Logo Phase-2 established by the IPv6 Forum.

About This Manual

Screens

Screens of the touch panel display used in this manual are those taken when the imagePRESS C850/C750/C650 has the following optional equipment attached to it:

•

Booklet Trimmer-F1

•

Booklet Finisher-W1 PRO

•

Paper Folding Unit-J1

•

Document Insertion Unit-N1

•

Multi-drawer Paper Deck-C1 Note that functions that cannot be used depending on the model or options do not appear on the touch panel display.

Illustrations

Illustrations used in this manual are those displayed when the imagePRESS C850/C750/ C650 has the following optional equipment attached to it: Duplex Color Image Reader Unit-K1, Upright Control Panel-G1, andCopy Tray-R2.

Trademarks

Mac is a trademark of Apple Inc. Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsof t Corporation in the United States and/or other countries. Other product and company names herein may be the trademarks of their respective owners.

Page 57

Appendix

Third Party Software

This Canon product (the “PRODUCT”) includes third-par ty software modules. Use and distribution of these sof tware modules, including any updates of such software modules (collectively, the “SOFTWARE”) are subject to license conditions (1) through (9) below. (1) You agree that you will comply with any

applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.

(2) Rights holders of the SOFTWARE retain in all

respects the title, ownership and intellectual property rights in and to the SOFT WARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual propert y of rights holders of the SOFTWARE.

(3) You may use the SOFT WARE solely for use

with the PRODUCT.

(4) You may not assign, sublicense, market,

distribute, or transfer the SOFTWARE to any third part y without prior writ ten consent of rights holders of the SOFTWARE.

(5) Notwithstanding the foregoing, you may

transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUC T and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.

(6) You may not decompile, reverse engineer,

disassemble or otherwise reduce the code of the SOFTWARE to human readable form.

(7) You may not modify, adapt, translate, rent,

lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.

(8) You are not entitled to remove or make

separate copies of the SOFTWARE from the PRODUCT.

(9) The human-readable portion (the source

code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions. Please refer to the other license conditions of third-par ty software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http:// canon.com/oip-manual.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contac t your service representative.

Page 58

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON U.S.A., INC.

One Canon Park, Melville, NY 11747, U.S.A.

CANON CANADA INC.

8000 Mississauga Road Brampton ON L6Y 5Z7, Canada

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands (See http://www.canon-europe.com/ for details on your regional dealer)

CANON AUSTRALIA PTY. LTD

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

CANON CHINA CO., LTD

2F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China

CANON SINGAPORE PTE. LTD.

1 Fusionopolis Place, #15-10, Galaxis, Singapore 138522
