Canon Color imageCLASS MF8580Cdw Setting Guide

Download

▲

Wireless LAN

Setting Guide

Wireless LAN

Setting Guide

Prepare for Wireless LAN Connection

P.2

Setting the Wireless LAN

P.4

Installing the Software

▲

P.10

Troubleshooting

P.14

Read this guide before setting up the wireless LAN

This guide describes the wireless LAN set up procedure, and problems encountered during the conguration. After you nish reading this guide, store it in a safe place for future reference. See the “Getting Started” for machine installation and settings for connection methods other than the wireless LAN.

Prepare for Wireless LAN Connection

Step 1

Check the Following First.

1 Is the computer connected to the wireless

router properly?

For more information, see the instruction manual for the network device you are using, or contact the networking device manufacturer.

2 Have the network settings on the computer

been completed?

If the computer is not properly congured, you may not use the wireless LAN connection even after completing the following settings.

NOTE

• You cannot connect both a wired LAN and wireless

LAN at the same time. In addition, the machine is set to the “Wired LAN” by default.

• When you connect to a network environment that is

not security protected, your personal information may be disclosed to third parties. Please use caution.

Internet Wireless Router

• If you connect through a LAN in the oce, contact

your network administrator.

• In this manual, a wireless device that is accessed

from satellite terminals is generally called as “wireless router.” The term “access point” means a master terminal on a wireless LAN that satellite terminals access to.

When proceeding from “Connecting the Power Cord” in the Getting Started

Proceed to “Check Your Wireless Router.” on P. 3.

Step 2

Switch the Connection Method to Wireless LAN.

Press [▲] or [▼] to

highlight an option.

4 5

Prepare for Wireless LAN Connection

Step 3

Select the method to set up the wireless LAN from the following two methods, depending on the wireless router that you are using.

Check Your Wireless Router.

There is a button. P. 4 (Push Button Mode)

This machine supports WPS (Wi-Fi Protected Setup). You can easily set up if your wireless router has a button, and if the following mark is on the wireless router.

If you are not sure whether your wireless router supports WPS, please see the manual included in the product, or contact the product manufacturer.

There is no button. P. 6 (Manual Selection)

If there is no button on your wireless router, you may manually select the SSID and complete the settings. In this case, you need to specify the SSID and network key of your wireless router. See “Check the SSID (Network Name/Access Point Name) and Network Key” (P.6) to learn how to nd out your SSID and network key.

When proceeding from “Connecting the Power Cord” in the Getting Started

Proceed to step 4 on P. 4.

To set up connection by using WPS PIN code mode or manually entering the setup information:

“Setting Up Connection Using WPS PIN Code Mode” in the e-Manual.

“Setting Up Connection by Specifying Detailed Settings” in the e-Manual.

Prepare for Wireless LAN Connection

Setting the Wireless LAN

Installing the Software

Troubleshooting

Setting the Wireless LAN

Push Button Mode

Setting via WPS

Read the instruction manual for your network device rst to learn how to congure the settings.

• Press [▲] or [▼] to highlight <Network

Settings>.

• If <Do you want to enable the wireless LAN?>

is displayed, press [▲] to highlight [Yes], and then press [OK].

• Press [▲] or [▼] to highlight <WPS Push Button

Mode>.

• Press [▲] to highlight <Yes>.

• Press [▲] or [▼] to highlight <Wireless LAN

Settings>.

Move to the router

Setting the Wireless LAN



• You should press the WPS button within 2

minutes after you select <Yes> in step 6.

• Press and hold* the button until the WPS lamp

lights or blinks.

* The time that you should hold the button may vary

depending on the wireless router you are using.

Move to the machine

When an error message appears:

Press [OK] to close the screen, check whether or not the WPS function of the wireless router is correctly set, and then retry the settings.

If the access point cannot be detected even after retrying, see the following.

“When an Error Message Appears” (P.14)

When checking the network connection:

You can check if the machine is properly connected to the network using a computer that is connected to the same network.

”Checking that the Wireless LAN Setting is Completed” (P.9)

When setting an IP address manually:

“Setting IP Addresses” in the e-Manual

• After the <Connected.> screen is displayed,

wait until the Wi-Fi indicator stops blinking and turns on.

Wait approximately 2 minutes

after the connection is completed.

The IP address is set during this time period.

Proceed to P. 9

Prepare for Wireless LAN Connection

Setting the Wireless LAN

Installing the Software

Troubleshooting

Setting the Wireless LAN

Manual Selection

Setting by Selecting the SSID (Network or Access Point)

Check the SSID (Network Name/Access Point Name) and Network Key

Fill in the blanks on the right after checking one of the following methods.

Check a label attached on the wireless router.

• SSID

It is sometimes written as the name of network, or name of access point. If there are multiple SSIDs, please write them all down.

SSID ：XXXXXXXXXXXX Network Key

Check using Canon MF/LBP Wireless Setup Assistant*

* Included in User Software CD-ROM, which is supplied with the

machine.

”Checking SSID or Network Key for a Wireless Router” (P.20)

・・・

：XXXXXXXXXXXX

• Network Key

It is sometimes written as PIN, WEP key, WPA/ WPA2 passphrase, PSK , or preshared key.

• Press [▲] or [▼] to highlight <Wireless LAN

Settings>.

• Press [▲] or [▼] to highlight <Network

Settings>.

•

If <Do you want to enable the wireless LAN?> is displayed, press [▲] to highlight [Yes], and then press [OK].

Setting the Wireless LAN

• Press [▲] or [▼] to highlight <SSID Settings>.

• Press [▲] or [▼] to highlight <Select Access

Point>.

If <Cannot nd access point> is displayed:

”When an Error Message Appears” (P.14)

1

Press

2

Enter the network key using the numeric keys.

to select the entry mode.



• Press [▲] or [▼] to highlight the access point

you wrote down.

• If multiple matched SSIDs are displayed,

select the ID that is listed rst (the one with the strongest signal).

If no SSID has been found:

“Checking SSID or Network Key for a Wireless Router” (P.20)

Prepare for Wireless LAN Connection

Setting the Wireless LAN



• Press [▲] to highlight <Yes>.

Installing the Software

Troubleshooting

Setting the Wireless LAN



• After the <Connected.> screen is displayed,

wait until the Wi-Fi indicator stops blinking and turns on.

Wait approximately 2 minutes

after the connection is completed.

The IP address is set during this time period.

Proceed to P. 9

When an error message appears:

Press [OK] to close the screen, check whether the network key is correct or not, and then retry the settings from step 5.

If the access point cannot be detected even after retrying, see the following.

“When an Error Message Appears” (P.14)

When setting IP address manually:

“Setting IP Addresses” in the e-Manual

Checking that the Wireless LAN Setting is Completed

Setting the Wireless LAN

1 6

(Status Monitor) (Status Monitor)

Start a Web browser from the computer



• Press [▲] or [▼] to highlight <Network Information>.

• Enter [http://<IP address that you have written

down in step 5>/] in the address eld, and then press [Enter] on your keyboard.

• Press [▲] or [▼] to highlight <IPv4>.

• Press [▲] or [▼] to highlight <IP Address>.

• Take note of the IP address.

• Check that the screen of the Remote UI is

displayed.

Connection is completed

when the screen is displayed.

Proceed to P. 10

If the screen is not displayed correctly:

“The Remote UI is not displayed.” (P.17)

Prepare for Wireless LAN Connection

Setting the Wireless LAN

Installing the Software

Troubleshooting

Installing the Software

Windows

Install the MF Drivers and the MF Toolbox. Make sure that the machine is turned ON, and log on to Windows as a user with administrative privileges. Shut down all applications that are running. See MF Driver Installation Guide for details about installation.

NOTE

• If you are operating in the IPv6 environment, you may not be able to install the software following the procedures below. See

“Installing the MF Drivers on the WSD Network” in the MF Driver Installation Guide.

• You cannot use the scan function in the IPv6 environment.

▲

User Software CD-ROM

• Printer, fax, scanner drivers, and MF Toolbox will

be installed.

• Select [Custom Installation] to install Presto!

PageManager and the e-Manual.

◀

Click!

▶

Follow the instructions

on the screen to continue.

◀

Select

When the screen is not displayed correctly:

• Windows XP/Server 2003

[Start] menu → [Run] → enter [D:\MInst.exe*] → [OK]

• Windows Vista/7/Server 2008

[Start] menu → [Search programs and les] (or [Start Search]) → enter [D:\MInst.exe*] → press the [Enter] key

• Windows 8/Server 2012

Right-click the lower-left corner of the screen → [Run] → enter [D:\Minst.exe*] → [OK]

* The CD-ROM drive name is indicated as "D:" in this

manual.

▲

Select ✔

◀

Click!

• Take the CD-ROM out, if necessary.

The PC connection via the wireless

LAN is now complete.

Installing the Software

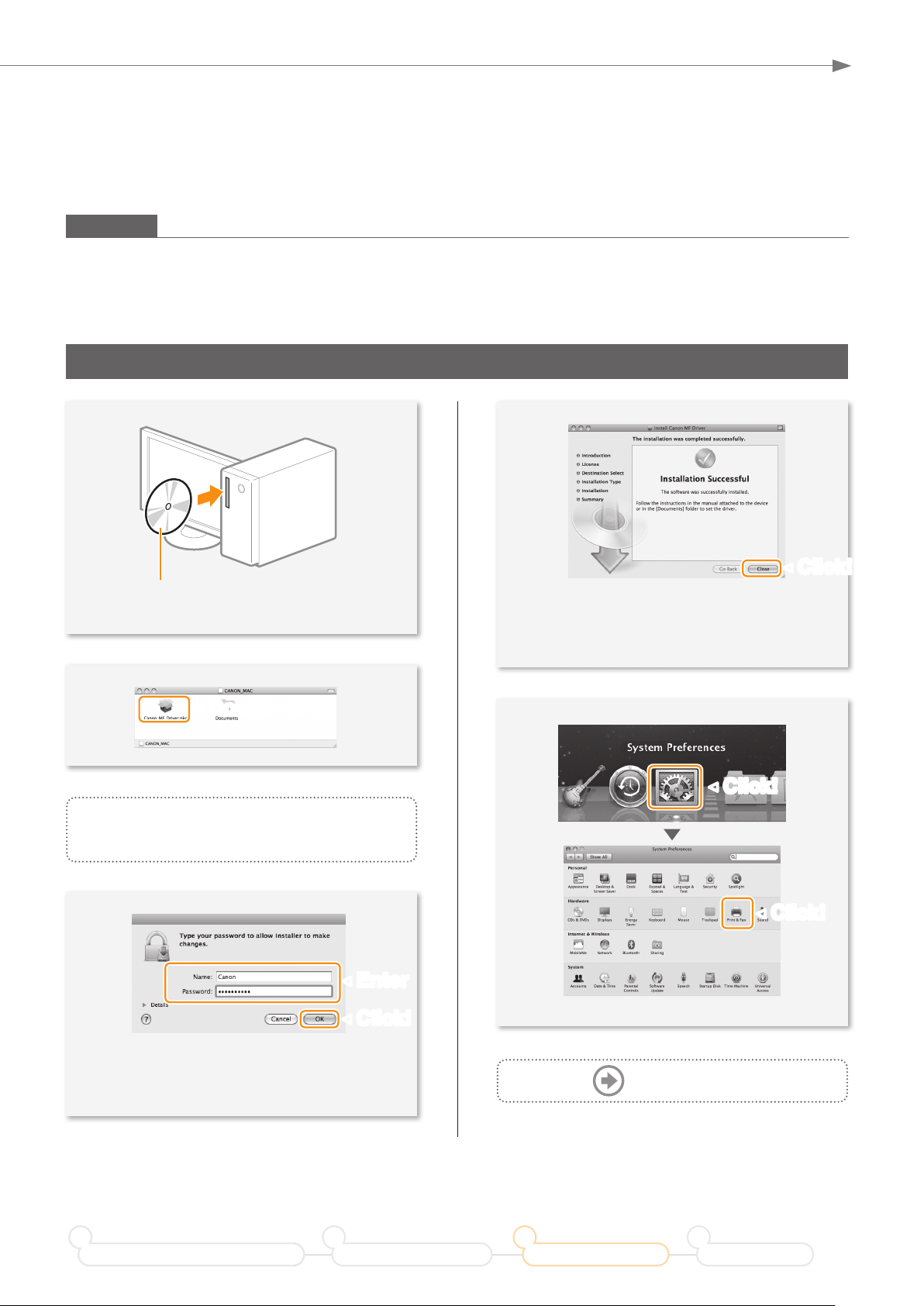

Macintosh

Install the MF drivers for Macintosh. It requires Mac OS X 10.5.8 version or later. The installation screen varies depending on the version of Mac OS X.

This operation is for Macintosh. If using Windows, proceed to P. 10.

▲

Insert the User Software CD-ROM and double-click the CD-ROM icon.

▼

◀

Double-click!

▼

Follow the instructions

on the screen to continue.

▼

• Installing the drivers is now complete.

Continued with registration operations on the desktop.

▼

◀

Click!

◀

Click!

• Depending on the system environment, the

dialog box may not be displayed. In this case, click [Install Software].

▼

Prepare for Wireless LAN Connection

◀

Enter

◀

Click!

Setting the Wireless LAN

Installing the Software

▼

Troubleshooting

◀

Click!

Installing the Software

Macintosh

◀

Click!

Connecting with the manual setting

◀

Click!

◀

Select

▼



◀

1Click!

2

Select a printer name for which [Bonjour] is displayed in the [Kind] or [Connection] column.

3

Select [Select Printer Software], select the corresponding driver, and then click [OK]. If you are using Mac OS X 10.5.x, select the

driver from the [Print Using].

◀

2Select

◀

3Select

◀

4Click

▼

◀

Enter

◀

Select

◀

Select

◀

Click!

• An IP address is automatically congured

by the Bonjour function. If there is not the Bonjour function or you want to set the IP address manually, see “Setting IP Addresses” in the e-Manual.

▼

Installing the Software

• If you are using Mac OS X 10.5.x,

select [Select a driver to use] and the corresponding driver from [Print Using], and then click [Add].

▼

◀

2 Click!

◀

Check that this

machine is added.

Computer connection via the

wired LAN is now complete.

◀

Click!

Prepare for Wireless LAN Connection

Setting the Wireless LAN

Installing the Software

Troubleshooting

When an Error Message Appears

Action

• Wait for a while and try again.

Action 1

• Wireless router’s push button might

not be pressed in the time limit. Repeat the setup with the proper procedure.

If the message still appears:

Check network connection referring to “Cannot Connect to the Network” (P.18). If the access point cannot be determined even after checking the network connection, check the security settings on the wireless router.

Action

• Check that the wireless router that you are using supports WPS function.

If the wireless router is WPS capable:

Check network connection referring to “Cannot Connect to the Network” (P.18).

If the wireless router is not WPS capable:

Manually select a specic wireless router for your network identication. (P. 6)

Action 2

• The correct SSID might not be

entered. Conrm the wireless router’s SSID and repeat the setup.

Action

• Turn OFF the machine and turn it back ON, and then repeat the setup.

If the message still appears:

Troubleshooting

Action

• Enter the correct network key and repeat the setup.

If the message still appears:

Check network connection referring to “Cannot Connect to the Network” (P.18).

Action

• Enter the correct network key and repeat the setup.

If the message still appears:

Check the WEP authentication settings of the wireless router.

Action

• Change the WEP authentication method on the machine to <Shared Key>.

Congure all the settings manually to change the setting to <Shared Key>. (See the e-Manual)

If the message still appears:

When the MAC address lter is set at the wireless router, set the MAC address of the machine to the wireless router. To check the MAC address of the machine, see the e-Manual.

Prepare for Wireless LAN Connection

Setting the Wireless LAN

Installing the Software

Troubleshooting

If Problems Occur

The SSID of the wireless router is not displayed in the list of access points.

Cause 1

The SSID of the wireless router that you wrote down on P. 6 is incorrect.

Action

• Check the wireless router’s SSID.

“Checking SSID or Network Key for a Wireless Router” (P.20)

• Specify the settings again.

“Setting by Selecting the SSID (Network or Access Point)” (P.6)

Cause 2

The SSID is not broadcasted from the wireless router (stealth function).

Action

• Set the wireless router to broadcast the SSID.

See the instruction manual of the wireless router, or contact the

manufacturer.

• Specity the settings again.

“Setting by Selecting the SSID (Network or Access Point)” (P.6)

Cannot detect the SSID or network key of the wireless router.

Cause 3

The machine cannot detect the wireless routers because there is a problem with the network connection.

Action

• Check the network connection.

“Cannot Connect to the Network” (P.18)

Action

“Checking SSID or Network Key for a Wireless Router” (P.20)

Troubleshooting

Cause 1

The machine’s IP address is not set correctly.

Action

• Enable the DHCP function for the wireless router, and specify the setting

again.

See the instruction manual of the wireless router, or contact the

manufacturer.

Cause 2

The wireless router’s network key is not correctly specied to the machine.

Action

The Remote UI is not displayed.

• Check the network key set to the wireless router, and specify the setting

again.

“Checking SSID or Network Key for a Wireless Router” (P.20)

• Specify the settings again.

“Setting by Selecting the SSID (Network or Access Point)” (P.6)

Cause 3

A wrong SSID is selected.

Action

• Check the wireless LAN or access point’s SSID.

“Checking SSID or Network Key for a Wireless Router” (P.20)

• Specify the settings again.

“Setting by Selecting the SSID (Network or Access Point)” (P.6)

Prepare for Wireless LAN Connection

Setting the Wireless LAN

Installing the Software

Troubleshooting

Cannot Connect to the Network

Check the following items to make sure that the machine is ready to be connected to a network.

Check the status of the computer.

• Have the settings for the computer and the wireless router been completed?

• Are the cables (power cable or network cables) for the wireless router connected properly?

• Is the wireless router turned ON?

If you cannot connect to the network even after checking:

• Turn OFF each device and turn each one back ON.

• Wait a few moments, and reconnect to the network.

Check if the machine is turned ON.

• When the power is already turned ON, turn the power OFF and turn it back ON.

Check the installation sites for the machine and the wireless router.

• Is the distance between the machine and the wireless router close enough to

communicate?

• Isn’t there any obstacle, such as a wall, between the machine and the wireless router?

• Isn’t there any electronic device, such as a microwave or a digital cordless phone, that

emits electronic wave?

Within 164' (50 m)

The machine

Wireless Router

Specify the settings again.

“Setting via WPS” (P. 4)

“Setting by Selecting the SSID (Network or Access Point)” (P.6)

Proceed to the next page if you still cannot connect the machine to the network.

Check the settings of the wireless router.

If one of followings is the case:

“Setting Up Connection by Specifying Detailed Settings” in the e-Manual

• Deny ANY*: Enabled

• <Select WEP Key>: A wrong WEP key is selected from <WEP Key 1> to <WEP Key 4>.

• WEP key (hexadecimal): Automatically generated by the wireless router.

* A function that makes the wireless router deny a connection when another device’s SSID is set to “Any” or “Empty.”

If one of following is the case, change the settings of the wireless router.

• The MAC address ltering: Enabled

• An encryption method only when communicating using IEEE 802.11n: WEP or TKIP

• Stealth function*: Enabled

* A function that makes SSIDs of the wireless router invisible on other devices.

Troubleshooting

For the operation method of the wireless router, see the instruction manual of the wireless router, or contact the manufacturer.

Prepare for Wireless LAN Connection

Setting the Wireless LAN

Installing the Software

Troubleshooting

Appendix

Checking SSID or Network Key for a Wireless Router

You can check the SSID or the network key using Canon MF/LBP Wireless Setup Assistant, which is included in the User Software CD-ROM.

• Write down the name of the access point

(SSID) and network key on P. 6, and then continue the setup procedure.

▲

User Software CD-ROM

If multiple access points are displayed:

1

Write down all SSIDs that are displayed.

SampleABCD WEP 01234567890123456789ABCDEF SampleEFGHIJ WPA-PSK 543210EDCBA SampleK WPA2-PSK 1234ABCD

• When the License Agreement screen

appears, please read thoroughly, and click [Yes] to agree.

◀

Click!

◀

Click!

2

Perform the procedure up to step 6 in “Setting by Selecting SSID (Network or Access Point)” (P. 6).

3

Select the SSID that matches the one you wrote down from the displayed SSID in step .

4

Write down the network key for the SSID you selected.

SampleABCD WEP 01234567890123456789ABCDEF SampleEFGHIJ WPA-PSK 543210EDCBA SampleK WPA2-PSK 1234ABCD

If the information for the wireless router is not displayed:

• Click the [Refresh] button.

• If the information is not displayed when you

click the [Refresh] button, check the network connection of the computer and the wireless router.

SampleEFGHIJ WPA-PSK 543210EDCBA

Return to step  on P. 7

▲

Wireless LAN

Setting Guide

Contacting the Service Center

When you have a problem with your machine, refer to “Troubleshooting” in the Basic Operation Guide or the e-Manual rst. If you cannot solve the problem after referring the manuals, contact the Canon Authorized Service Facilities or the Canon Customer Care Center.

Canon Customer Care Center

1-800-OK-CANON

(U.S.A./Canada)

U.S.A.

Monday through Friday

From 8:00 A.M. to 8:00 P.M. EST

Canada

Monday through Friday

From 9:00 A.M. to 8:00 P.M. EST

http://www.canon.ca/

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON MARKETING JAPAN INC.

16-6, Konan 2-chome, Minato-ku, Tokyo 108-8011, Japan

CANON U.S.A., INC.

One Canon Park, Melville, NY 11747, U.S.A.

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

CANON CHINA CO. LTD.

15F Jinbao Building No.89, Jinbao Street, Dongcheng District, Beijing 100005, PRC

CANON SINGAPORE PTE LTD

1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632

CANON AUSTRALIA PTY LTD

1 Thomas Holt Drive, North Ryde, Sydney NSW 2113, Australia

CANON GLOBAL WORLDWIDE SITES

http://www.canon.com/

Canon Color imageCLASS MF8580Cdw Setting Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
