Page 1
ENG
Before Using This Machine
Read this guide first.
0LEASEåREADåTHISåGUIDEåBEFOREåOPERATINGåTHISåPRODUCT
!FTERåYOUåFINISHåREADINGåTHISåGUIDEåSTOREåITåINåAåSAFEåPLACEåFORåFUTUREåREFERENCEå
ENG
Before Using This Machine
Read this guide first.
0LEASEåREADåTHISåGUIDEåBEFOREåOPERATINGåTHISåPRODUCT
!FTERåYOUåFINISHåREADINGåTHISåGUIDEåSTOREåITåINåAåSAFEåPLACEåFORåFUTUREåREFERENCEå
Page 2
Manuals for the Machine
The manuals for this machine are divided as follows. Please refer to them for detailed information.
Guides with this symbol are printed manuals.
Guides with this symbol are included on the accompanying CD-ROM.
To view the manual in PDF format, Adobe Reader/Adobe Acrobat Reader is required. If Adobe Reader/Adobe Acrobat Reader is not installed on your system, please download it
from the Adobe Systems Incorporated website.
Driver Installation Guide
Printer Driver Installation Guide
Mac Printer Driver Installation Guide
Fax Driver Installation Guide
Mac Fax Driver Guide
Includes the Windows and Macintosh printer drivers and fax drivers.
*There are three types of printer drivers: PS, PCL, and UFR II.
•
Setup Guide
Also included in the e-Manual as a PDF file
Describes the procedure to be performed and settings to be specified after installing the machine. •
Basic Operation Guide
Also included in the e-Manual as a PDF file
Describes basic and useful operations you can perform with the machine.
Describes the maintenance and troubleshooting procedures for the machine.
•
•
Before Using This Machine (This Manual)
Describes cautionary information regarding the use of the machine. •
e-Manual
HTML manual
Describes how to use the various functions such as Copy, Scan and Send, how to specify the various settings, and introduces optional
•
equipment that can enhance job productivity.
Also includes "Practical Work ows," which introduce the various functions of the machine using practical examples, such as how to
•
create a booklet, and how to prevent unauthorized copying.
Page 3
1
Preface
Thank you for purchasing the Canon imageRUNNER ADVANCE C2030/C2020. Please read this manual thoroughly before
operating the machine to familiarize yourself with its capabilities, and to make the most of its many functions. For information
on the detailed settings for the functions described in this manual, see the e-Manual. After reading this manual, store it in a safe
place for future reference.
How To Use This Manual
Symbols Used in This Manual
The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and instructions that should be
observed for safety.
Indicates a warning concerning operations that may lead to death or injury to persons if not
performed correctly. To use the machine safely, always pay attention to these warnings.
Indicates a caution concerning operations that may lead to injury to persons if not performed
correctly. To use the machine safely, always pay attention to these cautions.
IMPORTANT
Indicates operational requirements and restrictions. Be sure to read these items carefully to
operate the machine correctly, and avoid damage to the machine or property.
NOTE
Indicates a clari cation of an operation, or contains additional explanations for a procedure.
Reading these notes is highly recommended.
Indicates an operation that must not be performed. Read these items carefully, and make sure
not to perform the described operations.
Keys and Buttons Used in This Manual
The following symbols and key/button names are a few examples of how keys and buttons to be clicked or pressed are expressed in this
manual:
Touch Panel Display Keys: [Key Name]
Example: [Cancel]
[Close]
Control Panel Keys: Key Icon (Key Name)
Example:
(Start)
(Stop)
Buttons on Computer Operation Screens: [Button Name]
Example: [OK]
[Add]
•
•
•
Page 4
2
Illustrations Used in This Manual
Illustrations used in this manual are those displayed when the imageRUNNER ADVANCE C2030 has the following optional equipment attached
to it: the Inner Finisher-C1, 3 Way Unit-C1, Inner Finisher Additional Tray-A1, and Cassette Feeding Unit-AF1.
Abbreviations Used in This Manual
In this manual, product names and model names are abbreviated as follows:
Microsoft Windows 2000 operating system: Windows 2000
Microsoft Windows Server 2003 operating system: Windows Server 2003
Microsoft Windows Server 2003 R2 operating system: Windows Server 2003 R2
Microsoft Windows XP operating system: Windows XP
Microsoft Windows Vista operating system: Windows Vista
Microsoft Windows Server 2008 operating system: Windows Server 2008
Microsoft Windows 7 operating system: Windows 7
Microsoft Windows operating system: Windows
Microsoft Internet Explorer: Internet Explorer
Microsoft Windows Internet Explorer: Internet Explorer
Novell NetWare: NetWare
Apple Macintosh: Macintosh
Apple Mac: Mac
Extended Unix Code: EUC
Page 5
3
Trademarks
MEAP and the MEAP logo are trademarks of Canon Inc.
Apple, AppleTalk, EtherTalk, LocalTalk, Macintosh, Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the U.S. and other
countries.
Windows, Windows logo, Windows Vista, and Windows Vista logo are trademarks or registered trademarks of Microsoft Corporation in the U.S.
and/or other countries.
Adobe, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States
and/or other countries.
Copyright © 2007 -08 Adobe Systems Incorporated. All rights reserved.
Protected by U.S. Patents 5,737,599; 5,781,785; 5,819,301; 5,929,866; 5,943,063; 6,073,148; 6,515,763; 6,639,593; 6,754,382; 7,046,403; 7,213,269;
7,242,415; Patents pending in the U.S. and other countries.
All instances of the name PostScript in the text are references to the PostScript language as de ned by Adobe Systems Incorporated unless
otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language
interpreter.
Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device,
display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices
or items that purport to be merely compatible with the PostScript language.
Adobe, the Adobe logo, PostScript, the PostScript logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
Linux is a registered trademark of Linus Torvalds. Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Page 6
4
The PDF logo is a trademark or registered trademark of Adobe Systems Incorporated in the United States and other countries.
Copyright © 2008 Adobe Systems Incorporated. All rights reserved.
Protected by U.S. Patents 6,185,684; 6,205,549; 7,213,269; 7,272,628; 7,278,168; Patents pending in the U.S. and other countries.
All instances of the name PostScript in the text are references to the PostScript language as de ned by Adobe Systems Incorporated unless
otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language
interpreter.
Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device,
display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices
or items that purport to be merely compatible with the PostScript language.
Adobe, the Adobe logo, PostScript, the PostScript Logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
Other product and company names herein may be the trademarks of their respective owners.
Page 7
5
Operations and Terms Used in This Manual
This machine makes e ective use of memory to perform print operations e ciently. For example, as soon as the machine has scanned the
original that you want to copy, it can immediately scan the next person's original. You can also print from this machine, using a function other
than the Copy function. This machine combines multiple operations, so that not only copies, but various types of jobs are placed in a queue
before being processed.
To avoid confusion when reading this manual, the terms "scanning," "printing," and "copying," used throughout this manual, are de ned below.
When making a copy, the process of scanning originals and printing copies may be described as separate functions.
Printing
Copying
Scanning
Scanning an original to be copied
or scanning an original to be sent.
Outputting a copy or outputting data sent from the computer to the
machine.
Printing data scanned from an original, followed by nishing options,
such as stapling.
Page 8
6
Legal Notices
Product Name
Safety regulations require the product's name to be registered. In some regions where this product is sold, the following name(s) in parenthesis
may be registered instead.
imageRUNNER ADVANCE C2030 (F155800)
imageRUNNER ADVANCE C2020 (F155800)
FCC (Federal Communications Commission)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate, radio frequency energy and, if not installed and used in accordance with the
Operator's Manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
Use of shielded cables are required to comply with Class A limits in Subpart B of Part 15 of the FCC Rules.
Do not make any changes or modi cations to the equipment unless otherwise speci ed in the manual. If you make such changes or
modi cations, you could be required to stop operation of the equipment.
If your equipment malfunctions, please contact your local authorized Canon dealer from whom you purchased the equipment (if under
warranty), or with whom you have a servicing contract. If you are not sure who to contact, and have both purchased and are using the
equipment in the U.S.A., please refer to the "SUPPORT" page on Canon U.S.A.'s Web site (http://www.usa.canon.com).
Laser Safety
This product complies with 21 CFR Chapter 1 Subchapter J as a Class I laser product under the U.S. Department of Health and Human Services
(DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. Also, this product is certi ed as a
Class I laser product under IEC60825-1: 2007. This means that the product does not produce hazardous laser radiation.
Since radiation emitted inside the product is completely con ned within protective housings and external covers, the laser beam cannot
escape from the machine during any phase of user operation. Do not remove protective housings or external covers, except as directed by the
equipment's manual.

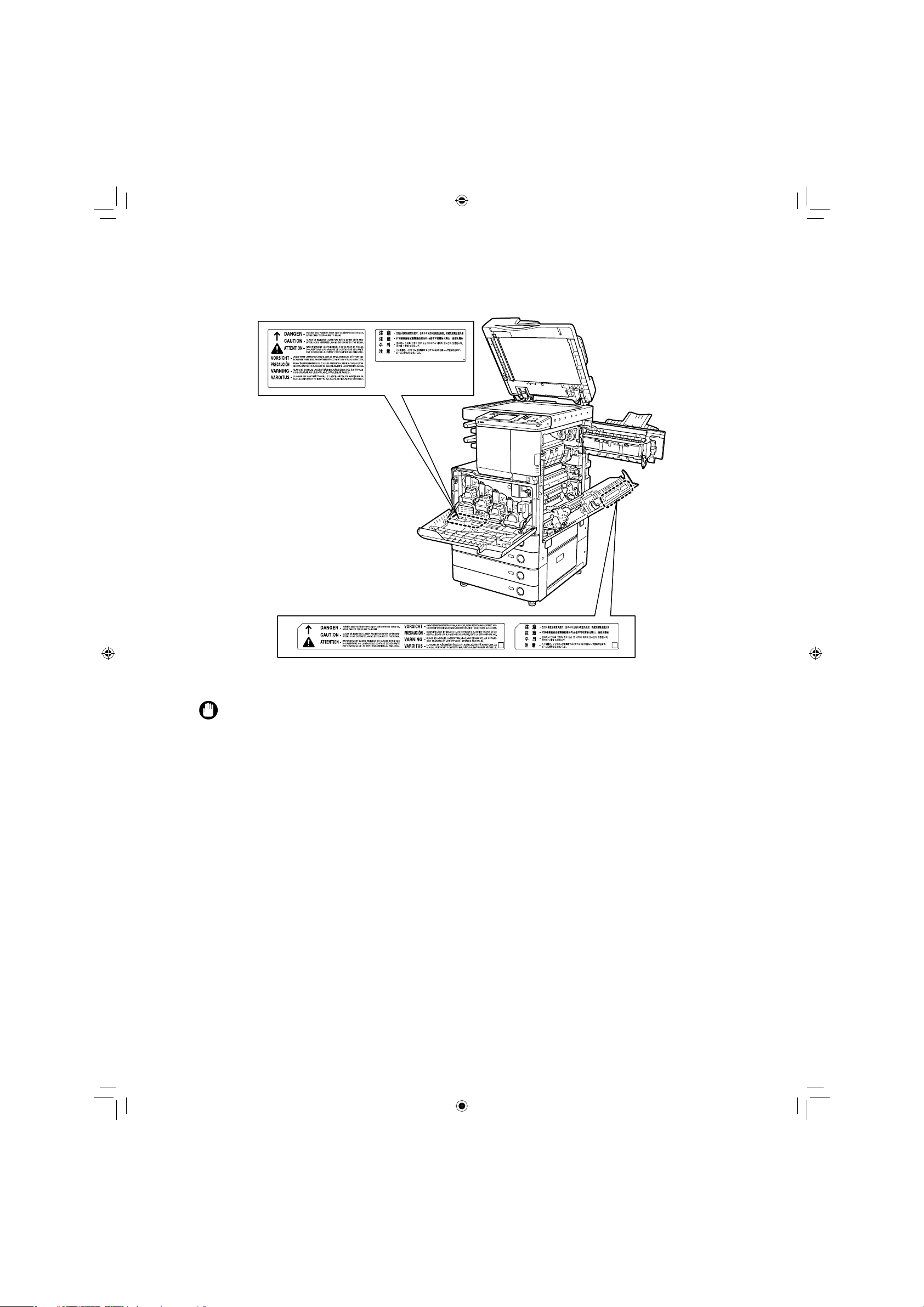

The label shown below is attached to the paper drawer's right cover and toner supply port cover.
Use of controls, adjustments, or performance of procedures other than those speci ed in the manuals for this
machine may result in hazardous radiation exposure.
•
•
Page 9
7
International ENERGY STAR Program
As an ENERGY STAR® Partner, Canon Inc. has determined that this machine meets the international ENERGY
STAR Program for energy e ciency.
The International ENERGY STAR O ce Equipment Program is an international program that promotes energy
saving through the use of computers and other o ce equipment. The program backs the development and
dissemination of products with functions that e ectively reduce energy consumption. It is an open system in
which business proprietors can participate voluntarily. The targeted products are o ce equipment, such as
computers, displays, printers, facsimiles, and copiers. The standards and logos are uniform among participating
nations.
IPv6 Ready Logo
The protocol stack included in this machine has obtained the IPv6 Ready Logo Phase-1 established by the IPv6
Forum.
Copyright
Copyright 2010 by Canon Inc. All rights reserved.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying
and recording, or by any information storage or retrieval system without the prior written permission of Canon Inc.
Third Party Software
A. This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules (the
"SOFTWARE") are subject to the conditions below.
(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that
this product including the SOFTWARE is shipped, transferred or exported into any country.
(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except
as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to
you for any intellectual property of rights holders of the SOFTWARE.
(3) You may use the SOFTWARE solely for use with the PRODUCT.
(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights
holders of the SOFTWARE.
(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign to a transferee all of your rights to the PRODUCT
and all rights and obligations under the conditions governing the SOFTWARE and PRODUCT and (b) such transferee agrees in writing to be
bound by all these conditions.
(6) You may not decrypt, decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.
(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.
(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.
B. In case this PRODUCT includes software modules and/or related documentation made by Adobe Systems Incorporated, use and distribution
of these software modules and/or related documentation (the "ADOBE SOFTWARE") are subject to conditions below in addition to (1) through
(9) above.
The ADOBE SOFTWARE is a "commercial item," as that term is de ned at 48 C.F.R. 2.101 (Oct 1995), consisting of "commercial computer
software" and "commercial computer software documentation," as such terms are used in 48 C.F.R. 12.212 (Sept 1995). Consistent with 48 C.F.R.
12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government End Users shall acquire The ADOBE SOFTWARE with only
those rights set forth herein.
C. Notwithstanding A and B above, in case any other license conditions accompany third-party software modules, including license terms of
open source software, these software modules are subject to these other conditions, as well.
ACCEPTANCE
THE TERMS OF THIS THIRD PARTY SOFTWARE STATED HERE OR IN RELATED WARRANTY PROVISIONS SHALL BE DEEMED ACCEPTED UPON YOUR
USE OF THE PRODUCT FOR ONE OR MORE OF ITS NORMAL PURPOSES, IF THERE HAS BEEN NO OTHER PRIOR EXPRESS ACCEPTANCE.
THE TERMS OF THIS THIRD PARTY SOFTWARE GOVERN THE THIRD PARTY SOFTWARE AS DELIVERED WITH THE PRODUCT AND ALL UPDATED
VERSIONS OF THE THIRD PARTY SOFTWARE PROVIDED UNDER MAINTENANCE AGREEMENTS OR OTHER SERVICE ARRANGEMENTS FOR THE
PRODUCT WITH CANON USA OR CANON CANADA OR THEIR RESPECTIVE AUTHORIZED SERVICE ORGANIZATIONS.
Page 10
8
The Software Subjected to Other Conditions
Please refer to the e-Manual included with this product for more details and corresponding license conditions.
Software Licensed under Open Source Licenses
If you need source code of certain open source, under respective Open Source Licenses, used for this PRODUCT, please send your request by
email in English or Japanese at: <oipossg@canon.co.jp>. The request must identify the open source and the applicable Open Source License.
Please refer to the e-Manual included with this product for more details and corresponding license conditions.
Disclaimers
The information in this document is subject to change without notice.
CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED
HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL
LAWS.
The following applies in California, USA only:
The battery included with your product contains Perchlorate Material and may require special handling.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.
Legal Limitations on the Usage of Your Product and the Use of
Images
Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise
reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents
is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise
reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance
with your legal advisor for guidance.
Paper Money • Travelers Checks •
Money Orders• Food Stamps •
Certi cates of Deposit • Passports •
Postage Stamps (canceled or uncanceled)• Immigration Papers •
Identifying Badges or Insignias • Internal Revenue Stamps (canceled or uncanceled)•
Selective Service or Draft Papers• Bonds or Other Certi cates of Indebtedness •
Checks or Drafts Issued by Governmental Agencies• Stock Certi cates •
Motor Vehicle Licenses and Certi cates of Title• Copyrighted Works/Works of Art without Permission of Copyright Owner•
Page 11
9
Users in the U.S.A.
Preinstallation Requirements for Canon Facsimile Equipment
A. Location
Supply a suitable table, cabinet, or desk for the machine. See “Speci cations” in this guide for speci c dimensions and weight.
B. Order Information
1. A single telephone line (touch-tone or rotary) should be used. If the Super G3 2nd Line Fax Board is installed, a multi telephone line (touch-
tone or rotary) can be used.
2. Order an RJ11-C telephone wall jack (USOC), which should be installed by the telephone company. If the RJ11-C wall jack is not present,
telephone/facsimile operation is not possible.
3. Order a normal business line from your telephone company's business representative. The line should be a regular voice grade line or an
equivalent one. Use one line per unit. If the Super G3 2nd Line Fax Board is installed, you can use a multi-line.
DDD (Direct Distance Dial) line
-or-
IDDD (International Direct Distance Dial) line if you communicate overseas
Canon recommends an individual line following industry standards, i.e., 2500 (touch-tone) or 500 (rotary/pulse dial) telephones.
A dedicated extension o a PBX (Private Branch eXchange) unit without "Call Waiting" can be used with your facsimile unit.
Key telephone systems are not recommended because they send nonstandard signals to individual telephones for ringing and
special codes, which may cause a facsimile error.
C. Power Requirements
The machine should be connected to a standard 120 volt AC, three-wire grounded outlet only.
Do not connect this machine to an outlet or power line shared with other appliances that cause "electrical noise." Air conditioners, electric
typewriters, copiers, and machines of this sort generate electrical noise that often interferes with communications equipment and the sending
and receiving of documents.
Connection of the Equipment
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear panel of this equipment is
a label that contains, among other information, a product identi er in the format of US:AAAEQ##TXXXX. If requested, this number must be
provided to the telephone company.
The REN (Ringer Equivalence Number) is used to determine the number of devices that may be connected to a telephone line. Excessive RENs
on a telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should
not exceed ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local
telephone company. The REN for this product is part of the product identi er that has the format US:AAAEQ##TXXXX. The digits represented by
## are the REN without a decimal point (e.g., 10 is a REN of 1.0).
An FCC compliant telephone line cable and modular plug is provided with this equipment. This equipment is designed to be connected to the
telephone network or premise wiring using a compatible modular jack that is Part 68 compliant.
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tari s.
In Case of Equipment Malfunction
Should any malfunction occur which cannot be corrected by the procedures described in the e-Manual, disconnect the equipment from the
telephone line cable and disconnect the power cord. The telephone line cable should not be reconnected or the main power switch turned
ON until the problem is completely resolved. Users should contact their local authorized Canon Facsimile Service Dealer for the servicing of
equipment.
If your equipment malfunctions, please contact your local authorized Canon dealer from whom you purchased the equipment (if under
warranty), or with whom you have a servicing contract. If you are not sure who to contact, and have both purchased and are using the
equipment in the U.S.A., please refer to the "SUPPORT" page on Canon U.S.A.'s Web site (http://www.usa.canon.com).
Rights of the Telephone Company
If this equipment imageRUNNER ADVANCE C2030/C2020 causes harm to the telephone network, the telephone company may temporarily
disconnect service. The telephone company also retains the right to make changes in facilities and services that may a ect the operation of
this equipment. When such changes are necessary, the telephone company is required to give adequate prior notice to the user. However,
if advance notice is not possible, the telephone company will notify the customer as soon as possible. Also, the customer will be advised of
his/her right to le a complaint with the FCC if he/she believes it is necessary.
NOTE
Page 12
10
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other
electronic device to send any message via a telephone facsimile machine unless such message clearly contains
in a margin at the top or bottom of each transmitted page, or on the rst page of the transmission, the date
and time it is sent and an identi cation of the business or other entity, or other individual sending the message
and the telephone number of the sending machine or such business, other entity, or individual. (The telephone
number provided may not be a 900 number or any other number for which charges exceed local or long-distance
transmission charges.)
NOTE
To program this information into your machine, complete the procedure for registering your name, unit’s telephone number,
time, and date as described in Basic Operations or Settings/Registration in the e-Manual.
Users in Canada
Preinstallation Requirements for Canon Facsimile Equipment
A. Location
Supply a suitable table, cabinet, or desk for the machine. See “Speci cations” in this guide for speci c dimensions and weight.
B. Order Information
1. A single telephone line (touch-tone or rotary) should be used. If the Super G3 2nd Line Fax Board is installed, a multi telephone line (touch-
tone or rotary) can be used.
2. Order a CA11A modular jack which should be installed by the telephone company. If the CA11A jack is not present, installation cannot occur.
3. Order a normal business line from your telephone company's business representative. The line should be a regular voice grade line or an
equivalent one. Use one line per unit. If the Super G3 2nd Line Fax Board is installed, you can use a multi-line.
DDD (Direct Distance Dial) line
or
IDDD (International Direct Distance Dial) line if you communicate overseas
Canon recommends an individual line following industry standards, i.e., 2500 (touch-tone) or 500 (rotary/pulse dial) telephones.
A dedicated extension o a PBX (Private Branch eXchange) unit without "Call Waiting" can be used with your facsimile unit.
Key telephone systems are not recommended because they send nonstandard signals to individual telephones for ringing and
special codes, which may cause a facsimile error.
C. Power Requirements
The power outlet should be a three-prong grounded receptacle (Single or Duplex). It should be independent from copiers, heaters, air
conditioners, or any electric equipment that is thermostatically controlled. The rated value is 115 volts and 15 amperes. The CA11A modular
jack should be relatively close to the power outlet to facilitate installation.
Notice
This product meets the applicable Industry Canada technical speci cations.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications
company. The equipment must also be installed using an acceptable method of connection. In some cases, the company's inside wiring
associated with a single line individual service may be extended by means of a certi ed connector assembly (telephone extension cord). The
customer should be aware that compliance with the above conditions may not prevent deterioration of service in some situations.
The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be connected to a telephone interface. The
termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the
devices does not exceed ve.
The REN of this product is 1.0.
Repairs to certi ed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic
water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
•
•
•
•
•
•
NOTE
Page 13
11
Users should not attempt to make such connections themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
NOTE
This equipment complies with the Canadian ICES-003 Class A limits.
Utilisation au Canada
Conditions à Remplir Préalablement à L'installation d'un Télécopieur Canon
A. Emplacement
Prévoir une table, un meuble, ou un bureau su samment solide et de taille appropriée (voir "Spéci cations" pour les indications de poids et
dimensions).
B. Installation téléphonique
1. Une seule ligne téléphonique (tonalités ou impulsions) doit être utilisée. Si le Super G3 2nd Line Fax Board en option est installé, il est
possible d'utiliser une ligne téléphonique multiple (tonalités ou impulsions).
2. Il faut commander un jack modulaire CA11A qui sera installé par la compagnie téléphonique. Sans ce jack, la mise en place serait impossible.
3. Si vous vous abonnez à une nouvelle ligne, demandez une ligne d'a aires normale de qualité téléphonique courante ou équivalente.
Prenez un abonnement d'une ligne par appareil. Si le Super G3 2nd Line Fax Board en option est installé, il est possible d'utiliser une ligne
téléphonique multiple.
Ligne automatique interurbaine
ou
Ligne automatique international
(si vous communiquez avec les pays étrangers)
NOTE
Canon vous conseille d'utiliser une ligne individuelle conforme aux normes industrielles, à savoir: ligne téléphonique 2500 (pour
appareil à clavier) ou 500 (pour appareil à cadran/impulsions). Il est également possible de raccorder ce télécopieur à un système
téléphonique à poussoirs car la plupart de ces systèmes émettent des signaux d'appel non normalisés ou des codes spéciaux
qui risquent de perturber le fonctionnement du télécopieur.
C. Condition d'alimentation
Raccordez le télécopieur à une prise de courant plus terre à trois branches, du type simple ou double, et qui ne sert pas à alimenter un copieur,
un appareil de chau age, un climatiseur ou tout autre appareil électrique à thermostat. L'alimentation doit être de 115 volts et 15 ampères.
Pour faciliter l'installation, le jack CA11A doit être assez proche de la prise de courant.
Remarques
Le présent matériel est conforme aux spéci cations techniques applicables d'Industrie Canada.
Avant d'installer cet appareil, l'utilisateur doit s'assurer qu'il est permis de le connecter à l'équipement de la compagnie de télécommunication
locale et doit installer cet appareil en utilisant une méthode de connexion autorisée. Il se peut qu'il faille étendre la circuiterie intérieure de la
ligne individuelle d'abonné, qui a été installée par la compagnie, au moyen d'un jeu de connecteurs homologués (rallonge téléphonique).
L'attention de l'utilisateur est attirée sur le fait que le respect des conditions mentionnées ci-dessus ne constitue pas une garantie contre les
dégradations de qualité du service dans certaines circonstances.
L'indice d'équivalence de la sonnerie (IES) sert à indiquer le nombre maximal de terminaux qui peuvent être raccordés à une interface
téléphonique. La terminaison d'une interface peut consister en une combinaison quelconque de dispositifs, à la seule condition que la somme
d'indices d' équivalence de la sonnerie de tous les dispositifs n'excède pas 5.
Le nombre d'équivalents sonnerie (REN) de ce produit est 1.0.
Les réparations sur un appareil certi é doivent être faites par une société d'entretien canadienne autorisée par le Gouvernement canadien et
désignée par le fournisseur. Toute réparation ou modi cation que pourrait faire I'utilisateur de cet appareil, ou tout mauvais fonctionnement,
donne à la compagnie de télécommunication le droit de débrancher I'appareil.
Pour sa propre protection, I'utilisateur doit s'assurer que les prises de terre de I'appareil d'alimentation, les lignes téléphoniques et les tuyaux
métalliques internes, s'il y en a, sont bien connectés entre eux. Cette précaution est particulièrement importante dans les zones rurales.
•
•
•
•
•
•
•
Page 14
12
Au lieu d'essayer de faire ces branchements eux-mêmes, les utilisateurs sont invités à faire appel à un service
d'inspection faisant autorité en matière d'électricité ou à un électricien, selon le cas.
NOTE
Respecte les limites de la classe A de la NMB-003 du Canada.
Super G3
Super G3 is a phrase used to describe the new generation of fax machines that use ITU-T V.34 standard 33.6
Kbps* modems. Super G3 High Speed Fax machines allow transmission times of approximately 3 seconds* per
page which results in reduced telephone line charges.
Approximately 3 seconds per page fax transmission time based on CCITT/ITU-T No.1 Chart, (JBIG,
Standard Mode) at 33.6 Kbps modem speed. The PSTN (Public Switched Telephone Network) currently
supports 28.8 Kbps modem speeds or slower, depending on telephone line conditions.
*
Page 15
13
Important Safety Instructions
Please read these "Important Safety Instructions" thoroughly before operating the machine. As these instructions are intended
to prevent injury to the user or other persons or destruction of property, always pay attention to these instructions. Also, since
it may result in unexpected accidents or injuries, do not perform any operation unless otherwise speci ed in the manual.
Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may
not be covered under your Limited Warranty.
Installation
Never block the ventilation slots and louvers on the machine. These openings are provided for proper ventilation
of working parts inside the machine. Blocking these openings can cause the machine to overheat. Never place
the machine on a soft surface, such as a sofa or rug.

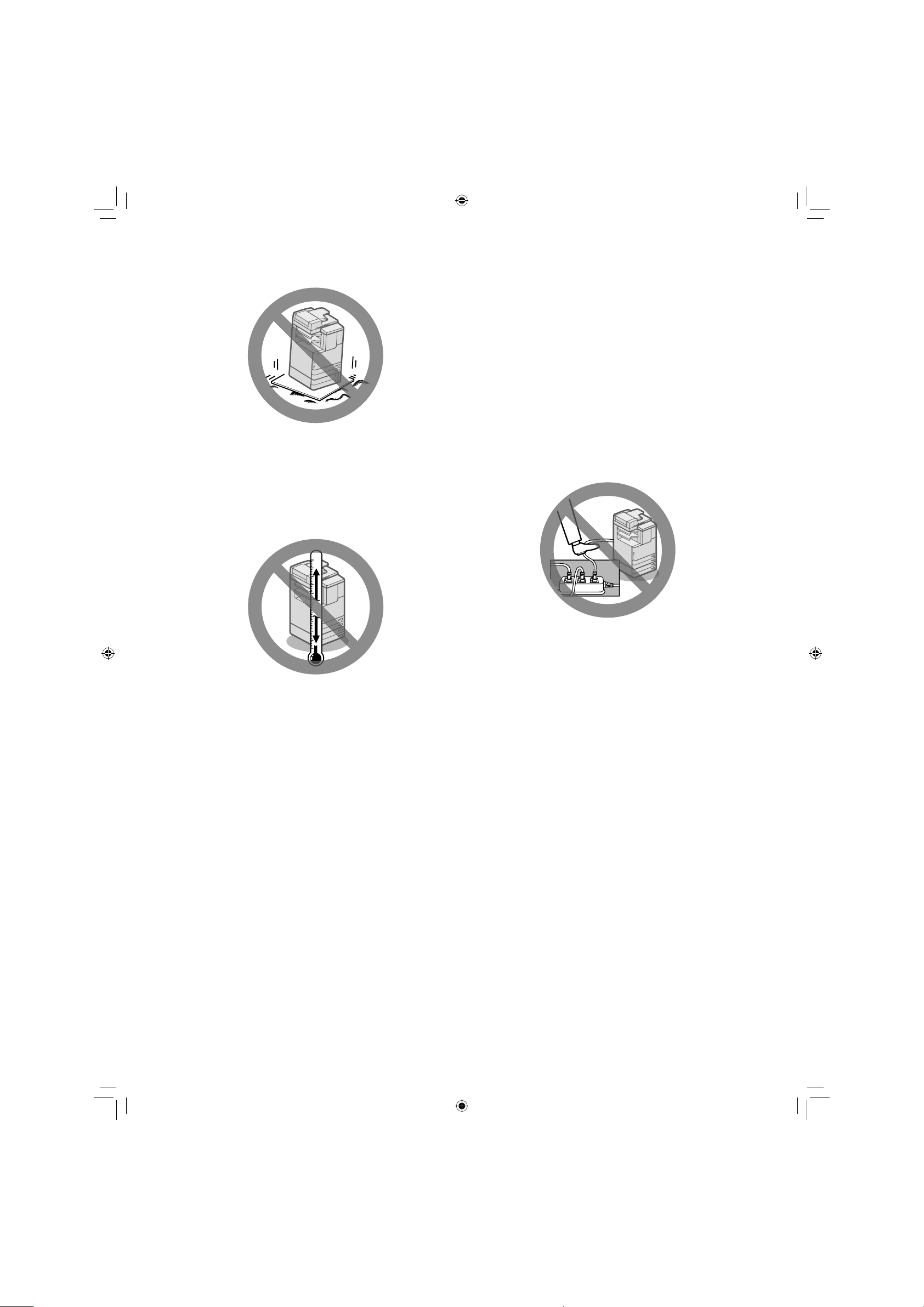

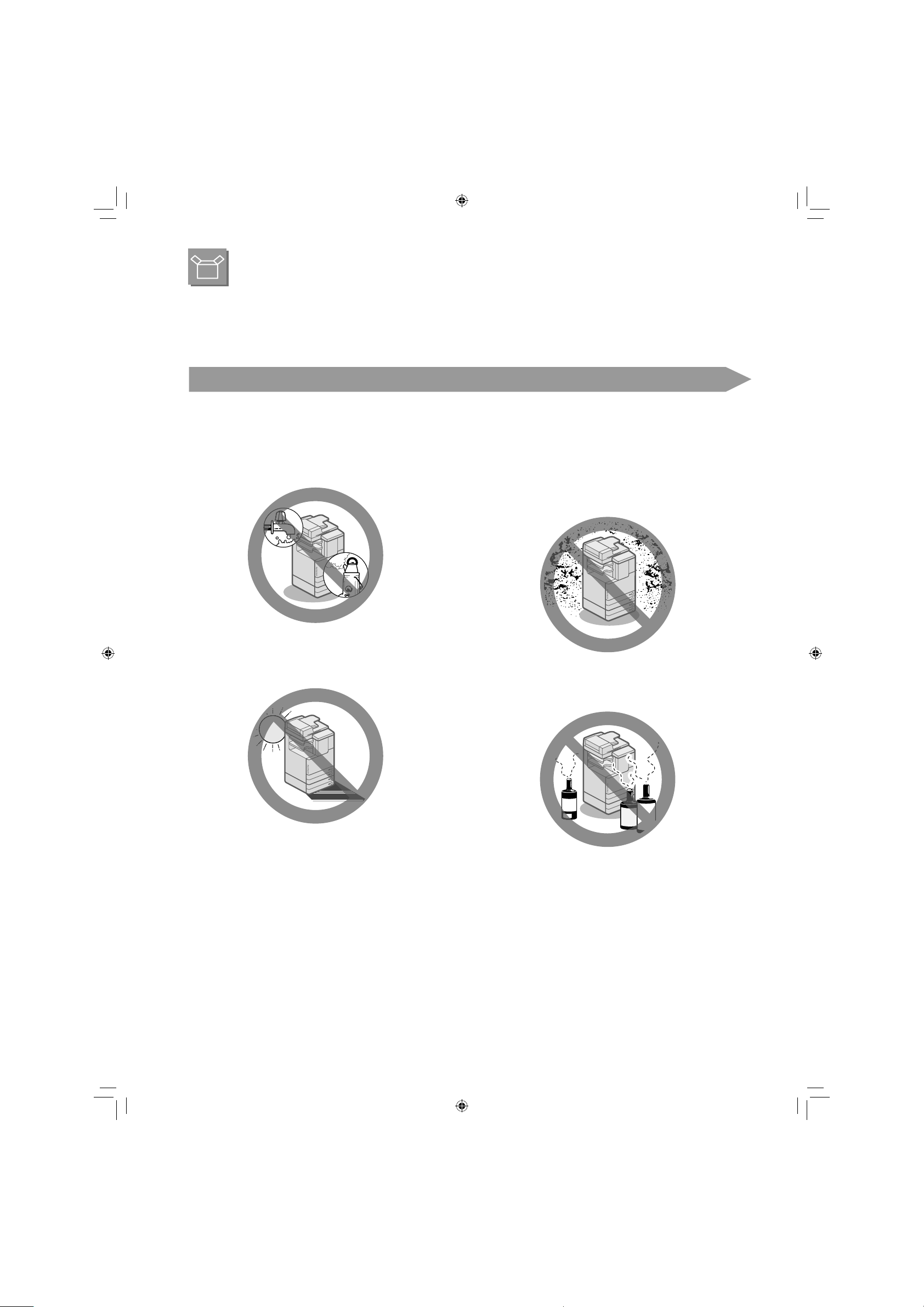

Do not install the machine in the following locations:
A damp or dusty location
A location near water faucets or water
A location exposed to direct sunlight
A location subject to high temperatures
A location near open ames
Do not install the machine near alcohol, paint thinner, or other ammable substances. If ammable substances
come into contact with electrical parts inside the machine, it may result in a re or electrical shock.
Do not place the following items on the machine. If these items come into contact with a high-voltage area inside
the machine, it may result in a re or electrical shock.
If these items are dropped or spilled inside the machine, immediately turn OFF the main power switch, and
disconnect the power cord from the power outlet. Then, contact your local authorized Canon dealer.
Necklaces and other metal objects
Cups, vases, owerpots, and other containers lled with water or liquids
Do not install the machine in unstable locations, such as unsteady platforms or inclined oors, or in locations
subject to excessive vibrations, as this may cause the machine to fall or tip over, resulting in personal injury.
Do not remove the machine's leveling feet after the machine has been installed, as this may cause the machine to
fall or tip over, resulting in personal injury.
•
•
•
•
•
•
•
•
•
•
•
•
•
Page 16
14
Power supply
Do not damage or modify the power cord. Also, do not place heavy objects on the power cord, or pull on or
excessively bend it, as this could cause electrical damage and result in a re or electrical shock.
Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt,
resulting in a re or electrical shock.
Do not connect or disconnect the power cord with wet hands, as this may result in electrical shock.
Do not connect the power cord to a multiplug power strip, as this may cause a re or electrical shock.
Do not bundle up or tie the power cord in a knot, as this may result in a re or electrical shock.
Insert the power plug completely into the power outlet, as failure to do so may result in a re or electrical shock.
Do not use power cords other than the power cord provided, as this may result in a re or electrical shock.
As a general rule, do not use extension cords. Using an extension cord may result in a re or electrical shock.
Do not use power supplies with voltages other than those speci ed herein, as this may result in a re or electrical
shock.
Always grasp the power plug when disconnecting the power cord. Pulling on the power cord may expose or snap
the core wire, or otherwise damage the power cord. If the power cord is damaged, this could cause current to
leak, resulting in a re or electrical shock.
Leave su cient space around the power plug so that it can be unplugged easily. If objects are placed around the power plug,
you will be unable to unplug it in an emergency.
Handling

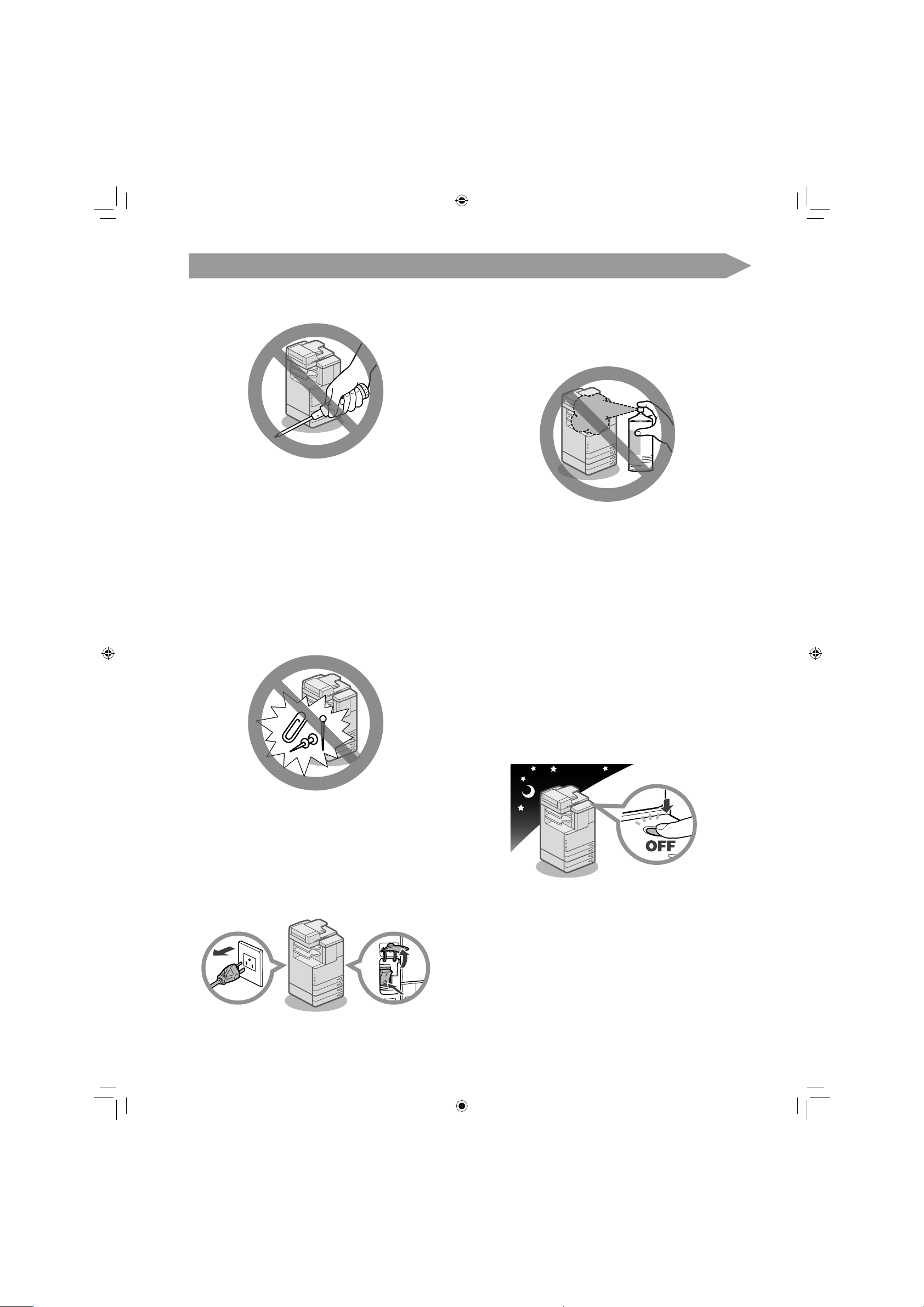

Do not attempt to disassemble or modify the machine. There are high-temperature and high-voltage
components inside the machine which may result in a re or electrical shock.
If the machine makes strange noises, or gives o smoke, heat, or strange smells, immediately turn OFF the main
power switch, and disconnect the power cord from the power outlet. Then, contact your local authorized Canon
dealer. Continued use of the machine in this condition may result in a re or electrical shock.
Do not use highly ammable sprays near the machine. If gas from these sprays comes into contact with the
electrical components inside the machine, it may result in a re or electrical shock.
To avoid damage to the power cord and creating a re hazard, always turn OFF the main power switch, and
unplug the interface cable when moving the machine. Otherwise, the power cord or interface cable may be
damaged, resulting in a re or electrical shock.
Make sure that the power plug is rmly inserted into the power outlet if the machine was moved. Do not use the
machine while the connection is loose, as doing so may cause a re.
Do not drop paper clips, staples, or other metal objects inside the machine. Also, do not spill water, liquids, or
ammable substances (alcohol, benzene, paint thinner, etc.) inside the machine. If these items come into contact
with a high-voltage area inside the machine, it may result in a re or electrical shock. If these items are dropped
or spilled inside the machine, immediately turn OFF the main power switch, and disconnect the power cord from
the power outlet. Then, contact your local authorized Canon dealer.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
IMPORTANT
Page 17
15

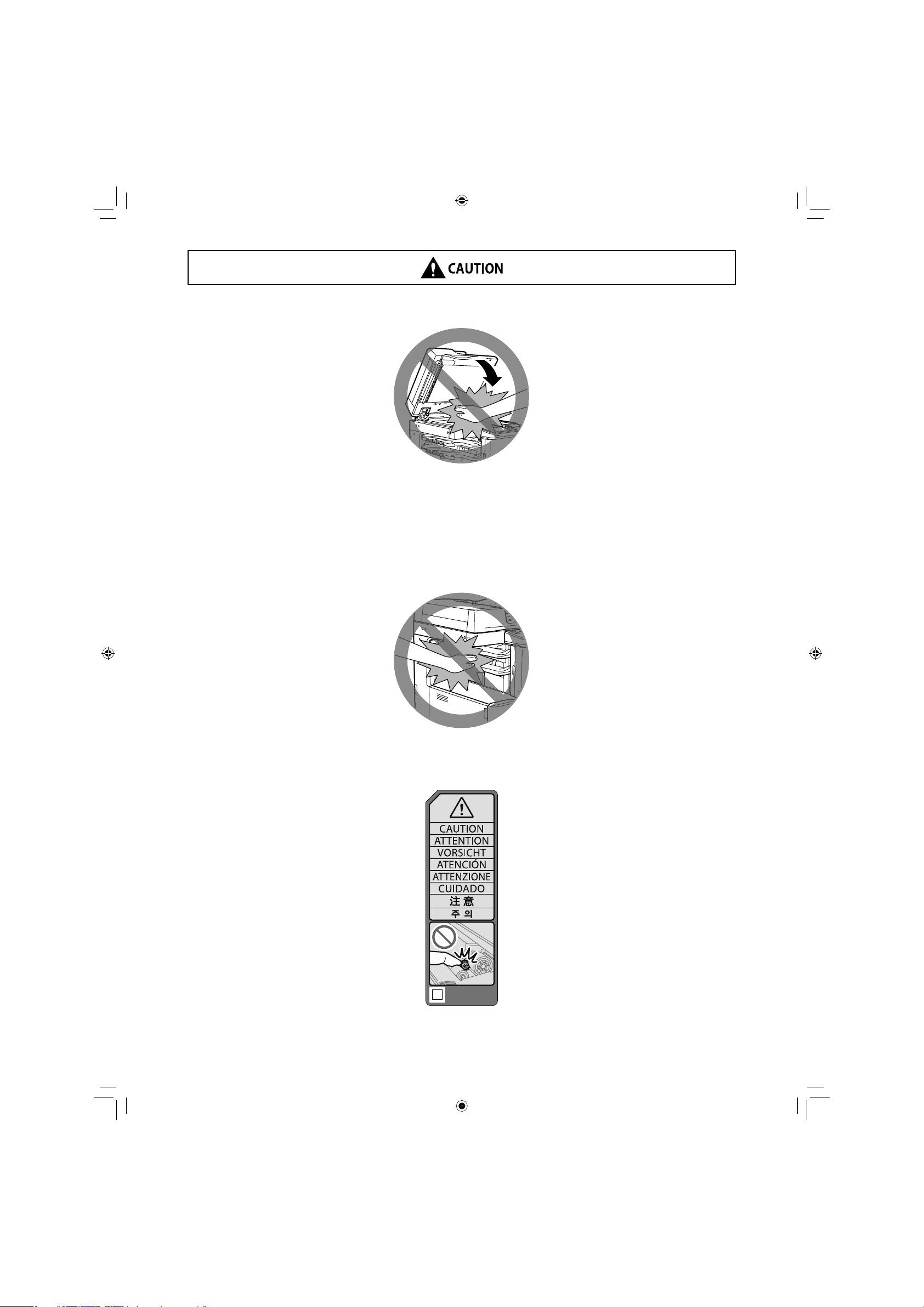

Do not place heavy objects on the machine, as they may tip over or fall resulting in personal injury.
Close the feeder gently to avoid catching your hands, as this may result in personal injury.
Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may
damage the platen glass and result in personal injury.
Do not touch the nisher while the machine is printing, as this may result in personal injury.
Paper that has just been output from the machine may be hot. Be careful when removing or aligning paper from
the output tray. Touching paper right after it is output may result in low-temperature burns.
Do not place your hands, hair, clothing, etc., near the exit and feed rollers. Even if the machine is not in
operation, your hands, hair, or clothing may get caught in the rollers, which may result in personal injury or
damage if the machine suddenly starts printing.
Do not place your hands in the part of the tray where stapling is performed (near the rollers) when a nisher is
attached, as this may result in personal injury.
Inner Finisher-C1
Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal
injury.
•
•
•
•
•
•
•
•
Page 18
16
The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely
con ned within protective housings and external covers, the laser beam cannot escape from the machine during
any phase of user operation. Read the following remarks and instructions for safety.
Never open covers other than those instructed in the manuals for this machine.
Do not remove the following caution label which is attached to the machine. If the label has been removed, contact your local authorized
Canon dealer.
If the laser beam escapes from the machine, exposure may cause serious damage to your eyes.
Controlling, adjusting, or operating the machine in ways not mentioned in the manuals for this machine may cause dangerous radiation to
escape from the machine.
Turn OFF the control panel power switch for safety when the machine will not be used for a long period of time, such as
overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used
for an extended period of time, such as during consecutive holidays.
•
•
•
•
•
IMPORTANT
Page 19
17
Maintenance and Inspections
When cleaning the machine, rst turn OFF the main power switch, then disconnect the power cord. Failure to
observe these steps may result in a re or electrical shock.
Disconnect the power cord from the power outlet regularly, and clean the area around the base of the power
plug's metal pins and the power outlet with a dry cloth to ensure that all dust and grime is removed. If the power
cord is connected for a long period of time in a damp, dusty, or smoky location, dust can build up around the
power plug and become damp. This may cause a short circuit and result in a re.
Clean the machine using a slightly dampened cloth with a mild detergent mixed with water. Do not use alcohol,
benzene, paint thinner, or other ammable substances. Check detergent for ammability prior to use. If
ammable substances come into contact with a high-voltage area inside the machine, it may result in a re or
electrical shock.
There are some areas inside the machine which are subject to high-voltages. When removing jammed paper or
when inspecting the inside of the machine, do not allow necklaces, bracelets, or other metal objects to touch the
inside of the machine, as this may result in burns or electrical shock.
Do not burn or throw used toner cartridges into open ames, as this may cause the toner remaining inside the
cartridges to ignite, resulting in burns or a re.
Make sure that the power plug is rmly inserted into the power outlet after cleaning the machine. Do not use the
machine while the connection is loose, as doing so may cause a re.
Check the power cord and power plug regularly. If the following conditions occur, contact your local authorized
Canon dealer, as the condition may cause a re:
There are burn marks on the power plug.
The blade on the power plug is deformed or broken.
The power goes OFF and ON when the power cord is bent.
There are cuts, cracks, or indentations on the power cord.
A part of the power cord becomes hot.
Check the power cord and power plug regularly to make sure that they are not handled in the following manner,
as this may result in a re or electrical shock:
The connection part of the power plug is loose.
Stress is being applied to the power cord by a heavy object or by a xing it with staples.
The power plug is loose.
The power cord is tied in a bundle.
The power cord protrudes into a walkway.
The power cord is in front of a heater.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Page 20
18
The xing unit and its surroundings inside the machine may become hot during use. When removing jammed
paper or when inspecting the inside of the machine, do not touch the xing unit and its surroundings, as doing
so may result in burns or electrical shock.
When removing jammed paper or when inspecting the inside of the machine, do not expose yourself to the heat
emitted from the xing unit and its surroundings for a prolonged period of time. Doing so may result in low
temperature burns, even though you did not touch the xing unit and its surroundings directly.
If a paper jam occurs, follow the directions on the touch panel display to remove any jammed paper from inside
the machine. Do not insert your ngers into any parts not indicated on the touch panel display, as doing so may
result in personal injury or burns.
When removing jammed paper or replacing the toner cartridge, take care not to allow the toner to come into
contact with your hands or clothing, as this will dirty your hands or clothing. If they become dirty, wash them
immediately with cold water. Washing them with warm water will set the toner, and make it impossible to
remove the toner stains.
When removing paper which has become jammed inside the machine, remove the jammed paper gently to
prevent the toner on the paper from scattering and getting into your eyes or mouth. If the toner gets into your
eyes or mouth, wash them immediately with cold water and immediately consult a physician.
When removing jammed originals or paper which has become jammed inside the machine, take care not to cut
your hands or injure yourself on the edges of the originals or paper. If you cannot remove the paper, contact your
local authorized Canon dealer.
When removing a used toner cartridge, remove the cartridge carefully to prevent the toner from scattering and
getting into your eyes or mouth. If the toner gets into your eyes or mouth, wash them immediately with cold
water and immediately consult a physician.
Do not dismantle the toner cartridge, as doing so may cause toner to y out and enter your eyes or mouth.
If toner gets into your eyes or mouth, wash them immediately with cold water and immediately consult a
physician.
If toner escapes from the toner cartridge, make sure not to ingest the toner or allow it to directly touch your skin.
If toner touches your skin, wash it away with soap and water. If your skin still feels irritated after washing it, or
you ingest toner, consult a doctor immediately.
Consumables
Do not burn or throw used toner cartridges into open ames, as this may cause the toner remaining inside the
cartridges to ignite, resulting in burns or a re.
Do not store toner cartridges or copy paper in places exposed to open ames, as this may cause the toner or
paper to ignite, resulting in burns or a re.
Keep toner and other consumables out of the reach of small children. If these items are ingested, consult a
physician immediately.
Do not dismantle the toner cartridge, as doing so may cause toner to y out and enter your eyes or mouth.
If toner gets into your eyes or mouth, wash them immediately with cold water and immediately consult a
physician.
If toner escapes from the toner cartridge, make sure not to ingest the toner or allow it to directly touch your skin.
If toner touches your skin, wash it away with soap and water. If your skin still feels irritated after washing it, or
you ingest toner, consult a doctor immediately.
When discarding used toner cartridges, put the cartridges into a bag to prevent the toner remaining inside the
cartridges from scattering, and dispose of them in a location away from open ames.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Page 21
19
Telephone Equipment
When using telephone equipment incorporated into this machine, basic safety precautions should always be
followed to reduce the risk of re, electrical shock, or injury to persons, including the following:
1. Do not use this machine where there is a potential for contact with water or other liquid.
2. Do not use the telephone equipment during an electrical storm, as there may be a remote risk of electrical
shock from lightning.
3. Do not use the telephone equipment to report a gas leak in the vicinity of the leak.
Other Warnings
For cardiac pacemaker users:
This product emits low level magnetic ux. If you use a cardiac pacemaker and feel abnormalities, please move
away from the product and consult your doctor.
Page 22
20
Installation Location and
Handling
This section describes precautions for installation location and handling. We recommend that you read this section prior to
using this machine.
Installation Precautions
Avoid Installing the Machine in the Following Locations
Avoid locations subject to temperature and
humidity extremes, whether low or high.
For example, avoid installing the machine near water faucets,
hot water heaters, humidi ers, air conditioners, heaters, or
stoves.
Avoid installing the machine in direct sunlight.
If this is unavoidable, use curtains to shade the machine. Be
sure that the curtains do not block the machine's ventilation
slots or louvers, or interfere with the electrical cord or power
supply.
●
●
Avoid poorly ventilated locations.
This machine generates a slight amount of ozone etc. during
normal use. Although sensitivity to ozone etc. may vary, this
amount is not harmful. Ozone etc. may be more noticeable
during extended use or long production runs, especially in
poorly ventilated rooms. It is recommended that the room be
appropriately ventilated, su cient to maintain a comfortable
working environment, in areas of machine operation.
Avoid locations where a considerable amount of
dust accumulates.
Avoid locations where ammonia gas is emitted.
Avoid locations near volatile or ammable
materials, such as alcohol or paint thinner.
●
●
●
●
Page 23
21
Avoid locations that are subject to vibration.
For example, avoid installing the machine on unstable oors
or stands.
Avoid exposing the machine to rapid changes in
temperature.
If the room in which the machine is installed is cold but
rapidly heated, water droplets (condensation) may form inside
the machine. This may result in a noticeable degradation in
the quality of the copied image, the inability to properly scan
an original, or the copies having no printed image at all.
Avoid installing the machine near computers or
other precision electronic equipment.
Electrical interference and vibrations generated by the
machine during printing can adversely a ect the operation of
such equipment.
Avoid installing the machine near televisions,
radios, or similar electronic equipment.
The machine might interfere with sound and picture signal
reception.
Insert the power plug into a dedicated power outlet, and
maintain as much space as possible between the machine
and other electronic equipment.
Do not remove the machine's leveling feet.
Do not remove the machine's leveling feet after the machine
has been installed.
If you put weight on the front of the machine while the
drawers or units within the machine are pulled out, the
machine may fall forward. To prevent this from happening,
make sure that the machine's leveling feet are in place.
●
●
●
●
●
Select a Safe Power Supply
Plug the machine into a 120 V AC outlet.
Make sure that the power supply for the
machine is safe, and has a steady voltage.
Do not connect other electrical equipment to
the same power outlet to which the machine is
connected.
Do not connect the power cord to a multiplug
power strip, as this may cause a re or electrical
shock.
The power cord may become damaged if it is
stepped on, a xed with staples, or if heavy
objects are placed on it. Continued use of a
damaged power cord can lead to an accident,
such as a re or electrical shock.
The power cord should not be taut, as this
may lead to a loose connection and cause
overheating, which could result in a re.
If excessive stress is applied to the connection
part of the power cord, it may damage the
power cord or the wires inside the machine may
disconnect. This could result in a re. Avoid the
following situations:
Connecting and disconnecting the power cord
frequently.
Tripping over the power cord.
The power cord is bent near the connection part, and
continuous stress is being applied to the power outlet
or the connection part.
Applying excessive force on the power plug.
●
●
●
●
●
●
●
•
•
•
•
Page 24
22

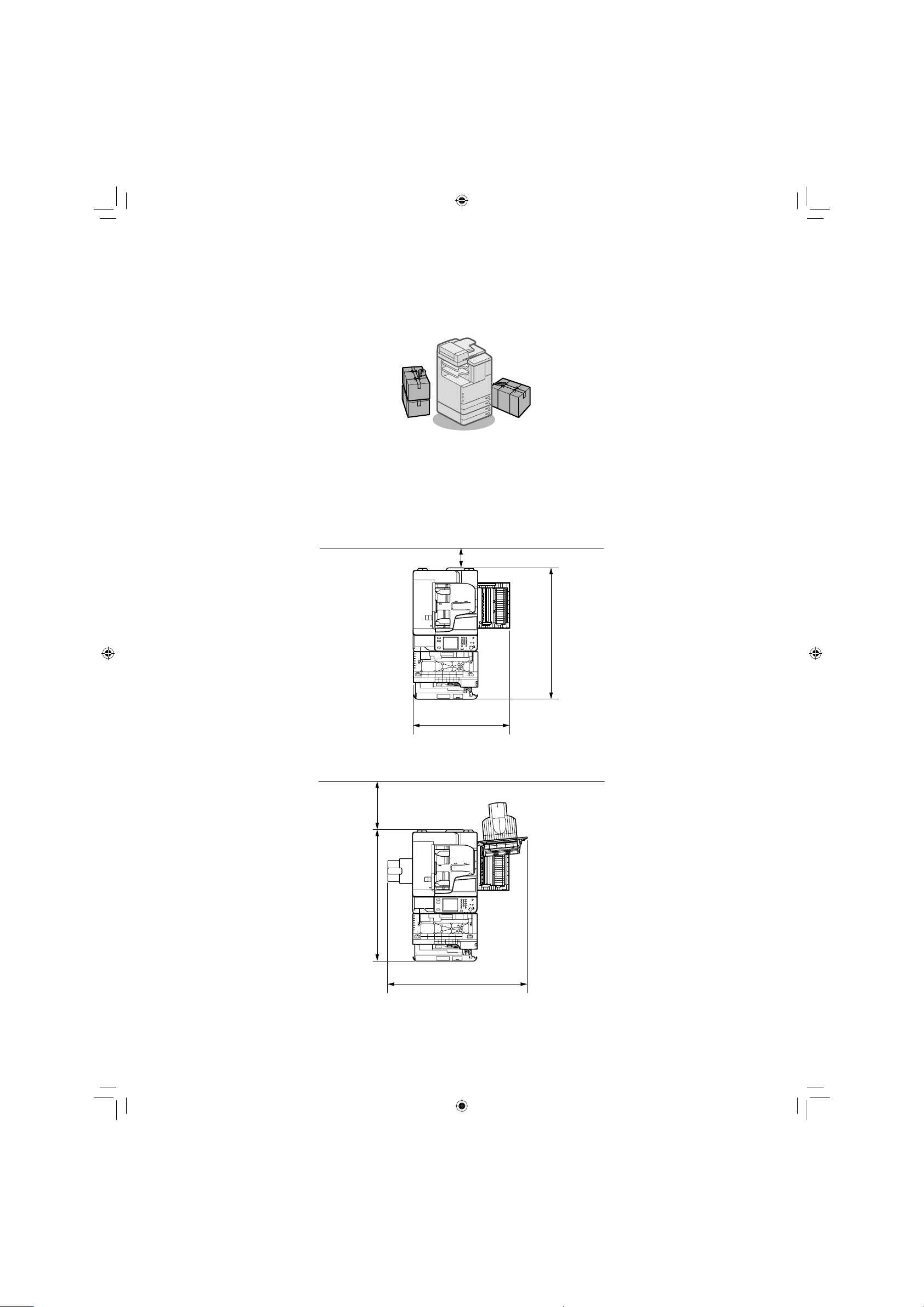

Moving the Machine
If you intend to move the machine, even to a location on the same oor of your building, contact your local
authorized Canon dealer beforehand. Do not attempt to move the machine yourself.
Provide Adequate Installation Space
Provide enough space on each side of the machine for unrestricted operation.
When no option is attached
4" (100 mm) or more
34"7/8 (884 mm)
44" 7/8 (1,139 mm)
When the Inner Finisher-C1 and Copy Tray-J1 are attached
●
●
●
44" 7/8 (1,139 mm)
10" (250 mm) or more
44" 3/4 (1,136 mm)
Page 25
23
Handling Precautions
Do not attempt to disassemble or modify the
machine.
Some parts inside the machine are subject to
high-voltages and temperatures. Take adequate
precautions when inspecting the inside of the
machine. Since it may result in unexpected
accidents or injuries, do not perform any
operation unless otherwise speci ed in the
manual.
Be careful not to spill liquid or drop any foreign
objects, such as paper clips or staples inside the
machine. If a foreign object comes into contact
with electrical parts inside the machine, it
might cause a short circuit and result in a re or
electrical shock.
If there is smoke, or unusual noise, immediately
turn the main power switch OFF, disconnect
the power cord from the power outlet, and
then call your local authorized Canon dealer.
Using the machine in this state may cause a re
or electrical shock. Also, avoid placing objects
around the power plug so that the machine can
be disconnected whenever necessary.
●
●
●
●
Do not turn the main power switch OFF or
open the front covers while the machine is in
operation. This may result in paper jams.
Do not use ammable sprays, such as spray glue,
near the machine. There is a danger of ignition.
This machine generates a slight amount
of ozone etc. during normal use. Although
sensitivity to ozone etc. may vary, this amount is
not harmful. Ozone etc. may be more noticeable
during extended use or long production runs,
especially in poorly ventilated rooms. It is
recommended that the room be appropriately
ventilated, su cient to maintain a comfortable
working environment, in areas of machine
operation.
For safety reasons, turn OFF the control panel
power switch of the machine when it will not
be used for a long period of time, such as
overnight. As an added safety measure, turn
OFF the main power switch, and disconnect the
power cord when the machine will not be used
for an extended period of time, such as during
consecutive holidays.
Use a modular cable that is shorter than 9' 10" (3
meters).
Use a USB cable that is shorter than 9' 10" (3
meters).
●
●
●
●
●
●
Page 26
24
Backing Up/Exporting Data
Various data such as the received data, address book, and Settings/Registration settings are stored in memory.
A malfunction in memory may cause these data to be lost. Please regularly back up/export your important data.
Please note that Canon will not be held responsible for any damages caused by the loss of data.
You can backup/export the following data:
Data You Can Back Up/Export References
Address Book See e-Manual > Remote UI
Device Settings
Settings/Registration Settings Information
Web Access Favorites
Printer Settings
Paper Information
Quick Menu Information See e-Manual > Quick Menu
Data relating to MEAP License les for MEAP applications See e-Manual > MEAP
Data saved from MEAP applications
*1
Instruction manuals for each MEAP application.
User authentication information registered for the Local Device
Authentication system of SSO-H (Single Sign-On H)
See e-Manual > MEAP
*1 You may be able to back up data stored by MEAP applications, depending on the application.
Also the passwords are backed up at the same time. However, some of the passwords may not be backed up, depending on
the type of the password.
If your machine is not connected to a network, it is recommended that you print and store important information such as the
Address Book. (See e-Manual > Basic Operations.)
•
•
NOTE
Page 27
25
Parts and Their Functions
This section provides you with the names and functions of all the parts on the outside and inside of the main unit and the
control panel.
An illustration of the machine with some optional products attached to it is also provided. For more information on optional
products, parts and their functions, see e-Manual > Optional Products/Software.

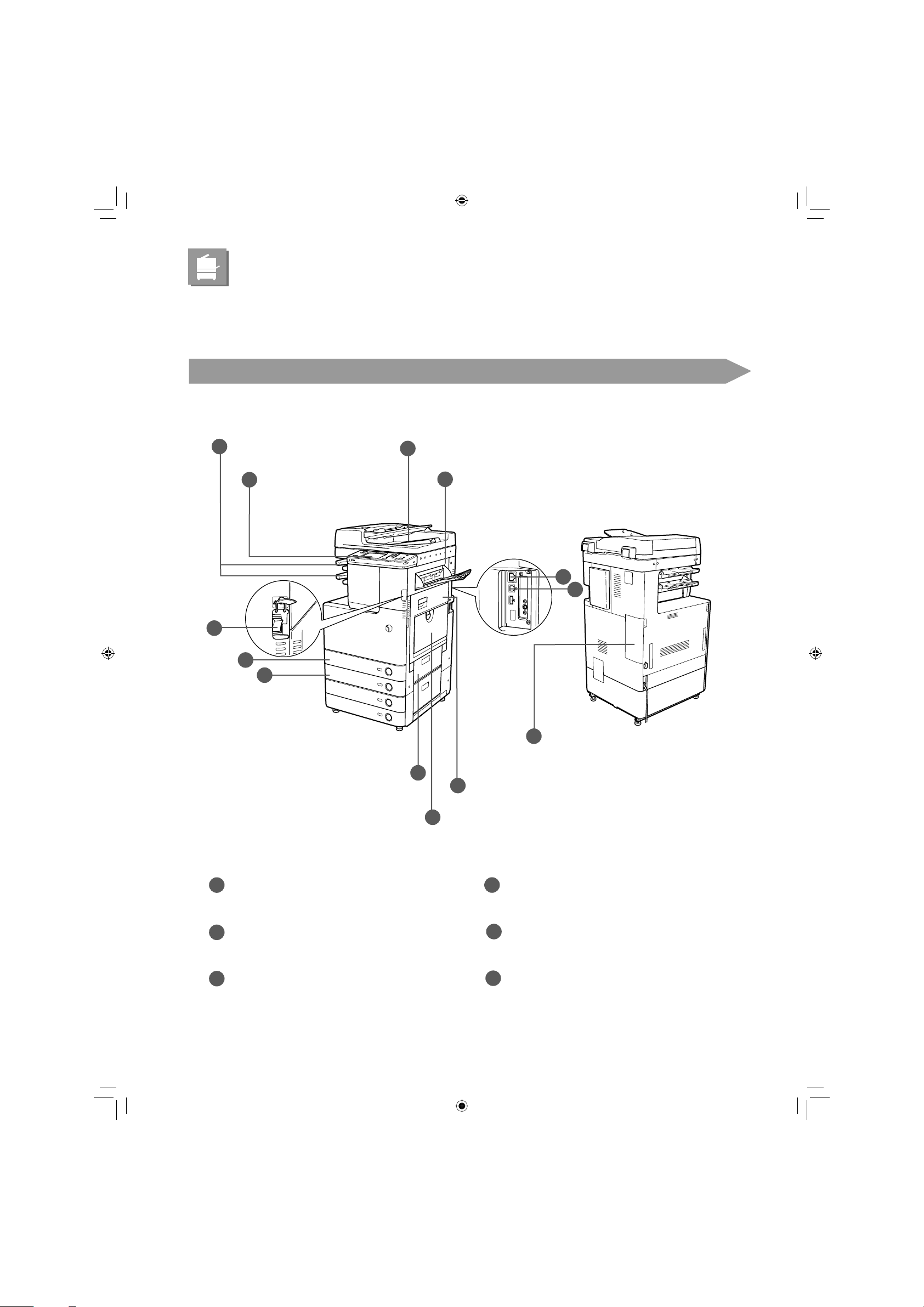

External View
When the Cassette Feeding Unit-AF1, Inner Finisher-C1, 3 Way Unit-C1, Inner
Finisher Additional Tray-A1, and Copy Tray-J1 Are Attached
Includes the keys, touch panel display,
and indicators required for operating
the machine.
Upper Right Cover of the Main Unit
Open this cover when clearing a paper jam inside the main unit.
4
Feeder
Originals placed in the feeder are fed one sheet at a time to the platen glass for scanning.
3
12
11
10
9
Multi-Purpose Tray
8
6
Waste Toner Container
Waste toner accumulates here.
13
Lower Right Cover of the Main Unit
Open this cover when clearing a paper jam inside the main unit.
7
5
Main Power Switch
Press to the "I" side to turn the power ON.
12
Paper Drawer 1
11
LAN Port (Ethernet Port)
Use an Ethernet cable to connect the machine to a network.
6
USB Port
5
Paper Drawer 2
10
Paper Drawer's Upper Right Cover
Open this cover when clearing a paper jam in Paper Drawers 1 and 2.
9
Control Panel
2
Output Tray
1
Prints and copies are output to this tray.
Use the multi-purpose tray to feed paper manually, and for loading
nonstandard paper stock, such as envelopes.
Holds up to 550 sheets of paper (20 lb bond (80 g/m)) or 680
sheets of paper (17 lb bond (64 g/m
)).
Holds up to 250 sheets of paper (20 lb bond (80 g/m)) or 270
sheets of paper (17 lb bond (64 g/m
)).
Use the USB port to connect external hard disks and other devices
to the machine. You can also connect the machine to a computer
using a USB cable.
Page 28
26

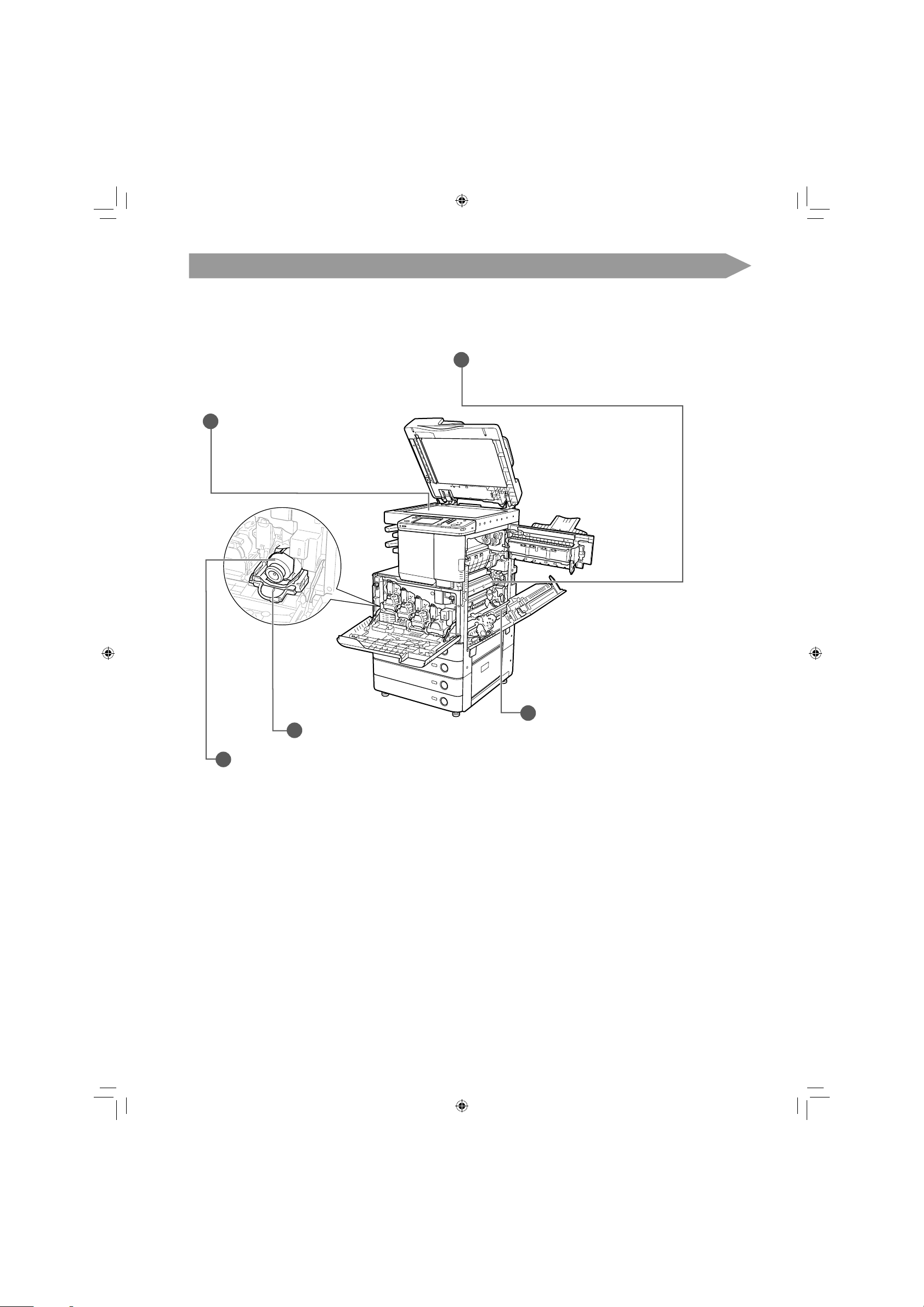

Internal View
When the Cassette Feeding Unit-AF1, Inner Finisher-C1, 3 Way Unit-C1, Inner
Finisher Additional Tray-A1, and Copy Tray-J1 Are Attached
Platen Glass
Fixing Unit's Upper Cover
Duplexing Unit
Pull out the duplexing unit to clear a paper jam.
Toner Replacement Cover
Open this cover to replace the toner cartridge.
Toner Cartridge
5
4
3
2
1
Use the platen glass when scanning books, thick
originals, thin originals, transparencies, etc.
When toner runs out, pull out the toner cartridge, and replace it with a
new one. Toner cartridges are sold separately (not standard equipment).
Open this cover to clear a paper jam in the xing unit.
Page 29
27

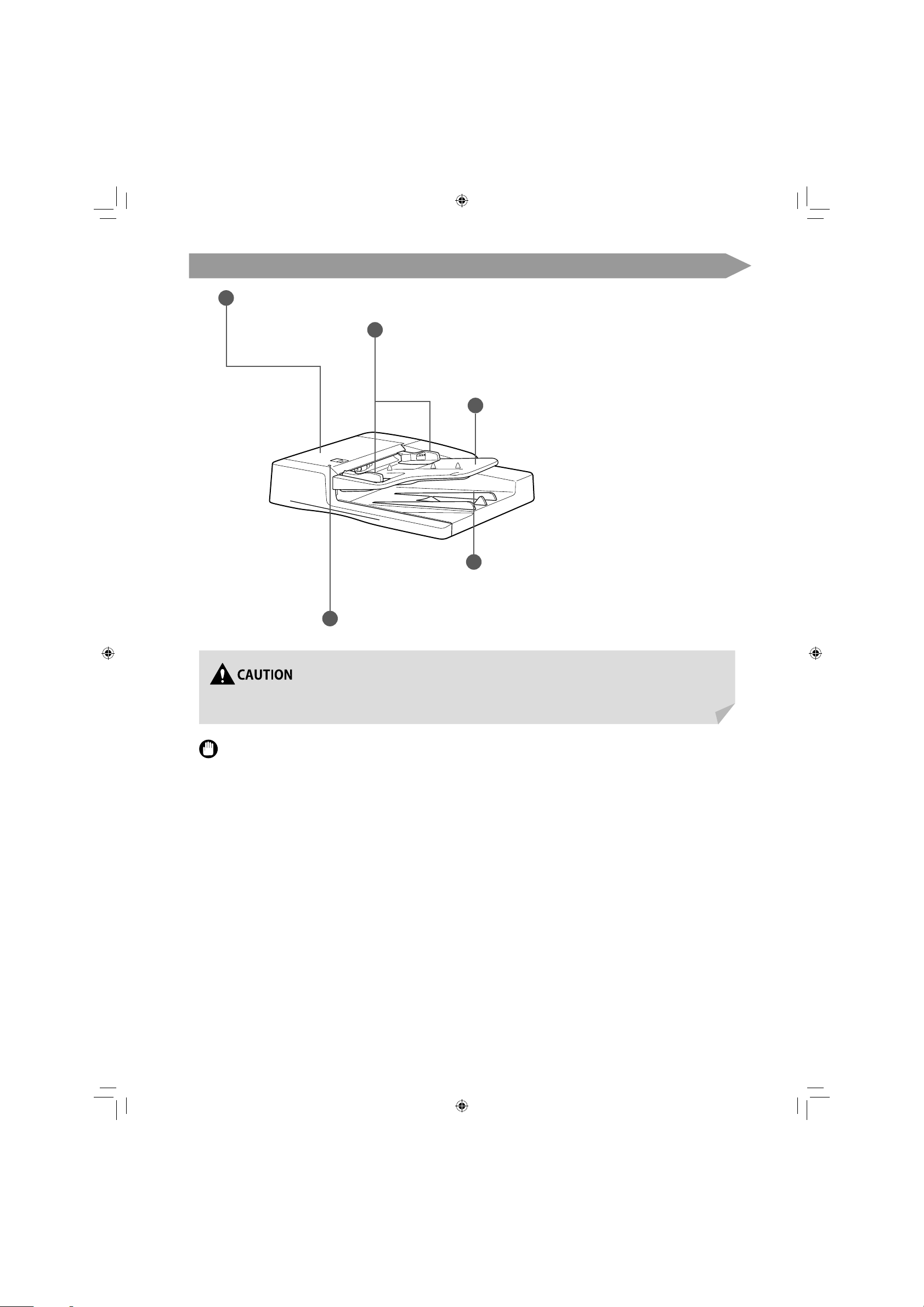

Feeder
Be careful not to get your ngers caught when using the feeder, as this may result in personal injury.
IMPORTANT
Be careful not to spill liquid or drop any foreign objects, such as paper clips or staples, into the feeder.
When using the platen glass to copy or scan thick originals, such as books or magazines, do not press down hard on the feeder.
If the original output tray for the feeder becomes blocked, it may result in damage to your originals. Do not place objects on
the original output tray.
•
•
•
1
Feeder Cover
Open this cover to remove jammed
originals.
2
Slide Guides
Adjust these guides to match the width of the original.
3
Original Supply Tray
Originals placed here are automatically fed sheet by sheet into the
feeder. Place originals into this tray with the surface that you want to
scan face up.
4
Original Output Area
Originals that have been scanned from the original supply tray are output
into the original output tray in the order that they are fed in the feeder.
5
Original Set Indicator
Lights when originals are placed in the original supply tray.
Page 30
28

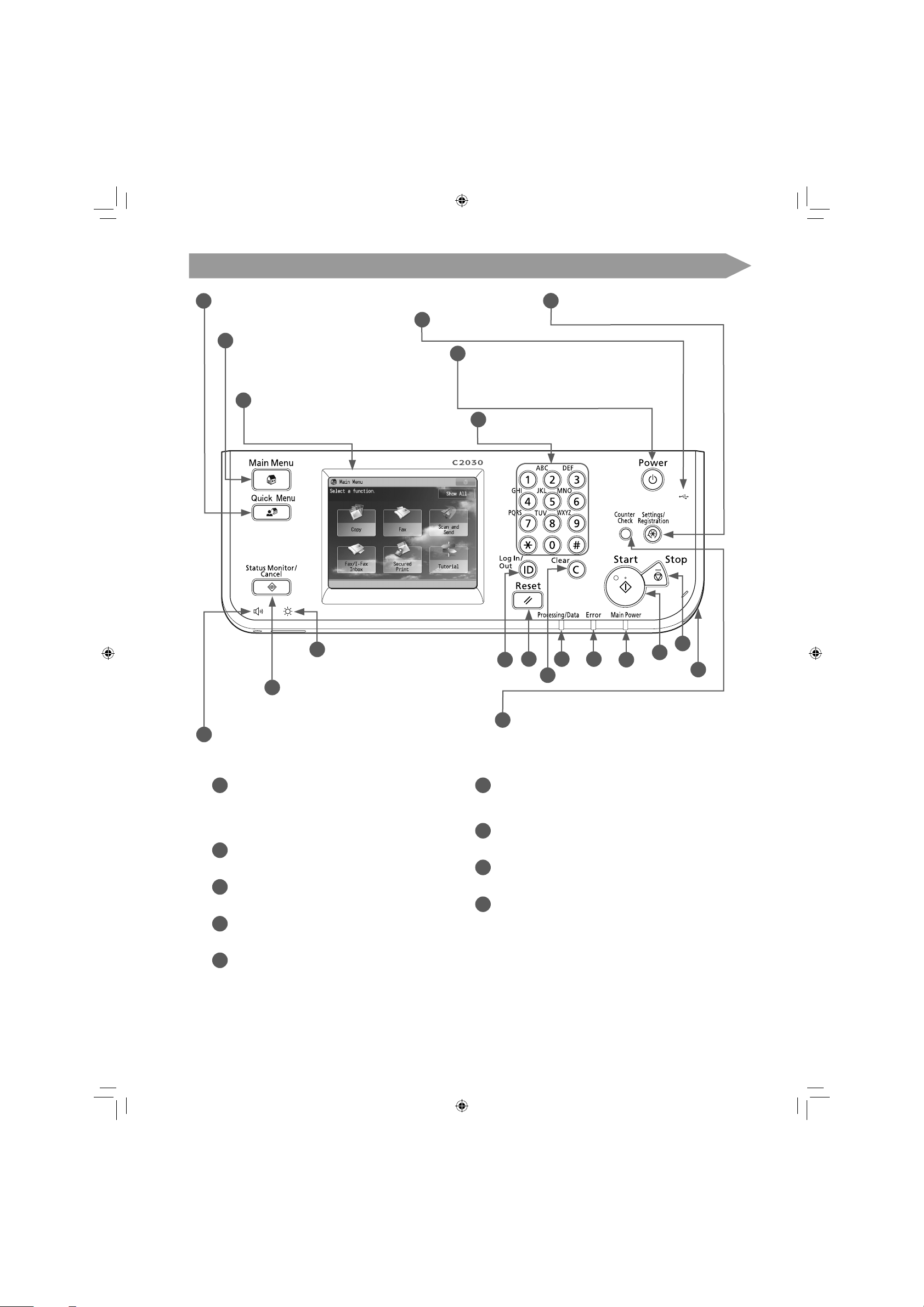

Control Panel Parts and Functions
Quick Menu key
Press to display registered functions.
Numeric keys
Press to enter numerical values.
Touch Panel Display
Main Menu key
USB Port
Use to connect memory media to the machine via USB.
Settings/Registration key
Press to specify settings/registration.
5
4
3
2
1
7
6
Counter Check key
Volume Settings Key
Status Monitor/Cancel key
Brightness Adjustment Dial
15
14 13
12
11
10
9
20
19
18
17
16
8
Edit Pen
Start key
Press to start an operation.
Stop key
Press to stop a job in progress.
Main Power Indicator
Lights when the main power is turned ON.
Error Indicator
Flashes or lights if there is an error in the machine.
9
10
11
12
13
Processing/Data Indicator
ID (Log In/Out) key
Press to log in/out when a login service is set.
Reset key
Press to restore the standard settings of the machine.
Clear key
Press to clear entered values or characters.
14
15
16
17
The settings screen for each function is shown on this display.
You can operate the machine by touching the screen.
Six function keys are displayed by default.
Press to set or cancel the Sleep mode.
For information on the Auto Sleep mode, see "Control Panel
Power Switch."
Press to display the copy and print count totals on the
touch panel display.
Use to adjust the brightness of the touch panel
display.
Flashes or blinks green when the machine is performing operations,
and maintains a steady green light when fax data is stored in memory.
Press to check the status of jobs or to cancel print jobs. Also,
press to check status of the machine, such as checking the
amount of paper remaining.
Press to display the screen for adjusting settings such as the transmission
volume and fax sending/receiving alarm volume.
Use when operating the touch panel display.
If you lose the edit pen, contact your local authorized Canon dealer. Do
not use an object with a sharp end on the control panel, such as a pencil
or ballpoint pen, in place of the edit pen.
Control Panel Power Switch
(Sub Power Supply)
Press to return to the Main Menu screen such as when
you want to switch functions.
Page 31
29
Main Power and Control Panel
Power
The machine is provided with two power switches, a main power switch and a control panel power switch.
How to Turn ON the Main Power
This section explains how to turn ON the main power.
IMPORTANT
If you want to turn OFF the main power and then back ON again, wait for at least 10 seconds after the main power indicator is
turned OFF before turning ON the main power.
1
Make sure that the power plug is rmly inserted into the power outlet.
Do not connect or disconnect the power cord with wet hands, as this may result in electrical shock.
Page 32
30

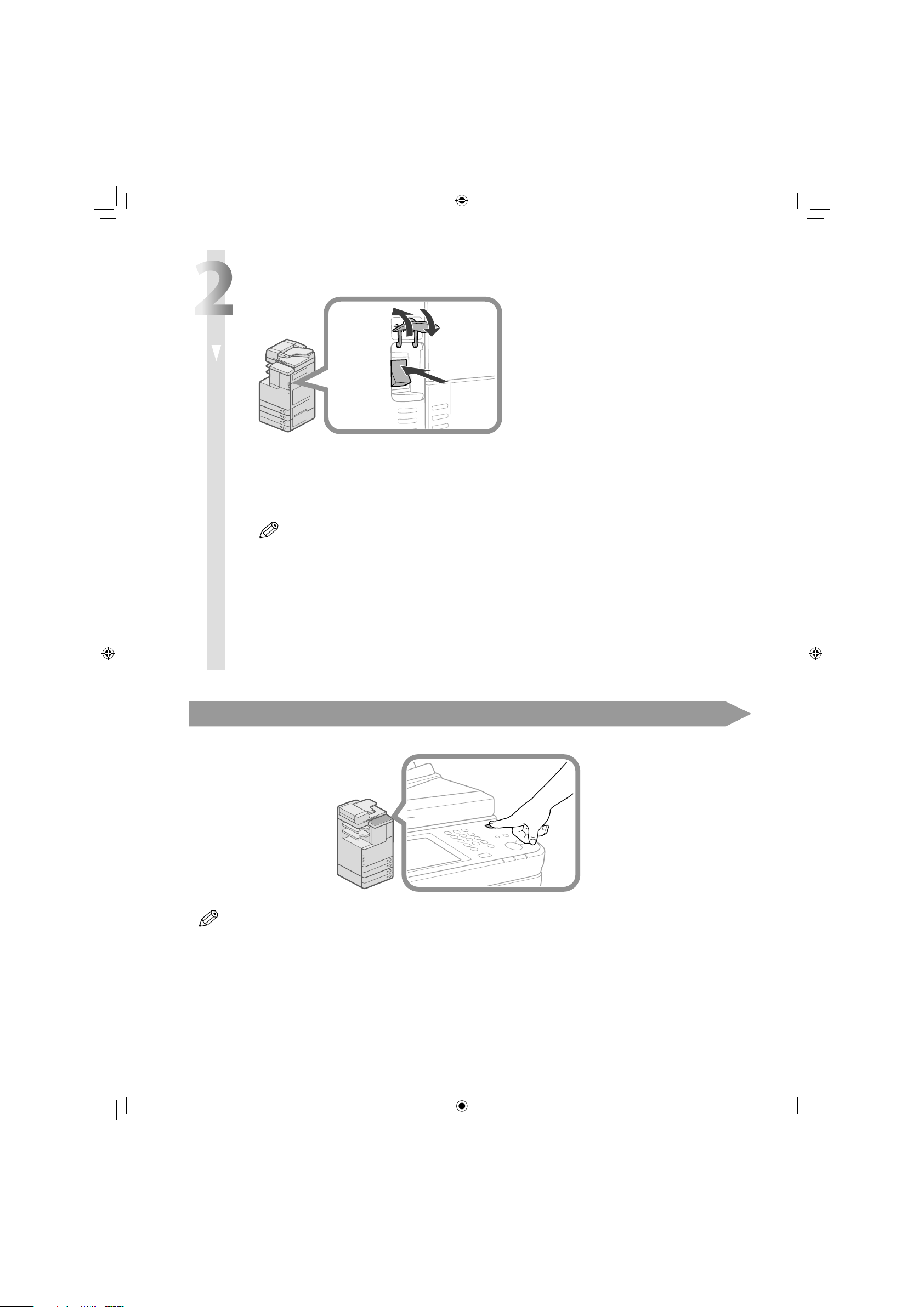

2
Turn ON the main power.
1
2
3
1. Open the main power switch cover.
2. Press the main power switch to the "I"
side.
3. Close the main power switch cover.
The main power indicator on the control panel lights when you turn ON the main power switch.
Various screens appear when system software is loading.
If you are using a login service, log in using the procedure for the login service you are using.
You can change the default display that appears after the machine is turned ON from [Default Screen at
Startup] on the Settings/Registration screen. (See e-Manual > Settings/Registration.)
If this machine is connected to a powered o Macintosh computer by USB cable, the computer may turn on
automatically when this machine does. In this case, disconnect the USB cable from the machine. You may also
be able to solve this problem by using a USB hub between the machine and the Macintosh.
If you are using Department ID Management with the Card Reader-C1, see e-Manual > Optional Products/
Software.
If you are using Department ID Management, see e-Manual > Basic Operations.
If you are using SSO-H, see e-Manual > Basic Operations.
•
•
•
•
•
Control Panel Power Switch
If the machine is idle for a certain period of time, the machine will enter the Auto Sleep mode to minimize energy consumption.
The machine can receive and print documents from a personal computer when it is in the Sleep mode. I-fax and fax documents
can also be received while the machine is in the Sleep mode.
("I" side)
NOTE
NOTE
Page 33
31
Shutting Down the Machine
This machine performs a procedure to protect memory when the machine is shut down.
This enables the machine to be shut down safely, even if there are any jobs being processed, or a MEAP application is running
while the machine is shutting down.
1

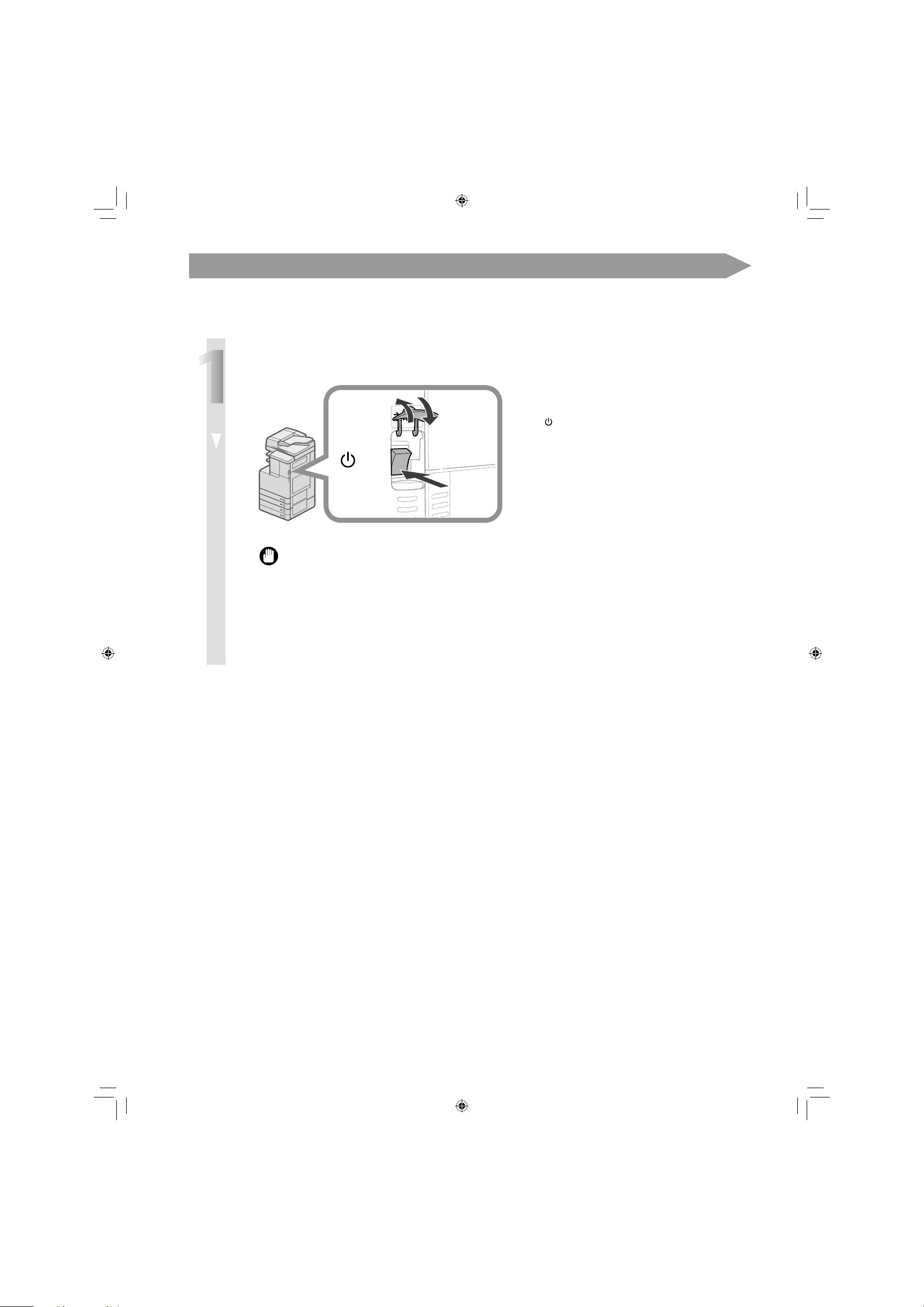

Turn OFF the main power.
1
2
3
(" " side)
1. Open the main power switch cover.
2. Press the main power switch to the
" " side.
3. Close the main power switch cover.
Do not turn the main power OFF if the Fax Board is installed. Sending or receiving I-fax or fax documents
cannot be done when the main power is turned OFF.
The machine may take some time to completely shutdown. Do not unplug the power cord until the main
power indicator of the machine is OFF.
If the main power is turned OFF during scanning or printing, a paper jam may occur.
•
•
•
IMPORTANT
Page 34
32
Speci cations
Speci cations are subject to change without notice for product improvement or future release.
Main Unit
Item Speci cations
Name Canon imageRUNNER ADVANCE C2030/C2020
Type Desktop
Color Supported Full Color
Resolution for Reading 600 x 600 dpi
Resolution for Writing 1,200 x 1,200 dpi
Number of Tones 256
Available Paper Paper Drawers:
Weight:
Paper Drawer 1: 17 to 32 lb bond (64 to 120 g/m)
Paper Drawer 2: 17 lb bond to 60 lb cover (64 to 163 g/m)
Type:
Paper Drawer 1:
Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m)), Plain 2 (22 to 26
lb bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m)), Recycled, Color, Pre-Punched,
Bond, and Heavy 1 (29 to 32 lb bond (106 to 120 g/m))
Paper Drawer 2:
Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m)), Plain 2 (22 to 26
lb bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m)), Recycled, Color, Pre-Punched,
Bond, Heavy 1 (29 to 32 lb bond (106 to 120 g/m)), Heavy 2 (33 lb bond to 60 lb cover (121 to 163
g/m)), Transparency, and Envelopes
Multi-Purpose Tray:
Weight:
17 lb bond to 80 lb cover (64 to 220 g/m)
Type:
Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m)), Plain 2 (22 to 26
lb bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m)), Recycled, Color, Pre-Punched,
Bond, Heavy 1 (29 to 32 lb bond (106 to 120 g/m)), Heavy 2 (33 lb bond to 60 lb cover (121 to 163
g/m)), Heavy 3 (61 to 80 lb cover (164 to 220 g/m)), Tracing, Coated, Labels, Transparency, and
Envelopes
Acceptable Originals Sheet, book, three dimensional objects (up to 2 kg)
Paper Sizes Paper Drawer 1:
11” x 17”, LGL, LTR, LTRR, EXEC, and Custom size (5 7/8” x 7 1/8” to 11 3/4" x 16 1/2” (148 mm x 182 mm
to 297 mm x 420 mm))
Paper Drawer 2:
12” x 18”, 11”x 17”, LGL, LTR, LTRR, STMTR, EXEC, Custom size (5 1/2” x 7 1/8” to 12” x 15 3/8” (140 mm x
182 mm to 304 mm x 457 mm)), and Envelopes (except for ISO-B5)
Multi-Purpose Tray:
12" x 18", 12 5/8" x 17 11/16", 11”x 17”, LGL, LTR, LTRR, STMTR, STMT, EXEC, Custom size (3 7/8” x 5 1/2”
to 12 5/8” x 18” (99 mm x 140 mm to 320 mm x 457 mm)), and Envelopes
Warm-Up Time After Powering ON: 38 seconds
Returning from the Sleep mode: 10 seconds
*Activation time may vary depending on the environment and conditions under which the machine is
being used. (At a room temperature of 68°F in all above cases.)
First Copy Time Full Color: 8.9 seconds
Black-and-White: 5.9 seconds
Page 35
33
Item Speci cations
Copy Speed
(Except when paper is fed from the
Multi-Purpose Tray)
1:1 (sheet/minute)
imageRUNNER ADVANCE C2030 imageRUNNER ADVANCE C2020
12” x 18” 14 14
11” x 17” 15 15
LGL 15 15
LT R 3 0 2 0
LTRR 20 20
STMTR 30 20
EXEC 30 20
Margin Top: 1/8” (4.0 mm)
Left and Right: 1/8” (2.5 mm)
Bottom: 1/8” (2.5 mm)
Magni cation Regular paper size Same Ratio
Direct
Reduction
1:0.78 (LGL → LTR)
1:0.73 (11" x 17" → LGL, 11" x 15" → LTR)
1:0.64 (11" x 17" → LTR)
1:0.50 (11" x 17" → STMT)
1:0.25
Enlargement
1:1.21 (LGL → 11" x 17")
1:1.29 (LTR → 11" x 17")
1:2.00 (STMT → 11" x 17")
1:4.00
Copy Ratio: 25 to 400% (in 1% increment)
Paper Feeding System/Capacity Paper Drawers:
Paper Drawer 1: 270 sheets (17 lb bond (64 g/m)), 250 sheets (20 lb bond (80 g/m))
Paper Drawer 2: 680 sheets (17 lb bond (64 g/m)), 550 sheets (20 lb bond (80 g/m))
Multi-Purpose Tray:
100 sheets (20 lb bond (80 g/m))
Multiple Copies 1 to 999 sheets
Power Source 120 - 127V AC, 60Hz, 7.5A
Power Consumption Maximum Power Consumption
1.5 kW
When the machine is in the Sleep mode:
1 W
Scanner (Platen Glass):
From the main unit/Approximately 21 W
Dimensions (H x W x D) 36 1/2” x 22 1/4” x 26 3/4” (928 mm x 565 mm x 680 mm)
Weight Approximately 192 lb (87 kg)
Installation Space (W x D) 33 1/4” x 26 3/4” (846 mm x 680 mm) (when the multi-purpose tray is extended)
Page 36
34
Feeder
Item Speci cations
Original Feeding Mechanism Automatic Document Feeder
Size and Weight of Originals 11" x 17", LGL, LTR, LTRR, and STMT:
13 to 32 lb bond (50 to 128 g/m)
Original Tray Capacity 50 sheets (20 lb bond (80 g/m))
Original Scanning Speed Copying:
1-sided scanning: 30 sheets/minute (LTR in Black-and-White/Full Color at 600 dpi)
Scanning:
1-sided scanning: 44 sheets/minute (LTR in Black-and-White/Full Color at 300 dpi)
Power Source/Consumption From the main unit/Approximately 32 W
Dimensions (H x W x D) 5 1/2" x 22 1/4" x 21 1/4" (140 mm x 565 mm x 540 mm)
Weight Approximately 17 lb (7.9 kg)
Cassette Feeding Unit-AF1
Item Speci cations
Paper Sizes 11” x 17”, LGL, LTR, LTRR, STMTR, 12” x 18”, EXEC, and Custom size (5 1/2” x 7 1/8” to 12” x 15 3/8” (140 mm x
182 mm to 304 mm x 457 mm))
Paper Drawers Capacity 550 sheets x 2 cassettes (20 lb bond (80 g/m))
680 sheets x 2 cassettes (17 lb bond (64 g/m))
Power Source/Maximum Power
Consumption
From the main unit/Approximately 30 W
Dimensions (H x W x D) 9 3/4” x 22 1/4” x 25 5/8” (248 mm x 565 mm x 650 mm)
Weight Approximately 61 lb (27.5 kg)
Envelope Feeder Attachment-D1
Item Speci cations
Acceptable Envelopes COM10 No.10, Monarch, DL, ISO-C5
Capacity 50 sheets (or 1 1/4" (30 mm) in height)
Feeding Speed Monarch, DL, ISO-C5: 12 cpm
COM10: 10 cpm
Dimensions (H x W x D) 3 1/4” x 17 1/4” x 12 1/8” (81 mm x 439 mm x 307 mm)
Weight Approximately 2.6 lb (1.2 kg)
Page 37
35
Inner Finisher-C1
Item Speci cations
Paper Size/Weight/Type Size:
12" x 18", 12 5/8" x 17 11/16", 11" x 17", LGL, LTR, LTRR, STMT, STMTR, EXEC, Custom size (3 7/8” x 5 1/2” to
12 5/8” x 18” (99 mm x 140 mm to 320 mm x 457 mm)), and Envelopes
Weig ht:
17 lb bond to 80 lb cover (64 to 220 g/m)
Type :
Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m)), Plain 2 (22 to 26 lb
bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m)), Recycled, Color, Pre-Punched, Bond,
Heavy 1 (29 to 32 lb bond (106 to 120 g/m)), Heavy 2 (33 lb bond to 60 lb cover (121 to 163 g/m)),
Heavy 3 (61 to 80 lb cover (164 to 220 g/m)), Tracing, Coated, Labels, Transparency, and Envelopes
Capacity Per Tray (Standard Tray) No Collating, Collate, Group mode:
LTR:
750 sheets (or 3 3/4” (94 mm) in height)
12" x 18", 12 5/8" x 17 11/16", 11” x 17”, LGL, and LTRR:
500 sheets (or 2 1/2” (62.5 mm) in height)
Collate + O set, Group + O set mode:
LTR:
750 sheets (or 3 3/4" (94 mm) in height)
11" x 17", LGL, and LTRR:
350 sheets (or 1 3/4" (44 mm) in height)
Staple mode:
LTR:
30 sets (or 3 3/4” (94 mm) in height)
11” x 17”, LGL, LTRR:
30 sets (or 1 3/4” (44 mm) in height)
No Collating, Collate, Group mode with di erent paper sizes:
350 sheets (or 1 3/4” (44 mm) in height)
Staple mode with di erent paper sizes:
30 sets (or 1 3/4” (44 mm) in height)
Capacity Per Tray (Inner Finisher
Additional Tray-A1)
No Collating, Collate, Group mode:
12" x 18", 12 5/8" x 17 11/16", 11" x 17", LGL, LTR, and LTRR:
100 sheets (or 1/2" (12.5 mm) in height)
Collate + O set, Group + O set mode:
11" x 17", LGL, LTR, and LTRR:
100 sheets (or 1/2" (12.5 mm) in height)
Staple mode:
11” x 17”, LGL, LTR, LTRR:
15 sets (or 3/8” (8.1 mm) in height)
No Collating, Collate, Group mode with di erent paper sizes:
100 sheets (or 1/2” (12.5 mm) in height)
Staple mode with di erent paper sizes:
15 sets (or 3/8” (8.1 mm) in height)
Page 38
36
Item Speci cations
Max. Stapling Capacity/Available
Staple Size
Corner Staple/Double Staple mode:
LTR:
50 sheets (Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m))
30 sheets (Plain 2 (22 to 26 lb bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m))
2 sheets (Heavy 1 (29 to 32 lb bond (106 to 120 g/m)), Heavy 2 (33 lb bond to 60 lb cover (121 to 163
g/m)), Heavy 3 (61 to 80 lb cover (164 to 220 g/m))
11” x 17”, LGL, LTRR:
30 sheets (Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m))
20 sheets (Plain 2 (22 to 26 lb bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m))
2 sheets (Heavy 1 (29 to 32 lb bond (106 to 120 g/m)), Heavy 2 (33 lb bond to 60 lb cover (121 to 163
g/m)), Heavy 3 (61 to 80 lb cover (164 to 220 g/m))
Power Source/Maximum Power
Consumption
From the main unit/Approximately 48 W
Dimensions (H x W x D) 10 1/4” x 27 1/2” x 21 1/4” (260 mm x 700 mm x 540 mm)
(when the auxiliary tray is extended)
Weight Approximately 31 lb (14.0 kg) (when the optional Inner Finisher Additional Tray-A1 is attached)
Installation Space Including the Main
Unit (W x D)
44 5/8” x 26 3/4” (1,133 mm x 680 mm)
(when the multi-purpose tray and the auxiliary tray are extended)
Inner Finisher Additional Tray-A1
Item Speci cations
Paper Size/Weight/Type See speci cation of "Paper Size/Weight/Type" in Inner Finisher-C1.
Capacity Per Tray See speci cation of "Capacity Per Tray (Inner Finisher Additional Tray-A1)" in Inner Finisher-C1.
Dimensions (H x W x D) 2 1/4" x 8 1/8" x 17 3/4" (57 mm x 207 mm x 450 mm)
Weight Approximately 3 lb (1.4 kg)
Page 39
37
Inner 2 Way Tray-F1
Item Speci cations
Paper Size/Weight/Type Size:
12" x 18", 12 5/8" x 17 11/16", 11" x 17", LGL, LTR, LTRR, STMT, STMTR, EXEC, Custom size (3 7/8” x 5 1/2” to
12 5/8” x 18” (99 mm x 140 mm to 320 mm x 457 mm)), and Envelopes
Weig ht:
17 lb bond to 80 lb cover (64 to 220 g/m)
Type :
Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m)), Plain 2 (22 to 26 lb
bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m)), Recycled, Color, Pre-Punched, Bond,
Heavy 1 (29 to 32 lb bond (106 to 120 g/m)), Heavy 2 (33 lb bond to 60 lb cover (121 to 163 g/m)),
Heavy 3 (61 to 80 lb cover (164 to 220 g/m)), Tracing, Coated, Labels, Transparency, and Envelopes
Capacity Per Tray Tray A:
LTR, STMT, and Envelopes
250 sheets (20 lb bond (80 g/m))
STMTR
150 sheets (20 lb bond (80 g/m))
12" x 18", 12 5/8" x 17 11/16", 11" x 17", LGL, LTRR, STMTR, EXEC, and Custom size (3 7/8” x 5 1/2” to 12
5/8” x 18” (99 mm x 140 mm to 320 mm x 457 mm))
100 sheets (20 lb bond (80 g/m))
Tray B:
12" x 18", 12 5/8" x 17 11/16", 11" x 17", LGL, LTR, LTRR, STMT, STMTR, EXEC, Custom size (3 7/8” x 5 1/2” to
12 5/8” x 18” (99 mm x 140 mm to 320 mm x 457 mm)), and Envelopes
100 sheets (20 lb bond (80 g/m))
Dimensions (H x W x D) 3” x 16 3/4” x 16” (76 mm x 426 mm x 407 mm)
Weight Approximately 1 lb (574 g)
Installation Space Including the Main
Unit (W x D)
33 1/4” x 26 3/4” (846 mm x 680 mm) (when the multi-purpose tray is extended)
Copy Tray-J1
Item Speci cations
Paper Size/Weight/Type Size:
11” x 17”, LGL, LTR, LTRR, STMTR, EXEC
Weig ht:
17 lb bond to 32 lb cover (64 to 120 g/m)
Type :
Thin (16 to 17 lb bond (60 to 64 g/m)), Plain 1 (18 to 21 lb bond (65 to 82 g/m)), Plain 2 (22 to 26 lb
bond (83 to 99 g/m)), Plain 3 (27 to 28 lb bond (100 to 105 g/m)), Recycled, Color, Pre-Punched, Bond,
and Heavy 1 (29 to 32 lb bond (106 to 120 g/m))
Capacity LTR, STMTR:
100 sheets (20 lb bond (80 g/m))
11” x 17”, LGL, LTRR, EXEC:
75 sheets (20 lb bond (80 g/m))
Dimensions (H x W x D) 5 5/8” x 14 3/8” x 14 5/8” (144 mm x 365 mm x 373 mm) (when the auxiliary tray is extended)
3 3/8” x 9 5/8” x 14 5/8” (87 mm x 243 mm x 373 mm) (when the auxiliary tray is not extended)
Weight Approximately 0.9 lb (438 g)
Installation Space Including the Main
Unit (W x D)
36 5/8” x 26 3/4” (930 mm x 680 mm) (when the auxiliary tray is extended)
Page 40
38
Card Reader-C1
Item Speci cations
Available Cards Magnetic
Card Readout Method Magnetic readout
Magnetic Card Reading Direction Face up
Store/Replay Replay
Power Source From the main unit
Dimensions (H x W x D) 1 1/4" x 3 1/2" x 3 7/8" (32 mm x 88 mm x 100 mm)
Weight Approximately 0.6 lb (295 g)
Super G3 FAX Board
NOTE
Speci cations remain the same even when the Super G3 2nd Line FAX Board is installed.
Item Speci cations
Telephone Line Used
*1
Public Switched Telephone Network
Scan Line Density (Scan, Transmission) Normal: 8 pels*/mm x 3.85 line/mm
Fine: 8 pels*/mm x 7.7 line/mm
Super-Fine: 8 pels*/mm x 15.4 line/mm
Ultra-Fine: 16 pels*/mm x 15.4 line/mm
Transmission Speed Super G3: 33.6 kbps, G3: 14.4 kbps
Compression Method MH, MR, MMR, JBIG
Transmission Type Super G3, G3
Sending Original Sizes 11" x 17" to STMT
Receiving Paper Sizes 11" x 17" to STMT
Transmission Times JBIG: Approximately 2.6 seconds
Auto Dial Function Address Book: 1,800 destinations (including destinations stored in one-touch buttons)
Image Memory Approximately 6,000 pages
*1 When using an IP telephone service, facsimile communication may not be performed normally via an IP telephone line. It is recommended to use
facsimile communication via a general telephone (Public Switched Telephone Network) line.
*2 Pels stands for picture elements (pixels).
Page 41
39
Send Function
Scan Features
Item Speci cations
Communication Protocol FTP (TCP/IP), SMB (TCP/IP), WebDAV
Data Format TIFF, JPEG, PDF, XPS
Resolution 100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600
dpi
System Environment Windows 2000 (SP1 or later), Windows XP, Windows Vista, Windows 7, Windows Server 2003, Windows Server
2008, Mac OS X, Red Hat Linux 7.2, Solaris Version 2.6 or later
Interface 1000BASE-T, 100BASE-TX, 10BASE-T
Color Mode Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White), Full Color,
Grayscale, Black-and-White
Original Type Text, Text/Photo, Photo
Other Preview, Browse Windows (SMB) File Server
Optional PDF/XPS Functions PDF Compact, Trace and Smooth, Encryption, OCR, Device Signature, User Signature,
Optimization for Web*, PDF/A-1b, Reader Extensions, Policy
XPS Compact, OCR, Device Signature, User Signature
*1 PDF les optimized for Web viewing.
E-Mail and I-Fax Features
Item Speci cations
Communication Protocol SMTP, POP3
I-Fax Communication Mode Simple, Full
Resolution For Sending E-mail 100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi,
400 x 400 dpi, 600 x 600 dpi
For Sending I-Fax
(Black-and-White)
200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi
*1
, 300 x 300 dpi*1, 400 x 400 dpi*1, 600 x 600
dpi
*1
Format E-mail TIFF, JPEG, PDF, XPS
I-Fax
(Black-and-White)
TIFF (MH, MR
*1
, MMR*1)
Original Size E-mail 11”x 17”, LGL, LTR, LTRR, STMT, STMTR
I-Fax 11”x 17”, LGL
*2
, LTR, LTRR, STMT*2, STMTR
*2
Server Software Microsoft Exchange Server 2000 (SP3), Windows Server 2003 (SMTP Server), Sendmail 8.12.8, Lotus Domino R6.5
Other Searches a destination via the LDAP Server, Preview
Optional PDF/XPS Functions
(E-mail only)
PDF Compact, Trace and Smooth, Encryption, OCR, Device Signature, User Signature,
Optimization for Web
*3
, PDF/A-1b, Reader Extensions, Policy
XPS Compact, OCR, Device Signature, User Signature
*1 Available after setting RX conditions of the destination.
*2 Sent as LTR.
*3 PDF les optimized for Web viewing.
●
●
Page 42
40
Network Environment
Hardware Speci cations
Network Interface 10Base-T/100Base-TX/1000Base-T (RJ-45)
Software Speci cations
Protocol Supported
TCP/IP Frame type: Ethernet II
Print applications: LPD/Raw/IPP/IPPS/FTP/WSD
IPX/SPX Frame type: Ethernet II/Ethernet 802.2/Ethernet 802.3/Ethernet SNAP/Auto Detect
Print applications: Bindery PServer/NDS PServer/RPrinter/NPrinter
SMB/CIFS Frame type: Ethernet II
Print application: SMB
AppleTalk Frame type: Ethernet SNAP
Print application: PAP (Printer Access Protocol)
Printer Settings
Software Speci cations
Command Language PCL5e, PCL6, PostScript 3
Resident Fonts PCL: 93 Scalable fonts, 2 OCR fonts, and 10 Bitmap fonts
PS: 138 Scalable fonts
Printable Area PCL5e, PCL6: Reduced to 1/6” (4.23 mm) from the top, bottom, left, and right edges of the paper.
PostScript 3: Reduced to 1/6” (4 mm) from the top, bottom, left, and right edges of the paper.
Page 43
41
CANON imageRUNNER ADVANCE C2030/C2020 SERIES
LIMITED WARRANTY
Canon U.S.A., Inc. or Canon Canada Inc. (as applicable, "Canon") warrants the imageRUNNER ADVANCE C2030/C2020 Series product and
Canon brand options designed for use with the imageRUNNER product (collectively the "Product") to be free from defects in workmanship and
materials under normal use and service for a period of 90 days after delivery to the original purchaser ("Purchaser") or 30,000 prints or copies
(or a combination of both), whichever comes first. During such warranty period, Canon shall replace, without charge, any defective part with
a new or comparable rebuilt part. This warranty shall not extend to consumables such as paper, chemicals, and toner as to which there shall
be no warranty or replacement. Warranty replacement shall not extend the original warranty period of the Product.
This limited warranty shall only apply if the Product is used in conjunction with compatible computers, peripheral equipment and software.
Canon shall have no responsibility for such items except for compatible Canon brand peripheral equipment covered by a separate warranty
("Separate Warranty"). Repairs of such Canon brand peripheral equipment shall be governed by the terms of the Separate Warranty.
Non-Canon brand equipment that may be distributed with the Product is sold "AS IS" and without warranty of any kind by Canon, including any
implied warranty regarding merchantability or fitness for a particular purpose, and all such warranties are disclaimed. The sole warranty, if any,
with respect to such non-Canon brand items is given by the supplier or producer thereof. For further information on software, see below.
This warranty shall be void and of no force and effect if the Product is damaged as a result of (a) abuse, neglect, mishandling, alteration,
electric current fluctuation or accident, (b) improper use, including failure to follow operating or maintenance instructions or environmental
conditions prescribed in Canon's operator's manual or other documentation, (c) installation or repair by other than authorized service
representatives qualified by Canon who are acting in accordance with Canon's service bulletins, (d) use of supplies or parts (other than those
distributed by Canon) which damage the Product or cause abnormally frequent service calls or service problems, or (e) use of the Product with
non-compatible computers, peripheral equipment or software, including the use of the Product in any system configuration not recommended
in any manual distributed with the Product. Nor does this warranty extend to any Product on which the original identification marks or serial
numbers have been defaced, removed, or altered.
ANY SOFTWARE THAT IS DISTRIBUTED WITH THE PRODUCT AND HAS AN ASSOCIATED END USER AGREEMENT IS LICENSED,
WARRANTED AND PROVIDED ACCORDING TO THE TERMS OF THAT AGREEMENT, INCLUDING ANY LIMITATIONS AND
DISCLAIMERS THEREIN. SUCH SOFTWARE IS SOLD WITHOUT WARRANTY OF ANY KIND BY CANON. PLEASE CONTACT CANON
IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE SUPPLIER'S END USER AGREEMENT. CANON
RECOMMENDS THAT DATA STORED ON THE PRODUCT'S HARD DISK DRIVE BE DUPLICATED OR BACKED UP TO PREVENT ITS
LOSS IN THE EVENT OF FAILURE OR OTHER MALFUNCTION OF THE HARD DISK DRIVE.
THE ABOVE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTIES AND CONDITIONS REGARDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
RELATING TO THE USE OR PERFORMANCE OF A PRODUCT OR ANY ASSOCIATED COMPONENT, AND ALL SUCH OTHER
WARRANTIES AND CONDITIONS ARE DISCLAIMED. NO OTHER EXPRESS WARRANTY, CONDITION OR GUARANTY, EXCEPT AS
MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THE PRODUCT SHALL BIND CANON
ANY SUPPLIER OR ANY AUTHORIZED SERVICE PROVIDER. NO WARRANTY IS GIVEN ON ANY USED PRODUCT.
THE SOFTWARE EMBEDDED IN THE PRODUCT AND USED TO CONTROL ITS FEATURES IS OWNED BY CANON INC. AND/OR
OTHER THIRD PARTIES AND IS LICENSED UNDER THE THIRD PARTY SOFTWARE TERMS AND CONDITIONS STATED
ELSEWHERE IN THIS MANUAL. ANY DEFECT IN SUCH EMBEDDED SOFTWARE THAT MATERIALLY IMPAIRS A FEATURE OF THE
PRODUCT DOCUMENTED IN THIS USER MANUAL WILL BE COVERED BY THE ABOVE WARRANTY THAT THE PRODUCT IS FREE
FROM DEFECTS IN MATERIAL AND WORKMANSHIP; NO OTHER WARRANTY APPLIES TO THIS SOFTWARE, AND ALL DISCLAIMER
AND LIMITATION PROVISIONS AS SET FORTH BELOW APPLY TO THIS SOFTWARE.
NEITHER CANON OR ITS SUPPLIERS NOR ANY AUTHORIZED SERVICE PROVIDER SHALL BE LIABLE FOR PERSONAL INJURY OR
PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY AUTHORIZED
SERVICE PROVIDER), LOSS OF REVENUE OR PROFIT, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, EXPENDITURES
FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF DATA, INCLUDING, WITHOUT LIMITATION, DATA
STORED ON THE PRODUCT'S HARD DISK DRIVE, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON
WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ITS SUPPLIERS OR ANY AUTHORIZED SERVICE PROVIDER HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON OR ITS SUPPLIERS
OR ANY AUTHORIZED SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING
THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR
LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS ARISING OUT OF THE POSSESSION,
USE, MISUSE, OR INABILITY TO USE THE PRODUCT NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR
ANY AUTHORIZED SERVICE PROVIDER. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THE PRODUCT AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY.
CONDITIONS OF WARRANTY
Defective parts must be returned to Canon or an Authorized Service Provider with all necessary documentation and will become the property
of Canon.
THIS WARRANTY APPLIES TO PRODUCTS SOLD AND USED IN THE U.S.A. AND CANADA ONLY.
Page 44
42

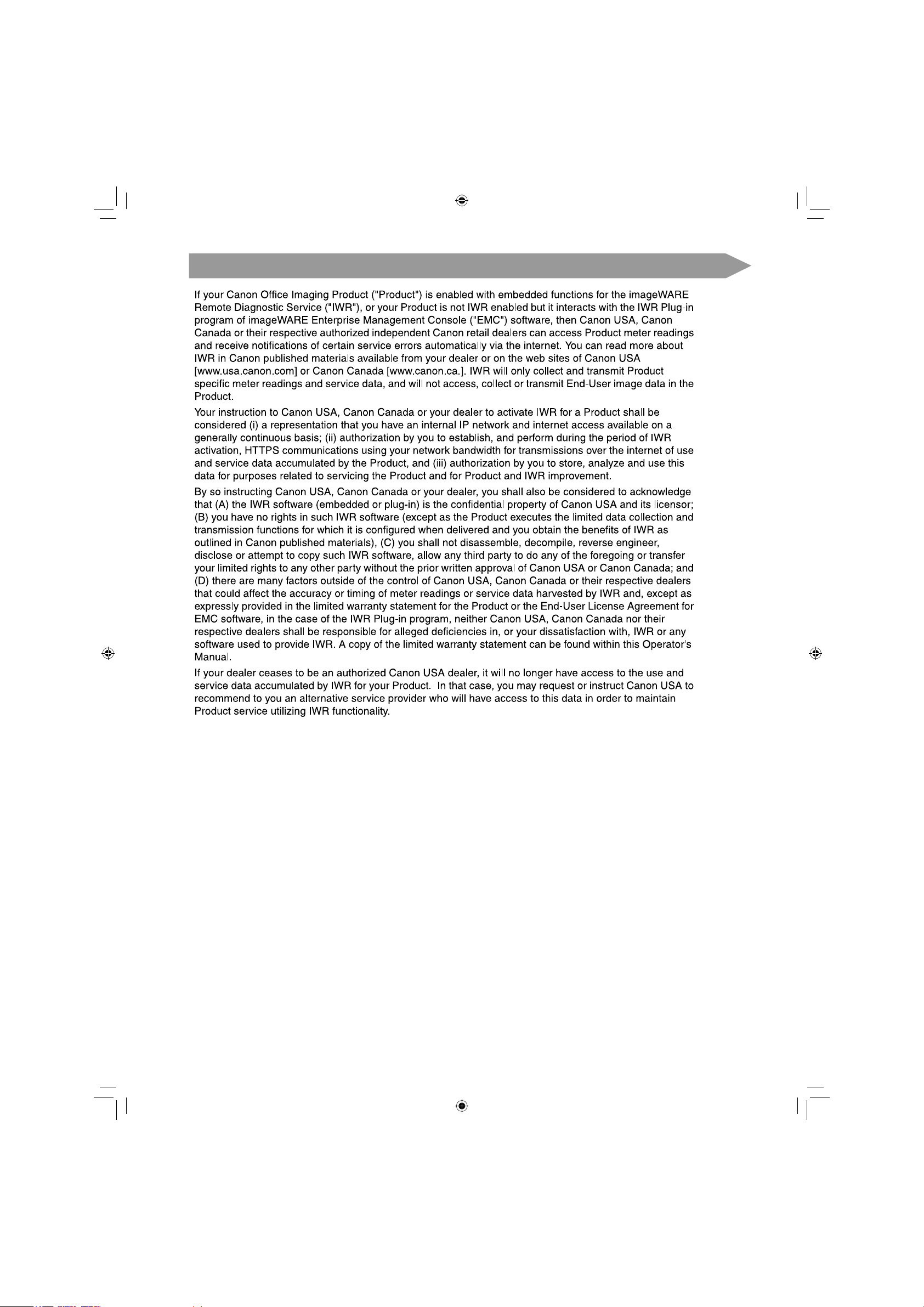

TERMS OF imageWARE REMOTE SERVICE
å å å
å å å
å å å å å
å å å
å å å
å å å å å å
å å å å å
å å å å å å
å å å
å å å å
å å å å å å å
å å
å å å å
å å å å
å å å
å å
å å
å å å
å å å å å å
å
å å å å
å å å
å åå å å å å
Page 45
43
TERMS OF Content Delivery System
If the Content Delivery System (CDS) Service is enabled for your Canon Office Imaging Product ("Product"), Canon USA, Canon Canada or their
respective authorized independent Canon retail dealers (each a “Canon Seller”) can arrange internet-based downloads for purposes of updating
firmware, delivering purchased MEAP application software and activation of optional Product features. Certain related data files also may be
downloaded (e.g. End-User License Agreements, conditions of export, Release Notes) to your Product. The internet communications will occur
between the Product and one or more servers managed by Canon Inc. (“Canon Server”). CDS Service will not download the firmware, software
or data files for purposes other than mentioned above.
You can read more about CDS Service in Canon published materials available from your dealer or on the web sites of Canon USA
[www.usa.canon.com] or Canon Canada [www.canon.ca.]. These materials include a Technology White Paper for the CDS Service.
Your instruction to Canon USA, Canon Canada or your dealer to use CDS Service or your use of CDS Service for a Product shall be considered
(i) a representation that you have an internal IP network and internet access available to Products connected to that network on a generally
continuous basis;
(ii) a representation that you have an internet connection and internal network bandwidth available for the Canon Server to download files to
each of the Products receiving the CDS Service. Downloaded files may vary in size; some will be on the order of several hundred MB. The CDS
Service Technology White Paper contains further details.
(iii) authorization by you for the Canon Seller to establish, and perform during the period of provision of Service, HTTPS/HTTP communications
using your internet and internal network bandwidth for transmissions to and from the CDS Server;
(iv) authorization by you for the Product itself or a Canon serviceperson to download or update firmware and purchased MEAP application
software, data for internet-based activation of optional Product features and certain related data files to Product from the CDS Server, and to
transmit service data (e.g. serial number, information of firmware) of Product to the CDS Server.
You acknowledge and agree that the Canon Seller and CDS Server may rely on internet addresses you assign to Products and that using the
internet has benefits but also certain risks; ACCORDINGLY, YOU AGREE THAT THE CDS SERVICE IS PROVIDED WITHOUT WARRANTY OF
ANY KIND, THAT ANY WARRANTIES ARE DISCLAIMED AND THAT NO CANON SELLER OR CANON AFFILIATE IS RESPONSIBLE FOR
ANY INJURY TO YOUR NETWORK OR TO DATA OR DEVICES NOT SUPPLIED BY A CANON SELLER. You will be responsible for network
security and any data back-up. You will timely advise the Canon Seller of any security procedures the Canon Seller will need to use to provide
CDS Services as described herein.
To the extent downloads involve presenting end user license terms on your network or network-connected Products (with a Canon Seller, Canon
affiliate or a third party as licensor) seeking agreement to such terms, any party that you allow to respond to presented license terms will be and
is authorized by you to agree (or not agree) to the terms; if license terms are not agreed, a license purchased will not be enabled and you may
apply for refund of any license fees paid.
You acknowledge and agree that the firmware provided by the CDS Service is governed by the Third Party Software terms set forth in this
manual.
Page 46
44

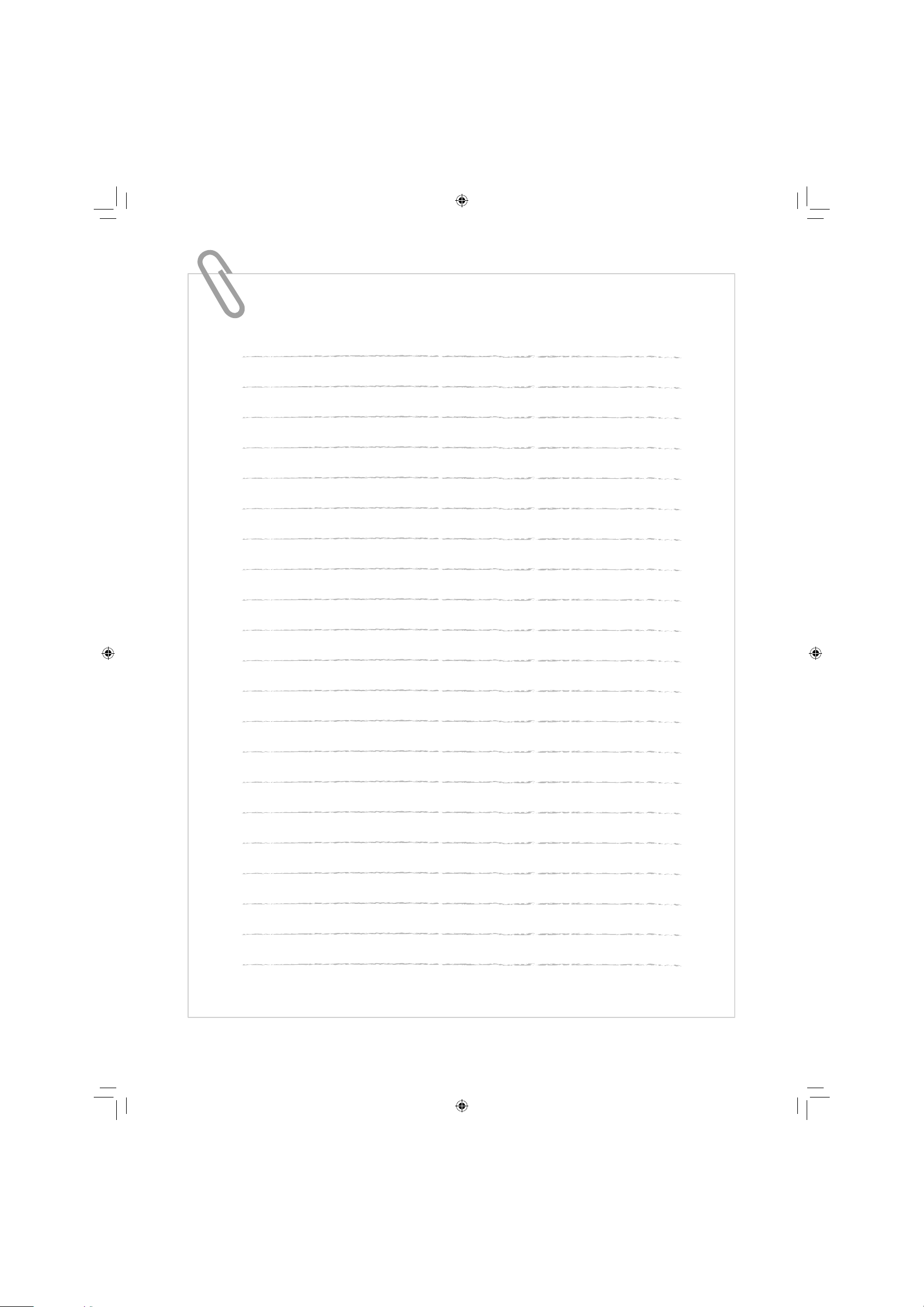

MEMO
Page 47
