Thank you for purchasing a Canon projector.
The 4K600STZ Multimedia Projector is a high-performance laser projector
capable of projecting high-resolution computer screens and high-quality
digital images on a large screen.
This Manual
This is the user’s manual for the 4K600STZ Multimedia Projector (hereafter,
“projector”). The “Basic Guide” section describes installation and basic use of the
projector. Descriptions of menus and how to connect the projector to a network are
given in the “Advanced Guide” section. Read this manual thoroughly to make the
most of your projector. Installation of the projector should be performed by a
qualified technician, if possible. Contact the Canon Customer Support Center for
further information.

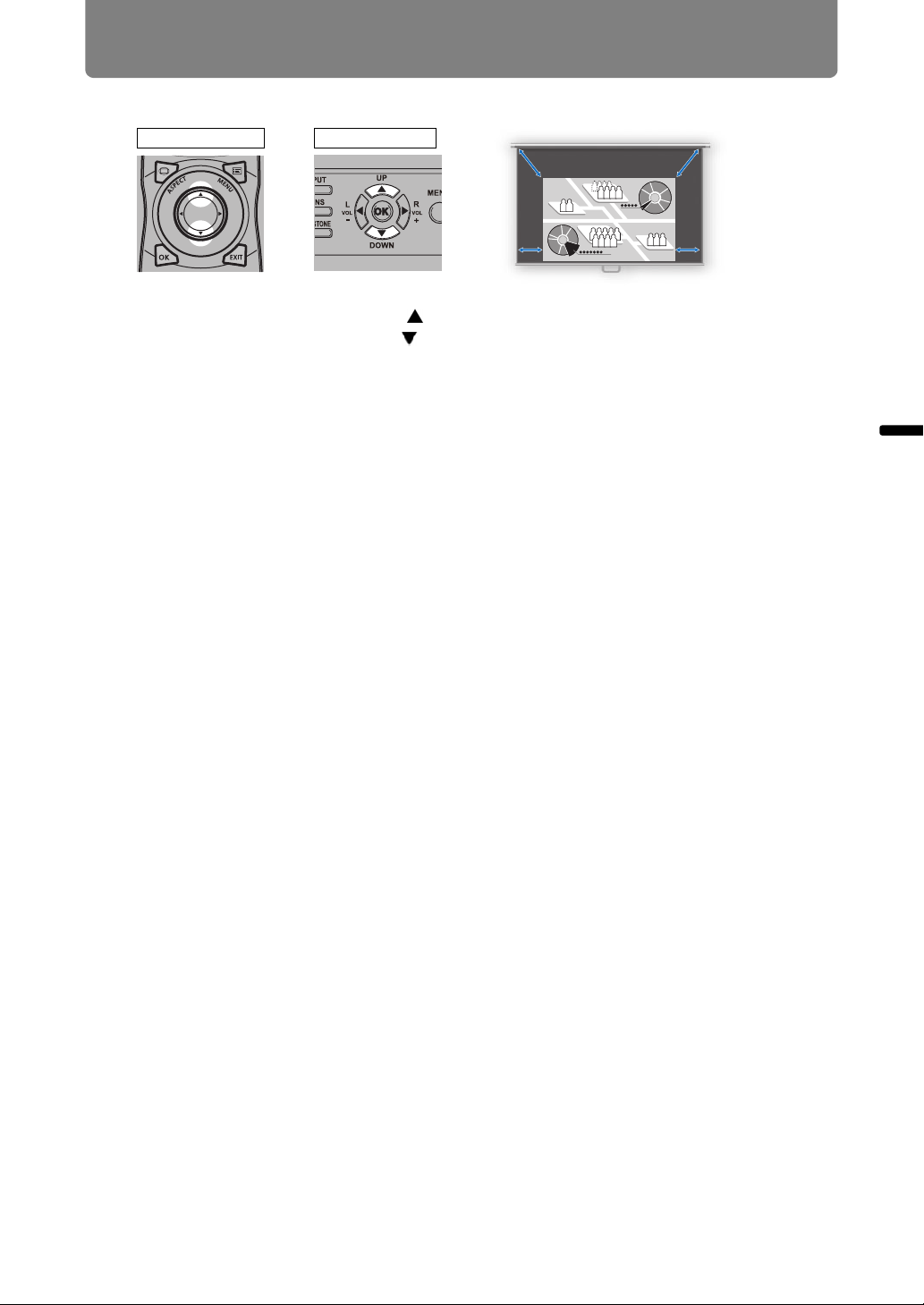

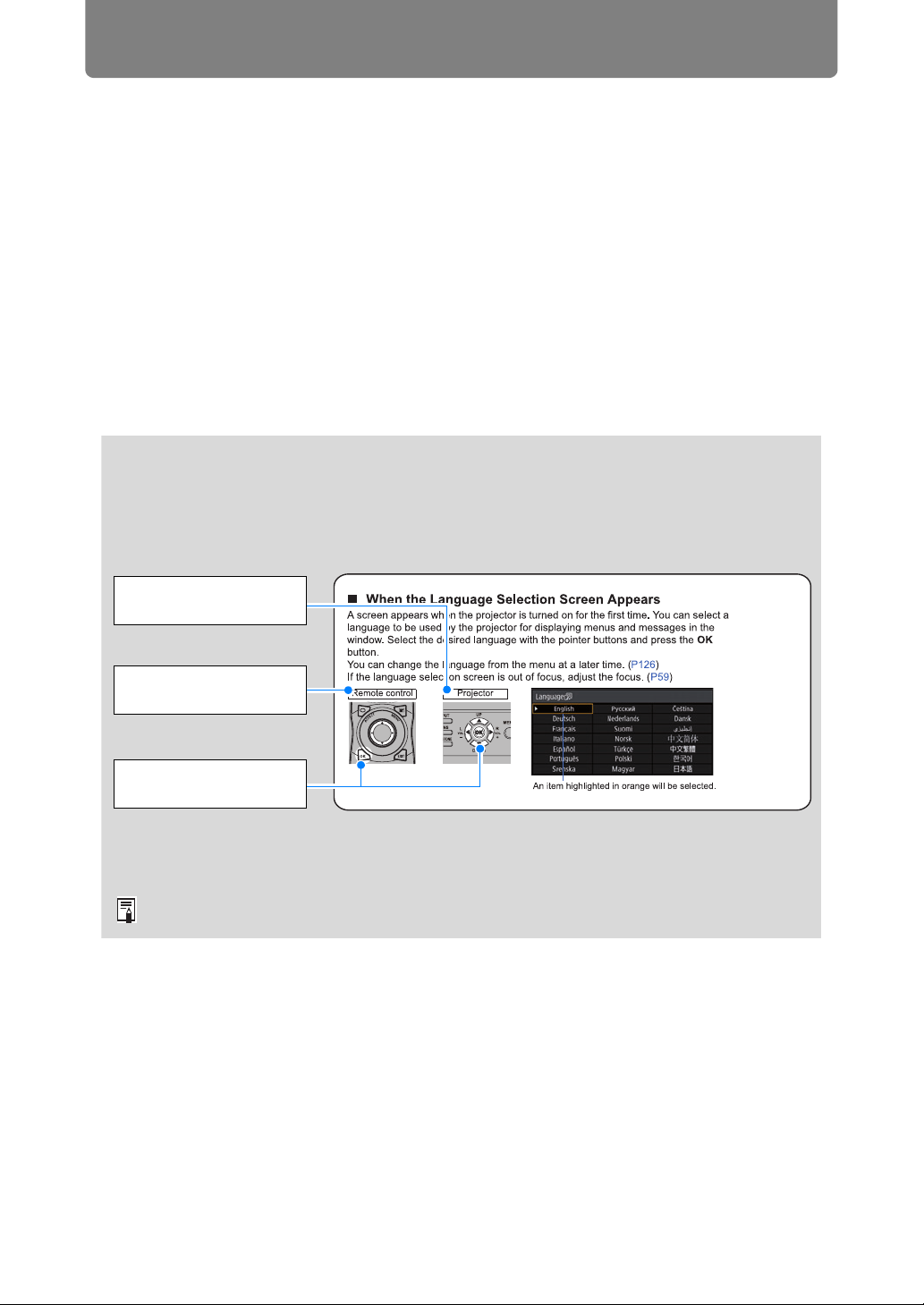

Symbols of Button Operations

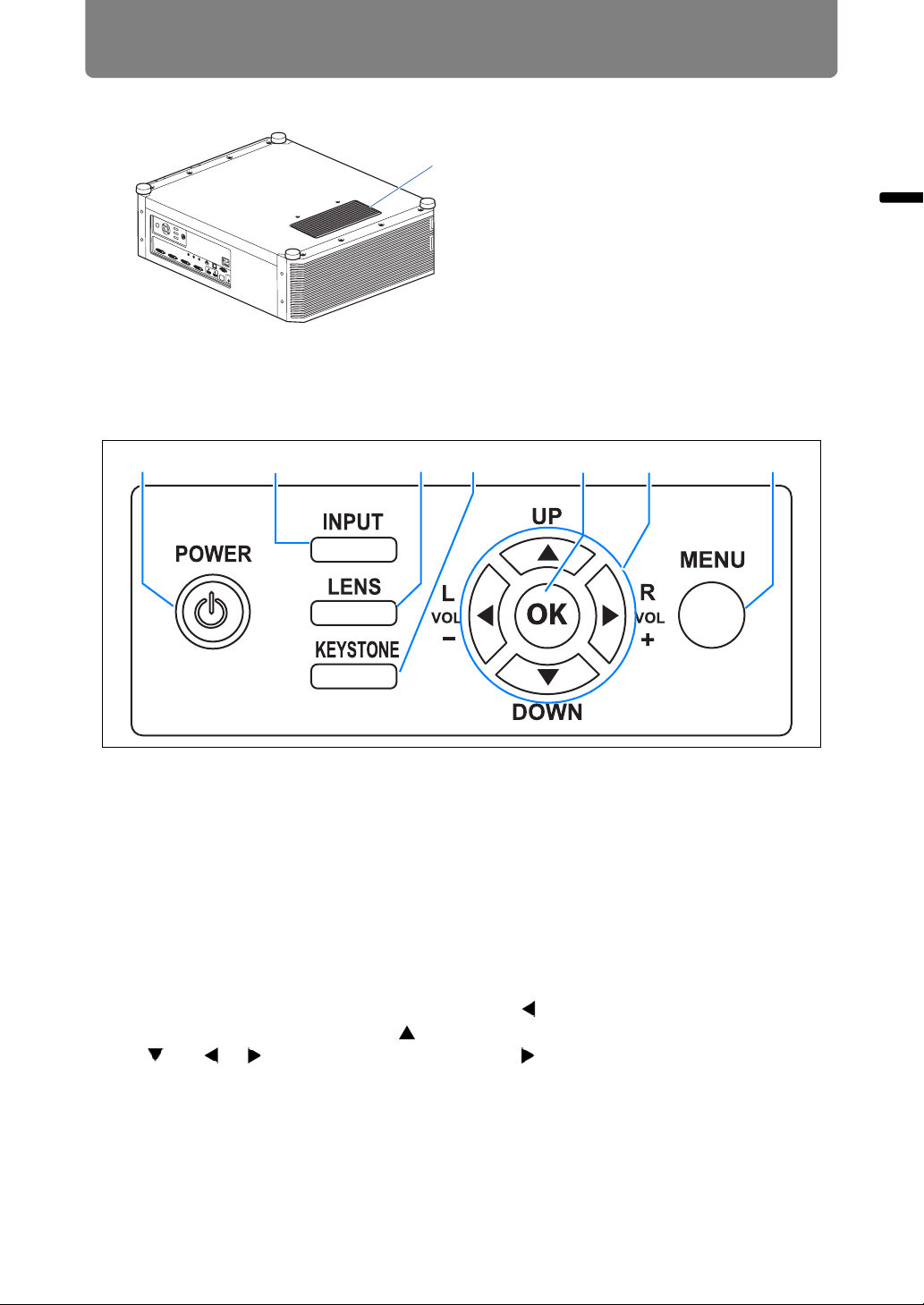

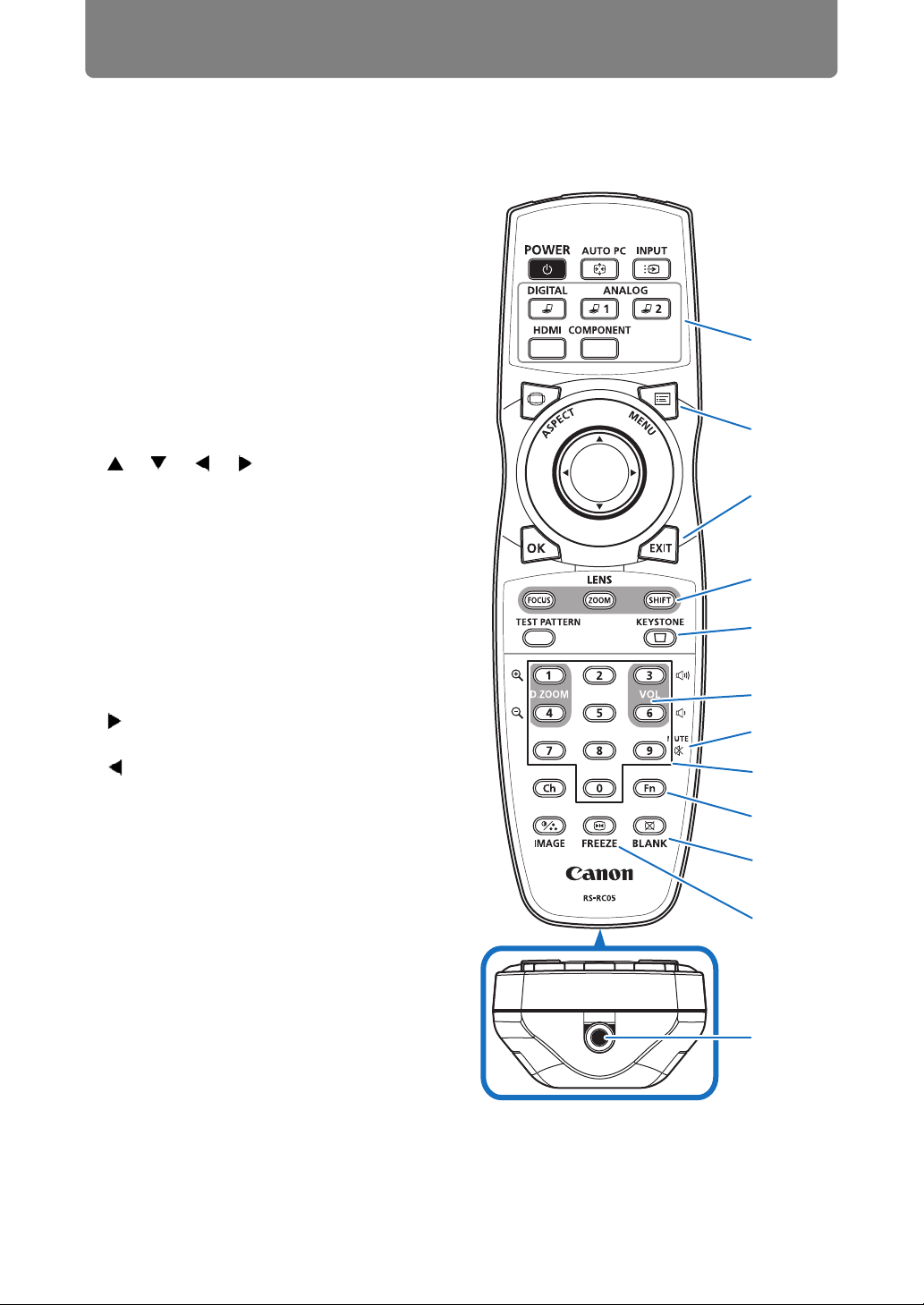

The projector can be operated using the buttons on the remote control or on the
side of the projector.
In this document, the button’s operations are shown as below.
Operation of buttons
on side of projector

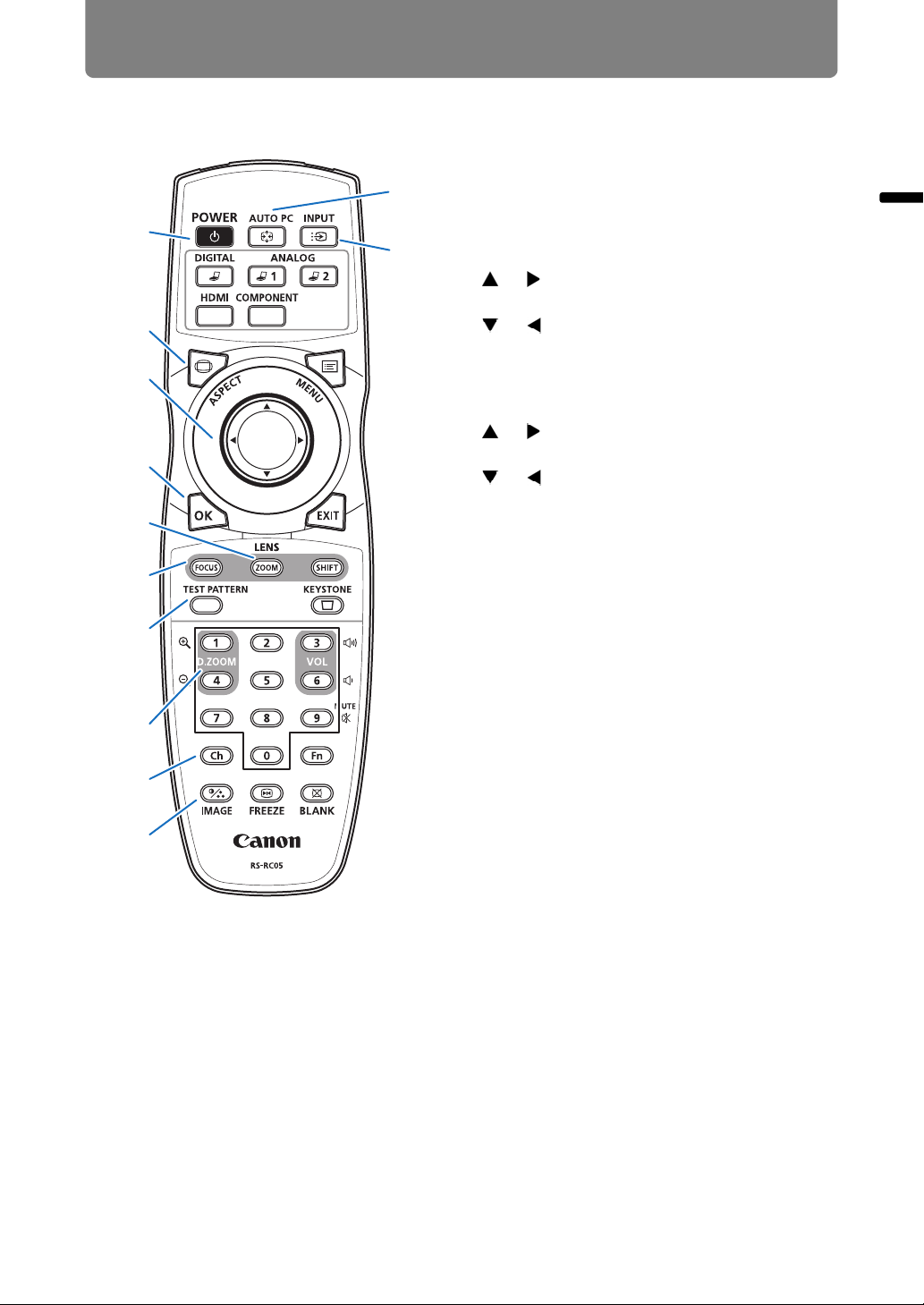

Remote control button
operation
Indicate the buttons to
be pressed

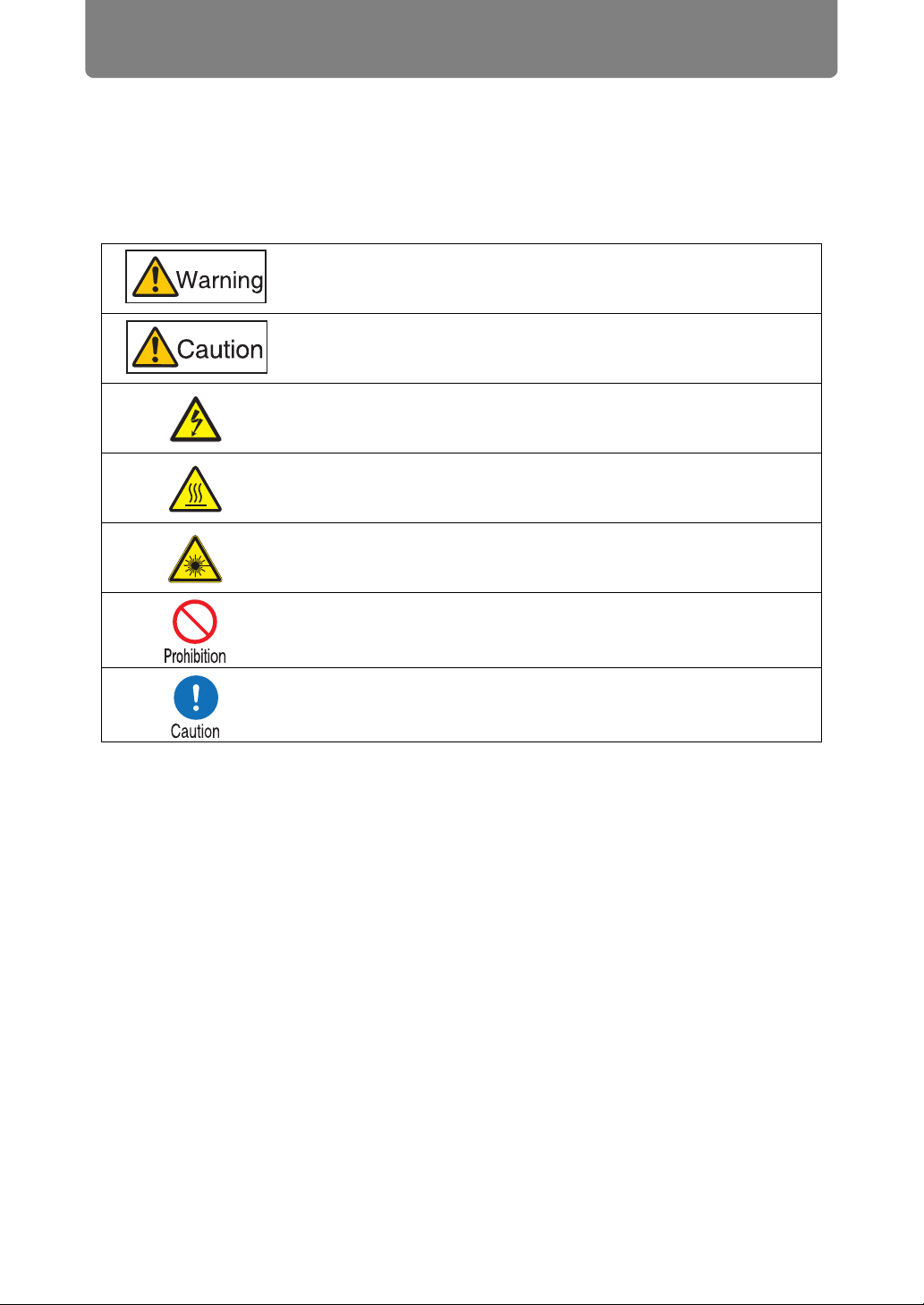

Symbols Used in This Manual
Sections labeled with these symbols give the following kinds of information.
Indicates precautions and information to note when using the projector.
2
Page 3
Table of Contents
How to Use This Manual............... 2
Projector Highlights...................... 4
Safety Instructions........................ 6
Safety Symbols in this Manual ........... 12
Precautions for Use ............................. 13
4K Model With a High-Definition, 4096 x 2400 LCOS
Panel
Outstanding projection resolution of up to 4096 x 2400 is possible, using three
0.76 inch liquid crystal on silicon (LCOS) panels in conjunction with dual highperformance image processors and a new 4K-compatible wide zoom lens.
Bright Yet Compact, With a Laser Light Source
A bright (6,000 lumen) 4K projector that is also compact, at 559 x 624 x 201 mm
(22.0 x 24.6 x 7.9 in., W x D x H). Features a laser light source that lasts longer
than traditional mercury lamps. (P202)
Supports Fully Digital Input
Compatible with HDMI: 2 (4K / Deep Color / HDCP2.2), the projector enables 4K
projection (up to 4096 x 2160 at 60 Hz) via a single HDMI cable when connected to

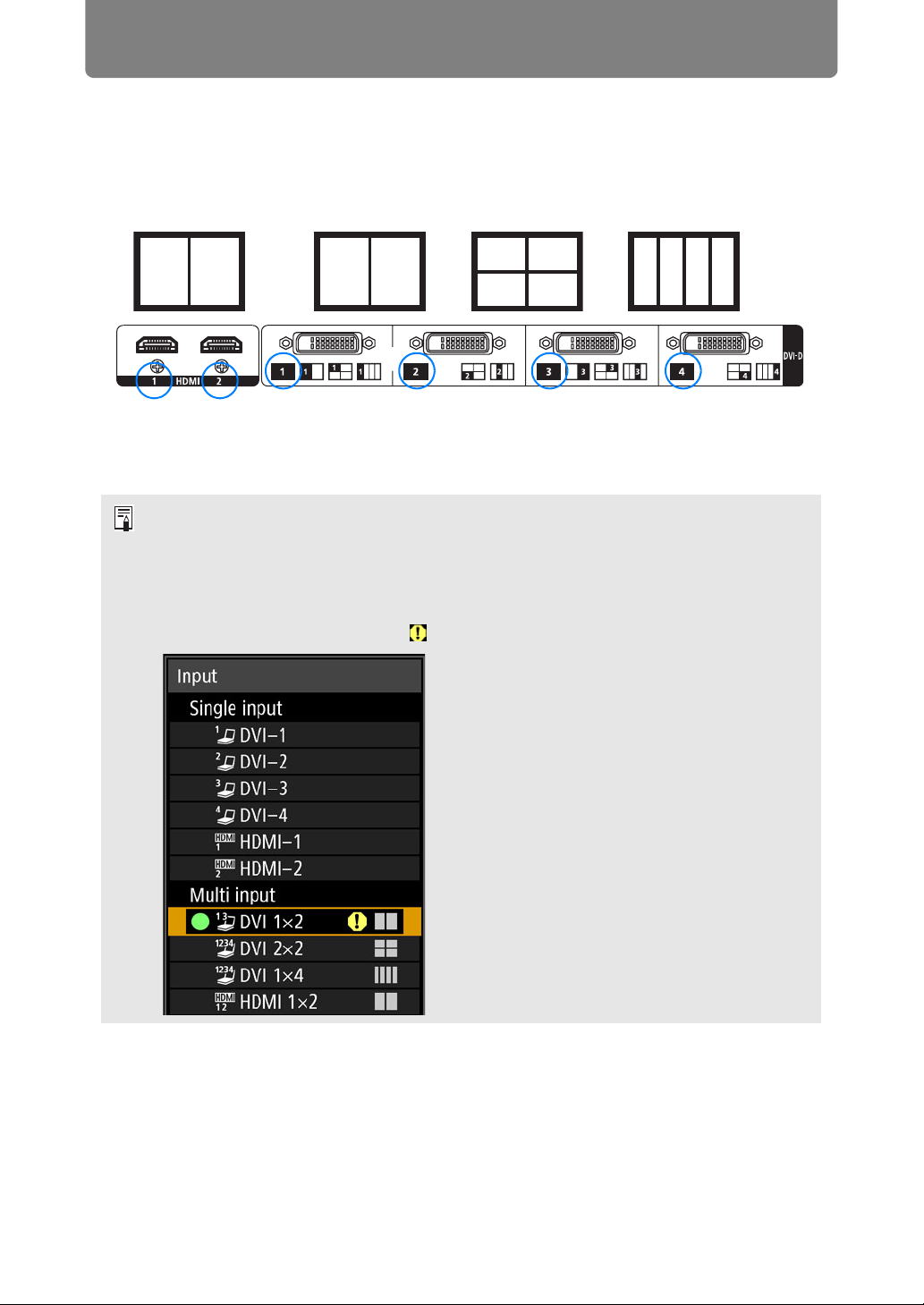

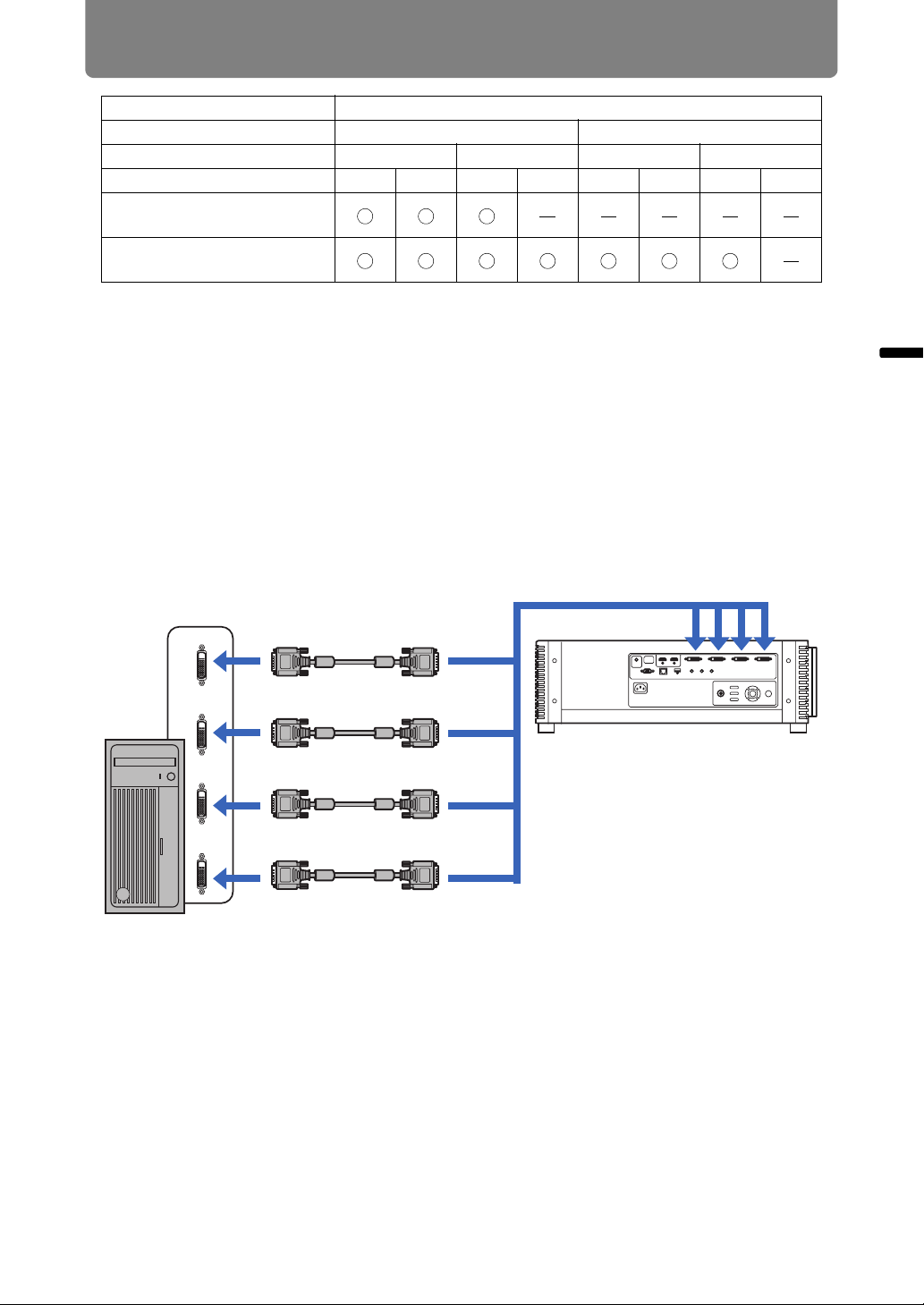

equipment such as a Blu-ray player/recorder. 4K projection from multiple input
terminals — two for HDMI and four for DVI — is also supported, using a multi-input
feature. (P47)

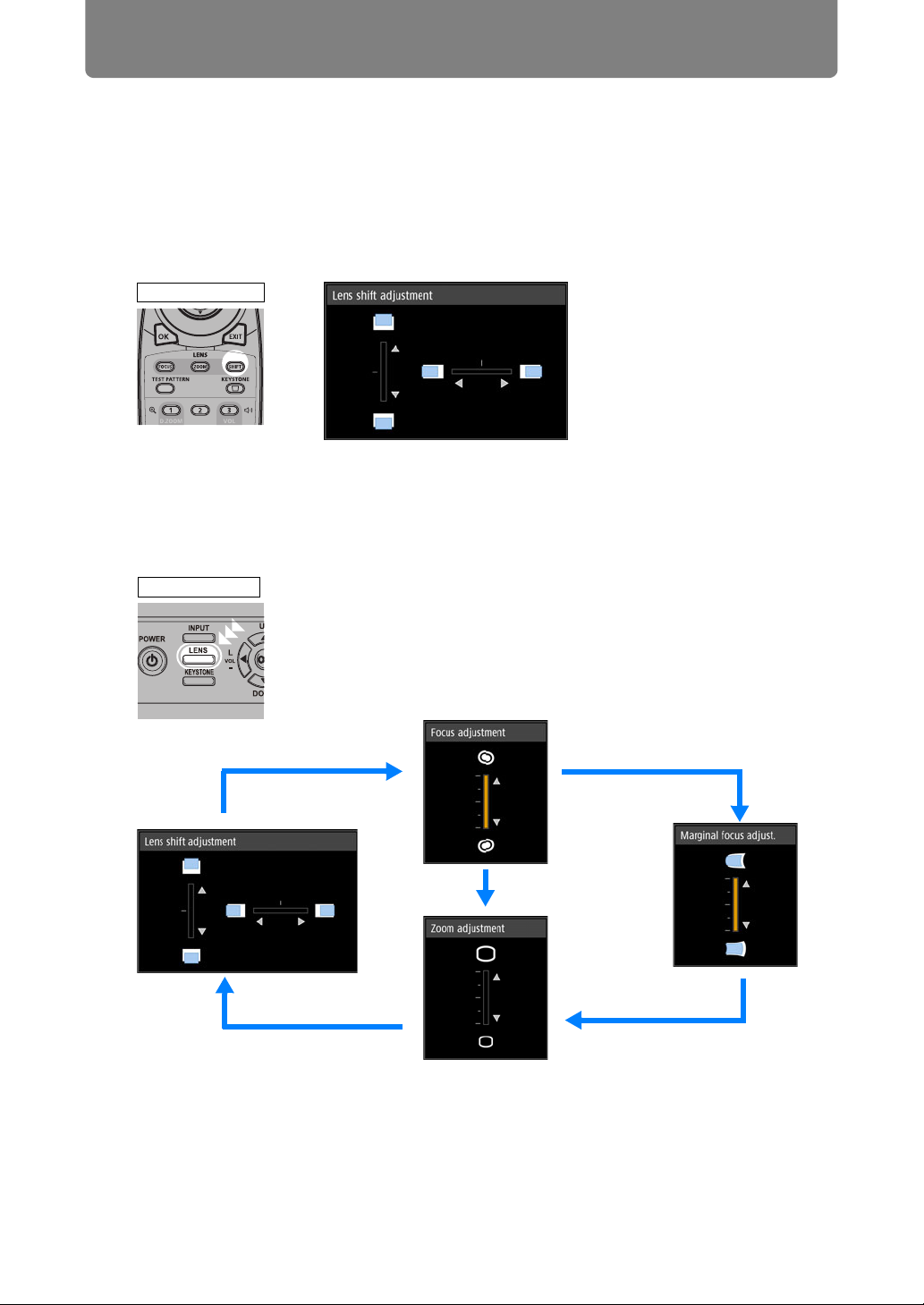

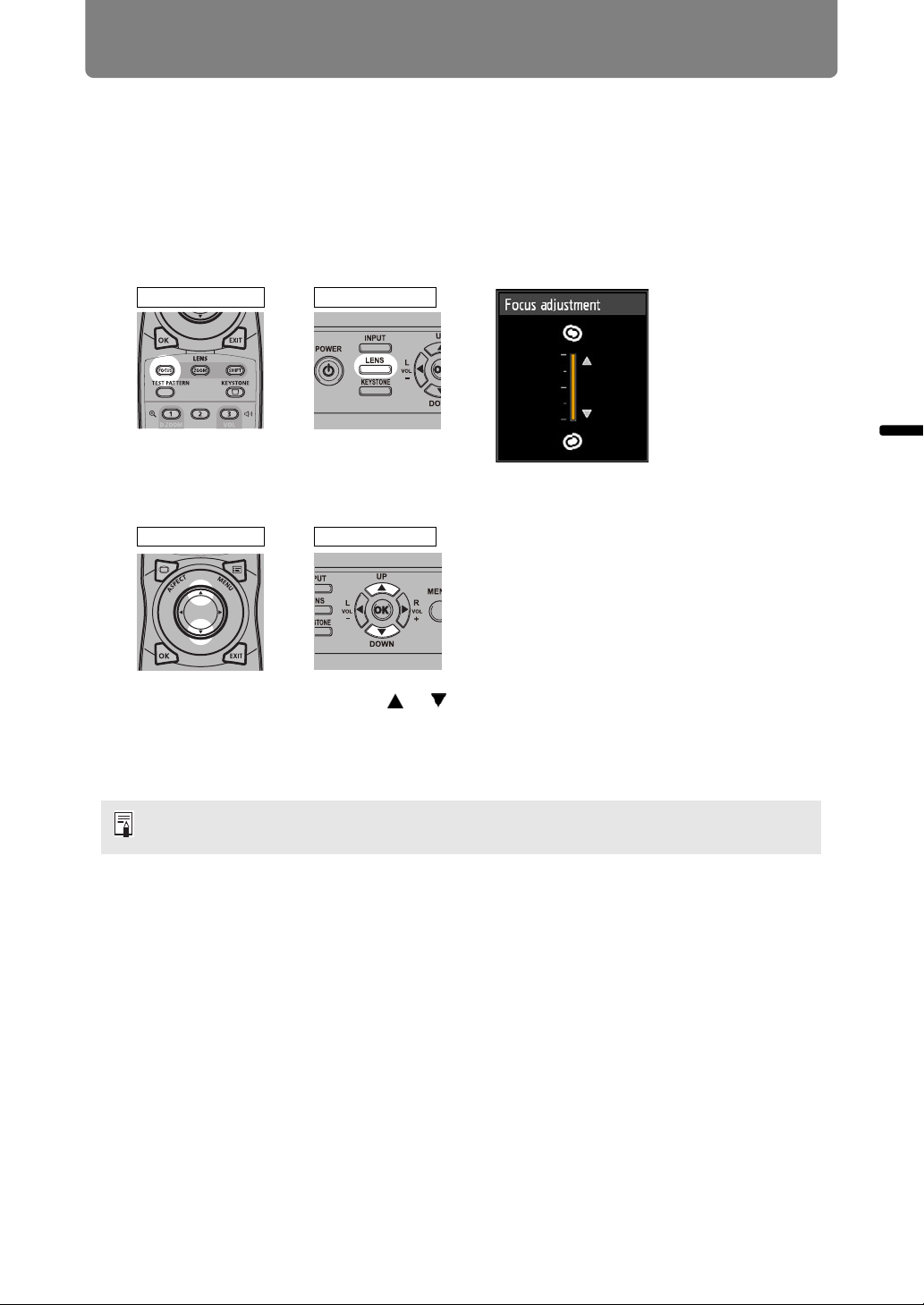

Peripheral Focus Adjustment
Image focus can be adjusted on the edges of the screen, enabling use in dome
projection. (P112, P191)

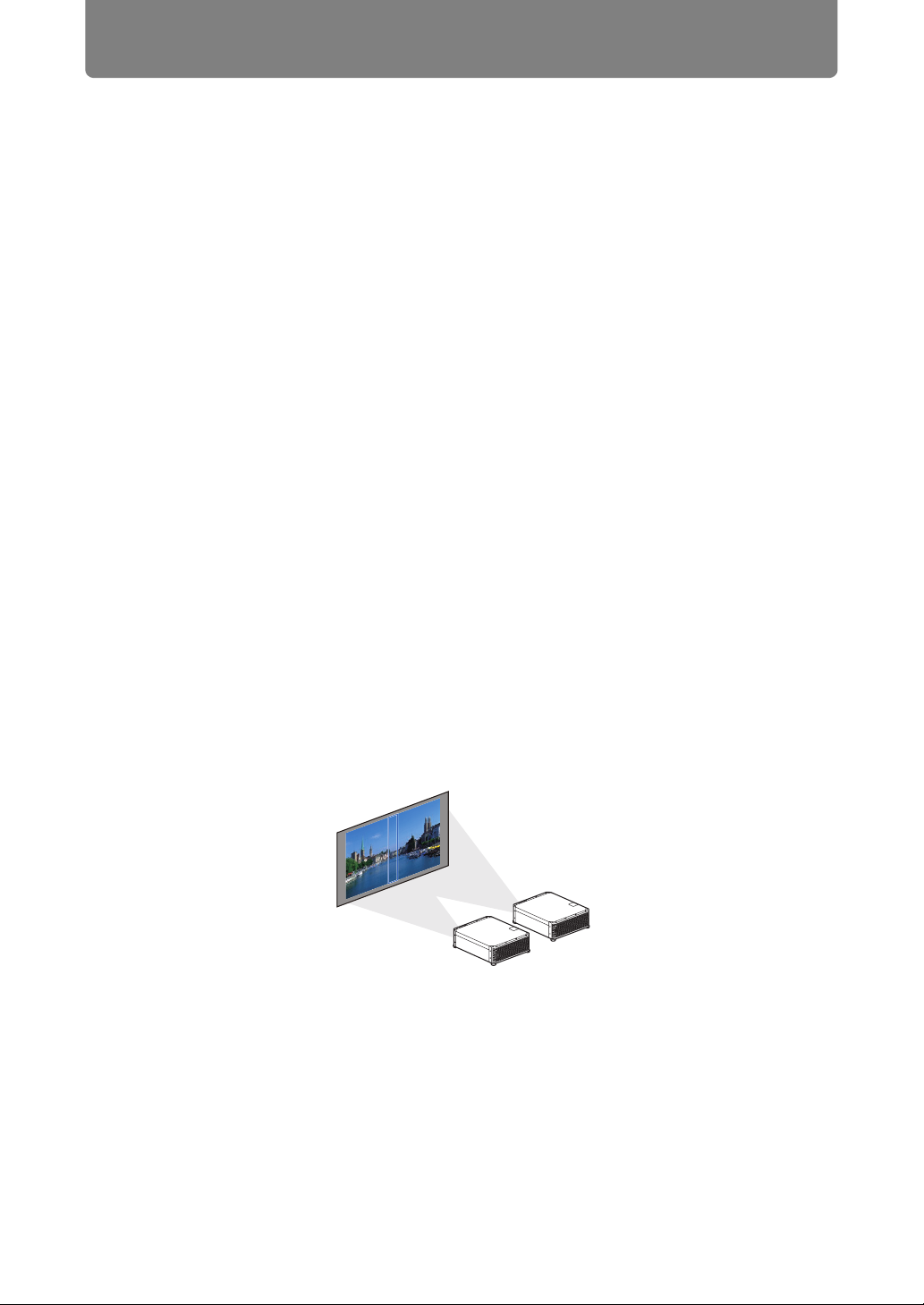

Edge Blending
Blend the overlapping edges of images from multiple projectors to make the overall
image more seamless. (P112)
High-Precision Image Registration
Precise correction of red, green, or blue misalignment in different areas of the
screen is possible by color and area. (P110)
Superior Video Viewing Experience
Refinements in motion blur reduction make video projection more enjoyable to
watch. (P125)
4
Page 5
Projector Highlights
Fixed Brightness Feature
When the projector is used for a long time, its brightness gradually declines. This
feature pre-sets the brightness of the first use to a lower level, and then
automatically adjusts the output of the light source so that the same brightness
level is maintained. (P111)
Expanded Dynamic Range
Ready for High Dynamic Range (HDR) content, the projector offers an expanded
range of image luminance to preserve detail in highlights and shadows. (P96)
Scheduling
Automate projector tasks according to your schedules. Turn the projector on or off,
switch input signals, and more. (P129)
Wi-Fi Connectivity
In addition to wired LAN connectivity, the projector also supports Wi-Fi.
In Projector Access Point (PJ AP) mode, the projector can be connected to up to
five computers without using a wireless access point.
Quiet Mode
This feature reduces laser output from the light source to less than half and lowers
the speed of the cooling fan to reduce noise. (P104)
5
Page 6
Safety Instructions
Before installing and operating the projector, read this manual thoroughly.
This projector provides many convenient features and functions. Operating the
projector properly enables you to manage those features and maintain it in good
condition for many years to come.
Improper operation may result in not only shortening the product life, but also
malfunctions, fire hazards, or other accidents.
If your projector does not seem to be operating properly, read this manual again,
check operations and cable connections, and try the solutions in the
“Troubleshooting” section in the back of this manual. If the problem still persists,
contact the Canon Customer Support Center.

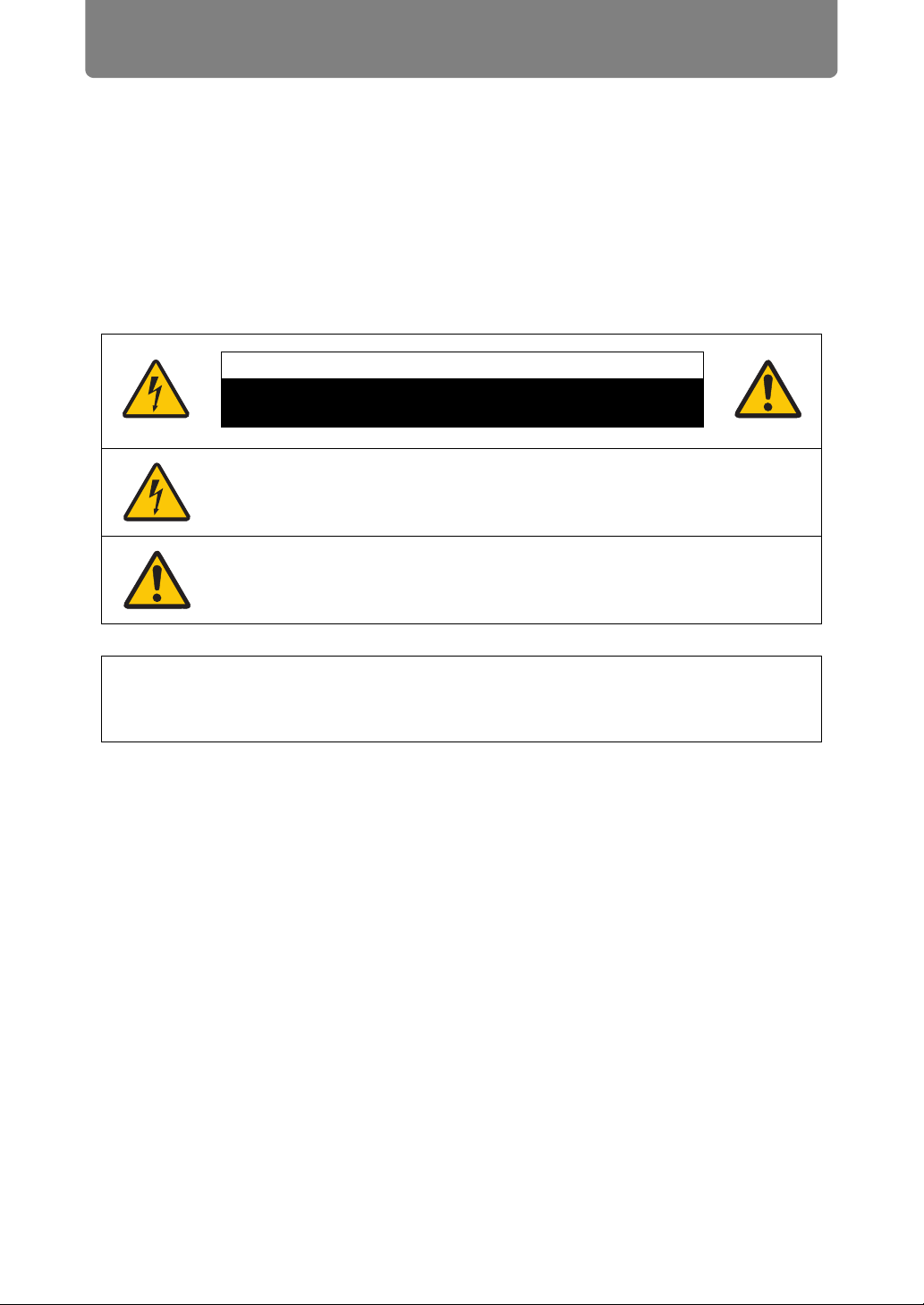

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE
CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT
WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS FOR THIS
UNIT IN THE OWNER’S MANUAL.
CAUTION
Not for use in a computer room as defined in the Standard for the Protection of
Electronic Computer / Data Processing Equipment, ANSI / NFPA 75.
6
Page 7
Safety Instructions
Safety Precautions
WARNING:
• THIS APPARATUS MUST BE GROUNDED.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
• This projector produces intense light from the projection lens. Do not stare
directly into the lens, otherwise eye damage could result. Be especially careful
that children do not stare directly into the beam.
• Install the projector in a proper position. Otherwise it may result in a fire hazard.

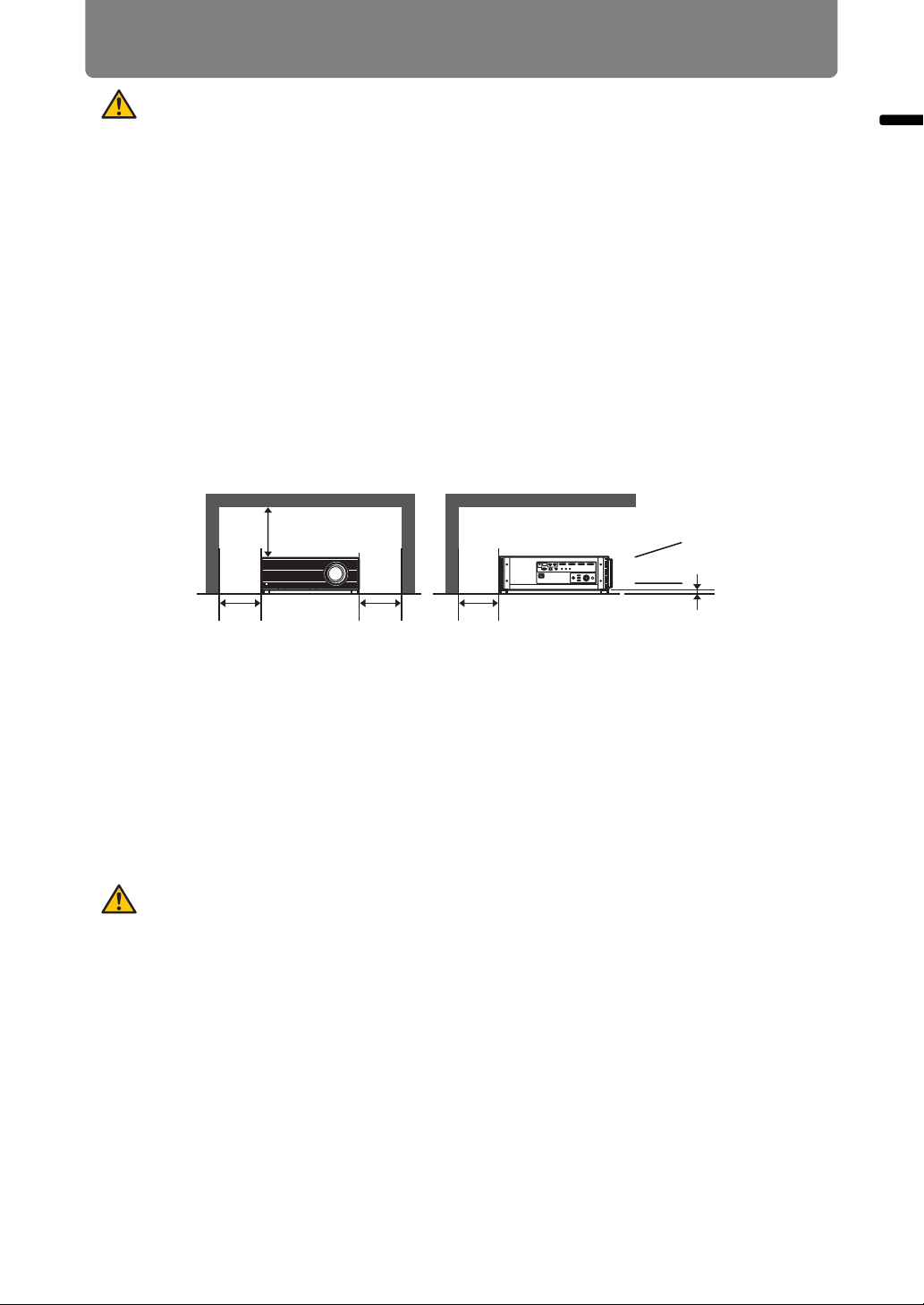

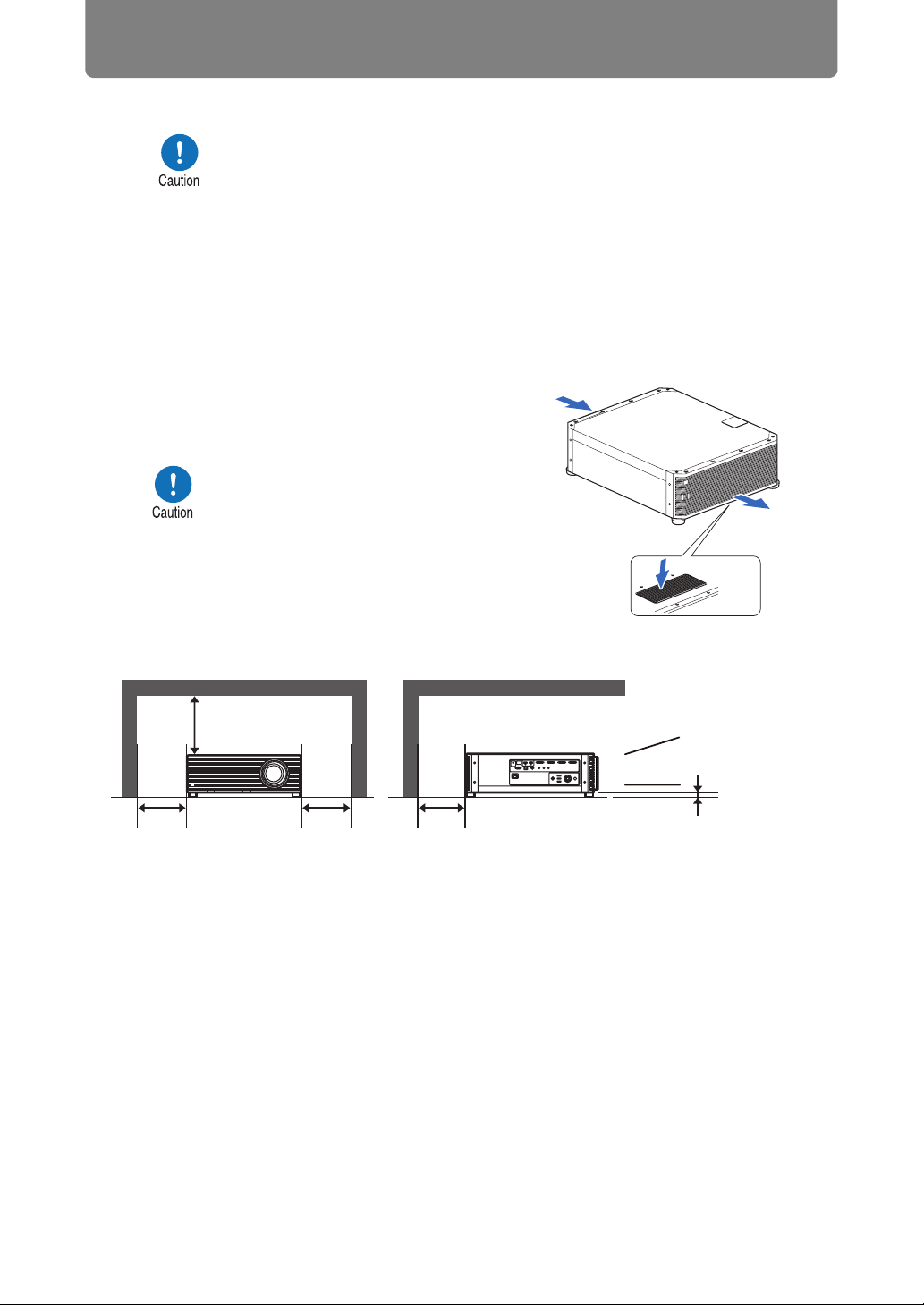

• Allowing the proper amount of space on the top, sides, and rear of the projector
cabinet is critical for proper air circulation and cooling of the unit. The diagrams
shown here indicates the minimum space required. If the projector is to be built
into a compartment or similarly enclosed, these minimum distances must be
maintained.
SIDE and TOPREAR
At least
50 cm (1.6')
Safety Instructions
At least
2cm (0.8")
At least
50 cm (1.6')
• Do not cover the ventilation slots on the projector. Heat build-up can reduce the
service life of your projector, and can also be dangerous.
• If the projector is unused for an extended time, unplug the projector from the
power outlet.
• Do not project the same image for a long time.
An afterimage may remain on the LCD panels due to the characteristics of the
panels of the projector.
At least
50 cm (1.6')
At least
50 cm (1.6')
CAUTION ON HANGING FROM THE
CEILING
When hanging the projector from the ceiling, clean the air intake vents and top of
the projector periodically with a vacuum cleaner. If you leave the projector unclean
for a long time, the cooling fans can be clogged with dust, and it may cause a
breakdown or a disaster.
DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS
SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF
THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY
BECOME DETERIORATED.
7
Page 8
Safety Instructions
■ READ AND KEEP THIS OWNER’S MANUAL FOR LATER
USE.
All the safety and operating instructions should be read before beginning to operate
the product.
Read all of the instructions given here and retain them for later use. Unplug this
projector from the AC power supply before cleaning. Do not use liquid or aerosol
cleaners on the projector. Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection of the projector during a lightning storm, or when it is left
unattended or unused for long periods of time, unplug it from the wall outlet. This
will prevent damage due to lightning and power surges.
Do not expose this unit to rain or use near water... for example, in a wet basement,
near a swimming pool, etc...
Do not use attachments not recommended by the manufacturer as they may result
in hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may
fall, causing serious injury to a child or adult, and serious damage to the projector.
Use only with a cart or stand recommended by the manufacturer, or sold with the
projector. Wall or shelf mounting should be carried out in accordance with the
manufacturer’s directions, and should use a mounting kit approved by the
manufacturers.

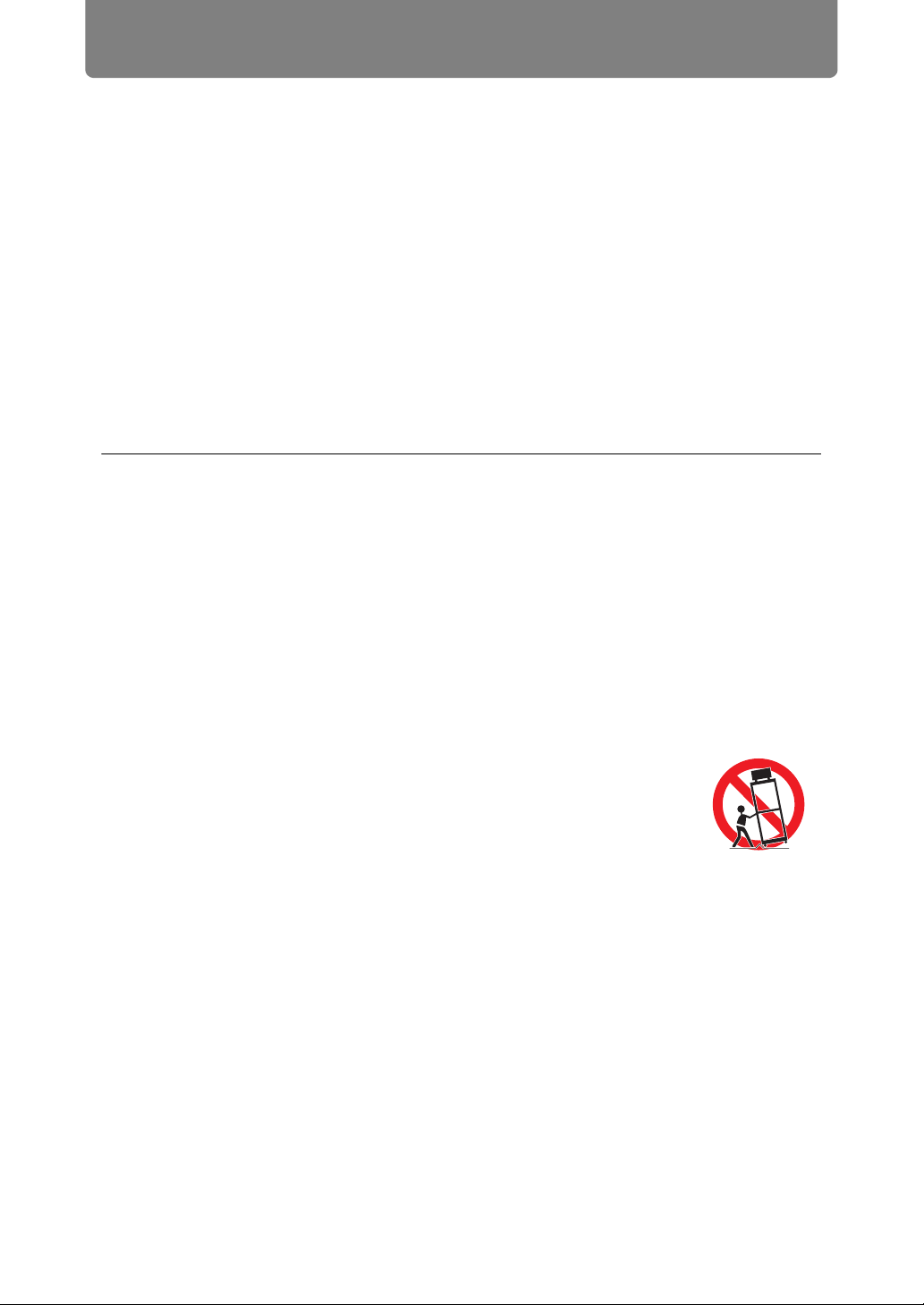

An appliance and cart combination should be moved with care.
Sudden stops, excessive force, and uneven surfaces may cause
the appliance and cart combination to overturn.
Slots and openings in the rear and front of the cabinet are provided
for ventilation, to insure reliable operation of the equipment and to protect it from
overheating.
The openings should never be covered with cloth or other materials, and the
bottom opening should not be blocked by placing the projector on a bed, sofa, rug,
or other similar surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation such as a book case
unless proper ventilation is provided.
8
Page 9
Safety Instructions
Never push objects of any kind into this projector through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in a fire or
electric shock. Never spill liquid of any kind onto the projector.
Do not install the projector near the ventilation duct of air-conditioning equipment.
This projector should be operated using only the type of power source indicated on
the marking label. If you are not sure of the type of power supplied, contact the
Canon Customer Support Center or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric
shock. Do not allow anything to rest on the power cord. Do not locate this projector
where the cord may be damaged by people walking on it.
Do not attempt to service this projector yourself as opening or removing covers
may expose you to dangerous voltages or other hazards. Refer all servicing to
qualified service personnel.
Unplug this projector from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally after following the operating
instructions. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and
will often require extensive work by a qualified technician to restore the projector
to normal operating condition.
e. If the projector has been dropped or the cabinet has been damaged.
f. When the projector exhibits a distinct change in performance-this indicates a
need for servicing.
Safety Instructions
When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer that have the same characteristics
as the original parts. Unauthorized substitutions may result in fire, electric shock, or
injury.
Upon completion of any service or repairs to this projector, ask the service
technician to perform routine safety checks to determine that the projector is in safe
operating condition.
9
Page 10
Safety Instructions

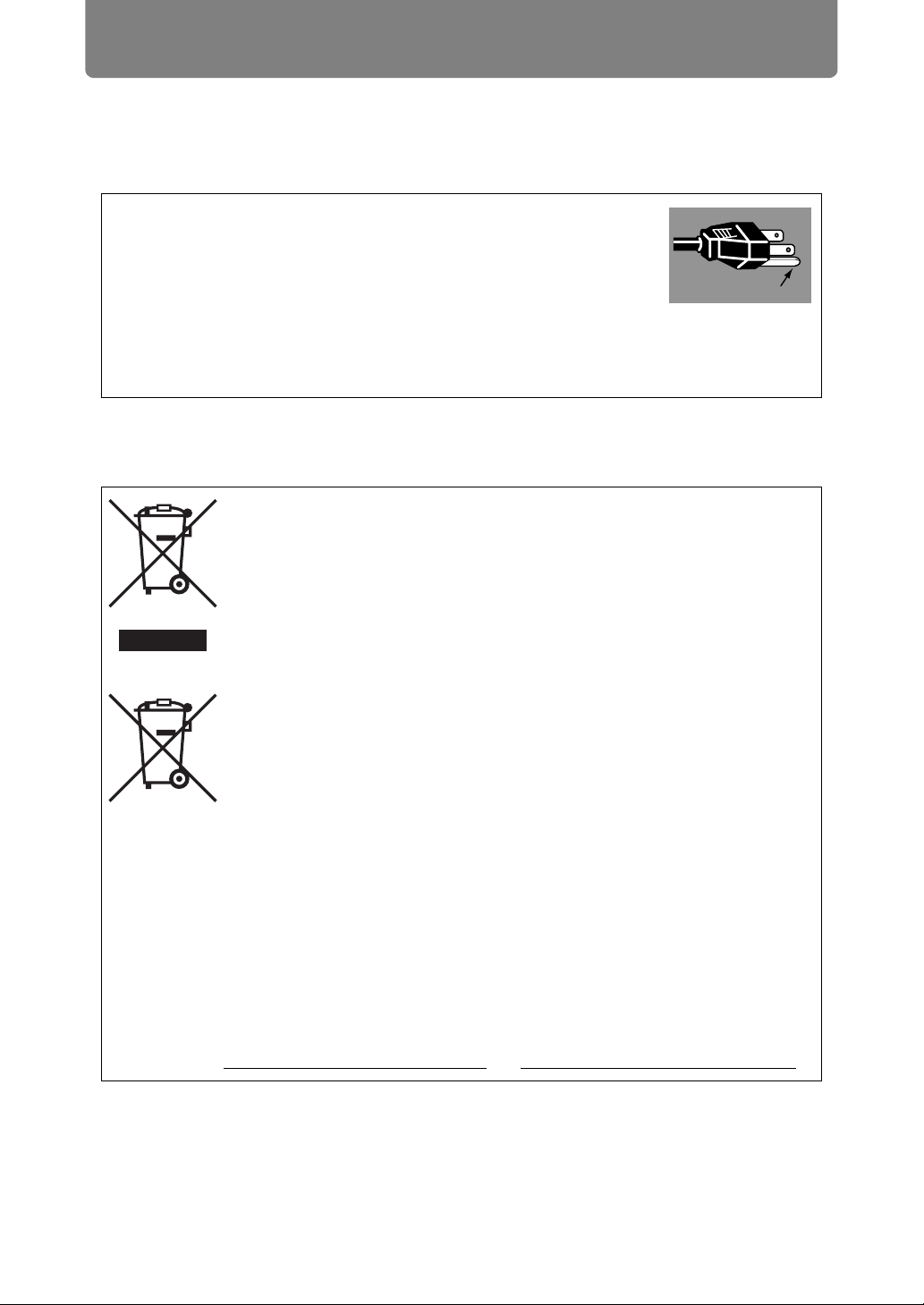

AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirements for use in
the country you purchased it.
AC Power Cord for the United States and Canada:
The AC Power Cord used in the United States and Canada is
listed by the Underwriters Laboratories (UL) and certified by
the Canadian Standard Association (CSA).
The AC Power Cord has a grounding-type AC line plug. This is
a safety feature to ensure the plug fits into the power outlet. Do
not try to tamper with this safety feature. Should you be unable
to insert the plug into the outlet, contact your electrician.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND
EASILY ACCESSIBLE.
Only for European Union and EEA (Norway, Iceland and
Liechtenstein)
These symbols indicate that this product is not to be disposed of
with your household waste, according to the WEEE Directive (2012/
19/EU), the Battery Directive (2006/66/EC) and/or national
legislation implementing those Directives.
If a chemical symbol is printed beneath the symbol shown above, in
accordance with the Battery Directive, this indicates that a heavy
metal (Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this
battery or accumulator at a concentration above an applicable
threshold specified in the Battery Directive.
This product should be handed over to a designated collection point,
e.g., on an authorized one-for-one basis when you buy a new similar
product or to an authorized collection site for recycling waste
electrical and electronic equipment (EEE) and batteries and
accumulators. Improper handling of this type of waste could have a
possible impact on the environment and human health due to
potentially hazardous substances that are generally associated with
EEE. Your cooperation in the correct disposal of this product will
contribute to the effective usage of natural resources.
For more information about the recycling of this product, please
contact your local city office, waste authority, approved scheme or
your household waste disposal service or visit
www.canon-europe.com/weee
, or www.canon-europe.com/battery.
Ground
10
Page 11
Safety Instructions
Federal Communication Commission Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense. The cable with a ferrite core provided with the
projector must be used with this equipment in order to comply with Class A of the
FCC Rules. Use of a shielded cable is required to comply with Class A of FCC
Rules. Do not make any changes or modifications to the equipment unless
otherwise specified in the instructions. If such changes or modifications should be
made, you could be required to stop operation of the equipment.
Safety Instructions
Warning:
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
The cable with a ferrite core provided with the projector must be used with this
equipment in order to comply with Class A .
Use of a shielded cable is required to comply with Class A .
11
Page 12
Safety Instructions
Safety Symbols in this Manual
This section describes the safety symbols used in this manual. Important projector
safety information is identified by the following symbols. Always observe the safety
information by these symbols.
Denotes the risk of death or serious injury from improper
handling if the information is not observed. To ensure safe use,
always observe this information.
Denotes the risk of injury from improper handling if the
information is not observed. To ensure safe use, always observe
this information.
Denotes the risk of electric shock from improper handling if the
information is not observed. To ensure safe use, always observe
this information.
Denotes the risk of burns from improper handling if the
information is not observed. To ensure safe use, always observe
this information.
Denotes the risk of eye injury from laser emission if usage
restrictions are not observed.
Denotes prohibited actions.
Denotes required actions or information that must be observed.
12
Page 13
Safety Instructions
Precautions for Use
As this section contains important safety-related information, be sure to read the
following carefully beforehand in order to use your projector correctly and safely.
During installation, keep the projector plug easily accessible so that the projector can be
unplugged immediately if necessary, or keep a circuit breaker within reach.
If the following situations occur, turn the power off, remove the power plug from the
power outlet and contact the Canon Customer Support Center. Failure to do so could
cause a fire or result in an electric shock.
• If smoke is emitted
• If an unusual smell or noise is emitted
• If water or other liquid has entered the projector
• If metal or any other foreign material has entered the projector
• If the projector is knocked over or dropped and the cabinet is
damaged
Pay attention to the following points for handling the power cord. Failure to do so may
cause a fire or electric shock.
• Do not place any objects on the power cord and do not allow it to
become trapped under the projector.
• Do not cover the power cord with a carpet.
• Do not modify or excessively bend, twist, pull, wind, or bundle the
power cord.
• Keep the power cord away from heaters and other sources of
heat.
• Do not use a damaged power cord. If the power cord is
damaged, purchase a replacement from your dealer.
• The power cord included with this projector is for use exclusively
with this product. Do not use this cord for other products.
Safety Instructions
13
Page 14
Safety Instructions
Pay attention to the following points regarding the power source, power plug and
handling of the connector. Failure to do so may cause a fire or electric shock.
•
Do not use any power source with a voltage other than the voltage
indicated (AC 100–240 V).
• Do not pull the power cord and be sure to hold the power plug or
connector when removing. Incorrect handling may damage the
power cord.
• Do not insert any metal objects into the contact parts of the
power plug or connector.
• Do not remove the power plug or connector with wet hands.
• Insert the power plug and connector securely up to the base.
Additionally, do not use a damaged power plug or an outlet that is
loose.
• Before using an extension cord, check carefully to avoid
exceeding the cord’s rated capacity.
• Periodically inspect the power plug and outlet and remove any
dust or dirt from between the plug and the outlet.
Installation and Handling Precautions
Pay attention to the following points regarding installation and handling of the projector.
Failure to do so may cause a fire, electric shock or personal injury.
• Do not use the projector where it might get wet, such as outdoors
or by bathtubs or showers.
• Do not place containers containing a liquid on top of the
projector.
• Do not touch the projector itself, the power cord, or the cable if
lightening strikes.
• Do not move the projector until you have switched off the power,
removed the power plug from the power outlet and unplugged
any other cables.
• Unplug the projector before cleaning or maintenance.
14
Page 15
Safety Instructions
Pay attention to the following points regarding installation and handling of the projector.
Failure to do so may cause a fire, electric shock or personal injury.
• Do not remove the cabinet from the projector or disassemble it. The interior
of the projector contains high-voltage components as well as parts that are
hot. If inspection, maintenance or repair is required, contact the Canon
Customer Support Center.
• Do not disassemble or modify the projector (including consumable parts) or
the remote control.
• Do not look directly into the exhaust vents during use.
• Do not insert any object into vents in the projector, such as the air intake vent
or exhaust vents.
• Do not place a pressurized can in front of the exhaust vents. The pressure of
the contents of the can may increase due to heat from the exhaust vents and
this could result in an explosion.
• When cleaning off dust or dirt from projector parts such as the lens or filter,
never use any spray that is flammable. Internal parts that become hot may
ignite and cause a fire.
• As strong light beams are emitted while the projector is in use, do not look
directly into the projector lens. Doing so could cause an eye injury. Pay
particular attention to prevent small children from doing so.
• Light from the projector is classified as
Risk Group 2 (RG2) according to
IEC 62471-5:2015.
• If children may approach the projector or
touch it, always ensure the projector is used under adult supervision.
• Do not hold or install optical instruments (such as magnifying glasses,
reflectors, or glasses) in the path of light from the projector. If projected light
is refracted or reflected and enters people’s eyes, it may result in eye injury.
• Do not lift the projector alone. Have at least one assistant.
• Do not use the projector on a soft surface such as carpet or sponge mat, etc.
Doing so could cause heat to build up inside the projector and this could
result in a fire.
• When setting the projector on a high surface for projection, be sure the
surface is flat and stable.

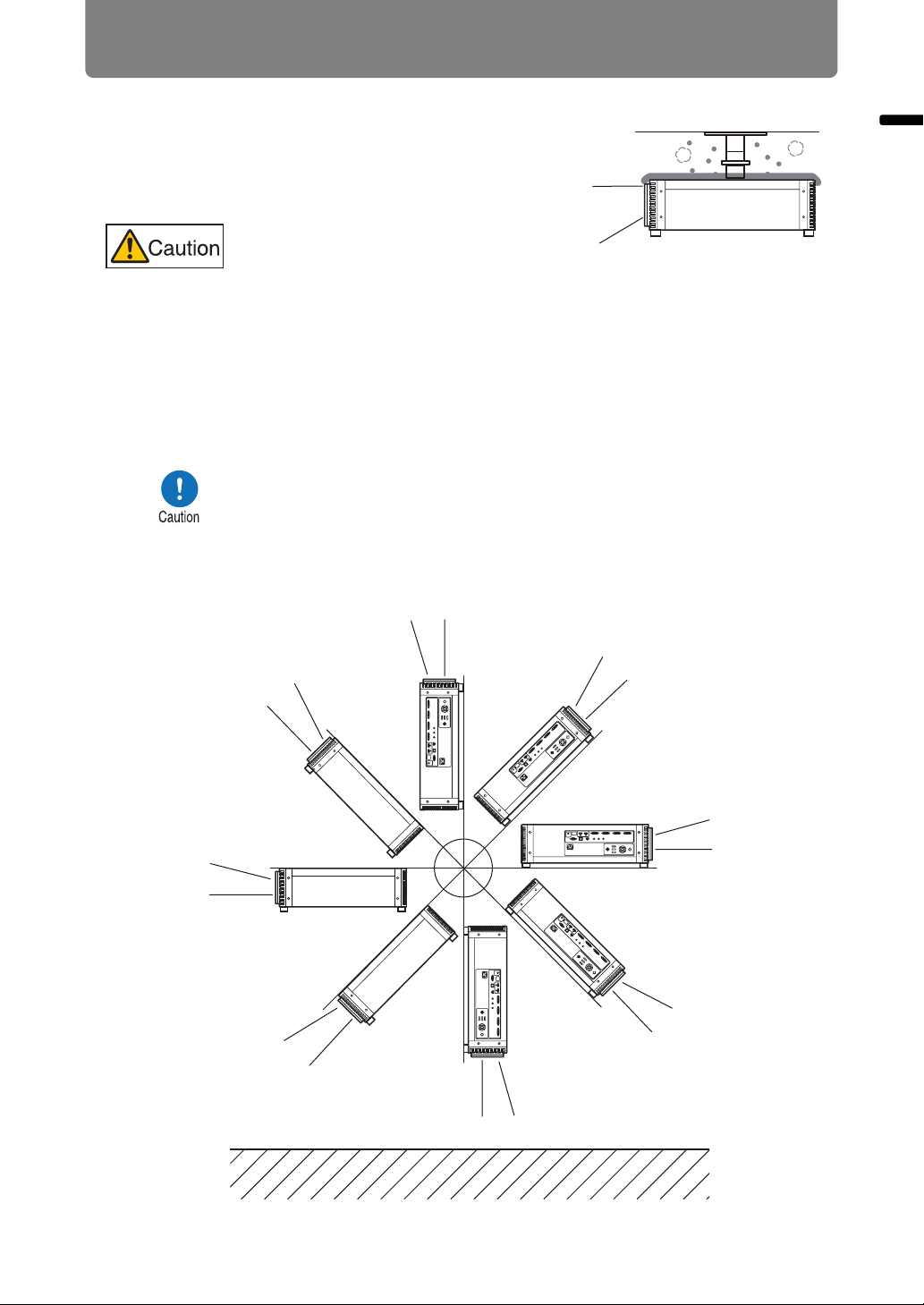

• For ceiling mounting precautions, refer to the installation manual included
with the ceiling mount (sold separately).
Safety Instructions
15
Page 16
Safety Instructions
Laser Precautions
• The projector is designated as a Class 1 laser product according to IEC/
EN 60825-1:2014.
• The equipment is designated as a Class 3R laser product according to IEC/
EN 60825-1:2007.
• Complies with FDA performance standards for laser products except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
• Laser parameters
Wavelength: 450 nm – 460 nm
Maximum power: 144 W
Beam divergence: 2°
• The projector incorporates a laser module. Disassembly or modification is
dangerous and must not be attempted.
• Operate and adjust the projector only as described in this manual. Incorrect
operation or adjustment poses a risk of exposure to potentially hazardous
laser light.
• If children may approach the projector or touch it, always ensure the
projector is used under adult supervision.
• Do not use when damaged. Even if the projector is used as described in this
manual, failure to discontinue use when it is damaged (as indicated by
screen abnormalities) may result in fire, electric shock, or eye injury from
laser light.
• The Laser module is equipped in this product. Use of controls or adjustments
or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
• For assistance when disposing of the projector, contact the Canon Customer
Support Center. Do not disassemble the projector yourself when disposing of
it.

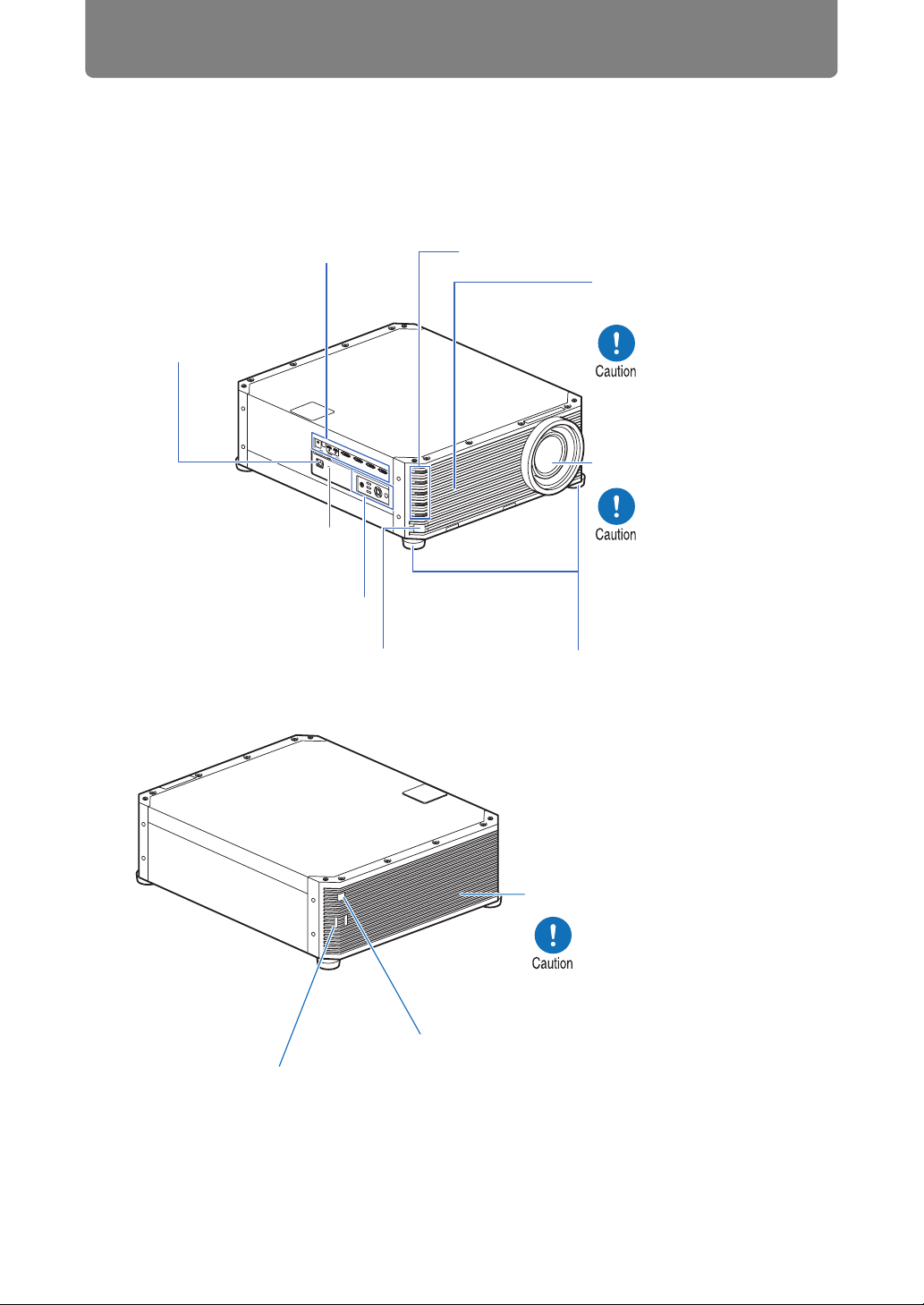

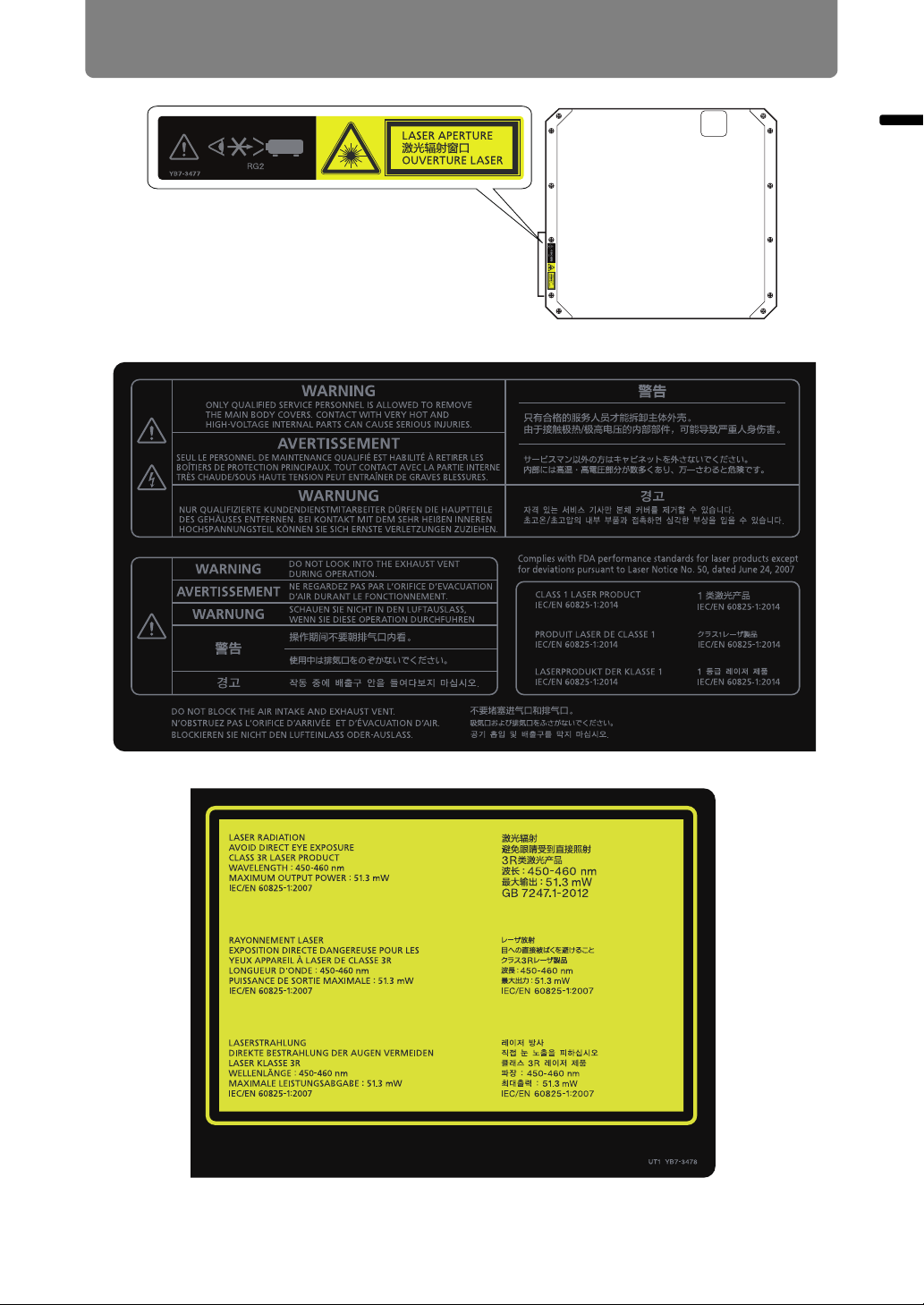

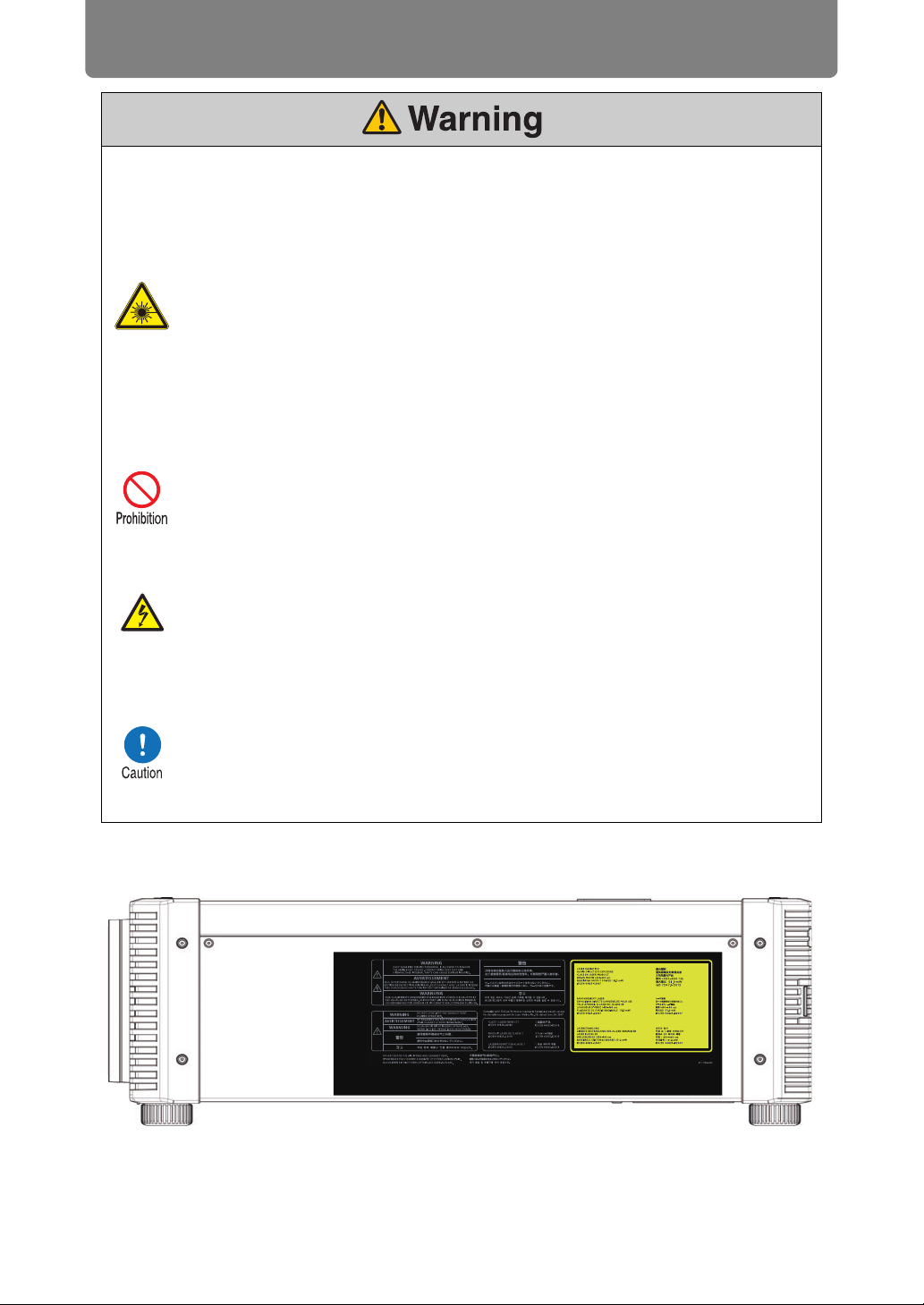

Explanatory and warning labels are located in the following positions on the
projector.
16
Page 17
Safety Instructions
Safety Instructions
17
Page 18
Safety Instructions

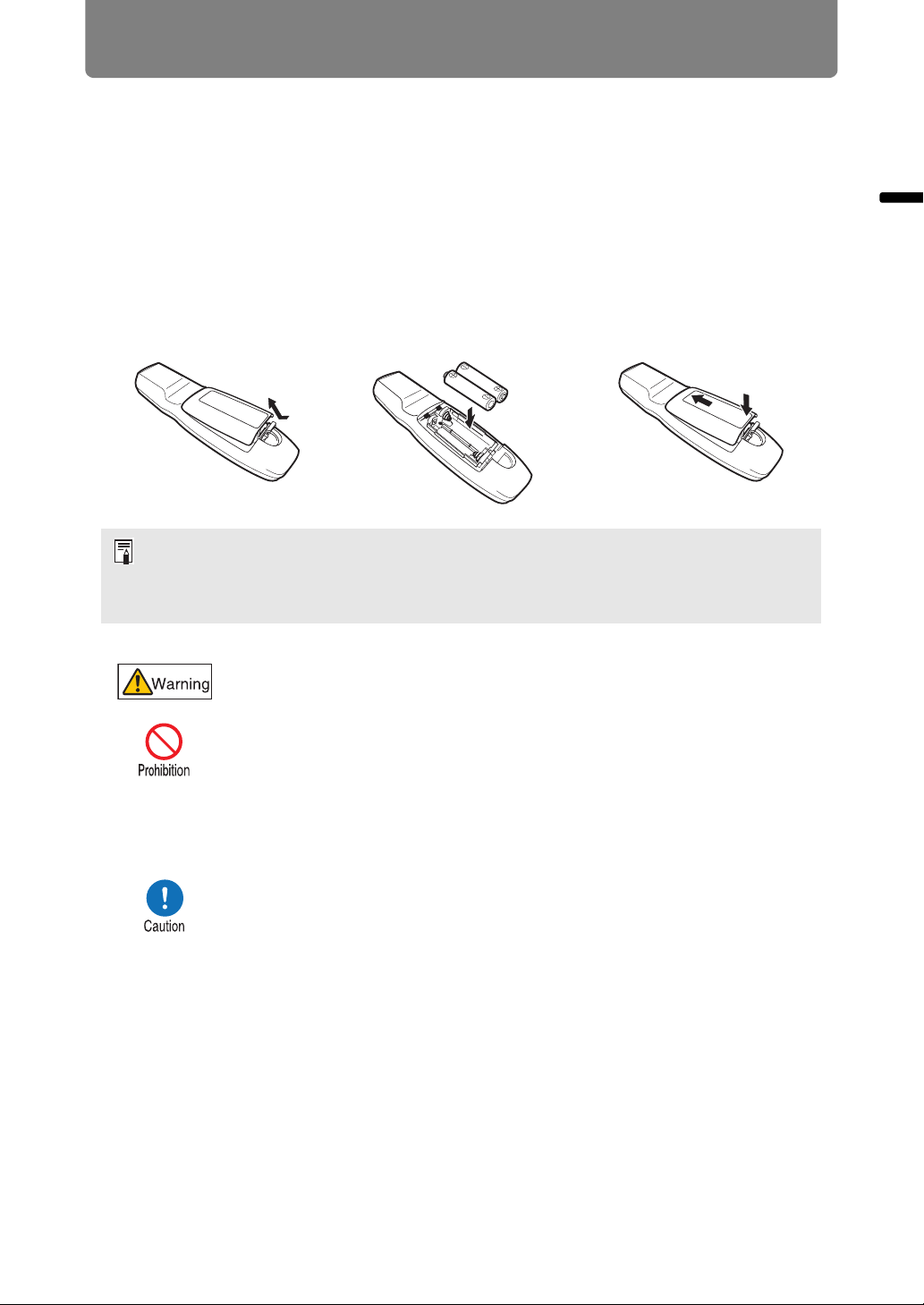

Precautions for the Batteries of the Remote
Control
Pay attention to the following points regarding handling of batteries. Failing to do so
could result in a fire or personal injury.
•
Do not heat, short circuit or disassemble the batteries, or place them in a fire.
• Do not attempt to recharge the batteries that are included with the remote
control.
• Remove the batteries when they are flat or when the remote control will not
be used for a long period of time.
• When replacing the batteries, replace both at the same time. Also, do not
use two batteries of a different type at the same time.
• Insert the batteries with the + and - terminals in the correct directions.
• If any liquid from inside the batteries leaks out and contacts your skin, be
sure to wash the liquid off thoroughly.
18
Page 19
Safety Instructions
Pay attention to the following points regarding installation and handling of the projector.
• If the projector will not be used for a long period of time, be sure
to remove the power plug from the power outlet to ensure safety.
Failure to do so presents a risk of fire if dust accumulates on the
plug or outlet.

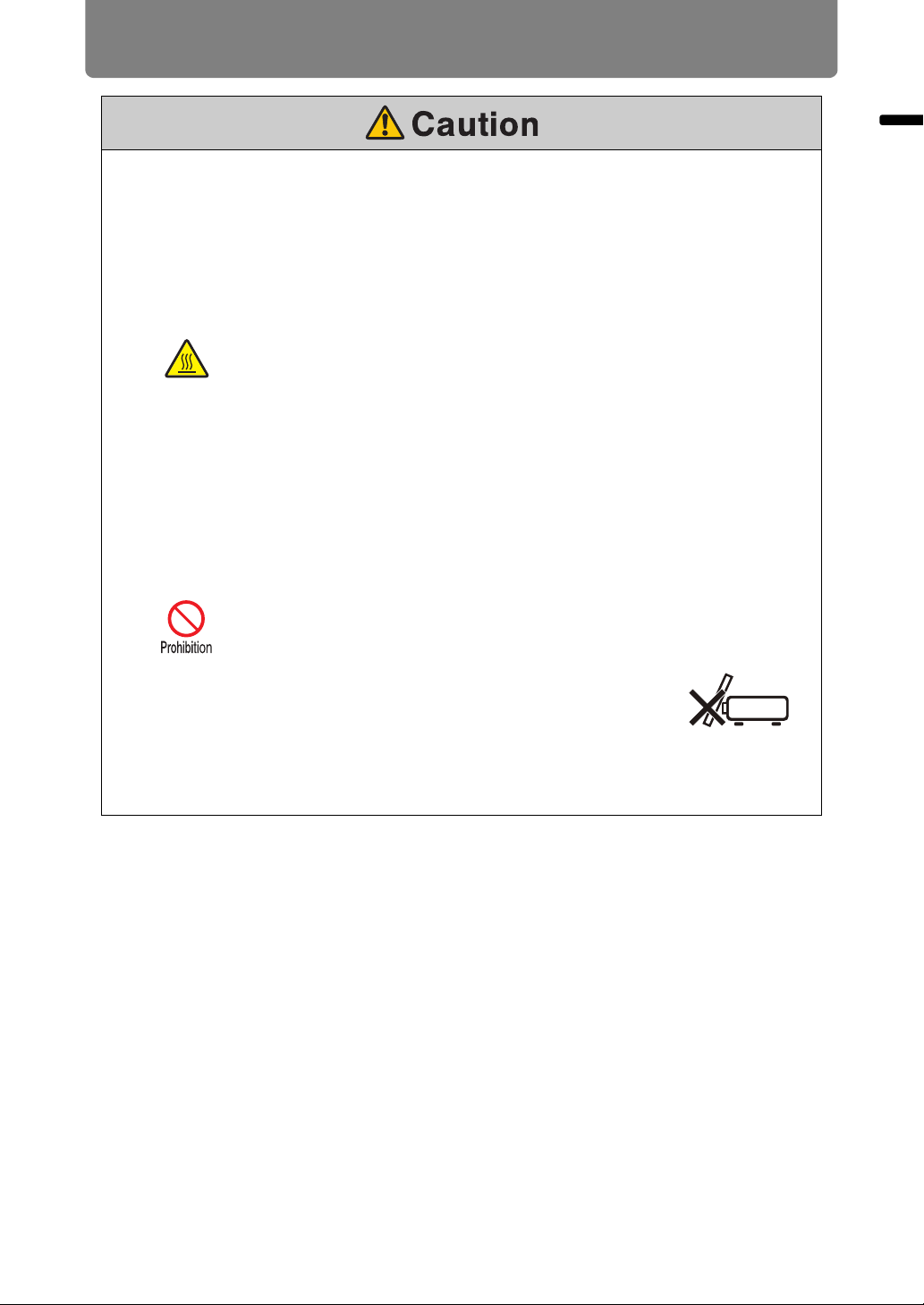

• Parts of the cabinet around and above the exhaust vents may
become hot during projection. Touching these areas during
operation could cause burns to the hands. Pay particular
attention in preventing young children from touching these parts.
Additionally, do not place any metal objects around or above the
exhaust vents. Due to the heat from the projector, doing so could
cause an accident or personal injury.
• Do not place the projector where it may be exposed to oily smoke
or steam, such as near kitchen counters or humidifiers. Doing so
may cause fire or electric shock.
• Do not place any heavy objects on top of the projector or sit /
stand on it. Pay particular attention to prevent small children from
doing so. The projector may be knocked over and this could
result in damage or a personal injury.
• Do not place the projector on an unstable or slanted surface.
Doing so may cause the projector to fall or be knocked over and
could result in a personal injury.
• Do not place any objects in front of the lens
during projection. Also, do not start projection
with the lens cap on. Doing so could cause a
fire.

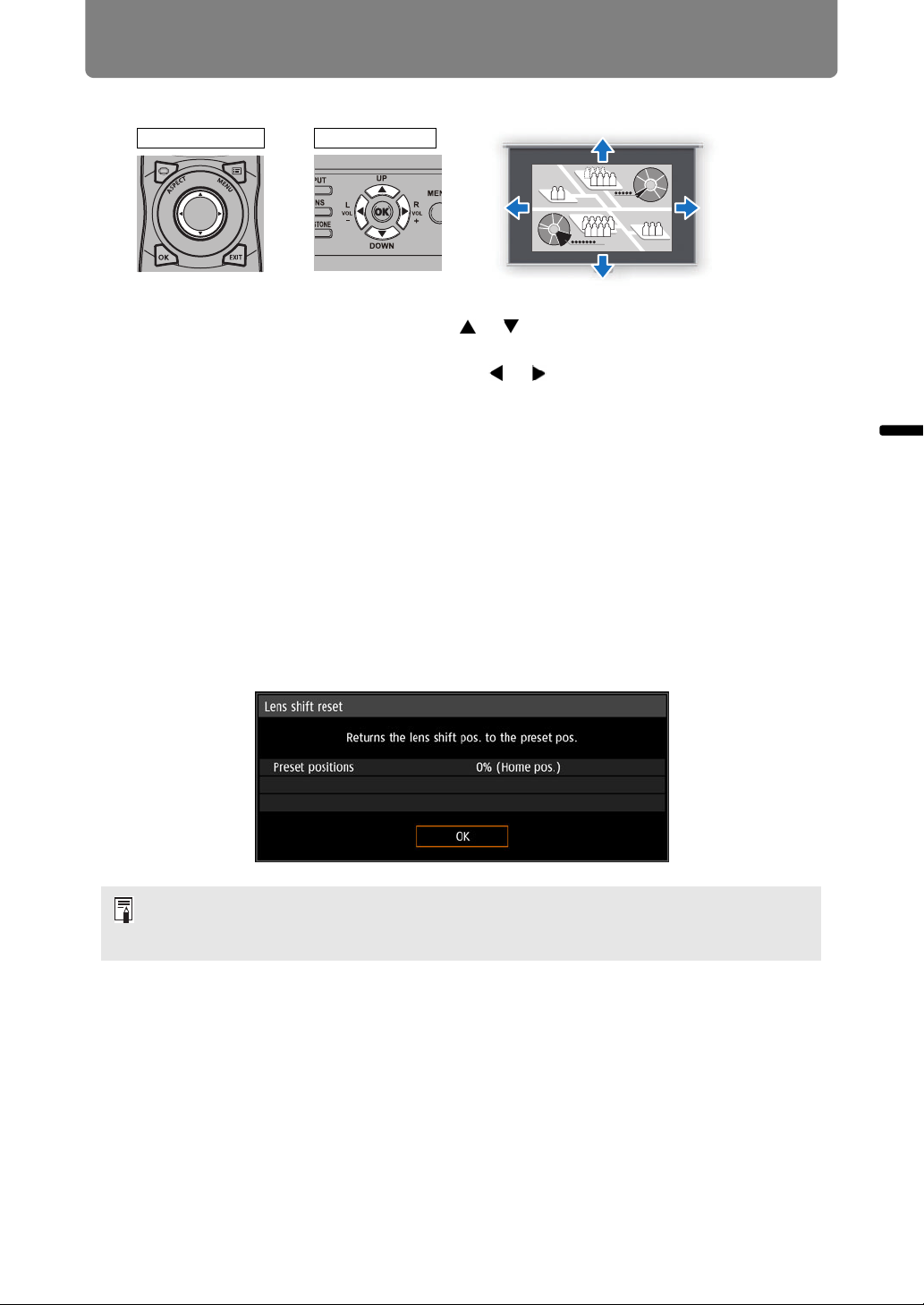

• The lens is moved by a motor up, down, left, and right in
response to the lens shift function. Do not touch the lens when it
is moving. There is the risk of injury.
Safety Instructions
19
Page 20
For Safe Use
Pay attention to the following points when carrying or transporting the projector.
• This projector is a precision instrument. Do not knock it over or subject it to
impacts.
• Protection of the projector cannot be guaranteed if used packaging or shockabsorbent materials are reused. Fragments from shock-absorbent material
may also enter the interior of the projector which could cause a malfunction.
• Disconnect the cables connected to the projector. Carrying the projector
while the cables are attached may cause an accident.
• Retract the adjustable feet before moving the projector. Leaving the feet
extended may cause damage.
• Do not touch the lens with bare hands. Any smudges or fingerprints on the
lens may affect image quality.
Pay attention to the following points when installing or using the projector.
• Be careful of condensation.
If the projector is abruptly taken to a warmer location, or if the room
temperature rises abruptly, moisture in the air may condense on the lens and
mirror, causing the image to become blurred.
• Do not install the projector in a location where the temperature is high or low.
Doing so may cause a malfunction. The temperature range for operation and
storage are as follows.
Operating temperature: 0°C to 45°C (32°F to 113°F)
Humidity: up to 85%
Storage temperature: -20°C to 60°C (-4°F to 140°F)
• When using the projector at an altitude of 2,300 m (7,548') or higher:
From the projector menu, set [High altitude] to [On]. (P111)
• Do not install the projector near high-voltage electrical power lines or an
electrical power source.
• Do not block the air intake or exhaust vents. Blocking the vents may trap
heat inside the projector, which may shorten the useful life of optical
components or other parts and damage the projector.
• Install the projector leaving at least 50 cm (1.6') between air intake/exhaust
vents and walls on each side of the projector. Leave a gap of at least 2 cm
(0.8") from the bottom of the projector. There is an air intake underneath the
projector. Failure to leave enough space may trap heat inside the projector
and damage it.
• Do not place any objects on top of the projector that may change shape or
color due to heat.
• Do not install the projector in a location that is damp, or where there is a lot
of dust, oily smoke or tobacco smoke. Doing so could cause contamination
of optical components such as the lens and the mirror and may result in
deterioration of image quality.
20
Page 21
Before Installation
Precautions When Carrying/Shipping the
Projector
Note the following precautions when carrying or shipping the projector.
• Disconnect the cables connected to the projector. Carrying the
projector with the cables attached may cause an accident.
• Retract the adjustable feet. Leaving the feet extended when the
projector is moved may cause damage.
• Do not expose the projector to strong impact or vibration.
• The projector is heavy and should not be carried alone. Have at
least one assistant.
Precautions for Installation
Be sure to read “Safety Instructions” and “For Safe Use” (P6 – P20). Also
take the following precautions during installation.
• Do not strike the projector or subject it to impact. Doing so may
cause a malfunction.
• Do not install the projector standing on one side or in other
unsteady positions. The projector may be damaged if it tips
over.
Before Installation
■ Do Not Use in the Following Environments
• Locations with excessive humidity, dust, oily smoke or tobacco
smoke
Adhesion to the lens, mirrors or other optical parts may reduce image
quality.
• Near high-voltage power lines or sources of electrical power
This may cause malfunction.
• On soft surfaces such as carpets or cushioned mats
Heat may build up inside the projector and damage it.
• Locations with excessive temperature or humidity
This may damage the projector. Acceptable ranges for operating and
storage temperature and humidity are as follows.
Operating temperatureOperating humidityStorage temperature
0°C (32°F) – 45°C (113°F)
Up to 85%
-20°C (-4°F) – 60°C (140°F)
21
Page 22
Before Installation
■ Do Not Touch the Lens with Bare Hands
Do not touch the lens with bare hands. Any smudges or
fingerprints on the lens may affect image quality.
■ Allow a 30 Min. Warm Up before Focus Adjustment (P59), if Possible
Immediately after startup, the heat of the light source may prevent stable focus.
When adjusting focus, it is also helpful to use the test pattern (10) (P116, P197).
■ Install at a Sufficient Distance from Walls and Other Obstructions
At least
50 cm (1.6')
At least
50 cm (1.6')
If the air intake or exhaust vent is
blocked, heat will accumulate
inside the projector, possibly
resulting in a shortened projector
lifetime or a malfunction.
Similarly, do not install in narrow,
enclosed spaces with poor
ventilation. Install in a wellventilated location. Ensure a
minimum clearance of 50 cm (1.6')
above, on both sides, and behind
the projector, as shown below.
Also ensure a minimum clearance
of 2 cm (0.8") below the projector.
At least
50 cm (1.6')
At least
50 cm (1.6')
Air intake vent
Exhaust
vent
Air intake vent
At least
2 cm (0.8")
■ Be Careful of Condensation
If the temperature of the room rises suddenly, moisture in the air may condense on
the projector lens and mirror, causing the image to become blurred. Wait until the
condensation has evaporated for the image projected to return to normal.
■ At Altitudes above 2,300 m (7,545.8'), Adjust the Settings
Projector settings must be adjusted when using the projector at altitudes of 2,300 m
(7,545.8') or higher. Specifically, refer to instructions for [High altitude] (P 111) in the
[Install settings] menu.
22
Page 23
■ When Using Mounted on the Ceiling
Before Installation
When using the projector mounted on
the ceiling or installed in a high location,
clean around the air intake and exhaust
vents periodically. Dust that
accumulates in intake or exhaust vents
may impair ventilation, raising the
temperature inside and posing a risk of
damage or fire. Use a vacuum cleaner or
similar means to remove dust from the
intake vent and exhaust vent.

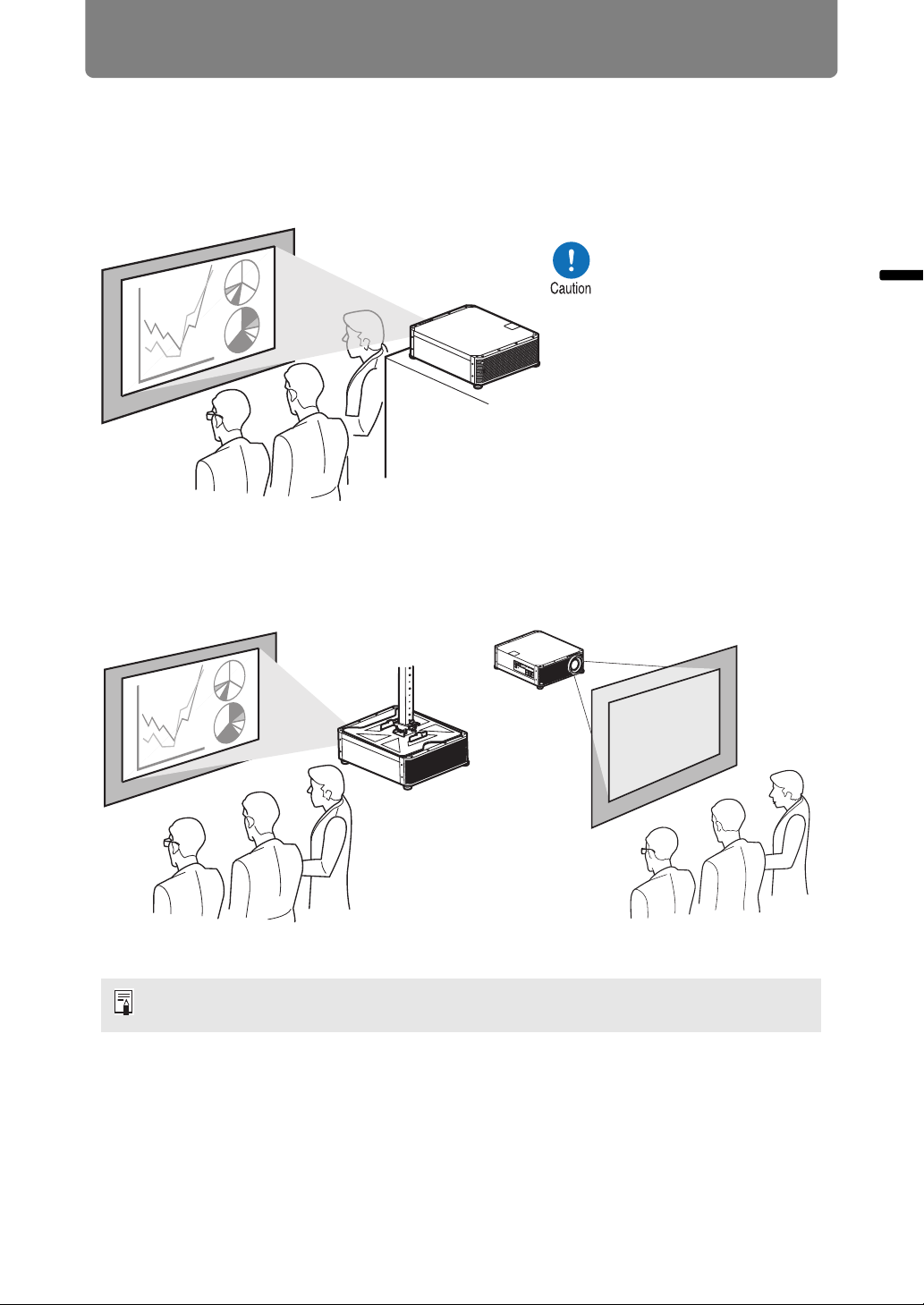

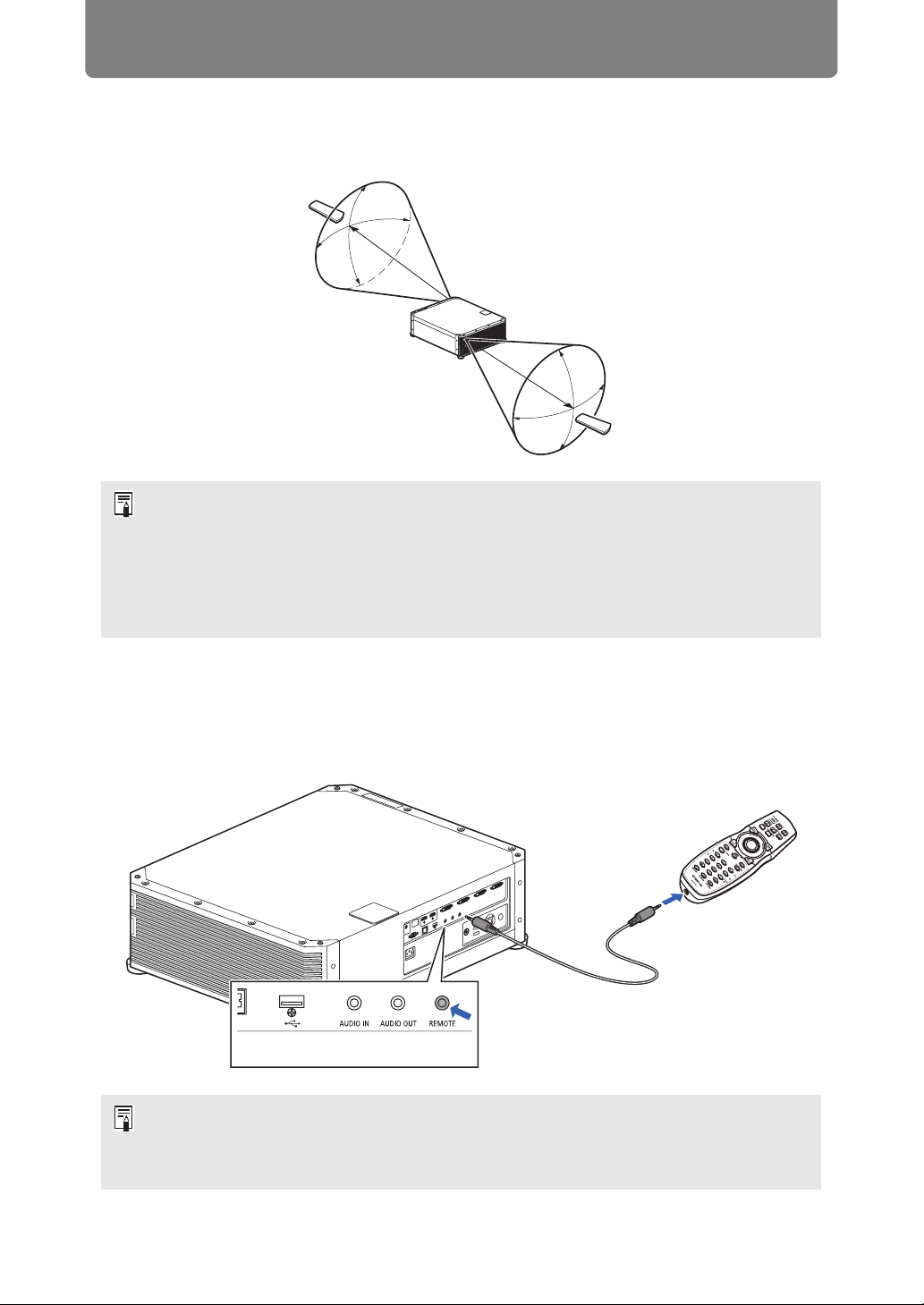

■ Installation to Project Up, Down, or at an Angle
• Projection is possible upward, downward, or in a variety of
directions, but do not block the air intake and exhaust vents. In
particular, always ensure a minimum clearance of 2 cm (0.8") from
the air intake vent on the bottom of the projector.
• There are no options for installing the projector other than the
ceiling attachment.
• When mounting the projector on the ceiling, it is more convenient
to install the projector right-side up, with the adjustable feet facing
down.
Before Installation
23
Page 24
Before Installation

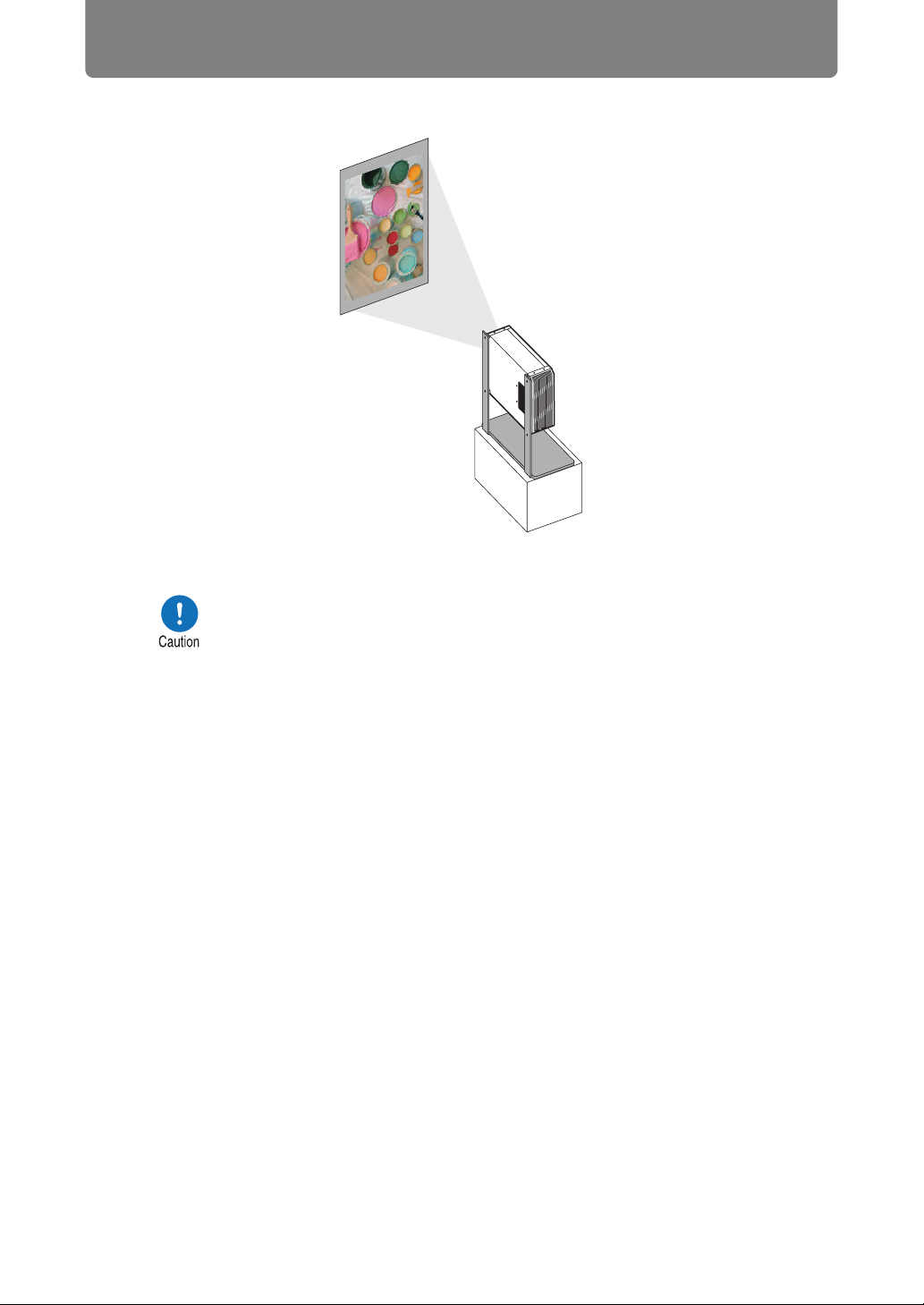

■ Precautions for Portrait (Upright) Installation
• Do not block the air intake or exhaust vents. In particular,
because there is an air intake vent on the bottom, always ensure
a minimum clearance of 2 cm (0.8") from the bottom.
• Note that no mounting brackets or similar accessories for
portrait installation are available.
24
Page 25
Before Installation
Copyright Notice
Please note that enlarging or reducing the size of an image for commercial
purposes or public presentation may infringe on the legally protected copyright
or the copyright holder of the original material.
Ensure Network Security
Take measures to ensure network security. Note that Canon is not liable in any
way for direct or indirect loss from network security incidents, such as
unauthorized access.
Before use, configure projector, computer, and network security settings
appropriately.
• Set up the projector for connections only within your protected network,
behind a firewall or the like, instead of direct Internet connections.
• When using the projector in a wireless network, also configure the Wi-Fi
security settings.
• Change the Wi-Fi security key on a regular basis.
About Trademarks
• Ethernet is a registered trademark of Xerox Corporation.
• Microsoft, Windows, Windows Vista, Windows 7, Windows 8, Windows 8.1
and Windows 10 are registered trademarks or trademarks of Microsoft
Corporation in the United States and / or other countries.
• Mac, Mac OS and Macintosh are trademarks of Apple Inc., registered in the
United States and / or other countries.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing, LLC.
• PJLink is a registered trademark of JBMIA and pending trademark in some
countries.
• PJLink is a registered trademark, or an application has been submitted for
trademark, in Japan, the United States and / or other countries or regions.
• AMX is a trademark of AMX Corporation.
• Crestron®, Crestron RoomView®, and Crestron Connected™ are registered
trademarks of Crestron Electronics, Inc.
• Wi-Fi is a registered trademark of the Wi-Fi Alliance.
• Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are used in
reference to methods of configuration developed by the Wi-Fi Alliance.
• All other trademarks are the property of their respective owners.
Before Installation
25
Page 26
Open Source Software
The product contains Open Source Software modules. For details, see
“ThirdPartySoftware.pdf” (Third-Party Software License) in the
OpenSourceSoftware folder in the LICENSE folder on the Setup CD-ROM. Each
module’s license conditions are also available in the same folder.
■ Software under the GNU General Public License Version 2
Contained programs are free software; you can redistribute them and/or modify
them under the terms of the GNU General Public License attached to each copy of
the program.
Each program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE. Please see “NO WARRANTY” and
“NO SUPPORT” stated below. For more detail, please see full text of the GNU
General Public License.
NO WARRANTY
BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM
“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM
IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS
OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED
BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE
WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NO SUPPORT
Canon Inc., and all its subsidiaries or its dealers do not make any support service
regarding the source code. Canon Inc., and all its subsidiaries or its dealers shall
not respond to any questions or enquiries, from you or any other customers,
regarding the source code.
26
Page 27
Before Use

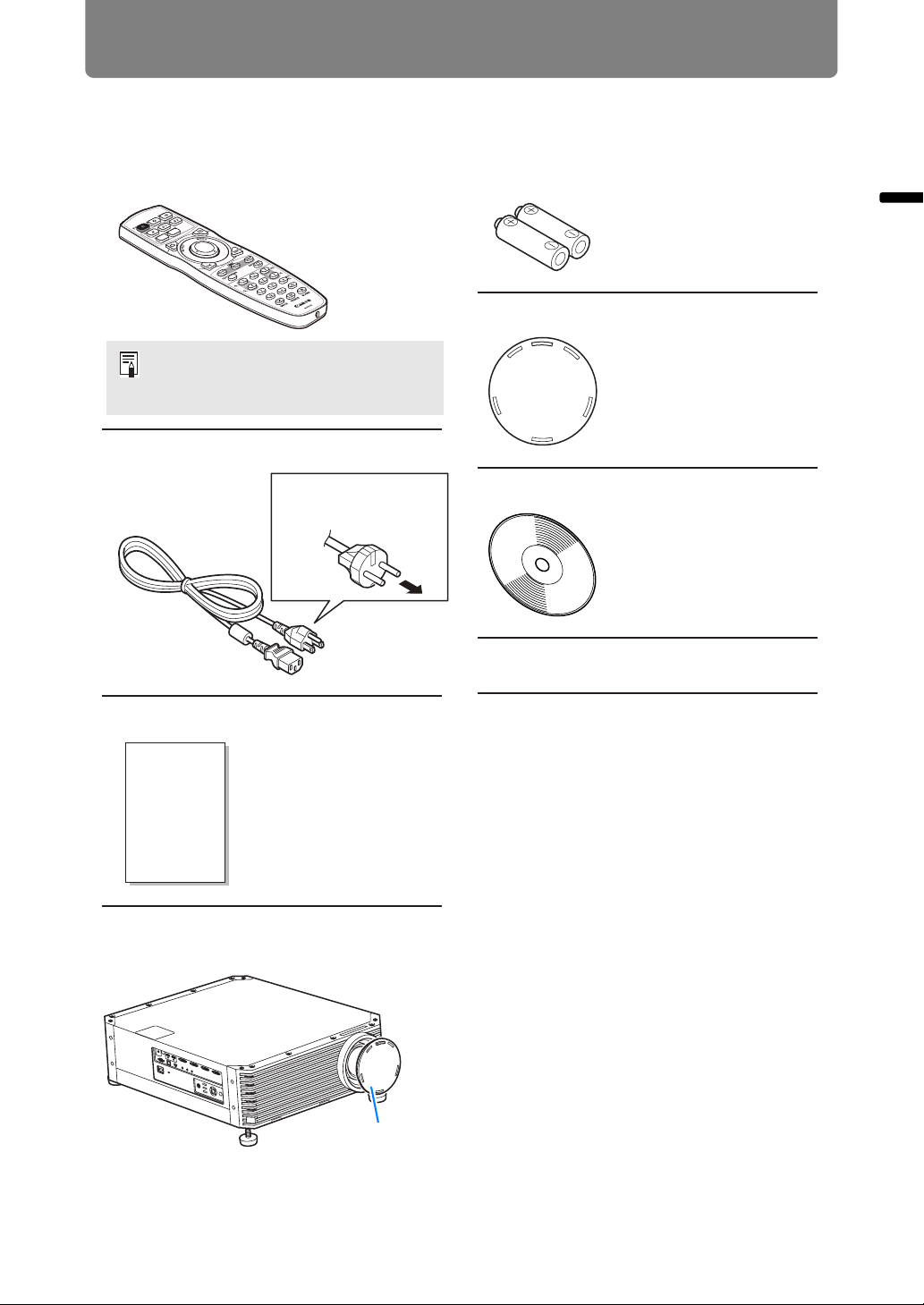

Included Accessories
Before use, make sure the following items are included in the package.
• Remote control (part No.: RS-RC05)
The remote control can also be used
in a wired connection with the
projector. (P36)
• Power cord (1.8 m / 5.9')
For Continental
Europe
For the U.S.A.
and Canada
• Batteries for the remote control (AA size x2)
Before Use
• Lens cap
• User’s Manual (CD-ROM)
• Warranty Card
• Important Information
■ Lens Cap
Always remove the lens cap before
projection. Accidentally leaving the lens
cap on during projection may distort the
lens cap and damage the projector.
Lens cap
27
Page 28
Before Use
Part Names
Projector
■ Front Side
Terminals and connectors (P32)

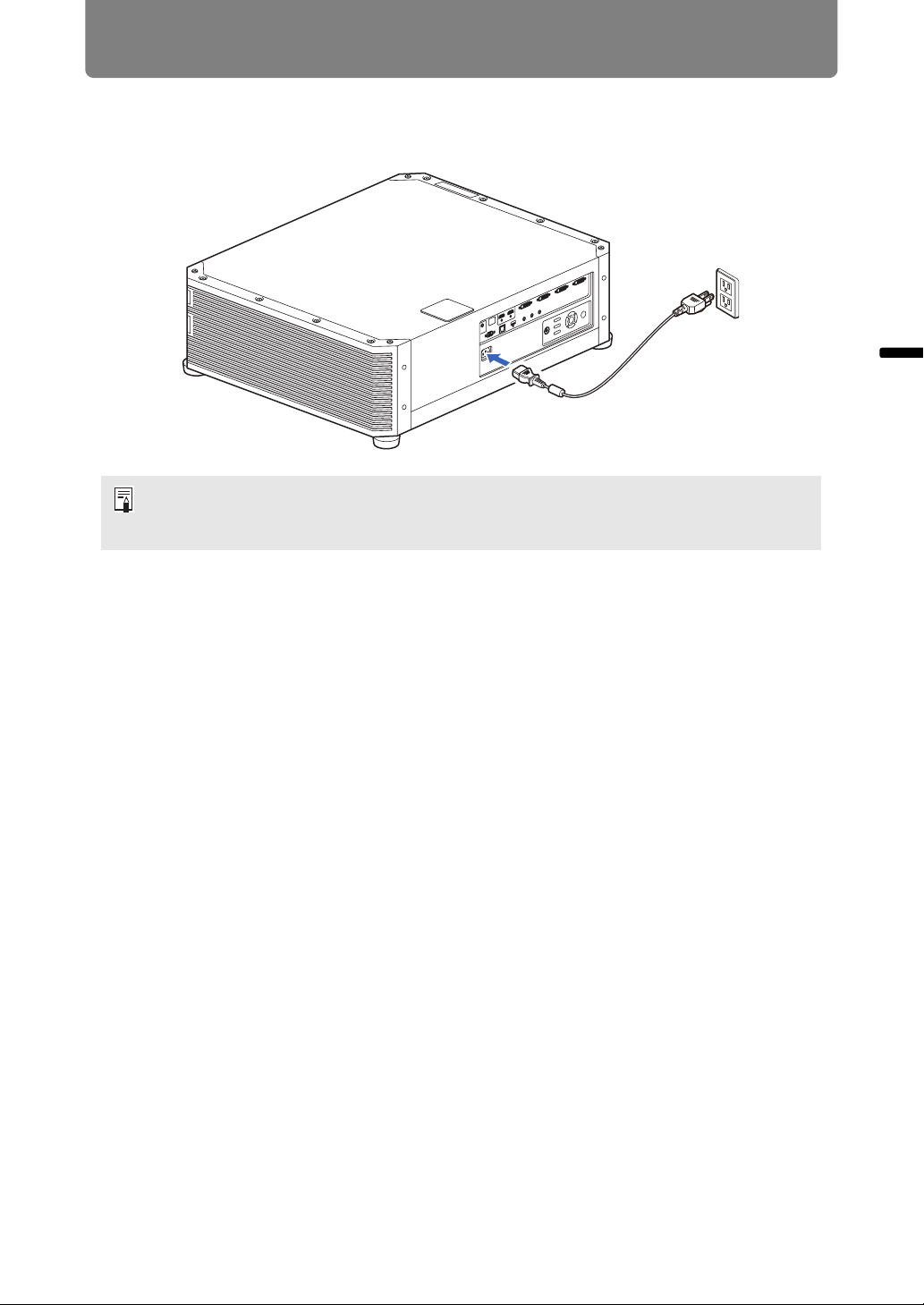

Power cord
connector (P51)
Anti-theft lock hole
An anti-theft wire cable (not
included) can be connected.
Do not block the air
intake.
Doing so may cause
a malfunction.
Projection lens
Always remove the
lens cap before
projection.
Failure to do so may
cause a
malfunction.
Exhaust vent
Do not block the air
exhaust. Doing so may
cause a malfunction.
Infrared remote receiver (P36)
Security bar
A wire or cable can be attached to deter theft.
An opening of 2 mm (0.078") is provided for threading the wire.
28
Page 29
■ Bottom
Side Control
Before Use
Air intake vent
Before Use
(1)(2)

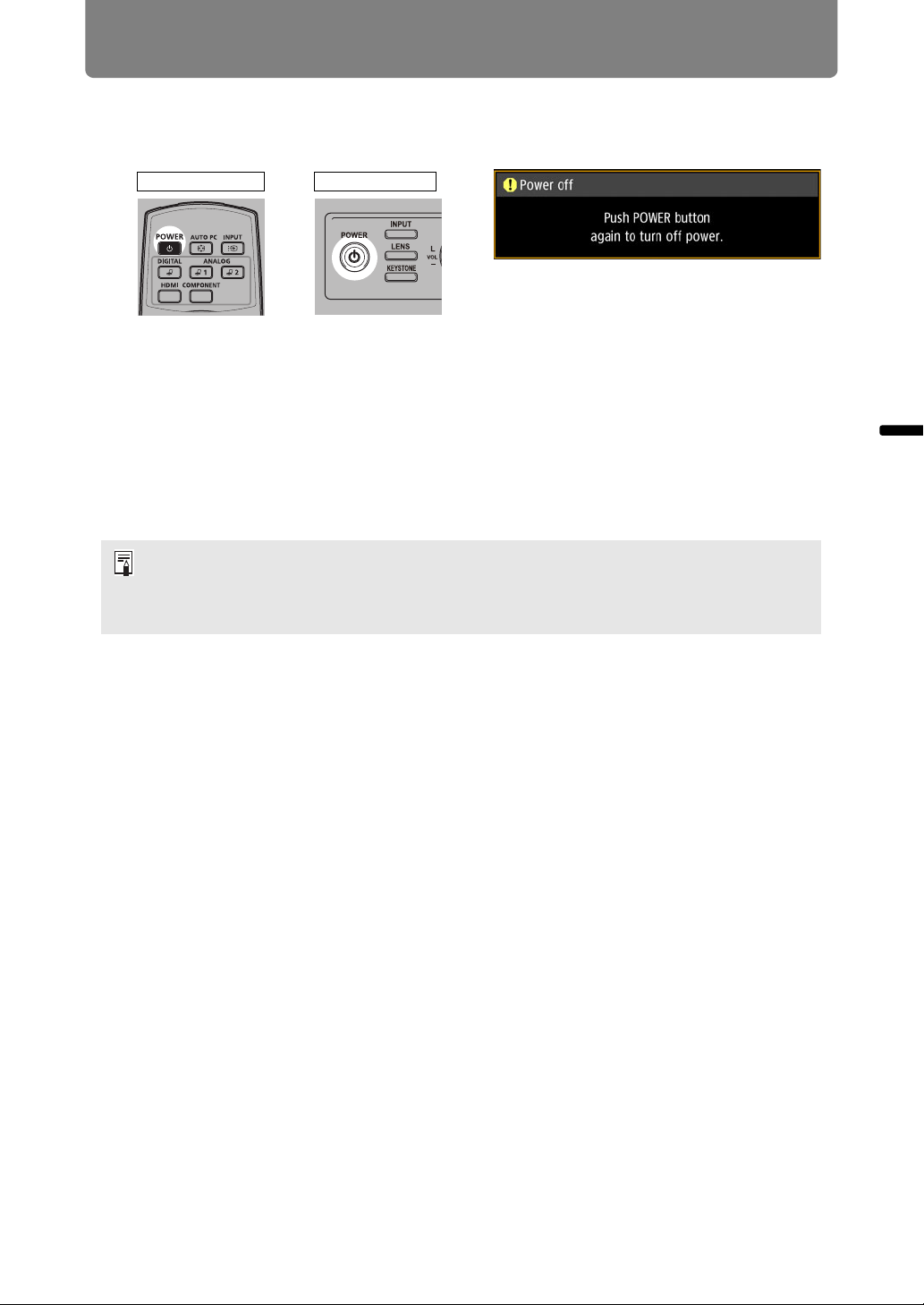

(1) POWER button (P52, P71)
Turns the projector on or off.
(2) INPUT button (P55)
Switches the input signal.

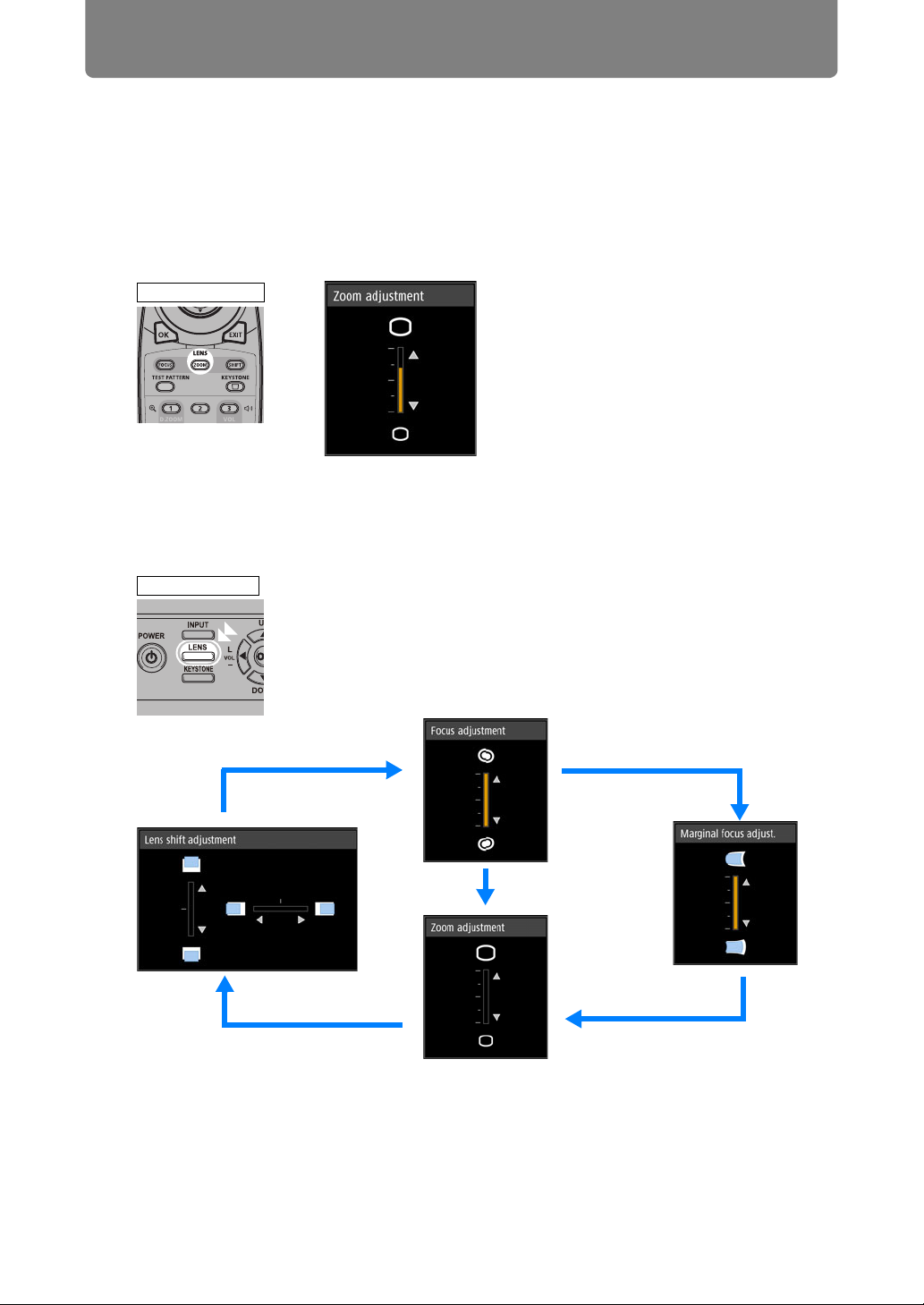

(3) LENS button (P59)
Each time the button is pressed,
the adjustment window changes,
from focus (P59) to zoom (image
size) (P60) to lens shift (image
position) (P62).
To adjust the image, use the [ ] /
[ ] or [ ] / [ ] buttons.
After the focus adjustment window,
the marginal focus adjustment
window is also displayed for
adjusting focus of image edges
(P191), depending on the [Marginal
focus] setting (P112).
(4)(6)(7)
(3)
(4) KEYSTONE button (P65)
Corrects keystone distortion.
(5) OK button (P78)
Determines the item selected from
the menu.
(6) Pointer / VOL buttons (P77)
Up, down, left, or right in menu
navigation or other operations.
Adjust the sound volume.
[ ] VOL– button: Decreases the
volume.
[ ] VOL+ button: Increases the
volume.
(7) MENU button (P76)
Displays a menu on the screen.
(5)
29
Page 30
Before Use

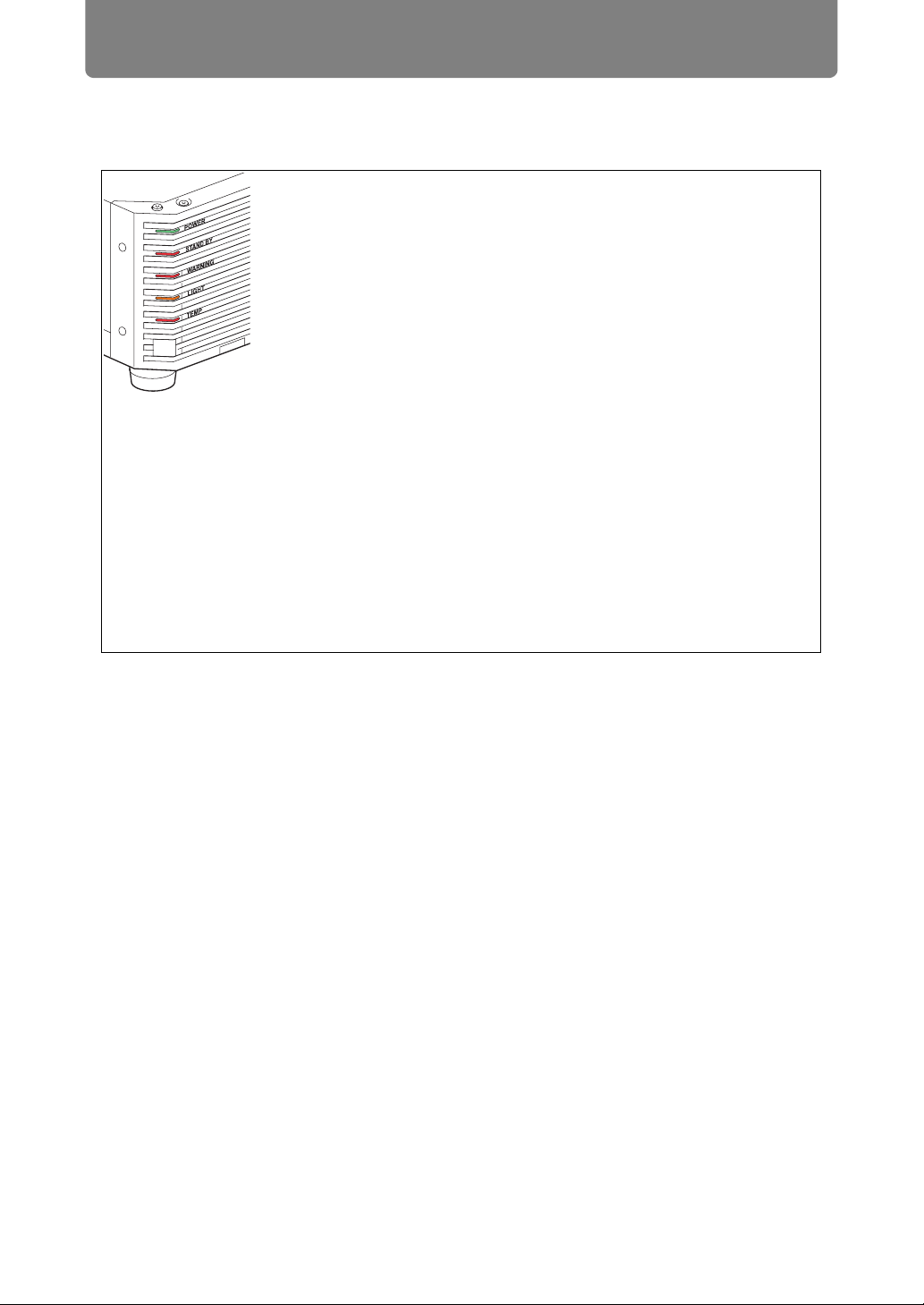

LED Indicators
The projector status is shown by the LED indicators (off / lit / flashing).
• POWER (green) : Illuminated during projection.
Otherwise, flashes in the following
situations.
• As the projector transitions from
standby to projection
• While the light source is off in power
management mode
• STAND BY (red) : Illuminated during standby mode.
Otherwise, flashes in the following
situations.
• As the projector transitions from
projection to standby
• While the light source is off in power
management mode
• WARNING (red) : Lights up or flashes when an error
occurs.
• LIGHT (orange): Lights up or flashes when a problem
occurs with the light source.
• TEMP (red): Lights up or flashes when the internal
temperature is high.
30
Page 31
Before Use

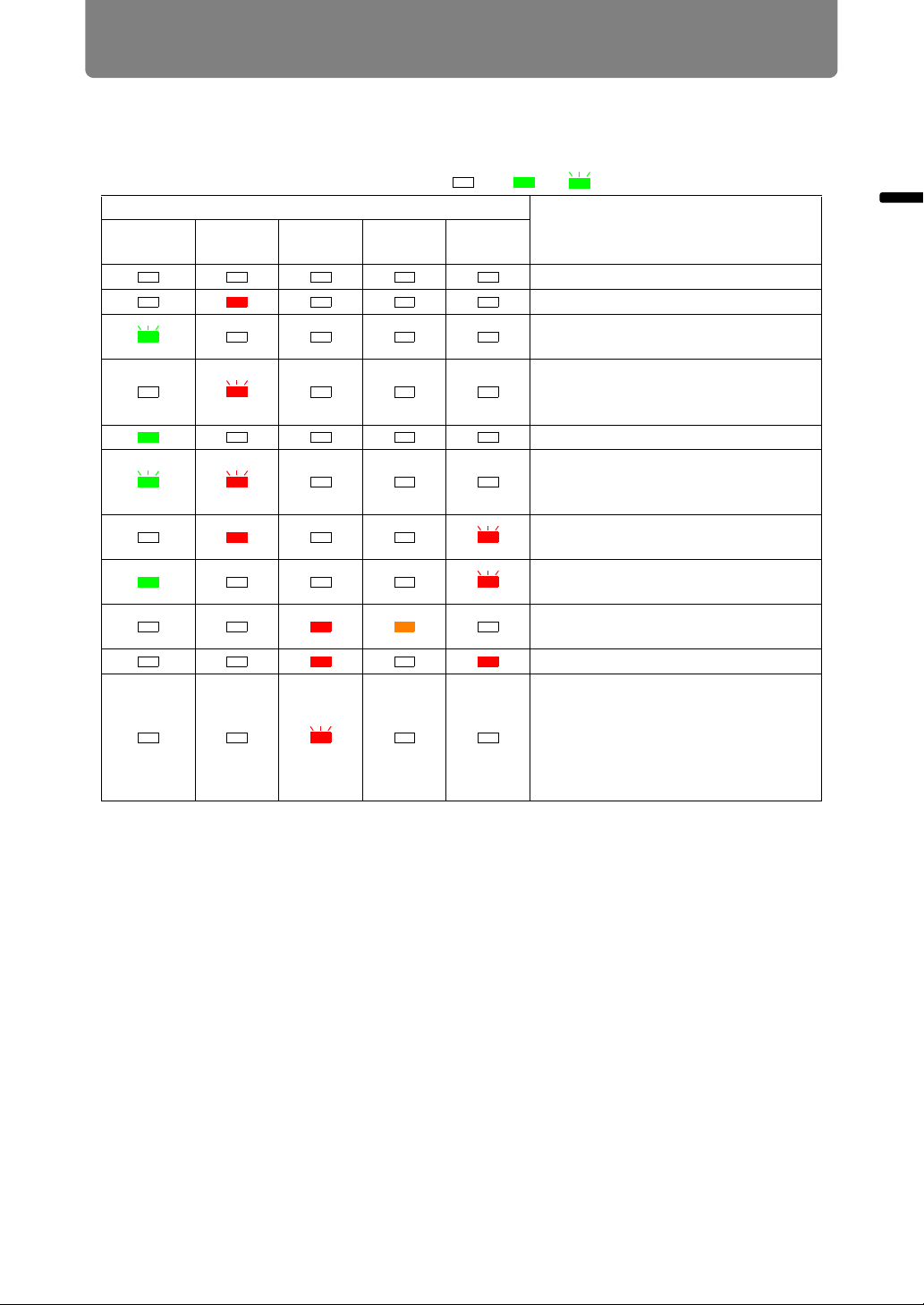

■ LED Indicator Displays
Projector operating status is indicated by five LEDs, as shown in the following table.
For details on warnings, see “LED Indicator Details” (P208).
Example of when the POWER indicator is on; : Off : Lit : Flashing
LED indicator
POWER
(green)
STAND BY
(red)
WARNI NG
(red)
LIGHT
(orange)
TEMP
(red)
Projector not plugged in.
In standby mode.
Resuming operation (projection) after
standby.
Cooling down while entering standby
or power management mode from
power on.
Power is on. (Projecting.)
In power management mode, with the
light source off. (Flashes green and
then red.)
Internal temperature is high. (In
standby mode.)
Internal temperature is high. (During
projection)
An error has occurred with the light
source unit.
A temperature error has occurred.
Flashes 3 times: An air filter error has
occurred.
Flashes 4 times: A fan error has
occurred.
Flashes 5 times: A power error has
occurred.
Operating status
Before Use
31
Page 32
Before Use

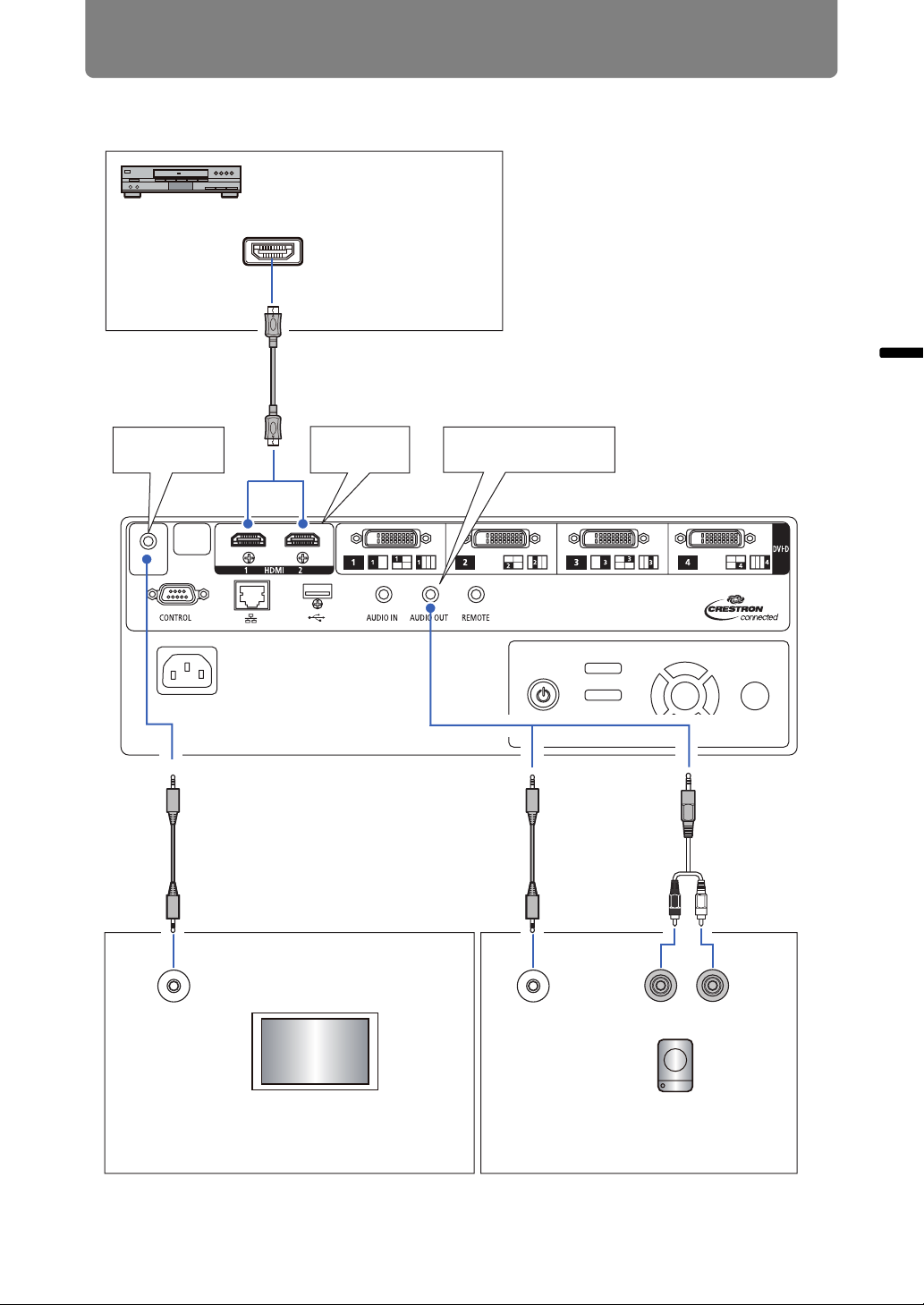

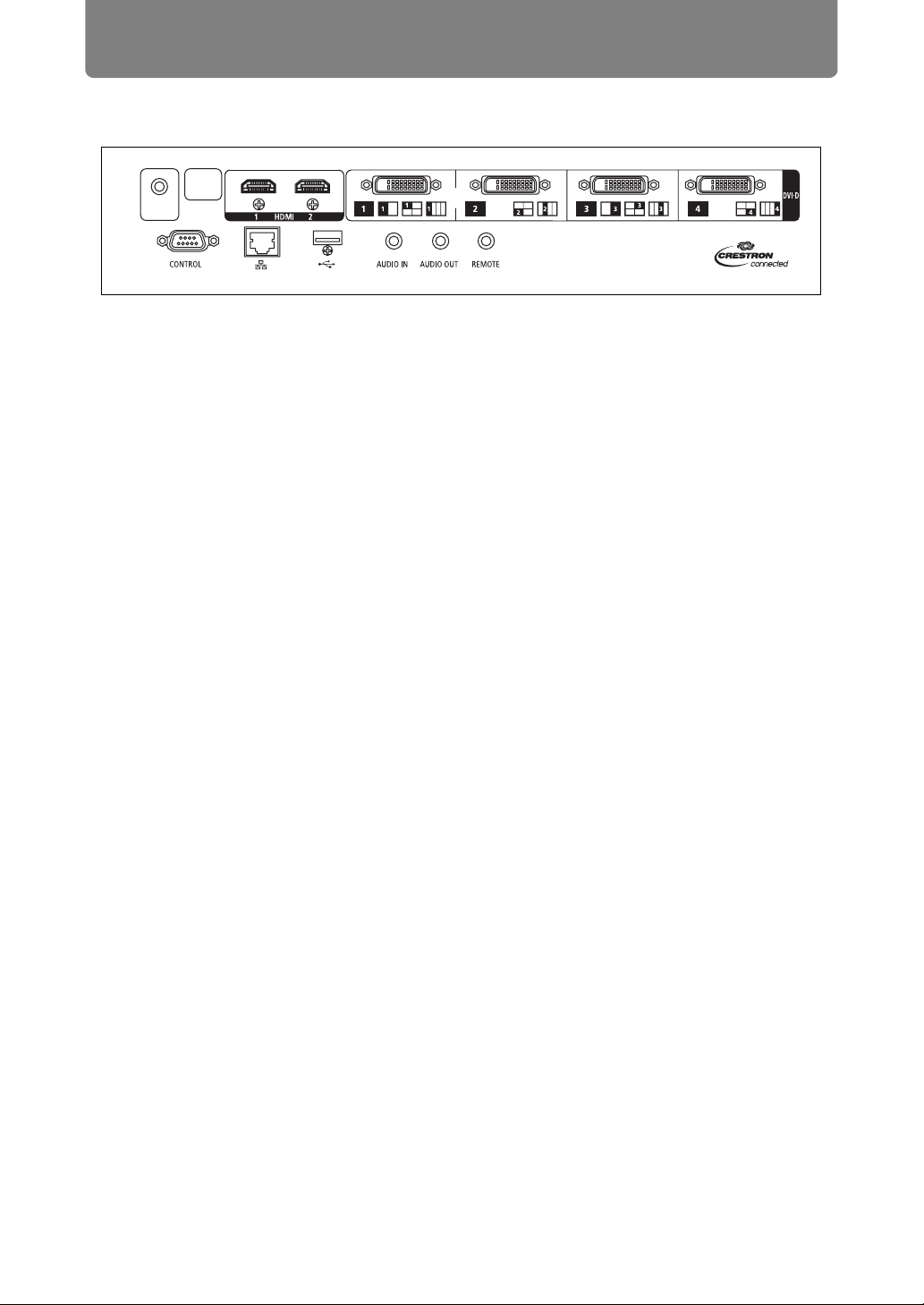

Input Terminal
(1)(3)
(4)
(2)
(6)(7)(8)(5)
(9)
(1) Trigger terminal (TRIGGER) (P192)
Used to trigger operation of a screen or other external device when the
projector is turned on or off.
(2) HDMI terminal (HDMI) (P44, P45)
Receives digital video signals (HDMI).
Carries both video and audio signals across a single cable.
(3) Digital PC / DVI-D terminal (DVI-D) (P44)
Connects the external monitor output from a computer.
Receives digital PC signal (Digital PC).
(4) Service port (CONTROL) (P205)
Used for executing user commands (P206 – P207).
(5) LAN port (P135)
Connects the LAN cable (shielded twisted pair).
Used to connect the projector to a network.
(6) USB port (P134)
Connects a USB flash drive. Used for firmware updates.
(7) AUDIO IN terminal (AUDIO IN) (P44)
Receives audio input. Audio supplied to this terminal is played through the
internal speaker when you select [Audio in] as the source audio terminal for
the selected source video.
(8) AUDIO OUT terminal (AUDIO OUT) (P44, P45)
Outputs the selected audio signal. (Connecting an audio cable to this terminal
mutes the speaker.)
(9) Terminal for wired remote control (REMOTE) (P36)
This terminal is used to connect the remote control using a cable.
32
Page 33
Remote Control
(1)
(2)
(3)
(4)
(5)
(6)
(11)
(12)
Before Use
(4) OK button (P78)
Determines the item selected from the
menu.
Before Use
(5) ZOOM button (P60)
Adjusts the image size.
[ ] / [ ] buttons:
Increase the image size.
[ ] / [ ] buttons:
Decrease the image size.
(6) FOCUS button (P59)
Adjusts focusing.
[ ] / [ ] buttons:
Moves the focus position further away.
[ ] / [ ] buttons:
Moves the focus position nearer.
By pressing the FOCUS button twice,
you can adjust the focus at image
edges (P191).
[Marginal focus] setting (P112).
(7)
(8)
(9)
(10)
(1) POWER button (P52, P71)
Turns the projector on or off.

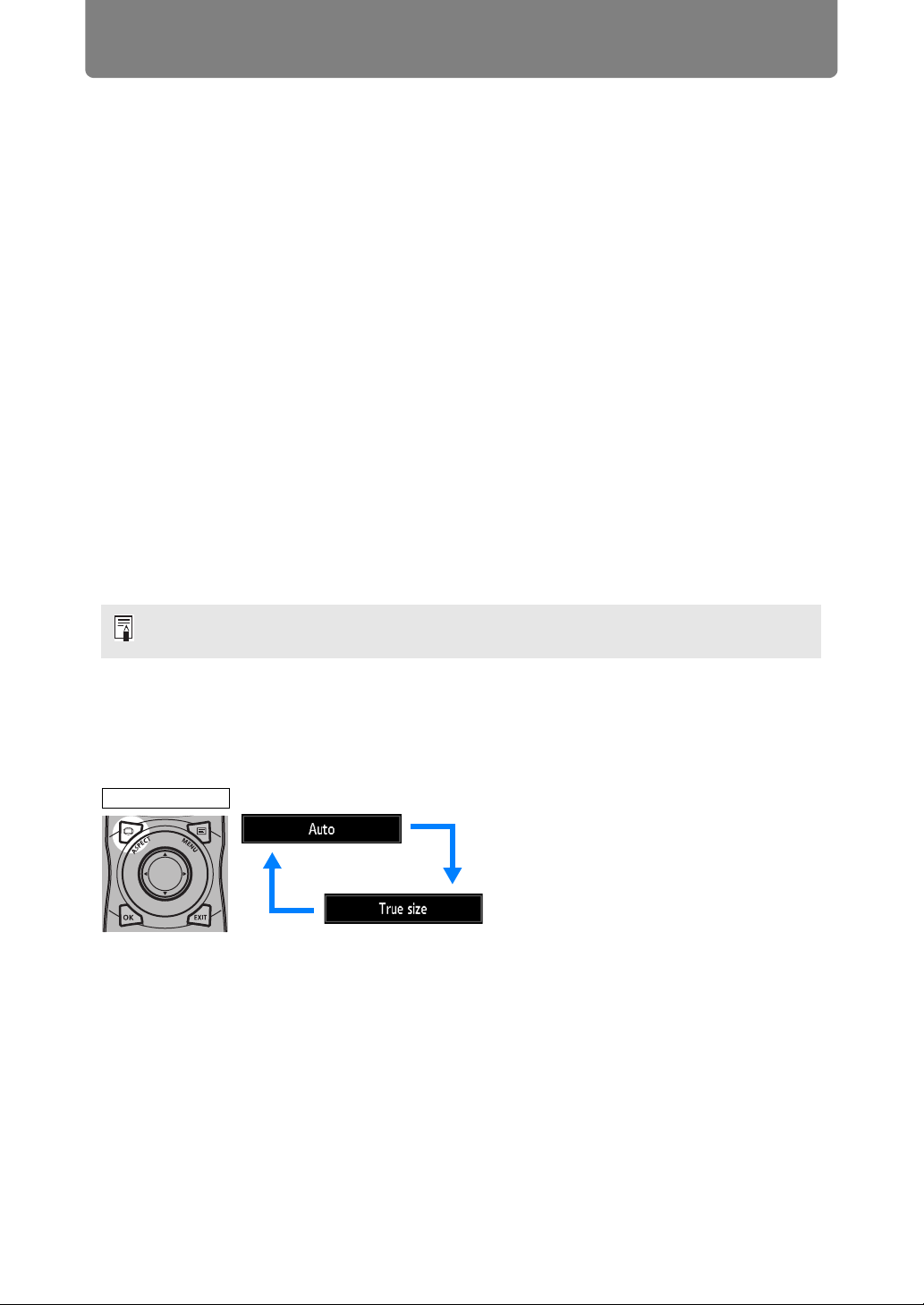

(2) ASPECT button (P64, P93)
Changes the aspect ratio mode.
(3) Pointer buttons (P77)
Selects the upper, lower, left or right
item in the menu.
(7) TEST PATTERN button (P116)
Displays the test pattern.
(8) D.ZOOM button
Not used with this product.
(9) Ch button (P122)
Changes the remote control channel
when the remote control is used via the
infrared transmitter.

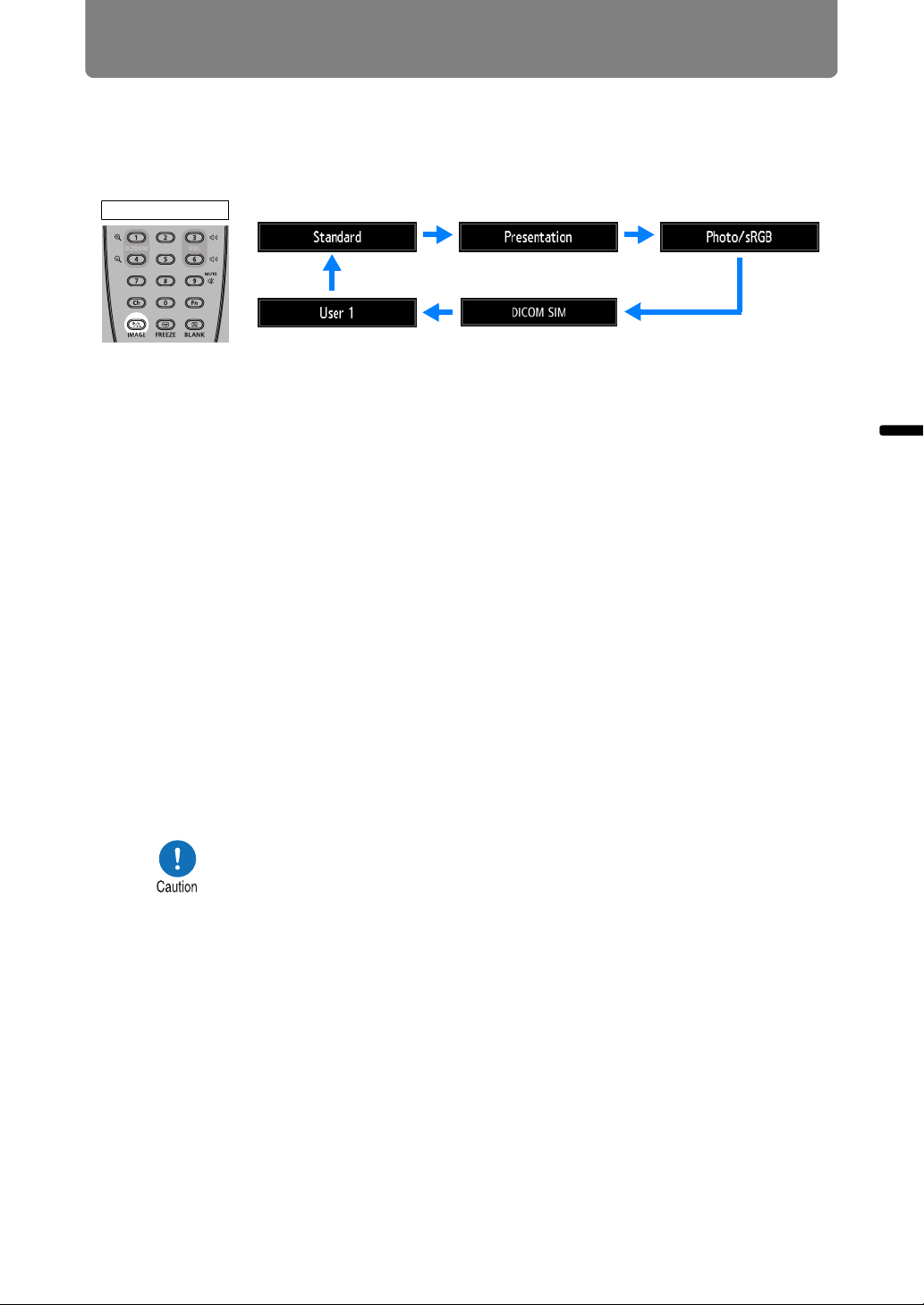

(10) IMAGE button (P68)
Switches the image mode (image
quality).
(11) AUTO PC button
Not used with this product.

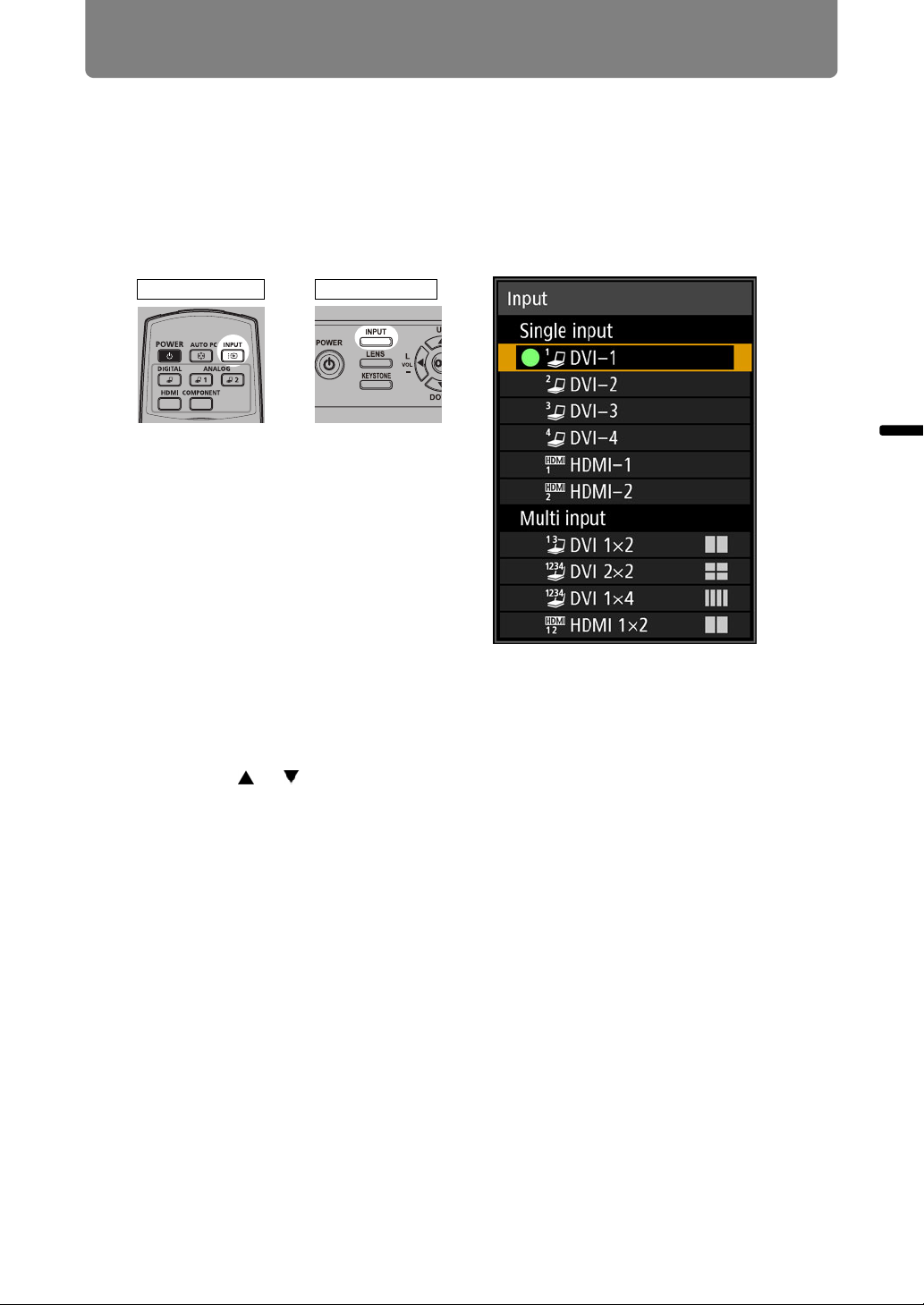

(12) INPUT button (P55)
Switches the input signal.
33
Page 34
Before Use
(13) Change input buttons
Change the input signal between Digital
PC and HDMI.
ANALOG 1, ANALOG 2 and
COMPONENT are not used with this
product.
(14) MENU button (P76)
Displays a menu on the screen.
(15) EXIT button (P79)
Cancels functions such as menu
display or test pattern during operation
and returns to the image display.
(16) SHIFT button (P62)
Shifts the image up, down, left, or right.
[ ] / [ ] / [ ] / [ ] buttons:
Moves the image.

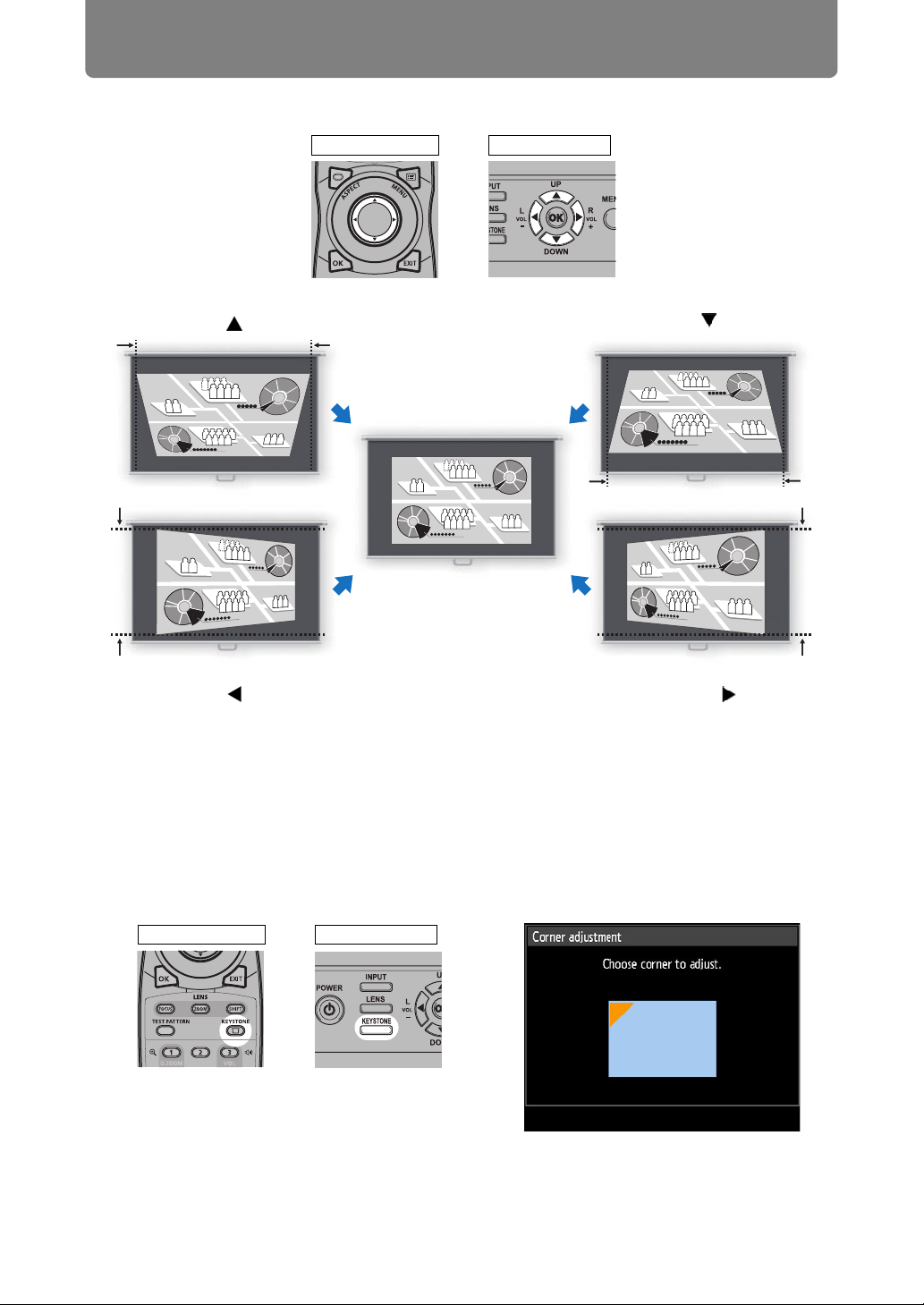

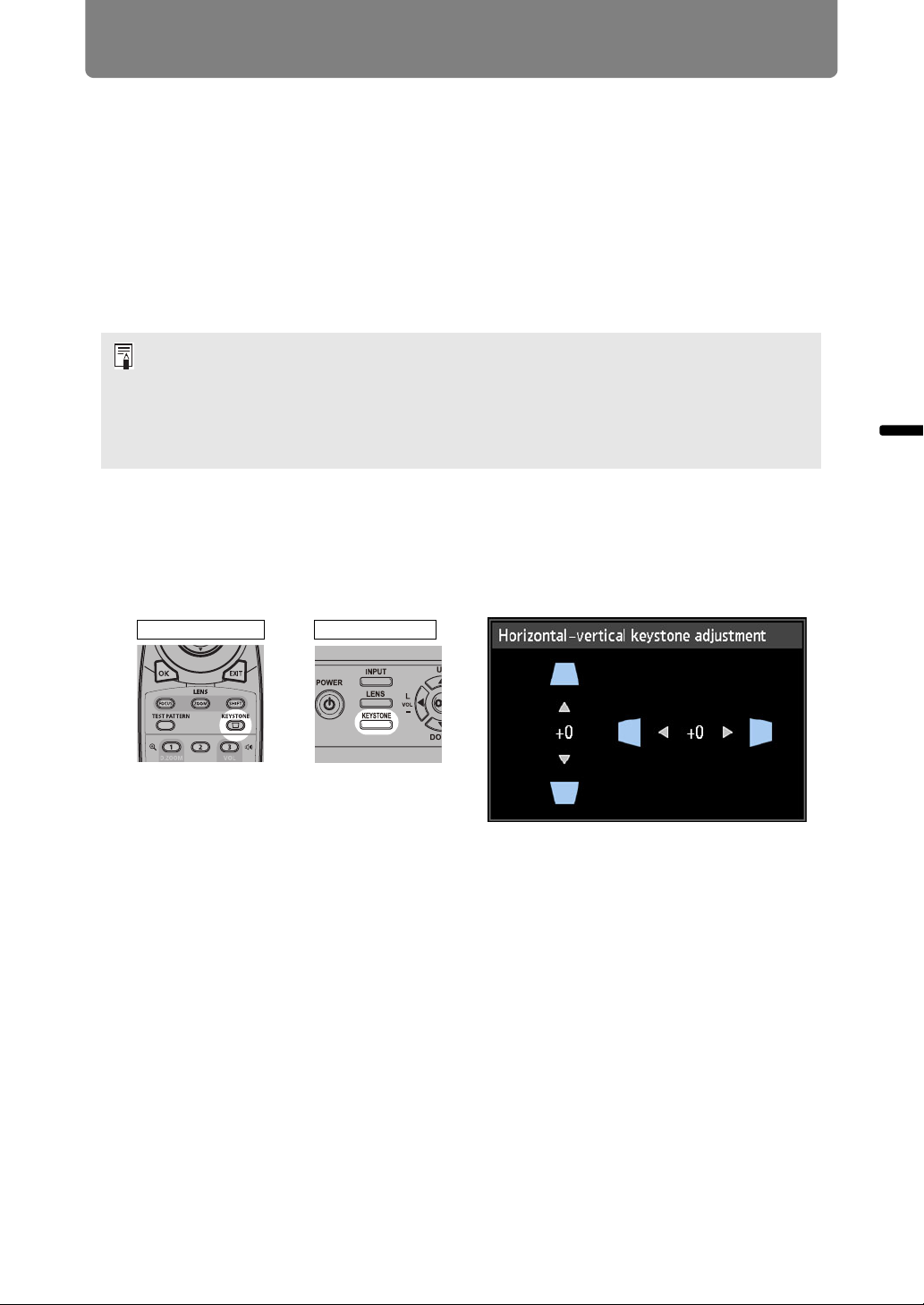

(17) KEYSTONE button (P65)
Corrects keystone distortion.
The [Keystone] setting enables both
horizontal/vertical keystone correction
(by adjusting top/bottom/left/right
length) and corner correction.
(24) Terminal for wired remote
control (P36)
Connects the remote control to the
projector, for remote control operation.
(13)
(14)
(15)
(16)
(17)
(18) VOL button
Adjusts the sound volume.
[ ] button, [3] button:
Increases the volume.
[ ] button, [6] button:
Decreases the volume.
(19) MUTE button
Mutes the sound.
(20) Numerical buttons (P127, P141,
P144)
Enter password and TCP/IP setting
values.
(21) Fn button
Not used with this product.
(22) BLANK button (P72)
Temporarily blacks out the image.
(23) FREEZE button (P72)
Freezes the projected image.
(18)
(19)
(20)
(21)
(22)
(23)
(24)
34
Page 35
Preparing the Remote Control
■ Installing Remote Control Batteries
Before Use
1Open the battery
compartment lid.
Raise the battery
cover tab while
pushing it.
• If buttons on the remote control are inoperative when you attempt to operate the
projector, replace the batteries with new ones.
• Do not drop the remote control or subject it to impact.
• Do not spill any liquids on the remote control. Doing so may cause a malfunction.
Pay attention to the following points when handling the batteries.
Failing to do so could result in a fire or personal injury.
• Do not heat, short circuit or disassemble the batteries, or place
them in a fire.
• Do not attempt to recharge the batteries that are included with the
remote control.
2Insert batteries.
Insert 2 new AA
batteries in the
compartment with the
+ and – terminals
positioned correctly.
3Close the
compartment lid.
Insert the tab into the
remote control notch
(1) and push the
battery cover down
(2).
(1)
Before Use
(2)
• Remove the batteries when they are flat or when the remote
control will not be used for a long period of time.
• When replacing the batteries, replace both at the same time. Also,
do not use two batteries of a different type at the same time.
• Insert the batteries with the + and - terminals in the correct
directions.
• If any liquid from inside the batteries leaks out and contacts your
skin, be sure to wash the liquid off thoroughly.
35
Page 36
Before Use
■ Remote Control Operating Range
The remote control is an infrared type. Point it at the infrared remote receiver on the
front or rear of the projector to operate it.
25°
25°
8 m (26.3')
• Use the remote control within an angle of 25° in any direction from directly in front of the
infrared remote receiver.
• The remote control may be inoperative if there is an obstacle between the remote
control and the projector or the infrared remote receiver on the projector is exposed to
direct sunlight or strong light of lighting equipment.
• When you use 2 or more projectors at the same time, you can change the channel
settings to prevent the 2 remote controls from interfering with each other. (P122)
8 m (26.3')
25°
25°
■ Using the Remote (RS-RC05) in a Wired Connection
The remote control can also be used in a wired connection with the projector.
Use a cable with a ø3.5 mm stereo mini jack (not included).
Remote control
(RS-RC05)
Terminal for wired
remote control
ø3.5 mm stereo mini jack
cable (not included)
• Infrared operations cannot be performed if a cable is connected to the projector or the
remote control.
• Use a cable with a ø3.5 mm stereo mini jack (not included) with a length of 30 m (98.4')
or less.
36
Page 37
Safety Instructions
Before Use
Basic Guide
Installation Procedure
Basic Guide
Connection Procedure
Projection Procedure
Convenient Features
Using Menus
Menu Configuration
Advanced Guide
Menu Settings
37
Using the Projector on a
Network
Advanced Projection
Other Information
Maintenance
Product Specifications
Troubleshooting
Page 38
Installation Procedure
Before setting up the projector, be sure to read “Before Installation” (P21).

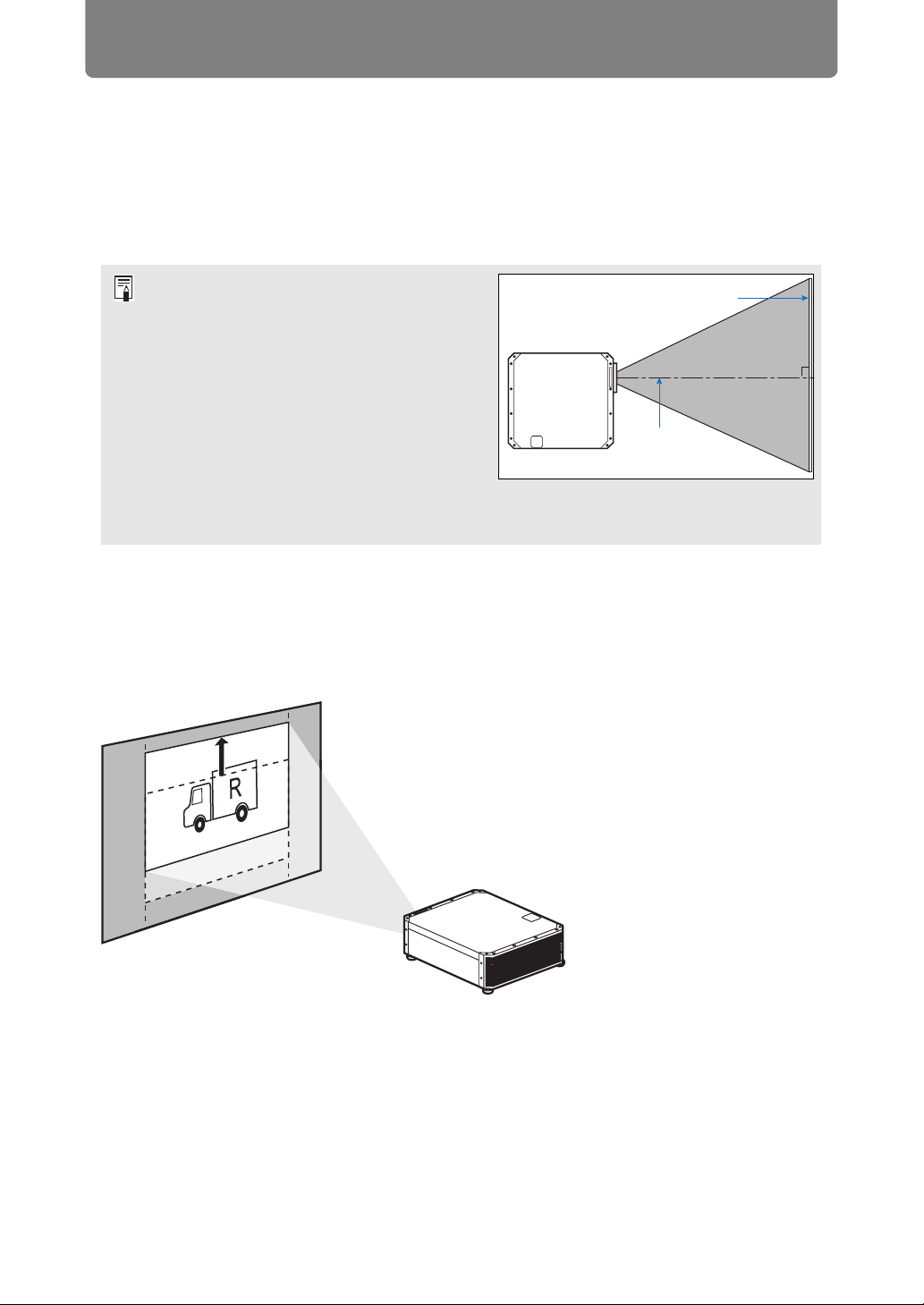

Setting Up the Projector
■ Positioning the Projector in Front of the Screen
Place the projector in front of the screen.
• To avoid keystone distortion, install the
projector so that it is at right angles to the
screen.
• The screen must not be exposed to direct
sunlight or light from lighting equipment.
In a bright room, it is recommended that
lights be turned off, curtains be drawn,
and other steps taken to make the screen
easier to see.
• Colors may appear distorted when
images are viewed from the side on
some screens. For best results, use a
matte screen with a wide viewing angle.
Optical axis
Screen
■ Floor Installation
To adjust the projection position when the projector is installed on the floor, use the
lens shift function (P42, P62) to adjust the image up / down / left / right.
For information about the relationship between image size and projection distance,
refer to page 40.
Lens shift
38
Page 39
Installation Procedure
■ Installation on High Surfaces
Using the lens shift function (P42), you can project images toward a lower level.
When setting the projector on a high surface for projection, make sure the surface
is flat and stable, and install the projector right-side up with the adjustable feet
facing down.
The projector may fall
and cause accidents or
injury.
■ Ceiling Mounting or Rear Projection
You can mount the projector on the ceiling (ceiling mounting) or place it behind the
screen (rear projection) if you use a translucent screen.
Basic GuideInstallation Procedure
Ceiling mounting
When mounting the projector on the ceiling, it is more convenient to install the projector
right-side up, with the adjustable feet facing down.
39
Rear projection
Page 40
Installation Procedure
Relationship between Image Size and
Projecting Distance
The projected image size is determined by the distance between the projector and
screen (projection distance) and the zoom position (check specifications for details
on the range in focus). Refer to the following table and decide the distance between
the projector and screen.
Image Size (diagonal)
Height
Width
Relationship between image size and projecting distance (reference values)
4096 x 21604096 x 2400
Image Size
(Dia.)
40
60
80
100
120
140
160
180
200
220
240
260
280
Image Size
[cm (in)]
WidthHeight
90
(35.4)47(18.5)
135
(53.1)71(28.0)
180
(70.9)95(37.4)
225
(88.6)
270
(106.3)
315
(124.0)
359
(141.3)
404
(159.1)
449
(176.8)
494
(194.5)
539
(212.2)
584
(229.9)
629
(247.6)
118
(46.5)
142
(55.9)
166
(65.4)
190
(74.8)
213
(83.9)
237
(93.3)
261
(102.8)
284
(111.8)
308
(121.3)
332
(130.7)
Projection
distance [m (feet)]
Wide
limit
(3.0)
(4.3)
(5.9)
(7.2)
(8.6)
(10.2)
(11.8)
(13.1)
(14.8)
(16.1)
(17.7)
(19.0)
(20.7)
Tele limit WidthHeight
0.9
1.3
1.8
2.2
2.7
3.1
3.6
4.0
4.5
4.9
5.4
5.8
6.3
1.2
(3.9)
1.8
(5.9)
2.3
(7.5)
2.9
(9.5)
3.5
(11.5)
4.1
(13.5)
4.7
(15.4)
5.3
(17.4)
5.8
(19.0)
6.4
(21.0)
7.0
(23.0)
7.6
(24.9)
8.2
(26.9)
Image Size
[cm (in)]
88
(34.6)51(20.1)
131
(51.6)77(30.3)
175
(68.9)
219
(86.2)
263
(103.5)
307
(120.9)
351
(138.2)
394
(155.1)
438
(172.4)
482
(189.8)
526
(207.1)
570
(224.4)
614
(241.7)
103
(40.6)
128
(50.4)
154
(60.6)
180
(70.9)
205
(80.7)
231
(90.9)
257
(101.2)
282
(111.0)
308
(121.3)
334
(131.5)
360
(141.7)
Projection
distance [m (feet)]
Wide
limit
(3.0)
(4.3)
(5.9)
(7.2)
(8.5)
(10.2)
(11.5)
(12.8)
(14.4)
(15.7)
(17.4)
(18.7)
(20.0)
0.9
1.3
1.8
2.2
2.6
3.1
3.5
3.9
4.4
4.8
5.3
5.7
6.1
Tele limit
1.1
(3.6)
1.7
(5.6)
2.3
(7.5)
2.8
(9.2)
3.4
(11.2)
4.0
(13.1)
4.6
(15.1)
5.1
(16.7)
5.7
(18.7)
6.3
(20.7)
6.8
(22.3)
7.4
(24.3)
8.0
(26.2)
40
Page 41
Image Size
(Dia.)
300
350
400
450
500
550
600
4096 x 21604096 x 2400
Image Size
[cm (in)]
WidthHeight
674
(265.4)
786
(309.4)
899
(353.9)
1011
(398.0)
1123
(442.1)
1236
(497.2)
1348
(530.7)
355
(139.8)
415
(163.4)
474
(186.6)
533
(209.8)
592
(233.1)
652
(256.7)
711
(279.9)
Projection
distance [m (feet)]
Wide
limit
(22.0)
(25.9)
(29.5)
10.1
(33.1)
11.2
(36.7)
12.3
(40.4)
13.5
(44.3)
Tele limit WidthHeight
6.7
7.9
9.0
8.8
(28.9)
10.2
(33.5)
11. 7
(38.4)
13.1
(43.0)
14.6
(48.0)
16.1
(52.8)
17.5
(57.4)
Image Size
[cm (in)]
657
(258.7)
767
(302.0)
877
(345.3)
986
(388.2)
1096
(431.5)
1205
(474.4)
1315
(517.7)
Installation Procedure
Projection
distance [m (feet)]
385
(151.9)
449
(176.8)
514
(202.4)
578
(227.6)
642
(252.8)
706
(278.0)
770
(303.1)
Wide
limit
(21.7)
(25.3)
(28.9)
(32.5)
11. 0
(36.1)
12.0
(39.4)
13.1
(43.0)
6.6
7.7
8.8
9.9
Tele limit
8.5
(27.9)
10.0
(32.8)
11.4
(37.4)
12.8
(42.0)
14.2
(46.6)
15.7
(51.5)
17.1
(56.1)
Basic GuideInstallation Procedure
41
Page 42
Installation Procedure

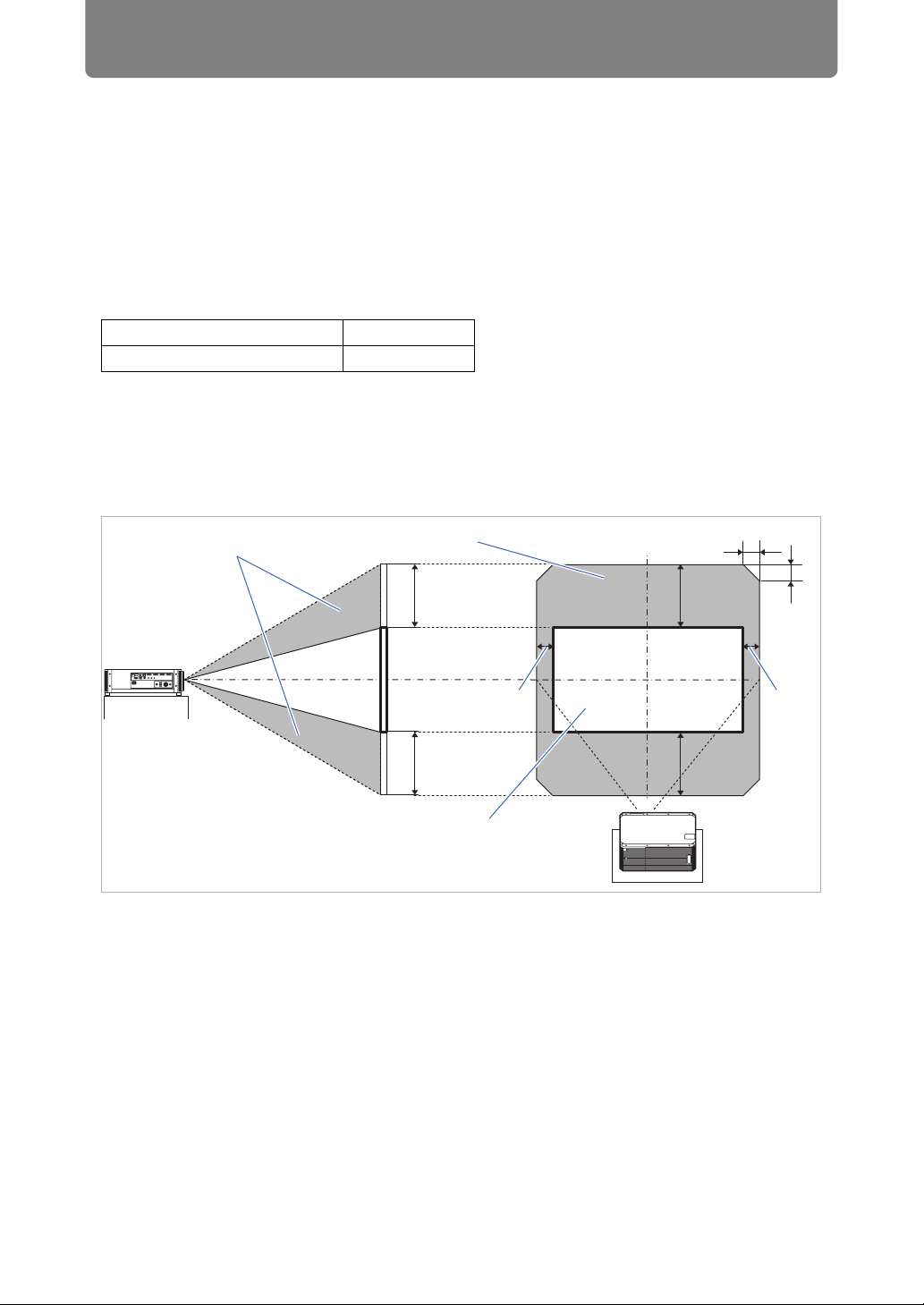

Lens Shift Function
You can reposition the image in all directions by pressing the SHIFT button on the
remote control, which moves the lens up, down, left, or right. For instructions, refer
to “Adjusting the Image Position” (P62).
■ Amount of Lens Shift
The amount of lens shift is indicated as a percentage relative to the image height
and width. The lens shift ranges for the projector are as follows.
A (Amount of vertical shift)±60%
B (Amount of horizontal shift)±10%
The lens can be shifted up or down and to the left or right. Performance using lens
shift is ensured within the recommended range described below. However,
peripheral dimness or blurriness may occur in the corners outside the last 10% of
the horizontal lens shift range and outside the last 15% of the vertical lens shift
range. In this case, adjust lens shift to within the recommended range.
Recommended lens shift range
10%
A
A
Lens shift range
A
15%
BB
A
42
Page 43
Installation Procedure
Maximum vertical (A) and horizontal (B) movement using lens shift
• (A) values are the approximate vertical lens shift distance from the central image
position within the supported lens shift range.
• (B) values are the approximate horizontal lens shift distance from the central image
position within the supported lens shift range.
• Watch the projected image as you adjust it using lens shift.
• When the image no longer moves, you have reached the limit of the lens shift range.
43
Page 44
Connection Procedure
Before connecting the projector to other equipment, turn off both the projector
and the other equipment.
For instructions on connecting multiple sources of input for 4K projection, refer to “4K
Projection” (P46).

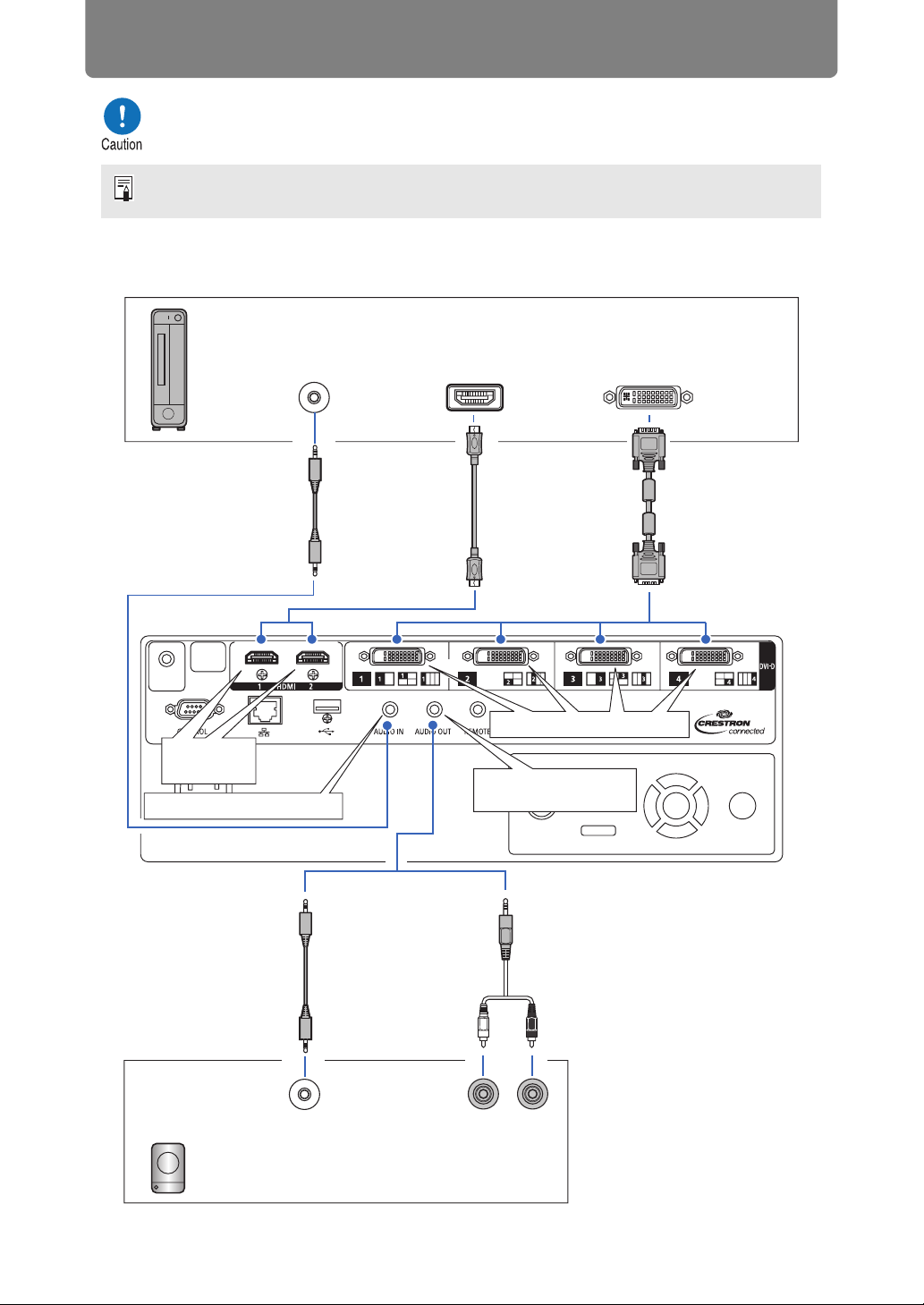

Connecting a Computer
Computer
AUDIO output
terminal
Audio cable
(not included)
HDMI
terminal
AUDIO IN terminal
terminal
HDMI cable
(not included)
HDMI
Monitor output
terminal
(DVI-D terminal)
DVI-D cable
(not included)
DVI-D terminal
AUDIO OUT
terminal
Audio cable
(not included)
Mini jackRCA terminal
Amplified speakers
Audio cable
(not included)
44
Page 45
Connecting AV Equipment
AV equipment
Connection Procedure
Trigger
terminal
HDMI terminal
HDMI cable
(not included)
HDMI
terminal
Basic GuideConnection Procedure
AUDIO OUT
terminal
Audio cable
(not included)
Mini jackRCA terminal
Screen or other product
compatible with the
trigger terminal
Audio cable
(not included)
Mini jack
Audio cable
(not included)
Amplified speakers
45
Page 46
Connection Procedure

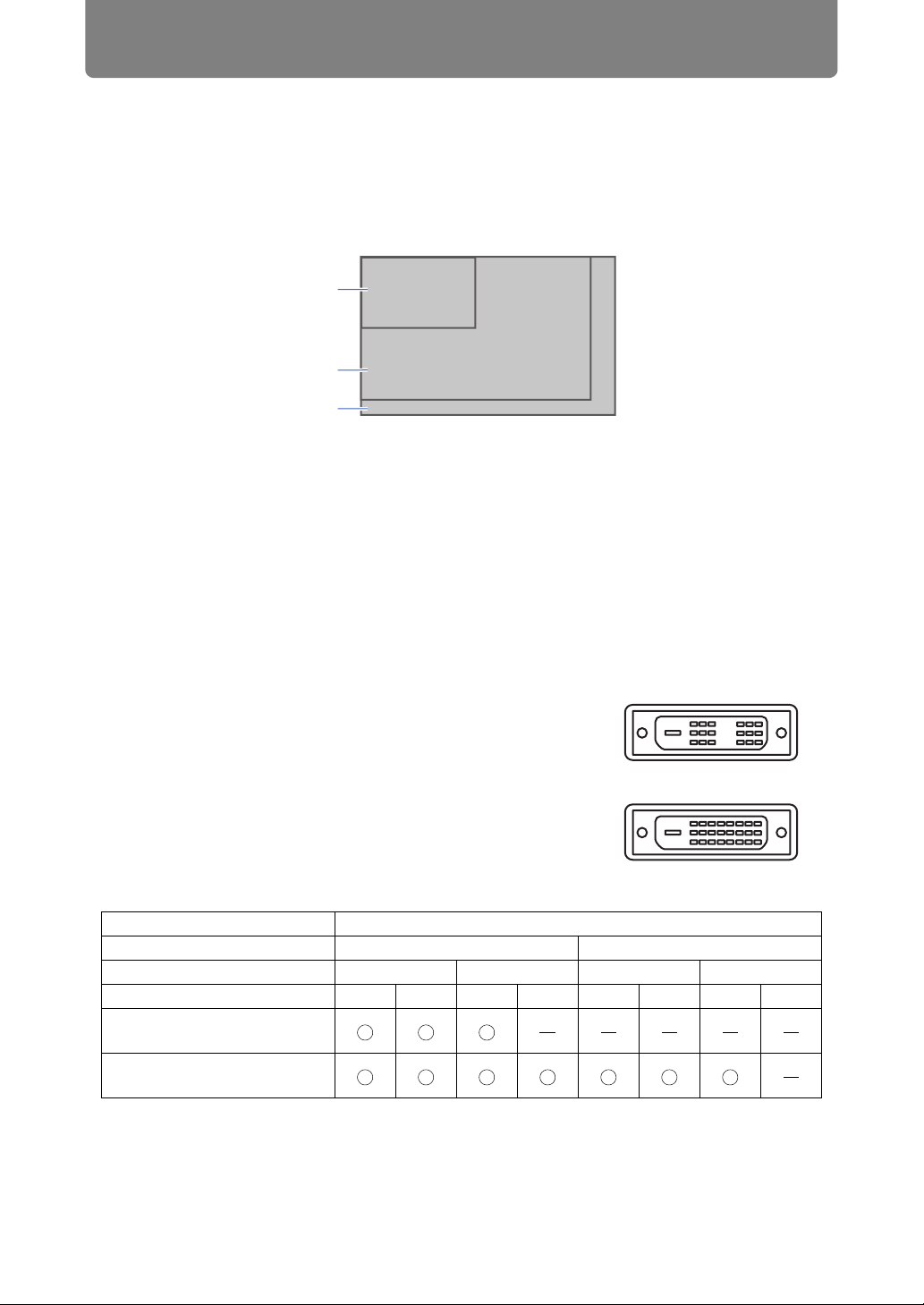

4K Projection
■ Definition of 4K
Several resolution specifications are described as being 4K, including 3840 x 2160,
3840 x 2400, 4096 x 2160, and 4096 x 2400, as shown in the following comparative
simulation.
1920 x 1080
3840 x 2160
4096 x 2400
The projector supports input signals at resolutions up to the maximum 4K resolution
of 4096 x 2400.
For details, check the table of supported signals. (P198)
■ 4K Digital Signal Compatibility
The projector is equipped with DVI-D and HDMI: 2 (4K / Deep Color / HDCP 2.2*1)
inputs.
DVI-D input is classified as single-link or dual-link, depending on the dot clock.
Projecting resolutions with a dot clock higher than 165 MHz requires a dual-link
plug and cable.
Main DVI-D input resolutions
• 4096 x 2160 (dual-link; vertical frequency: 24 Hz)
Main HDMI 2.0 input resolutions
• 3840 x 2160 (vertical frequency: 60 Hz)
• 4096 x 2160 (vertical frequency: 60 Hz)
Single-link plug
ResolutionQFHD (3840 x 2160)
Frequency24 Hz60 Hz
Subsampling422444422444
Color depth8 bit10 bit8 bit10 bit8 bit10 bit8 bit10 bit
HDMI 1.4
(10.2 Gbps bandwidth) x 1
HDMI 2.0*
(18 Gbps bandwidth) x 1
2
46
Dual-link plug
Page 47
Connection Procedure
ResolutionDCI (4096 x 2160)
Frequency24 Hz60 Hz
Subsampling422444422444
Color depth8 bit10 bit8 bit10 bit8 bit10 bit8 bit10 bit
HDMI 1.4
(10.2 Gbps bandwidth) x 1
HDMI 2.0*
(18 Gbps bandwidth) x 1
2
*1 HDCP, short for High-bandwidth Digital Content Protection, is a form of digital
copy protection that prevents illegal copying of content by encrypting digital
signals carried via HDMI from playback devices such as computers to display
devices such as projectors. HDCP specifications are established and managed
by Digital Content Protection, LLC.
*2 Use an HDMI cable supporting 18 Gbps.
■ Multi Input Mode
• DVI-D
Using four DVI-D dual-link cables, you can supply signals up to 4096 x 2400
(vertical frequency: 60 Hz). The signals supplied by the four cables are combined to
form a single image.
Basic GuideConnection Procedure
Connect workstations by using four dual-link DVI cables
47
Page 48
Connection Procedure
• HDMI
Using two HDMI cables, you can project 4096 x 2160 (vertical frequency: 60 Hz)
signals as one image. The signals supplied by the two cables are combined to form
a single image.

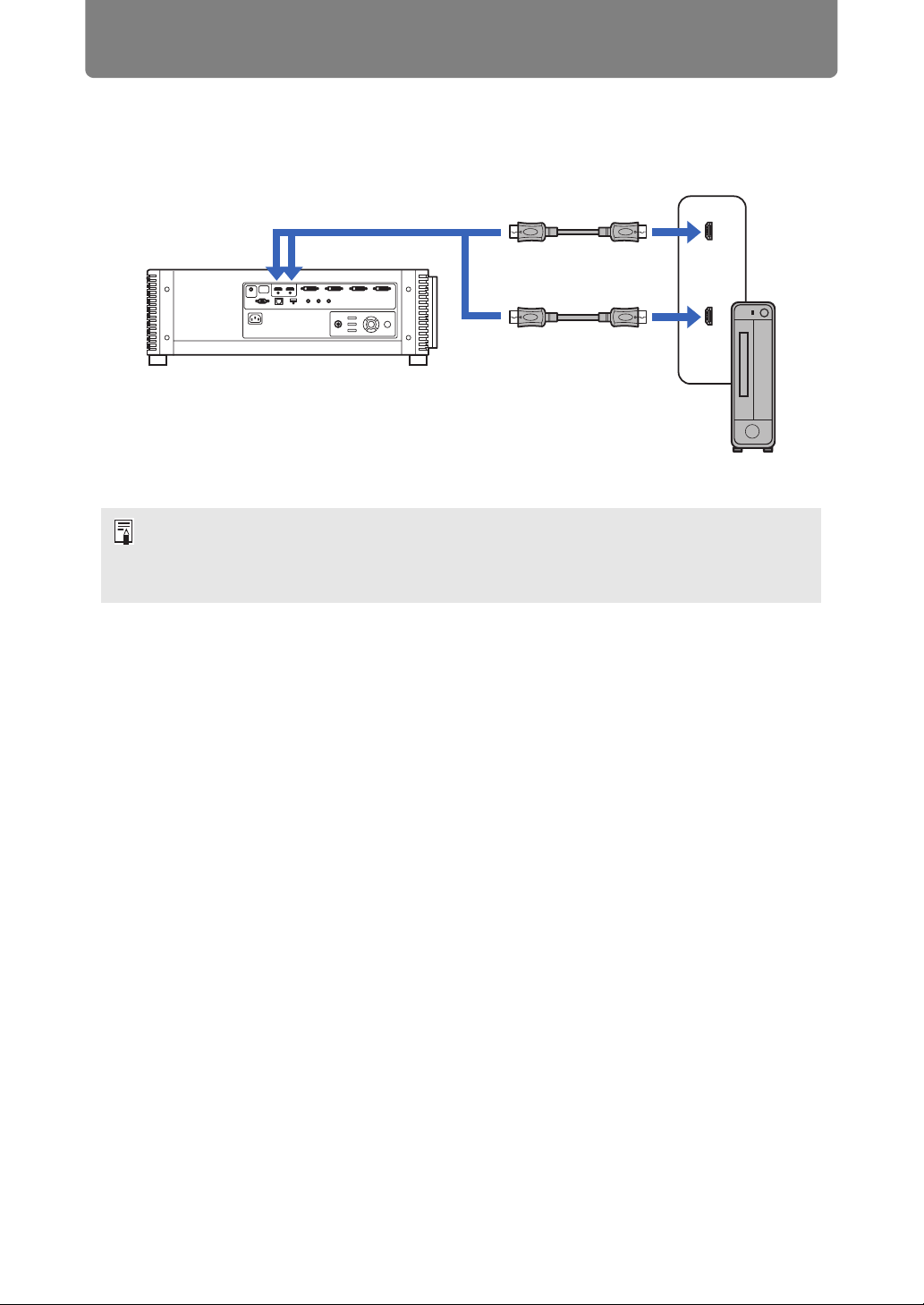

Connect desktop computers by using two HDMI cables
• Split-screen or four-quadrant projection is not supported when the projector is
connected to multiple devices.
• A single image cannot be projected by using two HDMI 2.0 cables with 4096 x 2160
signals (vertical frequency: 120 Hz).
48
Page 49
Connection Procedure

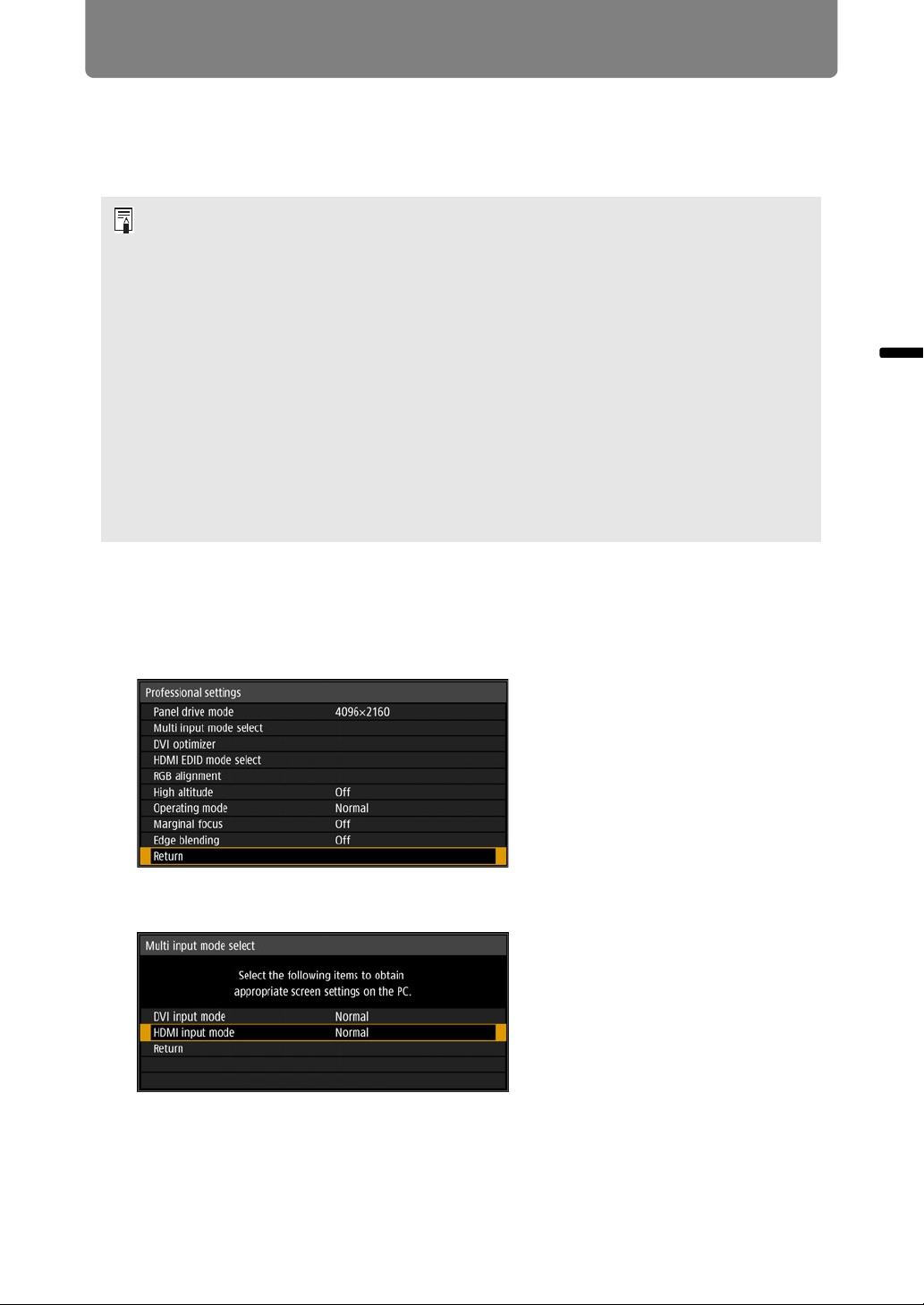

■ Settings for Multi Input Mode
Select how to combine two HDMI inputs or four DVI inputs to form an image. Check
computer video output settings in advance, because you must match the display
layout (whether split-screen display or display in four quadrants).
Multi Input Mode
Specify the type of image (including resolution) supplied to the terminals. Use [Normal] for
most signals. For specific signals, use [Single], [1x2], [2x2], or [1x4] as needed. For
details, check the table of supported signals. (P198)
• [Normal] setting
Supports many typical images, including [Single], [1x2], [2x2], and [1x4].
• [Single] setting
Supports many specialized signals using a single terminal.
• [1x2] setting
Supports many specialized signals using two input terminals.
• [2x2] setting
Supports many specialized signals using four input terminals, for projection in a 2x2
layout.
• [1x4] setting
Supports many specialized signals using four input terminals, for projection side by
side.
Basic GuideConnection Procedure
For instructions on turning the projector on, see “Step 1 Turn the Projector On”
(P52).
Specify the combination of DVI input. Choose from [Normal], [Single],
[DVI 1x2], [DVI 2x2], or [DVI 1x4].
• To use signals not included in [Normal] (P200 – P201) when multi input in the
[Input] menu (P55) is set to [DVI 1x2], [DVI 2x2], or [DVI 1x4], set the DVI
input mode menu to [DVI 1x2], [DVI 2x2], or [DVI 1x4].
• To use signals not included in [Normal] (P199) when single input in the [Input]
menu (P55) is set to [DVI-1], [DVI-2], [DVI-3], or [DVI-4], set the DVI input
mode menu to [Single].
HDMI input mode
Specify the combination of HDMI input. Choose from [Normal], [Single], or
[HDMI 1x2].
• To use signals not included in [Normal] (P199) when multi input in the [Input]
menu (P55) is set to [HDMI 1x2], set the HDMI input mode menu to
[HDMI 1x2].
• To use signals not included in [Normal] (P198) when single input in the [Input]
menu (P55) is set to [HDMI-1] or [HDMI-2], set the HDMI input mode menu to
[Single].
When this setting is set to [Normal], the EDID (unique ID that conveys to computers
the model name and setting values of connected display devices) is a list that
consists of video signals used with one or multiple projector terminals. On the video
output equipment, you can specify video signals for use with a different number of
terminals.

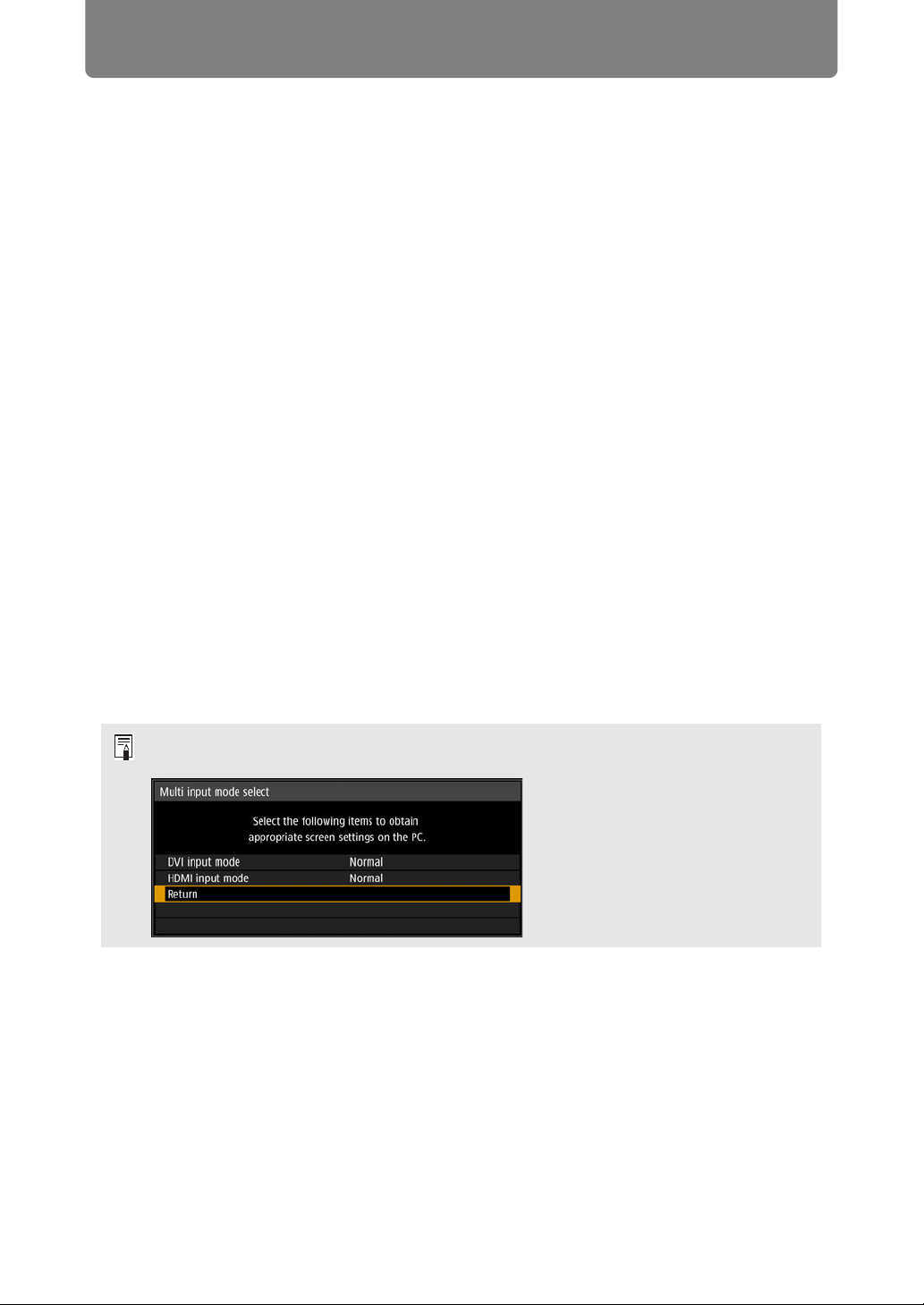

[Multi input mode select] window is displayed automatically if the input terminals do not
match the settings configured by using the INPUT button.
50
Page 51
Connection Procedure
Plugging the Projector In
Connect the power cord to the projector and plug it in.
• Unplug the power cord when the projector is not in use for an extended period.
• [Date and time settings] may be reset if the projector is left unplugged for an extended
period. (P128)
Basic GuideConnection Procedure
51
Page 52
Projection Procedure
Step 1 Turn the Projector On
1Check the connection between the projector and the computer or AV
equipment. (P44, P45)
For instructions on connecting the power cord, refer to “Plugging the Projector
In” (P51).

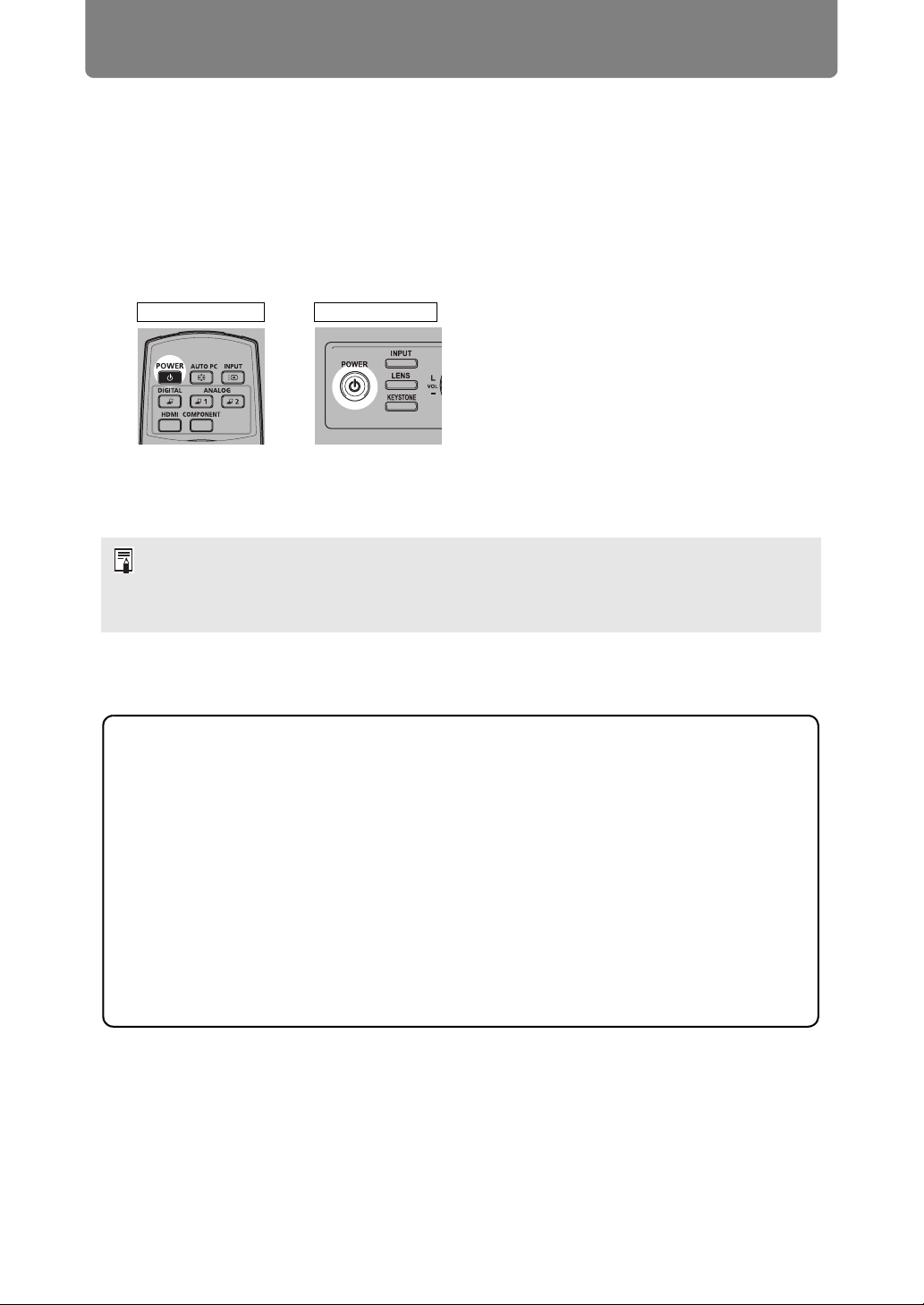

2Press the POWER button.
The [POWER] indicator initially flashes green, after which it remains lit.
Remote controlProjector
The countdown window is displayed for approximately 20 seconds, and then
the projection is started. Press the OK or EXIT button to hide the countdown
window.
• Network functions are not available until about 40 seconds after you plug the projector
in.
• Some noise may appear in the projected image during the first few minutes, until the
image stabilizes.
3Turn on the computer or AV equipment power.
Images from the computer or AV equipment are now projected.
Changing Operations When Projector is Turned On
You can change operations when the projector is turned on as follows.
• You can turn on the projector by connecting the power cord, without
pressing the POWER button. (P125)
• You can change the countdown window. (P118)
• You can skip the countdown window. (P118)
• For faster startup next time, you can store projector status immediately
before the projector is turned off. (P124)
When the Projector Is Left Idle
If no signal is received, the power management feature automatically turns off
the projector after a certain period of inactivity (by default, 15 minutes). (P124)
52
Page 53
Projection Procedure

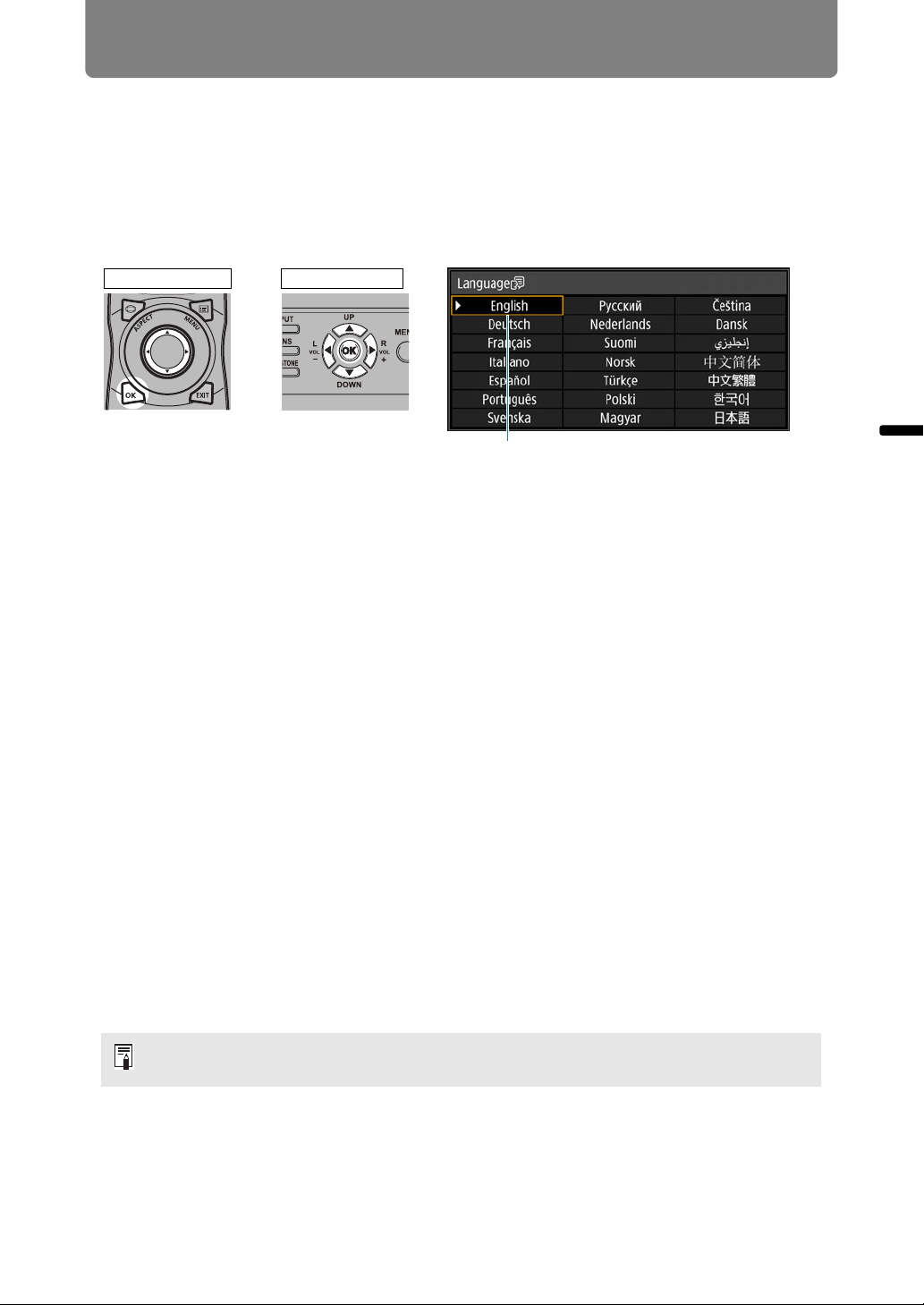

■ When the Language Selection Screen Appears
A screen appears when the projector is turned on for the first time. You can select a
language to be used by the projector for displaying menus and messages in the
window. Select the desired language with the pointer buttons and press the OK
button.
You can change the language from the menu at a later time. (P126)
If the language selection screen is out of focus, adjust the focus. (P59
Remote controlProjector
An item highlighted in orange will be selected.
)
■ When the Password Input Screen Appears
If you have set a password, the password input screen appears. Enter your
password. (P127)
Basic GuideProjection Procedure
■ When “No signal” Appears
With a notebook computer, the user must turn on the external monitor output. (P54)
Press the INPUT button to select the input signal. (P55)
■ When Notebook Computer Screen Does Not Appear
Set your notebook computer to output signals to an external monitor. For more
details, refer to “Changing Notebook Computer Screen Output” (P54).
■ Adjusting Image
• Set the display resolution of the computer to the highest resolution or the
resolution closest to that setting. (P57)
• Use the ZOOM button on the remote control to resize the projected image. (P60)
• If the image is blurry, use the FOCUS button on the remote control to adjust focus.
(P59)
• If necessary, correct keystone distortion by pressing the KEYSTONE button. (P65)
• Select a screen mode (aspect) according to the aspect ratio of the screen, type of
input image signal etc. (P64)
• Select an image mode depending on the projected image. (P68)
A variety of test patterns (P197) can be projected, which are convenient in image
adjustment.
53
Page 54
Projection Procedure
Changing Notebook Computer Screen Output
For projection from a notebook computer, the computer settings must be adjusted
to switch display output.
This operation is not required for a desktop computer.

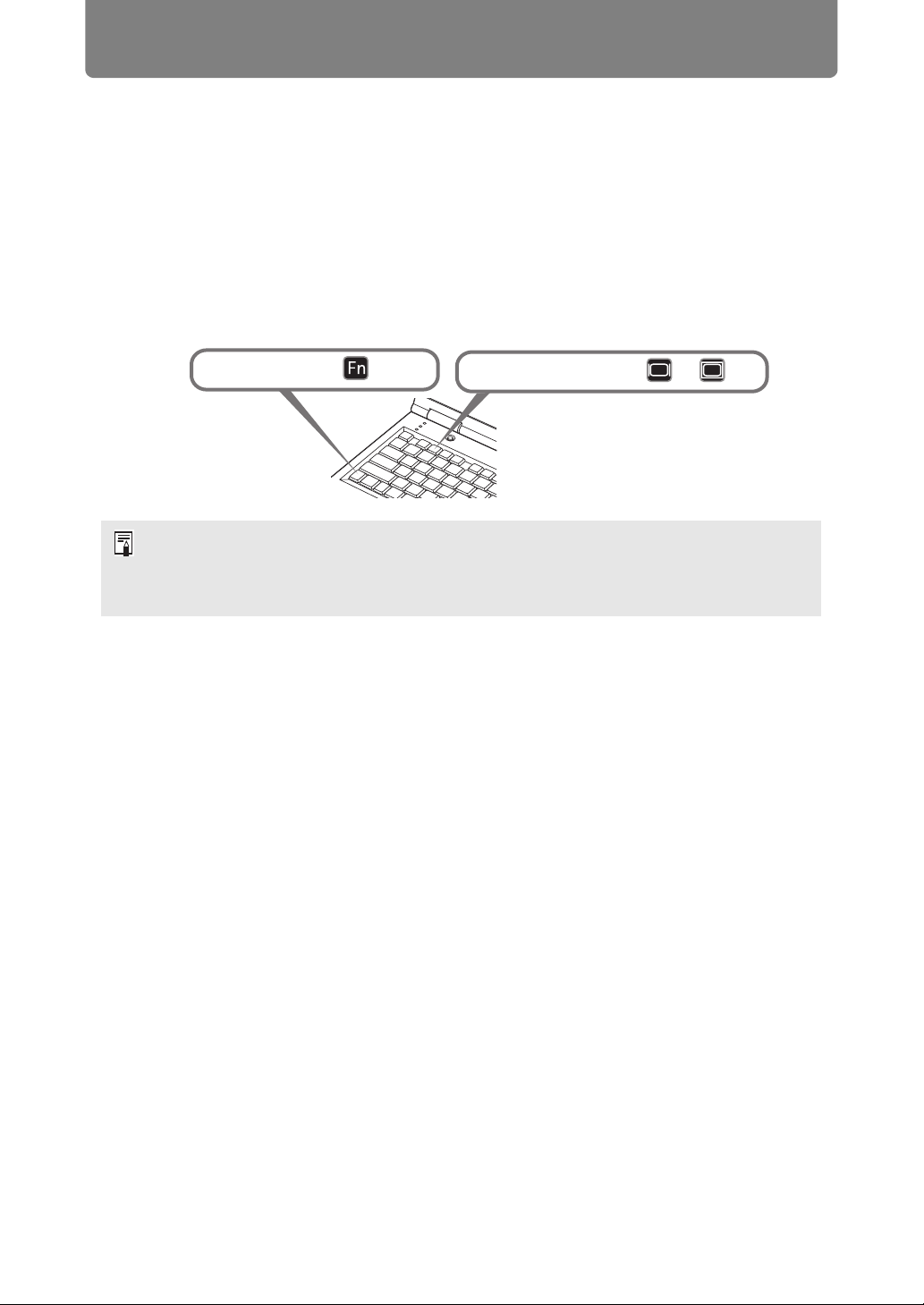

■ Turning on External Monitor Output
You can turn on the external monitor output via keyboard operation.
To turn on the external monitor output with most computers, press the function key
([F1] to [F12]) which is marked with the external monitor icon while holding down
the [Fn] key.
While pressing key
• The function key you use and the method used to turn on the external monitor output
vary depending on the model. For details, see the manual for your notebook computer.
• With Windows 10, Windows 8.1, Windows 8 or Windows 7, you can turn on image
output by holding down the Windows logo key and pressing the [P] key.
press a key such as or .
54
Page 55
Projection Procedure
Step 2 Select an Input Signal
Select the input signal in the [Input] menu when you want to project a digital PC or
AV equipment signal, or to switch between inputs when multiple computers or
multiple sets of AV equipment are connected.
Skip this step if you have not changed the input signal since the last projection.
1Press the INPUT button to display the window shown below.
Remote controlProjector
Basic GuideProjection Procedure
The currently active input signal is marked with a green circle and enclosed by
a orange border.
Names of input signals available for projection are displayed in white, and
unavailable signal names are grayed out.
2Press the [ ] / [ ] buttons to select the input signal.
You can also switch from one DVI-D input source to the next by pressing the
DIGITAL button, or from one HDMI input source to the next by pressing the
HDMI button.
55
Page 56
Projection Procedure
3Press the OK button to confirm the input signal type.
For multiple input signals, the projection layout is divided as follows.
The numbers 1, 2, 3, and 4 in squares represent the numbers of input
terminals.
[HDMI 1x2]
[DVI 2x2][DVI 1x4][DVI 1x2]
13
12
13
1324
24
When using
multiple
HDMI inputs
• You can also switch to your preferred input signal for projection by pressing buttons on
the remote control to switch input signals (specifically, the DIGITAL or HDMI button).
• Using the projector’s multi-input feature, you can supply a single image via two or four
cables. As sources of input for projection at 4K or other resolutions, choose from [DVI
1x2], [DVI 2x2], [DVI 1x4], or [HDMI 1x2]. (P46)
• Signals you supply for Multi Input mode must meet certain conditions. If the signals do
not meet these requirements, a “” icon is displayed.
When using multiple DVI inputs
56
Page 57
Projection Procedure
Step 3 Adjust the Image
Setting the Display Resolution of the Computer
Based on the maximum resolution of the projector, set the display resolution of the
computer to the resolution closest to the output signal resolution of the projector.
(P198)
Maximum resolution
• 4096 x 2160: When [Panel drive mode] is set to [4096x2160].
• 4096 x 2400: When [Panel drive mode] is set to [4096x2400].
For details on the Panel drive mode, see [Panel drive mode] in [Professional
settings] (P108).
■ Windows 10
1Open the [Control Panel] from the start menu, then select [Appearance
and Personalization] - [Adjust screen resolution] in the [Control Panel
Home].
2Click the [Resolution] tab, and move the slider to select the resolution
closest to the maximum output signal resolution of the projector.
3Click the [OK] button.
■ Windows 8.1 / Windows 8
1Move the cursor toward the upper or lower right corner to access the
menu.
2Click [Settings], and then click [Control Panel].
Basic GuideProjection Procedure
3From [Control Panel Home] - [Appearance and Personalization], select
[Adjust screen resolution].
4Click the [Resolution] tab, and move the slider to select the resolution
closest to the maximum output signal resolution of the projector.
5Click the [OK] button.
■ Windows 7
1Open the [Control Panel] from the start menu, then select [Appearance
and Personalization] - [Adjust screen resolution].
2Click the [Resolution] tab, and move the slider to select the resolution
closest to the maximum output signal resolution of the projector.
3Click the [OK] button.
57
Page 58
Projection Procedure
■ Windows Vista
1Open the [Control Panel] from the start menu, then select [Appearance
and Personalization] - [Adjust screen resolution] in the [Control Panel
Home].
2Select the resolution closest to the maximum output signal resolution of
the projector from the [Resolution] list.
3Click the [OK] button.
■ Mac OS X
1Open the Apple Menu and select [System Preferences].
2In the [System Preferences] window, click the [Displays] icon to display
the Display window.
3Select the [Display] tab and select the resolution closest to the maximum
output signal resolution of the projector from the [Resolutions] list.
4Close the [System Preferences] window.
58
Page 59
Projection Procedure
Focusing, Resizing, or Moving the Image
■ Adjusting Image Focus
To adjust the focus, press the FOCUS button on the remote control or the LENS
button on the projector.
1Press either the FOCUS button on the remote control or the LENS button
on the projector to display the focus adjustment window.
Remote controlProjector
2Press the pointer buttons to adjust the focus.
Remote controlProjector
Basic GuideProjection Procedure
To adjust the focus, use the [ ] / [ ] button on the remote control or projector.
3When the focus is adjusted optimally, press the OK button or the FOCUS
button.
When projecting on curved screens, you can adjust the focus at image edges. Refer to
“Marginal focus” (P112) and “Adjusting Peripheral Focus” (P191).
59
Page 60
Projection Procedure
■ Adjusting Image Size
The size of the projected image can be adjusted by pressing the ZOOM button on
the remote control or the LENS button on the projector. Change the projector
installation position if your desired image is too large or too small to adjust it with
the zoom function. (P38)
1Press the ZOOM button on the remote control to display the zoom
adjustment window.
Remote control
Press the LENS button on the projector repeatedly to switch between windows
for parameters adjusted by controlling the lens.
To access the zoom adjustment window, press the LENS button twice (or three
times if you have set [Marginal focus] to [On]).
Projector
Press twice.
When [Marginal focus]
is set to [On].
When [Marginal
focus] is set to [Off].
60
Page 61
Projection Procedure
2Press the pointer buttons to adjust the image size.
Remote control
To enlarge the image, use the [ ] button on the remote control or projector.
To reduce the image, use the [ ] button on the remote control or projector.
Projector
Screen
3When the desired image size is selected, press the OK button or the
ZOOM button.
Basic GuideProjection Procedure
61
Page 62
Projection Procedure
■ Adjusting the Image Position
To adjust the screen position up, down, left, or right, press the SHIFT button on the
remote control or the LENS button on the projector. It can change the projected
screen to the most suitable position by moving the position of the lens up/down/left/
right. (P42)
1Press the SHIFT button on the remote control to display the lens shift
adjustment window.
Remote control
Press the LENS button on the projector repeatedly to switch between windows
for parameters adjusted by controlling the lens.
To access the lens shift adjustment window, press the LENS button three times
(or four times if you have set [Marginal focus] to [On]).
Projector
Press three times.
When [Marginal focus]
is set to [On].
When [Marginal
focus] is set to [Off].
62
Page 63
Projection Procedure
2Press the pointer buttons to adjust.
Remote controlProjector
Screen
To raise or lower the image, use the [ ] / [ ] buttons on the remote control or
projector.
To move the image left or right, use the [ ] / [ ] buttons on the remote control
or projector.
To continue moving the image in a specific direction, hold down the
corresponding button.
3When the desired position is reached, press the OK button.
Resetting the Position
The lens position after movement with the lens shift function is not returned when
the power is turned off. To return it to its original position, perform reset.
During screen position adjustment, press and hold the SHIFT button on the remote
control or the LENS button on the projector to display the [Lens shift reset] window.
Three options are available: +50%, -50%, 0% (home position). Use the pointer
buttons to select an option, and then press the OK button.
Basic GuideProjection Procedure
• The lens position may be reset slightly misaligned from the position you chose (+50%,
-50%, 0% (home position)).
• For precise positioning, use the lens shift function to fine-tune the position.
63
Page 64
Projection Procedure
Step 4 Select an Aspect Ratio (Screen Aspect)
Matching the Screen
Select an optimum screen mode (aspect) according to the aspect ratio of the
screen, type of input image signal and so on for the projection to make best use of
the screen size.
Select the Aspect
Select [Aspect] based on the input signal type, aspect ratio of the screen and
resolution.
Types of Aspect Ratios
■ Auto
An image is projected as large as possible at the aspect ratio of the input signal.
Select this mode for normal image projection.
■ True size
The image is projected with the original resolution of the input signal. Screens of
computers with a lower display resolution than the projector are displayed smaller
but clearer than in other aspect ratios.
There may be some cases when this cannot be selected, depending on the input signal
and/or resolution.
Selecting an Aspect Ratio
Press the ASPECT button on the remote control and select an appropriate aspect
ratio. Press the ASPECT button to change the aspect ratio type.
Remote control
You can also select any aspect ratio from [Aspect] in the menu. (P93)
Example:
64
Page 65
Projection Procedure
Step 5 Adjusting Keystone Distortion
To correct keystone distortion (Keystone adjustment), press the KEYSTONE
button.
Two types of adjustment are available: horizontal/vertical adjustment and corner
adjustment.
Use horizontal/vertical keystone adjustment to adjust image width or height
distortion separately, and use corner adjustment to adjust the position of each
corner of the image.
For instructions on switching keystone adjustment, refer to “Keystone” (P107).
• Keystone correction may not be effective in some lens shift positions.
• If keystone distortion is excessive and cannot be fully corrected, straighten the
projector so that it faces the screen directly.
• Signals are processed digitally when keystone distortion is corrected. The image may
look different from the original one. In addition, the aspect ratio of the image may
change.
■ Horizontal/Vertical Keystone Adjustment
1Press the KEYSTONE button on the remote control or projector to display
the horizontal-vertical keystone adjustment window. (When [Keystone] is
set to [Horizontal-vertical keystone].)
Remote controlProjector
Basic GuideProjection Procedure
65
Page 66
Projection Procedure
2Press the pointer buttons to adjust the dimensions.
Remote controlProjector
To correct top distortion,
press the [ ] button.
Screen
To correct distortion on the left,
press the [ ] button.
To correct bottom distortion,
press the [ ] button.
To correct distortion on the
right, press the [ ] button.
3When keystone distortion has been corrected, press the OK button.
■ Corner Adjustment
1Press the KEYSTONE button on the remote control or projector to display
the corner adjustment window. (When [Keystone] is set to [Corner
adjustment].)
Remote controlProjector
66
Page 67
Projection Procedure

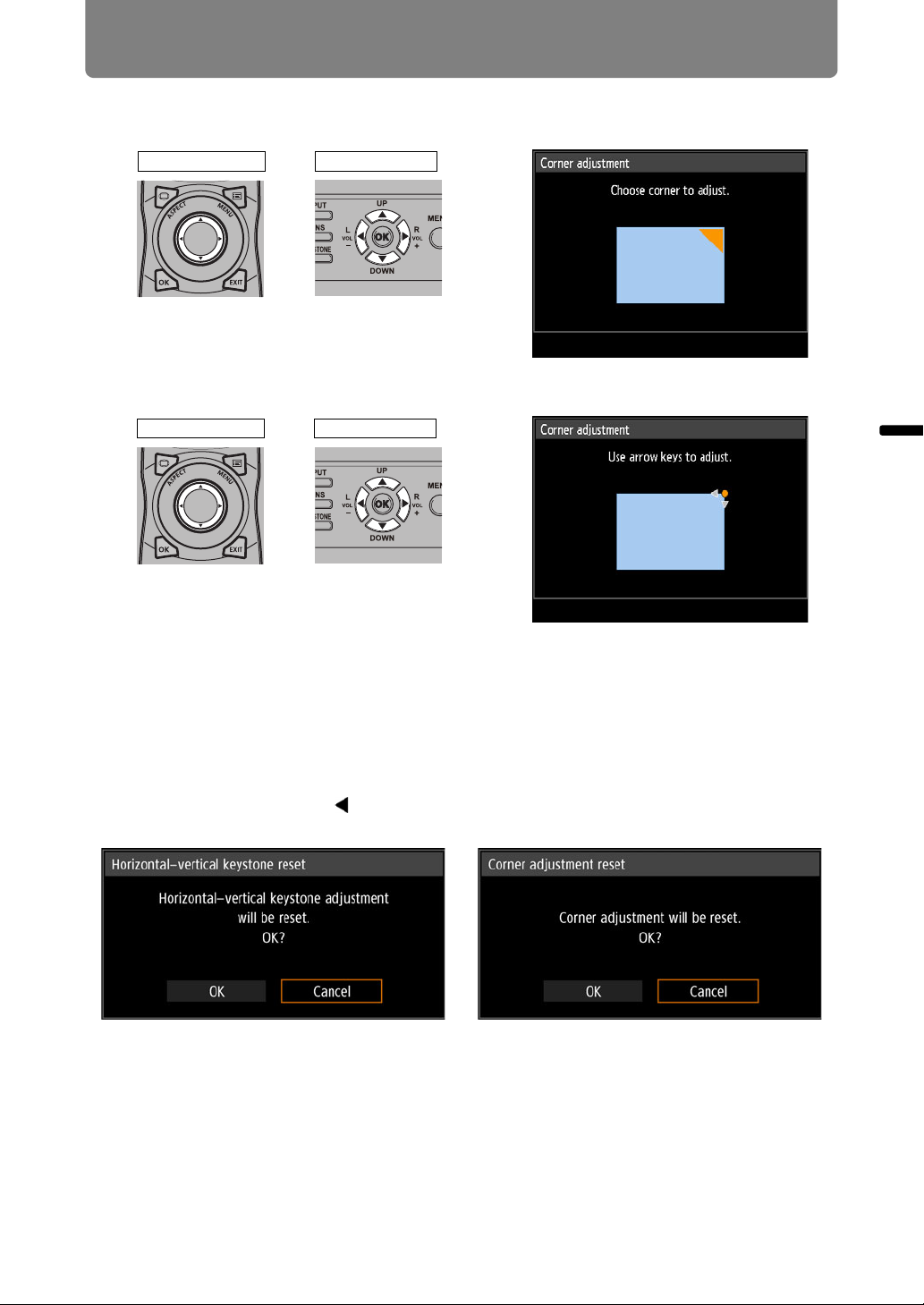

2Press the pointer button of the corner for correction, and then press the
OK button.
Remote controlProjector
3Press the pointer buttons to adjust the corner.
Remote controlProjector
Basic GuideProjection Procedure
4When you have finished correcting, press the OK button.
■ Resetting the Keystone Adjustment
Reset adjustment as follows.
First, press the KEYSTONE button on the remote control twice to display the
[Keystone reset] window.
Next, select [OK] with the [ ] button, and then press the OK button.
Your specified keystone adjustment is now reset.
67
Page 68
Projection Procedure
Step 6 Select the Image Quality (Image Mode)
You can select an image mode to suit the projected image.
In each image mode, you can further adjust the brightness, contrast, sharpness,
gamma, HDR range, color adjustment (P100), advanced adjustment (P100), light
source mode (P104) and brightness level. (P104)
Image Modes
Available image modes vary depending on the selected input signal.
(1) Bright
(2) Computer screens, or media played with
video software
(3) Whites and natural colors
(1) Bright
(2) Images mainly consisting of text
(3) Keeps the screen bright
(1) Bright
(2) Media played with video software
(3) Keeps the screen bright
(1) Somewhat dark
(2) Video from camcorders
(3) Close to the color space of TVs
(1) Somewhat dark
(2) Digital images from sRGB-compatible
cameras
(3) Conforms to the sRGB standard
(1) Somewhat dark
(2) Monochrome images (medical use, for
example)
(3) Adjusted to the GSDF curve specified in
DICOM Standard Part 14
Up to 3 user-selected combinations of image
quality settings can be stored in the memory
(P99). Stored profiles are selected as image
modes.
68
Page 69
Projection Procedure
■ Selecting an Image Mode
Press the IMAGE button on the remote control to select.
The image mode changes each time the IMAGE button is pressed. (The displayed
image modes vary depending on the selected input signal.)
Remote control
Example:
You can also select any image mode from the [Image mode] menu. (P98)
• User settings 1 - 3 are displayed when the desired image settings have been
created and stored using the user memory function in the image adjustment
menu. (P98)
Projecting an Image in the DICOM SIM Mode
In the DICOM simulation mode (hereinafter referred to as “DICOM SIM”), this
projector can project a monochrome medical image such as an X ray radiography,
CT image, MRI image, etc. in the tone similar to the DICOM (Digital Imaging and
Communications in Medicine) standard. Typically, to project the image according to
the DICOM standard, it requires the grayscale tone correction using a luminance
meter according to the environment. In this projector, there are 21 types of tone
settings for various ambient lights. You can correct the tone in a simplified manner
by selecting the DICOM test pattern (P197).
It is suited to project an image in a medical lecture, academic conference, inhospital conference, etc.
Basic GuideProjection Procedure
This projector is not the display monitor for a medical image. It cannot be used for
the radiological image reading or medical examination.
• It is recommended to check the tone everytime when using this
projector since it does not have the tone correction and
calibration functions against the secular change.
• It may take approximately 30 minutes until the projection
brightness of this projector becomes stabled.
69
Page 70
Projection Procedure

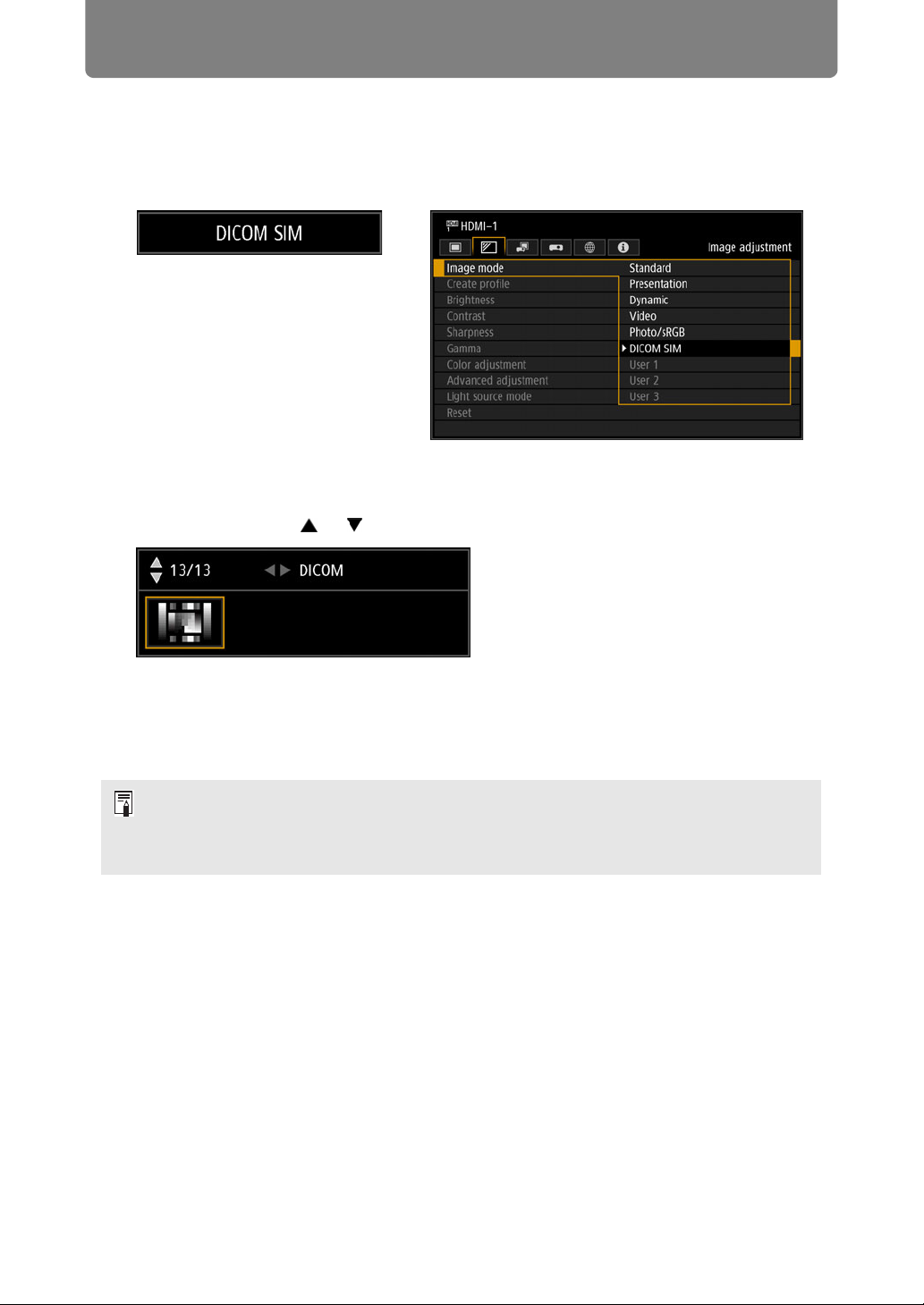

■ Switching the mode to the DICOM SIM Mode
1Press the IMAGE button on the remote control until [DICOM SIM] is
displayed or select [DICOM SIM] from [Image mode] in the [Image
adjustment] menu.
2Display test patterns by pressing the TEST PATTERN button on the
remote control or selecting [On] in [Test pattern] of the [Install settings]
menu. Press the [ ] / [ ] buttons to select the DICOM test pattern.
3As you view the test pattern, perform [Gamma] adjustment from the
[Image adjustment] menu (P99) until the image is optimal.
4Press the OK button after the setting.
Perform one of the followings to obtain an appropriate projection:
• Darken the ambient light
• Reduce the image size
• Reduce the projection distance
70
Page 71
Projection Procedure
Step 7 Turn the Projector Off
1Press the POWER button to display the window shown below.
Remote controlProjector
2When this window is displayed, press the POWER button again to turn off
the power.
After you turn the projector off, projection stops, the [STAND BY] indicator
flashes in red, and the projector starts cooling down. After cooling down, the
projector enters standby mode. In standby mode, the [STAND BY] indicator
remains lit instead of flashing.
If you want to continue projecting without turning off the power, press a button
other than POWER, or else wait until the confirmation message disappears.
• The projector cannot be turned on while cooling down.
• Using the projector for extended periods may shorten the life of the internal optical
components.
• Unplug the projector if it will not be used for an extended period.
Basic GuideProjection Procedure
71
Page 72

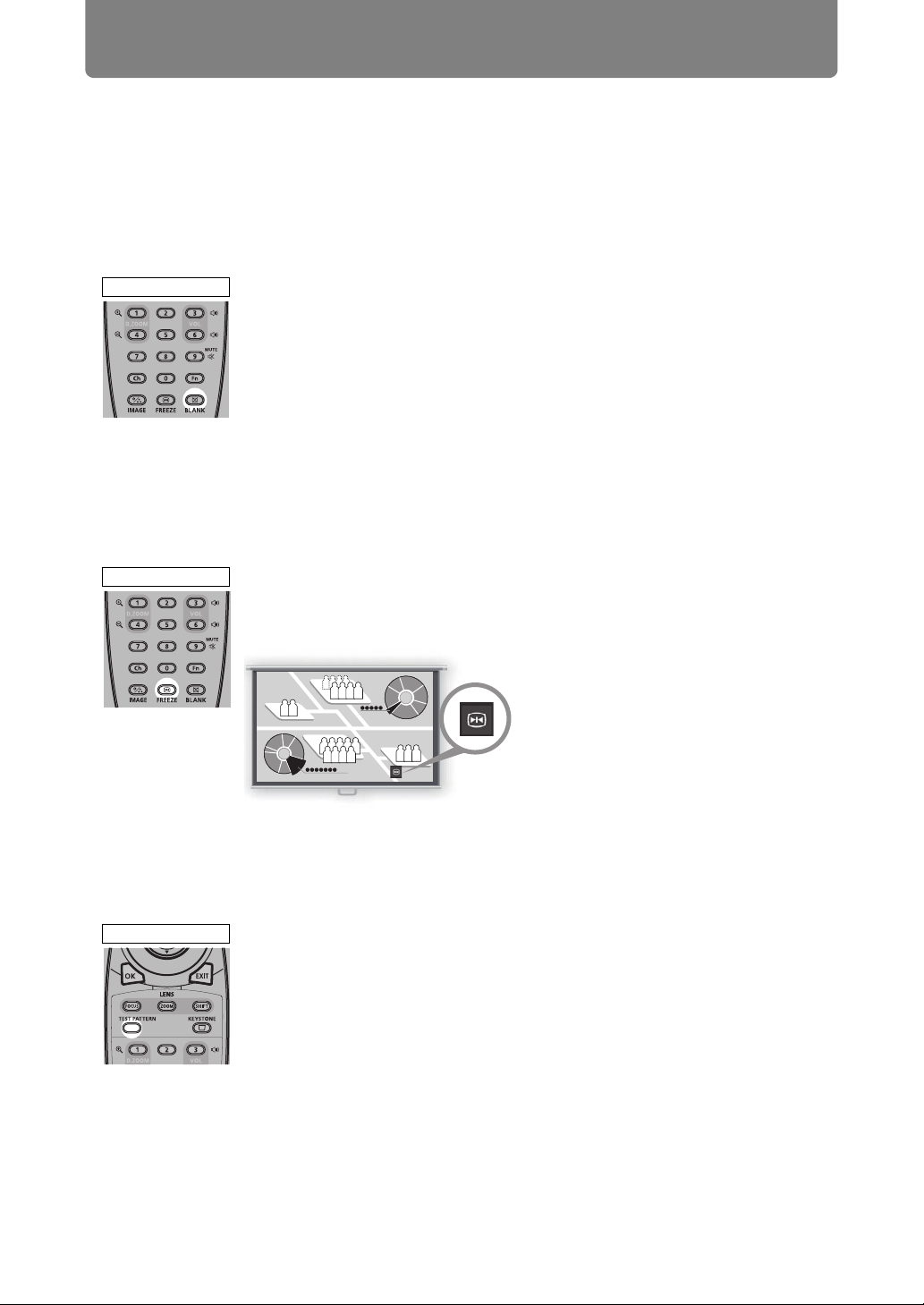

Convenient Features
This section describes features convenient during presentations and in other
situations.
Temporarily Blacking Out an Image
Projection can be temporarily blanked after a presentation, or to divert the
audience’s attention away from the screen.
Remote control
Press the BLANK button to black out the image.
Press the BLANK button again to show the image.
• You can set the screen state while blacking out the image in the menu.
(P118)
Freezing the Picture
Projection can be temporarily frozen during computer operations that would be
distracting, or to pause playback of video or animation.
Remote control
Press the FREEZE button to freeze the moving image. The
projector shows the following icon.
Press the FREEZE button again to return to the original display.
Screen
• It is also cancelled when the input signal is terminated.
Projecting a Test Pattern
Remote control
For details on projecting test patterns, see “Install settings” (P106) or “Displayed
Test Patterns” (P197).
Even without any input signals, the projector can project a test
pattern. Test patterns can be projected during installation to check
how the projector is installed.
To project a test pattern, press the TEST PATTERN button on the
remote control.
To stop test pattern projection, press the TEST PATTERN button
again.
72
Page 73
Convenient Features
Specifying Power-Saving Settings
Set power-saving settings as needed.
The following four settings are available. For details, refer to the page describing
each function.
• Light source mode (P104)
Conserve energy by selecting a mode that is less bright.
• Power management mode (P124)
Automatically turns off the light source or the power after a certain period if the
projector is idle without an input signal.
• Power management duration (P125)
Specify the period after which the light source or projector should go off
automatically if left idle without an input signal when [Power management mode]
is set to [Light source off] or [Standby].
• Standby power settings (P124)
Conserves energy in standby mode by disabling some network functions.
Basic GuideConvenient Features
73
Page 74
74
Page 75
Safety Instructions
Before Use
Advanced Guide
Installation Procedure
Basic Guide
Connection Procedure
Projection Procedure
Convenient Features
Using Menus
Menu Configuration
Advanced Guide
Menu Settings
75
Using the Projector on a
Network
Advanced Projection
Other Information
Maintenance
Product Specifications
Troubleshooting
Page 76
Using Menus
Use the menus to set the operation of the projector in detail.

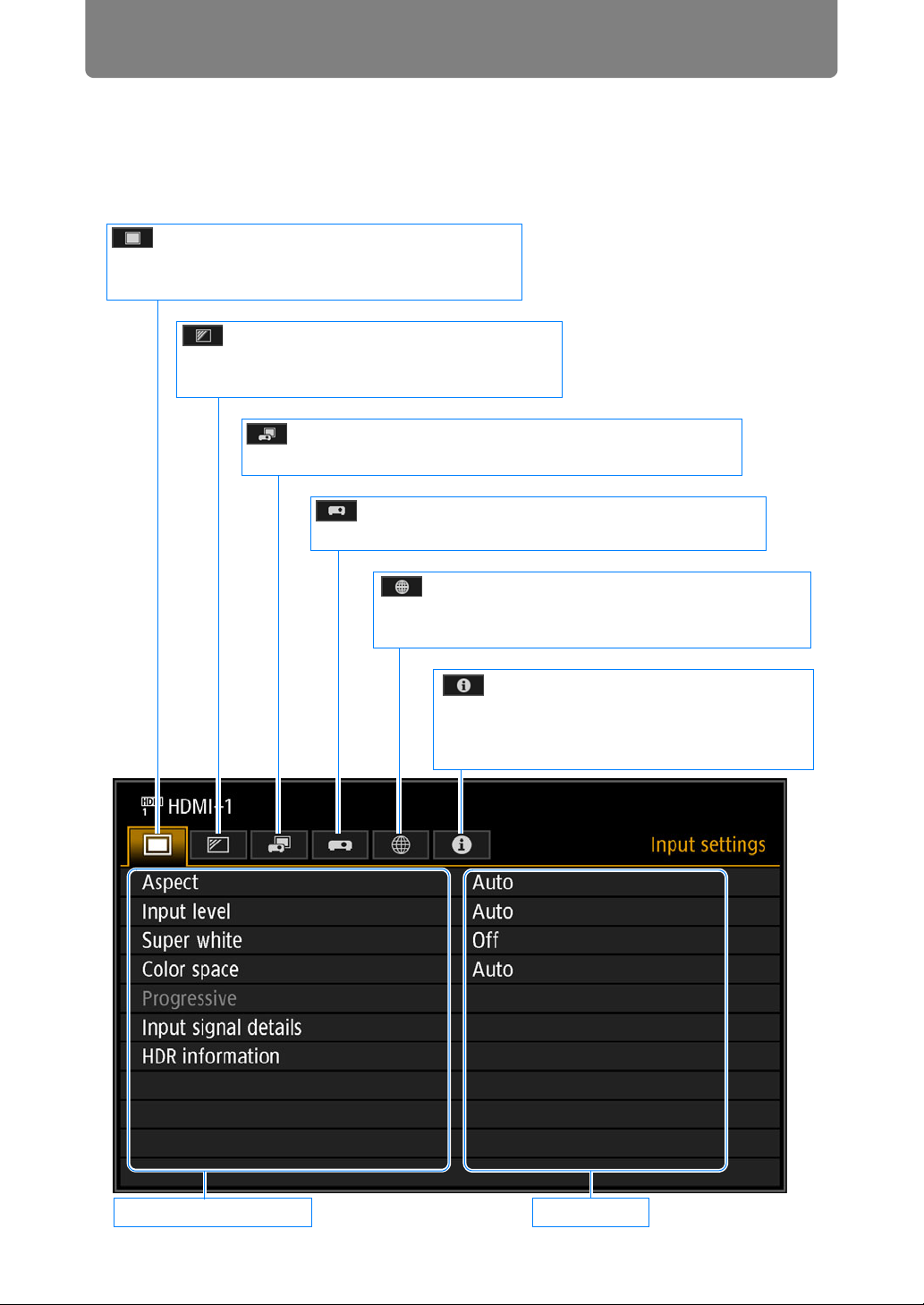

Menu Configuration
The menu screen is divided into 6 tabs as shown below.
[Input settings] tab (P92)
You can set the type of signal or the method of
projection of the images input.
[Image adjustment] tab (P97)
You can adjust the image quality and colors
according to your preference.
[Install settings] tab (P106)
This setting is used when installing the projector.
[System settings] tab (P117)
You can set the operation of the projector.
[Network settings] tab (P135)
These settings are for when using the projector
from a PC via a network.
[Information] tab (P155)
You can check information about the
signal types of the images projected and
other information.
Contents of menuMenu items
76
Page 77

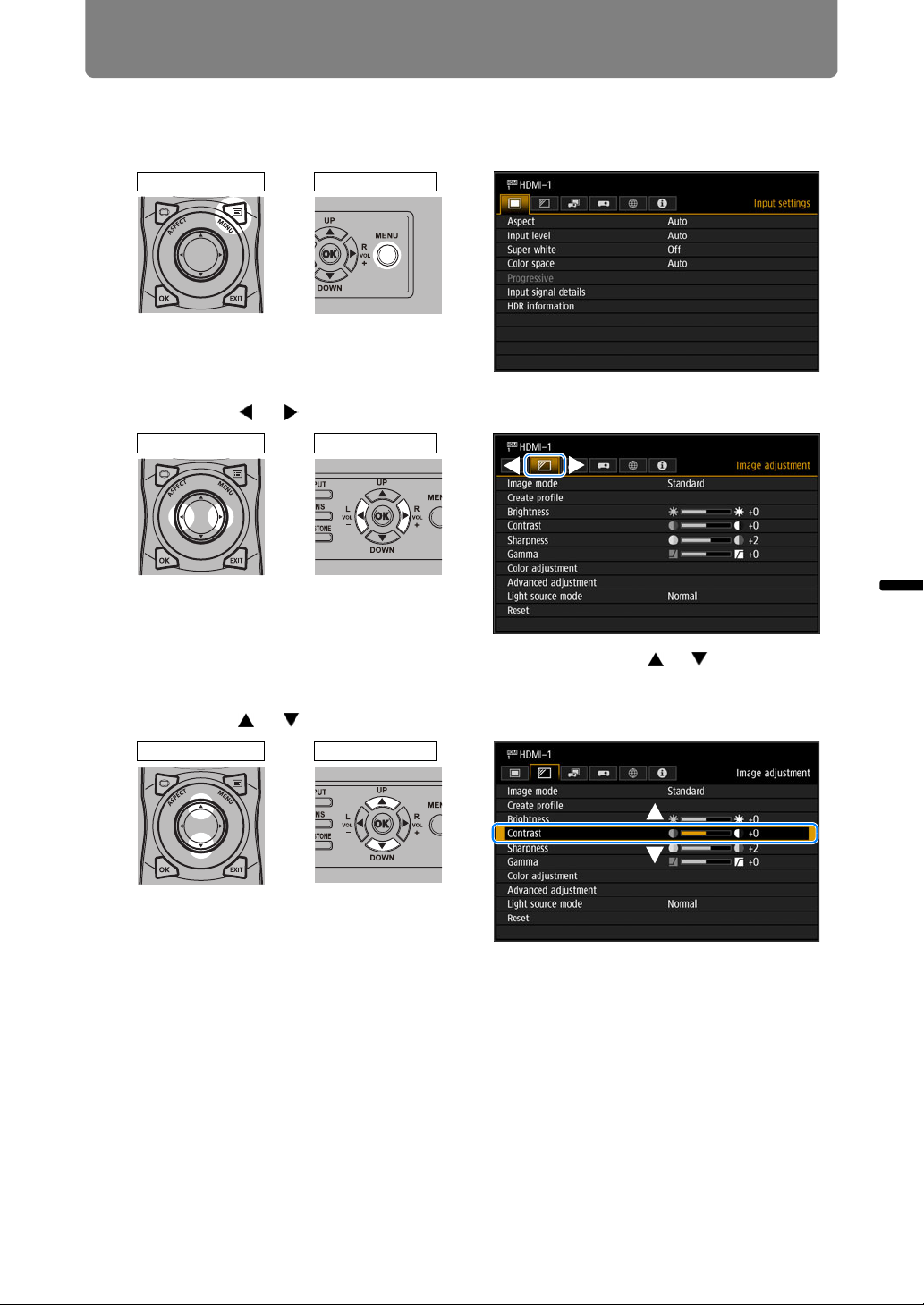

Basic Menu Operations
1Press the MENU button to display the menu window.
Remote controlProjector
Using Menus
2Press the [ ] / [ ] buttons to select a tab.
Remote controlProjector
• If the tab position is not highlighted in orange, press the [ ] / [ ] buttons to
move the current selection to the top.
3Press the [ ] / [ ] buttons to select an item.
Remote controlProjector
Advanced GuideUsing Menus
77
Page 78
Using Menus

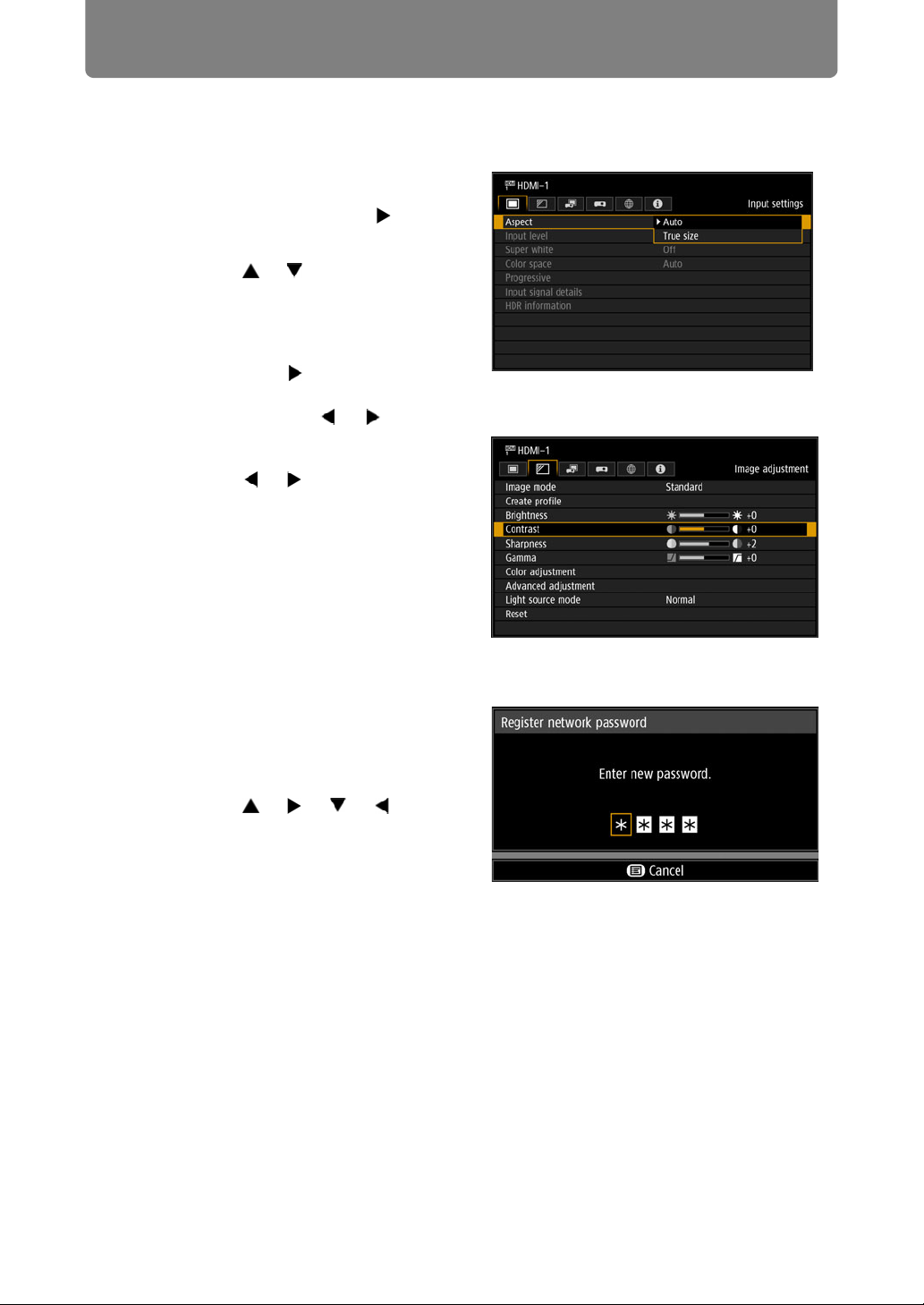

4Select contents.
How to select the contents varies depending on the item.
Selecting from a list Example: Aspect (P93)
1. Select [Aspect].
2. Press the OK button or [ ] button
to display a list of the contents.
3. Use the [ ] / [ ] buttons to select
the desired contents.
4. When you have found the
contents you desired, press the
OK button or [ ].
Adjusting with the [ ] / [ ] buttons Example: Contrast (P99)
1. Select [Contrast].
2. Use the [ ] / [ ] buttons to adjust
the setting.
Selecting from a different screen (1) Example: Register network
password (P141)
1. Select [Register network password].
2. Press the OK button to display a
different screen.
3. Use the [ ] / [ ] / [ ] / [ ] buttons
or number buttons on the remote
control to enter the projector network
password.
78
Page 79
Using Menus

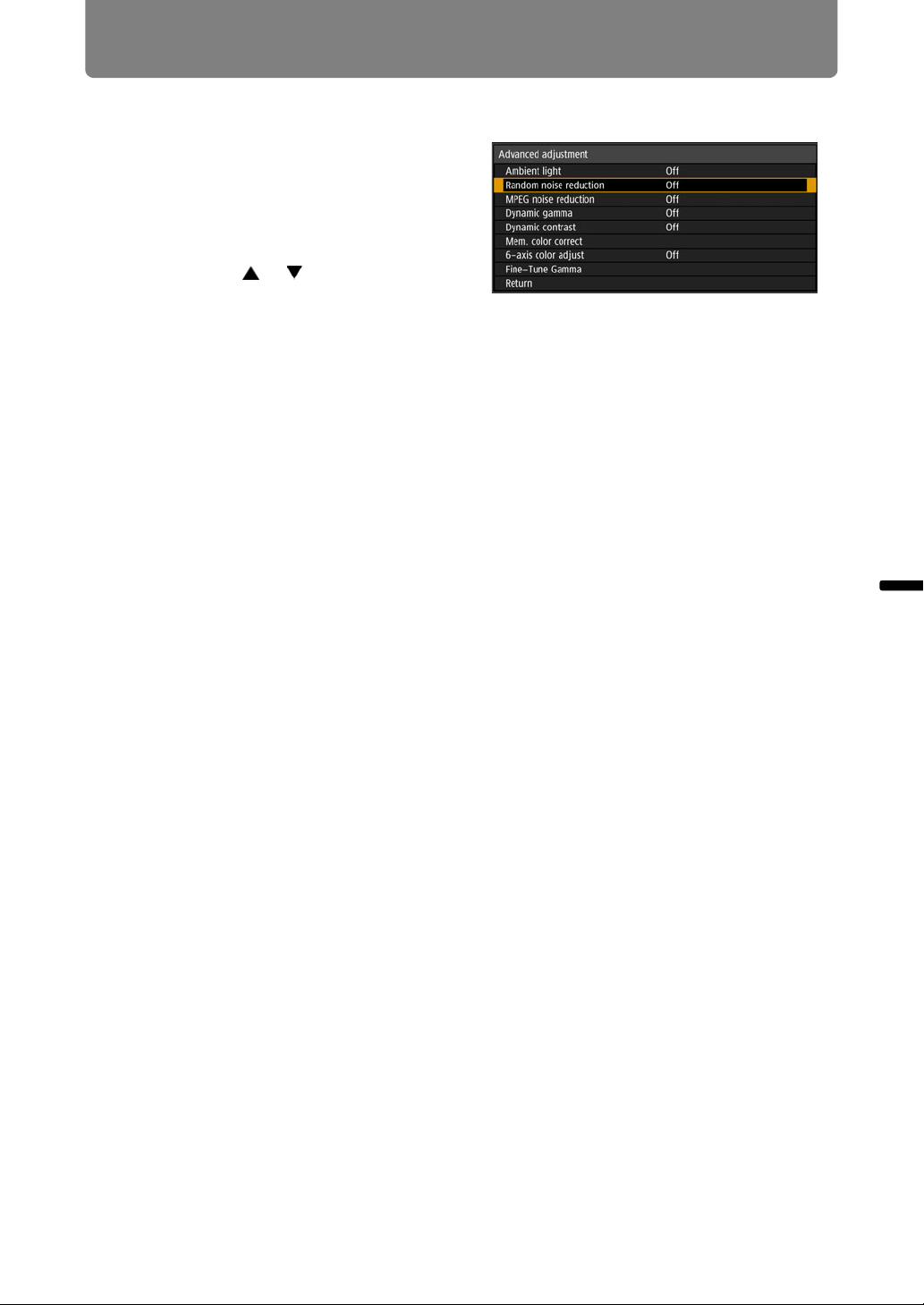

Selecting from a different screen (2) Example: Random noise reduction
(P101)
1. Select [Advanced adjustment].
2. Press the OK button to display a
different screen.
3. Select [Random noise reduction].
4. Use the [ ] / [ ] buttons to select
the setting.
5. When you have completed the
settings, press the OK button.
5Pressing the MENU button causes the menu screen to disappear.
The menu screen will also disappear if the EXIT button is pressed.
Advanced GuideUsing Menus
79
Page 80
Menu Configuration
Input settings (P92)
AspectAuto*P93
True size
Input level
Super white
Color space
Progressive
Input signal detailsInput signalP95
HDR information
HDMI
Auto*
Normal
Expanded
HDMI
Off
On*
HDMI
Auto*
RGB
YCbCr
HDMI
Off
Film/auto*
Video 1
Video 2
25p/30p(PsF)
HDMI
EOTF
Display primaries [0]
Display primaries [1]
Display primaries [2]
White point
Max display mastering luminance
Min display mastering luminance
Max content light level
Max frame-average light level
P93
P93
P94
P94
P96
Image adjustment (P97)
Image mode
Common
Standard*
Presentation
Photo/sRGB
DICOM SIM
User 1 - 3
HDMI
Dynamic
Video
* Factory default, or state after [Factory defaults] is executed.
P98
80
Page 81
Menu Configuration
Create profile
(Displayed when [Image mode] is not
[User 1] - [User 3])
Save profile
(Displayed when [Image mode] is [User 1] [User 3])
Baseline image mode
(Displayed when [Image mode] is [User 1] [User 3])
* Factory default, or state after [Factory defaults] is executed.
89
Page 90
Menu Configuration
Detailed settings (wireless)P147
Mode
SSID
Security
Channel
Signal strength
MAC address
Wi-Fi Protected SetupPBC
Manual settingsMode
PIN
SSID
Security
Open
WEP
WPA2 AES
WPA / WPA2 TKIP / AES
Channel
Key ID
Key type
Key
Detailed IPv4 address settingsIP address
IPv6Off*
Detailed IPv6 address settingsLink local
Network setting initializationYes / No
PJLinkOffP152
Subnet mask
Gateway address
DHCP
Off*
On
TCP/IP settings
IP address
Subnet mask
Gateway address
On
Auto
Manual
Gateway
Auto settings
Off
On*
Manual settings
IP address
Prefix length
Gateway address
On*
* Factory default, or state after [Factory defaults] is executed.
90
Page 91
Menu Configuration
AMX Device DiscoveryOff*P153
On
Crestron RoomViewOff*P153
On
InformationE-mail sender addressP154
E-mail recipient address
Detailed information (wired)
IPv4
IPv6
Link local
Auto
Manual
Detailed information (wireless)
IPv4
IPv6
Link local
Auto
Manual
Information (P155)
Model name
Input signal
Firmware
Serial no.
Projector usage time
IP address (wired)
IP address (wireless)
Projector name
Comments
System information ID
The following settings are not reset even when factory defaults are restored.
• Selected input signal
• Image adjustment
- Save profile
- Baseline image mode
- Light source mode
- Brightness level
• Install settings
- Lens - Position
• System settings
- Registration
- Advanced registration
- High altitude
- Operating mode
- Marginal focus setting value
- Remote control channel
- Serial communication (Stop bit)
- Standby power setting
- Quick startup
- Language
- Date and time settings
- Schedule
- Gamma restore
- Adjust panel temperature
- Trigger out
- Power counter
- Air filter counter
- Firmware
• Network settings
• Information
Advanced GuideMenu Configuration
* Factory default, or state after [Factory defaults] is executed.
91
Page 92
Menu Settings

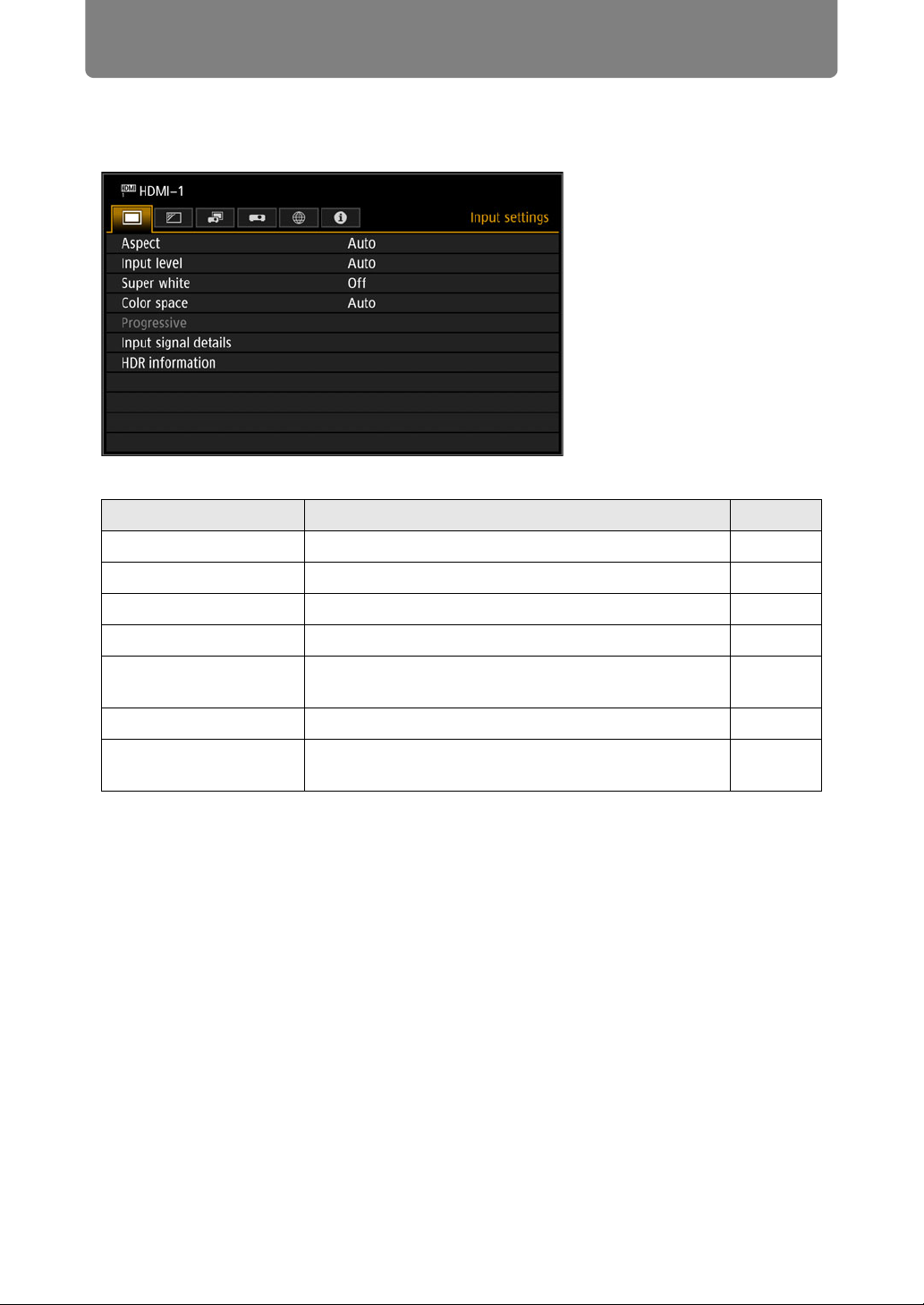

Input settings
This section describes settings for aspect ratio, etc.
(When the input signal is HDMI-1)
MenuFunctionDetails
AspectSelect an image aspect ratio.P93
Input levelSelect the input level for HDMI signal.P93
Super whiteSelect super white mode for HDMI signal.P93
Color spaceSelect the color space for HDMI signal.P94
Progressive
Input signal detailsShows input signal details for each input terminal used.P95
HDR information
Select the I/P conversion method used for interlaced
signal input.
Shows the Dynamic Range and Mastering InfoFrame
for HDMI signals.
P94
P96
Menus that are not available are grayed out or hidden.
92
Page 93
Menu Settings
Aspect
> [Input settings] > [Aspect]
Select a projection aspect ratio for images.
OptionFunction
AutoAn image is projected at the aspect ratio of the input signal.
True size
The image is projected with the original resolution of the input
signal.
Menus that are not available are hidden.
The ASPECT button on the remote control can also be used to select the [Aspect]
settings.
Input level
> [Input settings] > [Input level]
Adjust the input level for content projected via HDMI.
OptionFunction
AutoAutomatically switches the input level based on the input signal.
NormalLimits the input level to 16 - 235.
ExpandedEnables a full input level of 0 - 255.
Advanced GuideMenu Settings
• This setting is only available with RGB HDMI signals.
• In [Auto] mode, the signal level is selected automatically. (Some equipment may not
support this.)
• If the HDMI output of the connected equipment can be set to [Normal] or [Expanded],
we recommend [Expanded]. The contrast of images will be improved and dark scenes
will be rendered more realistically. In this case, set the projector’s [Input Level] to [Auto]
or [Expanded].
For more detailed information, refer to the user’s manual for the equipment connected
to the projector.
Super white
> [Input settings] > [Super white]
Select to project white signals in HDMI input that are in a range of 16-235 at 100%109% brightness (235-255).
OptionFunction
Disable super white. Project white signals with an input level of 235 at
Off
On
100% brightness. All white signals with an input value exceeding 235
are also projected at 100% brightness.
Convert input signals in a range of 16-235 so that an input level of 255
is projected as white 109% at 100% brightness.
• Super white has no effect when [Input level] is set to [Expanded].
• Switch this setting to [Off] if projection looks distorted or unnatural when it is [On].
• Setting this option to [On] will darken the overall image.
93
Page 94
Menu Settings
Color space
> [Input settings] > [Color space]
Select the color space for HDMI signal.
OptionFunction
AutoSelects the optimal color format for input signals.
RGBForces the projector to handle the input signal as an RGB signal.
YCbCr
Forces the projector to handle the input signal as a color difference
signal.
Progressive
> [Input settings] > [Progressive]
Performs progressive processing optimized for still images in cinematic content or
moving images in videos, when interlaced HDMI signals are supplied.
OptionFunction
OffDoes not perform progressive processing.
Film/auto
Video 1
Video 2
25p/30p (PsF)
Suitable for still images or typical moving images. Performs progressive
processing optimized for video or cinematic content.
Suitable for projecting video with high image quality and relatively slow
movement. Performs progressive processing optimized for HD video.
Suitable for projecting video with faster movement. Performs
progressive processing optimized for fast-moving video.
Performs progressive processing optimized for 1080 Psf/25 or
1080 Psf/30 video (25 or 30 fps, respectively).
Select [Off] when flickers and horizontal lines are noticeable in media that has a lot of
fast-moving action.
94
Page 95
Menu Settings

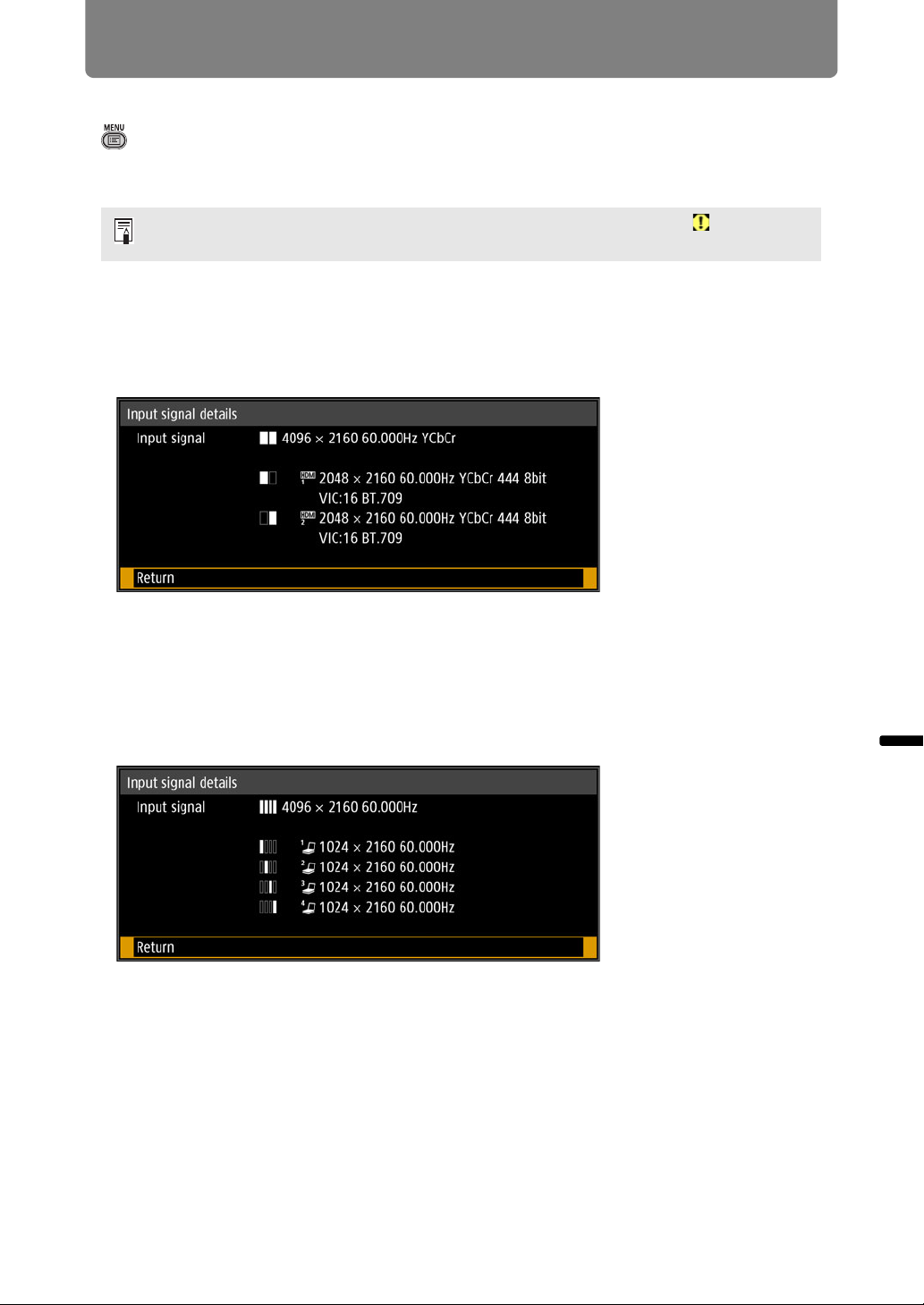

Input signal details
> [Input settings] > [Input signal details]
Shows input signal details for each input terminal used, for the selected input
signals.
In Multi Input mode, terminals with incorrect input can be identified by a “” icon, which
is displayed for input terminals with signals that do not meet the requirements.
• HDMI input
Indicates the resolution, vertical frequency, color format (for YCbCr, the color
format and subsampling; for RGB, the color format and range), color depth, VIC,
and colorimetry information.
In the example above, the HDMI-1/2 input signal has a resolution of 2048 x 2160,
a vertical frequency of 60.000 Hz, a color format of YCbCr/subsampling 444, and
a color depth of 8 bits.
If no additional information from the input signal is displayed, it is marked with “*”.
• DVI input
Indicates the resolution and vertical frequency.
In the example above, the DVI-1/2/3/4 input signal has a resolution of 1024 x
2160, and a vertical frequency of 60.000 Hz.
Advanced GuideMenu Settings
95
Page 96
Menu Settings

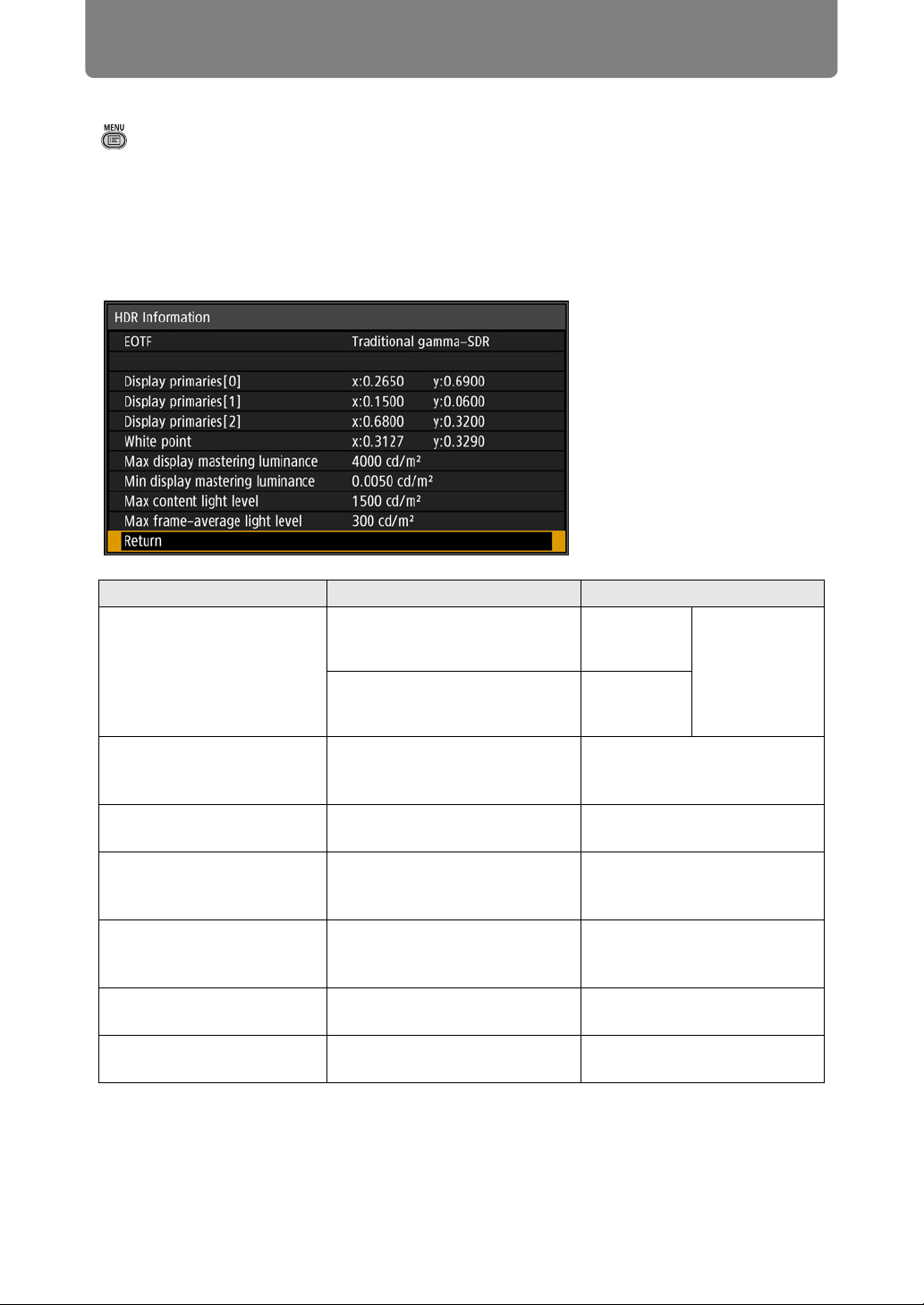

HDR information
> [Input settings] > [HDR information]
When HDMI signals are supplied, shows the Dynamic Range and Mastering
InfoFrame information.
The projector determines and indicates whether HDMI signals are SDR or HDR.
HDR HDMI signals have an area that includes color and luminance information,
and this information is indicated. The following information is displayed.
ItemInformation IndicatedDetails
Traditional gamma-SDRSDR signal
EOTF
SMPTE ST 2084HDR signal
Display primaries [0],[1],[2]
White point
Max display mastering
luminance
Min display mastering
luminance
Max content light level1 – 65535 cd/m
Max frame-average light
level
x: 0.00002 – 1.00000
y: 0.00002 – 1.00000
x: 0.00002 – 1.00000
y: 0.00002 – 1.00000
1 – 65535 cd/m
0.0001 – 6.5535 cd/m
1 – 65535 cd/m
Indicates
various
gamma
information of
the video
content
Coordinates of the three
vertices of the gamut triangle
in the color space
Coordinates of “white” in the
color space
2
2
2
2
Maximum luminance of the
display used when the video
content was produced
Minimum luminance of the
display used when the video
content was produced
Maximum luminance of
scenes in the video content
Average luminance of scenes
in the video content
96
Page 97
Menu Settings

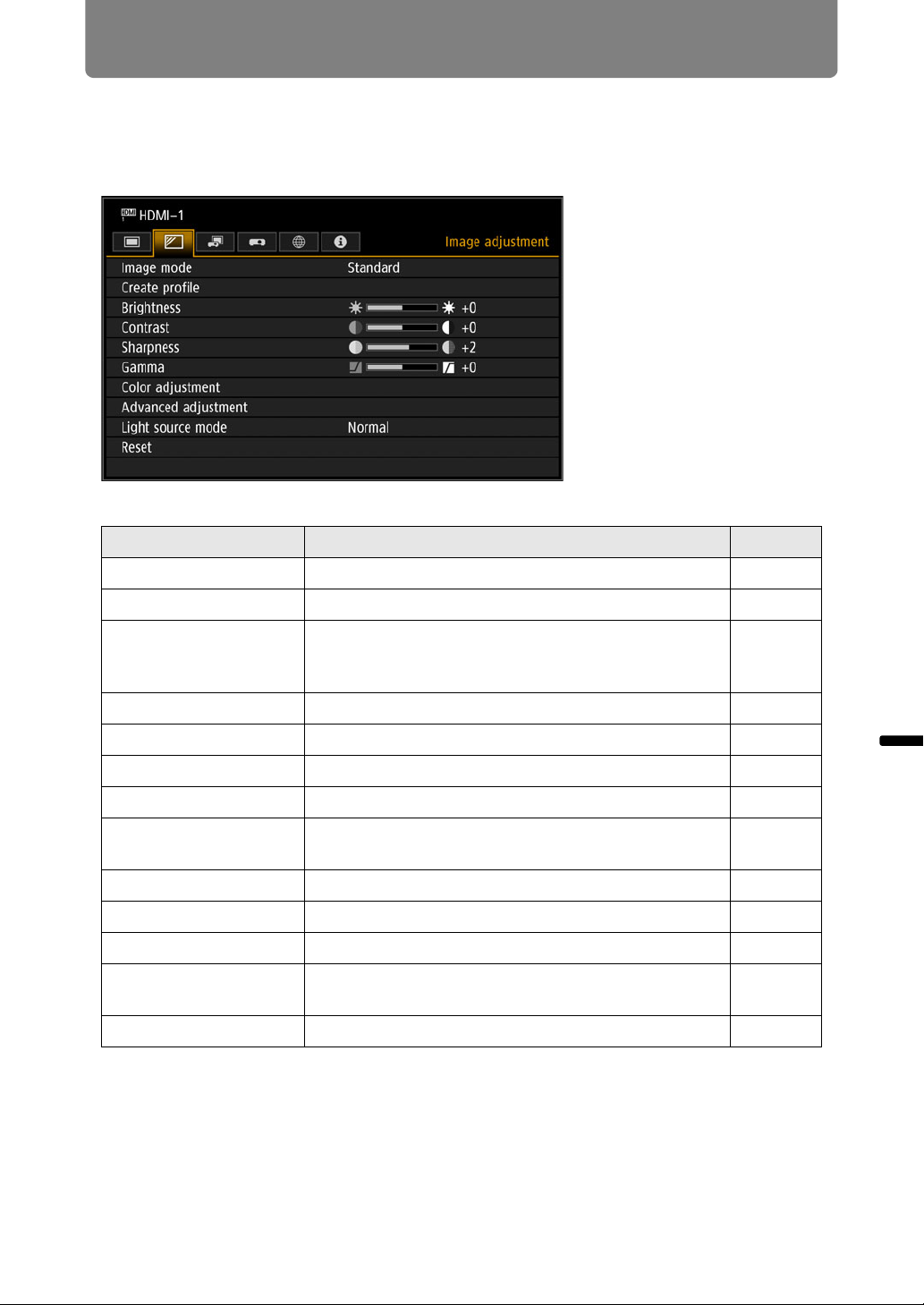

Image adjustment
This section describes image quality settings such as brightness, contrast,
and sharpness.
(When the input signal is HDMI-1)
MenuFunctionDetails
Image mode *Select overall image quality to suit the projected image.P98
Create profileSave desired image quality settings as profiles.P99
Only displayed when the image mode is set to a profile
Baseline image mode
Brightness *Adjust image brightness.P99
Contrast *Adjust image contrast.P99
Sharpness *Adjust image sharpness.P99
Gamma *Correct loss of detail in shadows or highlights.P99
HDR range *
Color adjustment *Fine-tune image colors.P100
Advanced adjustment *Fine-tune noise reduction and color tone.P100
Light source mode *Adjust projection brightness and operating sounds.P104
Brightness level *
ResetRestore the current image quality settings to defaults.P105
from [User 1] to [User 3]. Shows the image mode that
was modified to create the profile.
Within the dynamic range of SMPTE ST 2084, set the
range to use.
Adjust projection brightness as controlled by the drive
current of the laser diode.
P99
P99
P105
Menus that are not available are grayed out or hidden.
* Adjustments are stored as modified settings for the current input signal and image
mode.
Advanced GuideMenu Settings
97
Page 98
Menu Settings
Image mode
> [Image adjustment] > [Image mode]
Select the overall image quality for projected images. Can also be selected by
pressing the IMAGE button on the remote control.
OptionTypes of ImagesCharacteristics
Standard
PresentationImages mainly consisting of textBright overall
DynamicVideo contentBright overall
VideoVideo from camcorders
Photo/sRGB
DICOM SIM
User 1 - 3
Computer screens, or media
played with video software
Digital images from sRGBcompatible cameras
Medical or other monochrome
images
Up to 3 user profiles can be stored for your selected image quality
settings. Stored profiles are available in this setting as an image mode.
Bright overall; white, with natural
colors
Somewhat dark; colors resemble
TV
Somewhat dark; conforms to the
sRGB standard
Conforms to DICOM Standard
Part 14. However, the projector
cannot be used in diagnosis or
similar applications.
Menus that are not available are grayed out or hidden.
• You can adjust the image quality by adjusting the following items in each image mode:
[Brightness], [Contrast], [Sharpness], [Gamma], [HDR range], [Color adjustment],
[Advanced adjustment], [Light source mode], and [Brightness level]
• If flickering occurs when the image mode is set to [Presentation], try switching to
[Photo/sRGB] or [Standard].
98
Page 99
Menu Settings
Create profile
> [Image adjustment] > [Create profile]
Save desired image quality settings in up to 3 user profiles.
• The saved settings are [Brightness], [Contrast], [Sharpness], [Gamma], [HDR range],
[Color adjustment], [Advanced adjustment], [Light source mode], and [Brightness level].
• Although only 3 user profiles are displayed, separate profiles apply depending on
whether DVI-D or HDMI signals are supplied. As a result, it is possible to save up to
6 settings.
• The image mode name which was the basis for the settings change is also saved in the
user memory. When a user memory is selected as the image mode, the image mode
that was the base for that user memory is displayed in the menu as [Baseline image
mode].
Brightness
> [Image adjustment] > [Brightness]
Adjust image brightness.
Contrast
> [Image adjustment] > [Contrast]
Sharpen or soften image contrast.
Advanced GuideMenu Settings
Sharpness
> [Image adjustment] > [Sharpness]
Adjust image sharpness.
Gamma
> [Image adjustment] > [Gamma]
Correct image areas that are too dark or too bright to see clearly.
For more detailed adjustment, use Fine-Tune Gamma (P104).
HDR range
> [Image adjustment] > [HDR range]
Within the dynamic range of SMPTE ST 2084, set the range to use.
[Gamma] is not shown when the menu includes [HDR range].
[HDR range] can only be set in the following cases.
• Image mode (P98) is set to [Video] and HDR (P102) is [On]
• Image mode (P98) is set to [Video], HDR (P102) is [Auto], and HDR signals are
supplied
99
Page 100
Menu Settings

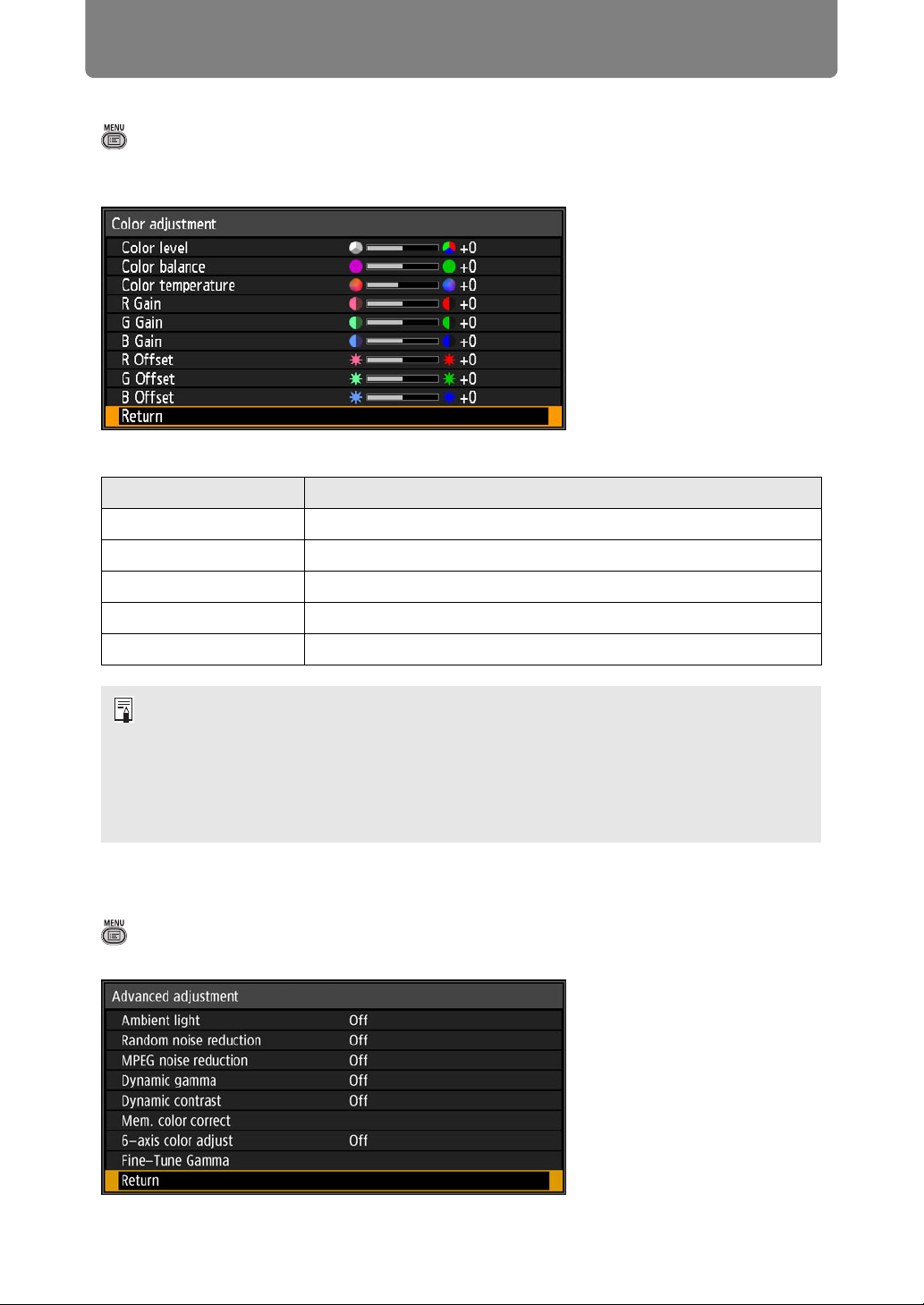

Color adjustment
> [Image adjustment] > [Color adjustment]
Adjust color-related settings such as color level, color balance, and color
temperature.
(In image modes other than DICOM SIM.)
SubmenuFunction
Color levelAdjusts the intensity of colors.
Color balanceAdjusts the color balance of a purplish or greenish image.
Color temperatureAdjusts the white color temperature.
R / G / B GainAdjust the gain of each color.
R / G / B OffsetAdjusts the color offset of each color.
In [DICOM SIM] image mode, [Color temperature] is not adjusted with numeric values but
set to one of the following five presets.
Preset 1: Prioritize brightness, relative to DICOM Standard Part 14.
Preset 2: Prioritize color tone, relative to DICOM Standard Part 14.
Preset 3: Adjust color to conform to DICOM Standard Part 14.
Preset 4: Reproduce colors of X-ray film (Clear base).
Preset 5: Reproduce colors of X-ray film (Blue base).
Advanced adjustment
> [Image adjustment] > [Advanced adjustment]
Fine-tune noise reduction and color tone.
100
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
