Page 1
Recording Medium
Dual Flash Memory (32Gb internal + SDHC card slot)
with Relay Recording (internal memory to card)
Max Recording Time
Variable total, depending on memory card size
5
Internal memory: 12hrs 15mins1,
7
32Gb SDHC card: 12hrs 15mins
1
Type 1/4 type CMOS
Total pixels 3.89 megapixel
Effective Pixels: Movie 2.99 megapixels
Effective Pixels: Still 3.31 megapixels (4:3 mode)
Filter RGB Primary Colour Filter
Advanced Zoom 18x
Optical Zoom 15x
Digital Zoom 300x
Digital Tele-converter NO
Focal length 4.1-61.5mm
35mm Equivalent Focal Length MOVIE: Approx 39.5-711 mm
STILL: Approx 39.5-592.5 mm
Maximum aperture f1.8 to f3.2
Minimum focusing distance 10mm
Image Stabilizer
Dynamic Optical Image Stabilizer;
Powered Optical Image Stabilizer mode
Filter diameter 37mm
Wide Attachment YES (optional WD-H37 II)
Image Processor DIGIC DV III
Face Detection Technology YES
Screen size 6.8cm (2.7") widescreen Multiangle Vivid LCD
Pixels 211,000 pixels
Touch-screen LCD YES
Manual adjustment Brightness, backlight
Temporary Underscan NO
Screen size N/A
Pixels N/A
Minimum Lux. Approx. 0.4 lux (Low Light Mode)
Night Mode YES
Auto Gain Control limit adjustment YES
Auto/Manual YES / YES
Control AUTO: Face Priority AF/Instant AF/TV AF
MANUAL: Touch panel
Manual Focus Assist YES (Magnification, Face Assist)
Smart AUTO YES (31 scene)
Program AE
16
AUTO, P, Av, Tv, CINE, Portrait, Sports, Snow, Beach,
Sunset, Night, Low Light, Spotlight, Fireworks, Underwater, Surface
Zebra NO
AE Mode
LCD
Viewfinder
Video System
CCD
Lens
Image Processor
Minimum illumination
Focus

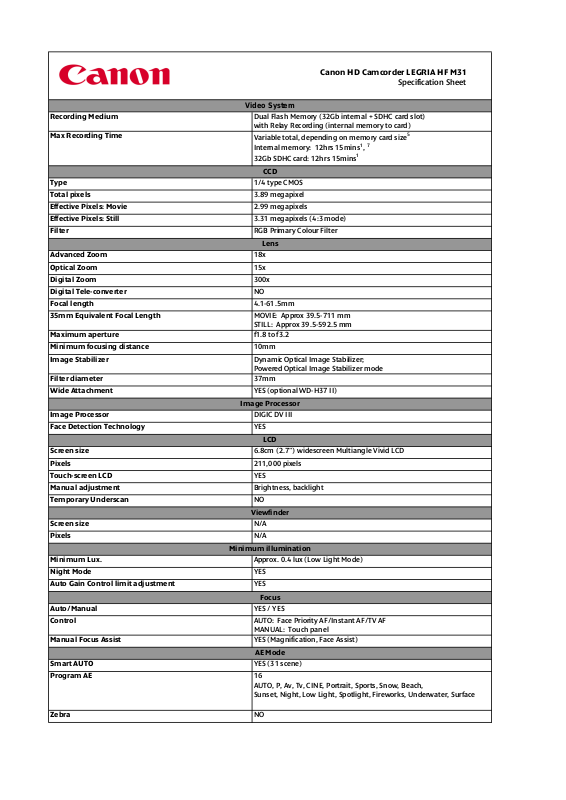

Canon HD Camcorder LEGRIA HF M31
Specification Sheet
Page 2
Backlight Compensation YES
Type TTL
Auto YES
Set/Preset YES (Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H)
Maximum 1/2000th sec.
Slow 1/2 sec.
Fade Auto Fade , Wipe
Effect Black & White, Sepia
Image Effects Vivid, Neutral, Low Sharpening, Soft, Skin Detail, Custom
Custom Functions Brightness, Contrast, Sharpness, Colour Depth
Custom Key NO
Capture image size 2304 x 1296, 2100 x 1575, 1600 x 1200, 848 x 480, 640 x 480
Continuous shooting mode YES (Normal and High-speed)
Auto Exposure Bracketing YES
Simultaneous Photo Recording YES
Selecting AF Frame Function YES
Histogram YES
Photo Button YES
Photo Burst YES
Self timer 10 sec
2 sec with wireless remote
LP mode
5 recording quality modes.
6
MXP: 1920x1080, 24Mbps;
5
FXP: 1920x1080, 17Mbps;
5
XP+: 1440x1080, 12Mbps;
SP: 1440x1080, 7Mbps;
LP: 1440x1080, 5Mbps
Extended Recording mode (ELP mode) -
Progressive shooting mode YES (25p)
CINE image mode YES
x.v.Color YES
Video Snapshot
YES
Dual Shot
YES
Pre REC
YES
Colour Bars and Test Tone
NO
Still image NO
Date YES (date select, calendar, timeline, Face Timeline, Face Jump, 3D Flip)
Multi Media Card NO
Secure Digital Card SD / SDHC
Movie Recording YES
Internal Data Transfer
MOVIE: Yes (internal memory to card)
STILLS: Yes (internal memory to card)
System
Dolby Digital 2ch (AC-3 2ch);
5.1ch surround sound (via Optional SM-V1 microphone)
Manual Rec. level control YES
Audio Dubbing NO
Custom Key
Still Image
Self timer
Recording mode
Backlight Compensation
White balance
Shutter speed
Search
Memory Card
Audio
Digital Effect
Image Quality Adjustment
Page 3
Headphone YES
Microphone YES
USB YES (USB 2.0 Hi Speed In/Out)
DV NO
Direct Print YES
Analogue-in NO
AV YES
S-video NO
Component YES
HDMI
YES (HDMITM Mini Connector: v1.3, CEC supported)
LANC YES (optional RA-V1 adaptor)
Built-in charger YES
Quick Start YES (using LCD screen)
Accessory shoe YES (mini Advanced Accessory Shoe)
Built-in Video light YES (white LED)
Built-in Flash YES
Digital Video Solution Disk YES (v34)
Application software
YES (PIXELA ImageMixerTM 3 SE, Music Transfer utility)
USB cable YES
Easy Web Upload
YES
HD->SD conversion
YES
Wireless controller YES
Type Lithium Ion
Intelligent Battery System YES
Battery included in the kit BP-808
Max recording time (included battery)
1hr 40mins
Quick Charge
NO
Long life Battery BP-827
Longer recording time
2
5hr 10mins
W x H x D 68 x 60 x 123mm
Weight Approx. 320g
Disclaimers:
6
Variable bit rate used in all recording modes
Specifications are subject to change without notice.
Battery Pack
Dimensions
1
LP recording mode
2
Using EVF (normal LCD brightness if no EVF) and optional long life BP
5
Class 4 or higher SDHC card required for 1920x1080 recording; Class 2 or higher SDHC card recommended for other
recording modes; Memory card not supplied
Quick Start
Accessory shoe
Built-in Video light
Built-in Flash
PC Connection kit
Web
Wireless controller
7
Recording for more than 13 hours continuously is not possible
