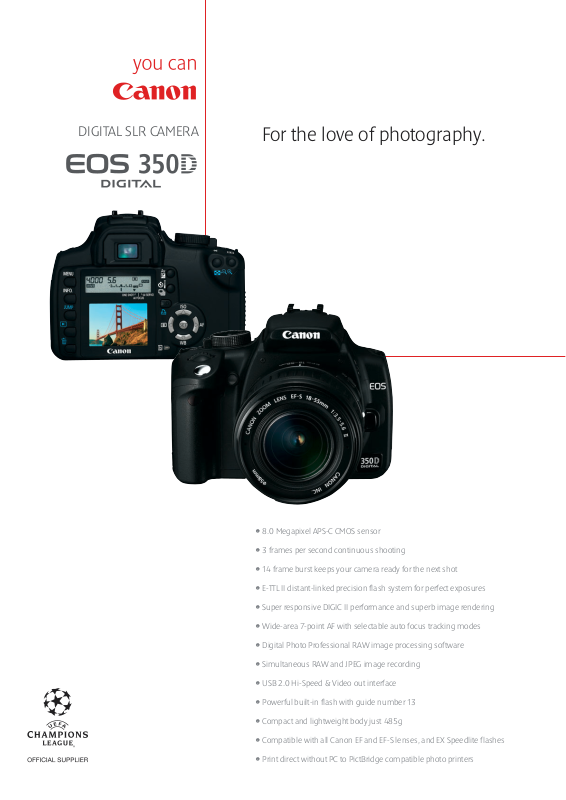

For the love of photography.

••

8.0 Megapixel APS-C CMOS sensor

••

3 frames per second continuous shooting

••

14 frame burst keeps your camera ready for the next shot

••

E-TTL II distant-linked precision flash system for perfect exposures

••

Super responsive DIGIC II performance and superb image rendering

••

Wide-area 7-point AF with selectable auto focus tracking modes

••

Digital Photo Professional RAW image processing software

••

Simultaneous RAW and JPEG image recording

••

USB 2.0 Hi-Speed & Video out interface

••

Powerful built-in flash with guide number 13

••

Compact and lightweight body just 485g

••

Compatible with all Canon EF and EF-S lenses, and EX Speedlite flashes

••

Print direct without PC to PictBridge compatible photo printers

DIGITAL SLR CAMERA

Canon Inc

www.canon.com

Canon Europa NV

www.canon-europe.com

Canon UK Ltd

Woodhatch Reigate Surrey RH2 8BF

Specifications EOS 350D DIGITAL

IMAGE SENSOR

Type 22.2 x 14.8mm CMOS

Effective Pixels Approx. 8.0M

Total Pixels Approx. 8.2M

Aspect Ratio 3:2

Low-pass Filter Built-in/Fixed

Colour Filter Type Primary Colour

IMAGE PROCESSOR

Type DIGIC II

LENS

Lens Mount EF/EF-S

Focal Length 1.6x Multiplication with EF lens fitted

FOCUSING

Type TTL-CT-SIR with a CMOS sensor

AF System/Points 7-point AF

AF Working Range EV -0.5 – 18 (at 20°C & ISO100)

AF Modes AI Focus, One Shot, AI Servo

AF Point Selection Automatic selection, Manual selection

Selected AF Point

Display Superimposed in viewfinder and on

LCD panel

Predictive AF YES

AF Lock Locked when shutter button is pressed

half-way in One Shot AF mode

AF Assist Beam Intermittent firing of built-in flash

Manual Focus Selected on lens

EXPOSURE CONTROL

Metering Modes TTL full aperture metering with 35-zone SPC

1 35 Point Evaluative

(linked to all AF points)

2 Partial (approx. 9% of viewfinder) 3 Center weighted

Metering Range EV 1–20

(at 20°C with 50mm f/1.4 lens ISO100)

AE Lock Auto: Operates in 1-shot AF mode with

evaluative metering when focus is achieved Manual: Works independently at all times, Works in creative zone modes

Exposure

Compensation +/- 2 EV, 1/2 or 1/3-stop increments

AEB +/- 2 EV, 1/2 or 1/3-stop increments

ISO Speed Equivalent AUTO(400), 100, 200, 400, 800, 1600

SHUTTER

Type Electronically-controlled

focal-plane shutter

Speed 30 –1/4000 sec, Bulb

Shutter Release Soft touch electromagnetic release

WHITE BALANCE

Type Auto white balance with the

imaging sensor

Settings AWB, Daylight, Shade, Cloudy,

Tungsten, Fluorescent, Flash, Custom, Colour Temperature Setting

WB Bracketing +/-3 stops in full stop increments,

3 bracketed images per shutter release, Selectable Blue/Amber bias or Magenta/Green bias

COLOUR MATRIX

Type Two types of colour space:

sRGB and Adobe RGB

VIEWFINDER

Viewfinder Coverage Eye-level Pentamirror (Vertical/Horizontal) Approx. 95%

Magnification 0.8x

Eyepoint 21mm

Dioptre Correction -3 –1 dpt

Focusing Screen Fixed

Mirror Quick-return half mirror

(Transmission: reflection ratio of 40:60)

Viewfinder Info AF Points, AE/FE lock, AEB, Shutter speed,

Aperture, Exposure Level/ Compensation, Max. Burst, AF/ MF Focus Confirmation, CF Warning

Depth-of-field Preview YES

LCD MONITOR

Monitor 1.8" TFT, approx. 115,000 pixel

Coverage Approx. 100% (for JPEG images)

Brightness Adjustable to one of five levels

FLASH

Modes Auto, Manual Flash On/Off,

Red-eye Reduction

HotShoe/PC Terminal YES/NO

X-sync 1/200 sec

Red-eye Reduction YES

Flash Exposure Compensation +/- 2 EV in 1/2 or 1/3 increments Flash Exposure

Bracketing YES

Flash Exposure Lock YES

Second Curtain

Synchronisation YES

Built-in Flash Range Coverage up to 17mm focal length

(27mm equivalent)

Guide Number

(ISO 100, meters) 13

External Flash E-TTL II with EX series Speedlites,

wireless multi-flash support

SHOOTING

Modes Full Auto, Portrait, Landscape, Close-up,

Sports, Night Portrait, No Flash, Shutter priority AE, Aperture priority AE, Manual, A-DEP

Photo Effects Monochrome mode

(selected from the Shooting menu) with options for Filters and Toning Effects

Drive Modes Single/Continuous

Continuous Shooting 3 fps

(speed maintained for up to 14 JPEG images)

RECORDING PIXELS/

COMPRESSION

Image Size (LF) 3456x2304, (LN) 3456x2304,

(MF) 2496x1664, (MN) 2544x1696, (SF) 1728x1152, (SN) 1728x1152, (RAW) 3456x2304

Compression Fine, Normal, RAW

FILE FORMAT

Still Image Format JPEG compression

(Exif 2.21[Exif Print] compliant)/ Design rule for Camera File system, RAW & JPEG simultaneous image recording, Digital Print Order Format [DPOF] Version 1.1 compliant

RAW+JPEG

Simultaneous

Image Recording YES

File Numbering

1 Consecutive numbering 2 Auto reset

Processing

Parameters Standard parameters, plus up to three

custom processing parameters can be set

DIRECT PRINT

Canon Printers Canon SELPHY Compact Photo Printers

and Pixma Printers supporting PictBridge

PictBridge YES

OTHER FEATURES

Custom Functions 9 Custom Functions with 24 settings

LCD Panel (EL)

Illumination YES

Intelligent

Orientation Sensor YES

Histogram YES

Playback Zoom 2x –10x

Display Formats

1 Single image with information 2 Single image 3 9 image index

Image Erase

Protection Erase protection of one image at a time

Image Erase Single image, All

Self Timer Approx. 10 sec

OTHER FEATURES

(CONT.)

Menu Categories

1 Shooting menu 2 Playback menu 3 Setup menu

Menu Languages English, German, French, Dutch, Danish,

Finnish, Italian, Norwegian, Swedish, Spanish, Russian, Simplified Chinese, Korean and Japanese

Firmware Update Update possible by the user

INTERFACE

Computer USB 2.0 Hi-Speed (Mini-B)

Other Video output (PAL/NTSC)

MEMORY CARD

Type CompactFlash Type I / II

(Microdrive compatible)

SUPPORTED

OPERATING SYSTEM

PC Windows 98 (including SE)/

2000/Me/XP

Macintosh OS X v10.1– 10.3

SOFTWARE

Browsing & Printing Digital Photo Professional,

Zoom Browser EX

Other EOS Capture, PhotoStitch

Drivers TWAIN (Windows 98/2000), WIA

(Windows Me/XP)

Image Manipulation ArcSoft PhotoStudio

POWER SOURCE

Batteries Rechargeable Li-ion Battery

NB-2LH (supplied)

Battery Life Approx. 600 shots (at 20°C),

Approx. 400 shots (at 0°C)

Battery Check Automatic

Power Saving Power turns off after

1, 2, 4, 8, 15 or 30 m ins

A/C Power Supply Optional, Power adapter ACK-700

ACCESSORIES

Case Semi-Hard case EH-18L

Lenses All EF and EF-S lenses

Flash Canon Speedlites (220EX, 380EX,

420EX, 580EX, Macro Ring Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2)

Battery Grip BG-E3

Remote Controller/

Switch Remote Switch RS-60E3/

Remote Controller RC-1and RC-5

Power Supply &

Battery Chargers AC Adapter Kit ACK-700,

Battery charger CB-2LT, NB-2LH

PHYSICAL

SPECIFICATIONS

Body Materials Stainless Steel/Plastic

Operating

Environment 0 –40°C, 85% or less humidit y

Dimensions

(WxHxD) 126.5 x 94.2 x 64mm

Weight (body only) Approx. 485g

1With 50mm lens at infinity, -1 dpt

2 Depending on memory card speed / capacity

3Compatible with all memory card capacities,

including cards of 2GB and more

4Tested to CIPA standards with battery pack NB-2LH

and Canon branded CF card

Some images are simulated for clarity of reproduction. All data is based on Canon’s

standard testing methods. Specifications are subject to change without notice.
