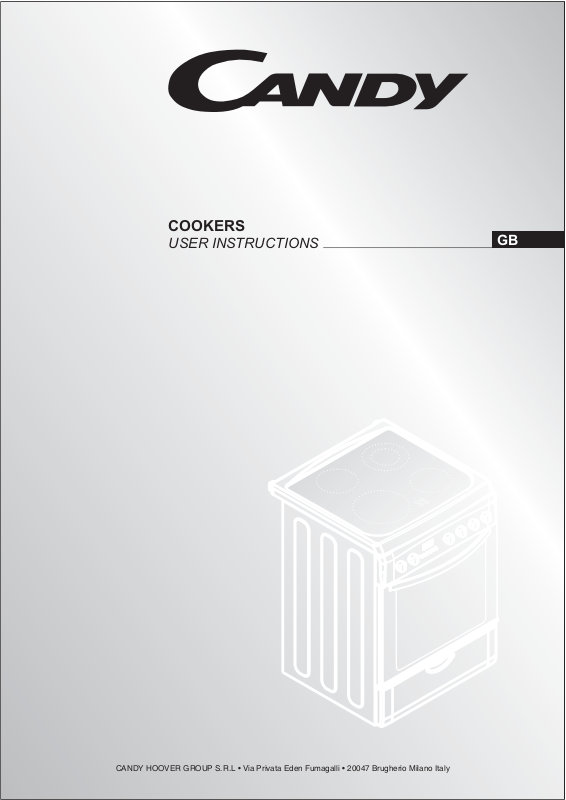

Candy CGK 6120 User Manual [EN]

COOKERS

USER INSTRUCTIONS

CANDY HOOVER GROUP S.R.L • Via Privata Eden Fumagalli • 20047 Brugherio Milano Italy

GENERAL WARNINGS

Thank you for choosing one of our products. To get the most out of your cooker we recommend that you:

•Read the notes in this manual carefully: they contain important instructions on how to install, use and service this cooker in safety Keep this booklet in a safe place for easy, future

•In the case of the sale or transfer of the appliance, this manual should be given together with the appliance in order to guarantee the proper transfer of the information on installation/usage of the appliance and the relative warnings .

•All accessible parts are hot when the appliance is in take care to not touch these elements. When the cooker is first switched on it may give off acrid smelling fumes-this smoke is harmless we suggest to operate the cookers for 2 hours while empty.

reference.

operation,

SYMBOLS USED IN THIS USER MANUAL

For easier comprehension, the symbols below are used in this user manual.

Safety Information

Information for Environment Protection

This appliance complies with the EU E.E.C directives.

DECLARATION OF COMPLIANCE

All parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109. The appliance complies with European Directives 73/23/EEC, 89/336/EEC and 90/396/EEC, replaced by 2006/EC, 2004/108/EC and 2003/55/EC, and subsequent amendments. The appliance also complies with 93/68 General Directives and subsequent amendments.

• It is dangerous to modify or to attempt to modify the properties of the appliance.

•Particular attention is necessary when you are frying: do not the appliance unattended.

leave

•The appliance is heavy. Take care when moving.

•The emission of hot air is normal while the appliance is working.

Do not close the vents on the oven.

•Some spillage on the appliance may occur, when placing food on

or into the appliance or when removing food with excess water. Clean such residues immediately after cooking, in order to prevent unpleasant smells and possible fires.

• When using any electrical appliance you must follow a few basic

rules:

*It is not generally a good idea to use adapters, multiple

sockets for several plugs and cable extension.

*Do not pull

socket.

*Do not touch the oven with wet or damp hands or feet. *If the main cable is damaged it must be replaced

promptly:

*When replacing the cable, follow the instructions given

below:

*Cable replacement must be carried out by qualified technicians. Use only ensure that only original parts are used.

*When necessary, remove the power cable and replace it with one of the H05RR-F, H05VVF, and H05V2V2-F type. The cable have the capacity for the electrical current required by the product.

•Do not leave the appliance unattended

If the above instructions are not adhered to, the manufacturer cannot guarantee the safety of the cooker.

the power cable to remove the plug from the

an approved service centre for repairs end

before it has cooled down.

fat or

SAFETY HINTS

•The cooker must be used only for the purpose for which it was designed: it must only be used for cooking food. Any other use, e.g. as a form of heating, is improper use of the cooker and is therefore dangerous.

•The manufacturers cannot be held responsible for any damage caused

•When using any electrical appliance you must follow a few basic rules. If the appliance breaks down or develops a fault switch it off, disconnect it from mains, do not touch it, call the authorised Service.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.

•An oven by its of the oven door. Do not allow children to go near the oven when it is hot, especially when the grill is on.

•Always use gloves to remove food from the oven.

•Always keep your appliance clean, for safety and health reasons. Fat

•Do not insert your hand between oven hinges. Keep children away.

•Make sure that all the knobs are in the OFF position when the appliance is not in use.

•The oven drawer is to store empty trays or to keep food warm.

•Do not put flammable, explosive bags, paper, cloths, etc, into the drawer.

•Use only heat resistant pots and pans. Do not use flammable materials.

by improper, incorrect or unreasonable use.

very nature becomes very hot. Especially the glass

and food residues may cause fire.

or cleaning materials like nylon

USEFUL TIPS

•Do not use deformed or unbalanced pans.

•Clean the grill and the fat collecting tray carefully before initial usage.

•When using cleaning sprays, do not spray on heaters or on the thermostat.

•Make sure that oven shelves are correctly placed.

•Do not cover oven parts with aluminium foil.

TECHNICAL DATA

FEATURES

50 x 60 4 Hilight Heater and Electrical Oven

60 x 60 4 Hilight Heater and Electrical Oven

Rating plate (located at the rear of the cooker)

TOTAL ELECTRIC

POWER

6.8 kW

8.4 kW

01 GB

INSTALLATION

DIMENSIONS OF THE APPLIANCE

Installation have to be made by qualified personnel. The manufacturer have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation

may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury. WARNING! Care must be taken regarding where the appliance is placed! It can only be installed in a continuously ventilated room. Electrical connections must always be disconnected before any repair,

installation or modification.

•Before positioning your appliance, check the properties of the energy supply and make sure that your appliance is regulated accordingly.

•The appliance must not be installed near flammable materials (e.g. furniture, curtains, etc.)

POSITIONING

750 mm

20 mm 20 mm

400 mm

Height (mm)

Width (mm)

Depth (mm)

50 x 60 60 x 60

863

510

600

863

600

GENERAL APPEARANCE AND DEFINITION OF THE APPLIANCE

This User Manual has been drawn up as a guide for several models. Some of the properties mentioned in this manual may not exist in your appliance.

60 x 60 COOKER

Cook top

Control panel

Drawer

Oven door (Front door)

Hilight Heater 1200W

Double Hilight Heater 1700W

Hilight Heater 2300W

Warning Lamps

Hilight heaters control knobs

Oven knob

10-

Thermostat knob

11-

Electronic programmer

12-

This appliance is of the "X" type and it has been designed on the presumption that the adjacent work tops will be no higher than the cook top surface.

FEET ADJUSTMENT

Your appliance has adjustable feet at the lower corners of its chassis. The feet can be adjusted individually with the aid of a wrench to guarantee that the oven is perfectly balanced and level, so that any liquids in the pans is horizontal .

50 x 60 COOKER

Cook top

Control panel

Drawer

Oven door (Front door)

Hilight Heater 1800W

Hilight Heater 1200W

Warning Lamp

Timer knob

Hilight heaters control knobs

Oven knob

10-

Fan knob

11-

02 GB

ELECTRICAL CONNECTION

Cookers can be presented with or without enrgy cable. Cable connection should be done by Autorited service according to following instructions. The electrical connection must be made according to the standards and regulations in force. Before making the electrical connection, check the following:

•Is the capacity of the electrical connections and the building sufficient to cope with the load of the appliance? (Check with the adhesive info label)

•Does the electricity supply line have an earth connection conforming with the standards in force? A proper earth connection must exist in your home. If there is not a proper earth your home, please apply to an authorized technician to deal with this problem.

•Is the socket or the multi-pole switch at a easily reachable point after the installation of the appliance?

•A plug conforming to standards should be connected to the mains cable and the cable should be inserted

•A multi-pole switch must be used between the appliance and the electricity line if a direct electrical connection to the appliance is required. (It must comply with standards and be appropriate for the load) The green-yellow ground cable must not be interrupted by a switch. The brown phase the oven) must always be connected to the phase line of the mains.

•The power line must be positioned so that it is not exposed to temperatures higher than 50° C.

•When the power cable must be changed, a cable with a cross section appropriate green-yellow ground cable should be approximately 2 cm longer than phase and neutral cables.

•Check the heaters by switching them on for 3 minutes, after having completed the connection.

•The manufacturer will not accept responsibility for damages arising due to non-compliance with the

cable (from the “L" coded connector of

to the indicated power must be used. The

into a safe socket.

safety standards.

safety fuses in

connection at

Fuse

Cable - Section

Cable - Type

Monophase 220-240 V~

25 A3 x 16 A

3 G 2.5 mm

H05VV-F ou H05RR-F

L1 : Phase

shunt 1-2 and

shunt 2-3

N : Neutral

shunt 4-5

T Earth

Three-phase

380-415V3N~

5 G 1.5 mm

H05VV-F ou H05RR-F

1 Phase

2 Phase

3 Phase

5 Neutral

shunt 4-5

T Earth

COOKERS WITHOUT ENERGY CABLE COOKERS WITH ENERGY CABLE

Cable box connection types

1- Monophase connection 2- Three-phase connection

Attention: A poor clamping can draw away risks dangerous heating at the level of the cable feeding

•Connection is exclusively envisaged under tensions of 220-240V Between phases or between phases and neutral.

•Connect 10/16 amperes to an outlet.

Phase cable

Ground cable (Green-Yellow)

Neutral

03 GB
