Candy CDP 2D947X User Manual [EN]

Instruction ManualInstruction Manual

CDP 2D947W CDP 2D947X

DishwasherDishwasher

1) Safety Information.........................................1

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date.

Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself .

If you can not solve the problems by yourself , please ask for the help of professional technicians.

2) Quick operation guide................................... 2

3) Operation Instruction....................................3

Control Panel...................................................3

Dishwasher Features.................................... ...3

4) Prior using for the first time...........................4

A Water Softener...........................................4

B Loading the Salt into the Softener.................5

C Loading the Detergent................................6

D Types of Detergent............ .........................7

5) Loading the Dishwasher Basket.....................9

Recommengation...........................................9

For washing in the dishwasher the

folliwing cutlery/dishes..................................9

Attention before or after loading the

Dishwasher Baskets......................................9

Removing the Dishes................................. ...9

The Method Loading Normal Dishware......... ...10

6) Starting a washing programme.....................11

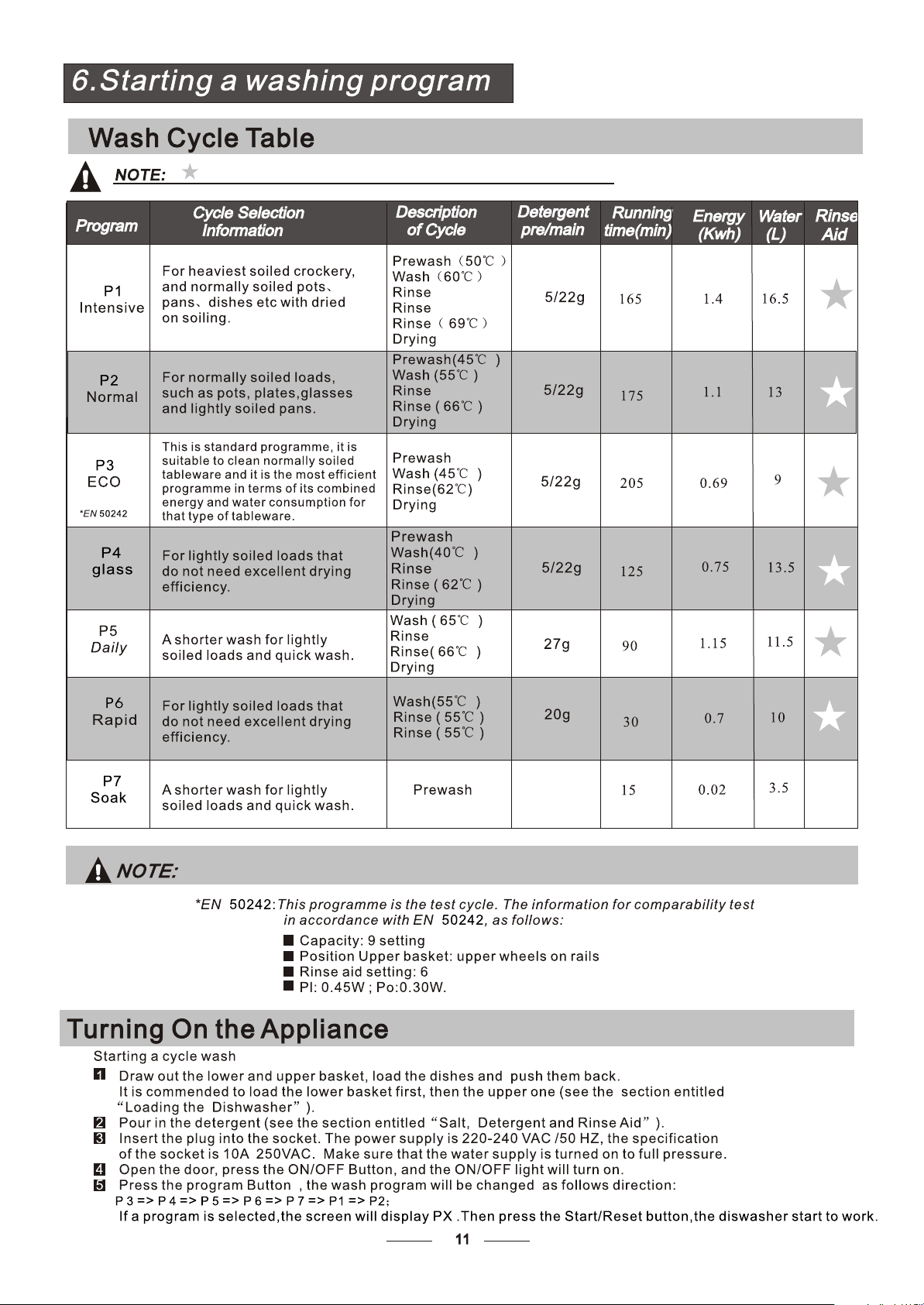

Wash Cycle Table...........................................11

Turning on the Appliance................................11

Change the Programme..................................12

At the end of the Wash Cycle...........................12

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

This user manual shall also be got from the manufacturer or responsible vendor.

7) Maintenance and cleaning............................13

Filtering System.............................................13

Caring for the Dishwasher...............................14

8) Installation instruction....................................15

Positioning the Appliance...............................15

About Power Connection................................15

Water Connection..........................................16

Start of dishwasher........................................17

9) Troubleshooting Tips...................................18

Before calling for service.................................18

Error codes...................................................19

Technical information.....................................20

Loading the baskets according to En50242

1.IMPORTANT SAFETY INFORMATION1.IMPORTANT SAFETY INFORMATION

WARNING!

When using your dishwasher, follow the precautions listed below:

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

For EN60335-1 This appliance is not intended for use by persons(including children )with reduced physical, sensory or mental capabilities, or lack of experience and knowledge ,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

For IEC60335-1 This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance .Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again .

EARTHING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a earthing plug. The plug must be plugged into an appropriate outlet that is installed and earth ed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

1-1

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

Do not operate your dishwasher unless all enclosure panels are properly in place.

Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Check that the detergent powder is empty after completion of the wash cycle.

Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic it ems n check th e m anufacturer's

ot so marked,

recommendations.

Use only det ergent and rins e add itives des igned for an aut omatic dish washer.

Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

Children should be supervised to ensure that they do not play with the appliance.

The door should not be left open, since this could increase the risk of tripping.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

During installation, the power supply must not be excessively or dangerously bent or flattened.

Do not tamper with controls.

The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.

The maximum number of place settings to be washed is 9.

The maximum permissible inlet water pressure is 1MPa.

The minimum permissible inlet water pressure is 0.04MPa.

1-2

WARNING! WARNING!

Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

1-3

2.Quick operation guide2.Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance

Fill the detergent dispenser

Check the rinse aid level

Check the regeneration

salt level

Open the door,press the on/off button to switch on the appliance .

The detergent container is inside the door. If the lid of the container is closed, press the button (A) to open. At the end of every wash cycle the lid is always open and ready for the next time the dishwasher is used.

Mechanical indicator B.

It is always advisable to use rinse aid that is specifically designed for dishwasher. Check the rinse aid level through the indicator eye (B) which is located on the dispenser.

(On models with water softener system only.) Electric indicator on control panel (if provided). If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run.

B.B.

Load the baskets

Select a programme

Running the dishwasher

Changing the programme

Add forgotten dishes in the dishwasher.

If the appliance is switched off during a wash cycle.

Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.

Close the door .Press the Programe button to select programe ( See the section entitled Operation instruction )

T urn on the water tap ,Then press the Start/Reset Button ,The machine will start working.

1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispenser must be refilled.

2. Press the Start/Reset Button for more than 3s, the running programme will pause,

3. Select a new programme.

4. Restart the dishwasher.

1.Open the door a little to stop the dishwasher.

2.After the spray arms stop working, you can open the door completely.

3.Add the forgotten dishes.

4.Close the door, the dishwasher will start running again after 10 seconds.

If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state ).

WARNING!

Open the door carefully. Hot steam may escape when the door is opened!

Switch off the appliance

Turn off the water tap,

unload the baskets

When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the on/off Button.

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better.Unload the appliance, starting from the lower basket.

3.Operation Instruction3.Operation Instruction

4 5

Lower basket

Salt container

Dispenser

Cup shelf

Spray arms

Filter assembly

Upper basket

Cutler y rack

Inne r pipe

5 6

7 8 9

IMPORTANTIMPORTANT

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Control PanelControl Panel

1 2 3 4 5

6 7

Dishwasher FeaturesDishwasher Features

Front view

Back View

Security Inlet pipe

Drain pipe

4.Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener

B. Add 1.5Kg dishwasher salt and then full fill the salt container with water

C. Fill the rinse aid dispenser

D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level o f salt consumption.

Note:1

Note:2

Please follow the steps below for adjustment in salt consumption.

1. Switch on the appliance;

2. Press the program button for more than 5 seconds to start the water softener set model within 60seconds after the appliance was switched on;

3. Press the program button to select the proper set according to your local environment, the sets will change in the following sequence: H3->H4->H5->H6->H1->H2;

4. Without changing program button within 5s ,then end the set up model.

WATER HARDNESS

6-11

12-17 2.1-3.0 12

18-22 31-40 22-28 3.1-4.0

23-34 4.1-6.0 30

35-55

dH=1.25 Clarke=1.78 fH=0.178mmol/l

0~90~5 0~0.94 0

10-20

21-30

41-60

61-98

Clark

0~6

7-14

15-21

29-42

43-69

mmol/l

1.0-2.0

6.1-9.8

Selector Position

Salt c o nsumption

(gram/cycle)

dH: German degree fH: French degree Clark: British degree

The manufactory setting: H3 (EN 50242)

Contact your local water board for information on the hardness of your water supply.

NOTE:

If your model does not have any water softener, you may skip this section.

WATER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

+ 18 hidden pages
