Congratulations!
Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability. Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers. Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher. For future reference please keep this instruction booklet in a safe place.
GUARANTEE
This appliance is supplied with a guarantee certificate which allows free use of Technical Assistance Service. Please retain your purchase receipt. This should be kept in a safe place and preserved to the engineer if a service call is required.
2
CONTENTS

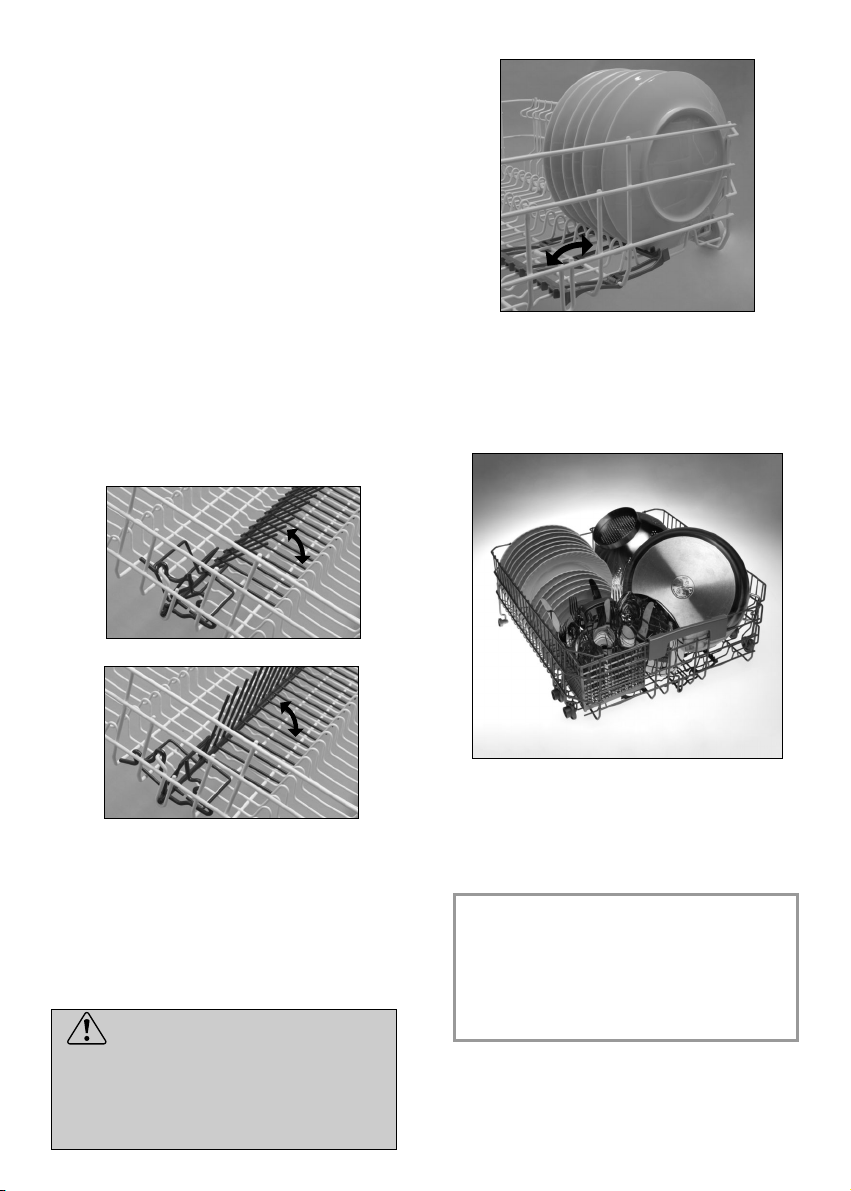

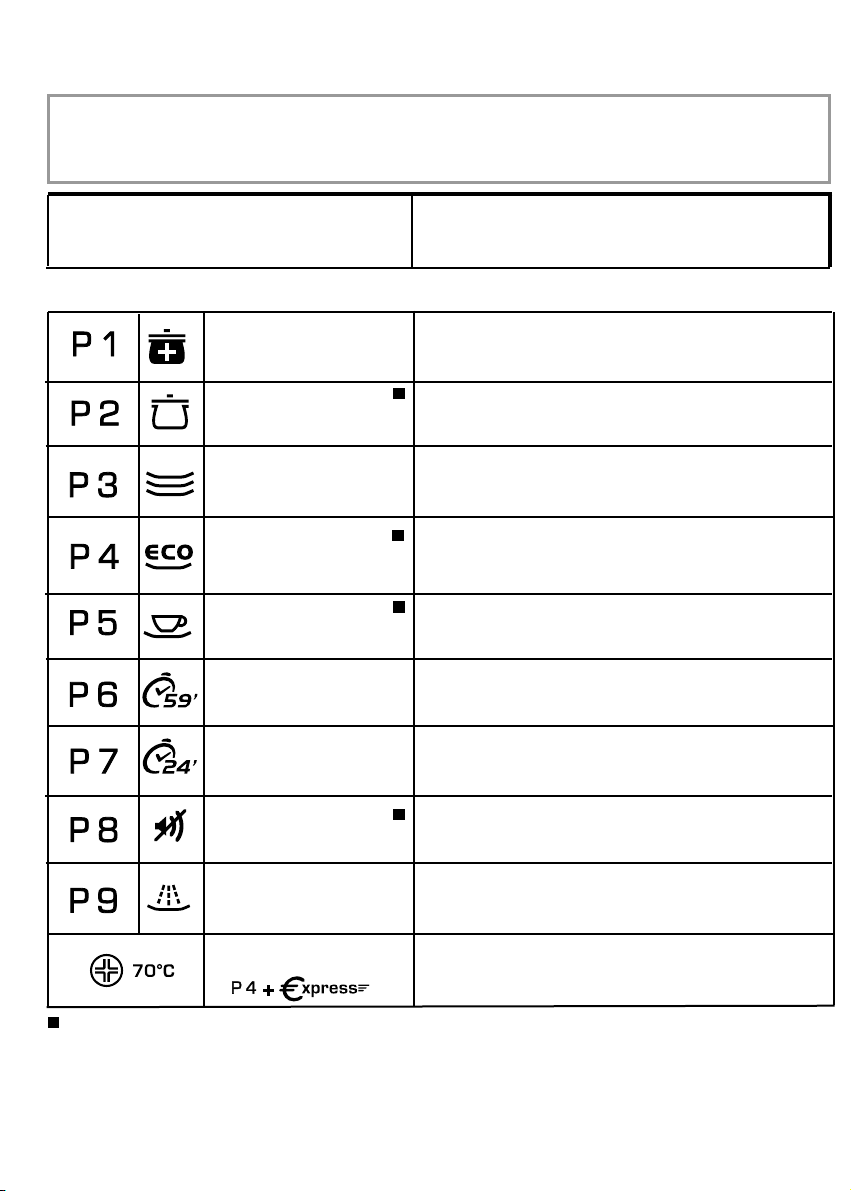

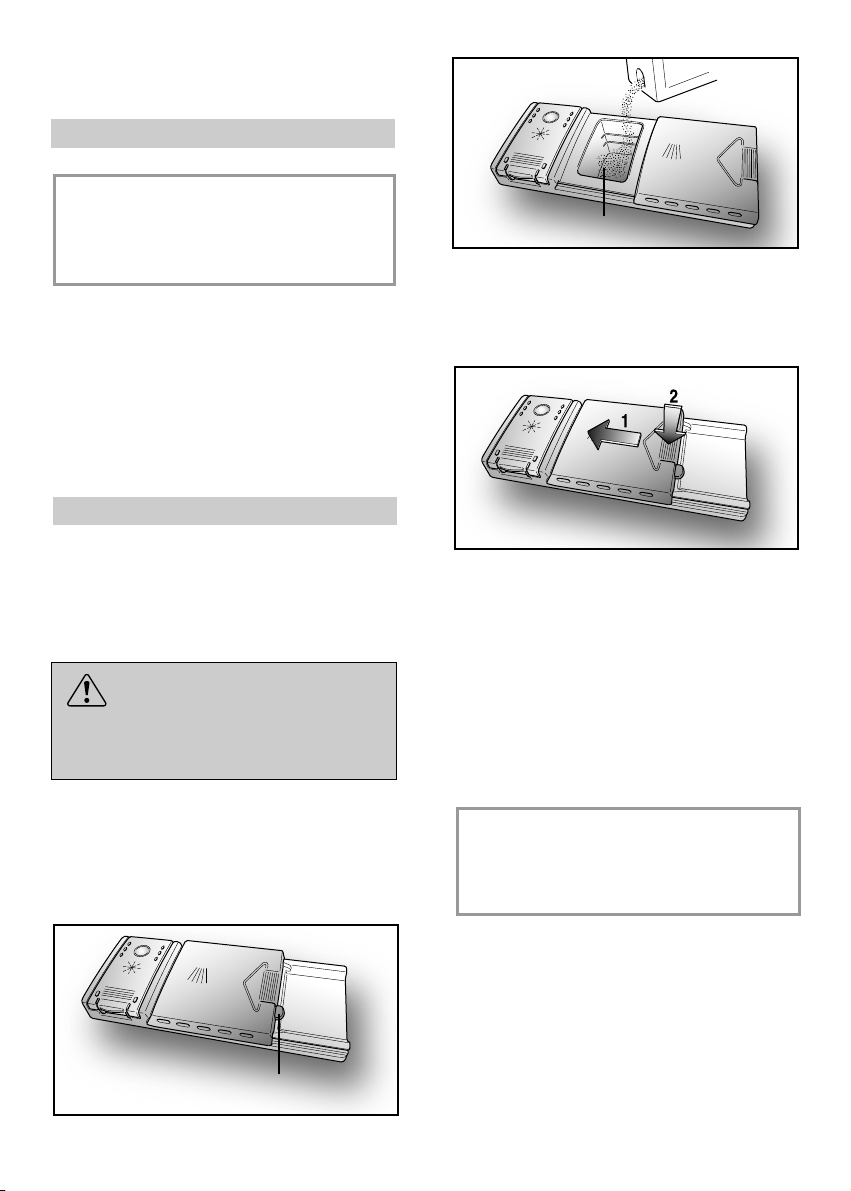

General safety rules Installation Water connection Loading the salt Adjusting the upper basket Loading the dishes Information for test laboratories Loading the detergent Types of detergent Loading the rinse aid Cleaning the filters Some practical hints Routine cleaning and maintenance Description of the control panel Technical data Programme selection and special functions Aquastop Programme guide Water softner unit Identifying minor faults
pag. 4 pag. 6 pag. 7 pag. 9 pag. 10 pag. 11 pag. 13 pag. 14 pag. 15 pag. 16 pag. 17 pag. 18 pag. 19 pag. 20 pag. 20 pag. 21 pag. 25 pag. 26 pag. 28 pag. 29
Fig. A
5
1
4
3
Please read the instructions in this booklet carefully because they contain important information on how to install, use and maintain your dishwasher safely as well as containing useful tips on how to make the most of it.
Keep this booklet safe for future reference.
3
2
GENERAL SAFETY RULES
This appliances is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.
If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer’s warranty.
Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Children of less than 3 years should be kept away unless continuously supervised.
Should it be necessary to replace the supply cord, call the After Sales Service Centre.
The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.
Water pressure must be between 0,08 MPa and 0,8 MPa.
When the appliance is located on a carpet floor, attention must be paid to ensure that there is no obstruction to the bottom vents.
After installation, the appliance must be positioned so that the plug is accessible.
4
For the maximum place loading, please refer to the "TECHNICAL DATA" table/section.
WARNING ! Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
In general it is not advisable to use adaptors, multiple plugs and/or extension cables.
Do not remove the plug from the mains supply socket by pulling the mains cable or the machine itself.
Do not leave the appliance exposed to the elements (rain, sun etc).
The door should not be left in the open position since this could present a potential hazard ( e.g. tripping ).
To consult the product fiche please refer to the manufacturer website.
Safety instructions
Make sure the electrical system is grounded. Otherwise, seek qualified professional assistance.
Manufacturer declines all responsibility for any damage due to non-earthing of the machine.
Ensure that the dishwasher does not crush power cables.
Leaning or sitting on the open door of the dishwasher could cause it to tip over.
The dishwasher is designed for normal kitchen utensils. Objects that have been contamined by petrol, paint, traces of steel or iron, corrosive chemicals, acids or alkalis must not be washed in the dishwasher.
If there is a water softening device installed in the home there is no need to add salt to the water softener fitted in the dishwasher.
If the appliance breaks down or stops working properly, switch it off, turn off the water supply and do not tamper with it. Repair work should only be carried out by an approved service agent and only genuine spare parts should be fitted. Any failure to follow the above advice may have serious consequences for the safety of the appliance.
5
If it you need to move the machi­ne after removing the packaging, do not try to lift it by the bottom of the door. Open the door slightly and lift the machine by holding on the top.
For the installation of built-in appliances, please refer to the specific chapter or to the instruc­tions enclosed with the booklet.
By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
INSTALLATION IN FITTED KITCHENS
Fitting between existing cabinets
The height of the dishwasher, 85 cm, has
been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached.
The laminated top of the machine does
not require any particular care since it is heatproof, scratchproof and stainproof
(fig. 1).
1
2
Underneath existing work top
(when fitting beneath a work top)
In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top
(fig. 2a).
IMPORTANT After removing the work top, the screws MUST BE screwed again under the rear edge of the top (fig. 2b).
The height will then be reduced to 82 cm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top (fig. 3).
a
b
a
b
3
598
556/573
6
WATER CONNECTION
IMPORTANT The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.
The inlet and drain hoses can be directed to left or right.
IMPORTANT The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60°C.
Water pressure must be between
0,08 MPa and 0,8 MPa.
The inlet hose must be connected to a
tap so that the water supply can be cut off when the machine is not in use
(fig. 1 B).
The dishwasher is fitted with 3/4" threaded
connector (fig. 2).

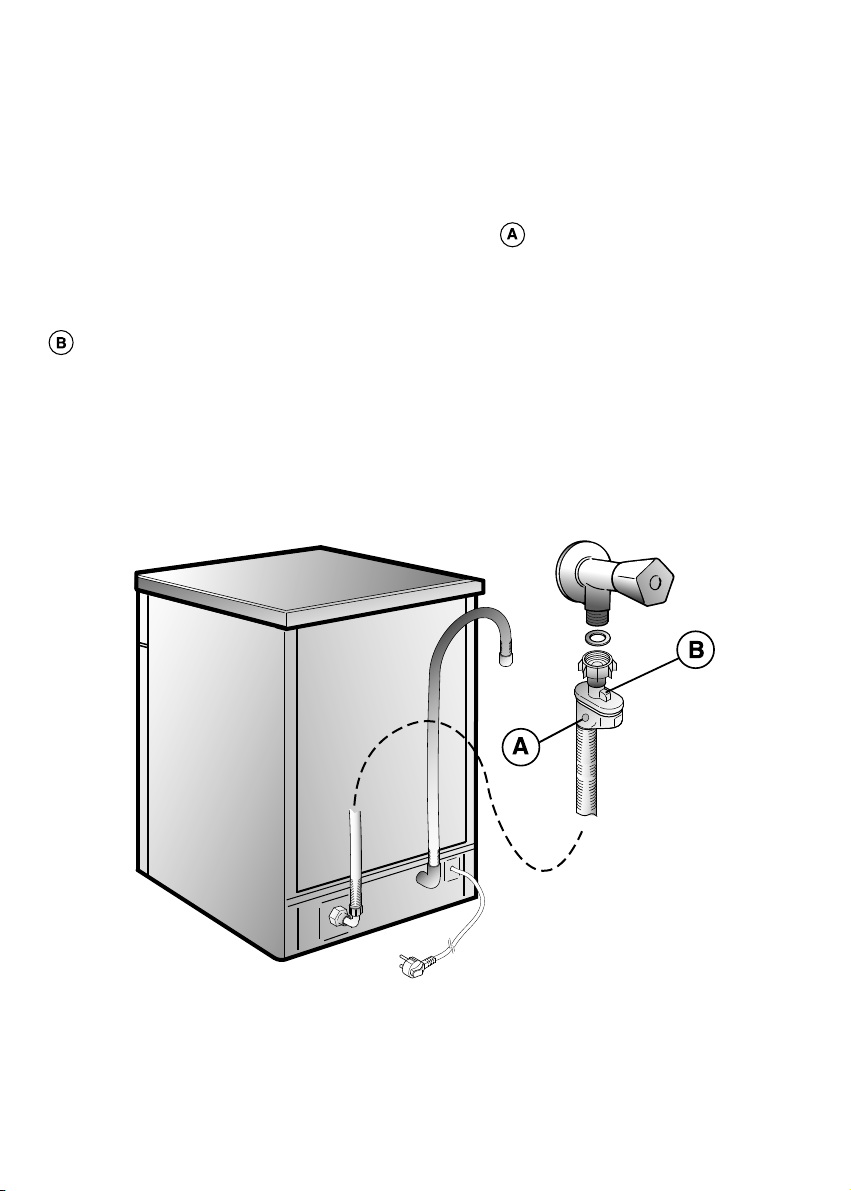

Connect inlet hose “A” to water tap “B”
with a 3/4" attachment making sure that it has been properly tightened.
1
2
If it is necessary, the inlet pipe can be
lengthened up to 2,5 m. The extension pipe is available from the After Sales Service Centre.
If the dishwasher is connected to new
pipes or to pipes which have not been in use for a long time run water through for a few minutes before connecting the inlet hose. In this way no deposits of sand or rust will clog up the water inflow filter.
7
Connecting the outlet hose
The outlet hose should disharge into a standpipe, making sure that there are no kinks (fig. 3).
The standpipe must be at least 40 cm above floor level and it must have an internal diameter of at least 4 cm.
It is advisable to fit an anti-odour air trap (fig. 3X).
If necessary the outlet hose can be extended up to 2,5 m, provided that it is kept at a maximum height of 85 cm above floor level. The extension pipe is available from the After Sales Service Centre.
3
The hose can be hooked over the side of the sink, but it must not be immersed in water, in order to prevent water from being syphoned back to the machine when this is in operation (fig. 3Y).
When installing the appliance under a worktop the hose pipe clamp must be attached to the wall in the highest possible position under the worktop (fig. 3Z).
Check that there are no kinks in the inlet and outlet hoses.
8
LOADING THE SALT
The appearance of white stains on dishes is generally a warning sign that the salt container needs filling.
The salt dispenser has a capacity of between 1.5 and 1.8 kg and, for efficient use of the appliance, it should be refilled from time to time according to the regulation of the water softener unit.
On the bottom of the machine there is a container for the salt for regenerating the softener.
It is important to use only a salt that is specifically designed for dishwasher. Other types of salt contain small quantities of insoluble particles which over a long period of time may affect and deteriorate the softener performance.
To add salt, unscrew the cap of the con­tainer on the bottom and then refill the container.
During this operation a little water will overflow; but keep adding salt until the container is full. When the container is full, clean the thread of salt residue and retighten the tap.
After loading the salt, it is recommended running a complete washing cycle, or COLD RINSE programme.
IMPORTANT After loading the salt, YOU MUST run a complete washing cycle, or the PRE-WASH/COLD RINSE/REFRESH programme.
IMPORTANT (Only for first start up) When the appliance is used for the first time, after completely filling the salt container, it is necessary to add water until the container overflows.
9
a
b
a
b

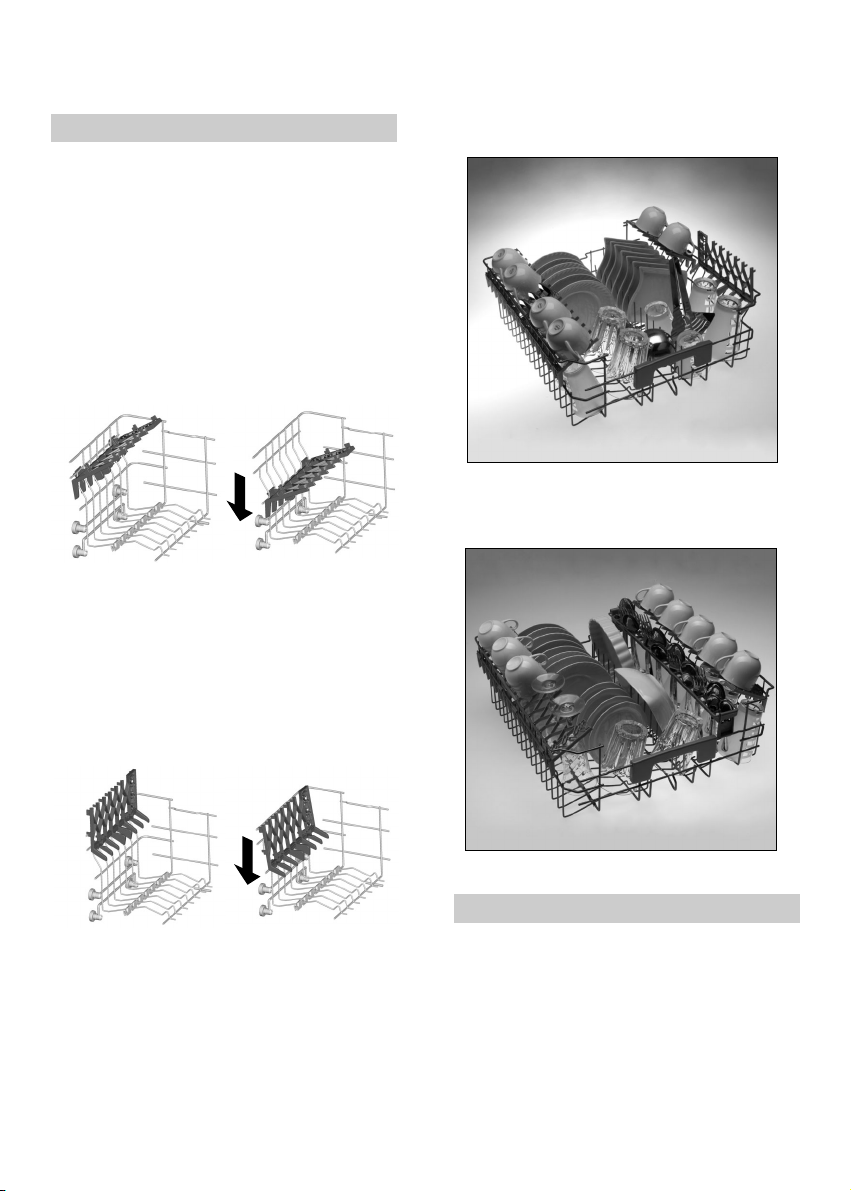

ADJUSTMENT OF THE UPPER BASKET
If 29 cm to 32,5 cm plates are normally used, load them onto the lower basket after the upper basket has been placed in its upper position and proceed as detailed below:
1. Pull out the upper basket;
1
2. Then grasp the basket from both sides
and lift it upwards (fig. 1).
Dishes that are bigger than 14 cm in diameter can no longer be loaded onto the upper basket and the mobile supports cannot be used when the basket is in the upper position.
ADJUST BASKET TO THE LOWER POSITION:
1. Grasp the basket from both sides and lift slightly upwards (fig. 2a);
2. Then slowly release into the correct position (fig. 2b).
N. B. : NEVER LIFT OR LOWER THE BASKET BY ONE SIDE ONLY (fig.3).
Attention : it is advisable to adjust the basket before loading the dishes.
