Candy CDI 6061 User Manual [EN]
EN
User instructions
CDI 6061
DISHWASHER
Congratulations!
Thank you for choosing a Candy
appliance; quality dishwashers which
guarantee high performance and
reliability.
Candy manufacture a vast range
of domestic appliances: washing
machines, washer/dryers, cookers,
microwave ovens, ovens and hobs,
refrigerators and freezers.
Ask your dealer for the catalogue with
the complete range of Candy products.
Please read this booklet carefully as
it provides important information
regarding the safe installation, use,
and maintenance of the machine,
together with some useful advice on
how to achieve the best results from
your dishwasher.
For future reference please keep this
instruction booklet in a safe place.
CUSTOMER SERVICE AND
GUARANTEE
Your new appliance is fully guaranteed
by the manufacturer for 12 months
against electrical/mechanical breakdown excluding:
A. Any faults which occur due to bad
installation or misuse of the machine.
B. Any faults which occur due to repair
of, or interference with, the machine
by any person not authorised by the
manufacturer to carry out service.
C. Any faults which occur due to
any parts which are fitted to the
machine which are not the original
manufacturers parts.
D. Any faults arising from non-domestic
use or unusual or abnormal use of
the machine.
E. Any faults arising from operation at
incorrect voltage.
F. Any faults arising from incorrect
operation of the machine.
The guarantee applies to Gt Britain
and Northern Ireland only, and is an
addition to your statutory rights.
AFTER SALES SERVICE
For service and repairs call your local engineer on our national telephone number:
GIAS Service Tel: 0884 995599
Support Service (Eire 0818 200021)
2
CONTENTS
General safety rules
Installation (Technical notes for cabinet fitters)
Water connection

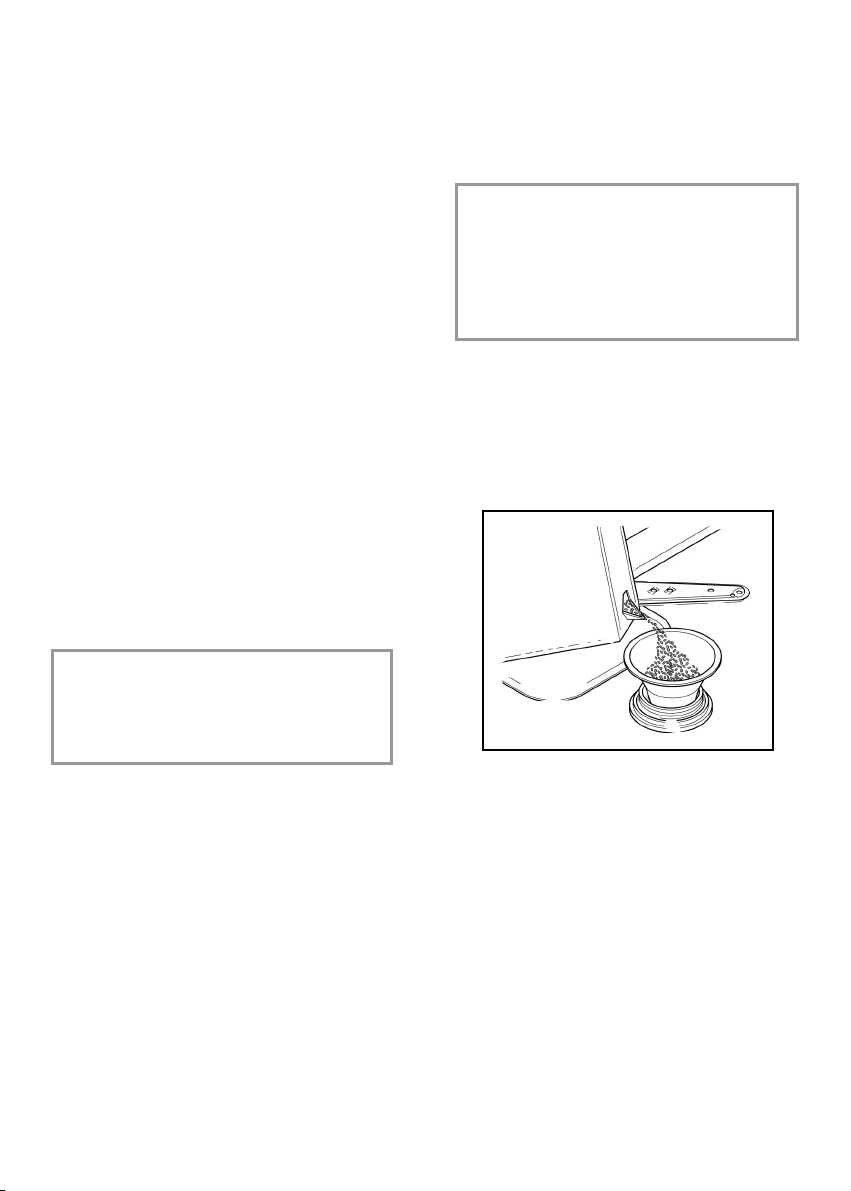

Loading the salt

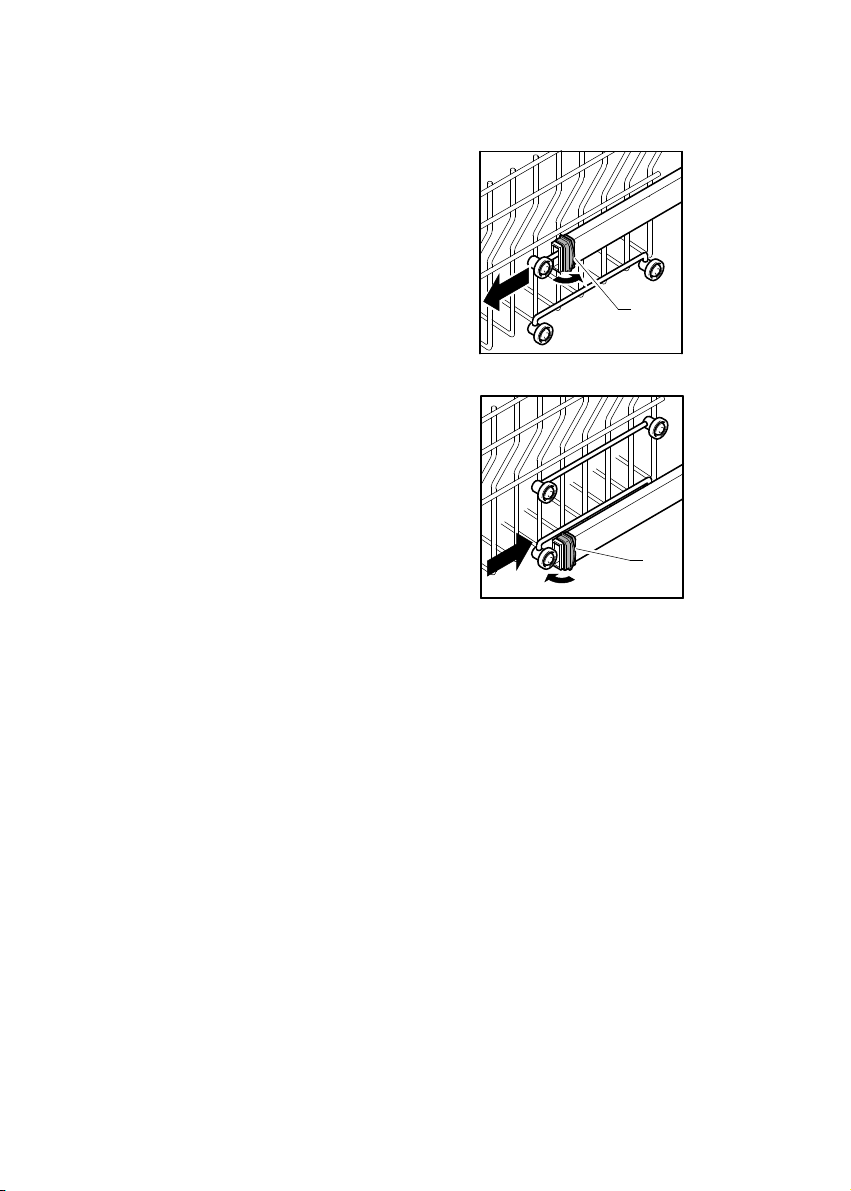

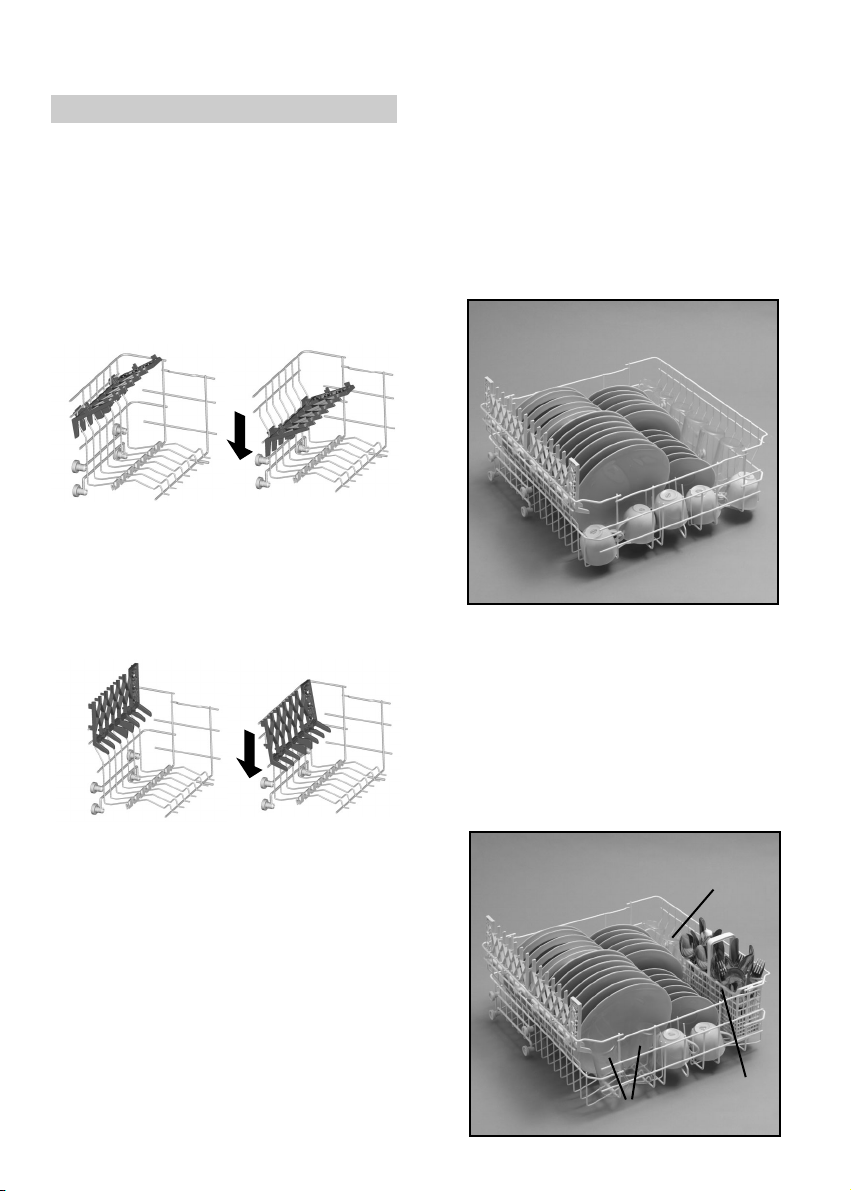

Adjusting the upper basket

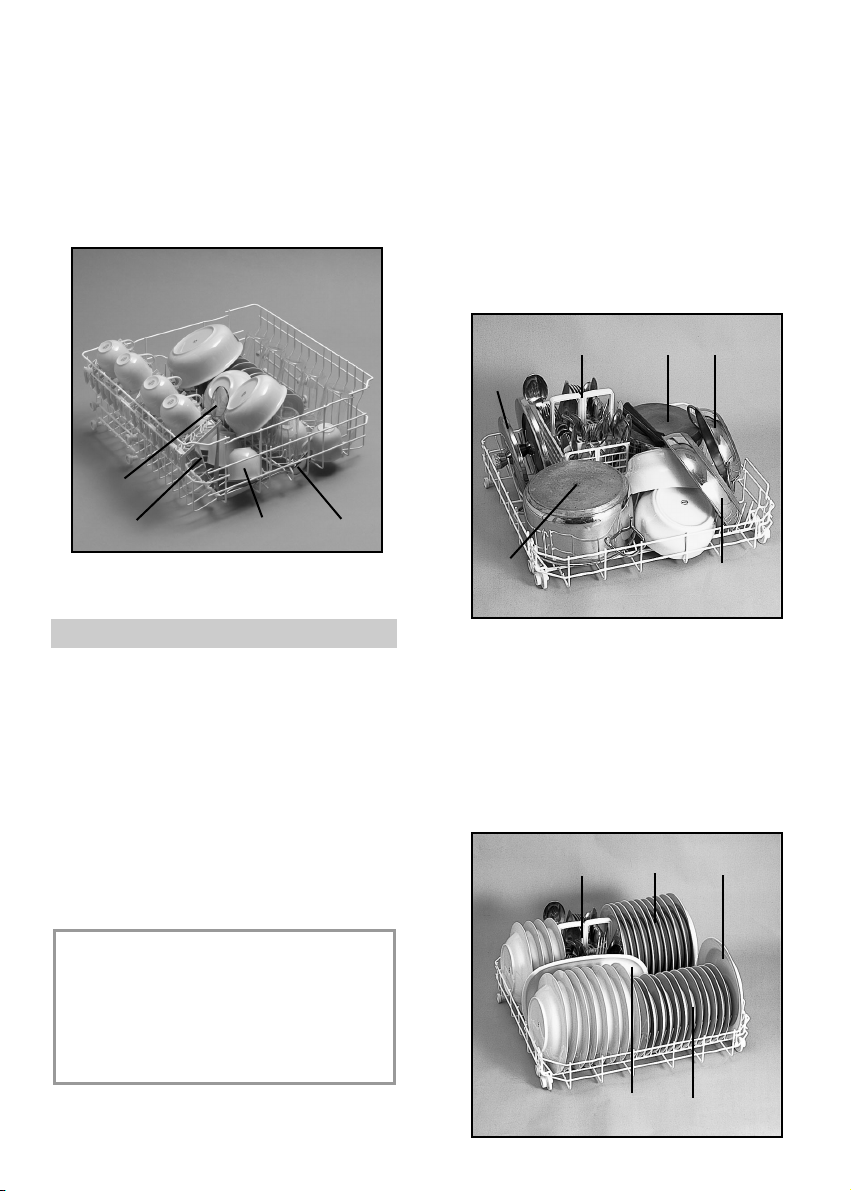

Loading the dishes
Information for test laboratories

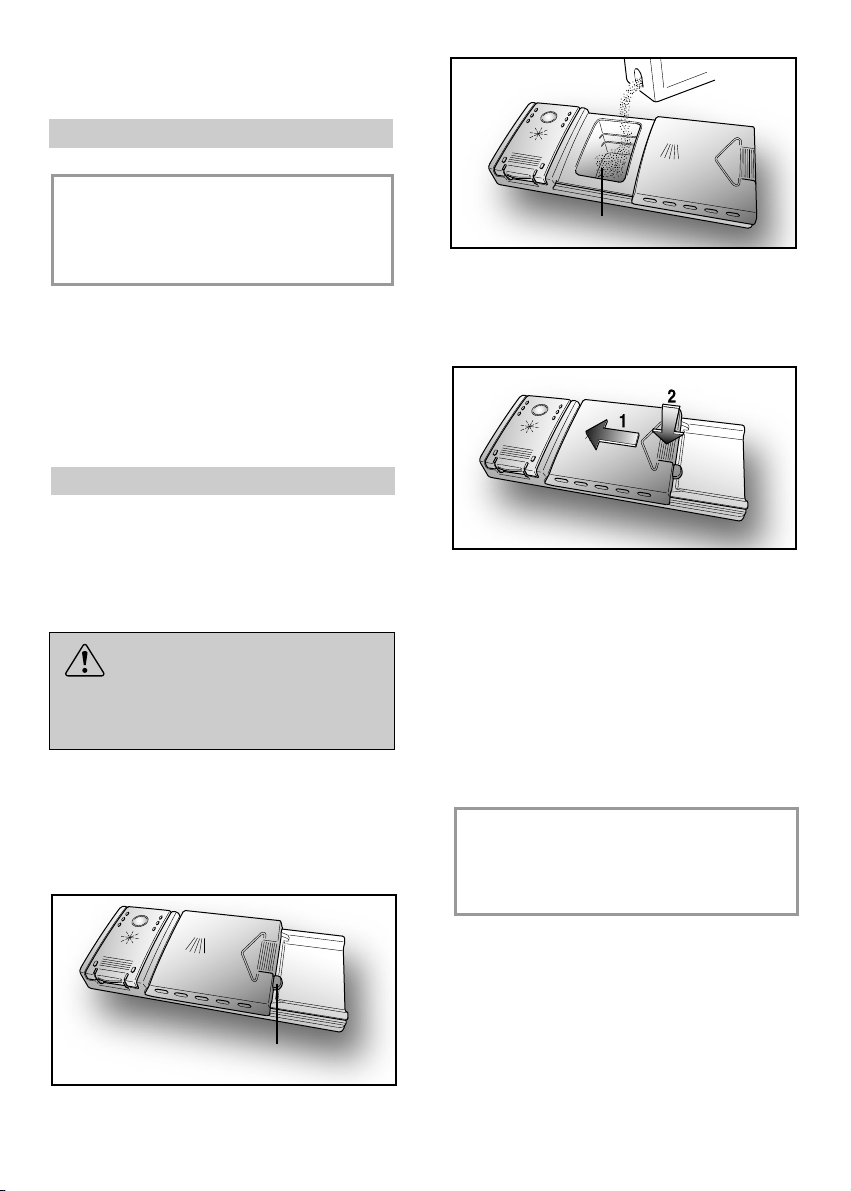

Loading the detergent
Types of detergent
Loading the rinse aid

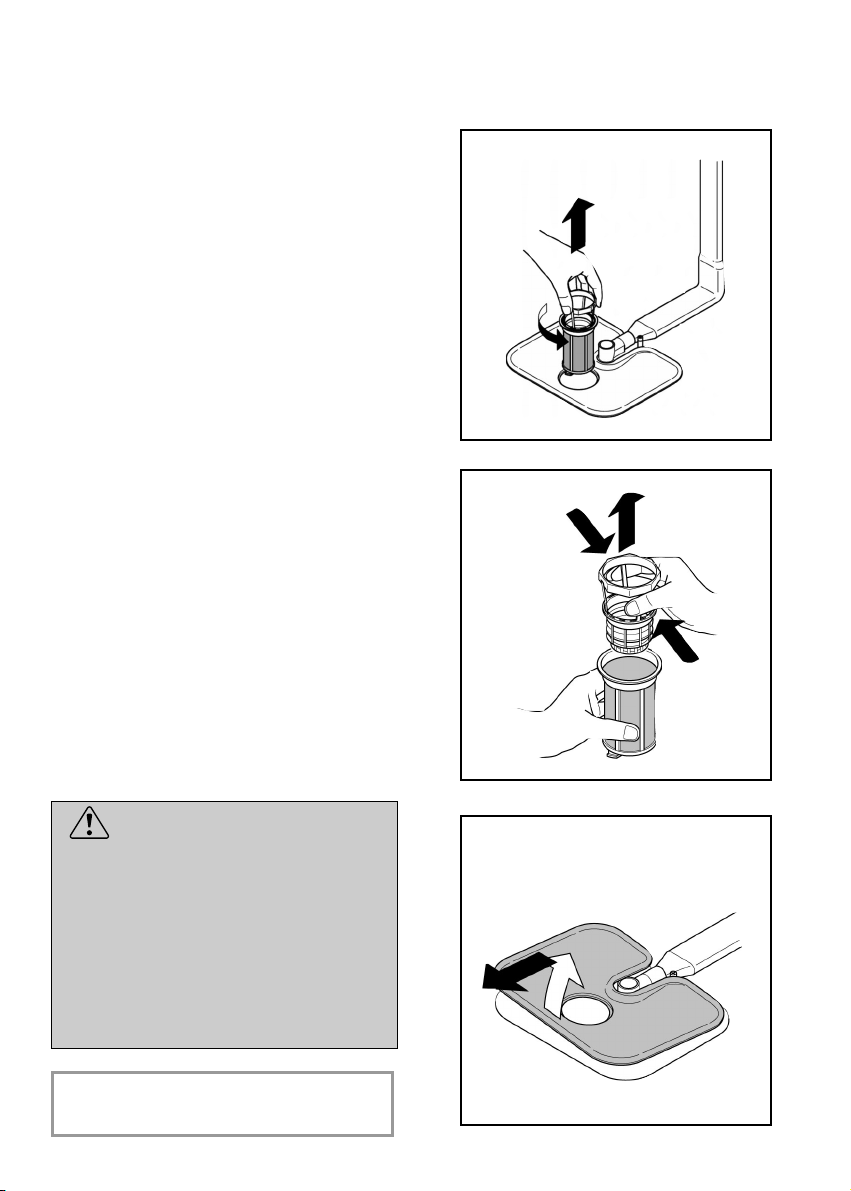

Cleaning the filters
Some practical hints
Routine cleaning and maintenance

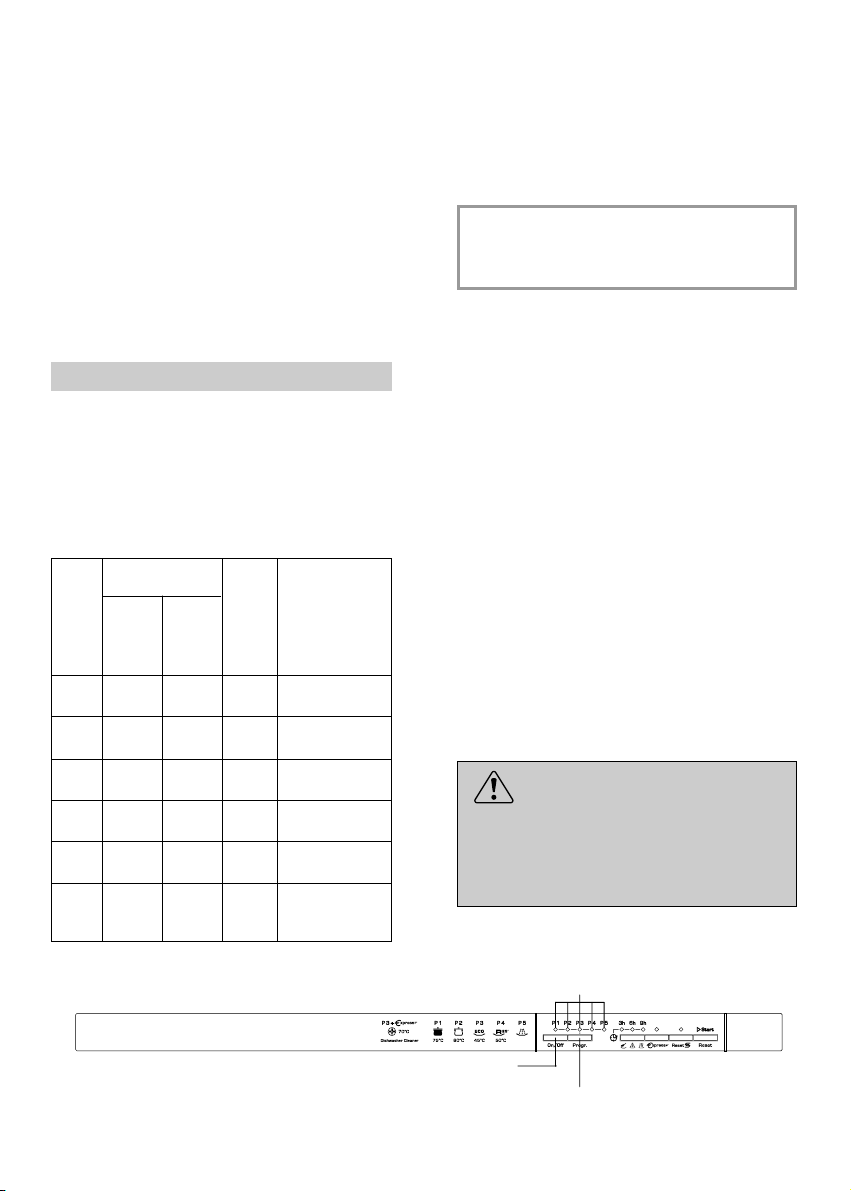

Description of the control panel
Technical data
Programme selection and special functions

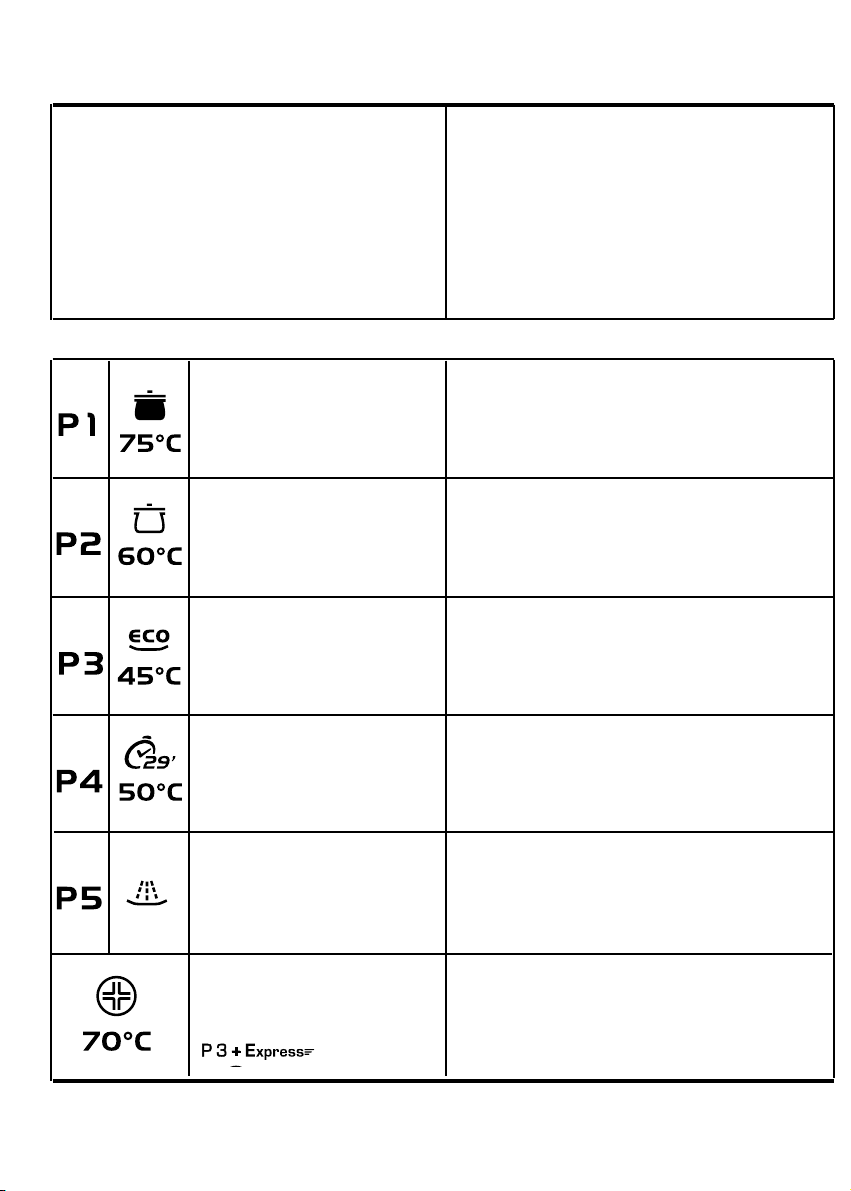

Programme guide
Water softener unit
Identifying minor faults
pag. 4
pag. 6
pag. 9
pag. 11
pag. 12
pag. 13
pag. 15
pag. 16
pag. 17
pag. 18
pag. 19
pag. 20
pag. 21
pag. 22
pag. 22
pag. 23
pag. 26
pag. 28
pag. 29
Fig. A
5
1
4
3
Please read the instructions in this booklet carefully because they contain important
information on how to install, use and maintain your dishwasher safely as well as
containing useful tips on how to make the most of it.
Keep this booklet safe for future reference.
3
2
GENERAL SAFETY RULES
■ This appliances is intended to be
used in household and similar
applications such as:
- staff kitchen areas in shops,
offices and other working
environments;
- farm houses;
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance in
a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
- by clients in hotels, motels
and other residential type
environments;
- bed and breakfast type
environments.
A different use of this appliance
from household environment or
from typical housekeeping
functions, as commercial use by
expert or trained users, is
excluded even in the above
applications.
If the appliance is used in a
manner inconsistent with this
it may reduce the life of the
appliance and may void the
manufacturer’s warranty.
Any damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in a domestic or
household environment) shall not
be accepted by the manufacturer
to the fullest extent permitted by
law.
■ This appliance can be used by
children aged from 8 years and
■ Children should be supervised to
ensure that they do not play with
the appliance.
■ Children of less than 3 years
should be kept away unless
continuously supervised.
■ Should it be necessary to replace
the supply cord, call the After
Sales Service Centre.
■ The appliance must be connected
to the water mains using new
hose-sets. The old hose-sets
should not be reused.
■ Water pressure must be between
0,08 MPa and 0,8 MPa.
■ When the appliance is located on
a carpet floor, attention must be
paid to ensure that there is no
obstruction to the bottom vents.
■ After installation, the appliance
must be positioned so that the
plug is accessible.
■ For the maximum place loading,
please refer to the "TECHNICAL
DATA" table/section.
4
WARNING !
Knives and other utensils with
sharp points must be loaded
in the basket with their points
down or placed in a horizontal
position.
■ The door should not be left in the
open position since this could
present a potential hazard (e.g.
tripping ).
■ To consult the product fiche please
refer to the manufacturer website.
Safety instructions
■ Make sure the electrical system
is grounded. Otherwise, seek
qualified professional assistance.
Manufacturer declines all
responsibility for any damage
due to non-earthing of the
machine.
■ Ensure that the dishwasher does
not crush power cables.
■ The dishwasher is designed for
normal kitchen utensils. Objects that
have been contamined by petrol,
paint, traces of steel or iron, corrosive chemicals, acids or alkalis must
not be washed in the dishwasher.
■ If there is a water softening device
installed in the home there is no
need to add salt to the water softener fitted in the dishwasher.
■ If the appliance breaks down or
stops working properly, switch it
off, turn off the water supply and
do not tamper with it. Repair work
should only be carried out by an
approved service agent and only
genuine spare parts should be fitted. Any failure to follow the above
advice may have serious consequences for the safety of the
appliance.
■ If it you need to move the machine after removing the packaging,
do not try to lift it by the bottom of
the door.
Open the door slightly and lift the
machine by holding on the top.
■ In general it is not advisable to use
adaptors, multiple plugs and/or
extension cables.
■ Do not remove the plug from the
mains supply socket by pulling the
mains cable or the machine itself.
■ Do not leave the appliance exposed to the elements (rain, sun etc).
■ Leaning or sitting on the open
door of the dishwasher could
cause it to tip over.
■ For the installation of built-in
appliances, please refer to the
specific chapter or to the instructions enclosed with the booklet.
By placing the mark on this
product, we are confirming
compliance to all relevant
European safety, health and
environmental requirements
which are applicable in legislation
for this product.
5
INSTALLATION
(Technical notes for cabinet
fitters)
This dishwasher model can be embedded
in modular furniture, under a counter top, a
continuous counter top or a sink.
■ The housing dimensions must be the
same as those indicated in the figure 1.
■ The adjustable feet allow the height of
the machine to be varied from 818 to
898 mm.
1
3
4
■ Once the height of the dishwasher has
been defined, it is necessary to fix a
13 mm long screws "A" in the
bottom-frame. This should only be done
on the front feet, as indicated in the
figure 4a.
4a
Installation under the counter top
■ Apply the steam protection adhesive
tape under the counter top when it is
made of chipboard or of any other
non-waterproof material (fig. 2).
■ Insert the dishwasher in the housing "A"
then adjust the height and level it by
means of the adjustable feet (fig. 3-4).
6
A
■ To allow for easy adjustment of the
appliance when it is fitted into the cavity,
SOME MODELS are fitted with an adjustable
foot located centrally at the rear. This
can be adjusted by turning a screw
located at the bottom of the front panel of
the machine, as illustrated in fig. 4b.
4b
■ Connect the dishwasher to water and
720 max.
645 min.
350 178
596,5 max.
=
=
572
power following the instruction booklet.
■ You should secure the dishwasher into
the housing unit. It is possible to do this
in the following ways:
- THROUGH THE ADJOINING
HOUSING UNIT with the supplied
16 mm long screws "B" (as indicated
in the figure 5).
- TO THE WORKTOP (if possible) with
the supplied 30 mm long screws "C"
(as indicated in the figure 5a).
5
5a
6
■ Fasten the two supplied frames with 4 of
the 4 x 16 mm diameter screws, setting
them at the center of the eyelets (fig. 7).
■ Hang the panel on the dishwasher door
and align it by adjusting the frames with
the eyelets.
■ Fix the frames with the other 6 screws
4x16 mm in the specif holes (fig. 7).
Wooden panel installation
This dishwasher model is equipped with an
auto-balancing system in the door and
comes ready to mount a wooden panel of
the following size:
Width 596,5 mm max
Height from 645 to 720 mm max
Thickness from 18 to 22 mm max
This allows the use of a regular wing taken
from a drawer furniture weighing from 3 to
8 kg; for coverings weighing more, ask for
information to the Assistance Service.
N.B.:
If you wish to fit a wooden panel with
false drawer, ask for special kit to the
Assistance Service.
Drilling arrangements
■ Drill 12 mm deep holes in the panel
using a 2 mm diameter drill according to
the measures indicated in the figure 6.
■ Fasten the panel to the dishwasher door
with the screws 3.5 x 13 mm (fig. 8).
7
8
7
620 min.
Adaptation of the base
Sometime, in order to allow the door
rotation, a space must be cut out in the
base as indicated in the figure 9.
Proceed as follows:
■ Open slightly the dishwasher door, let
the covering touch the base and mark its
lower edge on the base with a pencil; cut
out the interfering part.
FOR MODELS FITTED WITH CANTILEVERED
HINGES the rotation requires only a 3
mm space therefore normally no cut out
is required as shown in fig. 9a.
9
9a
8
WATER CONNECTION
IMPORTANT
The appliance must be connected to
the water mains using new hose-sets.
The old hose-sets should not be reused.
■ The inlet and drain hoses can be directed
to left or right.
IMPORTANT
The dishwasher can be connected to
either cold or hot water, as long as it
is no hotter than 60°C.
■ Water pressure must be between
0,08 MPa and 0,8 MPa.
■ The inlet hose must be connected to a
tap so that the water supply can be cut
off when the machine is not in use
(fig. 1 B).
■ The dishwasher is fitted with 3/4" threaded
connector (fig. 2).
■ Connect inlet hose “A” to water tap “B”
with a 3/4" attachment making sure that
it has been properly tightened.
1
2
■ If it is necessary, the inlet pipe can be
lengthened up to 2,5 m. The extension
pipe is available from the After Sales
Service Centre.
■ If the dishwasher is connected to new
pipes or to pipes which have not been in
use for a long time run water through for
a few minutes before connecting the
inlet hose. In this way no deposits of
sand or rust will clog up the water inflow
filter.
9
Connecting the outlet hose
■ The outlet hose should disharge into a
standpipe, making sure that there are no
kinks (fig. 4).
■ The standpipe must be at least 40 cm
above floor level and it must have an
internal diameter of at least 4 cm.
■ It is advisable to fit an anti-odour air trap
(fig. 4X).
■ If necessary the outlet hose can be
extended up to 2,5 m, provided that it is
kept at a maximum height of 85 cm
above floor level. The extension pipe is
available from the After Sales Service
Centre.
4
■ The hose can be hooked over the side of
the sink, but it must not be immersed in
water, in order to prevent water from
being syphoned back to the machine
when this is in operation (fig. 4Y).
■ When installing the appliance under a
worktop the hose pipe clamp must be
attached to the wall in the highest possible
position under the worktop (fig. 4Z).
■ Check that there are no kinks in the inlet
and outlet hoses.
10
Loading...
