Candy CDI 6060 User Manual [EN]

EN

User instructions

CDI 6060

DISHWASHER

Congratulations!

Thank you for choosing a Candy
appliance; quality dishwashers which
guarantee high performance and
reliability.
Candy manufacture a vast range
of domestic appliances: washing
machines, washer/dryers, cookers,
microwave ovens, ovens and hobs,
refrigerators and freezers.
Ask your dealer for the catalogue with
the complete range of Candy products.
Please read this booklet carefully as
it provides important information
regarding the safe installation, use,
and maintenance of the machine,
together with some useful advice on
how to achieve the best results from
your dishwasher.
For future reference please keep this
instruction booklet in a safe place.

CUSTOMER SERVICE AND
GUARANTEE

Your new appliance is fully guaranteed
by the manufacturer for 12 months
against electrical/mechanical break­down excluding:

A. Any faults which occur due to bad

installation or misuse of the machine.

B. Any faults which occur due to repair

of, or interference with, the machine
by any person not authorised by the
manufacturer to carry out service.

C. Any faults which occur due to

any parts which are fitted to the
machine which are not the original
manufacturers parts.

D. Any faults arising from non-domestic

use or unusual or abnormal use of
the machine.

E. Any faults arising from operation at

incorrect voltage.

F. Any faults arising from incorrect

operation of the machine.
The guarantee applies to Gt Britain
and Northern Ireland only, and is an
addition to your statutory rights.

AFTER SALES SERVICE

For service and repairs call your local engineer on our national telephone number:

GIAS Service Tel: [phone]
Support Service (Eire 0818 200021)

2

CONTENTS

Safety advice
Setting up, installation
Technical notes for cabinet fitters

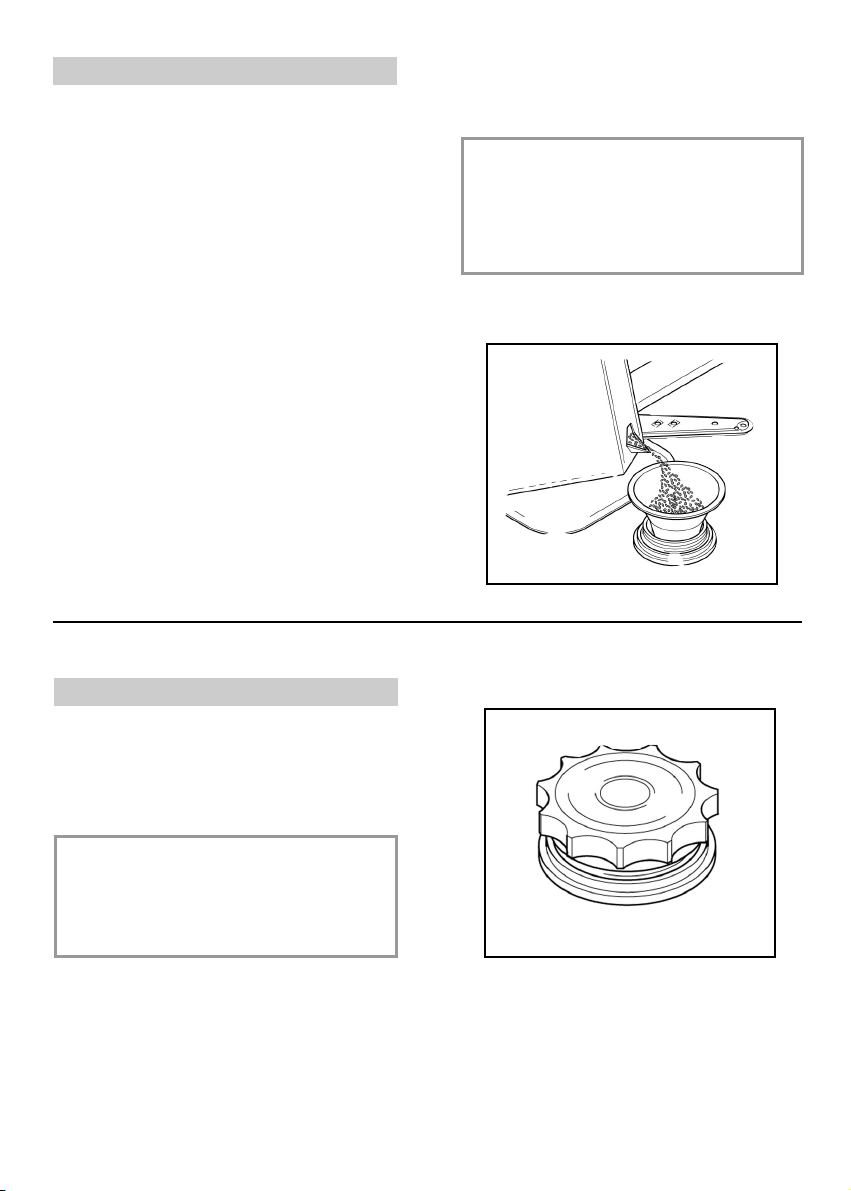

Water softener unit

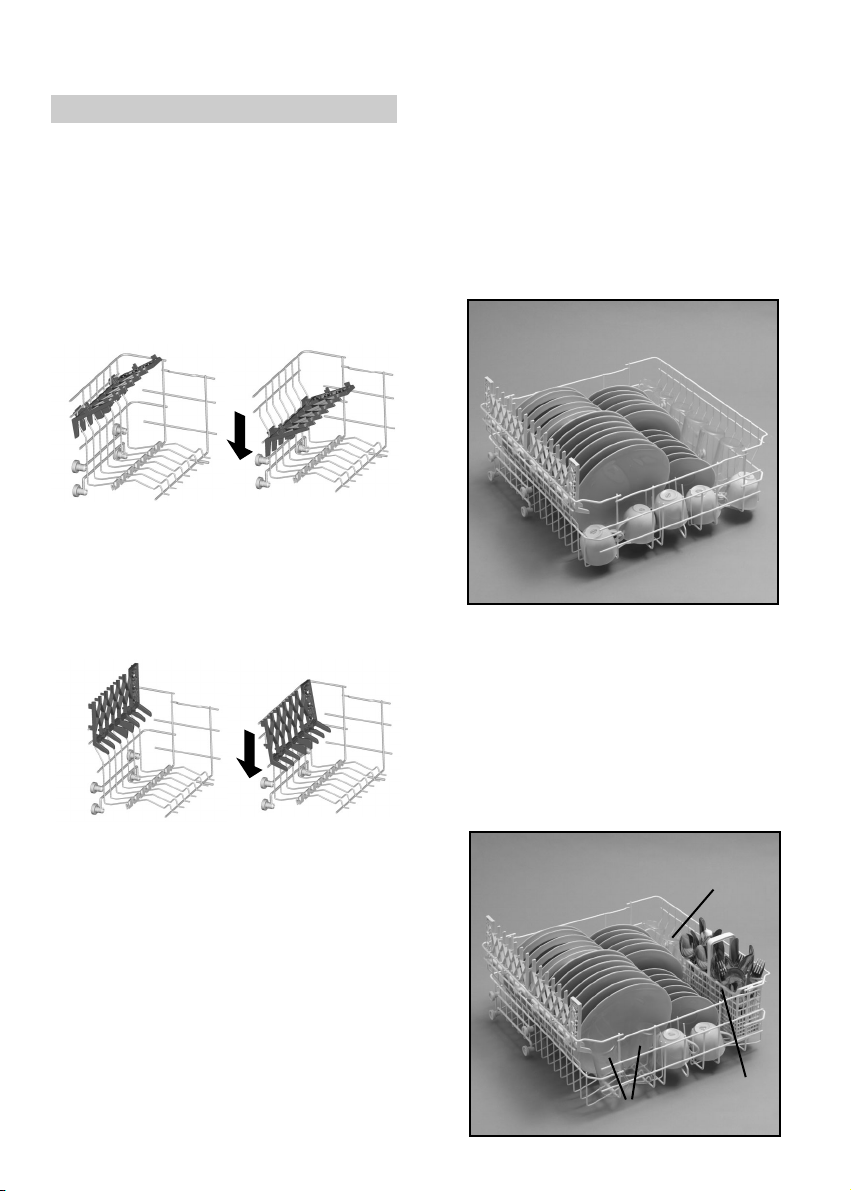

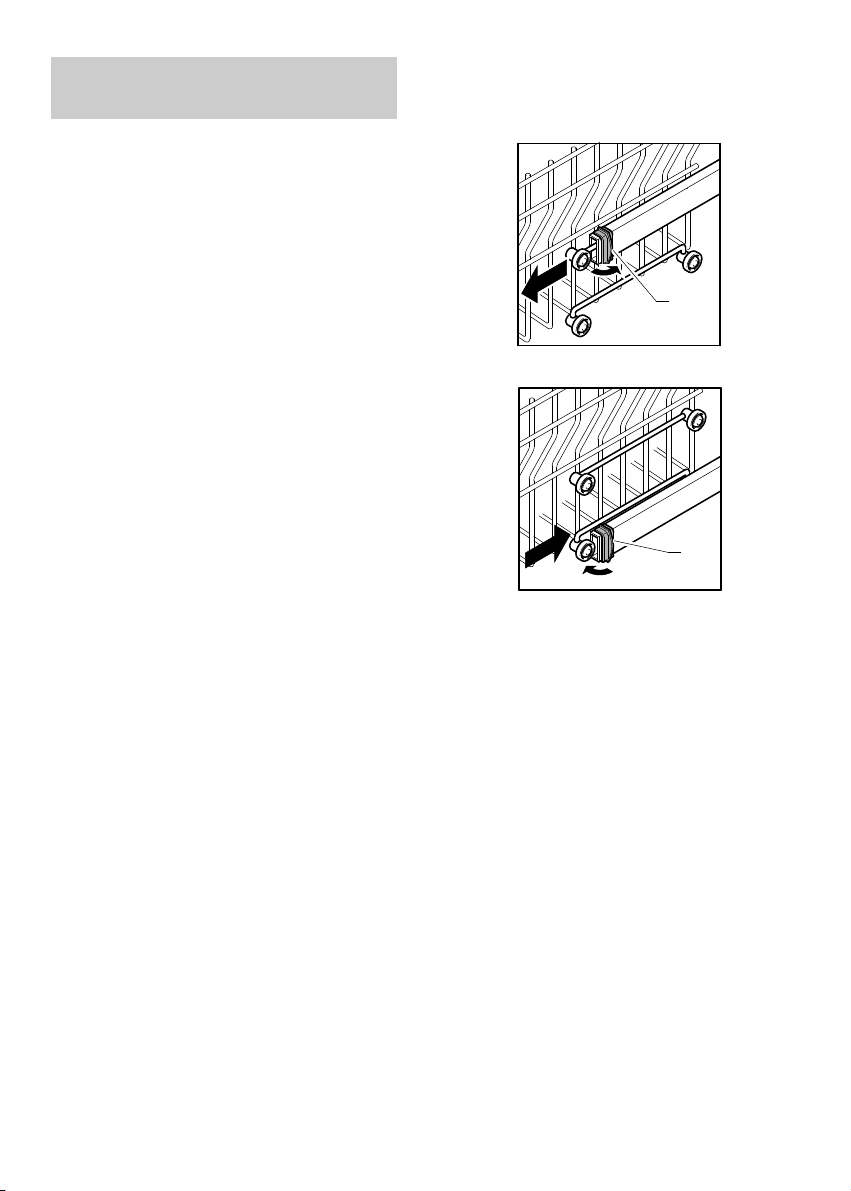

Adjusting the upper basket

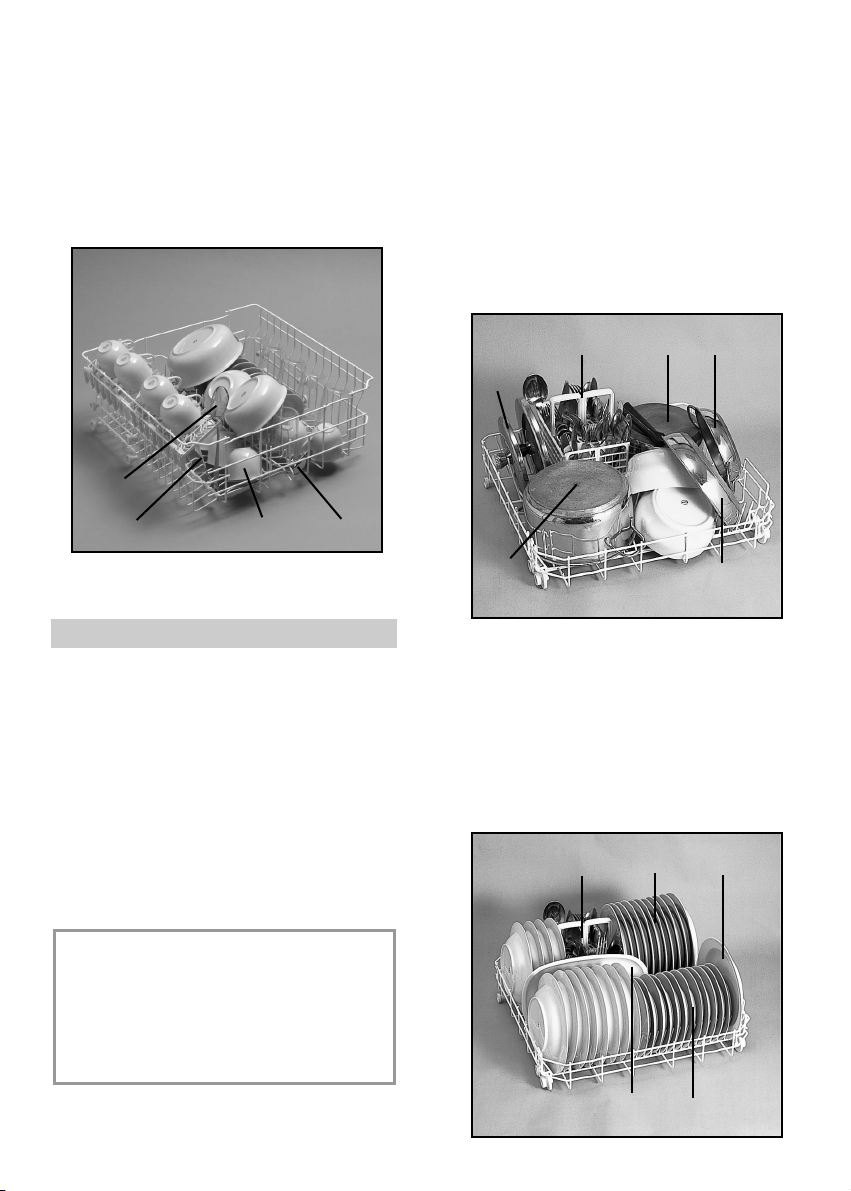

Loading the dishes
Information for test laboratories
Loading the detergent
Types of detergent
Loading the rinse aid

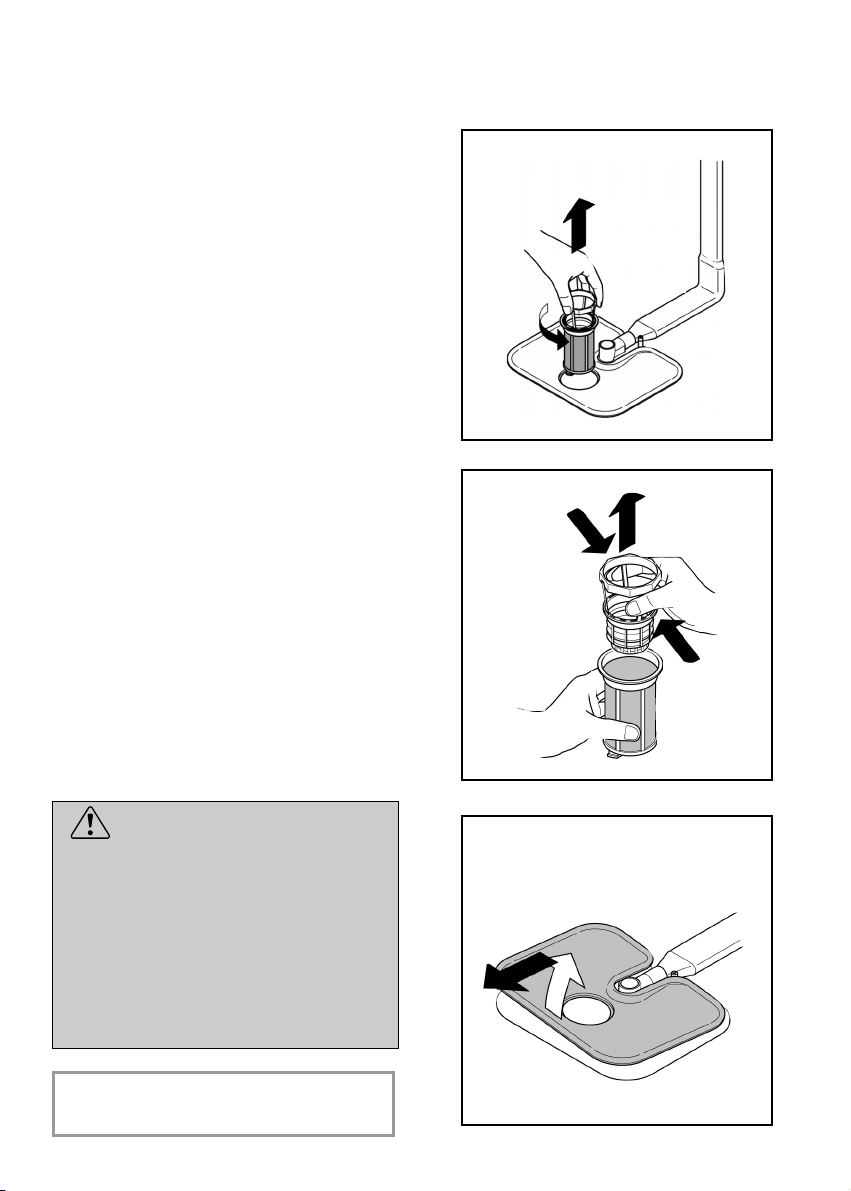

Cleaning the filters
Some practical hints

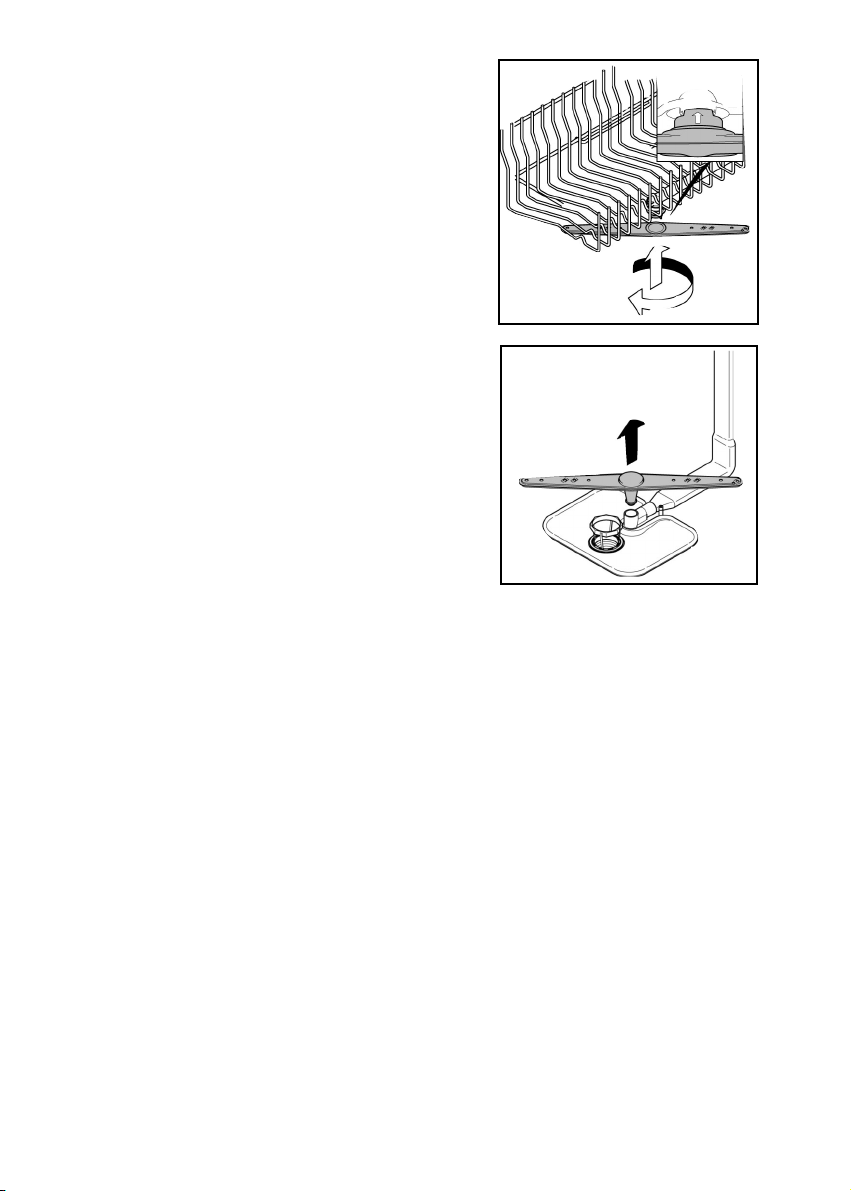

Routine cleaning and maintenance

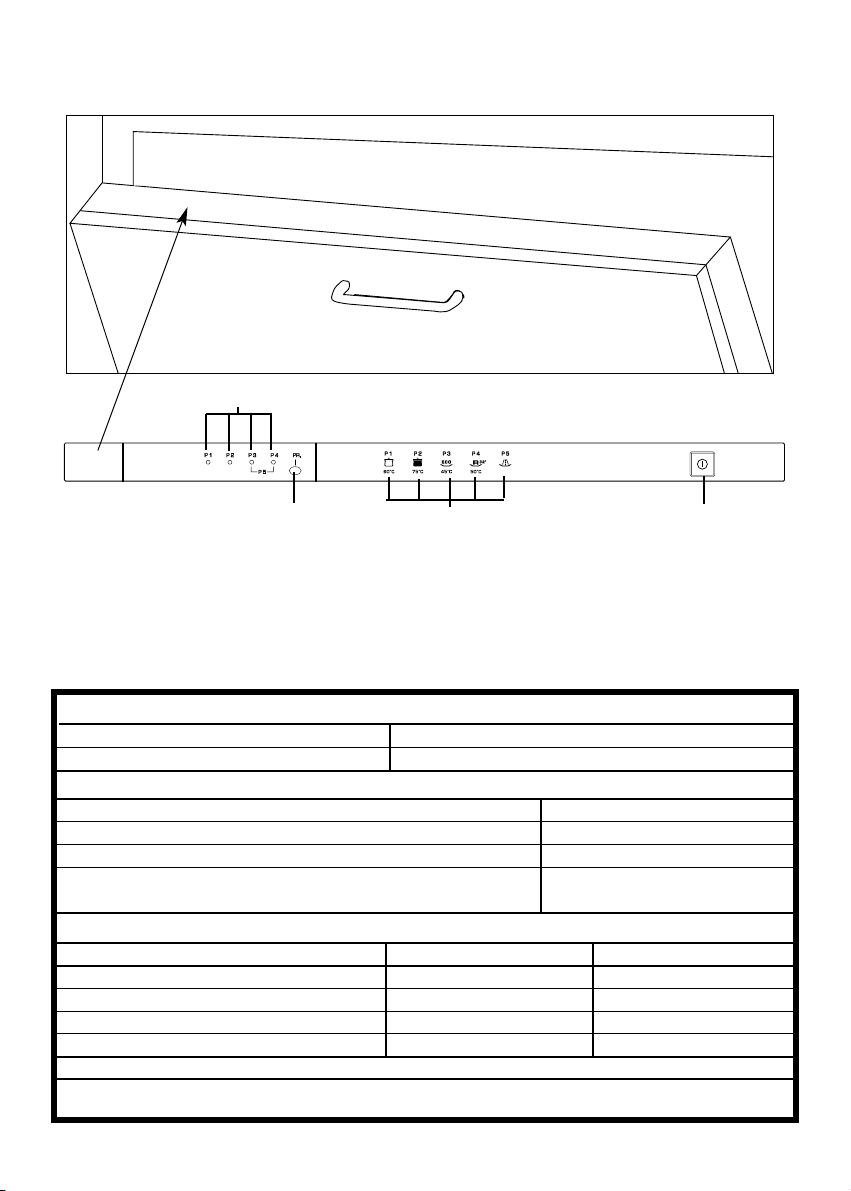

Description of the control panel
Technical data
Programme selection and special functions

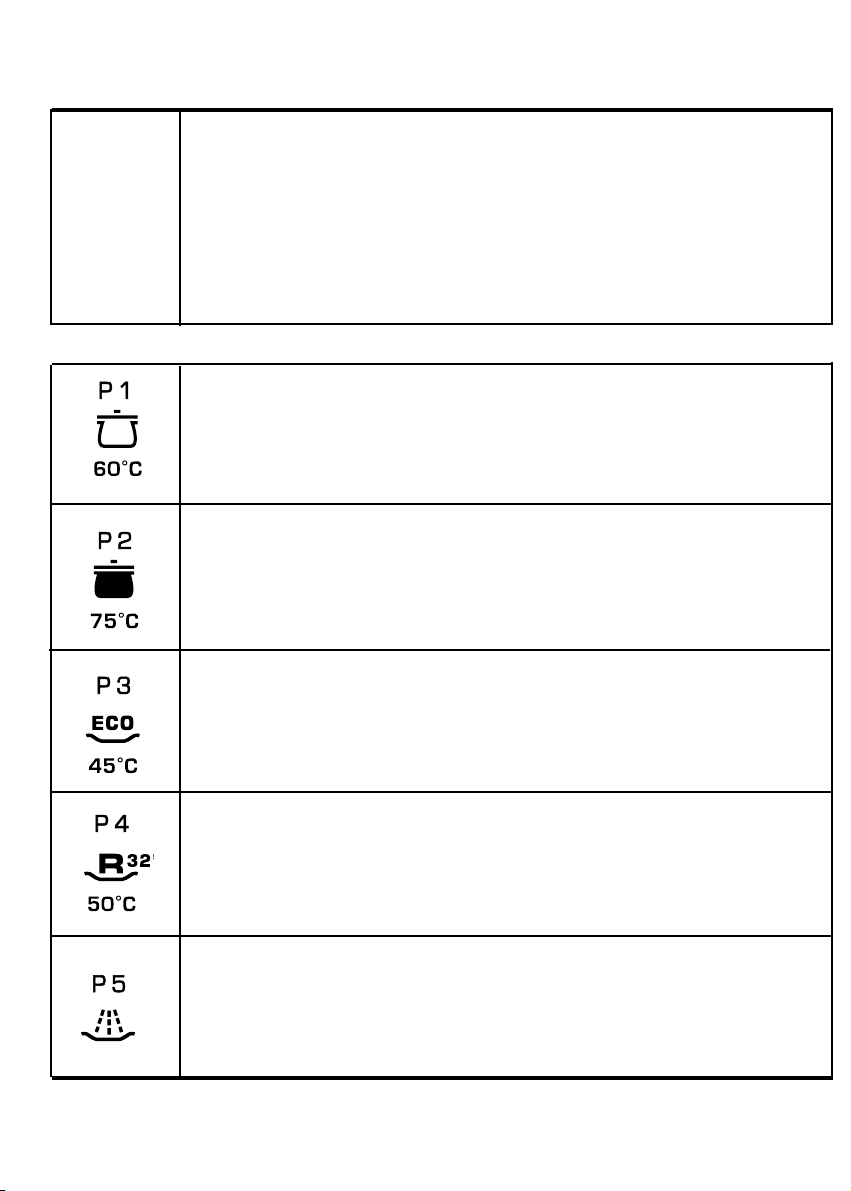

Programme guide
Identifying minor faults

pag. 4
pag. 5
pag. 8
pag. 10
pag. 12
pag. 13
pag. 15
pag. 16
pag. 17
pag. 18
pag. 19
pag. 20
pag. 21
pag. 22
pag. 22
pag. 23
pag. 26
pag. 28

Fig. A

5

1

4

3

Please read the instructions in this booklet carefully because they contain important
information on how to install, use and maintain your dishwasher safely as well as
containing useful tips on how to make the most of it.

Keep this booklet safe for future reference.

3

2

SAFETY INSTRUCTIONS

There are certain basic safety rules
which are valid for any domestic
appliance.

■ The door should not be left in the open
position since this could present a potential
hazard ( es. tripping ).

■ Leaning or sitting on the open door of
the dishwasher could cause it to tip over.

Installation

■ Make sure that the plug fitted to the
machine is compatible with the power
supply socket. If it is not, get a suitably
qualified person to fit the correct type,
and to make sure that the cables to the
mains socket are able to cope with the
power rating of the appliance.

■ Ensure that the dishwasher does not
crush power cables.

■ In general it is not advisable to use
adaptors, multiple plugs and/or extension
cables.

■ Should it be necessary to replace the
supply cord, call the After Sales Service
Centre.

Safety

■ Never touch the appliance when your
hands or feet are wet or damp.

■ Do not use when your feet are bare.

■ Do not remove the plug from the mains

supply socket by pulling the mains cable
or the machine itself.

■ Do not leave the appliance exposed to
the elements (rain, sun etc).

■ This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.

Children should be supervised to ensure
that they do not play with the appliance.

■ Water left in the machine or on the
dishes at the end of the wash programme
should not be swallowed.

WARNING !
Knives and other utensils with sharp
points must be loaded in the basket
with their points down or placed in a
horizontal position.

Daily use

■ This appliances is intended to be used in
household and similar applications such
as:

- staff kitchen areas in shops, offices
and other working environments;

- farm houses;

- by clients in hotels, motels and other
residential type environments;

- bed and breakfast type environments.

A different use of this appliance from
household environment or from typical
housekeeping functions, as commercial
use by expert or trained users, is excluded
even in the above applications.

If the appliance is used in a manner
inconsistent with this it may reduce the
life of the appliance and may void the
manufacturer’s warranty.

Any damage to the appliance or other
damage or loss arising through use that is
not consistent with domestic or household
use (even if located in a domestic or
household environment) shall not be
accepted by the manufacturer to the fullest
extent permitted by law.

■ The dishwasher is designed for normal
kitchen utensils.
Objects that have been contamined by
petrol, paint, traces of steel or iron,
corrosive chemicals, acids or alkalis
must not be washed in the dishwasher.

■ If there is a water softening device installed
in the home there is no need to add
salt to the water softener fitted in the
dishwasher.

4

■ Cutlery is washed best if it is placed in
the basket with the handles downwards.

Disposal

■ If the appliance breaks down or stops
working properly, switch it off, turn off the
water supply and do not tamper with it.
Repair work should only be carried out
by an approved service agent and only
genuine spare parts should be fitted. Any
failure to follow the above advice may
have serious consequences for the safety
of the appliance.

INSTALLATION

(Technical notes)

IMPORTANT
When the appliance is located on a
carpet floor, attention must be paid to
ensure that there is no obstruction to
the bottom vents.

Make sure that the plug on the
appliance remains accessible after
installation.

Electrical connection

Plug your dishwasher into the power
socket.

If the plug we supply does not fit :

■ CUT IT OFF AND DESTROY IT!

You can't use it on other appliances, and
the exposed wires could be dangerous if
anyone plugged it in.

■ Fit a suitable plug, as follows:

■ The dishwasher has been made from

materials which can be recycled so that it
can be disposed of in an environmentally
friendly way.

■ If you wish to dispose of an old dishwasher
be careful to remove the door to
eliminate the risk of children becoming
trapped inside it.

WARNING!

THIS APPLIANCE MUST BE EARTHED.

Fuses and plugs

This appliance should be used only on a
socket with a minimum rating of 13 Amp.

Our ready-fitted plug is already equipped
with a 13 amp fuse which is BS 1362 ASTA
approved.

Any replacement should be exactly the
same.

If the fuse cover is lost, do not use the plug
until it is replaced.

A correct replacement fuse cover (obtainable
from your dealer or Electricity board) must be
the same colour as shown or named on the
insert on the base of the plug.

Connect to the terminal in the plug

Marked with the letter E,
OR marked with the Earth

Green and

yellow wire

Blue wire

Brown wire

symbol,
OR coloured green,

OR coloured green and
yellow.

Marked N,
OR coloured black.

Marked L,
OR coloured red.

Manufacturer declines all responsibility
for any damage due to non-earthing of
the machine.

Appliance complies with
European Directives 73/23/EEC
and 89/336/EEC, replaced by
2006/95/EC and 2004/108/EC, and
subsequent amendments.

5

Water connection

IMPORTANT
The appliance must be connected to
the water mains using new hose-sets.
The old hose-sets should not be reused.

■ The inlet and drain hoses can be directed
to left or right.

IMPORTANT
The dishwasher can be connected to
either cold or hot water, as long as it
is no hotter than 60 °C.

■ Water pressure must be between

0,08 MPa and 0,8 MPa. If the pressure is
below the minimum consult our service
department for advice.

■ The inlet hose must be connected to a

tap so that the water supply can be cut
off when the machine is not in use

(fig. 1 B).

■ The dishwasher is fitted with 3/4" threaded

connector (fig. 2).

■ Connect inlet hose “A” to water tap “B”

with a 3/4" attachment making sure that
it has been properly tightened.

1

2

■ If it is necessary, the inlet pipe can be

lengthened up to 2,5 m. The extension
pipe is available from the After Sales
Service Centre.

■ If limescale deposits or sand are present

in the water, it is advisable to obtain the
appropriate filter, art. 9226085, from the
After Sales Service Centre (fig. 3). The
filter “D” must be inserted between the tap
“B” and the inlet hose “A”, remembering
to fit the washer “C”.

■ If the dishwasher is connected to new

pipes or to pipes which have not been in
use for a long time run water through for
a few minutes before connecting the
inlet hose. In this way no deposits of
sand or rust will clog up the water inflow
filter.

3

6

Connecting the outlet hose

■ The outlet hose should disharge into a
standpipe, making sure that there are no
kinks (fig. 4).

■ The standpipe must be at least 40 cm
above floor level and it must have an
internal diameter of at least 4 cm.

■ It is advisable to fit an anti-odour air trap
(fig. 4X).

■ If necessary the outlet hose can be
extended up to 2,5 m, provided that it is
kept at a maximum height of 85 cm
above floor level. The extension pipe is
available from the After Sales Service
Centre.

4

■ The hose can be hooked over the side of
the sink, but it must not be immersed in
water, in order to prevent water from
being syphoned back to the machine
when this is in operation (fig. 4Y).

■ When installing the appliance under a
worktop the hose pipe clamp must be
attached to the wall in the highest possible
position under the worktop (fig. 4Z).

■ Check that there are no kinks in the inlet
and outlet hoses.

Opening the door

Put your hand into the recess and pull.
If the machine comes open while it is working,
an electrical safety device automatically
switches everything off.

IMPORTANT
For the machine to work properly,
the door should not be opened while
it is in operation.

Closing the door

Place the baskets in the machine.
Make sure that both the spray arms are
free to rotate and are not obstructed by
cutlery, crockery or pans. Close the door,
pressing on it to make sure it is firmly shut.

7

TECHNICAL NOTES FOR

600

570

550

550

597

100

40

820+(80)

100

170

+(80)

820+(80)

160

598

CABINET FITTERS

This dishwasher model can be embedded
in modular furniture, under a counter top, a
continuous counter top or a sink.

■ The housing dimensions must be the

same as those indicated in the figure 1.

■ The adjustable feet allow the height of
the machine to be varied from 820 to
900 mm.

1

Installation under the counter top

■ Adjust the dishwasher height to adapt it
to the housing “A” dimensions, level it
by means of the adjustable feet (fig. 2-3).

■ Insert the dishwasher in the housing and
connect the dishwasher to water and
power following the instruction booklet;
if necessary, re-adjust the front and rear
feet.

■ Fasten the dishwasher with the supplied
16 mm long screws “A”, as indicated in
the figure 4.

Wooden panel installation

This dishwasher model is equipped with an
auto-balancing system in the door and
comes ready to mount a wooden panel of
the following size:

Width 596,5 mm max
Height from 645 to 720 mm max
Thickness from 18 to 22 mm max

2

3

4

This allows the use of a regular wing taken
from a drawer furniture weighing from 3 to
8 kg; for coverings weighing more, ask for
information to the Assistance Service.

N.B.:
If you wish to fit a wooden panel with

false drawer, ask for special kit to the
Assistance Service.

8

Drilling arrangements

720 max.

645 min.

350 178

596,5 max.

=

=

572

620 min.

■ Drill 12 mm deep holes in the panel
using a 2 mm diameter drill according to
the measures indicated in the figure 5.

■ Fasten the two supplied frames with 4 of
the 4 x 16 mm diameter screws, setting
them at the center of the eyelets (fig. 6).

■ Hang the panel on the dishwasher door
and align it by adjusting the frames with
the eyelets.

5

■ Fix the frames with the other 6 screws

4x16 mm in the specif holes (fig. 6).

■ Fasten the panel to the dishwasher door

with the screws 3.5 x 13 mm (fig. 7).

6

7

Adaptation of the base

Sometime, in order to allow the door
rotation, a space must be cut out in the
base as indicated in the figure 8.

Proceed as follows:

■ Open slightly the dishwasher door, let
the covering touch the base and mark its
lower edge on the base with a pencil; cut
out the interfering part.

8

9

WATER SOFTENER UNIT

Depending on the source of the supply,
water contains varying amounts of limestone
and minerals which are deposited on the
dishes leaving whitish stains and marks.
The higher the level of these minerals
present in the water, the harder the water is.
The dishwasher is fitted with a water
softener unit which, through the use of
special regenerating salt, supplies
softened water for washing the dishes.
The degree of hardness of your water can
be obtained from your water supply
company.

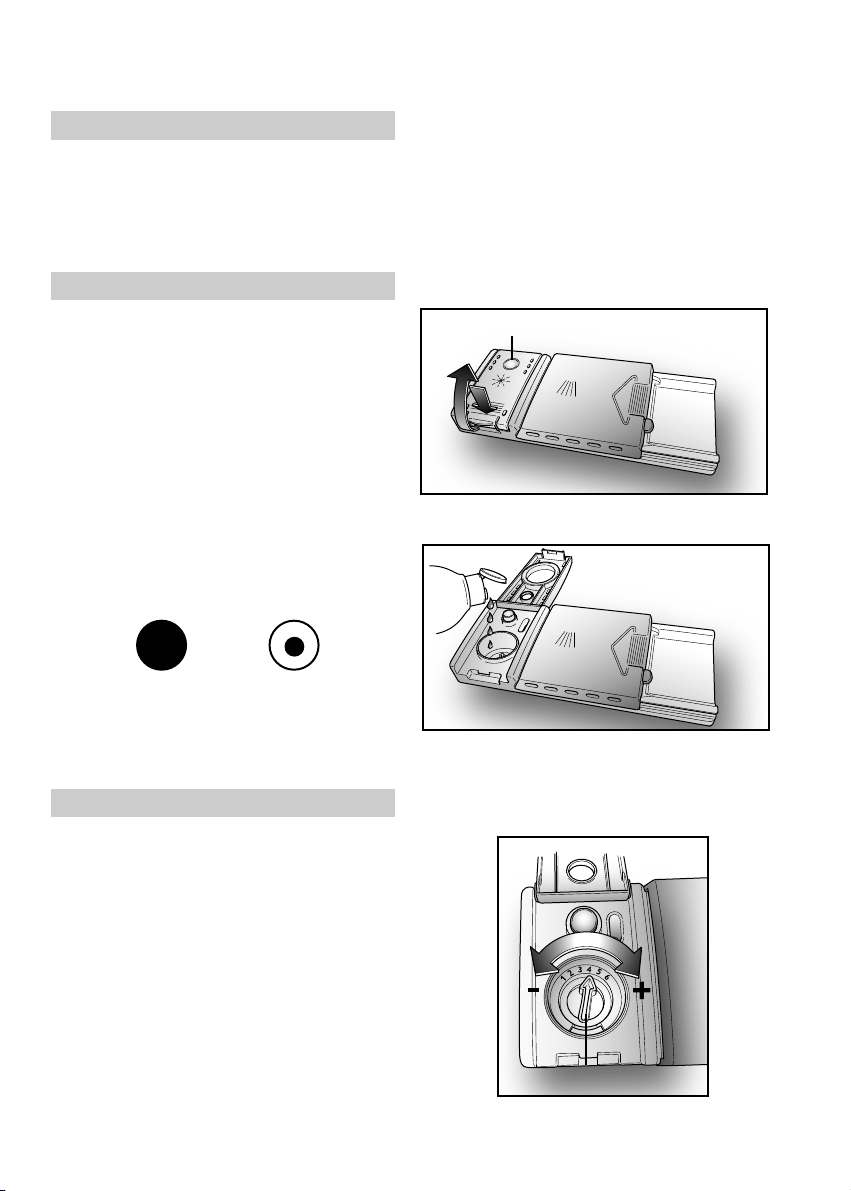

Regulating the water softener

The softener unit can treat water with a
hardness of up to 90°fH (French grading)
or 50°dH (German grading) through 6
different settings.

The table below lists different degrees of
water hardness with the corresponding
setting for the softener unit.

Water

hardness

Level

0

1
2

*3

4

5

ºfH

(French

grading)

0-5

6-15

16-30

31-45
46-60

61-90

ºdH

(German

0-3

4-9
10-16
17-25

26-33

34-50

Use of

grading)

regenerating

NO

YES

YES
YES

YES

YES

salt

Water

softener

No indicator

lights

Indicator light

1

Indicator lights

1,2

Indicator lights

1,2,3

Indicator lights

1,2,3,4

Indicator lights

1,2,3,4

flashing

setting

* The water softener unit is set in the

factory at level 3, as this is suitable for
the majority of users.

According to the degree of hardness of
your water, regulate the softener unit in the
following way:

IMPORTANT
The dishwasher must ALWAYS be
off before start of this procedure.

1. Hold down the "PROGRAMME
SELECTION" button and at the same

time switch on the dishwasher by
pressing the "ON/OFF" button (a brief
audible signal will sound).

2. Keep the "PROGRAMME SELECTION"
button pressed for at least 5 seconds,

UNTIL an audible signal sounds. Some
"PROGRAMME SELECTION" indicator

lights will come on to indicate the
current water softener setting level.

3. Press the same button again to select
the required water softener level: each
time the button is pressed, one indicator
light will come on (the water softener
level is indicated by the number of lights
on). For level 5, 4 lights will flash, for

level 0 all lights will be off.

4. Turn off the dishwasher by pressing the
"ON/OFF" button to confirm the new

setting.

WARNING!
If any problem occurs, turn the
dishwasher off by pressing the
"ON/OFF" button and start the
procedure again from the beginning
(STEP 1).

1234

“PROGRAMME SELECTION” button

“PROGRAMME SELECTION” indicator lights

10

“ON/OFF”

button
