CD 650
User instructions
EN
CD 650
3
Contents
Safety advice
Setting up, installation
Opening the door
Water softener unit
Adjusting the upper basket

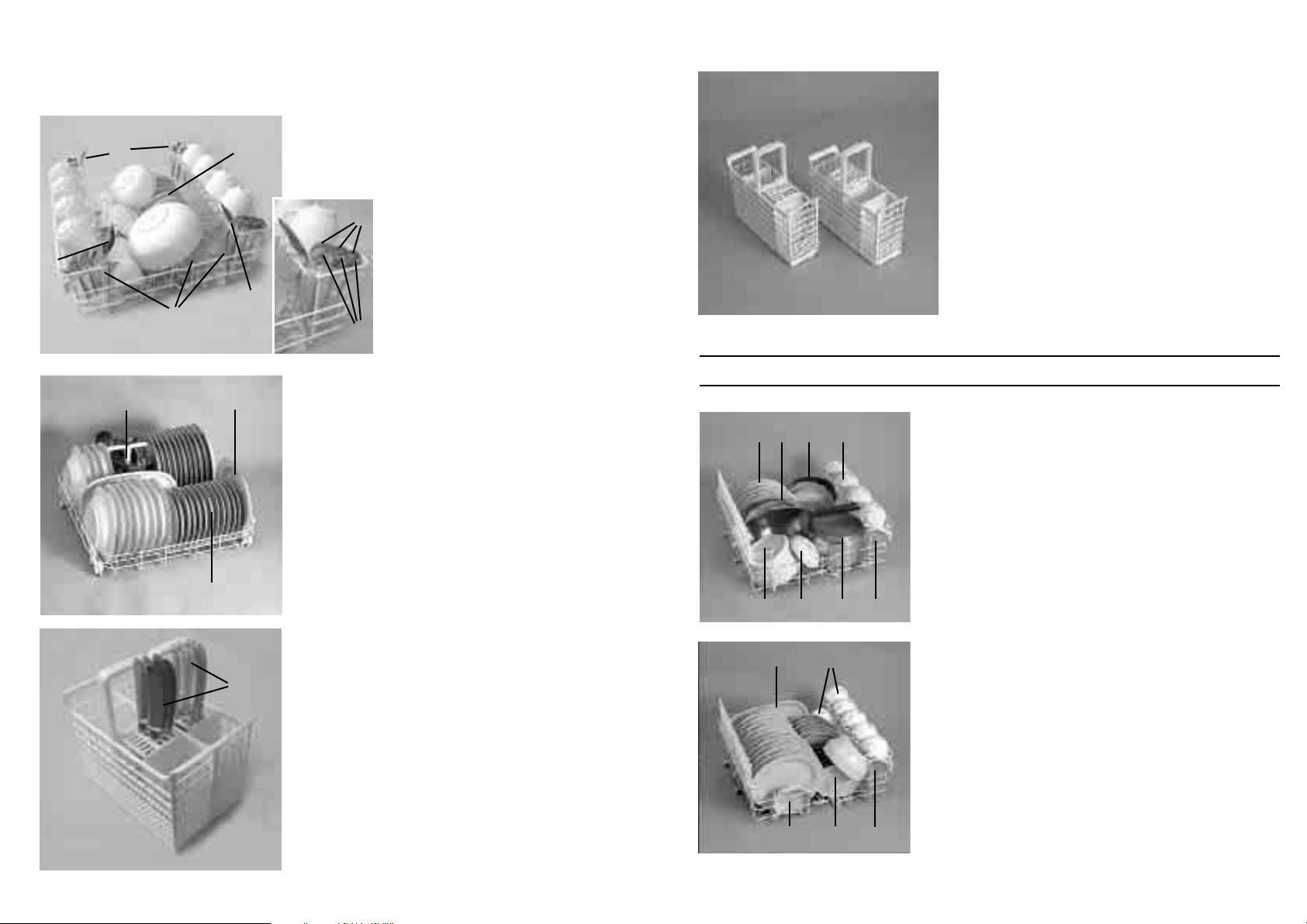

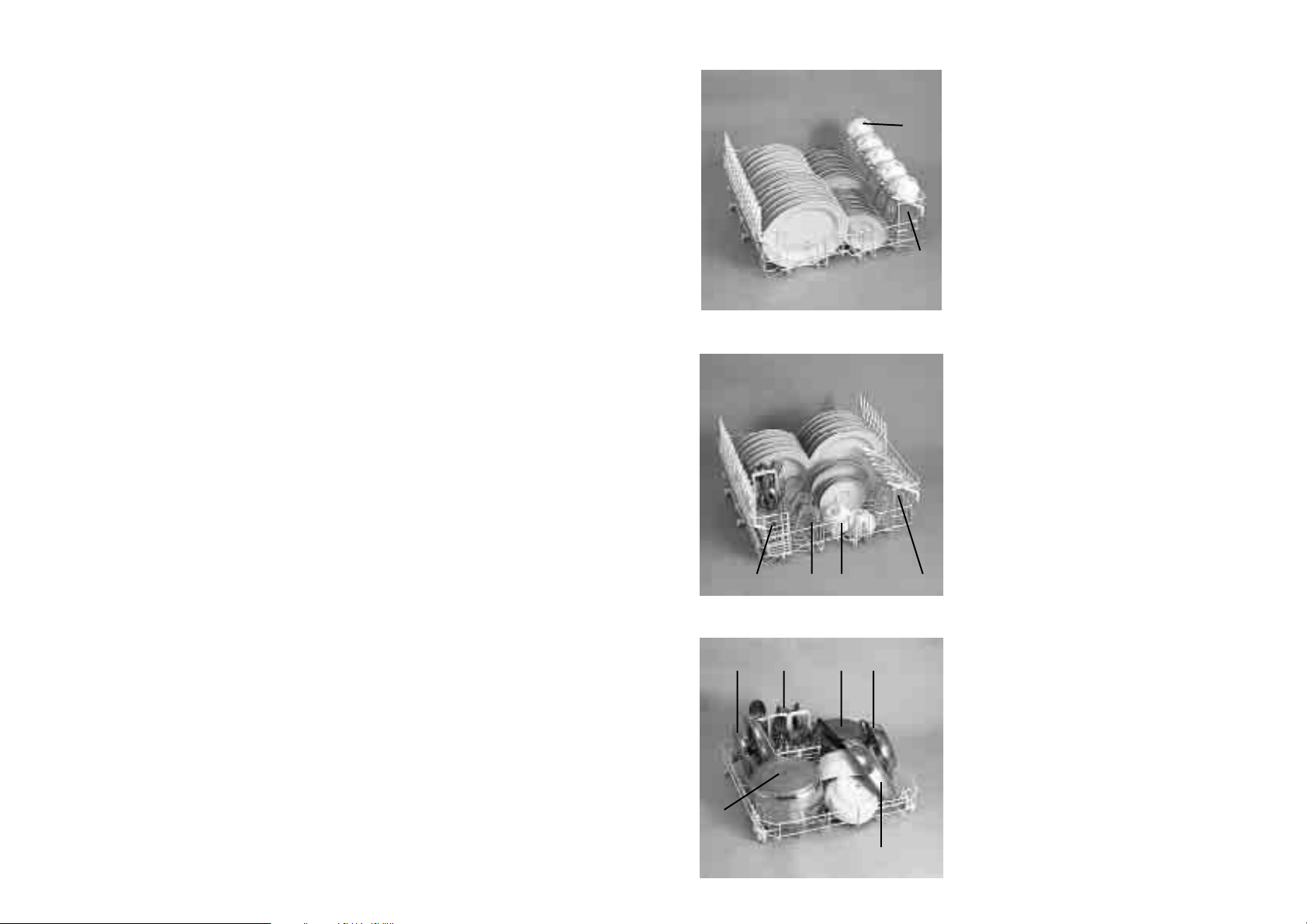

Loading the dishes
Half load washing
Information for test laboratories

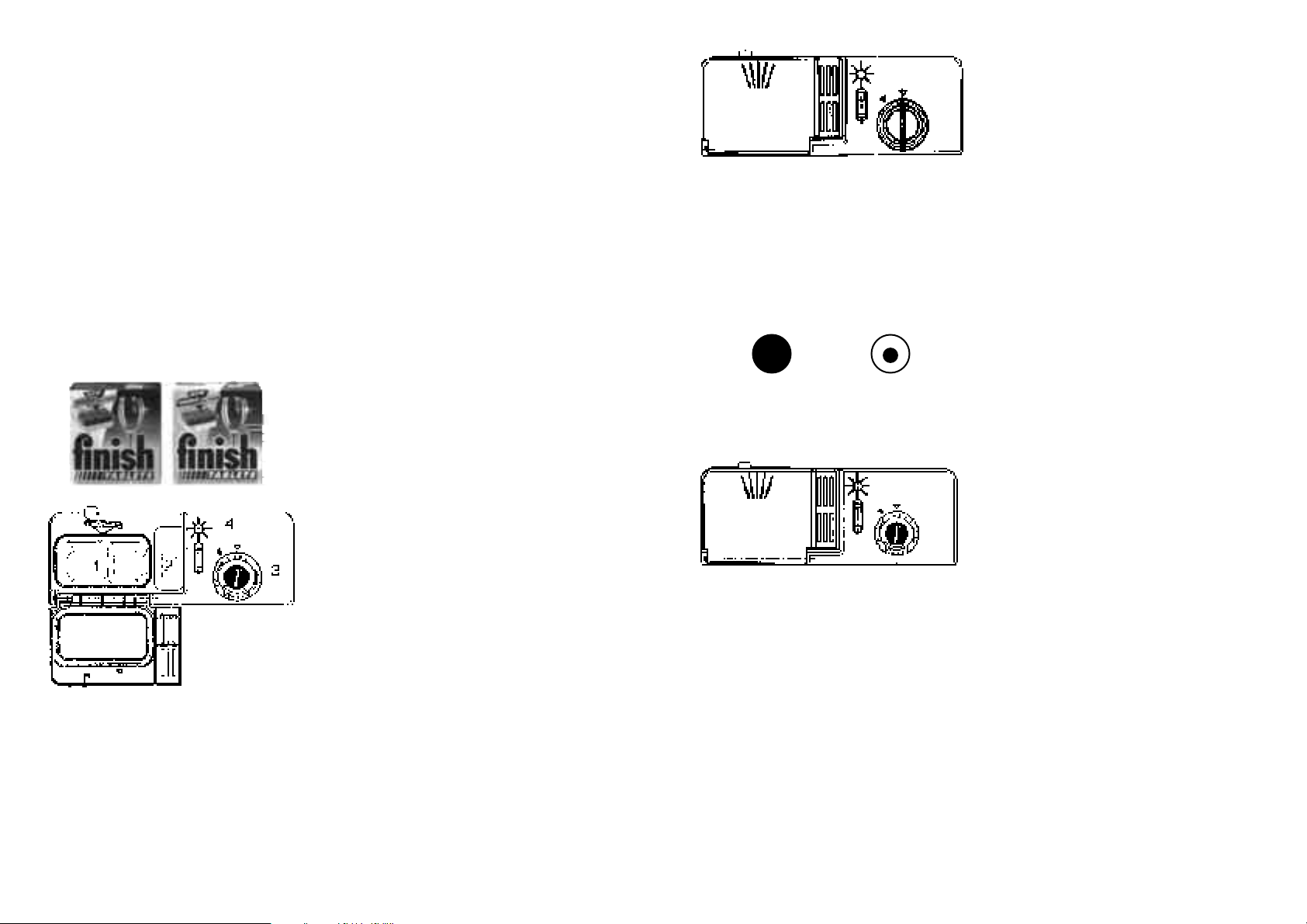

Loading the detergent and rinse aid

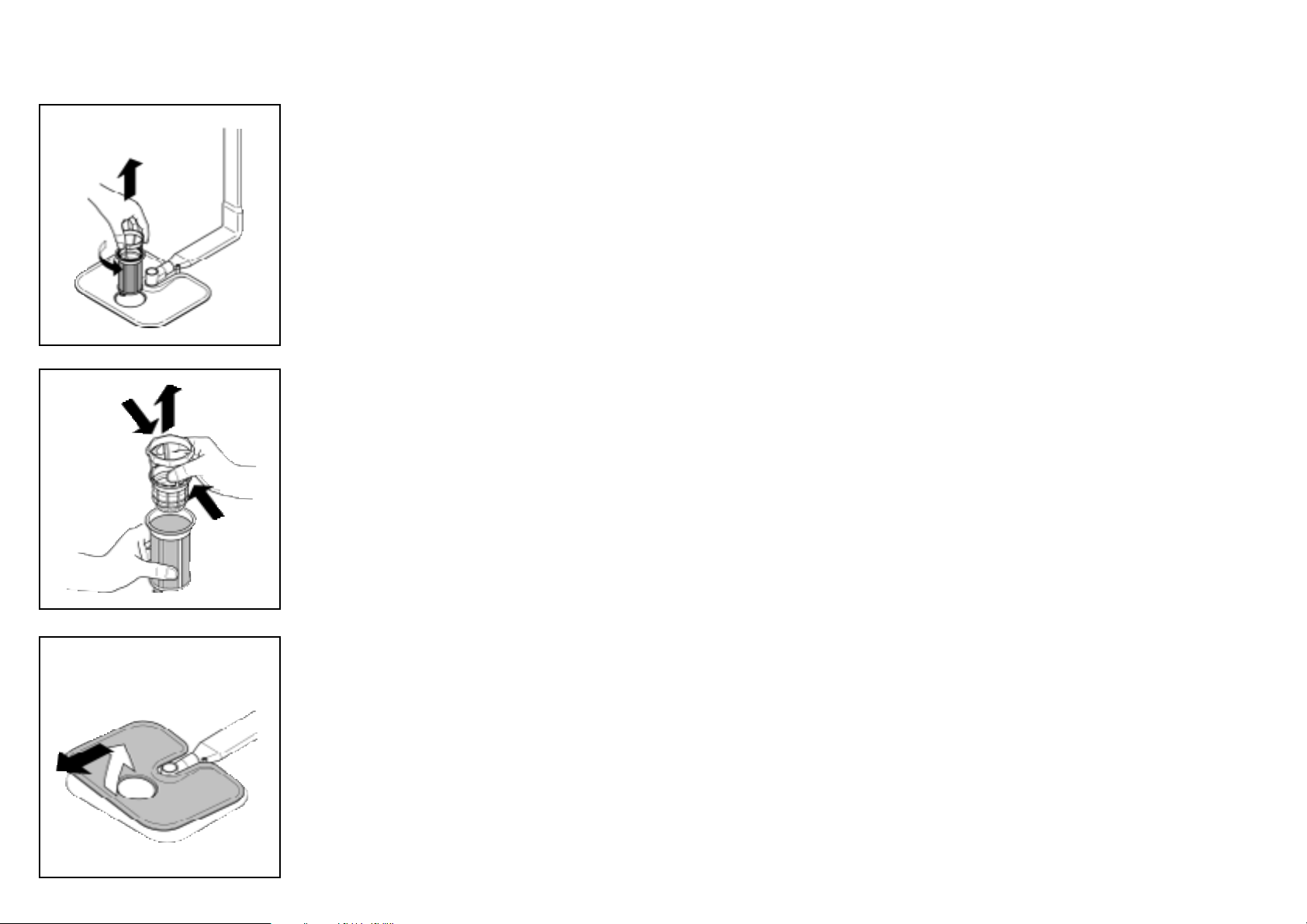

Cleaning the filters
Some practical hints

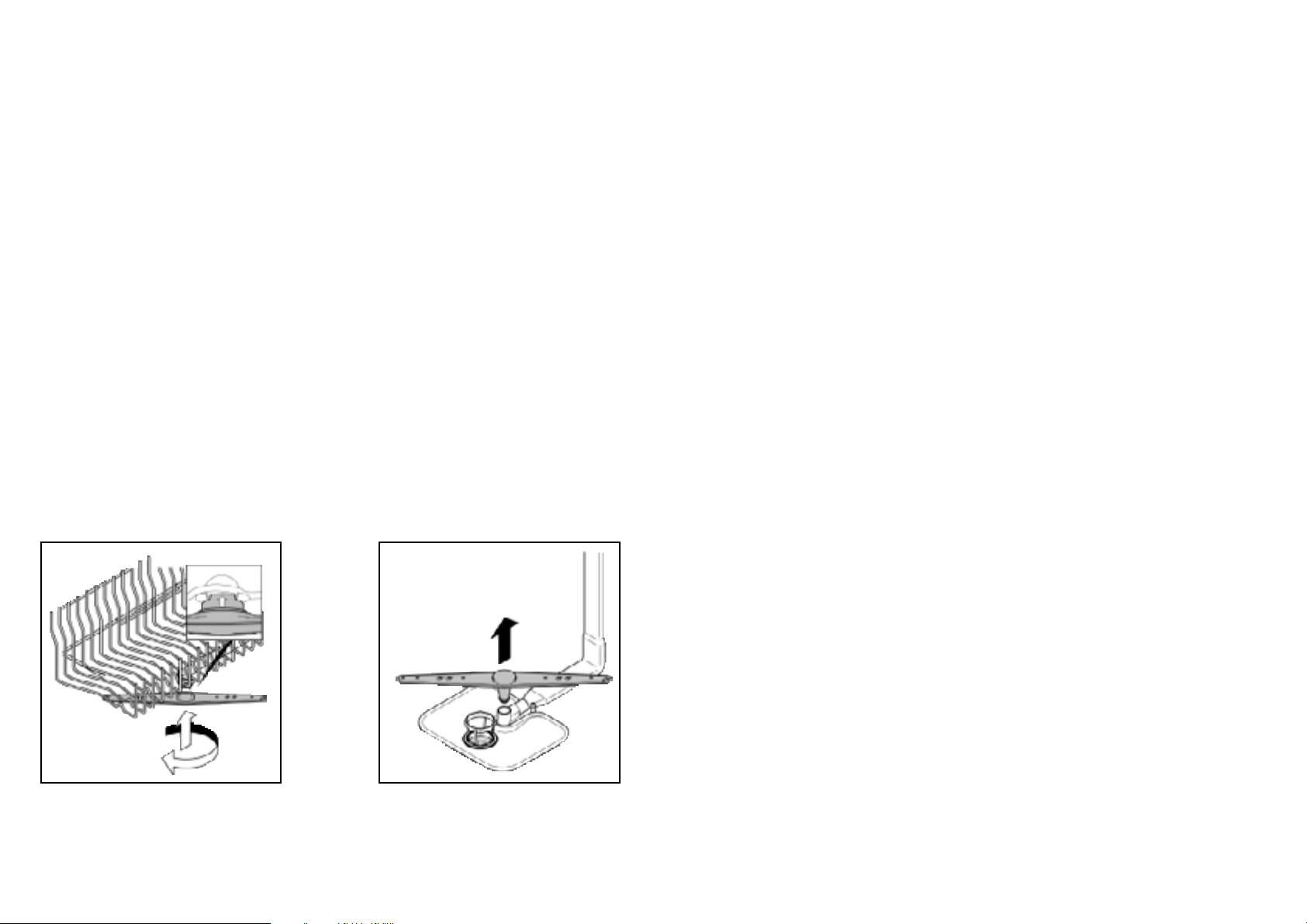

Routine cleaning and maintenance

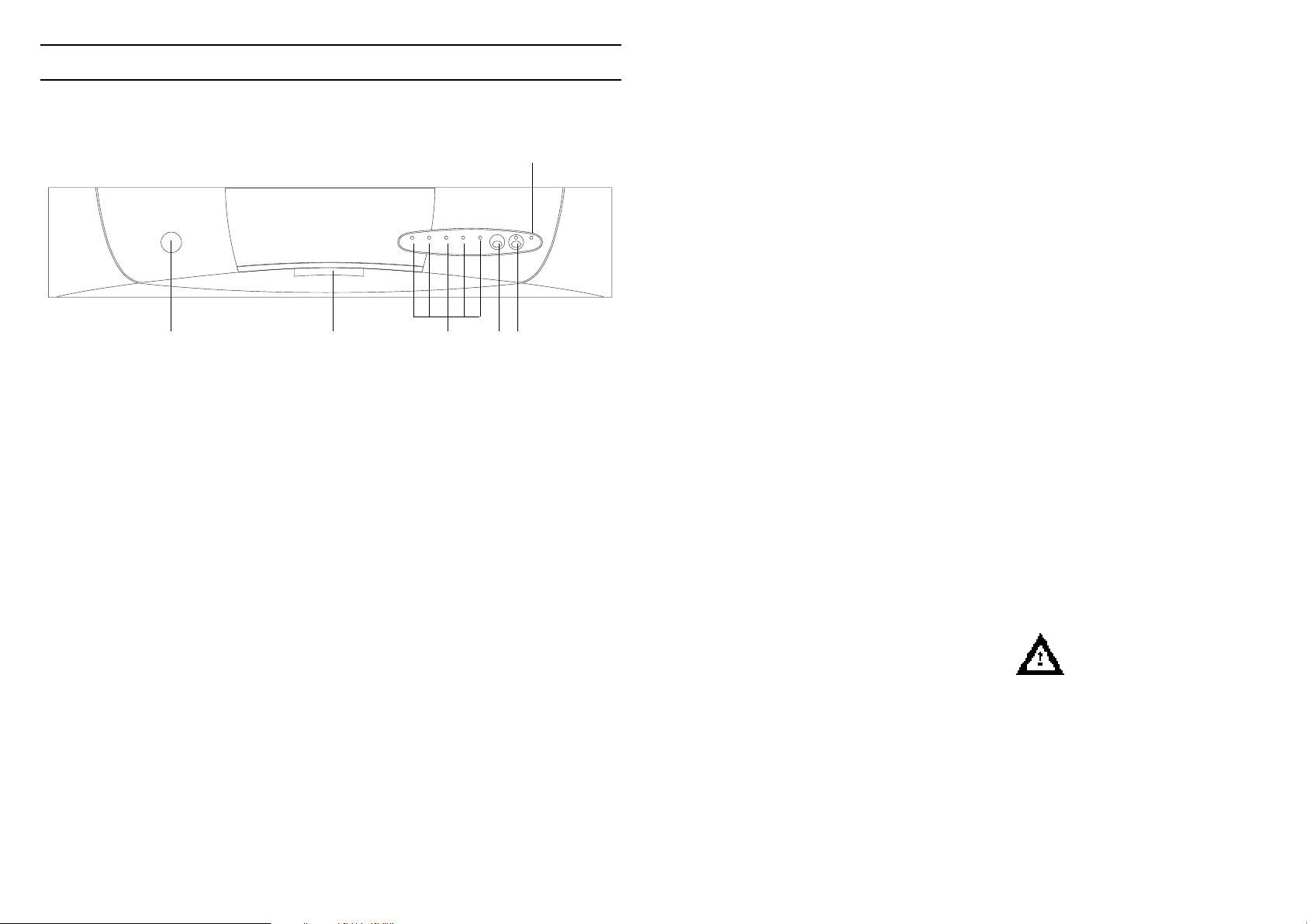

Description of the controls
Technical data
Operating the programmes and special functions

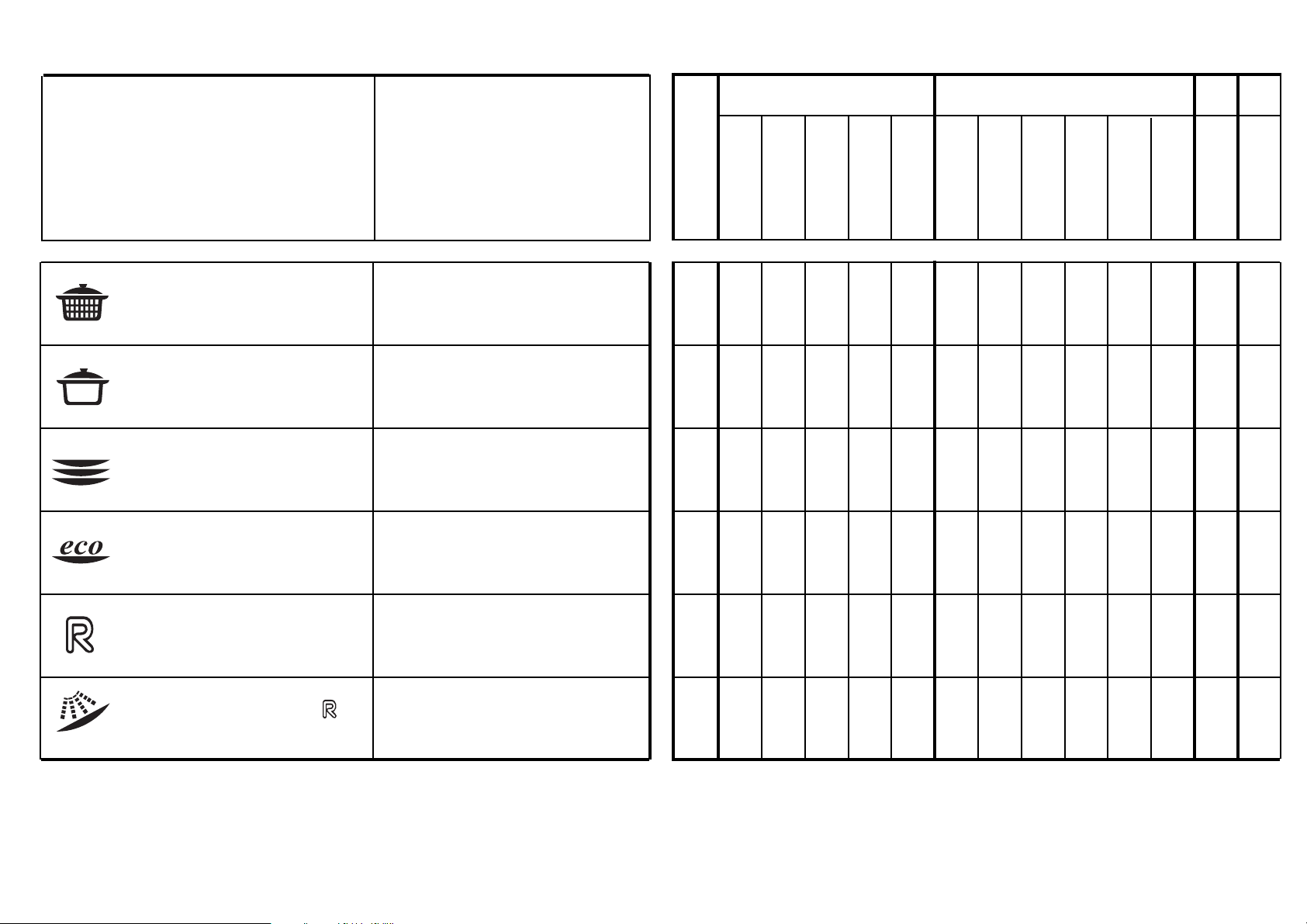

Programme selection
Identifying minor faults
page 4
page 5
page 8
page 9
page 11
page 12
page 15
page 16
page 16
page 18
page 19
page 20
page 22
page 22
page 23
page 24
page 26
23
1
4
5
Fig. A
2
Congratulations!
Thank you for choosing a Candy appliance; quality dishwashers
which guarantee high performance and reliability.
Candy manufacture a vast range of domestic appliances: washing
machines, washer/dryers, cookers, microwave ovens, ovens and
hobs, refrigerators and freezers.
Ask your dealer for the catalogue with the complete range of Candy
products.
Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the
machine, together with some useful advice on how to achieve the
best results from your dishwasher.
For future reference please keep this instruction booklet in a safe
place.
This appliance is supplied with a guarantee certificate which offers
a free one year labour guarantee and a free five year parts
guarantee - see the guarantee certificate for further details.
Remember to post part A of the guarantee certificate within 10 days
of the purchase date to register your guarantee with us.
Part B should be filled in and retained by you, to be shown to the
GIAS service engineer if required. You should also keep your sales
receipt.
After Sales Service
For service and repairs call your local engineer on our national
number 08705 990011
Your new appliance is fully guaranteed by the manufacturer for 12
months against electrical/mechanical breakdown excluding:
A. Any faults which occur due to bad installation or misuse of the
machine.
B. Any faults which occur due to repair of, or interference with, the
machine by any person not authorised by the manufacturer to
carry out service.
C. Any faults which occur due to any parts which are fitted to the
machine which are not the original manufacturers parts.
D. Any faults arising from non-domestic use or unusual or abnormal
use of the machine.
E. Any faults arising from operation at incorrect voltage.
F. Any faults arising from incorrect operation of the machine.
The guarantee applies to Gt Britain and Northern Ireland only, and
is an addition to your statutory rights.
Guarantee & After Sales Service
Summary of manufacturers guarantee conditions
5
INSTALLATION (Technical notes)
After unpacking, adjust the height of the dishwasher.
For the dishwasher to work correctly it must be level.
Adjust the feet so that the machine does not tilt by more
than 2 degrees. If it you need to move the machine after
removing the packaging, do not try to lift it by the bottom
of the door. Follow the instructions in figure. Open the
door slightly and lift the machine by holding on the top.
Important: when the appliance is located on a
carpet floor, attention must be paid to ensure that
there is no obstruction to the bottom vents.
Make sure that the plug on the appliance remains
accessible after installation.
This appliance complies with Directives
89/336/EEC, 73/23/EEC and following changes.
4
Safety Instructions
Please read the instructions in this booklet carefully because they contain important
information on how to install, use and maintain your dishwasher safely as well as
containing useful tips on how to make the most of it.
Keep this booklet safe for future reference.
There are certain basic safety rules which are valid for any domestic appliance. They
are the following:
- never touch the appliance when your hands or feet are wet or damp
- do not use when your feet are bare
- do not remove the plug from the mains supply socket by pulling the mains cable or
the machine itself
-do not leave the appliance exposed to the elements (rain, sun etc)
- do not let children (or others incapable of operating it) use the machine without
supervision
-make sure that the plug fitted to the machine is compatible with the power supply
socket. If it is not, get a suitably qualified person to fit the correct type, and to make
sure that the cables to the mains socket are able to cope with the power rating of
the appliance
- ensure that the dishwasher does not crush power cables
-if there is a water softening device installed in the home there is no need to add
salt to the water softener fitted in the dishwasher
- the dishwasher is designed for normal kitchen utensils.
Objects that have been contamined by petrol, paint, traces of steel or iron,
corrosive chemicals, acids or alkalis must not be washed in the dishwasher
- if you wish to dispose of an old dishwasher be careful to remove the door to
eliminate the risk of children becoming trapped inside it
- the dishwasher has been made from materials which can be recycled so that it can
be disposed of in an environmentally friendly way
- in general it is not advisable to use adaptors, multiple plugs and/or extension
cables
-Water left in the machine or on the dishes at the end of the wash programme
should not be swallowed.
- Leaning or sitting on the open door of the dishwasher could cause it to tip over.
- Cutlery is washed best if it is placed in the basket with the handles downwards;
however, to avoid any injury from blades or sharp points, it can be placed with the
handles upwards.
- Should it be necessary to replace the supply cord, call the Service Department.
- This appliance is designed for domestic use only.
If the appliance breaks down or stops working properly, switch it off, turn off the water
supply and do not tamper with it. Repair work should only be carried out by an
approved service agent and only genuine spare parts should be fitted. Any failure to
follow the above advice may have serious consequences for the safety of the appliance.
7
The filter D must be inserted between the tap B and the inlet hose A, remembering
to fit the washer C.
If the dishwasher is connected to new pipes or to pipes which have not been in use
for a long time run water through for a few minutes before connecting the inlet hose.
In this way no deposits of sand or rust will clog up the water inflow filter.
Connecting the outlet hose
The outlet hose should disharge into a standpipe, making sure that there are no kinks
(fig. 4).
The standpipe must be at least 40 cm above floor level and it must have an internal
diameter of at least 4 cm. It is advisable to fit an anti-odour air trap (fig. 4 x).
If necessary the outlet hose can be extended up to 2,6 m, provided that it is kept at
a maximum height of 85 cm above floor level.
The hose can be hooked over the side of the sink (it must not be immersed in water,
in order to prevent water from being syphoned back to the machine when this is in
operation) (fig. 4 y).
When installing the appliance under a worktop the hose pipe clamp must be attached
to the wall in the highest possible position under the worktop (fig. 4 z).
Check that there are no kinks in the inlet and outlet hoses.
123
4
Plug your dishwasher into the power socket.
If the plug we supply does not fit
• CUT IT OFF AND DESTROY IT!
You can't use it on other appliances, and the exposed wires could be
dangerous if anyone plugged it in.
• Fit a suitable plug, as follows:
Connect to the terminal in the plug
green and yellow wire marked with the letter E,
OR marked with the Earth symbol,
OR coloured green,
OR coloured green and yellow.
blue wire marked N
OR coloured black.
brown wire marked L
OR coloured red.
"WARNING"
THIS APPLIANCE MUST BE EARTHED
Fuses and plugs
This appliance should be used only on a
socket with a minimum rating of 13 Amp.
Our ready-fitted plug is already equipped
with a 13 amp fuse which is BS 1362 ASTA approved.
Any replacement should be exactly the same.
If the fuse cover is lost, do not use the plug until it is replaced.
A correct replacement fuse cover (obtainable from your dealer
or Electricity Board) must be the same colour as shown or
named on the insert on the base of the plug.
Electrical connection
Water connection
The inlet and drain hoses can be directed to left or right.
The dishwasher can be connected to either cold or hot water, as long as it is
no hotter than 60 °C.
Water pressure must be between 0,08 MPa and 0,8 MPa. If the pressure is below
the minimum consult our service department for advice.
The inlet hose must be connected to a tap so that the water supply can be cut off
when the machine is not in use (fig.1 B).
The dishwasher is fitted with 3/4" threaded connector (fig. 2).
Connect inlet hose A to water tap B with a 3/4" attachment making sure that it has
been properly tightened.
If it is necessary to lengthen the inlet pipe, an extension pipe can be fitted.
If limescale deposits or sand are present in the water, it is advisable to obtain the
appropriate filter, art. 9226085, from the Service Centre (fig. 3).
6
Closing the door
Place the baskets in the machine.
Make sure that both the spray arms are free to rotate and are not obstructed by
cutlery, crockery or pans. Close the door, pressing on it to make sure it is firmly shut.
Water softener unit
Depending on the source of the supply, water contains varying amounts of limestone
and minerals which are deposited on the dishes leaving whitish stains and marks.
The higher the level of these minerals present in the water, the harder the water is.
The dishwasher is fitted with a water softener unit which, through the use of special
regenerating salt, supplies softened water for washing the dishes.
The degree of hardness of your water can be obtained from your water supply company.
8
Installation in fitted kitchens
Fitting between existing cabinets
The height of the dishwasher, 85 cm, has been designed in order to allow the machine
to be fitted between existing cabinets of the same height in modern fitted kitchens.
The feet can be adjusted so that correct height is reached.
The laminated top of the machine does not require any particular care since it is
heatproof, scratchproof and stainproof (fig. 5).
The work top can be easily adjusted to line it with the top of existing cabinets; this is
done by moving it by 5 mm each time up to a maximum of 25 mm.
To adjust it, unscrew the two screws at the back and fix the top in the position
required (fig. 6).
Underneath existing work top (when fitting beneath a work top)
In most modern fitted kitchens there is only one single work top under which cabinets
and electrical appliances are fitted.
In this case remove the work top of the dishwasher by unscrewing the screws under
the rear edge of the top (fig. 6).
The height will then be reduced to 82 cm, as scheduled by the International
Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top
(fig. 7).
Opening the door
Put your hand into the recess and push upwards.
If the machine comes open while it is working, an electrical safety device
automatically switches everything off.
For the machine to work properly, the door should not be opened while it is in
operation.
7
598
556/563
5
6
9
Regulating the water softener
with electronic programmer
The water softener can treat water with a hardness level of up to 90°fH (French
grading) or 50°dH (German grading) through 6 settings.
The settings, are listed in the panel below:
The softener unit is set in the factory at level 3 (Indicator light N.3) as this satisfies
the requirements of the majority of users. Regulate the setting of your water softener
unit according to the degree of hardness of your water as follows: keep button “1/2
LOAD” pressed in for a few seconds and at the same time press the “ON/OFF” button.
The indicator light of button “1/2 LOAD” will start flashing and indicator light N.3 (the
factory setting) will come on. To change the setting, press button “1/2 LOAD”. Each
time you press that button, the next indicator light will come on. When the required
indicator light comes on, wait for the audible signal to confirm that the new setting
has been stored in memory.
Level
0
1
2
3
4
5
0-5
6-15
16-30
31-45
46-60
61-90
0-3
4-9
10-16
17-25
26-33
34-50
NO
YES
YES
YES
YES
YES
Indicator light N.1
Indicator light N.1
Indicator light N.2
Indicator light N.3
Indicator light N.4
Indicator light N.5
Water
hardness
°fH
(French)
Water
hardness
°dH
(German)
Use of
regenerating
salt
Water
softener
setting
ON
OFF
PROG SELECT 1/2 LOAD
Loading the salt
The dishwasher is fitted with a softener which
clears the water of lime which could cause scale
and damage the dishwasher.
On the bottom of the machine there is a container
for the salt for regenerating the softener.
The filter medium of the softening plant must be
reactivated with dishwasher water softener
regenerating salt.
Other types of salt contain small quantities of
insoluble particles which over a long period of
time may affect and deteriorate the softener
performance.
To add salt, unscrew the cap of the container on
the bottom and then refill the container.
During this operation a little water will overflow; but keep adding salt until the container
is full. When the container is full, clean the thread of salt residue and retighten the
tap.
If the dishwasher is not required straightaway, set the Prewash programme so that
the salt solution which has overflowed is discharged from the washing tank.
The salt dispenser has a capacity of between 1.5 and 1.8 kg and, for efficient use of
the appliance, it should be refilled from time to time according to the regulation of the
water softener unit.
Salt loading indicator
This model is provided with an indicator light on the control panel which will light
up when it is necessary to reload the salt container.
Important: the appearance of white stains on dishes is generally an important sign
that the salt container needs filling.
10
11
Adjustment of the upper basket
If 27 cm to 31 cm plates are normally used, load them onto the lower basket after the
upper basket has been placed in its upper position and proceed as detailed below:
1) Turn the front stops A outwards.
2) Take out the basket and remount it in the upper position.
3) Replace the blocks A in their original position.
Dishes that are bigger than 20 cm in diameter can no longer be loaded onto the
upper basket and the mobile supports cannot be used when the basket is in the
upper position.
A
A
Loading...
