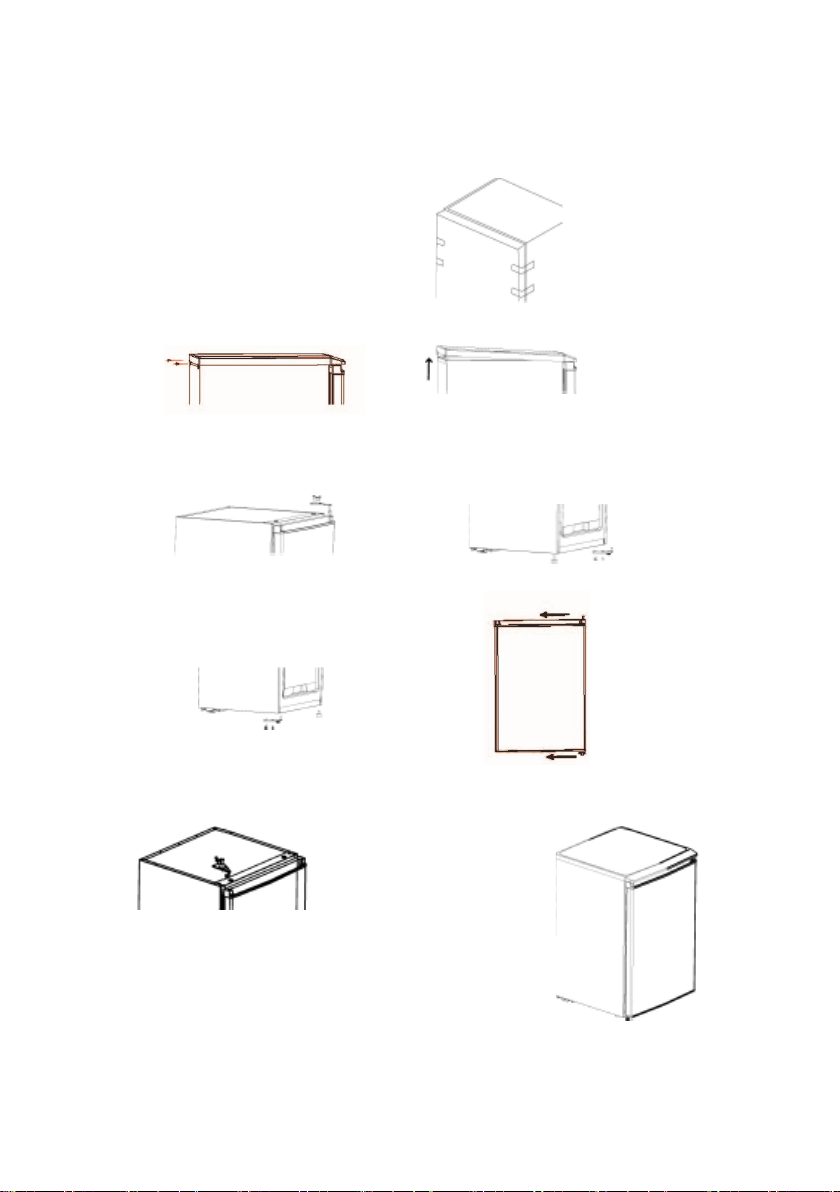

Door reversibility ................................................................................................ 17

Changing the Light (optional) ........................................................................ 18

CLEAN AND MAINTAINANCE ............................................................................. 19

Cleaning and care ................................................................................................ 19

Defrost ..................................................................................................................... 19

Usage stop .............................................................................................................. 19

TROUBLESHOOTING .............................................................................................. 20

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

- the kitchen area for personnel in shops, offices and other working environments

- on farms, by clients of hotels, motels and other environments of a residential type

- at bed and breakfasts (B & B)

- for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

This guide contains many important safety information. Please, we suggest to keep these instructions in a safe place for easy reference and for a good experience with the appliance. The refrigerator contains refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.

aution: risk of fire

If the refrigerant circuit should be damaged:

 Avoid opening flames and sources of ignition.  Thoroughly ventilate the room in which the appliance is situated

WARNING!

• Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.

• This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.

• When positioning your appliance takecare not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to

accept any liability should the instructions not be followed.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

• Do not install the appliance near heaters or inflammable materials.

• If there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.

• Before performing any operation, unplug the power cord from the power socket.

• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

• If in the refrigeration system a leak is noted, do not touch the wall outlet

and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.

• Do not use extension cords or adapters.

• Do not excessively pull or fold the power cord or touch the plug with wet hands.

• Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

• Do not place objects and/or containers filled with water on the top of the appliance.

• We do not recommend the use of extension leads and multi-way adapters.

• Do not dispose of the appliance on a

fire. Take care not to damage, the cooling circuit/pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

• Do not use pointed or sharp-edged

objects such as knives or forks to remove the frost.

• Never use hairdryers, electrical

heaters or other such electrical appliances for defrosting.

• Do not scrape with a knife or sharp

object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other

equipment to hasten the defrosting process.

• Absolutely avoid the use of open flame

or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

• Never use water to wash the

compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

• It is recommended to keep the plug

clean, any excessive dust residues on the plug can be the cause of fire.

• The product is designed and built for

domestic household use only.

• The guarantee will be void if the

product is installed or used in

commercial or non-residential domestic household premises.

• The product must be correctly

installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.

• The guarantee is applicable only to

new products and is not transferable if the product is resold.

• Our company disclaims any liability for

incidental or consequential damages.

• The guarantee does not in any way

diminish your statutory or legal rights.

• If you are discarding an old product

with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

• This appliance can be used by children

aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the

appliance. Cleaning and user

maintenance should not be made by children without supervision.

• Locks :If your Fridge/Freezer is fitted

with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Fridge/Freezer break off any old locks or latches as a safeguard.

• Children aged from 3 to 8 years are

allowed to load and unload this appliance.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• To avoid contamination of food, please

respect the following instructions

• Opening the door for long periods can

cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come

in contact with food and accessible

drainage systems.

• Clean water tanks if they have not

been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable

containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments(if

they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star

compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long

periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance. WARNING! During using, service and disposal the appliance, please pay attention to symbol as left side, which is located on rear of appliance (rear panel or compressor). It’s risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away from fire source during using, service and disposal.

• FOR a free standing appliance: this

refrigerating appliance is not intended to be used as a built-in appliance

• ANY replacement or maintenance of

the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

• THE appliance has to be unplugged

after use and before carrying out user maintenance on the appliance.

• WARNING: Please scrap the

refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not

become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste;

- WEEE should be handed over to the relevant collection points managed

by the municipality or by registered companies. In many countries, for

Conformity

large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements

which are applicable in legislation for this product.

ENERGY SAVING

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well-ventilated too.

• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functionality of the compressor.

• Do not excessively stuff foods so as to ensure proper air circulation.

• Defrost the appliance in case there is ice to facilitate the transfer of cold.

• In case of absence of electrical energy, it is advisable to keep the refrigerator

door closed.

• Open or keep the doors of the appliance open as little as possible

• Avoid adjusting the setting to temperatures too cold.

• Remove dust present on the rear of the appliance

• Refrigerating appliances might not operate consistently (possibility of defrosting

of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.

• Effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and some products such as water ices should not be consumed too cold;

• Take the precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

• A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

PRODUCT OVERVIEW

Climate Class

Amb. T. (°C)

Amb. T. (°F)

From 10 to 32

From 50 to 90

From 16 to 32

From 61 to 90

From 16 to 38

From 61 to 100

From 16 to 43

From 61 to 110

*The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor *The most energy-savin g configuration requi res drawers, food box and shelves to be posit ioned in the product, pl ease refer to the

above pictures.

Climate Class

The appliance is designed to operate at the limited range of ambient temperature, depending on climate zones. Do not use the appliance at the temperature out of the limit. Climate class of your appliance is indicated on the label with technical description inside the fridge compartment.

Small Door

Lamp

Temperature- control knob Door tray

Glass shelf

Fruit and

vegetables box

• extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’;

• temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’;

• subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’;

• tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’;

USE

Starting to use

Before starting to use the appliance:

1. Keep the refrigerator still for half an hour before connecting it to power supply

2. Before storing food in the refrigerator, it shall run for 2-3 hours, or for above 4 hours if the ambient temperature is high

3. Check that the interior is dry and air can circulate freely at the rear

4. Clean the refrigerator ad recommended under “TAKE CARE” section (electric parts of the refrigerant can only be wiped by dry cloth)

Temperature-control knob

*The picture is only for reference. The actual configuration will depend on the physical product or

statement by the distributor

• The temperature-control knob is located on the right hand side wall of the refrigerator interior

• The number "1, 2, 3, 4, 5, 6"do not mean a specific temperatures, the lower the number is, the higher the temperature inside will be and verse

• When the thermostat control knob is set to OFF, the refrigerator will

• Under the normal operating condition (in spring and autumn), it is

• In winter when the ambient temperature is low, it is recommended to

• In summer when the ambient temperature is high, it is recommended

versa.

not be running.

recommended to set at Model 3 or 4.

set at Model 5 or 6.

to set at Model 2 or 3.

Tips for storing food in the fridge

• Take extra care with meat and fish: cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meats on a plate which is large enough to collect juices and cover it with cling film or foil.

• Leave space around food: this allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept cool.

• Wrap up food: to prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped.

• Pre-cooked food should be cooled properly: allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the internal temperature of the Fridge from rising.

• Shut the door: to prevent cold air escaping, try to limit the number of times you open the door. When retuning from shopping, sort foods to be kept in your Fridge before opening the door. Only open the door to put food in or take it out.

• The appliance is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term. Suggested storage time 3days to 5days.

• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use

INSTALLATION INSTRUCTIONS

Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body

Positioning

1. Avoid placing the appliance near cookers, radiators or in direct sunlight.

2. Install the appliance in a well-ventilated indoor place

3. The appliance should be located on a smooth surface.

4. It is forbidden to use the refrigerator outdoors.

5. Do not locate the freezer in moisty or watery space to avoid the metal parts rusty. Do not spray water to the freezer, to avoid reduction of insulating effect and current leakage.

6. The top space of the refrigerator shall be greater than 30cm, the back space from the wall shall be more than 10 cm to facilitate heat dissipation

Door Space Requirements

The unit's door must be able to open fully as shown. Spare enough space for convenient opening of the doors and drawers. W×D≥890×1005mm

Leveling the Unit

To do this, adjust the two leveling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Make sure that the foot touches the ground before use. Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator; b. Turn the feet counterclockwise to lower the refrigerator; c. Adjust the right and left feet based on the procedures above to a horizontal level

Door reversibility

1. Power off the refrigerator and remove all objects from the door tray

2. Fix the door with tape

3. Unscrew the top cover screws and remove the top cover

4. Unscrew the upper hinge screws and remove the upper hinge

5. Remove the door, unscrew the bottom hinge screws and remove the bottom hinge. After this, level the feet.

6. Fix the leveling feet, and the bottom hinge on the opposite side

7. Assemble the door stopper and the axle sleeve on the opposite side

8. Put down the door on the bottom hinge vertically. Fix the upper hinge and the top cover of the refrigerator

Changing the Light (optional)

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Replacement of incandescent lamps:

• Disconnecting the power supply before carrying out the bulb replacement

• Hold and remove the light bulb cover.

• Dismantle the old bulb by unscrewing ii counterclockwise.

• Replace by a new bulb (Max. 15W) by screwing ii clockwise, and make sure it is fixed in the

bulb holder lightly.

• Reassemble the light cover and re-connect your Fridge to the power supply.

CLEAN AND MAINTAINANCE

Cleaning and care

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

• Check the door gasket regularly to make sure there are no debris.

• Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

• The interior of the refrigerator should be cleaned regularly to avoid odor

• Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, drawers, etc.

• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tables spoons of baking

soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

• Do not use soap, detergent, scrub powder, s pray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

• Do not use hard brushes, clean steel balls, wire b rushes, abrasives(such as tooth pastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Defrost

• Power off the refrigerator.

• Remove the food from the refrigerator and place it properly to prevent food from melting.

• Clear the drain pipe (to use soft materials to prevent damage to the liner), Prepare the water

containers for defrosting. (pay attention to clean the compressor compartment water draining tray, avoiding overflow to the ground).

• You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the frost (lo use plastic or wooden ice shovel, for avoiding damage to the liner or pipe)

• You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the water after defrosting.

• After defrosting, put back the foods in cabinet , and power on the refrigerator.

Usage stop

• Power failure: In case of power failure foods inside the appliance can be kept for several hours; during the power failure reduce doors opening and don’t put other food inside the appliance

• Long-time nonuse: Turn off the refrigerator, remove all food, clean the appliance and leave the lid open to avoid possible formation of condensation, mold, or odors

• Moving: Before moving the appliance, take all objects out, fix all parts with tape, tighten the leveling feet, close the doors and seal them. During transport, do not lay the appliance upside-down or horizontally. The inclination during movement shall be no more than 45'.

Problem

Solution

Failed operation

• Check that the appliance is connected to power or that the plug

not tripped

Odor

• Odorous foods shall be wrapped tightly

• Clean the inside of the refrigerator

Long-time operation

• Long-time operation of the refrigerator is normal when the

• The doors shall not be opened to frequently

Light fails to get lit

• Check whether the refrigerator is connected to power and

• Have the light replaced by a specialist

Doors don’t close

• Check whether the door is stuck by food packages

• Check whether the refrigerator is tilted

Loud noise

• Check whether the refrigerator is placed stably

• Check whether accessories are placed in the proper location

Door seal fails to be

• Remove foreign matters on the door seal

• Heat the door seal and then cool it for restoration

Water pan overflows

• Too much food is stored, or the stored food contains too much

• The doors are not closed properly

Hot housing

• Heat dissipating of the built-in condenser via housing is normal

heat dissipation

Surface condensation

• Condensation on the exterior surface and door seals of the

Wipe the condensation with a towel

Abnormal noise

• Buzz: the compressor may buzz during operation, particularly

creak. This is normal

TROUBLESHOOTING

You may try to solve the following simple problems by yourself. If the problem cannot be solved, please contact the after-sales department.

is in well contact

• Check that the voltage is not to low

• Check that there is no power failure or that partial circuits have

• Check whether there is any rotten food

of the compressor

properly

tight

ambient temperature is high

• It is not suggested having too much food in the appliance at the same time

• Food shall be cooled before being put into the appliance

whether the illuminating light is damaged

water, resulting in heavy defrosting

• If the compressor shuts down, provide ventilation to facilitate

refrigerator is normal when the ambient humidity is too high.

upon start and stop. This is normal

• Creak: refrigerant flowing inside the appliance may produce

SOMMARIO

INFORMAZIONI DI SICUREZZA .................................................................... 22

SMALTIMENTO DEI VECCHI ELETTRODOMESTICI ................................... 31

Conformità ................................................................................................ 31

RISPARMIO ENERGETICO ............................................................................. 32

PANORAMICA DEL PRODOTTO .................................................................... 33

Classe climatica ........................................................................................... 33

USO ................................................................................................................. 34

Primo utilizzo .............................................................................................. 34

Manopola di controllo della temperatura .................................................. 34

Suggerimenti per la conservazione degli alimenti nel frigorifero ............... 34

ISTRUZIONI PER L’INSTALLAZIONE ........................................................... 35

Scelta del luogo di installazione .................................................................. 35

Requisiti di spazio porta .............................................................................. 35

Livellamento dell'unità ................................................................................ 35

Sostituzione della lampadina (opzionale) ................................................... 35

INVERSIONE DEL SENSO DI APERTURA DELLA PORTA FRIGO ................ 36

PULIZIA E MANUTENZIONE ......................................................................... 37

Pulizia e manutenzione ............................................................................... 37

Sbrinamento ................................................................................................ 37

Interruzione dell'utilizzo ............................................................................. 38

SOLUZIONE DEI PROBLEMI.......................................................................... 38

Grazie per aver acquistato questo prodotto.

Prima di utilizzare il frigorifero, leggere attentamente questo manuale di istruzioni per ottimizzare il rendimento dell'elettrodomestico. Conservare tutta la documentazione per future consultazioni o per altri proprietari. Questo prodotto è destinato esclusivamente all'uso domestico o applicazioni simili, come:

- zone cucina per il personale di negozi, uffici e altri ambienti lavorativi,

- aziende agricole, clienti di hotel e motel e altri ambienti residenziali,

- ad es. Bed and Breakfast (B&B),

- servizi di catering e altri usi diversi dalla vendita al dettaglio.

Questo elettrodomestico deve essere utilizzato esclusivamente per la conservazione di alimenti. Altri utilizzi sono pericolosi e il produttore in questi casi non sarà responsabile. Si raccomanda di consultare le condizioni della garanzia. Per un funzionamento senza problemi e per ottimizzare il rendimento dell'elettrodomestico, leggere attentamente queste istruzioni. Il mancato rispetto delle istruzioni fornite potrebbe annullare il diritto all'assistenza gratuita durante il periodo di garanzia.

INFORMAZIONI DI SICUREZZA

Questa guida contiene numerose informazioni importanti per la sicurezza. Conservare queste istruzioni in un luogo sicuro per una facile consultazione durante l'uso dell'elettrodomestico. Il frigorifero contiene un gas refrigerante (isobutano, R600a) e un gas isolante (ciclopentano); entrambi i gas sono altamente compatibili con l'ambiente ma sono infiammabili.

Attenzione: rischio di incendio

Se il circuito di refrigerazione è visibilmente danneggiato:  evitare la vicinanza con fiamme libere e fonti d

i ignizione. Ventilare accuratamente l'ambiente in cui è installato l'elettrodomestico

AVVERTENZA!

• Durate le operazioni di pulizia o trasporto

dell'elettrodomestico, fare attenzione a non toccare i cavi metallici del condensatore sul retro dell'elettrodomestico per evitare di ferirsi le dita e le

mani o di danneggiare il prodotto.

• Questo elettrodomestico non può essere impilato

con altri elettrodomestici. Non sedersi né salir s

ull'elettrodomestico. Non è progettato per sim

tilizzi. Ci si potrebbe ferire o l'elettrodomestico

u potrebbe danneggiarsi.

• Accertarsi che il cavo di alimentazione non resti

pigliato sotto l'apparecchiatura per evitare ch

i laceri o si danneggi.

• Quando l'elettrodomestico viene posizionato, fare

attenzione a non danneggiare il pavimento, i tubi, il rivestimento delle pareti ecc. Non spostar l'elettrodomestico tirandolo per il coperchio o per la maniglia. Non consentire ai bambini di giocar c

on l'apparecchio o manomettere i controlli. In caso di inosservanza delle istruzioni, l'aziend d

eclina qualunque responsabilità.

ili

• Non installare l'elettrodomestico in luoghi umidi,

unti o polverosi, e non esporlo all'acqua e alla luc

olare diretta.

• Non installare l'elettrodomestico accanto a

aloriferi o materiali infiammabili.

• In caso di interruzione della corrente, non aprire il

operchio. Se il blackout non supera le 20 ore, g

enti congelati non dovrebbero subir

alim alterazioni. Se l'interruzione della corrente dura di p

iù, controllare il cibo e consumarlo immediatamente o ricongelarlo solo dopo averlo cotto.

• Se il coperchio del congelatore orizzontale non si

iapre facilmente subito dopo che è stato chiuso, non si tratta di un problema, in quanto t condizione dipende dalla differenza di pressione c

he si bilancerà entro pochi minuti consentendo nuovamente l'apertura del coperchio.

ale

• Collegare l'elettrodomestico all'alimentazione

elet

trica solo dopo aver tolto l'imballo e

rotezioni per il trasporto.

• Prima di accendere l'elettrodomestico, attendere

eno 4 ore per consentire all'olio d

alm

ompressore di assestarsi nel caso in cu

c l'elettrodomestico sia stato trasportato in posizione orizzontale.

• Utilizzare il congelatore solo per gli scopi previsti,

ossia la conservazione e il congelamento di alimenti.

• Non conservare medicinali o materiali di ricerca

nelle cantinette. Non conservare medicinali o materiali di ricerca che richiedano un controllo rigido della temperatura di conservazione, in quanto potrebbero deteriorarsi e provocare reazioni incontrollate e pericolose.

• Prima di qualunque intervento, scollegare il cavo di

alimentazione dalla presa elettrica.

• Quando il prodotto viene consegnato, accertarsi

che non sia danneggiato e che tutti i componenti e gli accessori siano in perfette condizioni.

• In caso di perdita nell'impianto di refrigerazione,

non toccare la presa di corrente ed evitare l'uso di fiamme libere. Aprire la finestra e arieggiare l'ambiente. Rivolgersi al centro assistenza per chiedere la riparazione.

• Non adoperare adattatori né cavi di prolunga.

• Non tirare o piegare eccessivamente il cavo di

alimentazione e non toccare la spina con le mani umide.

• Per scongiurare il rischio di incendi o scosse

elettriche, non danneggiare la spina e/o il cavo di alimentazione.

• Se il cavo di alimentazione dell’elettrodomestico

dovesse essere danneggiato, farlo sostituire dal produttore, dal suo servizio tecnico o da un tecnico qualificato, per evitare rischi.

• Non collocare o conservare materiali infiammabili

o estremamente volatili (ad es. etere, benzina, GPL, propano, bombolette per aerosol, adesivi, alcool puro), in quanto possono provocare esplosioni.

• Non adoperare né conservare spray infiammabili

(ad es. bombolette di vernice spray) accanto alle cantinette, in quanto potrebbero svilupparsi incendi o esplosioni.

• Non collocare oggetti e/o contenitori pieni d'acqua

sopra l'elettrodomestico.

• Si sconsiglia l'uso di prolunghe e prese multiple.

• Non smaltire l'elettrodomestico nel fuoco. Fare

attenzione a non danneggiare il circuito/i tubi di raffreddamento dell'elettrodomestico durante il trasporto e l'uso. In caso di danni, non esporre l'elettrodomestico al fuoco o a potenziali fonti di ignizione, e ventilare immediatamente l'ambiente in cui è installato.

• L'impianto di refrigerazione collocato nella parte

posteriore e nella parte interna delle cantinette contiene refrigerante, per cui occorre particolare attenzione a non danneggiare i tubi.

• Non adoperare apparecchiature elettriche

all'interno dei comparti dell'elettrodomestico destinati alla conservazione degli alimenti, a meno che non siano del tipo consigliato dal produttore.

• Non danneggiare il circuito di refrigerazione.

• Non usare oggetti meccanici o utensili diversi da

quelli consigliati dal produttore per accelerare lo sbrinamento.

• Non adoperare apparecchiature elettriche

all'interno dei comparti per la conservazione degli alimenti, a meno che non siano del tipo consigliato dal produttore.

• Tenere libere da ostruzioni le aperture di

ventilazione sull'involucro del frigorifero.

• Non toccare gli elementi di raffreddamento interni,

soprattutto con le mani bagnate, per evitare bruciature o lesioni.

• Non adoperare oggetti appuntiti o affilati (ad es.

coltelli o forchette) per rimuovere il ghiaccio.

• Non utilizzare asciugacapelli, stufe o apparecchi

simili per lo sbrinamento.

• Non adoperare coltelli o oggetti appuntiti per

rimuovere brina o ghiaccio. Il circuito del refrigerante potrebbe danneggiarsi ed eventuali fuoriuscite potrebbero provocare danni oculari o incendi.

• Non adoperare dispositivi meccanici o altre

apparecchiature per accelerare il processo di sbrinamento.

• Evitare nel modo più assoluto l'uso di fiamme

libere o apparecchiature elettriche (ad es. stufe, pulitrici a vapore, candele, lampade a olio e altri oggetti simili) per accelerare lo sbrinamento.

• Non lavare con acqua la zona del compressore, ma

opo la pulizia strofinarla con un panno asciutto

d per evitare la formazione di ruggine.

• Tenere pulita la presa di corrente, in quanto

l'eccesso di residui di polvere può causare incendi.

• Il prodotto è progettato e realizzato

esclusivamente per l'uso domestico.

• Qualora il prodotto venga installato o utilizzato il

ambienti commerciali o non residenziali,

aranzia potrebbe essere annullata.

• Il prodotto deve essere installato correttamente,

posizionato e utilizzato secondo le istruzion

iportate nel manuale d'uso fornito in dotazione.

• La garanzia vale solo per i prodotti nuovi e non è

asferibile se il prodotto viene rivenduto.

• L'azienda declina qualunque responsabilità in caso

di danni incidentali o consequenziali.

• La garanzia non limita in alcun modo i diritti

ell'utente previsti dalla legge.

• Le cantinette non possono essere riparate

all'utente. Tutti gli interventi devono esser

fettuati esclusivamente da personale qualificato.

• Se occorre smaltire un vecchio prodotto con un

lucchetto applicato allo sportello, accertarsi ch ven

ga lasciato in condizioni sicure per evitare

pericolo di intrappolamento di bambini.

• Questo elettrodomestico può essere utilizzato dai

bambini di almeno 8 anni, da persone con ridotte capacità fisiche, sensoriali o mentali e da persone inesperte solo sotto supervisione o se hanno appreso le modalità di utilizzo sicuro dell'elettrodomestico e sono consapevoli dei relativi rischi.

• Impedire ai bambini di giocare con

l'elettrodomestico. La pulizia e la manutenzione non devono essere effettuate dai bambini senza supervisione.

• Blocchi: se il frigorifero e/o il congelatore è

provvisto di bloccaporte, tenere lontani i bambini dall'elettrodomestico per evitare che rimangano intrappolati nel dispositivo di blocco. Prima di smaltire un vecchio frigorifero o congelatore, smontare i dispositivi di blocco per motivi di sicurezza.

• PER elettrodomestici a libera installazione:

questo frigorifero non è destinato all'uso come elettrodomestico da incasso

• LA sostituzione o la manutenzione delle lampade

a LED deve essere effettuata dal produttore, da un suo rappresentante dell'assistenza o da una persona con una qualifica simile. La classe di efficienza energetica della lampada è G.

• Non conservare in questo elettrodomestico sostanze

esplosive come le bombolette aerosol con un

propellente infiammabile.

• L'elettrodomestico deve essere scollegato dopo l'uso

e prima che l'utente esegua la manutenzione dell'elettrodomestico stesso.

• AVVERTENZA: Si prega di rottamare il frigorifero

secondo i locali perché utilizza gas di soffiaggio e refrigerante infiammabili.

• AVVERTENZA: Non posizionare prese portatili

multiple o alimentazioni di potenza portatili nella parte posteriore dell'elettrodomestico.

• PERICOLO: Rischio di intrappolamento di bambini.

Prima di buttare via il suo vecchio frigorifero o freezer:

- smontare gli sportelli

- Lasciare gli scaffali in posizione in modo che i bambini non si arrampichino facilmente all'interno.

• Il frigorifero deve essere scollegato dalla fonte di

alimentazione elettrica prima di provare l'installazione dell'accessorio.

+ 300 hidden pages
