Campomatic GH3BL User Manual

GH3BL / CH3EYL / GH3ERD

GH3EBL / GH3EWH

Gas Room Heater

INSTRUCTION MANUAL

:

Made in China

WWW.CAMPOMATIC.COM

User’ Manual

Dear Customer:
Thank you for purchasing gas room heater from us. We believe it is the best heating
system in similar types.
This instruction manual has been carefully prepared to ensure you will be able to
easily operate, learn more about it and fully realize all its inherent capabilities.
We invite your comments as well as any issues you may have regarding this manual
or our products. Once again, let us welcome you to be the growing family of our
company. We look forward to working with you in the future.
Any innovation or mini changes without further notice.

Tec hnic al D ata

Model No. GH3BL,GH3EBL,GH3EYL,GH3EWH,GH3ERD

Gas Heat Input 4.2kW

Power GH3EBL: 220V-240V/ 50Hz. 1320W

Gas Category I3B/P(30) I3+

Gas Type LPG

Gas Pressure (28~30) mbar (28~30/ 37) mbar

Destination

Countries

Pin Code 598 CM292

LU, NL, DK, FI, SE, CY, CZ, EE, LT, LV,

MT, SK, SI, BG, IS, NO, TR, HR, HU,

RO, IT

Butane at (28~30)mbar/ Propane

at 37mbar

BE, FR, IT, LU, LV, IE, GB, GR,

PT, ES, CY, CZ, LT, SK, CH, SI

Operation I ns truction

There are 3 control need to be paid attention.
The first is the valve on the cylinder, which will be used to turn O N and OFF the
gas supply.

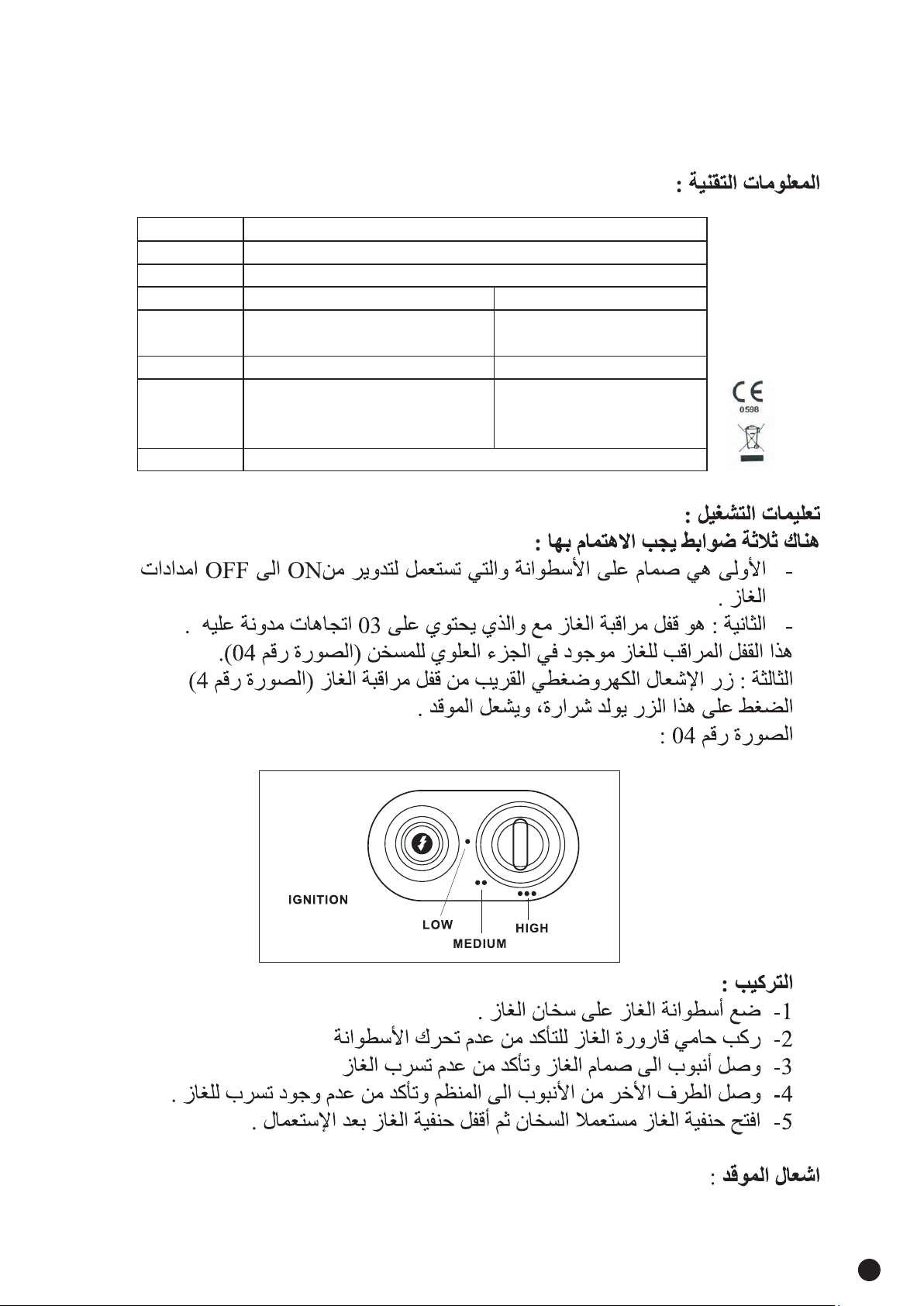

The second is the gas control knob with a dial which has 3 pos itions marked on it.
This control knob is located on the top end of the heater(fig 4).
The third is the piezoelectric ignition button next to the gas control knob(fig 4 ).
Pressing this button will generate a spark on the pilot burner thus igniting the gas
to the pilot burner.

2

1

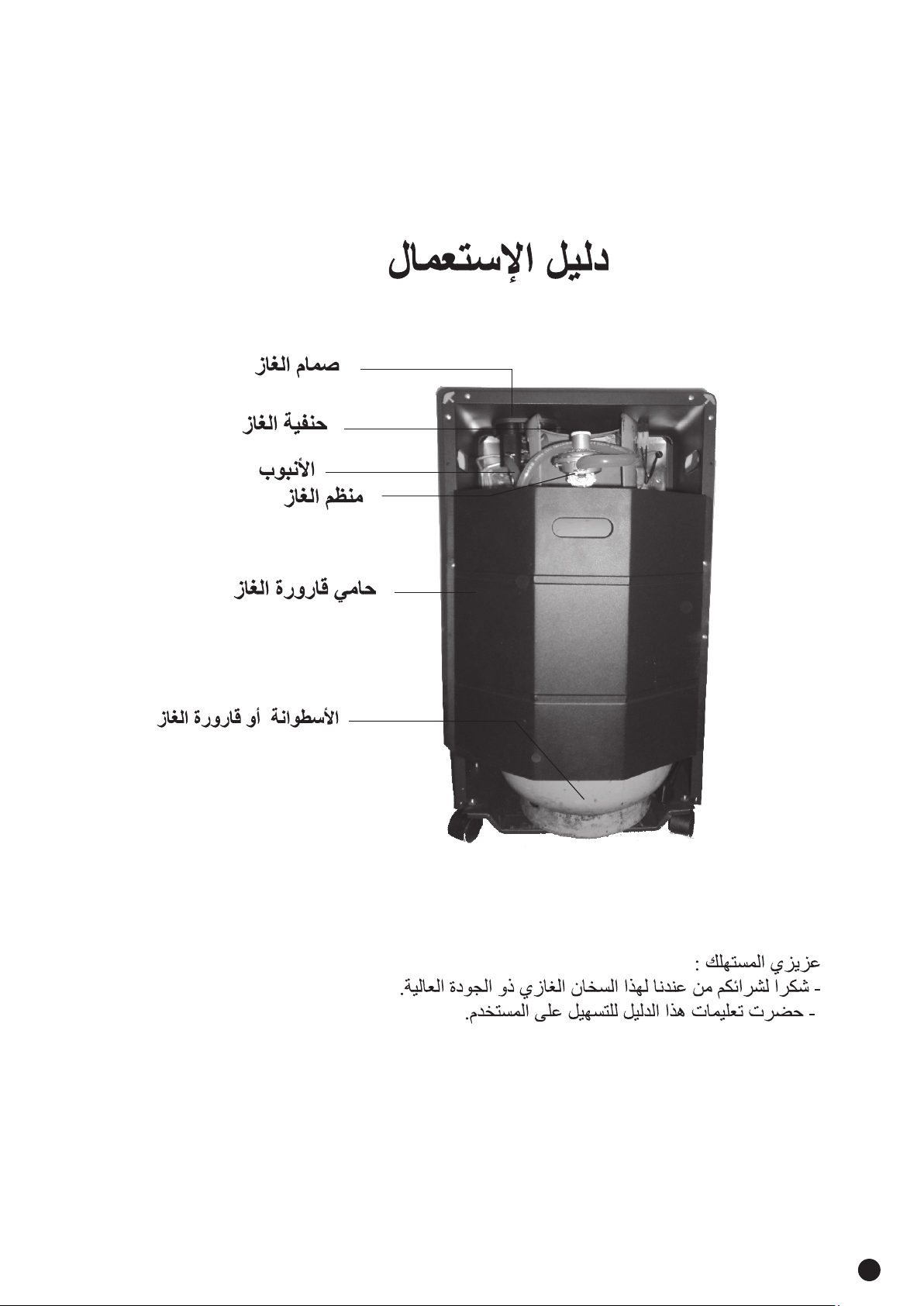

1 . Gas Valve

2.Gas Tap

3.Pipe

4.Gas Rcgulator

5.Protection Bafflc

6.Cylinder

Installation

1.Put the cylinder into the gas heater.

2.Install the protection baffle to make sure the cylinder cannot move.

3.Connect the pipe to the gas valve with cap (make sure no leakage)

4.Connect another side of the pipe to the regulator with cap (make sure no leakage)

5. Open the gas tap before using the heater and close the gas tap after using.

Lighting heater:

Before connecting the regulator to the gas cylinder. Check whether there is a
rubber washer on the regulator and the washer must be in good condition.
Connect the regulator to the gas cylinder by turning the hand wheel anticlockwise.
Open the gas cylinder by turning the gas cylinder valve anticlockwise. Turn the
gas control knob on the heater to setting (Fig 4).
Press the control knob down and hold in the pressed position push the piezoelectric
ignition(Fig 4) button 2 or 3 times. Each time you strike this piezoelectric ignition
you will hear a clicking sound as well as see a spark on the pilot burner.
Once the pilot has lit, continue holding the gas control knob in the pressed
position for a further 10 to 15 seconds thus activating the flame failure safety device.

3

The pilot and center burner should remain alight.
You may now adjust the heater setting to Low/Med/High as required.

Turning off the heater:

To turn off the heater, turn the control knob to position I and close the gas
cylinder valve by turning the knob on the cylinder clockwise. Ensure that the
pilot flame the center burner are extinguished.

Testing gas leaks:

When you suspect that the heater is leaking, turn off the gas supply and have
the unit inspected by a qualified technician. Do not attempt to locate the source
of leak with a naked flame. Locate it by sound, smell or by applying soapy
water. Any bubbles forming will indicate the whereabouts of a leak.

Safety tips:

Do not move the heater while it is in use.
Always face the heater towards the center of the room.
Use it only in a well-ventilated room. Ventilated is vital for the efficient
performance of this heater and for safety of the occupants of the room in which
it is being used. Allow plenty of fresh air in, never seal up the doorways and
windows.
Prevent young children and elderly people from touching very hot surface.
The normal dress guard only protects against accidental clothing contact.
Do not place clothes or other material on the heater. Keep all flammable materials
at least one meter away from the heater.
Turn off the gas valve and gas supply after its application.
Never use or store solvents and pressure pack can sans near a gas heater-ven if the
heater is turned off.
Never dispose of rubbish such as cigarette butts in a gas fire-this can affect
combustion and produce dangerous pollutants.
Always operate the gas control and cylinder valve from the side or rear of the
heater. Standing in front of the heater exposes you to the risk of burns.

Change LPG cylinder in ample ventilated area and from any ignition source (candle,
cigarettes and so on):
Recommend to use 50 cm hose for connection, which should be certificated according
to applicable EN-standard.
Regulator should be certificated according to EN 12864 (from rate: max. 1.5kg/h)

4

Warning:

Read the instructions in the manual carefully, it has important information both for

operation use and for your safety.

Do not use faulty appliances.
Maintenance and repairs must be carried out by a qualified person only.
Your heater should be checked manually by a qualified person for safe operation

and to detect any fault.

Keep these instruction for future reference. If necessary, a new copy may be

obtained from your dealer.

Turn off the gas container valve after use.
The appliance is suitable for 14.2kg/5.5kg LPG container, when change gas

container move the appliance to a flame-free atmosphere.

Do not move the appliance when it operated, avoid to twist the gas hose.
Do not place the heater near walls, curtains or furniture while in operation. Always

face the heater towards the center of the room when clearance to combustibles to
the rear and sides of the heater si 1000mm.

The dress guard on this appliance conforms to standard requirements. It does not

give full protection for young children or the infirm. The guard is to prevent risk of
inquiry and no part of it should be removed or altered.

This appliance should be leakage tested before initial use and whenever the

cylinder has been reconnected after filling. Never use a naked flame to test for
leakage.

This is a non-flue heater. Ensure the room is ventilated while the heater is in

operation. Do not operate in a bedroom, bathroom, caravan, boat or any room
less than 84cum in volume. The minimum ventilation surface should be
10500mm .

2

The guard on this appliance is to prevent the risk of fire or injury from burns and

no part of it should be permanently removed. It does not give full protection for
young children or the infirm.

This appliance requires a hose and regulator, check with your gas supplier.
Do not use in leisure vehicles such as caravans and auto caravans changing the

cylinder.

Turn off the regulator and disconnect the regulator from cylinder, allow the heater

to control fully before removing and replace the cylinder. Do not attempt to
remove the regulator while the heater is still working.

Maintenance:

Maintenance and cleaning must be carried out with the gas supply turned off and

the heater gets cold. Do not attempt to clean the heater while it is in use.

Your heater should be checked annually by a qualified person for safe operation

and to detect any faults.

If any fault are detected in use, stop using the heater and contact you dealer for

advice.

5

Periodically clean the exterior and rear cylinder, storage area of your heater

to remove dust and lint built-up, which may affect operation of the heater.

Light vacuuming with a soft brush will remove any dust built-up on the

surfaces of the ceramic elements. Do not scrape of knock these elements as
they may become very fragile with use.

Do not use abrasive products to clean the heater.
Watch the pilot flame while it is in operation. it should burn steadily. If it

flickers or is yellow tipped, the heater should be checked for correct
operation.

If any parts need replacement, they must be replaced only with genuine

original parts supplied by the manufacturer. The use of incorrect or substitute
parts may be dangerous and will void any warranty.

Operation the heater according to following procedures when electric power is use.

The electric heating system is designed with technology of infrared radiation.
Even if it is used in an unsealed and large size room, heating efficiency will be
perfect.

1) Operation

ØMake sure plug is normally earthed. Put plug in the socket

ØPress switch to start the top quartz tube.
ØPress switch to start the other two quartz tubes.
ØPress switch and to start all quartz tubes. Heat load reaches to peak.
ØTurn all switch off after use. Remove the plug from the socket.

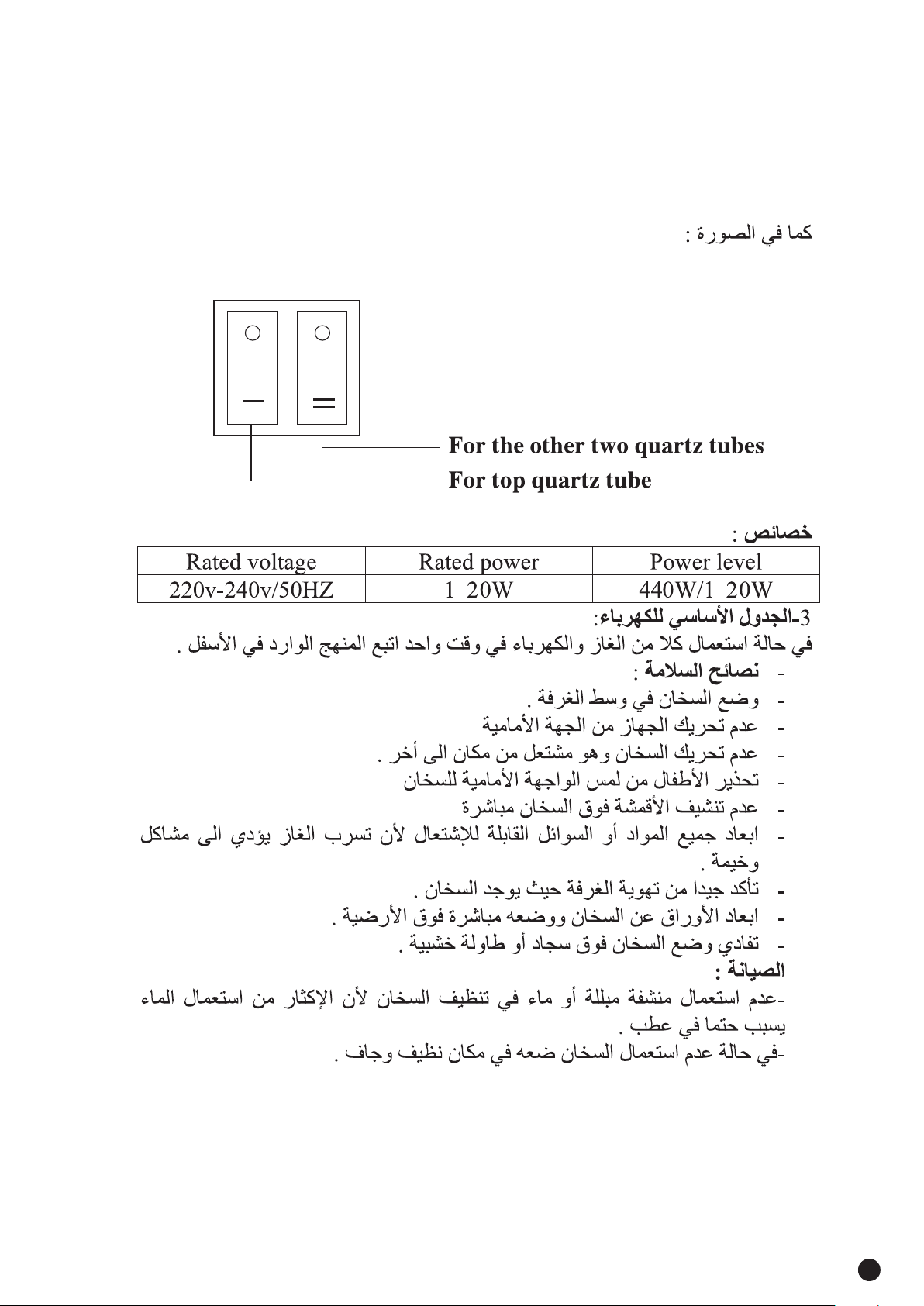

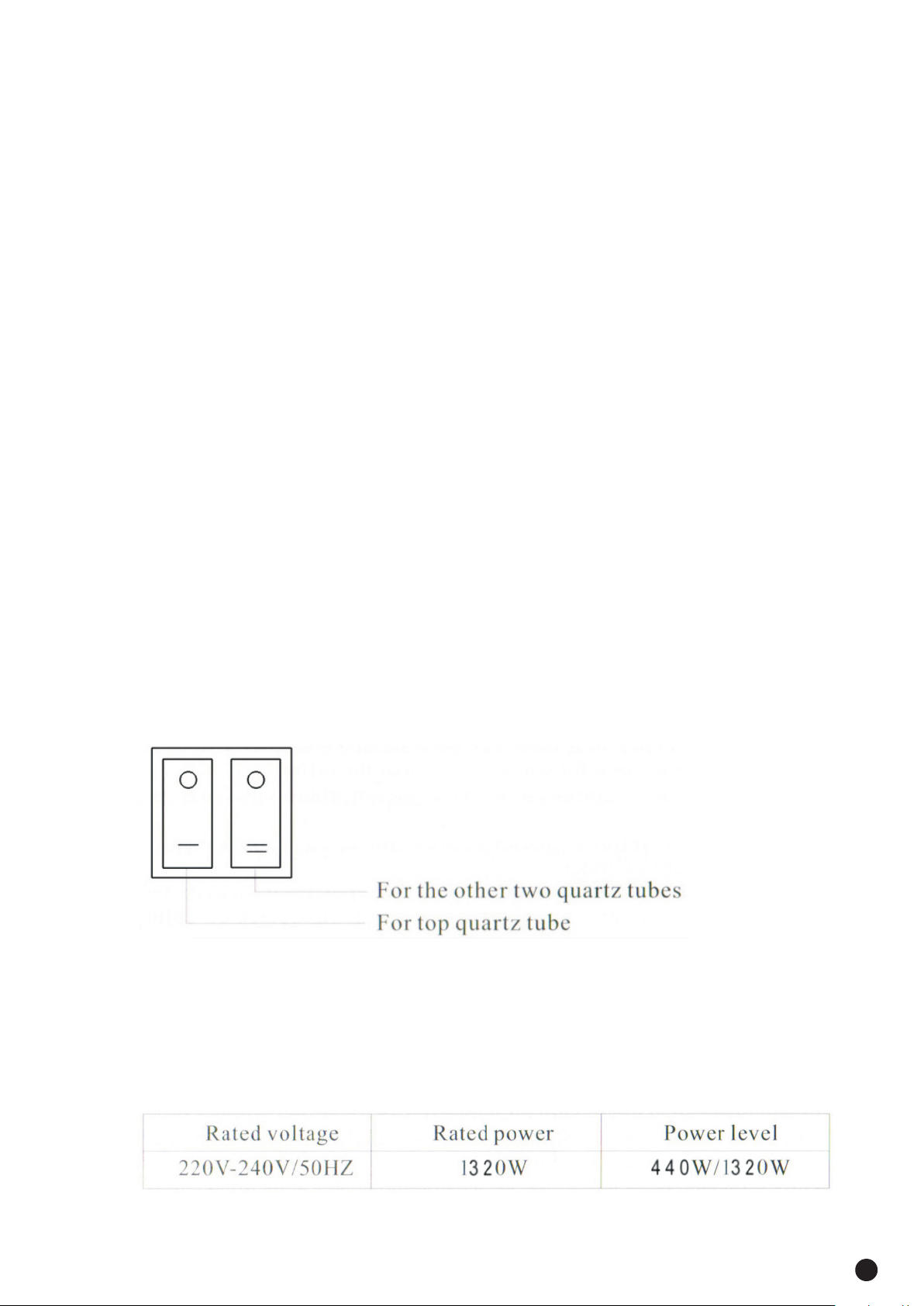

As shown in below Figure

Note:
To prevent too high temperature near the air-outlet grilles, it is recommended
that in the use of gas and the electric heating elements in the heater should not
be used at the same time.

2) Specification (TBK-GE01)

6

3) Safety tips

ØAlways leave the heater look upon the central room
ØDo not move the heater in front of it. Do not move the burning heater from one

room to another.

ØPrevent people, especially young children and elderly people from touching

very hot surfaces.

ØNever dry clothes at the top of metal guard grill
ØKeep all flammable materials at least one meter away from the heater
ØNever use an unfiled gas heater in a bathroom, bedroom or caravan. Toxic

gas may cause serious health problems in these situation.

ØNever use or store solvents and pressure pack cans near a gas heater even

if the heater is turned off.

ØNever dispose of rubbish such as cigarette butts in a gas fire, this can affect

combustion and produce dangerous pollutants.

ØMake sure rooms containing gas heater are well ventilated.
ØKeep areas around the heater free of papers, trash and any other

combustible items.

ØPlace the heater on a level, hard, nonflammable surface. Do not place on

rugs, carpets, or near socket, bedding, drapes, or on tables or countertops.

ØTurn the heater off if you heave the area, and never leave a heater on while

sleeping or if you have leave home.

ØAlways use specified or standard wire, plug and socket, always protect them

from moisture or water.

ØAlways turn off gas power and remove plug after use.

4) Maintenance

Do not use wet rag or sprinkling water on the heater while cleaning. This may

cause serious problem to the heater. Under the circumstance of normal
usage, contact our agents to conduct regular maintenance. Leave the heater
at a clean and dry area when it is not used.

Cau t i o n :

ØThis appliance is not intended for use by persons (including children) with

reduce physical, sensory or mental capabilities, or lack of experience and
acknowledge, unless they have been given supervision or instruction
concerning use of the appliance by person responsible for their safety.

ØChildren should be supervised to ensure that they do not play with the

appliance.

ØIf the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

ØDo not use this heater with a programmer, timer, separate remote-control

system or any other device that switches the heater on automatically, since a
fire risk exists if the heater is covered or positioned incorrectly.

7

Model No. GH3BL,GH3EBL,GH3EYL,GH3EWH,GH3ERD

Gas Heat Input 4.2kW

Power GH3EBL: 220V-240V/ 50Hz. 1320W

Gas Category I3B/P(30) I3+

Gas Type LPG

Gas Pressure (28~30) mbar (28~30/ 37) mbar

Destination

Countries

Pin Code 598 CM292

LU, NL, DK, FI, SE, CY, CZ, EE, LT, LV,

MT, SK, SI, BG, IS, NO, TR, HR, HU,

RO, IT

Butane at (28~30)mbar/ Propane

at 37mbar

BE, FR, IT, LU, LV, IE, GB, GR,

PT, ES, CY, CZ, LT, SK, CH, SI

8

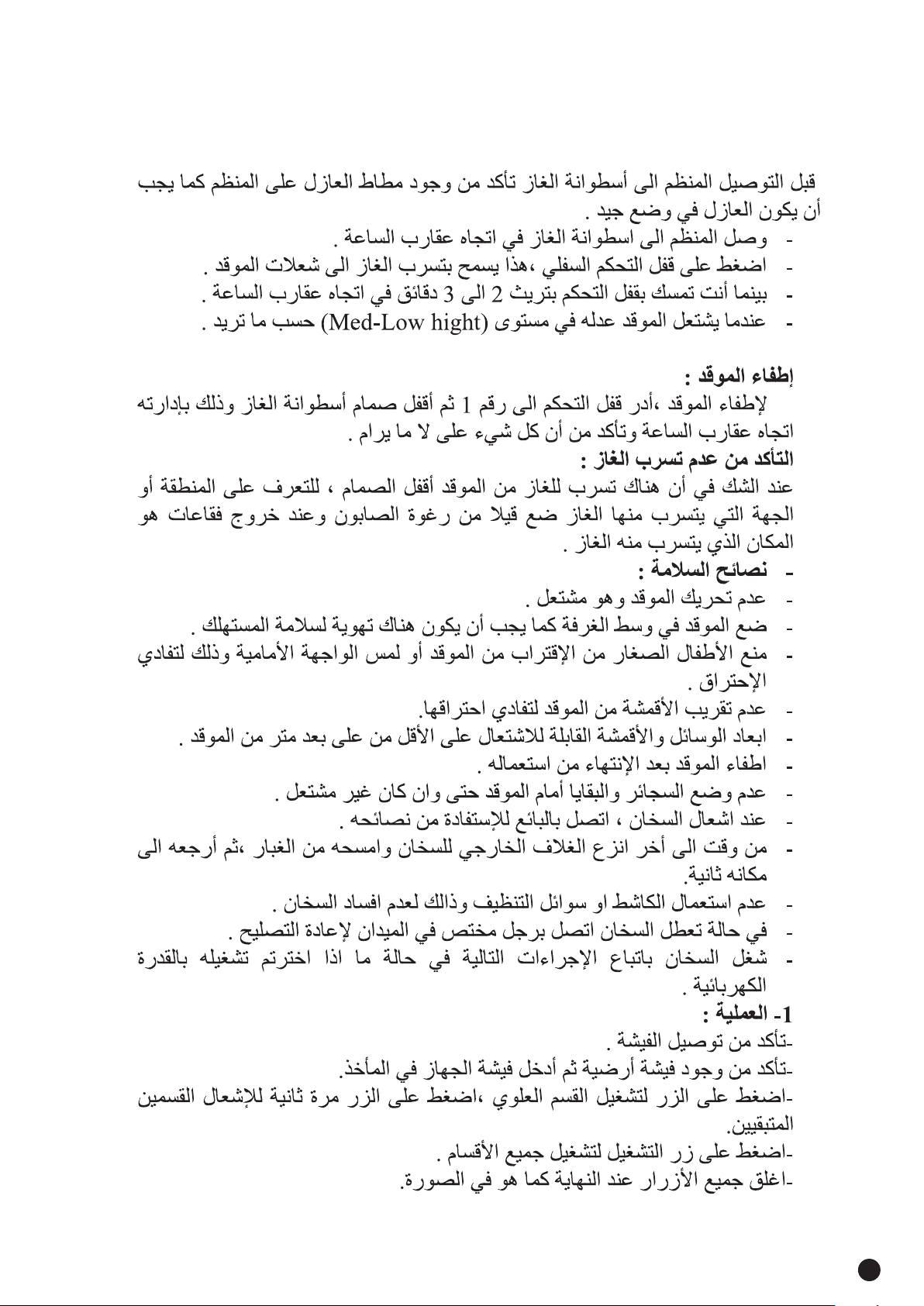

9

(GH3EBL)

3 3

10

11

GH3BL / CH3EYL / GH3ERD

GH3EBL / GH3EWH
