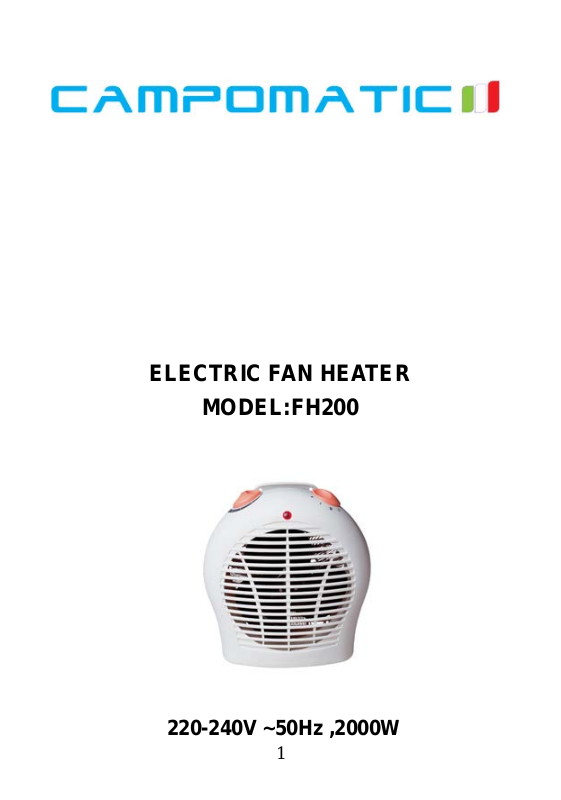

Page 1
1
ELECTRIC FAN HEATER
MODEL:FH200
220-240V ~50Hz ,2000W
Page 2
2
2
1
3
Read all the instruction carefully before you use
6
5
4
1 Switch knob 2 Front cover 3 Back cover 4 Indicator light 5 Thermostat knob 6 Handle
Preparation before oper ating
1. Check if the electrical voltage of the main supply and the load
of the socket match the rated voltage and power marked on
the rating label of the appliance.
2. Check if the socket and the plug are undamaged, and put the
plug well in the socket.
3. Put the appliance on a stable and flat surface for no risk of
falling down.
4. Be sure that there is enough space for the fan heater while
operating, at least 50 cm around the appliance, and right
before the air outlet, the distance should be at least 120 cm.
Page 3
3
Safety Precautions
1. Don’t cover the fan heater at any time when operating.
2. Don’t hung it on the wall.
3. Don’t use it on the carpet with long fluff.
4. Don’t use the heater i n th e i m medi ate surrounding of a bath, a
shower or a swimming pool.
5. Don’t insert sticks or any other objects to either the air inlet or
the outlet of the applianc e.
6. Don’t put the appliance im mediately below a electrical socket.
7. Don’t put the appliance near a fire.
8. Keep children away from the heater.
9. Keep flammable and explosive objects away from the heater.
10. In case of malfunction or abnormal operation, don’t attempt to
open or repair the appliance at home, send the heater to
appointed service agent for inspection and rep a ir.
11. If the power cord is damaged, it must be replaced by the
appointed service agent or a similarly qualified person.
Operation instructions
1. Turn the thermostat switch to the minimal value, at the same
time turn the heat select switch to the “O” position (see
picture).
2. Plug in the appliance, and turn the thermostat switch to the
maximum position. Then turn the heat select switch to choose
air or warm air and the tem perature of warm air as below.
While working the indicator light will be on.
2.1 Turn the heat select switch to “
cool air.
2.2 Turn the heat select switch to “I” position, the heater blows
warm air, working at 1000W.
2.3 Turn the heat select switch to “II” position, the heater blows
warm air, working at 2000W.
“ position, the heater blows
Page 4
4
2.4 Turn the heat select switch to “O” position, the heater stops
working, the indicator light will be off.
3. Adjust the thermostat switch to suitable position for desired
temperature setting.
3.1 Check if the thermostat switch is on the maximum position.
3.2 When you feel the room temperature comfortable, turn the
thermostat switch anti-clockwise slowly to the minimal
position until the appliance stops working.
3.3 Then the thermostat switch will keep the room temperature at
the desired temperature automatically.
3.4 You can also turn the thermostat switch anti-clockwise to the
minimum position or turn the thermostat switch clockwi s e to
maximum position to make the temperature lower or higher.
Security System
1. To avoid risk to human being or damage to internal
components, the fan heater has a security system which will
automatically switch off the appliance if the heat reaches the
safety limit. If overheating occurs:
1.1 Turn the heat select switch to “O” position, turn the thermostat
switch to the minimal position and remove the plug from the
socket.
1.2 Check if the air flows smoothly before the outlet and inlet, and
if the appliance is put in right position. If so, get it in order
before restart the appliance.
1.3 Let the fan heater cool down for 8 to 10 minutes before you
start it again.
1.4 Plug in the appliance and switch it on. If the appliance can’t
operate normally, remove the plug immediately from the
socket and have the fan heater serviced by an appointed
service only.
Page 5
5
Maintenance and Cleaning
1. Before you turn off the appliance, turn the heat sele ct switch
to the “
the internal temperature of appliance, then turn the heat
select switch to “O” position.
2. Clean the air inlet and air outlet of the appliance regularly (at
least twice a year normally).
3. Before you clean the appliance, turn off the heater first, then
remove the plug from the socket, and wait until the appliance
cools down.
4. Use a damp cloth to clean the surface of appliance, avoid
water going inside t he ap pli an ce, dr y th e a ppl iance before use
or store.
“ position. After operating for 3 to 5 minutes to lower
