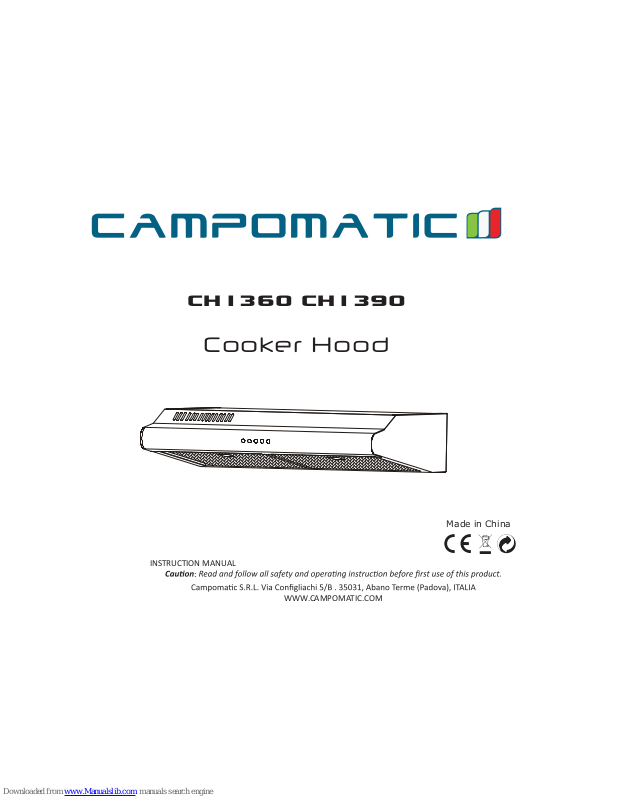

Campomatic CH1390 Instruction Manual

Cooker Hood

CH1360 CH1390

INSTRUCTION MANUAL

:

WWW.CAMPOMATIC.COM

Made in China

Infor mation and advice

Specifi cations: 220- 240V 50Hz 320W

~

In certain circumstances electrical appliance may be a danger

hazard.
A) There shall be adequate ventilation of the room when the

cooker hood is used at the same time as appliances

burning gas or other fuels.

B)Do not check the status of the filters while the cooker hood

is operating.

C)Do not touch the light bulb within half an hour after appliance

use.

D)Do not flambe under the cooker hood.
E)Avoid opening gasometer when there is no pan on the stove ,

as it is damaging for the filters and a fire hazard

F)Constantly check food frying to avoid that the overheated

oil may become a fire hazard.

G) Disconnect the electrical plug prior to any maintenance.

) H If the supply cord is damaged, it must be replaced by the

manufacturer,its service agent or similarly qualified
persons in order to avoid a hazard.

Information

Know your cooker hood

Please read these instructions before using your cooker hood

1.Air duct assembly 2.Main body

3.Filter assembly

Also included:

*Damper flap
*User instructions

Congratulations on the
purchase of our Cooker hood,
which is designed to include
many superior features that
permit you the fullest expression
of your living.
Before installing and/or using
the cooker hood carefully read
all the instructions.

Sel ection of Ven ting Direct ion

Fully convertible for vertical, horizontal or ductless operation.

Information

1

The air must not
be discharged into
a flue that is used
for exhausting
fumes from
appliances
burning gas or
other fuels.
Regulations
concerning the
discharge of air
have to be
fulfilled.

V

e

t

r i

c

al

is h

a g

d

c r e

Duc

tle s

s

Hori zo ntal
disc ha rge

A

B

C

Information

We recommend that after
installation the bottom of
the hood should be no less
than 650mm and no more
than 750mm above the
stove's heating elements
and burners.

We recommend that after
installation the bottom of
the hood should be no less
than 650mm and no more
than 750mm above the
stove's heating elements
and burners.

2

3

B

A

Vertical discharge

Vertical is the most common.
If you select this venting direction, you only need
to open the ducting knockout A.Remove the
ducting knockout by inserting a Flat head
screwdriver under one end and prying it up. Then
snip or break the attanchment points by tin snips.
You must make sure that the ducting knockout B is
not removed.

B

A

Horizontal discharge

Assuming that the range hood is located against an
outside wall, horizontal discharge is preferred
provided that there are no obstructions such as, wall
joists, or where openings are difficult to make.
If you select this venting direction, you only need to
open the ducting knockout B.
Same with removing the ducting knockout A, you must
make sure that the ducting knockout A is not removed.

Sufficient air
is needed for
proper
combustion
and
exhausting
of gases
through the
flue
(chimney) of
fuel burning
equipment to
prevent back
drafting.

Information

Ductless
fans must
always be
vented to
the
outdoors.

6 7

4

C

Du

ctl e

s

s

Ductless

In a ductless installation the air is re-circulated
back into the kitchen. If you do not anticipate
heavy cooking this method will be preferred.
It will not be necessary to remove any duct
knockouts, you only need chose knockout C. You
should use filters to help remove cooking odors.
These filter must be washed and replaced at
regular intervals.

5

After selecting venting direction and completing
installation, you can turn the knob to achieve
ductless or duct.Open the filter, then you can see
the knob.

The knob arrowhead as per FIG. 7, then it is duct.
The knob arrowhead as per FIG. 6, then it is
ductless.

Kno b

Installation

Ensure th e power has be en turned off be fore begin ning this install ation.

Information

To install this hood you will require two
assistants.
You will need the following tools and
material to complete this installation:

*Drill*Flat head screwdriver*Phillips

head screwdriver or cordless drill and
Phillips head bit* Tin snips*3/8″nut driver
or ratchet with extension*measuring
tape*hand saw or jig saw*electrical
tape*duct tape

1. Remove the range hood from the carton.

2. Lay the hood upside down on a table
covered with cardboard or paper to prevent
scratching of the table or hood.

3. Hood installation should be within 0.8m
radius range.

4. We recommend that after installation the
bottom of the hood should be no less than
650mm and no more than 750mm above
the stove's heating elements and burners.

Installation
work and
electrical
wiring must
be done by
qualified
person(s) in
accordance
with all
applicable
codes and
standards,
including fire­rated
construction.

8

≥650m m

When
cutting or
drilling
into wall
or ceiling,
do not
damage
electrical
wiring or
other
hidden
utilities.

Information

9

1. According to the figure, make sure
the position of hood in the cabinet.
The wood strips should be line up with
the 4 keyholes slots on the top of the
range hood. On the cabinet, install 4
screws (supplied) according to the
relative position of 4 key holes on the
bottom of hood. The extent of
screwing should be convenience to
the next installation.

2. Hang the hood and let it's 4
key holes aim at screws, the 4
screws should be in the narrow
parts of key holes. Screws
should be fasten firmly, make
sure that the installation
between the hood and cabinet is
enough fasten.

3. Install screws in the security
holes, in case of front and back
moving of hood, so that the using is
safer.

Secu ri ty
hole

Key ho le

Information

The cooker hood
must not be
installed and
connected to
flues where other
appliances are
installed and
which run off
other energy
supplied
different to
electricity (water
heaters boiler
cookers
(range/agas)
etc.).

10

If the installation surface in cabinet don't adapt to install the cooker hood,
then as per FIG. 5, fix the position of cooker hood on the wall. On the wall,
install 2 screws (supplied) according to the relative position of 2 key holes
on the back of hood. The extent of screwing should be convenience to the
next installation. Also install screws in the security holes, in case of front
and back moving of hood, so that the using is safer.

Secu ri ty
hole

12

11

13

Information

Hood Using Method

Turn the hood ON when cooking at high heat or when cooking flaming foods.

1. Adjust the knob to be right position.

2. Insert the power plug firmly.

Clean
ventila ting
fans
frequen tly.
Grease
should no t
be allowe d
to
accumul ate
on fan or
filter.

Replacing Bulb: Removing the bulb that need
to be replaced, then reinstall the new bulb. The
power of bulb must not be more than 40W.

E14 4 0W x 2max

Press the the switch of light to be on, the bulbs
light on. Otherwise the bulbs don't work. When
press the push button “1”or “ ”: on, the motor
runs at low speed. When press the push button
“2” or “ ” on, the motor runs at middle speed.
When press the push button “3” or “ ” on, the
motor runs at high speed. When press the push
button “0” or “ ” on, the motor stops running.

0

1

2

3

Mode l 1:

Mode l 2:

Cleaning Instructions

Disconnect range hood from power supply before cleaning or servicing.

Information

When
cleaning,
water must
not inter
into motor,
control
switch etc.
electrical
parts.

1. Cleaning the surface of hood frequently. Use mild soap or
detergent to clean the hood.

2. Do not use harsh alkalis or abrasives.

3. Avoid the use of scouring powers or dishwasher

compounds.

4. Grease filter may be washed using mild soap or detergent.

(heavy grease build-up may not be cleaned easily and the
filter may require replacement)

5. Charcoal filters cannot be cleaned and must be replaced
regularly.

Information

There is a
fire risk if
cleaning is
not carried
out in
accordance
with the
instructions.

14

·It is recom mendable to cle a n t he metallic fil ter every three
mon ths by c arrying out the fo l lowing inst ructions:

- Re m ov e the m e ta l l i c filter f ro m the c o o ke r hood a nd wash i t
in a soluti o n of w a t er and n e u tr a l liqui d deter g e nt , leavin g to
soak

- Ri n se thorou g h l y with w a r m water a n d leav e to d r y.

- Th e meta l l i c filter m ay also b e wash e d in t h e dish w a sh e r.

The m e ta l l i c filter m ay alter i n color a f t er severa l washes .
This i s not ca u s e for c us t o me r compl a i n t nor re p l ac e m en t of
metal l i c filt e r.

The manufacturer shall decline all responsibility if the foregoing

recommendations and instruction regarding installation, maintenance and use are

not observed and respected when using the cooker hood.

Corr ect Disposal of this product

This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
