CX-1000/74
MICROMINDER
FEATURES
CX-1000/74
• ULTRA COMPACT DESIGN
• ADJUSTABLE DELAY FROM 1-30
SECONDS
• 12/24V AC/DC
• COLOR CODED LEADS
• MOUNTED IN CONVENIENT
PLASTIC CASE
• SPDT CONTACTS RATED AT
3 AMPS @ 24V DC
DESCRIPTION
Camden Door Controls CX-1000/74 MicroMinder is a flexible easy-to-operate, delay
on release timer which operates on 12-24V AC/DC. The delay is adjustable from 1
to 30 seconds, and is accessed through a hole in the cover. The Form C relay output
is rated at 3 amps @ 24V DC. The input may be a dry contact such as a wall switch.
The compact enclosure protects the relay should it be placed inside a metal box,
operator housing, or in the ceiling or wall cavity. The circuit board may be
removed from the enclosure if space is at a premium.
APPLICATION
The MicroMinder is ideal for automatic door operators which do not have built in
time delays.
It is also suitable for (de) energizing an electric strike or electromagnet for an
adjustable time period, or any other application requiring a quality dependable timer.
5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)
Tel: (905) 366-3377 • Fax: (905) 366-3378 • E-mail: info@camdencontrols.com • www.camdencontrols.com
RESTROOM CONTROL KITS ANNUNCIATORS TRANSFORMERS POWER SUPPLIES RELAYS & TIMERS DOOR ALARMS MAGNETIC LOCKS ELECTRIC STRIKES
MICROMINDER

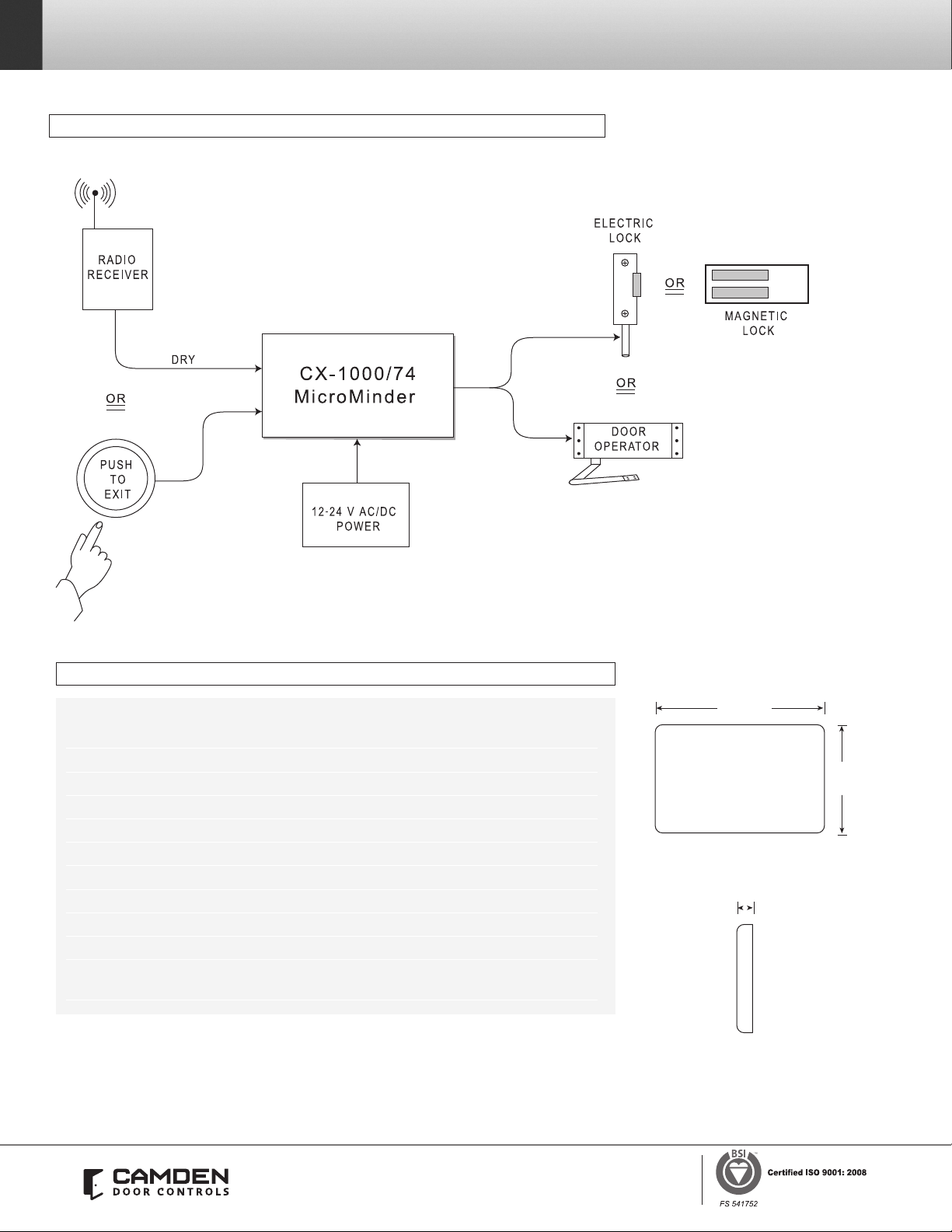

TYPICAL APPLICATION
SPECIFICATIONS
OPERATING
VOLTAGE: 12/24V AC/DC
CURRENT DRAW: 20 MA IDLE, 33 MA OPERATING
RESPONSE TIME: .03 SECONDS
INPUT: N/O DRY CONTACT
RELAY OUTPUT: FORM ’C’ (SPDT)
CONTACT RATING: 3 AMPS @ 24V DC
ELECTRICAL LIFE: 100,000 @ RATED CAPACITY
TIME DELAY: 1 - 30 SECONDS
MOUNTING: DOUBLE SIDED FOAM TAPE
ENCLOSURE: BLACK STYRENE PLASTIC
DIMENSION: 2 1/4”H x 1 1/4” W x 3/4” D
(57mm x 32mm x 19mm)
2¼”
(57mm)
3/4”
(19mm)
SIDE VIEW
FRONT VIEW
1¼”
(31mm)
