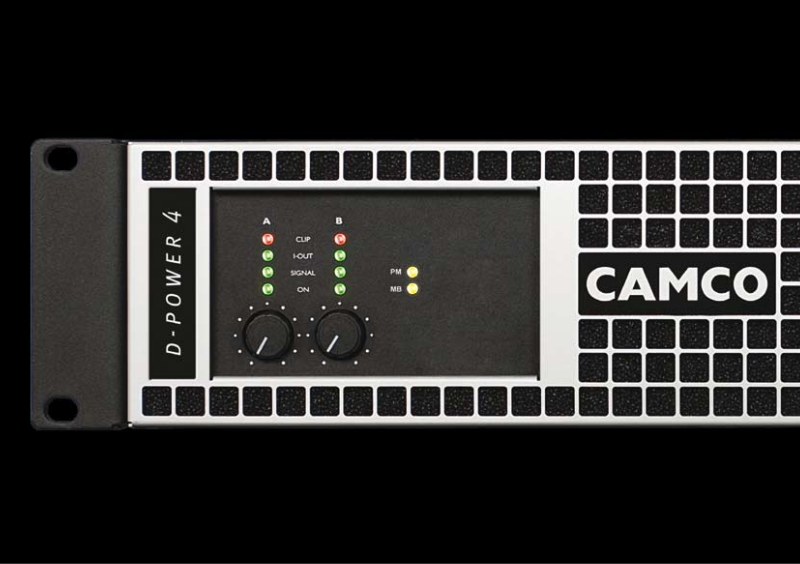

Camco D-Power 4 User Manual
D-POWER SERIES USER MANUAL
USER MANUAL
D - P O W E R S E R I ES
P. 1
D - P O W E R
S E R I E S
INFORMATION FOR USE FOR MODELS
D-POWER 2, D-POWER 3 and D-POWER 4
DUM_GB_2010-R2_09-2010
© Copyright 2010 by CAMCO Produktions- und Vertriebs-GmbH
für Beschallungs- und Beleuchtungsanlagen
Fischpicke 5, D-57482 Wenden, Germany
Telephone +49 (0) 2762 408-0
D - P O W E R
S E R I E S
IMPORTANT SAFETY INSTRUCTIONS
USER MANUAL
D - P O W E R S E R I ES
P. 2
D - P O W E R
S E R I E S
IMPORTANT SAFETY INSTRUCTIONS
1) Read the information for use (user manual).
2) Please keep this user manual in a safe place during the lifetime of the amplifier. The user manual forms an integral part of the amplifier. Reselling of the
amplifier is only possible if the user manual is available. Any changes made to
the amplifier have to be documented in writing and passed on to the buyer in
the event of resale.
3) Heed all warnings.
4) Follow all instructions.
5) Do not expose this device to rain or moisture. Do not use this amplifier near
water (for example, swimming pools and fountains). Do not place any objects
containing liquids, such as bottles or glasses, on the top of the unit. Do not splash
liquids on the unit. IP-20 equipment. No Protection against splashing water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the user
manual.
8) Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatuses that produce heat.
9) Protect the power cord from being walked on, pinched or damaged in any
other way. Pay particular attention to plugs and the point where they exit from
the amplifier.
10)
The amplifier may only be used in accordance with the information provided
in the user manual. Before and during the usage of the amplifier please ensure
that all recommendations, especially the safety recommendations as detailed in
the user manual, are adhered to.
The D-POWER Amplifier is designed for the amplification of pulsed audio signals
and the amplifier should only be connected to speakers with an average impedance as indicated.
11) Do not place this amplifier on an unstable cart, stand,
tripod, bracket or table. The device may fall, causing
serious injury and serious damage to the device itself.
12) The amplifier can only be disconnected from the power supply by removing
the plug which must be freely accessible at all times. Unplug this amplifier
during lightning storms or when unused for long periods of time.
13)
Refer all servicing to qualified service personnel.
Servicing is required when
the power-supply cord or plug has been damaged,
liquid has been spilled or objects have fallen into the amplifier,
the amplifier has been exposed to rain or moisture,
the amplifier has been dropped or suffered damage in any other way,
the amplifier exhibits a distinct change from its normal function or
performance.
CAUTION – RISK OF ELECTRIC SHOCK – DO NOT OPEN.
WARNING – TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
AMPLIFIER TO RAIN OR MOISTURE.
CAUTION – HIGH VOLTAGE HAZARDS
EXIST WITHIN THIS PRODUCT.
REFER ALL SERVICING TO
AUTHORISED PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH ARROW HEAD SYMBOL ALERTS THE
USER TO DANGEROUSLY HIGH VOLTAGE AT THE OUTPUT CONNECTORS
THAT COULD POTENTIALLY BE LIFE THREATENING.
THE LIGHTNING FLASH WITH ARROW HEAD SYMBOL IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS
VOLTAGE WITHIN THE PRODUCT’S ENCLOSURE.
THE EXCLAMATION MARK IS INTENDED TO ALERT THE USER
TO IMPORTANT INSTRUCTIONS ALSO FOR MAINTENANCE IN THE
LITERATURE ACCOMPANYING THE AMPLIFIER.
THE AMPLIFIER MAY ONLY BE CONNECTED
TO A SOCKET WITH A PROTECTIVE EARTH CONDUCTOR.
EXPLANATION OF SYMBOLS / SAFETY
USER MANUAL
D - P O W E R S E R I ES
P. 3
D - P O W E R
S E R I E S
1. Read the information for use (user manual)
When shipping the D-POWER amplifier always use the original shipping carton
and packing materials. For maximum protection repack the unit as it was originally packed at the factory.
2. Environments
Use this amplifier only in E1, E2, E3 or E4 environments according to EN55103-2
“Electromagnetic compatibility – Product family standard for audio, video and
audio-visual and entertainment lighting control apparatus for professional use
– Part 2: Immunity”
3. Ventilation
Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the amplifier and to protect it from overheating. These openings must not be blocked or covered. This amplifier should not be installed
unless proper ventilation is provided or manufacturer’s instructions have been
adhered to.
4. Water and Moisture
Do not expose this device to rain or moisture. Do not use this amplifier near
water (for example, swimming pools and fountains). Do not place any objects
containing liquids, such as bottles or glasses, on the top of the unit. Do not splash
liquids on the unit. IP-20 equipment. No Protection against splashing water.
5. Cleaning
Unplug this amplifier from the wall outlet before cleaning. Do not use liquid
or aerosol cleaners.
6. Power-cord Protection
Power-supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon them or against them, paying particular
attention to cords and plugs and the point where they exit from the amplifier.
SAFETY
USER MANUAL
D - P O W E R S E R I ES
P. 4
D - P O W E R
S E R I E S
7. Lightning
For added protection of this amplifier during lightning storms or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the amplifier due to lightning and power-line
surges. Disconnection from the mains power supply can only be achieved by
removing the plug from the mains socket and by external disconnecting all
poles from the mains.
8. Interference of external objects and/or liquids with the appliance
Never push objects of any kind into this amplifier through openings as they may
touch dangerous voltage points or short out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the amplifier.
9. Accessories
Do not place this amplifier on an unstable cart, stand, tripod, bracket or table.
The amplifier may fall, causing serious injury and serious damage to the product.
Any mounting of the amplifier should follow the manufacturers instructions and
should use a mounting accessory recommended by the manufacturer.
10. Connecting
When you connect the amplifier to other equipment turn off the power and
unplug all of the equipment from the supply source. Failure to do so may cause
an electric shock and serious personal injury. Read the user manual of the other
equipment carefully and follow the instructions when making the connections.
11. Sound Volume
Reduce the volume to minimum before you turn on the amplifier to prevent
sudden high levels of noise which may cause hearing or speaker damage.
(See also section 4.2.1 Volume control)
12. Damages that require service
Unplug this amplifier from the mains supply and refer to your dealer/distributor
or other authorised repair workshop if any of the following situations occur:
if liquid has been spilled or objects have fallen into the amplifier
if the amplifier does not operate normally as described in the user manual,
operate the controls only as described in the user manual
if the amplifier has been dropped or damaged in any other way
when the amplifier exhibits a distinct change from its normal function or
performance
13. Servicing
Do not attempt to service this amplifier yourself. As opening or removing covers
may expose you to dangerous voltage or other hazards, the amplifier may only
be opened by qualified personnel. Please refer to your dealer/distributor.
14. Servicing and Replacement Parts
All service and repair work must be carried out by a CAMCO authorised dealer.
When replacement parts are required, please ensure that the dealer/distributor only uses replacement parts specified by the manufacturer. The use of unauthorised replacement parts may result in injury and/or damage through fire
or electric shock or other electricity-related hazards.
15. Safety Check
Upon completion of any service or repairs to this product, ask the dealer/
distributor to perform safety checks to determine that the amplifier is in proper
operating condition.
Recommendations on how to carry out the safety test can be found in
DIN VDE 0701-1 “Maintenance, Modification and Test of Electronic Appliances“.
EC DECLARATION OF CONFORMITY
USER MANUAL
D - P O W E R S E R I ES
P. 5
D - P O W E R
S E R I E S
EC Declaration of Conformity in accordance to EC Directives:
electro-magnetic compatibility (Council Directive 2004/108/EC);
low-voltage electrical equipment (Council Directive 73/23/EEC )
Manufacturer´s Name:
CAMCO Produktions- und Vertriebs-GmbH
für Beschallungs- und Beleuchtungsanlagen
Manufacturer´s Address:
Fischpicke 5, D-57482 Wenden, Germany
Declares that the product with the model name:
CAMCO Power amplifier D-POWER 2, D-POWER 3 and D-POWER 4
Conforms to the following standards:
EN60065 Safety
EN55103-1 Emission
EN55103-2 Immunity
The operating conditions and application environments presupposed in the
information for use (user manual) are to be kept accordingly.
Wenden, 17.04.2009
Joachim Stöcker
CONTENTS
USER MANUAL
D - P O W E R S E R I ES
P. 6
D - P O W E R
S E R I E S
IMPORTANT SAFETY INSTRUCTIONS
EXPLANATION OF SYMBOLS / SAFETY
EC DECLARATION OF CONFORMITY
CONTENTS
1 WELCOME
1.1 Welcome to CAMCO
1.2 Unpacking
1.3 The Amplifier
2 FACILITIES
2.1 D-POWER – The Front
2.2 D-POWER – The Rear
2.3 Factory Settings
3 INSTALLATION
3.1 Mains Supply
3.2 On/Off Switch
3.3 Mounting
3.4 Cooling
3.5 Ground Lift
3.6 Mode Selector
3.6.1 Stereo Operation
3.6.2 Parallel-Mono Operation
3.6.3 Mono-Bridge Operation
3.7 Wiring
3.7.1 XLR Connection
3.7.2 SPEAKON Connection
4 OPERATION
4.1 Controls
4.1.1 Volume Control
4.1.2 Gain Selector
4.1.3 Gain and Input Sensitivity
4.1.4 Limiter Switch
4.1.5 High Pass Filter
4.2 Indicators
4.2.1 On LEDs
4.2.2 Signal / Protect LEDs
4.2.3 I-Out LEDs
4.2.4 Clip LEDs
4.2.5 Mode Indicators
4.3 Power Amp Protection Systems
4.3.1 Clip Limiter
4.3.2 SOA Protection
4.3.3 DC Protection
4.3.4 Over Current Protection
4.3.5 Thermal Protection
4.4 Mains Protections
4.4.1 Inrush Current Limitation
4.4.2 Mains Over Voltage Detection
4.4.3 Mains Failure Detection
4.4.4 Fuse Protection
4.5 Main SMPS Protections
4.5.1 Over Current Protection
4.6 Fans
4.7 Filter Cleaning
4.8 Volume Control Security Cover
(Accessory optional)
5 TROUBLESHOOTING
5.1 Problem: No Sound
5.2 Problem: No Channel Separation
5.3 Problem: Distorted Sound
5.4 Problem: Hiss
5.5 Problem: Squeals and Feedback
6 SPECIFICATION
7 TYPICAL PERFORMANCE DIAGRAMS
8 WARRANTY INFORMATION
8.1 Summary Of Warranty
8.2 Items Excluded From This Warranty
8.3 What CAMCO Will Do
8.4 How To Obtain Warranty Service
8.5 CAMCO’s Product Improvement
9 SERVICE INFORMATION
10 MAINTENANCE INFORMATION
11 DECOMMISSIONING
COMPANY INFORMATION
P.2
P.3
P.5
P.6
P.7
P.8
P.9
P.10
P.11
P.12
P.13
P.14
P.15
P.16
P.17
P.18
P.19
P.20
P.21
P.22
P.23
P.24
P.26
P.30
P.31
P.32
P.32
1 WELCOME
USER MANUAL
D - P O W E R S E R I ES
P. 7
D - P O W E R
S E R I E S
1.1 Welcome to CAMCO
Established in 1983, CAMCO has gained worldwide experience with professional
sound reinforcement technology. Within the audio market CAMCO specialises
in the production and marketing of high quality power amplifiers and sound
systems for use both on tour and in fixed installations.
The success of the LA, DL, DX, VORTEX, TECTON and Q-POWER series of power
amps has made the CAMCO name synonymous with professional quality, high
performance and utterly reliable power amps.
CAMCO’s commitment to research and development, seen not just in the area
of materials and technology but also most importantly in its highly skilled and
motivated workforce, is one of the keys to its ongoing success.
Welcome to the new world of professional power amplifiers –
WELCOME TO CAMCO!
1.2 Unpacking
Please unpack and inspect your new amplifier for any damage that may have
occurred during transit. If damage is found, notify the transportation company
immediately. Only you the consignee may initiate a claim for shipping damage.
CAMCO will be happy to cooperate fully as needed. Please save the shipping
carton as evidence of damage for the shipper’s inspection.
Even if the amplifier has arrived in perfect condition, save all packing materials
so you will have them if you ever need to transport the unit.
NEVER SHIP THE AMPLIFIER WITHOUT THE ORIGINAL
PACKING MATERIALS.
When shipping the D-POWER amplifier, always use the original shipping carton
and packing materials. For maximum protection, repack the unit as it was originally packed at the factory.
1 WELCOME
USER MANUAL
D - P O W E R S E R I ES
P. 8
D - P O W E R
S E R I E S
1.3 The Amplifier
The D-POWER is a Class-H power amplifier with a power output of:
D-POWER 2 1200 W per channel @ 4 Ω
2400 W in Mono-Bridge @ 8 Ω
2400 W in Parallel-Mono @ 2 Ω
D-POWER 3 1600 W per channel @ 4 Ω
3200 W in Mono-Bridge @ 8 Ω
3200 W in Parallel-Mono @ 2 Ω
D-POWER 4 1900 W per channel @ 4 Ω
3800 W in Mono-Bridge @ 8 Ω
3800 W in Parallel-Mono @ 2 Ω
D-POWER amplifiers are fitted with Switched Mode Power Supplies (SMPS),
which significantly reduces the weight and size (only 2U) of the amplifier. Using
SMPS, the 2 symmetrical supply voltages of the power amplifier are more stable
than the power supplies used in conventional amplifiers.
The D-POWER has been designed as an intelligent and powerful product for
performing specialised tasks within a complex audio system. Users can adapt
the power amp to meet their specific audio requirements before use.
Controls mounted on the front and the rear of the D-POWER allow access to the
functionality.
Since some of the externally mounted controls have multiple functions, it is
important that users should familiarise themselves thoroughly with the entire
range of controls.
230 V ~ 50/60 Hz 11,3 A 1220 W
1900 W / 4 Ohm
xxxxxxx
D-POWER 4
2 FACILITIES
USER MANUAL
D - P O W E R S E R I ES
P. 9
D - P O W E R
S E R I E S
2.1 D-POWER – The Front
1 Clip LEDs
2 I-Out LEDs
3 Signal LEDs
4 On LEDs
5 Parallel-Mono Mode LED
6 Mono-Bridge Mode LED
7 Volume Control Channel A
8 Volume Control Channel B
9 Removable Air Filter System
10
Cooling Air Inlet Vents
11 On/Off Switch
2.2 D-POWER – The Rear
12 Input Ground Lift Switch
13 High Pass Filter B
14 Mode Selector
15 Gain Selector
16 High Pass Filter A
17 Clip Limiter Switch
18 Rating Plate
19 AC Power Cable
20 SPEAKON Output A
21 SPEAKON Output B
22 Cooling Air Outlet Vents
23 XLR - Line Link A
24 XLR - Line Link B
25 XLR - Line Input A
26 XLR - Line Input B
2 FACILITIES
USER MANUAL
D - P O W E R S E R I ES
P. 10
D - P O W E R
S E R I E S
2.3 Factory Settings
D-POWER amplifiers are delivered with the following factory settings
Front panel:
7 Volume Control Channel A The volume is set to minimum.
8 Volume Control Channel B The volume is set to minimum.
11 On/Off Switch The amplifier is switched off.
Rear panel:
12 Input Ground Lift Grounded
13 High Pass Filter B Off
14 Mode Selector Stereo
15 Gain Selector 32 dB
16 High Pass Filter A Off
17 Clip Limiter Off
Make sure that the switches are set to the configuration needed for each
particular application.
For more detailed information, see sections 3.5, 3.6, 3.7 and 4.1.
Loading...
