Instructions for:
Powered Subwoofer
& Slave Subwoofer
by Henry Kloss
Contents
Safety Precautions ............................................................................ i, ii
Important—Please Read First .............................................................. 1
Unpacking The Subwoofer .................................................................. 2
Audio And AC Power Connections ....................................................... 2
Connecting A Slave Subwoofer ............................................................ 4

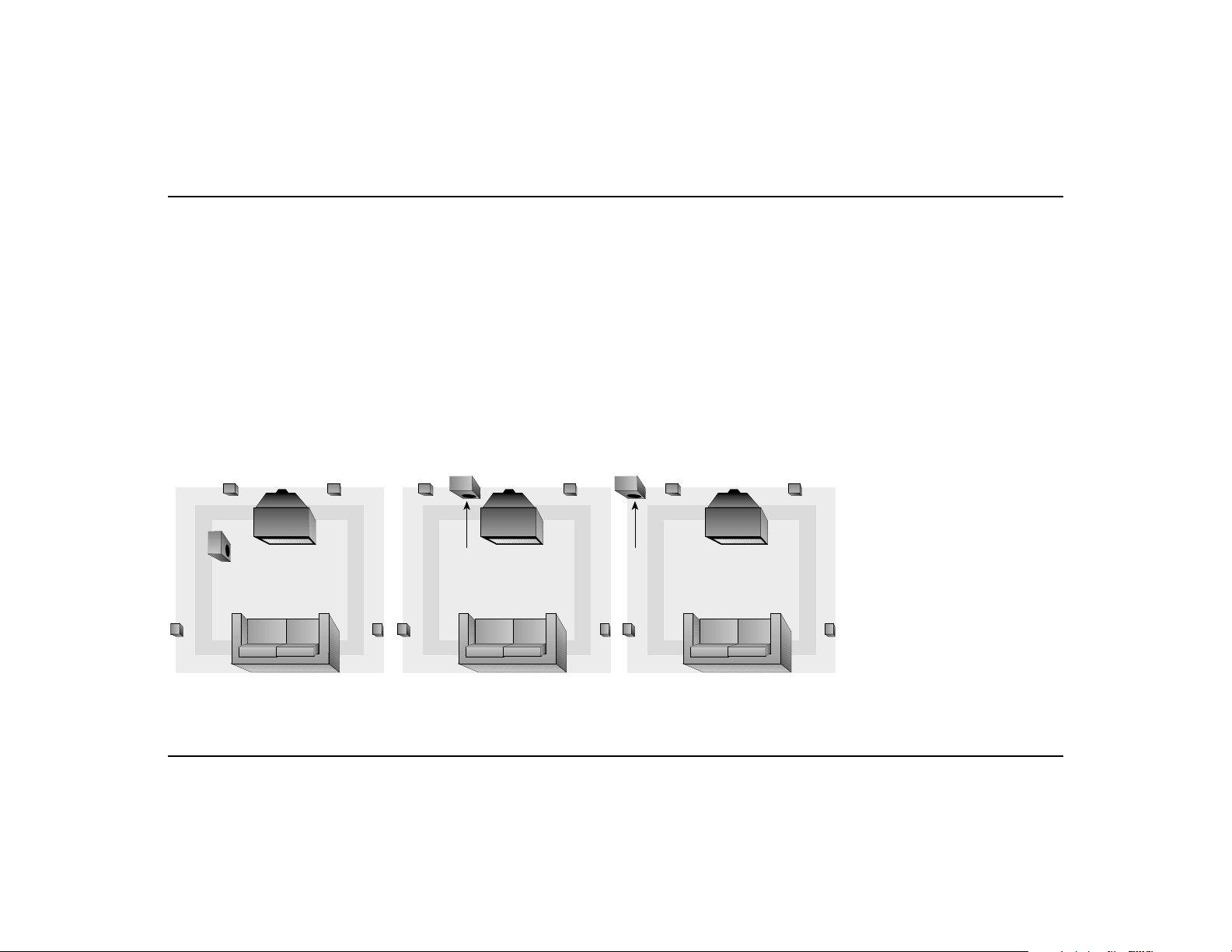

Placement ............................................................................................ 5

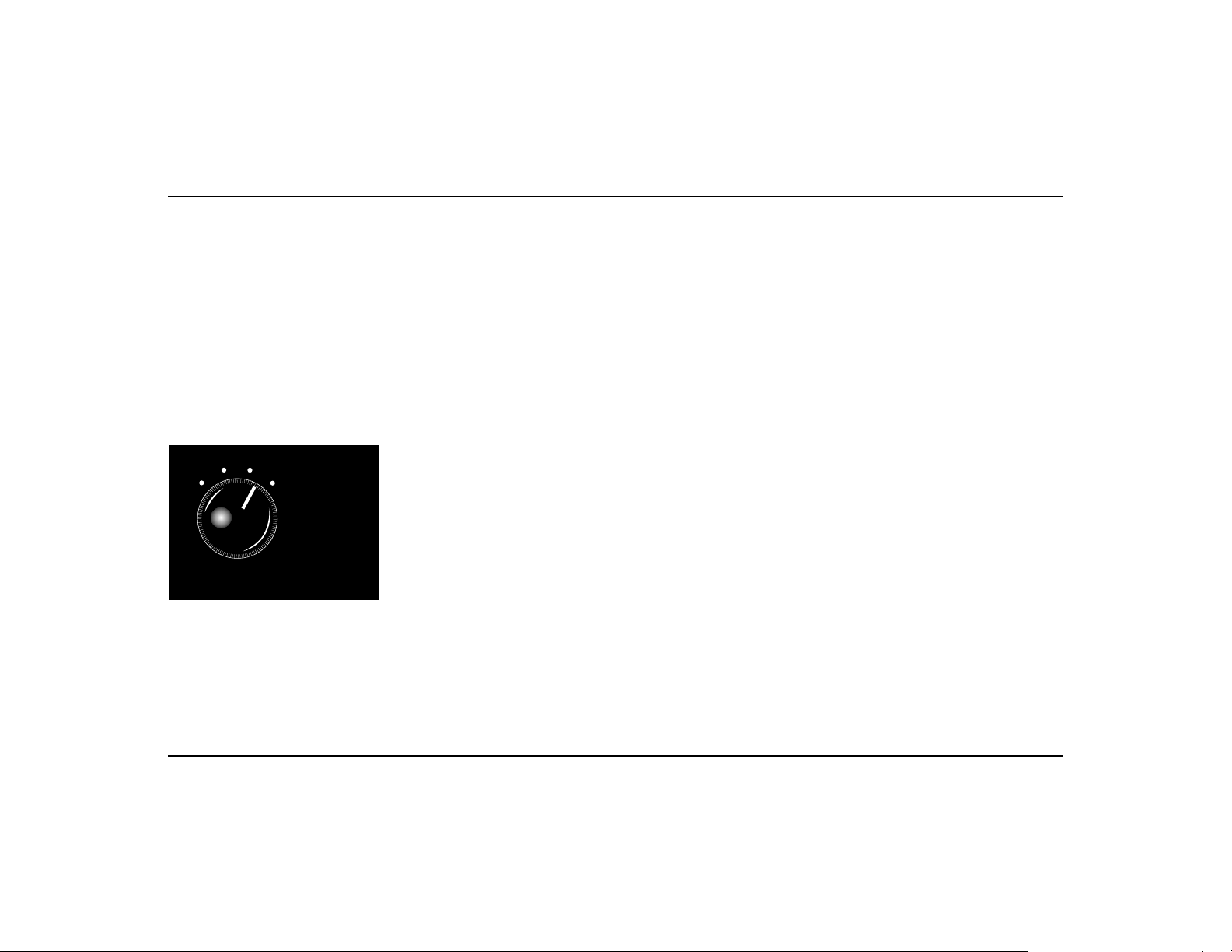

The Subwoofer Level Control ............................................................... 6
Selecting Low-Pass Frequency ............................................................. 7
Advantages Of The Slave Subwoofer ................................................... 8
The Final Touch ................................................................................... 8
Installing Low Cut Filters .................................................................... 9
Cleaning The Cabinets ......................................................................... 9

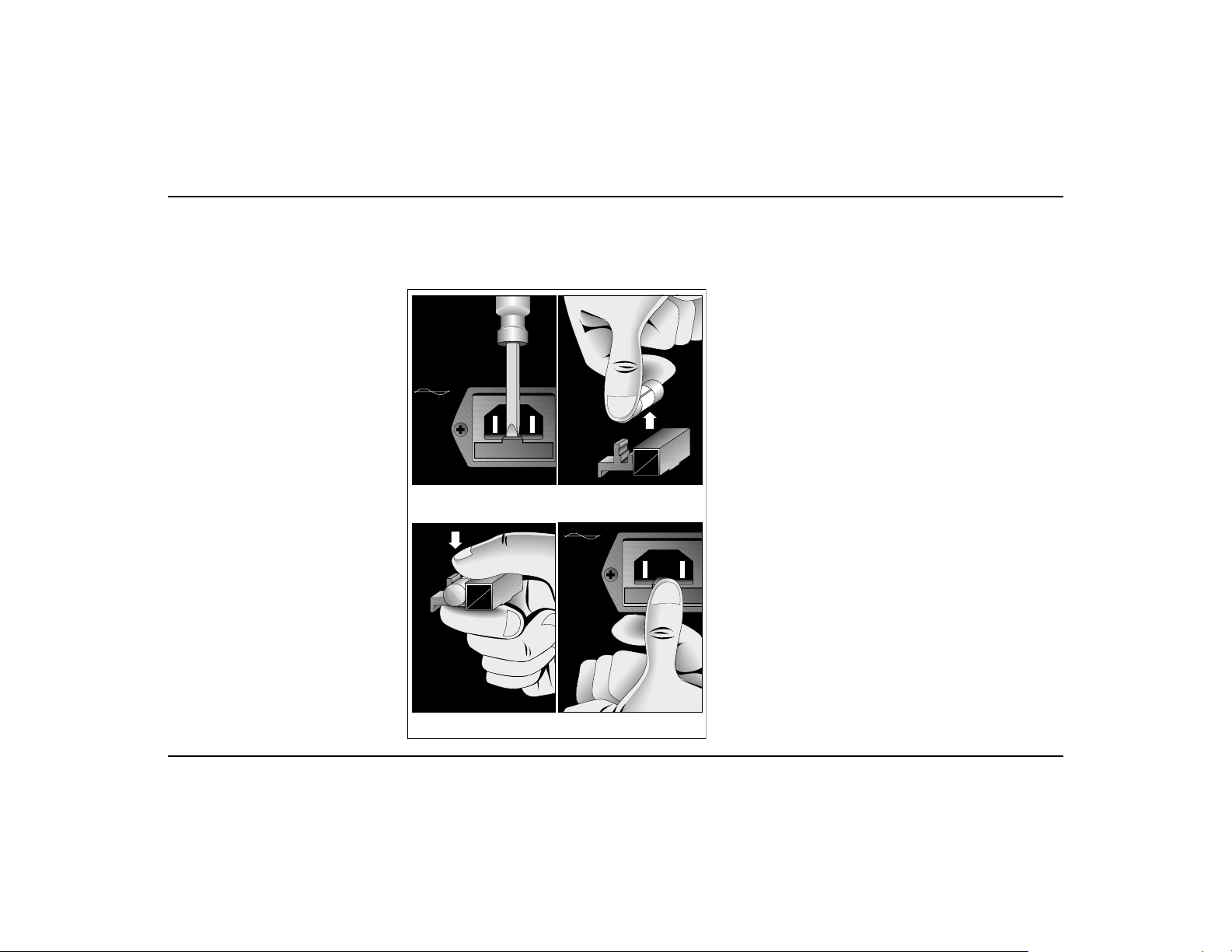

Replacing The Fuse ........................................................................... 10
Difficulty? .......................................................................................... 10
Limited Warranty .............................................................................. 11
IMPORTANT
The lightning flash with arrowhead, within
an equilateral triangle, is intended to alert
the user of the presence of uninsulated
“dangerous voltage” within a product’s enclosure that may be of sufficient magnitude
to constitute the risk of electric shock to
persons.
READ AND HEED IMPORTANT SAFETY WARNING
WARNING
SHOCK HAZARD
DO NOT OPEN
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SUBWOOFER’S COVER. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
POUR EVITER TOUT RISQUE DE CHOC
ELECTRIQUE, NE PAS DEMONTER LE
COUVERCLE DU HAUT PARLEUR.
AUCUN ENTRETIEN DES PIECES
INTERIEURES N’EST REQUIS.TOUT
SERVICE D’ENTRETIEN NE DOIT ETRE
EFFECTUE QUE PAR DU PERSONNEL
D’ENTRETIEN QUALIFIE.
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
ON BACK OF SUBWOOFER ENCLOSURE
The exclamation point within an equilateral
triangle is intended to alert the user of the
presence of important operating and maintenance (servicing) instructions in the literature accompanying this product.
CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF PLUG
TO WIDE SLOT, INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
TO PREVENT FIRE OR
WARNING:
SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
The serial number for the subwoofer is located
on the subwoofer’s control panel. Please write
this number down and keep it in a secure area.
This is for your security.
IMPORTANT NOTICE
i
IMPORTANT SAFETY INSTRUCTIONS
READ INSTRUCTIONS - All safety and op-
erating instructions should be read before
Powered Subwoofer
the
Subwoofer
RETAIN INSTRUCTIONS - The safety and
operating instructions should be retained
for future reference.
HEED WARNINGS - All warnings on the
subwoofer and in the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS - All operating
and use instructions should be followed.
CLEANING - Unplug the subwoofer from the
wall outlet or other power source before
cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for
cleaning.
ATTACHMENTS - Do not use attachments
not recommended by Cambridge
SoundWorks as they may cause hazards.
WATER AND MOISTURE - Do not use the
subwoofer near water—for example, near
a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a
swimming pool; and the like.
ACCESSORIES - Do not place the
Subwoofer
unstable cart, stand, tripod, bracket, or
table. The subwoofer may fall, causing
serious injury to a child or adult, and
serious damage to the product. Use only
with a cart, stand, tripod, bracket, or table
recommended by Cambridge SoundWorks, or sold with the product. The subwoofer should follow the manufacturer’s
instructions.
is operated.
or
Slave Subwoofer
or
Slave
Powered
on an
VENTILATION - Slots and openings in the
cabinet are provided for ventilation and to
ensure reliable operation of the subwoofer
and to prevent it from overheating, and
these openings must not be blocked or
covered. The openings should never be
blocked by placing the product on a bed,
sofa, rug, or other similar surface. The
subwoofer should not be placed in a builtin installation such as a bookcase or rack
unless proper ventilation is.
HEAT - The subwoofer should be situated
away from heat sources such as radiators, heat registers, stoves, and other
products (including amplifiers) that produce heat.
POWER SOURCES - The subwoofer should
be operated only from the type of power
source indicated on the marking label. If
you are not sure of the type of power
supply to your home, consult your product
dealer or local power company.
POLARIZATION - The subwoofer may be
equipped with a polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into
the power outlet only one way. This is a
safety feature. If you are unable to insert
the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit,
contact your electrician to replace your
obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
POWER-CORD PROTECTION - AC power
cords should be routed so that they are
not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point
where they exit from the subwoofer.
LIGHTNING - For added protection for the
Powered Subwoofer
Subwoofer
storm, or when it is left unattended and
unused for long periods of time, unplug it
from the wall outlet. This will prevent damage to the subwoofer due to lightning and
power-line surges.
OVERLOADING - Do not overload wall out-
lets, extension cords, or integral convenience receptacles as this can result in a
risk of fire or electric shock.
OBJECT AND LIQUID ENTRY - Never push
objects of any kind into the subwoofer
through openings as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the subwoofer.
SERVICING - Do not attempt to service the
subwoofer yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
system during a lightning
or the
Slave
DAMAGE REQUIRING SERVICE - Unplug
the subwoofer from the wall outlet or other
power source and refer servicing to qualified service personnel under the following
conditions:
a) When the power-supply cord or plug is
damaged.
b) If liquid has been spilled, or objects
have fallen into the subwoofer.
c) If the subwoofer has been exposed to
rain or water.
d) If the subwoofer does not operate normally by following the operating instructions; or exhibits a distinct change in performance.
e) If the product has been dropped or
damaged in any way.
REPLACEMENT PARTS - When replace-
ment parts are required, be sure the service technician has used replacement
parts specified by Cambridge SoundWorks
or have the same characteristics as the
original part. Unauthorized substitutions
may result in fire, electric shock, or other
hazards.
SAFETY CHECK - Upon completion of any
service or repairs to the
Subwoofer
service technician to perform safety checks
to determine that the
or
condition.
or
Slave Subwoofer
Slave Subwoofer
Powered Subwoofer
is in proper operating
Powered
, ask the
ii
Important – Please Read First
ass drums, organs, and
electronic synthesizers are
among the very few instru-
B
ments that produce extremely
low frequency sounds. As a result,
comparatively few home loudspeakers are designed to reproduce bass
below about 50 Hz.
Today, however, home loudspeakers are called upon to reproduce
more than music: in home theater
systems, they are called upon to
reproduce movie soundtracks. And
modern movie soundtracks contain
a lot of energy at very low frequencies—on sound effects. To do full
justice to these effects, as well as to
the musical low frequencies missed
by most speakers, the Cambridge
SoundWorks powered subwoofer
systems reproduce, at high power,
the lowest bass sounds the human
ear can detect.
You should keep in mind when
installing your system and investigating its capabilities that you will
be dealing with a relatively unfamiliar range of sounds. These are
sounds more felt than heard, and
are encountered more often in the
well-equipped movie theater than
in the concert hall.
Also keep in mind that a
Cambridge SoundWorks Audio/
Video Consultant is only a toll-free
call away should you need advice
or assistance.
Cambridge SoundWorks
1-877-YES-HIFI
(1-877-937-4434)
24 hours a day,
every day
In Canada: 1-800-987-9104
Outside US or Canada:
Tel: 617-332-5936
Fax: 617-527-3194
www.cambridgesoundworks.com
E-mail:
info@cambridgesoundworks.com
1
Unpacking
1. Upon unpacking your Powered
Subwoofer (or Slave Subwoofer),
please examine carefully for any
signs of shipping damage. If
there is any damage, do not
install or use the subwoofer.
Consult the store where you
purchased the subwoofer for
assistance. If purchased through
our mail order catalog service,
call Cambridge SoundWorks
at 1-877-937-4434.
2. If you purchased a Cambridge
SoundWorks Powered
Subwoofer, its accessory pack
should contain:
• One spare T3.15A, 250V fuse
• Four square rubber feet
3. If you purchased a Cambridge
SoundWorks Slave Subwoofer,
its accessory pack should
contain:
• One spare T3.15A, 250V fuse
• 25 feet of 16 gauge
speaker wire
• One wire stripper
• Four wire nuts
• Four square rubber feet
4. We suggest that you keep the
shipping carton and packing
materials in case you later
move, or have to ship your
subwoofer.
Audio And AC Power Connections
Note: Make all connections with the
Powered Subwoofer switched off.
The Powered Subwoofer can be
connected to the main amplifier’s
speaker outputs, from stereo
preamp outputs or from a mono
subwoofer output.
Using the speaker outputs of
your main amplifier to drive the
Powered Subwoofer is usually the
best way to connect the Powered
Subwoofer, even if you have a
separate preamp or subwoofer
output (like the subwoofer output
on a Dolby Digital
If you have large Left and Right
speakers and a Dolby Digital (AC-3)
system, please be sure to read the
note at the end of this section.
Connection Method One:
Connect directly to an amplifier or
receiver’s speaker output terminals
using conventional speaker wire
(Figure 1 on page 3). You can use
lightweight speaker wire (20-22
gauge) because this is a high impedance connection. The Powered
Subwoofer uses virtually none of
the amplifier or receiver’s output
power. Be sure to connect these
new speaker wires to the same
®
(AC-3) system).
speaker outputs used by your main
speakers. Do not use any additional
speaker output terminals your
amplifier or receiver may have.

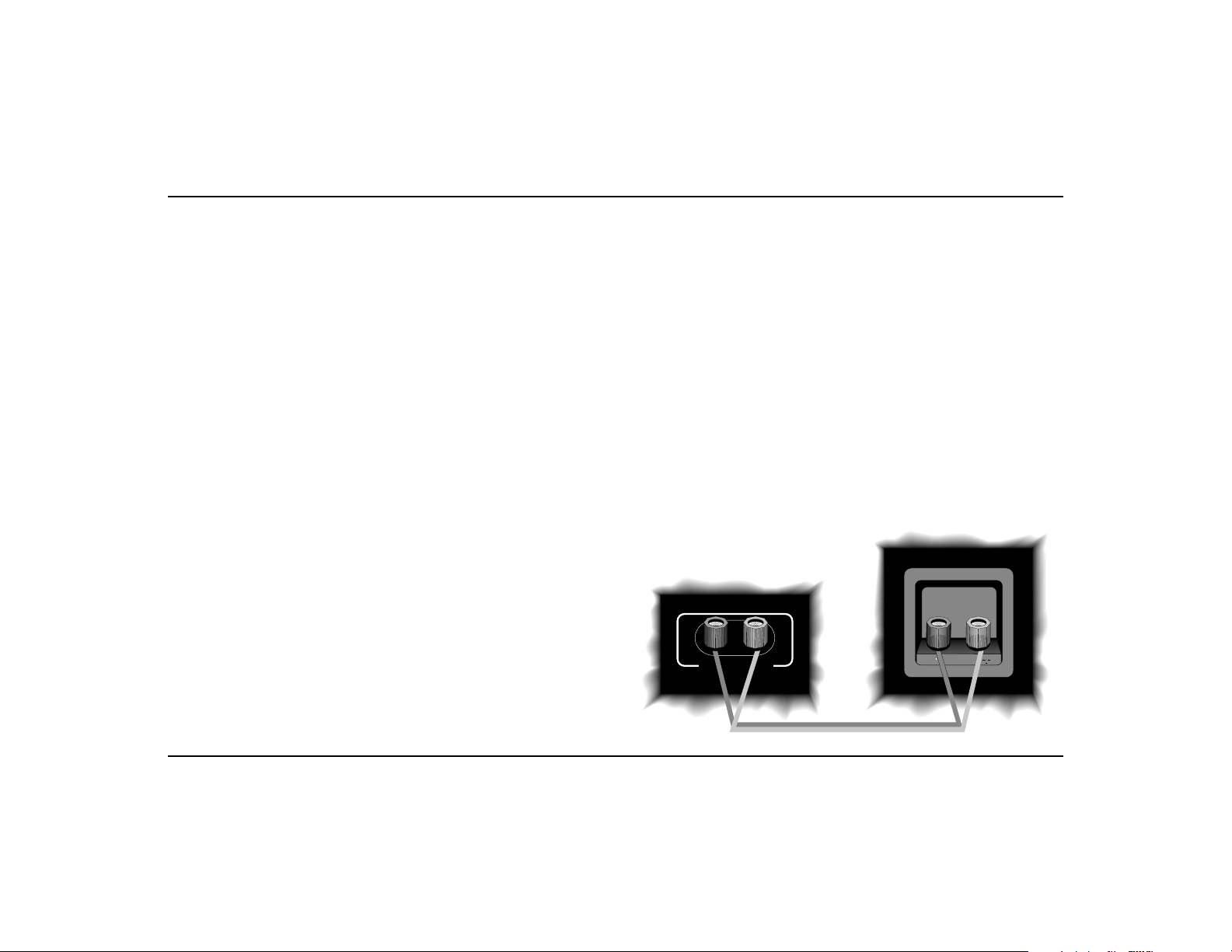

Alternatively, you may connect
the speaker wires between the
Powered Subwoofer and the input
terminals of your main speakers
instead of the amplifier or receiver’s
speaker output terminals.
Be sure the speaker wire connects
the positive (+) terminals of the
subwoofer to the positive (+)
terminals of the amplifier or receiver (and similarly connects the
negative (–) terminals together). All
two-conductor speaker cable is
coded along one conductor by
lettering, a stripe or a raised bead
-or- the appearance of the two
conductors differs, usually one
copper and one silver. This allows
you to easily connect the proper
conductor to each terminal.
Connection Method Two: Connect
from a stereo preamp output to the
Powered Subwoofer’s Line Level
inputs. A suitable length of conventional stereo phono cable with RCA
plugs at each end is all you need if
your preamp has an unused stereo
preamp output.
2
To connect between a stereo preamp
and a stereo power amp, combine a
suitable length stereo phono cable with
two “Y” adapters. Each adapter is one
RCA male plug to two RCA female jacks
INTEGRATED AMP OR RECEIVER
(FRONT)
SPEAKER OUTPUTS
LEFT
RIGHT
To left (front) speaker To right (front) speaker
L
R
MONO
LINE
LEVEL
INPUTS
L
SPEAKER
+
LEVEL INPUTS
R
POWERED SUBWOOFER
Figure 1.
Using speaker wire
(Figure 2). Some receivers and
integrated amplifiers have preamp
outputs and power amp inputs that
are accessible by removing jumpers
from the back panel.
PREAMP
OUTPUTS
TO POWER AMP
L
R
Y-adapters
To power amp
(Front amp in
surround system)
L
R
MONO
LEVEL
INPUTS
L
SPEAKER
+
LEVEL INPUTS
R
POWERED SUBWOOFER
Using “Y” adapters and phono cable
Figure 2.
LINE
Connection Method Three:
Connect from a subwoofer output
using a suitable length mono
phono cable with an RCA phono
plug at each end (Figure 3). Con-
SURROUND DECODER OR RECEIVER
OUTPUTS
L
R
L
MONO
Figure 3.
CENTER
SUBWOOFER
R
+
Labelled “Mono”
*
on some units.
Be sure the output
signal is full-range.
LINE
LEVEL
INPUTS
SPEAKER
LEVEL INPUTS
*
FRONT
SURROUND
L
R
POWERED SUBWOOFER
Surround decoder or receiver with
subwoofer (mono) output
nect the phono cable to the Right
channel line level input on the
Powered Subwoofer.
Note: You should connect the
Powered Subwoofer to your system
using either the line level inputs or
the speaker level inputs–but not
both sets of inputs.
A Note About Dolby Digital
(AC-3), Large Front Speakers
And Powered Subwoofers
While it is logical to connect the
Powered Subwoofer to the
“Subwoofer Output” or LFE (Low
Frequency Effects) output of a
Dolby Digital (AC-3) equipped
system, there are some instances
when bypassing this output can
result in better sound.
Most Dolby Digital (AC-3) decoders automatically remove the low
bass content from all the Main
speakers if the “Subwoofer Output”
switch is set to “On”. The Main
speaker “Large/Small” switches still
appear to function, but they are
actually locked in the “Small”
mode.
This automatic bass limiting is
unnecessary with large Main
speakers. You can effectively send
all low-bass and Low Frequency
Effects signals to both your Main
3
Left and Right speakers and to your
subwoofer by turning the subwoofer
output “Off” and setting the Main
Left and Right speakers to “Large”.
This blends all the output of the
Low Frequency Effects channel with
the Main Left and Right speakers.
The Powered Subwoofer needs to be
connected with speaker wire to the
Main Left and Right speaker outputs
in this case.
AC Power, Etc.
After making the audio connections, plug the power cord into any
convenient 120-Volt AC, 60 Hz
outlet and switch the subwoofer
“On”. Do not plug it into a switched
outlet on your amplifier or receiver,
as the Powered Subwoofer draws
sufficient current at high volume
levels to possibly damage the
switched outlet’s relay mechanism.
NOTE: If you connect the Powered
Subwoofer to your system using
speaker wires and hear a low-level
hum, turn off both the system and
the subwoofer and reverse the
latter’s AC plug in the outlet.
When you turn the system back
on, the hum should be gone.
The Powered Subwoofer has an
automatic “Power Off” circuit that
turns off power to the amplifier
circuit after it has been silent for over
20 minutes. The Powered Subwoofer
rapidly activates as soon as a new
signal is present. This feature operates when the switch labeled “Autooff Setting” is in the “Auto” position.
Most home users will find this
setting to be appropriate.
The “manual “ position of the
“Auto-off Setting” switch keeps the
amplifier operating and drawing a
small current so long as the Power
switch is in the “On” position. This
setting is appropriate when the
Powered Subwoofer is used in professional sound studios.
AC Power Light
The light next to the Power
Switch glows in different colors to
reflect the operating status of the
amplifier. Green indicates the
Powered Subwoofer amplifier is
“On” and operating. Amber means
the Powered Subwoofer amplifier is
in “Standby” mode and will
power-up and operate as soon as a
signal is fed to it. Red indicates an
amplifier-fault condition. See page
10 if this occurs. The light goes
dark when the Power switch is in
the “Off” position. The Powered
Subwoofer amplifier is disconnected from the AC line in this
condition.
Connecting A Slave Subwoofer
The Slave Subwoofer connects to the
Powered Subwoofer with the sup-
plied 25 foot 16-gauge speaker
cable (or any other high quality
heavyweight speaker cable).
• Using the supplied wire strippers,
• Remove the cover from the
1
remove
the copper and silver colored
wires at each end of the speaker
wire. Twist each exposed lead’s
fine wire strands tightly together.
“SLAVE SUBWOOFER OUTPUT”
on the back of the Powered
Subwoofer. Connect the coppercolored wire at one end of the
speaker cable to the red (positive)
connector on the Slave Subwoofer
/2 inch of insulation from
Powered Subwoofer
SLAVE SUBWOOFER
OUTPUT
speaker output. Connect the
silver colored wire to the black
(negative) connector.
• Connect the opposite end of the
speaker wire to the Slave
Subwoofer input connector in a
similar fashion.
• The information about placement on pages 5 and 6 also
applies to the combination of a
Slave Subwoofer and Powered
Subwoofer. While it is often
convenient to place the two
units right next to each other
and treat them as one, they
will couple acoustically even
when they are placed several
feet apart.
Slave Subwoofer
4
Placement
Before connecting your Powered
Subwoofer, place it in your listening
room using the guidelines that
follow. Then make the connections.
Once your sound system is
operating with the Powered
Subwoofer, listen and experiment
further with placement before
making the installation permanent.
1. The ear cannot localize the very
low bass sounds reproduced by
the Powered Subwoofer. This is
why it is possible to use a single
powered subwoofer to reproduce
all the 25 to 40 Hz bass a sound
Left Satellite Right Satellite
Powered Subwoofer
A. LEAST BASS
SurroundSurround
system requires. It is also the reason why the subwoofer need not be
located particularly close to other
speakers or aimed directly at the
listeners. The Powered Subwoofer
should be positioned vertically
(stick-on feet are provided for
attachment once you have decided
on its final orientation). It can sit in
a variety of positions within the
listening room, although we don’t
recommend placing it behind listeners. Also, do not place the Powered
Subwoofer underneath furniture.
Make sure there is a clear air space
Left Satellite Right Satellite
Powered Subwoofer
B. MORE BASS
SurroundSurround
FIGURE 4: HOW ROOM PLACEMENT AFFECTS BASS RESPONSE
of at least 18 inches surrounding
the Powered Subwoofer. Don’t
place objects on the Powered
Subwoofer (such as clothing) that
could inadvertently drape down
the front or back of the unit,
restricting air flow or speaker
output. Similarly, do not conceal
the Powered Subwoofer behind
draperies or other similar material.
2. The maximum low-bass output of
the Powered Subwoofer is markedly
affected by its placement with
respect to adjacent room surfaces.
Start by placing the subwoofer on
Left Satellite Right Satellite
Powered Subwoofer
C. MOST BASS
SurroundSurround
the floor against the same wall
as your front speakers, preferably close to a corner (Figure 4, B
or C). The strongest output will
be produced with the speaker on
the floor directly in the corner.
The least bass output will result
if the speaker is placed out in the
room, away from the walls (see
Figure 4, A).
3. Corner placement “confines” the
bass output to the listening
room, minimizing bass transfer
to other rooms.
4. The listening room’s construction can have a marked effect
upon the very low frequencies
reproduced by the Powered
Subwoofer. Thin, relatively
flexible walls allow these frequencies to dissipate readily, as
do open doors, archways opening into other rooms, and even
open windows. In addition, the
larger the room, the greater the
demand for low-frequency
acoustic energy. Therefore, the
best type of room for bass reproduction in a home theater would
be one moderate in size, solidly
constructed, with no openings to
other rooms.
5
Obviously, not all rooms in a
normal home meet all these
criteria. If you have the option,
set up your home theater in the
room that comes closest. While
listening, shut the room’s doors
and windows (if practical). It can
make a surprising difference.
And if your listening room is
very large and/or opens out into
another room, it may be
desirable to add our optional,
passive Slave Subwoofer for
satisfactory high-level performance (see pages 3 and 5).
Note: Do not place the subwoofer in shelving that houses a
phono turntable. Strong bass
from the speaker, including the
turntable’s own rumble, could be
picked up by the turntable, fed
back out the speaker again,
picked up by the turntable yet
again, and so on. This condition,
known as acoustic feedback, will
muddy the sound or set up a
loud, low-frequency rumbling.
The Subwoofer Level Control
The Subwoofer Level Control adjusts
how loudly the Powered Subwoofer
plays. Start with it set midway (5),
then adjust upward or downward
depending on what you discover
during your listening tests.
Remember the Powered Subwoofer
reproduces bass that is below most
frequencies of musical interest, so it
is important to adjust its output
level with material that contains
strong, deep bass signals. It’s easiest
to adjust the Subwoofer Level Control
when listening to the right film
soundtracks (HiFi video cassette,
Laser Disc, or Digital Video Discs).
Action or adventure film
soundtracks generally have the
deepest bass signals. Try effects
such as the Empire State Building
exploding in Independence Day or
other more recent films with explosions or similar sound effects.
With the Powered Subwoofer
properly adjusted, these film and
video sound effects should literally
be room-shaking at high playback
levels. In contrast, much of the
music on audio CDs should not
sound any different with the Pow-
ered Subwoofer properly adjusted.
Indeed, if the subwoofer does add
“boomy” or “thumpy” quality to
your music, you may have the
subwoofer level control set too high.
Note: Always adjust the level control first. Fine-tune the low-pass
filter setting once you have arrived
at a satisfying overall Level Control
setting.
It may take several listening
sessions using different films and
musical sources to arrive at the
single best setting for the Level
Control. The Subwoofer Level Control is intended to be set once and
then left alone. Once you have
decided on a setting, use the Bass
tone control on your main electronics to compensate for the inevitable
small differences in bass output
between different recordings. If you
experience any difficulty, don’t
hesitate to consult your store or call
a Cambridge SoundWorks Audio/
Video Consultant at 1-877-YES-HIFI.
6
Selecting Low-Pass Frequency
You can fine-tune the blend
between your main speaker system
and the Powered Subwoofer by
adjusting the four-position switch
labeled “Low-Pass Frequency.” The
optimum filter setting enables the
subwoofer to “take over” the task of
reproducing very low bass
seamlessly from your main speakers.
The Low-Pass Frequency selector
behaves the same whether you are
using the Speaker Level or Line
100
80
55
140
(FROM LFE
OUTPUT)
LOW PASS
FREQUENCY (Hz)
Level signal inputs of the Powered
Subwoofer. The following guidelines
will help you choose the best setting. The differences between each
setting can be subtle, so don’t be
surprised if you can’t hear the
difference. You have found a good
setting if this is the case.
• 55 Hz or 80 Hz: For use with any
of the following Cambridge
SoundWorks speakers–
New Ensemble
New Ensemble III, Tower™, Tower
II, Tower III, Model Six™. Also, any
other truly wide-range speaker
system. Which position to choose
(55 Hz or 80 Hz) is best decided
by listening.
Note for Ensemble owners: The
Powered Subwoofer is intended to
supplement, not replace the
separate subwoofers supplied with
these systems. Do not disconnect
your Ensemble woofers when
®
, New Ensemble II,
using the Powered Subwoofer.
• 100 Hz: For use with smaller
bookshelf sized speaker systems
with less low-bass reach. Use this
setting with the Cambridge
SoundWorks Model Seventeen™
and Ensemble IV.
• 140 Hz: Use this setting with
small main speakers.
Special note about line-level
subwoofer outputs
Many receivers and all Dolby
Digital (AC-3) processors feature
dedicated subwoofer outputs. Some
of these outputs are full-frequency
bandwidth. Others deliver a signal
which is “Bass Only”. These two
types of subwoofer outputs should
be treated differently. Check your
amplifier’s specification list to
determine which type you have.
Most of the subwoofer outputs on
receivers (stereo or Dolby Surround
with Pro Logic) deliver a full fre-
quency range signal, the same
signal that is fed to the main
speakers. Customers using this type
of subwoofer output should set the
Low-Pass frequency as described in
the procedure above.
The second type of subwoofer
output sends a “Bass Only” signal
to the Powered Subwoofer. The most
common example is the Low Frequency Effects (LFE) channel of a
Dolby Digital (AC-3) equipped
system. Set the Low-Pass frequency
to 140 (from LFE output) with this
type of subwoofer output. Try a
lower frequency setting only if there
is too much bass output on nonDolby Digital (AC-3) program
material.
It is possible to improve the
performance of your main speakers
by the use of optional Low-Cut
Filters (see page 9).
®
7
Advantages Of The Slave Subwoofer
If your listening space is very large
or if you wish the strongest lowbass output possible, it may be
necessary to add our optional,
passive Slave Subwoofer. The Slave
Subwoofer consists of an acoustic
suspension bass driver like that of
the Powered Subwoofer, housed in
an identical cabinet and powered
by the amplifier within the
Powered Subwoofer. Because of the
acoustic coupling between the two
bass drivers, and because together
they present a load enabling the
amplifier to deliver higher power,
the combination system has
approximately three times the total
acoustic output of a Powered
Subwoofer alone. If you think you
may need the Slave Subwoofer,
consult your store or an Audio/
Video Consultant at any Cambridge
SoundWorks store or call
1-877-YES-HIFI.
Note: The Powered Subwoofer and
Slave Subwoofer are a matched
system. Under no circumstances
should any speaker other than a
Slave Subwoofer be connected to
the “Slave Subwoofer Output” on
the Powered Subwoofer. Using the
Slave Subwoofer Output to drive
any other speaker can result in
damage to the Powered Subwoofer
and the resultant damage is not
covered under the terms of the
Powered Subwoofer warranty.
The Final Touch
Our “in the speaker line” LowCut Filters optimize the performance your system at higher
output levels by keeping the low
frequencies best left to the
subwoofer out of the main front
speakers. This eases the burden
on the front speakers and amplifier, letting them play more
cleanly at higher levels, a major
potential benefit of having a
subwoofer in the first place.
• Our inexpensive Low-Cut Filters
are ideal for use with Cambridge
SoundWorks’ Model Seventeen,
Model Six and Ambiance
speakers, and other conventional systems of reasonably wide
range. Connect these filters
between your main speakers
and your amplifier. The filters
begin to block bass signals to
your main speakers below
about 140 Hz, so that below
100 Hz, almost no bass signals
reach your main speakers.
®
8
• The filters can go at either end
of the speaker wires of the Left
and Right Main speakers. You
can, for example, connect one
filter’s INPUT FROM AMP leads
to speaker outputs on your
receiver or amplifier, then
connect the speaker wire to the
filter’s OUTPUT TO SPEAKER
leads with the wire nuts
supplied. Or, you can attach a
filter right to the back of a
speaker. Connect the filter’s
OUTPUT TO SPEAKER leads to
your speaker’s input terminals.
• As with all speaker connections,
be sure to maintain consistency
with respect to the + and —
terminals on the receiver and
those on the speakers, including
the Powered Subwoofer. The
connecting wires on the filters
are coded by the use of one
copper-colored conductor and
one silver.
Cleaning The CabinetsInstalling Low-Cut Filters
If more than dusting is needed,
the finish on either subwoofer can
be cleaned with a window or vinyl
cleaning product. Avoid spraying
the cleaner directly on the speaker
grille to prevent damage to the
grille or the speaker.
9
Replacing The Fuse
A fuse protects the amplifier inside
the Powered Subwoofer. If the fuse
blows, it is safe to substitute the
spare T3.15A, 250V fuse supplied
with the speaker. If the second
fuse blows, or the Power light
glows red, do not attempt to replace the fuse another time. Return
the subwoofer to your store’s
Authorized Repair Center. If you
purchased the speaker directly
from Cambridge SoundWorks, call
1-877-YES-HIFI for advice.
There are no other fuses or userreplaceable parts within the
Powered Subwoofer.
Do Not substitute a fuse of a
different rating.
IMPORT ANT: Turn off and unplug the
subwoofer before changing the fuse.
60 Hz
120V
330W
FUSE:
T3.15A
250V
1.) Use a small flat screwdriver as a
lever to remove the fuse holder in
the AC cord receptacle
2.) Invert the fuse holder and remove
the blown fuse.
60 Hz
120V
330W
FUSE:
T3.15A
250V
Difficulty?
If you suspect a problem with your
subwoofer, contact the store where
it was purchased. If a problem is
confirmed, you will need to return
the speaker to that store or its
Authorized Service Center.
If you purchased the speakers
through our mail order catalog, by
phone or via our website, call
1-877-YES-HIFI. An Audio/Video
Consultant will help you track
down the problem, which could be
in some other component in your
system. If together you agree that
there is something wrong with the
subwoofer, you will be supplied
with a Return Authorization
Number. Please do not return the
subwoofer to the factory without
prior authorization.
3.) Replace with T3.15A, 250v fuse.
4.) Invert the fuse holder and insert
it into its receptacle.
10
Limited Warranty
Powered Subwoofer
To the original purchaser,
Cambridge SoundWorks, Inc. will
warrant the Powered Subwoofer to
be free of defects in material and
workmanship for a period of two
(2) years from date of purchase.
With respect to defects, Cambridge
SoundWorks will, at its option,
replace the product or repair the
defect in the product with no
charge to the original purchaser
for parts or labor. During the
period from three (3) years
through ten (10) years, Cambridge
SoundWorks will, at its option,
repair or replace the defective
product for a cost to the original
purchaser of no more than $50.00
for parts and labor.
® Dolby, Pro Logic and Dolby Digital (AC-3) are registered trademarks of Dolby Laboratories Licensing Corporation
™ Tower, Model Six and Model Seventeen are trademarks of Cambridge SoundWorks, Incorporated
® Ensemble, Ambiance and Cambridge SoundWorks are registered trademarks of Cambridge SoundWorks, Incorporated
Slave Subwoofer
To the original purchaser, Cambridge SoundWorks, Inc. will
warrant the Slave Subwoofer to be
free of defects in material and
workmanship for a period of ten
(10) years from date of purchase.
With respect to defects, Cambridge
SoundWorks will, at its option,
replace the product or repair the
defect in the product with no
charge to the original purchaser
for parts or labor.
These warranties do not extend
to any defect, malfunction or
failure caused by misuse, abuse,
accident, faulty hook-up, defective
associated equipment or use of the
speaker with equipment for which
it is not intended, such as connecting any speaker other than a
Slave Subwoofer to the Powered
Subwoofer’s “Slave Subwoofer
Output.”
Each of these two warranties is
the sole and express warranty of
the product named in its title, and
is in lieu of all other warranties,
expressed or implied, of merchantability, fitness for purpose or
otherwise. In no event shall Cambridge SoundWorks be liable for
incidental or consequential damages or have any liability with
respect to defects other than the
obligations set forth herein.
To ensure warranty coverage it
is incumbent upon the original
purchaser to inform Cambridge
SoundWorks or any of its Authorized Service Agencies of the
defect within the warranty period.
The only acceptable method of
establishing warranty status is a
copy of the original proof of
purchase indicating customers
name and date of purchase.
Upon notification by the purchaser and reaching agreement
with the purchaser that there is a
defect, Cambridge SoundWorks
will issue a Return Authorization
Number for the product. The
purchaser will return the product
to the address below, freight
prepaid by the purchaser. The
product shall have the Return
Authorization Number clearly
marked on the outside of the
package. The package must
include a copy of the original
proof of purchase. Please do not
return either the Powered
Subwoofer or the Slave Subwoofer
to Cambridge SoundWorks without prior authorization from
Cambridge SoundWorks.
For warranty information
contact:
Cambridge SoundWorks, Inc.
311 Needham St.
Newton, MA 02464
1-877-YES-HIFI
(1-877-937-4434)
www.cambridgesoundworks.com
email:
info@cambridgesoundworks.com
11
311 Needham Street, Newton MA 02464
1-877-937-4434 Fax: 617-527-3194
www.cambridgesoundworks.com
Email: info@cambridgesoundworks.com
P81-1010 0400 A Company
Loading...
