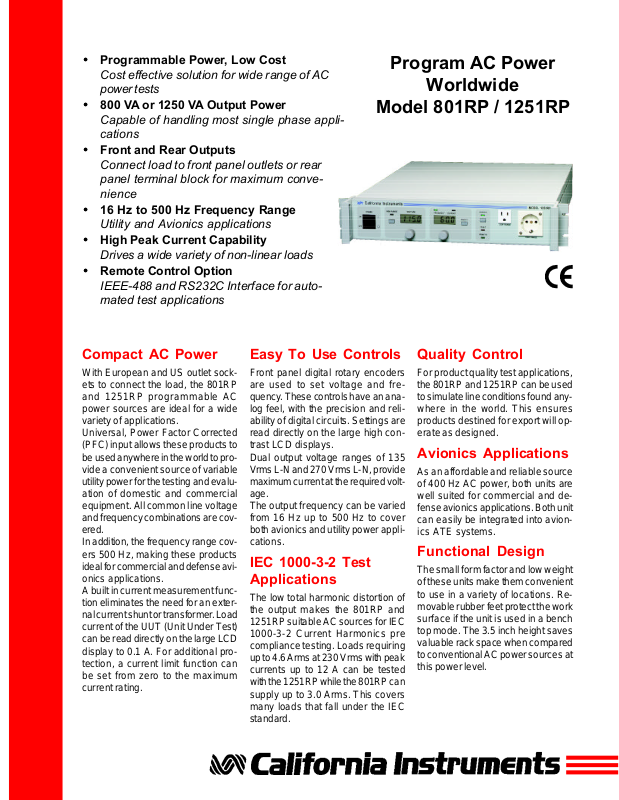

Page 1
•• Programmable Power, Low Cost
Cost effective solution for wide range of AC
power tests
•• 800 VA or 1250 VA Output Power
Capable of handling most single phase applications
•• Front and Rear Outputs
Connect load to front panel outlets or rear
panel terminal block for maximum convenience
•• 16 Hz to 500 Hz Frequency Range
Utility and Avionics applications
•• High Peak Current Capability
Drives a wide variety of non-linear loads
•• Remote Control Option
IEEE-488 and RS232C Interface for automated test applications
Program AC Power
Worldwide
Model 801RP / 1251RP
Compact AC Power
With European and US outlet sockets to connect the load, the 801RP
and 1251RP programmable AC
power sources are ideal for a wide
variety of applications.
Universal, Power Factor Corrected
(PFC) input allows these products to
be used anywhere in the world to provide a convenient source of variable
utility power for the testing and evaluation of domestic and commercial
equipment. All common line voltage
and frequency combinations are covered.
In addition, the frequency range covers 500 Hz, making these products
ideal for commercial and defense avionics applications.
A built in current measurement function eliminates the need for an external current shunt or transformer. Load
current of the UUT (Unit Under Test)
can be read directly on the large LCD
display to 0.1 A. For additional protection, a current limit function can
be set from zero to the maximum
current rating.
Easy To Use Controls
Front panel digital rotary encoders
are used to set voltage and frequency. These controls have an analog feel, with the precision and reliability of digital circuits. Settings are
read directly on the large high contrast LCD displays.
Dual output voltage ranges of 135
Vrms L-N and 270 Vrms L-N, provide
maximum current at the required voltage.
The output frequency can be varied
from 16 Hz up to 500 Hz to cover
both avionics and utility power applications.
IEC 1000-3-2 Test
Applications
The low total harmonic distortion of
the output makes the 801RP and
1251RP suitable AC sources for IEC
1000-3-2 Current Harmonics pre
compliance testing. Loads requiring
up to 4.6 Arms at 230 Vrms with peak
currents up to 12 A can be tested
with the 1251RP while the 801RP can
supply up to 3.0 Arms. This covers
many loads that fall under the IEC
standard.
Quality Control
For product quality test applications,
the 801RP and 1251RP can be used
to simulate line conditions found anywhere in the world. This ensures
products destined for export will operate as designed.
Avionics Applications
As an affordable and reliable source
of 400 Hz AC power, both units are
well suited for commercial and defense avionics applications. Both unit
can easily be integrated into avionics ATE systems.
Functional Design
The small form factor and low weight
of these units make them convenient
to use in a variety of locations. Removable rubber feet protect the work
surface if the unit is used in a bench
top mode. The 3.5 inch height saves
valuable rack space when compared
to conventional AC power sources at
this power level.
Page 2
801RP / 1251RP - Easy Transient Programming
Drop transient causes output voltage to
drop to zero for a user specified period.
Voltage Surge transient causes output
voltage to surge
Extensive Transient Control
With the addition of the remote control interface option, 801RP and
1251RP units are capable of producing transients with a high degree
of user programmability. Setting up transient programs is facilitated
by a Windows Graphical User Interface program that allows amplitude, frequency and event duration to be programmed from a PC.
Time resolution is 1 ms (0.001 sec) with a minimum time interval
ranging from 10 to 40 ms, depending on the transient type. Transient
programming allows the effects of common line disturbances such
as voltage surges, sags, drop-outs and frequency fluctuations on the
unit under test to be evaluated.
1
Remote or Local Operation
For automated test equipment (ATE) applications, the RP Series
units can be outfitted with both IEEE-488 and RS232C using the -IF
option. A front panel lock out mode is supported on both models if
operator interaction with the AC source is not required or desired.
SCPI Protocol Programming Commands
All functions of the 801RP and 1251RP are completely programmable over the IEEE-488 or RS232C bus. For example, the
following tasks can be performed over the bus:
• Set voltage to any level
• Change frequency
• Generate 10 ms or longer voltage dropouts
• Measure rms current, voltage and apparent power
• Recall eight complete instrument setups from non-volatile
memory with a single SCPI command
• Reset the instrument
• Adjust current limit value
• Lock the front panel to prevent operator interference
• Switch between high and low voltage range
• Turn output on and off
Frequency Sweep transient at a user
specified rate.
Voltage Sweep transient causes output
voltage to change at a programmed rate.
Application Software
Windows 98™ or Windows 2000™ application software is included
with the remote control interface option. This easy to use graphical
interface program provides complete control over all instrument functions using either the RS232C or IEEE-488 interface. With enhanced
capabilities such
as data logging to
file and Dynamic
Data Exchange to
other Windows
programs, many
applications can
be addressed
without the need
for writing custom
code.
Free Windows™ Graphical User Interface
software included with interface option.
1
Note: Transient control does not apply to output phase angle
Page 3
Specifications
Parameter 801RP 1251RP Unit
Controller
Type Programmable
Controls Digital Encoders
Readout Voltage 4 digit LCD
Freq. / Current 4 digit LCD
Non Volatile Setups (with -IF option) 8
Output
AC Power 800 1250 VA
Voltage
High range / Low Range 0 - 270 / 0 - 135 V (L-N)
Accuracy @ 50/60 Hz ± 1 % FS
@ 400 Hz ± 2 % FS
Resolution 0.1 V
Line & Load Regulation High V range ± 0.5 % FS
Low V range ± 1 % FS
Line Regulation 10 % Line change ± 0.1 % FS
T.H.D. @ 50/60 Hz 0.5 typical %
Output Noise < 0.1 typical V
Frequency (specifications valid from 45 Hz to 500 Hz)
Range 16 - 500 Hz
Accuracy ± 0.02 %
Resolution below 100 Hz 0.1 Hz
above 100 Hz 1 Hz
Current
Steady State Current High V range 3.0 4.6 A rms
Low V range 6.0 9.2 A rms
Peak Current High V range 13.8 13.8 A peak
(shorted output) Low V range 27.6 27.6 A peak
Protection
Current limit Mode Programmable trip level Output trips off
(Output shut off) Resolution 0.1 A rms
Over Temperature Output shut off
Over Voltage Output shut off
Input
Line Voltage
Line Current (fused) < 15 A rms
Line Frequency 47 - 63 Hz
Holdup Time 20 ms
Power Factor > 0.95 typical
Isolation Input to Chassis 1350 V
Measurements
Current (RMS steady state) Range 0.0 - 10.0 A rms
Voltage Range 0 - 278 V
Remote Control Option
Interface types option -IF RS232C
IEEE-488 Address 0 - 31
IEEE Functions SH1, AH1, T8, L3, RL2, SRQ0, PP0
RS232C settings 9600,8,n,1
Command Language SCPI
Physical
Regulatory CE
Dimensions HxWxD 3.5 x 16.8 x 22 inches
Weight (net) 34 / 15.4 lbs / kg
Vibration and Shock Designed to meet NSTA-1A
Temperature Operating 0 to 40 / - 40 to + 85 ° C
1
Maximum operating range 85 - 265 V rms
2 wire + GND 100 -240 V rms
Input to Output 2200 V
Accuracy ± 0.2 A rms
Resolution 0.1 A
Resolution 1 (below 250 V) V
IEEE-488
HxWxD 89 x 427 x 560 mm
1
120 Vrms minimum line input required for full 1250 VA output on model 1251RP.
Note: Specifications are warranted for an ambient temperature of 23° + 5° C and apply after a 30 minute warmup period.
Page 4
Remote Control
The RP Series can be ordered with a
combined RS232C and IEEE-488 remote control interface option. A Windows Graphical User Interface (GUI)
program is included with either option for PC control applications.
Ordering Information
Models:
801RP 800 VA rack-mount AC
source
1251RP 1250 VA rack-mount
AC Source
Options:
-FN Floating Neutral
output.
-IF IEEE-488 and RS232C
Interface
-ISS International Socket
Strip
-ISR Rack mounted ISS
-L22 Locking knobs
-RI Remote Inhibit Input
-RMS Rack Slides (P/N
210367)

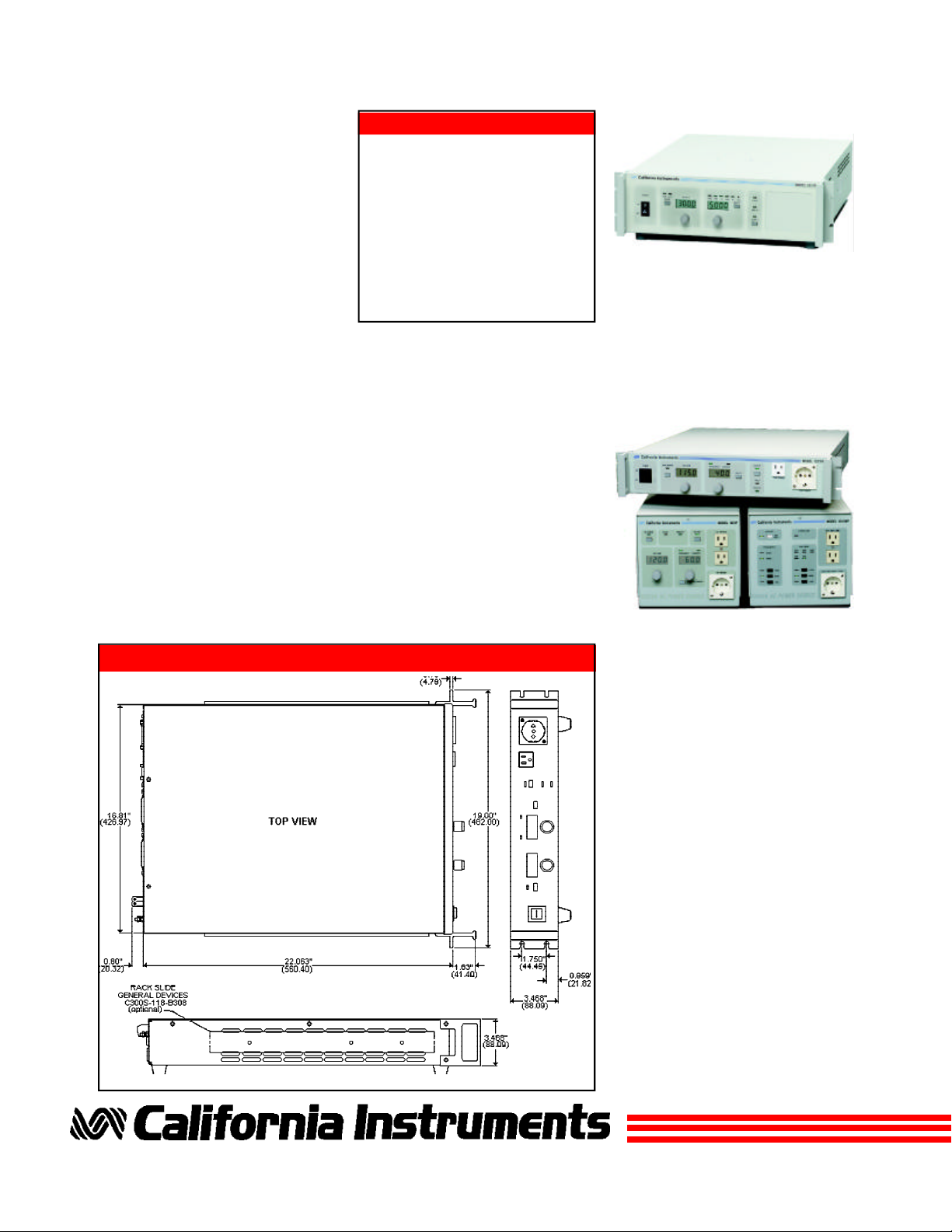

801RP / 1251RP Dimension drawing
Line Cord Options:
Country Part No.
Continental Europe PC1
Australia / New Zealand PC2
UK / Ireland etc. PC3
Denmark PC4
India PC5
Israel PC6
Italy PC7
Switzerland PC9
North America* PC10
* One North American Line cord is
included. Optional line cords are
straight, adding about 1 inch of depth to
unit.
Supplied with:
• North American Line Power Cord
• USA and European line output
mating connector
• Instruction Manual
• Windows™ Graphical User
Interface and RS232C cable (with
-IF option)
Higher Power Models
A 2000 VA version of the RP Series
is available in both single and three
phase output configurations. Refer to
the 2001RP and 2003RP catalog
pages for details.
Portable AC Sources
For mobile or bench top applications,
1000 VA portable AC power sources
are available as well. The 1001P offers similar capabilities as the 801RP
at an increased power level. For applications that only require fixed voltage and frequency settings, the
1001WP frequency converter provides push button selection of nominal 50 or 60 Hz and 100V, 115V,
220V, 230V and 240 V settings. Refer to P and WP Series catalog pages
for details.
Contact California Instruments:
TEL: 858 677-9040
FAX: 858-677-0940
Email: [email protected]
Web page: http://www.calinst.com
9689 Towne Centre Drive, San Diego, CA 92121-1964 (858) 677-9040 FAX : (858) 677-0940
© Copyright 1999, California Instruments Corp. Specifications subject to change without notice Printed in the USA. RPDS 09/01
