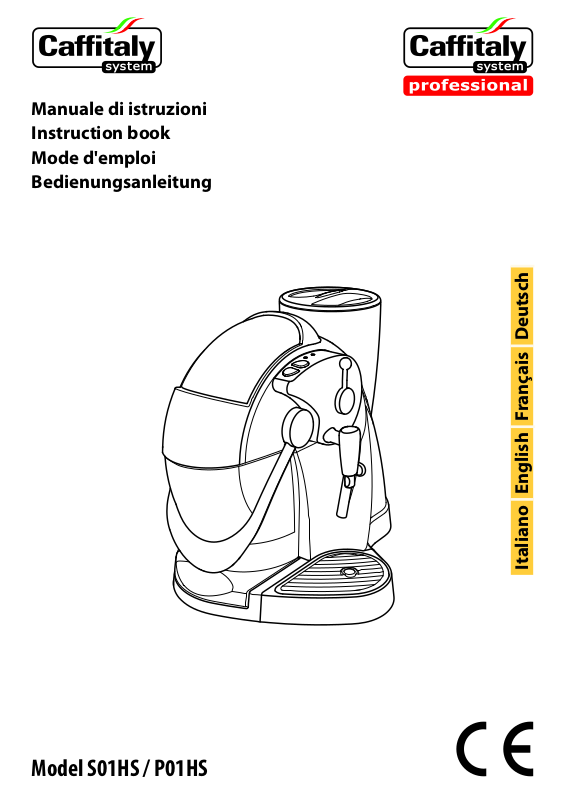

Manuale di istruzioni
Instruction book
Mode d'emploi
Bedienungsanleitung
Italiano English Français Deutsch
Model S01HS / P01HS
Table of contents
Introduction
|
Intended use .......................................................................................... |
27 |
|
Warning symbols................................................................................... |
27 |
|
Safety warnings..................................................................................... |
28 |
|
Instructions for use and disposal ....................................................... |
29 |
|
Your Ca%taly System contact ............................................................. |
29 |
|
Description of machine components ............................................... |
30 |
|
Installation |
|
1 |
First use or after a long period of disuse .......................................... |
31 |
2 |
Turning on the appliance..................................................................... |
32 |
3 |
General operating indications............................................................ |
33 |
|
Dispensing the product |
|
4 |
Dispensing co*ee.................................................................................. |
35 |
5 |
Dispensing +lter co*ee ........................................................................ |
36 |
6 |
Dispensing other beverages ............................................................... |
38 |
7 |
Dispensing hot water ........................................................................... |
39 |
8 |
Preparing cappuccino / Dispensing steam....................................... |
40 |
|
Cleaning and Maintenance |
|
9 |
Daily maintenance ................................................................................ |
42 |
10 |
Descaling ................................................................................................ |
43 |
11 |
Changing the gasket ............................................................................ |
47 |
|
Miscellaneous |
|
12 |
Troubleshooting.................................................................................... |
48 |
13 |
Technical data ........................................................................................ |
49 |
26
Introduction
Dear Customer,
Thank you for having chosen our product and for your con• dence in our company. You can savour your favourite hot beverages at any time of the day with our appliance by choosing one of the capsules that Ca€taly o• ers you. For example: An espresso, a cocoa-) avoured beverage or a tea will be ready in just a few seconds.
Intended use
This appliance is intended to be used in domestic and similar applications such as, for example:
-sta7 cooking areas in shops, o:ces and other work environments;
-holiday farms;
-by guests staying at hotels, motels and other residential facilities;
-facilities like bed and breakfasts.
Use only Ca:ta System capsules. Use of the appliance in any manner other than as directed herein could cause harm to persons and void the guarantee.
The manufacturer will not be responsible for injury or damage resulting from improper use of the appliance.
Warning symbols
CAUTION
This is the safety warning symbol. It is used to call your attention to possible risks of personal injury. Abide by the safety messages provided in order to avoid possible injury or death.
NOTE
This is the symbol used to highlight some actions that will optimise use of the appliance.
Not dishwasher safe |
Maintenance tips |
This symbol is used to highlight a GREEN light indication.
This symbol is used to highlight an ORANGE light indication.
This symbol is used to highlight a BLUE light indication.
This symbol is used to highlight a RED light indication.
27
Introduction
Safety warnings
Carefully read the following instructions! In this way you will avoid the risk of personal injury and damage to the appliance.
After removing the packaging, check that the appliance is not damaged. If damage is found, or upon the I rst sign of a defect (unusual noise or odours), do not use the appliance and contact the Authorised Service Centre.
The packaging elements (plastic bags, etc.) must not be left within reach of children as they are potential sources of danger.
Only use the appliance if the power cord is intact. If the cord is damaged, it should be replaced: contact an Authorised Service Centre. Lethal danger of electric shocks.
Only use and store the appliance indoors. Make sure the electrical elements, plug and cord are dry. Never submerge the appliance in water. Protect the appliance from sprays and drips. Water and electricity together constitute a risk of electrocution.
Only connect the appliance to power outlets complying with the requirements of the law. Make sure that the power supply voltage matches the rating shown on the data plate on the bottom of the appliance.
To avoid the risk of I re, set the appliance on a Q at, heat-resistant surface. Do not leave the power cord hanging from the edge of the support surface.
Do not allow the appliance to be used by children or persons with impaired mental, physical or sensory faculties or insu:cient experience and/or skills, unless they are under the careful supervision and guidance of a person responsible for their safety. Children must be kept under supervision to prevent them from playing with the appliance.
Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
Never place your hands inside the capsule compartment. Danger of injury
Always close the lever. Never open the lever while the appliance is operating.
Never remove parts of the appliance. Do not insert objects into the openings. This could cause electric shocks! Any operation that is not described in this instruction manual should only be performed by an Authorised Service Centre!
Do not pull on the power cord to disconnect it. Remove the plug to avoid damage to the outlet.
28
Introduction
Descale the appliance regularly, following the instructions provided. If you do not, the appliance may be damaged and may become harmful to your health.
Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms may be hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
If you do not expect to use the appliance for a long period of time (leaving on vacation, etc.), unplug it.
Instructions for use and disposal
The appliance has been manufactured using high quality materials that can be reused or recycled. Dispose of the appliance in a suitable waste collection centre.
To rule out any abuse and dangers involved, ensure that the machine cannot be plugged into the mains before delivering it to the scrapping service.
To achieve this, unplug the appliance from the outlet and cut the power cord as close as possible to the machine.
Directions for correct disposal of the product according to European Directive 2002/96/EC and Italian Legislative Decree no. 151 dated 25 July 2005. At the end of its useful life, the product should not be disposed of with unsorted household waste. It should be taken to a suitable selective waste collection centre set up by the local authorities or returned to a retailer who provides this service. Separate collection of an electric household appliance avoids a possible negative impact on the environment and health arising from improper disposal and enables the materials it is made of to be recovered so as to achieve signiI cant savings of energy and resources. The crossed-out wheelie bin symbol applied on the product highlights the need to dispose of electric appliances separately. Improper disposal of the product by the user shall be subject to speciI c administrative sanctions as provided for under current regulations. The packaging is made from recyclable materials. Contact the competent authorities for information regarding local legislation.
Your CaCtaly System contact |
info@ca•taly.com |
|
|
|
29 |
|
|
|
Introduction
Description of machine components
Water tank cover
Capsule compartment
Used capsule drawer
Power on/o7 switch
Lever for opening capsule compartment
"Multifunction"
alarm
"Filter co$ee"
indicator light
"Steam" button
"Filter co$ee" button
Water tank
Co7 ee / hot water / steam control lever
Hot water / steam
dispensing tube
Power cord
Adjustable co7 ee dispenser
Drip tray
Co7 ee position
Central position (0)
Hot water / steam position
30
First use or after a long period of disuse 1
1 |
2 |
Fill the tank with fresh, still water. |
Plug in the appliance and turn it on. |
3 |
4 |
The multifunction indicator light blinks in GREEN. After approximately 1 minute, it
becomes lit steadily and the appliance is ready to use.
To I ll the circuit, draw o7 approximately one glass of water from the co7 ee dispensing spout (without using a capsule), setting the control lever to the co7 ee position.
6
At the end of this step, set the lever back to its central position (0).
Flush the circuit by drawing o7 another glass from the hot water dispensing pipe, setting the control lever to the hot water position.
31
2 Turning on the appliance
7 |
8 |
At the end of this step, set the lever back to its central position (0).
Empty the water from the used capsule drawer.
2 Turning on the appliance
1 |
2 |
Fill the tank with fresh, still water. Turning on the appliance
32
The multifunction indicator light blinks in GREEN. After approximately 1 minute, it
becomes lit steadily and the appliance is ready to use.
