Cadillac XT4 (2021) Owner Manual

Page 1

Page 2

Insert to the 2021 Cadillac XT4 Owner’s Manual

This information replaces the information under “Maximum Trailer Weight” found in the “Trailer Towing” Section of the owner's manual.

Maximum Trailer Weight

The maximum trailer weight rating is calculated assuming the tow vehicle has a driver, a front seat passenger, and all required trailering equipment. This value represents the heaviest trailer the vehicle can tow, but it may be necessary to reduce the trailer weight to stay within the GCW, GVWR, maximum trailer tongue load, or GAWR-RR for the vehicle.

Use the tow rating chart to determine how much the trailer can weigh, based on the vehicle model and options.

Vehicle Maximum Trailer Weight GCWR* Maximum Tongue Weight

2.0L L4 Gas Engine (LSY) with Base Cooling System 1 134 kg (2,500 lb) 3 150 kg (6,945 lb) 113 kg (250 lb)

2.0L L4 Gas Engine (LSY) with Heavy Duty Cooling System

*The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment, and conversions. The GCWR for the vehicle should not be exceeded.

1 588 kg (3,500 lb) 3 600 kg (7,936 lb) 159 kg (350 lb)

Litho in U.S.A. Part No. 21CADXT4INS2_ENUS

Page 3

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Contents

Introduction . . . .. . . . . . . . . . . . . . . . . . . . . . 1

Keys, Doors, and Windows . . . . . . . . . . 6

Seats and Restraints . . . . . . . . . . . . . . . 36

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Instruments and Controls . . . . . . . . . . 90

Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Infotainment System . . . . . . . . . . . . . 136

Climate Controls . . . . . . . . . . . . . . . . . . 197

Driving and Operating . . . . . . . . . . . . 203

Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 281

Service and Maintenance . . . . . . . . . 357

Technical Data . . . . . . . . . . . . . . . . . . . . 370

Customer Information . . . . . . . . . . . . 374

Reporting Safety Defects . . . . . . . . . 384

OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387

Connected Services . . . . . . . . . . . . . . . 392

Index . . . . . . . . . . . . . . . . . . . . . . . . 395

Introduction

The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CADILLAC, the CADILLAC Emblem, and XT4 are trademarks and/ or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors.

For vehicles first sold in Canada, substitute the name “General Motors of Canada Company” for Cadillac Motor Car Division wherever it appears in this manual.

This manual describes features that may or may not be on the vehicle because of optional equipment that was not purchased on the vehicle,

model variants, country specifications, features/applications that may not be available in your region, or changes subsequent to the printing of this owner’s manual.

Refer to the purchase documentation relating to your specific vehicle to confirm the features.

Keep this manual in the vehicle for quick reference.

Canadian Vehicle Owners

A French language manual can be obtained from your dealer, at www.helminc.com, or from:

Propriétaires Canadiens

On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante:

Helm, Incorporated Attention: Customer Service 47911 Halyard Drive Plymouth, MI 48170 USA

Litho in U.S.A. Part No. 84533014 B Second Printing

Page 4

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

2 INTRODUCTION

Using this Manual

To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

About Driving the Vehicle

As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or a crash. Be sure to read the driving guidelines in this manual in the section called “Driving and Operating” and specifically Driver Behavior 0 204,

Driving Environment 0 204, and Vehicle Design 0 204.

Danger

{

Danger indicates a hazard with a high level of risk which will result in serious injury or death.

Warning

{

Warning indicates a hazard that could result in injury or death.

Caution

Caution indicates a hazard that could result in property or vehicle damage.

Danger, Warning, and Caution

Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them.

A circle with a slash through it is a safety symbol which means “Do not,” “Do not do this,” or “Do not let this happen.”

Symbols

The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator.

M : Shown when the owner’s manual

has additional instructions or information.

* : Shown when the service manual

has additional instructions or information.

0 : Shown when there is more

information on another page — “see page.”

Vehicle Symbol Chart

Here are some additional symbols that may be found on the vehicle and what they mean. See the features in this manual for information.

u : Air Conditioning System

G : Air Conditioning Refrigerant Oil

9 : Airbag Readiness Light

Page 5

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

INTRODUCTION 3

! : Antilock Brake System (ABS) $ : Brake System Warning Light

9 : Dispose of Used Components

Properly

P : Do Not Apply High Pressure

Water

B : Engine Coolant Temperature _ : Flame/Fire Prohibited

H : Flammable [ : Forward Collision Alert R : Fuse Block Cover Lock Location + : Fuses

j : ISOFIX/LATCH System Child

Restraints

Q : Keep Fuse Block Covers Properly

Installed

| : Lane Change Alert

: : Oil Pressure

X : Park Assist ~ : Pedestrian Ahead Indicator O : Power 7 : Rear Cross Traffic Alert

I : Registered Technician / : Remote Vehicle Start h : Risk of Electrical Fire > : Seat Belt Reminders I : Side Blind Zone Alert h : Stop/Start

7 : Tire Pressure Monitor d : Traction Control/StabiliTrak/

Electronic Stability Control (ESC)

a : Under Pressure V : Vehicle Ahead Indicator

@ : Lane Departure Warning A : Lane Keep Assist * : Malfunction Indicator Lamp

Page 6

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

4 INTRODUCTION

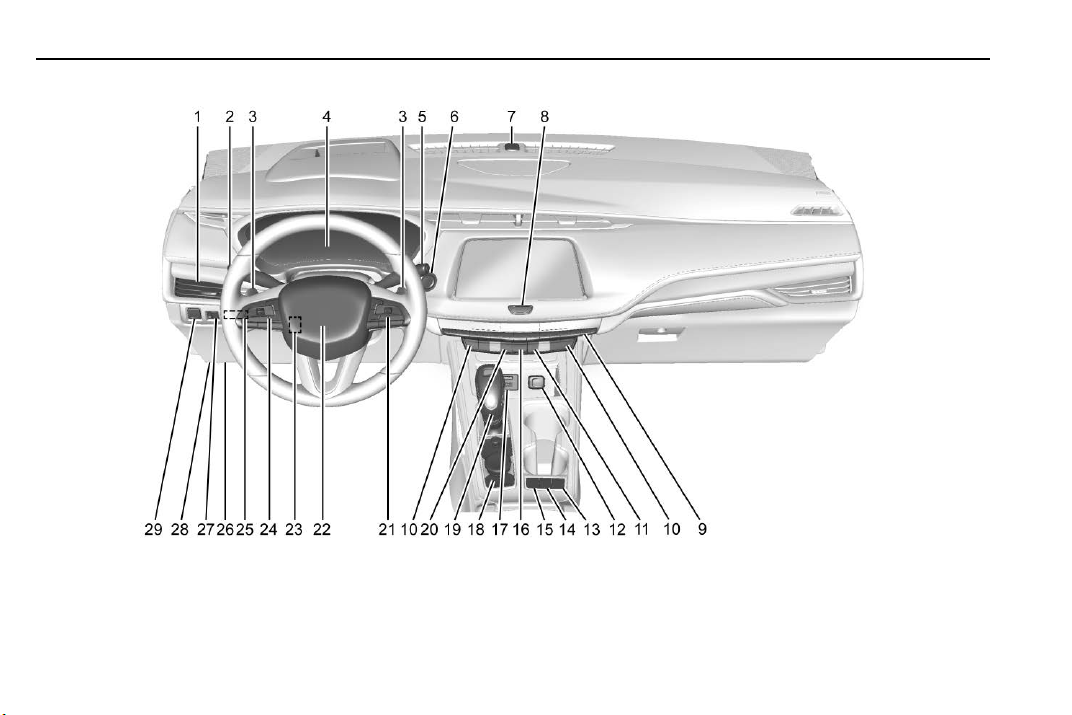

Instrument Panel Overview

Page 7

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

1. Air Vents 0 201.

2. Exterior Lamp Controls 0 129. Turn Signal Lever. See Turn and

Lane-Change Signals 0 132. IntelliBeam System Button (If

Equipped). See Exterior Lamp Controls 0 129.

3. Tap Shift Controls. See Manual Mode 0 231 (If Equipped).

4. Instrument Cluster 0 99. Driver Information Center (DIC)

Display. See Driver Information Center (DIC) 0 114.

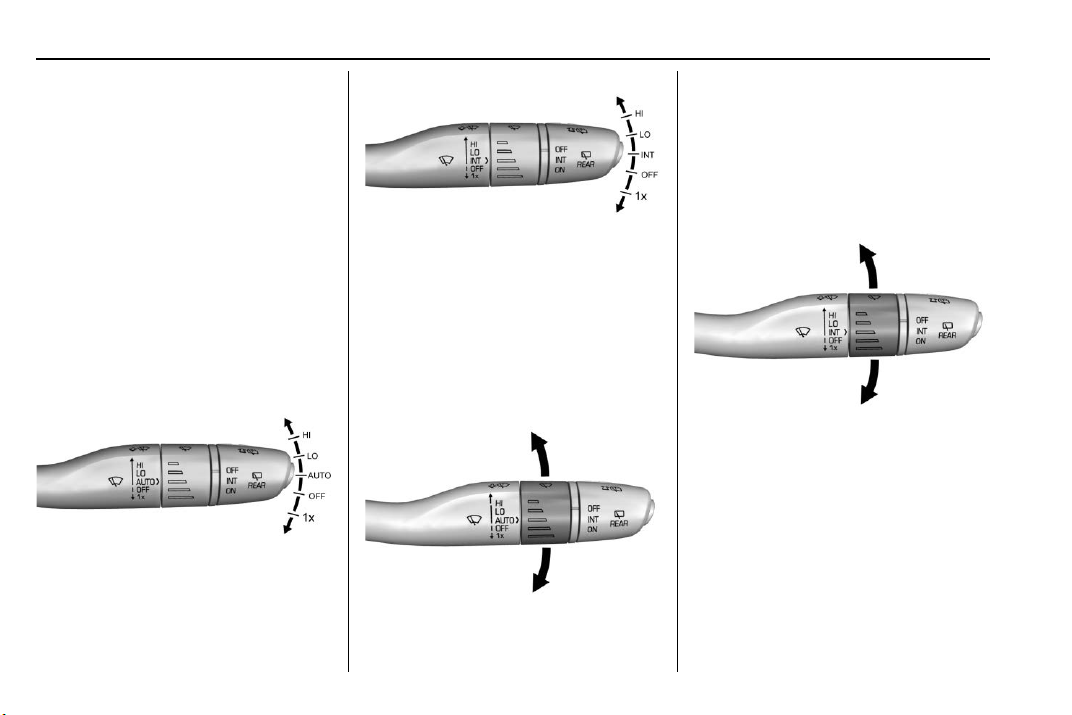

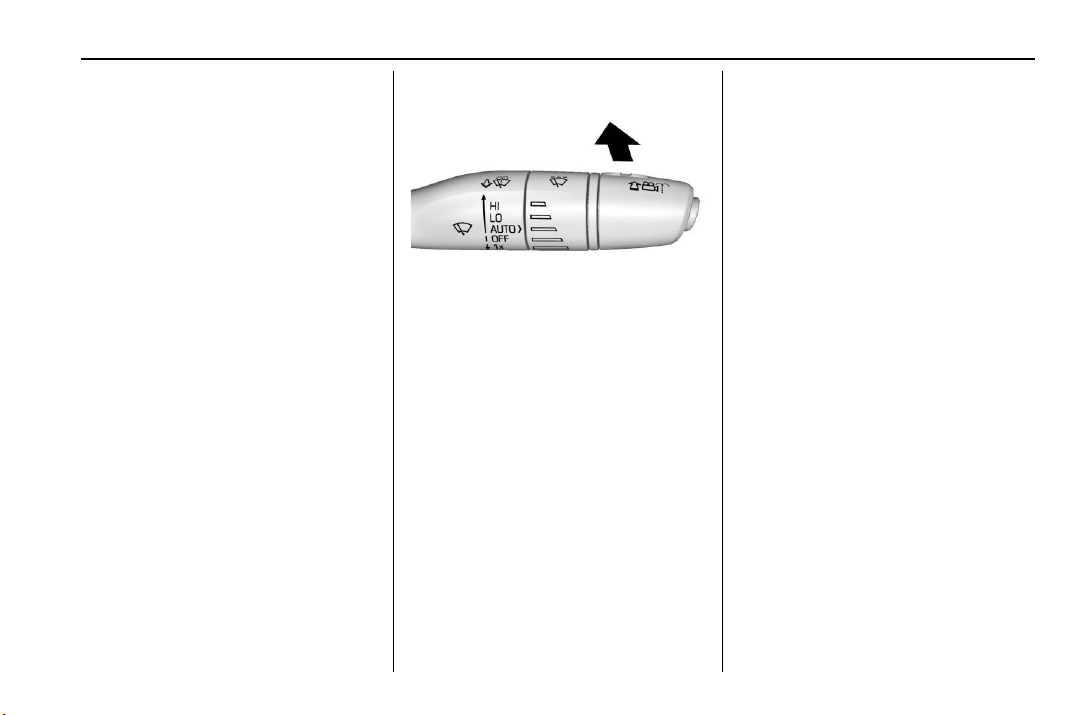

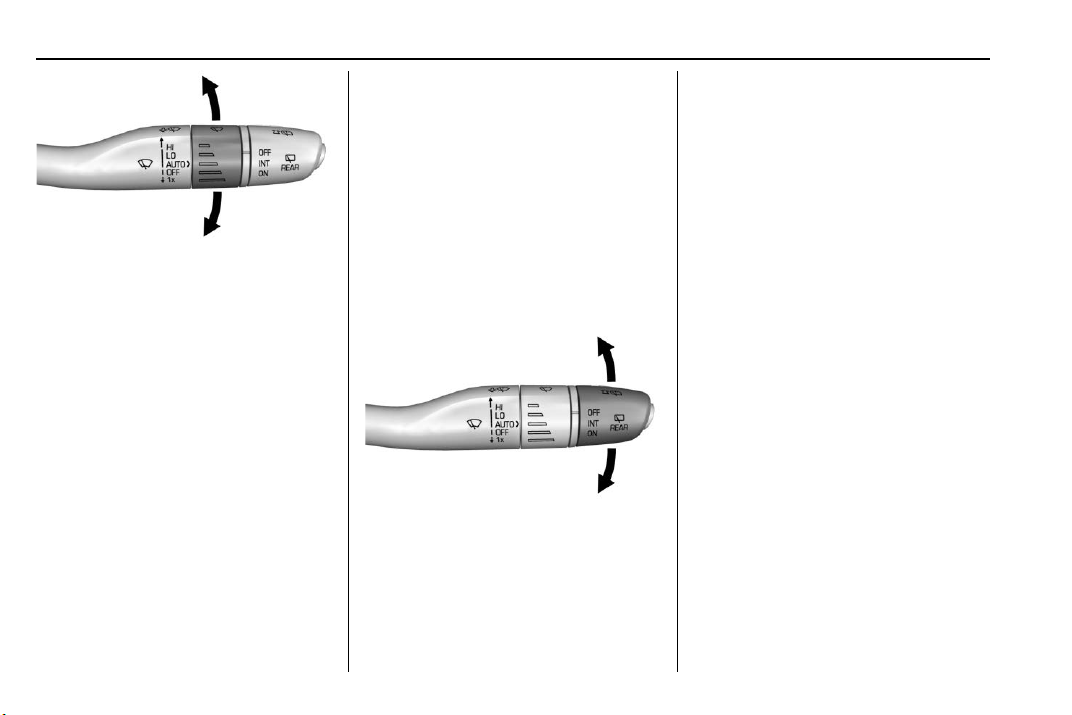

5. Windshield Wiper/Washer 0 92. Rear Window Wiper/Washer 0 94.

6. ENGINE START/STOP Button. See Ignition Positions 0 219.

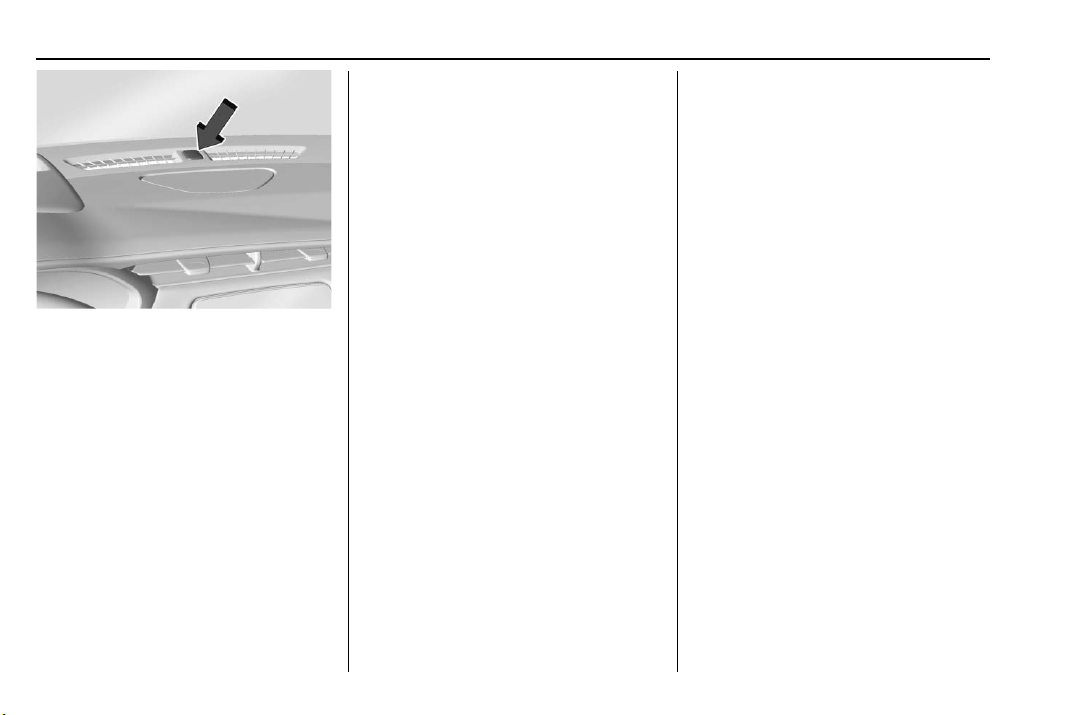

7. Light Sensor. See Automatic Headlamp System 0 131.

8. Home Button. See Overview 0 137.

9. Dual Automatic Climate Control System 0 197.

10. Heated and Ventilated Front Seats 0 43 (If Equipped).

11. Lane Keep Assist (LKA) 0 265 (If Equipped).

12. Power Outlets 0 95.

13. MODE Switch. See Driver Mode Control 0 236.

14. Stop/Start Disable Switch. See Stop/ Start System 0 221.

15. Traction Control/Electronic Stability Control 0 235.

16. Hazard Warning Flashers 0 132.

17. USB Port 0 147.

18. Infotainment Controls. See Overview 0 137.

19. Shift Lever. See Automatic Transmission 0 226.

20. Park Assist Button. See Assistance

Systems for Parking or Backing

0 250. Automatic Parking Assist (APA)

Button. See Assistance Systems for Parking or Backing 0 250.

21. Steering Wheel Controls 0 91. Driver Information Center (DIC)

Controls. See Driver Information Center (DIC) 0 114.

22. Horn 0 92.

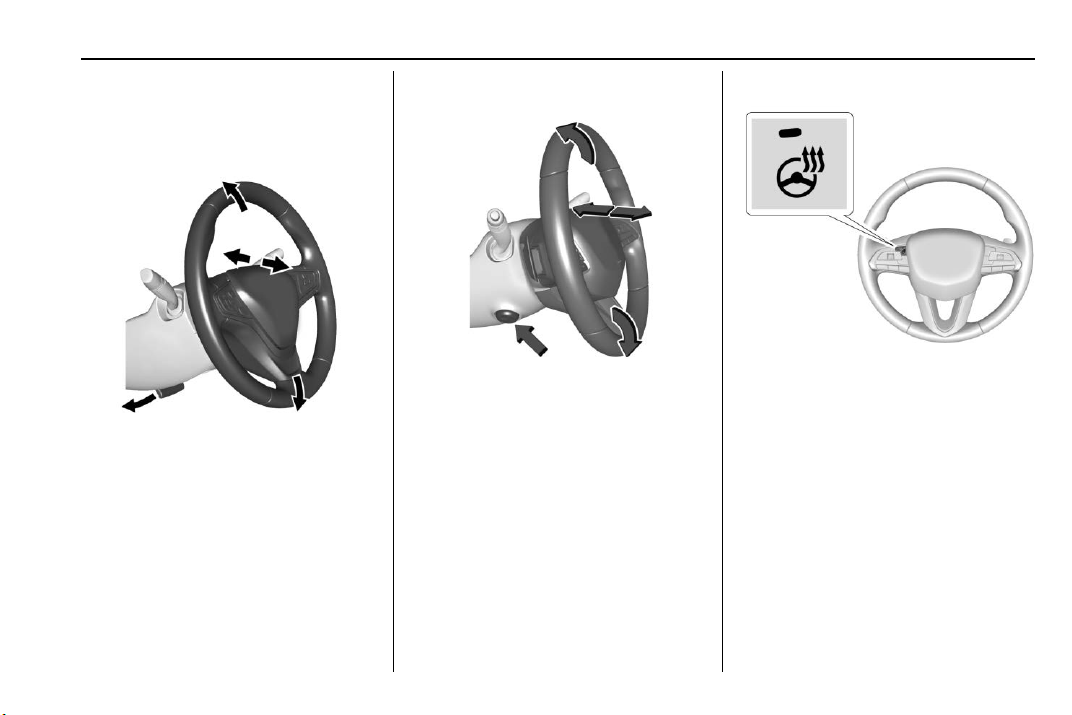

23. Steering Wheel Adjustment 0 91 (Out of View).

INTRODUCTION 5

24. Cruise Control 0 237. Adaptive Cruise Control (Advanced)

0 240 (If Equipped). Heated Steering Wheel 0 91 (If

Equipped).

Forward Collision Alert (FCA) System

0 258 (If Equipped).

25. Head-Up Display (HUD) 0 116 (Out of View) (If Equipped).

26. Data Link Connector. See

Malfunction Indicator Lamp (Check Engine Light) 0 105 (Out of View).

27. Instrument Panel Illumination Control 0 133.

28. Hood Release. See Hood 0 284 (Out of View).

29. Electric Parking Brake 0 233.

Page 8

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

6 KEYS, DOORS, AND WINDOWS

Keys, Doors, and Windows

Keys and Locks

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Keyless Entry (RKE)

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote Keyless Entry (RKE)

System Operation . . . . . . . . . . . . . . . . . 7

Remote Vehicle Start . . . . . . . . . . . . . . 14

Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 15

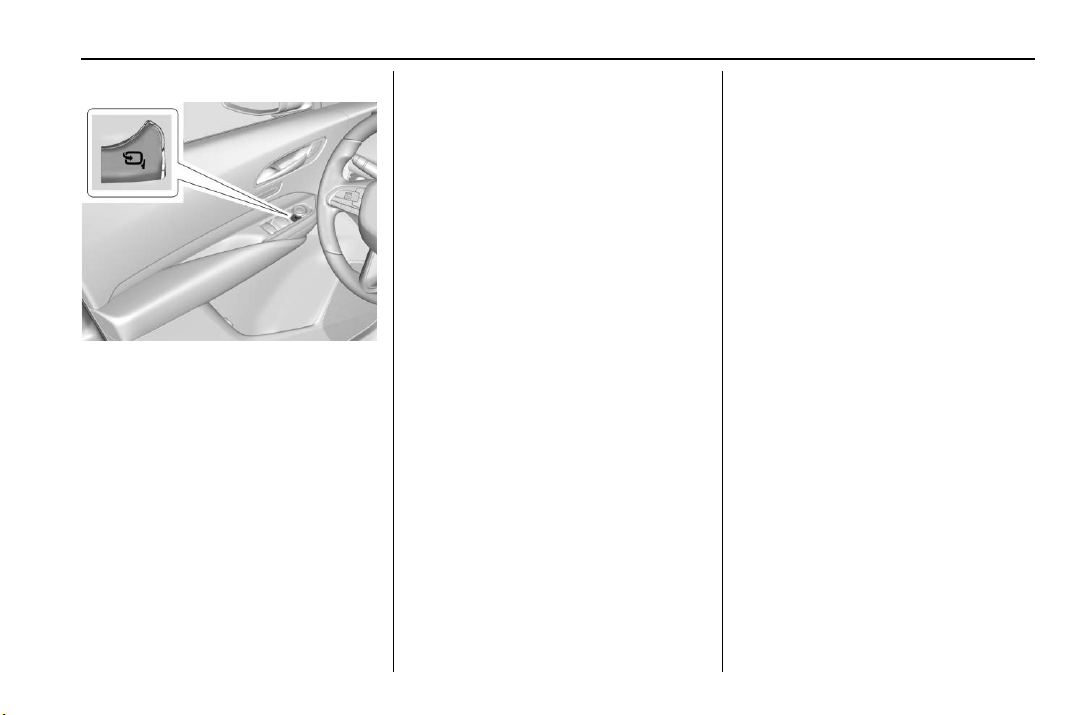

Power Door Locks . . . . . . . . . . . . . . . . . 18

Delayed Locking . . . . . . . . . . . . . . . . . . . 18

Automatic Door Locks . . . . . . . . . . . . 18

Lockout Protection . . . . . . . . . . . . . . . . 18

Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . 19

Doors

Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Vehicle Security

Vehicle Security . . . . . . . . . . . . . . . . . . . . 25

Vehicle Alarm System . . . . . . . . . . . . . 25

Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 27

Immobilizer Operation . . . . . . . . . . . . 27

Exterior Mirrors

Convex Mirrors . . . . . . . . . . . . . . . . . . . . 28

Power Mirrors . . . . . . . . . . . . . . . . . . . . . . 28

Folding Mirrors . . . . . . . . . . . . . . . . . . . . 28

Heated Mirrors . . . . . . . . . . . . . . . . . . . . . 29

Automatic Dimming Mirror . . . . . . . 29

Reverse Tilt Mirrors . . . . . . . . . . . . . . . 29

Interior Mirrors

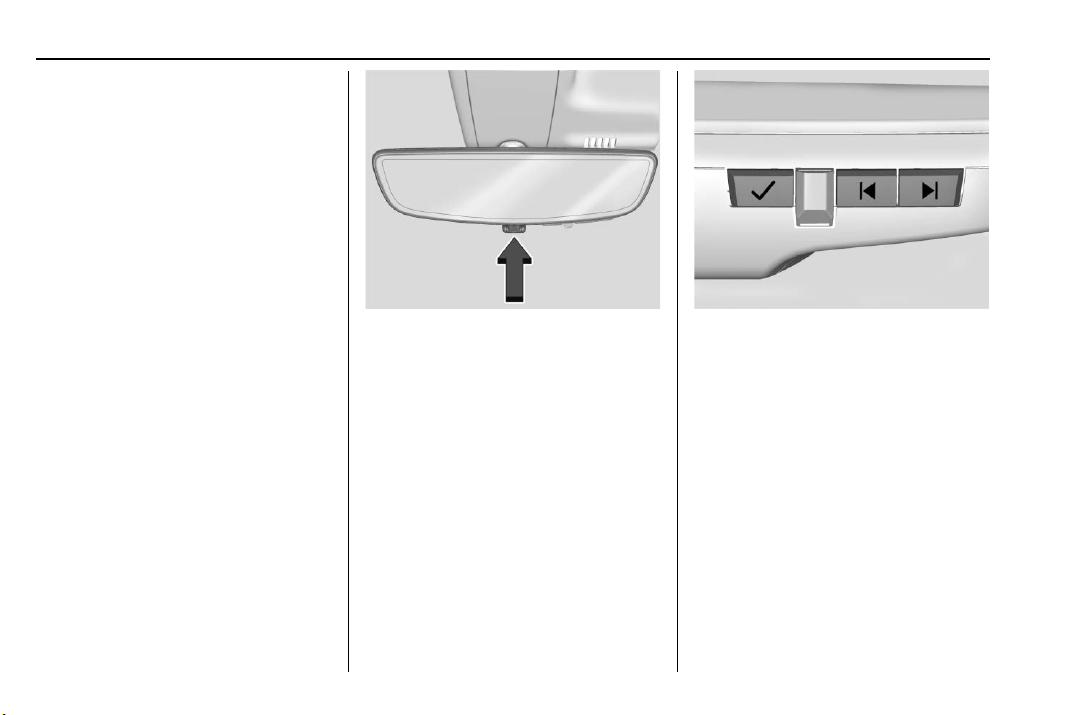

Interior Rearview Mirrors . . . . . . . . . 30

Manual Rearview Mirror . . . . . . . . . . 30

Automatic Dimming Rearview

Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Rear Camera Mirror . . . . . . . . . . . . . . . 30

Windows

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Power Windows . . . . . . . . . . . . . . . . . . . . 32

Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Roof

Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Keys and Locks

Keys

Warning

{

Leaving children in a vehicle with a Remote Keyless Entry (RKE) transmitter is dangerous and children or others could be seriously injured or killed. They could operate the power windows or other controls or make the vehicle move. The windows will function with the RKE transmitter in the vehicle, and children or others could be caught in the path of a closing window. Do not leave children in a vehicle with an RKE transmitter.

Page 9

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

The key inside the Remote Keyless Entry (RKE) transmitter can be used for all locks.

To remove the key, press the button near the bottom of the transmitter, and pull the key out. Never pull the key out without pressing the button.

If it becomes difficult to turn the key, inspect the key blade for debris.

See your dealer if a new key is needed.

Contact Roadside Service if locked out of the vehicle. See Roadside Service 0 378.

With an active OnStar or connected service plan, an OnStar Advisor may remotely unlock the vehicle. See OnStar Overview 0 387.

Remote Keyless Entry (RKE) System

See Radio Frequency Statement 0 383.

If there is a decrease in the Remote Keyless Entry (RKE) operating range:

Check the distance. The transmitter may be too far from the vehicle.

Check the location. Other vehicles or objects may be blocking the signal.

KEYS, DOORS, AND WINDOWS 7

Check the transmitter's battery. See “Battery Replacement” later in this section.

If the transmitter is still not working correctly, see your dealer or a qualified technician for service.

Remote Keyless Entry (RKE) System Operation

The Keyless Access system allows for vehicle entry when the transmitter is within 1 m (3 ft). See “Keyless Access Operation” following.

The RKE transmitter functions may work up to 60 m (197 ft) away from the vehicle.

Other conditions can impact the performance of the transmitter. See

Remote Keyless Entry (RKE) System 0 7.

Page 10

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

8 KEYS, DOORS, AND WINDOWS

Pressing system. See Vehicle Alarm System 0 25.

Q may also arm the alarm

K : Press to unlock the driver door.

Press

K again within five seconds to

unlock all doors. The RKE transmitter can be programmed to unlock all doors on the first button press. See Vehicle Personalization 0 120.

The turn signal indicators may f lash to indicate unlocking. See Vehicle

With Power Liftgate Shown, Without

Similar

Q : Press to lock all doors. The turn

signal indicators may flash and/or the horn may sound on the second press to indicate locking. See Vehicle Personalization 0 120.

If the driver door is open when pressed, all doors will lock and the driver door will immediately unlock, if Open Door Anti-Lockout is enabled. See Vehicle Personalization 0 120. If the passenger door is open when is pressed, all doors lock.

Q is

Personalization 0 120. When remotely unlocking the vehicle at night, the lights come on brief ly to light your approach to the vehicle.

Pressing system. See Vehicle Alarm System 0 25.

Press and hold fully open. Windows will not operate unless remote window operation is enabled. See Vehicle Personalization 0 120.

K will disarm the alarm

K until the windows

/ : Press and release Q and then

immediately press and hold

least four seconds to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start 0 14.

/ for at

7 : Press and release one time to

initiate vehicle locator. The exterior lamps flash and the horn chirps three

times. Press and hold three seconds to sound the panic alarm. The horn sounds and the turn signal lamps flash for 30 seconds, or until vehicle is started.

7 is pressed again or the

7 for

b : Press twice quickly to open or

close the liftgate.

Press once to stop the liftgate from moving.

Keyless Access Operation

With the Keyless Access system, you can lock and unlock the doors and access the liftgate without removing the RKE transmitter from your pocket, purse, briefcase, etc. The RKE transmitter should be within 1 m (3 ft) of the liftgate or door being opened.

Keyless Access can be programmed to unlock all doors on the first lock/ unlock press from the driver door. Keyless access can also be turned off. See Vehicle Personalization 0 120.

Page 11

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

If equipped with memory seats, RKE transmitters 1 and 2 are linked to seating positions of memory 1 or 2. See Memory Seats 0 41.

Keyless Unlocking/Locking from the Driver Door

When the doors are locked and the RKE transmitter is within 1 m (3 ft) of the driver door handle, pressing the lock/unlock button on the driver door handle will unlock the driver door. If the lock/unlock button is pressed again within five seconds, all passenger doors will unlock.

Driver Shown, Passenger Similar

Pressing the lock/unlock button will cause all doors to lock if any of the following occur:

It has been more than five seconds since the first lock/unlock button press.

Two lock/unlock button presses were used to unlock all doors.

Any vehicle door has opened and all doors are now closed.

Keyless Unlocking/Locking from Passenger Doors

When the doors are locked and the RKE transmitter is within 1 m (3 ft) of the door handle, pressing the lock/ unlock button on that door handle will unlock all doors. Pressing the lock/unlock button will cause all doors to lock if either of the following occurs:

The lock/unlock button was used to unlock all doors.

Any vehicle door has opened and all doors are now closed.

KEYS, DOORS, AND WINDOWS 9

Disable/Enable Keyless Unlocking of Exterior Door Handles and Liftgate

If equipped, keyless unlocking of the exterior door handles and liftgate can be disabled and enabled.

Disabling Keyless Unlocking:

With the vehicle off, press and hold and K on the RKE transmitter at the

same time for approximately three seconds. The turn signal lamps will flash four times quickly to indicate access is disabled. Using any exterior handle to unlock the doors or open the liftgate will cause the turn signal lamps to f lash four times quickly, indicating access is disabled. If disabled, disarm the alarm system before starting the vehicle.

Enabling Keyless Unlocking:

With the vehicle off, press and hold and K on the RKE transmitter at the

same time for approximately three seconds. The turn signal lamps will flash twice quickly to indicate access is enabled.

Page 12

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

10 KEYS, DOORS, AND WINDOWS

Passive Locking

With Keyless Access this vehicle will lock several seconds after all doors are closed if the vehicle is off and at least one RKE transmitter has been removed or none remain in the interior.

If other electronic devices interfere with the RKE transmitter signal, the vehicle may not detect the RKE transmitter inside the vehicle. If passive locking is enabled, the doors may lock with the RKE transmitter inside the vehicle. Do not leave the RKE transmitter in an unattended vehicle.

To customize the doors to automatically lock when exiting the vehicle, see Vehicle Personalization 0 120.

Temporary Disable of Passive Locking

Temporarily disable passive locking by pressing and holding interior door switch with a door open

for at least four seconds, or until three chimes are heard. Passive locking will

K on the

then remain disabled until interior door is pressed, or until the vehicle is turned on.

Remote Left in Vehicle Alert

When the vehicle is turned off and an RKE transmitter is left in the vehicle, the horn will chirp three times after all doors are closed. To turn on or off, see Vehicle Personalization 0 120.

Remote No Longer in Vehicle Alert

If the vehicle is on, with a door open, and then all doors are closed, the vehicle will check for RKE transmitter(s) inside. If an RKE transmitter is not detected, the Driver Information Center (DIC) will display NO REMOTE DETECTED and the horn will chirp three times.

This occurs only once each time the vehicle is driven.

To turn on or off, see Vehicle Personalization 0 120.

Keyless Liftgate Opening

Press the touch pad on the liftgate handle to open the liftgate if the RKE transmitter is within 1 m (3 ft).

Q on the

Key Access

To access a vehicle with a weak transmitter battery, see Door Locks 0 15.

Programming Transmitters to the Vehicle

Only RKE transmitters programmed to the vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer.

The vehicle can be reprogrammed so that lost or stolen transmitters no longer work. Each vehicle can have up to eight transmitters matched to it.

Programming with Recognized Transmitters

A new transmitter can be programmed to the vehicle when there are two recognized transmitters.

To program, the vehicle must be off and all of the transmitters, both currently recognized and new, must be with you.

1. Remove the key from the RKE transmitter.

Page 13

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

2. Place the two recognized transmitters into the front cupholder.

3. Remove the key lock cylinder cap on the driver door handle. See Door Locks 0 15. Insert the vehicle key of the transmitter into the key lock cylinder on the driver door and turn the key counterclockwise, to the unlock position, five times within 10 seconds.

The DIC displays READY FOR REMOTE #3, 4, 5, ETC.

4. Place the new transmitter into the front cupholder.

5. Press ENGINE START/STOP. When the transmitter is learned the DIC display will show that it is ready to program the next transmitter.

6. Remove the transmitter from the front cupholder. and press the

transmitter To program additional transmitters,

repeat Steps 3–5. When all additional transmitters

are programmed, press and hold ENGINE START/STOP for 12 seconds to exit programming mode.

7. Return the key back into the transmitter.

8. Replace the key lock cylinder cap. See Door Locks 0 15.

Programming without Recognized Transmitters

If two currently recognized transmitters are not available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to

K or Q button.

KEYS, DOORS, AND WINDOWS 11

complete. The vehicle must be off and all of the transmitters you wish to program must be with you.

1. Remove the key from the RKE transmitter.

2. Remove the key lock cylinder cap on the driver door handle. See Door Locks 0 15. Insert the vehicle key of the transmitter into the key lock cylinder on the driver door handle and turn the key counterclockwise, to the unlock position, five times within 10 seconds.

The DIC displays REMOTE LEARN PENDING, PLEASE WAIT.

3. Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN and then press ENGINE START/STOP.

The DIC display will again show REMOTE LEARN PENDING, PLEASE WAIT.

4. Repeat Step 2 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps.

Page 14

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

12 KEYS, DOORS, AND WINDOWS

The DIC display should now show READY FOR REMOTE # 1.

5. Place the new transmitter into the front cupholder.

6. Press ENGINE START/STOP. When the transmitter is learned the DIC display will show that it is ready to program the next transmitter.

7. Remove the transmitter from the front cupholder. and press the

transmitter To program additional transmitters,

repeat Steps 4–6.

K or Q button.

When all additional transmitters are programmed, press and hold ENGINE START/STOP for 12 seconds to exit programming mode.

8. Return the key back into the transmitter.

9. Replace the key lock cylinder cap. See Door Locks 0 15.

Starting the Vehicle with a Low Transmitter Battery

When starting the vehicle, if the RKE transmitter battery is depleted, there is signal interference, or the RKE transmitter has been idle for a while, the DIC may display NO REMOTE DETECTED or NO REMOTE KEY WAS DETECTED PLACE KEY IN TRANSMITTER POCKET THEN START YOUR VEHICLE. The DIC may also display REPLACE BATTERY IN REMOTE KEY.

For improved vehicle security, the RKE transmitter is equipped with a motion sensor. First, move the RKE transmitter slightly and try starting the vehicle. If the vehicle still does not

start and the DIC displays the same warnings above, follow the steps shown below.

To start the vehicle:

1. Place the transmitter in the front cupholder.

2. With the vehicle in P (Park) or N (Neutral), press the brake pedal and ENGINE START/STOP.

Replace the transmitter battery as soon as possible.

Page 15

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Battery Replacement

Warning

{

Never allow children to play with the RKE transmitter. The transmitter contains a small battery, which can be a choking hazard. If swallowed, internal burns can occur, resulting in severe injury or death. Seek medical attention immediately if a battery is swallowed.

Caution

Always replace the battery with the correct type. Replacing the battery with an incorrect type could potentially create a risk of battery explosion. Dispose of used batteries according to instructions and local laws. Do not attempt to burn, crush, or cut the used battery, and avoid exposing the battery to environments with extremely low air pressures or high temperatures.

KEYS, DOORS, AND WINDOWS 13

1. Press the button on the side of the RKE transmitter near the bottom and pull the key out. Never pull the key out without pressing the button.

Warning

{

To avoid personal injury, do not touch metal surfaces on the RKE transmitter when it has been exposed to extreme heat. These surfaces can be hot to the touch at temperatures above 59 °C (138 °F).

Replace the battery if the DIC displays REPLACE BATTERY IN REMOTE KEY.

Caution

When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter.

2. Separate the two halves of the transmitter using a flat tool inserted into the bottom center of the transmitter. Do not use the key slot.

Page 16

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

14 KEYS, DOORS, AND WINDOWS

The climate control system will determine the best mode and temperature setting for operation during the remote start. Once the vehicle is started with the ENGINE START/STOP button, the climate control system will begin to operate at the last customer selected operating mode and temperature. The rear defog may come on during remote start based on cold ambient conditions. The rear fog indicator light does not come

3. Remove the old battery. Do not use a metal object.

4. Insert the new battery on the back housing, positive side facing down. Replace with a CR2032 or equivalent battery.

5. Align the front and back housing then snap the transmitter together.

6. Reinsert the key.

Remote Vehicle Start

This feature allows the engine to be started from outside of the vehicle.

on during remote start.

If the vehicle has auto heated or ventilated seats they may come on during a remote start. See Heated and Ventilated Front Seats 0 43.

Laws in some local communities may restrict the use of remote starters. For example, some laws may require a person using remote start to have the vehicle in view. Check local regulations for any requirements.

Do not use remote start if the vehicle is low on fuel. The vehicle may run out of fuel.

/ : This button is on the RKE

transmitter for remote start.

Other conditions can affect the performance of the transmitter. See

Remote Keyless Entry (RKE) System 0 7.

Starting the Engine Using Remote Start

1. Press and release transmitter.

2. Immediately press and hold at least four seconds or until the turn signal lamps f lash. The turn signal lamps flashing confirms the request to remote start the vehicle has been received.

During the remote start the doors will be locked and the parking lamps will remain on as long as the engine is running.

The engine will shut off after 15 minutes unless a time extension is done or the ignition is turned on.

3. With the RKE transmitter in the vehicle, press the brake pedal and start the vehicle to drive.

Q on the RKE

/ for

Page 17

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Extending Engine Run Time

The engine run time can also be extended by another 15 minutes, if during the first 15 minutes Steps 1 and 2 are repeated while the engine is still running. An extension can be requested 30 seconds after starting. This provides a total of 30 minutes.

The remote start can only be extended once.

When the remote start is extended, the second 15-minute period is added on to the first 15 minutes for a total of 30 minutes.

A maximum of two remote starts, or a remote start with an extension, are allowed between ignition cycles.

The ignition must be turned on and then off before the remote start procedure can be used again.

Canceling a Remote Start

Turn on the hazard warning flashers.

Turn the vehicle on and then off.

Conditions in Which Remote Start Will Not Work

The remote start will not operate if any of the following occur:

The RKE transmitter is in the vehicle.

The vehicle is not off.

The hood is not closed.

The hazard warning flashers are on.

There is an emission control system malfunction.

The engine coolant temperature is too high.

The oil pressure is low.

Two remote vehicle starts or a start with an extension have already been used.

The vehicle is not in P (Park).

To cancel a remote start, do any of the following:

Press and hold / until the parking lamps turn off.

KEYS, DOORS, AND WINDOWS 15

Door Locks

Warning

{

Unlocked doors can be dangerous.

Passengers, especially children, can easily open the doors and fall out of a moving vehicle. The doors can be unlocked and opened while the vehicle is moving. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked. So, all passengers should wear seat belts properly and the doors should be locked whenever the vehicle is driven.

Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock the vehicle whenever leaving it.

Outsiders can easily enter through an unlocked door when you slow down or stop the

(Continued)

Page 18

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

16 KEYS, DOORS, AND WINDOWS

Warning (Continued)

vehicle. Locking the doors can help prevent this from happening.

To lock/unlock the doors from outside the vehicle:

Press Q or K on the RKE transmitter. See Remote Keyless Entry (RKE) System Operation 0 7.

Use the key in the key lock cylinder in the driver door. The key lock cylinder is covered with a cap.

To lock/unlock the doors from inside the vehicle:

Press Q or K on the power door lock switch. See Power Door Locks 0 18.

Push down on the door lock knob to lock a door.

Pull the door handle once to unlock it. Pull the door handle again to unlatch it.

Keyless Access

The RKE transmitter must be within 1 m (3 ft) of the door or liftgate being opened. Press the button on the door handle to open. See “Keyless Access” in Remote Keyless Entry (RKE) System Operation 0 7.

Driver Door Key Lock Cylinder Access (In Case of Dead Battery)

To access the driver door key lock cylinder:

1. Pull the door handle (1) to the open position and hold it open until the cap removal is complete.

2. Insert the key into the slot (3) on the bottom of the cap (2) and lift the key upward.

3. Move the cap (2) rear ward and remove.

4. Use the key in the cylinder.

To replace the cap:

Page 19

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

1. Pull the door handle (1) to the open position and hold it open until the cap installation is complete.

2. Insert the two tabs (6) at the back of the cap between the seal (5) and the metal base (4).

KEYS, DOORS, AND WINDOWS 17

3. Slide the cap forward and press the forward edge to install the cap in place.

4. Release the door handle.

5. Check that the cap is secure.

Free-Turning Locks

The door key lock cylinder turns freely when either the wrong key is used, or the correct key is not fully inserted. The free-turning door lock feature prevents the lock from being forced open. To reset the lock, turn it to the vertical position with the correct key fully inserted. Remove the key and insert it again. If this does not reset the lock, turn the key halfway around in the cylinder and repeat the reset procedure.

Page 20

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

18 KEYS, DOORS, AND WINDOWS

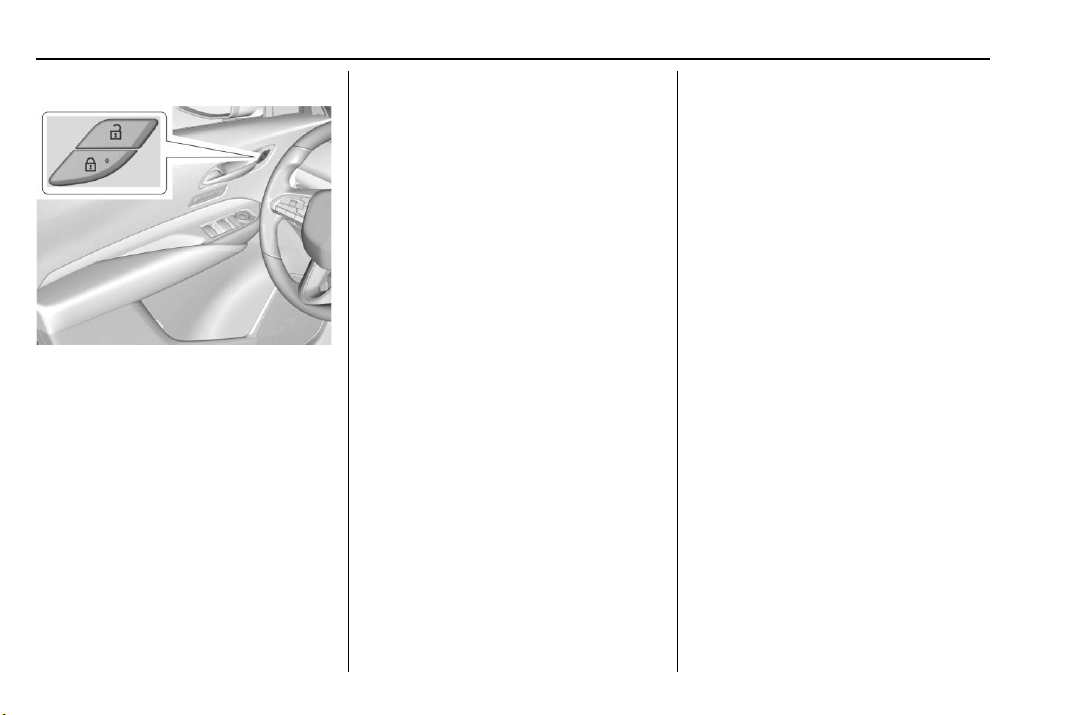

Power Door Locks

Q : Press to lock the doors. The

indicator light in the switch will illuminate when locked.

K : Press to unlock the doors.

Delayed Locking

This feature delays the locking of the doors until five seconds after all doors are closed.

Delayed locking can only be turned on when Open Door Anti-Lockout has been turned off.

When

Q is pressed on the power door

lock switch while the door is open, a chime will sound three times indicating delayed locking is active.

The doors will lock automatically five seconds after all doors are closed. If a door is reopened before that time, the five-second timer will reset when all doors are closed again.

Press

Q on the door lock switch again

or press lock the doors immediately.

This feature can also be programmed. See Vehicle Personalization 0 120.

Q on the RKE transmitter to

Automatic Door Locks

The doors will lock automatically when all doors are closed, the ignition is on, and the vehicle is shifted out of P (Park).

If a vehicle door is unlocked and then opened and closed, the doors will lock either when your foot is removed from the brake or the vehicle speed becomes faster than 13 km/h (8 mph).

To unlock the doors:

Press K on the power door lock switch.

Shift the transmission into P (Park).

Automatic door locking cannot be disabled. Automatic door unlocking can be programmed. See Vehicle Personalization 0 120.

Lockout Protection

If the ignition is on or in ACC/ ACCESSORY and the power door lock switch is pressed with the driver door open, all the doors will lock and only the driver door will unlock.

If the vehicle is off and locking is requested while a door is open, when all doors are closed the vehicle will check for RKE transmitter inside. If an RKE transmitter is detected and the number of RKE transmitters inside has not reduced, the driver door will unlock and the horn will chirp three times.

Lockout Protection can be manually overridden with the driver door open

by pressing and holding power door lock switch.

Q on the

Page 21

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Open Door Anti-Lockout

If Open Door Anti-Lockout is turned on and the vehicle is off, the driver door is open, and locking is requested, all the doors will lock and the driver door will remain unlocked. The Open Door Anti-Lockout feature can be turned on or off. See Vehicle Personalization 0 120.

Safety Locks

The rear door safety locks prevent passengers from opening the rear doors from inside the vehicle.

The safety lock is on the inside edge of the rear doors. To use the safety lock:

1. Move the lever down to the lock position.

2. Close the door.

3. Do the same for the other rear door.

To open a rear door when the safety lock is on:

1. Unlock the door by activating the inside handle, by pressing the power door unlock switch, or by using the RKE transmitter.

2. Open the door from the outside.

When the safety lock is enabled, adults and older children will not be able to open the rear door from the inside. Cancel the safety locks to enable the doors to open from the inside.

To cancel the safety lock:

1. Unlock the door and open it from the outside.

2. Move the lever up to unlock. Do the same for the other door.

KEYS, DOORS, AND WINDOWS 19

Doors

Liftgate

Warning

{

Exhaust gases can enter the vehicle if it is driven with the liftgate or trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/ hatch or liftgate. Engine exhaust contains carbon monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death.

If the vehicle must be driven with the liftgate or trunk/hatch open:

Close all of the windows.

Fully open the air outlets on or under the instrument panel.

Adjust the climate control system to a setting that brings in only outside air and set the fan speed to the highest setting. See “Climate Control Systems” in the Index.

(Continued)

Page 22

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

20 KEYS, DOORS, AND WINDOWS

Warning (Continued)

If the vehicle is equipped with a power liftgate, disable the power liftgate function.

See Engine Exhaust 0 226.

Caution

To avoid damage to the liftgate or liftgate glass, make sure the area above and behind the liftgate is clear before opening it.

Power Liftgate Operation

Warning

{

You or others could be injured if caught in the path of the power liftgate. Make sure there is no one in the way of the liftgate as it is opening and closing.

The power liftgate switch is on the driver door. The vehicle must be in P (Park).

The modes are:

MAX : Opens to maximum height.

Caution

Driving with an open and unsecured liftgate may result in damage to the power liftgate components.

3/4 : Opens to a reduced height that can be set from 3/4 to fully open. Use to prevent the liftgate from opening into overhead obstructions such as a garage door or roof-mounted cargo. The liftgate can be manually opened all the way.

OFF : Opens manually only.

To power open or close the liftgate, select MAX or 3/4 mode.

Press b twice quickly on the RKE transmitter until the liftgate moves.

Press 8 on the driver door. The driver door must either be unlocked or locked without the security armed.

Press the touch pad on the underside of the liftgate handle after unlocking all doors. A locked vehicle can be opened if the RKE transmitter is within 1 m (3 ft) of the touch pad.

Page 23

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Caution

Manually forcing the liftgate to open or close during a power cycle can damage the vehicle. Allow the power cycle to complete.

The power liftgate may be temporarily disabled under extreme low temperatures, or after repeated power cycling over a short period of time. If this occurs, the liftgate can still be

Press l on the bottom of the liftgate next to the pull cup to close.

Press any liftgate button, or the touch pad, or

b on the RKE transmitter

while the liftgate is moving to stop it. Pressing any liftgate button again or

pressing transmitter restarts the operation in the reverse direction. Pressing the touch pad on the liftgate handle will restart the motion, but only in the opening direction.

b twice quickly on the RKE

operated manually.

If the vehicle is shifted out of P (Park) while the power function is in progress, the liftgate will continue to completion. If the vehicle is accelerated before the liftgate has completed moving, the liftgate may stop or reverse direction. Check for Driver Information Center (DIC) messages and make sure the liftgate is closed and latched before driving.

Falling Liftgate Detection

If the power liftgate automatically closes after a power opening cycle, it indicates that the system is reacting to excess weight on the liftgate or a possible support strut failure.

KEYS, DOORS, AND WINDOWS 21

A repetitive chime will sound while the falling liftgate detection feature is operating. Remove any excess weight. If the liftgate continues to automatically close after opening, see your dealer for service before using the power liftgate.

Interfering with the power liftgate motion or manually closing the liftgate too quickly after power opening may resemble a support strut failure. This could also activate the falling liftgate detection feature. Allow the liftgate to complete its operation and wait a few seconds before manually closing the liftgate.

Obstacle Detection Features

If the liftgate encounters an obstacle during a power open or close cycle, the liftgate will automatically reverse direction and move a short distance away from the obstacle. After removing the obstruction, the power liftgate operation can be used again. If the liftgate encounters multiple obstacles on the same power cycle, the power function will deactivate. After removing the obstructions,

Page 24

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

22 KEYS, DOORS, AND WINDOWS

manually close the liftgate. This will allow normal power operation functions to resume.

If the vehicle is locked while the liftgate is closing, and an obstacle is encountered that prevents the liftgate from completely closing, the horn will sound as an alert that the liftgate did not close.

Setting the 3/4 Mode

To change the position the liftgate stops at when opening:

1. Select MAX or 3/4 mode and power open the liftgate.

2. Stop the liftgate movement at the desired height by pressing any liftgate button. Manually adjust the liftgate position if needed.

3. Press and hold cup on the bottom of the liftgate until the turn signals flash and a beep sounds. This indicates the setting has been recorded.

l next to the pull

The liftgate cannot be set below a minimum programmable height. If there is no light flash or sound, then the height adjustment may be too low.

Manual Operation

Select OFF to manually operate the liftgate.

Caution

Attempting to move the liftgate too quickly and with excessive force may result in damage to the vehicle.

Operate the liftgate manually with a smooth motion and moderate speed. The system includes a feature which limits the manual closing speed to protect the components.

Hands-Free Operation

If equipped, the liftgate may be operated with a kicking motion under the left corner of the rear bumper at the location of the projected logo.

The RKE transmitter must be within 1 m (3 ft) of the rear bumper to operate the power liftgate hands-free.

The hands-free feature will not work while the liftgate is moving. To stop the liftgate while in motion use one of the liftgate switches.

Length of Kick Zone

Page 25

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Kick Zone Direction

To operate, kick your foot straight up in one swift motion under the left corner of the rear bumper at the location of the projected logo, then pull it back.

Caution

Splashing water may cause the liftgate to open. Keep the RKE transmitter away from the rear bumper detection area or turn the liftgate mode to OFF when cleaning or working near the rear bumper to avoid accidental opening.

Do not sweep your foot side to side.

Do not keep your foot under the bumper; the liftgate will not activate.

Do not touch the liftgate until it has stopped moving.

This feature may be temporarily disabled under some conditions. If the liftgate does not respond to the kick, open or close the liftgate by another method or start the vehicle. The feature will be re-enabled.

When closing the liftgate using this feature, there will be a short delay. The taillamps will f lash and a chime will sound. Step away from the liftgate before it starts moving.

KEYS, DOORS, AND WINDOWS 23

Projected Logo

If equipped with this feature, a vehicle logo will be projected for one minute onto the ground near the rear bumper when an RKE transmitter is detected within approximately 2 m (6 ft). The projected logo may not be visible under brighter daytime conditions.

1. 1 m (3 ft) Hands-Free Operation Detection Zone

2. 2 m (6 ft) Projected Logo Detection Zone

Page 26

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

24 KEYS, DOORS, AND WINDOWS

The projected logo shows where the kicking motion is to take place.

The projected logo will only be available for this RKE transmitter after it has been out of range for at least 20 seconds.

If an RKE transmitter is again detected within approximately 2 m (6 ft) of the liftgate, or another hands-free operation has been detected, the one-minute timer will be reset.

The projected logo will not work under these conditions:

The vehicle battery is low.

The transmission is not in P (Park).

Hands Free Liftgate Control is set to Off in vehicle personalization. See Vehicle Personalization 0 120.

The power liftgate is turned off.

The vehicle remains parked for 72 hours or more, with no RKE transmitter use or Keyless Access operation. To re-enable, press any button on the RKE transmitter or open and close a vehicle door.

The projected logo will not work for a single RKE transmitter when a transmitter:

Has been left within approximately 5 m (15 ft) of the liftgate for several minutes.

Has been left inside the vehicle and all vehicle doors are closed.

Has approached the area outside of the liftgate five times within 10 minutes.

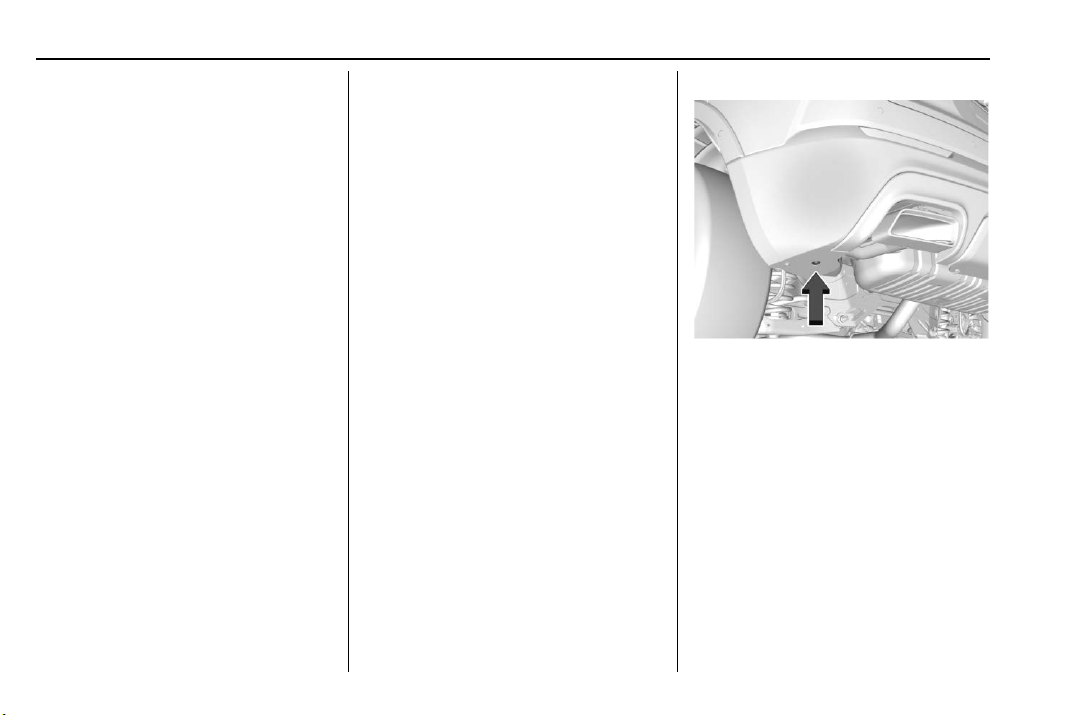

Lens Cleaning

Use a soft, damp cloth to clean the recessed lens.

Page 27

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

KEYS, DOORS, AND WINDOWS 25

Hands-Free Liftgate and Projected Logo Availability

Action Hands-Free Liftgate Projected Logo

RKE transmitter entering projected logo detection zone

RKE transmitter left inside projected logo detection zone for minimum of 10 minutes

RKE transmitter brought in and out of projected logo detection zone five times or more within 10 minutes

Vehicle remains parked for more than 72 hours

Vehicle battery is low Non-operative Off

Transmission is not in P (Park) Non-operative Off

Power liftgate is turned off Non-operative Off

Hands-free liftgate is disabled in vehicle personalization

Operative On for one minute

Operative Off until RKE transmitter button press

or a door is opened and closed

Operative Off for one hour or until RKE

transmitter button press or a door is opened and closed

Operative Off until RKE transmitter button press

or a door is opened and closed

Non-operative Off

Vehicle Security

This vehicle has theft-deterrent features; however, they do not make the vehicle impossible to steal.

Vehicle Alarm System

This vehicle has an anti-theft alarm system.

Page 28

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

26 KEYS, DOORS, AND WINDOWS

2. Lock the vehicle in one of three ways:

Use the RKE transmitter.

Use the Keyless Access system.

With a door open, press the inside

3. After 30 seconds the alarm system will arm, and the indicator light will begin to slowly flash indicating the alarm system is operating.

Pressing

The indicator light, on the instrument panel near the windshield, indicates the status of the system.

Off : Alarm system is disarmed.

On Solid : Vehicle is secured during

the delay to arm the system.

Fast Flash : Vehicle is unsecured. A door, the hood, or the liftgate is open.

Slow Flash : Alarm system is armed.

Arming the Alarm System

1. Close the liftgate and the hood. Turn off the vehicle.

a second time will bypass the 30-second delay and immediately arm the alarm system.

The vehicle alarm system will not arm if the doors are locked with the key.

If the driver door is opened without first unlocking with the RKE transmitter, the horn will chirp and the lights will f lash to indicate pre-alarm. If the vehicle is not started, or the door is not unlocked by

pressing during the 10-second pre-alarm, the alarm will be activated.

The alarm will also be activated if a passenger door, the liftgate, or the hood is opened without first

Q on the RKE transmitter

K on the RKE transmitter

disarming the system. When the alarm is activated, the turn signals flash and the horn sounds for about 30 seconds. The alarm system will then re-arm to monitor for the next unauthorized event.

Disarming the Alarm System

To disarm the alarm system or turn off the alarm if it has been activated:

Press K on the RKE transmitter.

Unlock the vehicle using the Keyless Access system.

Start the vehicle.

To avoid setting off the alarm by accident:

Lock the vehicle after all occupants have left the vehicle and all doors are closed.

Always unlock a door with the RKE transmitter or use the Keyless Access system.

Unlocking the driver door with the key will not disarm the system or turn off the alarm.

Page 29

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

How to Detect a Tamper Condition

If K is pressed and the horn chirps and the lights f lash three times, the alarm was activated while the alarm system was armed.

If the alarm system has been activated, a message will appear on the DIC.

Immobilizer

See Radio Frequency Statement 0 383.

Immobilizer Operation

This vehicle has a passive theft-deterrent system.

The system does not have to be manually armed or disarmed.

The vehicle is automatically immobilized when the vehicle is turned off.

The immobilization system is disarmed when the ignition is on or in ACC/ACCESSORY and a valid transmitter is present in the vehicle.

The security light, in the instrument cluster, comes on if there is a problem with arming or disarming the theft-deterrent system.

The system has one or more RKE transmitters matched to an immobilizer control unit in your vehicle. Only a correctly matched RKE transmitter will start the vehicle. If the transmitter is ever damaged, you may not be able to start your vehicle.

When trying to start the vehicle, the security light may come on brief ly when the ignition is turned on.

If the engine does not start and the security light stays on, there is a problem with the system. Turn the ignition off and try again.

If the vehicle will not change ignition modes (ACC/ACCESSORY, on, off), and the RKE transmitter appears to be

KEYS, DOORS, AND WINDOWS 27

undamaged, try another transmitter. Or, you may try placing the transmitter in the front cupholder located in the center console. See

Remote Keyless Entry (RKE) System Operation 0 7.

If the ignition mode will not change with the other transmitter or in the front cupholder, your vehicle needs service. If the ignition does change modes, the first transmitter may be faulty. See your dealer who can service the theft-deterrent system and have a new RKE transmitter programmed to the vehicle.

It is possible for the immobilizer system to learn new or replacement RKE transmitters. Up to eight transmitters can be programmed for the vehicle. To program additional transmitters, see “Programming Transmitters to the Vehicle” under

Remote Keyless Entry (RKE) System Operation 0 7.

Do not leave the key or device that disarms or deactivates the theft-deterrent system in the vehicle.

Page 30

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

28 KEYS, DOORS, AND WINDOWS

Exterior Mirrors

Power Mirrors

Convex Mirrors

Warning

{

A convex mirror can make things, like other vehicles, look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on the right. Check the inside mirror or glance over your shoulder before changing lanes.

The passenger side mirror is convex shaped. A convex mirror's surface is curved so more can be seen from the driver seat.

To adjust each mirror:

1. Press

2. Press the arrows on the control pad

3. Adjust each outside mirror so that

4. Press

} or | to choose the driver

or passenger side mirror. The indicator light will illuminate.

to move the mirror in the desired direction.

a little of the vehicle and the area behind it can be seen.

} or | again to deselect the

mirror.

Memory Mirrors

The vehicle may have memory mirrors. See Memory Seats 0 41.

Lane Change Alert (LCA)

The vehicle may have LCA. See Lane Change Alert (LCA) 0 263.

Side Blind Zone Alert (SBZA)

The vehicle may have Side Blind Zone Alert. See Side Blind Zone Alert (SBZA) 0 263.

Turn Signal Indicator

The vehicle may have a turn signal indicator on the mirror housings. See Turn and Lane-Change Signals 0 132.

Folding Mirrors

Manual Folding Mirrors

If equipped, manually fold the mirrors inward toward the vehicle to prevent damage when going through an automatic car wash. Push the mirror outward to return it to the original position.

Page 31

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Power Folding Mirrors

Fold and unfold the mirrors one time using the mirror controls to reset them to their normal position. A noise may be heard during the resetting of the power folding mirrors. This sound is normal after a manual folding operation.

Remote Mirror Folding

If equipped, press and hold Q on the RKE transmitter for approximately one second to automatically fold the exterior mirrors. Press and hold

If equipped, press to power fold the mirrors. Press again to unfold.

Resetting the Power Folding Mirrors

Reset the power folding mirrors if:

The mirrors are accidentally obstructed while folding.

They are accidentally manually folded/unfolded.

The mirrors do not stay in the unfolded position.

The mirrors vibrate at normal driving speeds.

the RKE transmitter for approximately one second to unfold. See Remote

Keyless Entry (RKE) System Operation

0 7.

This feature is turned on or off through vehicle personalization. See Vehicle Personalization 0 120.

Heated Mirrors

K : Press to heat the mirrors.

See “Rear Window Defogger” under

Dual Automatic Climate Control System 0 197.

KEYS, DOORS, AND WINDOWS 29

Automatic Dimming Mirror

If the vehicle has the automatic dimming mirror, the driver outside mirror automatically adjusts for the glare of headlamps behind you.

Reverse Tilt Mirrors

If equipped with reverse tilt mirrors and memory seats, the passenger and/ or driver mirror tilts to a preselected position when the vehicle is in

K on

R (Reverse). This allows the curb to be seen when parallel parking.

The mirror(s) may move from their tilted position when:

The vehicle is shifted out of R (Reverse), or remains in R (Reverse) for about 30 seconds.

The vehicle is turned off.

The vehicle is driven in R (Reverse) above a set speed.

To turn this feature on or off, see Vehicle Personalization 0 120.

Page 32

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

30 KEYS, DOORS, AND WINDOWS

Interior Mirrors

Interior Rearview Mirrors

Adjust the rearview mirror for a clear view of the area behind the vehicle.

Do not spray glass cleaner directly on the mirror. Use a soft towel dampened with water.

Manual Rearview Mirror

If equipped, push the tab forward for daytime use and pull it rearward for nighttime use to avoid glare of the headlamps from behind.

Automatic Dimming Rearview Mirror

If equipped, automatic dimming reduces the glare of headlamps from behind. The dimming feature comes on when the vehicle is started.

Rear Camera Mirror

If equipped, this automatic dimming mirror provides a wide angle camera view of the area behind the vehicle.

Pull the tab to turn on the display. Push the tab to turn it off. When off the mirror is automatic dimming. Adjust the mirror for a clear view of the area behind the vehicle while the display is off.

Press V to scroll through the adjustment options.

t and u to adjust the settings

Press using the indicators on the mirror. The indicators will remain visible for five seconds after the last button activation, and the settings will remain saved.

The adjustment options are:

Page 33

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Brightness

Zoom

KEYS, DOORS, AND WINDOWS 31

Warning

{

The Rear Camera Mirror (RCM) has a limited view. Portions of the road, vehicles, and other objects may not be seen. Do not drive or park the vehicle using only this camera. Objects may appear closer than they are. Check the outside mirrors or glance over your shoulder when making lane changes or merging.

Tilt

Failure to use proper care may result in injury, death, or vehicle damage.

Troubleshooting

Page 34

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

32 KEYS, DOORS, AND WINDOWS

See your dealer for service if a blue screen and mirror, and the display shuts off. Also,

push the tab as indicated to return to the automatic dimming mode.

The Rear Camera Mirror may not work properly or display a clear image if:

There is glare from the sun or headlamps. This may obstruct objects from view. If needed, push the tab to turn off the display.

Dirt, snow, or other debris blocks the camera lens. Clean the lens with a soft damp cloth, or if equipped, with the Rear Camera Washer. See Rear Window Wiper/Washer 0 94.

3 are displayed in the

The camera’s mounting on the vehicle has been damaged, and/or the position or the mounting angle of the camera has changed.

Windows

Warning

{

Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke.

The vehicle aerodynamics are designed to improve fuel economy performance. This may result in a pulsing sound when either rear window is down and the front windows are up. To reduce the sound, open either a front window or the sunroof, if equipped.

Power Windows

Warning

{

Children could be seriously injured or killed if caught in the path of a closing window. Never leave the Remote Keyless Entry (RKE) transmitter in a vehicle with children. When there are children in the rear seat, use the window lockout switch to prevent operation of the windows. See Keys 0 6.

Page 35

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Window Lockout

The power windows work when the ignition is on, in ACC/ACCESSORY, or when Retained Accessor y Power (RAP) is active. See Retained Accessory Power (RAP) 0 224.

Using the window switch, press to open or pull to close the window.

The windows may be temporarily disabled if they are used repeatedly within a short time.

This feature stops the rear passenger window switches from working.

Press 2 to engage the rear window lockout feature. The indicator light is on when engaged.

Press 2 again to disengage.

Window Express Movement

All windows can be opened without holding the window switch. Press the switch down fully and quickly release to express open the window.

If equipped, pull the window switch up fully and quickly release to express close the window.

KEYS, DOORS, AND WINDOWS 33

Briefly press or pull the window switch in the same direction to stop that window’s express movement.

Window Automatic Reversal System

The express-close feature will reverse window movement if it comes in contact with an object. Extreme cold or ice could cause the window to auto-reverse. The window will operate normally after the object or condition is removed.

Automatic Reversal System Override

Warning

{

If automatic reversal system override is active, the window will not reverse automatically. You or others could be injured and the window could be damaged. Before using automatic reversal system override, make sure that all people and obstructions are clear of the window path.

Page 36

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

34 KEYS, DOORS, AND WINDOWS

When the engine is on, override the automatic reversal system by pulling and holding the window switch if conditions prevent it from closing.

Programming the Power Windows

Programming may be necessary if the vehicle battery has been disconnected or discharged. If the window is unable to express-up, program each express-close window:

1. Close all doors.

2. Turn the ignition on or to ACC/ ACCESSORY.

3. Par tially open the window to be programmed. Then close it and continue to pull the switch briefly after the window has fully closed.

4. Open the window and continue to press the switch briefly after the window has fully opened.

Remote Window Operation

If equipped, this feature allows all windows to be opened remotely. If enabled in vehicle personalization,

press and hold transmitter. See Vehicle Personalization 0 120.

K on the RKE

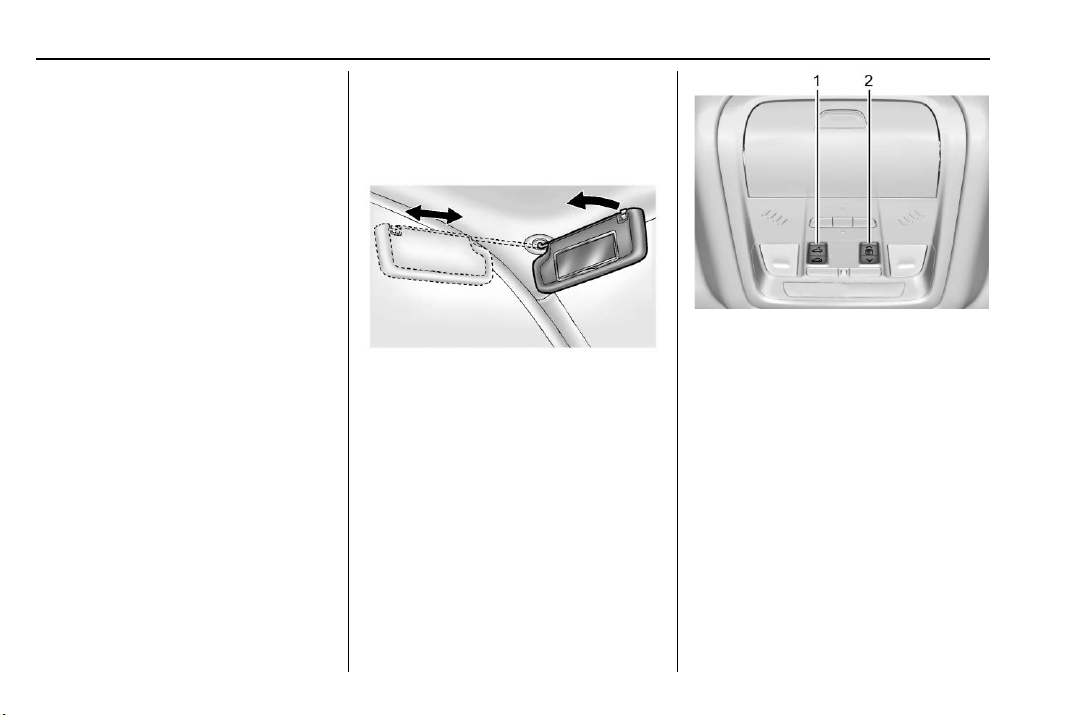

Sun Visors

Pull the sun visor down to block glare. Detach the sun visor from the center mount to pivot to the side window and, if equipped, extend along the rod.

Roof

Sunroof

If equipped, the ignition must be on or in ACC/ACCESSORY, or Retained Accessory Power (RAP) must be active to operate the sunroof. See Ignition

Positions 0 219 and Retained Accessory Power (RAP) 0 224.

1. Sunroof Switch

2. Sunshade Switch

Sunroof Express Operation : Press and release release again to move to the partially

opened comfort stop position. Press and release again to express-open to the fully opened position. Press and

release movement. Press and release

to express-close. Press and release

e (1) to vent. Press and

e (1) at any time to stop

g (1)

g (1) at any time to stop

movement.

Page 37

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Sunroof Manual Operation : The sunroof can change to manual mode

by holding sunroof will now open as long as (1) is held. Press and release e (1)

again to change back to express operation.

Power Sunshade Express Operation : Press and release

to express-open the sunshade. Press and release movement. Press and release to express-close the sunshade. Press and release

stop movement.

Power Sunshade Manual Operation : The sunshade can change

to manual mode by holding while opening. The sunshade will now open as long as

and release back to express operation.

The sunroof cannot be opened or closed if the vehicle has an electrical failure.

e (1) while opening. The

C (2)

C (2) at any time to stop

Q (2)

Q (2) at any time to

C (2)

C (2) is held. Press

C (2) again to change

Automatic Reversal System

The sunroof and power sunshade have an automatic reversal system that is only active when the sunroof and power sunshade, if equipped, are operated in express-close mode.

If an object is in the path while express-closing, the reversal system will detect an object, stop, and open the sunroof or power sunshade slightly.

If frost or other conditions prevent closing, override the feature by closing the sunroof or power sunshade in manual mode. To stop movement, release the switch.

KEYS, DOORS, AND WINDOWS 35

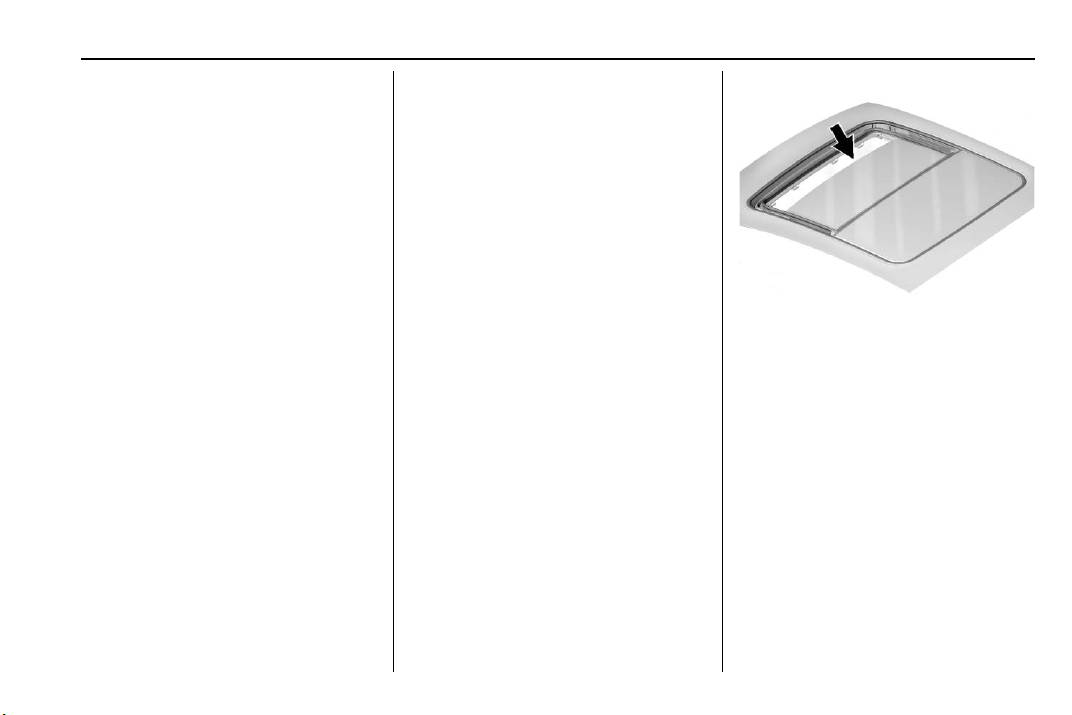

Dirt and debris may collect on the sunroof seal or in the track. This could cause an issue with sunroof operation or noise. It could also plug the water drainage system. Periodically open the sunroof and remove any obstacles or loose debris. Wipe the sunroof seal and roof sealing area using a clean cloth, mild soap, and water. Do not remove grease from the sunroof.

Page 38

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

36 SEATS AND RESTRAINTS

Seats and Restraints

Head Restraints

Head Restraints . . . . . . . . . . . . . . . . . . . . 37

Front Seats

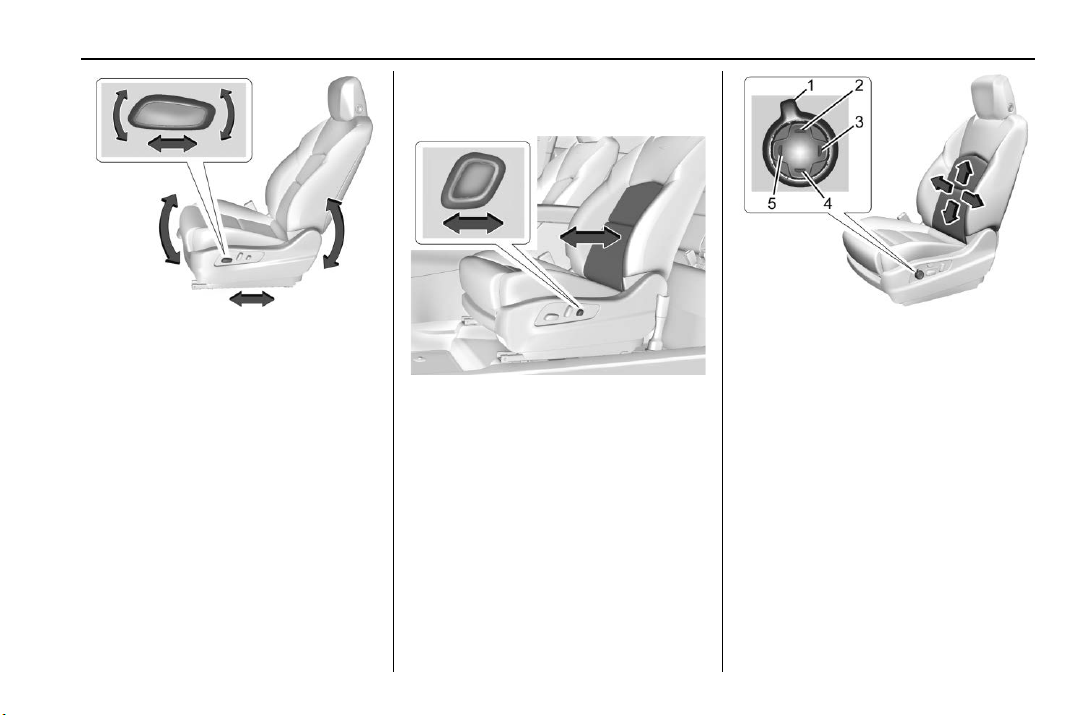

Power Seat Adjustment . . . . . . . . . . . 38

Lumbar Adjustment . . . . . . . . . . . . . . . 39

Reclining Seatbacks . . . . . . . . . . . . . . . 40

Memory Seats . . . . . . . . . . . . . . . . . . . . . . 41

Heated and Ventilated Front

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Rear Seats

Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Heated Rear Seats . . . . . . . . . . . . . . . . . 46

Seat Belts

Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

How to Wear Seat Belts

Properly . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . 50

Seat Belt Use During

Pregnancy . . . . . . . . . . . . . . . . . . . . . . . . . 52

Seat Belt Extender . . . . . . . . . . . . . . . . . 53

Safety System Check . . . . . . . . . . . . . . 53

Seat Belt Care . . . . . . . . . . . . . . . . . . . . . . 53

Replacing Seat Belt System Parts

after a Crash . . . . . . . . . . . . . . . . . . . . . . 54

Airbag System

Airbag System . . . . . . . . . . . . . . . . . . . . . 54

Where Are the Airbags? . . . . . . . . . . . 56

When Should an Airbag

Inflate? . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

What Makes an Airbag Inflate? . . . 58 How Does an Airbag Restrain? . . . 58 What Will You See after an Airbag

Inflates? . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Passenger Sensing System . . . . . . . . 60

Servicing the Airbag-Equipped

Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Adding Equipment to the

Airbag-Equipped Vehicle . . . . . . . . 64

Airbag System Check . . . . . . . . . . . . . . 65

Replacing Airbag System Parts

after a Crash . . . . . . . . . . . . . . . . . . . . . . 65

Child Restraints

Older Children . . . . . . . . . . . . . . . . . . . . . 65

Infants and Young Children . . . . . . 67

Child Restraint Systems . . . . . . . . . . . 69

Where to Put the Restraint . . . . . . . 71

Lower Anchors and Tethers for

Children (LATCH System) . . . . . . . 72

Replacing LATCH System Parts

After a Crash . . . . . . . . . . . . . . . . . . . . . 79

Securing Child Restraints (With

the Seat Belt in the

Rear Seat) . . . . . . . . . . . . . . . . . . . . . . . . 79

Securing Child Restraints (With

the Seat Belt in the

Front Seat) . . . . . . . . . . . . . . . . . . . . . . . 81

Page 39

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Head Restraints

Front Seats

Warning

{

With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/spinal injury in a crash. Do not drive until the head restraints for all occupants are installed and adjusted properly.

The vehicle's front seats have adjustable head restraints in the outboard seating positions.

Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head. This position reduces the chance of a neck injury in a crash.

The height of the head restraint can be adjusted.

To raise or lower the head restraint, press the button located on the side of the head restraint, and pull up or push the head restraint down, and release the button. Pull and push on the head restraint after the button is released to make sure that it is locked in place.

SEATS AND RESTRAINTS 37

The front seat outboard head restraints are not removable.

Rear Seats

Adjusting the Rear Head Restraint

The vehicle's rear seats have adjustable head restraints in the outboard seating positions.

The height of the head restraint can be adjusted. Pull the head restraint up to raise it. Try to move the head restraint to make sure that it is locked in place.

To lower the head restraint, press the button, located on the top of the seatback, and push the head restraint

Page 40

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

38 SEATS AND RESTRAINTS

down. Try to move the head restraint after the button is released to make sure that it is locked in place.

Folding the Rear Head Restraint

The head restraint can be folded rearward to allow for better visibility when the rear seat is unoccupied.

The head restraint will fold rearward automatically.

When an occupant or child restraint is in the seat, always return the head restraint to the full upright position. Pull the head restraint up and forward until it locks into place. Push and pull

To fold the head restraint, press the button on the side of the head restraint.

on the head restraint to make sure that it is locked.

Always adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head.

If you are installing a child restraint in the rear seat, see “Securing a Child Restraint Designed for the LATCH

System” under Lower Anchors and

Tethers for Children (LATCH System) 0 72.

Front Seats

Power Seat Adjustment

Warning

{

You can lose control of the vehicle if you try to adjust a driver seat while the vehicle is moving. Adjust the driver seat only when the vehicle is not moving.

Warning

{

The power seats will work with the ignition off. Children could operate the power seats and be injured. Never leave children alone in the vehicle.

Page 41

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Lumbar Adjustment

Lumbar and Bolster Support

SEATS AND RESTRAINTS 39

To adjust a power seat, if equipped:

Move the seat forward or rearward by sliding the control forward or rearward.

Raise or lower the front part of the seat cushion by moving the front of the control up or down.

Raise or lower the entire seat by

If equipped, slide the control forward or rearward to increase or decrease support.

Base Seat Adjustment

moving the rear of the control up or down.

Uplevel Seat Adjustment

To adjust lumbar support, if equipped:

Press and release or hold Feature Select (1) to scroll to lumbar support on the infotainment display.

Press Forward (5) or Rearward (3) to adjust lumbar forward or rearward.

Press Up (2) or Down (4) to adjust lumbar up or down.

To adjust bolster support, if equipped:

Page 42

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

40 SEATS AND RESTRAINTS

Warning (Continued)

The shoulder belt will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries.

The lap belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal

Uplevel Seat Adjustment

Press and release or hold Feature Select (1) to scroll to bolster support on the infotainment display.

Press Forward (5) or Rearward (3) to adjust bolster support inward or outward.

injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the seat belt properly.

Reclining Seatbacks

Warning

{

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the seat belts cannot do their job.

(Continued)

Do not have a seatback reclined if the vehicle is moving.

To adjust a seatback:

Page 43

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Tilt the top of the control rearward to recline.

Tilt the top of the control forward to raise.

Memory Seats

If equipped, memory seats allow two drivers to save and recall their unique seat positions for driving the vehicle, and a shared exit position for getting out of the vehicle. Other feature positions may also be saved, such as power mirrors and power steering wheel, if equipped. Memory positions are linked to RKE transmitter 1 or 2 for automatic memory recalls.

Before saving, adjust all available memory feature positions. Turn the vehicle on and then press and release SET; a beep will sound. Then immediately press and hold 1, 2,

B (Exit) until two beeps sound. To

manually recall these positions, press and hold 1, 2, or position is reached. Follow the

instructions under “Saving Memory Positions.”

The vehicle identifies the current driver’s RKE transmitter number (1–

8). See Remote Keyless Entry (RKE) System Operation 0 7. Only RKE transmitters 1 and 2 can be used for automatic memory recalls. A Driver Information Center (DIC) welcome message indicating the transmitter number may display for the first few ignition cycles following a transmitter change. For Seat Entry Memory to work properly, save the positions to the memory button (1 or 2) matching the RKE transmitter number displayed in the DIC welcome message. Carry the linked RKE transmitter when entering the vehicle.

B until the saved

SEATS AND RESTRAINTS 41

Vehicle Personalization Settings

To have the Seat Entry Memory movement begin when the vehicle is started, select the Settings menu, then Vehicle, then Seating Position, and then Seat Entry Memor y. Select On or Off. See “Seat Entry Memor y” later in this section.

To begin Seat Exit Memory movement when the vehicle is turned off and the driver door is opened, or when the vehicle is turned off with the driver door already opened, select the Settings menu, then Vehicle, then Seating Position, and then Seat Exit Memory. Select On or Off. See “Seat Exit Memory” later in this section.

See Vehicle Personalization 0 120 for additional setting information.

Identifying Driver Number

To identify the driver number:

1. Move your RKE transmitter away from the vehicle.

2. Start the vehicle with another key or RKE transmitter. The DIC should display the driver number for the

Page 44

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

42 SEATS AND RESTRAINTS

other RKE transmitter. Turn the vehicle off and remove the key or RKE transmitter from the vehicle.

3. Start the vehicle with the initial key or RKE transmitter. The DIC should display the driver number of your RKE transmitter.

Saving Memory Positions

Read these instructions completely before saving memory positions.

To save preferred driving positions 1 and 2:

1. Turn the vehicle on or to ACC/ ACCESSORY.

A DIC welcome message may indicate driver number 1 or 2.

2. Adjust all available memor y features to the desired driving position.

3. Press and release SET; a beep will sound.

4. Immediately press and hold the 1 or 2 memory button matching the above DIC welcome message until two beeps sound.

If too much time passes between releasing SET and pressing 1, the memory position will not be saved and two beeps will not sound. Repeat Steps 3 and 4.

1 or 2 corresponds to the driver number. See “Identifying Driver Number” previously in this section.

5. Repeat Steps 1–4 for a second driver using 1 or 2.

To save the position for Exit Memory features, repeat Steps 1–

4 using getting out of the vehicle.

Save preferred memory feature positions to both 1 and 2 if you are the only driver.

Manually Recalling Memory Positions

Press and hold 1, 2, or previously saved memory positions if you are driver 1 or 2 identified in the DIC welcome message.

To stop Manual Memory recall movement, release 1, 2, or

any of the following controls:

B. This saves the position for

Power seat

B and Seat

B to recall the

B or press

Memory SET

Power mirror, with the driver or passenger side mirror selected

Power steering wheel, if equipped

Manual Memory recall movement for 1, 2, or

B buttons may be initiated

and may complete to the saved memory position if the vehicle is in or out of P (Park).

Seat Entry Memory

The vehicle identifies the number of the current driver’s RKE transmitter (1–8). See Remote Keyless Entry (RKE) System Operation 0 7. If the RKE transmitter is 1 or 2, and Seat Entry Memory is enabled in vehicle personalization, the positions saved to the same memory button number 1 or 2 are automatically recalled when the vehicle is turned on, or turned from off to ACC/ACCESSORY. RKE transmitters 3–8 will not provide automatic memory recalls.

To turn Seat Entry Memory on or off, see “Vehicle Personalization Settings” previously in this section and Vehicle Personalization 0 120.

Page 45

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

The vehicle must be in P (Park) to start Seat Entry Memor y. Seat Entry Memory recall will complete if the vehicle is shifted out of P (Park) prior to reaching the saved memory position.

To stop Seat Entry Memory recall movement, turn the vehicle off or press any of the following controls:

Power seat

Memory SET, 1, 2, or B

Power mirror, with the driver or passenger side mirror selected

Power steering wheel, if equipped

If the saved memory seat position does not automatically recall or recalls to the wrong positions, the driver’s RKE transmitter number (1 or 2) may not match the memory button number that positions were saved to. Try storing the position to the other memory button or try the other RKE transmitter.

Seat Exit Memory

Seat Exit Memory is not linked to an RKE transmitter. The position saved to

B is used for all drivers. To turn Seat

Exit Memory on or off, see "Vehicle Personalization Settings" previously in this section and Vehicle Personalization 0 120.

If turned on, the position saved to is automatically recalled when one of the following occurs:

The vehicle is turned off and the driver door is opened within a short time.

The vehicle is turned off with the driver door open.

To stop Seat Exit Memory movement, press any of the following memory controls:

Power seat

Memory SET, 1, 2, or B

Power mirror, with the driver or passenger side mirror selected

Power steering wheel, if equipped

Obstructions

If something has blocked the driver seat while recalling a memory position, the recall may stop. Remove the obstruction and try the recall again. If the memory position still does not recall, see your dealer.

SEATS AND RESTRAINTS 43

Heated and Ventilated Front Seats

Warning

{

If temperature change or pain to the skin cannot be felt, the seat heater may cause burns. To reduce the risk of burns, use care when using the seat heater, especially for long periods of time. Do not place anything on the seat that insulates against heat, such as a blanket, cushion, cover, or similar item. This may cause the seat heater to overheat. An overheated seat heater may cause a burn or may damage the seat.

Page 46

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

44 SEATS AND RESTRAINTS

indicate three for the highest setting and one for the lowest. If the front heated seats are on high, the level may automatically be lowered after approximately 30 minutes.

A ventilated seat has a fan that pulls or pushes air through the seat. The air is not cooled.

The passenger seat may take longer to heat up.

Auto Heated and Ventilated Seats

Uplevel Buttons Shown, Base Buttons

If equipped, the buttons are near the climate controls on the center stack. To operate, the engine must be running.

Press

J or z to heat the driver or

passenger cushion and seatback.

C or { to ventilate the driver

Press or passenger seat.

Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The indicator lights above the buttons

Similar

If the vehicle is equipped with auto heated or ventilated seats, and the engine is running, this feature will automatically activate the heated or ventilated seats at the level required by the vehicle's interior temperature.

The active high, medium, low, or off heated or ventilated seat level will be indicated by the manual heated and ventilated seat buttons on the center stack. Use the manual heated and ventilated seat buttons on the center stack to turn auto heated or ventilated seats off. If the passenger seat is unoccupied, the auto heated or ventilated seats feature will not activate that seat. The auto heated

and ventilated seats feature can be programmed to always be enabled when the vehicle is on. If equipped with a heated steering wheel, the auto heated steering wheel activation will follow the heated seat auto activation and the heated wheel indicator will follow the state of the steering wheel heat.

See Vehicle Personalization 0 120.

Remote Start Heated and Ventilated Seats

If equipped, the heated seats will turn on automatically during a remote start if it is cold outside and the ventilated seats will turn on automatically if it is hot outside. If equipped, the heated steering wheel will turn on automatically during a remote start if it is cold outside. The heated and ventilated seat indicators and heated steering wheel indicator may not come on during this operation.

The heated and ventilated seats and heated steering wheel may cancel when the vehicle is started. These

Page 47

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

features can be manually selected after the ignition is turned on and engine is running.

The temperature performance of an unoccupied seat may be reduced. This is normal.

The heated or ventilated seats will not turn on during a remote start unless they are enabled in the vehicle personalization menu. See Remote

Vehicle Start 0 14 and Vehicle Personalization 0 120.

Massage

To activate and adjust massage:

1. Turn the feature select (1) to scroll to massage options on the infotainment display.

2. Press up (2) or down (4) adjust the massage type.

3. Press for ward (5) or rearward (3) to adjust the intensity.

4. To turn massage off or to activate massage at last massage type and intensity settings, press massage on/off control (6).

The massage feature will turn off after approximately 20 minutes. Press the massage on/off control (6) to restart the massage feature.

Rear Seats

Rear Seat Reminder

If equipped, the message REAR SEAT REMINDER LOOK IN REAR SEAT displays under certain conditions indicating there may be an item or passenger in the rear seat. Check

If equipped, the ignition must be on to use the massage feature.

before exiting the vehicle.

SEATS AND RESTRAINTS 45

This feature will activate when a second row door is opened while the vehicle is on or up to 10 minutes before the vehicle is turned on. There will be an alert when the vehicle is turned off. The alert does not directly detect objects in the rear seat; instead, under certain conditions, it detects when a rear door is opened and closed, indicating that there may be something in the rear seat.

The feature is active only once each time the vehicle is turned on and off, and will require reactivation by opening and closing the second row doors. There may be an alert even when there is nothing in the rear seat; for example, if a child entered the vehicle through the rear door and left the vehicle without the vehicle being shut off.

The feature can be turned on or off. See Vehicle Personalization 0 120.

Page 48

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

46 SEATS AND RESTRAINTS

Manually Folding the Seatbacks

Caution

Folding a rear seat with the seat belts still fastened may cause damage to the seat or the seat belts. Always unbuckle the seat belts and return them to their normal stowed position before folding a rear seat.

1. Place the front seatbacks in the

upright position. See Reclining Seatbacks 0 40.

2. Lower the rear head restraint. See

Head Restraints 0 37.

3. Pull on the lever on the top of the seatback to unlock it and fold the seatback forward.

For outboard seatbacks, a tab near the seatback lever moves forward when the seatback is unlocked.

Raising the Seatbacks

Warning

{

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.

Warning

{

A seat belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be

(Continued)

Warning (Continued)

sure that the seat belts are properly routed and attached, and are not twisted.

To raise the seatback:

1. Push the seatback rearward until it locks in the upright position.

For outboard seats, a tab near the seatback lever retracts when the seatback is locked in place.

2. Make sure the rear seat belts are in the belt guide and are not twisted or caught between the seat cushion and the seatback.

Heated Rear Seats

Warning

{

If temperature change or pain to the skin cannot be felt, the seat heater may cause burns. See the Warning under Heated and Ventilated Front Seats 0 43.

Page 49

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

SEATS AND RESTRAINTS 47

Seat Belts

This section describes how to use seat belts properly, and some things not to do.

Warning

{

Do not let anyone ride where a seat belt cannot be worn properly. In a crash, if you or your passenger(s) are not wearing seat belts, injuries

can be much worse than if you are If equipped, the rear heated seat buttons are on the rear of the center console.

Press

M or L to heat the left outboard

or right outboard seat. Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The indicator lights on the buttons indicate three for the highest setting and one for the lowest.

If the heated rear seats are on the highest setting, the level may automatically be lowered after approximately 30 minutes.

wearing seat belts. You can be

seriously injured or killed by hitting

things inside the vehicle harder or

by being ejected from the vehicle.

In addition, anyone who is not

buckled up can strike other

passengers in the vehicle.

It is extremely dangerous to ride in

a cargo area, inside or outside of a

vehicle. In a collision, passengers

riding in these areas are more likely

to be seriously injured or killed. Do

not allow passengers to ride in any

area of the vehicle that is not

equipped with seats and seat belts.

(Continued)

Warning (Continued)

Always wear a seat belt, and check that all passenger(s) are restrained properly too.

This vehicle has indicators as a reminder to buckle the seat belts. See Seat Belt Reminders 0 103.

Why Seat Belts Work

When riding in a vehicle, you travel as fast as the vehicle does. If the vehicle stops suddenly, you keep going until something stops you. It could be the windshield, the instrument panel, or the seat belts!

Page 50

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

48 SEATS AND RESTRAINTS

When you wear a seat belt, you and the vehicle slow down together. There is more time to stop because you stop over a longer distance and, when worn properly, your strongest bones take the forces from the seat belts. That is why wearing seat belts makes such good sense.

Questions and Answers About Seat Belts

Q: Will I be trapped in the vehicle

after a crash if I am wearing a seat belt?

A: You could be — whether you are

wearing a seat belt or not. Your chance of being conscious during and after a crash, so you can unbuckle and get out, is much greater if you are belted.

Q: If my vehicle has airbags, why

should I have to wear seat belts?

A: Airbags are supplemental systems

only. They work with seat belts — not instead of them. Whether or not an airbag is provided, all occupants still have to buckle up to get the most protection.

Also, in nearly all states and in all Canadian provinces, the law requires wearing seat belts.

How to Wear Seat Belts Properly

Follow these rules for everyone's protection.

There are additional things to know about seat belts and children, including smaller children and infants. If a child will be riding in the vehicle, see Older Children 0 65 or Infants and Young Children 0 67. Review and follow the rules for children in addition to the following rules.

It is very important for all occupants to buckle up. Statistics show that unbelted people are hurt more often in crashes than those who are wearing seat belts.

There are important things to know about wearing a seat belt properly.

Sit up straight and always keep your feet on the floor in front of you (if possible).

Always use the correct buckle for your seating position.

Wear the lap part of the belt low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force on your abdomen. This could cause serious or even fatal injuries.

Wear the shoulder belt over the shoulder and across the chest. These parts of the body are best

Page 51

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash.

Warning

{

You can be seriously injured, or even killed, by not wearing your seat belt properly.

SEATS AND RESTRAINTS 49

Never allow the lap or shoulder belt to become loose or twisted.

Never wear the shoulder belt under both arms or behind your back.

Always use the correct buckle for your seating position.

Page 52

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

50 SEATS AND RESTRAINTS

Never route the lap or shoulder belt over an armrest.

Warning

{

The seat belt can be pinched if it is routed under plastic trim on the seat, such as trim around the rear seatback folding handle or side airbag. In a crash, pinched seat belts might not be able to provide adequate protection. Never allow seat belts to be routed under plastic trim pieces.

Lap-Shoulder Belt

All seating positions in the vehicle have a lap-shoulder belt.

The following instructions explain how to wear a lap-shoulder belt properly.

1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index.

2. Pick up the latch plate and pull the belt across you. Do not let it get twisted.

The lap-shoulder belt may lock if you pull the belt across you ver y quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged. See Child Restraint Systems 0 69. If this occurs, let the belt go back all the way and start again. If the locking feature stays engaged after letting the belt go back to stowed position on the seat, move the seat rear ward or recline the seat until the shoulder belt retractor lock releases.

Engaging the child restraint locking feature in the front outboard seating position may affect the passenger sensing system. See Passenger Sensing System 0 60.

Page 53

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

3. Push the latch plate into the buckle until it clicks.

Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Seat Belt Extender 0 53.

Position the release button on the buckle so that the seat belt could be quickly unbuckled if necessary.

4. If equipped with a shoulder belt height adjuster, move it to the height that is right for you. See “Shoulder Belt Height Adjuster” later in this section for instructions on use and important safety information.

5. To make the lap part tight, pull up on the shoulder belt.

SEATS AND RESTRAINTS 51

To unlatch the belt, push the button on the buckle. The belt should return to its stowed position.

Always stow the seat belt slowly. If the seat belt webbing returns quickly to the stowed position, the retractor may lock and cannot be pulled out. If this happens, pull the seat belt straight out firmly to unlock the webbing, and then release it. If the webbing is still locked in the retractor, see your dealer.

Before a door is closed, be sure the seat belt is out of the way. If a door is slammed against a seat belt, damage can occur to both the seat belt and the vehicle.

Shoulder Belt Height Adjuster

The vehicle has a shoulder belt height adjuster for the driver and front outboard passenger seating positions.

Adjust the height so that the shoulder portion of the belt is on the shoulder and not falling off of it. The belt should be close to, but not contacting, the neck. Improper shoulder belt height adjustment could reduce the

Page 54

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

52 SEATS AND RESTRAINTS

effectiveness of the seat belt in a crash. See How to Wear Seat Belts Properly 0 48.

Press and hold the release button while raising or lowering the height adjuster to the desired position.

After the height adjuster is set to the desired position, try to move it down without pressing the release button to make sure it has locked into position.

Seat Belt Pretensioners

This vehicle has seat belt pretensioners for the front outboard occupants. Although the seat belt pretensioners cannot be seen, they are

part of the seat belt assembly. They can help tighten the seat belts during the early stages of a moderate to severe frontal, near frontal, or rear crash if the threshold conditions for pretensioner activation are met. Seat belt pretensioners can also help tighten the seat belts in a side crash or a rollover event.

Pretensioners work only once. If the pretensioners activate in a crash, the pretensioners and probably other parts of the vehicle's seat belt system will need to be replaced. See Replacing

Seat Belt System Parts after a Crash

0 54.

Do not sit on the outboard seat belt while entering or exiting the vehicle or at any time while sitting in the seat. Sitting on the seat belt can damage the webbing and hardware.

Rear Seat Belt Comfort Guides

Rear seat belt comfort guides may provide added seat belt comfort for older children who have outgrown booster seats and for some adults.

When installed on a shoulder belt, the comfort guide positions the shoulder belt away from the neck and head.

The comfort guides for the second row outboard seating positions of this vehicle are provided in a package in the glove box or cargo area. Instructions are included with the guides.

Additional comfort guides are available through your dealer for the rear seating positions. Instructions are included with the guides.

Seat Belt Use During Pregnancy

Seat belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear seat belts.

Page 55

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

But if a seat belt is not long enough, your dealer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. To help avoid personal injury, do not let someone else use it, and use it only for the seat it is made to fit. The extender has been designed for adults. Never use it for securing child restraints. For more information on the proper use and fit of seat belt

A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

The best way to protect the fetus is to protect the mother. When a seat belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making seat belts effective is wearing them properly.

Seat Belt Extender

If the vehicle's seat belt will fasten around you, you should use it.

extenders see the instruction sheet that comes with the extender.

Safety System Check

Periodically check the seat belt reminder, seat belts, buckles, latch plates, retractors, shoulder belt height adjusters (if equipped), and seat belt anchorages to make sure they are all in working order. Look for any other loose or damaged seat belt system parts that might keep a seat belt system from performing properly. See your dealer to have it repaired. Torn, frayed, or twisted seat belts may not protect you in a crash. Torn or frayed seat belts can rip apart under impact forces. If a belt is torn or frayed, have

SEATS AND RESTRAINTS 53

it replaced immediately. If a belt is twisted, it may be possible to untwist by reversing the latch plate on the webbing. If the twist cannot be corrected, ask your dealer to fix it.

Make sure the seat belt reminder light is working. See Seat Belt Reminders 0 103.

Keep seat belts clean and dr y. See Seat Belt Care 0 53.

Seat Belt Care

Keep belts clean and dry.

Seat belts should be properly cared for and maintained.

Seat belt hardware should be kept dry and free of dust or debris. As necessary, exterior hard surfaces and seat belt webbing may be lightly cleaned with mild soap and water. Ensure there is not excessive dust or debris in the mechanism. If dust or debris exists in the system please see the dealer. Parts may need to be replaced to ensure proper functionality of the system.

Page 56

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

54 SEATS AND RESTRAINTS

Warning

{

Do not bleach or dye seat belt webbing. It may severely weaken the webbing. In a crash, they might not be able to provide adequate protection. Clean and rinse seat belt webbing only with mild soap and lukewarm water. Allow the webbing to dry.

Replacing Seat Belt System Parts after a Crash

Warning

{

A crash can damage the seat belt system in the vehicle. A damaged seat belt system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure the seat belt systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.

After a minor crash, replacement of seat belts may not be necessary. But the seat belt assemblies that were used during any crash may have been stressed or damaged. See your dealer to have the seat belt assemblies inspected or replaced.

New parts and repairs may be necessary even if the seat belt system was not being used at the time of the crash.

Have the seat belt pretensioners checked if the vehicle has been in a crash, or if the airbag readiness light stays on after you start the vehicle or while you are driving. See Airbag Readiness Light 0 104.

Airbag System

The vehicle has the following airbags:

A frontal airbag for the driver

A frontal airbag for the front outboard passenger

A knee airbag for the driver.

A knee airbag for the front outboard passenger.

A seat-mounted side impact airbag for the driver

A seat-mounted side impact airbag for the front outboard passenger

A roof-rail airbag for the driver and the passenger seated directly behind the driver

A roof-rail airbag for the front outboard passenger and the passenger seated directly behind the front outboard passenger

All vehicle airbags have the word AIRBAG on the trim or on a label near the deployment opening.

For frontal airbags, the word AIRBAG is on the center of the steering wheel for the driver and on the instrument panel for the front outboard passenger.

For knee airbags, the word AIRBAG is on the lower part of the instrument panel.

For seat-mounted side impact airbags, the word AIRBAG is on the side of the seatback or side of the seat closest to the door.

For roof-rail airbags, the word AIRBAG is on the ceiling or trim.

Page 57

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Airbags are designed to supplement the protection provided by seat belts. Even though today's airbags are also designed to help reduce the risk of injury from the force of an inflating bag, all airbags must inf late very quickly to do their job.

Here are the most important things to know about the airbag system:

Warning

{

You can be severely injured or killed in a crash if you are not wearing your seat belt, even with airbags. Airbags are designed to work with seat belts, not replace them. Also, airbags are not designed to inflate in every crash. In some crashes seat belts are the only restraint. See When Should an Airbag Inflate? 0 57.

Wearing your seat belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Airbags are “supplemental restraints” to the seat belts. Everyone in the vehicle

(Continued)

Warning (Continued)

should wear a seat belt properly, whether or not there is an airbag for that person.

Warning

{

Because airbags inflate with great force and faster than the blink of an eye, anyone who is up against, or very close to, any airbag when it inflates can be seriously injured or killed. Do not sit unnecessarily close to any airbag, as you would be if sitting on the edge of the seat or leaning forward. Seat belts help keep you in position before and during a crash. Always wear a seat belt, even with airbags. The driver should sit as far back as possible while still maintaining control of the vehicle. The seat belts and the front outboard passenger airbags are most effective when you are sitting well back and upright in the seat with both feet on the floor.

(Continued)

SEATS AND RESTRAINTS 55

Warning (Continued)

Occupants should not lean on or sleep against the door or side windows in seating positions with seat-mounted side impact airbags and/or roof-rail airbags.

Warning

{

Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Always secure children properly in the vehicle. To read how, see Older Children 0 65 or Infants and Young Children 0 67.

There is an airbag readiness light on the instrument cluster, which shows the airbag symbol.

Page 58

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

56 SEATS AND RESTRAINTS

The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light 0 104.

Where Are the Airbags?

The driver knee airbag is below the steering column. The front outboard passenger knee airbag is below the glove box.

The driver frontal airbag is in the center of the steering wheel.

The front outboard passenger frontal airbag is in the passenger side instrument panel.

Driver Side Shown, Passenger Side

Similar

The driver and front outboard passenger seat-mounted side impact airbags are in the side of the seatbacks closest to the door.

Page 59

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Warning (Continued)

put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering.

Do not use seat accessories that block the inflation path of a seat-mounted side impact airbag.

Driver Side Shown, Passenger Side

Similar

The roof-rail airbags for the driver, front outboard passenger, and second row outboard passengers are in the ceiling above the side windows.

Never secure anything to the roof of a vehicle with roof-rail airbags by routing a rope or tie‐down through any door or window opening. If you do, the path of an inflating roof-rail airbag will be blocked.

When Should an Airbag

Warning

{

If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even death. The path of an inflating airbag must be kept clear. Do not

(Continued)

Inflate?

This vehicle is equipped with airbags. See Airbag System 0 54. Airbags are designed to inflate if the impact exceeds the specific airbag system's deployment threshold. Deployment thresholds are used to predict how severe a crash is likely to be in time for the airbags to inf late and help

SEATS AND RESTRAINTS 57

restrain the occupants. The vehicle has electronic sensors that help the airbag system determine the severity of the impact. Deployment thresholds can vary with specific vehicle design.

Frontal airbags are designed to inflate in moderate to severe frontal or near frontal crashes to help reduce the potential for severe injuries, mainly to the driver's or front outboard passenger's head and chest.

Whether the frontal airbags will or should inflate is not based primarily on how fast the vehicle is traveling. It depends on what is hit, the direction of the impact, and how quickly the vehicle slows down.

Frontal airbags may inflate at different crash speeds depending on whether the vehicle hits an object straight on or at an angle, and whether the object is fixed or moving, rigid or deformable, narrow or wide.

Frontal airbags are not intended to inflate during vehicle rollovers, rear impacts, or many side impacts.

Page 60

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

58 SEATS AND RESTRAINTS

In addition, the vehicle has advanced technology frontal airbags. Advanced technology frontal airbags adjust the restraint according to crash severity.

Knee airbags are designed to inf late in moderate to severe frontal or near-frontal impacts. Knee airbags are not designed to inf late during vehicle rollovers, in rear impacts, or in many side impacts.

Seat-mounted side impact airbags are designed to inflate in moderate to severe side crashes depending on the location of the impact. Seat-mounted side impact airbags are not designed to inflate in frontal impacts, near frontal impacts, rollovers, or rear impacts. A seat-mounted side impact airbag is designed to inf late on the side of the vehicle that is struck.

Roof-rail airbags are designed to inflate in moderate to severe side crashes depending on the location of the impact. In addition, these roof-rail airbags are designed to inflate during a rollover or in a severe frontal impact. Roof-rail airbags are not designed to inflate in rear impacts. Both roof-rail airbags will inflate when

either side of the vehicle is struck, if the sensing system predicts that the vehicle is about to roll over on its side, or in a severe frontal impact.

In any particular crash, no one can say whether an airbag should have inflated simply because of the vehicle damage or the repair costs.

What Makes an Airbag Inflate?

In a deployment event, the sensing system sends an electrical signal triggering a release of gas from the inflator. Gas from the inflator fills the airbag causing the bag to break out of the cover. The inflator, the airbag, and related hardware are all part of the airbag module.

For airbag locations, see Where Are the Airbags? 0 56.

How Does an Airbag Restrain?

In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In

moderate to severe side collisions, even belted occupants can contact the inside of the vehicle.

Airbags supplement the protection provided by seat belts by distributing the force of the impact more evenly over the occupant's body.

Rollover capable roof-rail airbags are designed to help contain the head and chest of occupants in the outboard seating positions in the first and second rows. The rollover capable roof-rail airbags are designed to help reduce the risk of full or partial ejection in rollover events, although no system can prevent all such ejections.

But airbags would not help in many types of collisions, primarily because the occupant's motion is not toward those airbags. See When Should an Airbag Inflate? 0 57.

Airbags should never be regarded as anything more than a supplement to seat belts.

Page 61

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

What Will You See after an Airbag Inflates?

After frontal, knee, and seat-mounted side impact airbags inflate, they quickly deflate, so quickly that some people may not even realize the airbags inflated. Roof-rail airbags may still be at least partially inflated for some time after they inflate. Some components of the airbag module may be hot for several minutes. For location of the airbags, see Where Are the Airbags? 0 56.

The parts of the airbag that come into contact with you may be warm, but not too hot to touch. There may be some smoke and dust coming from the vents in the deflated airbags. Airbag inflation does not prevent the driver from seeing out of the windshield or being able to steer the vehicle, nor does it prevent people from leaving the vehicle.

Warning

{

When an airbag inflates, there may be dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but cannot get out of the vehicle after an airbag inflates, then get fresh air by opening a window or a door. If you experience breathing problems following an airbag deployment, you should seek medical attention.

The vehicle has a feature that may automatically unlock the doors, turn on the interior lamps and hazard warning flashers, and shut off the fuel system after the airbags inflate. The feature may also activate, without airbag inflation, after an event that exceeds a predetermined threshold. After turning the ignition off and then on again, the fuel system will return to normal operation; the doors can be

SEATS AND RESTRAINTS 59

locked, the interior lamps can be turned off, and the hazard warning flashers can be turned off using the controls for those features. If any of these systems are damaged in the crash they may not operate as normal.

Warning

{

A crash severe enough to inf late the airbags may have also damaged important functions in the vehicle, such as the fuel system, brake and steering systems, etc. Even if the vehicle appears to be drivable after a moderate crash, there may be concealed damage that could make it difficult to safely operate the vehicle.

Use caution if you should attempt to restart the engine after a crash has occurred.

In many crashes severe enough to inflate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the front outboard passenger airbag.

Page 62

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

60 SEATS AND RESTRAINTS

Airbags are designed to inflate only once. After an airbag inflates, you will need some new parts for the airbag system. If you do not get them, the airbag system will not be there to help protect you in another crash. A new system will include airbag modules and possibly other parts. The service manual for the vehicle covers the need to replace other parts.

The vehicle has a crash sensing and diagnostic module which records information after a crash. See

Vehicle Data Recording and Privacy 0 385 and Event Data Recorders 0 385.

Let only qualified technicians work on the airbag system. Improper service can mean that an airbag system will not work properly. See your dealer for service.

Passenger Sensing System

The vehicle has a passenger sensing system for the front outboard passenger position. The passenger airbag status indicator will light on the overhead console when the vehicle is started.

The words ON and OFF, and the symbols for on and off, will be visible during the system check. When the system check is complete, either the word ON or OFF, and the symbol for on or off, will be visible. See Passenger Airbag Status Indicator 0 104.

The passenger sensing system turns off the front outboard passenger frontal airbag and knee airbag under certain conditions. No other airbag is affected by the passenger sensing system.

The passenger sensing system works with sensors that are part of the front outboard passenger seat and seat belt. The sensors are designed to detect the presence of a properly seated occupant and determine if the front outboard passenger frontal airbag and knee airbag should be allowed to inflate or not.

According to accident statistics, children are safer when properly secured in a rear seat in the correct child restraint for their weight and size.

Whenever possible, children aged 12 and under should be secured in a rear seating position.

Never put a rear-facing child seat in the front. This is because the risk to the rear-facing child is so great, if the airbag inflates.

Warning

{

A child in a rear-facing child restraint can be seriously injured or killed if the passenger frontal airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the passenger frontal airbag inflates and the passenger seat is in a forward position.

(Continued)

Page 63

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Warning (Continued)

Even if the passenger sensing system has turned off the front outboard passenger airbag(s), no system is fail-safe. No one can guarantee that an airbag will not deploy under some unusual circumstance, even though the airbag(s) are off.

Never put a rear-facing child restraint in the front seat, even if the airbag is off. If securing a forward-facing child restraint in the front outboard passenger seat, always move the seat as far back as it will go. It is better to secure child restraints in the rear seat. Consider using another vehicle to transport the child when a rear seat is not available.

The passenger sensing system is designed to turn off the front outboard passenger frontal airbag and knee airbag if:

The front outboard passenger seat is unoccupied.

The system determines an infant is present in a child restraint.

A front outboard passenger takes his/her weight off of the seat for a period of time.

There is a critical problem with the airbag system or the passenger sensing system.

When the passenger sensing system has turned off the front outboard passenger frontal airbag and knee airbag, the OFF indicator will light and stay lit as a reminder that the airbags are off. See Passenger Airbag Status Indicator 0 104.

The passenger sensing system is designed to turn on the front outboard passenger frontal airbag and knee airbag, anytime the system senses that a person of adult size is sitting properly in the front outboard passenger seat.

When the passenger sensing system has allowed the airbag to be enabled, the ON indicator will light and stay lit as a reminder that the airbags are active.

SEATS AND RESTRAINTS 61

For some children, including children in child restraints, and for very small adults, the passenger sensing system may or may not turn off the front outboard passenger frontal airbag and knee airbag, depending upon the person's seating posture and body build. Everyone in the vehicle who has outgrown child restraints should wear a seat belt properly — whether or not there is an airbag for that person.

Warning

{

If the airbag readiness light ever comes on and stays on, it means that something may be wrong with the airbag system. To help avoid injury to yourself or others, have the vehicle serviced right away. See Airbag Readiness Light 0 104 for more information, including important safety information.

If the On Indicator Is Lit for a Child Restraint

The passenger sensing system is designed to turn off the front outboard passenger frontal airbag and knee airbag, if the system determines

Page 64

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

62 SEATS AND RESTRAINTS

that an infant is present in a child restraint. If a child restraint has been installed and the ON indicator is lit:

1. Turn the vehicle off.

2. Remove the child restraint from the vehicle.

3. Remove any additional items from the seat such as blankets, cushions, seat covers, seat heaters, or seat massagers.

4. Reinstall the child restraint following the directions provided by the child restraint manufacturer and refer to Securing Child

Restraints (With the Seat Belt in the Rear Seat) 0 79 or Securing Child Restraints (With the Seat Belt in the Front Seat) 0 81.

Make sure the seat belt retractor is locked by pulling the shoulder belt all the way out of the retractor when installing the child restraint, even if the child restraint is equipped with a seat belt lock off. When the retractor lock is set, the belt can be tightened but not pulled out of the retractor.

5. If, after reinstalling the child restraint and restarting the vehicle, the ON indicator is still lit, turn the vehicle off. Then slightly recline the vehicle seatback and adjust the seat cushion, if adjustable, to make sure that the vehicle seatback is not pushing the child restraint into the seat cushion.

Also make sure the child restraint is not trapped under the vehicle head restraint. If this happens, adjust the head restraint. See Head Restraints 0 37.

6. Restar t the vehicle.

The passenger sensing system may or may not turn off the airbag for a child in a child restraint depending upon the child’s size. It is better to secure the child restraint in a rear seat. Never put a rear-facing child restraint in the front seat, even if the ON indicator is not lit.

If the Off Indicator Is Lit for an Adult-Sized Occupant

If a person of adult size is sitting in the front outboard passenger seat, but the OFF indicator is lit, it could be because that person is not sitting properly in the seat or that the child restraint locking feature is engaged. Use the following steps to allow the system to detect that person and enable the front outboard passenger frontal airbag and knee airbag:

1. Turn the vehicle off.

Page 65

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

2. Remove any additional material from the seat, such as blankets, cushions, seat covers, seat heaters, or seat massagers.

3. Place the seatback in the fully upright position.

4. Have the person sit upright in the seat, centered on the seat cushion, with legs comfortably extended.

5. If the shoulder portion of the belt is pulled out all the way, the child restraint locking feature will be engaged. This may unintentionally cause the passenger sensing system to turn the airbag off for some adult-sized occupants. If this happens, unbuckle the belt, let the belt go back all the way, and then buckle the belt again without pulling the belt out all the way.

6. Restar t the vehicle and have the person remain in this position for two to three minutes after the ON indicator is lit.

Warning

{

If the front outboard passenger airbag is turned off for an adult-sized occupant, the airbag will not be able to inflate and help protect that person in a crash, resulting in an increased risk of serious injury or even death. An adult-sized occupant should not ride in the front outboard passenger seat, if the passenger airbag OFF indicator is lit.

Additional Factors Affecting System Operation

Seat belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Seat Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.

A thick layer of additional material, such as a blanket or cushion, or aftermarket equipment such as seat covers, seat heaters, and seat

SEATS AND RESTRAINTS 63

massagers can affect how well the passenger sensing system operates. We recommend that you not use seat covers or other aftermarket equipment except when approved by GM for your specific vehicle. See Adding Equipment to the Airbag-Equipped Vehicle 0 64 for more information about modifications that can affect how the system operates.

The ON indicator may be lit if an object, such as a briefcase, handbag, grocery bag, laptop, or other electronic device, is put on an unoccupied seat. If this is not desired, remove the object from the seat.

Warning

{

Stowing articles under the passenger seat or between the passenger seat cushion and seatback may interfere with the proper operation of the passenger sensing system.

Page 66

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

64 SEATS AND RESTRAINTS

Servicing the Airbag-Equipped Vehicle

Airbags affect how the vehicle should be serviced. There are parts of the airbag system in several places around the vehicle. Your dealer and the service manual have information about servicing the vehicle and the airbag system. To purchase a service manual, see Publication Ordering Information 0 383.

Warning

{

For up to 10 seconds after the vehicle is turned off and the batter y is disconnected, an airbag can still inflate during improper service. You can be injured if you are close to an airbag when it inflates. Avoid yellow connectors. They are probably part of the airbag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.

Adding Equipment to the Airbag-Equipped Vehicle

Adding accessories that change the vehicle's frame, bumper system, height, front end, or side sheet metal may keep the airbag system from working properly.

The operation of the airbag system can also be affected by changing, including improperly repairing or replacing, any parts of the following:

Airbag system, including airbag modules, front or side impact sensors, sensing and diagnostic module, or airbag wiring

Front seats, including stitching, seams or zippers

Seat belts

Steering wheel, instrument panel, overhead console, ceiling trim, or pillar garnish trim

Inner door seals, including speakers

Your dealer and the service manual have information about the location of the airbag modules and sensors,

sensing and diagnostic module, and airbag wiring along with the proper replacement procedures.

In addition, the vehicle has a passenger sensing system for the front outboard passenger position, which includes sensors that are part of the passenger seat. The passenger sensing system may not operate properly if the original seat trim is replaced with non-GM covers, upholstery, or trim; or with GM covers, upholstery, or trim designed for a different vehicle. Any object, such as an aftermarket seat heater or a comfort-enhancing pad or device, installed under or on top of the seat fabric, could also interfere with the operation of the passenger sensing system. This could either prevent proper deployment of the passenger airbag(s) or prevent the passenger sensing system from properly turning off the passenger airbag(s). See Passenger Sensing System 0 60.

If the vehicle has rollover roof-rail airbags, see Different Size Tires and Wheels 0 326 for additional important information.

Page 67

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

If the vehicle must be modified because you have a disability and have questions about whether the modifications will affect the vehicle's airbag system, or if you have questions about whether the airbag system will be affected if the vehicle is modified for any other reason, call Customer Assistance. See Customer Assistance Offices 0 376.

Airbag System Check

The airbag system does not need regularly scheduled maintenance or replacement. Make sure the airbag readiness light is working. See Airbag Readiness Light 0 104.

Caution

If an airbag covering is damaged, opened, or broken, the airbag may not work properly. Do not open or break the airbag coverings. If there are any opened or broken airbag coverings, have the airbag covering and/or airbag module replaced. For the location of the airbags, see Where Are the Airbags? 0 56. See your dealer for service.

Replacing Airbag System Parts after a Crash

Warning

{

A crash can damage the airbag systems in the vehicle. A damaged airbag system may not properly protect you and your passenger(s) in a crash, resulting in serious injury or even death. To help make sure the airbag systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.

If an airbag inflates, you will need to replace airbag system parts. See your dealer for service.

If the airbag readiness light stays on after the vehicle is started or comes on when you are driving, the airbag system may not work properly. Have the vehicle serviced right away. See Airbag Readiness Light 0 104.

SEATS AND RESTRAINTS 65

Child Restraints

Older Children

Older children who have outgrown booster seats should wear the vehicle’s seat belts.

The manufacturer instructions that come with the booster seat state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the fit test below:

Sit all the way back on the seat. Do the knees bend at the seat edge? If yes, continue. If no, return to the booster seat.

Page 68

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

66 SEATS AND RESTRAINTS

Buckle the lap-shoulder belt. Does the shoulder belt rest on the shoulder? If yes, continue. If no, try using the rear seat belt comfort guide, if available. See “Rear Seat Belt Comfort Guides” under Lap-Shoulder Belt 0 50. If a comfort guide is not available, or if the shoulder belt still does not rest on the shoulder, then return to the booster seat.

Does the lap belt fit low and snug on the hips, touching the thighs? If yes, continue. If no, return to the booster seat.

Can proper seat belt fit be maintained for the length of the trip? If yes, continue. If no, return to the booster seat.

Q: What is the proper way to wear

seat belts?

A: An older child should wear a

lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs. This applies belt

force to the child's pelvic bones in a crash. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash.

Also see “Rear Seat Belt Comfort Guides” under Lap-Shoulder Belt 0 50.

According to accident statistics, children are safer when properly restrained in a rear seating position.

In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use seat belts properly.

Warning

{

Never allow more than one child to wear the same seat belt. The seat belt cannot properly spread the impact forces. In a crash, they can be crushed together and seriously injured. A seat belt must be used by only one person at a time.

Warning

{

Never allow a child to wear the seat belt shoulder belt under both arms or behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt. The child could move too far forward increasing the chance of head and neck injury. The child might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause

(Continued)

Page 69

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Warning (Continued)

serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest.

Infants and Young Children

Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the

United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

Warning

{

Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck. The shoulder belt can tighten but cannot be loosened if it is locked. The shoulder belt locks when it is pulled all the way out of the retractor. It unlocks when the shoulder belt is allowed to go all the way back into the retractor, but it cannot do this if it is wrapped around a child’s neck. If the shoulder belt is locked and tightened around a child’s neck, the only way to loosen the belt is to cut it.

Never leave children unattended in a vehicle and never allow children to play with the seat belts.

Every time infants and young children ride in vehicles, they should have the protection provided by appropriate

SEATS AND RESTRAINTS 67

child restraints. Neither the vehicle's seat belt system nor its airbag system is designed for them.

Children who are not restrained properly can strike other people, or can be thrown out of the vehicle.

Warning

{

Never hold an infant or a child while riding in a vehicle. Due to crash forces, an infant or a child will become so heavy it is not possible to hold it during a crash. For example, in a crash at only 40 km/h (25 mph), a 5.5 kg (12 lb) infant will suddenly become a 110 kg (240 lb) force on a person's arms. An infant or child should be secured in an appropriate child restraint.

Page 70

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

68 SEATS AND RESTRAINTS

Warning

{

Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Never put a rear-facing child restraint in the front outboard seat. Secure a rear-facing child restraint in a rear seat. It is also better to secure a forward-facing child restraint in a rear seat. If you must secure a forward-facing child restraint in the front outboard seat, always move the front passenger seat as far back as it will go.

Child restraints are devices used to restrain, seat, or position children in the vehicle and are sometimes called child seats or car seats.

There are three basic types of child restraints:

Forward-facing child restraints

Rear-facing child restraints

Belt-positioning booster seats

The proper child restraint for your child depends on their size, weight, and age, and also on whether the child restraint is compatible with the vehicle in which it will be used.

For each type of child restraint, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the child restraint will have a label saying that it meets federal motor vehicle safety standards.

The instruction manual that is provided with the child restraint states the weight and height limitations for that particular child restraint. In addition, there are many kinds of child restraints available for children with special needs.

Warning

{

To reduce the risk of neck and head injury in a crash, infants and toddlers should be secured in a rear-facing child restraint until age two, or until they reach the maximum height and weight limits of their child restraint.

Page 71

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

SEATS AND RESTRAINTS 69

Warning

{

A young child's hip bones are still so small that the vehicle seat belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child's abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure. This alone could cause serious or fatal injuries. To reduce the risk of serious or fatal injuries during a crash, young children should always be secured in an appropriate child restraint.

Child Restraint Systems

Rear-Facing Infant Restraint

A rear-facing child restraint provides restraint with the seating surface against the back of the infant.

The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint.

Forward-Facing Child Restraint

A forward-facing child restraint provides restraint for the child's body with the harness.

Page 72

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

70 SEATS AND RESTRAINTS

Securing an Add-On Child Restraint in the Vehicle

Warning

{

A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Secure the child restraint properly in the vehicle using the vehicle seat belt or LATCH system, following the

Booster Seats

A belt-positioning booster seat is used for children who have outgrown their forward-facing child restraint. Boosters are designed to improve the fit of the vehicle's seat belt system until the child is large enough for the vehicle seat belts to fit properly without a booster seat. See the seat belt fit test in Older Children 0 65.

instructions that came with that child restraint and the instructions in this manual.

To help reduce the chance of injur y, the child restraint must be secured in the vehicle. Child restraints must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system. See

Lower Anchors and Tethers for Children (LATCH System) 0 72 for more

information. Children can be endangered in a crash if the child restraint is not properly secured in the vehicle.

When securing an add-on child restraint, refer to the following:

1. Instruction labels provided on the child restraint

2. Instruction manual provided with the child restraint

3. This vehicle owner's manual

The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in the vehicle — even when no child is in it.

In some areas Certified Child Passenger Safety Technicians (CPSTs) are available to inspect and demonstrate how to correctly use and install child restraints. In the U.S., refer to the National Highway Traffic Safety Administration (NHTSA) website to locate the nearest child safety seat inspection station. For CPST availability in Canada, check

Page 73

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

with Transport Canada or the Provincial Ministry of Transportation office.

Securing the Child Within the Child Restraint

Warning

{

A child can be seriously injured or killed in a crash if the child is not properly secured in the child restraint. Secure the child properly following the instructions that came with that child restraint.

Where to Put the Restraint

According to accident statistics, children and infants are safer when properly restrained in an appropriate child restraint secured in a rear seating position.

Whenever possible, children aged 12 and under should be secured in a rear seating position.

Never put a rear-facing child restraint in the front. This is because the risk to the rear-facing child is so great if the airbag deploys.

Warning

{

A child in a rear-facing child restraint can be seriously injured or killed if the front passenger airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the front passenger airbag inflates and the passenger seat is in a forward position.

Even if the passenger sensing system has turned off the front passenger frontal airbag, no system is fail-safe. No one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.

Secure rear-facing child restraints in a rear seat, even if the airbag is off. If you secure a forward-facing child restraint in the front seat, always move the front passenger

(Continued)

SEATS AND RESTRAINTS 71

Warning (Continued)

seat as far back as it will go. It is better to secure the child restraint in a rear seat.

See Passenger Sensing System 0 60 for additional information.

When securing a child restraint with the seat belts in a rear seat position, study the instructions that came with the child restraint to make sure it is compatible with this vehicle.

Child restraints and booster seats vary considerably in size, and some may fit in certain seating positions better than others. Do not install a child restraint in any rear seating position where it cannot be installed securely.

Depending on where you place the child restraint and the size of the child restraint, you may not be able to access adjacent seat belts or LATCH anchors for additional passengers or child restraints. Adjacent seating positions should not be used if the child restraint prevents access to or interferes with the routing of the seat belt.

Page 74

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

72 SEATS AND RESTRAINTS

The seat in front of an installed child restraint should be adjusted to ensure proper installation according to the child restraint manual.

Wherever a child restraint is installed, be sure to follow the instructions that came with the child restraint and secure the child restraint properly.

Lower Anchors and Tethers for Children (LATCH System)

The LATCH system secures a child restraint during driving or in a crash. LATCH attachments on the child restraint are used to attach the child restraint to the anchors in the vehicle. The LATCH system is designed to make installation of a child restraint easier.

In order to use the LATCH system in your vehicle, you need a child restraint that has LATCH attachments. LATCH-compatible rear-facing and forward-facing child seats can be properly installed using either the LATCH anchors or the vehicle’s seat belts. Do not use both the seat belts and the LATCH anchorage system to secure a rear-facing or forward-facing child seat.

Booster seats use the vehicle’s seat belts to secure the child and the booster seat. If the manufacturer recommends that the booster seat be secured with the LATCH system, this can be done as long as the booster seat can be positioned properly and there is no interference with the proper positioning of the lap-shoulder belt on the child.

Make sure to follow the instructions that came with the child restraint, and also the instructions in this manual.

When installing a child restraint with a top tether, you must also use either the lower anchors or the seat belts to properly secure the child restraint. A child restraint must never be installed using only the top tether and anchor.

For a forward-facing 5-pt harness child restraint where the combined weight of the child and restraint are up to 29.5 kg (65 lb), use either the lower LATCH anchorages with the top tether anchorage, or the seat belt with the top tether anchorage. Where the combined weight of the child and restraint are greater than

29.5 kg (65 lb), use the seat belt with the top tether anchorage only.

Page 75

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Recommended Methods for Attaching Child Restraints

Restraint Type Combined Weight

Rear-Facing Child Restraint

Forward-Facing Child Restraint

of the Child + Child Restraint

Up to

29.5 kg (65 lb)

Greater than

29.5 kg (65 lb)

Up to

29.5 kg (65 lb)

Greater than

29.5 kg (65 lb)

SEATS AND RESTRAINTS 73

Use Only Approved Attachment Methods Shown with an X

LATCH – Lower

Anchors Only

X X

Seat Belt Only LATCH – Lower

Anchors and Top Tether Anchor

X X

Seat Belt and Top Tether Anchor

See Securing Child Restraints (With the Seat Belt in the Rear Seat) 0 79 or Securing Child Restraints (With the Seat Belt in the Front Seat) 0 81.

Child restraints built after March 2014 will be labeled with the specific child weight up to which the LATCH system can be used to install the restraint.

The following explains how to attach a child restraint with these attachments in the vehicle.

Not all vehicle seating positions have lower anchors. In this case, the seat belt must be used (with top tether where available) to secure the child restraint. See Securing Child Restraints

(With the Seat Belt in the Rear Seat) 0 79 or Securing Child Restraints (With the Seat Belt in the Front Seat) 0 81.

Page 76

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

74 SEATS AND RESTRAINTS

Lower Anchors

Top Tether Anchor

Some child restraints that have a top tether are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached. Be sure to read and follow the instructions for your child restraint.

Lower Anchor and Top Tether Anchor Locations

Lower anchors (1) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (2).

A top tether (3,4) is used to secure the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment hook (2) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.

The child restraint may have a single tether (3) or a dual tether (4). Either will have a single attachment hook (2) to secure the top tether to the anchor.

I : Seating positions with top tether

anchors.

H : Seating positions with two lower

anchors.

Page 77

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

To assist in locating the lower anchors, each seating position with lower anchors has two labels, on the seatback near the crease between the seatback and the seat cushion.

The outboard lower anchors are behind the vertical openings in the seat trim.

To assist in locating the top tether anchors, the top tether anchor symbol is near the anchors.

The top tether anchors are on the back of the rear seatbacks. Remove the cargo cover before installing the top tether. The cargo cover can be replaced after the top tether is properly installed. Be sure to use an

SEATS AND RESTRAINTS 75

anchor located directly behind the seating position where the child restraint will be placed.

Do not secure a child restraint in a position without a top tether anchor if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached.

According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. See Where to Put the Restraint 0 71 for additional information.

Securing a Child Restraint Designed for the LATCH System

Warning

{

A child could be seriously injured or killed in a crash if the child restraint is not properly attached to the vehicle using either the LATCH anchors or the vehicle seat belt.

(Continued)

Page 78

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

76 SEATS AND RESTRAINTS

Warning (Continued)

Follow the instructions that came with the child restraint and the instructions in this manual.

Warning

{

To reduce the risk of serious or fatal injuries during a crash, do not attach more than one child restraint to a single anchor. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash. A child or others could be injured.

Warning

{

(Continued)

Warning (Continued)

pulled all the way out of the retractor. It unlocks when the shoulder belt is allowed to go all the way back into the retractor, but it cannot do this if it is wrapped around a child’s neck. If the shoulder belt is locked and tightened around a child’s neck, the only way to loosen the belt is to cut it.

Buckle any unused seat belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, and tighten the belt behind the child restraint after the child restraint has been installed.

Caution

Do not let the LATCH attachments rub against the vehicle’s seat belts. This may damage these parts.

(Continued)

Caution (Continued)

If necessary, move buckled seat belts to avoid rubbing the LATCH attachments.

Do not fold the rear seatback when the seat is occupied. Do not fold the empty rear seat with a seat belt buckled. This could damage the seat belt or the seat. Unbuckle and return the seat belt to its stowed position, before folding the seat.

If you need to secure more than one child restraint in the rear seat, see Where to Put the Restraint 0 71.

1. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the seat belt. Refer to the child restraint manufacturer instructions and the instructions in this manual.

1.1. Find the lower anchors for the

desired seating position.

Page 79

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

1.2. Put the child restraint on the seat.

For rear outboard seating positions, if the head restraint interferes with the proper installation of the child restraint, the head restraint may be removed. See “Head Restraint Removal and Reinstallation” at the end of this section.

1.3. Attach and tighten the lower attachments on the child restraint to the lower anchors.

2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps:

2.1. Find the top tether anchor.

2.2. Open the cover, if equipped, to

access the top tether anchors.

2.3. Remove the cargo cover before

installing the top tether. The cargo cover can be replaced after the top tether is properly installed.

2.4. Route and tighten the top tether according to your child restraint instructions and the following instructions:

If the position you are using does not have a headrest or head restraint and you are using a single tether, route the tether over the seatback.

SEATS AND RESTRAINTS 77

If the position you are using does not have a headrest or head restraint and you are using a dual tether, route the tether over the seatback.

If the position you are using has an adjustable headrest or head restraint and you are using a single tether, raise the headrest or head restraint and route the tether under the headrest or head restraint and in between the headrest or head restraint posts.

Page 80

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

78 SEATS AND RESTRAINTS

Head Restraint Removal and Reinstallation

The rear outboard head restraints can be removed if they interfere with the proper installation of the child restraint.

To remove the head restraint:

If the position you are using has an adjustable headrest or head restraint and you are using a dual tether, raise the headrest or head restraint and route the tether under the headrest or head restraint and around the headrest or head restraint posts.

3. Before placing a child in the child restraint, make sure it is securely held in place. To check, grasp the child restraint at the LATCH path and attempt to move it side to side and back and forth. There should be no more than 2.5 cm (1 in) of movement for proper installation.

1. Par tially fold the seatback forward.

See Rear Seats 0 45 for additional information.

2. Press both buttons on the head restraint posts at the same time, and pull up on the head restraint.

3. Store the head restraint in a secure place.

4. When the child restraint is removed, reinstall the head restraint before the seating position is used.

Warning

{

To reinstall the head restraint:

Page 81

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

1. Insert the head restraint posts into the holes in the top of the seatback. The notches on the posts must face the driver side of the vehicle.

2. Push the head restraint down. If necessary, press the height

adjustment release button to further lower the head restraint. See Head Restraints 0 37.

3. Tr y to move the head restraint to make sure that it is locked in place.

Replacing LATCH System Parts After a Crash

Warning

{

A crash can damage the LATCH system in the vehicle. A damaged LATCH system may not properly secure the child restraint, resulting in serious injury or even death in a crash. To help make sure the LATCH system is working properly after a crash, see your dealer to have the system inspected and any necessary replacements made as soon as possible.

If the vehicle has the LATCH system and it was being used during a crash, new LATCH system parts may be needed.

New parts and repairs may be necessary even if the LATCH system was not being used at the time of the crash.

Securing Child Restraints (With the Seat Belt in the Rear Seat)

When securing a child restraint with the seat belts in a rear seat position, study the instructions that came with the child restraint to make sure it is compatible with this vehicle.

If the child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH System) 0 72 for how and where to install the child restraint using LATCH. If a child restraint is secured in the vehicle using a seat belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH System) 0 72 for top tether anchor locations.

SEATS AND RESTRAINTS 79

Do not secure a child seat in a position without a top tether anchor if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top tether must be anchored.

In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.

If the child restraint or vehicle seat position does not have the LATCH system, you will be using the seat belt to secure the child restraint. Be sure to follow the instructions that came with the child restraint.

If more than one child restraint needs to be installed in the rear seat, be sure to read Where to Put the Restraint 0 71.

1. Put the child restraint on the seat. If the head restraint interferes with

the proper installation of the child restraint, the head restraint may be removed. See "Head Restraint Removal and Reinstallation" under

Lower Anchors and Tethers for Children (LATCH System) 0 72.

Page 82

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

80 SEATS AND RESTRAINTS

2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle seat belt through or around the child restraint. The child restraint instructions will show you how.

4. Pull the shoulder belt all the way out of the retractor to set the lock. When the retractor lock is set, the belt can be tightened but not pulled out of the retractor.

3. Push the latch plate into the buckle until it clicks.

Position the release button on the buckle, away from the child restraint, so that the seat belt could be quickly unbuckled if necessary.

5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. When installing a forward-facing child restraint, it may be helpful to use your knee to push down on the child restraint as you tighten the belt.

Try to pull the belt out of the retractor to make sure the retractor is locked. If the retractor is not locked, repeat Steps 4 and 5.

6. If the child restraint has a top tether, follow the child restraint manufacturer's instructions

Page 83

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

regarding the use of the top tether. See Lower Anchors and Tethers for Children (LATCH System) 0 72.

7. Before placing a child in the child restraint, make sure it is securely held in place. To check, grasp the child restraint at the seat belt path and attempt to move it side to side and back and forth. When the child restraint is properly installed, there should be no more than

2.5 cm (1 in) of movement.

To remove the child restraint, unbuckle the vehicle seat belt and let it return to the stowed position. If the top tether is attached to a top tether anchor, disconnect it.

If the head restraint was removed, reinstall it before the seating position is used. See "Head Restraint Removal and Reinstallation" underLower

Anchors and Tethers for Children (LATCH System) 0 72 for additional

information on installing the head restraint properly.

Securing Child Restraints (With the Seat Belt in the Front Seat)

This vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint 0 71.

In addition, the vehicle has a passenger sensing system which is designed to turn off the front outboard passenger frontal and knee airbag under certain conditions. See

Passenger Sensing System 0 60 and Passenger Airbag Status Indicator 0 104

for more information, including important safety information.

Never put a rear-facing child seat in the front. This is because the risk to the rear-facing child is so great, if the airbag deploys.

Warning

{

A child in a rear-facing child restraint can be seriously injured or killed if the front outboard passenger frontal airbag inflates.

(Continued)

SEATS AND RESTRAINTS 81

Warning (Continued)

This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the front outboard passenger frontal airbag inflates and the passenger seat is in a forward position.

Secure rear-facing child restraints in a rear seat, even if the airbag(s) are off. If you secure a forward-facing child restraint in the front outboard passenger seat, always move the seat as far back as it will go. It is better to secure the child restraint in a rear seat.

(Continued)

Page 84

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

82 SEATS AND RESTRAINTS

Warning (Continued)

See Passenger Sensing System 0 60 for additional information.

If the child restraint uses a top tether, see Lower Anchors and Tethers for Children (LATCH System) 0 72 for top tether anchor locations.

In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.

When using the lap-shoulder belt to secure the child restraint in this position, follow the instructions that came with the child restraint and the following instructions:

1. Move the seat as far back as it will go before securing the forward-facing child restraint. Move the seat upward or the seatback to

an upright position, if needed, to get a tight installation of the child restraint.

When the passenger sensing system has turned off the front outboard passenger frontal and knee airbag, the off indicator on the passenger airbag status indicator should light and stay lit when you start the vehicle. See

Passenger Airbag Status Indicator

0 104.

2. Put the child restraint on the seat.

3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle seat belt through or around the restraint. The child restraint instructions will show you how.

4. Push the latch plate into the buckle until it clicks.

Position the release button on the buckle, away from the child restraint, so that the seat belt could be quickly unbuckled if necessary.

Page 85

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

5. Pull the shoulder belt all the way out of the retractor to set the lock. When the retractor lock is set, the belt can be tightened but not pulled out of the retractor.

6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. When installing a forward-facing child restraint, it may be helpful to use your knee to push down on the child restraint as you tighten the belt.

Try to pull the belt out of the retractor to make sure the retractor is locked. If the retractor is not locked, repeat Steps 5 and 6.

7. Before placing a child in the child restraint, make sure it is securely held in place. To check, grasp the

SEATS AND RESTRAINTS 83

child restraint at the seat belt path and attempt to move it side to side and back and forth. When the child restraint is properly installed, there should be no more than

2.5 cm (1 in) of movement.

If the airbags are off, the off indicator in the passenger airbag status indicator will come on and stay on when the vehicle is started.

If a child restraint has been installed and the on indicator is lit, see “If the On Indicator Is Lit for a Child Restraint” under Passenger Sensing System 0 60.

To remove the child restraint, unbuckle the vehicle seat belt and let it return to the stowed position.

Page 86

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

84 STORAGE

Storage

Storage Compartments

Storage Compartments . . . . . . . . . . . . 84

Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Front Storage . . . . . . . . . . . . . . . . . . . . . . 84

Sunglasses Storage . . . . . . . . . . . . . . . . 85

Armrest Storage . . . . . . . . . . . . . . . . . . . 85

Rear Storage . . . . . . . . . . . . . . . . . . . . . . . 85

Center Console Storage . . . . . . . . . . . . 86

Umbrella Storage . . . . . . . . . . . . . . . . . . 87

Additional Storage Features

Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . 87

Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . 88

Roof Rack System

Roof Rack System . . . . . . . . . . . . . . . . . 88

Storage Compartments

Warning

{

Do not store heavy or sharp objects in storage compartments. In a crash, these objects may cause the cover to open and could result in injury.

Glove Box

Lift the handle to open the glove box. Close until it latches. Use the vehicle key to lock or unlock. See Keys 0 6.

Front Storage

To open the front storage compartment, slide the cover for ward. There are two USB ports inside. To close, push the cover forward and let go.

Page 87

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

STORAGE 85

Sunglasses Storage

If equipped, sunglasses storage is on the overhead console. Press the fixed button on the cover and release to access.

Armrest Storage

For vehicles with a rear seat armrest, pull the rear seat armrest forward to access the cupholders with removable liner.

Rear Storage

There is storage in the f loor of the rear cargo area. Lift the handle to access.

Remove the load f loor hook from the holder and hook to the weatherstrip above.

When done, return the load floor hook to the holder.

Page 88

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

86 STORAGE

Press the button to access the storage area in front of the armrest cover.

There is a 12-volt power outlet inside.

If equipped, there are two charge-only USB ports on the rear of the center console.

To install the load floor hook into the holder:

2. Push down on the other side of the load floor hook to lock into place.

Center Console Storage

1. Insert one side of the load floor hook into the holder.

There is a wireless smartphone charger in the front of the console storage. See Wireless Charging 0 96.

Page 89

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

STORAGE 87

Umbrella Storage

Slide a compact umbrella no larger than 6 cm (2.36 in) in diameter into the opening on the driver or passenger door.

Additional Storage Features

Cargo Cover

Warning

{

An unsecured cargo cover could strike people in a sudden stop or turn, or in a crash. Store the cargo cover securely or remove it from the vehicle.

Warning

{

Do not place objects on the cargo cover. Sudden stops or turns can cause objects to be thrown in the vehicle. You or others could be injured.

If equipped, the cargo cover can be used to cover items in the cargo area.

Installing the Cargo Cover

1. Slide the cargo cover into the two front corner brackets until it snaps in place.

2. Attach the cords to the fixed retainers on the liftgate.

Removing the Cargo Cover

To remove, disengage the cords and pull the cover out of the vehicle.

Page 90

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

88 STORAGE

Cargo Tie-Downs

The vehicle has four cargo tie-downs in the rear compartment.

Roof Rack System

Warning

{

If something is carried on top of the vehicle that is longer or wider than the roof rack — like paneling, plywood, or a mattress — the wind can catch it while the vehicle is being driven. The item being carried could be violently torn off, and this

(Continued)

Warning (Continued)

could cause a collision and damage the vehicle. Never carry something longer or wider than the roof rack on top of the vehicle unless using a GM certified accessory carrier.

If equipped, the roof rack can be used to load items. For roof racks that do not have crossrails included, GM certified crossrails can be purchased as an accessory. See your dealer.

Caution

Loading cargo on the roof rack that weighs more than 100 kg (220 lb) or hangs over the rear or sides of the vehicle may damage the vehicle. Do not load cargo exceeding 100 kg (220 lbs) and always load cargo so that it rests evenly between the crossrails and does not block the vehicle lamps or windows. Fasten the cargo securely.

To prevent damage or loss of cargo when driving, check to make sure crossrails and cargo are securely fastened. Loading cargo on the roof rack will make the vehicle’s center of gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking, or abrupt maneuvers; otherwise it may result in loss of control. If driving for a long distance, on rough roads, or at high speeds, occasionally stop the vehicle to make sure the cargo remains in its place. Do not exceed the maximum vehicle

Page 91

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

capacity when loading the vehicle. For more information on vehicle capacity and loading, see Vehicle Load Limits 0 215.

STORAGE 89

Page 92

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

90 INSTRUMENTS AND CONTROLS

Instruments and Controls

Controls

Steering Wheel Adjustment . . . . . . . 91

Steering Wheel Controls . . . . . . . . . . 91

Heated Steering Wheel . . . . . . . . . . . . 91

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Windshield Wiper/Washer . . . . . . . . 92

Rear Window Wiper/Washer . . . . . . 94

Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Power Outlets . . . . . . . . . . . . . . . . . . . . . . 95

Wireless Charging . . . . . . . . . . . . . . . . . 96

Warning Lights, Gauges, and Indicators

Warning Lights, Gauges, and

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . 99

Instrument Cluster . . . . . . . . . . . . . . . . 99

Speedometer . . . . . . . . . . . . . . . . . . . . . . 101

Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 101

Trip Odometer . . . . . . . . . . . . . . . . . . . . 101

Tachometer . . . . . . . . . . . . . . . . . . . . . . . 102

Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . 102

Engine Coolant Temperature

Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Seat Belt Reminders . . . . . . . . . . . . . . 103

Airbag Readiness Light . . . . . . . . . . 104

Passenger Airbag Status

Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 104

Charging System Light . . . . . . . . . . . 105

Malfunction Indicator Lamp

(Check Engine Light) . . . . . . . . . . . 105

Brake System Warning Light . . . . 107

Electric Parking Brake Light . . . . . 107

Service Electric Parking Brake

Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Antilock Brake System (ABS)

Warning Light . . . . . . . . . . . . . . . . . . 108

Gear Shifting Light . . . . . . . . . . . . . . . 108

Performance Shifting Light . . . . . . 109

All-Wheel-Drive Light . . . . . . . . . . . . 109

Lane Keep Assist (LKA) Light .. . 109

Vehicle Ahead Indicator . . . . . . . . . 109

Pedestrian Ahead Indicator . . . . . . 110

Traction Off Light . . . . . . . . . . . . . . . . 110

StabiliTrak OFF Light . . . . . . . . . . . . 110

Traction Control System (TCS)/

StabiliTrak Light . . . . . . . . . . . . . . . . 110

Engine Coolant Temperature

Warning Light (Uplevel) . . . . . . . . 111

Driver Mode Control Light . . . . . . . 111

Tire Pressure Light . . . . . . . . . . . . . . . 111

Engine Oil Pressure Light . . . . . . . . 112

Low Fuel Warning Light . . . . . . . . . 112

Security Light . . . . . . . . . . . . . . . . . . . . . 113

High-Beam On Light . . . . . . . . . . . . . 113

Lamps On Reminder . . . . . . . . . . . . . 113

Cruise Control Light . . . . . . . . . . . . . . 113

Door Ajar Light . . . . . . . . . . . . . . . . . . . 114

Information Displays

Driver Information

Center (DIC) . . . . . . . . . . . . . . . . . . . . . 114

Head-Up Display (HUD) . . . . . . . . . 116

Vehicle Messages

Vehicle Messages . . . . . . . . . . . . . . . . . 119

Engine Power Messages . . . . . . . . . . 120

Vehicle Speed Messages . . . . . . . . . 120

Vehicle Personalization

Vehicle Personalization . . . . . . . . . . 120

Universal Remote System

Universal Remote System . . . . . . . . 125

Universal Remote System

Programming . . . . . . . . . . . . . . . . . . . 125

Universal Remote System

Operation . . . . . . . . . . . . . . . . . . . . . . . . 127

Page 93

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Controls

Steering Wheel Adjustment

Manual Steering Wheel

INSTRUMENTS AND CONTROLS 91

Power Tilt and Telescoping Steering Wheel

Heated Steering Wheel

Press the control to move the tilt and telescoping steering wheel up and

To adjust the steering wheel:

1. Pull the lever down.

2. Move the steering wheel up or down.

3. Pull or push the steering wheel closer or away from you.

4. Pull the lever up to lock the steering wheel in place.

Do not adjust the steering wheel while driving.

down or forward and rearward.

Do not adjust the steering wheel while driving.

Steering Wheel Controls

The infotainment system can be operated by using the steering wheel controls. See Steering Wheel Controls 0 138.

( : If equipped, press to turn on or

off. A light near the button displays when the feature is turned on.

The steering wheel takes about three minutes to reach maximum heat.

Automatic Heated Steering Wheel

If equipped with remote start, the heated steering wheel will turn on automatically during a remote start along with the heated seats when it is cold outside. The heated steering wheel indicator light may not come on.

Page 94

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

92 INSTRUMENTS AND CONTROLS

If equipped with auto heated seats, the heated steering wheel will turn on when the auto heated seats are activated. The heated steering wheel indicator will follow the state of the steering wheel heat.

See Heated and Ventilated Front Seats

0 43 and Vehicle Personalization 0 120.

Horn

Press a on the steering wheel pad to sound the horn.

Windshield Wiper/Washer

Windshield Wiper with Rainsense

(AUTO Shown), If Equipped

Windshield Wiper without Rainsense

(INT Shown)

With the ignition on or in ACC/ ACCESSORY, move the windshield wiper lever to select the wiper speed.

HI : Use for fast wipes.

LO : Use for slow wipes.

AUTO : If equipped with Rainsense,

use this setting for intermittent wipes when Rainsense is disabled,

or Rainsense wipes when Rainsense is enabled. For intermittent wipes, move the windshield wiper lever to AUTO, then turn the band up for more frequent wipes or down for less frequent wipes. If Rainsense is turned on, see “Rainsense” later in this section.

INT : If equipped with intermittent wipers only, move the windshield wiper lever to INT. Turn the band up for more frequent wipes or down for less frequent wipes.

OFF : Use to turn the wipers off.

1X : For a single wipe, briefly move

the wiper lever down. For several wipes, hold the wiper lever down.

Page 95

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

f : Pull the windshield wiper lever

toward you to spray windshield washer fluid and activate the wipers. The wipers will continue until the lever is released or the maximum wash time is reached. When the windshield wiper lever is released, additional wipes may occur depending on how long the windshield washer has been activated. See Washer Fluid 0 295 for information on filling the windshield washer fluid reservoir.

Warning

{

In freezing weather, do not use the washer until the windshield is warmed. Otherwise the washer fluid can form ice on the windshield, blocking your vision.

Warning

{

Before driving the vehicle, always clear snow and ice from the hood, windshield, roof, and rear of the vehicle, including all lamps and

(Continued)

INSTRUMENTS AND CONTROLS 93

Warning (Continued)

windows. Reduced visibility from snow and ice buildup could lead to a crash.

Clear snow and ice from the wiper blades and windshield before using them. If frozen to the windshield, carefully loosen or thaw them. Damaged blades should be replaced. See Wiper Blade Replacement 0 299.

Heavy snow or ice can overload the wiper motor. See Electrical System Overload 0 302.

Wiper Parking

If the ignition is turned off while the wipers are on LO, HI, or AUTO with Rainsense turned off, they will immediately stop.

If the windshield wiper lever is then moved to OFF before the driver door is opened or within 10 minutes, the wipers will restart and move to the base of the windshield.

If the ignition is turned off while the wipers are performing wipes due to windshield washing or Rainsense, the wipers continue to run until they reach the base of the windshield.

Rainsense

If equipped with Rainsense and the feature is turned on, a sensor near the top center of the windshield detects the amount of water on the windshield and controls the frequency of the windshield wiper based on the current sensitivity setting.

Keep this area of the windshield clear of debris to allow for best system performance.

AUTO : Move the windshield wiper lever to AUTO. Turn the band on the wiper lever to adjust the sensitivity.

Page 96

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

94 INSTRUMENTS AND CONTROLS

With Rainsense, if the transmission is in N (Neutral) and the vehicle speed is very slow, the wipers will automatically stop at the base of the windshield.

The wiper operations return to normal when the transmission is no longer in N (Neutral) or the vehicle speed has

Turn the band up for more sensitivity to moisture.

Turn the band down for less sensitivity to moisture.

Move the windshield wiper lever out of the AUTO position to deactivate Rainsense.

To turn the Rainsense feature on or off, see “Rain Sense Wipers” under Vehicle Personalization 0 120.

Wiper Arm Assembly Protection

When using an automatic car wash, move the windshield wiper lever to OFF. This disables the automatic Rainsense windshield wipers.

increased.

Rear Window Wiper/ Washer

The rear window wiper/washer controls are on the end of the windshield wiper lever.

Turn the controls to adjust the setting.

OFF : Turns the wiper off.

INT : Turns on the rear wiper with a

delay between wipes.

ON : Turns on the rear wiper.

1 : Push the windshield wiper lever

forward to spray washer f luid on the rear window and the rear camera lens, if equipped. See Rear Camera Mirror 0 30. The wipers will clear the rear window and either stop or return to your preset speed. For more washer cycles, push and hold the lever.

The rear window wiper/washer will not operate if the liftgate is open or ajar. If the liftgate is opened while the rear wiper is on, the wiper returns to the parked position and stops.

Rear Wiper Arm Assembly Protection

When using an automatic car wash, move the rear wiper control to OFF to disable the rear wiper. In some vehicles, if the transmission is in N (Neutral) and the vehicle speed is very slow, the rear wiper will automatically park under the rear spoiler.

Page 97

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

The wiper operations return to normal when the transmission is no longer in N (Neutral) or the vehicle speed has increased.

Auto Wipe in Reverse Gear

If the rear wiper control is off, the rear wiper will automatically operate continuously when the transmission is in R (Reverse), and the front windshield wiper is performing low or high speed wipes. If the rear wiper control is off, the transmission is in R (Reverse), and the front windshield wiper is performing INT wipes, then the rear wiper automatically performs INT wipes.

This feature can be turned on or off. See Vehicle Personalization 0 120.

The windshield washer reservoir is used for the windshield, rear window, and Rear Camera Mirror, if equipped. See Rear Camera Mirror 0 30. Check the fluid level in the reservoir if either washer is not working. See Washer Fluid 0 295.

INSTRUMENTS AND CONTROLS 95

Rear Camera Washer

If equipped, push the windshield wiper lever forward to spray washer fluid on the rear camera lens. The lever returns to its starting position when released. See Rear Camera Mirror 0 30.

Compass

The vehicle may have a compass display on the Driver Information Center (DIC). The compass receives its heading and other information from the Global Positioning System (GPS) antenna, StabiliTrak/Electronic Stability Control (ESC), and vehicle speed information.

The compass system is designed to operate for a certain number of miles or degrees of turn before needing a signal from the GPS satellites. When the compass display shows CAL, drive the vehicle for a short distance in an open area where it can receive a GPS signal. The compass system will automatically determine when a GPS signal is restored and provide a heading again.

Clock

Set the time and date using the infotainment system. See "Time / Date" under Settings 0 177.

Power Outlets

The accessory power outlet can be used to plug in electrical equipment, such as a cell phone or MP3 player.

Page 98

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

96 INSTRUMENTS AND CONTROLS

Caution

Hanging heavy equipment from the power outlet can cause damage not covered by the vehicle warranty. The power outlets are designed for accessory power plugs only, such as cell phone charge cords.

Always unplug electrical equipment when not in use and do not plug in equipment that exceeds the maximum

The vehicle has three accessory power outlets: one at the front of the center console, one under the armrest, and one in the rear cargo area.

Certain accessory power plugs may not be compatible with the accessor y power outlet and could overload vehicle or adapter fuses. If a problem is experienced, see your dealer.

When adding electrical equipment, be sure to follow the proper installation instructions included with the equipment. See Add-On Electrical Equipment 0 280.

15 amps rating.

Wireless Charging

The vehicle may have wireless charging in the storage bin under the armrest. The system operates at 145 kHz and wirelessly charges one Qi compatible smartphone. The power output of the system is capable of charging at a rate up to 3 amp (15W), as requested by the smartphone. See Radio Frequency Statement 0 383.

Warning

{

Wireless charging can affect the operation of an implanted pacemaker or other medical devices. If you have one, it is recommended to consult with your doctor before using the wireless charging system.

The vehicle must be on, in ACC/ ACCESSORY, or Retained Accessory Power (RAP) must be active. The wireless charging feature may not correctly indicate charging when the vehicle is in RAP, or during Bluetooth phone calls. See Retained Accessory Power (RAP) 0 224.

The operating temperature is −20 °C (−4 °F) to 60 °C (140 °F) for the charging system and 0 °C (32 °F) to 35 °C (95 °F) for the smartphone.

Warning

{

Remove all objects from the charging pad before charging your compatible smartphone. Objects, such as coins, keys, rings, paper clips, or cards, between the

(Continued)

Page 99

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

Warning (Continued)

smartphone and charging pad will become very hot. On the rare occasion that the charging system does not detect an object, and the object gets wedged between the smartphone and charger, remove the smartphone and allow the object to cool before removing it from the charging pad, to prevent burns.

To charge a compatible smartphone:

1. Remove all objects from the charging pad. The system may not charge if there are any objects between the smartphone and charging pad.

2. Place the smartphone face up on the

@ symbol on the

charging pad. To maximize the charge rate,

ensure the smartphone is fully seated and centered in the holder with nothing under it. A thick smartphone case may prevent the wireless charger from working, or may reduce the charging performance. See your dealer for additional information.

3. A green appear on the infotainment display. This indicates that the smartphone is properly positioned and charging.

If the the charging pad is clear of any objects and that the smartphone is capable of wireless charging before re-positioning it.

} next to the V will

} turns yellow, ensure that

INSTRUMENTS AND CONTROLS 97

} does not illuminate, the

If the smartphone may need to be repositioned. To reposition, turn the smartphone 180 degrees and wait three seconds before placing/ aligning it on the pad again.

The smartphone may become warm during charging. This is normal. In warmer temperatures, the speed of charging may be reduced.

Software Acknowledgements

Certain Wireless Charging Module product from LG Electronics, Inc. ("LGE") contains the open source software detailed below. Refer to the indicated open source licenses (as are included following this notice) for the terms and conditions of their use.

Page 100

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

14584367) - 2021 - CRC - 10/14/20

98 INSTRUMENTS AND CONTROLS

OSS Notice Information

To obtain the source code that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid for three (3) years from the date on which you purchased the product.

Freescale-WCT library

1. Redistributions of source code

2. Redistributions in binary form

3. Neither the name of the copyright

must retain the above copyright notice, this list of conditions and the following disclaimer.

must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
