Section 1 Seats and Restraint System
Front Seats ......................................................1-2
Power Seats ..................................................1-2
Power Lumbar ...............................................1-2
Heated Seats ................................................ .1-3
Heated and Ventilated Seats ............................1-3
Power Reclining Seatbacks ..............................1-4
Head Restraints .............................................1-5
Rear Seats .......................................................1-6
Heated Seats ................................................ .1-6
Rear Seat Pass-Through Door .........................1-6
Safety Belts .....................................................1-7
Safety Belts: They Are for Everyone .................1-7
How to Wear Safety Belts Properly .................1-12
Lap-Shoulder Belt .........................................1-21
Safety Belt Use During Pregnancy ..................1-27
Safety Belt Extender .....................................1-27
Child Restraints .............................................1-28
Older Children ..............................................1-28
Infants and Young Children ............................1-31
Child Restraint Systems .................................1-35
Where to Put the Restraint .............................1-37
Lower Anchors and Tethers for
Children (LATCH) ......................................1-39
Securing a Child Restraint in a
Rear Seat Position ....................................1-45
Securing a Child Restraint in the
Right Front Seat Position ........................... .1-47
Airbag System ...............................................1-51
Where Are the Airbags? ................................1-53
When Should an Airbag Inflate? .....................1-56
What Makes an Airbag Inflate? .......................1-57
How Does an Airbag Restrain? .......................1-57
What Will You See After an Airbag
Inflates? ...................................................1-58
Passenger Sensing System ............................1-59
Servicing Your Airbag-Equipped Vehicle ...........1-64
Adding Equipment to Your
Airbag-Equipped Vehicle
Restraint System Check ..................................1-66
Checking the Restraint Systems ......................1-66
Replacing Restraint System Parts
After a Crash ............................................1-67
.............................1-64
1-1
Front Seats
Power Seats
The power seat controls
are located on the outboard
side of the seats.
To adjust the seat:
• Move the seat forward or rearward by sliding the
horizontal control forward or rearward.
• Raise or lower the front part of the seat cushion by
moving the front of the horizontal control up or down.
• Raise or lower the rear part of the seat cushion by
moving the rear of the horizontal control up or down.
• Use the vertical control to recline the seatback.
See Power Reclining Seatbacks on page 1-4.
If the vehicle has the memory feature, you can program
and recall memory settings for seat positions. See
Memory Seat, Mirrors and Steering Wheel on page 2-77.
Power Lumbar
On vehicles with power
lumbar, the control is
located on the outboard
sides of the front seat(s).
To increase or decrease support, press and hold the
front or rear of the control.
To raise or lower the position of the lumbar support,
press and hold the top or bottom of the control.
Vehicles with a memory function allow seat settings to be
saved and recalled. See Memory Seat, Mirrors and
Steering Wheel on page 2-77 for more information.
1-2
Heated Seats
On vehicles with heated
front seats, the buttons are
located on the climate
control panel.
z (Heated Seat and Seatback): Press the up or down
arrow once to turn on the heated seat at the highest or
lowest setting.
Press the up or down arrows a second time to raise or
lower the setting. Keep pressing the down arrow until the
indicator on the climate control display is off to turn off the
heated seat.
A light bar in the climate control display shows the setting:
high, medium, or low. The longest bar shows the high
range and the shortest bar shows the low range.
The heated seat will automatically shut off when the
vehicle is turned off.
Heated and Ventilated Seats
On vehicles with this feature, the buttons are located on
the climate control panel.
z (Heated Seat and Seatback): Press to heat the
seat and seatback.
{ (Ventilated Seat): Press to ventilate the seat.
A light bar in the climate control display shows
the setting; high, medium, or low.
Press either button to start that feature at the highest
setting. Each press of the button, decreases the setting.
To turn the feature off, press the button until the light
turns off.
The heated or ventilated seats shut off when the vehicle
is turned off.
1-3
Power Reclining Seatbacks
The front seats have
power reclining seatbacks.
Use the vertical power
seat control located on
the outboard side of
the seat to operate them.
• To recline the seatback, press the control toward
the rear of the vehicle.
• To raise the seatback, press the control toward the
front of the vehicle.
1-4

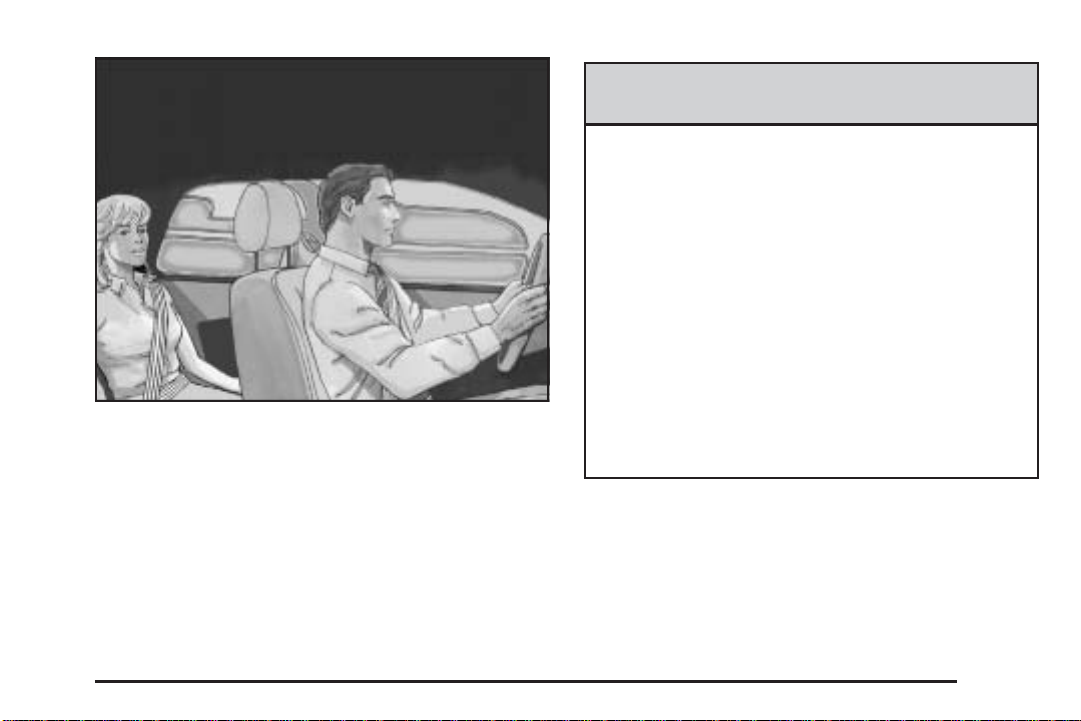

{ CAUTION:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even if when buckled
up, the safety belts cannot do their job when
reclined like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear the safety belt properly.
Do no have a seatback reclined if your vehicle is moving.
Head Restraints
Adjust the head restraint so that the top of the restraint is
at the same height as the top of the occupant’s head.
This position reduces the chance of a neck injury in a
crash.
1-5
Pull the head restraint up
to raise it. To lower the
head restraint, press
the button, located on
the top of the seatback,
and push the head
restraint down.
The front head restraints can also tilt forward or
rearward.
Rear Seats
Heated Seats

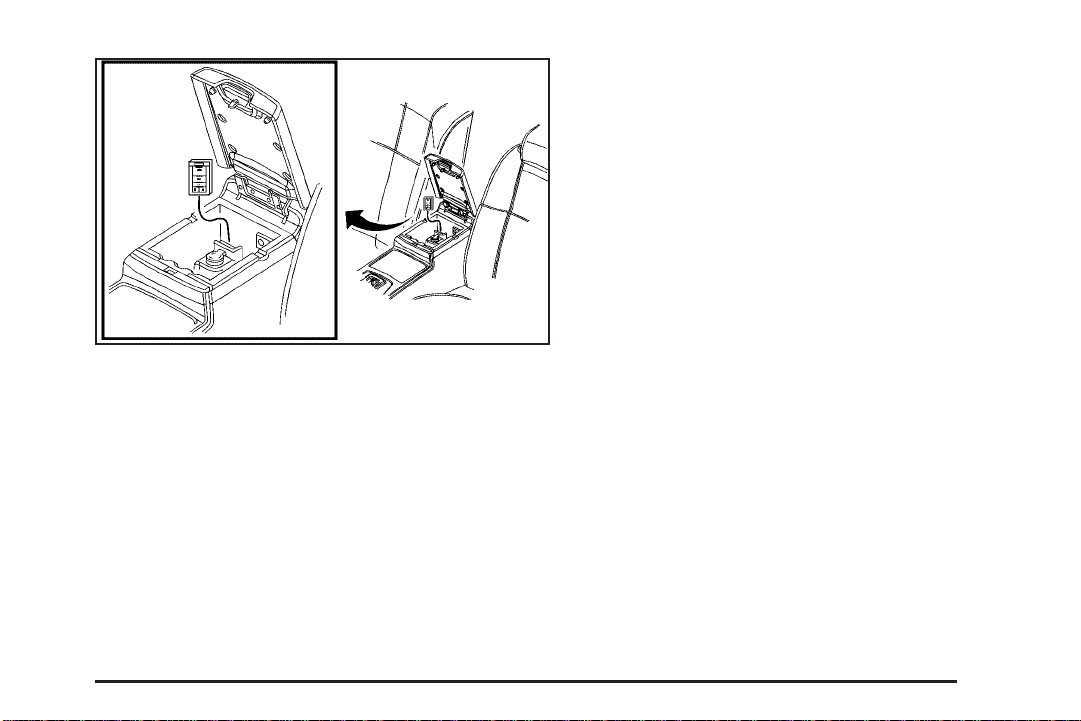

If the vehicle has this feature, the controls are located
on the center console.
Pressing this button will turn the heated seat on at the
highest setting. Each press of the button will decrease the
seat temperature or turn the seat off. The light indicates
which setting the seat is on, 3 being the highest.
The engine must be running for the seats to operate
and will shut off when the ignition is turned off.
Rear Seat Pass-Through Door
The vehicle has a pass-through door that provides
access to the trunk from the rear seats. See “Rear Seat
Pass-Through Door” under Trunk on page 2-15.
1-6
Safety Belts
Safety Belts: They Are for Everyone
{ CAUTION:
This section of the manual describes how to use
safety belts properly. It also describes some things not
to do with safety belts.
{ CAUTION:
Do not let anyone ride where a safety belt cannot
be worn properly. In a crash, if you or your
passenger(s) are not wearing safety belts, the
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from the
vehicle. You and your passenger(s) can be
seriously injured or killed. In the same crash, you
might not be, if you are buckled up. Always fasten
your safety belt, and check that your passenger(s)
are restrained properly too.
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed. Do not allow people to ride in any
area of your vehicle that is not equipped with seats
and safety belts. Be sure everyone in your vehicle is
in a seat and using a safety belt properly.
This vehicle has indicators as a reminder to buckle the
safety belts. See Safety Belt Reminders on page 3-57
for additional information.
1-7
In most states and in all Canadian provinces, the law
requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without safety belts, they could have
been badly hurt or killed.
After more than 40 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.
1-8
Put someone on it. Get it up to speed. Then stop the vehicle. The rider
does not stop.
1-9
The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
1-10
or the instrument panel...
or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
Questions and Answers About Safety
Belts
Q: Will I be trapped in the vehicle after a crash if I
am wearing a safety belt?
A: You could be — whether you are wearing a safety
belt or not. But your chance of being conscious
during and after an accident, so you can unbuckle
and get out, is much greater if you are belted.
And you can unbuckle a safety belt, even if you
are upside down.
Q: If my vehicle has airbags, why should I have to
wear safety belts?
A: Airbags are supplemental systems only; so they
work with safety belts — not instead of them.
Whether or not an airbag is provided, all occupants
still have to buckle up to get the most protection.
That is true not only in frontal collisions, but
especially in side and other collisions.
1-11
Q: If I am a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you are in a
crash — even one that is not your fault — you and
your passenger(s) can be hurt. Being a good driver
does not protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds of less than
40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This section is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different
rules for smaller children and infants. If a child will be
riding in the vehicle, see Older Children on page 1-28
or Infants and Young Children on page 1-31. Follow
those rules for everyone’s protection.
It is very important for all occupants to buckle up.
Statistics show that unbelted people are hurt more often
in crashes than those who are wearing safety belts.
Occupants who are not buckled up can be thrown out of
the vehicle in a crash. And they can strike others in
the vehicle who are wearing safety belts.
First, before you or your passenger(s) wear a safety
belt, there is important information you should know.
1-12

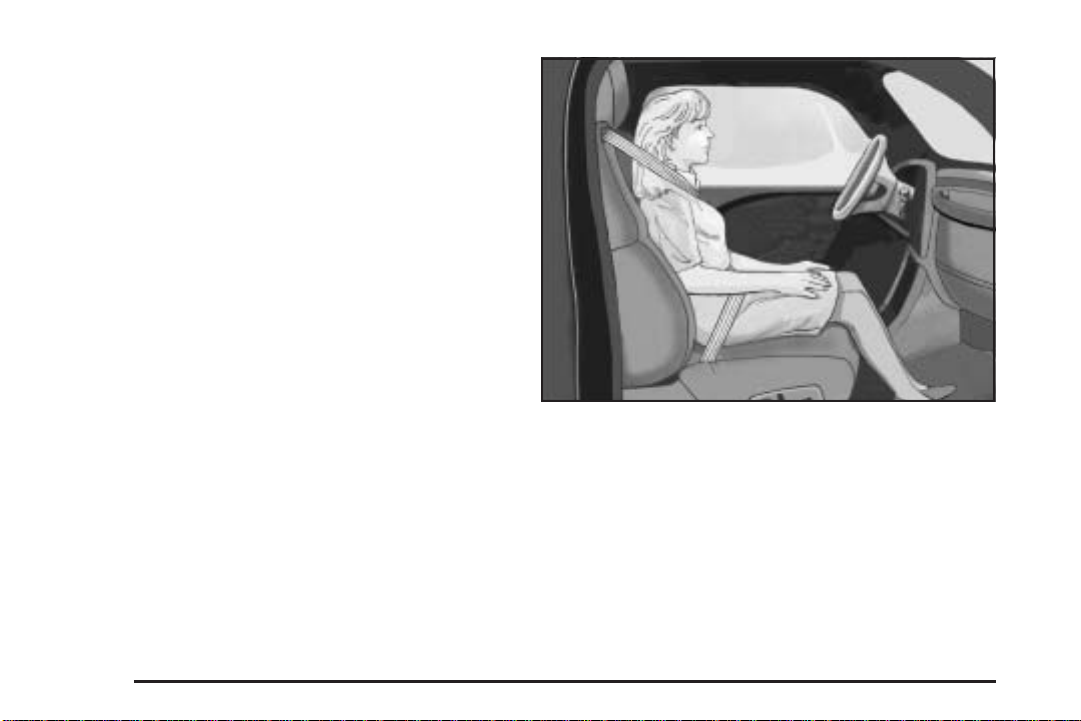

Sit up straight and always keep your feet on the floor in
front of you. The lap part of the belt should be worn
low and snug on the hips, just touching the thighs.
In a crash, this applies force to the strong pelvic bones
and you would be less likely to slide under the lap
belt. If you slid under it, the belt would apply force on
your abdomen. This could cause serious or even
fatal injuries. The shoulder belt should go over the
shoulder and across the chest. These parts of the
body are best able to take belt restraining forces.
The shoulder belt locks if there is a sudden stop or
crash.
1-13
Q: What is wrong with this?
A: The shoulder belt is too loose. It will not give as
much protection this way.
{ CAUTION:
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward too
much, which could increase injury. The shoulder
belt should fit snugly against your body.
1-14
Q: What is wrong with this?
A: The lap belt is too loose. It will not give nearly as
much protection this way.
{ CAUTION:
You can be seriously hurt if your lap belt is too
loose. In a crash, you could slide under the lap
belt and apply force on your abdomen. This could
cause serious or even fatal injuries. The lap belt
should be worn low and snug on the hips, just
touching the thighs.
1-15
Q: What is wrong with this?
A: The belt is buckled in the wrong buckle.
{ CAUTION:
You can be seriously injured if your belt is buckled
in the wrong place like this. In a crash, the belt
would go up over your abdomen. The belt forces
would be there, not on the pelvic bones. This
could cause serious internal injuries. Always
buckle your belt into the buckle nearest you.
1-16
Q: What is wrong with this?
A: The belt is over an armrest.
{ CAUTION:
You can be seriously injured if your belt goes over
an armrest like this. The belt would be much too
high. In a crash, you can slide under the belt. The
belt force would then be applied on the abdomen,
not on the pelvic bones, and that could cause
serious or fatal injuries. Be sure the belt goes
under the armrests.
1-17
Q: What is wrong with this?
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times.
{ CAUTION:
You can be seriously injured if you wear the
shoulder belt under your arm. In a crash, your
body would move too far forward, which would
increase the chance of head and neck injury. Also,
the belt would apply too much force to the ribs,
which are not as strong as shoulder bones. You
could also severely injure internal organs like your
liver or spleen. The shoulder belt should go over
the shoulder and across the chest.
1-18

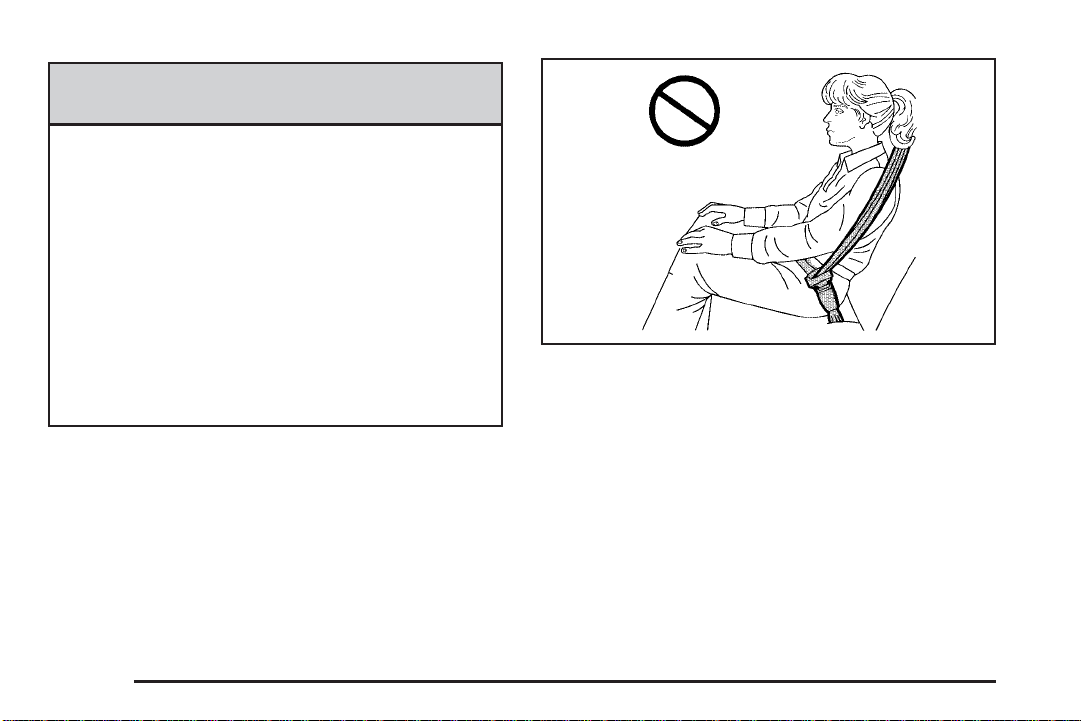

Q: What is wrong with this?
A: The belt is behind the body.
{ CAUTION:
You can be seriously injured by not wearing the
lap-shoulder belt properly. In a crash, you would
not be restrained by the shoulder belt. Your body
could move too far forward increasing the chance
of head and neck injury. You might also slide
under the lap belt. The belt force would then be
applied right on the abdomen. That could cause
serious or fatal injuries. The shoulder belt should
go over the shoulder and across the chest.
1-19
Q: What is wrong with this?
A: The belt is twisted across the body.
{ CAUTION:
You can be seriously injured by a twisted belt. In a
crash, you would not have the full width of the belt
to spread impact forces. If a belt is twisted, make
it straight so it can work properly, or ask your
dealer/retailer to fix it.
1-20
Lap-Shoulder Belt
All seating positions in your vehicle have a
lap-shoulder belt.
Here is how to wear a lap-shoulder belt properly.
1. Adjust the seat, if the seat is adjustable, so you
can sit up straight. To see how, see “Seats” in
the Index.

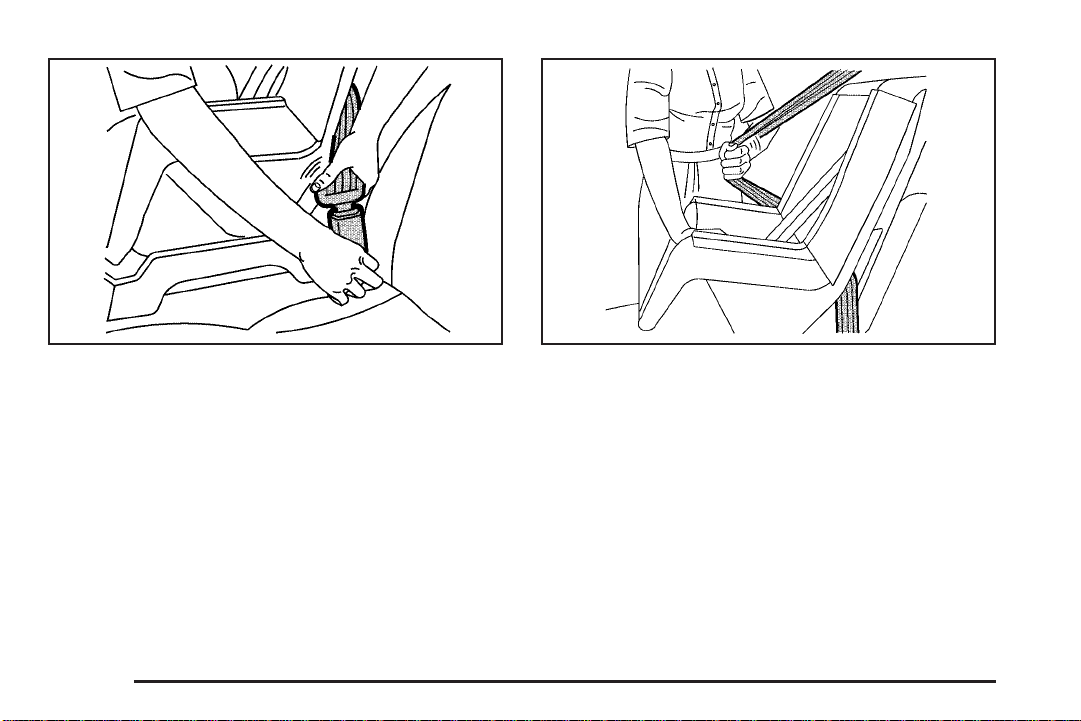

2. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The lap-shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
If you ever pull the shoulder portion of a passenger
belt out all the way, you may engage the child
restraint locking feature. If this happens, just let
the belt go back all the way and start again.
3. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, see Safety Belt
Extender on page 1-27.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly if necessary.
1-21
4. If equipped with a shoulder belt height adjuster,
move it to the height that is right for you. Improper
shoulder belt height adjustment could reduce the
effectiveness of the safety belt in a crash. See
“Shoulder Belt Height Adjustment” later in this
section.
5. To make the lap part tight, pull up on the
shoulder belt.
It may be necessary to pull stitching on the safety
belt through the latch plate to fully tighten the
lap belt on smaller occupants.
6. This safety belt has a feature that will reduce
the tension of the safety belt on the occupant’s
shoulder if the vehicle is on. To set this feature,
gently pull on the belt, or lean forward and then sit
back. The belt will retract and rest lightly against
the occupant.
When the safety belt is unbuckled or when the
vehicle is turned off, the tension reducer will
deactivate. The belt should go back out of the way.
1-22
To unlatch the belt, just push the button on the buckle.
Before you close a door, be sure the belt is out of
the way. If you slam the door on it, you can damage
both the belt and your vehicle.
Shoulder Belt Height Adjuster
Your vehicle has a shoulder belt height adjuster for the
driver and right front passenger position.
Adjust the height so that the shoulder portion of the belt is
centered on your shoulder. The belt should be away from
your face and neck, but not falling off your shoulder.
Improper shoulder belt height adjustment could reduce
the effectiveness of the safety belt in a crash.
To move it down, press
the release button (A) and
move the height adjuster
to the desired position.
You can move the height
adjuster up just by pushing
up on the shoulder belt
guide.
After you move the height adjuster to where you want it,
try to move it down without pressing the release
button to make sure it has locked into position.
1-23
Safety Belt Pretensioners
Your vehicle has safety belt pretensioners for front
outboard occupants. Although you cannot see them,
they are part of the safety belt assembly. They can help
tighten the safety belts during the early stages of a
moderate to severe frontal and near frontal crash if
the threshold conditions for pretensioner activation
are met. And, if your vehicle has side impact airbags,
safety belt pretensioners can help tighten the safety
belts in a side crash.
Pretensioners work only once. If they activate in a
crash, you will need to get new ones, and probably other
new parts for your safety belt system. See Replacing
Restraint System Parts After a Crash on page 1-67.
Rear Safety Belt Comfort Guides
Rear shoulder belt comfort guides may provide added
safety belt comfort for older children who have outgrown
booster seats and for some adults. When installed on a
shoulder belt, the comfort guide positions the belt away
from the neck and head.
There is one guide for each outboard passenger position
in the rear seat. Here is how to install a comfort guide to
the safety belt:

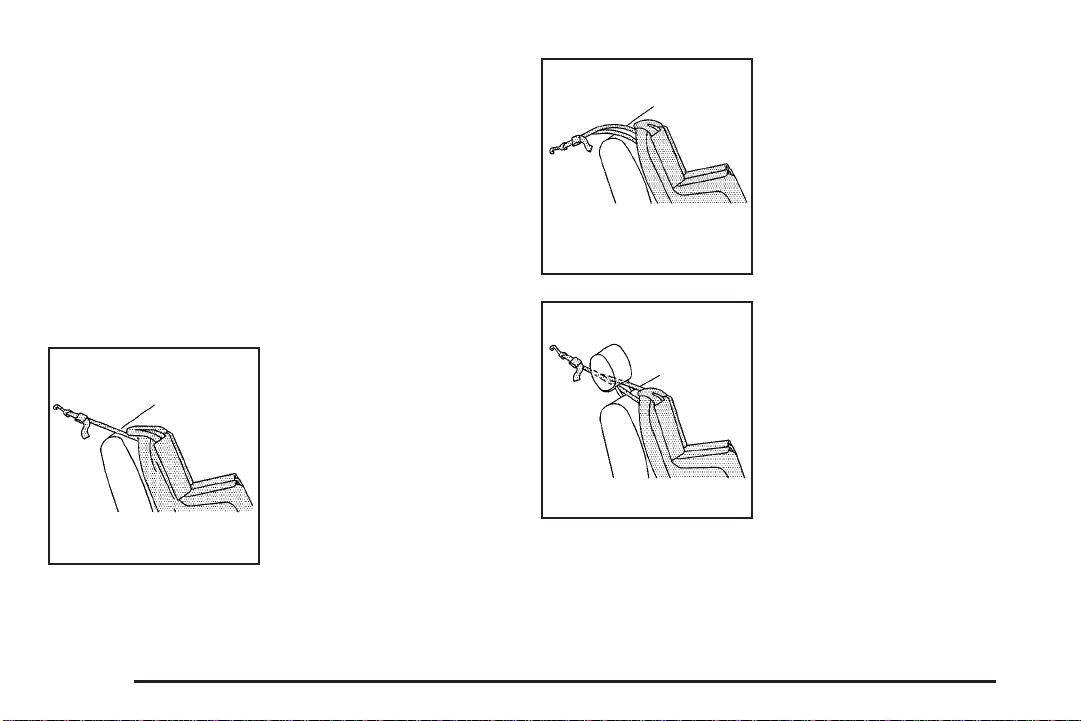

1. Pull the elastic cord out from between the edge of
the seatback and the interior body to remove the
guide from its storage clip.
1-24
2. Place the guide over the belt and insert the two
edges of the belt into the slots of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the
guide on top.
1-25
{ CAUTION:
A safety belt that is not properly worn may not
provide the protection needed in a crash. The
person wearing the belt could be seriously injured.
The shoulder belt should go over the shoulder and
across the chest. These parts of the body are best
able to take belt restraining forces.
4. Buckle, position, and release the safety belt as
described previously in this section. Make sure
that the shoulder belt crosses the shoulder.
To remove and store the comfort guide, squeeze the
belt edges together so that you can take them out of
the guide. Pull the guide upward to expose its storage
clip, and then slide the guide onto the clip. Turn the
guide and clip inward and slide them in between
the seatback and the interior body, leaving only the
loop of the elastic cord exposed.
1-26
Loading...
