Cadillac STS 2010 Navigation Manual

2010 Cadillac STS Navigation System M

Infotainment System

Introduction

Overview

Radio

AM-FM Radio Satellite Radio

Audio Players

CD/DVD Player MP3 Auxiliary Devices

Navigation

Using the Navigation

System

...................... 3

....................... 4

............................. 14

............... 14

.............. 21

................ 23

............ 23

........................... 30

...................... 34

.................. 34

......... 3

.......... 33

Maps Navigation Symbols Navigation Menu Destination OnStar Conﬁgure Menu Global Positioning

Vehicle Positioning Problems with Route

If the System Needs

.......................... 36

System (GPS)

Guidance Service

.................. 63

System

................ 89

.................. 90

....... 39

........... 47

........... 79

............ 80

......... 88

........ 89

Ordering Map DVDs Database Coverage

Explanations

Voice Recognition Personalization Phone

Bluetooth

Index

.......................... 102

.................................... 1

...... 90

........... 90

.......... 91

............. 101

................... 102

Infotainment System 3

Introduction

GENERAL MOTORS, GM, the GM Emblem, CADILLAC, the CADILLAC Crest & Wreath, and the name STS are registered trademarks of General Motors LLC.

Litho in U.S.A. Part No. 20861105 A First Printing

DTS and DTS Digital surround are registered trademarks of Digital Theater systems, Inc.

Dolby

is manufactured under

license from Dolby

Dolby

, MLP Lossless,and the

double-D symbol are trademarks of

Dolby

Laboratories.

The information in this manual supplements the owner manual.

This manual describes features that may or may not be on your speciﬁc vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your speciﬁc vehicle to conﬁrm each of the features found on your vehicle. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Cadillac Motor Division wherever it appears in this manual.

Keep this manual with the owner manual in the vehicle, so it will be there if it is needed. If the vehicle is sold, leave this manual in the vehicle.

4 Infotainment System

Canadian Vehicle Owners (Propriétaires des Véhicules Canadiens)

A French language copy of this manual can be obtained from your dealer/retailer or from:

On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l’adresse suivante:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

1-800-551-4123 Numéro de poste 6438 de langue

française www.helminc.com

Overview

Read this manual thoroughly to become familiar with how the navigation system operates.

The navigation system includes navigation and audio functions.

While entering the vehicle or when turning the vehicle off, some DVD Map Disc noise is normal.

Keeping your eyes on the road and your mind on the drive is important for safe driving. The navigation system has built-in features intended to help keep your eyes on the road and mind on the drive. Some features may be disabled while driving. Note that these functions will be grayed-out. A grayed-out function indicates it is not available when the vehicle is moving.

All functions are available when the vehicle is parked. Do the following before driving:

• Become familiar with the

navigation system operation, hard keys on the faceplate, and touch-sensitive screen buttons of the navigation system.

• Set up the audio by presetting

favorite stations, setting the tone, and adjusting the speakers.

• Set up the navigation features

before beginning driving, such as entering an address or a preset destination.

• Set up your phone numbers in

advance so they can be called easily with the press of a single button or a single voice command (for navigation systems equipped with phone capability).

Infotainment System 5

{ WARNING

Taking your eyes off the road too long or too often while using the navigation system could cause a crash resulting in injury or death to you or others. Focus your attention on driving.

{ WARNING

Avoid looking too long or too often at the moving map on the navigation screen. This could cause a crash and you or others can be injured or killed. Use the turn-by-turn voice guidance directions whenever possible.

Use the navigation system to:

• Plan a route.

• Select a destination using

various methods and choices.

• Follow turn-by-turn route and

map guidance with voice prompts, only if permitted by traffic laws, controls, and conditions.

You should always be alert and obey traffic and roadway laws and instructions, regardless of the guidance from the navigation system. Because the navigation system uses street map information that does not include all traffic restrictions or the latest road changes, it may suggest using a road that is now closed for construction or a turn that is prohibited by signs at the intersection.

Because the system uses limited information, you must always evaluate whether following the system’s directions is safe and legal for the current conditions.

When the navigation system is turned on, a screen may appear with the information below, and you must read and acknowledge the information it contains.

{ WARNING

Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others.

To help avoid a crash in which you or others could be killed:

• Always concentrate on your

driving ﬁrst by keeping your eyes and mind on the road, and your hands on the wheel.

6 Infotainment System

• Follow system directions only if

permitted by traffic laws, controls, and conditions.

• Before using this system, read

the owner’s manual and learn how it operates.

• Some system controls cannot be

used the when vehicle is moving.

After you acknowledge the start up information you will be able to access the NAV (navigation) and DEST (destination) functions. Once accessed, you can enter or delete information in the navigation system or access other functions. See instructions later in this section.

If OK is not selected, all hard keys except for NAV (Navigation) and DEST (Destination) can be accessed. You can also press the NAV hard key to have this Warning screen appear.

When getting started, set the navigation system to your preference or delete information you may have entered using various options.

Every ﬁfty times the vehicle is started and the navigation system is turned on, the Warning screen appears. After reading the warning, select OK to load the map DVD information.

Infotainment System 7

A. Audio Status Line B. Audio Source Screen Button.

See AM-FM Radio on page 14 and Satellite Radio on page 21 for more information.

C. North Up/Heading Up Symbol.

See Navigation Symbols on page 39 for more information.

D. No GPS Symbol. See Navigation

Symbols on page 39 for more information.

E. Navigation Menu Symbol. See

Using the Navigation System on page 34 for more information.

F. Map Scales. See “Map Scales”

under Maps on page 36 for more information.

G. Guidance Window Symbol. See

Navigation Symbols on page 39

for more information.

Z (Map DVD Eject) Key. See

“Hard Keys” under Using the Navigation System on page 34

for more information.

I. Map DVD Loading Slot.

8 Infotainment System

J. M (CD/DVD Changer Loading)

Key. See CD/DVD Player on page 23 for more information.

Z (CD/DVD Changer Eject)

Key. See CD/DVD Player on page 23 for more information.

L. CD/DVD Changer Loading Slot. M.

O n (Power/Volume)

Knob. See “Hard Keys” under Using the Navigation System on page 34 for more information.

¦ m ¥ (Navigation Screen Tilt)

Key (in/out). See “Hard Keys” under Using the Navigation System on page 34 for more information.

O. Clock. See “Clock” under

Conﬁgure Menu on page 80 for more information.

P. Memory Point Symbol. See

Navigation Symbols on page 39

for more information.

Q. POI Symbol (Point of Interest).

See Navigation Symbols on page 39 for more information.

R. BAND key. See AM-FM Radio

on page 14 and Satellite Radio on page 21 for more information.

S. AUX (Auxiliary) key. See “Hard

Keys” under Using the

Navigation System on page 34

for more information.

T. ROUTE key. See Destination on

page 63 for more information.

) (Map) Key. See “Hard Keys”

under Using the Navigation System on page 34 for more

information.

w (Tune) Knob. See AM-FM

Radio on page 14 and Satellite Radio on page 21 for more

information.

W. SRCE (Source) Key. See

AM-FM Radio on page 14

and Satellite Radio on page 21 for more information.

e (Audio) Key. See AM-FM

Radio on page 14 and Satellite Radio on page 21 for more

information.

Y. CONFIG Key. See Conﬁgure

Menu on page 80 for more information.

k (Navigation Voice Prompt

Repeat) Key. See “Hard Keys” under Using the Navigation System on page 34 for more information.

¦ tu¥ (Seek/Scan) Key.

AA.

See AM-FM Radio on page 14 and Satellite Radio on page 21 for more information.

Infotainment System 9

Deleting Personal Information

This navigation system can record and store destinations. At times, such as the disposal of your vehicle, you may want to delete these destinations. Refer to the following sections to delete the destination information that has been stored.

See “Memory Points” under Navigation Menu on page 47 for deleting stored destinations.

Storing Radio Station Presets

To set preset radio stations:

1. Press the power/volume knob to turn the system on.

2. Press the BAND hard key.

3. Select the desired band (AM,FM1,FM2,XM1,or XM2 (if equipped)).

4. Seek, scan, or tune to the desired stations using the seek and scan hard key arrows or the tuning knob.

5. Press and hold one of the six preset screen buttons, at the bottom of the screen, until a beep is heard or see the station displayed on the selected preset button.

6. Repeat the steps for each preset.

See “Preset Stations” under AM-FM

Radio on page 14 and Satellite Radio on page 21 for more

information.

Setting the Clock

To set the time:

1. Press the power/volume knob to turn the system on.

2. Press the CONFIG hard key.

3. Press the button.

4. Select the 12hour or 24hour screen button to display the time in standard or military time.

H (clock) screen

5. Select the AM or PM screen buttons.

6. Select the appropriate time zone screen button.

7. Select the Daylight Saving Time screen button, if necessary.

8. Press and hold the hour and minute arrow buttons to increase or to decrease the time or press the GPS TIME screen button to reset radio time to GPS time.

The radio uses the GPS satellite to set the time. The vehicle needs to be in an open area to receive the signal. See “Clock” under Conﬁgure Menu on page 80 for more information.

10 Infotainment System

Setting the Region, Entering an Address and Point of Interest, and Storing a Home Destination and Preset Destinations

Before entering an Address, Point of Interest, Home, or Preset Destination, select the appropriate region that contains the ﬁnal destination. The vehicle must be stopped to perform this operation.

Setting the Region

To set the region:

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 36 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key.

4. Press the Region screen button.

5. Select the appropriate region numbered screen button that contains the ﬁnal destination.

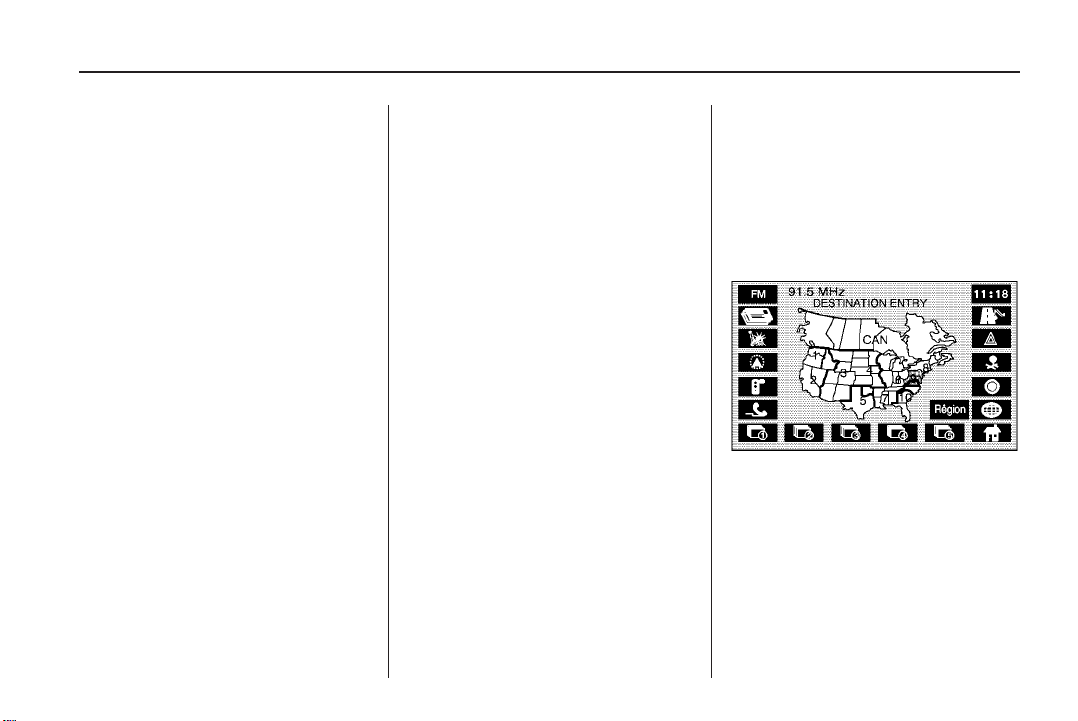

The system returns to the DESTINATION ENTRY screen. See “Region” under Destination on page 63 for more information.

Entering an Address

To set a destination by entering a street address:

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 36 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key. Verify that the selected Region is correct.

4. Press the button.

5. Enter the street name using the alpha keypad on the screen.

Do not enter directional information or street type, and use the space symbol screen

button ( city names. For example, the street name N. Royal Oak Rd. should be entered as

royal backspace (

an incorrect character has been entered.

6. Select the desired street name with the correct designation (Dr., Ln., St., etc.) from the list.

7. If there is more than one city, the system displays the list of cities that have a street with that name. Select a city from the list.

C Address screen

U) between street or

Uoak. Use the

V) screen button if

Infotainment System 11

8. Enter the house number using the numeric keypad on the screen and touch the OK screen button.

A map screen appears with the destination marked.

9. Select the symbol screen button.

10. Select the Guide screen button.

11. Once driving begins, an

audio prompt to “Proceed to the highlighted route” is heard. The vehicle is now in route guidance mode.

See “Address” under Destination on page 63 for more information.

h (destination)

Entering a Point of Interest (POI)

To set a destination by entering a Point of Interest (POI):

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 36 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key. Verify that the selected Region is correct.

4. Press the button.

5. Enter the speciﬁc title of the POI in the name space (i.e. Washington Monument) using the alpha keypad on the screen.

i (POI) screen

6. Select the POI from the list.

7. If there is more than one city, the system displays the list of cities that have a street with that name. Select a city from the list or select the Input Name screen button to input the city name.

A map screen appears with the destination marked.

8. Select the symbol screen button.

9. Select the Guide screen button.

10. Once you begin driving, an

audio prompt to “Proceed to the highlighted route” is heard. You are now in route guidance mode.

Using the Category or City selections will aid the system in ﬁnding your POI by limiting the search options. See “Point of Interest (POI)” under Destination on page 63 for more information.

h (destination)

12 Infotainment System

Storing a Home Destination

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 36 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the

4. Press the Menu screen button from the map screen.

5. Press the screen button.

6. Press the button.

7. Press the Add screen button.

8. Press the Address screen button and enter all address information.

9. Press the OK screen button.

) (map) hard key.

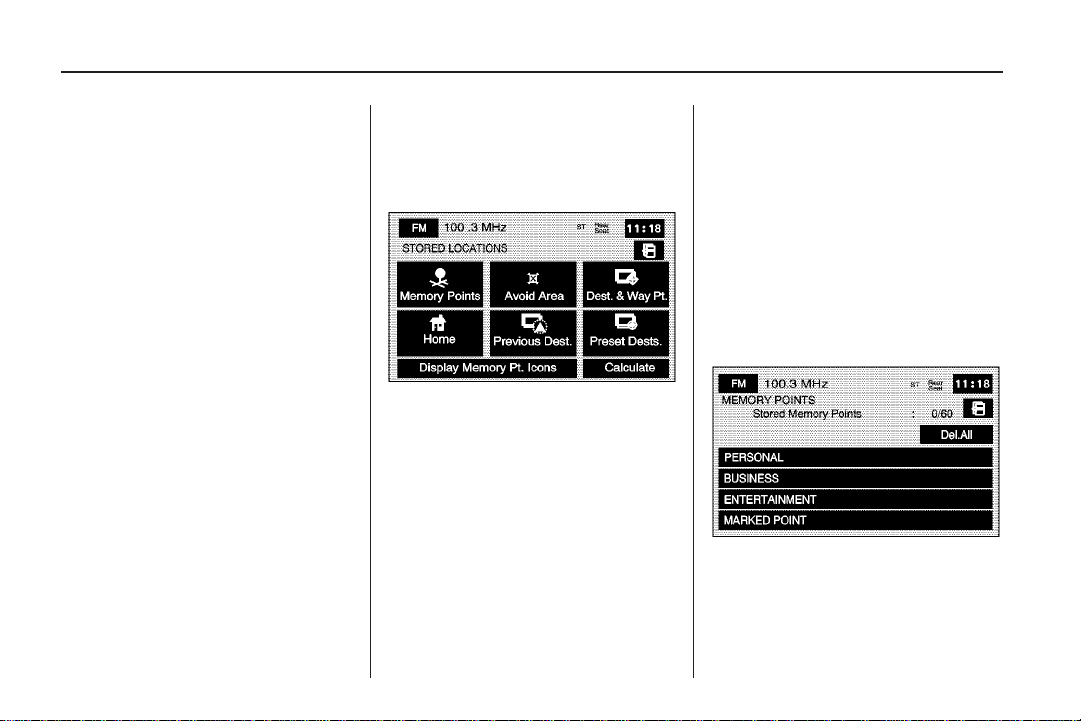

N Memory Points

L Home screen

L Home icon will be

The highlighted on the DESTINATION ENTRY screen. See “Using Your Home or Preset Destinations” later in this section for more information.

See “Memory Points” under Navigation Menu on page 47 for more information.

Storing a Preset Destination

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 36 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the

4. Press the Menu screen button from the map screen.

) (map) hard key.

5. Press the screen button.

6. Press the screen button.

7. Press the Add screen button and select the numbered preset row to store the destination as.

8. Press the Address screen button and enter all address information.

9. Press the OK screen button.

The numbered preset destination will be highlighted on the DESTINATION ENTRY screen. See “Using Your Home or Preset Destinations” later in this section for more information.

See “Memory Points” under Navigation Menu on page 47 for more information.

N Memory Points

A Preset Dests.

Infotainment System 13

Using Your Home or Preset Destinations

These destinations are available for selection while driving.

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 36 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key. Verify that the selected Region is correct.

4. Select the one of the available preset destination symbols. A map screen appears with the destination marked.

5. Select the h (destination) symbol screen button.

6. Select the Guide screen button.

L(Home symbol) or

7. Once driving begins, an audio prompt to “Proceed to the highlighted route” is heard. The vehicle is now in route guidance mode.

See “Preset Destination” or “Home” under Destination on page 63 for more information.

Canceling Guidance

Guidance is canceled once at the ﬁnal destination. To cancel guidance prior to arrival at the ﬁnal destination:

1. Press the

2. Press the Menu screen button from the map screen.

3. Press the screen button.

4. Press the Cancel Guidance screen button.

5. Press the Yes screen button to conﬁrm cancellation.

) (map) hard key.

E Change Route

Guidance Volume

To adjust the volume of voice guidance prompts:

1. Press the CONFIG hard key.

2. Press the set up) screen button.

3. Press the button.

4. Select the desired volume or select Off. The system plays back the new volume level.

See “Volume” under Conﬁgure Menu on page 80 for more information.

3 (navigation

> Volume screen

14 Infotainment System

Cleaning the Display

If the panel or the display is stained, wipe it with a dry, soft cloth, such as a silicon cloth.

Notice: If you use abrasive cleaners when cleaning glass surfaces, you could scratch the glass. When cleaning the glass, use only a soft cloth and do not spray cleaner directly on the system.

Do not apply spray cleaner directly to the system, the cleaner could affect the mechanical parts.

Do not wipe the panel with a hard cloth or use a volatile liquid such as thinner or alcohol, it could scratch the surface or erase the characters.

Radio

AM-FM Radio

The vehicle has a feature called Retained Accessory Power (RAP). With RAP, the audio system can be played even after the ignition is turned off. See “Retained Accessory Power (RAP)” in the Index of the vehicle’s owner manual for more information.

The audio system is operated using navigation system menus. The audio menus are explained in this section.

Radio Personalization

With this feature, the latest audio system settings that were adjusted, the last time your vehicle was operated, can be recalled. This feature allows two different drivers to store and recall their own audio system settings. The settings recalled by the audio system are determined by which RKE transmitter (1 or 2) was used to enter the vehicle. The number on the back of the RKE transmitter corresponds to driver 1 or to driver 2. The audio system settings automatically adjusts to where they were last set by the identiﬁed driver. The settings can also be recalled using the memory screens under the CONFIG MENU or voice recognition. See Personalization on page 101 for more information.

When battery power is removed and later applied, the audio system preset stations does not have to be reset.

Infotainment System 15

Playing the Radio

O n (Power/Volume): Press to

turn the audio system on and off. Turn the knob to increase or to decrease the volume to the audio system.

BAND: Press to access the audio source screen. Then press this key to switch between AM, FM, WX (weather), or XM (if equipped).

AUX (Auxiliary): Press to play the video and audio devices connected to the auxiliary jacks. See Auxiliary Devices on page 33 for more information.

SRCE (Source): Press to change the audio source from the radio band to CD, audio DVD, or video DVD, depending on what is loaded in the six-disc DVD changer, or from DVD/CD to radio mode.

e (Audio): Press to view the

AUDIO ADJUST screen. See “Audio Adjust” screen later in this section.

«ª(Seek/Scan): To seek

stations, press the up or down arrow to go to the next or previous station and stay there.

To scan stations, press and hold either arrow for less than two seconds. The radio goes to a station, plays for a few seconds, then goes to the next station. To stop scanning, press either arrow again or touch the scan screen button.

Tuning Knob: Turn to change frequencies.

Finding a Station

Press the band/source screen button, located in the top left corner (AM, FM, CD, etc.), from any screen to access the audio source screen. Once this screen is displayed, press the BAND hard key to toggle between the bands or touch the desired band screen button, to select it.

FM source shown, other

sources similar

Scan: To scan stations, touch the

Scan screen button. The radio goes to a station, plays for a few seconds, then goes to the next station. Touch Scan again to stop scanning.

To scan preset stations, touch and hold Scan for two seconds. The radio goes to the next preset station, plays for a few seconds, then goes to the next preset station. Touch Scan again to stop scanning.

16 Infotainment System

While in A.B.C mode, the system changes bands and screens to the current band.

If available on the vehicle, the 1 - 6 (preset seek) steering wheel control can also be used. Each press of this button goes to the next preset station.

Auto Store (Automatic): Select to automatically create a preset station list of the strongest stations available in the local area. Once this button is selected, the system starts storing stations in sequential order, starting from the station currently selected. Select this button again to return to the original preset stations. This is not available for XM™ Satellite Radio Stations or when A.B.C. has been selected on.

Info (Information): See “Radio Data System (RDS)” later in this section.

Category: See “Radio Data System (RDS)” later in this section.

Preset Stations

Storing Preset Stations

This feature stores up to 24 preset stations. Six AM, six FM, six WX (weather), and six XM™, if equipped can be stored. To store presets:

1. Turn the audio system on or select the BAND hard key.

2. Select the audio band.

3. Seek, scan, or tune to the desired station.

4. Press and hold one of the six preset screen buttons for more than two seconds or until a beep is heard.

5. Press the key to adjust the tone, Digital Signal Processing (DSP), fade, and balance. The screen times out and the changes are stored to the preset station.

6. Repeat the steps for each preset.

e (audio adjust) hard

A.B.C Preset Stations A.B.C: This feature stores up to

42 presets, six stations in seven different lists. The presets within each list can be mixed: AM, FM, or XM™, if equipped. The list names are A - G.

Press the A.B.C screen button to enter this feature. Press the left/right arrow buttons to scroll through the lists. The name of the list is displayed between the two arrows and the presets for each list are displayed on the preset buttons. These presets are in addition to any preset stations that may already be stored. To exit this feature, press the A.B.C screen button.

To store the A.B.C presets:

1. Turn the audio system on or select the BAND hard key.

2. Select the A.B.C screen button.

3. Scroll to the desired list (A - G).

Infotainment System 17

4. Select the audio band. The presets within each list can be mixed: AM, FM, or XM™, if equipped.

5. Seek, scan, or tune to the desired station.

6. Press and hold one of the six preset screen buttons for more than two seconds or until a beep is heard.

7. Press the

e (audio adjust) hard

key to adjust the tone, Digital Signal Processing (DSP), fade, and balance. The screen times out and the changes are stored to the preset station.

8. Repeat the steps for each preset and list.

Audio Adjust

e (Audio Adjust): Touch to

access the AUDIO ADJUST menu and to adjust the tone, Digital Signal Processing (DSP), fade, and balance for all sources. The system automatically stores audio adjustment settings as changes are made to a preset station.

Audio Pilot (Noise Compensation Technology): The vehicle has

Bose AudioPilot compensation technology.

noise

To use this feature, touch the Audio Pilot screen button. To turn it off, touch the screen button again. The button highlights when this feature is on.

When on, AudioPilot

continuously adjusts the audio system equalization, to compensate for background noise, so that the music always sounds the same at the set volume level.

This feature is most effective at lower volume settings where background noise can affect how well you hear the music being played through the vehicle’s audio system. At higher volume settings, where the music is much louder then the background noise, there may be little or no adjustments by AudioPilot on AudioPilot

. For more information

, visit

bose.com/audiopilot.

18 Infotainment System

Multi-channel: When available,

touch this screen button to play the DVD Audio source in surround mode. Touch this screen button again to have the audio play in 2-channel mode. The system plays Dolby and DTS tracks in surround sound. This feature depends on the media in the DVD changer.

Setting the Tone

P (Treble): Touch the plus (+) or

minus (−) sign next to this symbol to increase or decrease the treble. Touch the center position to adjust the setting to the center.

Mid (Mid-range): Touch the plus (+) or minus (−) sign next to this symbol to increase or decrease the mid-range. Touch the center position to adjust the setting to the center.

D (Bass): Touch the plus (+) or

minus (−) sign next to this symbol to increase or decrease the bass. Touch the center position to adjust the setting to the center.

Z (Speaker): Touch the plus (+)

or minus (−) sign next to this symbol to increase or decrease the speaker when in surround mode or Center Point DSP setting is selected. It increases or decreases the amount of surround sound. Touch the center position to adjust the setting to the center.

Adjusting the Speakers Left/Right (Balance): To adjust the

balance between the right and the left speakers, touch and hold the Left or Right screen buttons. To center the balance and the fade, touch the center, where the two lines meet.

Front/Rear (Fade): To adjust the fade between the front and the rear speakers, touch and hold the Front or Rear screen buttons. To center the balance and the fade, touch the center, where the two lines meet.

Digital Signal Processing (DSP)

This feature is used to provide a choice of ﬁve different listening experiences. DSP can be used while listening to the audio system or the six-disc DVD changer. The type of DSP selected is displayed on the status line.

Center Point: Select this screen button to enable Bose Studio Surround

Normal: For non-surround sound sources only. Select this screen button to adjust the audio to be in normal mode. DSP will be in the off mode.

Driver: For non-surround sound sources only. Select this screen button to adjust the audio to give the driver the best possible sound quality.

sound.

5.1

Infotainment System 19

Talk: For non-surround sound

sources only. Select this screen button when listening to non-musical material such as news, talk shows, and sports broadcasts. Talk makes spoken words sound more clear.

Rear Seat: For non-surround sound sources only. Select this screen button to adjust the audio to give the rear seat occupants the best possible sound quality.

5.1 Surround: Select this screen button, when listening to a DVD, to give a full affect of surround sound listening. The Centerpoint screen button must be selected to select the

5.1 Surround screen button.

Audio

Touch the Audio screen button to access several audio features that may be turned on and off and several options are available for adjustment. The screen buttons next to each selected option highlights when on. The items on this menu depends on which audio source is playing.

Auto Store: Touch this button to turn the Auto Store on for the current audio source selected. When on, this button appears on the main audio screen. This button is not available when in XM™.

Info (Information): This button is only available when in FM or XM™. Select this button to turn information on. The information changes depending on the audio source is selected. When on, the Info screen button is available to select from the audio main menu.

Category: This information changes depending on what audio source is selected. This button is only available when using the FM or XM™ audio modes. Touch this button to turn the Category function on. When on, the button is available to select from the audio main menu.

r[r j ##(CD/MP3

Controls): This button is only available when using the CD or MP3 audio modes. When on, these screen buttons, rewind, fast forward, play, pause, previous folder, and next folder, is available to select from the audio main menu.

Traffic: This button is only available when using the FM or CD/DVD audio modes. When on, the Navigation System searches for stations that broadcast traffic announcements.

20 Infotainment System

The following screen buttons are only available for video DVDs:

Audio Language: Select this button to view a list of language choices. Select the desired language to change the spoken language. The list of languages depends on the languages supported by the disc.

Subtitle Language: Select this button to view a list of languages to choose for subtitles. Select the language desired. The list of languages depends on the languages supported by the disc.

Menu Language: Select this button to view a list of languages to choose for the DVD menu text. The list of languages depends on the languages supported by the disc.

Parental Level: Select this button if you choose to set up parental protection. Use the keypad to enter the password. Select from options such as change level and change password, as necessary.

Radio Data System (RDS)

The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can:

• Seek to stations broadcasting the

selected type of programming

• Receive announcements

concerning local and national emergencies

• Display messages from radio

stations

• Seek to stations with traffic

announcements

This system relies on receiving speciﬁc information from these stations and only works when the information is available. In rare cases, a radio station may broadcast incorrect information that causes the radio features to work improperly. If this happens, contact the radio station.

The RDS system is always on. When information is broadcast from the FM station that is on, the station name or call letters display on the audio screen. RDS may provide a program type (PTY) for current programming and the name of the program being broadcasted.

[ ] (No Traffic Announcements):

This symbol appears on the status line when traffic is selected, but the station does not broadcast traffic announcements.

[TA] (Traffic Announcements):

This symbol appears on the status line when the station selected broadcasts traffic announcements. TA announcements depends on the station.

Info (Information): Select this screen button to display information broadcasted by the RDS station when in FM. This is not available for AM or WX stations.

Infotainment System 21

Category: Select this screen button

when in FM to view the program types. They appear in place of the preset stations. Select a category and the system starts seeking for available stations within the selected category. If none are found, the system displays “None Found” and returns to the last selected station.

To seek to another category, press the seek/scan key. The system seeks to another station in the category.

To scan stations in the category, press the Scan screen button. The system starts scanning the stations in the category. Press the Scan screen button to stop scanning stations.

To exit out of category, select the category screen button and the program types no longer display.

Each of the six category names displayed, include a grouping of other program types, see the following table. This is not available for AM or WX (weather) stations.

Group Name Category

Rock

Classic Rock

POP

EASY

TALK

CNTRY Country Music

CLASS Classical

JAZZ Jazz Music

Adult Hits

Top 40

Oldies Music

Nostalgia

College

Soft Rock

Soft

R&B

Soft R&B

Religious Music

News

Information

Sports

Talk

Language

Religious Talk

Personality

Public

Weather

Satellite Radio

XM™ Satellite Radio Service

XM™ is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. During your trial or when you subscribe, you will get unlimited access to XM Radio Online for when you are not in the vehicle. A service fee is required to receive the XM service. For more information, contact XM at www.xmradio.com or call 1-800-929-2100 in the U.S. and www.xmradio.ca or call 1-877-438-9677 in Canada.

When XM™ is active, the channel name and number, song title, and artist will be displayed on the screen.

22 Infotainment System

Info (Information): Select to

display broadcasted Information. Select Info again to remove the broadcasted information from the display.

Category: Use this feature to listen to channels in a speciﬁc category.

To select a category:

1. Select the XM™ audio source.

2. Select the Category screen button.

The system displays the available categories in place of the preset stations.

3. Use the left and right arrows to scroll through the categories. The current category name is displayed in between the arrows. The category display on the screen times out if you do not select anything.

4. Select a category and the system starts seeking for available stations within the selected category.

To view the available channels within the category, select the category, then use the tune knob or seek button to scroll through the available channels.

Category Scanning: This function allows scanning through the channels in a speciﬁc category. To activate the category scan function:

1. Select the XM™ audio source.

2. Select the Category screen button.

The system displays the available categories in place of the preset stations.

3. Use the left and right arrows to scroll through the categories. The current category name is displayed in between the arrows. The category display on the screen times out if nothing is selected.

4. Select the desired category.

5. Select the Scan screen button and the system scans through the channels within the selected category. Select Scan again to stop scanning.

When scanning XM™ channels, scanning will not stop on Channel 1.

XM™ Radio Messages

See “XM™ Radio Messages” in the vehicle’s owner manual” for a list of possible XM messages.

Infotainment System 23

Audio Players

CD/DVD Player

This system can play different types of media formats: DVD - Video, DVD - Video (DTS), DVD - Audio, CD - Digital Audio (CD - DA), CD-DA (DTS), CD - Text, CD - Extra, MP3 - CD, CDR, and CDRW. The system may also play DVD - R and DVD - RW type discs depending on the writing software used. The system may play DTS and Dolby tracks in surround sound.

If playing a CD-R the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. There may be an increase in skipping, difficulty in ﬁnding tracks, and/or difficulty in loading and ejecting.

If these problems occur, check the bottom surface of the CD. If the surface of the CD is damaged, such as cracked, broken, or scratched, the CD will not play properly. If the surface of the CD is soiled, see “Care of Your CDs” in the Index of your vehicle’s owner manual.

If there is no apparent damage, try a known good CD.

Notice: If a label is added to a CD, or more than one CD is inserted into the slot at a time, or an attempt is made to play scratched or damaged CDs, the CD player could be damaged. While using the CD player, use only CDs in good condition without any label, load one CD at a time, and keep the CD player and the loading slot free of foreign materials, liquids, and debris.

Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a soft marker instead.

With the six-disc CD/DVD changer, up to six audio CDs, MP3s, DTS discs, audio DVDs, or video DVD discs can be played continuously.

24 Infotainment System

M (Load): To load one disc:

1. Press the load hard key and follow the screen message displayed.

2. Select the slot number, 1 through 6, to load the disc into. If a slot is not selected, the system loads the ﬁrst available slot.

3. When the screen displays “Insert Disc (number)”, insert the disc partway into the slot, label side up. The system pulls it in and starts playing. The system displays the type of disc inserted,

DVD - Video, CD/DTS, MP3 for MP3 CDs, or DVD - Audio.

To load multiple discs:

1. Press and hold the load hard key.

2. When the screen displays “Insert Disc (number)”, load the disc partway into the slot, label side up. The system pulls it in.

B Audio for

3. Once a CD is loaded, the system displays “Insert Disc (number)” again. Load the next disc. Repeat this procedure for each disc. The player takes up to six disc(s), do not try to load more than six. The system will not display the disc types when loading all, until the discs have been read by the system.

Once all discs have been inserted, the system starts playing the last loaded disc.

If no CD or DVD is loaded in the CD/DVD changer and the SRCE hard key is pressed, a “No disc loaded” error message displays.

Select the Cancel screen button, when available, to stop the loading process and to start playing the last loaded disc.

Z (Eject): To eject a disc:

1. Press the eject hard key.

2. Select the slot number, 1 through 6, to eject the disc.

3. The system displays “Ejecting Disc” and then ejects the disc.

If a selection is not made, the system ejects the disc from the current slot. If the disc is not removed from the slot, the system pulls it back in after 10 seconds and starts playing it.

To eject all discs at once, press and hold the eject hard key. The system displays the disc number being ejected.

Playing an Audio CD

The numbered screen buttons, 1 through 6, represent the order of the discs loaded in the changer. If there are only two discs loaded, only screen buttons 1 and 2 are available.

The play, reverse, fast forward, and pause screen buttons only appear when the CD/MP3 controls button is selected on in the Audio screen.

Infotainment System 25

r (Play): Select this screen button

or press one of the available screen buttons, 1 through 6, to begin playing that disc. There is a 12 to 15 second delay while the CD is read, before it begins to play.

r (Reverse): Press and hold to

reverse through the current track. If reverse past the current track, the system goes to the previous track on the disc.

[ (Fast forward): Press and hold

to fast forward through the current track. If fast forward past the current track, the system goes to the next track on the disc.

j (Pause): Select to pause play.

Select this button again to resume play.

Scan: Select to toggle between the following scan options:

B SCAN (Scan One Disc):

If this symbol appears on the display after pressing the Scan screen

button, the system plays the ﬁrst 10 seconds of each track on the current playing disc. Select the OFF screen button to stop scanning. When the system has scanned through all of the tracks, the system automatically stops scanning.

M SCAN (Scan All Disc): If this

symbol appears on the display after pressing the Scan screen button, the system plays the ﬁrst 10 seconds of each track on all of the loaded discs of the same media type. Select the OFF screen button to stop scanning. When the system has scanned through all of the discs, the system automatically stops scanning.

y (Random): Select to toggle

between the following random options:

B RND (Random One Disc): If

this symbol appears on the display after pressing the random screen button, the system plays the

tracks on the selected disc, in random, rather than sequential, order. Select the OFF screen button to turn off random play.

M RND (Random All Discs):

If this symbol appears on the display after pressing the random screen button, the system plays the tracks on all of the loaded discs, in random, rather than sequential, order This function randoms all discs of the same media type. Select the OFF screen button to turn off random play.

k (Repeat): Select to toggle

between the following repeat options:

X RPT (Repeat Track): If this

symbol appears on the display after pressing the repeat screen button, the system repeats the track currently playing. Select the OFF screen button to turn off repeat play.

26 Infotainment System

B RPT (Repeat Disc): If this

symbol appears on the display after pressing the repeat screen button, the system repeats all of the tracks on the disc currently playing. Select the OFF screen button to turn off repeat play.

OFF: Select to stop the scan, random, or repeat functions.

¦ tu¥ (Seek Key): Press the

up arrow to seek to the next track on a disc. If playing the last track, pressing the up arrow seeks to the ﬁrst track of the next disc with the same media type or goes to the ﬁrst track of the selected disc.

Press the down arrow to go to the beginning of the current track or to the previous track on a disc. If playing the ﬁrst track, pressing the down arrow seeks to the last track on the selected disc.

Playing an Audio or Video DVD

When an audio or video DVD has been loaded, the following screen appears. Some features do not function for both audio and video DVDs.

To get the best sound quality from an audio DVD, the current group that is playing may need to be changed. Audio DVDs are usually set up with multiple copies of the album on the disc, called groups.

Group 1 may play the album in PPCM audio and Group 2 may play the album in Dolby Surround Sound.

To switch these groups:

1. Put the vehicle in P (Park).

2. Access the DVD/CD menu screen.

3. Select the Search screen button.

4. Input the number of the group into the numeric keypad.

5. Select the Enter screen button.

6. Press the hard key.

7. Select the Multi-channel screen button, if it is not already highlighted.

If the DTS or Dolby logo is shown on the status line, but the Multi-channel screen button is grayed out, the group may contain two audio streams (one is stereo source and the other is surround source, DTS or Dolby) in one group.

e (audio adjust)

Infotainment System 27

In this case, user needs to switch audio streams by pressing the Audio screen button on the DVD/CD

screen. Press Multi-channel screen button is selected. This button is only selectable when playing DTS or Dolby tracks in surround sound.

Menu: Select to access the DVD’s menu options. Depending on the type of DVD you are using, this screen button may or may not be available.

DVD Menu: Select to access the video DVD menu. DVD must be playing to select this feature.

While watching a video DVD or playing an audio DVD, touch anywhere on the screen to remove all screen button functions from the display. Touch anywhere on the screen again to display the screen buttons.

Audio: Select to change the audio language heard, English or French. DVD must be playing to select this

e to check if the

feature. This may not be available on all DVDs.

Angle: Select to adjust the viewing angle of the DVD. Some DVDs allow you to change the camera angle. This may not be available on all DVDs.

Subtitle: Select to play back the video with subtitles. Select English, French, or Off. DVD must be playing to select this feature. This may not be available on all DVDs.

Search: Select to search through a DVD by Title/Group, or Chapter/Track. Touch Keypad to access the numeric keypad used to enter data in these searches.

To use the search button:

1. Select the Search screen button from the DVD-Video or DVD-Audio screen.

2. Select the Keypad screen button to access a numeric keypad to enter the title/group or chapter/track number.

3. Select the OK screen button and the system goes to the speciﬁed title/group or chapter/track.

4. Select the Search screen button to exit the search feature.

r / [ (Reverse/Fast Forward):

Touch the left or right arrows to reverse or fast forward within a track.

r (Play): Select to begin playing

the currently selected disc.

j (Pause): Select to pause the

currently playing disc. Select this button again or the play button to resume play.

o (Stop): Select to stop playing

the disc.

L (Frame Advance): Select to

play the disc in slow motion.

28 Infotainment System

Display Menu

Display: Select to access more

audio/video DVD options.

a (Page Up): Select the page

up symbol to scroll up through the pages of an audio DVD. The function of this screen button depends on the disc inserted.

` (Page Down): Select the page

down symbol to scroll down through the pages of an audio DVD. The function of this screen button depends on the disc inserted.

HOME: Select this screen button to take you back to the home page of the DVD disc.

Scan: Select to hear the ﬁrst 10 seconds of each track, in the current group, on the selected disc. Select the OFF screen button to stop scanning. Scanning stops when the system has scanned through all of the tracks. This function is available for DVD audio only.

y (Random Track): Select

to hear the tracks, in the current group, on the selected disc, in random, rather than sequential, order. Select the OFF screen button to turn off random play. This function is available for DVD audio only.

k (Repeat): Select to repeat the

current track. Select this screen button again to repeat the current playing group on the disc. Select the OFF screen button to turn off repeat play. This function is available for DVD audio only.

OFF: Select to turn off the scan, random, and repeat functions.

¦ tu¥ (Seek Key): Press the

up arrow hard key to go to the next track in the current group. If you are in the last track, the system goes to the ﬁrst track of the next group. If you are in the last track of the last group, the system displays an error message in the upper right corner of the screen.

Press the down arrow hard key to go back to the beginning of the current track. Press the down arrow hard key again to go to the previous track in the current group. If you are in the ﬁrst track of the current group, pressing this hard key takes you to the last track of the previous group. If you are in the ﬁrst track of the ﬁrst group, the system displays an error message in the upper right corner of the screen.

Infotainment System 29

Cursor Menu Cursor: Select to access the left,

right, up, and down cursors on the screen. The cursors allow navigation through menu options on the screen.

S, y, T, z (Cursor Arrows):

Select these cursor screen buttons when scrolling through a list of DVD items is needed, such as track names, menu options, or scene selection. Then touch Enter to set your selection.

Keypad: Select this button and a number keypad appears. Enter the track number, press enter, and the system plays the track.

W (Back)/ Return: Select either

button to return to the previous screen.

Screen Adjust Menu Screen Adjust: Select to access

the audio/video DVD screen adjust menu.

_ (Contrast): Select the

plus (+) or minus (−) signs next to this symbol to increase or decrease the contrast.

] (Brightness): Select the plus

(+) or minus (−) signs next to this symbol to increase or decrease the brightness.

Tint: Select the plus (+) or minus (−) signs next to this symbol to increase or decrease the screen tint.

' (Color): Select the R (red) or G

(green) next to this symbol to increase or adjust the color of the screen.

p (Widescreen): Select to view a

video DVD in widescreen format.

d (Full Screen): Select to view a

video DVD in full screen format.

e (Normal Screen): Select

to view a video DVD in normal screen size.

30 Infotainment System

Disc Errors

Although the DVD or CD you are playing meets regulation requirements, there are circumstances that may cause the disc to not play correctly. Some of those circumstances may include the recording conditions of the disc, the disc condition, and the pick up circumstances of the player.

If using the system in extremely low or high temperatures, the video playback may become distorted.

Because of some types of compression techniques used during recording MP3 discs, the sound quality of the discs can be inferior. This is not caused by the audio system.

MP3

Using an MP3

MP3 Format

When creating an MP3 disc, the following is a list of guidelines. If the customer does not follow these guidelines when recording a CD-R(W), the CD may not play.

• Sampling rate: 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, and

44.1 kHz.

• Bit rates supported: 32, 40, 48,

56, 64, 80, 96, 112, 128, 160, 192, 224, 256, and 320 kbps.

• ID3 tag information is displayed

by the radio if it is available. The radio supports ID3 tag information v1.0 or v1.1. The radio will display a ﬁlename, song name, artist name, album name, and directory name.

• Maximum 32 characters,

including spaces, in a ﬁle or folder name.

• Maximum number of folders is

253 with a maximum hierarchy of eight folders.

• Create a folder structure that

makes it easy to ﬁnd songs while driving. Organize songs by albums using one folder for each album. Each folder or album should contain 18 songs or less.

• It is recommended that there is a

maximum of 192 ﬁles on a disc.

• The ﬁles can be recorded on a

CD-R or CD-RW with a maximum capacity of 700MB.

• DVD with MP3 are not playable

on this system.

• The radio will play a mixed mode

CD-R/RW, a disc recorded with both *.cda and *.mp3 ﬁles.

+ 82 hidden pages
