Section 1 Overview

Overview ......................................................... 4

Navigation System Overview ......................... 4

Getting Started .............................................. 6

Cleaning the Display ................................... 14

Overview

Navigation System Overview

A. Audio Status Line B. Audio Source Screen Button. See Navigation

Audio System on page 92 for more information.

C. North Up/Heading Up Symbol. See Symbols

on page 21 for more information.

D. No GPS Symbol. See Symbols on page 21 for

more information.

E. Navigation Menu Symbol. See Navigation

Menu on page 33 for more information.

F. Map Scales. See “Map Scales” under Maps on

page 18 for more information.

G. Guidance Window Symbol. See Symbols on

page 21 for more information.

Z (Map DVD Eject) Key. See “Hard Keys”

under Using the Navigation System on page 16 for more information.

I. Map DVD Loading Slot.

M (CD/DVD Changer Loading) Key. See

Six-Disc CD/DVD Changer on page 103 for more information.

Z (CD/DVD Changer Eject) Key. See

Six-Disc CD/DVD Changer on page 103 for more information.

L. CD/DVD Changer Loading Slot.

On (Power/Volume) Knob. See “Hard Keys”

under Using the Navigation System on page 16 for more information.

¦m ¥ (Navigation Screen Tilt) Key (in/out).

See “Hard Keys” under Using the Navigation System on page 16 for more information.

O. Clock. See “Clock” under Conﬁgure Menu on

page 75 for more information.

P. Memory Point Symbol. See Symbols on

page 21 for more information.

Q. POI Symbol (Point of Interest). See Symbols

on page 21 for more information.

R. BAND Key. See Navigation Audio System on

page 92 for more information.

S. AUX (Auxiliary) Key. See “Hard Keys” under

Using the Navigation System on page 16

for more information.

T. ROUTE Key. See Destination on page 55 for

more information.

) (Map) Key. See “Hard Keys” under Using

the Navigation System on page 16 for more information.

w (Tune) Knob. See Navigation Audio

System on page 92 for more information.

W. SRCE (Source) Key. See Navigation Audio

System on page 92 for more information.

e (Audio) Key. See Navigation Audio System

on page 92 for more information.

Y. CONFIG Key. See Conﬁgure Menu on page 75

for more information.

k (Navigation Voice Prompt Repeat) Key.

See “Hard Keys” under Using the Navigation System on page 16 for more information.

¦tu¥ (Seek/Scan) Key. See Navigation

AA.

Audio System on page 92 for more information.

Getting Started

Before you begin to operate the navigation system, read this manual thoroughly to become familiar with it and to understand how the system works.

Keeping your mind on the drive is important for safe driving. See “Defensive Driving” in the Index of your vehicle’s owner manual for more information. Get familiar with your vehicle’s navigation system so you can use it with less effort and take full

advantage of its features. Your navigation system includes not only navigation, but also audio functions. While your vehicle is parked:

• Familiarize yourself with all of its controls: hard

keys on the faceplate and touch-sensitive screen buttons.

• Familiarize yourself with its operation.

• Set up your audio by presetting your favorite

stations, setting the tone, and adjusting the speakers. Then, when driving conditions permit, you can tune to your favorite stations using the presets and steering wheel controls (if equipped).

• Set up the navigation features that can only be

done before you begin driving, such as entering an address or a preset destination.

Entering a destination or alphanumeric text requires many steps, so you can only perform these operations when the vehicle is in PARK (P). You will notice that touch-sensitive screen buttons leading to the alphanumeric keyboard are dimmed out while driving.

Other functions may also be locked out while driving and they too will appear grayed out on the screen — but all functions are available when parked. Some functions can be performed while driving, as long as you can do so without diverting too much of your attention from your driving.

{CAUTION:

This system provides you with a far greater access to audio stations and song listings. Giving extended attention to entertainment tasks while driving can cause a crash and you or others can be injured or killed. Always keep your eyes on the road and your mind on the drive — avoid engaging in extended searching while driving.

{CAUTION:

Looking at the moving map on the navigation screen frequently or for too long while driving can cause a crash and you or others can be injured or killed. Keep your eyes and mind on the road and avoid looking too long or too often at the moving map on the navigation screen. Use the voice guidance directions whenever possible.

The navigation system allows you to do the following:

• Plan a route with provided turn-by-turn route

and map guidance with voice prompts.

• Select a destination using various methods

and choices.

• Receive broadcast announcements on traffic

and emergency alert communications.

The information in the system may not always be complete. Road conditions such as prohibited turns, detours, and construction zones, change frequently. It is important to consider whether you can follow the directions given by the system for the current conditions.

Each time you start your vehicle and turn on the navigation system by touching the map hard key, you will see this screen. You can touch I agree to proceed into the system, or the globe symbol in the lower left corner of the screen to change the

language of the system. For more information on changing the language, see Personalization on page 138.

When getting started you may set the navigation system to your preference using various options. To do so, reference the following topics:

• To adjust screen appearance, see “Screen

Appearance” under Conﬁgure Menu on page 75.

• To adjust the clock and other time options,

see “Clock” under Conﬁgure Menu on page 75.

• To plan a route, see Destination on page 55.

• To adjust the volume of voice guidance

prompts or voice recognition, see “Navigation Set Up” under Conﬁgure Menu on page 75.

Setting Radio Station Presets

Setting the Time

To set preset radio stations, do the following:

1. Press the power/volume knob to turn the system on.

2. Press the BAND hard key.

3. Select the desired band (AM, FM1, FM2, XM1, or XM2 (if equipped)).

4. Seek, scan, or tune to the desired stations using the seek and scan hard key arrows or the tuning knob.

5. Press and hold one of the six preset screen buttons, at the bottom of the screen, until you hear a beep or see the station displayed on the selected preset button.

6. Repeat the steps for each preset.

See “Preset Stations” under Navigation Audio System on page 92 for more information.

To set the time, do the following:

1. Press the power/volume knob to turn the system on.

2. Press the CONFIG hard key.

3. Press the

4. Select the 12hour or 24hour screen button to display the time in standard or military time.

5. Select the AM or PM screen buttons.

6. Select the appropriate time zone screen button.

7. Select the Daylight Saving Time screen button, if necessary.

8. Press and hold the hour and minute arrow buttons to increase or to decrease the time or press the GPS TIME screen button to reset radio time to GPS time.

The radio will use the GPS satellite to set the time. The vehicle needs to be in an open area to receive the signal. See “Clock” under Conﬁgure Menu on page 75 for more information.

H (clock) screen button.

Setting the Region, Entering an Address and Point of Interest, and Storing a Home Destination and Preset Destinations

Before entering an Address, Point of Interest, Home, or Preset Destination, select the appropriate region that contains the ﬁnal destination. Your vehicle must be stopped to perform this operation.

Setting the Region

To set the region, do the following:

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 18 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key.

4. Press the Region screen button.

5. Select the appropriate region numbered screen button that contains your ﬁnal destination.

The system will return to the DESTINATION ENTRY screen. See “Region” under Destination on page 55 for more information.

Entering an Address

To set a destination by entering a street address, do the following:

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 18 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key. Verify that the selected Region is correct.

4. Press the

5. Enter the street name using the alpha keypad on the screen.

Do not enter directional information or street type, and use the space symbol screen

button ( For example, the street name N. Royal Oak Rd. should be entered as royal

Use the backspace (V) screen button if an incorrect character has been entered.

C Address screen button.

U) between street or city names.

Uoak.

6. Select the desired street name with the correct designation (Dr., Ln., St., etc.) from the list.

7. If there is more than one city, the system will display the list of cities that have a street with that name. Select a city from the list.

8. Enter the house number using the numeric keypad on the screen and touch the OK screen button.

A map screen will appear with the destination marked.

9. Select the button.

10. Select the Guide screen button.

11. Once you begin driving you will hear an audio prompt to “Proceed to the highlighted route.” You are now in route guidance mode.

See “Address” under Destination on page 55 for more information.

h (destination) symbol screen

Entering a Point of Interest (POI)

To set a destination by entering a Point of Interest (POI), do the following:

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 18 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key. Verify that the selected Region is correct.

4. Press the

5. Enter the speciﬁc title of the POI in the name space (i.e. Washington Monument) using the alpha keypad on the screen.

6. Select the POI from the list.

7. If there is more than one city, the system will display the list of cities that have a street with that name. Select a city from the list or select the Input Name screen button to input the city name.

A map screen will appear with the destination marked.

i (POI) screen button.

8. Select the h (destination) symbol screen

button.

9. Select the Guide screen button.

10. Once you begin driving you will hear an audio prompt to “Proceed to the highlighted route.” You are now in route guidance mode.

Using the Category or City selections will aid the system in ﬁnding your POI by limiting the search options. See “Point of Interest (POI)” under Destination on page 55 for more information.

Storing a Home Destination

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 18 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the

4. Press the Menu screen button from the map screen.

5. Press the

6. Press the

) (map) hard key.

N Memory Points screen button. L Home screen button.

7. Press the Add screen button.

8. Press the Address screen button and enter all address information.

9. Press the OK screen button. The

L Home icon will be highlighted on the

DESTINATION ENTRY screen. See “Using Your Home or Preset Destinations” later in this section for more information.

See “Memory Points” under Navigation Menu on page 33 for more information.

Storing a Preset Destination

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 18 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the

4. Press the Menu screen button from the map screen.

5. Press the

) (map) hard key.

N Memory Points screen button.

6. Press the A Preset Dests. screen button.

7. Press the Add screen button and select the numbered preset row to store the destination as.

8. Press the Address screen button and enter all address information.

9. Press the OK screen button. The numbered preset destination will be

highlighted on the DESTINATION ENTRY screen. See “Using Your Home or Preset Destinations” later in this section for more information.

See “Memory Points” under Navigation Menu on page 33 for more information.

Using Your Home or Preset Destinations

These destinations are available for selection while driving.

1. Press the power/volume knob to turn the system on.

2. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 18 for more information.

A notice may appear. Touch the I agree screen button to proceed.

3. Press the ROUTE hard key. Verify that the selected Region is correct.

4. Select the available preset destination symbols. A map screen will appear with the destination marked.

5. Select the button.

6. Select the Guide screen button.

7. Once you begin driving you will hear an audio prompt to “Proceed to the highlighted route.” You are now in route guidance mode.

See “Preset Destination” or “Home” under Destination on page 55 for more information.

L(Home symbol) or one of the

h (destination) symbol screen

Canceling Guidance

Guidance will be canceled once you arrive at your ﬁnal destination. To cancel guidance prior to arrival at the ﬁnal destination, do the following:

1. Press the

2. Press the Menu screen button from the map screen.

3. Press the

4. Press the Cancel Guidance screen button.

5. Press the Yes screen button to conﬁrm cancellation.

) (map) hard key.

E Change Route screen button.

Guidance Volume

To adjust the volume of voice guidance prompts, do the following:.

1. Press the CONFIG hard key.

2. Press the button.

3 (navigation set up) screen

3. Press the

4. Select the desired volume or select Off. The system will play back the new volume level.

See “Volume” under Conﬁgure Menu on page 75 for more information.

> Volume screen button.

Cleaning the Display

If the panel or the display is stained, wipe it with a dry, soft cloth, such as a silicon cloth.

Notice: If you use abrasive cleaners when cleaning glass surfaces, you could scratch the glass. When cleaning the glass, use only a soft cloth and do not spray cleaner directly on the system.

Do not apply spray cleaner directly to the system, the cleaner could affect the mechanical parts.

Do not wipe the panel with a hard cloth or use a volatile liquid such as thinner or alcohol, it could scratch the surface or erase the characters.

Section 2 Features and Controls

Features and Controls .................................. 16

Using the Navigation System ....................... 16

Maps ........................................................... 18

Symbols ...................................................... 21

Head-Up Display (HUD)

(During Route Guidance) ......................... 32

Navigation Menu ......................................... 33

Destination .................................................. 55

Keyless Access System .............................. 73

OnStar®System .......................................... 74

Conﬁgure Menu ........................................... 75

Global Positioning System (GPS) ................ 87

Vehicle Positioning ...................................... 88

Problems with Route Guidance ................... 89

If the System Needs Service ....................... 89

Ordering Map DVDs .................................... 90

Database Coverage Explanations ................ 90

Features and Controls

Using the Navigation System

This section presents basic information you will need to know to operate the navigation system.

Use the hard keys located on the navigation system along with the available touch screen buttons on the navigation screen to operate the system. See Navigation System Overview on page 4 for more information.

Once the vehicle is moving, various functions will be disabled to reduce driver distractions.

Hard Keys

The following hard keys are located on the navigation system:

Z(Map DVD Eject): Press the eject key located

next to the map DVD loading slot to eject the map DVD. The map DVD slot is the slot directly below the display screen.

M(Load): Press the CD/DVD changer loading

key to go to the loading screen and begin loading DVDs or CDs. See Six-Disc CD/DVD Changer on page 103 for more information.

Z(CD/DVD Eject): Press the eject key next to

the CD/DVD changer loading slot to begin ejecting DVDs or CDs. See Six-Disc CD/DVD Changer on page 103 for more information.

On(Power/Volume): Press the power/volume

knob to turn the audio system on and off. Turn the knob to increase or decrease the volume to the audio system.

ymz(Tilt): Press the up arrow on the tilt key to

tilt the navigation screen forward. Press the down arrow on the tilt key to tilt the screen rearward. There are three tilt positions to choose from.

BAND: Press the BAND key to access the audio source screen. The press the BAND key to toggle among the bands available, FM, AM, XM (if equipped), and WX (weather). See Navigation Audio System on page 92.

SRCE (Source): Press the source key to switch between the audio sources. Pressing this key will switch between the radio and the CD/DVD player. See Navigation Audio System on page 92.

AUX (Auxiliary): Press the AUX key to access screens from which you will operate Bluetooth OnStar Phone on page 150, OnStar®System on page 74, and Auxiliary Devices on page 118 for more information.

, or control video input. See Bluetooth

e(Audio): Press the audio key to access the

Audio Adjust screen, to adjust bass, midrange, fade, balance, and DSP (Digital Signal Processing) settings. See Navigation Audio System on page 92.

ROUTE: Press the ROUTE key to access the Destination Entry screen or the search area and begin planning a destination. See Destination on page 55.

CONFIG (Conﬁgure): Press the CONFIG key to access the SETTING Function screen. See Conﬁgure Menu on page 75.

)(Map): Press the map key to access the map

screen.

k(Navigation Repeat): Press the navigation

repeat key to repeat the last voice guidance prompt, while on a planned route.

y©¨z(Seek/Scan): Press the seek/scan

arrows to go to the next or previous radio station, or press and hold to scan stations. See Navigation Audio System on page 92.

w (Tune) Knob: Turn the tune knob to

change frequencies. See Navigation Audio System on page 92.

Alpha-Numeric Keypad

Letters of the alphabet, symbols, punctuation, and numbers will be displayed on the navigation screen as an alpha or numeric keypad. The alpha keypad will be displayed when the system needs input of a city or street name.

All characters are touch-sensitive screen buttons. Touch a character to select it.

Sym. (Symbol): Touch this screen button to access the numeric keypad, punctuation marks, and other characters. There are two pages available. Use the right and left arrow screen buttons to view the pages.

A - Z (Alphabet): Touch this screen button to display to the alpha keypad.

Others: Touch this screen button to display special characters. There are two pages of characters available. Use the right and left arrow screen buttons to view the pages.

U (Space): Touch this screen button to enter

a space between characters or the words of a name.

Touch-Sensitive Screen Buttons

Touch-sensitive screen buttons are located on the screen. When a screen button has been selected, a beep will sound. These buttons will be highlighted when a feature is available. There are also some toggle screen buttons that will be light blue when active and dark blue when inactive.

V (Back space): Touch this screen button if an

incorrect character has been selected.

To make name selections easier, the system will only allow you to select a character which can follow the last one entered. For example, if a Z is entered, a T will not be available to select. The system will highlight the available characters.

If a name is not available after input, it may need to be inputted differently, the map DVD database may not contain that information, or the correct search area has not been selected. See Database Coverage Explanations on page 90 for more information.

Maps

This section includes basic information about the map database.

Regional Maps

The maps are stored on a DVD. The 48 contiguous United States and portions of Canada are contained on one disc.

If a regional map does not contain a speciﬁc city, the map DVD may not contain the city or it may be misspelled.

Refer to the Navigation System Map Disc manual to view a detailed explanation of map coverage and detailed city lists in each region. This manual will be in the map DVD case when the vehicle is delivered from the factory.

Installing the DVD Map Disc

Ejecting the DVD Map Disc

When your vehicle is delivered from the factory, the dealer may have installed the map DVD. If the map DVD was not installed, use the following directions to load the map DVD:

Read the following steps completely before operating this feature.

1. Turn the ignition on.

2. Load the map DVD into the slot, located just below the navigation system screen, by inserting it partially until the system pulls it in.

Once the map DVD is inserted correctly, you will have the following two choices:

I agree: Touch this screen button to proceed to the navigation system.

^(Language): Touch this screen button to

change the language of the navigation system, Driver Information Center (DIC), Head-Up Display (HUD), etc. See “Language” under Personalization on page 138 for more information.

Once a language has been selected, touch I agree to enter the navigation system. The map will appear showing your current vehicle position.

When the DVD map disc is not loaded, you will not be able to use the navigation portion of the system.

Z (Map DVD Eject): Press the eject key,

located next to the map DVD loading slot, to eject the map disc. Pull the disc out. The map DVD slot is the slot directly below the display screen.

Setting the Search Area

See Destination on page 55 for information on changing the search area.

Map Adjustments

You can adjust the scale of view on the map. As you drive, the map will scroll automatically based on the direction you are traveling.

Map Scales

To view a larger or smaller scale of the map, touch the map scale arrows.

Change the level of map detail by either zooming in or zooming out using the arrow screen buttons or by touching the scale on the bar. The system will adjust the map accordingly. The scale of a map can range from 1/32 of a mile (50 m) to 128 miles (256 km).

Scrolling the Map

Touch anywhere on the map screen twice and the scroll symbol will appear. Use this feature to scroll across the map.

Hold your ﬁnger in any direction outside of the scroll symbol and the map will continue to scroll in that direction until you remove your ﬁnger from the map screen.

If scrolling while your vehicle is in PARK (P), the system will scroll initially at a slower rate. It will increase if you continue touching the map screen.

If scrolling while your vehicle is in motion, you have one scroll speed and a limited distance to scroll. Keep touching the map screen to scroll for a longer distance.

If the scroll feature is used to scroll the map and your vehicle icon becomes lost, press the map hard key to return to the current vehicle location on the map.

When scrolling on the map, the system will display the address of the scroll symbol location and the distance from your vehicle’s current position to the scroll symbol location.

Use the scroll feature on the map to set a destination. See “Map” under Destination on page 55 for more information.

Symbols

The following symbols are the most common symbols that will appear on a map screen.

Your vehicle is shown as this symbol. It indicates the current position and heading direction of your vehicle on the map.

The destination symbol will appear on the map after a route has been planned marking your ﬁnal destination.

The waypoint symbol will be displayed on the map after a waypoint has been added to your route.

The waypoint symbol will be numbered from one through ﬁve depending on how many waypoints have been set.

The distance to destination symbol indicates the distance to your ﬁnal destination.

It only appears when time is not available or when you are scrolling on the map.

The distance and time to destination symbol indicates the distance and the estimated time remaining to your ﬁnal destination or arrival time, depending on the option selected. See

Conﬁgure Menu on page 75.

The straight line to distance symbol shows the straight-line distance to your destination.

This symbol will appear before you start driving on the route or if you are on a road where navigation guidance cannot be given.

The north up symbol indicates the map with North Up, known as North Up mode.

While in North Up mode, the vehicle icon will follow the north direction on the map regardless of which direction the vehicle is traveling. Select this screen symbol to switch between North Up and Heading Up modes.

The heading up symbol indicates the map with the vehicle travel direction up, known as Heading Up mode.

The shaded triangle indicates the North direction. While in Heading Up mode, the direction your vehicle is traveling will always be at the top of the map screen. The vehicle icon will always be headed in the direction your vehicle is traveling. Select this screen symbol to switch between Heading Up and North Up modes.

The No GPS symbol will appear, in the upper right corner of the map screen, when your vehicle is not receiving a Global Positioning System (GPS) satellite signal.

See Global Positioning System (GPS) on page 87.

When a name is too long to be displayed, an arrow symbol will appear. Select the right or left arrow screen button to scroll through the entire name.

This symbol indicates the position of the next guidance maneuver.

The following symbols can also be found on a map screen:

Select the waypoint symbol to enter a waypoint along the current route. This allows you to have more than one destination planned at a time.

Touch anywhere on the map to display this button. Select the memory point symbol to store the location on the screen as a memory point.

The system will automatically store the memory point in the Marked Point folder/category.

Touch anywhere on the map to display the Point of Interest (POI) screen button on the bottom right corner of the map screen.

Select the POI screen button to display the following screen:

Select one of the categories to display or to delete the POI icons from the map. If the POI icons are currently displayed on the map, the icons will be deleted from the map and vice versa.

POI Off: Select this button to remove all of the POI icons from the map.

List Categories: Select this screen button to display more POI categories that are not part of the POI categories listed. The following screen will be displayed after List Categories has been selected. Then, select the category and sub-category from the list. To display the POI type on the map, select the POI or select the Show screen button.

Show: Select this screen button to update the map screen and the list, once a category has been selected.

Delete: To delete a category, do one of the following:

• To delete the last added POI category, select

the Delete screen button.

• To delete a speciﬁc POI category:

1. Select the category.

2. Select the subcategory that was added.

All Local POI’s: Select this screen button to display the list of available POIs. This list is based on the added POI categories. The list will contain the POIs within a 20 mile (32 km) area from the current position of your vehicle. The list provides the POI icon, the name, the direction, and the distance to the POI from your vehicles current position. Use the scroll symbols to move up and down the list. Use the Sort by DIST. (distance), Icon, Name, and Route as desired.

Once a POI icon has been selected, the scroll symbol will appear around the POI icon on the map and the name of the POI will appear on the display. Select the Info screen button to display more available information about the speciﬁc point.

Select the back screen button to return to the previous page.

Select the cancel screen button to return to the ﬁrst menu of the selected option.

Guidance Windows

Single Map Mode

Select the guidance window symbol, from the map, to display the guidance window options.

Select from one of the following six options that allow you different views and information of the map screen. Availability of these options depends on the current route.

Select the map view symbol to display more of the map with a window that gives the direction and distance to the upcoming maneuver.

Dual Map Mode

Select the dual view symbol to display two map screens that will allow different scale levels and heading directions for each.

Touch anywhere inside the right map to change the scale level, 2D and 3D view, and to turn the POIs on and off. To change the heading direction in the right map, touch the north up or heading up symbol.

Turn List Mode

Select the turn list symbol to display the next three upcoming maneuvers.

Directional arrows, street name, and distance to the next turn will be displayed. As you approach the next turn, the system will automatically display a zoomed-in view of the upcoming maneuver.

Next Turn Mode

Select the arrow guidance symbol to display the next turn.

A directional arrow, the street name, and the distance to the next turn will be displayed. As you approach the next turn, the system will automatically display a zoomed-in view of the upcoming maneuver.

Guidance Screen Mode

Select the next maneuver symbol to display only the next maneuver.

When approaching the next maneuver, the navigation system will automatically display this guidance window.

Freeway Mode

Use the up and down arrows to scroll through the displayed list. To view the available POIs for an exit, select the exit, then select the Map screen button. The navigation system will display highway guidance any time you have a route on a highway or freeway or you can select the symbol. To turn this feature off, see “Navigation Set Up” under Conﬁgure Menu on page 75.

Select the highway guidance symbol to display the upcoming exit number, distance to the exit, available POIs at the exit, and a window with direction and distance to the next maneuver.

Auto Reroute

When your destination is set and you are off the planned route, the system will automatically plan a new route and begin to reroute. You will see the new route highlighted on the screen.

Traveling Across Regions

If you plan to drive across many states, you may have to change the region selected as you travel to your destination. To do so, do one of the following:

• Change the selected region in the search area

as you get closer to your destination. See Destination on page 55.

• Change the selected region in the search area

when entering your destination and route settings. See Destination on page 55.

For example, if you were traveling from Michigan to Florida, change the region currently selected in the search area to Florida. Enter a destination in Florida under the DESTINATION ENTRY menu.

Head-Up Display (HUD) (During Route Guidance)

When a route is planned the Head-Up Display (HUD) will display information when the vehicle is approaching a turn. This information display’s when the vehicle is 0.5 mi (0.80 km) away from a turn in residential areas and 2.0 mi or 2.0 km away from a turn on freeways.

A. Directional Arrow — Displays the direction of

the next turn.

B. Distance Bar — This will decrease as the

vehicle approaches the turn.

C. Street Name Line — Displays the name of the

street that you will be turning on.

D. Mile/Kilometer Scale — Indicates the scale of

the distance bar. The scale is 0.5 mi (0.80 km) in residential areas and 2.0 mi or 2.0 km on freeways. This value will not change as you approach the turn.

After completing a turn, the HUD will display the name and distance of the next street you will be turning on for 10 seconds. See Head-Up Display (HUD) in the Index of your vehicle’s owner manual for more information.

Delete: Press this screen button to cancel an avoided turn after the route has been replanned. A list of all of the avoided turns will display. Select the street that you want to add back to the route. A conﬁrmation window will display. Select Yes to have the avoided street added back to the route. The Turn List screen will display.

Del. All (Delete All): Press this button to cancel all of the avoided turns after the route has been replanned. A list of all of the avoided turns will display. Select the Del. All screen button. A conﬁrmation window will display. Select Yes to have all of the avoided streets added back to the route. The Turn List screen will display.

G Route Preview

Select this screen button from the ROUTE OPTIONS screen to access the route preview screen.

From this screen, you can preview the entire route in either direction, as well as edit the route.

Use the screen buttons at the bottom of the screen to move forward or backward through the route.

bs (Skip to Start): Select this screen button to

skip to the starting position, previous way point, or previous POI depending on the mode selected.

bS / b { (Scroll to Start): Select this

screen button to scroll to the starting position, previous way point, or previous POI depending on the mode selected. This button will toggle between slow and fast speed.

j (Pause): Select this screen button to pause

the route preview.

Th / | h (Scroll to Destination): Select this

screen button to scroll to the destination, next way point, or next POI depending on the mode selected. This button will toggle between slow and fast speed.

th (Skip to Destination): Select this screen

button to skip to the destination, next way point, or next POI depending on the mode selected.

Info (Information): When the skip/scroll functions are used and the cursor stops at a POI, this screen button will appear. Press this screen button to provide information regarding the POI; name, address, city, and phone number.

Edit: Select this screen button to change the way the skip/scroll functions operate. You can select to have the skip/scroll go to the start point/destination or to the next available POI or waypoint.

To next Dest. (destination) and WP (waypoint): Selecting tis option will cause the

skip/scroll function to skip/scroll to the next destination or waypoint.

To next POI: To make this button available, a POI category must be selected. Select this option to skip/scroll to the next available POI, on the route, for the chosen category.

Delete: Select this screen button to delete the selected POI category.

Category Selection: Select one of the categories from the list to add or replace the current POI category.

Calculate

Select this screen button, from the ROUTE OPTIONS screen, to calculate your route, after any changes have been made.

Cancel Guidance

Select this screen button to cancel the current set destination. A conﬁrmation window will display. Select Yes to cancel the destination; select No to continue on the current route.

Memory Points

Selecting Memory Points from the NAV. MENU will take you to the STORED LOCATIONS screen. From the STORED LOCATIONS screen, you can access the following options:

N Memory Points

Select this screen button from the STORED LOCATIONS screen to access the MEMORY POINTS screen.

This feature allows you the ability to store memory points. Storing memory points makes these points easily available to set as a destination. See “Memory Points” under Destination on page 55 for more information. You can store memory points in the four different categories listed. Once in a folder/category you can store a point, edit a point, delete a point, delete all points, or edit a category name. You can store up to 60 memory points for each driver.

To store a point:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select one of the folders/categories listed.

3. Select Add.

4. Select the desired method of entering a destination to enter the memory point. See Destination on page 55 for more information. A map screen will appear displaying the selected memory point location.

5. If available, touch the INFO button to view the address information of the selected point.

6. Touch OK to store the point as a memory point.

To edit the name of a stored point:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select one of the folders/categories listed.

3. Select the Edit screen button.

4. Select the memory point from the list. Use the Dist. (distance), Icon, Name, and Date

screen buttons to change the sort methods.

5. Select the Name screen button.

6. Use the backspace screen button to delete the current name or use the alpha keypad to make changes.

7. Select the OK screen button to store the change.

You can choose whether or not to have the name show on the map screen, next to the POI icon, by selecting the Show Name On or Off screen buttons.

To move the memory point from one folder/category to another:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category the memory point is stored in.

3. Select the Edit screen button.

4. Select the memory point that you wish to edit.

5. Select the Category screen button.

6. Select the new folder/category button you want to move the memory point to.

The system will display a message conﬁrming the move.

To store the point as a nametag:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category the memory point is stored in.

3. Select the Edit screen button.

4. Select the memory point that you wish to edit.

5. Select the Add Nametag screen button.

6. The system will say “Name please.” State what you would like to call the memory point.

7. The system will play back what was recorded and then will ask you to conﬁrm the nametag. State “Yes“ to conﬁrm the nametag; state “No” to cancel the nametag and to try again.

You can choose whether or not to have the name show on the map screen, next to the POI icon, by selecting the Show Name On or Off screen buttons.

Del Nametag (Delete): Once a nametag has been added, the Add Nametag screen button will change to Del Nametag.

To delete a nametag, press the Del Nametag screen button. The nametag will be automatically deleted from that memory point.

To modify the position of the stored point:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category the memory point is stored in.

3. Select the Edit screen button.

4. Select the memory point from the list.

5. Select the Position screen button.

6. The system will display the map screen with the destination marked. Touch the position on the map to move the memory point to that location.

7. Select the OK screen button when the memory point has been moved to the appropriate location.

8. The system will return to the EDIT MEMORY POINT screen and will now display the new address, longitude, and latitude for the memory point.

To change the icon associated with a memory point:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category the memory point is stored in.

3. Select the Edit screen button.

4. Select the memory point from the list.

5. Select the Icon screen button.

6. Select the desired icon. There are two pages of icons and a page of icons that have sounds associated with them.

7. The new icon will be displayed in the EDIT MEMORY POINT screen, next to the Icon screen button on the map.

To change the phone number of a memory point:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category the memory point is stored in.

3. Select the Edit screen button.

4. Select the memory point from the list.

5. Select the Tel. (telephone) screen button.

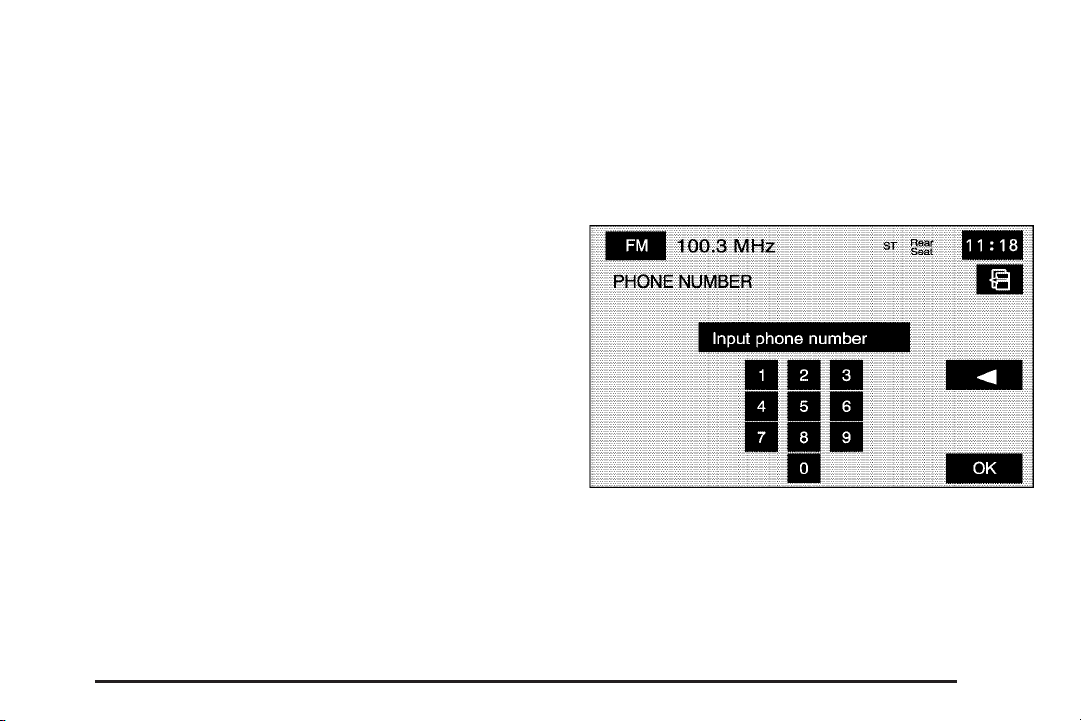

6. Use the numeric keypad to change the phone number.

7. Select the OK screen button to store the changed phone number.

To delete a memory point:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category the memory point is stored in.

3. Select the Delete screen button.

4. Select the memory point from the list. Use the sort feature to sort by distance, icon, name, or date as needed.

5. The system will show the map screen with the position address and a pop-up conﬁrmation message. Select Yes to delete the point; select No to not delete the point and to return to the STORED LOCATIONS screen.

To delete all of the memory points in a folder/category:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category the memory points are stored in.

3. Select the Del.All screen button.

4. The system will display a pop-up conﬁrmation message. Select Yes to delete all the points in the folder/category; select No to not delete the points and to return to the DELETE POINTS screen.

To change the name of the folder/category:

1. Select the Memory Points screen button from the STORED LOCATIONS screen.

2. Select the folder/category you want to change the name of.

3. Select the Edit Category screen button.

4. Use the delete the displayed name.

5. Use the alpha keypad to input the name of the folder/category.

6. Select the OK screen button to save your changes.

q (backspace) screen button to

3 Avoid Area

This feature allows you to store or delete an area to be avoided, while on a planned route. Up to 10 points can be stored.

To store a point to be avoided:

1. Select the Avoid Area screen button from the STORED LOCATIONS screen.

2. Select the Add screen button.

3. Select the desired method of entering a destination to enter the area to be avoided. See Destination on page 55 for more information. A map screen will appear displaying the selected location.

4. If desired, reduce or enlarge the area around the point you want to avoid by using the reduce or enlarge keys.

When avoiding locations on freeways, reduce the avoid area to the minimum scale. This will produce an X on the map, rather than a box. This will ensure that the system knows to avoid the freeway itself, not the area around the freeway.

5. Select the OK screen button to store the area.

To edit the name of the point to be avoided:

1. Select the Avoid Area screen button from the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. Select the point to be changed from the list.

4. Select the Name screen button.

5. Use the alpha keypad to add or to change the name.

6. Select the OK screen button to save your changes.

You can choose whether or not to have the name show on the map screen, next to the avoided area, by selecting the Show Name On or Off screen buttons.

To edit the position of the point to be avoided:

1. Select the Avoid Area screen button from the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. Select the point to be changed from the list.

4. Select the Position screen button.

5. Select the map to move the location.

6. If desired, reduce or enlarge the area around the point you want to avoid by using the reduce or enlarge keys.

7. Select the OK screen button to store the area.

To delete a point to be avoided:

1. Select the Avoid Area screen button from the STORED LOCATIONS screen.

2. Select the Delete screen button.

3. Select the point you want to delete. Use the scrolling arrows as needed.

4. The system will display the map screen with the name of the point and a pop-up conﬁrmation message. Select Yes to have the point deleted; select No to not delete the point.

To delete all of the points to be avoided:

1. Select the Avoid Area screen button from the STORED LOCATIONS screen.

2. Select the Del.All screen button.

3. The system will display a pop-up conﬁrmation message. Select Yes to have all of the points deleted; select No to not delete the points and to return to the AVOID AREA screen.

$ Dest. & Way Pt. (Destination and

Way Point)

This feature allows you to store, up to ﬁve way points, to the current route.

From this screen you can add, edit, or delete way points to your route.

To add a way point:

1. Select the Dest. & Way Pt. screen button from the STORED LOCATIONS screen.

2. Select the Add screen button.

3. Using the desired method of entering a destination, enter the way point. See Destination on page 55 for more information.

A map screen will appear with the way point marked.

4. Select the o (Way point) symbol on the map

screen to save the way point.

5. Repeat Steps 1 - 4 to add up to ﬁve way points to your route. For the second through the ﬁfth way points, the system will display the ADD WAYPOINT screen.

6. Select the Add screen button, next to the corresponding waypoint row, to add the waypoint.

To change the order of the route:

1. Select the Dest. & Way Pt. screen button from the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. From the CHANGE ORDER screen, select the names in the order you would like them to fall on the route.

4. Select the OK screen button to save your changes.

To change the location of a way point:

1. Select the Dest. & Way Pt. screen button from the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. Select the Chg. Loc. screen button from the CHANGE ORDER screen.

4. From the CHANGE LOCATION screen, select the point whose location needs to change.

5. The system will display the map screen with the destination marked. Touch the position on the map, to move the way point to that location.

6. Select the OK screen button to save your changes. The system will return to the STORED LOCATIONS screen.

To delete a way point from your current route:

1. Select the Dest. & Way Point screen button from the STORED LOCATIONS screen.

2. Select the Delete screen button.

3. Select the way point/destination you want to delete.

4. The system will display the map screen with a pop-up conﬁrmation message. Select Yes to delete the way point; select No to not delete the way point.

To delete all of the way points on your route:

1. Select the Dest. & Way Point screen button from the STORED LOCATIONS screen.

2. Select the Del.All screen button.

3. The system will display a pop-up conﬁrmation message. Select Yes to delete all of the way points; select No to not delete the way points.

L Home

This feature allows you to add, delete, or edit a point to be stored as your home destination.

To store your home destination:

1. Select the STORED LOCATIONS screen.

2. Select the Add screen button.

3. Select a destination entry method. See Destination on page 55 for more information.

L Home screen button from the

4. Select the OK screen button to store the destination. The home icon will now be highlighted on the DESTINATION ENTRY screen.

To edit your home destination:

1. Select the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. Touch the map to move the location of the point.

4. Select the OK screen button to save your changes.

To delete your home point:

1. Select the STORED LOCATIONS screen.

2. Select the Delete screen button.

3. The system will display the map screen with a pop-up conﬁrmation message. Select Yes to delete the home point; select No to not delete the home point.

L Home screen button from the

& Previous Dest. (Destination)

This feature allows you to delete one or all previous destinations that have been previously entered and automatically stored.

To delete a speciﬁc destination:

1. Select the Previous Dest. screen button from the STORED LOCATIONS screen.

2. Select the Delete screen button.

3. Select a destination from the list.

4. The system will display the map screen with a pop-up conﬁrmation message. Select Yes to delete the destination; select No to not delete the destination.

To delete all destinations:

1. Select the Previous Dest. screen button from the STORED LOCATIONS screen.

2. Select the Del.All screen button.

3. The system will display a pop-up conﬁrmation message. Select Yes to delete all of the destinations; select No to not delete all of the destinations.

A Preset Dests. (Destinations)

This feature allows you to add, delete, or change one of ﬁve preset destinations. Storing preset destinations makes these destinations easily available to set as a destination. See “Preset Destination” under Destination on page 55 for more information

To store a preset destination:

1. Select the Preset Dests. screen button from the STORED LOCATIONS screen.

2. Select the Add screen button to add a preset destination.

3. Select the numbered preset row you would like it to appear as.

4. Select a destination entry method. See Destination on page 55 for more information.

5. Select the OK screen button to store the destination. The destination will now be highlighted on the DESTINATION ENTRY screen.

To edit the name of a preset destination:

1. Select the Preset Dests. screen button from the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. Select the preset destination you want to edit.

4. Select the Name screen button and use the alpha keypad to edit or add the name.

5. Select the OK screen button to save your changes.

You can choose whether or not to have the name show on the map screen, next to the preset destination symbol, by selecting the Show Name On or Off screen buttons.

To change the position of a preset destination:

1. Select the Preset Dests. screen button from the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. Select the preset destination you want to change.

4. Select the Position screen button.

5. Touch the position on the map, to move the destination to that location.

6. Select the OK screen button to save your changes.

To add or change the phone number of a preset destination:

1. Select the Preset Dests. screen button from the STORED LOCATIONS screen.

2. Select the Edit screen button.

3. Select the preset destination you want to change.

4. Select the Tel. screen button and use the numeric keypad to input or change the phone number.

5. Select the OK screen button to save your changes.

If you have a Bluetooth can touch the button and the system will call that number.

To delete a preset destination:

1. Select the Preset Dests. screen button from the STORED LOCATIONS screen.

2. Select the Delete screen button.

V (Send/End Call) screen

phone connected, you

3. Select the preset destination you want to delete.

4. The system will display the map screen with a pop-up conﬁrmation message. Select Yes to delete the destination; select No to not delete the destination.

To delete all preset destinations:

1. Select the Preset Dests. screen button from the STORED LOCATIONS screen.

2. Select the Del. All screen button.

3. The system will display a pop-up conﬁrmation message. Select Yes to delete all destinations; select No to not delete all destinations.

Display Memory Pt. Icons

When memory points have been stored, this screen button will display. Select this screen button, from the STORED LOCATIONS screen, to display memory point icons on the map screen.

Calculate

Select this screen button, from the STORED LOCATIONS screen, to calculate your route.

Destination

Press the ROUTE key to access the Destination Entry screen. From this screen, you can choose from several options to plan a route by entering destination points.

Once your destination entry is complete, regardless of which method of entry you used, a map screen with the destination previewed will be displayed. You can change route

preferences, route options, map appearances, or add a way point at this time. You may also set the destination without making any further changes. See “Getting Started on Your Route” following in this section for more information on your choices once a destination has been entered.

Region

The DESTINATION ENTRY screen displays a map of the 48 contiguous United States and a part of Canada divided into 11 regions.

Before selecting a method of destination entry, review the search area map to make sure your destination is located in the highlighted region.

Touch the REGION screen button from the DESTINATION ENTRY screen to see a list of states included in the highlighted region, or to change the region. The SEARCH AREA screen will display. Touch the numbered screen button to the left of the search area map that corresponds with the numbered region you wish to select or to view a list of states included in the region. Touch the down arrow to select CAN (Canada). Once the region has been selected, the region will be highlighted on the map. Touch the back key

to return to the DESTINATION ENTRY screen. The new selection will be stored once you select the back screen button.

Address

The address destination entry method allows you to input an address by providing the system with a house number, street name, and city.

C (Address): Touch this screen button to

access the ADDRESS screen. At this point you can choose to enter the address one of three ways, either house number ﬁrst, street ﬁrst, or city ﬁrst.

To use the house number ﬁrst destination entry method, do the following:

1. Touch the numeric keypad to input the house number.

2. Touch the Street button to enter the street name using the alpha keypad.

3. A list of available street names will be displayed if there are less than ﬁve items available. Select the List screen button at any time to view the available list. Select the correct street with the correct preﬁx from the list.

4. The system will either display a list of available cities or go to the map screen directly based on the input.

5. Select the desired city name on the list. A map screen will appear with the destination

marked.

6. Select the button to calculate the route.

7. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

To use the street name ﬁrst destination entry method, do the following:

1. Touch the Street screen button from the address menu and start entering the street name using the alpha keypad. A list of available street names will be displayed if there are less than ﬁve items available. Select the List screen button at any time to view the available list.

2. Select the desired street name with the correct preﬁx from the list (Dr., Ln., St., etc.).

3. The system will display a list of available cities. Select the correct city from the list.

4. The numeric keypad will be displayed, allowing you to enter the house number.

5. Press OK. A map screen will appear with the destination

marked.

6. Select the button to calculate the route.

7. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

To use the city name ﬁrst destination entry method, do the following:

1. Touch the City button.

2. Select from the choices shown on the city screen; Any City, 5 near cities, Input City Name, or from the Last 5 Cities used.

• Any City — The system will take you back

to the house number ﬁrst entry method. Select a city from the list.

• 5 near cities — The system will display the

5 cities nearest your current position. Select a city from the list.

• Input City Name — The keypad will display

for inputting the city name. Input the city name and then select the city from the list.

• Last 5 Cities — The city names of the last

ﬁve cities that were stored as a previous destination will display. Select a city from the list.

3. If using the alpha keypad, ﬁnish entering the city name and then touch the List screen button to display a list of available cities. Choose a city from the list. If choosing from one of the prior mentioned lists, select the city from the list displayed.

4. The House number screen will be displayed. Enter the house number using the numeric keypad.

5. Select the Street screen button from the address menu and start entering the street name using the alpha keypad. A list of available street names will be displayed if there are less than ﬁve items available. Select the List screen button at any time to view the available list.

6. Select the desired street name with the correct preﬁx (Dr., Ln, St., etc.) from the list

A map screen will appear with the destination marked.

7. Select the button to calculate the route.

8. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Point of Interest (POI)

The Point of Interest (POI) destination entry method allows you to choose a destination from the POI list.

i (Point of Interest): Touch this screen button

to access the POINT OF INTEREST screen. From this screen you have three options to select/enter your destination. Either input the name using the keypad, select a category from the category list, or select the city by selecting the city screen button.

To input the POI name, do the following:

1. Use the alpha keypad to enter the POI name. Touch Sym. (symbol) to select symbols and

numbers for the POI, touch Others to select special characters for the POI, or touch A - Z to return to the alpha keypad.

A list of POIs will appear using the information from the alpha keypad input. A list of available POIs will display if there are less than ﬁve POIs available. Touch the List screen button at any time to view the available POIs.

2. Select the desired POI from the list. A map screen will appear with the destination

marked.

3. Select the button to calculate the route.

4. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

To select a POI from a category, do the following:

1. Touch the Category screen button from the POINT OF INTEREST screen to view a list of POI categories.

2. Select a category, and then a sub-category.

3. The system will display available POIs names in the selected sub-category or if the list is too long the system will display the alpha keypad.

4. If the alpha keypad is displayed, input the POI name until a list of available POIs appear. You may also select the List screen button when it becomes available.

5. Select the POI from the list. A map screen will then appear with the

destination marked.

6. Select the button to calculate the route.

7. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

To select a POI by inputting a city name, do the following:

1. Select the city screen button, then select; Any City, 5 near cities, Input City Name, or from the Last 5 Cities used.

• Any City — The system will take you back

to the house number ﬁrst entry method. Select a city from the list.

• 5 near cities — The system will display the

5 cities nearest your current position. Select a city from the list.

• Input City Name — The keypad will display

for inputting the city name. Input the city name and then select the city from the list.

• Last 5 Cities — The city names of the last

ﬁve cities that were stored as a previous destination will display. Select a city from the list.

2. Use the alpha keypad to enter the POI name. Touch Sym. (symbol) to select symbols and

numbers for the POI, touch Others to select special characters for the POI, or touch A - Z to return to the alpha keypad.

3. A list of POIs will appear using the information from the alpha keypad input. A list of available POIs will display when there are less then ﬁve POIs available. Touch the List screen button at any time to view available POIs.

4. Select the desired POI from the list. A map screen will appear with the destination

marked.

5. Select the button to calculate the route.

6. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Map

The map destination entry method allows you to choose a destination by scrolling on the map.

I (Map): Touch this screen button from the

DESTINATION ENTRY screen to enter the map destination entry method, then do the following:

1. Touch the map for the desired area you wish to set as your destination.

2. Use the zoom in/out function to view the direction of the desired area.

3. Pressing/holding and dragging on the map will activate fast scrolling. Press/touch once on the area to which you would like to move the current position mark.

Once the scroll symbol is on the location, the address information will display on the map screen.

4. Touch the destination screen button or the way point screen button to save the address as a destination or way point.

• If select this position as a waypoint, the

point will be stored as a waypoint. The system will display the STORED LOCATIONS screen. See “Memory Points” under Navigation Menu on page 33 for more information.

• If select the h (destination) symbol screen

button the system will calculate the route. Select the Guide screen button to start route guidance. See “Getting Started on Your Route” later in this section for more information.

Intersection

The intersection destination entry method allows you to set two intersecting streets as your destination.

M (Intersection): Touch this screen button to

access the INTERSECTION screen.

To use the intersection destination entry method, do the following:

1. Enter the ﬁrst of two streets in the intersection. The List option may become available.

2. You may now choose a street from the list, or continue to spell the street name to further reduce the number of available items. Select the street with the correct preﬁx (Dr., Ln., St., etc.).

3. After the ﬁrst street has been chosen, enter the second street name. The List option may again become available.

4. You may now choose the second street from the list, or continue to spell the street name to further reduce the number of available items. Select the street with the correct preﬁx (Dr., Ln., St., etc.).

After both streets have been chosen, a map screen will then appear with the destination marked.

5. Select the button to calculate the route.

6. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Phone Number

The phone number destination entry method allows you to choose a destination by entering a phone number. The phone number must be in the list of POIs, that is contained on the map DVD, in order for the system to retrieve the destination.

U (Phone Number): Touch this screen button to

access the PHONE NUMBER screen.

To use the phone number destination entry method, do the following:

1. Input the area code and phone number of a POI using the numeric keypad. Only business phone numbers can be entered.

2. If the phone number can be found on the map DVD, a map screen will then appear with the destination marked.

3. Select the button to calculate the route.

4. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Freeway Entrance/Exit

The freeway entrance/exit destination entry method allows you to choose a destination by entering a freeway entrance or exit point.

K (Freeway Entrance/Exit): Touch this screen

button to access the FREEWAY ENT/EXIT screen.

To use the freeway entrance/exit destination entry method, do the following:

1. Touch the Freeway screen button and enter the freeway name. Be sure to use abbreviations, such as I - 75, rather than spelling out Interstate.

Touch Sym. to view a list of symbols to add when entering a freeway name, touch Others to view a list of special characters you can choose from, or touch A - Z to return to the alpha keypad.

A list of freeways will appear.

2. Choose a freeway from the list, and then touch the Entrance or Exit screen button to choose a point.

You can choose an exit/entrance point from the list of names that will appear.

You can input the exit/entrance by name. Touch the Input Name screen button. If you choose to input the freeway exit or entrance name, the alpha keypad will be displayed. Touch the alpha keypad to enter the freeway exit or entrance name.

You can sort the list by distance or name. Touch the Name Sort screen button to sort the list by name. Touch the Dist. Sort screen button to have the list sorted by distance. The distance sort list is based on the current position of your vehicle.

After choosing a point from the list, a map screen will then appear with the destination marked.

3. Select the button to calculate the route.

4. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Emergency

The emergency destination entry method allows you to enter a destination by choosing from three categories.

| (Emergency): Touch this screen button to

access the EMERGENCY screen. When in this screen, the system will display your current position address and the longitude and latitude information.

To use the emergency destination entry method, when no route has been planned, do the following:

1. Select a category.

2. Select a destination point from the list. Touch the Name Sort screen button to sort the list by name, or Dist Sort to sort the list by distance from the vehicle’s current position.

After selecting a destination from the list, a map screen will appear with the destination marked.

3. Select the button to calculate the route.

4. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

To use the emergency destination entry method, when a route has been planned, do the following:

1. Select a category.

2. The system will automatically change the current planned route destination to include the nearest emergency category that has been selected.

3. Select the button to calculate the route.

4. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Memory Points

The memory points destination entry method allows you to choose a destination from a list of points that you have previously stored.

N (Memory Point): Select this screen button

from the DESTINATION ENTRY screen to access the MEMORY POINTS screen.

To use this destination entry method, do the following:

1. Select the category/folder in which the memory point has been stored. Select from PERSONAL, BUSINESS, ENTERTAINMENT, or MARKED POINT folders.

Sort the list by distance, icon, name, or date stored.

2. Select the desired memory point. A map screen will appear with the destination

marked.

3. Select the button to calculate the route.

4. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Previous Destination

The previous destination entry method allows you to choose a destination from a list of previous destination points.

h (Previous Destination): Touch this screen

button to access the PREVIOUS DEST. screen. The system will store up to 100 points that have been previously entered. As new destinations are entered, the system will automatically delete the oldest destinations and add the new destination.

To use the previous destination entry method, do the following:

1. Choose a previous destination from the list. Use the arrow to the right of the destination to view the entire destination name as necessary.

A map screen will appear with the destination marked.

2. Select the button to calculate the route.

3. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

Name: Touch this screen button to sort the list by name.

Date: Touch this screen button to sort the list by the date the destination has been entered. The list will be in order by the latest to the oldest destinations that have been entered.

Previous Start Point: Touch this screen button for the system to plan a route to the previous point you were at when a route was entered. This option is available while the vehicle is moving.

h (destination) symbol screen

Coordinates

The coordinates destination entry method allows you to choose a destination by entering latitude and longitude coordinates.

) (Coordinates): Touch this screen button to

access the COORDINATES screen.

To use the coordinates destination entry method, do the following:

1. Touch N or S next to LAT. to enter the direction of the latitude coordinate.

2. Input the numeric portion of the latitude coordinate using the keypad.

3. Touch E or W next to LONG. to enter the direction of the longitude coordinate.

4. Input the numeric portion of the longitude coordinate using the keypad.

5. Once both coordinates are entered, touch the OK screen button.

A map screen will then appear with the destination marked.

6. Select the button to calculate the route.

7. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Preset Destination

(Preset Destination): The preset destination entry method allows you to set a destination by choosing from one of ﬁve previously stored destinations. Besides home, these are the only destinations available to set while the vehicle is moving or by voice recognition. If a destination is not set for one of the screen buttons, the button will be dimmed and will not be available. See “Memory Points” under Navigation Menu on page 33 for more information.

To use the preset destination entry method, do the following:

1. Select the desired preset destination from the DESTINATION ENTRY screen. The screen buttons are numbered 1 - 5.

A map screen will appear with the destination marked and the number of the preset destination.

2. Select the button to calculate the route.

3. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Home

(Home): This feature allows you to plan a route to one previously stored destination that you have selected as home. If a home destination is not stored, the home button will not be available. In addition to preset destinations one through ﬁve, this destination is available to set while the vehicle is moving or by voice recognition.

To use this destination entry method, do the following:

1. Select the home screen button from the DESTINATION ENTRY screen.

A map screen will appear with the destination marked.

2. Select the button to calculate the route.

3. Select the Guide screen button to start route guidance.

See “Getting Started on Your Route” later in this section for more information.

h (destination) symbol screen

Getting Started on Your Route

Once you have entered a destination, you can perform one of the following options:

h (Destination): Touch the destination symbol to

set the entered destination as it is, without further adjustment.

o (Waypoint): Touch the way point symbol to

enter this point as a way point along the route. See Dest. & Way Pt. under “Stored Locations” under Navigation Menu on page 33 for more information.

Route Preference: Touch this screen button to access the Route Preference screen and adjust the route preferences. The current setting is displayed in the Route Preference section of the Map screen. See “Change Route” later in this section for more information.

If any of these features are turned off, there will be a diagonal red line through its icon.

Once the route preference has been set, select the destination symbol and the system will automatically calculate your route.

From this screen you can select Guide to start your route guidance or select 3routes if available to select between Quick, Normal, or Short route options. You can also select the Chg. Route screen button to go to the ROUTE OPTIONS menu and select from the available options.

Three Routes

To access this screen, touch the 3routes button on the map screen while planning a destination.

When applicable, the system will calculate up to three different versions of your current route in three different colors: Quick, Normal, and Short.

The routes are shown with distance to destination and estimated travel time. The quickest route may not be the shortest, and vice versa. When an optional route is selected it is shown on the map in another color.

Touch Info on the three routes screen to access the INFO FOR 3 ROUTES screen. From this screen, you can view the following information for the different planned routes:

G (Estimated Travel Time): This icon shows the

route’s estimated time of travel.

J (Straight-Line Distance): This icon shows

the route’s straight-line distance to destination.

W (Toll Road): This icon shows the route’s toll

road distance information.

c (Freeway Travel): This icon shows the route’s

freeway distance information.

b (Ferry): This icon shows the route’s ferry

distance information.

{ (Time-Restricted Roads): This icon shows

the route’s time-restricted road information.

Keyless Access System

When you start your vehicle, you will see Driver 1 or Driver 2 displayed on the cluster. If personalization is turned off in feature programming, a message will not appear on the cluster. The number on the back of the transmitter corresponds to driver 1 or driver

2. The navigation system can store memory points for driver 1 and 2 individually. See Personalization on page 138 for more information.

OnStar®System

With an active OnStar®subscription with personal calling, you can make telephone calls from your vehicle, using the navigation system screen to enter the numbers.

Q (OnStar): Touch the AUX hard key to access

this button. Touch this screen button to access the OnStar not available while driving.

phone screen. This screen is

V (Place/End Call): Touch this screen button to

place your phone call. While in a call, this button will be red. Touch this button to end your call.

Tone Send: Touch this screen button to send touch tone data. This button will become available during a phone call. This function is used when you need to enter numbers in response to an automated phone request, such as when checking voice mail or you are asked to choose menu items.

Incoming Call: When receiving an incoming call, a pop-up message will display on the screen with two place/end call screen buttons, one green and the other red. Touch the green button to answer the call. Touch the red button to reject the call.

When using the OnStar will mute. The volume of an OnStar adjusted by using the steering wheel controls or the volume knob on the navigation system. See “OnStar

System” in the Index of your vehicle’s

owner manual for more information.

system, the audio system

call can be

Using the OnStar®Screen to Make a Phone Call

To make a phone call using the OnStar®screen do the following:

1. Press the AUX hard key.

2. Touch the OnStar

3. Enter the phone number using the numeric keypad.

4. Touch the place/end call screen button to place the phone call.

5. If you need to use the tone send button for checking voice mail or responding to an automated request, enter the appropriate number(s) using the keypad and then touch the tone send button. Once that set of numbers has been sent, the tone send button will dim until another set of numbers is entered on the keypad.

6. To end the call, touch the place/end call screen button. It will be red while you are on the call.

screen button.

Conﬁgure Menu

Press the CONFIG hard key to access this menu, allowing adjustment of several of the systems features and preferences.

Bluetooth

E (Bluetooth

access the Bluetooth Bluetooth®Phone on page 150 for more information on the Bluetooth

): Touch this screen button to

setup screen. See

system.

Audio

Touch the Audio screen button to access a screen where several audio features may be turned on and off and several options are available for adjustment. The screen buttons next to each selected option will be highlighted when on. The items on this menu will depend on which audio source is playing.

See Navigation Audio System on page 92 for more information on each feature.

Auto Store: Touch this button to turn the Auto Store on for the current audio source selected. When on, this button will appear on the main audio screen. This button is not available when in XM™.

Info (Information): This button is only available when in FM or XM™. Select this button to turn information on. The information will change depending on the audio source is selected. When on, the Info screen button will be available to select from the audio main menu.

Category: This information will change depending on what audio source is selected. This button is only available when you are using the FM or XM™ audio modes. Touch this button to turn the Category function on. When on, the button will be available to select from the audio main menu.

r[ r j ##(CD/MP3 Controls): This

button is only available when you are using the CD or MP3 audio modes. When on, these screen buttons, rewind, fast forward, play, pause, previous folder, and next folder, will be available to select from the audio main menu.

Traffic: This button is only available when you are using the FM or CD/DVD audio modes. When on, the Navigation System will search for stations that broadcast traffic announcements.

The following screen buttons are only available for video DVDs:

Audio Language: Select this button to view a list of language choices. Select the desired language to change the spoken language. The list of languages will depend on the languages supported by the disc.

Subtitle Language: Select this button to view a list of languages to choose for subtitles. Select the language desired. The list of languages will depend on the languages supported by the disc.

Menu Language: Select this button to view a list of languages to choose for the DVD menu text. The list of languages will depend on the languages supported by the disc.

Parental Level: Select this button if you choose to set up parental protection. Use the keypad to enter the password. Select from options such as change level and change password, as necessary.

Navigation Set Up

(Navigation Set Up): Touch this screen

button to access the NAVIGATION SET UP screen.

From this menu, several options are available for adjustment:

8 2D/3D View: This option allows you to

change the view of the map screen and the guidance screen between a 2-dimensional and 3-dimensional view. When changing the map to the 3-dimensional view, use the up/down arrows to change the angle of the map. Select Default to return to the factory settings (2-dimensional).

C Quick POI Selection: This option allows

you to set six Point of Interest (POI) categories that you can select from while driving.

To set the Quick POI selection, do the following:

1. Select the Quick POI Selection screen button.

2. Select the sub-category you would like to replace.

3. Select a Quick POI category from the Quick POI selection menu list.

4. Pick the subcategory from the list that appears. The system automatically returns to the Quick

POI Selection screen. Your category changes are now saved.

To change back to the system generated choices, touch the Default screen key.

5 Calibration: This option allows you to

recalibrate the navigation system.

The Calibration screen, allows the adjustment of your vehicle’s position or the vehicle speed signal.

To correct the position of your vehicle on the map (for example, if your vehicle has been shipped) or to change to the current position.

1. Select the Position/Direction screen button. The map screen will display with your

vehicle’s current position.

2. To change your vehicle’s position, touch the map screen.

Use the zoom in/out function to view the direction of the desired area.

Pressing/holding and dragging on the map will activate fast scrolling. Press/touch once on the area to which you would like to move the current position mark.

3. Touch the OK screen button once your vehicle is in the current position.

If a route had already been set, the map screen will display, select Guide to change your route to your vehicle’s new position.

Once the process of changing your vehicle’s current position is complete, the map screen will display with rotate arrow screen buttons around your vehicle.

4. To change the direction of your vehicle, press either arrow screen button to rotate your vehicle to the correct direction.

5. Once your vehicle is facing the correct direction, select the OK screen button.

See Problems with Route Guidance on page 89 for more information.

If there are tire pressure differences or a spare tire is installed, the system will automatically re-calibrate the system, but it may take longer. To calibrate the vehicle speed signal, touch the Distance screen key. See Vehicle Positioning on page 88 for more information.

J User Settings: This option allows you to turn

on and off several other route guidance setting options.

From this screen, you can adjust the following:

Notify traffic restriction: This option instructs the system to notify you when the current route has traffic restrictions (e.g. winter time).

Arrival Time

display the estimated time of arrival to your destination.

Arrival Time

option will display how much time remains to reach your destination.

Guidance Screen: This option will turn the guidance screen on and off. When the guidance screen option is on, the guidance screen will pop-up when you are approaching a turn.

Freeway Information: When on, this option will automatically display freeway information in the guidance window while on a freeway during route guidance. Select the Off screen button to not display this guidance window.

G (Time of Arrival): This option will

\ (Time to Destination): This

Text size on map: This option allows you to adjust the text size on the map between Large, Medium, and Small. This option is located on the second page of the USER SETTINGS screen. Touch the down arrow to access this option.

\ Restore System Defaults: Select this

option from the NAVIGATION SET UP screen to change all adjustable system settings to factory defaults.

Average Speed: Select this option to set the average speed to default. The system monitors the speed on different roads and updates the average speed the vehicle travels at. This average speed is used to calculate the time it will take to reach the destination when you set a route.

> Volume: This option allows you to adjust the

volume of voice guidance prompts and the voice recognition system. You may also choose to turn voice guidance prompts off.

Vehicle

Clock

Vehicle: Touch this screen button to access the

vehicle information menu. From this menu, you can adjust such options as the language, personal settings, and memory options. See Personalization on page 138 for more information on language and personal settings and see “Memory Settings” later in this section.

(Clock Adjust): Touch this screen button or touch and hold the clock screen button in the upper right corner of the screen to access the Clock Adjust screen and adjust several time features.

From this screen, you can adjust the following:

12Hour: Touch this screen button to display the time in standard AM/PM format.

24Hour: Touch this screen button to display the time in military format.

AM: Touch this screen button when setting the time in AM.

PM: Touch this screen button when setting the time in PM.

PST, MST, CST, EST: Touch one of these screen buttons to choose between Paciﬁc Standard Time (PST), Mountain Standard Time (MST), Central Standard Time (CST), and Eastern Standard Time (EST).

GPS TIME: Touch this screen button to match the navigation system’s time to GPS time.

Daylight Savings: Touch this screen button to increase the time by one hour. Touch this screen button again to turn this feature off and decrease the time by one hour.

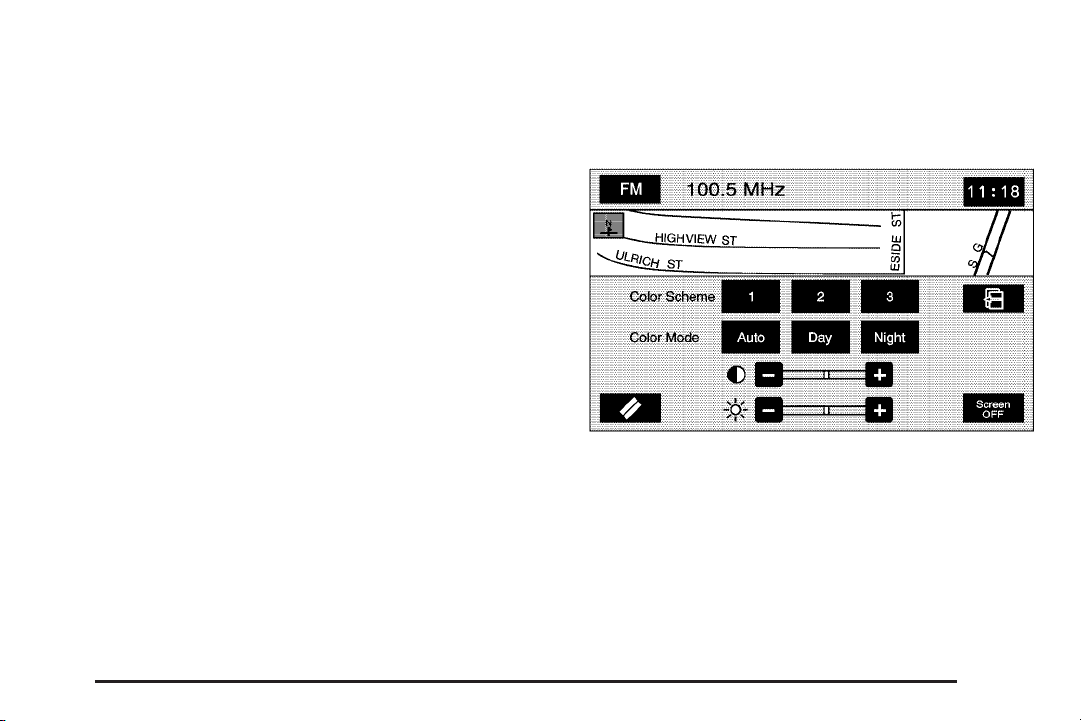

Screen Appearance

(Screen Appearance): Touch this screen

button to access the appearance screen menu.

y/z: Touch the up arrow to increase the hour

or minutes. Touch the down arrow to decrease the hour or minutes.

From this menu, several options may be adjusted:

Color Scheme: This option allows you to choose between three different screen color schemes by touching 1 (blue), 2 (green), or 3 (brown).

Color Mode: This option allows you to adjust your screen mode between Auto, Day, and Night. Day mode will change the navigation system screen to a lighter background for better viewing in the daytime. Night mode will change the navigation system screen to a darker background for better viewing at night. Auto mode will adjust the screen automatically depending on exterior lighting conditions.

_(Contrast): This feature allows the adjustment

of contrast of the navigation screen. Touch the

plus (+) or minus (−) signs on either side of

the contrast bar graph to increase or decrease the contrast.

](Brightness): This feature allows the

adjustment of brightness of the navigation screen.

Touch the plus (+) or minus (−) signs on either

side of the brightness bar graph to increase or decrease the brightness.

Screen OFF: This feature allows you to turn the navigation screen off. Touch any hard key to turn the screen back on.

Memory Settings

If your vehicle has the memory feature, memory settings for the following features, for up to two drivers, can be programmed and recalled:

• The driver’s seat position.

• The outside rearview mirrors position.

• The telescopic steering column position.

• The language, radio and XM™ presets, tone,

volume, playback mode (AM/FM or CD), last displayed stations, and CD position are set automatically.

• The last climate control setting is set

automatically.

• The Head-Up Display (HUD) position, if

equipped, is set automatically.

• The navigation systems previous destinations,

stored memory points, nametags, paired phones, navigation voice prompts, etc. are stored automatically.

• Other personalization settings, for example,

remote start settings.

Memory Infotainment Settings and Presets

These settings and presets are set automatically. They include the following:

• Radio presets

• Navigation

• Address Book

• Language

• HUD display

• Climate control settings

For more information, see each item in the Index of your vehicle’s owner manual.

Memory features are programmed and recalled through the navigation system and the voice recognition system.

Store Memory Settings

Displayed on Conﬁgure Menu

To store memory settings, do the following:

1. Be sure the ignition is either on, in accessory mode, or in RAP. The vehicle must be stopped and/or the shift lever must be in PARK (P).

2. Press any button on the appropriate keyless access transmitter to identify yourself as Driver 1 or Driver 2. The numbers on the back of the keyless access transmitters correspond to the driver number.

3. Press the CONFIG hard key.

4. Adjust your settings for the driver’s seat, the outside mirrors, and the steering column to a comfortable driving position or exit position.

5. Push and hold either the Driver 1 or Driver 2 screen buttons to store the driving positions. Push and hold the Exit screen button to store the exit position.

Two beeps will sound to conﬁrm that the driver or exit position is stored.

The memory settings are now programmed. Any changes that are made to the Head-Up Display (HUD), navigation system, and climate controls while driving will be automatically stored when then ignition is turned off.

Recall Memory Settings

To recall memory settings, do the following:

1. Be sure the ignition is either on, in accessory mode, or in RAP. The vehicle must be stopped and/or the shift lever must be in PARK (P).

2. Press the CONFIG hard key.

3. Push and release either the Driver 1 or Driver 2 screen buttons to recall the driving positions. Push and release the Exit screen button to recall the exit position.

If the vehicle is in PARK (P), a beep will sound and your previously saved driving position or exit position will then be recalled. If the vehicle is not in PARK (P), three beeps will sound and your previously saved driving position or exit position will not be recalled.

A memory recall can be stopped by pressing any memory seat or mirror position button. If you would like the stored driving positions to be recalled when unlocking your vehicle with the keyless access transmitter or when starting your vehicle, see “Occupant Position” under Personalization on page 138 for more information.

Magnetic Ride Control

If your vehicle has this feature, select between the following screen buttons:

Performance: Select this screen button when road conditions or personal preference demand more control. This setting provides more “feel” or response to road conditions.

Touring: Select this screen button for normal city and highway driving. This setting provides a smooth, soft ride.

Global Positioning System (GPS)

The Navigation System determines the position of your vehicle by using satellite signals, various vehicle signals, and map data.

At times, other interferences such as the satellite condition, road conﬁguration, the condition of the vehicle and/or other circumstances can interfere with the Navigation’s ability to determine the accurate position of the vehicle.

The GPS shows the current position of your vehicle using signals sent by the GPS Satellites of the United States Department of Defense.

When your vehicle is not receiving signals from the satellites, a symbol will appear on the map screen. Refer to Symbols on page 21.

This system may not be available or interference may occur if the following happens:

• Signal obstructions caused by tall buildings,

large trucks, tunnels,

• objects located on top of the instrument panel,

• satellites will not send signals if they are

being repaired or improved,

• after-market glass tinting has been applied to

the vehicle’s windows.

Notice: Do not apply after-market glass tinting to the vehicle’s windows. Glass tinting will interfere with the system’s ability to receive GPS signals and cause the system to malfunction. You might have to replace the window to correct the problem. This would not be covered by your warranty.

For more information if you are experiencing a problem, see If the System Needs Service

on page 89 and Problems with Route Guidance on page 89.

Vehicle Positioning

At times, the position of the vehicle on the map may be inaccurate due to one or more of the following reasons:

• The road system has changed.

• The vehicle is driving on slippery road

surfaces such as in sand, gravel and/or snow.

• The vehicle is traveling on winding roads.

• The vehicle is on a long straight road.

• The vehicle is approaching a tall building or a

large vehicle.

• The surface streets run parallel to a freeway.

• The vehicle has just been transferred by a

vehicle carrier or a ferry.

• The current position calibration is set

incorrectly.

• The vehicle is traveling at high speed.

• The vehicle changes directions more than

once, or when the vehicle is turning on a turn table in a parking lot.

• The vehicle is entering and/or exiting a

parking lot, garage or a lot with a roof.

• The GPS signal is not received.

• A roof carrier is installed on your vehicle.

• The vehicle is equipped with tire chains.

• The tires are replaced.

• The tire pressure for your tires is incorrect.

• The tires are worn.

• The ﬁrst time the map DVD is inserted.

• The battery is disconnected for several days.

• The vehicle is driving in heavy traffic where

driving is at low speeds, and the vehicle is stopped and started repeatedly.

If you experience problems with your system, you may need to calibrate the system. This may be due to tire pressure differences, or if a spare tire is installed. To calibrate the system, see Conﬁgure Menu on page 75.

Problems with Route Guidance

Inappropriate route guidance may occur under one or more of the following conditions:

• You have not turned onto the road indicated.

• Route guidance may not be available

when using automatic rerouting for the next right or left turn.

• The route may not be changed when using

automatic rerouting.

• There is no route guidance when turning at an

intersection.

• Plural names of places may be announced

occasionally.

• It may take a long time to operate automatic

rerouting during high-speed driving.

• Automatic rerouting may display a route

returning to the set waypoint if you are heading for a destination without passing through a set waypoint.

• The route prohibits the entry of a vehicle due

to a regulation by time or season or any other regulation which may be given.

• Some routes may not be searched.

• The route to the destination may not be

shown if there are new roads, if roads have recently changed or if certain roads are not listed on the map DVD. See Ordering Map DVDs on page 90.

To recalibrate the vehicle’s position on the map, see Conﬁgure Menu on page 75.

If the System Needs Service

If your system needs service and you have followed the steps listed here and still are experiencing problems, see your dealer for assistance.

Ordering Map DVDs

You will receive two free DVD map disc updates with the purchase of your new vehicle. Updates are necessary to make sure that your vehicle’s navigation system has the most accurate information available about streets/roads, points of interest, and business locations.

The updates are provided by the GM Nav Disc Center at the ﬁrst and second anniversary dates of your vehicle’s delivery date. About four to six weeks before those anniversary dates, you will receive a post card from the GM Nav Disc Center reminding you that a free update is available. The center will request conﬁrmation of your mailing address either by having you contact the toll-free number, 1-877-NAV-DISC (1-877-628-3472), or the center’s website, www.gmnavdisc.com. After verifying your address you should receive the updated disc in about two weeks. After receiving the updated disc, replace the old disc in the navigation system. See “Installing the DVD Map Disc” and “Ejecting the DVD Map Disc” under Maps on page 18. Dispose of the old disc to avoid confusion about which disc is the most current.

If you have any questions about the operation of the navigation system or the update process, call the GM Nav Disc Center or go to the center’s website. If you need any future updates or a replacement disc, because the current disc is lost, damaged, or needs to be updated, call the GM Nav Disc Center or order a new disc online. To order a disc, have your Vehicle Identiﬁcation Number (VIN) available. This helps the center make sure you receive the correct and most up to date DVD map disc for your vehicle. See “Vehicle Identiﬁcation Number (VIN)” in the Index of your vehicle’s owner manual for more information.

Database Coverage Explanations

Coverage areas vary with respect to the level of map detail available for any given area. Some areas will feature greater levels of detail than others. If this happens, it does not mean there is a problem with the system. As the map DVD is updated, more detail may become available for areas which previously had limited detail. See Ordering Map DVDs on page 90.

Section 3 Navigation Audio System

Navigation Audio System ............................. 92

Six-Disc CD/DVD Changer ........................ 103

Auxiliary Devices ....................................... 118

Radio Personalization ................................ 119

Navigation Audio System

Notice: Before adding any sound equipment to your vehicle, such as an audio system, CD player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer. Also, check federal rules covering mobile radio and telephone units. If sound equipment can be added, it is very important to do it properly. Added sound equipment can interfere with the operation of your vehicle’s engine, radio, or other systems, and even damage them. Your vehicle’s systems can interfere with the operation of sound equipment that has been added.

Notice: The chime signals related to seat belts, parking brake, and other functions of your vehicle operate through the navigation system. If that equipment is replaced or additional equipment is added to your vehicle, the chimes may not work. Make sure that replacement or additional equipment is compatible with your vehicle before installing it. See “Accessories and Modiﬁcations” in the Index of your vehicle’s owner manual.

Your vehicle has a feature called Retained Accessory Power (RAP). With RAP, the audio system can be played even after the ignition is turned off. See “Retained Accessory Power (RAP)” in the Index of your vehicle’s owner manual for more information.

The audio system is operated using navigation system menus. The audio menus are explained in this section.

Playing the Radio

the audio system on and off. Turn the knob to increase or to decrease the volume to the audio system.

BAND: Press this key to access the audio source screen. Then press this key to switch between AM, FM, WX (weather), or XM (if equipped).

AUX (Auxiliary): Press this key to play the video and audio devices connected to the auxiliary jacks. See Auxiliary Devices on page 118 for more information.

(Power/Volume): Press this knob to turn

SRCE (Source): Press this key to change the audio source from the radio band to CD, audio DVD, or video DVD, depending on what is loaded in the six-disc DVD changer, or from DVD/CD to radio mode.

e (Audio): Press this key to view the AUDIO

ADJUST screen. See “Audio Adjust” screen later in this section.

«ª (Seek/Scan): To seek stations, press the

up or down arrow to go to the next or previous station and stay there.

To scan stations, press and hold either arrow for less than 2 seconds. The radio will go to a station, play for a few seconds, then go on to the next station. To stop scanning, press either arrow again or touch the scan screen button.

Tuning Knob: Turn this knob to change frequencies.

Finding a Station

Press the band/source screen button, located in the top left corner (AM, FM, CD, etc.), from any screen to access the audio source screen. Once this screen is displayed, press the BAND hard key to toggle between the bands or touch the desired band screen button, to select it.

FM source shown, other sources similar

Scan: To scan stations, touch the Scan screen

button. The radio will go to a station, play for a few seconds, then go on to the next station. Touch Scan again to stop scanning.

To scan preset stations, touch and hold Scan for two seconds. The radio will go to the next preset station, play for a few seconds, then go on to the next preset station. Touch Scan again to stop scanning.

While in A.B.C mode, the system will change bands and screens to the current band.

If available on your vehicle, you can also use the 1 - 6 (preset seek) steering wheel control. Each press of this button will take you to the next preset station.

Auto Store (Automatic): Select this screen button to automatically create a preset station list of the strongest stations available in the local area. Once this button is selected, the system will start storing stations in sequential order, starting from the station currently selected. Select this button again to return to the original preset stations. This is not available for XM™ Satellite Radio Stations or when A.B.C. has been selected on.

Info (Information): See “Radio Data System (RDS)” later in this section.

Category: See “Radio Data System (RDS)” later in this section.

Preset Stations

Storing Preset Stations

This feature allows you to store up to 24 preset stations. You can store six AM, six FM, six WX (weather), and six XM™, if equipped. To store presets, do the following:

1. Turn the audio system on or select the BAND hard key.

2. Select the audio band.

3. Seek, scan, or tune to the desired station.

4. Press and hold one of the six preset screen buttons for more than two seconds or until you hear a beep.

5. Press the the tone, Digital Signal Processing (DSP), fade, and balance. The screen will time out and the changes will be stored to the preset station.

6. Repeat the steps for each preset.

e (audio adjust) hard key to adjust

A.B.C Preset Stations

A.B.C: This feature allows you to store up to

42 presets, six stations in seven different lists. The presets within each list can be mixed: AM, FM, or XM™, if equipped. The list names are A - G.

Press the A.B.C screen button to enter this feature. Press the left/right arrow buttons to scroll through the lists. The name of the list is displayed between the two arrows and the presets for each list are displayed on the preset buttons. These presets are in addition to any preset stations that may already be stored. To exit this feature, press the A.B.C screen button.

To store the A.B.C presets, do the following:

1. Turn the audio system on or select the BAND hard key.

2. Select the A.B.C screen button.

3. Scroll to the desired list (A - G).

4. Select the audio band. The presets within each list can be mixed: AM, FM, or XM™, if equipped.

5. Seek, scan, or tune to the desired station.

6. Press and hold one of the six preset screen buttons for more than two seconds or until you hear a beep.

7. Press the the tone, Digital Signal Processing (DSP), fade, and balance. The screen will time out and the changes will be stored to the preset station.

8. Repeat the steps for each preset and list.

e (audio adjust) hard key to adjust

Audio Adjust

(Audio Adjust): Touch this hard key to access the AUDIO ADJUST menu and to adjust the tone, Digital Signal Processing (DSP), fade, and balance for all sources. The system automatically stores audio adjustment settings as changes are made to a preset station.

the audio to keep it audible above the noise. This feature works best at lower volume settings where background noise may mask the audio. At higher volume settings, where the audio is much louder than the noise, there may be little or no change in the audio level. For additional information on AudioPilot

, please visit

www.bose.com.

To use this feature, touch the Audio Pilot screen button. To turn it off, touch the screen button again. The button will be highlighted when this feature is on.

Multi-channel: When available, touch this screen button to play the DVD Audio source in surround mode. Touch this screen button again to have the audio play in 2-channel mode. The system will play Dolby

and DTS tracks in surround sound. This feature depends on the media in the DVD changer.

Audio Pilot: Your vehicle has Bose AudioPilot noise compensation technology. AudioPilot

monitors the level of noise in the vehicle and automatically increases or decreases the level of

Setting the Tone

Adjusting the Speakers

P (Treble): Touch the plus (+) or minus (−) sign

next to this symbol to increase or decrease the treble. Touch the center position to adjust the setting to the center.

Mid (Mid-range): Touch the plus (+) or minus (−)

sign next to this symbol to increase or decrease the mid-range. Touch the center position to adjust the setting to the center.

D (Bass): Touch the plus (+) or minus (−) sign

next to this symbol to increase or decrease the bass. Touch the center position to adjust the setting to the center.

Z (Speaker): Touch the plus (+) or minus (−)

sign next to this symbol to increase or decrease the speaker when in surround mode or Center Point DSP setting is selected. This feature allows you to increase or decrease the amount of surround sound. Touch the center position to adjust the setting to the center.

Left/Right (Balance): To adjust the balance between the right and the left speakers, touch and hold the Left or Right screen buttons. To center the balance and the fade, touch the center, where the two lines meet.

Front/Rear (Fade): To adjust the fade between the front and the rear speakers, touch and hold the Front or Rear screen buttons. To center the balance and the fade, touch the center, where the two lines meet.

Digital Signal Processing (DSP)

This feature is used to provide a choice of ﬁve different listening experiences. DSP can be used while listening to the audio system or the six-disc DVD changer. The type of DSP selected is displayed on the status line.

You may choose from the following DSP settings:

Center Point: Select this screen button to adjust the audio to get the best sound quality when listening to an XM™ audio source or CD/DVD. This feature creates a multi-channel experience from CDs containing stereo recordings. This feature is not available in AM, FM, or WX (weather).

Normal: For non-surround sound sources only. Select this screen button to adjust the audio to be in normal mode. DSP will be in the off mode.

Driver: For non-surround sound sources only. Select this screen button to adjust the audio to give the driver the best possible sound quality.

Talk: For non-surround sound sources only. Select this screen button when listening to non-musical material such as news, talk shows, and sports broadcasts. Talk makes spoken words sound more clear.

Rear Seat: For non-surround sound sources only. Select this screen button to adjust the audio to give the rear seat occupants the best possible sound quality.

Radio Data System (RDS)

The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following:

• Seek to stations broadcasting the selected

type of programming

• Receive announcements concerning local and

national emergencies

• Display messages from radio stations

• Seek to stations with traffic announcements

This system relies on receiving speciﬁc information from these stations and will only work when the information is available. In rare cases, a radio station may broadcast incorrect information that will cause the radio features to work improperly. If this happens, contact the radio station.

The RDS system is always on. When information is broadcast from the FM station you are listening to, the station name or call letters will be displayed on the audio screen. RDS may provide a program type (PTY) for current programming and the name of the program being broadcasted.

[ ] (No Traffic Announcements): This symbol will appear on the status line when traffic is selected, but the station does not broadcast traffic announcements.

[TA] (Traffic Announcements): This symbol will appear on the status line when the station selected broadcasts traffic announcements. TA announcements will depend on the station.

Info (Information): Select this screen button to display information broadcasted by the RDS station when in FM. This is not available for AM or WX stations.

Category: Select this screen button when in FM to view the program types. They will appear in place of the preset stations. Select a category and the system will start seeking for available stations within the selected category. If none are found, the system will display “None Found” and will return to the last selected station.

To seek to another category, press the seek/scan key. The system will seek to another station in the category.

To scan stations in the category, press the Scan screen button. The system will start scanning the stations in the category. Press the Scan screen button to stop scanning stations.

To exit out of category, select the category screen button and the program types will no longer be displayed.

Each of the six category names displayed, include a grouping of other program types, see the following table. This is not available for AM or WX (weather) stations.

Group Name Category

Rock

Classic Rock

POP

EASY

TALK

CNTRY Country Music

CLASS Classical

JAZZ Jazz Music

Adult Hits

Top 40

Oldies Music

Nostalgia

College

Soft Rock

Soft

R&B

Soft R&B

Religious Music

News

Information

Sports

Talk

Language

Religious Talk

Personality

Public

Weather

XM™ Satellite Radio Service

XM™ is a satellite radio service that is based in the 48 contiguous United States and Canada. XM™ offers a large variety of coast-to-coast channels including music, news, sports, talk, traffic/weather (U.S. subscribers), and children’s programming. XM™ provides digital quality audio and text information that includes the channel name and number, song title, and artist name. A service fee is required in order to receive the XM™ service. For more information, contact XM™; In the U.S. at www.xmradio.com or call 1-800-852-XMXM (9696) or in Canada at www.xmradio.ca or call 1-877-GET-XMSR (438-9677).

When XM™ is active, the channel name and number, song title, and artist will be displayed on the screen.

Info (Information): Select this screen button to display broadcasted Information. Select Info again to remove the broadcasted information from the display.

XL (Explicit Language Channels): XL on the radio display, after the channel name, indicates content with explicit language. These channels, or any others, can be blocked at a customer’s request, by calling 1-800-852-XMXM (9696).

Category: Use this feature to listen to channels in a speciﬁc category.

100

Cadillac STS 2007 Navigation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview ......................................................... 4

Overview

Navigation System Overview

Getting Started

Cleaning the Display

Features and Controls .................................. 16

Features and Controls

Using the Navigation System

Maps

Symbols

Head-Up Display (HUD) (During Route Guidance)

Navigation Menu

Destination

Keyless Access System

OnStar®System

Global Positioning System (GPS)

Vehicle Positioning

Problems with Route Guidance

If the System Needs Service

Ordering Map DVDs

Database Coverage Explanations

Navigation Audio System ............................. 92

Navigation Audio System
