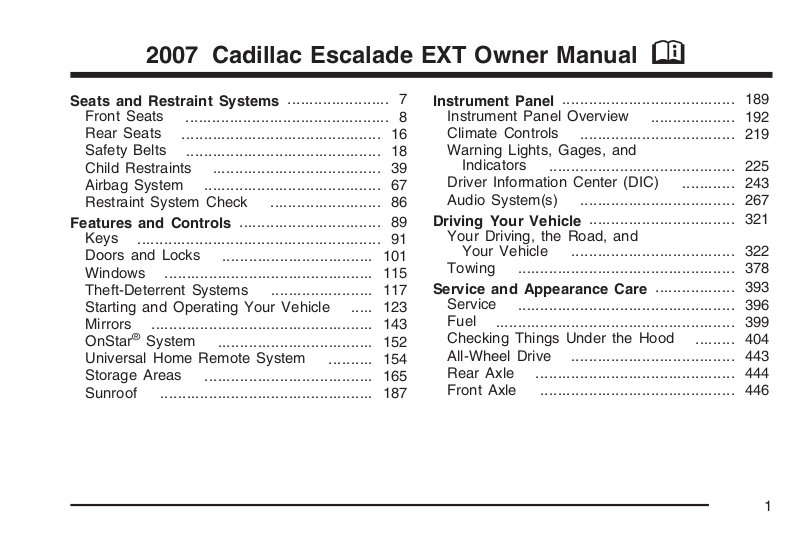

Cadillac Escalade EXT 2007 User Manual

2007 Cadillac Escalade EXT Owner Manual M
Seats and Restraint Systems
Front Seats Rear Seats Safety Belts Child Restraints Airbag System Restraint System Check
Features and Controls
Keys Doors and Locks Windows Theft-Deterrent Systems Starting and Operating Your Vehicle Mirrors OnStar Universal Home Remote System Storage Areas Sunroof
....................................................... 91
®
.............................................. 8
............................................. 16
............................................ 18
...................................... 39
........................................ 67
................................ 89
.................................. 101
............................................... 115
.................................................. 143
System
................................................ 187
................................... 152
...................................... 165
....................... 7
......................... 86
....................... 117
..... 123
.......... 154
Instrument Panel
Instrument Panel Overview Climate Controls Warning Lights, Gages, and
Indicators Driver Information Center (DIC) Audio System(s)
Driving Your Vehicle
Your Driving, the Road, and
Your Vehicle Towing
Service and Appearance Care
Service Fuel Checking Things Under the Hood All-Wheel Drive Rear Axle Front Axle
...................................................... 399
....................................... 189
................................... 219
.......................................... 225
................................... 267
................................. 321
..................................... 322
................................................. 378
................................................. 396
..................................... 443
............................................. 444
............................................ 446
................... 192
............ 243
.................. 393
......... 404
1
Headlamp Aiming Bulb Replacement
................................. 447
................................ 450
Windshield Wiper Blade
Replacement
Tires
..................................................... 454
Appearance Care
..................................... 453
.................................. 496
Vehicle Identification Electrical System
.................................. 509
Capacities and Specifications
2
............................. 508
................ 518
Maintenance Schedule
Maintenance Schedule
.............................. 519
.......................... 520
Customer Assistance Information
Customer Assistance and
Information
Reporting Safety Defects
Index
.......................................................... 565
........................................ 542
...................... 560
............. 541
GENERAL MOTORS, GM, the GM Emblem, CADILLAC, the CADILLAC Crest & Wreath, and the names ESCALADE and EXT are registered trademarks of General Motors Corporation.
This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without notice. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Cadillac Motor Car Division whenever it appears in this manual.
This manual describes features that may be available in this model, but your vehicle may not be equipped with all of them. For example, more than one entertainment system may be offered or your vehicle may have been ordered without a front passenger or rear seats.
Keep this manual in the vehicle, so it will be there if it is ever needed while you are on the road. If the vehicle is sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be obtained from your dealer or from:
Helm, Incorporated P.O. Box 07130 Detroit, MI 48207
Litho in U.S.A. Part No. 15854798 A First Printing
©
2006 General Motors Corporation. All Rights Reserved.
3
How to Use This Manual
Many people read the owner manual from beginning to end when they first receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Index
A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.
Safety Warnings and Symbols
There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning.
{CAUTION:
These mean there is something that could hurt you or other people.
In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you do not, you or others could be hurt.
You will also find a circle with a slash through it in this book. This safety symbol means “Do Not,” “Do Not do this” or “Do Not let this happen.”
4
Vehicle Damage Warnings
Vehicle Symbols
Also, in this manual you will find these notices:
Notice: These mean there is something that could damage your vehicle.
A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly. But the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words.
There are also warning labels on the vehicle. They use the same words, CAUTION or NOTICE.
The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gage, or indicator.
If you need help figuring out a specific name of a component, gage, or indicator, reference the following topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in
Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
5
These are some examples of symbols that may be found on the vehicle:
6

Section 1 Seats and Restraint Systems

Front Seats ..................................................... 8
Power Seats ................................................. 8
Power Lumbar .............................................. 9
Heated Seats .............................................. 10
Heated and Cooled Seats ........................... 11
Memory Seat, Mirrors, and Pedals .............. 12
Power Reclining Seatbacks ......................... 14
Head Restraints .......................................... 15
Rear Seats .................................................... 16
Rear Seat Operation ................................... 16
Safety Belts .................................................. 18
Safety Belts: They Are for Everyone ........... 18
Questions and Answers About Safety Belts .... 22
How to Wear Safety Belts Properly ............. 23
Driver Position ............................................. 23
Shoulder Belt Height Adjustment ................. 30
Safety Belt Use During Pregnancy .............. 31
Right Front Passenger Position ................... 31
Rear Seat Passengers ................................ 32
Rear Safety Belt Comfort Guides ................ 35
Safety Belt Pretensioners ............................ 38
Safety Belt Extender ................................... 38
Child Restraints ............................................ 39
Older Children ............................................. 39
Infants and Young Children ......................... 42
Child Restraint Systems .............................. 45
Where to Put the Restraint .......................... 50
Lower Anchors and Tethers for
Children (LATCH) .................................... 51
Securing a Child Restraint in a Rear
Seat Position ........................................... 60
Securing a Child Restraint in the Right
Front Seat Position .................................. 62
Airbag System .............................................. 67
Where Are the Airbags? .............................. 70
When Should an Airbag Inflate? .................. 73
What Makes an Airbag Inflate? ................... 75
How Does an Airbag Restrain? ................... 76
What Will You See After an Airbag
Inflates? ................................................... 76
Passenger Sensing System ......................... 78
Servicing Your Airbag-Equipped Vehicle ...... 84
Adding Equipment to Your
Airbag-Equipped Vehicle .......................... 85
Restraint System Check ............................... 86
Checking the Restraint Systems .................. 86
Replacing Restraint System Parts
After a Crash ........................................... 87
7

Front Seats

Power Seats

Driver’s Seat with Power Seat Control, Power
Recline, and Power Lumbar shown
The power seat controls are located on the outboard side of the front seats.
Move the seat forward or rearward by sliding
the control forward or rearward.
Raise or lower the front part of the seat cushion
by moving the front of the control up or down.
Raise or lower the rear part of the seat cushion
by moving the rear of the control up or down.
Raise or lower the entire seat by moving the
entire control up or down.
The power reclining seatback control is located behind the power seat control on the outboard side of the seats. See Power Reclining Seatbacks on page 14.
Your vehicle has a memory function which allows seat settings to be saved and recalled. See Memory Seat, Mirrors, and Pedals on page 12.
8

Power Lumbar

If the seats have power lumbar, the controls used to operate this feature are located on the outboard side of the seats.
To increase lumbar support, press and hold
the front of the control.
To decrease lumbar support, press and hold
the rear of the control.
To raise the height of the lumbar support,
press and hold the top of the control.
To lower the height of the lumbar support,
press and hold the bottom of the control.
Release the control when the lower seatback reaches the desired level of lumbar support.
Your vehicle may have a memory function which allows seat settings to be saved and recalled. See Memory Seat, Mirrors, and Pedals on page 12 for more information.
Keep in mind that as your seating position changes, as it may during long trips, so should the position of your lumbar support. Adjust the seat as needed.
9

Heated Seats

If the front seats have the heated seat feature, the buttons used to control this feature are located on the climate control panel.
+ (Heated Seatback): To heat only the
seatback, press the top button with the heated seatback symbol.
This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seatback off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low.
z (Heated Seat and Seatback): To heat the
entire seat, press the bottom button with the heated seat and seatback symbol.
This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seat off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low.
The heated seats will be canceled ten seconds after the ignition is turned off. If you want to use the heated seat feature after you restart the vehicle, you will need to press the appropriate heated seat button again.
If your vehicle has heated and cooled seats, see Heated and Cooled Seats on page 11.
10

Heated and Cooled Seats

If the front seats have the heated and cooled seat feature, the buttons used to control this feature are located on the climate control panel.
{ (Cooled Seat): To cool the entire seat, press
the button with the cooled seat symbol.
This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the cooled seat off. Indicator bars next to the symbol designate the level of cooling selected: three for high, two for medium, and one for low.
+ (Heated Seatback): To heat only the
seatback, press the button with the heated seatback symbol.
This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seatback off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low.
z (Heated Seat and Seatback): To heat
the entire seat, press the button with the heated seat and seatback symbol.
This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seat off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low.
The heated and cooled seats will be canceled after the ignition is turned off. If you want to use the heated and cooled seat feature after you restart your vehicle, you will need to press the appropriate seat button again.
11

Memory Seat, Mirrors, and Pedals

Your vehicle has the memory package.
The controls for this feature are located on the driver’s door, and are used to program and recall memory settings for the driver’s seat, outside mirrors, and the adjustable throttle and brake pedal feature, if your vehicle has it.
To save your positions in memory, do the following:
1. Adjust the driver’s seat, including the seatback recliner and lumbar, both outside mirrors, and the throttle and brake pedals to a comfortable position.
See Outside Power Foldaway Mirrors on
page 149 and Adjustable Throttle and Brake Pedal on page 128 for more information.
Not all mirrors will have the ability to save and recall the mirror positions.
2. Press and hold button 1 until two beeps let you know that the position has been stored.
A second seating, mirror, and throttle and brake pedal position can be programmed by repeating the above steps and pressing button 2.
To recall the memory positions, the vehicle must be in PARK (P). Press and release either button 1 or button 2 corresponding to the desired driving position. The seat, outside mirrors, and adjustable throttle and brake pedals will move to the position previously stored. You will hear a single beep.
12
If you use the remote keyless entry transmitter to enter your vehicle and the remote recall memory feature is on, automatic seat, mirror, and adjustable pedal movement will occur. See “MEMORY SEAT RECALL” under DIC Vehicle Customization on page 257 for more information.
To stop recall movement of the memory feature at any time, press one of the power seat controls, memory buttons, power mirror buttons, or adjustable pedal switch.
If something has blocked the driver’s seat and/or the adjustable pedals while recalling a memory position, the driver’s seat and/or the adjustable pedals recall may stop working. If this happens, remove the obstruction and press the appropriate function control for two seconds. Then try recalling the memory position again by pressing the appropriate memory button. If the memory position is still not recalling, see your dealer for service.
Easy Exit Seat
The control for this feature is located on the driver’s door between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can be recalled by pressing the exit button. You will hear a single beep. The driver’s seat will move back.
If the easy exit seat feature is on in the Driver Information Center (DIC), automatic seat movement will occur when the key is removed from the ignition. See “EASY EXIT SEAT” under DIC Vehicle Customization on page 257 for more information.
Further programming for the memory seat feature can be done using the DIC. You can select the automatic easy exit seat feature or the remote memory seat recall feature.
For programming information, see DIC Vehicle Customization on page 257.
13

Power Reclining Seatbacks

Driver’s Seat with Power Seat Control, Power
Recline, and Power Lumbar shown
The controls for the power reclining seatback are located on the outboard side of the front seats behind the power seat control.
To recline the seatback, tilt the top of the
control rearward.
To bring the seatback forward, tilt the top of
the control forward.
{CAUTION:
Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this.
CAUTION: (Continued)
14
CAUTION: (Continued)
The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
The lap belt cannot do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.
For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

Head Restraints

Do not have a seatback reclined if your vehicle is moving.
Your vehicle has a memory function which allows seat settings to be saved and recalled. See Memory Seat, Mirrors, and Pedals on page 12.
Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash.
15
Pull the head restraint up to raise it. To lower the head restraint, press the release button (A), located on the top of the seatback, while you push the head restraint down.
The front seats may have head restraints that also tilt forward and rearward.
To tilt the head restraint, grasp the top of the restraint while pressing the button (B), located on the inboard side of the head restraint, and move it forward or rearward until the desired locking position is reached. Try to move the head restraint after the button is released to make sure that it is locked in place.
The second row seats may have head restraints that can be adjusted up and down, but they do not tilt.

Rear Seats

Rear Seat Operation

The rear seat is a 60/40 split bench seat that can be folded to give you more cargo space and access to the folding midgate. See Midgate page 104 for more information on operation of the folding midgate.
To fold either side of the seat do the following:
1. Push the rear seat head restraints all the way down.
2. Pull the seat loop located where the seatback and seat cushion meet. The seat cushion will release and allow you to tilt it toward the front of the vehicle.
®
on
16
Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.
3. Fold the seatback forward until it is flat. You may have to move the front seats forward slightly to do this.
4. Repeat the procedure for the other side.
To return the seats to the normal position, push the seatback up and fold the seat cushion down.
{CAUTION:
A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
{CAUTION:
If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always be sure to press the rear of the seat cushion down. This action locks the seatback in place.
Push and pull on the seatback to make sure it is locked. Raise the head restraint.
17

Safety Belts

Safety Belts: They Are for Everyone

This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot wear a safety belt properly. If you are in a crash and you are not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.
Your vehicle has indicators to remind you and your passengers to buckle your safety belts. See
Safety Belt Reminder Light on page 228 and Passenger Safety Belt Reminder Light on page 228.
18
In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work.
You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed.
After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it is just a seat on wheels.
19
Put someone on it. Get it up to speed. Then stop the vehicle. The
rider does not stop.
20
The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
or the instrument panel...
21
or the safety belts!
With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.

Questions and Answers About Safety Belts

Q: Will I be trapped in the vehicle after an
accident if I am wearing a safety belt?
A: You could be — whether you are wearing a
safety belt or not. But you can unbuckle a safety belt, even if you are upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Q: If my vehicle has airbags, why should I
have to wear safety belts?
A: Airbags are in many vehicles today and will be
in most of them in the future. But they are supplemental systems only; so they work with safety belts — not instead of them. Every airbag system ever offered for sale has required the use of safety belts. Even if you are in a vehicle that has airbags, you still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions.
22
Q: If I am a good driver, and I never drive
far from home, why should I wear safety belts?
A: You may be an excellent driver, but if you are
in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h).
Safety belts are for everyone.

How to Wear Safety Belts Properly

This part is only for people of adult size.
Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see
Older Children on page 39 or Infants and Young Children on page 42. Follow those rules for
everyone’s protection.
First, you will want to know which restraint systems your vehicle has.
We will start with the driver position.

Driver Position

Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index.
23
3. Pick up the latch plate and pull the belt across you. Do not let it get twisted.
The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 38.
Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
5. Move the shoulder belt height adjuster to the height that is right for you. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash. See Shoulder Belt Height Adjustment on page 30.
6. To make the lap part tight, pull up on the shoulder belt.
24
The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries.
The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
The safety belt locks if there is a sudden stop or crash, or if you pull the belt very quickly out of the retractor.
25
Q: What is wrong with this?
A: The shoulder belt is too loose. It will not give
nearly as much protection this way.
{CAUTION:
You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
26
Q: What is wrong with this?
A: The belt is buckled in the wrong place.
{CAUTION:
You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.
27
Q: What is wrong with this?
A: The shoulder belt is worn under the arm.
It should be worn over the shoulder at all times.
{CAUTION:
You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.
28
Q: What is wrong with this?
A: The belt is twisted across the body.
{CAUTION:
You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
29
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way.
Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.

Shoulder Belt Height Adjustment

Before you begin to drive, move the shoulder belt adjuster to the height that is right for you.
Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash.
To move it down, squeeze the buttons (A) on the sides of the height adjuster and move the height adjuster to the desired position.
You can move the adjuster up just by pushing up on the shoulder belt guide.
After you move the adjuster to where you want it, try to move it down without squeezing the buttons to make sure it has locked into position.
30
Loading...
+ 550 hidden pages
