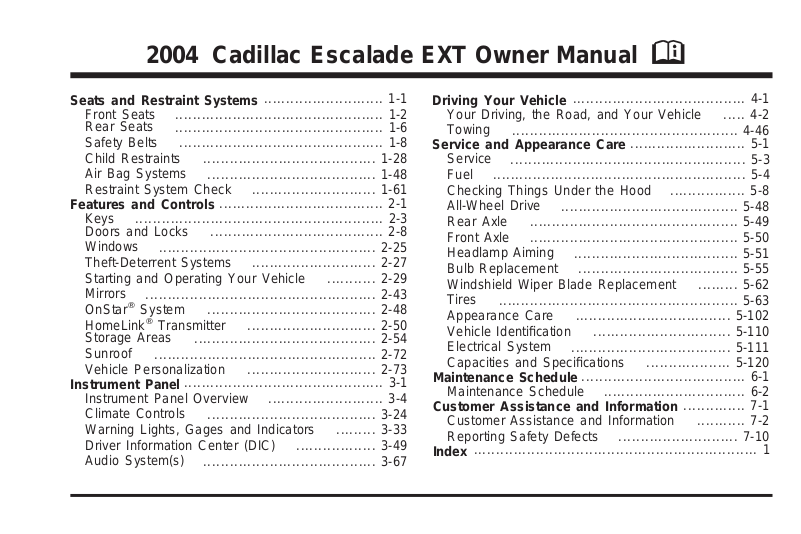

2004 Cadillac Escalade EXT Owner Manual M

Seats and Restraint Systems

Front Seats Rear Seats

Safety Belts Child Restraints Air Bag Systems Restraint System Check

Features and Controls

Keys Doors and Locks

Windows Theft-Deterrent Systems Starting and Operating Your Vehicle Mirrors

OnStar HomeLink

Storage Areas Sunroof Vehicle Personalization

Instrument Panel

Instrument Panel Overview Climate Controls Warning Lights, Gages and Indicators Driver Information Center (DIC) Audio System(s)

............................................... 1-2

............................................... 1-6

.............................................. 1-8

....................................... 1-28

...................................... 1-48

........................................................ 2-3

................................................. 2-25

.................................................... 2-43

System

Transmitter

.................................................. 2-72

....................................... 2-8

...................................... 2-48

......................................... 2-54

............................................. 3-1

...................................... 3-24

....................................... 3-67

........................... 1-1

............................ 1-61

..................................... 2-1

............................ 2-27

............................. 2-50

............................. 2-73

.......................... 3-4

........... 2-29

......... 3-33

.................. 3-49

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle Towing

Service and Appearance Care

Service Fuel Checking Things Under the Hood All-Wheel Drive Rear Axle Front Axle Headlamp Aiming Bulb Replacement Windshield Wiper Blade Replacement Tires Appearance Care Vehicle Identiﬁcation Electrical System Capacities and Speciﬁcations

Maintenance Schedule

Customer Assistance and Information

Customer Assistance and Information Reporting Safety Defects

Index

................................................... 4-46

..................................................... 5-3

......................................................... 5-4

...................................................... 5-63

................................................................ 1

....................................... 4-1

.......................... 5-1

................. 5-8

........................................ 5-48

............................................... 5-49

............................................... 5-50

..................................... 5-51

.................................... 5-55

................................... 5-102

............................... 5-110

.................................... 5-111

................... 5-120

..................................... 6-1

................................ 6-2

........................... 7-10

..... 4-2

......... 5-62

.............. 7-1

........... 7-2

Page 2

Canadian Owners

You can obtain a French copy of this manual from your dealer or from:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

GENERAL MOTORS, GM, the GM Emblem, CADILLAC, the CADILLAC Crest & Wreath and the name ESCALADE are registered trademarks and the name EXT is a trademark of General Motors Corporation.

This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Cadillac Motor Car Division whenever it appears in this manual.

Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it.

Litho in U.S.A. Part No. S2418 A First Edition

How to Use This Manual

Many people read their owner’s manual from beginning to end when they ﬁrst receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you will ﬁnd that pictures and words work together to explain things.

Index

A good place to look for what you need is the Index in back of the manual. It is an alphabetical list of what is in the manual, and the page number where you will ﬁnd it.

Page 3

Safety Warnings and Symbols

You will ﬁnd a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning.

{CAUTION:

These mean there is something that could hurt you or other people.

In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you or others could be hurt.

You will also ﬁnd a circle with a slash through it in this book. This safety symbol means “Don’t,” “Don’t do this” or “Don’t let this happen.”

iii

Page 4

Vehicle Damage Warnings

Vehicle Symbols

Also, in this book you will ﬁnd these notices:

Notice:

damage your vehicle.

A notice will tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly. But the notice will tell you what to do to help avoid the damage.

When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words.

You’ll also see warning labels on your vehicle. They use the same words, CAUTION or NOTICE.

These mean there is something that could

Your vehicle has components and labels that use symbols instead of text. Symbols, used on your vehicle, are shown along with the text describing the operation or information relating to a speciﬁc component, control, message, gage or indicator.

If you need help ﬁguring out a speciﬁc name of a component, gage or indicator, reference the following topics:

• Seats and Restraint Systems in Section 1

• Features and Controls in Section 2

• Instrument Panel Overview in Section 3

• Climate Controls in Section 3

• Warning Lights, Gages and Indicators in Section 3

• Audio System(s) in Section 3

• Engine Compartment Overview in Section 5

Page 5

These are some examples of symbols you may ﬁnd on your vehicle:

Page 6

✍ NOTES

Page 7

Section 1 Seats and Restraint Systems

Front Seats ......................................................1-2

Power Seats ..................................................1-2

Power Lumbar ...............................................1-3

Heated Seats .................................................1-3

Reclining Seatbacks ........................................1-4

Head Restraints .............................................1-5

Rear Seats .......................................................1-6

Rear Seat Operation .......................................1-6

Safety Belts .....................................................1-8

Safety Belts: They Are for Everyone .................1-8

Questions and Answers About Safety Belts ......1-12

How to Wear Safety Belts Properly .................1-14

Driver Position ..............................................1-14

Safety Belt Use During Pregnancy ..................1-21

Right Front Passenger Position .......................1-22

Rear Seat Passengers ..................................1-22

Rear Safety Belt Comfort Guides for Children

and Small Adults .......................................1-25

Safety Belt Extender .....................................1-27

Child Restraints .............................................1-28

Older Children ..............................................1-28

Infants and Young Children ............................1-30

Child Restraint Systems .................................1-34

Where to Put the Restraint .............................1-37

Top Strap ....................................................1-38

Top Strap Anchor Location .............................1-39

Lower Anchorages and Top Tethers for

Children (LATCH System) ...........................1-40

Securing a Child Restraint Designed for the

LATCH System .........................................1-42

Securing a Child Restraint in a Rear Seat

Position ...................................................1-42

Securing a Child Restraint in the Right Front

Seat Position ............................................1-44

Air Bag Systems ............................................1-48

Where Are the Air Bags? ...............................1-50

When Should an Air Bag Inﬂate? ....................1-52

What Makes an Air Bag Inﬂate? .....................1-53

How Does an Air Bag Restrain? .....................1-54

What Will You See After an Air Bag Inﬂates? ...1-54

Passenger Sensing System ............................1-56

Servicing Your Air Bag-Equipped Vehicle .........1-60

Adding Equipment to Your Air Bag-Equipped

Vehicle ....................................................1-60

Restraint System Check ..................................1-61

Checking Your Restraint Systems ...................1-61

Replacing Restraint System Parts After a

Crash ......................................................1-62

1-1

Page 8

Front Seats

Power Seats

The power seat controls are located on the outboard edge of the front seats.

Horizontal Control: This control adjusts the seat cushion.

• Raise or lower the front of the seat by raising or

lowering the forward edge of the control. Raise or lower the rear of the seat by raising or lowering the rear edge of the control.

• Move the seat forward or rearward by moving the

whole control toward the front or toward the rear of the vehicle.

• Lower or raise the entire seat cushion by moving

the whole control up or down.

Vertical Control: This control adjusts the seatback. Move the reclining front seatback rearward or forward by

moving the control toward the rear or toward the front of the vehicle. This adjusts the angle of the seatback.

For more information on the reclining seatbacks, see

Reclining Seatbacks on page 1-4

Your vehicle may have a memory function which allows seat settings to be saved and recalled. See

Seat on page 2-73

for more information.

Memory

1-2

Page 9

Power Lumbar

Heated Seats

You can increase or decrease lumbar support in an area of the lower seatback.

To increase support, press and hold the front of the control. To decrease support, press and hold the rear of the control. Let go of the control when the lower seatback reaches the desired level of support.

You can also reshape the side wing area of the lower seatback for more lateral support.

To increase support, press and hold the top of the control. To decrease support, press and hold the bottom of the control. Let go of the control when the lower seatback reaches the desired level of support.

Your vehicle may have a memory function which allows seat settings to be saved and recalled. See

Seat on page 2-73

for more information.

Memory

The buttons used to control this feature are located on the front doors. The engine must be running for the heated seat feature to work.

To heat the entire seat, press the horizontal button with the heated seat symbol. Press the button to cycle through the temperature settings of high, medium and low and to turn the heated seat off. Indicator lights will glow to designate the level of heat selected, three for high, two for medium, and one for low.

1-3

Page 10

The low setting warms the seatback and cushion until the seat temperature is near body temperature. The medium and high settings heat the seatback and seat cushion to a slightly higher temperature. You will be able to feel heat in about two minutes.

To heat only the seatback, press the vertical button with the heated seatback symbol. An indicator light on the seatback button will glow to designate that only the seatback is being heated. Additional presses of the seatback button will cycle through the heat levels for the seatback only. Press the horizontal button again to heat the whole seat.

The heated front seats will shut off automatically when the ignition is turned off.

Reclining Seatbacks

Your vehicle’s front seatbacks have a recline feature which is described earlier. See

page 1-2

But don’t have a seatback reclined if your vehicle is moving.

Power Seats on

1-4

Page 11

{CAUTION:

Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this.

The shoulder belt can’t do its job. In a crash, you could go into it, receiving neck or other injuries.

The lap belt can’t do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

Head Restraints

Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash.

Pull straight up on the head restraint to raise it and push it down to lower it.

1-5

Page 12

The front head restraints can also be tilted forward in addition to being slid up or down. To tilt either of the front head restraints do the following:

Pull the head restraint toward you until you hear a click. Then let go. The head restraint will stay in this position unless you pull it forward more until another click is heard. There are four positions available: initial position, ﬁrst click, second click, and third click. After the third position (three clicks) is reached, pulling the head restraint farther will release it back to the normal upright position.

The rear head restraints can be slid up or down just as the front head restraints, but they do not tilt.

Rear Seats

Rear Seat Operation

The rear seat is a 60/40 split rear seat that can be folded to give you more cargo space and access to the folding midgate. See information on operation of the folding midgate.

To fold either side of the seat do the following:

1. Push the rear head restraints all the way down.

Midgate on page 2-13

2. Pull the seat loop located where the seatback and seat cushion meet. The seat cushion will release and allow you to tilt it toward the front of the vehicle.

for more

1-6

Page 13

{CAUTION:

If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.

{CAUTION:

3. Grasp the seatback and pull it toward the front of the vehicle. Push it down until it is ﬂat. You may have to move the front seats forward slightly to do this.

4. Repeat the procedure for the other side.

To return the seats to the normal position, pull the seatback up and fold the seat cushion down.

A safety belt that is improperly routed, not properly attached, or twisted won’t provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

1-7

Page 14

Safety Belts

Safety Belts: They Are for Everyone

This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts.

{CAUTION:

Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.

{CAUTION:

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Your vehicle has a light that comes on as a reminder to buckle up. See

Safety Belt Reminder Light on page 3-35

1-8

Page 15

In most states and in all Canadian provinces, the law says to wear safety belts. Here’s why:

You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one.

A few crashes are mild, and some crashes can be so serious that even buckled up, a person wouldn’t survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed.

After more than 30 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter... a lot!

They work

Why Safety Belts Work

When you ride in or on anything, you go as fast as it goes.

Take the simplest vehicle. Suppose it’s just a seat on wheels.

1-9

Page 16

Put someone on it. Get it up to speed. Then stop the vehicle. The rider

1-10

doesn’t stop.

Page 17

The person keeps going until stopped by something. In a real vehicle, it could be the windshield...

or the instrument panel...

1-11

Page 18

Questions and Answers About Safety Belts

Q: Won’t I be trapped in the vehicle after an

accident if I’m wearing a safety belt?

or the safety belts! With safety belts, you slow down as the vehicle does.

You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.

1-12

A: You

could

be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down. And your chance of being conscious during and after an accident,

can

so you you are belted.

unbuckle and get out, is

much

greater if

Page 19

Q: If my vehicle has air bags, why should I have to

wear safety belts?

Q: If I’m a good driver, and I never drive far from

home, why should I wear safety belts?

A: Air bags are in many vehicles today and will be in

most of them in the future. But they are supplemental systems only; so they work safety belts – not instead of them. Every air bag system ever offered for sale has required the use of safety belts. Even if you’re in a vehicle that has air bags, you still have to buckle up to get the most protection. That’s true not only in frontal collisions, but especially in side and other collisions.

with

A: You may be an excellent driver, but if you’re in an

accident – even one that isn’t your fault – you and your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers.

Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h).

Safety belts are for everyone.

1-13

Page 20

How to Wear Safety Belts Properly

This part is only for people of adult size. Be aware that there are special things to know about

safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see or

Infants and Young Children on page 1-30

those rules for everyone’s protection. First, you’ll want to know which restraint systems your

vehicle has. We’ll start with the driver position.

Older Children on page 1-28

. Follow

Driver Position

This part describes the driver’s restraint system.

Lap-Shoulder Belt

The driver has a lap-shoulder belt. Here’s how to wear it properly.

1. Close and lock the door.

2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index.

3. Pick up the latch plate and pull the belt across you. Don’t let it get twisted.

4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.

If the belt isn’t long enough, see

Extender on page 1-27

Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

Safety Belt

1-14

Page 21

5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt.

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

The safety belt locks if there’s a sudden stop or a crash.

1-15

Page 22

Q: What’s wrong with this?

A: The shoulder belt is too loose. It won’t give nearly

as much protection this way.

{CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.

1-16

Page 23

Q: What’s wrong with this?

A: The belt is buckled in the wrong place.

{CAUTION:

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

1-17

Page 24

Q: What’s wrong with this?

A: The belt is over an armrest.

{CAUTION:

You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests.

1-18

Page 25

Q: What’s wrong with this?

A: The shoulder belt is worn under the arm. It should

be worn over the shoulder at all times.

{CAUTION:

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren’t as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.

1-19

Page 26

Q: What’s wrong with this?

A: The belt is twisted across the body.

{CAUTION:

You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.

1-20

Page 27

To unlatch the belt, just push the button on the buckle. The belt should go back out of the way.

Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.

Safety Belt Use During Pregnancy

Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts.

A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

1-21

Page 28

The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.

Right Front Passenger Position

To learn how to wear the right front passenger’s safety belt properly, see

The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature which may turn off the passenger’s frontal air bag. If this happens unintentionally, just let the belt go back all the way and start again.

Driver Position on page 1-14

Rear Seat Passengers

It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts.

Rear passengers who are not safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

1-22

Page 29

Lap-Shoulder Belt

All rear seat positions have lap-shoulder belts. Here is how to wear a lap-shoulder belt properly.

1. Pick up the latch plate and pull the belt across you. Do not let it get twisted.

2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.

When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.

If the belt is not long enough, see

Extender on page 1-27

Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part.

Safety Belt

1-23

Page 30

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

The safety belt locks if there is a sudden stop or a crash.

{CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.

1-24

Page 31

To unlatch the belt, just push the button on the buckle.

Rear Safety Belt Comfort Guides for Children and Small Adults

Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.

There is one guide for each passenger in the rear seat. Here is how to install a comfort guide and use the safety belt:

1. Remove the guide from the storage clip on the side of the rear seatback.

1-25

Page 32

2. Place the guide over the belt and insert the two edges of the belt into the slots of the guide.

1-26

3. Be sure that the belt is not twisted and it lies ﬂat. The guide must be on top of the belt.

Page 33

4. Buckle, position and release the safety belt as described in Make sure that the shoulder belt crosses the shoulder.

To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides. Slide the guide onto the storage clip. Be sure to remove the comfort guide from the belt before folding the seat.

Rear Seat Passengers on page 1-22

Safety Belt Extender

If the vehicle’s safety belt will fasten around you, you should use it.

But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. The extender will be just for you, and just for the seat in your vehicle that you choose. Don’t let someone else use it, and use it only for the seat it is made to ﬁt. To wear it, just attach it to the regular safety belt.

1-27

Page 34

Child Restraints

Older Children

Older children who have outgrown booster seats should wear the vehicle’s safety belts.

If you have the choice, a child should sit in a seat that has a lap-shoulder belt to get the additional restraint a shoulder belt can provide.

Q: What is the proper way to wear safety belts? A: If possible, an older child should wear a

lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash.

Accident statistics show that children are safer if they are restrained in the rear seat.

In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly.

1-28

Page 35

{CAUTION:

Never do this. Here two children are wearing the same belt.

The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.

Q: What if a child is wearing a lap-shoulder belt,

but the child is so small that the shoulder belt is very close to the child’s face or neck?

A: If the child is sitting in a rear seat outside position,

move the child toward the center of the vehicle. If the child is sitting in the center position, move the child toward the safety belt buckle. In either case, be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. See

Children and Small Adults on page 1-25

child is so small that the shoulder belt is still very close to the child’s face or neck, you might want to place the child in a seat that has a lap belt, if your vehicle has one.

Rear Safety Belt Comfort Guides for

.Ifthe

1-29

Page 36

{CAUTION:

Never do this. Here a child is sitting in a seat that has a

lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.

Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.

Infants and Young Children

Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

1-30

Page 37

Every time infants and young children ride in vehicles, they should have the protection provided by appropriate restraints. Young children should not use the vehicle’s adult safety belts alone, unless there is no other choice. Instead, they need to use a child restraint.

{CAUTION:

People should never hold a baby in their arms while riding in a vehicle. A baby doesn’t weigh much -- until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint.

1-31

Page 38

{CAUTION:

Children who are up against, or very close to, any air bag when it inﬂates can be seriously injured or killed. Air bags plus lap-shoulder belts offer outstanding protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide.

Q: What are the different types of add-on child

restraints?

A: Add-on child restraints, which are purchased by

the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.

1-32

Page 39

For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.

The restraint manufacturer’s instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs.

{CAUTION:

Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders. Infants always should be secured in appropriate infant restraints.

{CAUTION:

The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that’s unprotected by any bony structure. This alone could cause serious or fatal injuries. Young children always should be secured in appropriate child restraints.

1-33

Page 40

Child Restraint Systems

An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.

A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint.

1-34

Page 41

A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.

A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.

1-35

Page 42

Q: How do child restraints work? A: A child restraint system is any device designed for

use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.

For many years, add-on child restraints have used the adult belt system in the vehicle. To help reduce the chance of injury, the child also has to be secured within the restraint. The vehicle’s belt system secures the add-on child restraint in the vehicle, and the add-on child restraint’s harness system holds the child in place within the restraint.

One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps and a crotch strap. A shield may take the place of hip straps.

A T-shaped shield has shoulder straps that are attached to a ﬂat pad which rests low against the child’s body. A shelf- or armrest-type shield has straps that are attached to a wide, shelf-like shield that swings up or to the side.

When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards.

Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system or the LATCH system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury. When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.

1-36

Page 43

Where to Put the Restraint

Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors recommends that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.

Your vehicle has a rear seat that will accommodate a rear-facing child restraint. A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the air bag deploys.

{CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating air bag.

CAUTION: (Continued)

Even though the passenger sensing system is designed to turn off the passenger’s frontal air bag if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an air bag will not deploy under some unusual circumstance, even though it is turned off. General Motors recommends that rear-facing child restraints be secured in the rear seat, even if the air bag is off.

If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

Wherever you install it, be sure to secure the child restraint properly.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle – even when no child is in it.

1-37

Page 44

Top Strap

Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored. Others require the top strap always to be anchored. Be sure to read and follow the instructions for your child restraint. If yours requires that the top strap be anchored, do not use the restraint unless it is anchored properly.

If the child restraint does not have a top strap, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available.

In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored.

1-38

Page 45

{CAUTION:

Each top tether bracket is designed to anchor only one child restraint. Attaching more than one child restraint to a single bracket could cause the anchor to come loose or even break during a crash. A child or others could be injured if this happens. To help prevent injury to people and damage to your vehicle, attach only one child restraint per bracket.

Anchor the top strap to one of the following anchor points. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed.

Raise the head restraint and route the top strap under it. See

Head Restraints on page 1-5

Once you have the top strap anchored, you will be ready to secure the child restraint itself. Tighten the top strap when and as the child restraint manufacturer’s instructions say.

Top Strap Anchor Location

60/40 Split Rear Seat Folded

An anchor loop bracket for a top strap is located on the back of the rear seat frame above the ﬂoor for each rear seating position. In order to get to the brackets, you’ll have to fold the rear seatback(s). See

Operation on page 1-6

rear seatbacks.

for information on folding the

Rear Seat

1-39

Page 46

Do not use a child restraint with a top strap in the right front passenger’s position, because there is no place to anchor the top strap.

Lower Anchorages and Top Tethers for Children (LATCH System)

Your vehicle has the LATCH system. You will ﬁnd anchors (A) in the center and right side passenger second row seating positions.

This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. Instead, it uses vehicle anchors (A, B) and child restraint attachements to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether strap (C).

1-40

Page 47

In order to use the LATCH system in your vehicle, you need a child restraint designed for that system.

To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a visible metal anchorage point in the seat where the seatback meets the seat cushion.

{CAUTION:

If a LATCH-type child restraint is not attached to its anchorage points, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchorage points, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual.

1-41

Page 48

Securing a Child Restraint Designed for the LATCH System

1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion.

2. Put the child restraint on the seat.

3. Attach and tighten the LATCH attachments on the child restraint to the LATCH anchorages in the vehicle. The child restraint instructions will show you how.

4. If the child restraint is forward-facing, attach and tighten the top tether to the top tether anchorage. The child restraint instructions will show you how. Also see

5. Push and pull the child restraint in different directions to be sure it is secure.

To remove the child restraint, simply unhook the top tether from the top tether anchorage and then disconnect the LATCH attachments from the LATCH anchorages.

Top Strap on page 1-38

Securing a Child Restraint in a Rear Seat Position

If your child restraint is equipped with the LATCH system see

Children (LATCH System) on page 1-40 on page 1-38

If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

1. Put the restraint on the seat.

2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

Lower Anchorages and Top Tethers for

if the child restraint has one.

. See

Top Strap

1-42

Page 49

3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock.

1-43

Page 50

5. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.

6. Push and pull the child restraint in different directions to be sure it is secure.

To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.

Securing a Child Restraint in the Right Front Seat Position

Your vehicle has a right front passenger air bag. A rear seat is a safer place to secure a forward-facing child restraint. See

In addition, your vehicle may have the passenger sensing system. The passenger sensing system is designed to turn off the right front passenger’s frontal air bag when an infant in a rear-facing infant seat or a small child in a forward-facing child restraint or booster seat is detected. See

on page 1-56 on page 3-36

important safety information.

Where to Put the Restraint on page 1-37

and for more information on this including

Passenger Sensing System

Passenger Air Bag Status Indicator

1-44

Page 51

A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the air bag deploys.

{CAUTION:

If you need to secure a forward-facing child restraint in the right front seat position, move the seat as far back as it will go before securing the forward-facing child restraint. See

Power Seats on page 1-2

If your child restraint is equipped with the LATCH system, see

Children (LATCH System) on page 1-40

You will be using the lap-shoulder belt to secure the child restraint in this position. See

page 1-38

follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

1. Your vehicle has a right front passenger’s frontal air bag. See General Motors recommends that rear-facing child restraints be secured in a rear seat, even if the air bag is off. If your child restraint is forward-facing, move the seat as far back as it will go before securing the child restraint in this seat. See

When the passenger sensing system has turned off the right front passenger’s frontal air bag, the off indicator in the passenger air bag status indicator should light and stay lit when you turn the ignition to RUN or START. See

Indicator on page 3-36

2. Put the child restraint on the seat.

3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

Lower Anchorages and Top Tethers for

Top Strap on

if your child restraint has one. Be sure to

Passenger Sensing System on page 1-56

Power Seats on page 1-2

Passenger Air Bag Status

1-45

Page 52

4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

1-46

5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock.

Page 53

6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt. You should not be able to pull more of the belt from the retractor once the lock has been set.

7. Push and pull the child restraint in different directions to be sure it is secure.

8. If your vehicle has the passenger sensing system and the air bag is off, the off indicator will be lit and stay lit in the inside rearview mirror when the key is turned to RUN or START.

If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint.

If after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion. If this happens, slightly recline the vehicle’s seatback and adjust the seat cushion if possible. Also make sure the child restraint is not trapped under the vehicle head restraint. If this happens, adjust the head restraint.

If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle and check with your dealer.

1-47

Page 54

Air Bag Systems

This part explains the frontal and side impact air bag systems.

Your vehicle has four air bags – a frontal air bag for the driver, another frontal air bag for the right front passenger, a side impact air bag for the driver, and another side impact air bag for the right front passenger.

Frontal air bags are designed to help reduce the risk of injury from the force of an inﬂating frontal air bag. But these air bags must inﬂate very quickly to do their job and comply with federal regulations.

Here are the most important things to know about the air bag systems:

{CAUTION:

You can be severely injured or killed in a crash if you are not wearing your safety belt – even if you have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Air bags are designed to work with safety belts but do not replace them.

CAUTION: (Continued)

Frontal air bags for the driver and right front passenger are designed to deploy only in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear or low-speed frontal crashes, or in many side crashes. And, for some unrestrained occupants, frontal air bags may provide less protection in frontal crashes than more forceful air bags have provided in the past.

The side impact air bags for the driver and right front passenger are designed to inﬂate only in moderate to severe crashes where something hits the side of your vehicle. They are not designed to inﬂate in frontal, in rollover or in rear crashes.

Everyone in your vehicle should wear a safety belt properly – whether or not there is an air bag for that person.

1-48

Page 55

{CAUTION:

CAUTION: (Continued)

Both frontal and side impact air bags inﬂate with great force, faster than the blink of an eye. If you’re too close to an inﬂating air bag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for air bag inﬂation before and during a crash. Always wear your safety belt, even with frontal air bags. The driver should sit as far back as possible while still maintaining control of the vehicle. Front occupants should not lean on or sleep against the door.

{CAUTION:

Anyone who is up against, or very close to, any air bag when it inﬂates can be seriously injured or killed. Air bags plus lap-shoulder belts offer

CAUTION: (Continued)

the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see the part of this manual called “Older Children” or “Infants and Young Children.”

There is a air bag readiness light on the instrument panel cluster, which shows the air bag symbol.

The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See for more information.

Air Bag Readiness Light on page 3-36

1-49

Page 56

Where Are the Air Bags?

The driver’s frontal air bag is in the middle of the steering wheel.

The right front passernger’s frontal air bag is in the instrument panel on the passenger’s side.

1-50

Page 57

The driver’s side impact air bag is in the side of the driver’s seatback closest to the door.

The right front passenger’s side impact air bag is in the side of the passenger’s seatback closest to the door.

1-51

Page 58

{CAUTION:

If something is between an occupant and an air bag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering. Don’t let seat covers block the inﬂation path of a side impact air bag.

When Should an Air Bag Inﬂate?

The driver’s and right front passenger’s frontal air bags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact speed is above the system’s designed “threshold level.”

In addition, your vehicle has “dual stage” frontal air bags, which adjust the amount of restraint according to crash severity. For moderate frontal impacts, these air bags inﬂate at a level less than full deployment. For more severe frontal impacts, full deployment occurs. If the front of your vehicle goes straight into a wall that doesn’t move or deform, the threshold level for the reduced deployment is about 10 to 16 mph (16 to 25 km/h), and the threshold level for a full deployment is about 20 to 25 mph (32 to 40 km/h). The threshold level can vary, however, with speciﬁc vehicle design, so that it can be somewhat above or below this range.

If your vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The driver’s and right front passenger’s frontal air bags are not designed to inﬂate in rollovers, rear impacts, or in many side impacts because inﬂation would not help the occupant.

1-52

Page 59

Side impact air bags are designed to inﬂate in moderate to severe side crashes. A side impact air bag will inﬂate if the crash severity is above the system’s designed “threshold level.” The threshold level can vary with speciﬁc vehicle design. Side impact air bags are not designed to inﬂate in frontal or near-frontal impacts, rollovers or rear impacts, because inﬂation would not help the occupant. A side impact air bag will only deploy on the side of the vehicle that is struck.

In any particular crash, no one can say whether an air bag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. For frontal air bags, inﬂation is determined by the angle of the impact and how quickly the vehicle slows down in frontal and near-frontal impacts. For side impact air bags, inﬂation is determined by the location and severity of the impact.

The air bag system is designed to work properly under a wide range of conditions, including off-road usage. Observe safe driving speeds, especially on rough terrain. As always, wear your safety belt. See

Operating Your All-Wheel-Drive Vehicle Off Paved Roads on page 4-17

for tips on off-road driving.

Seat Position Sensors

Vehicle’s with dual stage air bags are also equipped with special sensors which enable the sensing system to monitor the position of both the driver and passenger front seats. The seat position sensor provides information which is used to determine if the air bags should deploy at a reduced level or at full depoyment.

What Makes an Air Bag Inﬂate?

In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the air bag. The inﬂator, the air bag and related hardware are all part of the air bag modules. Frontal air bag modules are located inside the steering wheel and instrument panel. For side impact air bags, the air bag modules are located in the seatback closest to the driver’s and/or right front passenger’s door.

1-53

Page 60

How Does an Air Bag Restrain?

In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle. The air bag supplements the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But the frontal air bags would not help you in many types of collisions, including rollovers, rear impacts, and many side impacts, primarily because an occupant’s motion is not toward the air bag. Side impact air bags would not help you in many types of collisions, including frontal or near frontal collisions, rollovers, and rear impacts, primarily because an occupant’s motion is not toward those air bags. Air bags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions for the driver’s and right front passenger’s frontal air bags, and only in moderate to severe side collisions for vehicles with a driver’s and right front passenger’s side impact air bag.

What Will You See After an Air Bag Inﬂates?

After the air bag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the air bag inﬂated. Some components of the air bag module will be hot for a short time. These components include the steering wheel hub for the driver’s frontal air bag and the instrument panel for the right front passenger’s frontal air bag. For side impact air bags, the side of the seatback closest to the driver’s and/or right front passenger’s door will be hot. The parts of the bag that come into contact with you may be warm, but not too hot to touch. There will be some smoke and dust coming from the vents in the deﬂated air bags. Air bag inﬂation doesn’t prevent the driver from seeing or being able to steer the vehicle, nor does it stop people from leaving the vehicle.

{CAUTION:

When an air bag inﬂates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other

CAUTION: (Continued)

1-54

Page 61

CAUTION: (Continued)

breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inﬂates, then get fresh air by opening a window or a door. If you experience breathing problems following an air bag deployment, you should seek medical attention.

In many crashes severe enough to inﬂate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag.

• Air bags are designed to inﬂate only once. After an

air bag inﬂates, you’ll need some new parts for your air bag system. If you don’t get them, the air bag system won’t be there to help protect you in another crash. A new system will include air bag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.

• Your vehicle is equipped with electronic frontal

sensors which help the sensing system distinguish between a moderate and a more severe frontal impact. Your vehicle is also equipped with a crash sensing and diagnostic module, which records information about the frontal air bag system. The module records information about the readiness of the system and when the system commands air bag inﬂation. It records the status of the driver’s safety belt usage in a crash in which the air bag deploys or a crash in which the air bag nearly deploys. The module also records speed, engine rpm, brake and throttle data.

• Let only qualiﬁed technicians work on your air bag

systems. Improper service can mean that an air bag system won’t work properly. See your dealer for service.

Notice:

or the right front passenger’s air bag, or the air bag covering on the driver’s and right front passenger’s seatback, the bag may not work properly. You may have to replace the air bag module in the steering wheel, both the air bag module and the instrument panel for the right front passenger’s air bag, or both the air bag module and seatback for the driver’s and right front passenger’s side impact air bag. Do not open or break the air bag coverings.

If you damage the covering for the driver’s

1-55

Page 62

Passenger Sensing System

If your rearview mirror has one of the indicators pictured in the following illustrations, your vehicle has a passenger sensing system. The indicator will be visible when you turn your ignition key to START or RUN. The words ON and OFF or the symbol for on and off, will be visible on the rearview mirror during the system check. When the system check is complete, either the word ON or the word OFF, or the symbol for on or the symbol for off will be visible. See

Bag Status Indicator on page 3-36

mirror does not have either of the indicators pictured, then your vehicle does not have the passenger sensing system.

Passenger Air Bag Status Indicator – United States

Passenger Air

. If your rearview

Passenger Air

Bag Status

Indicator – Canada

The passenger sensing system will turn off the right front passenger’s frontal air bag under certain conditions. The driver’s air bag and the side air bags are not part of the passenger sensing system.

The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt. The sensors are designed to detect the presence of a properly-seated occupant and determine if the passenger’s frontal air bag should be enabled (may inﬂate) or not.

1-56

Page 63

{CAUTION:

The passenger sensing system is designed to turn off the right front passenger’s frontal air bag if:

• the right front passenger seat is unoccupied

• the system determines that an infant is present in a

rear-facing infant seat

• the system determines that a small child is present

in a forward-facing child restraint

• the system determines that a small child is present

in a booster seat

• a right front passenger takes his/her weight off of

the seat for a period of time

• the right front passenger seat is occupied by a

smaller person, such as a child who has outgrown child restraints

• or if there is a critical problem with the air bag

system or the passenger sensing system.

When the passenger sensing system has turned off the passenger’s frontal air bag, the off indicator will light and stay lit to remind you that the air bag is off.

If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint following the child restraint manufacturer’s directions and refer to

Securing a Child Restraint in the Right Front

Seat Position on page 1-44

1-57

Page 64

If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle and check with your dealer.

The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal air bag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the air bag to be enabled, the on indicator will light and stay lit to remind you that the air bag is active.

For some children who have outgrown child restraints and for very small adults, the passenger sensing system may or may not turn off the right front passenger’s frontal air bag, depending upon the person’s seating posture and body build. Everyone in your vehicle who has outgrown child restraints should wear a safety belt properly — whether or not there is an air bag for that person.

If a person of adult-size is sitting in the right front passenger’s seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, turn the vehicle off and ask the person to place the seatback in the fully upright position, then sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended. Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and then enable the passenger’s air bag.

1-58

Page 65

{CAUTION:

If the air bag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the air bag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal air bag. See “Air Bag Readiness Light” in the Index for more on this, including important safety information.

Aftermarket equipment, such as seat covers, can affect how well the passenger sensing system operates. You may want to consider not using seat covers or other aftermarket equipment if your vehicle has the passenger sensing system. See

Bag-Equipped Vehicle on page 1-60

information about modiﬁcations that can affect how the system operates.

Adding Equipment to Your Air

for more

{CAUTION:

Stowing of articles under the passenger’s seat or between the passenger’s seat cushion and seatback may interfere with the proper operation of the passenger sensing system.

1-59

Page 66

Servicing Your Air Bag-Equipped Vehicle

Air bags affect how your vehicle should be serviced. There air bag system parts in several places around your vehicle. You don’t want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag system. To purchase a service manual, see

Information on page 7-11

Service Publications Ordering

{CAUTION:

For up to 10 seconds after the ignition key is turned off and the battery is disconnected, an air bag can still inﬂate during improper service. You can be injured if you are close to an air bag when it inﬂates. Avoid yellow connectors. They are probably part of the air bag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualiﬁed to do so.

Air bag systems do not need regular maintenance.

Adding Equipment to Your Air Bag-Equipped Vehicle

Q: Is there anything I might add to the front or

sides of the vehicle that could keep the air bags from working properly?

A: Yes. If you add things that change your vehicle’s

frame, bumper system, front end or side sheet metal or height, they may keep the air bag system from working properly. Also, the air bag system may not work properly if you relocate any of the air bag sensors. If you have any questions about this, you should contact Customer Assistance before you modify your vehicle. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual. See

Satisfaction Procedure on page 7-2

Customer

1-60

Page 67

Q: Because I have a disability, I have to get my

vehicle modiﬁed. How can I ﬁnd out whether this will affect my advanced air bag system?

A: Changing or moving any parts of the front seats,

safety belts, the air bag sensing and diagnostic module (located under the driver’s seat), or the inside rearview mirror can affect the operation of the advanced air bag system. If you have questions, call Customer Assistance. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual. See

Satisfaction Procedure on page 7-2

Customer

Restraint System Check

Checking Your Restraint Systems

Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.

Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away.

Also look for any opened or broken air bag covers, and have them repaired or replaced. (The air bag system does not need regular maintenance.)

1-61

Page 68

Replacing Restraint System Parts After a Crash

{CAUTION:

A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.

If you’ve had a crash, do you need new belts or LATCH system parts?

After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new parts.

If the LATCH system was being used during a more severe crash, you may need new LATCH system parts.

If belts are cut or damaged, replace them. Collision damage also may mean you will need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system wasn’t being used at the time of the collision.

If an air bag inﬂates, you’ll need to replace air bag system parts. See the part on the air bag system earlier in this section.

1-62

Page 69

Section 2 Features and Controls

Keys ...............................................................2-3

Remote Keyless Entry System .........................2-4

Remote Keyless Entry System Operation ...........2-5

Doors and Locks .............................................2-8

Door Locks ....................................................2-8

Power Door Locks ..........................................2-9

Delayed Locking .............................................2-9

Programmable Automatic Door Locks ..............2-10

Rear Door Security Locks ..............................2-12

Lockout Protection ........................................2-13

Midgate .......................................................2-13

Tailgate .......................................................2-23

Windows ........................................................2-25

Power Windows ............................................2-26

Sun Visors ...................................................2-27

Theft-Deterrent Systems ..................................2-27

Content Theft-Deterrent .................................2-27

Passlock

....................................................2-29

Starting and Operating Your Vehicle ................2-29

New Vehicle Break-In ....................................2-29

Ignition Positions ..........................................2-30

Starting Your Engine .....................................2-31

Adjustable Throttle and Brake Pedal ................2-32

Engine Coolant Heater ..................................2-32

Automatic Transmission Operation ...................2-34

All-Wheel Drive ............................................2-36

Parking Brake ..............................................2-37

Shifting Into Park (P) .....................................2-38

Shifting Out of Park (P) .................................2-40

Parking Over Things That Burn .......................2-41

Engine Exhaust ............................................2-41

Running Your Engine While You Are

Parked .....................................................2-42

2-1

Page 70

Section 2 Features and Controls

Mirrors ...........................................................2-43

Automatic Dimming Rearview Mirror with

OnStar

, Compass and Temperature

Display ....................................................2-43

Outside Power Mirrors ...................................2-45

Outside Convex Mirror ...................................2-46

Outside Heated Mirrors ..................................2-47

Outside Automatic Dimming Mirror with Curb

View Assist ..............................................2-47

OnStar HomeLink

System .............................................2-48

Programming the HomeLink

Transmitter ...................................2-50

Transmitter .........2-50

2-2

Storage Areas ................................................2-54

Glove Box ...................................................2-54

Cupholder(s) ................................................2-54

Center Console Storage Area .........................2-54

Luggage Carrier ...........................................2-54

Rear Storage Area ........................................2-55

Cargo Cover Panels ......................................2-56

All-Weather Cargo Area .................................2-66

Top-Box Storage ..........................................2-71

Sunroof .........................................................2-72

Vehicle Personalization ...................................2-73

Memory Seat ...............................................2-73

Page 71

Keys

{CAUTION:

Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.

2-3

Page 72

Your vehicle has one double-sided key for the ignition, door locks, tailgate and side storage boxes.

If you ever lose your keys, your dealer will be able to assist you with obtaining replacements.

In an emergency contact Cadillac Roadside Service See

Roadside Service on page 7-5

for more information.

If you ever lock your keys in your vehicle, you may be able to have your doors unlocked automatically with the

OnStar

system if you have an active OnStar

subscription. For more information see

on page 2-48

OnStar®System

Remote Keyless Entry System

Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference received, including interference that may cause undesired operation of the device.

This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference received, including interference that may cause undesired operation of the device.

Changes or modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment.

2-4

Page 73

At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this:

• Check the distance. You may be too far from your

vehicle. You may need to stand closer during rainy or snowy weather.

• Check the location. Other vehicles or objects may

be blocking the signal. Take a few steps to the left or right, hold the transmitter higher, and try again.

• Check to determine if battery replacement is

necessary. See “Battery Replacement” under

Remote Keyless Entry System Operation on page 2-5

• If you are still having trouble, see your dealer or a

qualiﬁed technician for service.

K (Unlock): Pressing this

button once will unlock the driver’s door. The interior lamps will come on. Pressing unlock again within three seconds will cause the remaining doors to unlock.

You can choose different feedback options for each press of the unlock button, such as having the vehicle’s perimeter lamps come on and/or having the horn chirp. See more information.

DIC Operation and Displays on page 3-49

for

Remote Keyless Entry System Operation

You can lock and unlock your doors from about 3 feet (1 m) up to 100 feet (30 m) away using the remote keyless entry transmitter supplied with your vehicle.

Q (Lock): Pressing this button once will lock all of the

doors. Pressing the button again within three seconds may cause the horn to chirp for lock conﬁrmation. You can choose different feedback options for each press of the lock button, such as having the vehicle’s perimeter lamps ﬂash and/or having the horn chirp. See

DIC Operation and Displays on page 3-49

information.

for more

2-5

Page 74

L (Panic): When this button is pressed, the horn will

sound and the headlamps and taillamps will ﬂash for up to 30 seconds. This can be turned off by pressing the button again, or by waiting for 30 seconds, or by starting the vehicle.

Matching Transmitter(s) to Your Vehicle

Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your vehicle. Each vehicle can have a maximum of four transmitters matched to it.

Battery Replacement

Under normal use, the battery in your remote keyless entry transmitter should last about two years.

You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.

Notice:

touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter.

To replace the battery in the keyless entry transmitter, do the following:

When replacing the battery, use care not to

2-6

Page 75

1. Insert a thin object, such as a coin, in the slot between the covers of the transmitter housing near the key ring hole. Remove the bottom by twisting the coin.

2. Remove and replace the battery with a three-volt CR2032 or equivalent battery, positive (+) side up.

3. Align the covers and snap them together.

4. Resynchronize the transmitter. See “Resynchronization” next.

5. Check the operation of the transmitter.

Resynchronization

Resynchronization may be necessary due to the security method used by this system. The transmitter does not send the same signal twice to the receiver. The receiver will not respond to a signal that has been sent previously. This prevents anyone from recording and playing back the signal from the transmitter.

To resynchronize your transmitter, stand close to your vehicle and press and hold the lock and unlock buttons on the transmitter at the same time for 15 seconds. The door locks should cycle to conﬁrm synchronization. If the locks do not cycle, see your dealer for service.

2-7

Page 76

Doors and Locks

Door Locks

{CAUTION:

Unlocked doors can be dangerous.

• Passengers — especially children — can

easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked. So, wear safety belts properly and lock the doors whenever you drive.

• Young children who get into unlocked

vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock your vehicle whenever you leave it.

• Outsiders can easily enter through an

unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening.

There are several ways to lock and unlock your vehicle. To unlock the door from the outside, use the keyless

entry system or the key.

To unlock the door from the inside, slide the manual lever forward. To lock the door, slide the manual lever rearward.

2-8

Page 77

Power Door Locks

Delayed Locking

The power door lock switches are located on the driver’s and front passenger’s armrests.

Q (Lock): Remove the ignition key and press the lock

symbol to lock all of the doors. If the delayed locking feature is on, the doors will not

lock until ﬁve seconds after the last door is closed. Press the lock symbol twice to override this feature and lock all of the doors immediately. See

on page 2-9

for more information.

Delayed Locking

K (Unlock): To unlock the doors, press the unlock

symbol.

When locking the doors with the power lock switch or the keyless entry transmitter and a door or the liftgate (if equipped) is open, the delayed locking feature will delay locking the doors until ﬁve seconds after the last door is closed. You will hear three chimes to signal that the delayed locking feature is in use.

Pressing the power lock switch or the lock button on the keyless entry transmitter twice will override the delayed locking feature and immediately lock all the doors.

You can turn the delayed locking feature off or back on again by doing the following:

1. Press and hold the power door lock switch in the lock position.

2. Press unlock twice on the remote keyless entry transmitter.

This feature will not operate if the key is in the ignition. You can also program this feature using the DIC.

See “Delayed Locking” under

Displays on page 3-49

DIC Operation and

2-9

Page 78

Programmable Automatic Door Locks

Your vehicle is equipped with an automatic lock/unlock feature which enables you to program your vehicle’s power door locks. You can program this feature through the Driver Information Center (DIC), or by the following method.

Programmable Locking Feature

The following is the list of available programming options:

Mode 1: All doors lock when the transmission is shifted out of Park. This is the mode that is pre-programmed in the factory for your vehicle.

Mode 2: All doors lock when the vehicle speed is greater than 8 mph (13 km/h).

Mode 3: No automatic door locking. The following instructions tell you how to change the

automatic door lock mode. Choose one of the three programming options listed above before entering the program mode. To enter the program mode, do the following:

1. Begin with the ignition off. Then pull the turn signal/multifunction lever toward you and hold it there while you perform the next step.

2. Turn the key to RUN then back to LOCK twice. Then, with the key in LOCK, release the turn signal/multifunction lever. Once you do this, the doors will lock and unlock, the horn will chirp twice, and a 30-second timer will begin. You are now ready to program the automatic door lock feature.

3. Press the lock side of the power lock switch once. You will hear one, two, or three chimes. The number of chimes tells you which lock mode is currently selected. Continue to press the door lock switch until the number of chimes that you hear matches the number of the mode that you want. If you take longer than 30 seconds, the locks will automatically lock and unlock and the horn will chirp twice to indicate that you have left the program mode. If this occurs, you can repeat the procedure beginning with Step 1 to re-enter the programming mode.

You can exit the program mode any time by turning the ignition to RUN (the doors will automatically lock and unlock and the horn will chirp twice to indicate that you are leaving the program mode). If the lock/unlock switches are not pressed while in the programming mode, the current automatic settings will not be modiﬁed.

See your dealer for more information.

2-10

Page 79

Programmable Unlocking Feature

The following is the list of available programming options:

Mode 1: Driver’s door unlocks when the transmission is shifted into PARK (P).

Mode 2: All doors unlock when the transmission is shifted into PARK (P). This is the mode that is pre-programmed in the factory for your vehicle.

Mode 3: All doors unlock when the key is removed from the ignition.

Mode 4: No automatic door unlock. The following instructions tell you how to change the

automatic door unlock mode. Choose one of the four programming options listed above before entering the program mode. To enter the program mode, do the following:

1. Begin with the ignition off. Then pull the turn signal/multifunction lever toward you and hold it there while you perform the next step.

2. Turn the key to RUN and LOCK twice. Then, with the key in LOCK, release the turn signal/multifunction lever. Once you do this, the doors will lock and unlock, the horn will chirp twice, and a 30-second timer will begin. You are now ready to program the automatic door unlock feature.

3. Press the unlock side of the power lock switch once. You will hear one, two, three, or four chimes. The number of chimes tells you which unlock mode is currently selected. Continue to press the door unlock switch until the number of chimes that you hear matches the number of the mode that you want. If you take longer than 30 seconds, the locks will automatically lock and unlock and the horn will chirp twice to indicate that you have left the program mode. If this occurs, you can repeat the procedure beginning with Step 1 to re-enter the programming mode.

See your dealer for more information.

2-11

Page 80

Rear Door Security Locks

With this feature, you can lock the rear doors so they can’t be opened from the inside by passengers.

This feature is located on the inside edge of the rear doors.

To use the locks, do the following:

1. Open one of the rear doors.

2. Move the lever forward to engage the rear door security lock.

3. Close the door.

4. Do the same thing to the other rear door.

The rear doors cannot be opened from the inside when this feature is in use. If you want to open the rear door while the security lock is engaged, unlock the door and open the door from the outside. Move the lever rearward to disengage the child security lock feature.

2-12

Page 81

Lockout Protection

This feature protects you from locking your key in the vehicle when the key is in the ignition and a door is open.

If the power lock switch is pressed when a door is open and the key is in the ignition, all of the doors will lock and then the driver’s door will unlock.

Midgate

{CAUTION:

It can be dangerous to drive with the cargo area covered and the tailgate and the midgate open because carbon monoxide (CO) gas can come into your vehicle. You can not see or smell CO. It can cause unconsciousness and even death. If you must drive with the cargo covers on and the tailgate and midgate open or if electrical wiring or other cable connections must pass through the seal between the body and the midgate:

• Make sure all windows are shut.

• Turn the fan on your heating or cooling

system to its highest speed with the setting on OUTSIDE AIR. That will force outside air into your vehicle. See

Automatic Climate Control System on page 3-24

• If you have air outlets on or under the

instrument panel, open them all the way. See

Engine Exhaust on page 2-41

2-13

Page 82

Midgate Operation

Your vehicle is equipped with a midgate and a removable rear glass panel. The midgate allows you to extend the length of your vehicle’s cargo area.

The following are the main components of the midgate system:

2-14

A. Latch Levers B. Grab Handles C. Glass-Catch

Release Button

D. Glass Lock Knobs

E. Window Retaining

Tabs

F. Midgate Release

Handle

G. Window Alignment

Arrows

Page 83

Rear Glass Removal and Storage

{CAUTION:

If the removable rear glass is not stored properly, it could be thrown about the vehicle in a crash or sudden maneuver. People in the vehicle could be injured. Whenever you store the rear glass in the vehicle, always be sure that it is stored securely in the midgate storage pocket.

Do not remove the rear glass when the rear defroster is on. If you remove the rear glass with the rear defroster on, you may see a discharge spark coming from the latch area.

To remove the rear glass do the following:

1. Fold the rear seats. See

page 1-6

may have to be moved forward slightly to allow the rear seats to fold completely.

Although the rear glass can be removed without folding the rear seats, you will not be able to access the rear glass storage pocket. Be sure to fold the seats

for more information. The front seats

before

removing the rear glass.

Rear Seat Operation on

2. Squeeze and pull down the latch levers (A), located near the upper corners of the rear glass, to unlatch. Once unlatched, the glass-catch release button (C) will catch the rear glass and prevent it from falling forward. Follow the next step to release the button and remove the rear glass.

2-15

Page 84

3. While holding the rear glass in place, press the glass-catch release button (C) and pull the top of the rear glass toward you using the grab handle(s) (B) located at the top of the rear glass.

2-16

4. With the rear glass tilted toward you, lift it out from the lower window frame channel. Use the grab handles to assist you in removing the rear glass.

Page 85

5. Load the rear glass in the storage pocket in the midgate, guiding the lower edge of the rear glass behind the three rear glass retaining tabs (E).

Hold the rear glass ﬂat against the storage pocket, with grab handles facing you, until the next step.

6. Turn both glass lock knobs (D), located at both top corners of the storage pocket, to the locked position. Push the corner of the rear glass to allow the lock knob to engage more easily.

2-17

Page 86

Once both glass lock knobs are in the locked position, the rear glass is securely stored.

7. Push both latch levers (A) up to the locked position. You should hear a click when each latch lever locks correctly.

Rear seats can be returned to the normal position when the rear glass is out and stored properly in the storage pocket.

Reinstalling the Rear Glass

To reinstall the rear glass, do the following:

1. Squeeze and pull down the latch levers (A), located near the upper corners of the rear glass, to unlatch.

2. Hold the rear glass in place with one hand and turn the glass lock knobs, located at both top corners of the glass storage pocket, to the unlocked position.

3. Pull the rear glass out from the storage pocket using the grab handles.

2-18

Page 87

Be sure to align the rear glass side-to-side using the alignment arrows (G) as shown in the picture.

4. With the rear glass tilted at an angle, place the bottom edge in the lower channel of the window frame.

5. Apply a ﬁrm downward pressure and then push the rear glass ﬂat against the window frame. Use the grab handles at the top of the rear glass to assist you.

2-19

Page 88

6. Push the rear glass ﬂat against the window frame and push each latch lever up until it locks. You should hear a click when each latch lever locks correctly.

Lowering the Midgate with the Rear Glass in Place

The midgate can be lowered to allow the cargo area of your vehicle to extend into the cab. The rear glass can be either installed in its normal position, or it can be removed and stored in the rear glass storage pocket.

To lower the midgate, do the following:

1. Fold the rear seats. The front seats might have to be moved forward slightly to allow the rear seats to fold. See more information.

Rear Seat Operation on page 1-6

for

2-20

Page 89

Rear Glass in Normal Position

2. Standing outside of the vehicle, hold the midgate securely so it does not fall forward. Turn the midgate handle clockwise and pull the midgate toward you.

3. Lower the midgate until it is ﬂat.

2-21

Page 90

Lowering the Midgate with the Rear Glass in the Storage Pocket

Rear Glass Stored in Glass Storage Pocket

Midgate Lowered with Crossbar Attached

This procedure works the same as the procedure described previously (with the rear glass installed), but when you lower the midgate with the rear glass in the stored position, you will notice that the entire crossbar (the bar with the release handle) will lower with the midgate. This is completely normal; however, since the crossbar lowers with the midgate, it will be heavier. As you lower the midgate in this conﬁguration be ready for the extra weight and be careful not to let the midgate fall as you lower it.

2-22

Page 91

Raising the Midgate

To return the midgate to its normal position, raise the midgate up with a ﬁrm swinging motion (this will help to ensure that the midgate closes with enough force to engage the latches) until it latches into place securely.

If the rear glass is removed and you would like to put it back, do so using the instructions given previously.

Tailgate

Use the ignition/door key to unlock/lock the tailgate. Open the tailgate by lifting up on its handle while pulling

the tailgate toward you. To shut the tailgate, ﬁrmly push it upward until it

latches. Push and pull on the tailgate to be sure it is latched securely.

2-23

Page 92

Tailgate Removal

The tailgate can be removed to allow for different loading situations. Although the tailgate can be removed without assistance, you may want someone to assist you with the removal to avoid possible damage to the vehicle.

To remove the tailgate, do the following:

1. Hold the tailgate up, slightly raised.

2. Release the retaining cable clip by lifting the cable so it is level with the ground and then push the cable clip toward the vehicle.

3. Raise the tailgate at a slight upward angle, pull back on the tailgate at the right edge so it releases from the block hinge (arrow) and then move the tailgate to the right to release the left edge.

Reverse the above procedure to reinstall. Make sure the tailgate is secure.

2-24

Page 93

Windows

{CAUTION:

Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.

2-25

Page 94

Power Windows

The controls for the power windows are located on the armrest on each of the side doors. The switches operate the windows when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See “Retained Accessory Power” under

The driver’s door also has a switch for each of the passenger’s windows.

Press the top of the switch to lower the window. Pull up the top of the switch to raise the window.

Ignition Positions on page 2-30

Express-Down Windows

The driver’s and front passenger’s window switches have an express-down feature that allows you to lower the window without continuously pressing the switch. Press the top of the window switch down fully to activate the feature. Lightly tap the switch to open the window slightly. The express-down feature can be interrupted at any time by pulling up on the top of the switch.

Lockout Switch

Press the lockout switch to prevent passengers from operating the power windows from their switches. A light in the lockout switch will come on to show that the switch has been activated. Press the lockout switch again to return to normal operation.

2-26

Page 95

Sun Visors

Content Theft-Deterrent

To block out glare, you can swing down the visors. You can also swing them out to help block glare at the front and side windows.

Illuminated Visor Vanity Mirrors

Pull the sunvisor down and lift the mirror cover to turn on the lamps.

Theft-Deterrent Systems

Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal.

Your vehicle is equipped with a content theft-deterrent alarm system.

With this system, the security light in the instrument panel cluster will ﬂash as you open the door if your ignition is off.

This light reminds you to activate the theft-deterrent system. Here’s how to do it:

1. Open the door.

2. Lock the door with the power door lock switch or the remote keyless entry transmitter. The security light should come on and stay on.

3. Close all doors. The security light should go off after about 30 seconds. The alarm is not armed until the security light goes off.

2-27

Page 96

If a locked door is opened without the key or the remote keyless entry transmitter, the alarm will go off. The headlamps and parking lamps will ﬂash for two minutes, and the horn will sound for 30 seconds, then will turn off to save the battery power. You can choose different feedback options for the alarm. See

Center (DIC) on page 3-49

Remember, the theft-deterrent system won’t activate if you lock the doors with a key or use the manual door lock. It activates only if you use a power door lock switch with the door open, or with the remote keyless entry transmitter. You should also remember that you can start your vehicle with the correct ignition key if the alarm has been set off.

Here’s how to avoid setting off the alarm by accident:

Driver Information

• If you don’t want to activate the theft-deterrent

system, the vehicle should be locked with the door key

after

the doors are closed.

• Always unlock a door with a key, or use the remote

keyless entry transmitter. Unlocking a door any other way will set off the alarm.

If you set off the alarm by accident, unlock any door with the key. You can also turn off the alarm by pressing unlock on the remote keyless entry transmitter. The alarm won’t stop if you try to unlock a door any other way.

Testing the Alarm

The alarm can be tested by following these steps:

1. From inside the vehicle, lower the driver’s window and open the driver’s door.

2. Activate the system by locking the doors with the power door lock switch while the door is open, or with the remote keyless entry transmitter.

3. Get out of the vehicle, close the door and wait for the security light to go out.

4. Then reach in through the window, unlock the door with the manual door lock and open the door. This should set off the alarm.

While the alarm is set, the power door unlock switch is not operational.

If the alarm does not sound when it should but the headlamps ﬂash, check to see if the horn works. The horn fuse may be blown. To replace the fuse, see

and Circuit Breakers on page 5-111

If the alarm does not sound or the headlamps do not ﬂash, the vehicle should be serviced by your dealer.

Fuses

2-28

Page 97

Passlock

Your vehicle is equipped with the Passlock theft-deterrent system.

Passlock enables fuel if the ignition lock cylinder is turned with a valid key. If a correct key is not used or the ignition lock cylinder is tampered with, the fuel system is disabled and the vehicle will not start.

During normal operation, the security light will turn off approximately ﬁve seconds after the key is turned to RUN.

If the engine stalls and the security light ﬂashes, wait about 10 minutes until the light stops ﬂashing before trying to restart the engine. Remember to release the key from START as soon as the engine starts.

If the engine does not start after three tries, the vehicle needs service.

If the engine is running and the security light comes on, you will be able to restart the engine if you turn the engine off. However, your Passlock not working properly and must be serviced by your dealer. Your vehicle is not protected by Passlock time. You may also want to check the fuse. See

Fuses and Circuit Breakers on page 5-111

dealer for service. In an emergency, call the Roadside Assistance Center.

See

Roadside Service on page 7-5

is a passive theft-deterrent system. Passlock

system is

. See your

at this

Starting and Operating Your Vehicle

New Vehicle Break-In

Notice:

“break-in.” But it will perform better in the long run if you follow these guidelines:

• Keep your speed at 55 mph (88 km/h) or less for

• Do not drive at any one speed — fast or

• Avoid making hard stops for the ﬁrst 200 miles

• Do not tow a trailer during break-in. See

Your vehicle does not need an elaborate

the ﬁrst 500 miles (805 km).

slow — for the ﬁrst 500 miles (805 km). Do not make full-throttle starts.

(322 km) or so. During this time your new brake linings are not yet broken in. Hard stops with new linings can mean premature wear and earlier replacement. Follow this breaking-in guideline every time you get new brake linings.

a Trailer on page 4-55

for more information.

Towing

2-29

Page 98

Ignition Positions

With your key in the ignition switch you can turn it to four different positions.

A (LOCK): This position locks your ignition and transmission. It’s a theft-deterrent feature. You will only be able to remove your key when the ignition is turned to LOCK.

Notice:

can not turn it, be sure you are using the correct key; if so, is it all the way in? Turn the key only with your hand. Using a tool to force it could break the key or the ignition switch. If none of these works, then your vehicle needs service.

B (ACCESSORY): This position allows you to use

things like the radio, power windows and the windshield wipers when the engine is off.

C (RUN): This position is for driving. D (START): This position starts your engine.

If your key seems stuck in LOCK and you

Retained Accessory Power (RAP)

The Retained Accessory Power (RAP) feature will allow certain features on your vehicle to continue to work for up to 10 minutes after the ignition key is turned to LOCK.

2-30

Page 99

Starting Your Engine

Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position – that’s a safety feature. To restart when you’re already moving, use NEUTRAL (N) only.

Notice:

vehicle is moving. If you do, you could damage the transmission. Shift to PARK (P) only when your vehicle is stopped.

1. With your foot off the accelerator pedal, turn the

Notice:

15 seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor. Wait about 15 seconds between each try to help avoid draining your battery or damaging your starter.

2. If it doesn’t start within 10 seconds, push the

Do not try to shift to PARK (P) if your

ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm.

Holding your key in START for longer than

accelerator pedal all the way to the ﬂoor, while you hold the ignition key in START. When the engine starts, let go of the key and let up on the accelerator pedal. Wait about 15 seconds between each try.

When starting your engine in very cold weather (below 0°F or −18°C), do this:

1. With your foot off the accelerator pedal, turn the ignition key to START and hold it there up to 15 seconds. When the engine starts, let go of the key.

2. If your engine still won’t start (or starts but then stops), it could be ﬂooded with too much gasoline. Try pushing your accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for about three seconds. When the engine starts, let go of the key and accelerator. If the vehicle starts brieﬂy but then stops again, do the same thing, but this time keep the pedal down for ﬁve or six seconds. This clears the extra gasoline from the engine.

Notice:

electronics in your vehicle. If you add electrical parts or accessories, you could change the way the engine operates. Before adding electrical equipment, check with your dealer. If you do not, your engine might not perform properly.

Your engine is designed to work with the

2-31

Page 100

Adjustable Throttle and Brake Pedal

Engine Coolant Heater

If your vehicle has this feature, you can change the position of the throttle and brake pedals. This feature is designed for shorter drivers, since the pedals cannot move farther away from the standard position, but can move closer to you for better pedal reach. This feature can be programmed to work with the memory function (if equipped) on your vehicle. See

on page 2-73

The vehicle must be in PARK (P) for this feature to operate.

Press the button closest to you to move the pedals closer to you. Press the button farthest from you to move the pedals away from you.

2-32

The buttons used to adjust the pedals are located on the driver’s side door panel.

Memory Seat

Your vehicle may be equipped with an engine coolant heater.

In very cold weather, 0°F (−18°C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up.

Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle. At temperatures above 32°F (0°C), use of the coolant heater is not required.

Cadillac ESCALADE EXT 2004 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Section 1 Seats and Restraint Systems

Front Seats

Power Seats

Power Lumbar

Heated Seats

Reclining Seatbacks

Head Restraints

Rear Seats

Rear Seat Operation

Safety Belts

Safety Belts: They Are for Everyone

Questions and Answers About Safety Belts

How to Wear Safety Belts Properly

Driver Position

Safety Belt Use During Pregnancy

Right Front Passenger Position

Rear Seat Passengers

Rear Safety Belt Comfort Guides for Children and Small Adults

Safety Belt Extender

Child Restraints

Older Children

Infants and Young Children

Child Restraint Systems

Where to Put the Restraint

Top Strap

Top Strap Anchor Location

Lower Anchorages and Top Tethers for Children (LATCH System)

Securing a Child Restraint Designed for the LATCH System

Securing a Child Restraint in a Rear Seat Position

Securing a Child Restraint in the Right Front Seat Position

Air Bag Systems

Where Are the Air Bags?

How Does an Air Bag Restrain?

Passenger Sensing System

Servicing Your Air Bag-Equipped Vehicle

Adding Equipment to Your Air Bag-Equipped Vehicle

Restraint System Check

Checking Your Restraint Systems

Replacing Restraint System Parts After a Crash

Section 2 Features and Controls

Keys

Remote Keyless Entry System

Remote Keyless Entry System Operation

Doors and Locks

Door Locks

Power Door Locks

Delayed Locking

Programmable Automatic Door Locks

Rear Door Security Locks

Lockout Protection

Midgate

Tailgate

Windows

Power Windows

Sun Visors

Content Theft-Deterrent

Theft-Deterrent Systems

Starting and Operating Your Vehicle

New Vehicle Break-In

Ignition Positions

Starting Your Engine

Adjustable Throttle and Brake Pedal

Engine Coolant Heater
