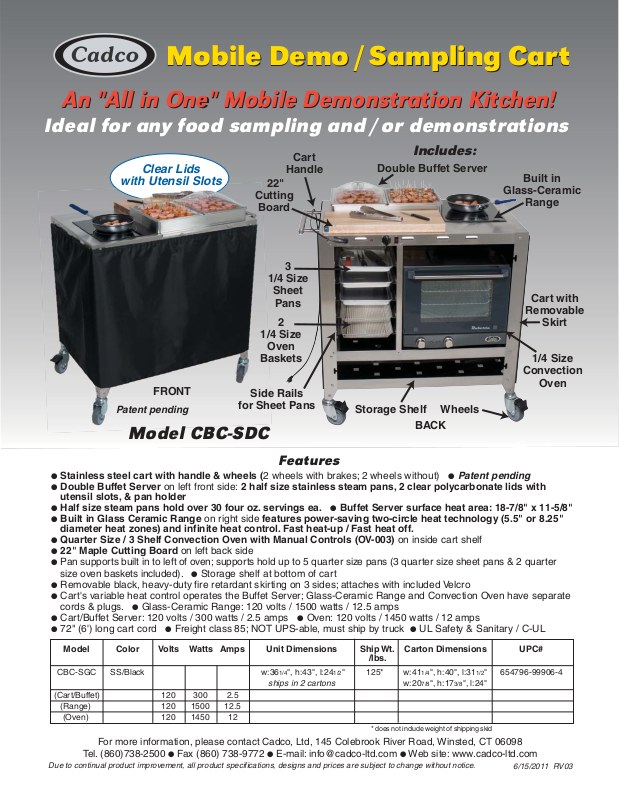

Cadco CBC-SGC User Manual
Mobile Demo
Mobile Demo / Sampling Cart
An "All in One" Mobile Demonstration Kitchen!
An "All in One" Mobile Demonstration Kitchen!
/ Sampling Cart
Ideal for any food sampling and / or demonstrations
Clear Lids
with Utensil Slots
FRONT
Patent pending
for Sheet Pans
Model CBC-SDC
Cart
Handle
22"
Cutting
Board
3
1/4 Size
Sheet
Pans
2
1/4 Size
Oven
Baskets
Side Rails
Includes:
Double Buffet Server
Storage Shelf
BACK
Built in
Glass-Ceramic
Range
Cart with
Removable
Skirt
1/4 Size
Convection
Oven
Wheels
Features
● Stainless steel cart with handle & wheels (2 wheels with brakes; 2 wheels without) ● Patent pending
● Double Buffet Server on left front side: 2 half size stainless steam pans, 2 clear polycarbonate lids with
utensil slots, & pan holder
● Half size steam pans hold over 30 four oz. servings ea. ● Buffet Server surface heat area: 18-7/8" x 11-5/8"
● Built in Glass Ceramic Range on right side features power-saving two-circle heat technology (5.5" or 8.25"
diameter heat zones) and infinite heat control. Fast heat-up / Fast heat off.
● Quarter Size / 3 Shelf Convection Oven with Manual Controls (OV-003) on inside cart shelf
● 22" Maple Cutting Board on left back side
● Pan supports built in to left of oven; supports hold up to 5 quarter size pans (3 quarter size sheet pans & 2 quarter
size oven baskets included). ● Storage shelf at bottom of cart
● Removable black, heavy-duty fire retardant skirting on 3 sides; attaches with included Velcro
● Cart's variable heat control operates the Buffet Server; Glass-Ceramic Range and Convection Oven have separate
cords & plugs. ● Glass-Ceramic Range: 120 volts / 1500 watts / 12.5 amps
● Cart/Buffet Server: 120 volts / 300 watts / 2.5 amps ● Oven: 120 volts / 1450 watts / 12 amps
● 72" (6') long cart cord ● Freight class 85; NOT UPS-able, must ship by truck ● UL Safety & Sanitary / C-UL
Model Color Volts Watts Amps Unit Dimensions Ship Wt. Carton Dimensions UPC#
CBC-SGC SS/Black w:361/4", h:43", l:241/2" 125* w:411/4", h:40", l:311/2" 654796-99906-4
ships in 2 cartons w:20
(Cart/Buffet) 120 300 2.5
(Range) 120 1500 12.5
(Oven) 120 1450 12
For more information, please contact Cadco, Ltd, 145 Colebrook River Road, Winsted, CT 06098
Tel. (860)738-2500
Due to continual product improvement, all product specifications, designs and prices are subject to change without notice.
●
Fax (860) 738-9772 ● E-mail: info@cadco-ltd.com ● Web site: www.cadco-ltd.com
/lbs.
7/8", h:173/8", l:24"
* does not include weight of shipping skid
6/15/2011 RV03
