CAD Audio Live DA4090 User Manual

©2016 CAD Audio Part No. 62267-34-00 July2016

DA4090

Antenna Distribution

User Guide

Two-Year Limited Warranty

CAD Audio hereby warrants that this product will be free of defects in
material and workmanship for a period of two years from the date of
purchase. In the unlikely event that a defect occurs CAD Audio will, at
its option, either repair or replace with a new unit of equal or greater
value. Retain proof of purchase to validate the purchase date and return
it with any warranty claim.

This warranty excludes exterior nish or appearance, damage from
abuse, misuse of the product, use contrary to CAD Audio’s instructions
or unauthorized repair. All implied warranties, merchantability, or tness
for a particular purpose is hereby disclaimed and CAD Audio hereby
disclaims liability for incidental, special or consequential damages
resulting from the use or unavailability of this product.

This warranty gives you specic legal rights and you may have other
rights that vary from state to state. Some states do not allow the exclusion
or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts, so the above exclusions and
limitations may not apply to you.

Note: No other warranty, written or oral is authorized by CAD Audio.

Specications DA4090

Input Impedance ............................................................................... 50ohms

Output Impedance ............................................................................ 50ohms

Antenna Input Connector ....................................................................... BNC

Antenna Output Connector .................................................................... BNC

Gain ...................................................................................................... 0 - 3dB

Frequency Range ..................................................................200MHz - 1GHz

Power Supply .........................................................................DC 12 - 18V 3A

Power Outputs ...........................................................................600mA each

Dimensions ........................................................ 1.8" [4.5cm] x 16.1" [41cm]

x 6.3" [16cm]

Weight [mass] .......................................................................... 4.4lbs [2.0kg]

DA4090 DISTRIBUTION AMPLIFIER

LINK

SET

SCAN

IR
ScanLink

LINK

SET

SCAN

IR
ScanLink

LINK

SET

SCAN

IR
ScanLink

LINK

SET

SCAN

IR
ScanLink

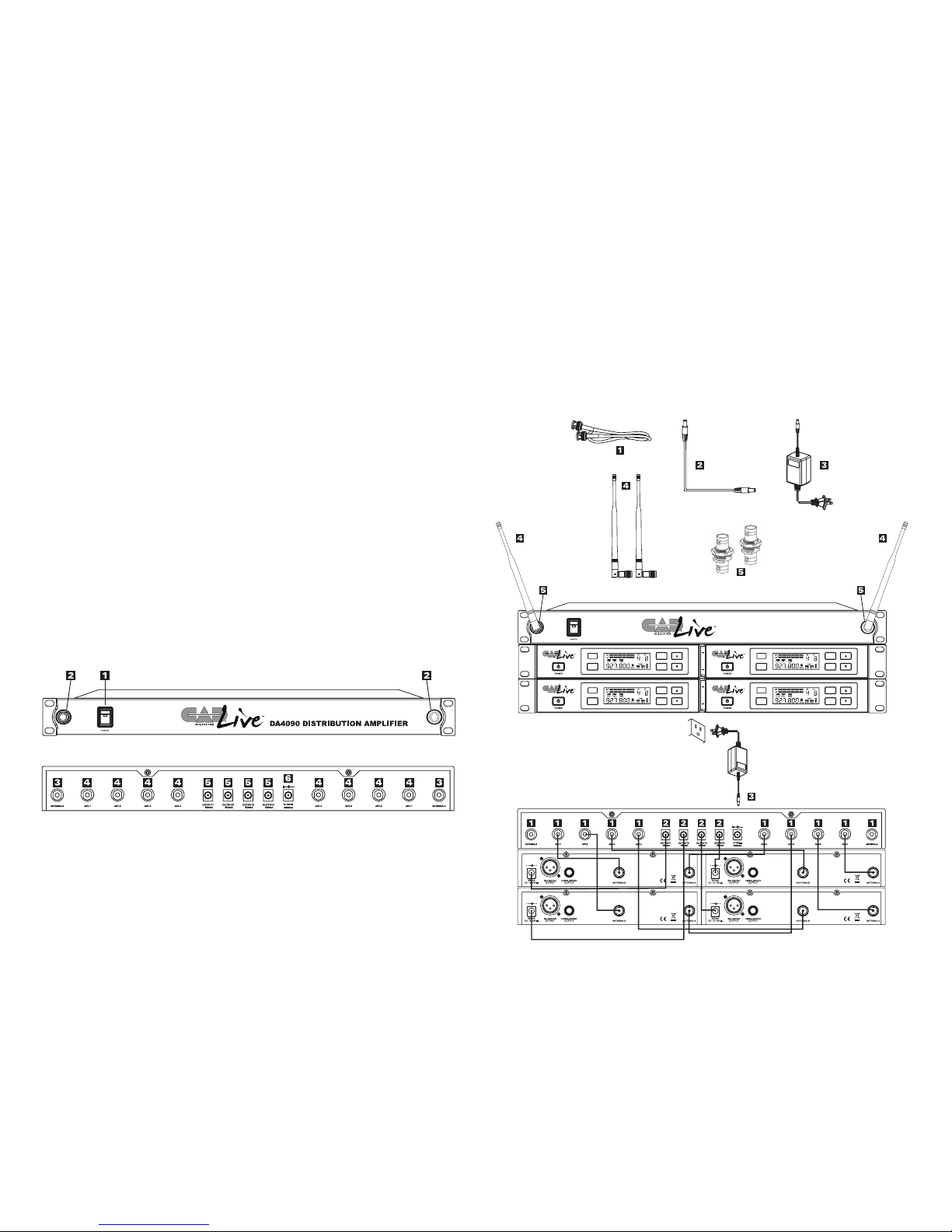

Using the DA4090 Distribution Amplier to Simplify
Multiple-System Installations

1. BNC 50 ohm cable.

2. Power cable.

3. Power adapter.

4. BNC whip antennas (not included).

5. BNC bulkhead connectors.

DA4090 Antenna Distribution Amplier Layout

1. On/Off switch.

2. Holes for BNC bulkhead connectors to
front mount antennas.

3. Antenna inputs.

4. Antenna distribution outputs.

5. Power outputs: provides power to receivers.

6. AC adapter input.
