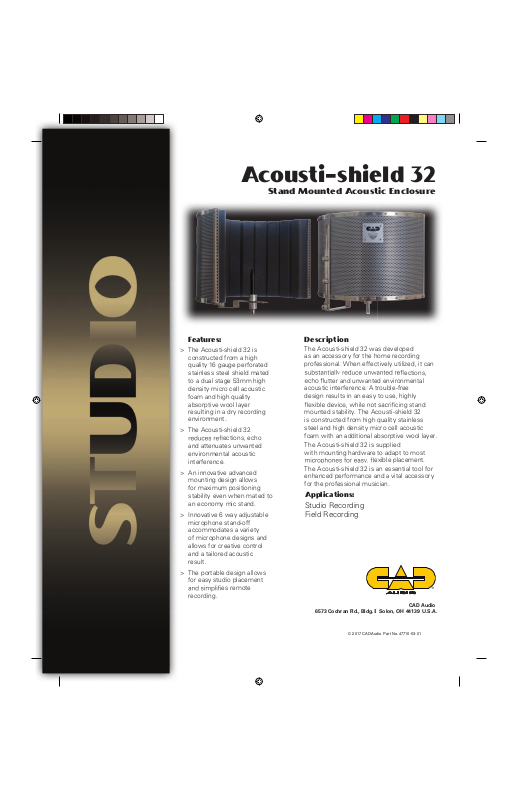

CAD Audio Acousti-shield 32 User Manual
Acousti-shield 32
Stand Mounted Acoustic Enclosure
Features:
> The Acousti-shield 32 is
constructed from a high
quality 16 gauge perforated
stainless steel shield mated
to a dual stage 53mm high
density micro cell acoustic
foam and high quality
absorptive wool layer
resulting in a dry recording
environment.
> The Acousti-shield 32
ections, echo
and attenuates unwanted
environmental acoustic
interference.
> An innovative advanced
mounting design allows
for maximum positioning
stability even when mated to
an economy mic stand.
> Innovative 6 way adjustable
microphone stand-off
accommodates a variety
of microphone designs and
allows for creative control
and a tailored acoustic
result.
> The portable design allows
for easy studio placement
recording.
es remote
Description
The Acousti-shield 32 was developed
as an accessory for the home recording
professional. When effectively utilized, it can
ections,
utter and unwanted environmental
acoustic interference. A trouble-free
design results in an easy to use, highly
cing stand
mounted stability. The Acousti-shield 32
is constructed from high quality stainless
steel and high density micro cell acoustic
foam with an additional absorptive wool layer.
The Acousti-shield 32 is supplied
with mounting hardware to adapt to most
exible placement.
The Acousti-shield 32 is an essential tool for
enhanced performance and a vital accessory
for the professional musician.
Applications:
Studio Recording
Field Recording
CAD Audio
6573 Cochran Rd., Bldg. I Solon, OH 44139 U.S.A.
© 2017 CAD Audio Part No. 47710-03-01
Acousti-shield 32
Stand Mounted Acoustic Enclosure
Specifications
Size ......................................................... 20" x 12.5" x 11" Weight .................................................... 7.0lbs [3.2Kg]
Adjustments:
G
PARTS LIST
A. Shield
B. Sliding beam
C. Locking screws
D. Shock mount Adapter
E. Extending mic mount
F. Locking ring
G . Vertical mount
Adjust locking ring
to set rotational position of mic
Loosen extending mic mount
F
E
Assembly:
Fasten vertical mount to shield
and sliding beam.
Attach shock mount adapter
the mic stand.
Attach sliding beam
using the extending mic mount.
Attach locking ring
G
using locking screws
to the mic stand
F
to the extender
to
E
to adjust horizontal position
E
Loosen locking screws
to adjust vertical position
F
F
E
Adjust microphone height
E
E
Dimensional Drawing
[not shown actual size]
CAD Audio
6573 Cochran Rd., Bldg. I Solon, OH 44139 U.S.A.
www.cadaudio.com
© 2017 CAD Audio Part No. 47710-03-01
