Cabletron Systems SSR-600 Installation Manual

SSR-600 Installation Guide

Title Page

PWR CPU

RESET

9033032-01

ETHERNET 1 ETHERNET 2

10/100 10/100

LNK STS

SPD/100

CONSOLE

SPD/100 XMT RCV

XMT

RCV

TELCO TELCO

WIDE AREA 2WIDE AREA 1

NOTICE

Cabletron Systems reserves the right to make changes in speciﬁcations and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.

The hardware, ﬁrmware, or software described in this manual is subject to change without notice. IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,

INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.

Cabletron Systems, Inc. 35 Industrial Way Rochester, NH 03867



Order Number: 9033032-01 October 1999

Cabletron Systems, SPECTRUM

trademark of Cabletron Systems, Inc. All other product names mentioned in this manual may be trademarks or registered trademarks of

their respective companies.

, and

LANVIEW

are registered trademarks and

SmartSwitch

is a

FCC NOTICE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment uses, generates, and can radiate radio frequency energy and if not installed in accordance with the operator’s manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense.

WARNING:

party responsible for compliance could void the user’s authority to operate the equipment.

Changes or modiﬁcations made to this device which are not expressly approved by the

SSR-600 Installation Guide i

Notice

INDUSTRY CANADA NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

NOTICE:

equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements documents (s). The department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certiﬁed equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

NOTICE:

indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the ringer equivalence Numbers of all the devices does not exceed 5.

The Industry Canada label identiﬁes certiﬁed equipment. This certiﬁcation means that the

Caution:

The Ringer Equivalence Number (REN) assigned to each terminal device provides an

Users should not attempt to make

VCCI NOTICE

This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.

ii SSR-600 Installation Guide

Notice

CABLETRON SYSTEMS, INC.

PROGRAM LICENSE AGREEMENT

IMPORTANT: THIS LICENSE APPLIES FOR USE OF PR ODUCT IN THE FOLLOWING

GEOGRAPHICAL REGIONS:

CANADA MEXICO CENTRAL AMERICA SOUTH AMERICA

BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.

This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package. The Program may be contained in ﬁrmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO CABLETRON OR YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE OF RECEIPT FOR A FULL REFUND.

IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT CABLETRON SYSTEMS +1-603-332-9400. Attn: Legal Department.

1. LICENSE.

package subject to the terms and conditions of this License Agreement. You may not copy, reproduce or transmit any part of the Program except as permitted by the

Copyright Act of the United States or as authorized in writing by Cabletron.

2. OTHER RESTRICTIONS.

Program.

3. APPLICABLE LAW.

laws and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.

4. EXPORT REQUIREMENTS.

regulation by agencies of the U.S. Government, including the U.S. Department of Commerce, which prohibit export or diversion of certain technical products to certain countries, unless a license to export the product is obtained from the U.S. Government or an exception from obtaining such license may be relied upon by the exporting party.

If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, You agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for military purposes.

You have the right to use only the one (1) copy of the Program provided in this

You may not reverse engineer, decompile, or disassemble the

This License Agreement shall be interpreted and governed under the

You understand that Cabletron and its Affiliates are subject to

SSR-600 Installation Guide iii

Notice

If the Program is exported from the United States pursuant to the License Exception TSR under

the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii) export to Country Groups D:1 or E:2 (as deﬁned herein) the direct product of the Program or the technology, if such foreign produced direct product is subject to national security controls as identiﬁed on the U.S. Commerce Control List, or (iii) if the direct product of the technology is a complete plant o r any major component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major component thereof, if such foreign produced direct product is subject to national security controls as identiﬁed on the U.S. Commerce Control List or is subject to State Department controls under the U.S. Munitions List.

5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS.

was developed solely at private expense; (ii) contains “restricted computer software” submitted with restricted rights in accordance with section 52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers. For Department of Defense units, the Product is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.

6. EXCLUSION OF WARRANTY.

writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including its documentation and media).

CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO

YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY A CCOMP ANYING HARDWARE.

7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES.

CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU.

Except as may be specifically provided by Cabletron in

The enclosed Product (i)

IN NO EVENT SHALL

iv SSR-600 Installation Guide

Notice

CABLETRON SYSTEMS SALES AND SERVICE, INC.

PROGRAM LICENSE AGREEMENT

IMPORTANT: THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE UNITED

STATES OF AMERICA AND BY UNITED STATES OF AMERICA GOVERNMENT END USERS.

BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.

This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Sales and Service, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package. The Program may be contained in ﬁrmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO CABLETRON OR YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE OF RECEIPT FOR A FULL REFUND.

IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT CABLETRON SYSTEMS +1-603-332-9400. Attn: Legal Department.

1. LICENSE.

package subject to the terms and conditions of this License Agreement. You may not copy, reproduce or transmit any part of the Program except as permitted by the

Copyright Act of the United States or as authorized in writing by Cabletron.

2. OTHER RESTRICTIONS.

Program.

3. APPLICABLE LAW.

laws and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.

4. EXPORT REQUIREMENTS.

regulation by agencies of the U.S. Government, including the U.S. Department of Commerce, which prohibit export or diversion of certain technical products to certain countries, unless a license to export the product is obtained from the U.S. Government or an exception from obtaining such license may be relied upon by the exporting party.

If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, You agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for military purposes.

You have the right to use only the one (1) copy of the Program provided in this

You may not reverse engineer, decompile, or disassemble the

This License Agreement shall be interpreted and governed under the

You understand that Cabletron and its Affiliates are subject to

SSR-600 Installation Guide v

Notice

If the Program is exported from the United States pursuant to the License Exception TSR under

the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii) export to Country Groups D:1 or E:2 (as deﬁned herein) the direct product of the Program or the technology, if such foreign produced direct product is subject to national security controls as identiﬁed on the U.S. Commerce Control List, or (iii) if the direct product of the technology is a complete plant o r any major component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major component thereof, if such foreign produced direct product is subject to national security controls as identiﬁed on the U.S. Commerce Control List or is subject to State Department controls under the U.S. Munitions List.

5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS.

was developed solely at private expense; (ii) contains “restricted computer software” submitted with restricted rights in accordance with section 52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers. For Department of Defense units, the Product is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.

6. EXCLUSION OF WARRANTY.

writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including its documentation and media).

CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO

YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY A CCOMP ANYING HARDWARE.

7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES.

CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU.

Except as may be specifically provided by Cabletron in

The enclosed Product (i)

IN NO EVENT SHALL

vi SSR-600 Installation Guide

Notice

CABLETRON SYSTEMS LIMITED

PROGRAM LICENSE AGREEMENT

IMPORTANT: THIS LICENSE APPLIES FOR THE USE OF THE PRODUCT IN THE

FOLLOWING GEOGRAPHICAL REGIONS:

EUROPE MIDDLE EAST AFRICA ASIA AUSTRALIA PACIFIC RIM

BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.

This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Limited (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package. The Program may be contained in ﬁrmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO CABLETRON OR YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE OF RECEIPT FOR A FULL REFUND.

IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT CABLETRON SYSTEMS +1-603-332-9400. Attn: Legal Department.

1. LICENSE.

package subject to the terms and conditions of this License Agreement. You may not copy, reproduce or transmit any part of the Program except as permitted by the

Copyright Act of the United States or as authorized in writing by Cabletron.

2. OTHER RESTRICTIONS.

Program.

3. APPLICABLE LAW.

law. The English courts shall have exclusive jurisdiction in the event of any disputes.

4. EXPORT REQUIREMENTS.

regulation by agencies of the U.S. Government, including the U.S. Department of Commerce, which prohibit export or diversion of certain technical products to certain countries, unless a license to export the product is obtained from the U.S. Government or an exception from obtaining such license may be relied upon by the exporting party.

If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, You agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for military purposes.

You have the right to use only the one (1) copy of the Program provided in this

You may not reverse engineer, decompile, or disassemble the

This License Agreement shall be governed in accordance with English

You understand that Cabletron and its Affiliates are subject to

SSR-600 Installation Guide vii

Notice

If the Program is exported from the United States pursuant to the License Exception TSR under

the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii) export to Country Groups D:1 or E:2 (as deﬁned herein) the direct product of the Program or the technology, if such foreign produced direct product is subject to national security controls as identiﬁed on the U.S. Commerce Control List, or (iii) if the direct product of the technology is a complete plant o r any major component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major component thereof, if such foreign produced direct product is subject to national security controls as identiﬁed on the U.S. Commerce Control List or is subject to State Department controls under the U.S. Munitions List.

5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS.

was developed solely at private expense; (ii) contains “restricted computer software” submitted with restricted rights in accordance with section 52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers. For Department of Defense units, the Product is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.

6. EXCLUSION OF WARRANTY.

writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including its documentation and media).

CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO

YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY A CCOMP ANYING HARDWARE.

7.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL

CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU.

Except as may be specifically provided by Cabletron in

The enclosed Product (i)

viii SSR-600 Installation Guide

DECLARATION OF CONFORMITY

Notice

Application of Council Directive(s):

Manufacturer’s Name:

Manufacturer’s Address:

European Representative Name:

European Representative Address:

Conformance to Directive(s)/Product Standards:

Equipment T ype/Environment:

W e the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives.

Manufacturer Legal Representative in Europe

89/336/EEC 73/23/EEC

Cabletron Systems, Inc. 35 Industrial Way

PO Box 5005 Rochester, NH 03867

Mr. J. Solari Cabletron Systems Limited

Nexus House, Newbury Business Park London Road, Newbury Berkshire RG14 2PZ, England

EC Directive 89/336/EEC EC Directive 73/23/EEC EN 55022 EN 50082-1 EN 60950

Networking Equipment, for use in a Commercial or Light Environment.

Industrial

Mr. Ronald Fotino Mr. J. Solari

___________________________________ ___________________________________

Full Name Full Name Compliance Engineering Manager Managing Director - E.M.E.A.

___________________________________ ___________________________________

Title Title Rochester, NH, USA Newbury, Berkshire, England

___________________________________ ___________________________________

Location Location

SSR-600 Installation Guide ix

Notice

x SSR-600 Installation Guide

FIGURES

1-1 SSR-600...................................................................................1-1

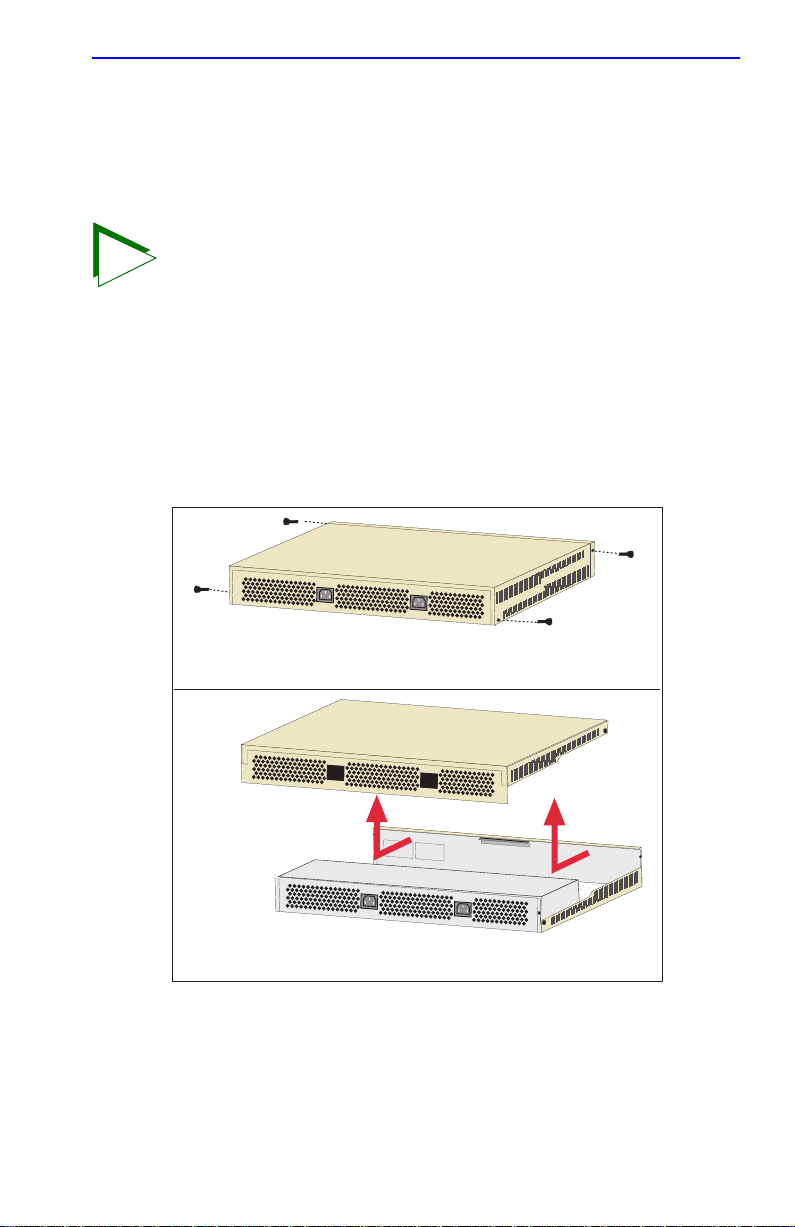

3-1 Removing the Chassis Cover...................................................3-3

3-2 Option Placement.....................................................................3-4

3-3 WAN SWPIM Ports ..................................................................3-5

3-4 Removing an Existing SWPIM .................................................3-5

3-5 Tabletop or Shelf Installation....................................................3-6

3-6 SSR-600 Rackmount Hardware...............................................3-7

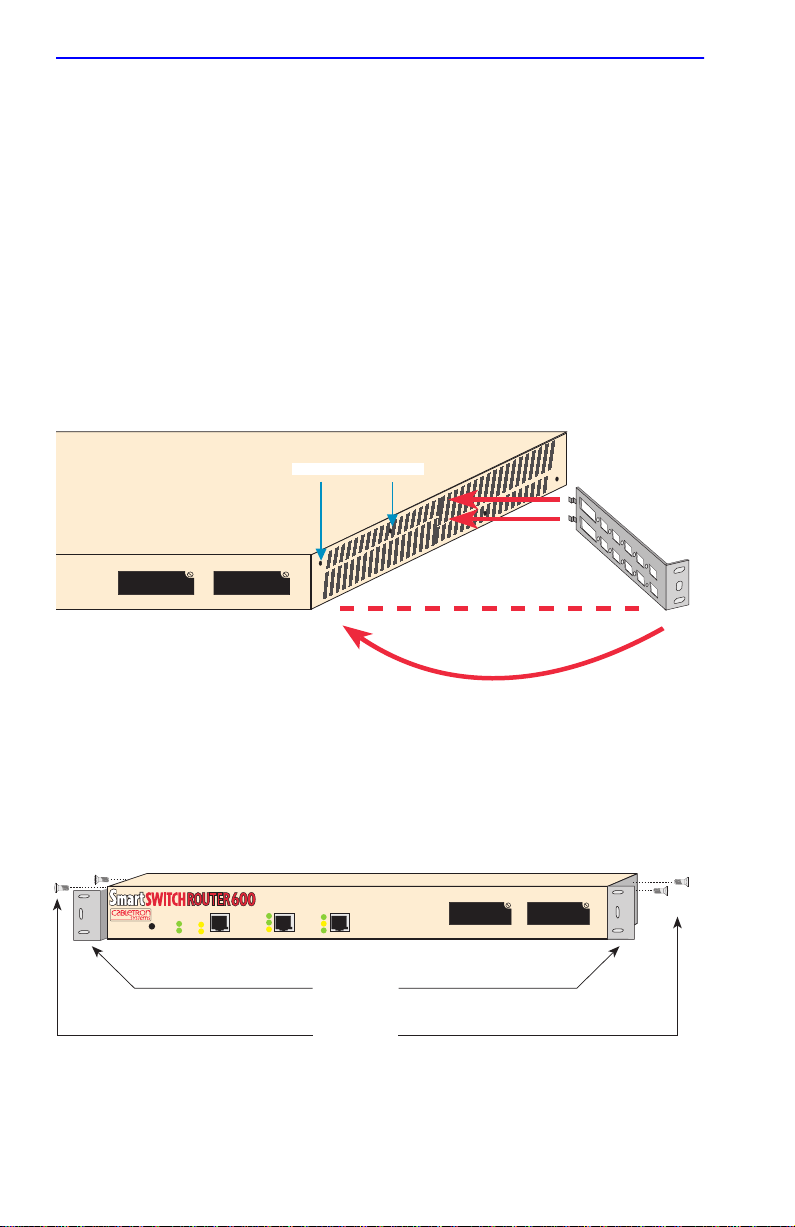

3-7 Aligning the Brackets for Installation........................................ 3-8

3-8 Installing the Rackmount Brackets...........................................3-8

3-9 Installing the SSR-600 in a 19-Inch Rack.................................3-9

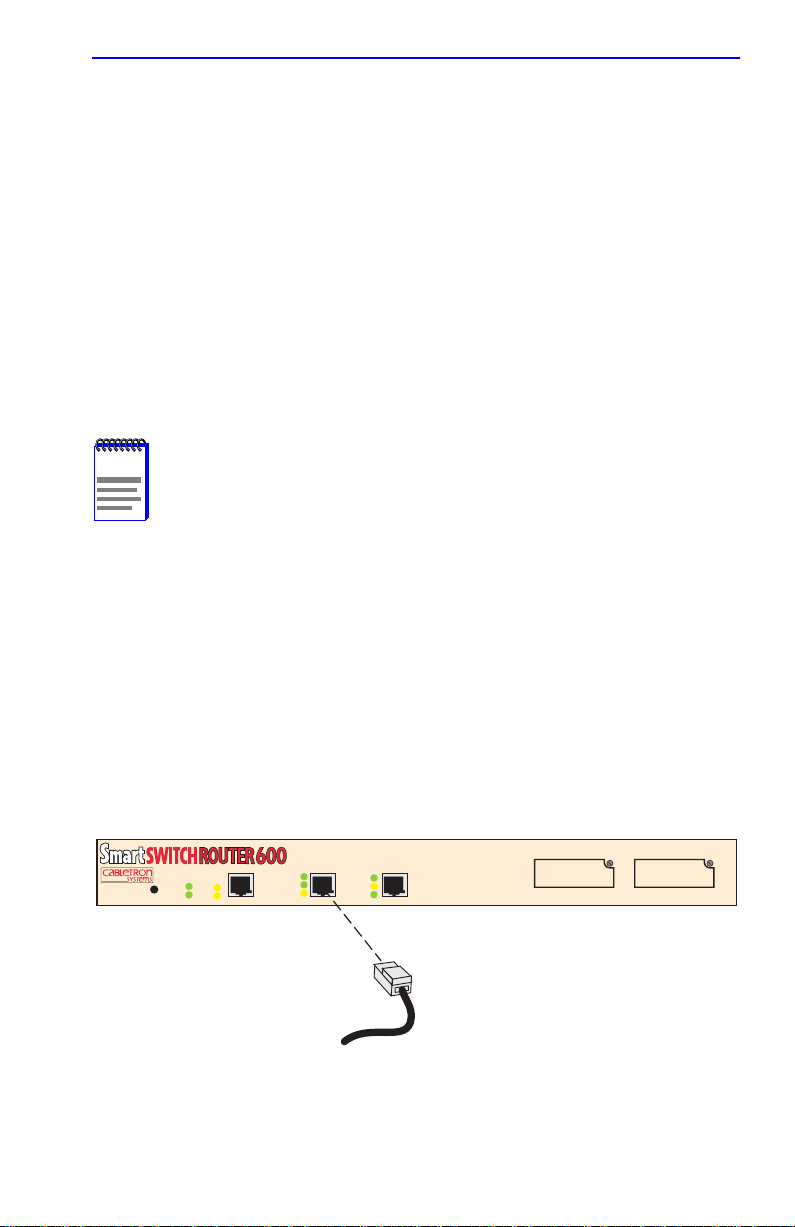

3-10 Connecting a Twisted Pair Segment......................................3-11

3-11 Crossover Cable RJ45 Pinouts.............................................. 3-12

3-12 Straight-Through Cable RJ45 Pinouts....................................3-13

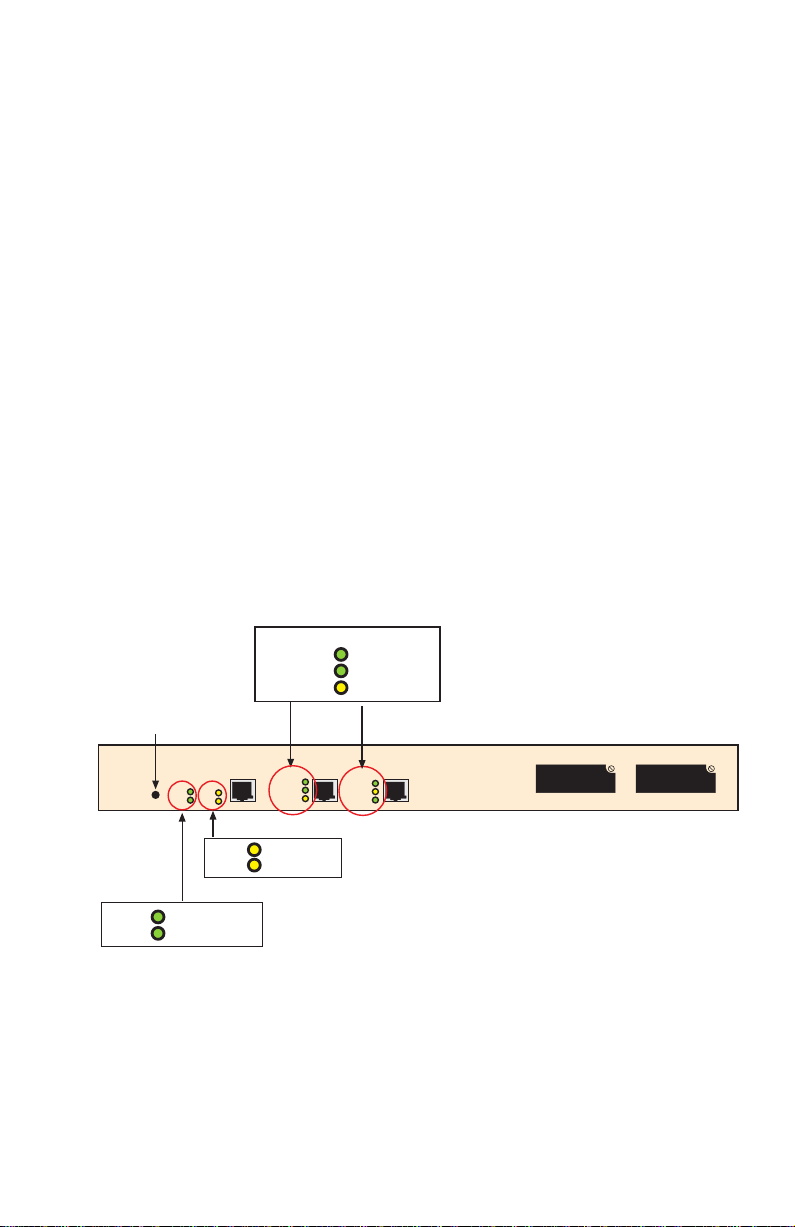

4-1 SSR-600 Front Panel LEDs .....................................................4-1

4-2 Switch Bank Layout..................................................................4-5

SSR-600 Installation Guide xiii

TABLES

4-1 SSR-600 Hardware LED States...............................................4-2

4-3 SSR-600 LAN LED States........................................................4-3

4-2 Console Port LEDs...................................................................4-3

4-4 Four Position Switch Bank Functions ......................................4-4

1-1 Console Port Connector Pinout................................................A-2

1-2 Fast Ethernet RJ45 Pinout.......................................................A-2

SSR-600 Installation Guide xiv

INTRODUCTION

Only qualiﬁed personnel should perform installation procedures.

Welcome to the Cabletron Systems SSR-600 Installation Guide

. SSR stands for SmartSwitch Router. This guide provides installation, basic conﬁguration information, hardware speciﬁcations and troubleshooting tips for the SSR-600.

NOTE

Since most of the information in this manual applies to either model regardless of the power supply, the generic term SSR-600 will be used. If there is speciﬁc information concerning the different models, either SSR-600-S or SSR-600-D will be used as appropriate.

USING THIS GUIDE

Read through this guide completely to familiarize yourself with its content and to gain an understanding of the features and capabilities of the SSR-600. A general working knowledge of WAN, Ethernet and IEEE

802.3 data communications networks and their physical layer components is helpful before using the SSR-600.

STRUCTURE OF THIS GUIDE

This guide is organized as follows: This

Introduction

this manual, lists technology and user’s guides that may help the user to set up and manage the SSR-600, and provides instructions on how to get help from Cabletron Systems.

provides preliminary information that will aid in using

Chapter 1,

Overview of the SSR-600

, provides an overview of the

SSR-600 and its features.

Chapter 2,

Network Requirements

, outlines the network requirements

that must be met before installing the SSR-600 into a network.

SSR-600 Installation Guide xv

Introduction

Chapter 3,

SSR-600 to a network.

Chapter 4,

detailed troubleshooting tips using the LANVIEW LEDs on the SSR-600, along with hardware information.

Appendix A,

operating speciﬁcations, regulatory compliance, connector pinouts, environmental requirements, and physical properties.

Installation

Troubleshooting, Switches, and LED Indications

Speciﬁcations

, provides detailed instructions for connecting the

, contains information on functionality and

, provides

SSR-600 FEATURES

The SSR-600 is an access device that provides Ethernet Local Area Network (LAN) connectivity via two Fast Ethernet ports, and offers high-speed Wide Area Network (WAN) access to remote sites via two Sliding WAN Physical Interface Modules (SWPIMs).

Refer to the appropriate Cabletron Systems software manual for information on supported WAN protocols and how to conﬁgure the SSR-600 using software.

The SSR-600 can be remotely managed with a third party SNMP compliant network management system.

OPTIONAL FEATURES

Optional features for the SSR-600 include:

•

Rack mounting: The SSR-600 can be installed in a 19-inch rack with the optional mounting bracket kit (Cabletron part number SSR-600-RCK-KIT). Refer to Chapter 3, mounting instructions.

•

SSR-600-ECM auxiliary card. Performs encryption and compression.

•

SWPIMs: Supports Sliding WAN Physical Interface Modules (SWPIMs), including the SWPIM-T1, the SWPIM-E1, and the SWPIM-SY. Check the Release Notes for further information on available SWPIMs.

xvi SSR-600 Installation Guide

Installation

, for rack

Introduction

RELATED MANUALS

The following manuals may help the user to set up and manage the SSR-600:

Cabletron Systems Cabletron Systems

Ethernet Technology Guide Cabling Guide

The manuals referenced above can be obtained on the World Wide Web in Adobe Acrobat Portable Document Format (PDF) at the following site:

http://www.cabletron.com/

Cabletron Systems applicable software manuals for the SSR-600 and the HSIM-SSR-600 host platforms (Cabletron Routing Software Manuals):

Bridging Conﬁguration Guide Event Logging System Message Guide Network Interface Operations Guide Routing Protocols Reference Guide Routing Protocols User's Guide System Software Guide ClearVISN Routing Conﬁgurator User's Guide Systems Network Architecture Guide Quick Reference Guide DTF (Data Trace Facility) User Guide

Use the applicable Cabletron Systems SWPIM document to connect to the WAN using the SWPIM installed in the SSR-600.

SSR-600 Installation Guide xvii

Introduction

DOCUMENT CONVENTIONS

The following conventions may be used in this document:

Note

NOTE

TIP

symbol. Calls the reader’s attention to any item of

information that may be of special importance.

Tip

symbol. Conveys helpful hints concerning procedures or

actions.

!

CAUTION

Caution

damage to the equipment.

Electrical Hazard Warning

that could result in personal injury or death due to an electrical hazard.

symbol. Contains information essential to avoid

symbol. Warns against an action

xviii SSR-600 Installation Guide

Introduction

GETTING HELP

For additional support related to this device or document, contact Cabletron Systems using one of the following methods:

World Wide Web Phone (603) 332-9400 Internet mail [email protected] FTP ftp://ftp.cabletron.com/

Login Password

To send comments or suggestions concerning this document, contact the Cabletron Systems Technical Writing Department via the following email address: [email protected]

Make sure to include the document Part Number in the email message.

http://www.cabletron.com/

anonymous your email address

Before calling Cabletron Systems, have the following information ready:

•

Your Cabletron Systems service contract number

•

A description of the failure

•

A description of any action(s) already taken to resolve the problem (e.g., changing mode switches, rebooting the unit, etc.)

•

The serial and revision numbers of all involved Cabletron Systems products in the network

•

A description of your network environment (layout, cable type, etc.)

•

Network load and frame size at the time of trouble (if known)

•

The device history (i.e., have you returned the device before, is this a recurring problem, etc.)

•

Any previous Return Material Authorization (RMA) numbers

SSR-600 Installation Guide xix

Introduction

xx SSR-600 Installation Guide

CHAPTER 1

OVERVIEW OF THE SSR-600

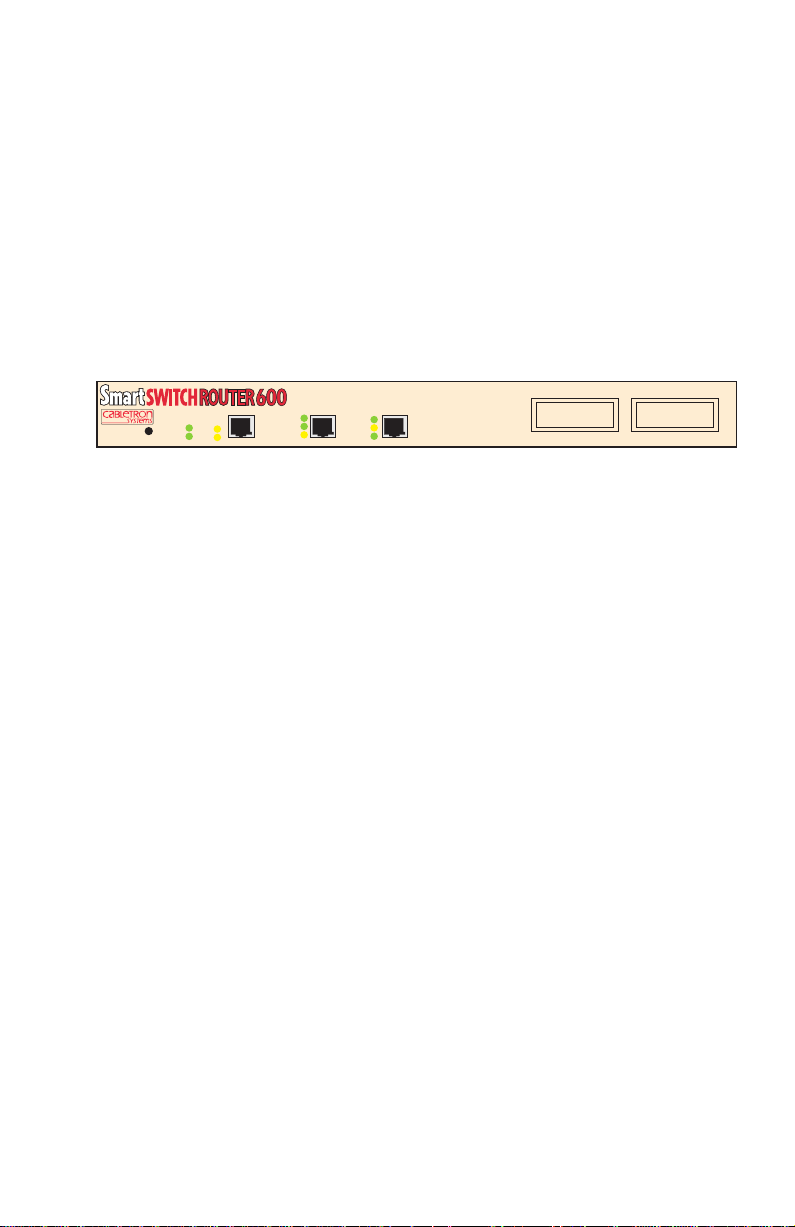

The SSR-600 (Figure 1-1) is a device that provides Ethernet Local Area Network (LAN) connectivity via two ﬁxed Ethernet ports, and offers high-speed Wide Area Network (WAN) access to remote sites via two optional Sliding WAN Physical Interface Modules (SWPIMs).

The SSR-600 operates from a standard ac power source.

WIDE AREA 2WIDE AREA 1

RESET

ETHERNET 1 ETHERNET 2

10/100 10/100

PWR

LNK

CPU

STS

SPD/100

CONSOLE

SPD/100 XMT RCV

XMT

RCV

TELCO TELCO

Figure 1-1 SSR-600

1.1 SSR-600 HARDWARE

This section details the hardware capabilities of the SSR-600.

1.1.1 WAN Connection

The WAN connections to the SSR-600 are provided by the optional SWPIMs. The SSR-600 supports certain WAN protocols depending on the SWPIM installed. Refer to the appropriate SWPIM manual for detailed information on the SWPIMs chosen for installation.

• The SWPIM-T1 provides a T1 interface through a front panel RJ45

port and includes a built-in Channel Service Unit/Digital Service Unit (CSU/DSU) for direct connection to a T1 line. The SWPIM-T1 provides both Full T1 or Fractional T1 using 56 or 64 Kbps Time Slots, with a total throughput of up to 1.544 Mbps (1.536 payload bandwidth).

• The SWPIM-SY provides a synchronous serial connection of up to

2.048 Mbps to external communications equipment (e.g., a multiplexer or CSU/DSU). The SWPIM-SY uses a subminiature 36-pin connector that supports these electrical signal interfaces: EIA-RS449, V.35, EIA-RS232D, X.21, EIA-RS530, EIA-530A.

SSR-600 Installation Guide 1-1

Chapter 1: Overview of the SSR-600

• The SWPIM-DDS provides a 56 Kbps or 64 Kbps Digital Data

Service (DDS) connection. The SWPIM-DDS supports remote CSU diagnostic or 64 Kbps clear channel loopback and non-latching remote DSU diagnostic loopback.

• The SWPIM-E1 provides an E1 interface through a front panel RJ45

port and includes a built-in CSU/DSU for direct connection to an E1 line. The SWPIM-E1 provides both Full E1 or Fractional E1 using 56 or 64 Kbps Time Slots with a total throughput of up to 2.048 Mbps (1.984 Mbps payload bandwidth).

• The SWPIM-BRI provides an Integrated Services Digital Network

(ISDN) 64 or 128 Kbps Basic Rate Interface (BRI) for the SSR-600, and supports both the S/T-interface and the U-interface. The SWPIM-BRI can be used for Dial-up access. The SWPIM-BRI can also provide an ISDN back-up link for a remote site or branch ofﬁce when the main SWPIM for a frame relay or leased line loses a connection or becomes disabled. An NT-1 adapter is necessary for this interface in the United States.

1.1.2 Ethernet LAN Connection

The SSR-600 provides 10/100 Mbps Ethernet/IEEE 802.3 support through two ﬁxed front panel Fast Ethernet ports.

1.1.3 FLASH EEPROMs

The SSR-600 uses a FLASH Electrically Erasable Programmable Read-Only Memory (EEPROM) that allows new firmware to be downloaded using BootP or TFTP protocols.

1-2 SSR-600 Installation Guide

Remote Management

1.1.4 LANVIEW LEDs

Cabletron Systems LANVIEW Status Monitoring and Diagnostics System is a troubleshooting tool that helps in diagnosing power failures, collisions, cable faults, and link problems. The LANVIEW LEDs are located on the SSR-600 front panel.

1.1.5 RESET Button

The front panel RESET button reboots the SSR-600 and initializes the processor. The RESET button is also used with the mode switches to clear NVRAM.

1.1.6 Console Port

The console port of the SSR-600 is used to access software management by a direct connection to the SSR-600. Command Line Interface (CLI) is used to communicate with the SSR-600. Refer to Appendix A for the pinouts of the console cable. Use the applicable Cabletron Systems software manuals for further information on the management of the SSR-600. Refer to Related Manuals in the Introduction.

1.2 REMOTE MANAGEMENT

The SSR-600 can be remotely managed with any third party SNMP compliant network management packages.

SSR-600 Installation Guide 1-3

Chapter 1: Overview of the SSR-600

1.3 OPTIONAL FEATURES

Rack Mounting Capabilities - The SSR-600 can be installed in a

19-inch rack with the optional mounting brackets and screws (Cabletron part number SSR-600-RCK-KIT). Refer to Chapter 3 for complete rack mounting instructions.

SSR-600-ECM Auxiliary Card - Designed to authenticate, encrypt,

generate public keys and/or compress data packets stored in the host platform’s shared memory, the SSR-600-ECM will also decrypt and expand packets that have been encrypted and compressed.

This optional hardware data compression/encryption module accelerates data compression for the SSR-600 over Nailed-up PPP, or ISDN and Frame Relay with PPP riding underneath them. Depending on the packet type and size, hardware data compression provides data compression for enhanced throughput on each T-1 SWPIM interface. To use the hardware data compression module, compatible equipment such as another SSR-600, or other vendors equipment which conforms to the applicable standards, must be in use at both ends of the WAN link. When the hardware data compression module is installed on the board, it automatically assumes the compression task from software. There is no conﬁguration necessary to prioritize hardware over software compression.

SWPIMs - The SWPIMs are the interface for the WAN connections for

the SSR-600. Available as listed in the Release Notes. Refer to

Section 1.1.1 for details.

1-4 SSR-600 Installation Guide

CHAPTER 2

NETWORK REQUIREMENTS

Before installing the SSR-600, review the requirements and speciﬁcations referred to in this chapter concerning the following:

• 10BASE-T Twisted Pair Network (Section 2.1)

• 100BASE-TX Twisted Pair Network (Section 2.2)

The network installation must meet the guidelines in this chapter and in the documents referenced in this chapter to ensure satisfactory performance of the equipment. Failure to follow the guidelines may produce poor network performance. These guidelines are speciﬁcally for the ﬁxed twisted pair front panel ports only, Ethernet 1 and Ethernet 2. For the different SWPIMs that can be installed in the SWPIM slots, refer to the applicable installation guide for the speciﬁc SWPIM.

NOTE

The Cabletron Systems following sections, can be found on the Cabletron Systems World Wide Web site:http://www.cabletron.com/

Cabling Guide

, referred to in the

2.1 10BASE-T NETWORK

When connecting a 10BASE-T segment to either of the SSR-600 ports, ensure that the network meets the Ethernet network requirements of the IEEE 802.3 standard for 10BASE-T. Refer to the Cabletron Systems Cabling Guide for details.

NOTE

If a port is to operate at 100 Mbps, Category 5 cabling must be used. For 10 Mbps operation only, Category 3 cabling can be used. Refer to Section 2.2 for information about 100BASE-TX networks and cabling.

SSR-600 Installation Guide 2-1

Chapter 2: Network Requirements

2.2 100BASE-TX NETWORK

The two ﬁxed front panel ports of the SSR-600 provide an RJ45 connection that supports Category 5 UTP cabling. The device at the other end of the twisted pair segment must meet IEEE 802.3u 100BASE-TX Fast Ethernet network requirements for the devices to operate at 100 Mbps. Refer to the Cabletron Systems Cabling Guide for details.

NOTE

The ﬁxed ports of the SSR-600 support Category 5 UTP cabling with an impedance between 85 and 111 ohms for 10 and 100 Mbps operation.

The SSR-600 is capable of operating at either 10 or 100 Mbps. The SSR-600 automatically senses the speed of the other device and adjusts its speed accordingly.

2.3 WAN NETWORK REQUIREMENTS

Each SWPIM has to meet its own cabling and network requirements to be properly connected to the WAN. Please refer to the appropriate SWPIM user’s guide for requirements.

2-2 SSR-600 Installation Guide

CHAPTER 3

INSTALLATION

This chapter outlines the procedure for setting up the SSR-600 and attaching it to the network. Ensure that the network meets the guidelines and requirements outlined in Chapter 2 before installing the SSR-600. Sections of this installation procedure may require the following items:

• Antistatic wrist strap (provided with the SSR-600)

• Phillips screwdriver

3.1 GUIDELINES FOR INSTALLATION

Only qualiﬁed personnel should perform installation procedures.

Do not connect SWPIM ports to the network before they are conﬁgured. The WAN connection can be cut off by the phone

!

CAUTION

company if the SWPIM is not conﬁgured properly, or is connected before being conﬁgured.

Installation sites must be within reach of the network cabling and meet the requirements listed below:

• A properly grounded power receptacle must be within se ven feet of the

location. If using the SSR-600-D, two power receptacles on two different circuits are recommended for redundancy. One receptacle is sufﬁcient for the SSR-600-S.

• In a shelf installation, the shelf must be able to support 13.8 kg

(30.4 lb) of static weight for each device on the shelf.

• Maintain a temperature of between 5°C (41°F) and 40°C (104°F) at

the installation site with ﬂuctuations of less than 10°C (50°F) per hour.

• Maintain a two-inch clearance for each side and the back of the device

for adequate ventilation.

SSR-600 Installation Guide 3-1

Chapter 3: Installation

3.2 UNPACKING THE SSR-600

Unpack the SSR-600 as follows:

1. Remove the shipping material from the box and carefully remove the

SSR-600.

2. Visually inspect the SSR-600. If there are any signs of damage,

contact Cabletron Systems (refer to the Getting Help section) immediately.

3. Read any SSR-600 Release Notes included in the shipping box for any

important up-to-date information before proceeding.

3.3 INSTALLING OPTIONS

If you have purchased the SSR-600-ECM auxiliary card, it must be installed before proceeding. The cover of the SSR-600 must be removed to install this option. The SSR-600 cover does not need to be removed to install the SWPIMs.

The Cabletron Systems Sliding WAN Physical Interface Modules (SWPIMs) can be installed before or after the SSR-600-ECM installation. Refer to Section 3.3.3.

The SWPIM and SSR-600-ECM options are sensitive to static discharges. Use a grounding strap and observe all static

!

CAUTION

precautions during installation. Failure to do so could result in damage to the SWPIMs, SSR-600-ECM, or the SSR-600.

3.3.1 Removing the SSR-600 Cover

This section describes how to remove the SSR-600 chassis cover. The cover must be removed to install an SSR-600-ECM or to change switch positions when necessary.

Do not remove the cover from the SSR-600 while power is applied to the unit. Do not power up the device again until the cover and screws are back in place.

3-2 SSR-600 Installation Guide

Installing Options

To remove the chassis cover, proceed as follows:

1. Disconnect the SSR-600 from the network as follows (if applicable): a. Unplug the power cord(s) from the rear of the SSR-600 chassis.

Before performing step b, mark any cables connected to the

TIP

SSR-600 according to their associated port numbers. This is recommended for ease of reinstallation.

b. Disconnect any network cables attached to the SSR-600.

2. Use a Phillips screwdriver to remove the four screws that attach the

chassis cover to the unit. (See Figure 3-1).

3. While facing the back of the unit, remove the chassis cover by pulling

the cover toward you, then up and off the chassis.

A) Removing the Cover Screws

B) Lifting the Cover Off

3032_04

Figure 3-1 Removing the Chassis Cover

SSR-600 Installation Guide 3-3

Chapter 3: Installation

3.3.2 Optional SSR-600-ECM Installation

Failure to f ollow the procedures in the indicated documentation can result in damage to either the installed option or the

!

CAUTION

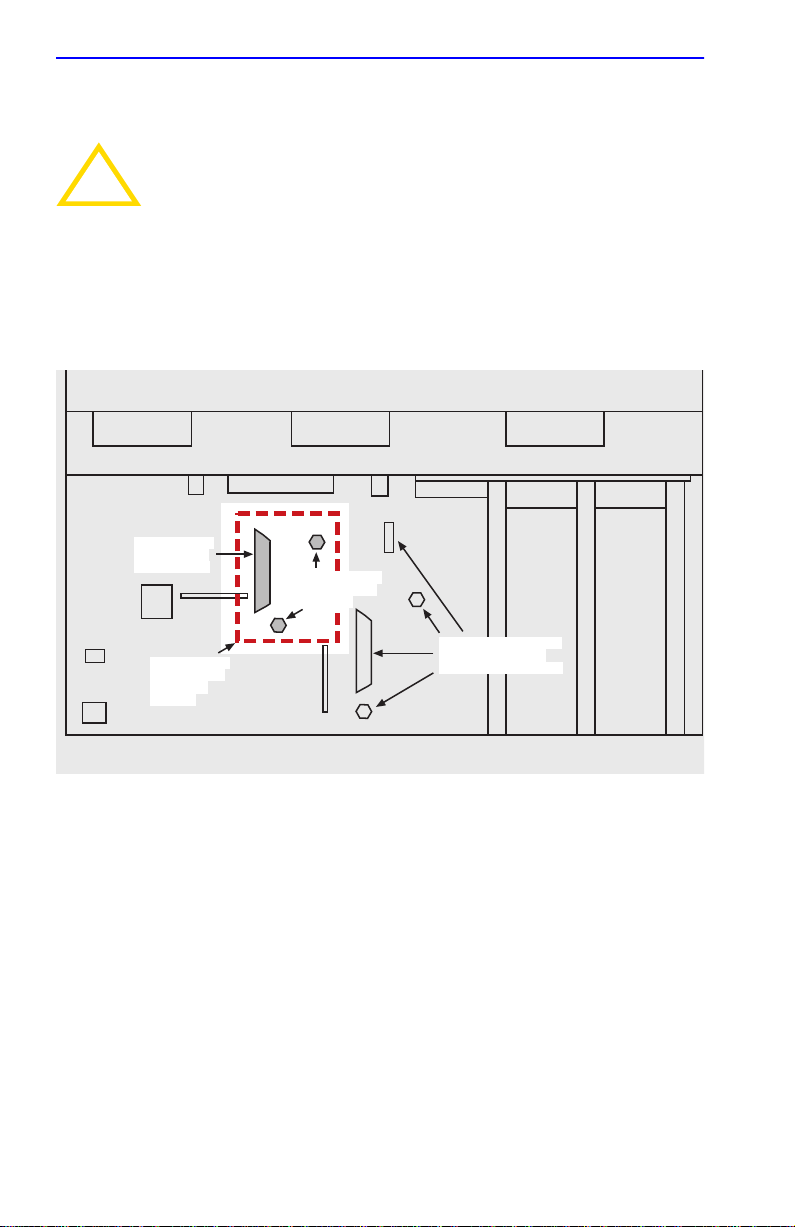

Figure 3-2 details the board layout of the SSR-600 to show where the

SSR-600-ECM can be installed. To install an SSR-600-ECM to enhance the performance of your SSR-600, refer to the instructions enclosed with the SSR-600-ECM.

SSR-600.

Fan

SSR-600-ECM Auxiliary Card "D" Connector

SSR-600-ECM Auxiliary Card Installation Location

Fan

SSR-600-ECM Auxiliary Card Standoffs

Optional Auxiliary Card Installation Location screws and connectors

FRONT PANEL

Figure 3-2 Option Placement

SWPIM SLOT

Fan

SWPIM SLOT

3032_05

3-4 SSR-600 Installation Guide

Installing Options

3.3.3 Installing Sliding WAN Physical Interface

Modules

The SSR-600 is capable of having up to two Sliding WAN Physical Interface Modules (SWPIMs) installed into its chassis. Figure 3-3 indicates the ports in the SSR-600 into which the SWPIMs can be installed.

Failure to follow the procedures for installation in the indicated documentation can result in damage to either the installed

!

CAUTION

option or the SSR-600.

WIDE AREA 2WIDE AREA 1

3032_06

RESET

ETHERNET 1 ETHERNET 2

10/100 10/100

PWR

LNK

CPU

STS

SPD/100

CONSOLE

SPD/100 XMT RCV

XMT RCV

TELCO TELCO

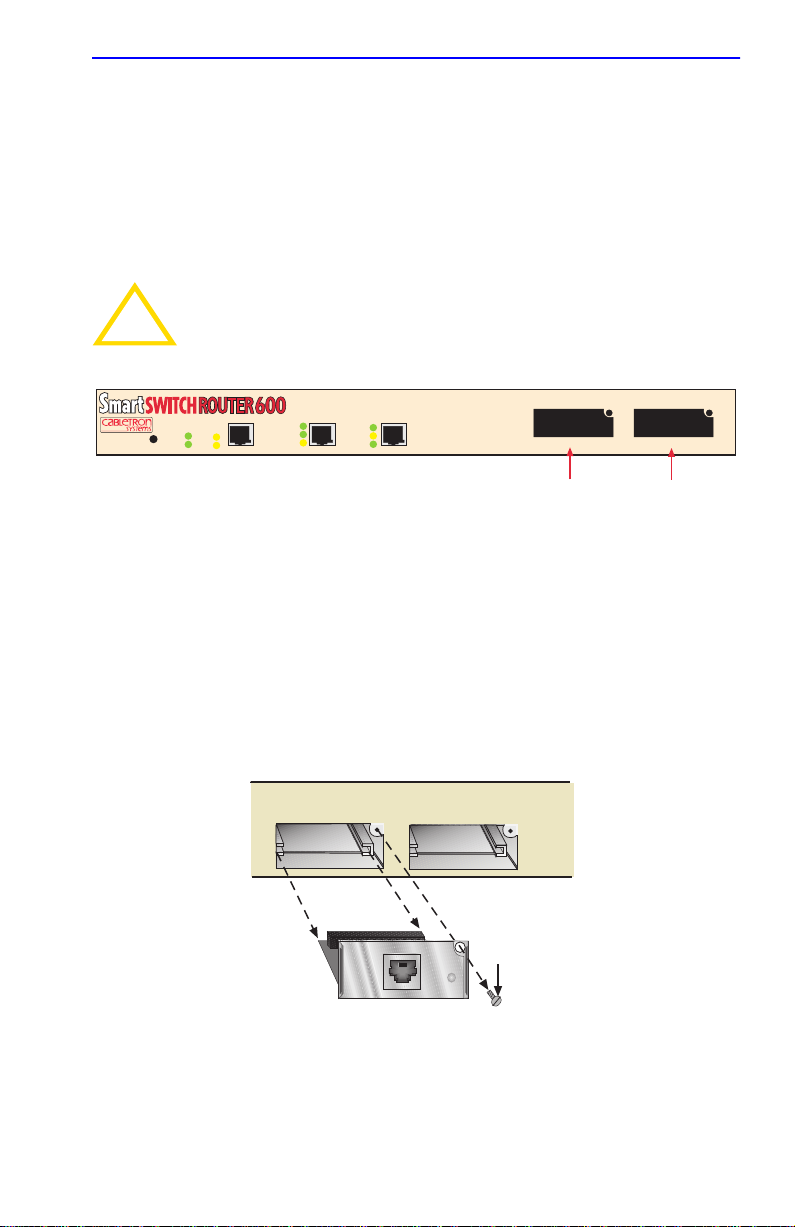

SWPIM Installation Ports

Figure 3-3 WAN SWPIM Ports

Refer to the applicable SWPIM Installation Guide for information on how to safely install an SWPIM in the SSR-600 to enhance the capabilities of your SSR-600. After installing your SWPIM, refer to the applicable software guide for information on how to configure the SWPIM to connect it to the WAN. Refer to the Related Manuals section in the

Introduction.

Mounting Screw

SWPIM

1098_19

Figure 3-4 Removing an Existing SWPIM

SSR-600 Installation Guide 3-5

Chapter 3: Installation

3.4 INSTALLING THE SSR-600

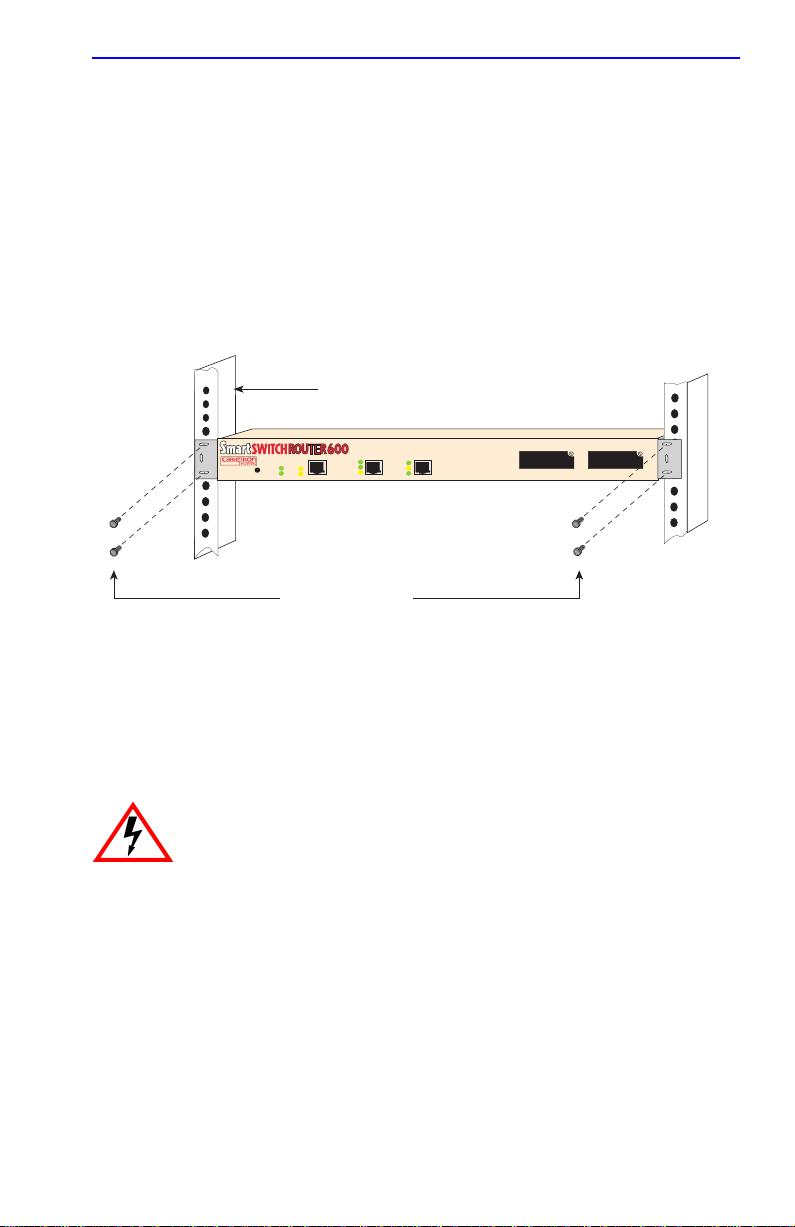

The SSR-600 may be installed on a tabletop, shelf or in a 19-inch rack. Refer to Section 3.4.1 for information concerning a tabletop or shelf

installation. Section 3.4.2 describes the rackmount installation.

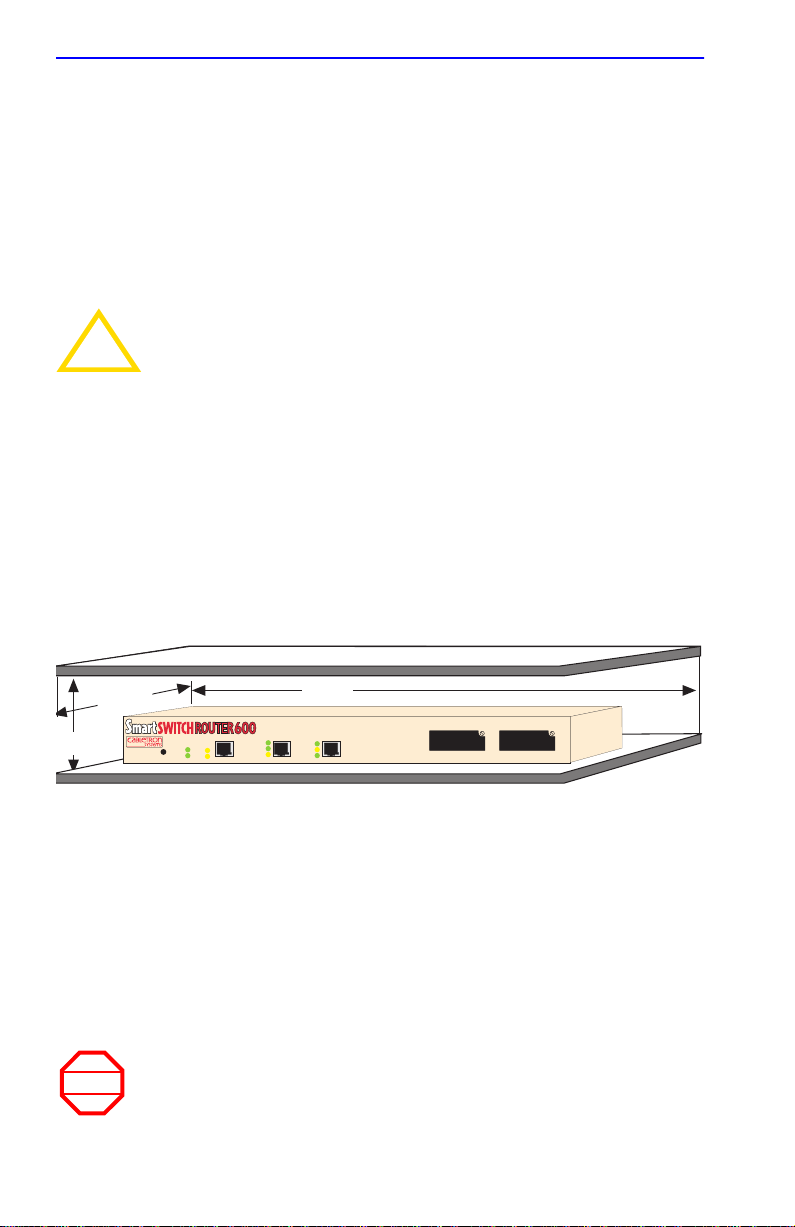

3.4.1 Tabletop and Shelf Installations

Before performing installation procedures, ensure that the requirements outlined in Section 3.1, Guidelines f or Installation,

!

CAUTION

To install the SSR-600 on a tabletop or shelf, locate the SSR-600 within seven feet of its power source with an unrestricted free surface area as shown in Figure 3-5, and complete the following steps:

1. Locate the four rubber feet included with your SSR-600.

2. Peel the paper backing off the rubber feet, and adhere them to the

are met.

bottom of the SSR-600. Place one rubber foot near each of the four corners of the SSR-600.

16 IN.

18 IN.

PWR

LNK

CPU

STS

RESET

CONSOLE

ETHERNET 1 ETHERNET 2

10/100 10/100

SPD/100

XMT RCV

21 IN.

SPD/100

XMT

RCV

WIDE AREA 2WIDE AREA 1

TELCO TELCO

2012_07

Figure 3-5 Tabletop or Shelf Installation

Continue the installation by connecting power as described in Section 3.5.

3.4.2 SSR-600 Rackmount Installation

The optional rackmount kit, part number SSR-600-RCK-KIT, is used to install the SSR-600 in a standard 19-inch rack.

Before installing the SSR-600 into a rack, ensure that the rack

WARNING

3-6 SSR-600 Installation Guide

supports the device without compromising the stability of the rack. Otherwise, personal injury and/or equipment damage may result.

Installing the SSR-600

Rackmounting the SSR-600 requires the following steps:

• Attaching the rackmount brackets to the SSR-600

• Installing the SSR-600 in a 19-inch rack

3.4.2.1 Tools Required

• Phillips screwdriver

• Flat blade screwdriver

3.4.2.2 Materials Required

1. The following parts are included in the SSR-600 rackmount kit (see

Figure 3-6):

• rackmount brackets (2)

• 6-32 x 1/4 inch ﬂathead screws (4)

Do not use screws other than those supplied with the SSR-600 to perform the following procedures. The wrong size screws

!

CAUTION

can cause electrical or physical damage to the device.

Rear Flanges

Front End

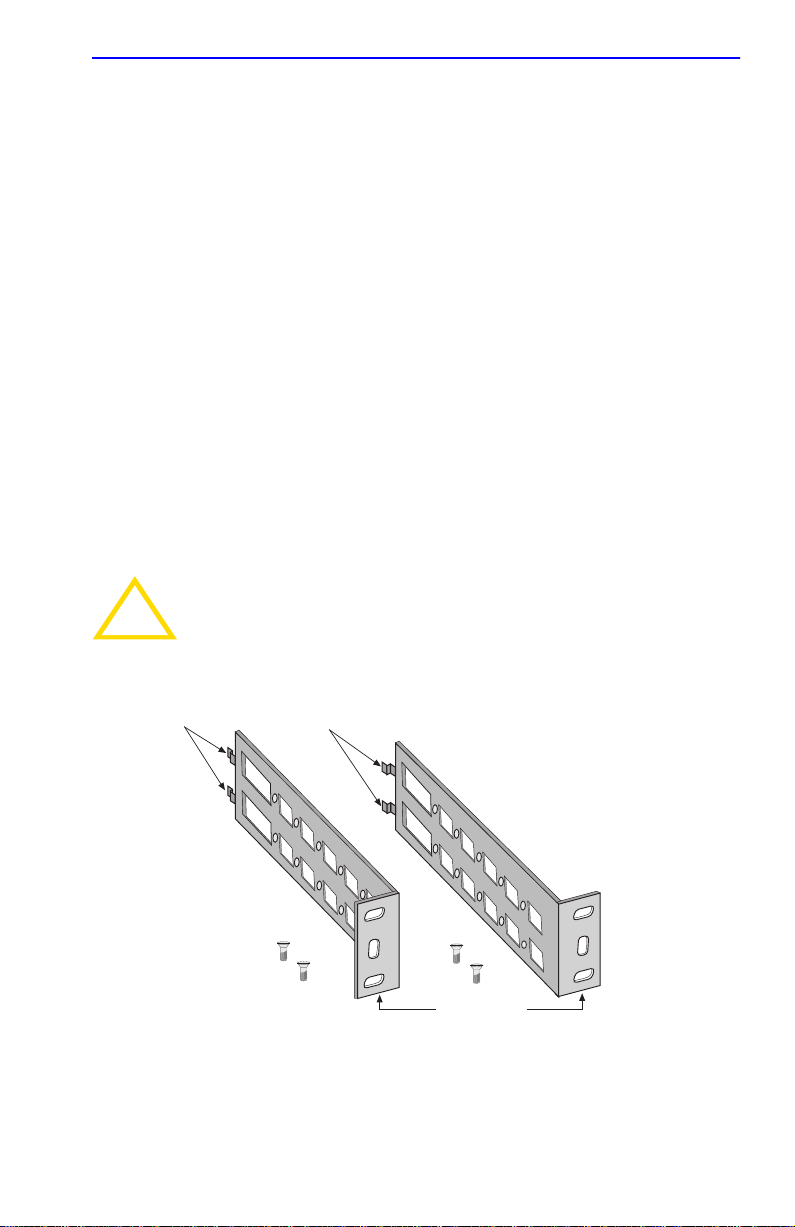

Figure 3-6 SSR-600 Rackmount Hardware

20121_12

SSR-600 Installation Guide 3-7

Chapter 3: Installation

3.4.2.3 Attaching the Rackmount Brackets

Proceed as follows to attach the rackmount brackets:

1. Locate the two rackmount brackets.

2. With the faceplate, or front of the SSR-600, towards you, align the

front of the bracket with the front of the SSR-600. Locate the slots that align with the rear flanges of the bracket. See Figure 3-7.

3. Swing the front of the bracket out and insert the flanges into the slots.

If the front of the bracket does not line up with the front of the SSR-600 and the screw holes when you swing it in to the SSR-600, readjust the position until it does. See Figure 3-7.

Bracket Screw Holes

WIDE AREA 2WIDE AREA 1

TELCO TELCO

3032_02

Figure 3-7 Aligning the Brackets for Installation

4. Use two of the four 6-32 x 1/4 inch ﬂathead screws to attach the

bracket along the top edge of the SSR-600. See Figure 3-8.

ETHERNET 1 ETHERNET 2

10/100 10/100

SPD/100

CONSOLE

XMT

RCV

Rackmount Brackets (2)

Screws (4)

TELCO TELCO

PWR

LNK

CPU

STS

RESET

Figure 3-8 Installing the Rackmount Brackets

3-8 SSR-600 Installation Guide

WIDE AREA 2WIDE AREA 1

2012_09

Installing the SSR-600

5. Repeat steps 1 through 4 for the other side.

6. The SSR-600 may be mounted with the back of the unit facing out of

the rack. In this position, the screws will be attached along the bottom edge of the SSR-600 (the SSR-600 must be right-side up). Otherwise, all other instructions apply, substituting the back of the SSR-600 for the front in the instructions.

7. Position the SSR-600 between the vertical frame members of the

19-inch rack, as shown in Figure 3-9.

19-Inch Rack

WIDE AREA 2WIDE AREA 1

2012_10

PWR

LNK

CPU

STS

RESET

Mounting Screws (4)

CONSOLE

ETHERNET 1 ETHERNET 2

10/100 10/100

SPD/100

XMT RCV

SPD/100

XMT RCV

TELCO TELCO

Figure 3-9 Installing the SSR-600 in a 19-Inch Rack

8. Fasten the SSR-600 to the rack with the mounting screws shipped with

the 19-inch rack.

9. The rackmount installation is complete.

The rack mount brackets in this kit are intended for mounting the SSR-600 in a 19-inch rack for a static environment. Do not ship a 19-inch rack with the SSR-600 mounted in it. Damage may occur to the brackets and the SSR-600.

SSR-600 Installation Guide 3-9

Chapter 3: Installation

3.5 CONNECTING TO THE POWER SOURCE

NOTE

The SSR-600 has universal power supplies. This allows you to connect the SSR-600 to power sources of 100–125 or 200–240 Vac, at 50 or 60 Hz. The voltage is automatically sensed when the power cord is plugged in.

To connect the SSR-600 to the power source, perform the following steps:

1. Plug the power cord into the back panel of the SSR-600.

2. Plug the other end of the power cord into a grounded wall outlet.

NOTE

The SSR-600-D may use either one of the power supplies. When only one is plugged in, there is no redundancy. When both power supplies are plugged in, one is redundant, so that if the power supply in use fails , the other will supply power to the unit to keep it in operation. It is recommended that the power cords be plugged into two separate power lines in order to increase the redundancy factor.

The SSR-600-S has only one power cord for its single power supply, therefore needs only one power connection.

3. Verify that the PWR LED is either solid green or solid yellow,

indicating that the SSR-600 is receiving power. After the SSR-600 runs a self test, the CPU LED goes solid green indicating normal operation. If the LED does not go solid green in a reasonable period of time, this indicates that the processor is faulty. Contact Cabletron Systems (refer to Getting Help in the Introduction).

3-10 SSR-600 Installation Guide

Connecting to the Network

3.6 CONNECTING TO THE NETWORK

This section provides the procedures for connecting the Ethernet ports of the SSR-600 to the network, and directions for information on connecting the WAN ports. For more information, refer to Chapter 2.

3.6.1 Connecting to the Fast Ethernet Ports

The two ﬁxed front panel ports of the SSR-600 are 10/100 Fast Ethernet ports with internal crossovers. When connecting a workstation to the SSR-600, use a straight-through cable. When connecting other networking devices, such as a bridge, repeater, or router to the SSR-600, use a crossover cable.

NOTE

Category 5 Unshielded Twisted Pair (UTP) cabling with an impedance between 85 and 111 ohms. Category 3 cable may be used if the connection is only going to be used for 10 Mbps.

Connect a twisted pair segment to one of the Fast Ethernet ports on the SSR-600 as follows:

1. Ensure that the device connected to the other end of the segment is

powered ON.

2. Connect the twisted pair segment to the SSR-600 by inserting the RJ45

connector on the twisted pair segment into the desired RJ45 port as shown in Figure 3-10. Do not connect a cable connected to an Ethernet port to the console port.

The SSR-600’s two Fast Ethernet front panel ports support

.

ETHERNET 1 ETHERNET 2

10/100 10/100

RESET

PWR

LNK

CPU

STS

SPD/100

CONSOLE

SPD/100 XMT RCV

XMT

RCV

TELCO TELCO

WIDE AREA 2WIDE AREA 1

3032_01

Figure 3-10 Connecting a Twisted Pair Segment

SSR-600 Installation Guide 3-11

Chapter 3: Installation

3. Verify that a link exists by checking that the port RCV (Receive) LED

is ON (flashing amber, blinking green, or solid green). If the RCV LED is OFF and the XMT (Transmit) LED is not blinking amber, perform the following steps:

a. Verify that the cabling being used is Category 5 UTP with an

impedance between 85 and 111 ohms. If the port is to operate at 100 Mbps, category 5 cabling must be used.

b. Verify that the device at the other end of the twisted pair segment

is on and properly connected to the segment.

c. Verify that the RJ45 connectors on the twisted pair segment have

the proper pinouts (Figure 3-11 and Figure 3-12) and check the cable for continuity. Typically, a crossover cable is used between a switching or hub device and an end user (computer). A straight-through cable is used between hub devices.

TO TO SSR600 Ethernet Port Other Device Port

RX+ 1 1 RX+

NOTE: RX+/RX- and TX+/TXmust share a common color pair.

RX- 2 2 RX-

TX+ 3 3 TX+ TX- 6 6 TX-

RJ45 to RJ45

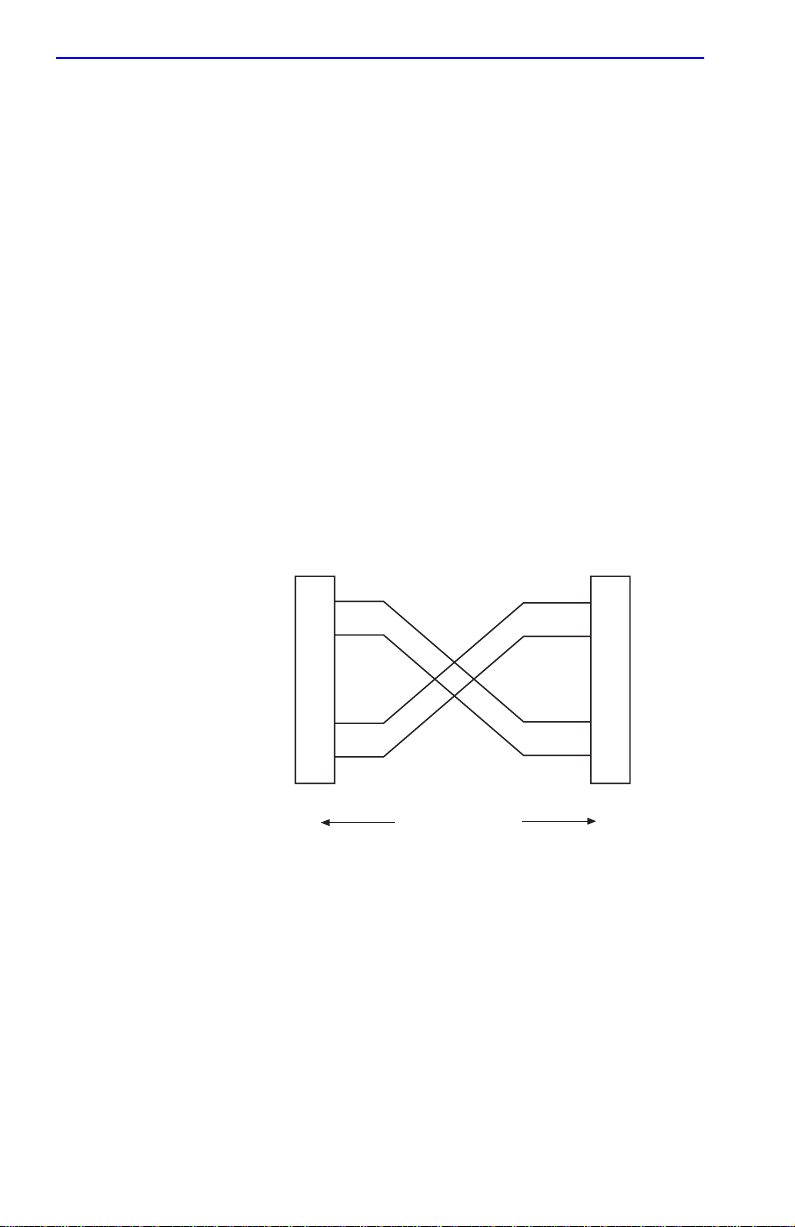

Figure 3-11 Crossover Cable RJ45 Pinouts

3-12 SSR-600 Installation Guide

Software Conﬁguration

TO TO SSR600 Ethernet Port Other Device Port

RX+ 1 1 RX+

NOTE: RX+/RX- and TX+/TXmust share a common color pair.

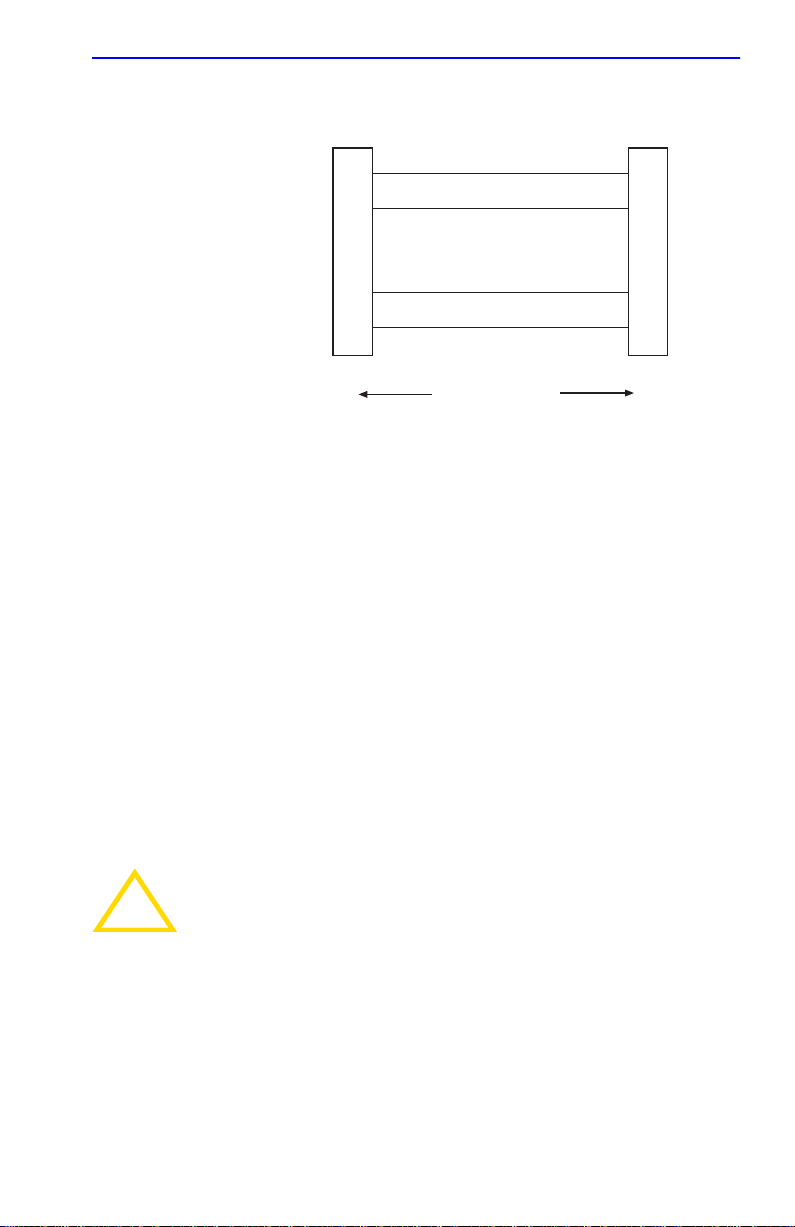

Figure 3-12 Straight-Through Cable RJ45 Pinouts

RX- 2 2 RX-

TX+ 3 3 TX+ TX- 6 6 TX-

RJ45 to RJ45

d. Ensure that the twisted pair connection meets the dB loss and

cable specifications outlined in the Cabletron Systems Cabling Guide. Refer to the Introduction for information on obtaining this

document.

If a link can not be established, contact Cabletron Systems. Refer to

Getting Help, in the Introduction, for details.

4. Repeat steps 1 through 3 above, for both connections, as needed.

3.6.2 Connecting SWPIMs to the WAN

Refer to the applicable Cabletron Systems SWPIM manual for information on connecting any SWPIMs to the WAN that you have installed into the SSR-600.

Do not connect any WAN cables without checking the guidelines and insuring that the software set-up in the SSR-600

!

CAUTION

is complete. The WAN connection can be shut off by the phone company if the SSR-600 is not set up properly.

3.7 SOFTWARE CONFIGURATION

Refer to the applicable Cabletron Systems software manual to conﬁgure the SSR-600. Refer to the Related Manuals list in the Introduction.

SSR-600 Installation Guide 3-13

Chapter 3: Installation

3-14 SSR-600 Installation Guide

CHAPTER 4

TROUBLESHOOTING, SWITCHES, AND

LED INDICATIONS

This chapter is used to aid in determining hardware indications of operation and problems, and switch settings.

Figure 4-1 shows the front panel LEDs for the SSR-600. Table 4-1, Table 4-2, and Table 4-3 describe LED states.

Table 4-4 describes switch positions.

If you are having difﬁculty installing and conﬁguring the SSR-600, perform the following steps:

• Review Chapter 3 (Installation).

• Verify that power has been applied to the SSR-600.

• Check that all cables and connectors have been attached properly.

FAST ETHERNET SPD/100 (Speed) XMIT (Transmit) RCV (Receive)

Recessed Reset Button

WIDE AREA 2WIDE AREA 1

RESET

ETHERNET 1 ETHERNET 2

10/100 10/100

PWR

LNK

CPU

STS

SPD/100

CONSOLE

SPD/100

XMT RCV

XMT

RCV

TELCO TELCO

LNK (Link) STS (Status)

PWR (Power) CPU (Processor)

Figure 4-1 SSR-600 Front Panel LEDs

SSR-600 Installation Guide 4-1

Chapter 4: Troubleshooting, Switches, and LED Indications

4.1 FRONT PANEL LED INDICATIONS

Table 4-1 SSR-600 Hardware LED States

LED Color State

None of the installed power supplies are operating, and the battery backup board is not operating (or not installed).

All installed power supplies are operational.

One power supply is operational, and the other is not operating (this indication only applies when 2 power supplies are installed).

None of the installed power supplies are operating, and the on-board battery back up is operational.

System not fully operational.

Power (PWR)

Processor (CPU)

OFF

SOLID GREEN

SOLID YELLOW

BLINKING RED

OFF Power off. SOLID GREEN System is fully operational. BLINKING

YELLOW SOLID YELLOW Power-up testing being performed. BLINKING RED Fault condition detected (fatal error). SOLID RED System is in reset mode.

4-2 SSR-600 Installation Guide

Front Panel LED Indications

Table 4-2 Console Port LEDs

LED Color State

OFF No modem or no data. SOLID GREEN Modem attached, ready.

Link (LNK)

Status (STS)

LED Color State

FLASHING YELLOW

SOLID RED Modem attached, not ready. OFF Port idle, no connection. BLINKING

GREEN SOLID GREEN Modem attached, carrier detected. BLINKING

YELLOW SOLID YELLOW Console attached.

Table 4-3 SSR-600 LAN LED States

Modem attached, passing data. Console attached, passing data.

Modem attached, carrier not detected.

Port in test mode.

Fast Ethernet Speed (SPD/100)

Transmit (XMT)

Receive (RCV)

OFF Speed is 10 Mbps. SOLID GREEN Speed is 100 Mbps. OFF No Activity, port enabled. FLASHING

GREEN BLINKING

YELLOW FLASHING RED Fault or error (collision). SOLID RED Diagnostic failure.

OFF BLINKING

GREEN SOLID GREEN Link. No activity, port enabled. FLASHING

YELLOW SOLID RED Diagnostic failure.

Activity, port enabled.

Port in standby.

No link. No activity. Port enabled or disabled.

Link. Port disabled.

Link, activity, port enabled.

SSR-600 Installation Guide 4-3

Chapter 4: Troubleshooting, Switches, and LED Indications

4.2 SWITCHES

The SSR-600 has two switches on the main motherboard, a thermal switch and a switch bank.

Thermal Switch

The thermal switch will close if the temperature inside the device exceeds 65°C when the SSR-600 is operating. The thermal switch then notiﬁes the processor that the temperature in the SSR-600 exceeded 65°C. This information can be used to send a trap and/or log a message.

Switch Bank

The four-position switch bank has the functions shown in Table 4-4. The SSR-600 must be reset or powered down for the ﬁrmware to recognize the settings of the switches, and then implement any changes.

Table 4-4 Four Position Switch Bank Functions

Switch Function

1 Force download 2 Restore defaults 3 Currently unused 4 Currently unused

The switch is used for the following functions:

• Force download is used when the user wants to force the SSR-600 to

download a new image at bootup.

• Restore Defaults is used to return the SSR-600 to the factory

conﬁguration.

4-4 SSR-600 Installation Guide

Switches

4.2.1 Switch Function Procedure

These steps must be followed to use the switch function:

1. Remove power to the SSR-600.

2. Remove the cover of the SSR-600. Refer to Section 3.3.1.

3. Refer to Table 4-4 for a description of the switch functions.

4. Locate the switch bank in Figure 4-2. For the function you need, flip

the appropriate switch from one side to the other side. The initial state of the switch does not matter.

5. Replace the cover.

6. Restore power to the SSR-600.

12

3

4

Fan

ON

Fan

Switch Bank

FRONT PANEL

ON

12

3

4

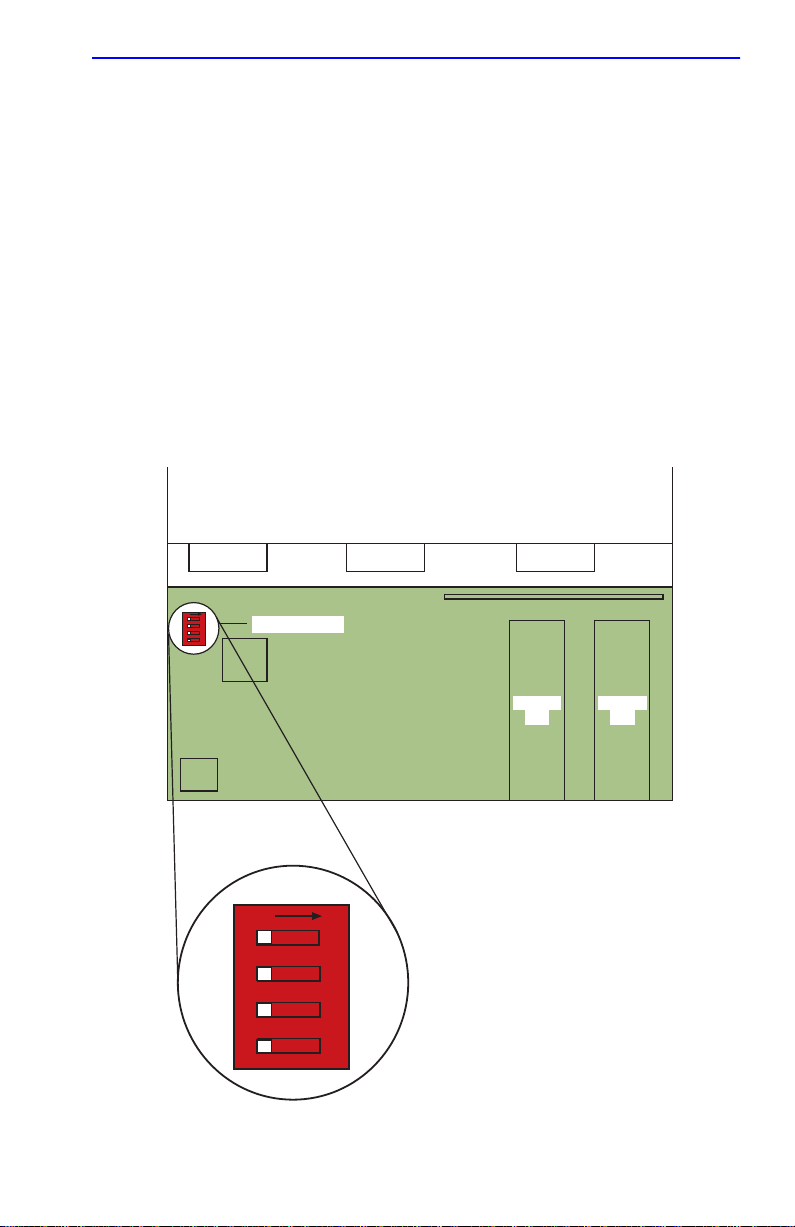

Figure 4-2 Switch Bank Layout

Fan

SWPIM

Slot

SWPIM

Slot

SSR-600 Installation Guide 4-5

Chapter 4: Troubleshooting, Switches, and LED Indications

4.3 TROUBLESHOOTING SSR-600 HARDWARE

Power (PWR) LED is OFF

• Check the power source.

• Check that the power connections are ﬁrmly plugged in to the back

panel of the SSR-600.

Processor (CPU) LED is OFF

The CPU stays OFF for an extended amount of time, and the power (PWR) light remains on. The CPU is in an unknown state.

• Contact Cabletron Systems (refer to Getting Help in the

Introduction).

Processor (CPU) LED is blinking Red

The processor has detected a fault condition, or has failed boot up diagnostics.

• Contact Cabletron Systems (refer to Getting Help in the

Introduction).

4.4 TROUBLESHOOTING THE LAN

Transmit LED is ﬂashing Red

Collisions are normal in an Ethernet network, however, increased collisions may indicate that the network is out of speciﬁcation.

Receive (RCV) LED is OFF

• Check that the SSR-600 and the device at the other end of the

segment are powered up.

• Check that the port is enabled. Refer to the appropriate Cabletron

Systems software manual to enable the port.

• Verify that the RJ45 connectors on the twisted pair segment have

the correct pinouts.

• Check the cable for continuity.

• Check that the cable meets the speciﬁcations for dB loss.

4-6 SSR-600 Installation Guide

APPENDIX A

SPECIFICATIONS

This section describes the environmental speciﬁcations and safety and approval requirements for the SSR-600. Cabletron Systems reserves the right to change these speciﬁcations at any time without notice.

A.1 PHYSICAL PROPERTIES

Dimensions:

Weight (Unit): CPU MPC860MH with 33 MHz clock Flash Memory 8 Meg

MTBF (Predicted): 674,018 hours

Power Requirements

4.45 H x 43.18 W x 39.37 D (cm)

1.75 H x 17.0 W x 15.5 D (in)

6.3 kg (13.8 lb)

Universal power supply: 100-125 Vac, or 200-240 Vac at either 50 or 60 Hz

Current draw:

1.6 A maximum with 100-125 Vac input

0.8 A maximum with 200-240 Vac input SSR-600-S: single power supply. SSR-600-D: dual power supply, redundant power supply capability.

SSR-600 Installation Guide A-1

Appendix A: Speciﬁcations

A.1.1 Console Port

The RJ45 labled “console” on the front panel of the SSR-600 is used to access the Command Line Interface (CLI). Refer to the appropriate software manual for details. See Related Manuals in the Introduction.

Table 1-1 Console Port Connector Pinout

Pin Function

1 Transmit Data 2 Data Carrier Detect 3 Data Set Ready 4 Receive Data 5 Ground 6 Data Terminal Ready 7 Request to Send 8 Clear to Send

A.1.2 Fast Ethernet RJ45 Pinout

The two RJ45s labeled Ethernet 1 and Ethernet 2 have the following pinout:

Table 1-2 Fast Ethernet RJ45 Pinout

Pin Function

1 Receive + 2 Receive 3 Transmit + 4 Not used 5 Not used 6 Transmit 7 Not used 8 Not used

A-2 SSR-600 Installation Guide

Environmental Requirements

A.2 ENVIRONMENTAL REQUIREMENTS

Operating Temperature: +5° to +40°C (41° to 104°F) Non-operating Temperature: -30° to +90°C (-22° to 194°F) Operating Humidity: 5% to 90% (non-condensing)

A.3 REGULATORY COMPLIANCE

Safety

EMI

EMC

NEBS (Bellcore) TR-NWT-000063: Network

UL 1950 (without D3 deviations), CSA C22.2 No. 950, and EN 60950

FCC Part 15 Class A, EN 55022 Class A and VCCI V-3

EN 50082-1 including: IEC 801-2 (ESD), IEC 801-3 (Radiated Susceptibility), and IEC 801-4 (EFT/B)

Equipment Building System (NEBS) Generic Equipment Requirements.

GR-1089-CORE: EMC and Electrical Safety Generic Criteria for Network Telecommunications Equipment.

SSR-600 Installation Guide A-3

Appendix A: Speciﬁcations

A-4 SSR-600 Installation Guide

INDEX

Numerics

100BASE-TX requirements 2-2 10BASE-T

connection 3-11 requirements 2-1

C

Cable specifications

100BASE-TX network 2-2

10BASE-T network 2-1 Connecting to the network 3-11 Console Port 1-3, A-2 Cover

Removing 3-2

D

Daughter Board 1-4 Document Conventions xviii

E

Environmental Requirements A-3 Ethernet LAN Connection 1-2

F

Flash EEPROMs 1-2

SSR-600-ECM 3-4 SWPIMs 3-5

L

LAN support 1-2 LANVIEW LEDs 1-3 LED Indication Tables 4-2

O

Optional Features 1-4 Optional modules

placement in the SSR600 3-4

P

Physical Properties A-1 Power

Connecting the SSR600 3-10

R

Rack Mounting

accessory kit 1-4 Related Manuals xvii Remote Network Management 1-3 RESET Button 1-3 RJ45 Pinout A-2

G

Getting Help xix Guidelines for Installation 3-1

H

Help

related manuals xvii

I

Installation

connecting to the Network 3-11

Installing

Options 3-2 SSR600 3-6

SSR-600 Installation Guide Index-1

S

Software Configuration 3-13 SSR-600-ECM installation 3-4 Switch Bank 4-4 Switches 4-4

T

Thermal Switch 4-4 Troubleshooting 4-1

LAN 4-6

power 4-6

SSR600 Hardware 4-6

Index

U

Unpacking the SSR600 3-2

W

WAN Connection 1-1 WAN Network Requirements 2-2

Index-2 SSR-600 Installation Guide
