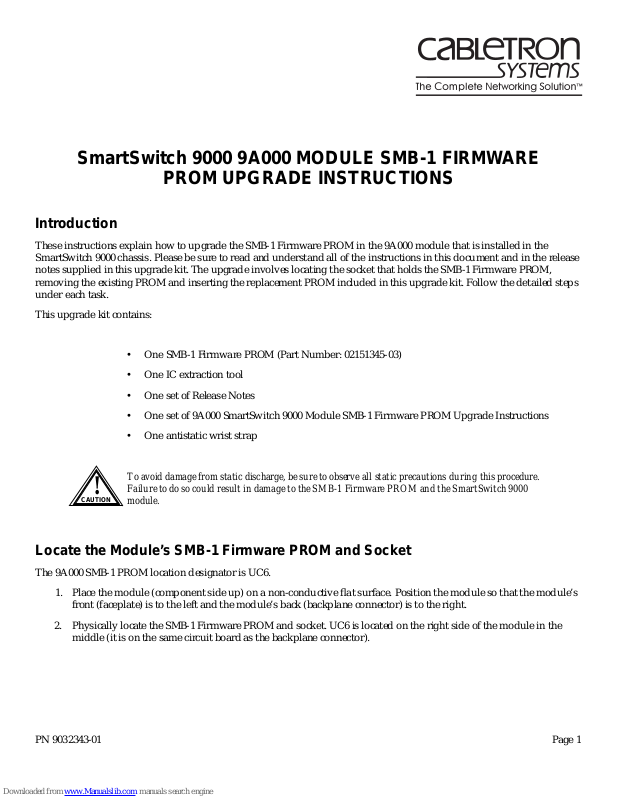

SmartSwitch 9000 9A000 MODULE SMB-1 FIRMWARE

PROM UPGRADE INSTRUCTIONS

Introduction

These instructions explain how to upgrade the SMB-1 Firmware PROM in the 9A000 module that is installed in the
SmartSwitch 9000 chassis. Please be sure to read and understand all of the instructions in this document and in the release
notes supplied in this upgrade kit. The upgrade involves locating the socket that holds the SMB-1 Firmware PROM,
removing the existing PROM and inserting the replacement PROM included in this upgrade kit. Follow the detailed steps
under each task.

This upgrade kit contains:

• One SMB-1 Firmware PROM (Part Number: 02151345-03)

• One IC extraction tool

• One set of Release Notes

• One set of 9A000 SmartSwitch 9000 Module SMB-1 Firmware PROM Upgrade Instructions

• One antistatic wrist strap

To avoid damage from static discharge, be sure to observe all static precautions during this procedure.

!

CAUTION

Failure to do so could result in damage to the SMB-1 Firmware PROM and the SmartSwitch 9000
module.

Locate the Module’s SMB-1 Firmware PROM and Socket

The 9A000 SMB-1 PROM location designator is UC6.

1. Place the module (component side up) on a non-conductive flat surface. Position the module so that the module’s
front (faceplate) is to the left and the module’s back (backplane connector) is to the right.

2. Physically locate the SMB-1 Firmware PROM and socket. UC6 is located on the right side of the module in the
middle (it is on the same circuit board as the backplane connector).

PN 9032343-01 Page 1

Remove the Existing SMB-1 Firmware PROM

To remove the existing SMB-1 Firmware PROM, follow the steps detailed in the instruction sheet packaged with the
extraction tool.

Insert the Replacement SMB-1 Firmware PROM

1. Align the diagonal corner of the replacement SMB-1 Firmware PROM with the diagonal corner of the socket.

2. Gently and evenly push the SMB-1 Firmware PROM into the socket.

3. Reinsert the module in the slot in the SmartSwitch 9000 chassis from which it was taken.

Getting Help

For additional support related to this device or document, contact the Cabletron Systems Global Call Center:

Phone [phone]
Internet mail [e-mail]
FTP ctron.com (134.141.197.25)

Login
Password

BBS [phone]

Modem setting 8N1: 8 data bits, No parity, 1 stop bit

For additional information about Cabletron Systems or its products, visit the
World Wide Web site:
For technical support, select

To send comments or suggestions concerning this document, contact the
Cabletron Systems Technical Writing Department via the following
email address:

Make sure to include the document Part Number in the email message.

http://www.cabletron.com/

[e-mail]

anonymous
your email address

Service and Support

.

Before calling the Cabletron Systems Global Call Center, have the following information ready:

• Your Cabletron Systems service contract number

• A description of the failure

• A description of any action(s) already taken to resolve the problem
(e.g., changing mode switches, rebooting the unit, etc.)

• The serial and revision numbers of all involved Cabletron Systems products in the network

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)

• Any previous Return Material Authorization (RMA) numbers
